Deterioration Envelopes for Predicting Concrete Bridge-Deck Deterioration Due to Chloride Exposure

Abstract

Bridge decks are exposed to chloride ingress from deicing salts, freeze–thaw cycling, and repeated wetting and drying, which gradually degrades the concrete over time. Many existing models treat concrete conditions as static and do not capture time-varying chloride exposure. This study develops deterioration envelopes for concrete bridge decks to predict long-term loss of compressive strength and internal integrity by integrating accelerated laboratory wet–dry and freeze–thaw testing with in-service bridge-deck core measurements from Delaware bridges. The model is supported by three data sources: accelerated laboratory tests, cores from in-service bridges provided by the Delaware Department of Transportation (DelDOT), and climate and asset datasets from the National Oceanic and Atmospheric Administration (NOAA) and the Federal Highway Administration’s (FHWA) InfoBridge™ database. Laboratory specimens (n = 300) were reproduced based on Delaware mix designs from the 1970s and 1980s and were tested in accordance with ASTM and ACI protocols. Environmental conditioning applied wet–dry and freeze–thaw cycles at chloride contents of 0, 3, and 15 percent to replicate field exposure within a shortened test period. Measured properties included compressive strength, modulus of elasticity, resonance frequency, and chloride penetration. The results show a gradual, near-linear reduction in compressive strength and resonance frequency with increasing chloride content over 160 cycles, which corresponds to about 2 to 5 years of service exposure. Resonance frequency was the most sensitive indicator of internal damage across the tested chloride contents. By combining test results, core data, and bridge inspection history into a single durability index, the deterioration envelopes forecast long-term degradation under different chloride exposures, providing a basis for prediction that extends beyond visual inspection.

1. Introduction

Bridges are central components of highway and local transportation networks, providing safe passage for people and freight across rivers, wetlands, rail lines, and low-lying coastal areas [1,2]. The United States has about 617,000 bridges, and the 2021 ASCE Infrastructure Report Card noted that 42 percent of them are at least 50 years old, while about 7.5 percent are in poor or structurally deficient condition, which confirms that age-related deterioration is a system-level issue rather than a few isolated cases [3,4].

Among bridge components, the deck most often shows distress first, because it is directly exposed to traffic abrasion, deicing salts, freeze–thaw cycles, and wetting and drying, especially in cold or marine-influenced regions [5,6,7]. A primary driver of this deterioration is chloride-based deicing salts, essential for winter road safety, which significantly accelerate the deterioration of bridge decks through concrete degradation and reinforcement corrosion, leading to substantial economic costs from traffic disruptions and reconstruction. While direct data on salt application is scarce, climatic conditions can serve as exposure proxies [8,9]. This creates a critical challenge for agencies like the Delaware Department of Transportation (DelDOT), whose interstate bridge decks from the 1980s–1990s are nearing the end of their typical 30-year lifespan. To optimize maintenance funding and extend service life, state agencies have developed bridge-deterioration models to predict structural decline and guide proactive interventions [10]. As bridges age, repeated traffic loading and exposure to chloride-laden moisture increase the need for maintenance, repair, and replacement.

With the increased use of deicing salts for vehicular safety and the threat of increased saltwater encroachment, there is a critical need to accurately predict concrete bridge-deck deterioration due to chloride exposure for effective maintenance planning. For decades, research has focused on steel reinforcement as the critical component when it comes to chloride-induced damage. For example, Demich [11] investigated bridge-deck deterioration caused by deicing chemicals and observed that reinforcement in concrete bridge decks deteriorates significantly due to chloride ingress from deicing salts, leading to corrosion and reduced structural integrity. Jia (2022) [12] analyzed the effect of reducing the cross-sectional area of reinforcing bars due to corrosion on the flexural and shear strength of typical concrete bridge decks. The authors employed ground-penetrating radar to detect corrosion probability at the top reinforcement layer; they subsequently evaluated the structural performance under both flexural and shear failure modes. The study concluded that typical levels of reinforcement corrosion were not sufficient to cause bridge-deck collapse under design loading. Hájková et al. (2018) [13] presented a chemo-mechanical model that links chloride ingress, corrosion initiation, cover cracking and spalling, and the resulting loss of reinforcement area in concrete structures. Applied to two existing chloride-exposed bridges, the model shows that even very small cracks can greatly shorten the predicted time to corrosion initiation, while the analyzed members still retain more than half of their original load-carrying capacity after long-term exposure. Qasim et al. [14] investigated the effect of salinity on the mechanical properties of concrete, including compressive, splitting tensile, and flexural strengths. Concrete specimens cured in NaCl solutions with salt contents between 0% and 5% by weight of water showed an overall reduction in 28-day strength with increasing salinity; for example, the 28-day cylinder compressive strength decreased from 30.0 MPa at 0% salt to 26.1 MPa at 5% salt. The authors attributed these reductions to the damaging action of dissolved salts and the associated sulfate attack on the hardened cement paste. Penttala [15] investigated concrete exposed to freeze–thaw in water and in a 3% NaCl solution and found that the water–cement ratio and air content largely control both surface scaling and internal damage. Concretes with lower water–cement ratios and sufficient air entrainment showed better resistance, while saline freeze–thaw at low water–binder ratios led to more internal damage and required higher air contents to limit it.

Despite significant research on reinforcement bar corrosion-induced deterioration, many transportation agencies have increasingly adopted corrosion-resistant strategies, such as epoxy-coated reinforcement, reducing its role as the primary cause of deterioration [16]. While this effectively delays steel deterioration [17], it shifts the primary mode of failure, and the concrete itself then becomes the critical component governing deck service life. This shift creates a fundamental gap in existing predictive models, since traditional models [17,18] were developed and calibrated largely considering corrosion-based deterioration, as uncoated reinforcement will lead to spalling and cracking of concrete decks. They are, therefore, inadequate for predicting the long-term degradation of the concrete material, which is now the controlling factor in the service life of modern bridge decks. This shift means that future predictive models should place more weight on long-term concrete material degradation and should define deterioration envelopes that include newer preservation practices and materials.

While bridge-deterioration models are important for optimizing maintenance planning and for allocating limited funds [18], models that rely only on historical inspection data have a built-in limitation. In Delaware, for example, DelDOT’s model uses the National Bridge Inventory ratings to learn past deterioration patterns and to project future condition, which works well when the bridge stock and materials remain similar over time. Most of these datasets, however, reflect decks with uncoated reinforcement, so the forecast is driven mainly by corrosion-induced spalling and cracking [17]. Once epoxy-coated reinforcement and other anticorrosion techniques became common in Delaware bridge construction in the 1970s, the steel component of deterioration was delayed [16]. In this case, the concrete itself can become the governing limit on deck service life, not the reinforcement. This shift means that future predictive models should place more emphasis on long-term concrete material degradation and should define deterioration envelopes that include newer preservation practices and materials.

Existing service life and deterioration frameworks for chloride-exposed concrete commonly model chloride ingress, corrosion initiation and propagation, and the resulting cracking or repair timing using mechanistic and probabilistic formulations, which can be rigorous but typically require inputs and calibration data that are rarely available at the inventory scale (for example, cover statistics, exposure-driven surface-chloride histories, and diffusion parameters with quantified uncertainty) [19,20,21].

Recent research also shows that marine-derived constituents, including seawater and coral sand, can be used in engineered cementitious composites to achieve strain-hardening behavior and tight crack control under coastal curing conditions. For example, ref. [22] reported a seawater and coral sand ECC with high tensile ductility and small crack widths, illustrating that chloride-bearing coastal environments can motivate both durability challenges and materials design. The novelty of this study lies in a workflow that translates short-duration accelerated wet–dry and freeze–thaw testing into exposure-tagged deterioration envelopes by linking resonance-frequency loss to compressive-strength reduction and then benchmarking the resulting trends using in-service deck core chloride contents and compressive strengths. The framework yields a durability index, based on measured chloride content and measured-to-predicted strength, together with time-based strength-reduction trends intended for network-level screening and prioritization when field data are sparse.

The objective of this research is to evaluate the impact of salinity exposure on cementitious materials in terms of accelerated and projected long-term structural performance and durability, and to develop deterioration envelopes for predicting concrete bridge-deck deterioration due to chloride exposure. Accelerated laboratory tests in an environmental chamber at specified chloride concentrations and temperatures are combined with deterioration trends and existing condition state data to generate long-term curves for chloride-induced damage. Bridge-deck cores taken from structures older than 50 years are used as a baseline for comparison and for validating the experimentally derived trends. The novelty of this work lies in the combined use of accelerated environmental chamber testing, multi-parameter material characterization, and in situ bridge-deck cores to derive deterioration envelopes that are calibrated against field performance in high-salinity conditions. This study examines the influence of cyclic wet–dry exposure and freeze–thaw cycles on the mechanical properties and durability of concrete, with a focus on the role of salt concentration in promoting microstructural degradation and loss of strength. Material degradation is quantified by measuring compressive strength, modulus of elasticity, Poisson’s ratio, and chloride penetration. The resulting predictive deterioration envelopes provide a clearer view of deterioration progression in concrete infrastructure and the resilience of concrete under harsh exposure conditions. In the long term, the findings are intended to inform the degradation models used by the Delaware Department of Transportation (DelDOT), with particular focus on the performance of concrete bridge decks that utilize corrosion-resistant steel reinforcement in high-salinity environments, and to support preservation strategies and long-term durability assessments of critical transportation infrastructure.

2. Materials and Methods

2.1. Materials

The materials used in this study were selected in accordance with the State of Delaware State Highway Department Standard Specifications from the 1970, 1974, and 1985 editions. The selection of these materials ensured consistency with historical construction practices relevant to Delaware’s bridge infrastructure.

Table 1. Historic concrete mix design.

Parameter	Value	Selection Rationale
Cement Specific Gravity	3.15	Standard value
Coarse Aggregate Specific Gravity	2.7	From documentation
Fine Agg. Specific Gravity	2.65	From lab testing of material
Coarse Agg. Dry Unit Wt. (Unit)	99.6	From lab testing of material
Coarse Agg. Moisture Content (%)	1	Found prior to batching
Fine Agg. Moisture Content (%)	1	Found prior to batching
Slump [mm.]	127	Design selection
Air Content (%)	6	Design selection
Compressive Strength [MPa]	25	Design selection
Slump/max Aggregate	305
Compressive Strength w/c	0.4
Max Agg./Fine Mod	0.6
Coarse Agg. Volume [CBM]	0.46
Coarse Agg. Weight [kg]	732	Based on dry rodded unit weight
Density of Water [kg/m3]	1000	At room temperature
Water Weight [kg]	99.7	From w/c ratio
Volume of water [CBM]	3.77	Calculated based on density
Cement Weight [kg]	249.5	From w/c ratio
Volume of Cement [CBM]	0.079	Calculated based on density
Volume of Coarse Agg. [CBM]	0.27	Calculated based on density
Air Volume [CBM]	0.046	Calculated based on air-content requirement
Total Volume [CBM]	0.52
Fine Agg. Volume [CBM]	0.24	Calculated based on remaining volume in 1 cu. yd.
Fine Agg. Weight [kg.]	638.88	Calculated based on density
Stockpile [CBM]	[kg/CBM]	[kg/CBM]
Fine Agg. Batch Weight [kg]	645.27	60.53
Coarse Agg. Batch Weight [kg]	739.2	69.35
Cement Batch Weight [kg]	249.5	23.4
Water Batch Weight [kg]	101.7	9.54
Total Batch Weight [kg]	1735.65	162.82

presents the physical properties of the cement, fine aggregate, and coarse aggregate used in the mix design, sourced to reflect a modern equivalent of the cement components used during the era under investigation. Additionally, the table includes the batching weights for a cubic yard of concrete, along with a scaled version for a cubic foot of concrete, which served as the basis for batching and casting the concrete specimens. To ensure an accurate water-to-cement ratio (w/c), the aggregate water content was determined in accordance with ASTM C70 [23]. The final w/c ratio is also provided in the table. All material testing followed ASTM standards.

2.1.1. Cement

Ordinary Portland Cement (Type I) was utilized in this study, conforming to ASTM C150 [24] specifications. The cement was sourced from Keystone Cement Company to maintain consistency in material properties across all experimental procedures. The parameters of the cement used in the test are shown in Table 1.

2.1.2. Aggregates

The fine aggregate used in this study consisted of C33 sand with a rough surface texture, selected based on its compliance with ASTM C33 [25] standards. The physical properties of the fine aggregate were determined in accordance with the relevant testing protocols and are detailed in a subsequent section. The coarse aggregate employed in this study was C57 stone with a nominal size of 19 mm, in accordance with ASTM C57 specifications. The mix design properties for the coarse aggregate are presented in Table 1.

2.1.3. Admixtures

The Delaware Department of Transportation (DelDOT) Standard Specifications from 1970, 1974, and 1985 editions did not specify the use of admixtures. However, air-content requirements were explicitly defined. To ensure compliance with these specifications and maintain the appropriate air content in the replication mix, an air-entraining admixture was incorporated. This addition facilitated the proper entrainment of air voids, which is critical for enhancing the durability and freeze–thaw resistance of the concrete.

2.2. Experimental Methodology

2.2.1. Concrete Mix Design

The concrete mix design for the laboratory samples was developed as a replication mix based on historical standards obtained from DelDOT practices. While this mix was selected to represent the typical concrete used in Delaware bridge-deck construction during the 1970s and 1980s, it does not constitute an exact reproduction of the materials and proportions used at the time. Variability in contractor practices, material sourcing, and project-specific requirements likely led to differences in the concrete mixes used across various bridge decks. The laboratory mix employed in this study represents one potential formulation that aligns with historical standards from that period and serves as a basis for further investigation.

2.2.2. Sample Preparation

Given the large number of laboratory samples required to develop a robust dataset, the concrete components were batched beforehand to a volume totaling 0.07 CBM to facilitate proper mixing within the concrete mixer. The aggregates, cement, admixtures, and water were measured in 0.0189 m³ buckets and sealed to prevent any changes in moisture content between the weighing and mixing stages. A Marshallton drum mixer, as shown in Figure 1, was used for the casting process, as its mixing mechanism closely replicates the method employed by concrete trucks in the field when casting bridge decks. This ensured consistency in the mixing process and alignment with real-world construction practices.

The mixing process followed a structured sequence to ensure proper hydration, dispersion, and homogeneity of the concrete mix. The entire mixing process was completed in under 20 min per batch to maintain consistency and workability.

2.2.3. Fresh Concrete Properties

The workability assessment of the fresh concrete mixtures was conducted by measuring the slump height following the procedures outlined in ASTM C143 [26]. The test involved using a standard slump cone with an upper diameter of 100 mm, a lower diameter of 200 mm, and a height of 300 mm. The test was repeated three times for each mixture to ensure statistical reliability.

The fresh unit weight of the concrete was determined using an air-content chamber pot, which has a standardized volume of 0.00707 CBM. The measured fresh unit weight ranged from 65.3 to 66.22 kg/m³, aligning with the expected values for the designed mix. The air content of the fresh concrete mixtures was determined using the pressure method following the procedures outlined in ASTM C231 [27]. To ensure accuracy and repeatability, the test was performed three times for each mixture. The measured air content ranged from 5.5% to 7%, which was within the target range consistent with historical concrete mix practices.

2.2.4. Conditioning of Samples

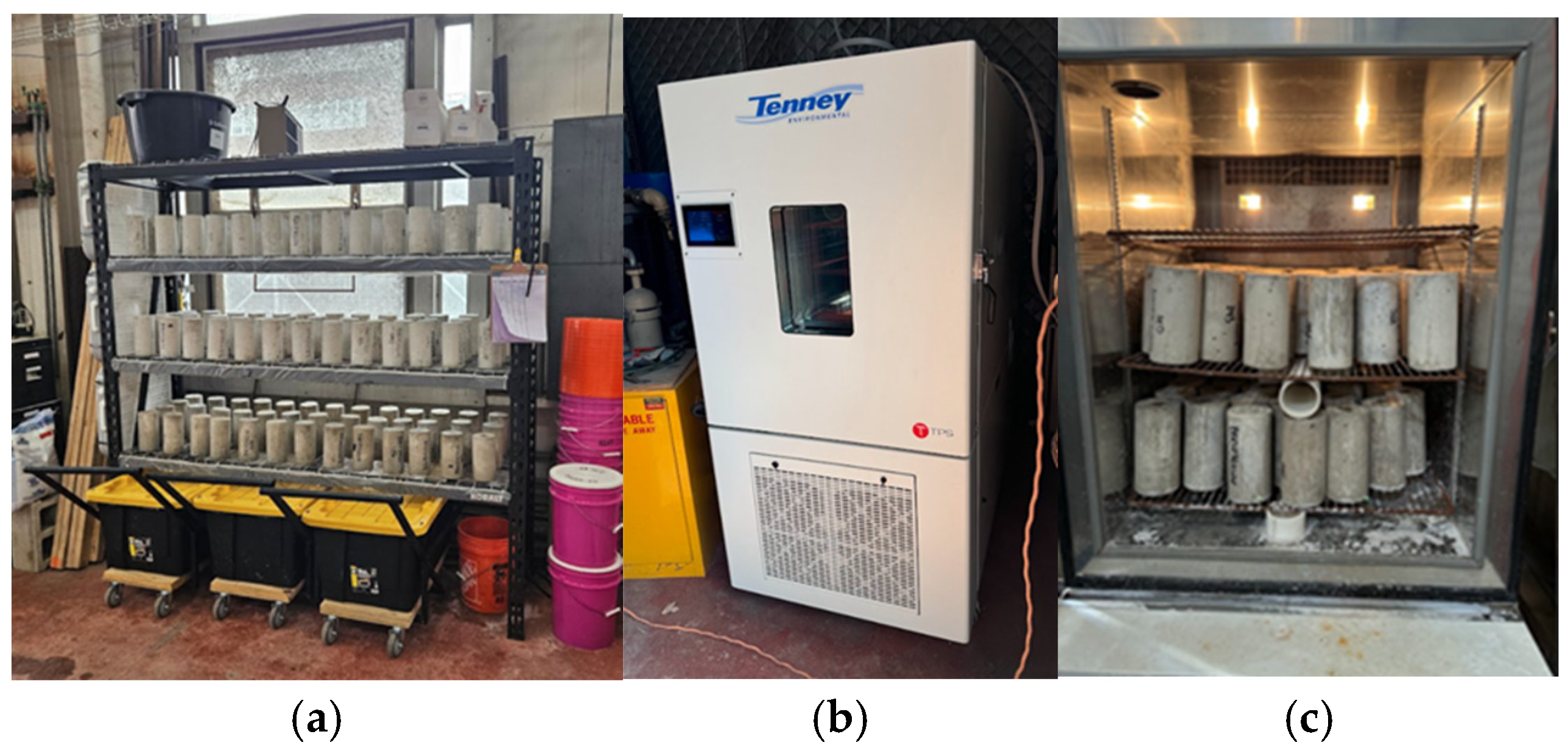

To replicate field-deterioration mechanisms, two accelerated conditioning regimes were employed: wet–dry and freeze–thaw cycling. Specific salinity concentrations and exposure durations were selected to mirror aggressive service environments characterized by heavy deicing salt applications. These controlled parameters adhere to established industry standards; they provide a rigorous baseline for correlating laboratory outcomes with the in situ performance of extracted bridge cores. The concrete samples were subjected to three distinct conditioning regimes to represent different environmental exposures.

Wet–dry cycling samples were submerged in saline solution (0%, 3%, and 15% by weight) for 12–14 h and air-dried under fans for the remainder of the 24 h. This process simulates cyclical moisture fluctuations commonly experienced in bridge decks and other exposed concrete structures. The duration of each phase ensured full specimen saturation and drying. A total of 154 cycles were conducted to emulate the long-term environmental impacts of moisture exposure under high chloride concentrations.

Freeze–thaw cycling samples were subjected to repeated freezing and thawing cycles, replicating seasonal temperature variations. This process followed ASTM C666 [28] procedures and consisted of 12–14 h at sub-zero temperatures (−25 °C) to simulate frost exposure in an environmental chamber (Figure 2). Following freezing, the samples were soaked in the respective water baths (0%, 3%, or 15% salt solutions) to thaw for the remainder of the 24 h cycle.

A total of 140 cycles were performed to model the synergistic impact of both moisture exposure and freezing temperatures on the deterioration of concrete. Such cycles simulate one of the most severe environmental conditions for bridge decks, in which water penetrates the concrete, freezes, and expands, causing internal cracking, surface scaling, and long-term structural damage. For a control condition, the samples were stored under standard conditions in a fog room and maintained at 26.7 °C and 90% relative humidity to serve as a baseline for comparison with the accelerated aging conditions.

The selected chloride concentrations were designed to simulate two distinct salinity sources typical of concrete exposure environments. The 3% solution approximates seawater salinity, whereas the 15% solution replicates brine concentrations utilized in road deicing. Although DelDOT standard brine solutions range from 20% to 25% salinity, effective concentrations on the road surface decrease due to mixing with snow and ice. Consequently, the 15% concentration was determined to better represent realistic field exposure. This conditioning regime was repeated for the duration of the test period, ensuring that the environmental stresses on the samples were consistent with real-world exposure conditions. Regular testing intervals of 14 cycles were implemented to monitor changes in material properties over time. A total of 11 sets of cycles were conducted for the wet–dry cycling, and 10 sets of cycles were conducted for the freeze–thaw testing.

2.3. Concrete Core Testing of Delaware Bridges

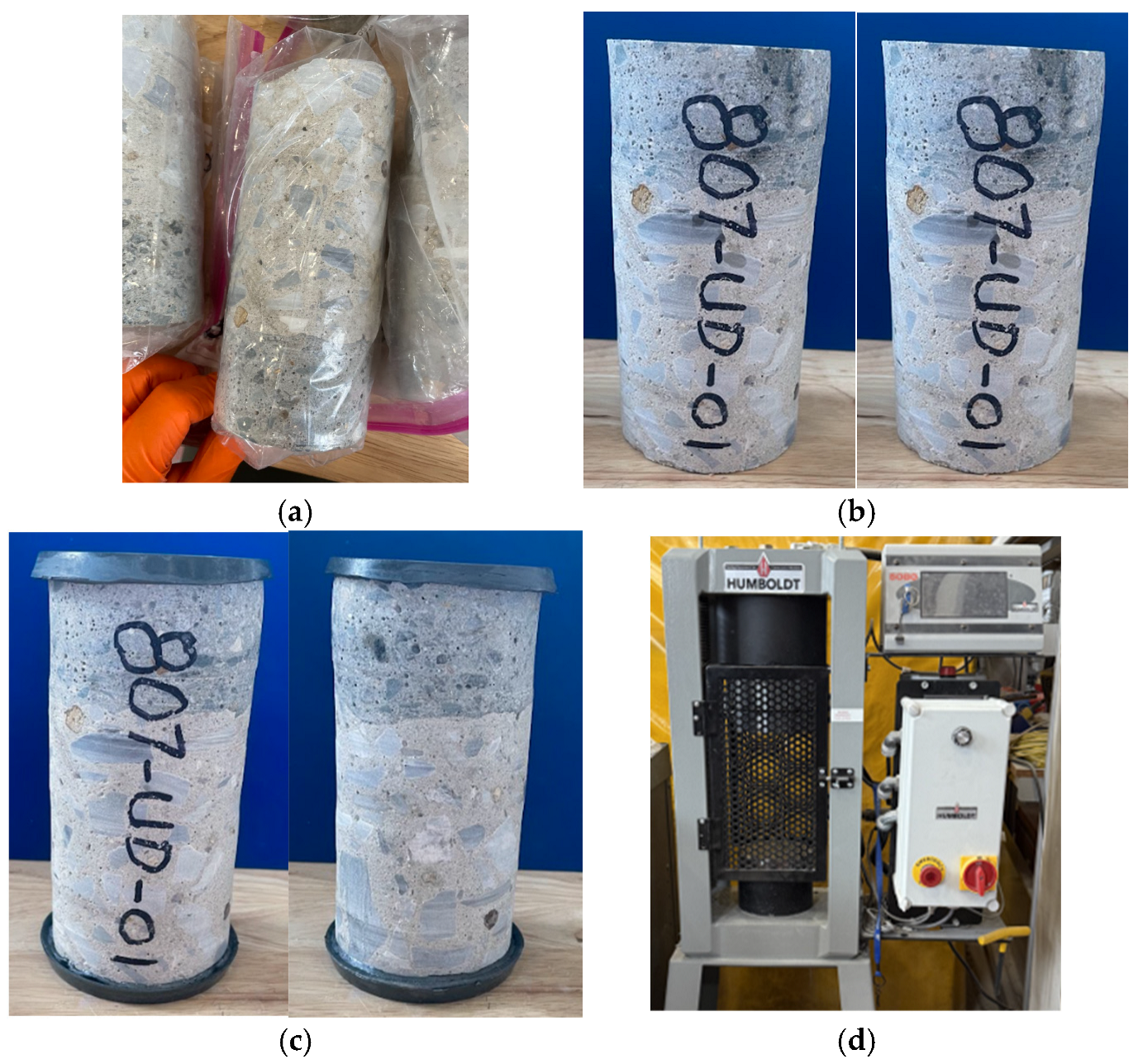

To correlate laboratory-observed deterioration with real-world conditions, in situ bridge cores were obtained for testing by DelDOT. To minimize the risk of contamination during transport to the laboratory, the cores were sealed in plastic bags, as illustrated in Figure 3a. A total of 22 cores were extracted from two bridge locations: the James Street Bridge in Newport and the I-495 –800-series (based on naming convention) of bridges owned by DelDOT. The compressive-strength results from these cores were compared to data from deck cores previously tested by DelDOT from the same bridges, as well as a broader dataset of bridge cores.

Since the cores were extracted from active bridges, they required preparation before testing. This process involved trimming them with a concrete circular saw equipped with a diamond blade to remove damaged ends and achieve parallel surfaces, in accordance with ASTM C42. The cores were trimmed to their maximum savable length to eliminate damage from the extraction process. Because the trimming process used water, the cores were allowed to surface dry before capping, as shown in Figure 3b,c. For cores with slightly damaged ends or to minimize excessive length loss, a sulfur capping compound was used to create parallel loading surfaces following ASTM C617. The capped specimens were cured for one hour before testing, and a second set of photographs was taken for documentation. The concrete cylinders were loaded into the Humboldt compression machine, as shown in Figure 3d, and carefully centered on the platens to ensure uniform loading. Compressive testing was conducted at a controlled loading rate of 99.79 kg/sec, in accordance with ASTM C39 (Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens). The test continued until the cylinders failed, maintaining a load approximately 20% below the maximum applied load to ensure consistent failure conditions.

2.3.1. Mechanical Testing Procedures

The mechanical testing portion of the study is detailed in this section and includes the physical testing procedures used to evaluate material performance. These tests consisted of resonance-frequency testing and compressive-strength, modulus of elasticity, and Poisson’s ratio measurements.

(a)

Resonance-Frequency Testing

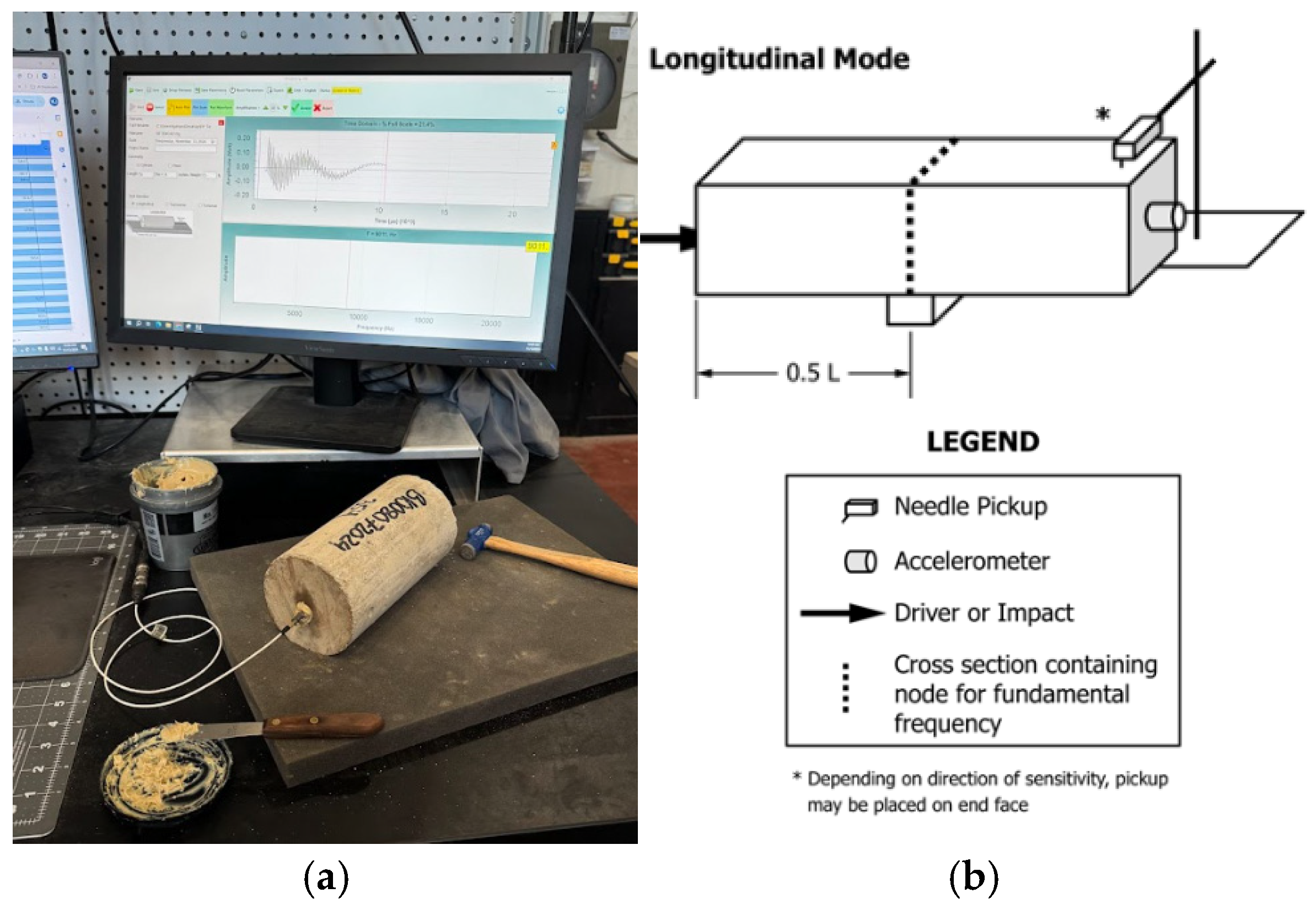

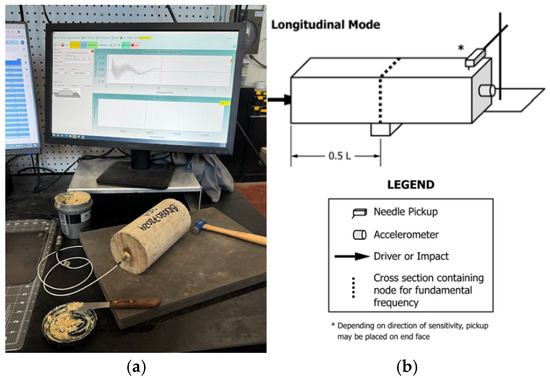

To monitor the progression of deterioration in the concrete samples, a nondestructive evaluation method was used. The dynamic modulus of elasticity was assessed by measuring the longitudinal mode of the resonance frequency in accordance with ASTM C215 [29] (Standard Test Method for Fundamental Transverse, Longitudinal, and Torsional Frequencies of Concrete Specimens). This method was used to quantify material degradation in concrete subjected to wet–dry cycling and freeze–thaw cycling in water baths with salt concentrations of 0%, 3%, and 15% by weight. Testing was performed at 14-cycle intervals to track changes in the mechanical properties of the concrete over time. Before each measurement, samples were allowed to dry after completion of the fourteenth cycle to keep the test setup consistent. The equipment, as shown in Figure 4a, included a resonance testing gauge with an accelerometer attached to one end of the concrete specimen using acoustic grease to ensure good contact and signal transfer. A schematic of the resonance testing procedure is shown in Figure 4b. During testing, the concrete specimen was tapped with a small hammer to induce vibration at its natural frequency.

The accelerometer captured the resulting motion as a voltage signal, which was processed by a data-acquisition program to convert the signal into a frequency measurement in hertz. These measurements were recorded at each interval to build a history of deterioration for every specimen before destructive testing. This approach made it possible to relate changes in the resonance frequency to changes in the physical properties of the concrete and to study how environmental exposure, cyclic loading, and salt concentration influence the structural integrity of the material over time.

Resonance-frequency measurements (ASTM C215) [30] can be sensitive to specimen geometry and the test setup used to approximate free vibration, including support configuration and instrumentation attachment. To limit variability, measurements were taken with consistent support locations and consistent specimen conditioning (including the moisture state and drying procedure) before each interval.

(b)

Compression Testing

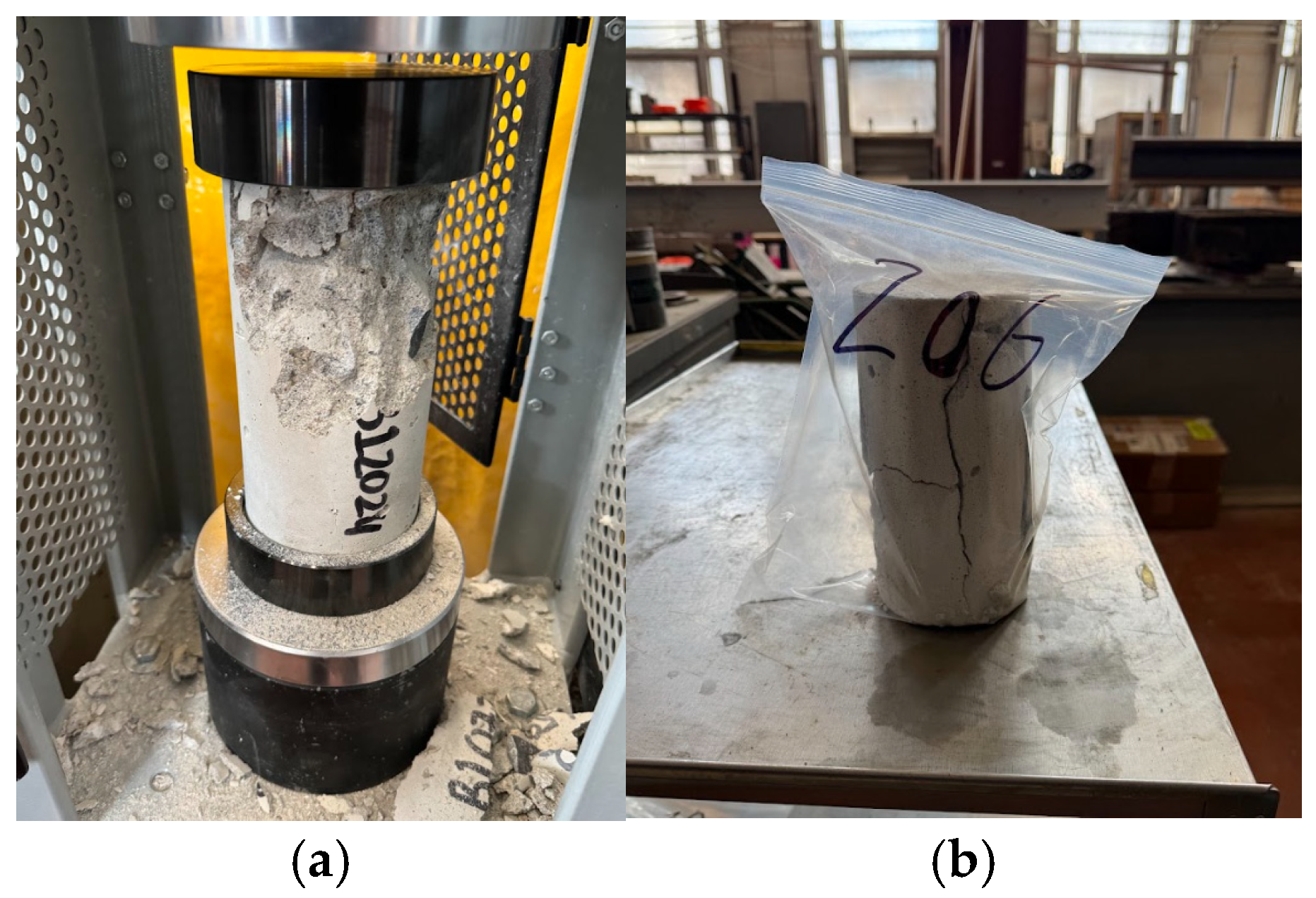

To quantify the physical deterioration of the laboratory samples during cyclic exposure, the compressive strength of concrete was evaluated in accordance with ASTM C39 (Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens). This test assessed the effects of moisture fluctuations, freezing, and varying salt concentrations on the mechanical integrity of the concrete. Specimens from each test group were removed every 14 cycles for compressive-strength testing. In accordance with ASTM C39 [31], three specimens were tested at each interval. Neoprene pads in steel retaining collars were used to provide uniform loading surfaces and consistent testing conditions. The concrete cylinders were then loaded into the Humboldt compression machine and centered on the loading platens for proper alignment. Compressive loading was applied at a controlled rate of 99.79 kg/sec, as specified by the standard, and continued until cylinder failure while maintaining the load approximately 20 percent below the maximum applied load to avoid premature unloading. After each test, photographs of the fractured specimens were taken for documentation, as shown in Figure 5. The maximum compressive strength of each cylinder was recorded to measure progressive deterioration due to cyclic environmental exposure. Each labeled specimen was then returned to its sealed plastic bag for subsequent chloride testing.

(c)

Modulus of Elasticity Testing

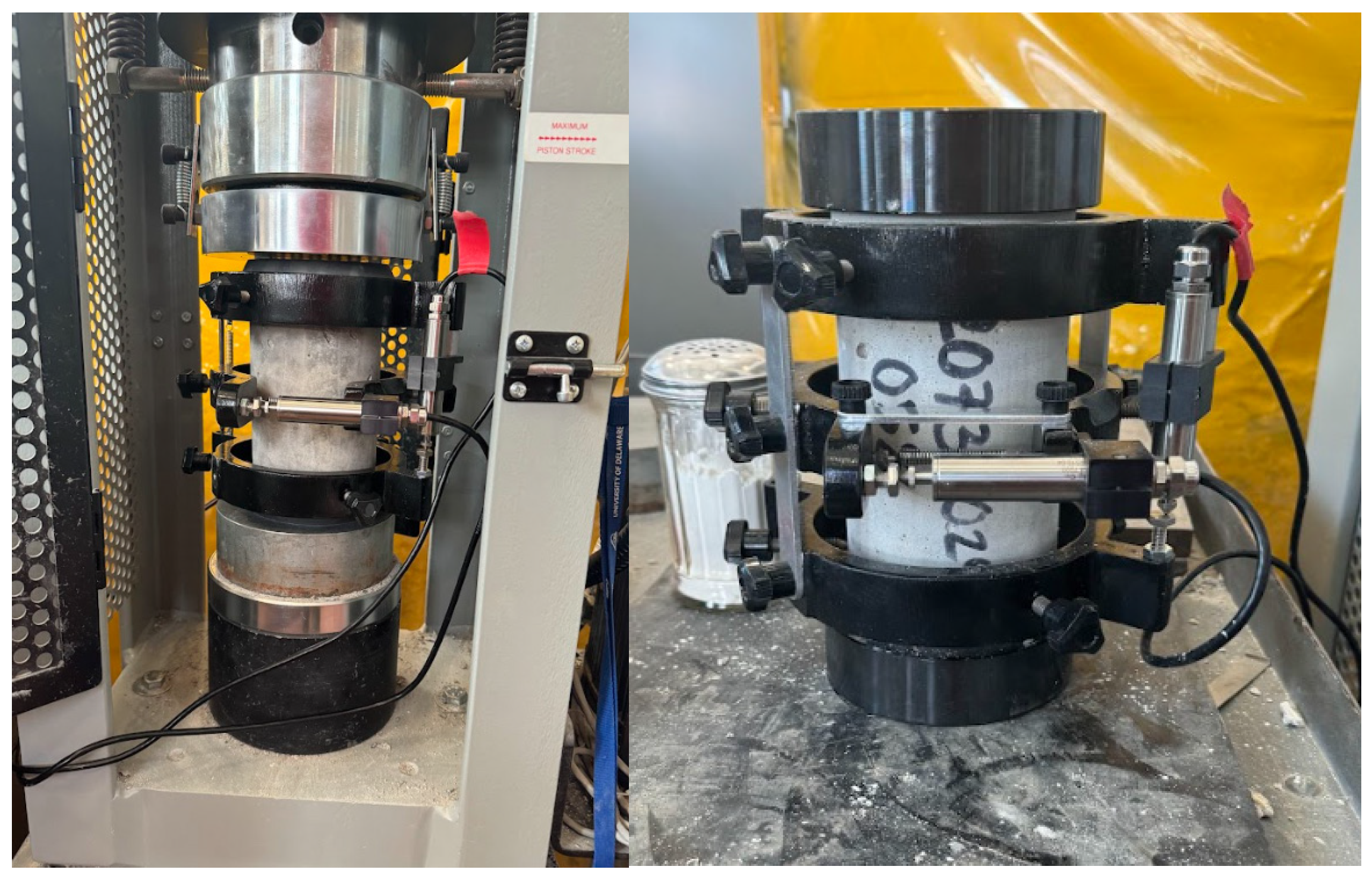

The static modulus of elasticity and Poisson’s ratio of conditioned concrete cylinders were measured in accordance with ASTM C469 (Standard Test Method for Static Modulus of Elasticity and Poisson’s Ratio of Concrete in Compression). The test assessed the stiffness and strain response of specimens subjected to wet–dry cycling and freeze–thaw cycling. The recorded data included the static modulus of elasticity, which quantifies stiffness after cyclic exposure, and Poisson’s ratio, which describes the relationship between lateral and axial strain under compressive stress. A stress–strain curve was generated for each specimen to describe the behavior after environmental cycling. During testing, each specimen was centered in the apparatus both laterally and vertically to obtain consistent measurements, as shown in Figure 6. Two Linear Variable Differential Transformers (LVDTs) recorded radial and axial deformation, enabling calculation of stress and strain throughout the test. Testing used a Humboldt compression machine with a compressometer/extensometer for automated loading and data collection. The maximum load was limited to 40 percent of the expected compressive strength of each sample to avoid damage to the rings and LVDTs. Following the completion of modulus testing, the specimens were subjected to compressive-strength testing, as described previously. After testing, each labeled specimen was carefully returned to its sealed plastic bag for subsequent chloride testing, ensuring proper sample preservation for further chemical analysis, as illustrated in Figure 5b.

2.3.2. Chloride Testing Procedure

Water-soluble chloride content was measured to relate salinity to the resistivity of each laboratory sample, following ASTM C1218 with minor adjustments for the large number of specimens. Concrete cores were first reduced to powder using a hand-operated rock crusher, as shown in Figure 7a. The crushed material was sieved through a No. 20 soil sieve (850 µm); the passing fraction was collected, sealed in clean plastic bags, and thoroughly mixed to obtain a homogeneous sample. The crusher and sieve were cleaned after each batch to avoid cross-contamination.

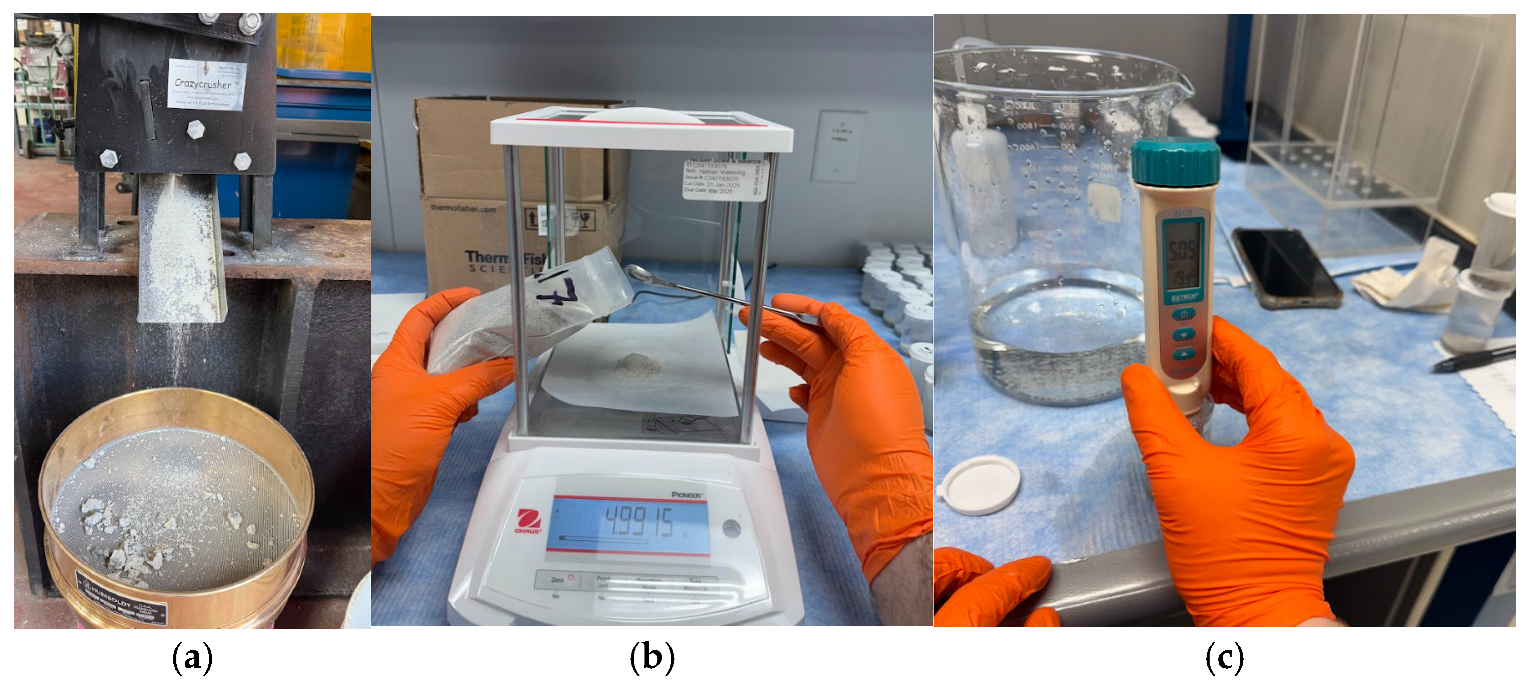

Powdered samples were tested in a clean laboratory. For each cylinder, three subsamples of 5.00 ± 0.01 g were weighed on clean weighing paper, as shown in Figure 7b. Each subsample was placed in a container with 40 mL of deionized water and left for 24 h to dissolve water-soluble chlorides, then remixed and allowed to settle for 30 min. A handheld salinity meter, as shown in Figure 7c, was used to measure chloride concentration in the supernatant. These measurements were used to determine whether the damage in the specimens was governed mainly by the physical effects of freeze–thaw and wet–dry cycling or by chemical attack associated with elevated chloride concentration levels in the concrete.

3. Results

3.1. Physical Results

3.1.1. Resonance Frequency

Resonance-frequency tests were carried out to track the internal condition of the concrete specimens during the entire period of the laboratory tests for durability. The test enabled continuous observation of material deterioration prior to the actual application of the compressive-strength tests on the specimens. Figure 8 demonstrates the temporal behavior of individual resonance frequencies for specimens subjected to wet–dry exposure at three salinity levels. This monitoring approach allows for a more refined understanding of how wet–dry exposure affects material behavior.

The overall trends for the salinity of soaking solutions show that the presence of chlorides affects deterioration. Figure 9 presents the temporal behavior of the resonance frequency for specimens exposed to freeze–thaw cycling. This exposure mechanism has the most severe overall downward trend in resonance frequency, showing that freeze–thaw action produces the greatest reduction in dynamic stiffness among the tested exposure categories. As in the wet–dry series, the trends for different salinity levels indicate that the presence of chlorides affects the deterioration process.

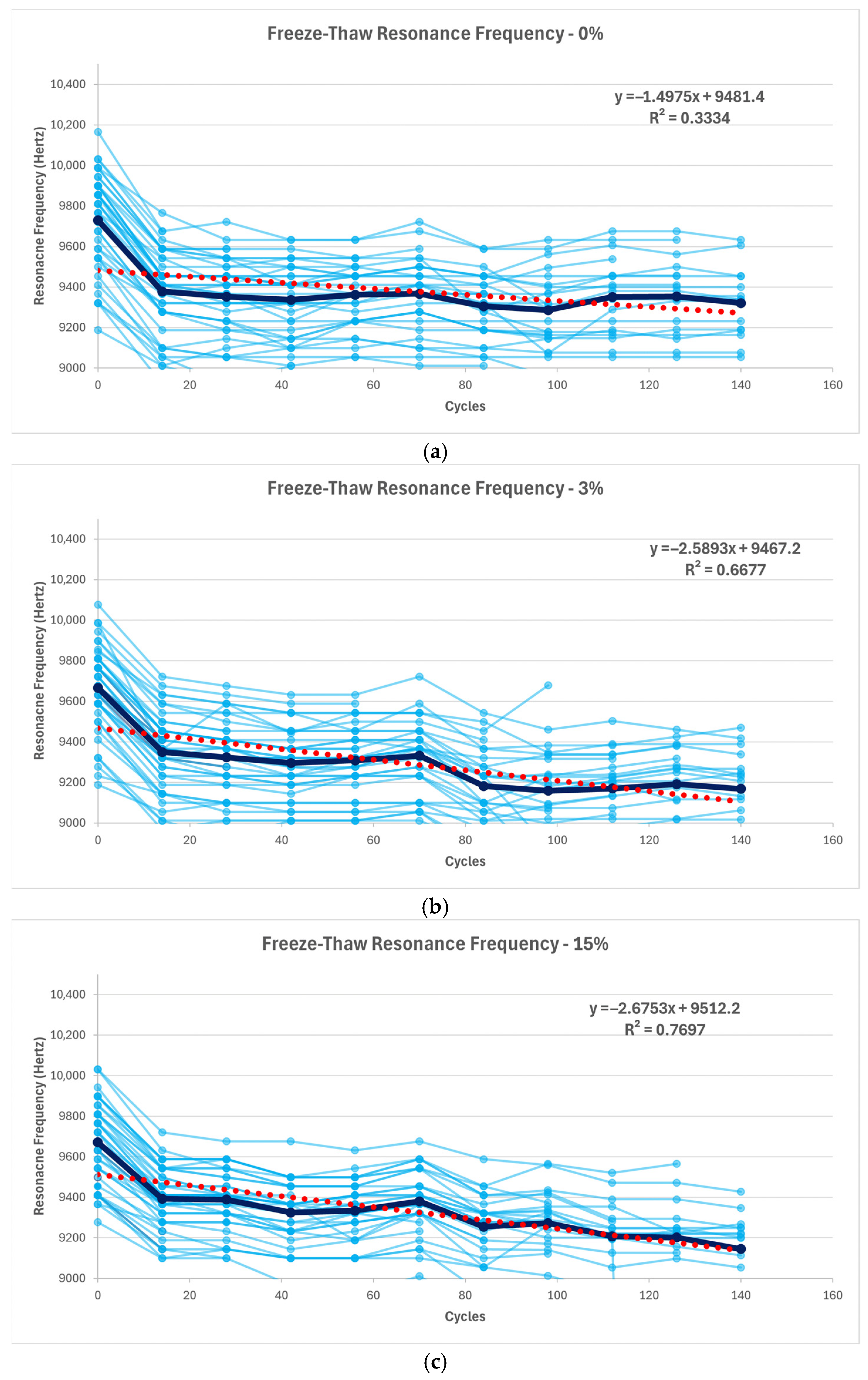

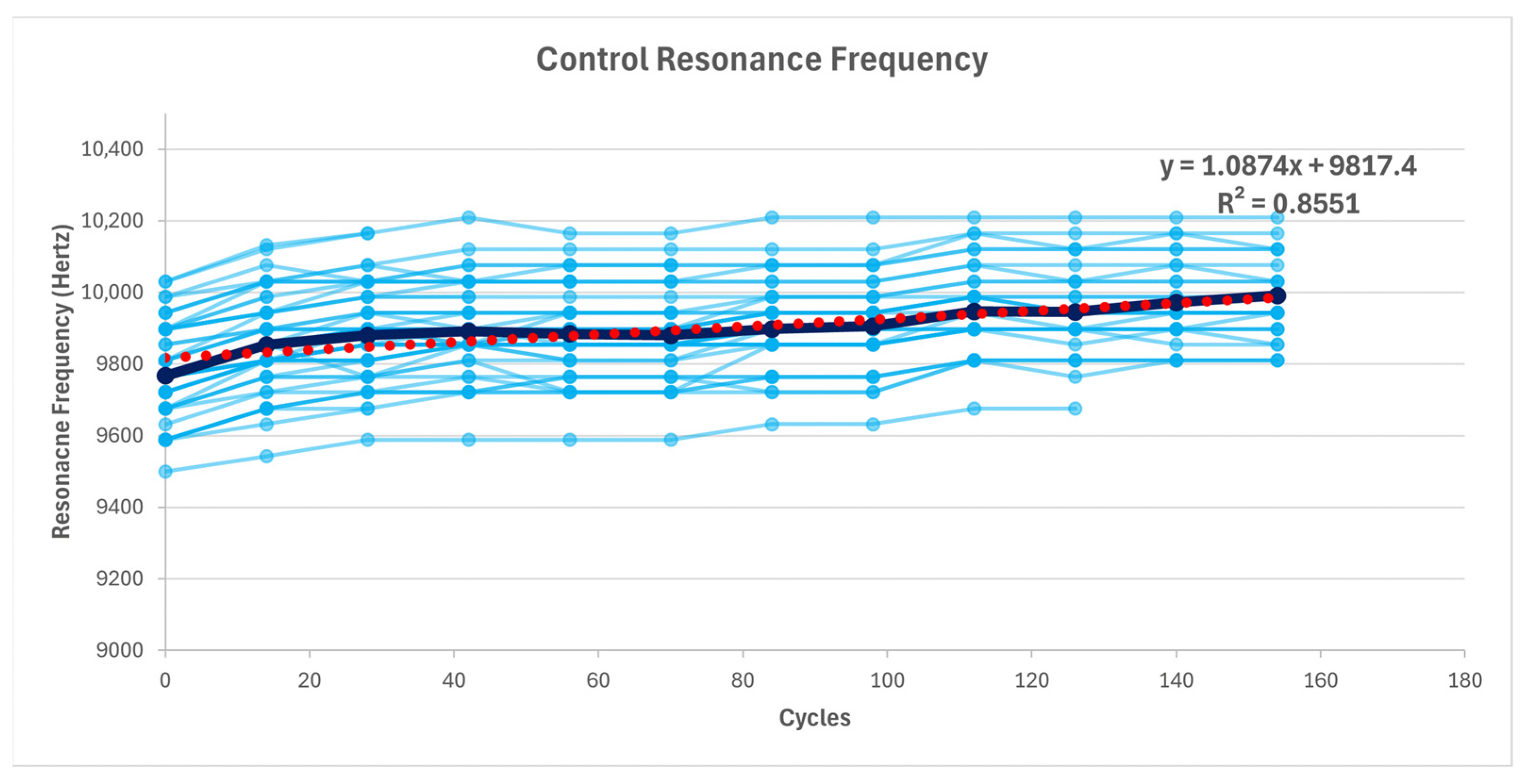

The resonance-frequency response for the control specimens is shown in Figure 10. In contrast to the wet–dry and freeze–thaw series, the control specimens exhibit an increase in resonance frequency over time. This behavior reflects the absence of aggressive environmental exposure and provides a reference for interpreting the downward trends observed in the cycled specimens. These trends are used in subsequent analysis to predict the overall long-term deterioration that bridge decks can potentially face.

As the resonance testing had the largest number of samples in its testing series over the course of the deterioration cycling, the trends were used to forecast the loss in strength over time, as discussed in the following sections.

3.1.2. Compressive Strength

The compressive-strength test was conducted to evaluate the load-bearing capacity of the concrete samples as they were subjected to simulated deterioration regimes. The strength development for each exposure group is shown in Figure 11a–c, illustrating the effect of wet–dry cycling, freeze–thaw exposure, and chloride saturation on the rate and magnitude of compressive-strength loss. These trends are used to assess how quickly the material deteriorates under accelerated aging and to compare the relative severity of each exposure regime.

Although these results provide useful insight, the compressive strengths measured in this study exhibit considerable scatter. As shown in the 50-year concrete strength study reported by [32], the strength gain of concrete over time follows a logarithmic curve, and early-age data lie in the nonlinear part of this relationship. Because the present testing was performed at an early stage in the concrete life cycle, the variability in strength was too high to isolate the effects of chloride content based on compressive strength alone.

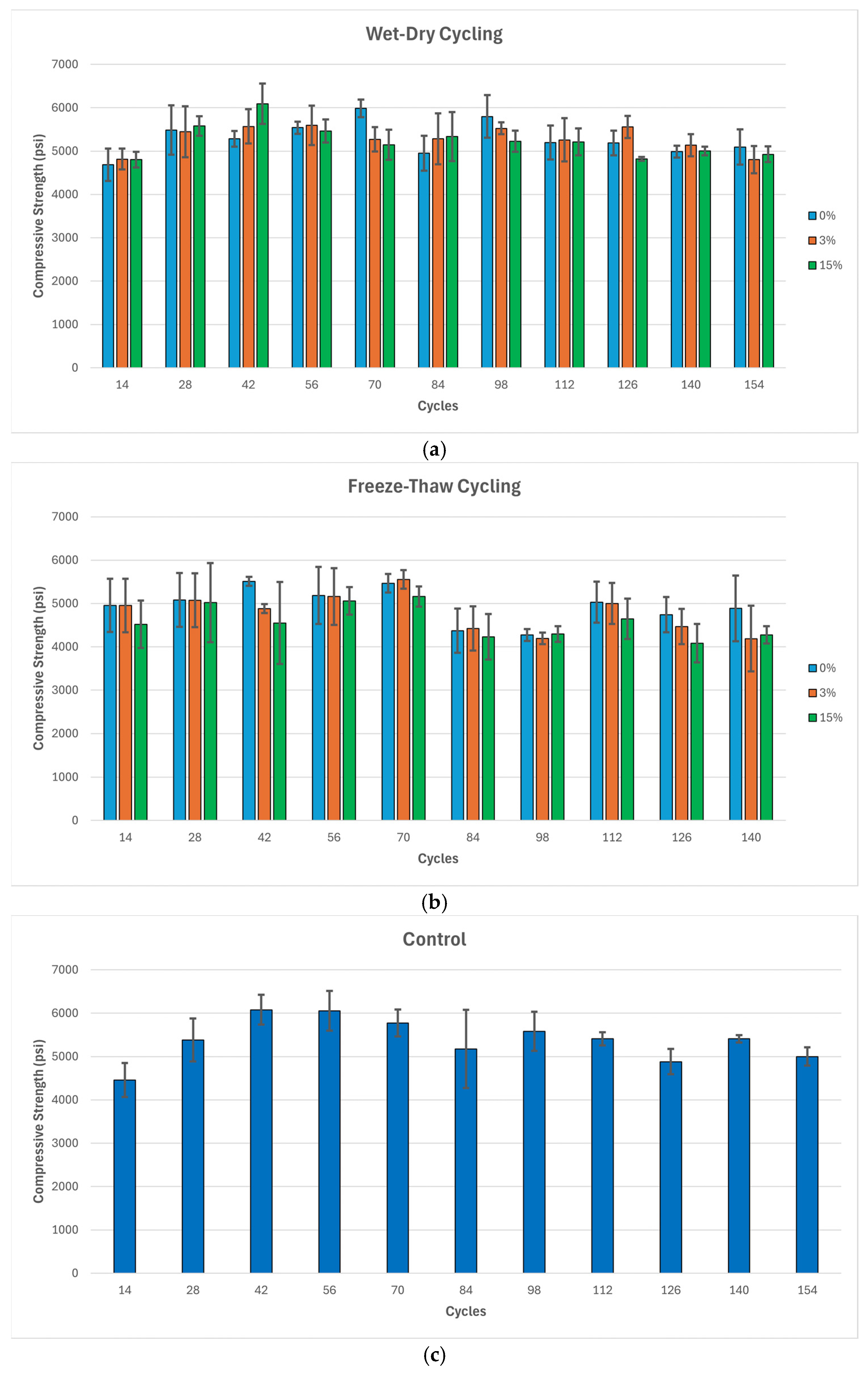

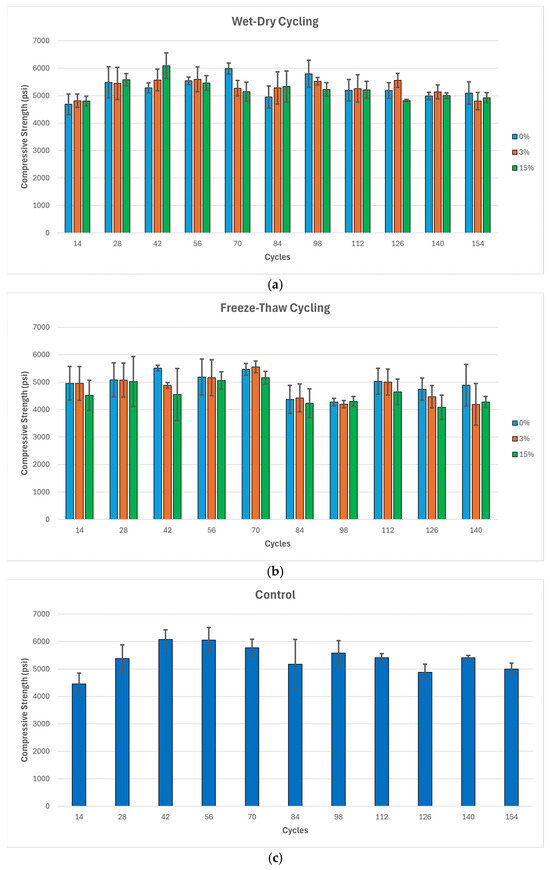

Figure 11a shows modest, nonmonotonic variations in compressive strength during the wet–dry series, including short-term increases at early cycles. These increases align with early-age strength development discussed for this dataset and do not represent a quantified healing mechanism in the present study. Healing-induced recovery was not directly measured or included in the deterioration envelope formulation, so the envelopes should be interpreted as net deterioration superimposed on baseline strength gain. Healing-induced recovery under cyclic moisture exposure has been reported for strain-hardening cementitious composites, including engineered cementitious composites [33].

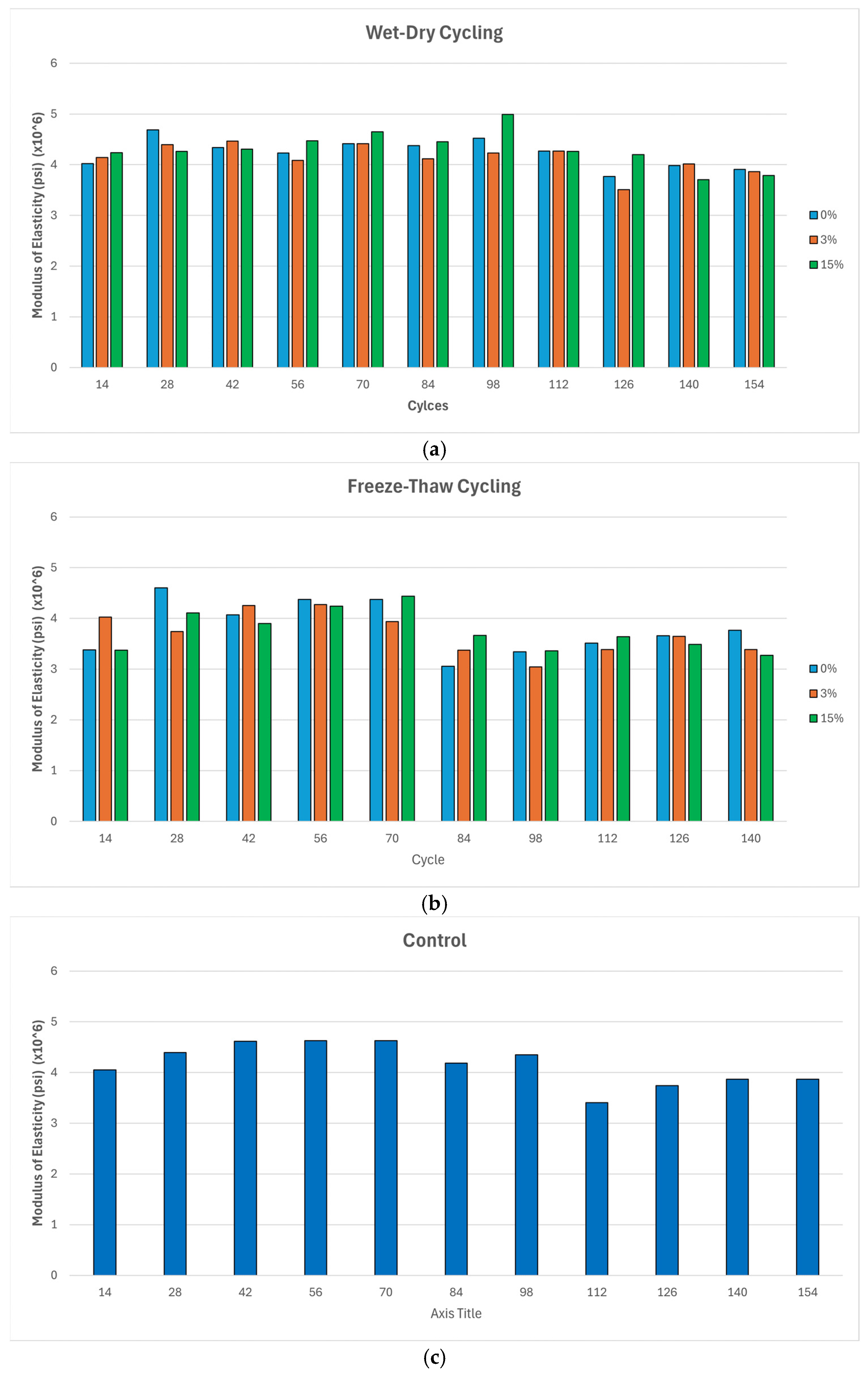

3.1.3. Modulus of Elasticity

The modulus of elasticity test was conducted to examine the stiffness and deformation response of the concrete specimens under load. Figure 12a–c present the temporal development of the modulus of elasticity for specimens exposed to wet–dry cycling and freeze–thaw cycling at three salinity levels (0, 3, and 15 percent), with a control series included for comparison.

Across all exposure regimes and salinity levels, the measured moduli remain within a relatively narrow band and exhibit only a modest overall reduction as the number of cycles increases. Changes in stiffness are therefore small compared with the variations observed in the other material properties, and no strong, systematic separation between the different salinity levels is evident. This variability indicates that additional investigation is needed before modulus degradation can be reliably used as a parameter in the deterioration model. Increasing the number of cycles or extending the exposure duration in future tests may generate larger stiffness losses and clearer trends, which would improve the ability to use modulus degradation in long-term deterioration assessment.

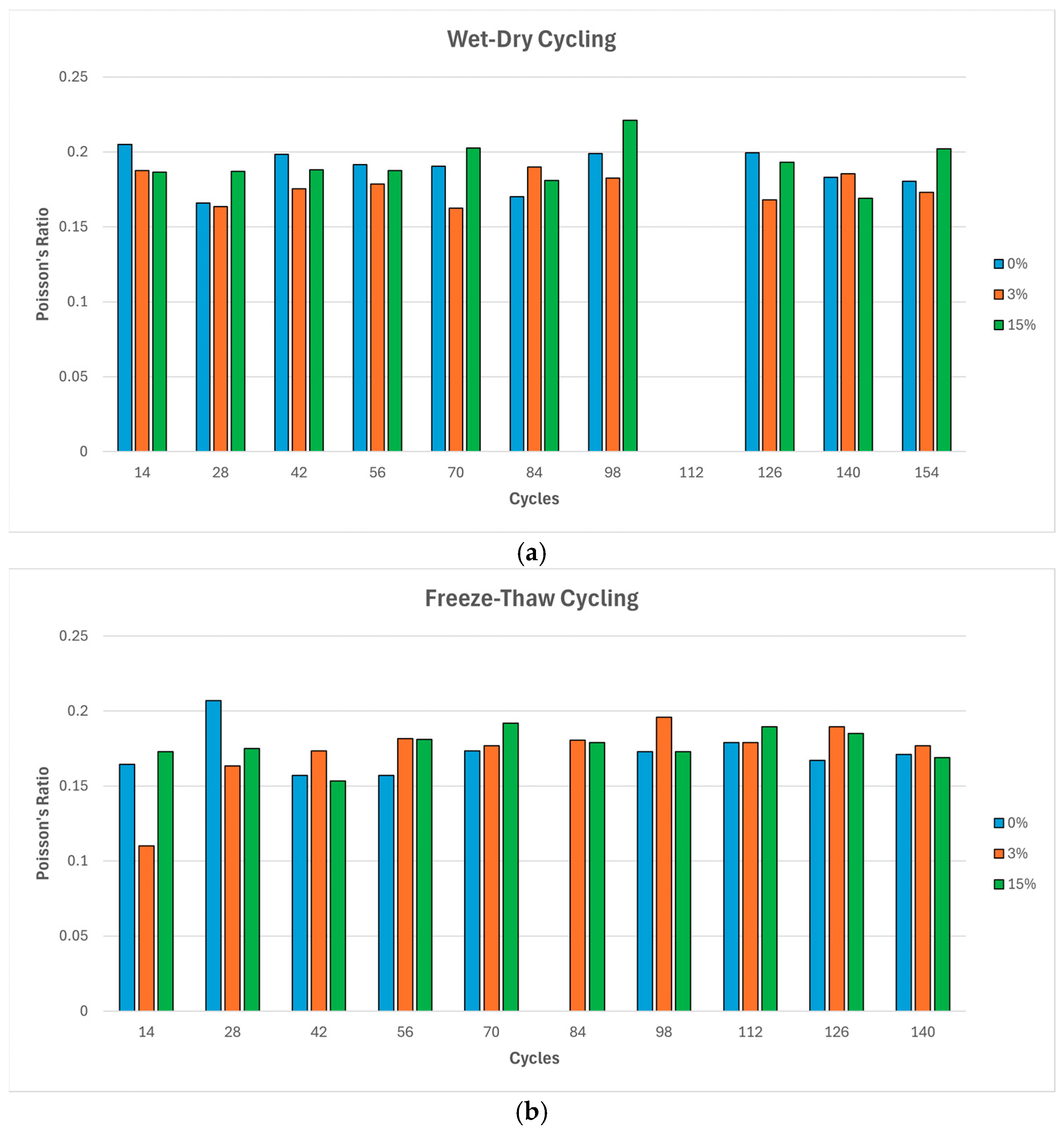

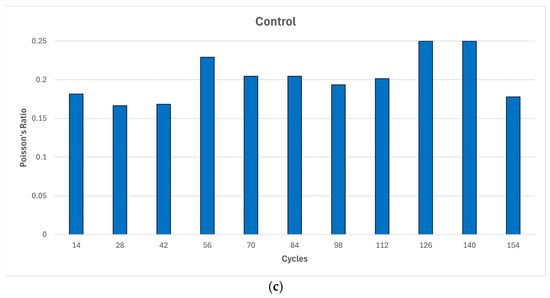

3.1.4. Poisson’s Ratio

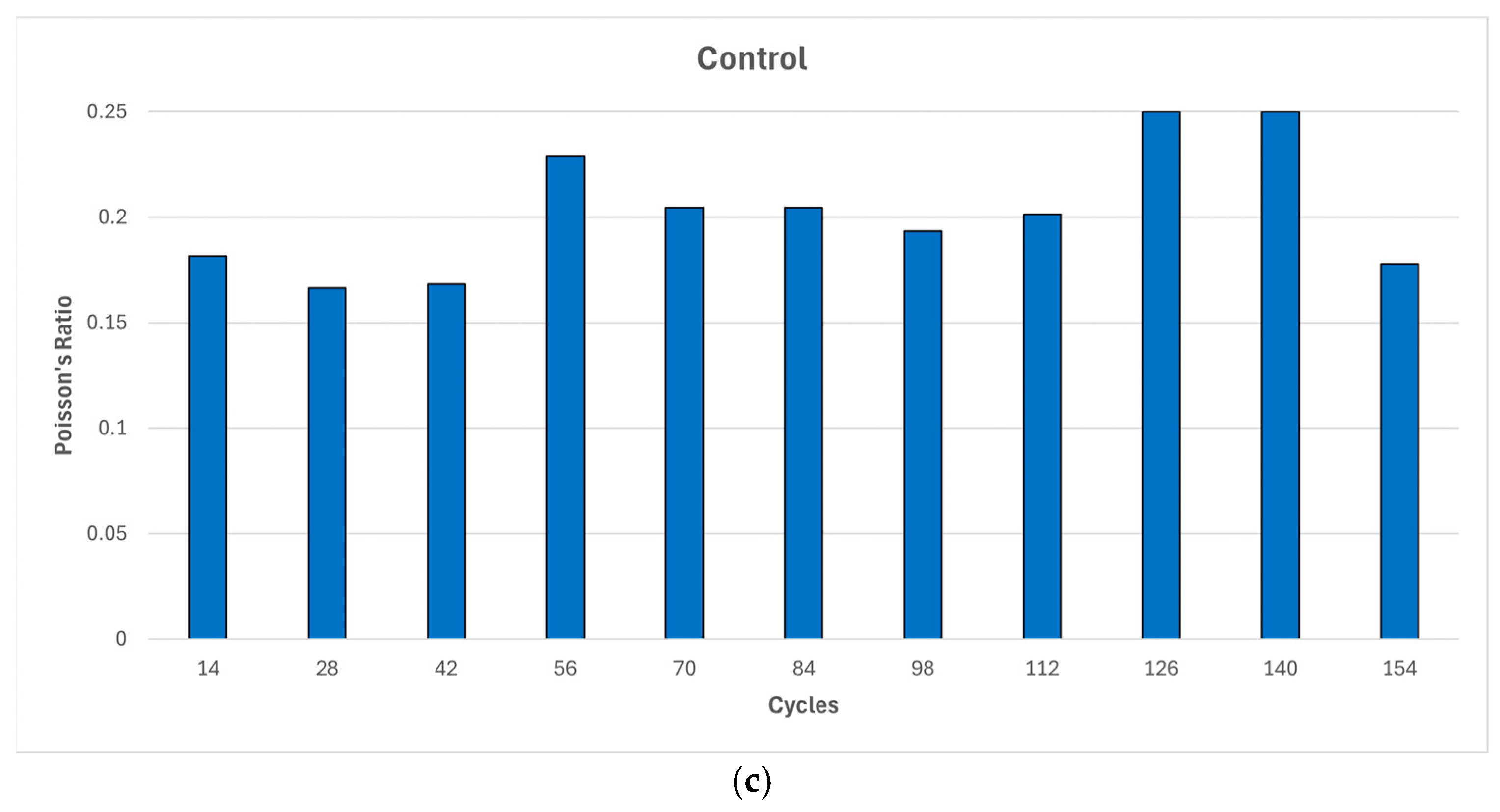

Poisson’s ratio was measured to quantify the lateral strain response of the concrete specimens under axial loading. It is defined as the ratio of transverse strain to axial strain and provides an indicator of changes in the internal microstructure due to environmental exposure. Figure 13a–c show the evolution of Poisson’s ratio with the cycle number for the different exposure regimes and salinity levels, and these results are used as supporting information, alongside the modulus of elasticity and compressive strength, to interpret the progression of deterioration. Due to a data-acquisition error, Poisson’s ratio values for 112 cycles are missing in Figure 13a and were excluded from interpretation.

3.1.5. Comparison of Compressive Strength and Resonance Frequency

Using both test methods together provides complementary destructive and nondestructive evaluations of material performance over the duration of the laboratory program. The compressive-strength results quantify the reduction in load-carrying capacity as deterioration progresses and indicate how the concrete resists the applied loads. In parallel, resonance-frequency measurements offer a nondestructive means to detect internal changes in stiffness and microstructural condition before visible cracking or loss of load-carrying capacity occurs. Comparison of these two datasets relates internal degradation, reflected by changes in resonance frequency, to the corresponding loss in compressive strength. The combined use of resonance frequency and compressive strength provides a clearer picture of damage development in the concrete and improves the ability to identify early signs of performance loss, demonstrating the benefit of incorporating multiple performance measures in durability testing.

3.2. Chemical Results

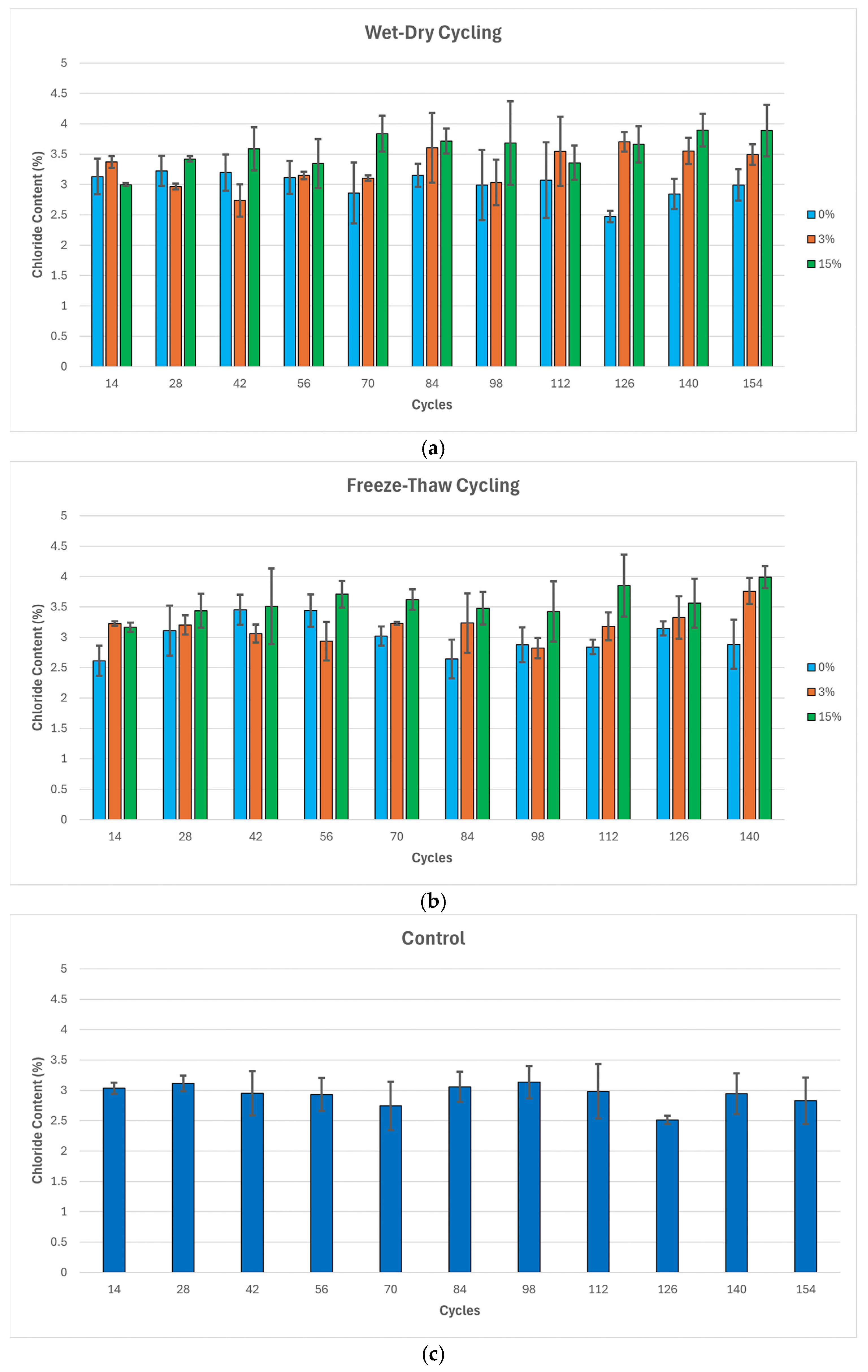

The chemical results focus on the water-soluble chloride content of the concrete samples. The measured chloride concentrations are used to interpret the deterioration observed in the durability cycles and to assess how chloride penetration relates to reductions in compressive strength, modulus of elasticity, and resonance frequency. These findings support the broader goal of distinguishing mechanical deterioration from chloride-driven degradation in bridge decks. The laboratory chloride profiles are also compared with in situ bridge-core data to check the consistency of the observed trends.

As detailed in Section 2.3.2, water-soluble chloride content was determined for more than 250 specimens, with three replicate measurements per specimen, yielding over 750 individual test results. After completion of the exposure cycles, the concrete was powdered and analyzed for water-soluble chlorides, representing the fraction of chlorides available to participate in chemical degradation. For each exposure group, multiple specimens were combined to obtain a representative average chloride content that reflects variations in mixture composition, porosity, and penetration depth. Figure 14a–c summarize the average chloride contents for wet–dry, freeze–thaw, and control specimens at the different saline solution concentrations. The results indicate that differences between the two accelerated deterioration regimes are small and that internal chloride accumulation is governed primarily by the concentration of the soaking solution.

4. Case Study: Delaware Bridges

4.1. Selected Bridge Locations

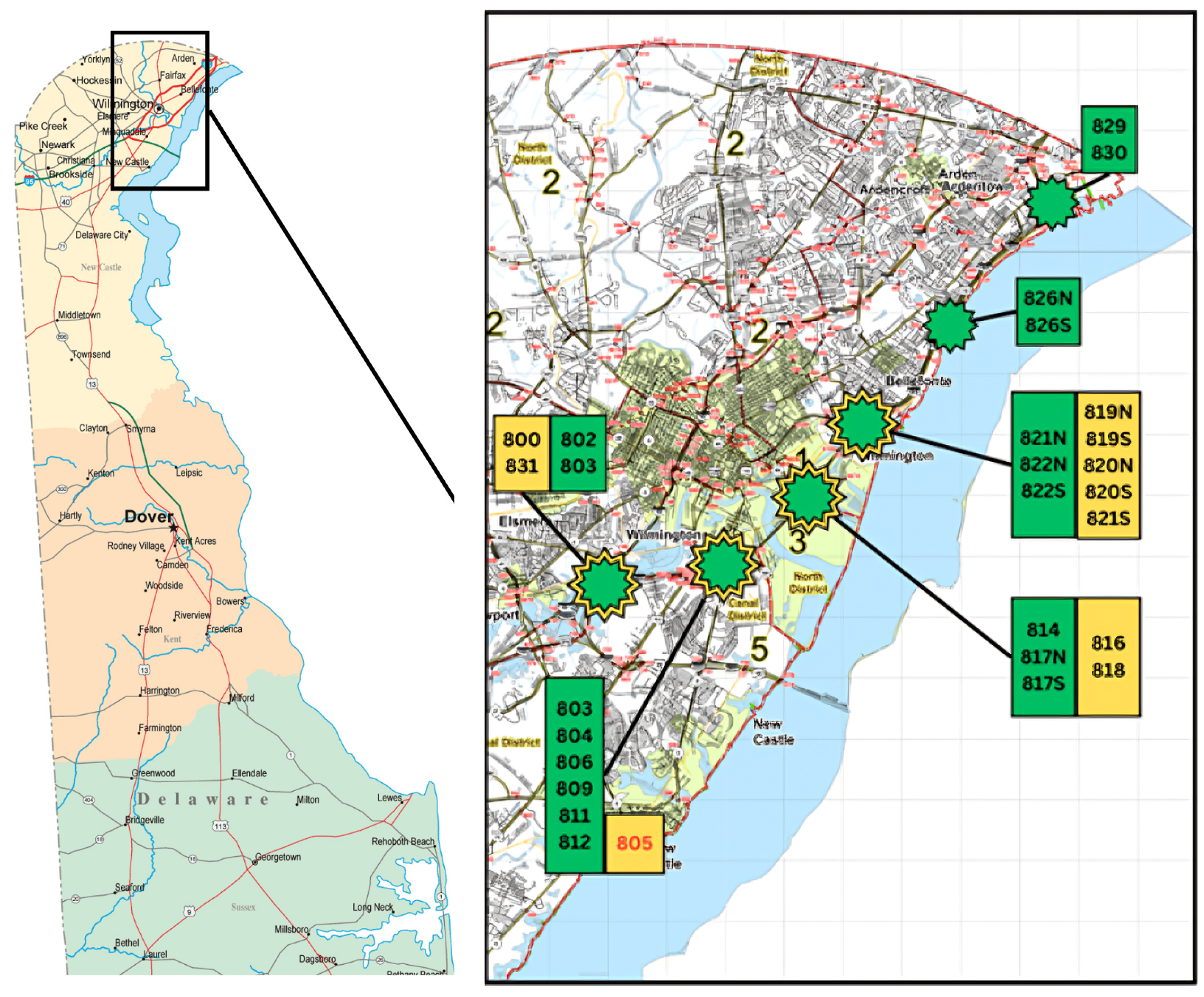

To validate the laboratory findings, bridge-deck cores from selected Delaware bridges were evaluated alongside the laboratory-cast specimens and compared with data supplied by the Delaware Department of Transportation (DelDOT) and its consultant. This case study presents an in situ investigation of bridge-deck deterioration based on core samples drilled from Interstate 495 (I-495) in Wilmington, Delaware, as shown in Figure 15.

The selection of I-495 was based on recent evaluations and reports that document deck condition and provide information on environmental exposure, traffic loading, and material performance. The bridge cores analyzed in this study were obtained as part of a DelDOT investigation carried out by one of DelDOT’s contractors, and the associated data were provided to support the present work.

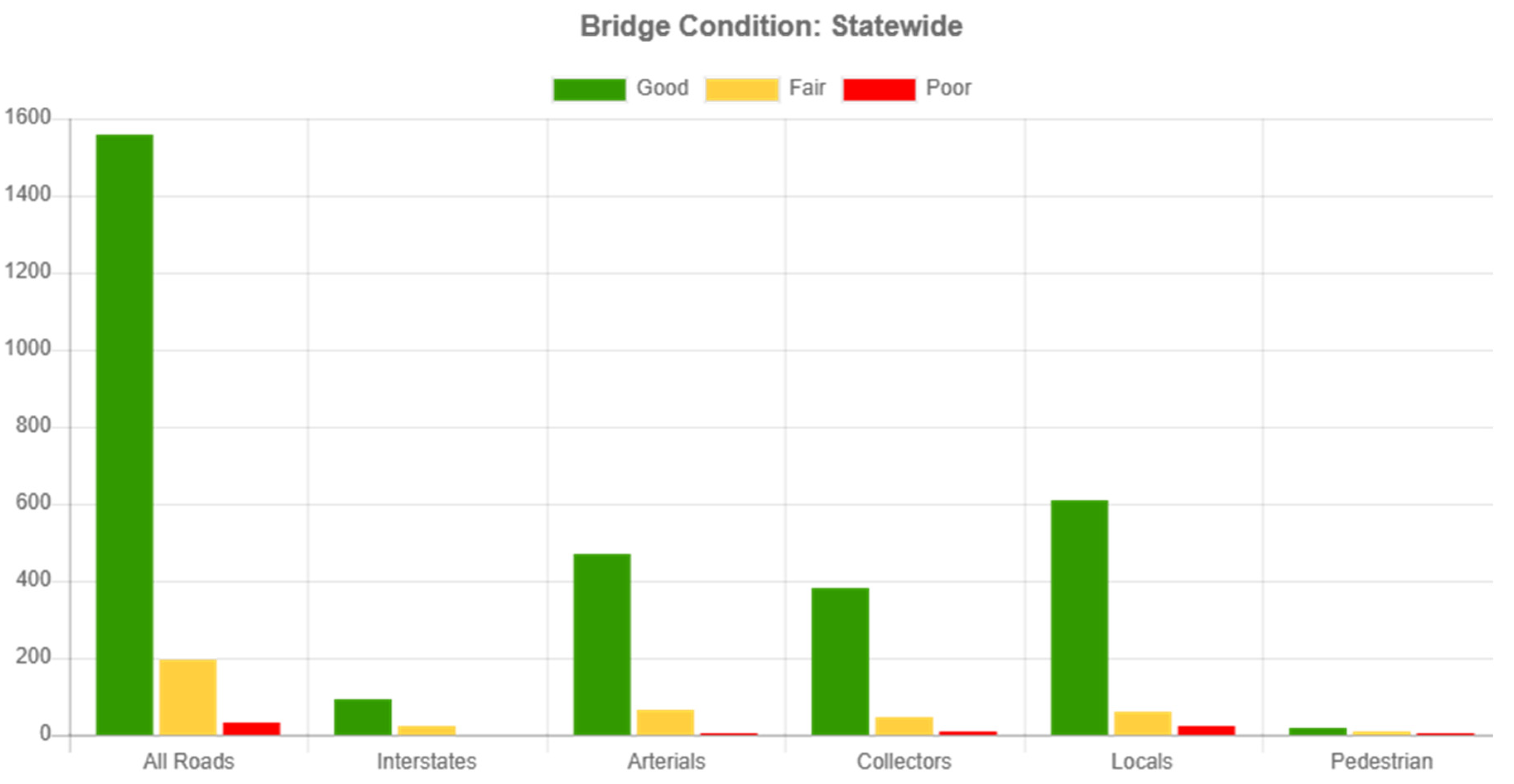

Delaware provides a well-documented example of effective bridge management, with a clear focus on infrastructure preservation through targeted resource allocation and proactive maintenance. DelDOT reports an overall bridge condition rating of about 98 percent. This high network rating reflects sustained attention to structural integrity and serviceability. At the same time, all bridges undergo long-term deterioration, and there is a need to better quantify these processes; the present study contributes to that goal. As shown in Figure 16, most Delaware bridges fall under the “good” condition rating, and relatively few are classified as poor. While this outcome is favorable for network performance, it also limits the availability of bridge cores representing advanced deterioration, which makes it challenging to assemble a broad field dataset spanning a wide range of damage levels.

By studying these bridge cores, the present case study links laboratory observations with field performance and reduces the gap between controlled tests and concrete bridge decks exposed to real environments. Although the exposure histories of the decks were not controlled, cores from bridges of different ages provide useful information on how deterioration develops over time and support decisions on maintenance and rehabilitation. Cores are used to evaluate material performance; identify degradation mechanisms such as cracking, delamination, and corrosion; and supply data for refining predictive models of bridge-deck life.

Most of the bridge decks from which cores were extracted are still rated “good,” which reflects Delaware’s preventive bridge management but limits the range of observed deterioration states. Heavily degraded decks are rare, so there are few cores from advanced damage levels; nonetheless, the available cores document early deterioration and long-term aging in maintained decks. Within this context, this study also examines how reinforcement protection and repair strategies, such as epoxy-coated bars, corrosion inhibitors, and overlays, influence deck ratings over time on the I-495 viaduct and how rating improvements and their duration relate to specific maintenance actions.

4.2. Bridge-Deck Cores

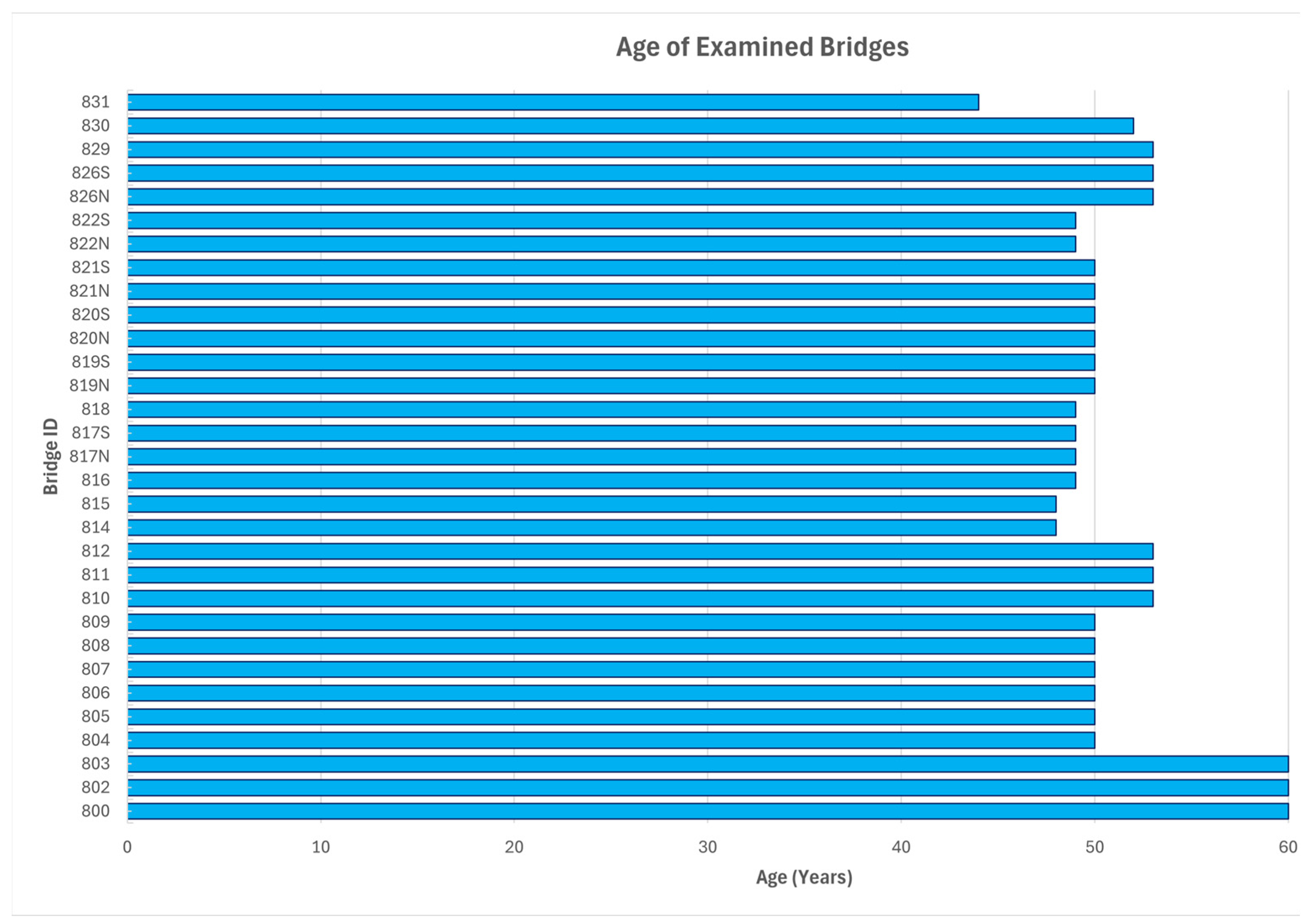

To gain first-hand information on material performance and degradation mechanisms after a full in-service life, physical testing was conducted on core samples of bridge-deck concrete gathered from 31 bridges in Wilmington, Delaware. The core samples provide critical information on the durability of concrete, offering in situ confirmation of laboratory findings on compressive strength, salinity content, and petrographic features.

4.2.1. Core Sample Testing and Analysis

The laboratory tests conducted on the samples yielded comprehensive reports on the structural condition, material composition, and degradation patterns that gave essential information for the bridge-deck effectiveness assessment. To analyze the properties of materials, standard testing was conducted. Compressive-strength testing established load-bearing capacity, a key indicator of structural integrity. Salinity testing quantified chloride penetration of deicing salts, which accelerate the corrosion of reinforcement. Petrographic analysis provided a microscopic assessment of aggregate composition, cracking patterns, and cement matrix structure. Although the petrographic analysis was not a key factor in the analysis, it did provide some reasoning for several samples that were outliers in the reports.

This study also juxtaposed the relationship between material performance and the age of bridges to determine whether older bridges exhibit more deterioration or whether better construction materials and maintenance strategies have extended service life. In Figure 17, the ages of the examined bridges are shown to identify patterns of deterioration across different construction periods. Correlating core sample performance with the ages of bridges, this study informs long-term material development and directs bridge preservation practice for the future.

4.2.2. Compressive Testing of Bridge Cores and Lab Specimens

Compressive-strength measurement is a vital component of bridge-deck assessment, delivering valuable information regarding the load-carrying capacity and structural integrity of concrete elements. In this research, the compressive stress of the bridge decks in question was derived from the average core sample values of the chosen bridges. For some of the core samples, the specified length-to-diameter (L/D) ratio requirement was not achieved due to several factors, including deck depth, and therefore the application of correction factors was required to facilitate proper strength calculations. The corrected bridge-deck stresses are displayed in Figure 18, showing the range of values that even the same deck can have.

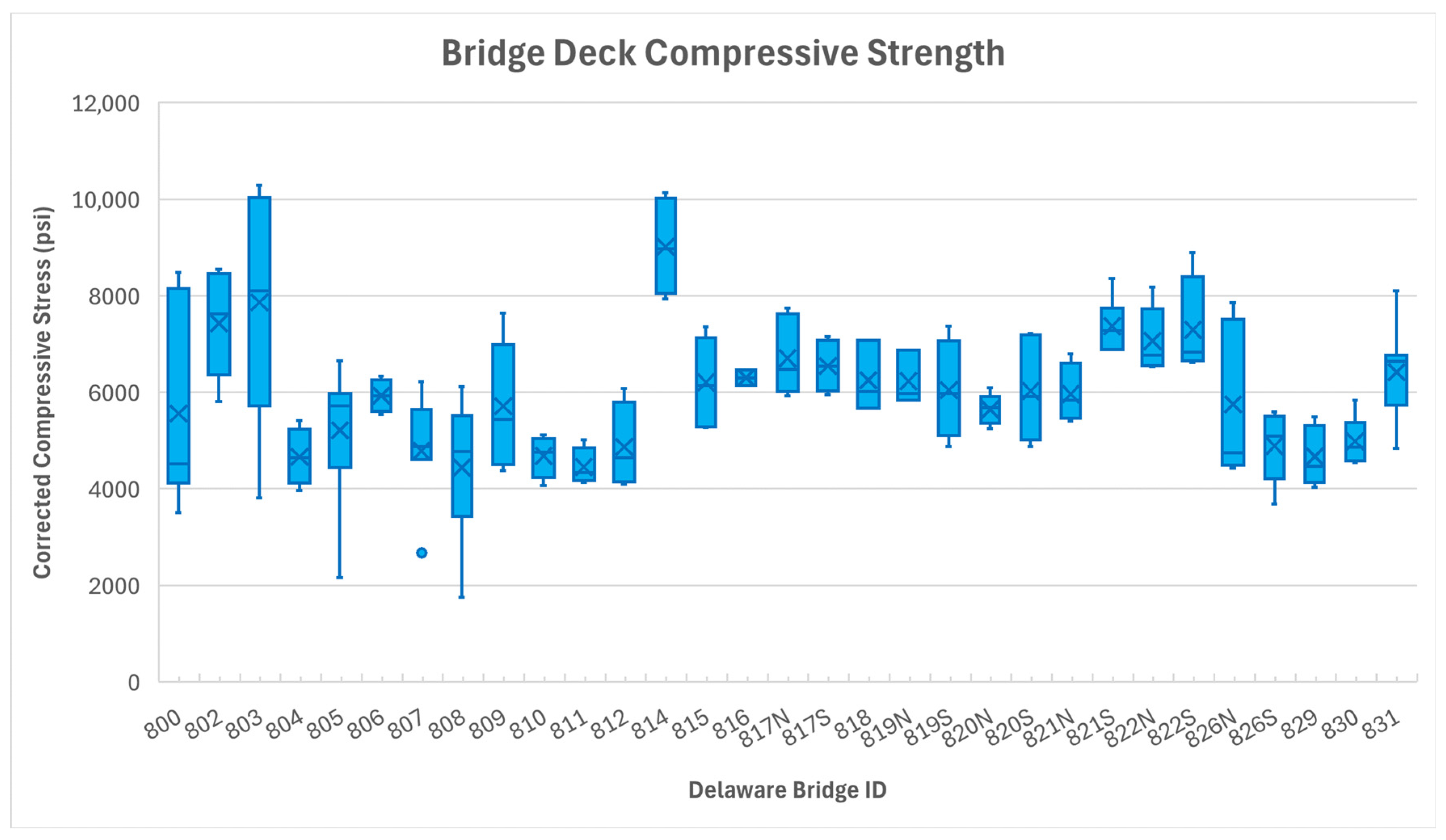

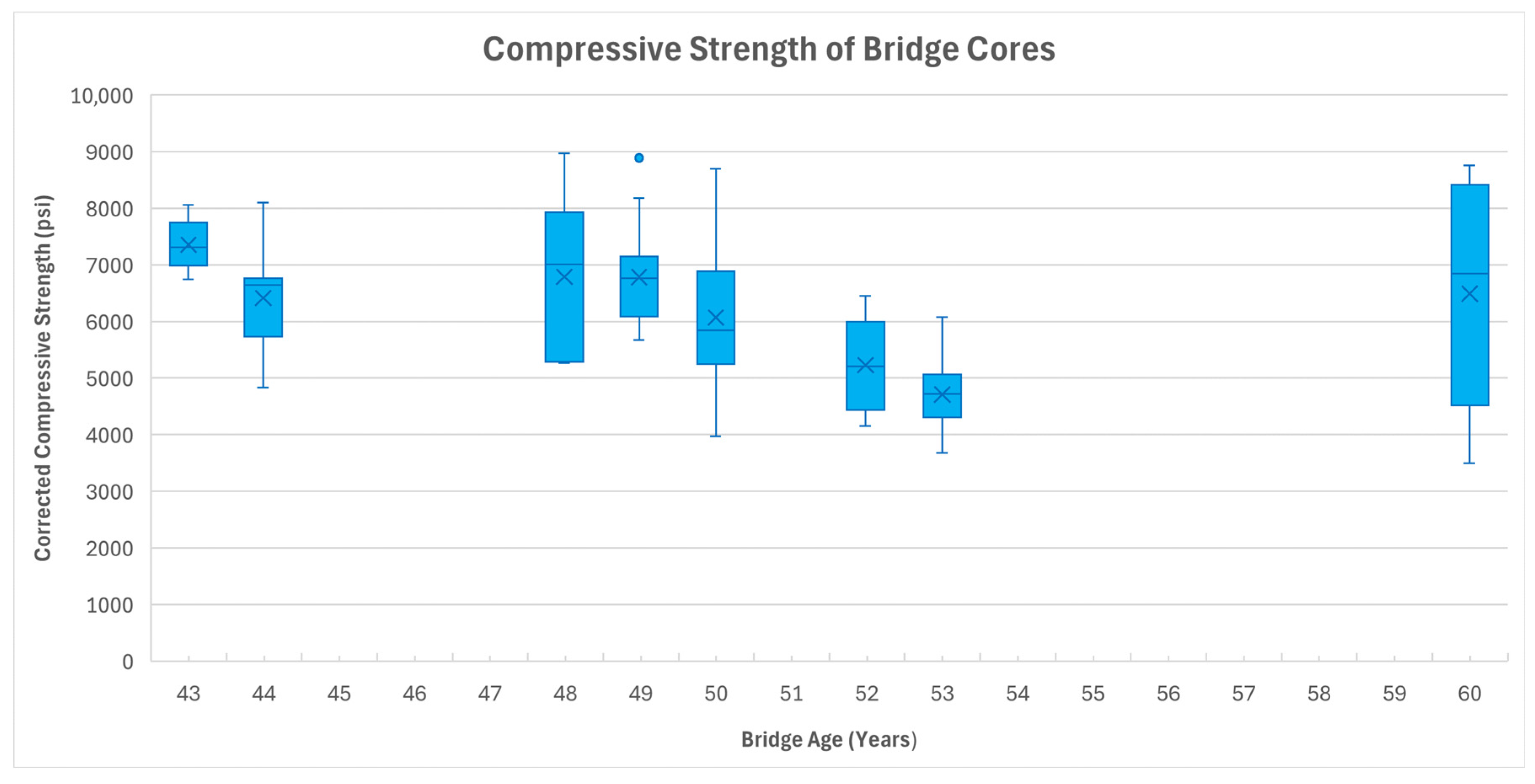

Compressive-strength testing for bridge-deck core samples was conducted in accordance with ASTM C42/C42M [34] standards, which recommend a 2:1 length-to-diameter (L/D) ratio for accuracy. This ratio ensures that test results reflect in situ concrete strength because variations in core dimensions may affect measurements. Some of the cores extracted were less than the preferred L/D ratio, and corrections were applied. The shorter cores showed artificially higher strengths due to reduced lateral expansion effects. To correct this, ASTM-recommended equations were applied to normalize compressive-strength values based on actual L/D ratios for uniformity in samples. Following the application of correction factors, the corrected compressive-strength values gave a good indication of in situ material properties. Standardizing this information allows for accurate comparisons between bridges and their deterioration trends, facilitating structural assessment and long-term durability analysis.

To facilitate a wider comparison of compressive strength among various bridge decks, a study of the age of the core samples was conducted to determine trends in material behavior with age. Because the strength of concrete can deteriorate from exposure to the environment, cyclic loading, and chemical corrosion, placing the cores in specific age groups enables a clearer determination of the performance of aging bridge decks. The bridge-core samples were categorized into age groups to examine how compressive strength varies over time, as shown in Figure 19.

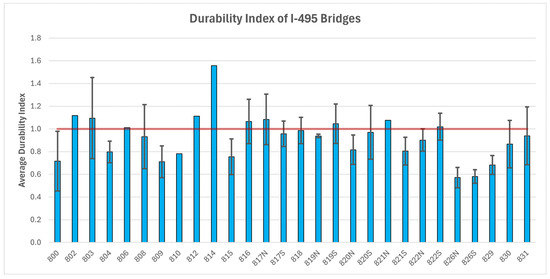

4.2.3. Chloride Measurements of Bridge Decks

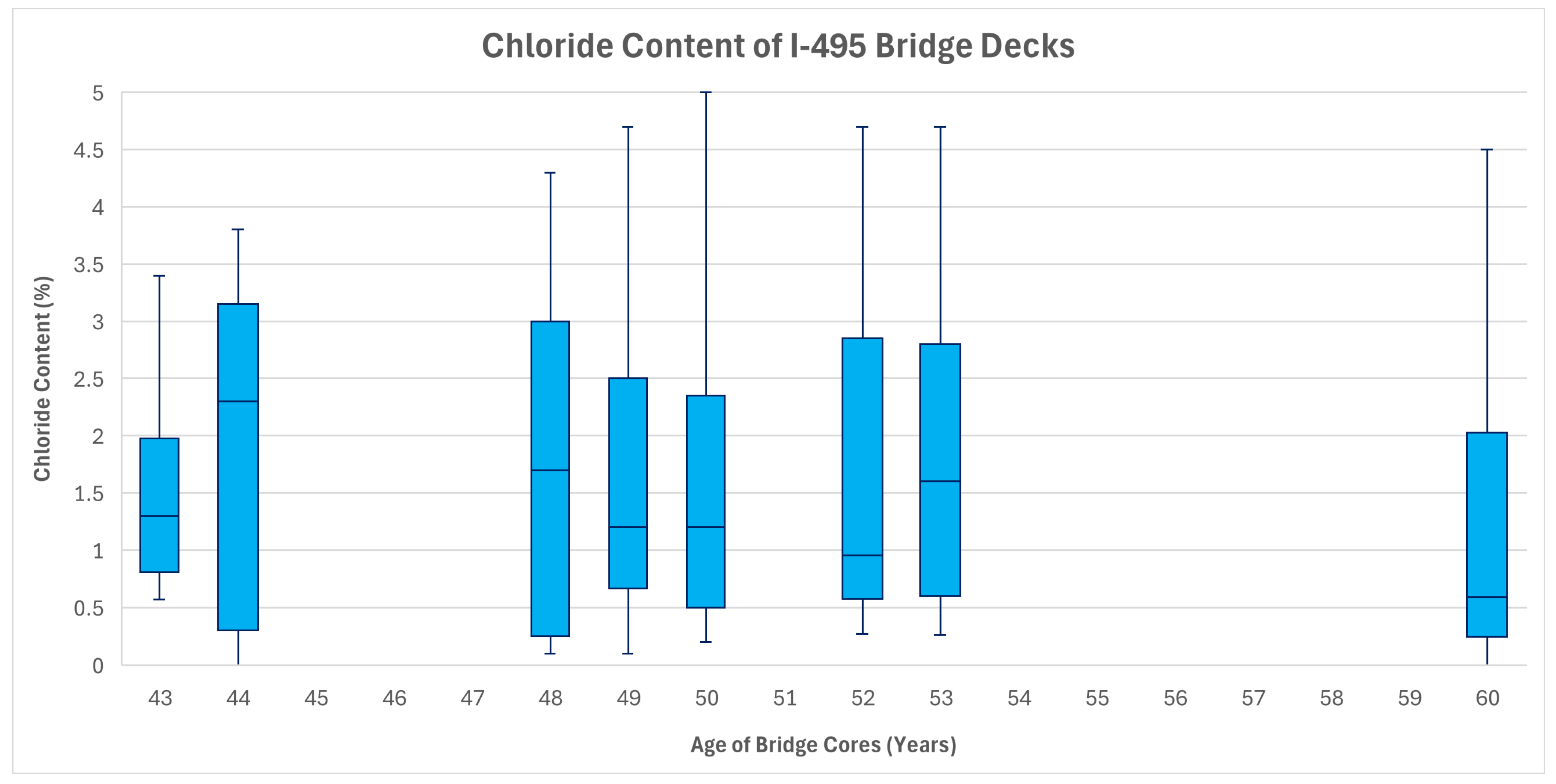

In addition to compressive strength, the chloride concentration level of the bridge-deck cores was also measured, recognizing it as a significant parameter affecting reinforcement corrosion and long-term durability. Chloride-induced corrosion is among the most critical mechanisms of degradation of concrete bridge decks, especially in areas that receive deicing salts in winter [35]. Chloride penetration variability in bridge decks of varying ages, exposure conditions, and health and maintenance histories is investigated in this research. Figure 20, which shows the chloride content by bridge age, provides a breakdown of chloride concentration levels across different bridge decks. Older bridges are more likely to have accumulated higher chloride concentrations due to prolonged exposure. Bridges in high-traffic areas or locations with heavy deicing salt usage tend to exhibit greater chloride intrusion. Bridges that received protective treatments (e.g., waterproofing membranes, sealants, or overlays) show lower chloride penetration compared to untreated decks.

This categorization allows for a comparative analysis of how high chloride concentrations affect concrete deterioration beyond just reinforcement corrosion. The traditional perspective views steel reinforcement as the primary limiting factor in bridge-deck degradation, but this study aims to determine the extent to which chloride-induced deterioration affects the concrete matrix itself, even when reinforcement is protected. A common premise in bridge-deterioration modeling is that bridge-deck ratings decline over time due to progressive material deterioration, environmental effects, and traffic loading. However, a review of historical bridge-deck ratings indicates that rating increases have occurred for some bridges at some time during their life cycle. Since bridge conditions would naturally decrease without intervention, any NBI rating increase observed suggests that maintenance interventions, e.g., patching or replacement of wearing surfaces, occurred.

Bridge-deck ratings decline with age due to material deterioration, environmental exposure, and traffic loading. Improvements in ratings are realized through maintenance operations, principally resurfacing rather than total deck replacements, which are costly and infrequent. Resurfacing enhances surface conditions but not the underlying structure; thus, ratings are improved temporarily, and deck life is extended. Tracking these fluctuations provides insight into resurfacing as a maintenance practice and its impact on long-term bridge performance. Along with individual rating changes, this study analyzes overall trends in deterioration to compute average decline rates across numerous bridges. Figure 20 yields three significant findings: (1) bridge decks undergo a natural deterioration trend due to wear and environmental stress, (2) there is a short-term beneficial effect of resurfacing on ratings, and (3) deterioration renews after maintenance, providing information on the effectiveness of resurfacing and the optimum frequency of intervention. These findings support data-driven bridge maintenance planning, with an emphasis on the importance of timely resurfacing and its limitations in addressing more severe structural deterioration.

5. Analysis and Discussion

The analysis is organized into four primary sections, which help inform the deterioration envelope: (1) environmental condition trends, (2) experimental trends, (3) predictive models, and (4) durability index. Each section builds upon the results to progressively connect short-term laboratory findings with long-term deterioration behavior.

5.1. Environmental Condition Trends

This section examines the environmental factors causing degradation of concrete bridge decks, such as chloride exposure, freeze–thaw cycling, and wet–dry exposure. These exposures were simulated in laboratory testing to model real exposure conditions prevalent in Delaware and similar climates. The resulting information highlights the effect of environmental stressors on the type and rate of degradation, forming the basis for evaluating long-term bridge-deck performance.

5.1.1. Freeze–Thaw Predictions

The trends used for freeze–thaw cycle predictions were derived from historical weather, obtained from the NOAA weather station based in Wilmington, Delaware. An empirical relationship, represented by Equation (1), was established using this dataset and subsequently plotted against the freeze–thaw cycle counts reported in InfoBridge™, as shown in Figure 21. The resulting correlation was used to estimate annual freeze–thaw frequencies, which were then incorporated into the deterioration modeling presented later in this analysis. The number of freeze–thaw cycles since construction is given by

$$T=T_c-T_i$$

(1)

$$N_{FTCycles}=-0.09225T^2+95T$$

(2)

where $N_{FTCycles}$ is the number of freeze–thaw cycles since construction,

T is the number of years since construction,

T_c is the current year, and

T_i is the year of construction.

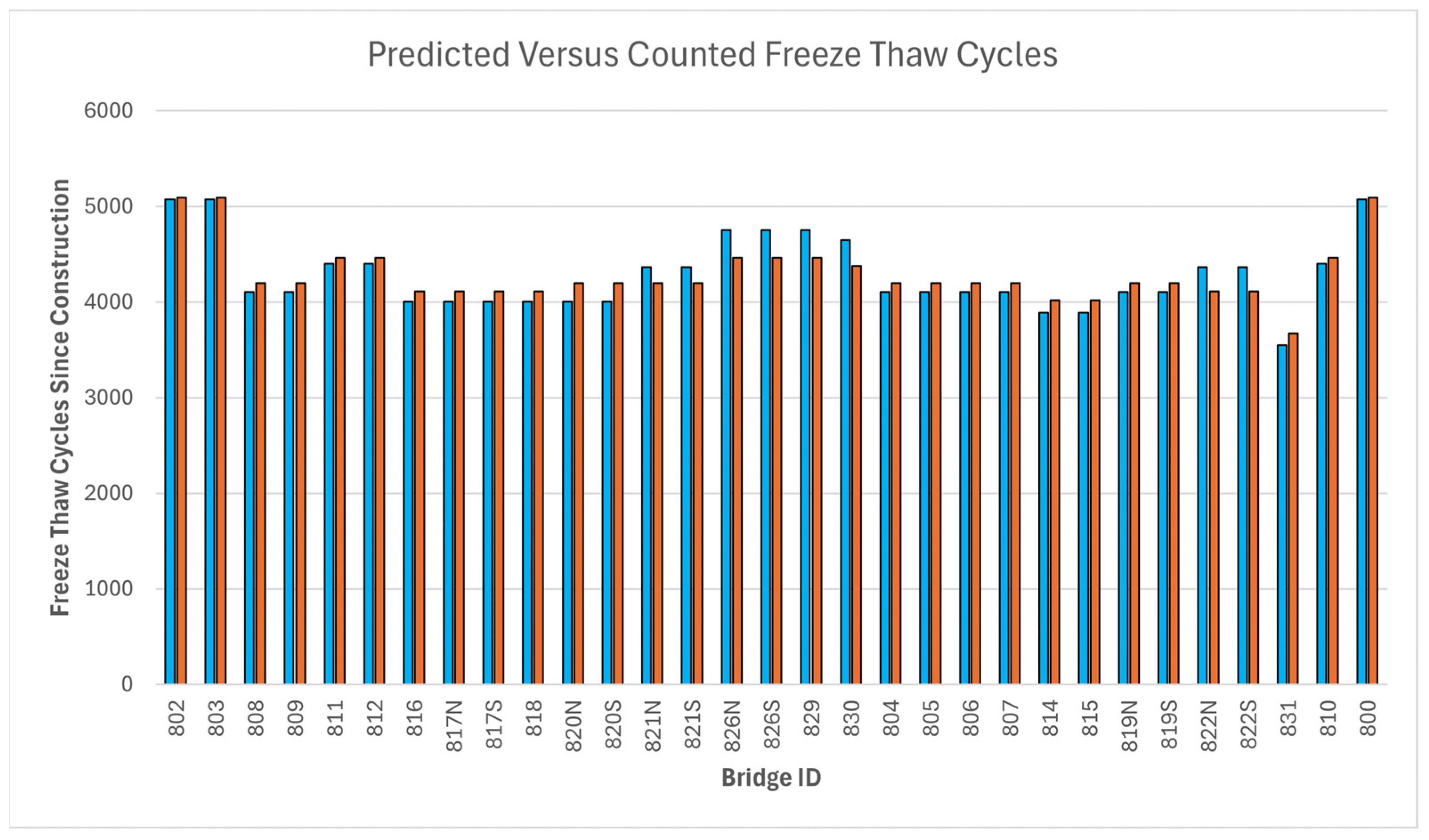

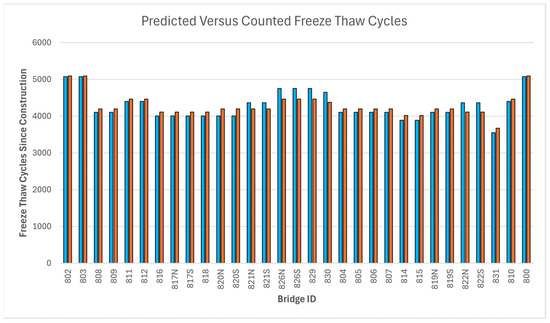

Figure 21. Predicted versus counted freeze–thaw cycles.

Figure 21. Predicted versus counted freeze–thaw cycles.

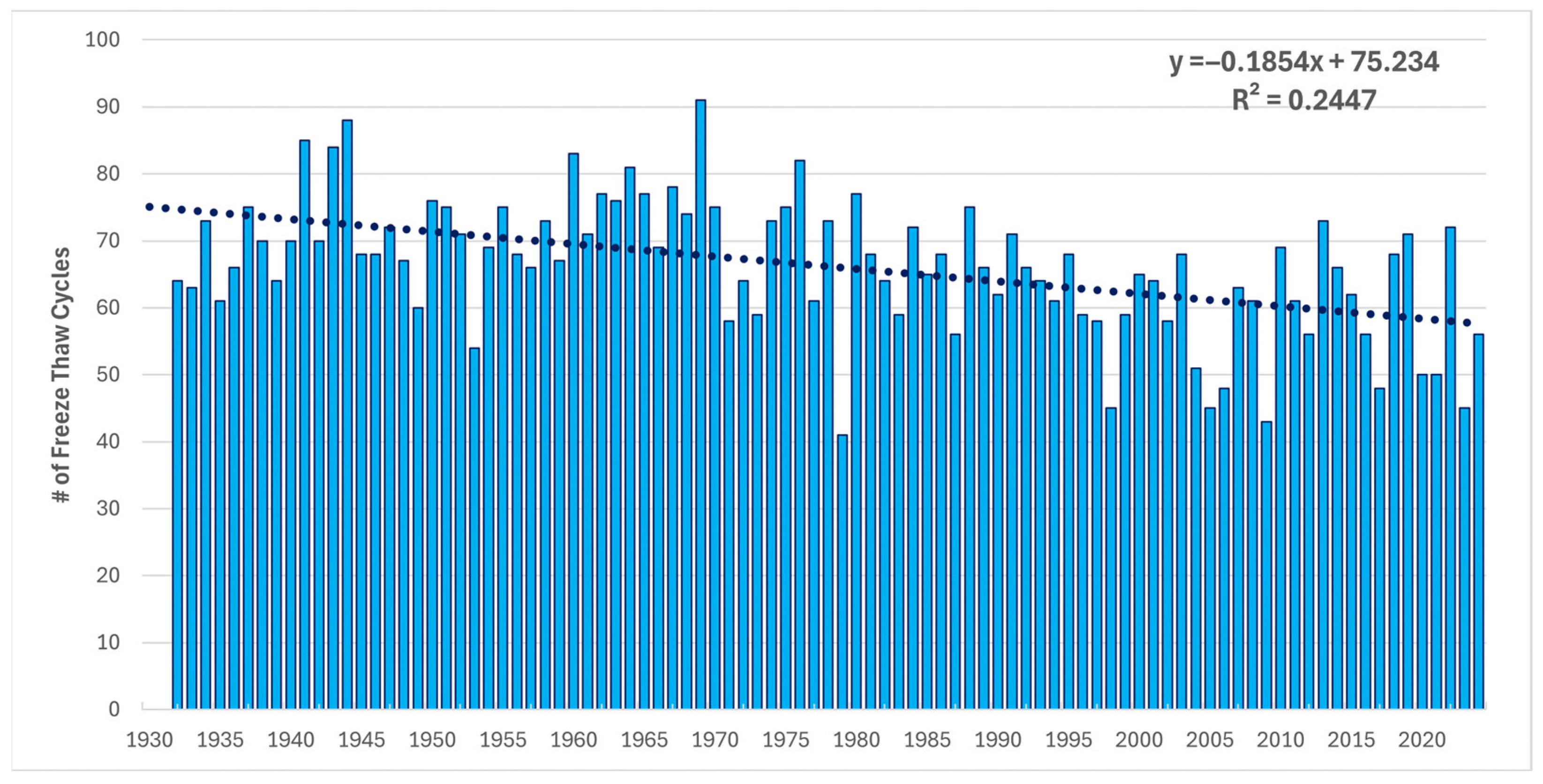

This equation was derived from the linear trend shown in Figure 22. The equation presented in the figure was integrated over the interval from 0 to T (where T represents the number of years since construction) to derive an empirical relationship linking the area’s climate data with the structure’s age. Freeze–thaw event rates were derived from NOAA NCEI daily maximum and minimum temperature records for Wilmington, Delaware (1932 to 2024). A freeze–thaw event was counted when the daily record crossed the 32 °F (0 °C) threshold, based on the daily maxima and minima, and each threshold-crossing day was recorded as one cycle. Bridge-level climate attributes from FHWA InfoBridge^® were used to check site variability relative to the regional NOAA record.

5.1.2. Snow-Day Predictions

Snow-day predictions were developed using historical weather data obtained from InfoBridge™ for the bridges located along the I-495 viaduct in Wilmington, Delaware, as shown in Figure 23. An empirical relationship, represented by Equation (3), was derived from this dataset, and the resulting correlation was used to estimate the frequency of annual snow days. These estimates were subsequently incorporated into the deterioration modeling presented later in this analysis. Snow-day frequency served as a key variable in estimating long-term chloride accumulation, as deicing salt application during snow events represents a primary source of chloride ingress in bridge decks. The number of snowfall days since construction is given by

$$T=T_c-T_i$$

(3)

$$N_{SD}=-0.16245T^2+45T$$

(4)

where

N_SD is the number of snow days since construction,

T is the number of years since construction,

T_C is the current year, and

Ti is the year of construction.

Figure 23. Number of snowfall days per year.

Figure 23. Number of snowfall days per year.

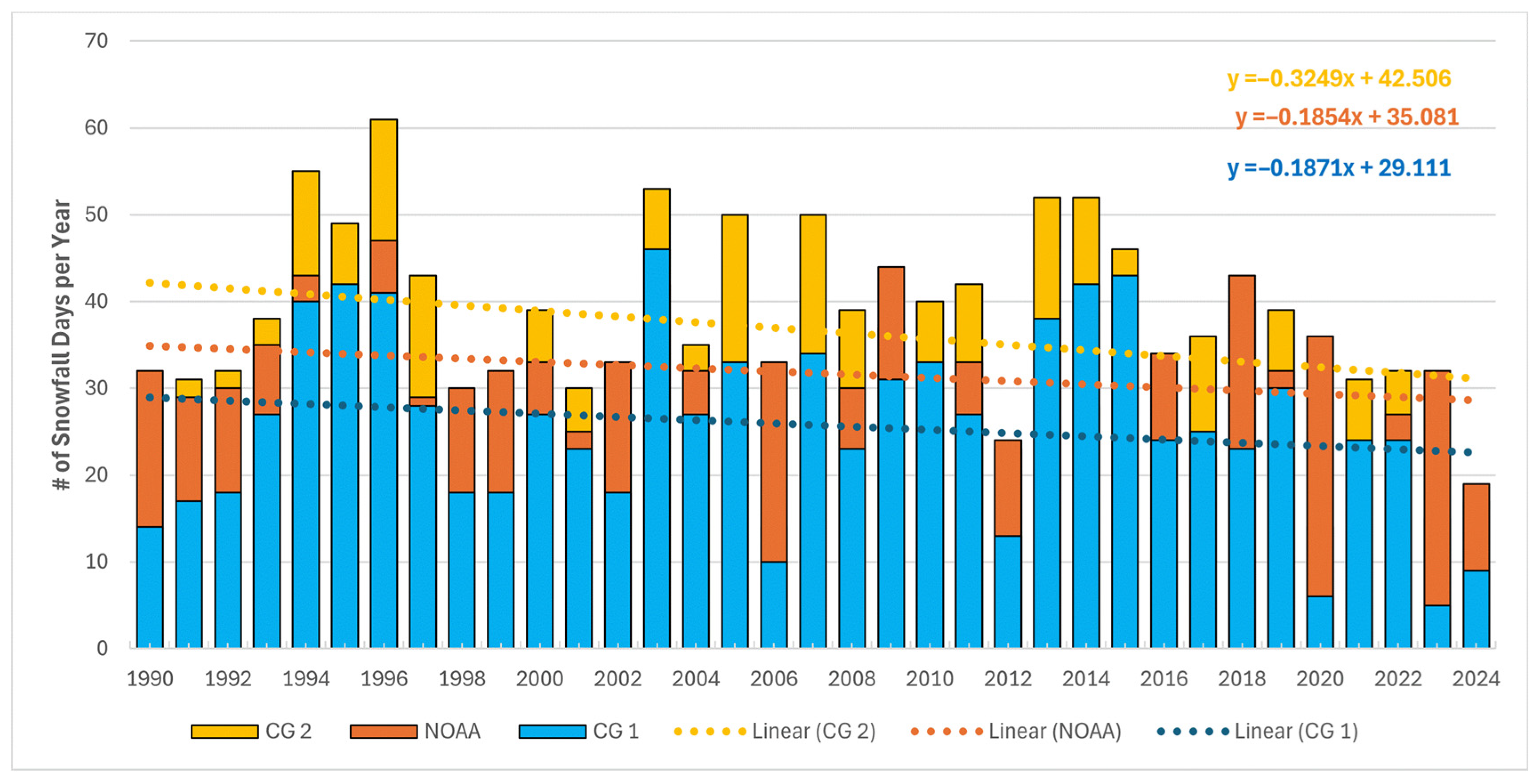

This equation was derived from the linear trend shown in Figure 23. The equation presented in the figure was integrated over the interval from 0 to T (where T represents the number of years since construction) to derive an empirical relationship linking the area’s climate data with the structure’s age.

5.1.3. Wet–Dry Cycle Predictions

Wet–dry cycle predictions were developed using historical climate data presented in Figure 22, sourced from InfoBridge™ regional precipitation records relevant to the I-495 Viaduct in Wilmington, Delaware. An empirical relationship, expressed as Equation (5), was established to estimate the frequency of wet–dry cycling based on precipitation patterns and drying intervals. This correlation was used to determine annual wet–dry cycle counts, which were then integrated into the deterioration modeling presented later in this analysis. The frequency of wet–dry cycles plays a critical role in the transport of chlorides into concrete and the progressive breakdown of material integrity over time. The number of wet–dry cycles since construction is given as

$$N_{WDCycles}=-0.036T^2+66.56T$$

(5)

where

T is the number of years since construction and

N_WDCycles is the number of wet–dry cycles since construction.

Wet–dry exposure was estimated from historical NOAA precipitation records by counting the number of rain events per year. Multi-day rain events were counted as a single wetting event because the deck would not dry enough between days to represent separate wet–dry cycles. InfoBridge time of wetness was used to describe moisture duration by climate group, but it does not provide cycle lengths, so NOAA rain events were retained for cycle counting.

To reflect year-to-year variability in NOAA event counts, the cycle-to-year conversion is reported as a range based on the distribution of annual event counts over the historical record, and this range is carried through as bounds on the time mapping used to express the cycle-based envelopes in calendar years. Because the envelopes are defined in cycles, future shifts in freeze–thaw frequency or precipitation patterns can be handled by recomputing local event rate statistics from updated NOAA and InfoBridge records while leaving the laboratory cycle response relationships unchanged.

5.2. Experimental Trends

This section presents the trends observed from the accelerated laboratory testing of concrete specimens. Key physical and mechanical properties, including compressive strength, modulus of elasticity, resonance frequency, and chloride penetration, were monitored over time. The data highlights the material’s degradation behavior under different environmental conditions and helps establish baseline patterns necessary for predictive modeling.

5.2.1. Resonance-Frequency Trends

As the resonance-frequency data represented the most extensive dataset collected during the experimental phase of this study, its trends were identified as the most significant and consistent indicators of long-term strength loss due to environmental cycling. As shown in Figure 24, the average resonance frequency for each environmental condition has been plotted to illustrate the overall trend in material degradation over the course of the experimental study. These trends provide valuable insight into the progressive loss of structural integrity in concrete specimens subjected to repeated freeze–thaw and wet–dry cycles.

To generate reliable long-term predictions, it was necessary to first establish clear trends from the experimental data. The linear trendlines were ultimately deemed more appropriate for representing long-term strength loss due to environmental cycling, as seen in Figure 25, offering a more stable and realistic basis for predictive modeling. The equations for each cycling condition can be seen in Equations (6)–(12).

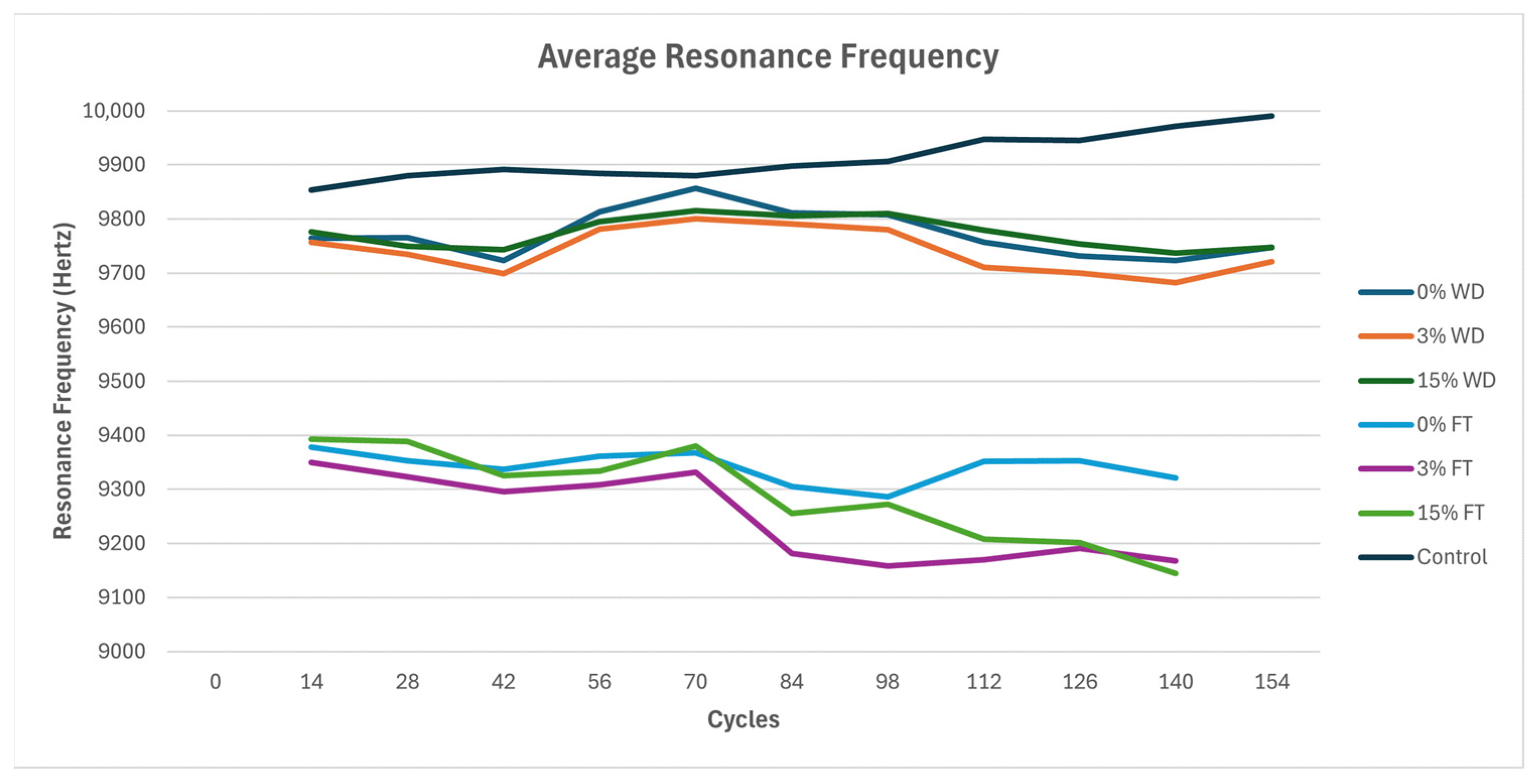

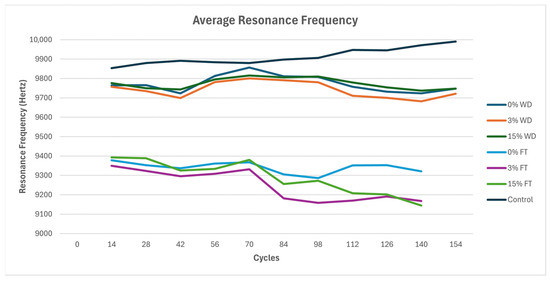

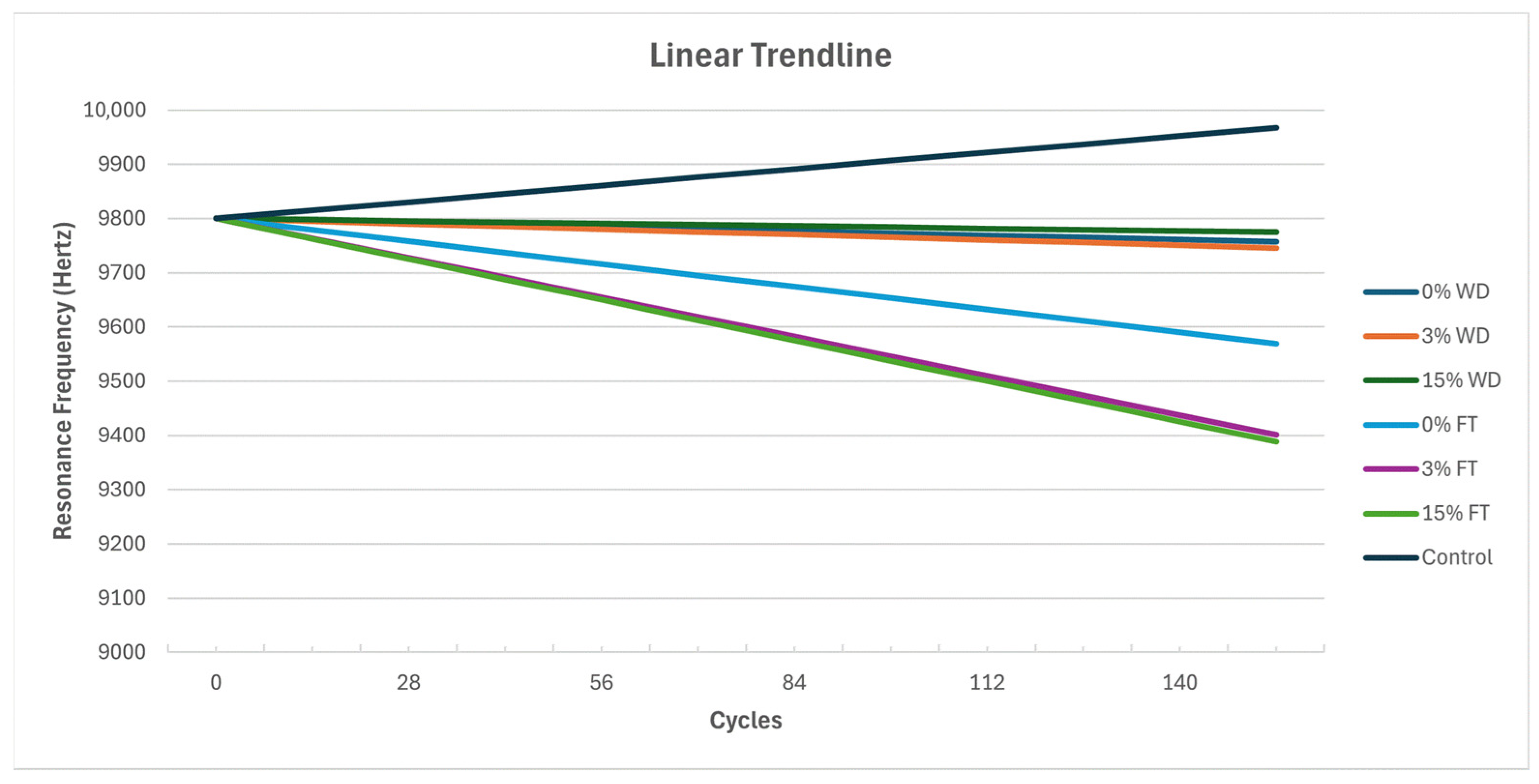

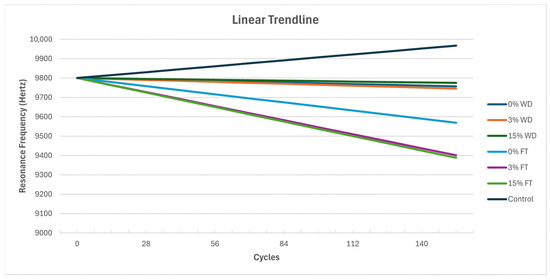

The equations for the resonance-frequency trends are given below.

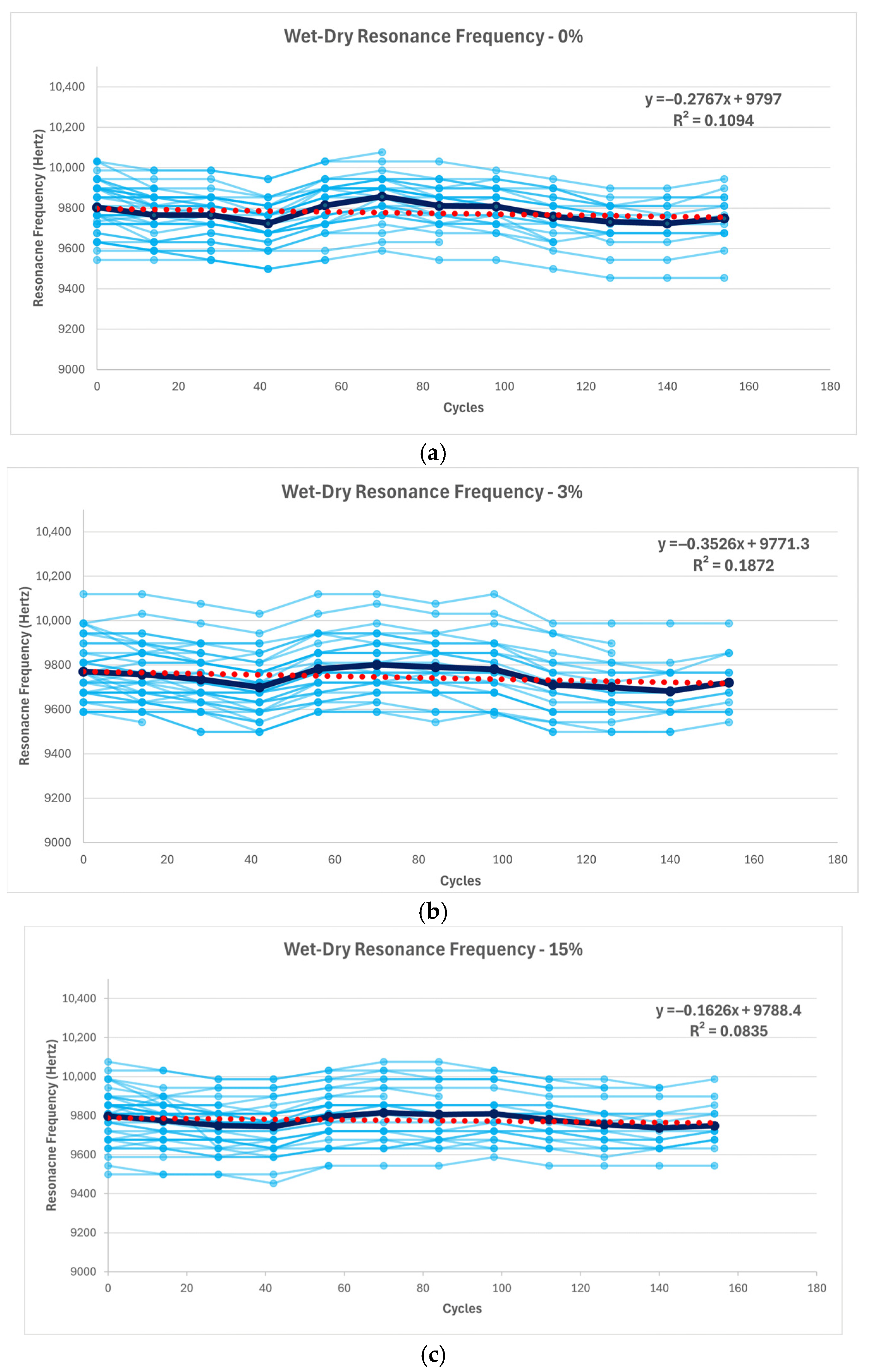

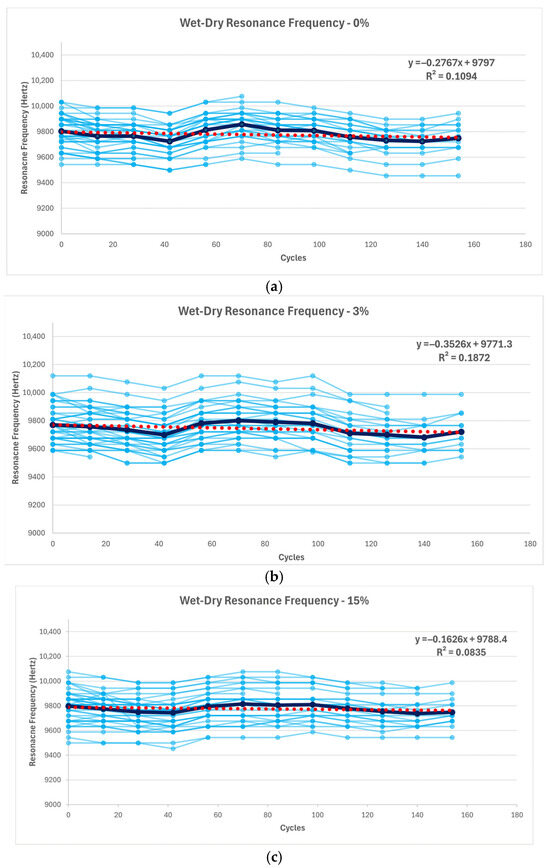

The wet–dry resonance trends are as follows:

$$R{F}_{WD0}=-0.2767N_{WDCycles}+R{F}_i$$

(6)

where $N_{WDCycles}$ is the number of wet–dry cycles since construction and $R{F}_{WD0}$ is the resonance frequency (Hz) after N wet–dry cycles in 0% salinity solution.

$$R{F}_{WD3}=-0.3526N_{WDCycles}+R{F}_i$$

(7)

where $R{F}_{WD3}$ is the resonance frequency (Hz) after N wet–dry cycles in 3% salinity solution.

$$R{F}_{WD15}=-0.3526N_{WDCycles}+R{F}_i$$

(8)

where $R{F}_{WD15}$ is the resonance frequency (Hz) after N wet–dry cycles in 15% salinity solution.

The freeze–thaw resonance trends are as follows, where

$N_{FTCycles}$ represents the number of freeze–thaw cycles since construction:

$$R{F}_{FT0}=-1.4975N_{FTCycles}+R{F}_i$$

(9)

where $R{F}_{FT0}$ is the resonance frequency (Hz) after N freeze–thaw cycles in 0% salinity solution.

$$R{F}_{FT3}=-2.5893N_{FTCycles}+R{F}_i$$

(10)

where $R{F}_{FT3}$ is the resonance frequency (Hz) after N freeze–thaw cycles in 3% salinity solution.

$$R{F}_{FT15}=-2.6753N_{FTCycles}+R{F}_i$$

(11)

where ${\mathrm{RF}}_{\mathrm{FT}15}$ is the resonance frequency (Hz) after N freeze–thaw cycles in 15% salinity solution.

For controlled conditions, the resonance trends are given as

$$R{F}_C=1.0874T+R{F}_i$$

(12)

where ${\mathrm{RF}}_{\mathrm{C}}$ is the resonance frequency (Hz) after T days curing under controlled conditions.

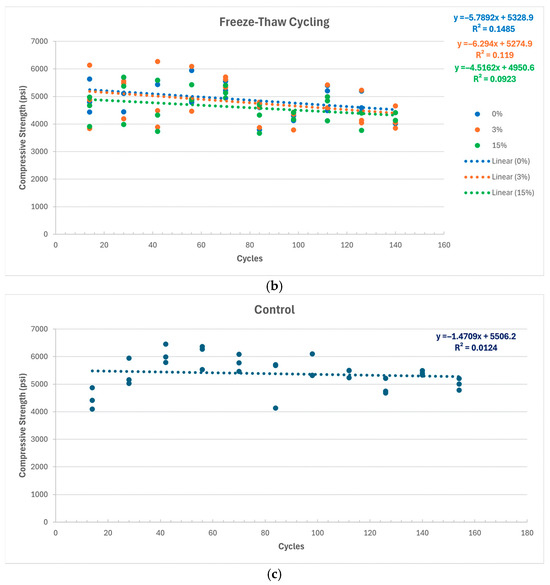

5.2.2. Compressive-Strength Trends

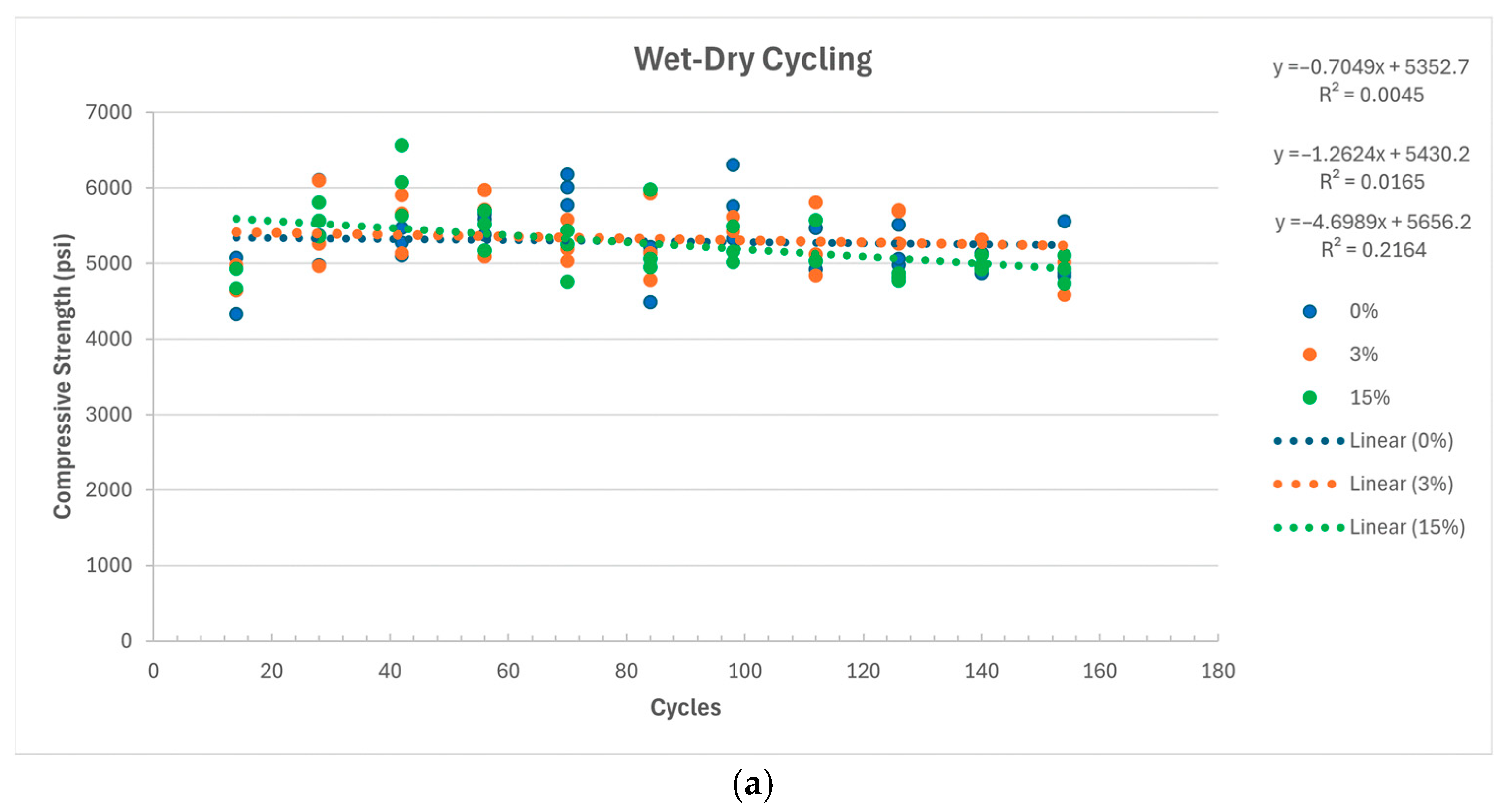

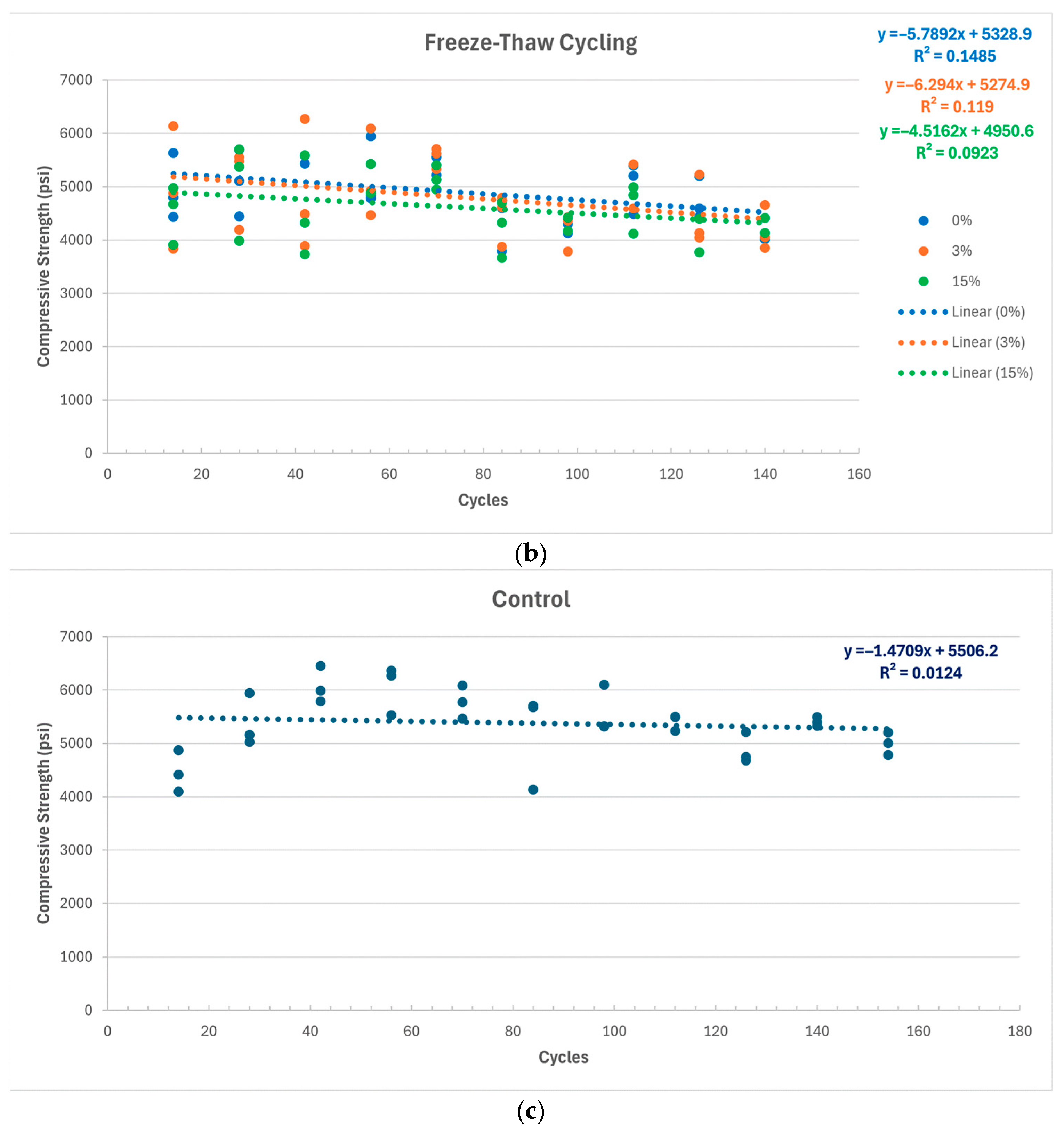

Although compressive strength was the primary performance indicator targeted for mapping deterioration over the course of environmental cycling, the high degree of variability in the experimental outcomes presented challenges for generating reliable long-term forecasts. As illustrated in Figure 26, the degradation trends for compressive strength exhibited relatively low R² values across most environmental conditions, suggesting a weak correlation and reducing their suitability for predictive modeling. This variability is likely due to minor inconsistencies in specimen fabrication, curing conditions, or environmental exposure during testing. As a result, compressive-strength data was not used directly in the formulation of deterioration forecasting models. Nevertheless, it played an important role in the validation process, offering a comparative reference to verify the accuracy of other predictive indicators, particularly resonance frequency. Additionally, the compressive-strength results contributed to the identification and calibration of deterioration factors, helping shape the overall modeling approach used in this study.

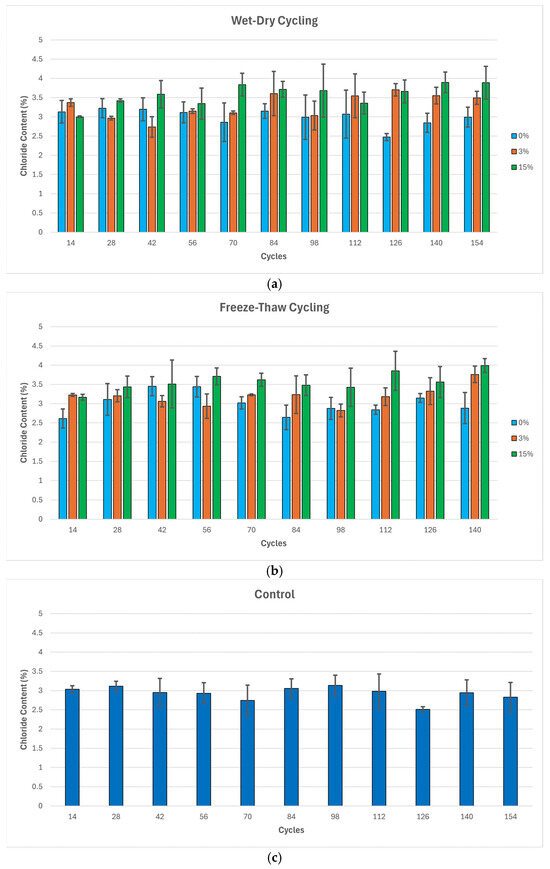

5.2.3. Chloride Trends

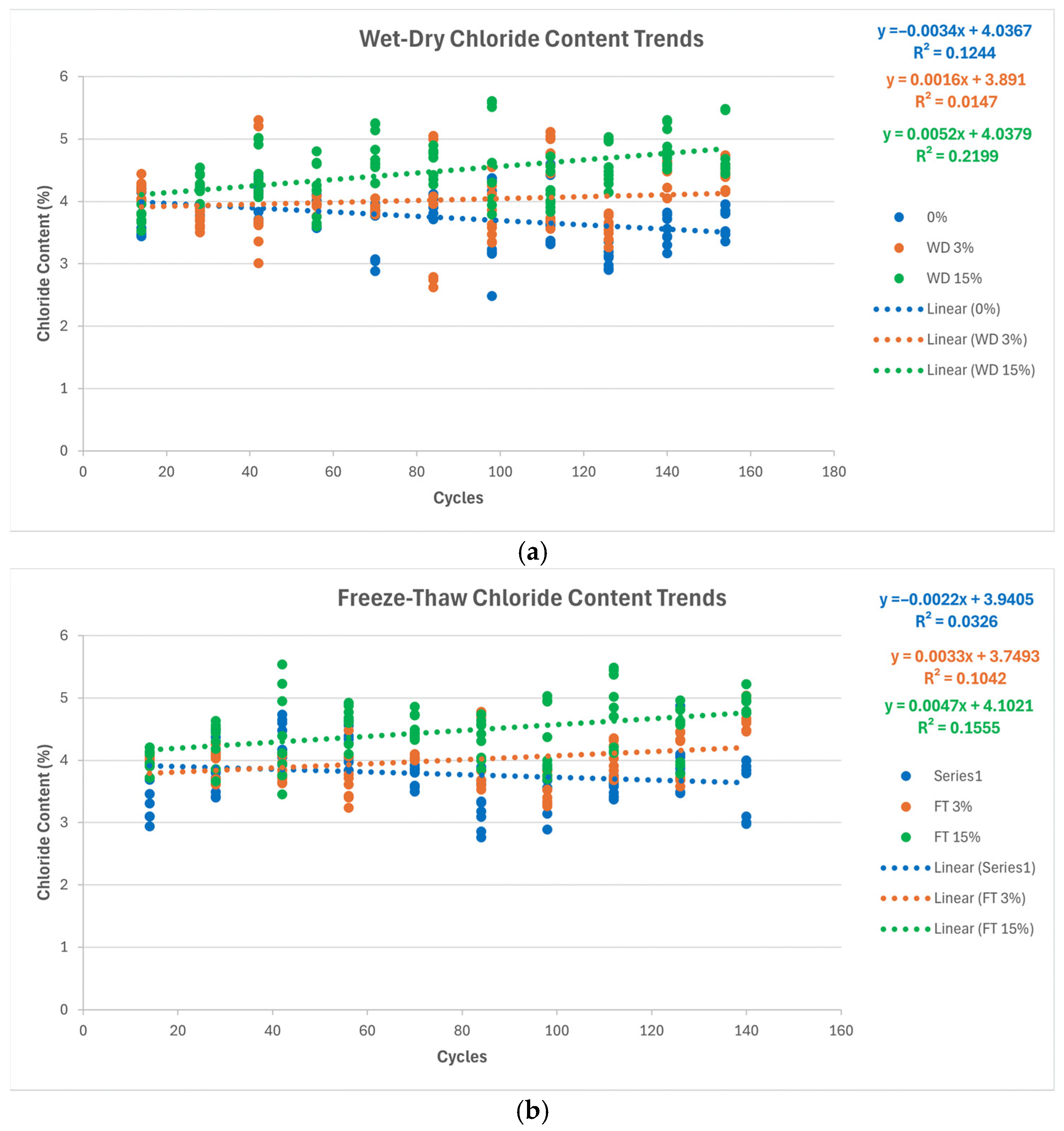

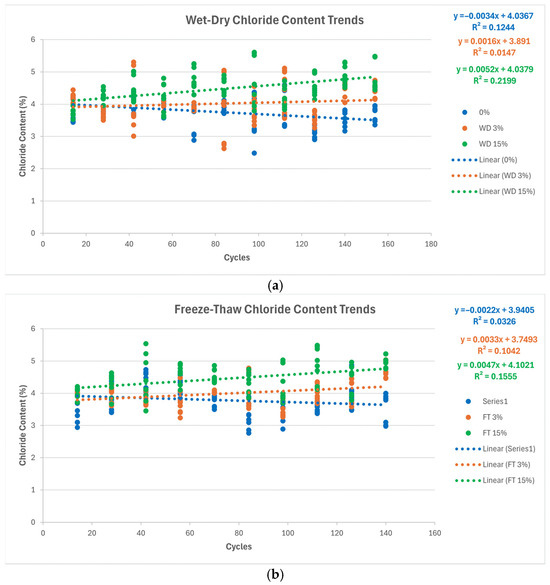

As chloride-induced deterioration formed the central focus of this research, collecting a robust and comprehensive dataset was essential for drawing meaningful conclusions and identifying reliable trends. The progression of chloride intrusion directly influences the long-term durability of concrete, particularly under repeated environmental cycling. As shown in Figure 27, the average chloride content for each environmental condition has been plotted to illustrate the overall trend in chloride accumulation over the course of the experimental study. These trends provide valuable insight into the rate of chloride ingress under varying exposure scenarios and serve as foundational input for the development of predictive deterioration models used later in this analysis. While there are more accurate methods like Fick’s second law for one-dimensional diffusion [36], for this study, the selected samples being fully submerged creates a potential conflict with this equation. It could have been more appropriate if the samples were removed from a testing slab instead of cast shapes, but this is a concept that can be explored more in future work.

The graphs shown also reveal the presence of naturally occurring chloride concentrations characteristic of concrete as a material. Such inherent concentrations are embodied by the y-intercepts of the trendline equations derived from the experimental results. However, for the purpose of deterioration modeling, it was deemed that the slope of each trendline, representing the rate of chloride ingress over time, was the most critical information. Thus, the y-intercepts were removed from further calculation, and the trendlines were reset to begin at zero for application in Equation (13). This provided a more realistic portrayal of chloride accumulation that is strictly a function of environmental exposure, as opposed to original material variability. Although this remains one of the least-developed aspects of the study, it must be mentioned that chloride ingress is a highly complex process that does not undergo strictly linear movement through the concrete matrix. Variability in pore structure, moisture content, and exposure conditions all result in nonlinear penetration of chloride. Nonetheless, because this research primarily examines the link between chloride exposure and deterioration of concrete strength, a simple methodology was adopted for modeling. The need for a more extensive exploration of the mechanisms of chloride transport, especially nonlinear diffusion characteristics and binding interactions, is identified and noted for future work.

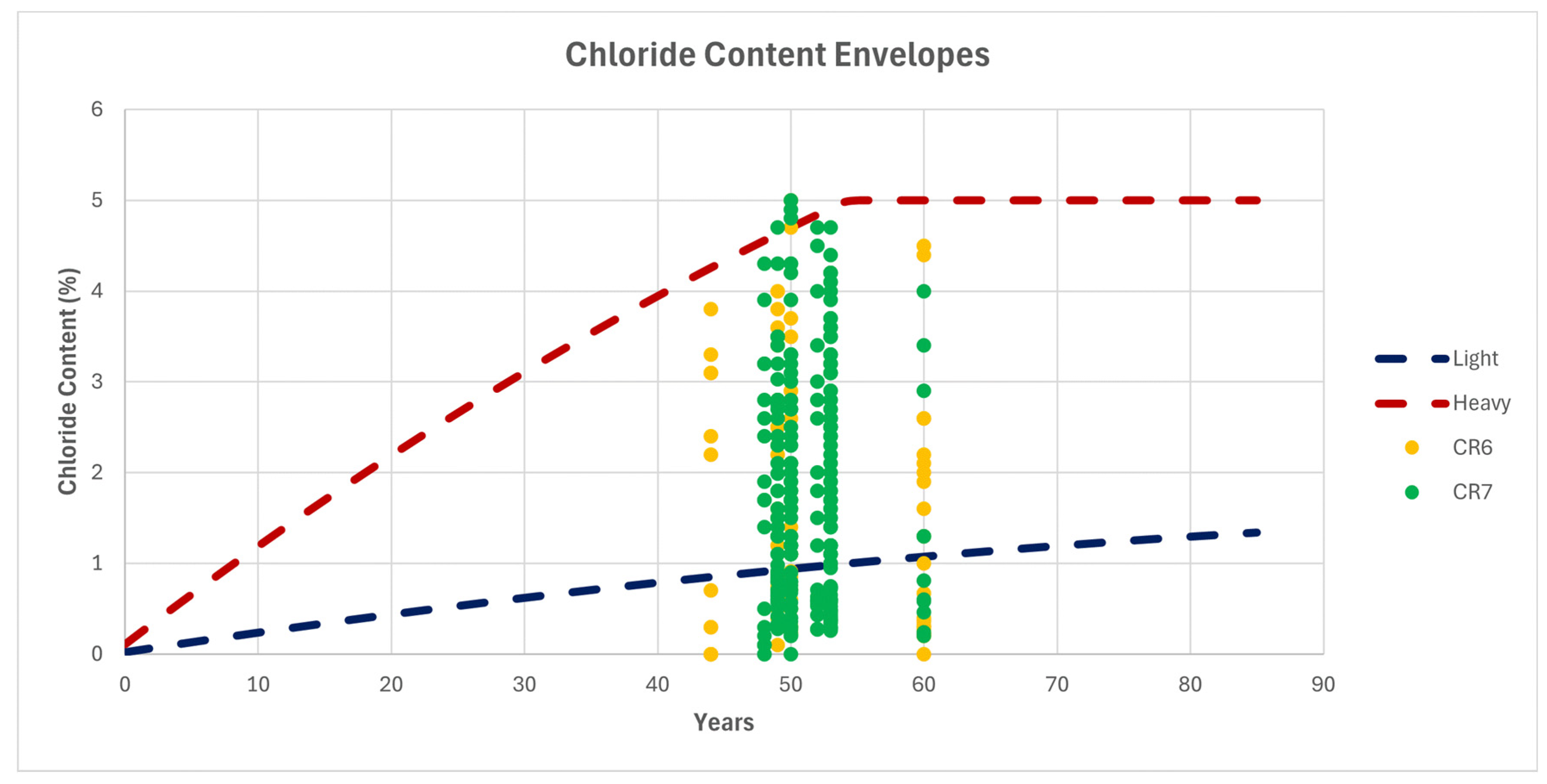

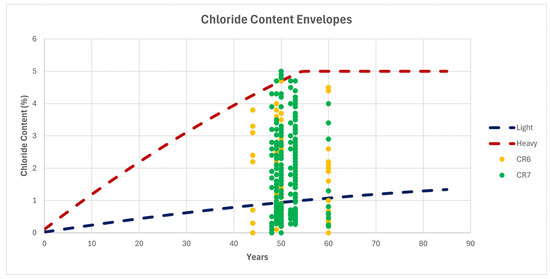

The chloride content (CC) predictions for light and harsh conditions are expressed as

$$C{C}_L=\min \left(5, 0.005N_{SD}\right)$$

(13)

$$C{C}_H=\min \left(5, 0.0025N_{SD}\right)$$

(14)

5.3. Predictive Model

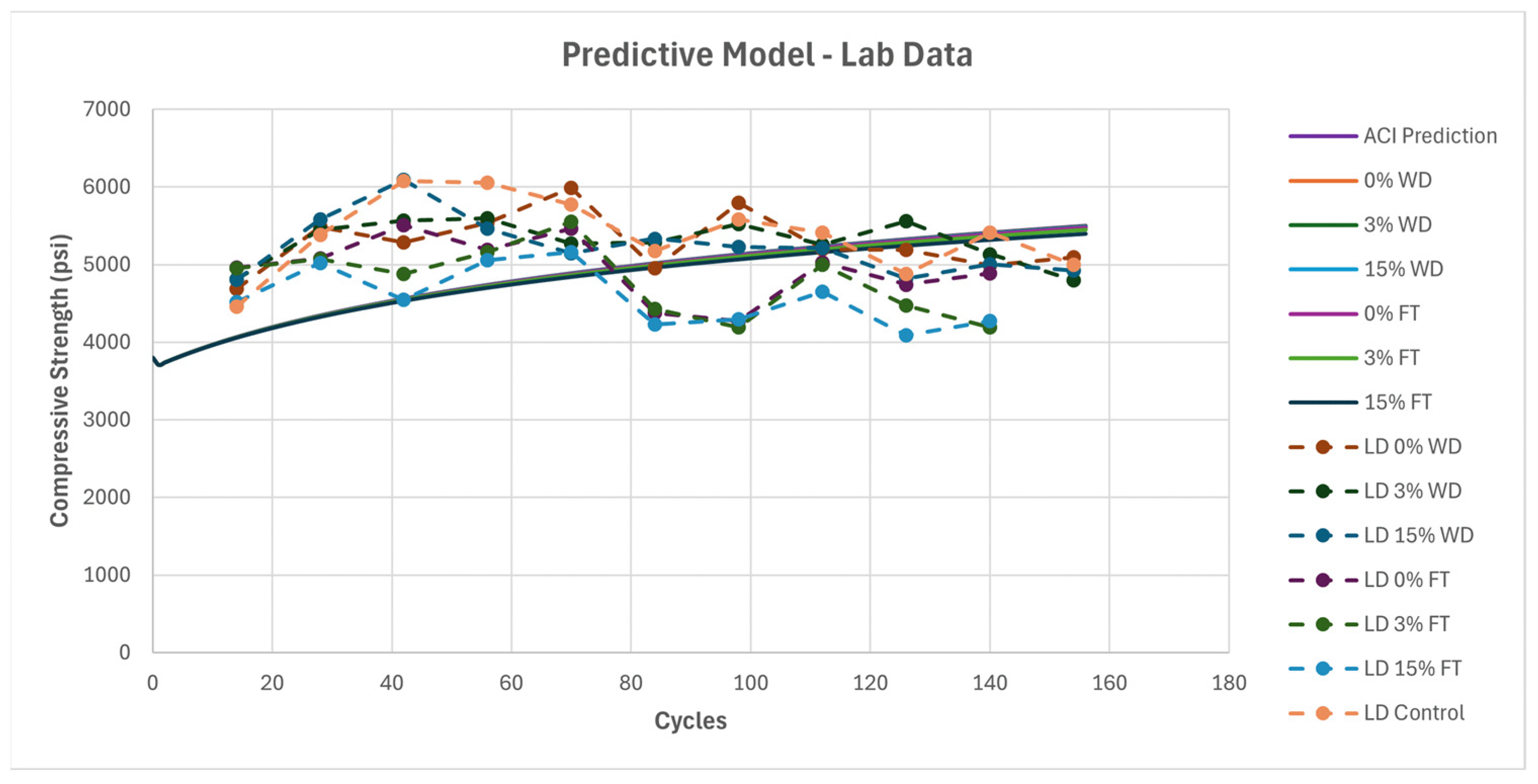

Building on the experimental trends, this section introduces the predictive models developed to estimate long-term bridge-deck deterioration. Using deterioration envelopes derived from laboratory data and environmental exposure variables, these models project performance outcomes across various scenarios. The objective is to enhance forecasting accuracy for material degradation, ultimately informing more strategic maintenance planning.

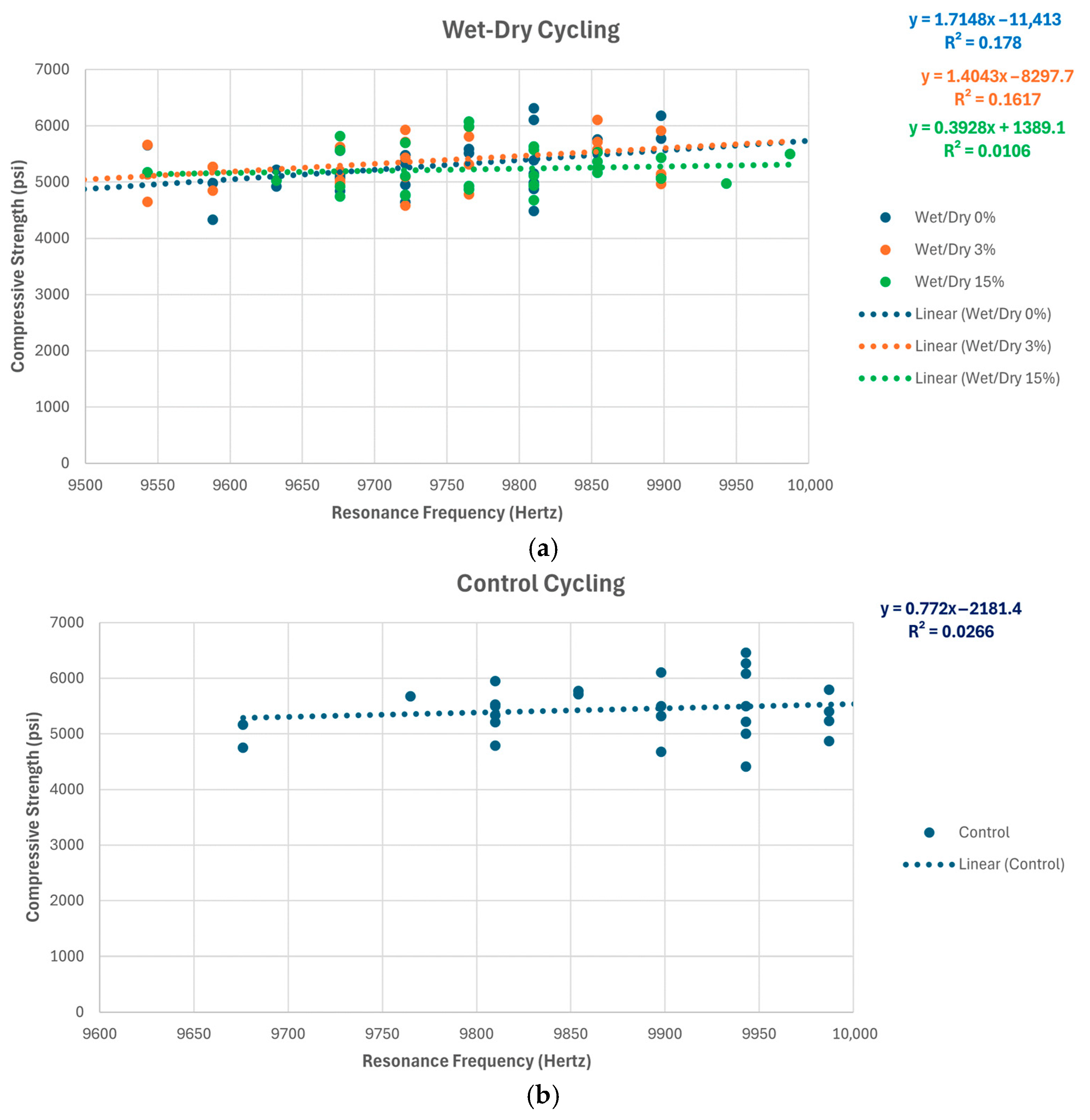

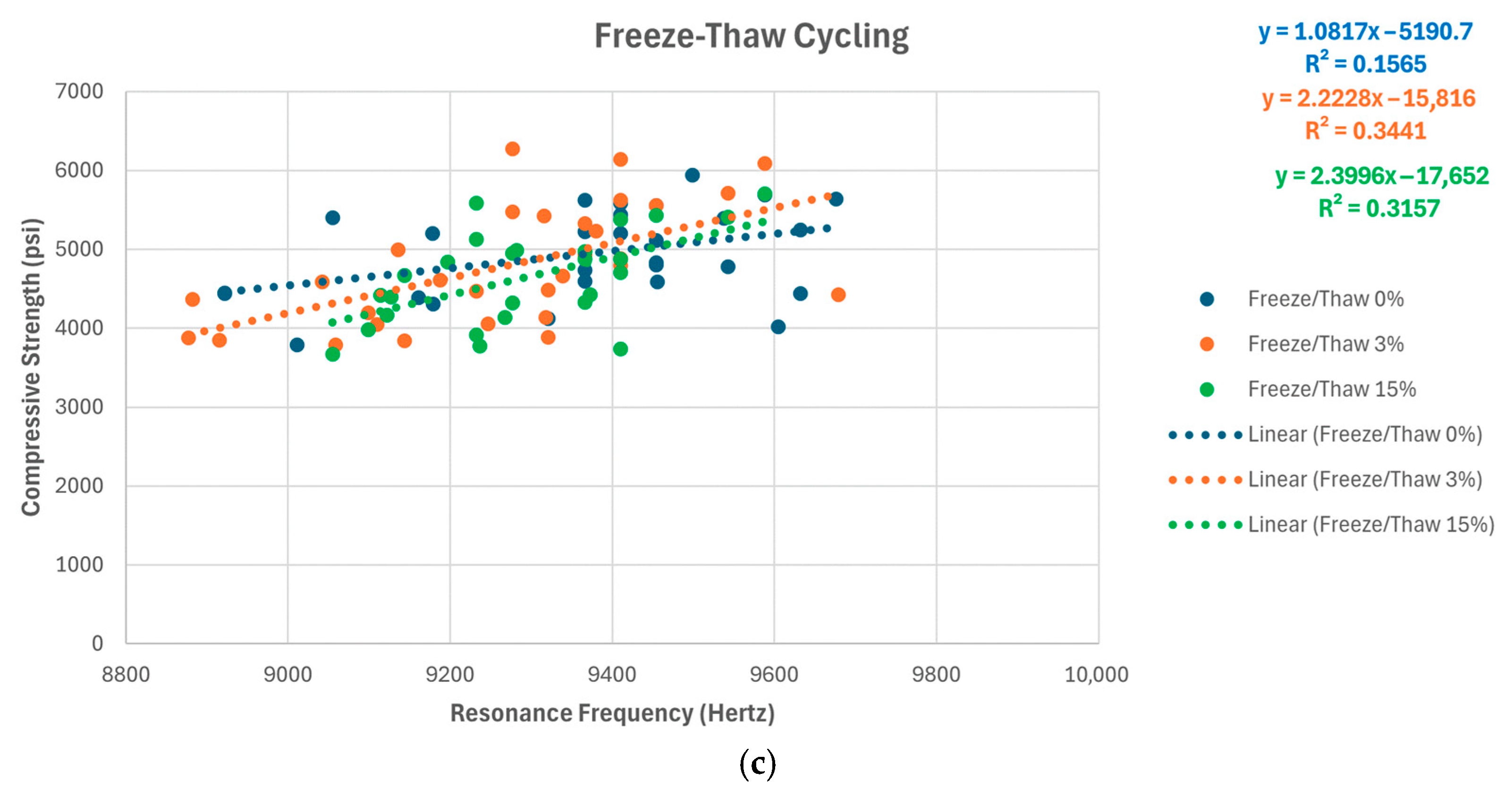

In Figure 28, the general correlation between resonance frequency and compressive strength demonstrates a positive relationship, where higher resonance frequencies correspond to greater compressive strengths. Linear trendlines representing the reduction in resonance frequency and compressive strength are plotted on opposing axes to effectively illustrate this relationship through their slopes. Despite the similar overall trends, the resonance frequency exhibits a more gradual decline, aligning closely with anticipated outcomes based on laboratory observations.

The observed resonance-frequency trends were subsequently converted into corresponding compressive-strength trends. Since the deterioration equations derived from this study represent a linear decline in compressive strength over time, it was necessary to account for the early-age strength gain typically seen in concrete. To do so, the compressive-strength development behavior described in Washa’s Fifty-Year Properties of Concrete was incorporated into the model. The resulting combined equation, presented in Equations (22)–(27), integrates both the initial curing-related strength gain and the long-term environmental deterioration observed during laboratory testing. This composite model was then compared to the experimental results to evaluate its accuracy and predictive capability, with the comparison graphically displayed in Figure 29.

The predicted concrete strength gain is expressed as

$$F^{\prime }{c}_{Pre}=F^{\prime }{c}_{28}(0.255LN\left(T\times 365\right)+0.117$$

(15)

where

$F^{\prime }{c}_{Pre}$ is the predicted concrete strength gain,

$F^{\prime }{c}_{28}$ is the concrete strength at 28 days, and

T is the number of days cured.

The compressive-strength-loss rates, where $SL$ represents the strength loss, are given below.

The wet–dry strength-loss rates are expressed as follows:

$$S{L}_{WD0}={\displaystyle \frac{F^{\prime }{c}_{28}}{R{F}_{WD0}}}$$

(16)

where $S{L}_{WD0}$ is the strength-loss rate due to wet–dry cycling in 0% saline solution.

$$S{L}_{WD3}={\displaystyle \frac{F^{\prime }{c}_{28}}{R{F}_{WD3}}}$$

(17)

where $S{L}_{WD3}$ is the strength-loss rate due to wet–dry cycling in 3% saline solution.

$$S{L}_{WD15}={\displaystyle \frac{F^{\prime }{c}_{28}}{R{F}_{WD15}}}$$

(18)

where $S{L}_{WD15}$ is the strength-loss rate due to wet–dry cycling in 15% saline solution.

The freeze–thaw strength-loss rates are as follows:

$$S{L}_{FT0}={\displaystyle \frac{F^{\prime }{c}_{28}}{R{F}_{FT0}}}$$

(19)

where $S{L}_{FT0}$ is the strength-loss rate due to freeze–thaw cycling in 0% saline solution.

$$S{L}_{FT3}={\displaystyle \frac{F^{\prime }{c}_{28}}{R{F}_{FT3}}}$$

(20)

where $S{L}_{FT3}$ is the strength-loss rate due to freeze–thaw cycling in 3% saline solution.

$$S{L}_{FT15}={\displaystyle \frac{F^{\prime }{c}_{28}}{R{F}_{FT15}}}$$

(21)

where $S{L}_{FT15}$ is the strength-loss rate due to freeze–thaw cycling in 15% saline solution.

The strength loss of concrete after deterioration cycles is given below.

The wet–dry strength-loss equations are

$$F^{\prime }{c}_{WD0}=S{L}_{WD0}\times N_{WDCycles}$$

(22)

$$F^{\prime }{c}_{WD3}=S{L}_{WD3}\times N_{WDCycles}$$

(23)

$$F^{\prime }{c}_{WD15}=S{L}_{WD15}\times N_{WDCycles}$$

(24)

The freeze–thaw strength-loss equations are

$$F^{\prime }{c}_{FT0}=S{L}_{FT0}\times N_{FTCycles}$$

(25)

$$F^{\prime }{c}_{FT3}=S{L}_{FT3}\times N_{FTCycles}$$

(26)

$$F^{\prime }{c}_{FT15}=S{L}_{FT15}\times N_{FTCycles}$$

(27)

The chloride trends derived from Equation (13) were adjusted by reducing the calculated rates by half to better reflect in situ chloride exposure conditions. The original trends were based on continuous soaking in high-salinity solutions, resulting in artificially elevated rates of chloride ingress that do not accurately represent real-world bridge-deck conditions. By scaling down these trends, the revised model provides a more realistic estimate of chloride accumulation over time. These refined trends, alongside data from in situ bridge-core samples, have been plotted in Figure 30 to illustrate the relationship between predicted and observed chloride concentrations. Additionally, an artificial cap of 5% chloride concentration was applied to represent the maximum expected chloride saturation in the concrete matrix. As it was not possible to verify the chloride reports examined in this study, chloride contents above 5% were not considered. This assumption was based on the concrete used in bridge-deck construction having an air content between 5% and 7%, consistent with the parameters employed in the experimental phase of this study.

If the air content exceeds this range, chloride accumulation from NaCl exposure would no longer be the sole factor influencing deterioration. This threshold acknowledges the physical limitations on chloride storage within concrete’s pore structure, as indefinite chloride accumulation is impractical due to the finite capacity available for ion absorption and binding.

The chart also illustrates the initial relationship between the condition state and chloride content. However, no significant variation is observed, as the investigated bridge decks fall exclusively within Condition States 6 and 7. This limited range restricts broader comparisons across condition states and highlights the need for additional data from earlier deterioration stages to fully understand the progression of chloride-induced damage over time.

Recent work [37] proposes probabilistic frameworks for predicting failure of strain-hardening cementitious composites, often termed engineered cementitious composites, without prior calibration information. The present study develops deterministic predictive relationships and durability envelope equations from the observed laboratory trends and available field benchmarking, including the linearized strength-loss rates used in the long-term projections. Although the probabilistic failure framework in [37] is outside the scope of this study, it provides a useful benchmark for future extensions that quantify uncertainty in envelope parameters and translate projected strength-loss trajectories into failure likelihood.

5.4. Durability Envelope

At the core of this research is the development of a durability envelope designed to predict the strength loss of concrete bridge decks as a function of chloride content over their expected service life. The predictive equations, outlined in Equations (28) and (29), represent a synthesis of the various environmental and material factors discussed throughout this section. These models are graphically illustrated across a bridge’s lifespan in Figure 31. Included in the figure is the standard ACI concrete strength projection derived from Washa’s long-term study [32], represented by Equation (15), which serves as a baseline for undisturbed concrete performance.

To account for varying environmental exposure conditions, three deterioration mechanisms were modeled. The light deterioration mechanism is based on the trends observed in specimens subjected to 0% wet–dry and 0% freeze–thaw cycling and is represented by Equations (28) and (29). The moderate deterioration mechanism draws on trends from the 3% wet–dry and 3% freeze–thaw conditions, shown in Equations (28) and (29). Finally, the heavy deterioration mechanism reflects trends from the 15% wet–dry and 15% freeze–thaw scenarios. Each of these models begins with the ACI-predicted strength gain and then subtracts projected losses due to environmental cycling, adjusted for the age of the structure. Collectively, these equations form the durability envelope, offering a practical framework for forecasting bridge-deck performance under various levels of environmental stress.

The deterioration curves are expressed as

$$F^{\prime }{c}_L=F^{\prime }{c}_{Pre}+F^{\prime }{c}_{WD0}+F^{\prime }{c}_{FT0}$$

(28)

$$F^{\prime }{c}_H=F^{\prime }{c}_{Pre}+F^{\prime }{c}_{WD15}+F^{\prime }{c}_{FT15}$$

(29)

where $F^{\prime }{c}_{Pre}$ is the strength-gain prediction,

$F^{\prime }{c}_{WD0}$ is the strength loss due to wet–dry cycling, and

$F^{\prime }{c}_{FT0}$ is the strength loss due to freeze–thaw cycling.

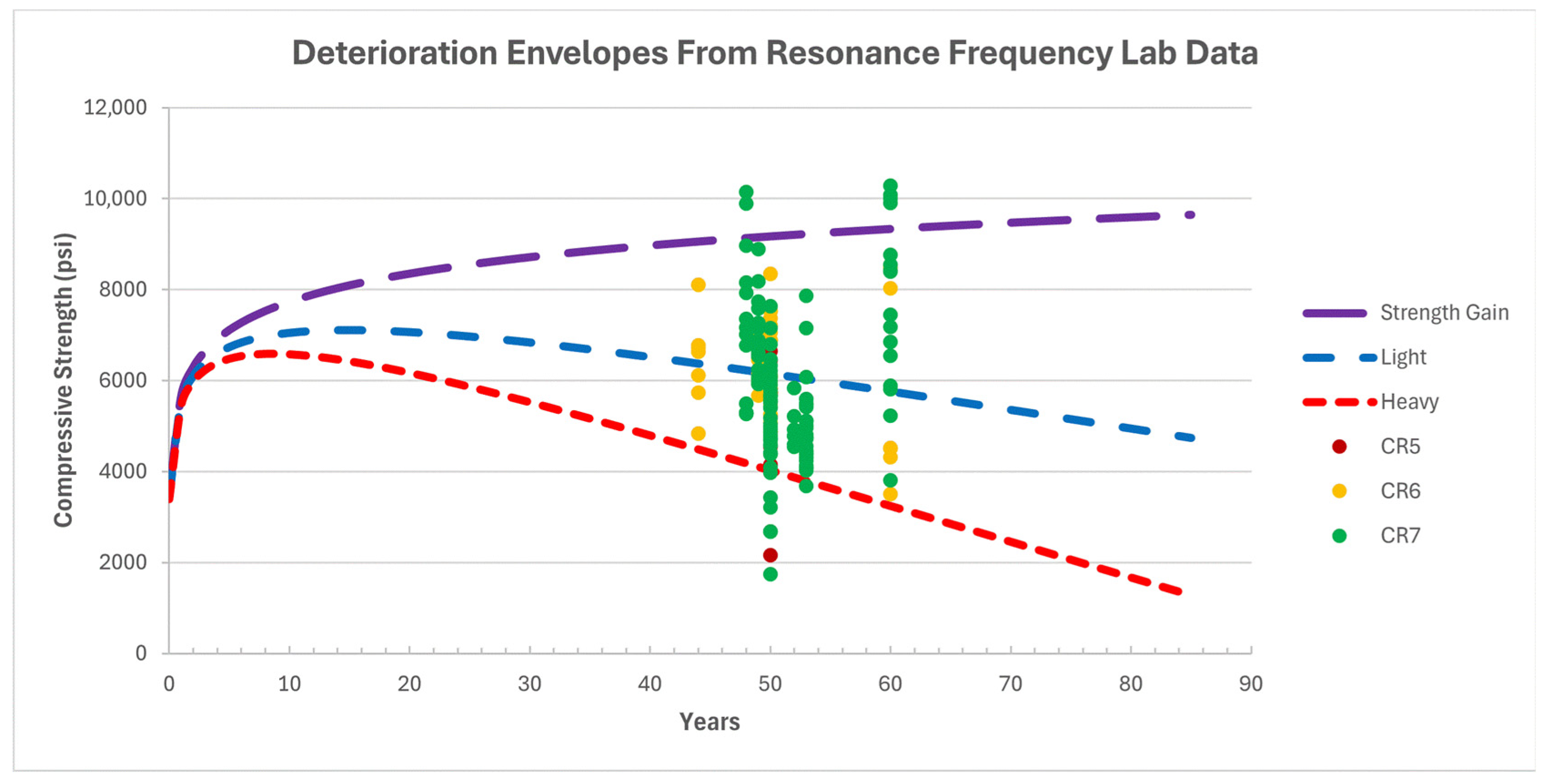

To illustrate the relationship between the developed deterioration envelope and real-world conditions, the compressive strengths and corresponding condition ratings of the in situ bridge-core samples have been plotted alongside the model in Figure 31. This comparison allows for a preliminary validation of the model against actual field data. However, similar to the limitations observed in the salinity trend analysis, the narrow range of condition ratings, primarily limited to higher deterioration states, restricts the ability to draw meaningful correlations between the condition rating and compressive-strength loss. As a result, while the comparison provides some insight, the limited variability in condition states reduces the effectiveness of this dataset in fully validating the deterioration envelope across a broader spectrum of bridge performance stages.

Recent studies on aging concrete gravity dams provide a useful benchmark for the plausibility of the long-term trends implied by the proposed deterioration envelopes and durability index. The dam reservoir–sediment coupled modeling framework shows that age-related concrete degradation can change seismic response and that sedimentation can reduce hydrodynamic pressure demand, which affects inferred safety margins [38]. The parametric aging dam study likewise reports that incorporating degradation can lengthen the fundamental period and increase the displacement response with aging, with dam water and sediment interaction influencing the demand [39]. Compared with system-level mechanistic deterioration analyses, the proposed durability envelope and durability index provide an agency screening tool by translating the accelerated wet–dry and freeze–thaw test trends into long-term compressive-strength loss as a function of chloride content and by benchmarking those predictions against in-service bridge-core strengths using measured chloride content to select the appropriate deterioration mechanism.

5.5. Durability Index

Simply plotting the compressive strengths of the bridge-core samples on the deterioration envelope does not fully capture the condition of the bridge decks in relation to their predicted performance. To address this limitation, a durability index (DI) was developed using both laboratory data and field-core sample results. This index serves as a comparative metric to evaluate the resilience of concrete bridge decks subjected to chloride-induced deterioration. The determination of the index is based on two key components: the measured chloride content of each bridge core, which is used to categorize the sample into one of the predefined deterioration mechanisms (light or heavy), and a comparison between the measured compressive strength and the predicted strength for that category. The resulting index provides a normalized representation of how well a given bridge deck is performing relative to its expected condition. This evaluation is graphically represented in Figure 32, offering a more nuanced understanding of in situ bridge performance beyond basic strength measurements. For bridge core i, the durability index is defined as

$${\mathrm{DI}}_i={\displaystyle \frac{F_{c,meas,i}^{\prime }}{F_{c,pred,m\left(i\right)}^{\prime }\left(t_i\right)}}$$

(30)

where

F^′_c,meas,i is the measured compressive strength of core i,

F^′_c,pred,m(i) (t_i) is the compressive strength predicted by the deterioration envelope at bridge age t_i for mechanism m(i) (light or heavy), and

m(i) is selected using the measured water-soluble chloride content of the core.

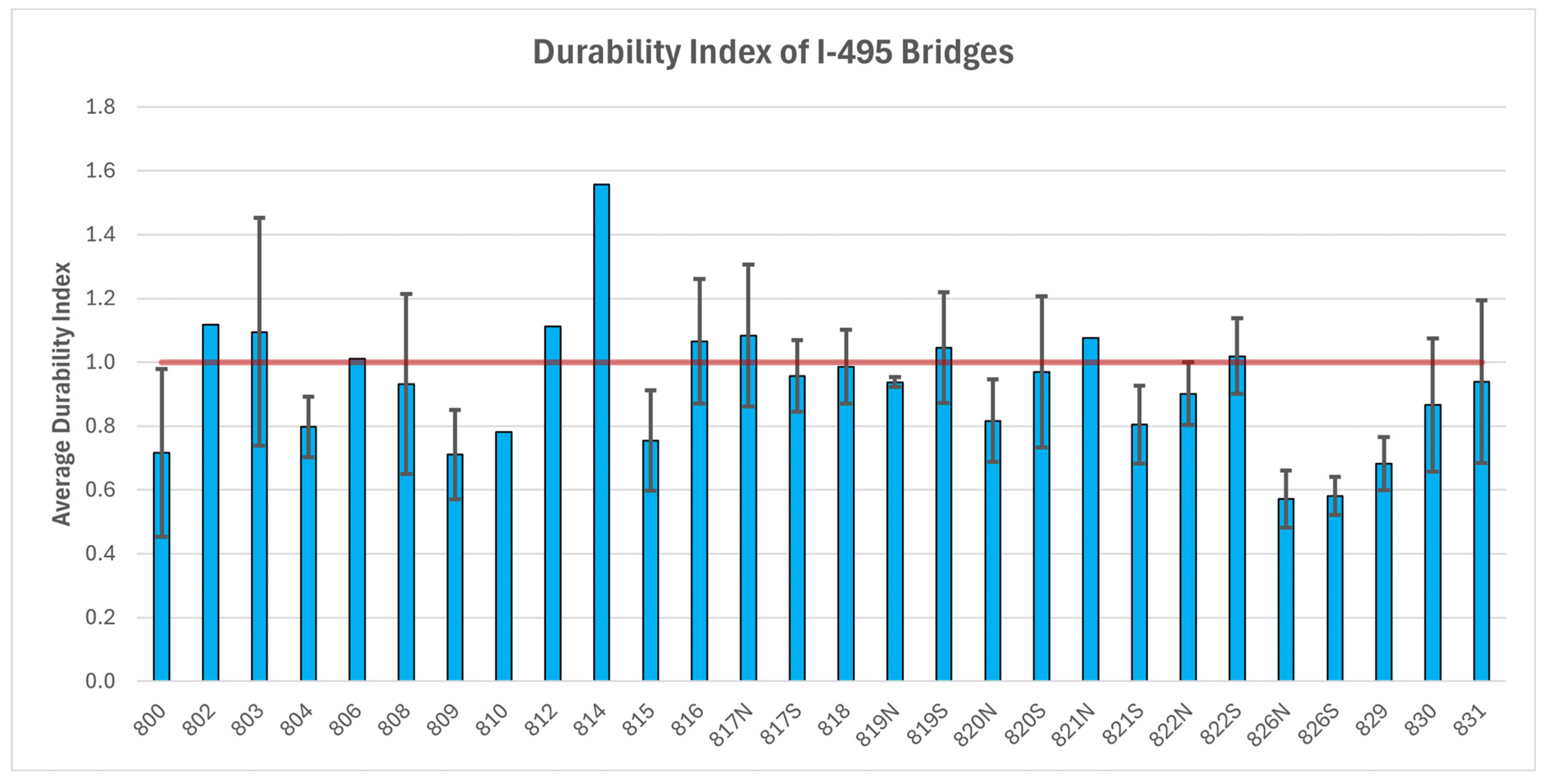

Figure 32. Durability indices of I-495 bridges.

Figure 32. Durability indices of I-495 bridges.

The durability index in Equation (30) is strength-based and does not apply weighting across resonance frequency, modulus, or inspection ratings; those variables support interpretation of internal damage and exposure trends used to construct and check the envelopes.

A durability index rating below 1 indicates that the measured compressive strength of a bridge core is lower than the predicted value for its corresponding deterioration mechanism. This suggests that additional factors, beyond those modeled, may be contributing to an accelerated loss in strength. These factors include overloading from large vehicles, improper maintenance, improper construction, or other environmental factors not considered in this study, or defects in the materials used in construction. A rating of exactly 1 signifies that the measured strength equals the predicted value, indicating that the bridge deck is performing as expected under its environmental exposure conditions, with this value highlighted by the red line across the figure. A rating above 1 reflects a measured strength that exceeds the predicted value, which is the most desirable outcome, as it suggests that the bridge deck is demonstrating greater resilience than anticipated.

5.6. Limitations

This work provides a field-informed framework for developing deterioration envelope curves for chloride exposure by combining a large, accelerated laboratory program with independent benchmarking using bridge-deck cores. The framework is developed and calibrated using Delaware-based data and practices, so transfer to other regions should be supported by local field data and recalibration to reflect different materials, exposure regimes, and management practices. The accelerated testing program was conducted using a single historic Delaware replication mix, with one water-to-cement (w/c) ratio, one target air content, and one aggregate system. Accordingly, the proposed envelope relationships should be interpreted as calibrated for this representative mix under the tested wet–dry and freeze–thaw regimes, rather than as universal curves for all deck concretes in high-salinity environments. Differences in mix design and air-void system can alter transport behavior and damage evolution, so application to other deck concretes requires additional experimental calibration.

Field benchmarking is based on 22 deck cores from two bridge sites obtained through DelDOT’s investigation program. These cores support benchmarking of the laboratory-derived trends and calibration of the envelopes to observe performance. However, the dataset does not span the full range of field conditions and bridge characteristics across the statewide inventory. Access to cores representing more advanced deterioration was also limited because many decks remain in “good” condition under preservation practices. Future work will expand coring across additional bridges and condition states and extend the framework through parametric calibration across multiple mix designs and exposure settings, using expanded laboratory and field datasets to refine the envelopes and quantify uncertainty.

6. Conclusions

This study produced several key insights into concrete deterioration mechanisms under wet–dry and freeze–thaw exposure with varying chloride concentrations. By combining nondestructive resonance-frequency measurements with compressive strength, modulus of elasticity, Poisson’s ratio, and water-soluble chloride content, the work linked internal damage, stiffness loss, and chemical ingress for both laboratory specimens and in situ bridge cores from Delaware. The case study on Interstate 495 showed how these laboratory findings relate to actual bridge-deck performance and current maintenance practice, supporting more informed planning of preservation and repair strategies. The following key findings summarize the most impactful outcomes:

• Laboratory testing demonstrated that concrete specimens exposed to alternating environmental stressors (wet–dry and freeze–thaw cycles) combined with varying chloride concentrations underwent progressive degradation over time.
• Among the measured properties, resonance frequency was the most sensitive and reliable indicator of internal damage. Resonance frequency, measured in hertz (Hz), consistently declined across all exposure conditions, signaling microstructural deterioration that preceded measurable strength loss. This makes resonance frequency a valuable early predictor of material degradation.
• Chloride concentration increased with exposure time, even when no surface deterioration was visible. This indicates that significant internal damage can develop long before visual symptoms appear, so subsurface monitoring is necessary.
• Core samples taken from bridges along Interstate 495 in Wilmington, DE, showed good correlation with the laboratory findings. The cores encompassed a wide range of compressive strengths and chloride contents. Although these bridges were rated as being in “good” condition according to National Bridge Inventory (NBI) standards, many samples already exhibited chloride accumulation and reduced strength, revealing the limitations of relying solely on surface-based inspection techniques.
• The disconnect between visual condition ratings and measured material performance shows that traditional inspections can overlook critical internal damage. This supports the need to incorporate material-based and nondestructive testing methods into routine bridge assessments, including subsurface monitoring techniques such as ground-penetrating radar (GPR).
• A deterioration envelope framework was established, integrating laboratory results, field-core data, and environmental exposure variables, including NOAA climate data and FHWA InfoBridge™ parameters (snow-day frequency, freeze–thaw frequency, and time of wetness of bridge structures).
• The resulting models demonstrated a new multifaceted technique for estimating structural aging trends and service life under various environmental conditions. These tools support more proactive and data-driven maintenance strategies, enhancing long-term planning and management of concrete infrastructure.

As a practical implication for infrastructure asset management, this study provides actionable results for transportation agencies such as the Delaware Department of Transportation (DelDOT). It offers an alternative way to assess bridge-deck deterioration beyond visual inspection frameworks like the National Bridge Inventory (NBI), which can miss internal damage, particularly in decks with corrosion-resistant reinforcement. This work supports integrating quantitative material measurements, including repeated core sampling, nondestructive testing such as resonance-frequency analysis, and chloride content profiling, into a single evidence-based assessment system. In addition, combining these material measurements with localized environmental information, regional freeze–thaw activity, chloride exposure from deicing operations, and wetness duration allows a more complete assessment of deterioration risk than visual inspections alone.

Future work will assess the transferability of the proposed deterioration envelope framework to other bridge-deck types and climate regions through targeted recalibration using region-specific performance evidence and field benchmarking. The framework will also be extended to emerging material systems, including high-performance concrete and alternative binders such as geopolymers, to quantify how material innovations shift deterioration trajectories. In addition, machine learning models will be investigated as a complementary predictive layer to infer envelope parameters from multi-source datasets and to enable model updating as additional field data become available.
