Characteristics, Progress and Trends of Urban Microclimate Research: A Systematic Literature Review and Bibliometric Analysis

,
and
1
College of Architecture and Urban Planning, Tongji University, Shanghai 200092, China
2
Key Laboratory of Spatial Intelligent Planning Technology, Ministry of Natural Resources, Shanghai 200092, China
*
Author to whom correspondence should be addressed.
Buildings2022, 12(7), 877;https://doi.org/10.3390/buildings12070877
This article belongs to the Topic Climate Change and Environmental Sustainability
Version Notes
Order Reprints

Abstract

Climate change has been a hot topic in recent years. However, the urban microclimate is more valuable for research because it directly affects people’s living environments and can be adjusted by technological means to enhance the resilience of cities in the face of climate change and disasters. This paper analyses the literature distribution characteristics, development stages, and research trends of urban microclimate research based on the literature on “urban microclimate” collected in the Web of Science core database since 1990, using CiteSpace and VOSviewer bibliometric software. It is found that the literature distribution of the urban microclimate is characterized by continuous growth, is interdisciplinary, and can be divided into four stages: nascent exploration, model quantification, diversified development and ecological synergy. Based on the knowledge mapping analysis of keyword clustering, annual overlap, and keyword highlighting, it can be predicted that the research on foreign urban land patch development has three hot trends—multi-scale modelling, multi-factor impact, and multi-policy guidance. The study’s findings help recognize the literature distribution characteristics and evolutionary lineage of urban microclimate research and provide suggestions for future urban microclimate research.

1. Introduction

Climate risks have and will continue to affect national security, economic security, human health, infrastructure, and ecosystem stability [1]. The Global Risks Report 2022, published by the World Economic Forum, lists climate change as one of the ten most pressing global risks [2]. The United Nations Intergovernmental Panel on Climate Change (IPCC) Sixth Assessment Report, Climate Change 2022: Impacts, Adaptation and Vulnerability, states that humanity is pushing the limits of climate carrying capacity and points to the urgency of climate transition in the next decade [3]. Therefore, urban climate research is of great importance for healthy urban development.
The study of urban climate began in 1818 with Lake Howard’s “The Climate of London”, which first identified the temperature difference between urban and rural areas, i.e., the urban heat island effect, and studied the factors influencing the city’s climate [4]. Most current research on urban climate change focuses on macro-scale climate change patterns such as national scales and climate zones, while climate research on the complex and variable near-surface micro spaces has a later origin and slightly less research. Compared with macro climate change, urban microclimate has a more direct impact on people’s living environments. People can regulate the urban microclimate through technical means and then enhance the self-recovery ability of cities in the face of climate change and disasters, and if we enlarge the concept of resilient cities, the concept of microclimate becomes more critical [5,6].
The research plan uses WOS, the largest Database of English documents, as the raw material and combines the advantages of Citespace and VosViewer for visualization and clustering analysis. Compared with traditional bibliometric methods, the visual analysis of scientific knowledge graphs is more intuitive and readable [7]. Urban microclimate originated in 1947 [8], and 2131 articles were searched in the Web of Science database under TS = (urban microclimate) OR TS = (city microclimate). The language of the literature was limited to English, the type of literature was limited to articles, and the search date was 4 May 2022. Searched with (TS = (urban microclimate) OR TS = (city microclimate)) AND TS = (review) AND ALL = (citespace), the type of literature was Article, the language was English, the result was 0, and the search time was 9 April 2022. There are 51 reviews, and no citespace based search studies are available.
Most current microclimate studies focus on the quantification of microclimates [9], such as the calculation of thermal comfort equations [10], meteorological data monitoring [11], computer simulations [12], and subjective thermal environment questionnaires [13,14]. The concept of urban microclimate first referred to the influence of some climatic factors in the ground boundary layer by local features [10] and then also shifted to focus on urban scale differences [15], urban climate characteristics [16], and urban environmental elements [17]. Although there are some review studies on urban microclimate research, previous studies are mostly clustered analyses, and we have not yet seen time series-based development stage classification and multi-method research hotspot prediction [6].

2. Data and Methods

This paper adopts data analysis, software measurement, and scientific mapping methods to understand further the evolutionary characteristics and hot issues of urban microclimate research. It uses visual analysis of CiteSpace and VOSviewer bibliometric analysis software to conduct scientific knowledge mapping analysis of urban microclimate literature to clarify potential knowledge connections among the literature [18]. A science mapping can highlight potentially significant patterns, trends, and theories of scientific change that can guide the exploration and interpretation of visual, intellectual structures and dynamic patterns [19]. Compared to other mapping software, CiteSpace and VOSviewer have a higher frequency of use and broader dissemination as commonly used bibliometric mapping software [20]. CiteSpace can detect and visualize emerging trends and radical changes in scientific disciplines over time [21]. VOSviewer is a bibliometric analysis software jointly developed by Leiden University scholars Nees Jan van Eck and Ludo Waltman for drawing knowledge maps. It can be used for co-word, co-citation, and literature coupling analysis. It can display research results visually and has unique advantages in clustering technology and map displays [22]. Compared to Scopus, Google Scholar and PubMed, Web of Science is the world’s largest and most comprehensive scholarly information resource covering a wide range of disciplines, including the most influential core academic journals in various research fields such as natural sciences, engineering and technology, and biomedicine. Therefore, this paper uses the Web of Science core collection (hereafter referred to as WOS) as the data source, and the search period was 9 April 2022, with a years limit of 1990–2022. The search mode of “subject” + “document type” was used, and the search terms were: TS = (urban microclimate) OR TS = (city microclimate), and the document language was limited to “English”, the type was restricted to “articles” to ensure the scientific validity and accuracy of the research, and a total of 2070 relevant documents were obtained.
Centrality metrics provide a computational method for finding pivotal points between different specialties or tipping points in an evolving network [23]. It measures the percentage of the number of shortest paths in a network to which a given node belongs. Nodes with high-betweenness centrality tend to be found in paths connecting different clusters. This feature has been used in community-finding algorithms to identify and separate clusters [24]. Higher strength refers to a sharp increase in the number of term occurrences in this period, which is the frontier of research in this phase [23]. Kleinberg’s (2002) burst-detection algorithm can be adapted for detecting sharp increases of interest in a specialty [25]. In CiteSpace, a current research front is identified based on such burst terms extracted from keywords [23].

3. Results

3.1. Current Status of Urban Microclimate Research

3.1.1. Research Scale and Impact Analysis

The number of publications in this field has increased (Figure 1). The number of annual publications before 2005 was small (basically less than 10 publications per year), and urban microclimate research was still in the exploration stage; from 2000 to the present, the number of publications has shown an exponential increase, and urban microclimate research has received significant attention since the 21st century and has become one of the current research hot topics. As of 9 April 2022, 49 articles have been published, and the number of articles is expected to climb in 2022.

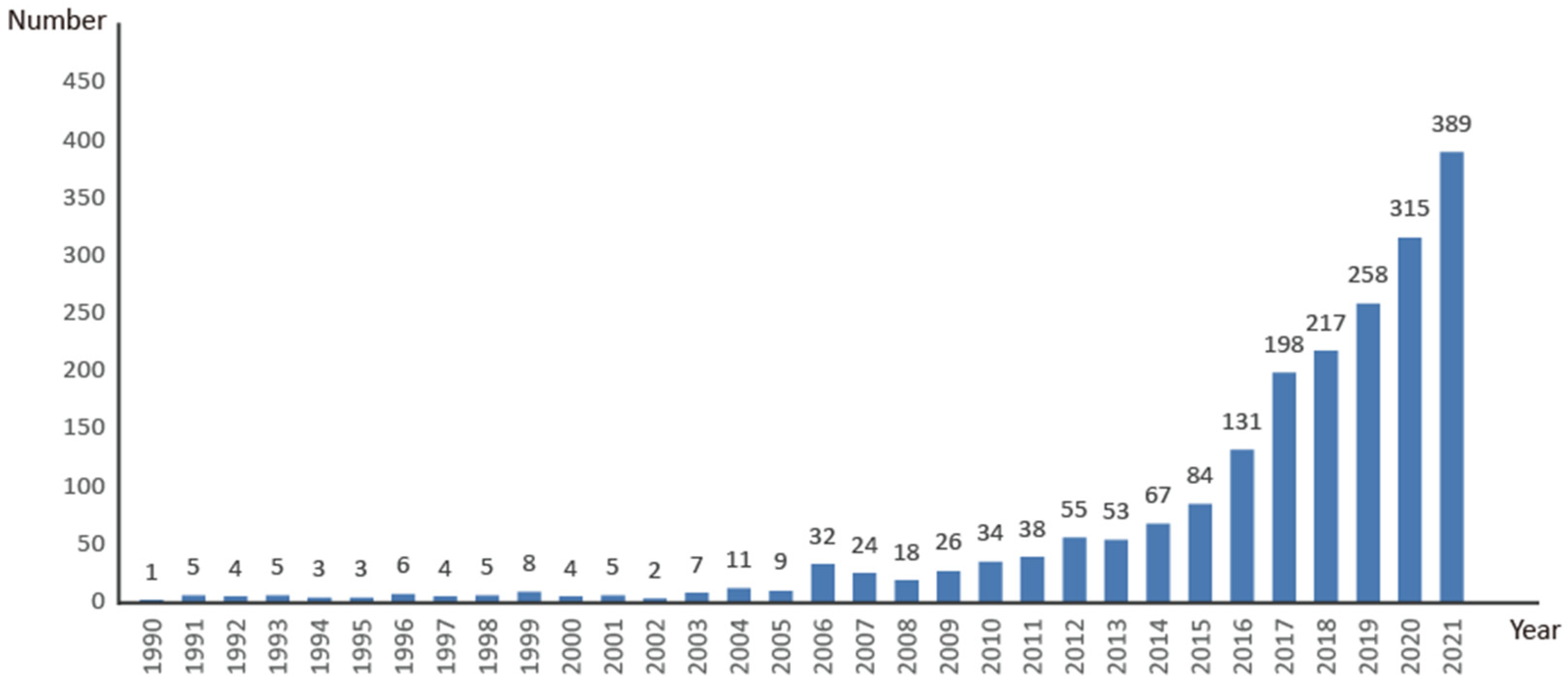

Figure 1. Number of published articles on urban microclimate.

3.1.2. Interdisciplinary and Publication Analysis

In terms of disciplinary distribution, urban microclimate research is mainly concentrated in Environmental Science (13.24%) and Construction Building Technology (11.04%), reflecting the multidisciplinary and comprehensive nature of urban microclimate research (Figure 2).

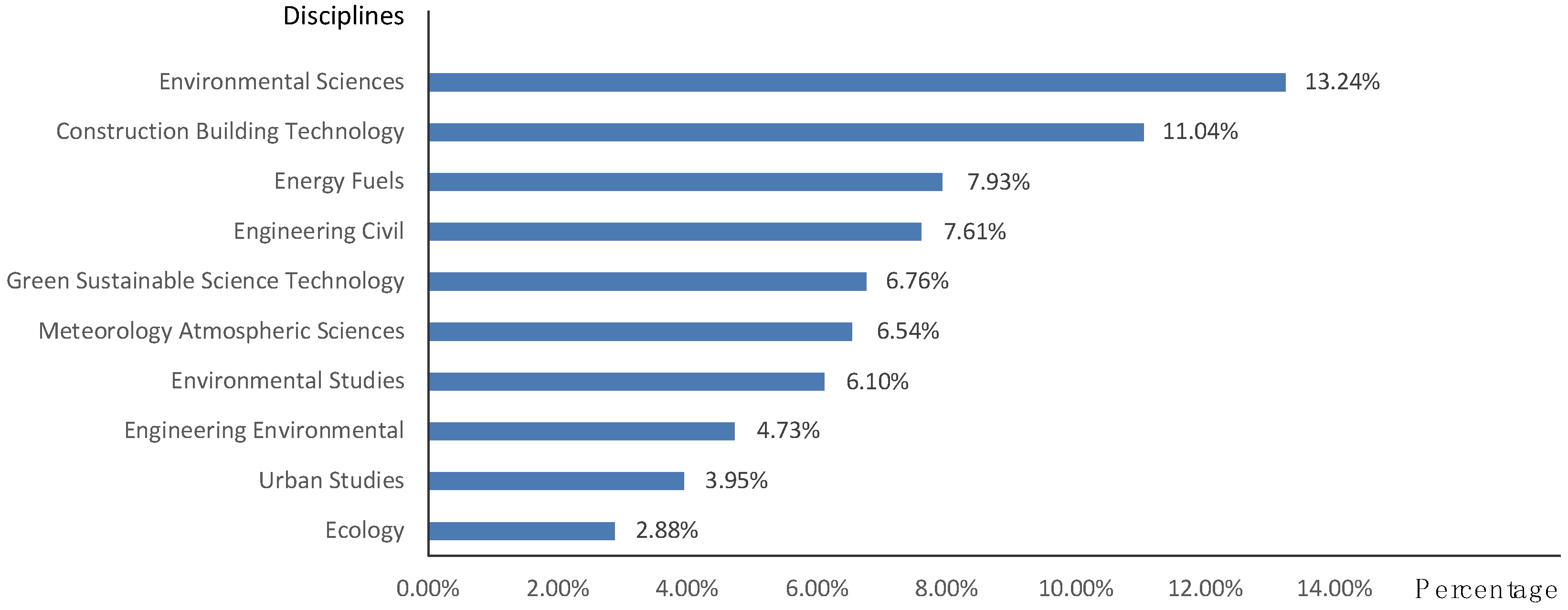

Figure 2. Percentage of urban microclimate papers by discipline (top 10).
Regarding source publications, there are 527, with Building and Environment and Sustainable Cities and Society posting the most articles, accounting for 8.72% and 6.58%, respectively. The top 10 publications focused on urban and architectural research and environmental sustainability (Figure 3).

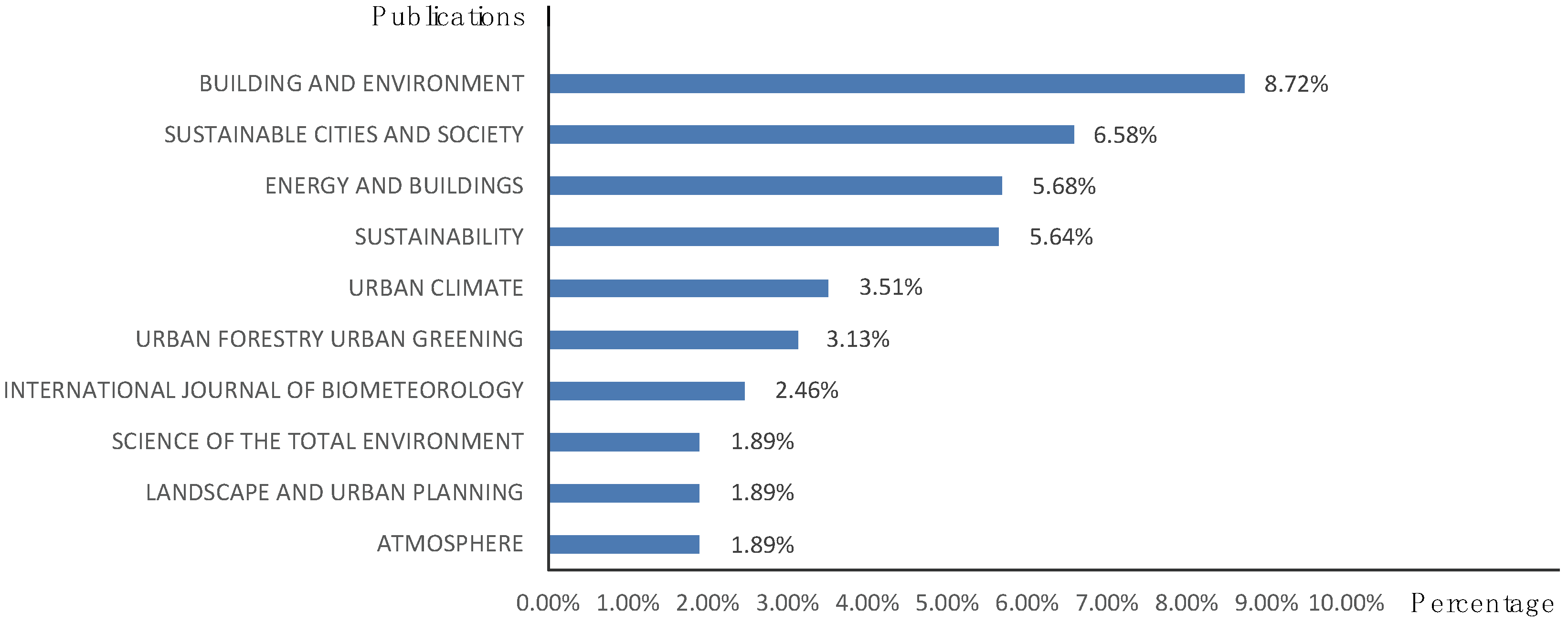

Figure 3. Percentage of urban microclimate papers published in journals (top 10).

3.1.3. Country Distribution Analysis

National time zonal mapping helps us find the most worthy references and to further select and classify the literature. In terms of the number of publications (radius size) (Figure 4), China has the highest number of articles (430) in country distribution, followed by the United States (359). The U.S. (1991) was the first to study urban microclimate, while China did not start until 2005. Centrality measures the importance of a node in the network; a more critical node means a higher centrality, indicating that the country has published more citations and is more influential in the period. In terms of centrality (more circles or colors), France (0.46) is much higher than other countries, followed by the U.S. (0.41) and Canada (0.33). Although China started later, the number of publications has shown explosive growth, probably because the urban microclimate issue has been gradually noticed due to the high-speed urban development.

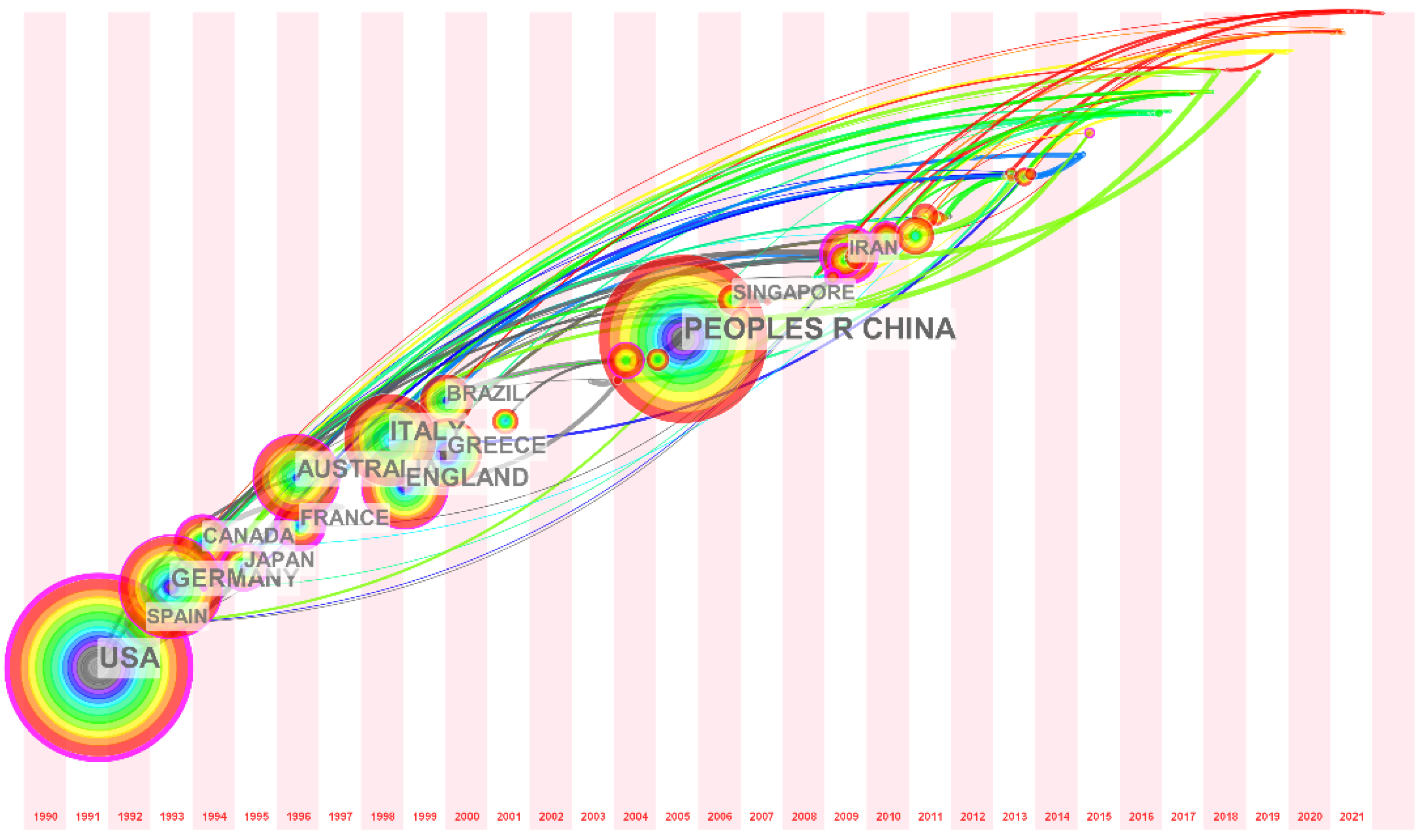

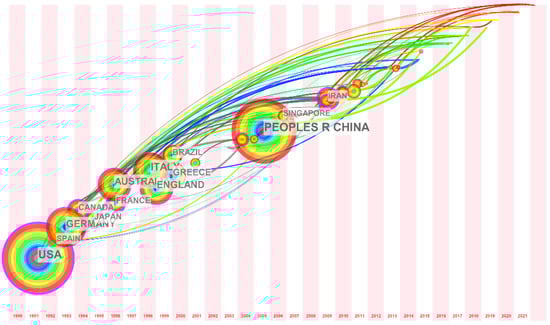

Figure 4. National time zonal mapping for urban microclimate studies.

3.2. Development Stages of Urban Microclimate Research

CiteSpace’s keyword clustering analysis, centrality, and emergent detection can identify research frontiers to predict research trends. Using CiteSpace to map keyword time regions and temporal partitioning of highly cited literature can help analyze the evolutionary path of research hotspots. Combined with co-citation analysis, it can help identify turning points in research and critical literature in each period [19].
This paper uses CiteSpace to analyze the time-zoned mapping of urban microclimate research literature (Figure 5) and divides the research into four stages; the main research progress and characteristics are reviewed in stages. There are numerous urban microclimate research hotspots (Table 1), and their research hotspots have apparent characteristics of the times and are significantly influenced by the social context and policy focus. For example, the fourth Conference of the Parties to the United Nations Framework Convention on Climate Change was held in 1998, and the Paris Agreement was signed and formally implemented in 2016, which may serve as additional factors for phase division.

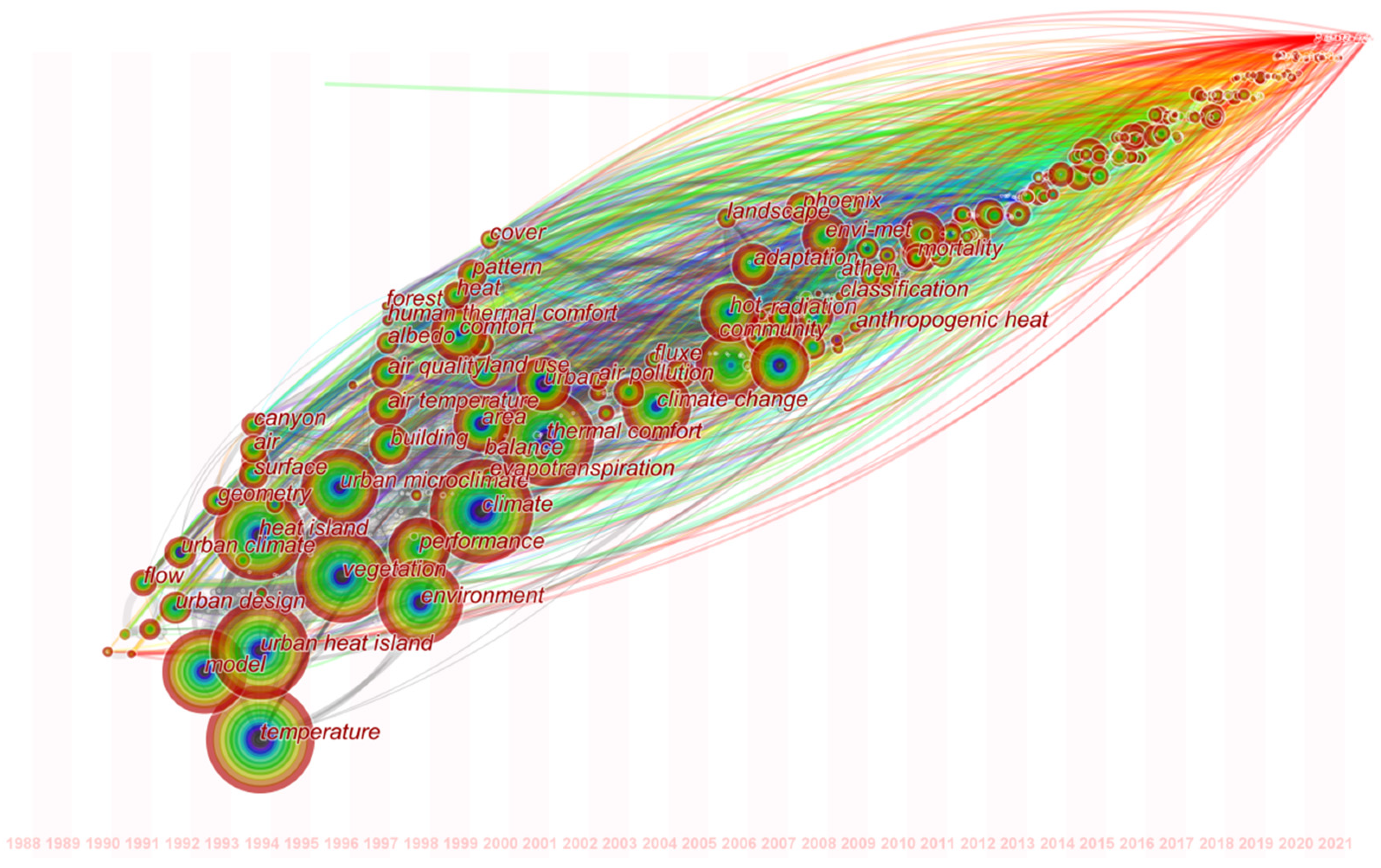

Figure 5. Temporal partition mapping of urban microclimate research keywords.
Table 1. A burst of high-frequency keywords in urban microclimate research.

3.2.1. The Nascent Exploratory Phase (1990–1997): The Rise of Multidisciplinary and Urban Studies

High-frequency keywords of early studies include temperature, heat island, and vegetation (Table 1), indicating that urban microclimate studies have mainly focused on multidisciplinary integrated studies and correlation analysis of urban constituents. However, the identification of the framework and connotation of microclimate composition has not yet emerged.
Regarding multidisciplinary synthesis: Graves et al. used microclimate as one of the temperature indicator factors in the high root zone to study the effect of high-temperature zones on plant seedlings [22]. Gorbushina et al. used microclimate variability as an observable indicator of the biological activity of black fungi to study its role in morphology [26]. Regarding urban climate factors, Akbari et al. studied the feasibility of vegetation and high albedo materials in modifying the urban microclimate [27]. They found that increasing the vegetation cover by 30% with 20% albedo in dwellings in areas such as Toronto and Vancouver could reduce energy consumption by about 10% to 20%. Nichol conducted a microclimate study of the tropical city of Singapore for microclimate monitoring studies of high-rise housing and found a high correlation between satellite heat sensing data and biomass indices, with high similarity to actual temperatures [28].
In general, the literature published at this stage is small, and the attention of the academic community is low, mainly focusing on multidisciplinary microclimate auxiliary research and microclimate research in small areas within cities (e.g., indoor environments such as houses). The exploration of urban microclimate research systems has not yet emerged, which can be regarded as the nascent exploratory phase of urban microclimate research.

3.2.2. Model Quantification Phase (1998–2005): Application of Numerical Quantification and Model Evaluation

The high-frequency keywords in this phase include environment, climate, and thermal comfort (Table 1), with environmental emergence at 4.03 and land use at 7.58, which were research hotspots. This stage mainly focuses on the research of urban microclimate model quantification. A typical representative is an ENVI-met model, simulation software developed by Bruse et al. to study surface–plant–air interactions in urban environments, which has become the most widely used tool in microclimate studies [29]. The research in this phase focuses on exploring urban microclimate perturbations, their influencing effects, and model construction.
The research focuses on numerical assessment studies at the macro level on the one hand and studies the influence relationship with microclimate from different means and factors. Carlson et al. used satellite image data to obtain microclimate variables such as surface temperature, vegetation rate, ISA, and E.T, and used Chester County as an example to construct regression analysis models and predict future parameter changes [30]. Adolphe studied the relationship between urban building form and urban microclimate and used environmental form evaluation indicators to construct a simplified urban spatial model [31].
On the other hand, factors such as human perception are incorporated into microclimate model construction. Matzarakis et al. proposed the physiologically equivalent temperature (PET), considering the correlation with human thermal–physiological perception [32]. Steemers used microclimate as a research object to invert the energy consumption of buildings with different densities and analyze the urban morphology correlation, emphasizing the value of outdoor comfort research [33]. Dimoudi et al. attempted to quantify the effect of vegetation on microclimate in urban environments and found that increased vegetation had a significant effect on temperature reduction [34]. de La Flor et al. proposed an “urban canyon” computational model that considers human thermal fitness to improve the urban microclimate and save the thermal performance of buildings [35].
At this stage, the number of publications on urban microclimate started to increase, and the academic community’s attention grew. The microclimate research process is complete with numerical modelling methods, but the coupling of microclimate with other factors is still unclear about the value of microclimate volume.

3.2.3. Diversified Development Phase (2006–2015): System Maturity and Expansion of Research Breadth

Urban substratum changes bring a harsh climate environment, increased anthropogenic heat emission, and the spread of pollution from urban activities [36]. This stage of urban microclimate pays attention to urban heat islands, thermal comfort and other climate change mitigation studies based on the previous stage, where the high-frequency words include outdoor thermal comfort, urbanization and energy.
From the total citations of the literature, this stage of research mainly focuses on urban planning or design, urban microclimate, and outdoor thermal comfort and gradually focuses on the actual measurement and testing of outdoor thermal comfort from the PET theory proposed in the previous stage, and combines quantitative findings to guide urban design. Subsequently, the research scope is further expanded, and the research object is no longer limited to a single model or a specific landscape, a disciplinary and social extension of the previous stage that only focused on microclimate-related factors.
In terms of macro-simulation and micro-perception, Ali-Toudert et al. studied the effect of urban street aspect ratio and orientation on urban microclimates, evaluated the effect of PET on the climate of urban streets, and found that the street with south–north orientation and aspect ratio ≥2 had a better thermal environment compared with other combinations [37]. Yu, C et al. explored the effect of green space on microclimate regulation, selected two parks in Singapore as examples, conducted simulation verification with TAS and ENVI-MET, and found that green space could reduce the built environment temperature by 1.3 °C and cooling load by 10% [38]. The RUROS project conducted by Nikolopoulou et al., which collected subjective human perception questionnaires from five European countries, concluded that urban microclimate is closely related to thermal comfort and that temperature and solar radiation are two essential factors influencing thermal comfort [16]. Harlan et al. used a model to estimate the summertime U.S. outdoor human thermal comfort index (HTCI) [39]. They found that community microclimate temperature has a strong negative relationship with HTCI and that lower socio-economic status and minority groups in residential areas with weak coping are more vulnerable to the adverse effects of the microclimate.
In terms of the influence of urban design elements on the thermal environment, Huang et al. took Nanjing as an example and calculated the cooling effect of four urban ground cover types, which showed a cooling effect of 0.2 ~ 2.9 °C for all urban blue-green spaces compared to bare concrete surfaces [40]. Shashua-Bar et al., also focusing on outdoor landscape cooling strategies in dry heat regions, selected six cooling combinations of trees, lawns, or shade nets and found that the cooling effect of grasses was most significant when they were in the shade of trees or shaded by shade nets [41]. Santamouris et al. analyzed the effect of reflective street pavement on microclimate and concluded that reflective pavement reduced ambient summer temperatures by up to 1.9 °C and park surface temperatures by up to 12°C [42]. Kong et al. studied the relationship between urban cold island effects (UCIs) and microclimate in Nanjing green parks, where a 10% increase in vegetation area reduced surface temperatures by approximately 0.83 °C [43].
Techniques and factors for microclimate studies have also been gradually expanded. Popular et al. used CFD simulations to predict the meteorology of the city of Rotterdam, including wind flow and heat transfer by conduction, convection and radiation and confirmed that the average deviation between simulated and experimental data was 7.9%, confirming the potential of CFD to predict urban microclimate accurately [44]. The influence of individual humans on the microclimate has also been considered. Bocker et al. were the first to systematically include behavioral activities considering thermal comfort to study the influence of climate on daily human behavior and critical activities such as walking and cycling [45]. They found that climate has a profound effect on travel.
The number of publications in this period showed rapid growth compared with the previous period (Figure 1), and the number of co-cited literature increased significantly compared with the previous period (Figure 5). Microclimate-related research and methods gradually matured and focused on the coupling research between microclimate and other objects, expanding the value volume of microclimate, providing in-depth theoretical support, mature technical methods, and high application value research directions.

3.2.4. Eco-Synergy Phase (2016 to Date): Focus on Eco-Synergy with Multiple Types of Elements

This phase focuses on urban microclimate research under interdisciplinary and multi-perspectives, and the main keywords are green infrastructure, ecosystem services, and ventilation. In addition to the wide application of new technologies and models, the relationship between urban landscape and ecology is given unprecedented attention, and the focus is on the social benefits of the urban microclimate and the innovation of research applications.
Among urban landscape benefit studies, Livesley et al. investigated the cooling benefits of urban forests on the local microclimate, including air quality, improved water quality, and biochemical cycling [46]. Wang et al. found significant effects of direct sunlight hours and mean radiation temperature on urban thermal comfort, using urban settlements in Toronto as an example [15]. Berardi simulated the impact of green roof retrofitting on an outdoor microclimate in the context of high settlement density, confirming the potential of green roofs as an urban heat island mitigation strategy [47]. Salata et al. used a university campus in Rome as an example to study different mitigation strategies for urban microclimate change. In contrast, an appropriate combination of cold roofs, urban vegetation and cold pavement can result in mean and maximum reductions of −2.5 and −3.5 in MOCI (Mediterranean Outdoor Comfort Index) [48]. Among climate adaptation benefits, Gunawardena et al. analyzed the impact of urban blue-green spaces on urban climate, and both were able to significantly mitigate the thermal effects of cities and enhance climate adaptation [49]. Among the applications, Shamshiri et al. deeply integrated microclimate with the agricultural sector to build advanced microclimate control and energy optimization models [50]. Cureau et al. focused on microclimate at the hyperlocal scale (refers to higher spatial resolution situations, usually on the meter scale) and monitored microclimate indicators from a human perspective in all aspects and multiple domains [28]. Building types are also considered in the urban content; Yang et al. investigated the thermal microclimate of two building types, residential and office, and found that office buildings are less sensitive to thermal pressure [51]. It is concluded that the spatial and temporal variability of the urban heat island effect at the local scale can have different effects on building energy efficiency.
The urban microclimate continued to develop rapidly during this period, and its research scope and methods were further expanded. Research results continued to increase, with research on elements, scale and development strategies of urban microclimate, closely following ecological issues, and more in-depth interdisciplinary directions gradually emerged, forming a diversified research direction.

6. Conclusions

In this paper, we use WOS online analysis with bibliometric data analysis of CiteSpace and VOSviewer to study the literature related to the urban microclimate from 1990 to 2021, and visualize and analyze the characteristics of literature distribution, research development stages and research hotspot trends in different periods, disciplines and country situations and conclude the following:
(1) The urban microclimate research literature volume shows prominent multidisciplinary and comprehensive characteristics. The overall number of publications shows an increasing trend, and four leading research clusters are formed: theoretical research on the urban environment and urban space, research on the natural environment and urban environment, research on urban microclimate modelling, and research on urban energy consumption;
(2) Urban microclimate research can be divided into four stages: nascent exploration, model quantification, diversified development, and ecological synergy. In terms of literature and discipline distribution, research hotspots and focus, they show the “rise of multidisciplinary and urban studies”, “application of numerical quantification and model evaluation”, “maturation of system and expansion of research breadth”, and “focus on eco-synergy with multiple types of elements”;
(3) The knowledge mapping characteristics of research hotspots based on keyword clustering, annual overlap, and keyword highlighting show that urban microclimate research has three hotspot trends—multi-scale urban climate simulation research, multi-element urban microclimate impact research, and multi-policy urban microclimate guidance research.
Urban microclimate research has achieved specific results since 1990, but there are still problems such as incomplete policies and insufficient elements. The academic community needs more innovations in urban microclimate theory and practice to construct a theoretical system of the urban microclimate and solve the urban microclimate’s complex and diverse practical problems.

Author Contributions

Conceptualization and writing, Y.Z.; methodology and visualization, N.A.; audit and funding acquisition, J.Y. All authors have read and agreed to the published version of the manuscript.

Funding

National Natural Science Foundation of China under Grant NO. 51908410; the Shanghai Municipal Science and Technology Major Project under Grant NO. 2021SHZDZX0100; the Fundamental Research Funds for the Central Universities.

Institutional Review Board Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
