Next Article in Journal
Effect of CaF2 on the Viscosity and Microstructure of CaO–SiO2–Al2O3 Based Continuous Casting Mold Flux
Previous Article in Journal
Analysis of the Fatigue Crack Evolution of Corrugated Web Girders
Article Menu

Export Article

Open AccessArticle

Effect of Preheating Temperature on Microstructure and Properties of 42CrMo4/38MnVS6 Heterogeneous Laser Welded Joint

Key Laboratory of Automobile Materials Ministry of Education, School of Materials Science and Engineering, Jilin University, Changchun 130022, China
*
Authors to whom correspondence should be addressed.
Metals 2019, 9(8), 870; https://doi.org/10.3390/met9080870
Received: 23 July 2019 / Revised: 6 August 2019 / Accepted: 6 August 2019 / Published: 8 August 2019
  |
PDF [10268 KB, uploaded 8 August 2019]
  |

Abstract

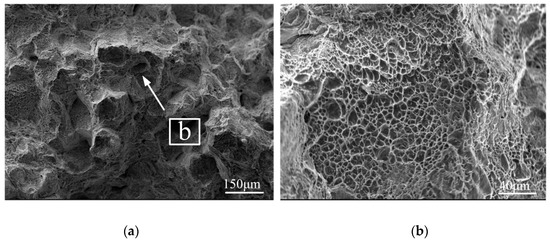

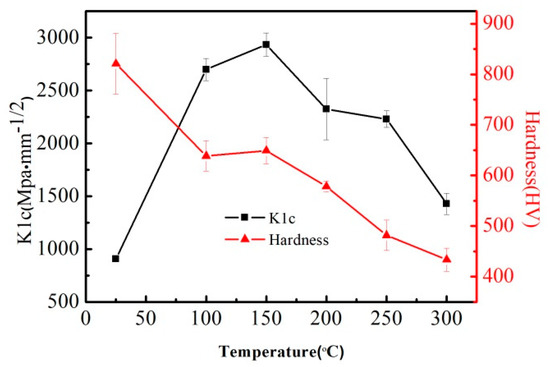

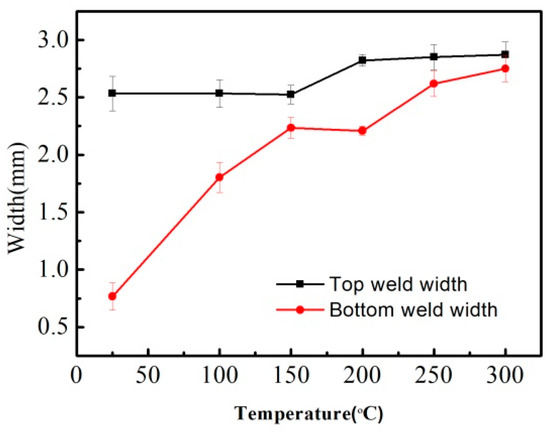

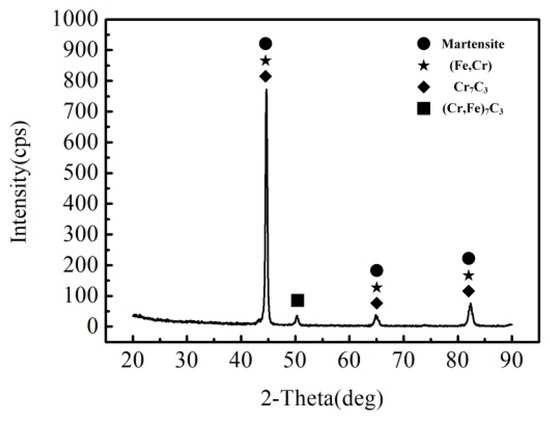

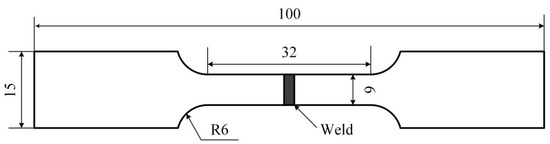

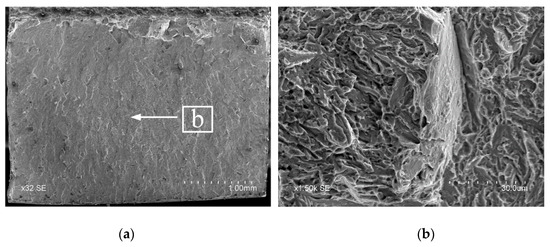

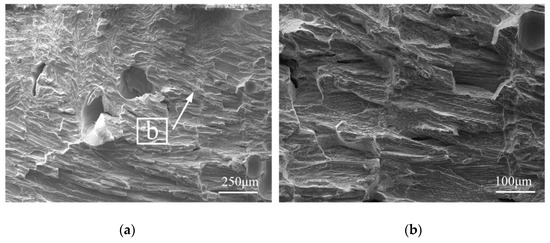

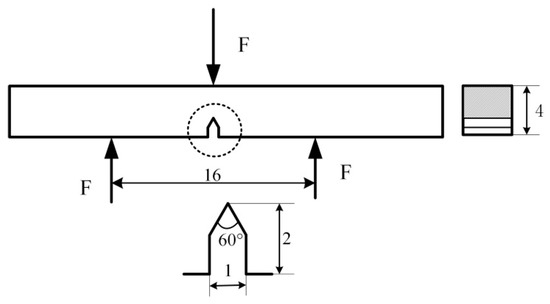

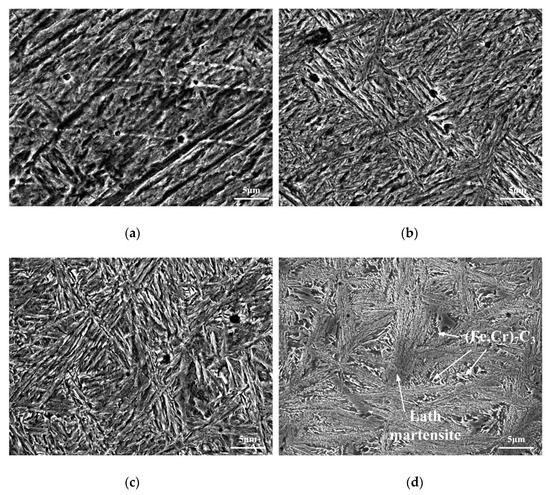

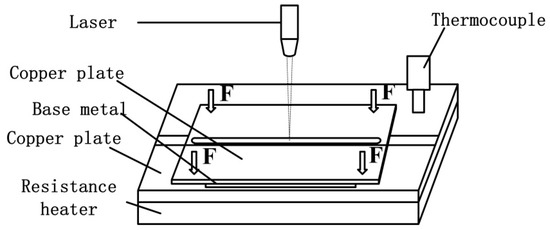

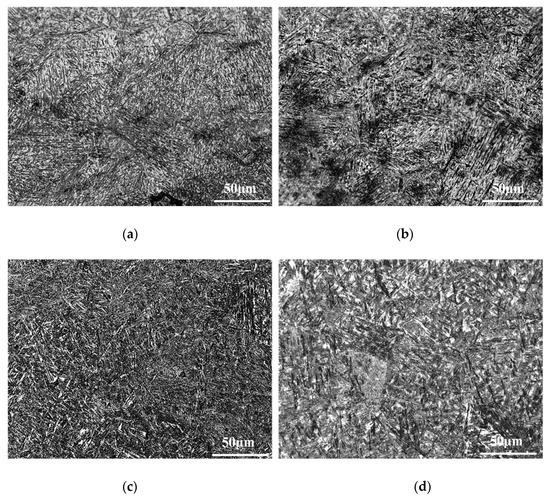

Laser-welded forged steel pistons can meet the needs of the new era of heavy truck engines. 42CrMo4 and 38MnVS6 are widely used as piston materials due to the good mechanical properties. This study investigates the influence of preheating on microstructure and mechanical properties of 42CrMo4/38MnVS6 laser welding joint. The experimental results show preheating increases the laser absorption capacity of the metal, which can lead to an increase in weld width. The microstructure of weld is the high-hardness and poor toughness twin martensite without preheating. As the temperature of preheating increases, the twin martensite in the weld begins to transform into lath martensite and regenerates ferrite and bainite. As the preheating temperature increases, the plane fracture toughness (K1C) of the weld increases and then decreases, reaching the highest value of 2322.94 MPa·mm−1/2 at 150 °C. Compared with no preheating conditions, the tensile strength of the welded joint after preheating is improved. The fracture mode of welded joints changes from brittle fracture to ductile fracture. When the preheating temperature is 100–200 °C, the tensile strength of the welded joint reaches 1018.1–1032.5 MPa; when the preheating temperature is 250 °C–300 °C, the tensile strength decreases. View Full-Text
Keywords: 42CrMo4; 38MnVS6; preheat; laser welding; microstructure; plane fracture toughness; tensile strength 42CrMo4; 38MnVS6; preheat; laser welding; microstructure; plane fracture toughness; tensile strength
Figures

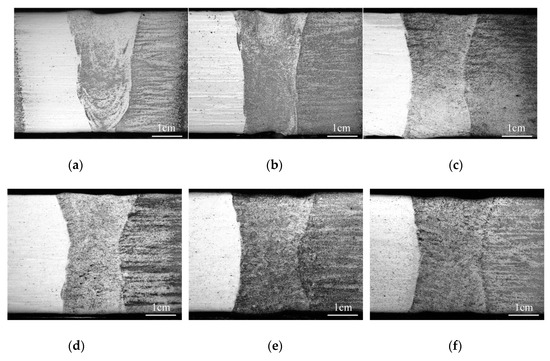

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Su, J.; Qiu, X.; Xing, F.; Ruan, Y. Effect of Preheating Temperature on Microstructure and Properties of 42CrMo4/38MnVS6 Heterogeneous Laser Welded Joint. Metals 2019, 9, 870.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
