Next Article in Journal
Effects of Nano TiC Particles on Recrystallization and Mechanical Properties of Al-Zn-Mg-Cu Alloy
Previous Article in Journal
Nucleation and Growth of Iron Whiskers during Gaseous Reduction of Hematite Iron Ore Fines
Article Menu

Export Article

Open AccessArticle

Study on Sulfur Transfer Behavior during Refining of Rejected Electrolytic Manganese Metal

1,2, 1,2, 3, 1,2 and 1,2,*
1
The State Key Laboratory of Refractories and Metallurgy, Wuhan University of Science and Technology, Wuhan 430081, China
2
Key Laboratory for Ferrous Metallurgy and Resources Utilization of Ministry of Education, Wuhan University of Science and Technology, Wuhan 430081, China
3
School of Metallurgy, Northeastern University, Shenyang 110004, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(7), 751; https://doi.org/10.3390/met9070751
Received: 3 June 2019 / Revised: 1 July 2019 / Accepted: 3 July 2019 / Published: 4 July 2019
  |
PDF [4558 KB, uploaded 8 July 2019]
  |

Abstract

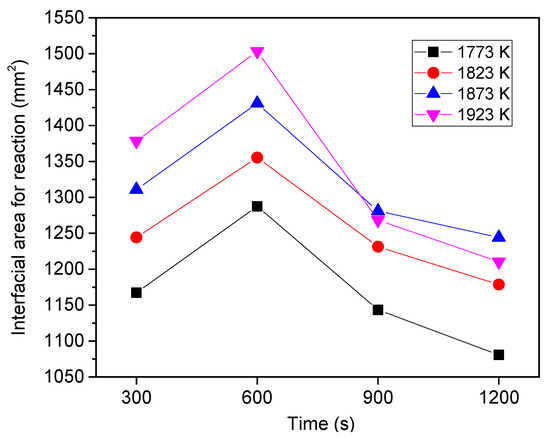

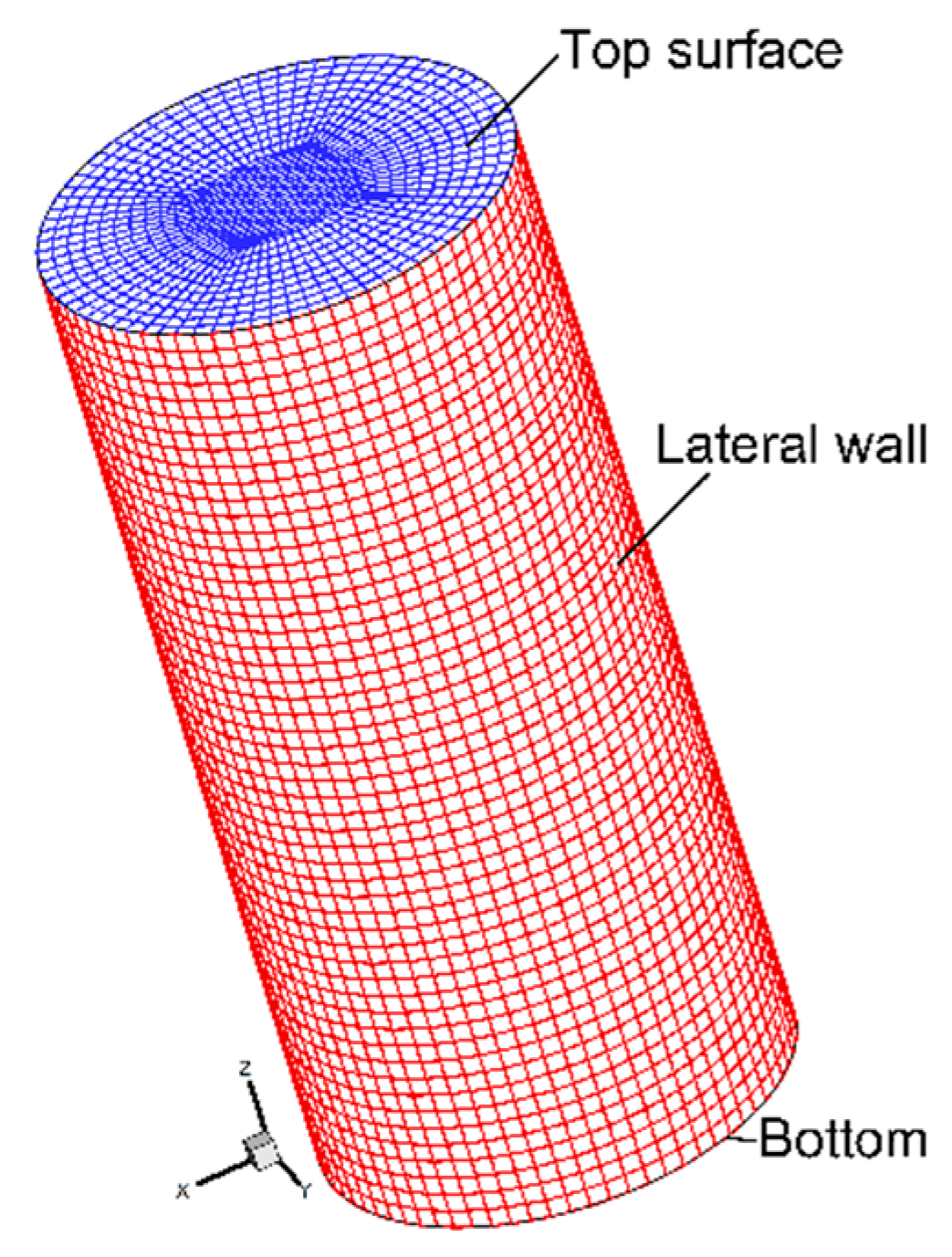

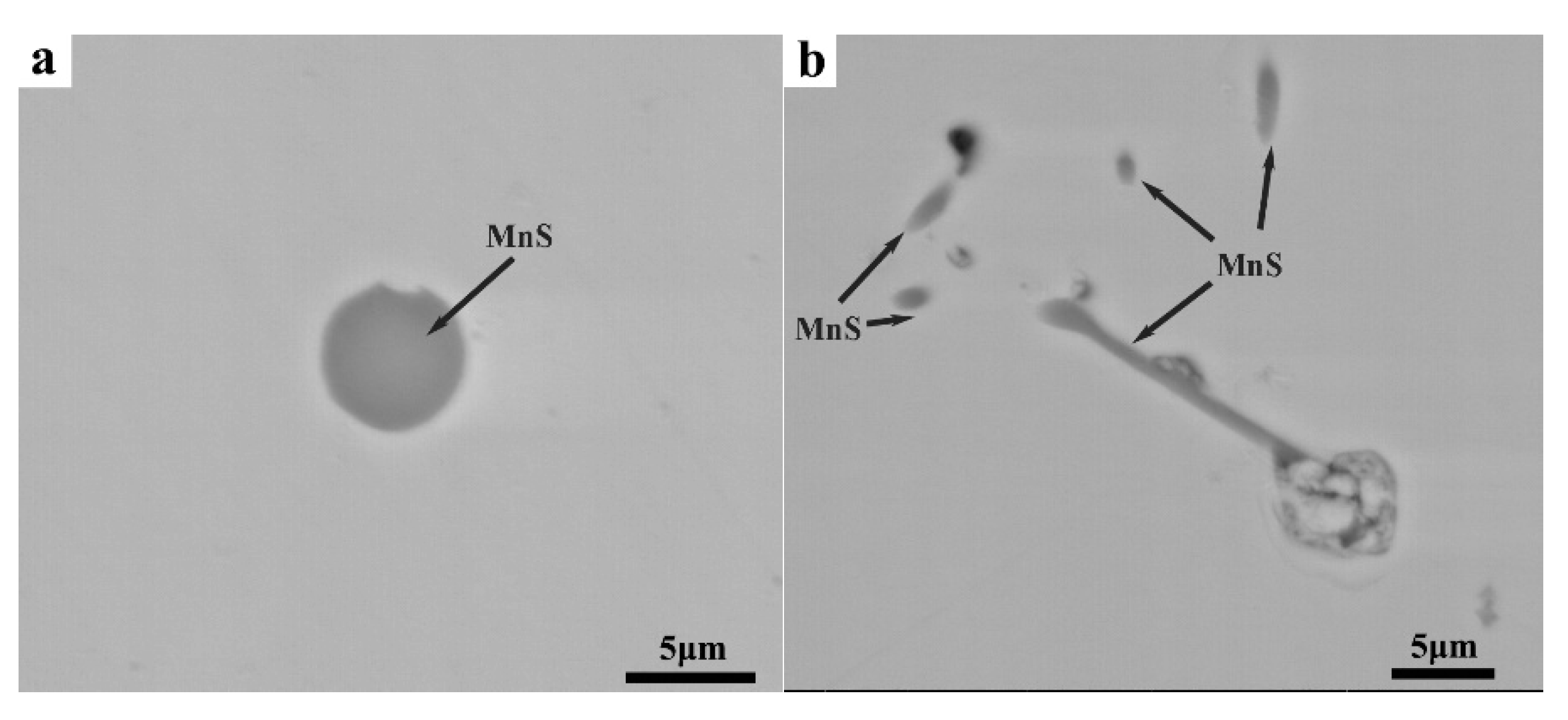

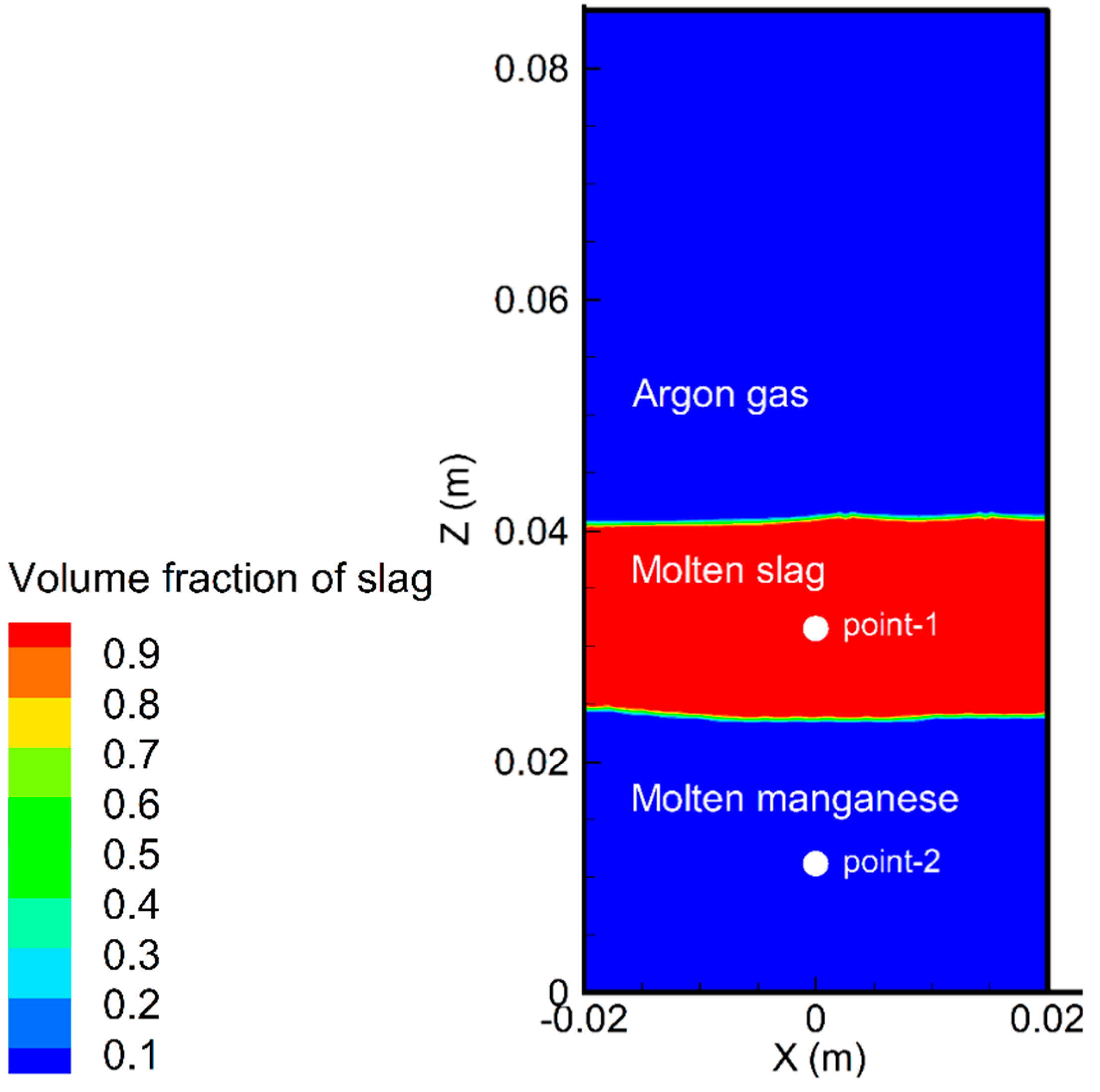

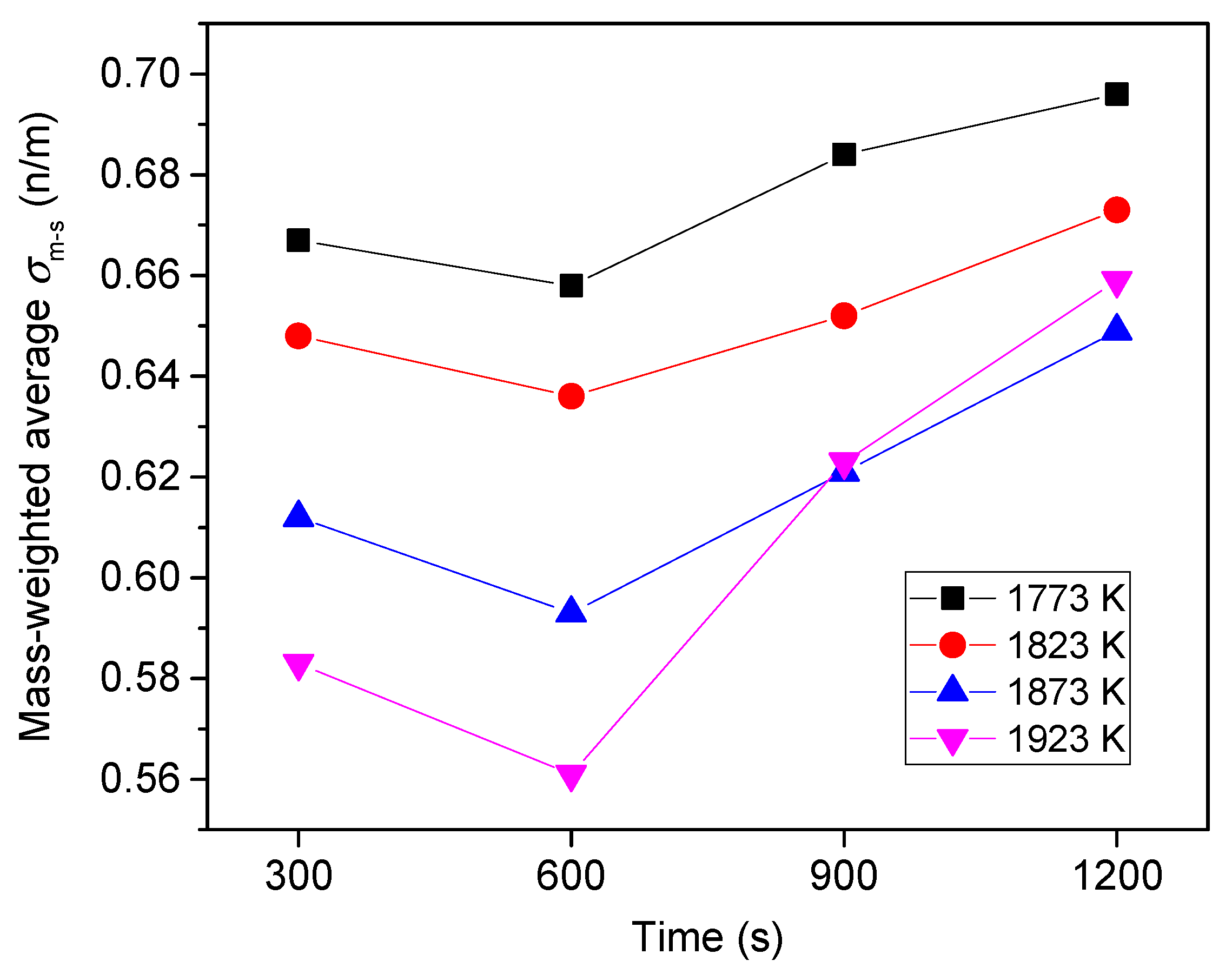

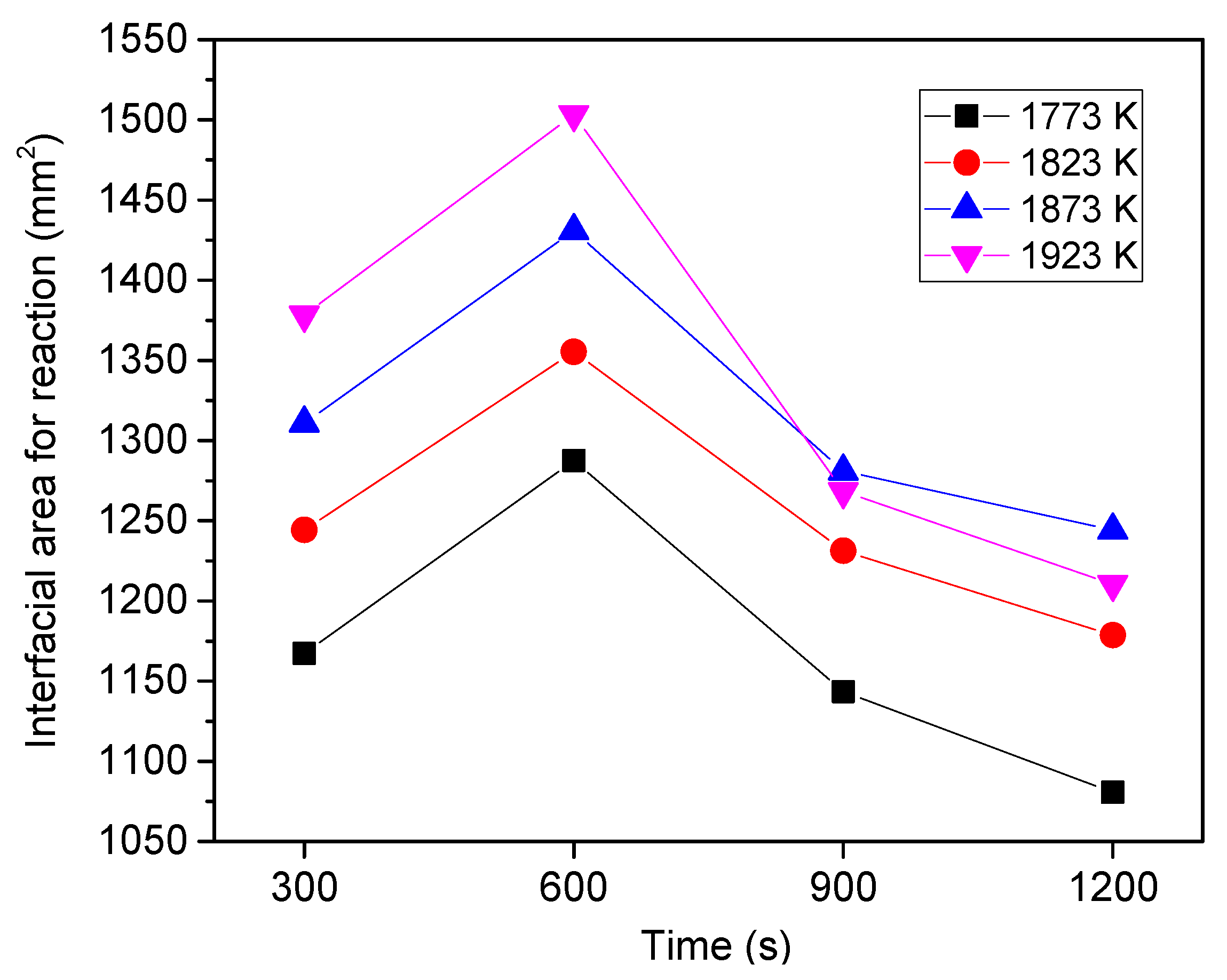

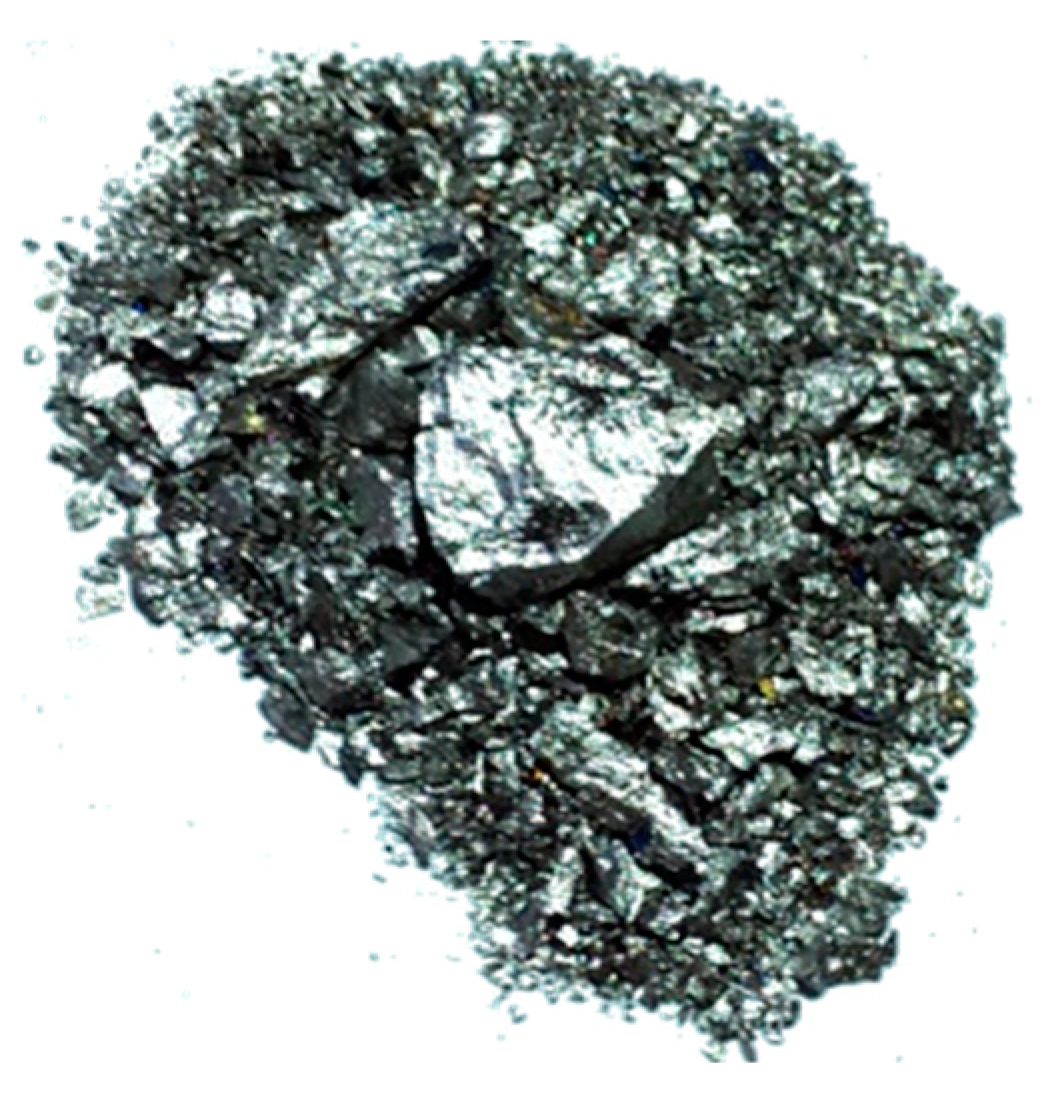

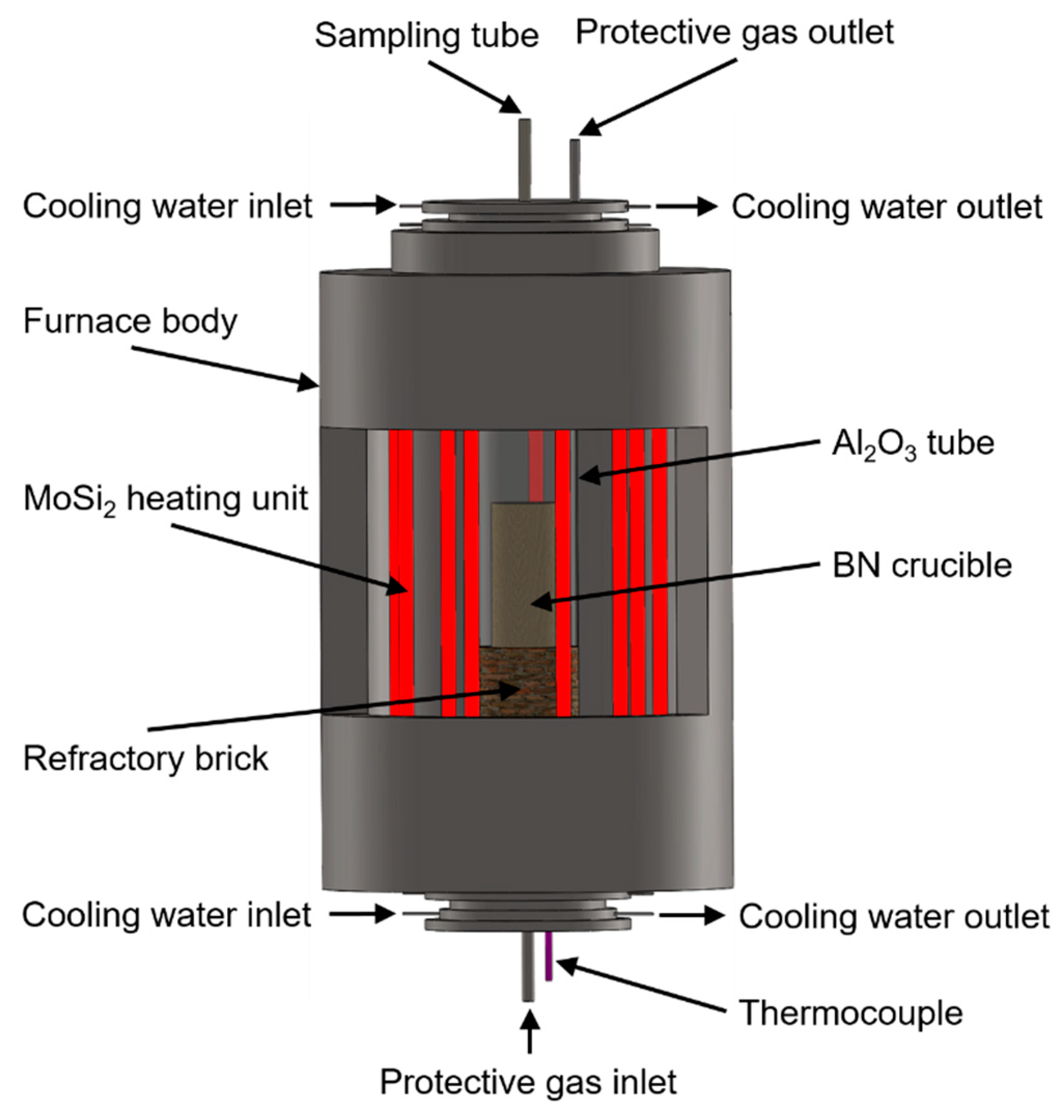

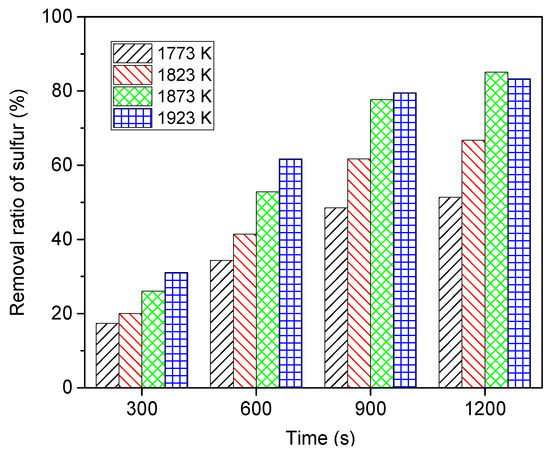

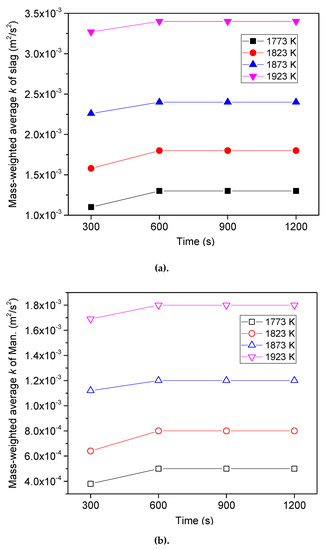

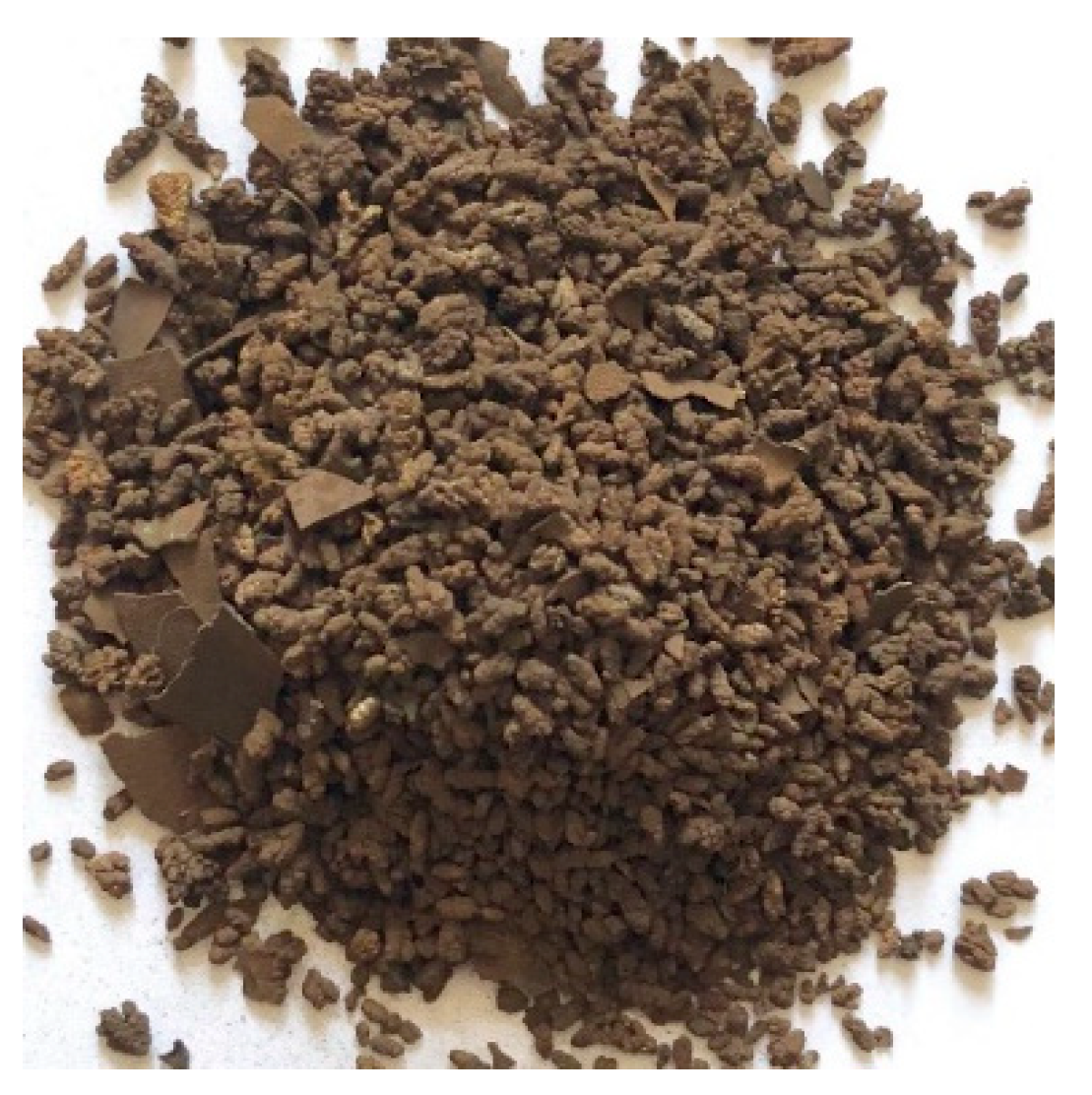

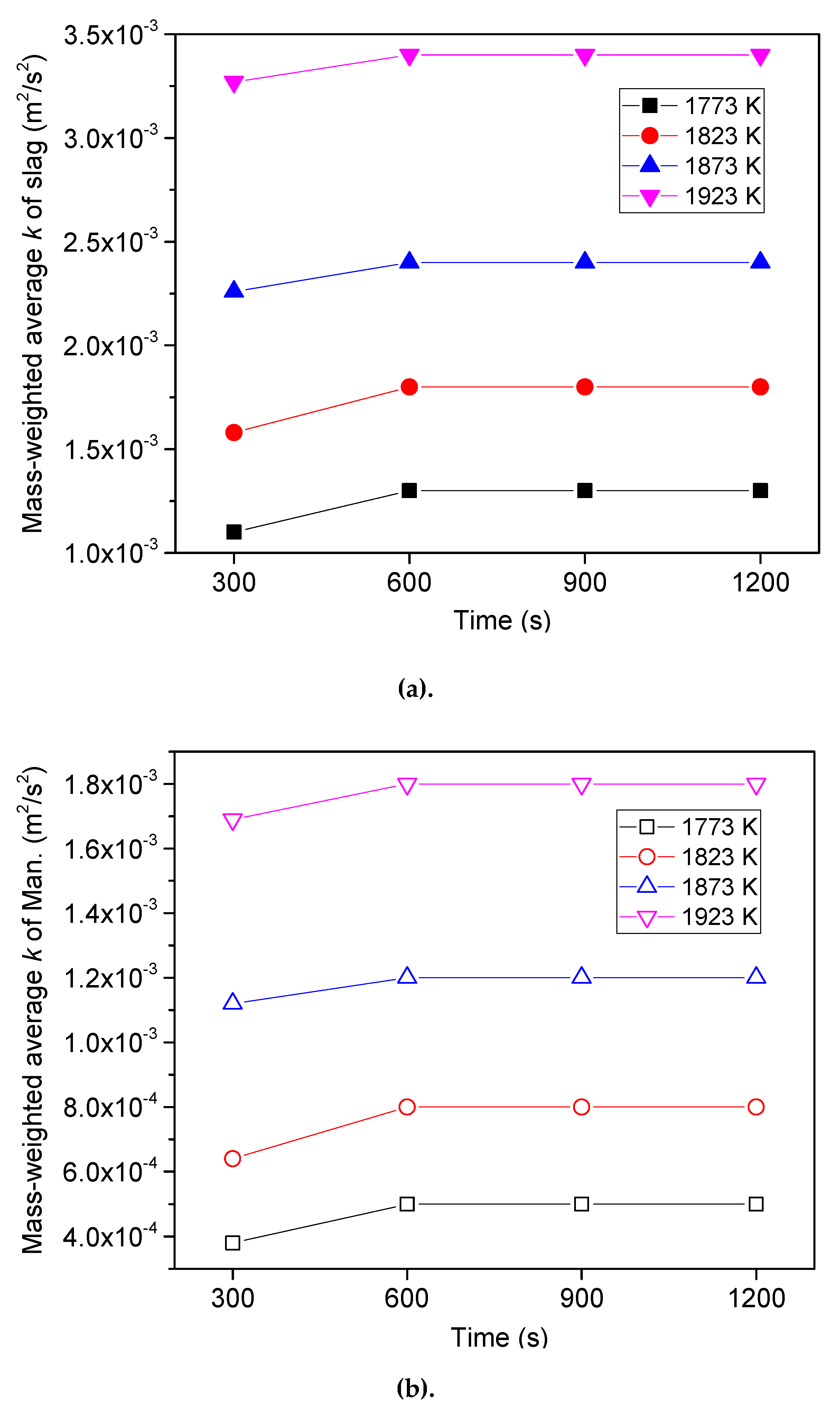

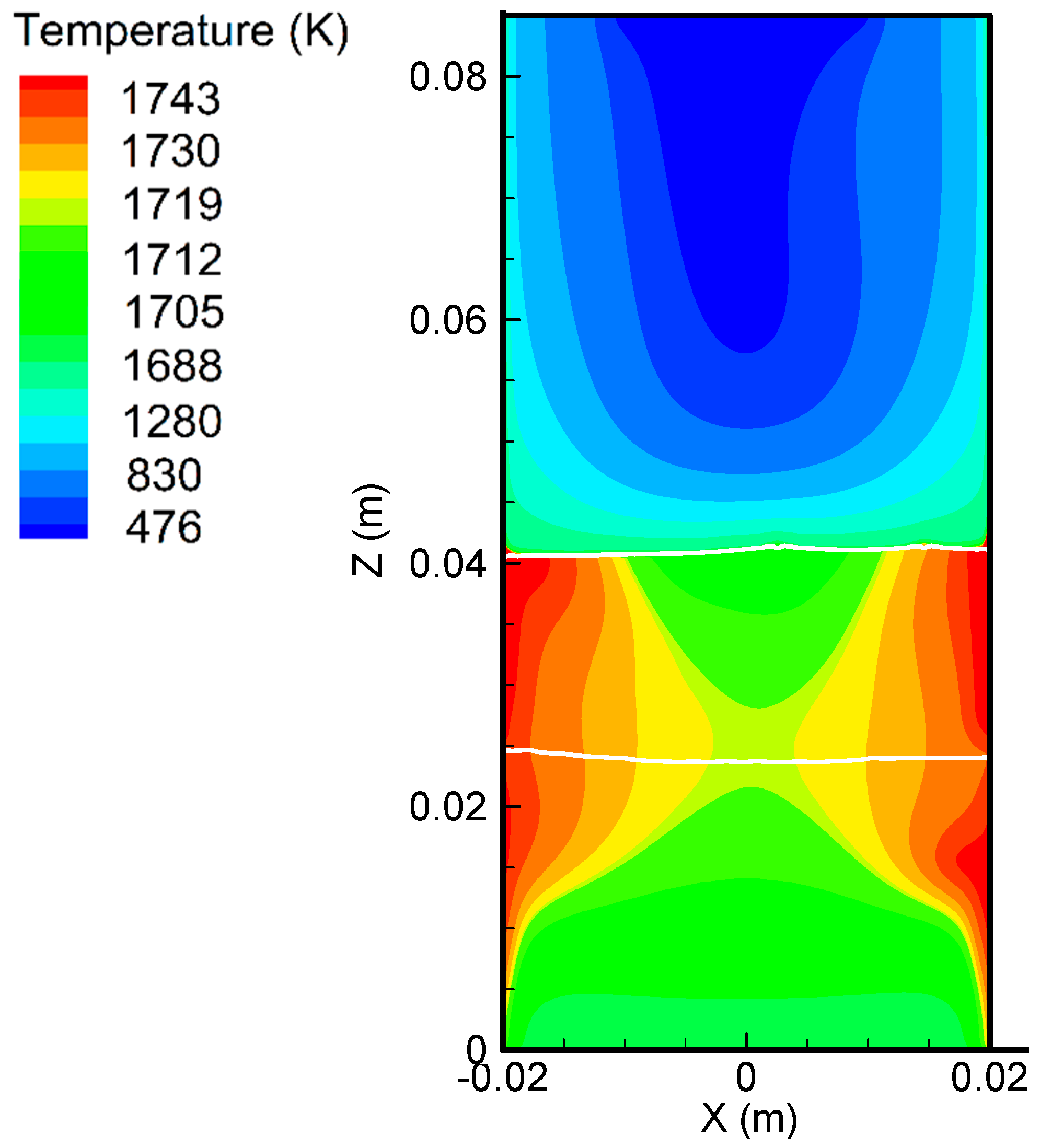

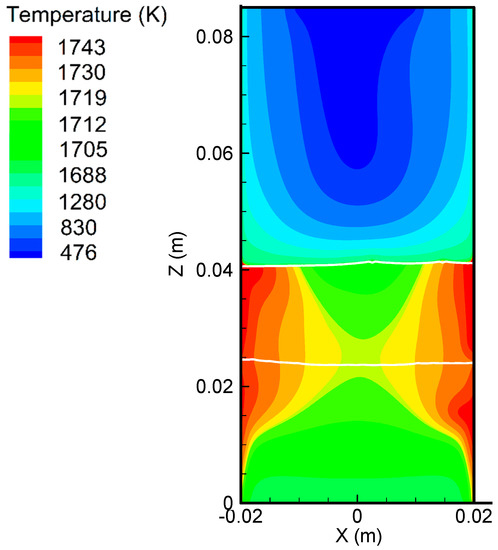

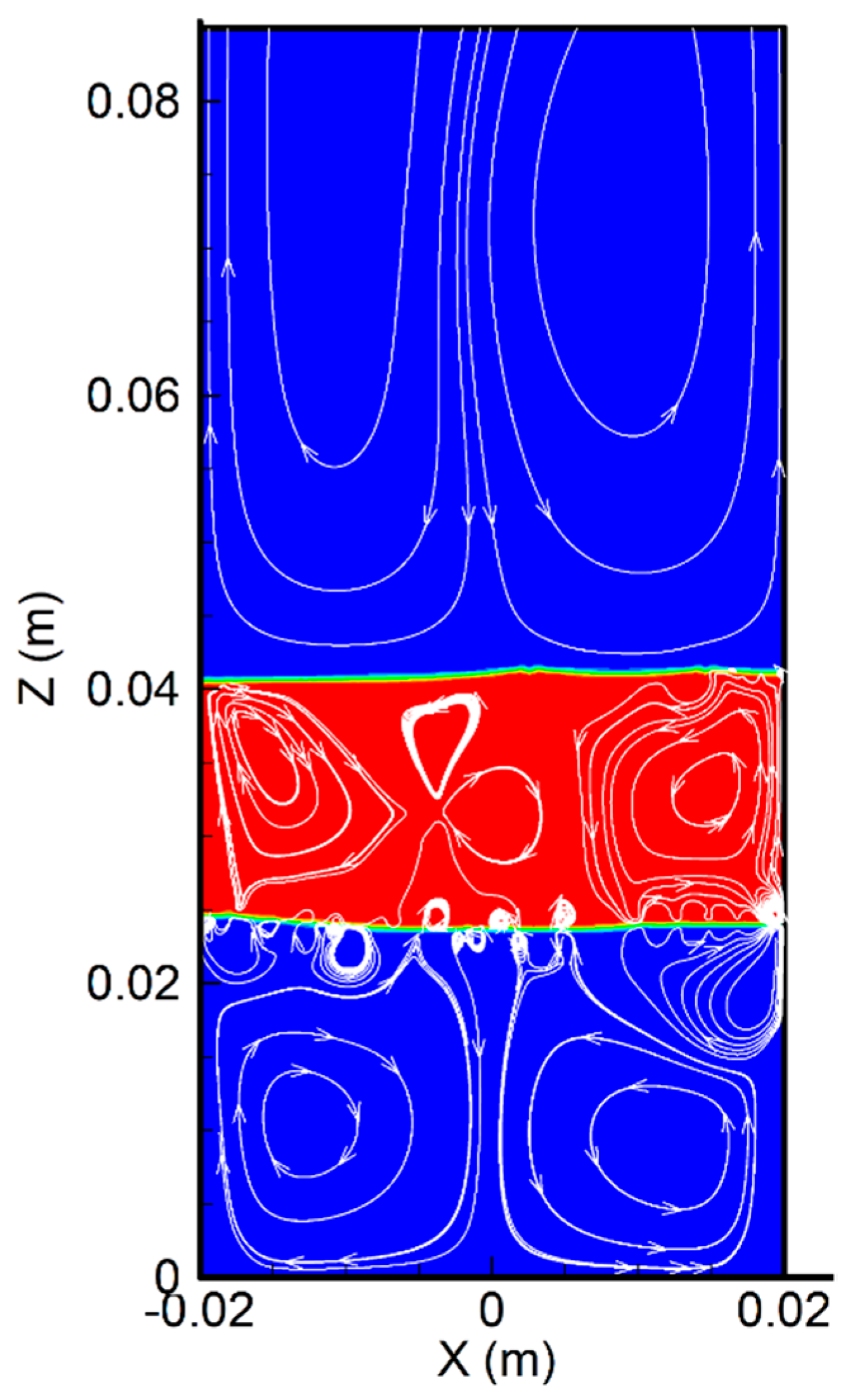

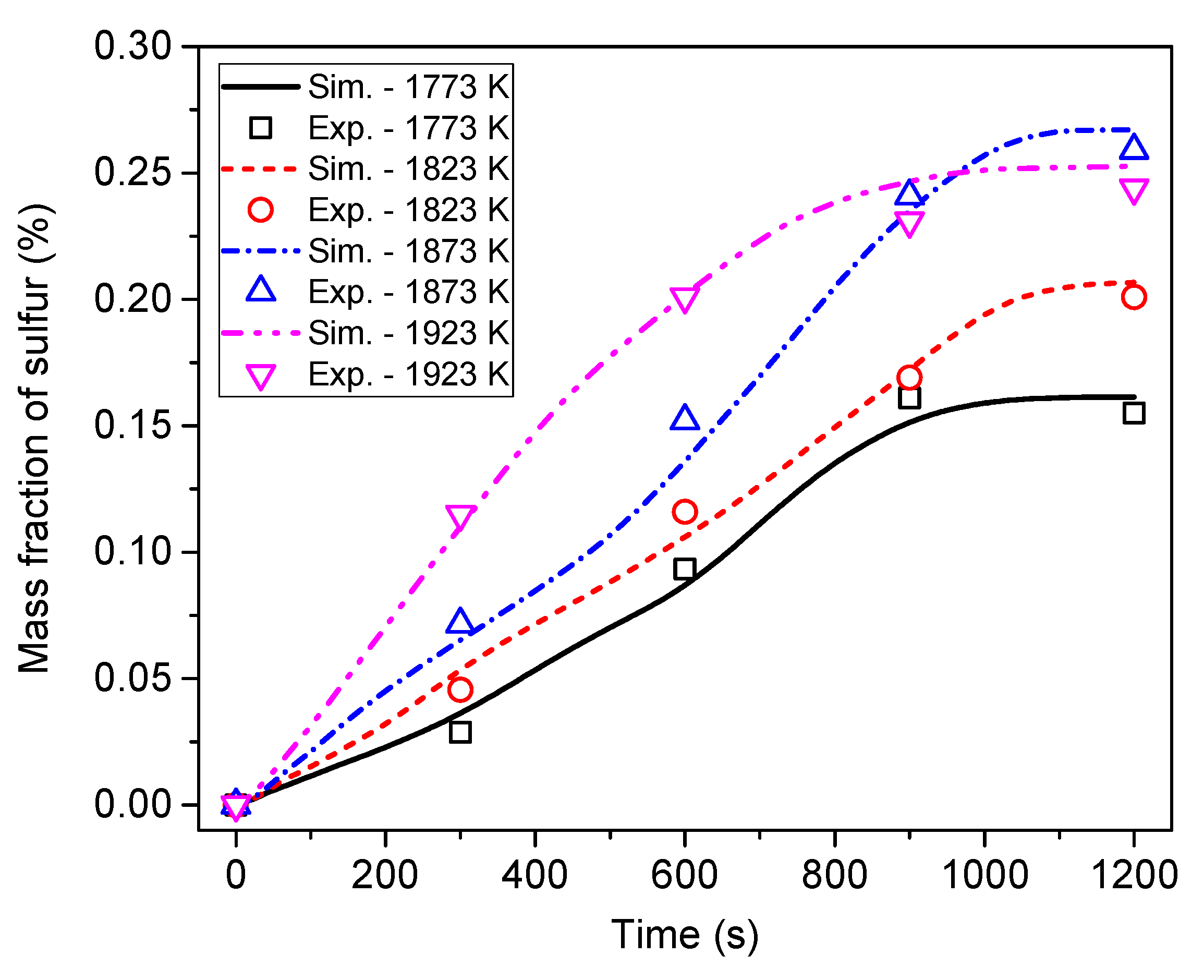

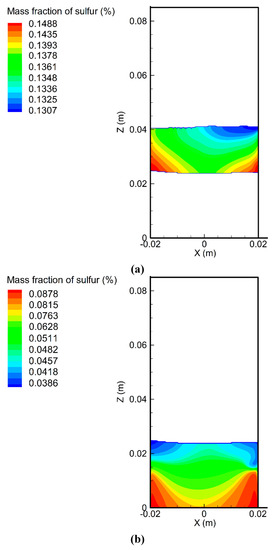

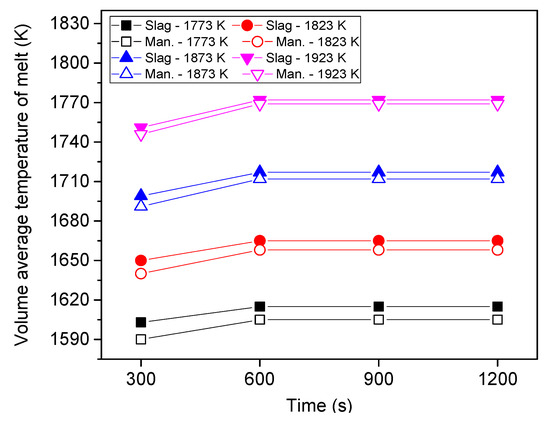

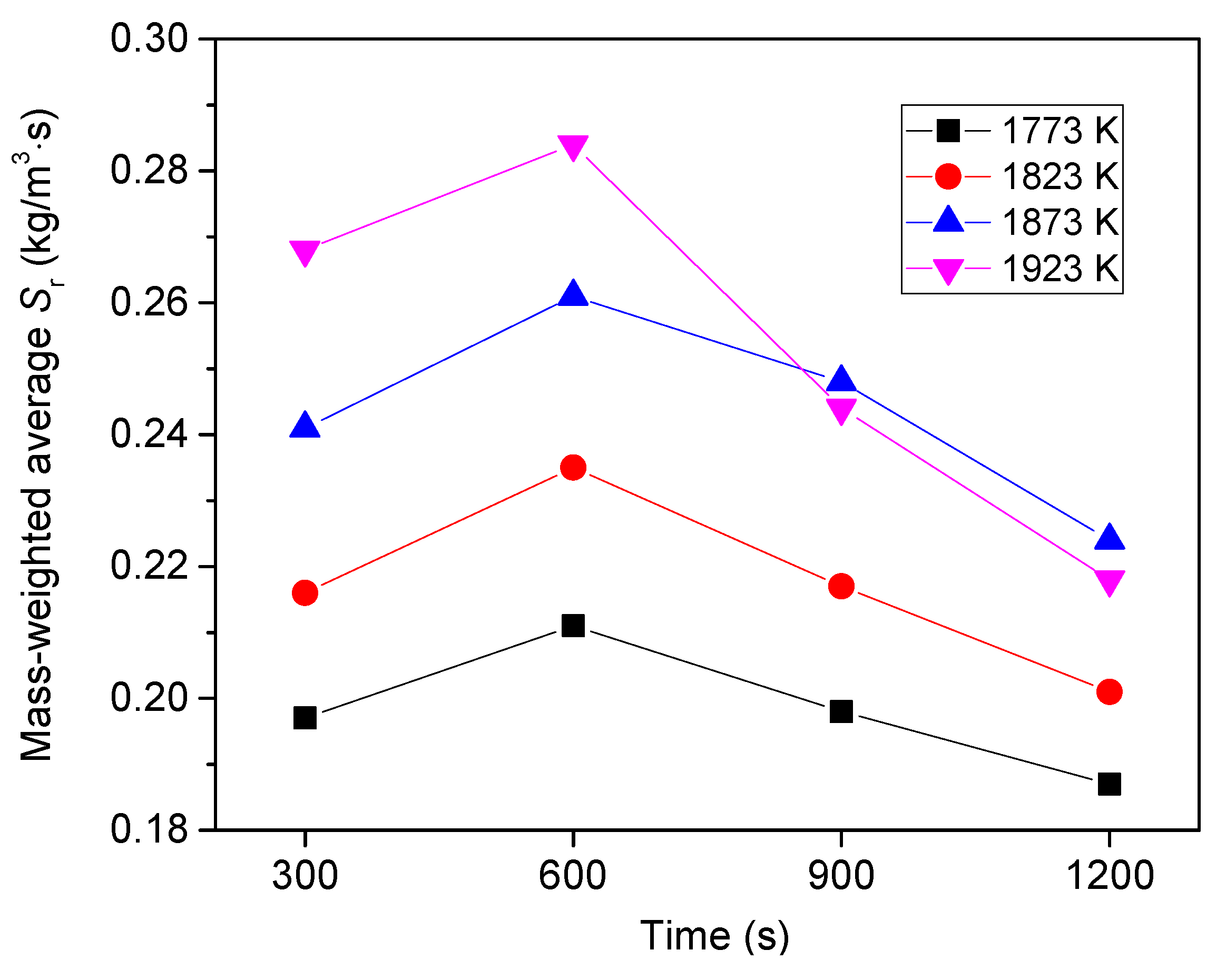

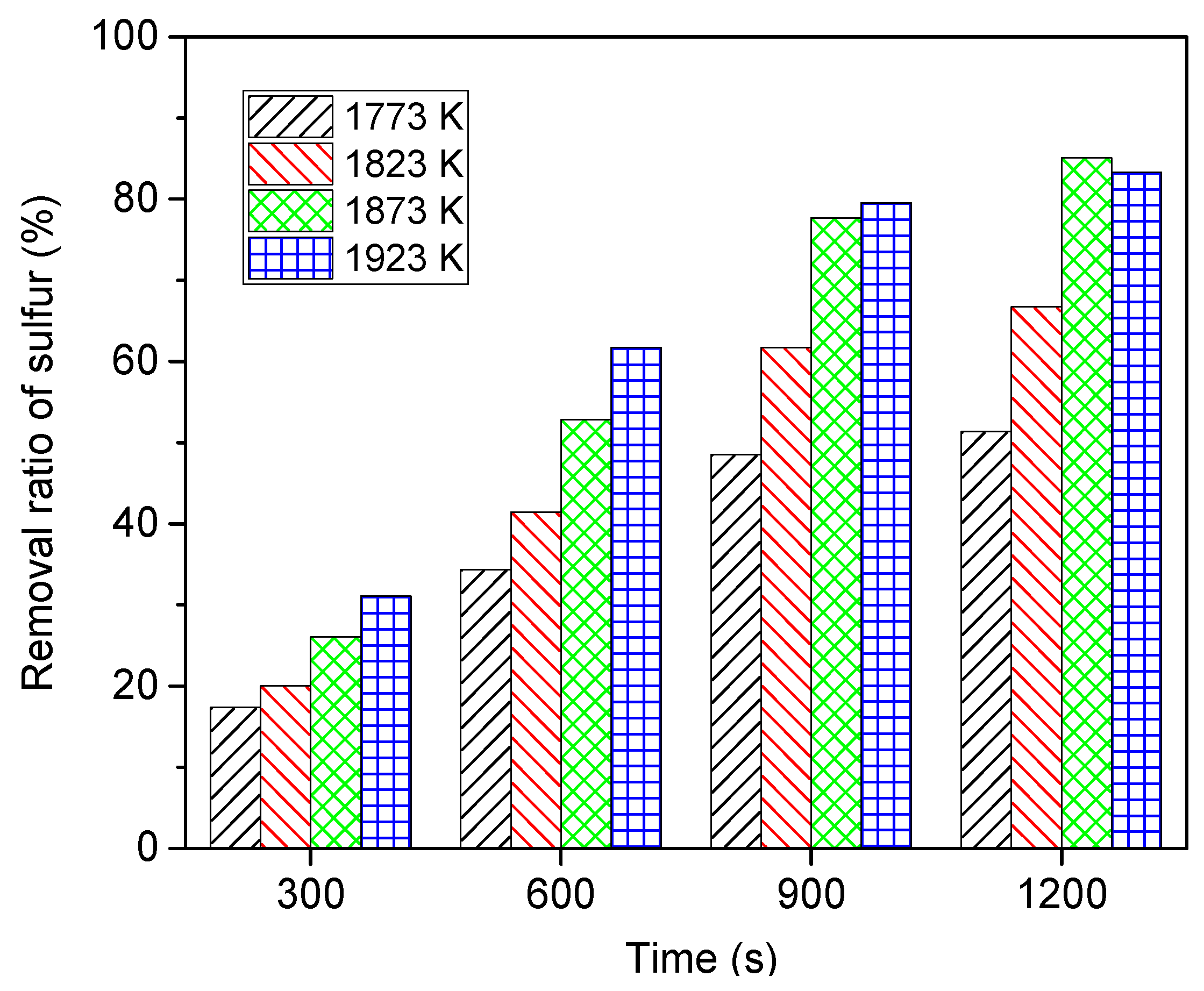

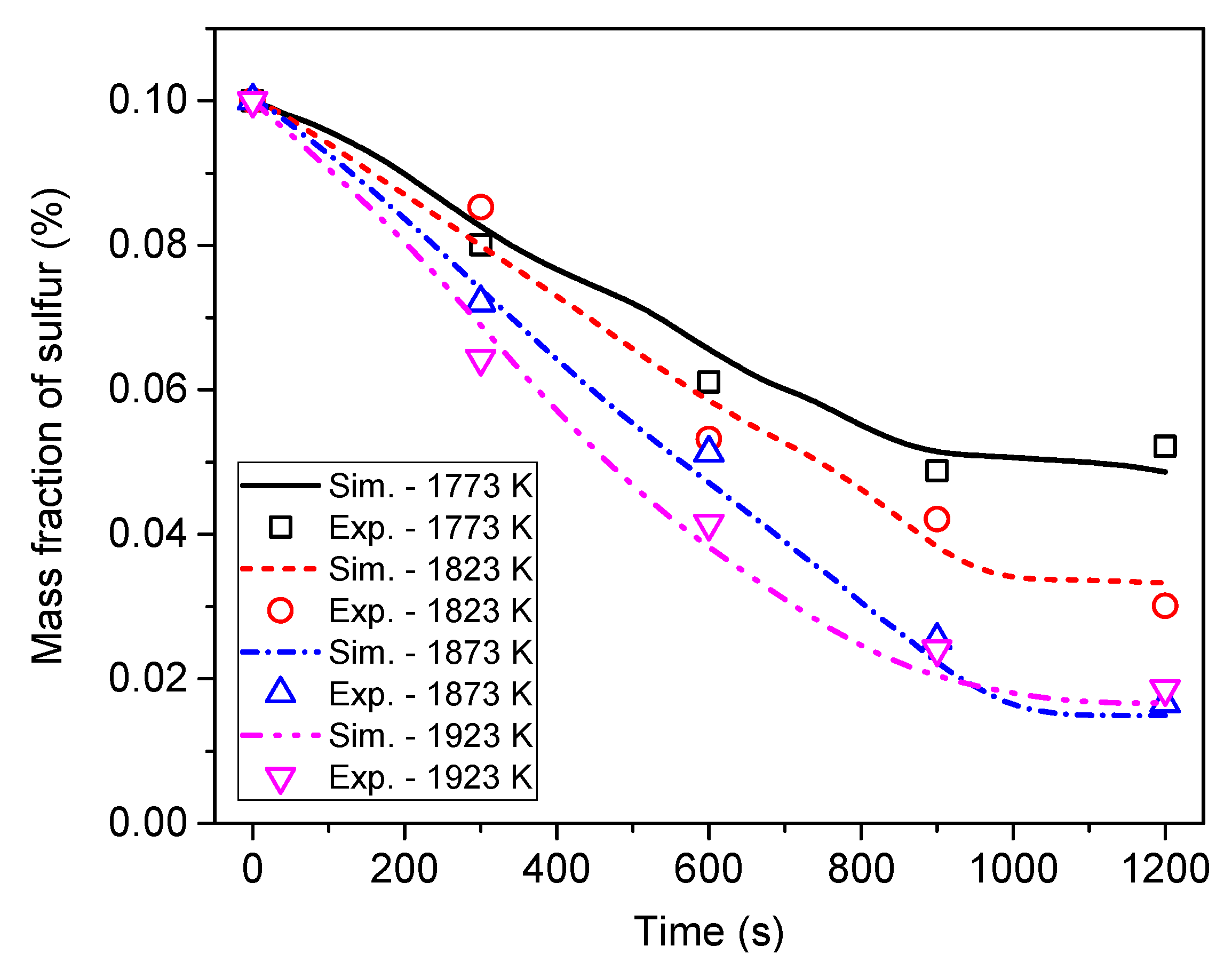

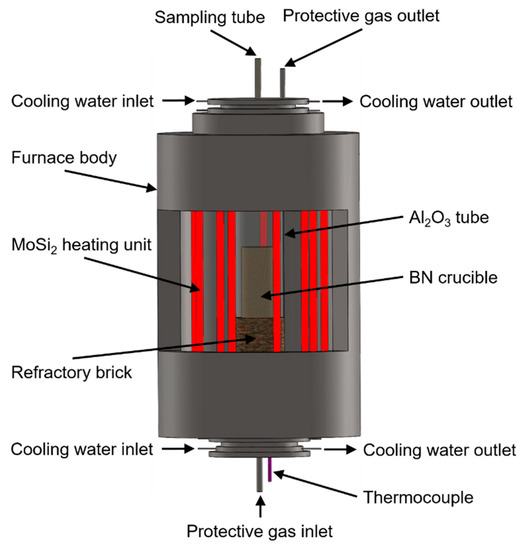

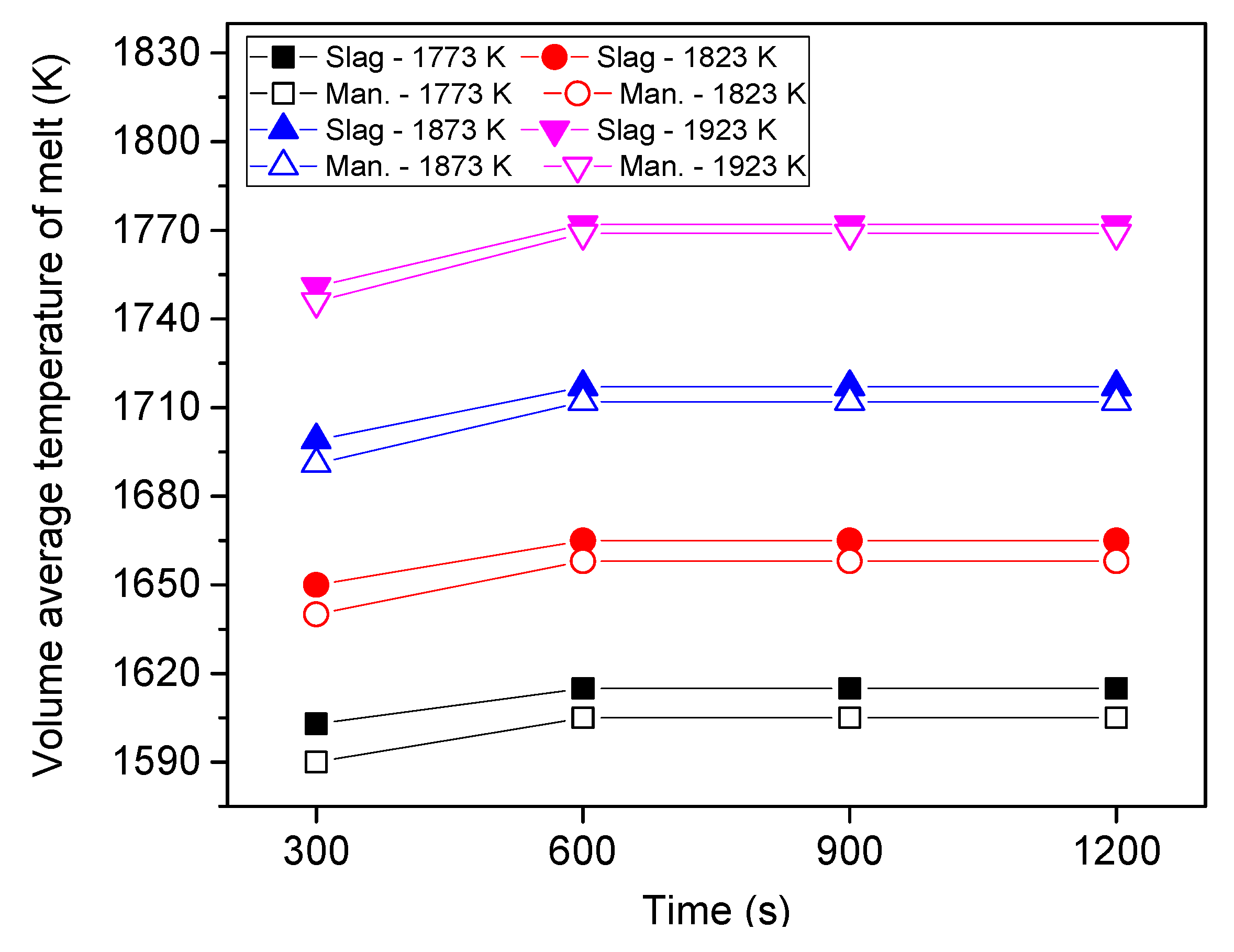

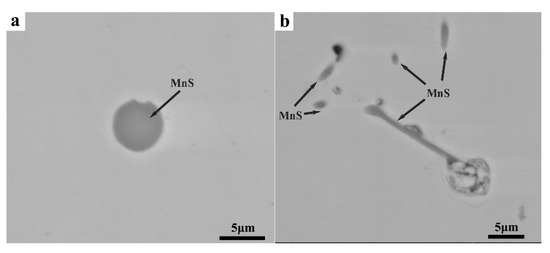

A slag treatment method was proposed to recycle rejected electrolytic manganese metal. To improve the sulfur removal ratio, computational fluid dynamics and experimental studies of the sulfur transfer behavior during the refining process were carried out. Experiments of slag-metal reaction for desulfurization were carried out using an electric resistance furnace at temperatures ranging from 1773 K to 1923 K. A transient three-dimensional coupled numerical model was established to represent the three-phase flow, heat and mass transfer in the experiment. The desulfurization rate was described by a metallurgical kinetics module, which was related to the slag composition, the interfacial tension coefficient, the flow and the temperature of the melt. The predicted sulfur content agreed reasonably well with the measured data. The temperature of the fluids at the outer side of the crucible was higher than that at the center, resulting in a larger sulfur partition ratio and a more vigorous flow. The sulfur transfer rate was higher at the outer edge of the molten slag–molten manganese interface. The sulfur removal ratio increased from 51.4% to 85.1% with a change in heating temperature from 1773 K to 1873 K, and slightly dropped to 83.3% when the heating temperature increased to 1923 K. The heating temperature of 1873 K is the optimal choice for recycling in the present work. View Full-Text
Keywords: desulfurization; kinetics; CFD; recycling; rejected electrolytic manganese metal; slag treatment desulfurization; kinetics; CFD; recycling; rejected electrolytic manganese metal; slag treatment

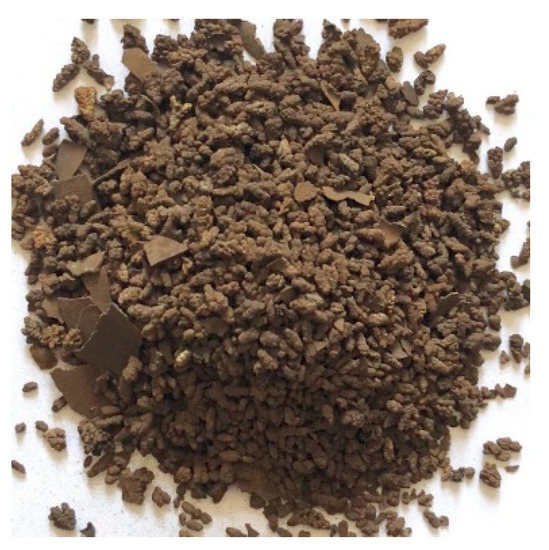

Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, Q.; Liu, Y.; Wang, F.; Cao, Y.; Li, G. Study on Sulfur Transfer Behavior during Refining of Rejected Electrolytic Manganese Metal. Metals 2019, 9, 751.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
