Next Article in Journal
Influence of the Alkaline Reserve of Chloride-Contaminated Mortars on the 6-Year Corrosion Behavior of Corrugated UNS S32304 and S32001 Stainless Steels
Previous Article in Journal
On the Influence of Loading Order in Nanostructural Fatigue Crack Propagation in BCC Iron—A Molecular Dynamics Study
Open AccessArticle

Effect of Microstructure and Texture on Mechanical Properties of Resistance Spot Welded High Strength Steel 22MnB5 and 5A06 Aluminium Alloy

Engineering Research Centre of Advanced Manufacturing Technology for Automotive Structural Parts, Ministry of Education, Beijing University of Technology, Beijing 100124, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(6), 685; https://doi.org/10.3390/met9060685
Received: 20 May 2019 / Revised: 11 June 2019 / Accepted: 13 June 2019 / Published: 14 June 2019

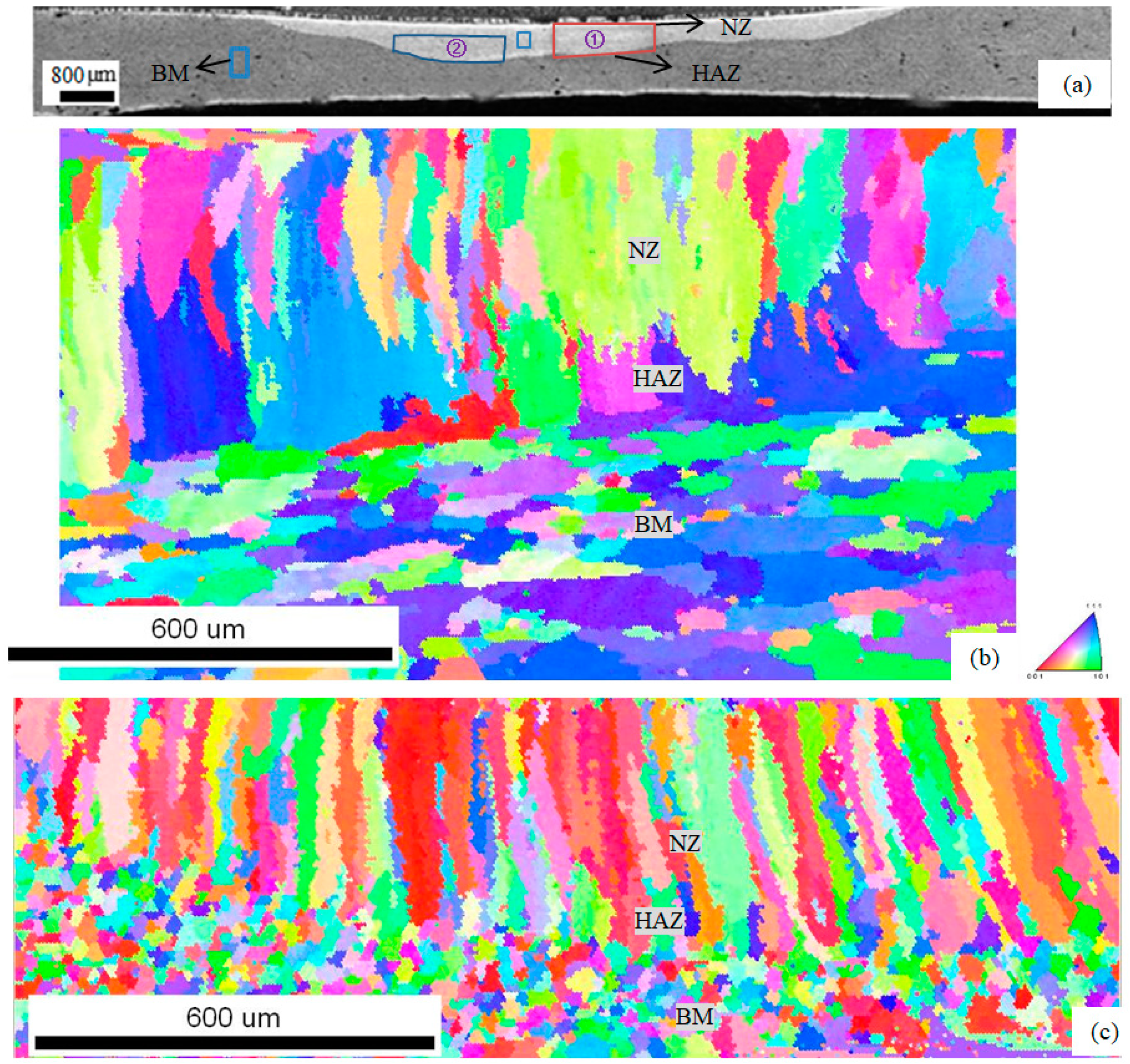

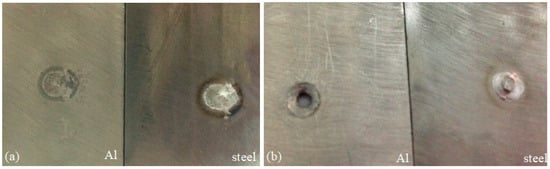

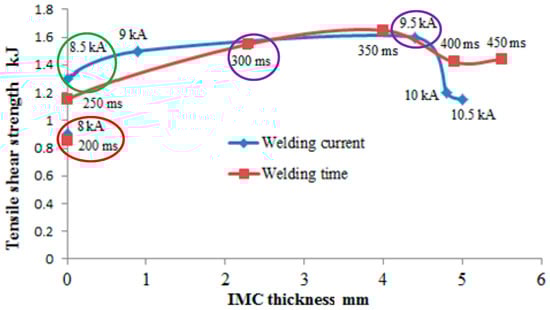

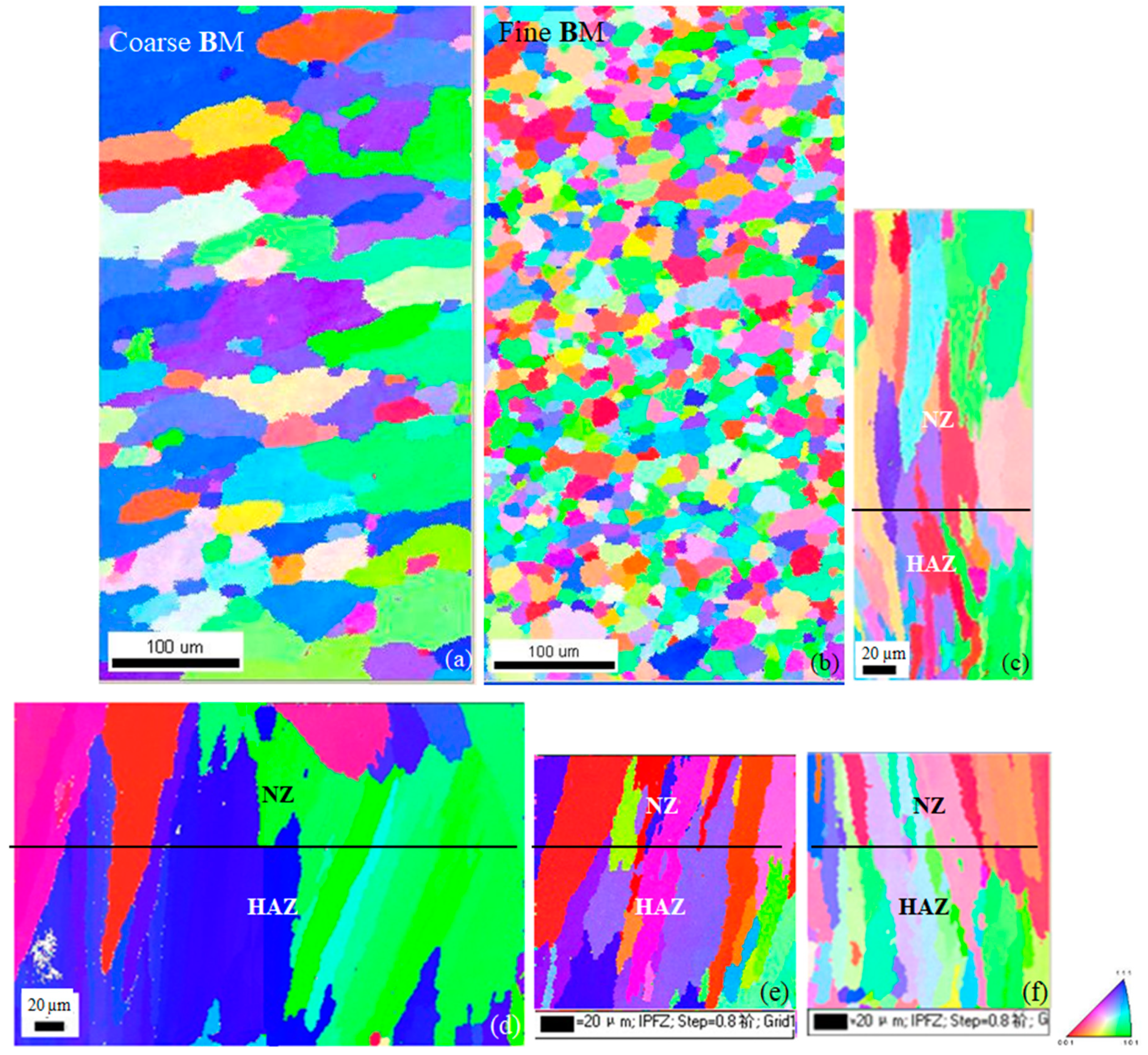

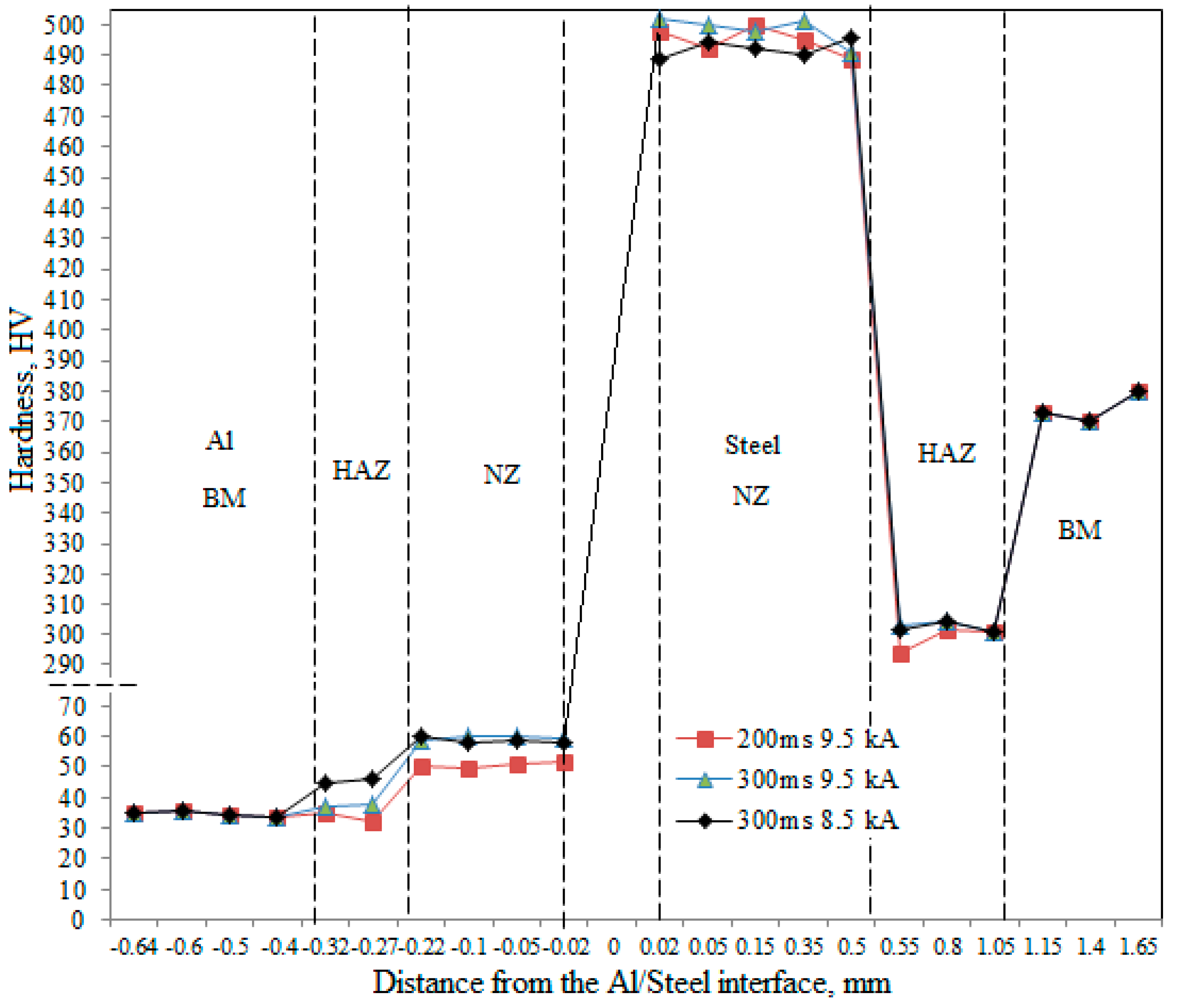

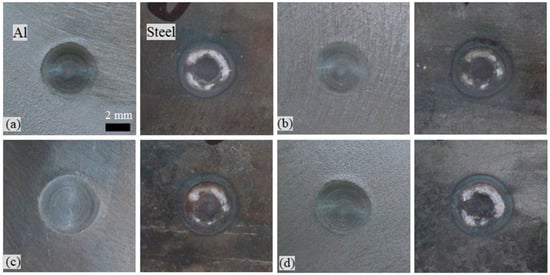

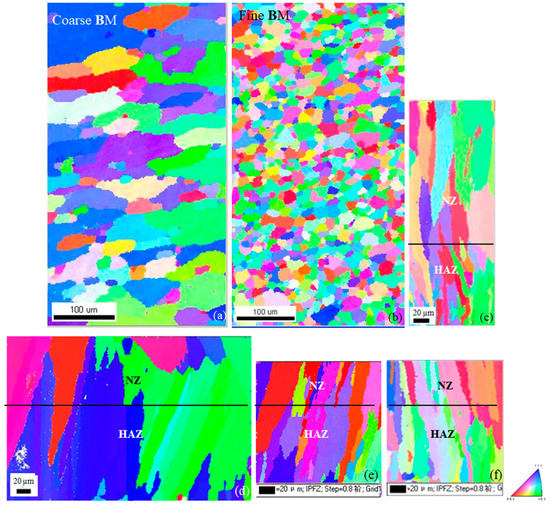

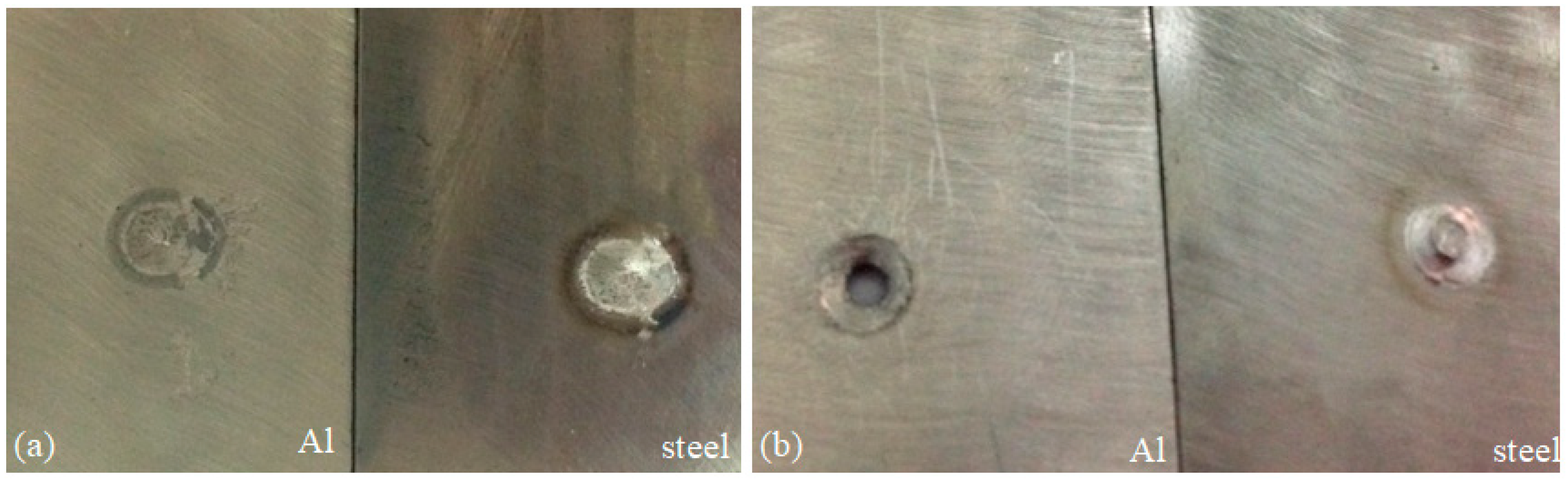

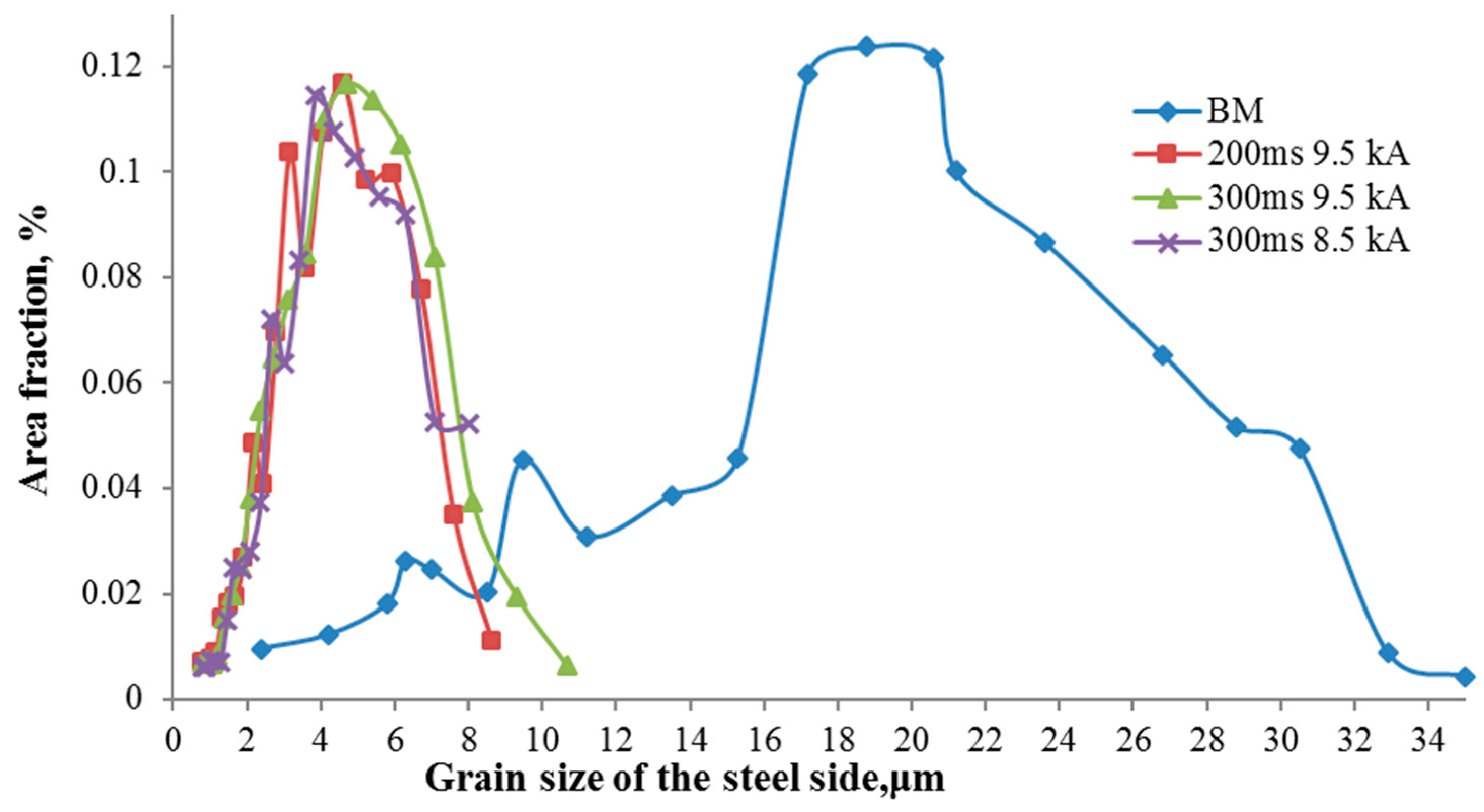

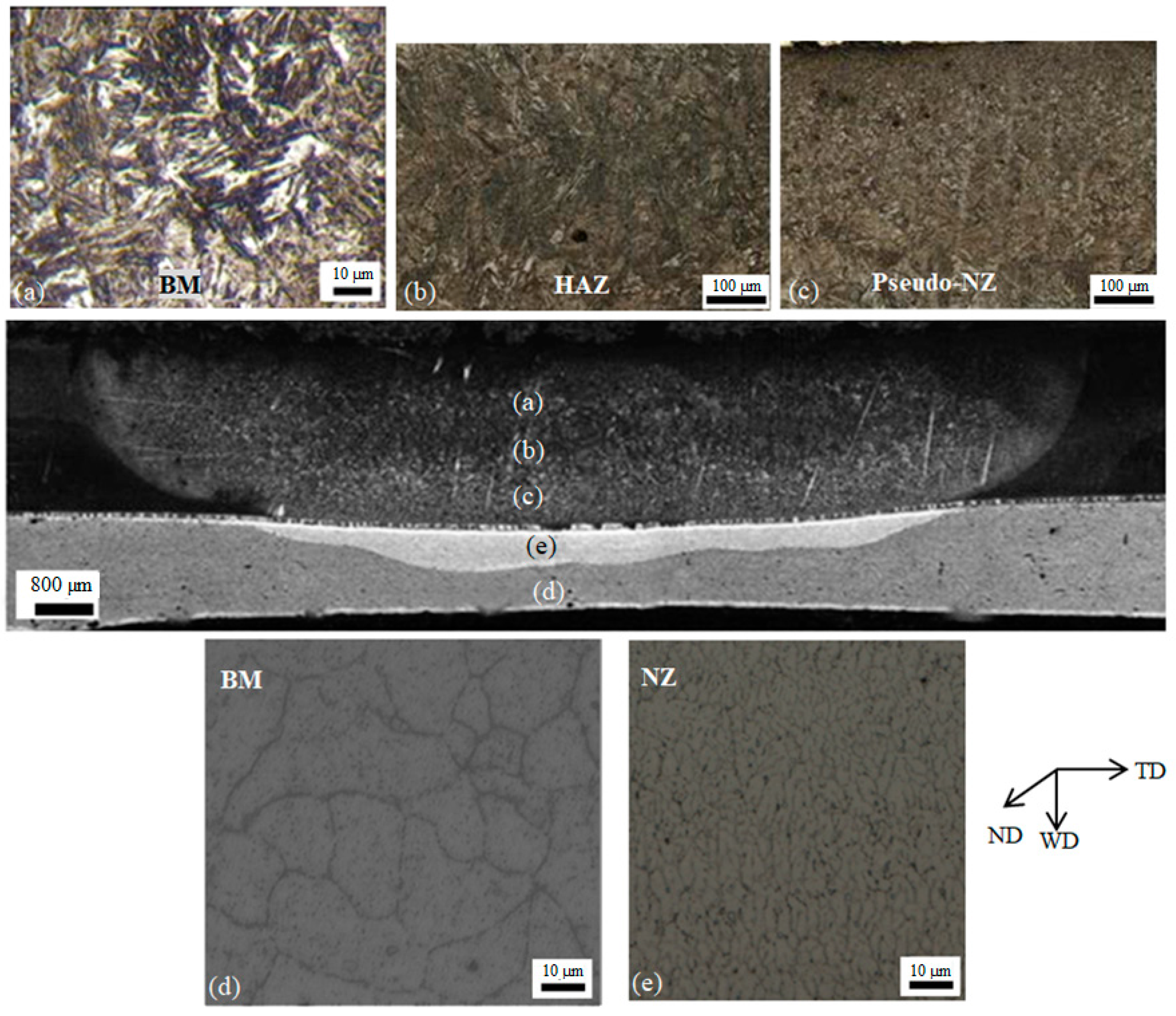

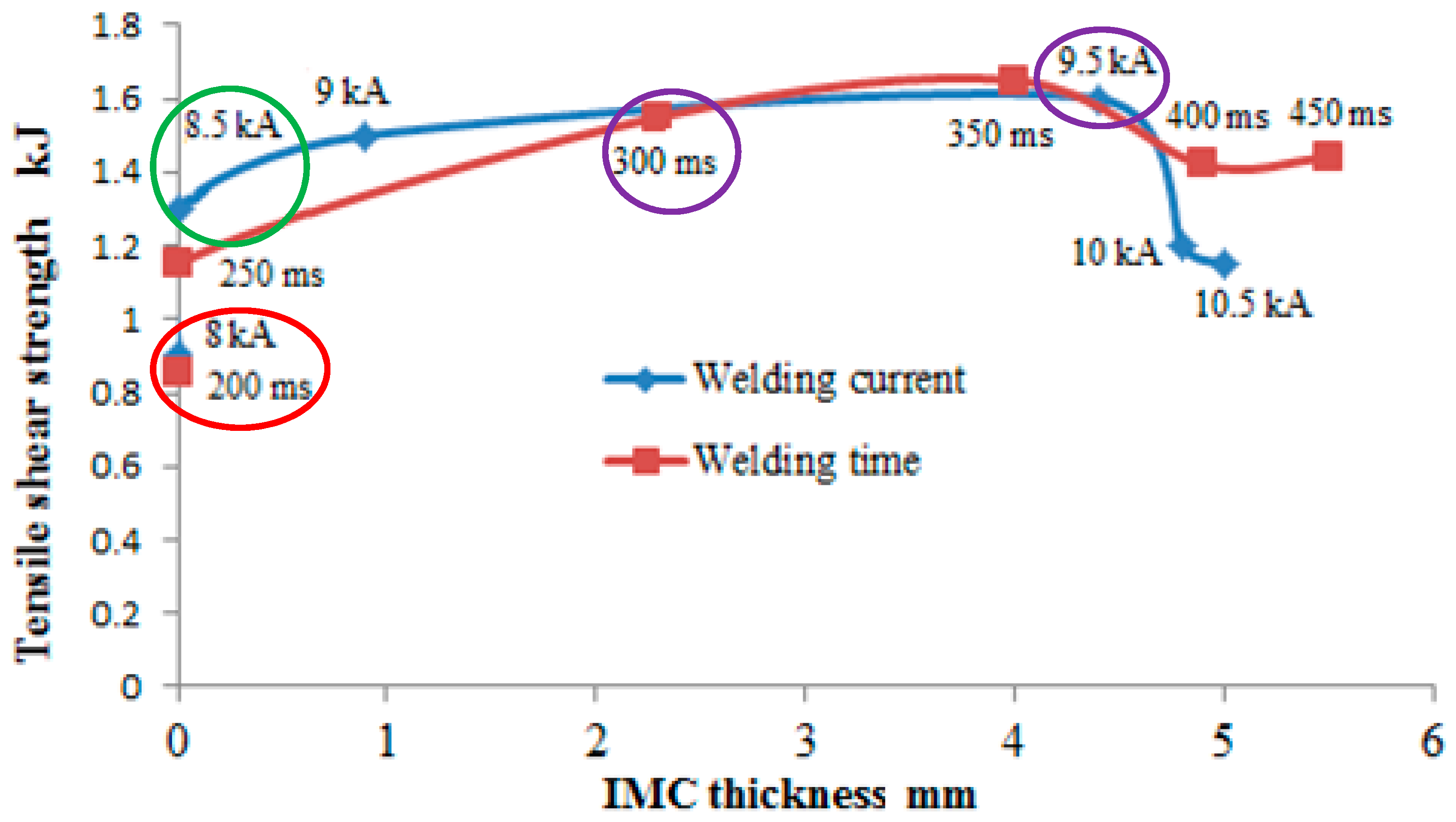

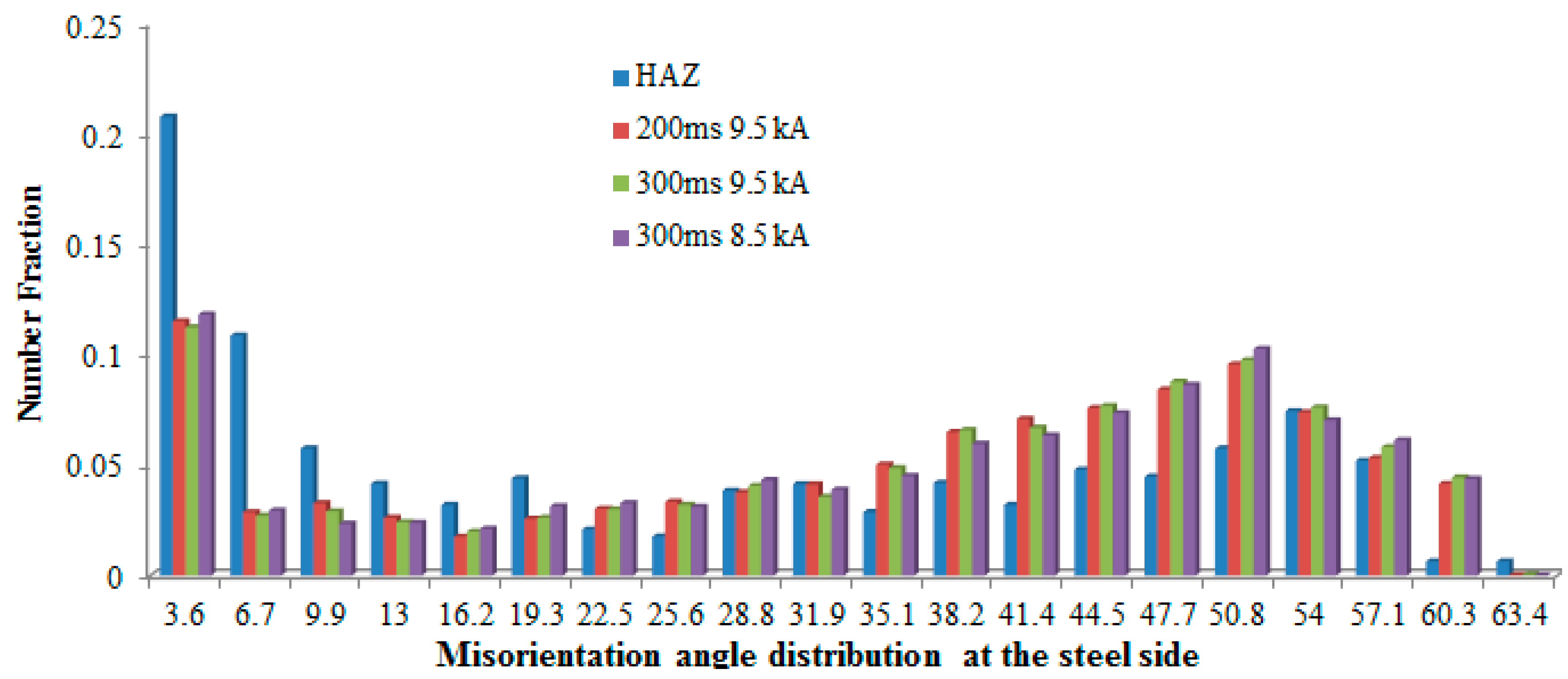

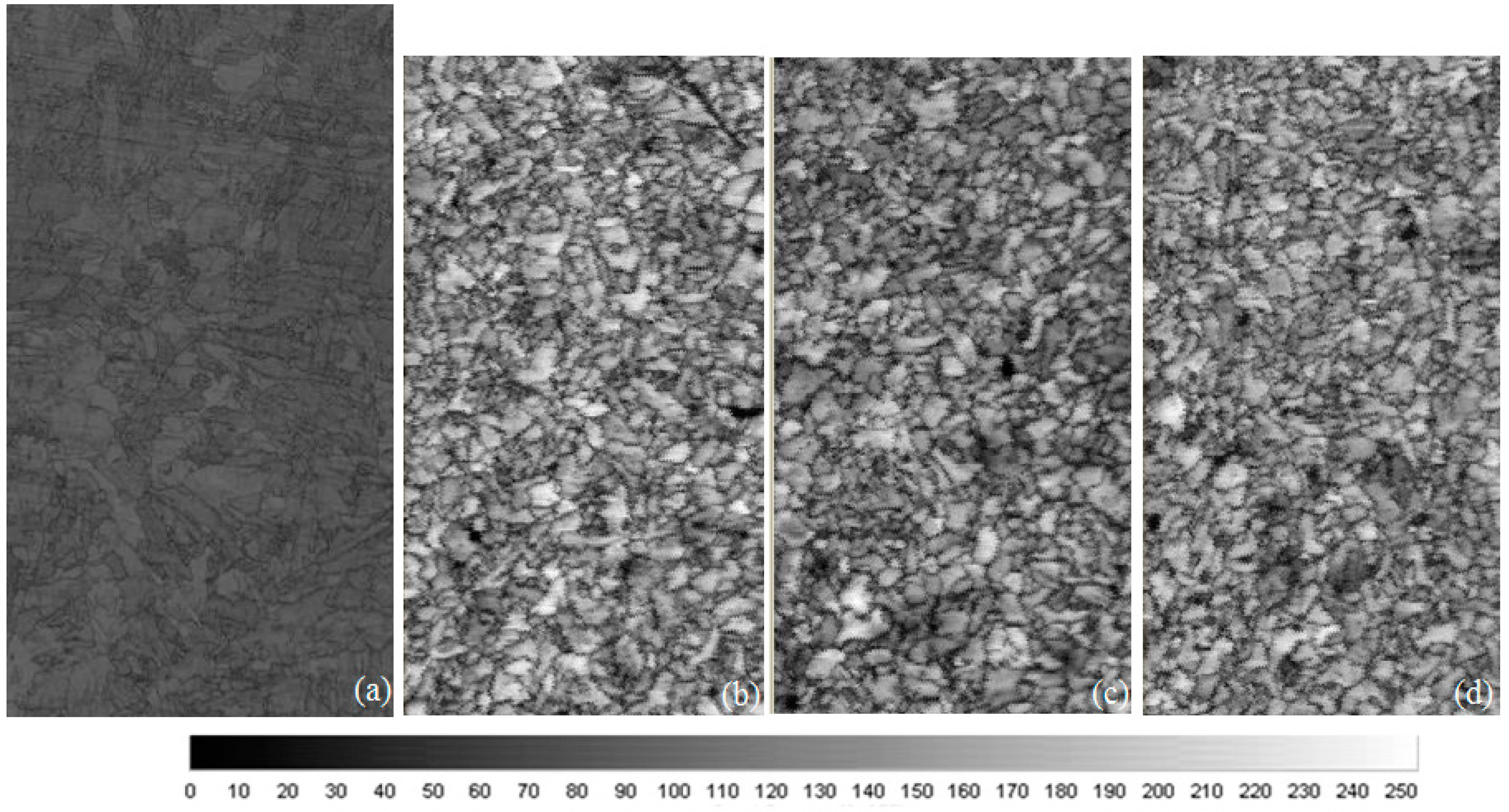

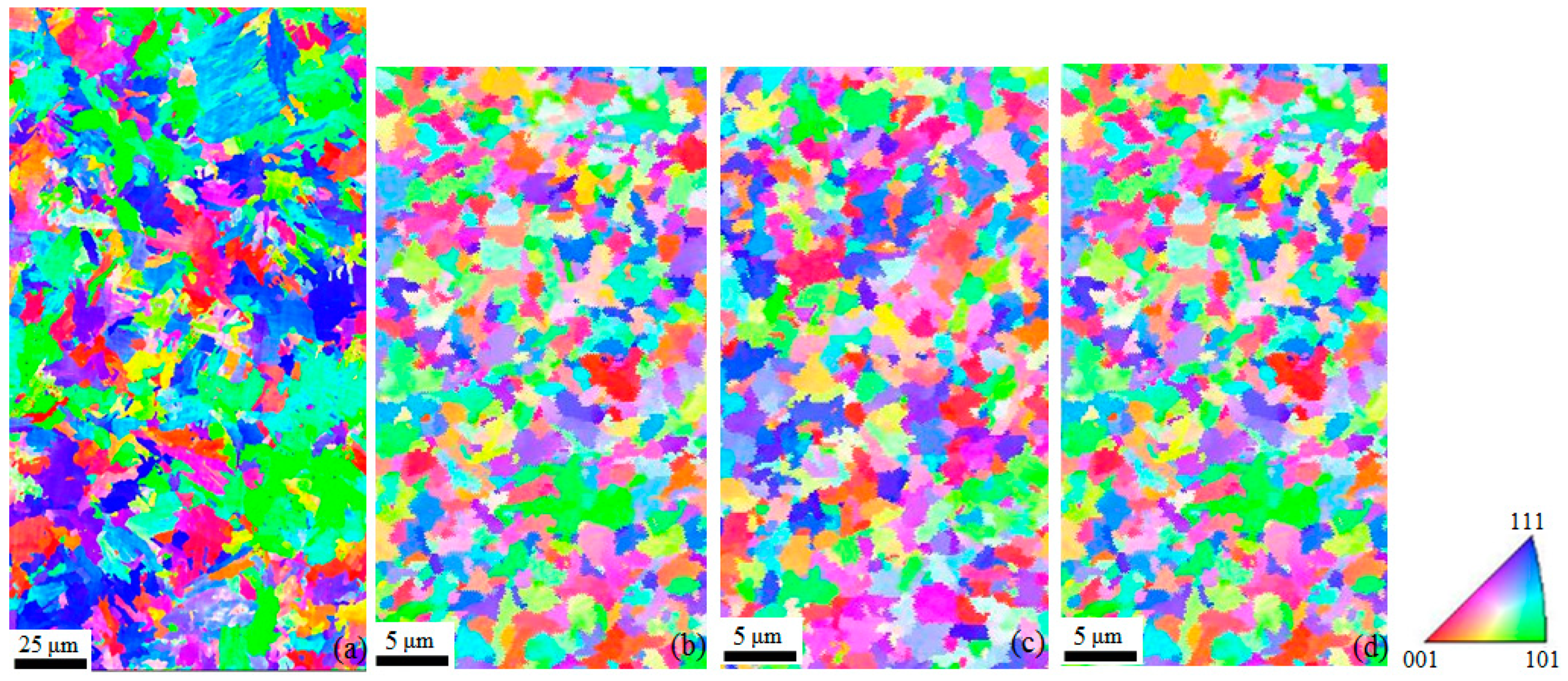

The present study aims to investigate the effect of microstructure and texture on mechanical properties of resistance spot welding of high strength steel 22MnB5 and 5A06 aluminium alloy as a function of welding parameters. The pseudo-nugget zones (NZs) at the steel side have undergone full recrystallisation with a fine-grained ferrite structure containing a small amount of retained austenite and a high hardness of approximately 500 HV, which is a 35% increase in hardness compared to the base material (BM) with fine lath martensitic structure. The NZs at the Al side contain both a recrystallisation texture and shear texture. Higher tensile shear strength with increasing weld time could be linked to the random texture at the Al side. The highest tensile shear strength was achieved at an intermetallic layer thickness of 4 mm. View Full-Text
Keywords: resistance spot welding; recrystallisation; texture; properties resistance spot welding; recrystallisation; texture; properties
Show Figures

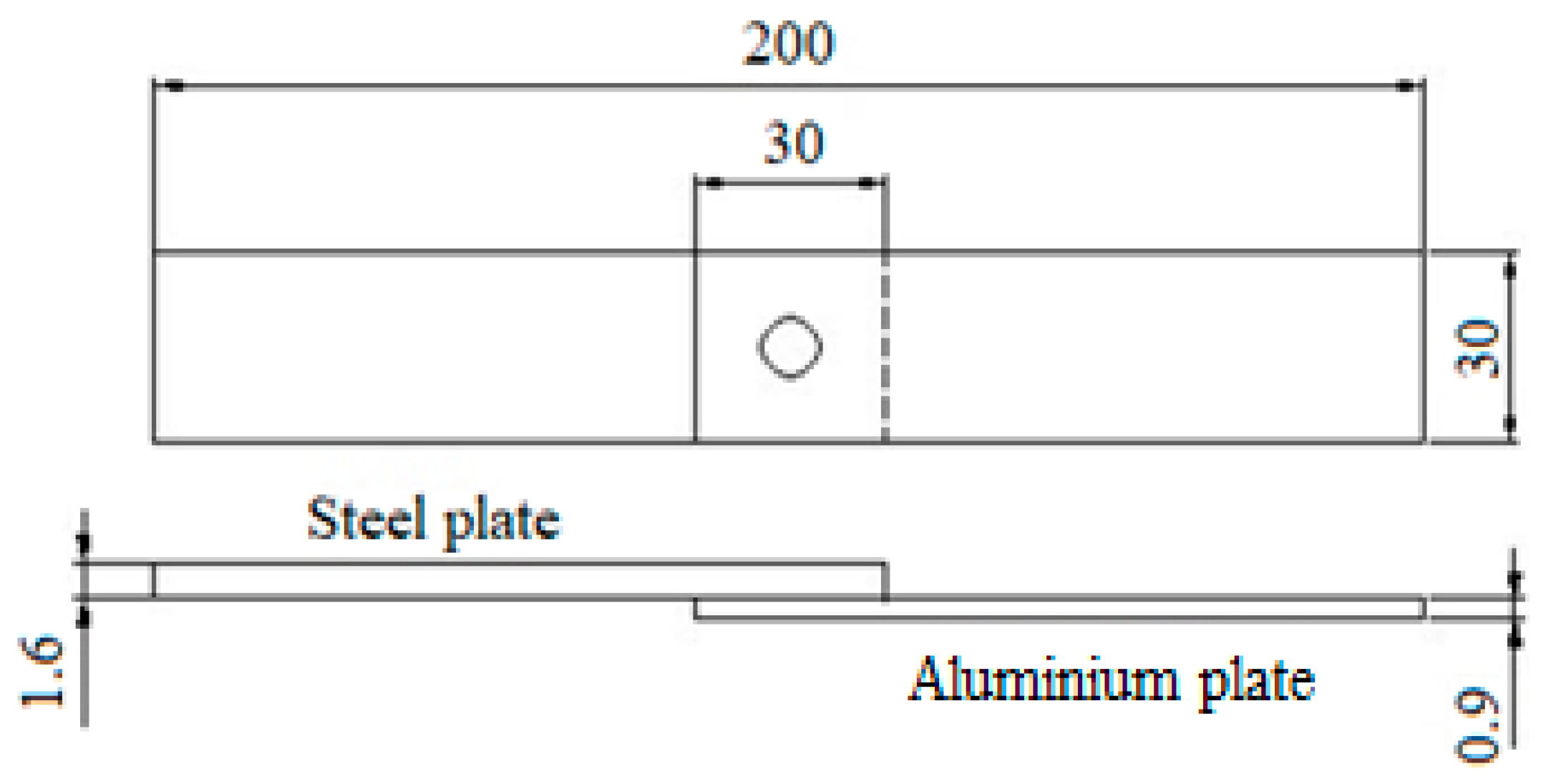

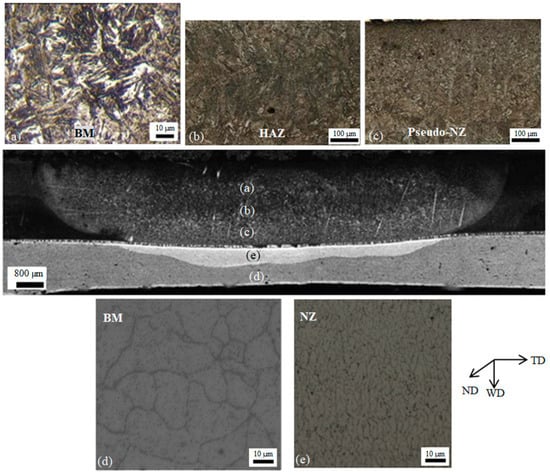

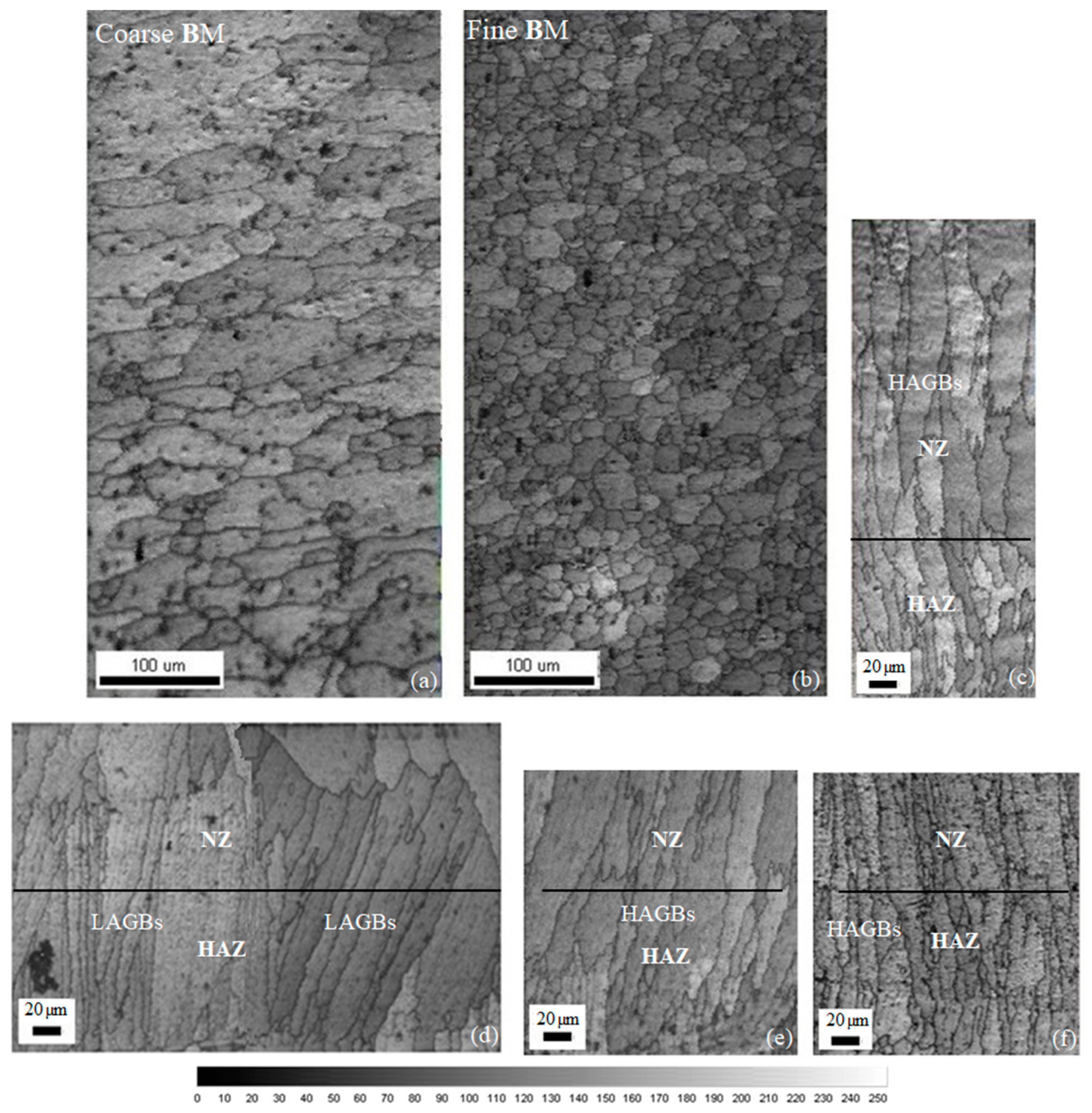

Figure 1

MDPI and ACS Style

Jiang, X.; Chen, S.; Gong, J.; Lu, Z. Effect of Microstructure and Texture on Mechanical Properties of Resistance Spot Welded High Strength Steel 22MnB5 and 5A06 Aluminium Alloy. Metals 2019, 9, 685.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
