Next Article in Journal
Fabrication, Morphology Analysis, and Mechanical Properties of Ti Foams Manufactured Using the Space Holder Method for Bone Substitute Materials
Previous Article in Journal
The Influence of Heat Treatment Parameters on the Cracks Growth under Cyclic Bending in St-Ti Clad Obtained by Explosive Welding
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Metals 2019, 9(3), 339; https://doi.org/10.3390/met9030339

Explosive Welding of Copper to High Nitrogen Austenitic Stainless Steel

1
School of Environment and Safety Engineering, North University of China, Taiyuan 030051, China
2
Beijing Special Vehicle Institute, Beijing 100000, China
*
Authors to whom correspondence should be addressed.
Received: 12 February 2019 / Revised: 9 March 2019 / Accepted: 12 March 2019 / Published: 17 March 2019
Full-Text   |   PDF [2806 KB, uploaded 17 March 2019]   |

Abstract

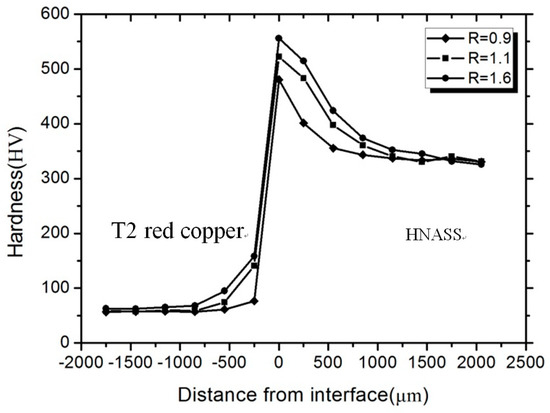

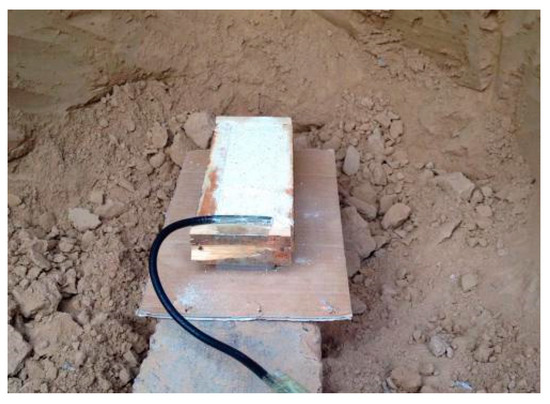

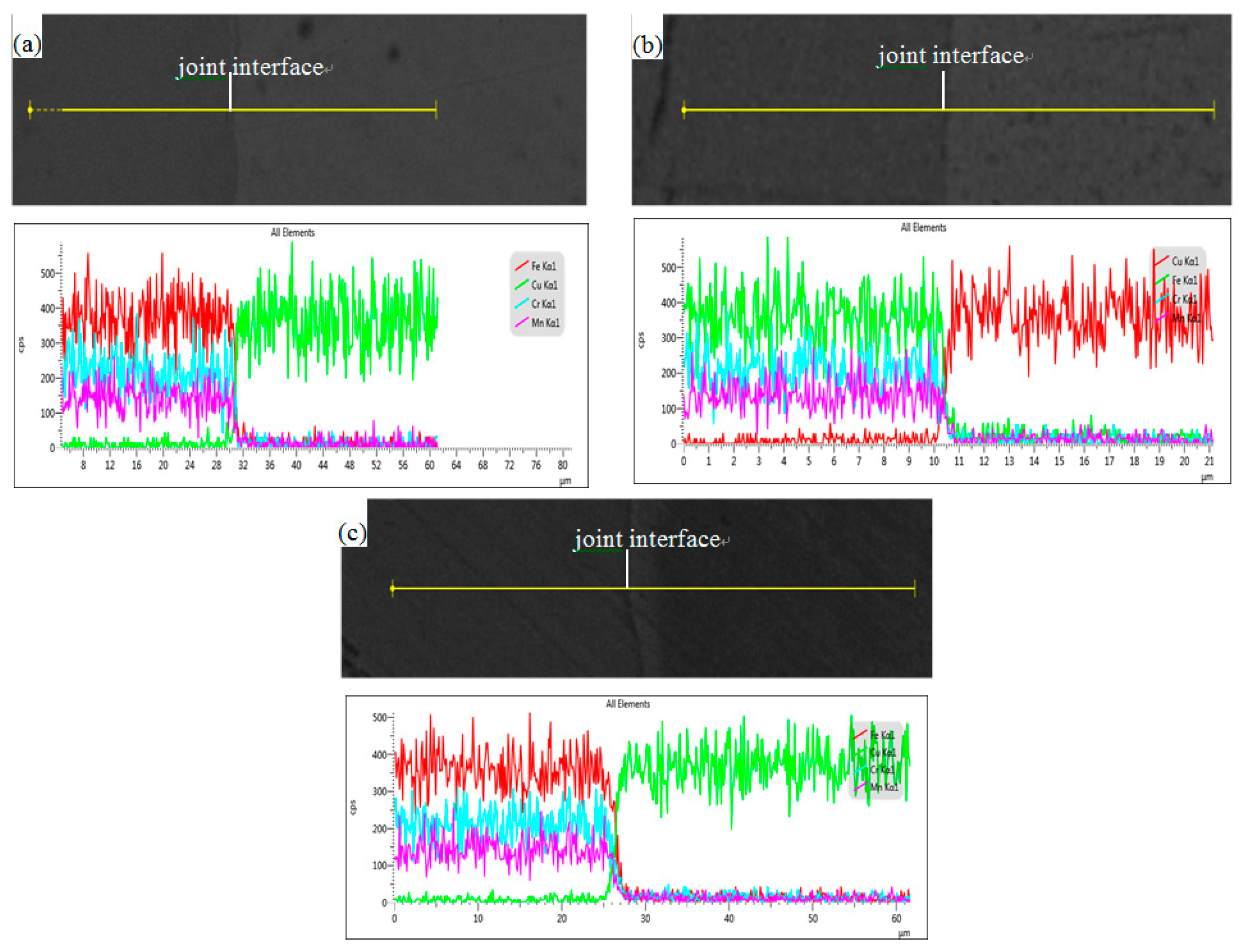

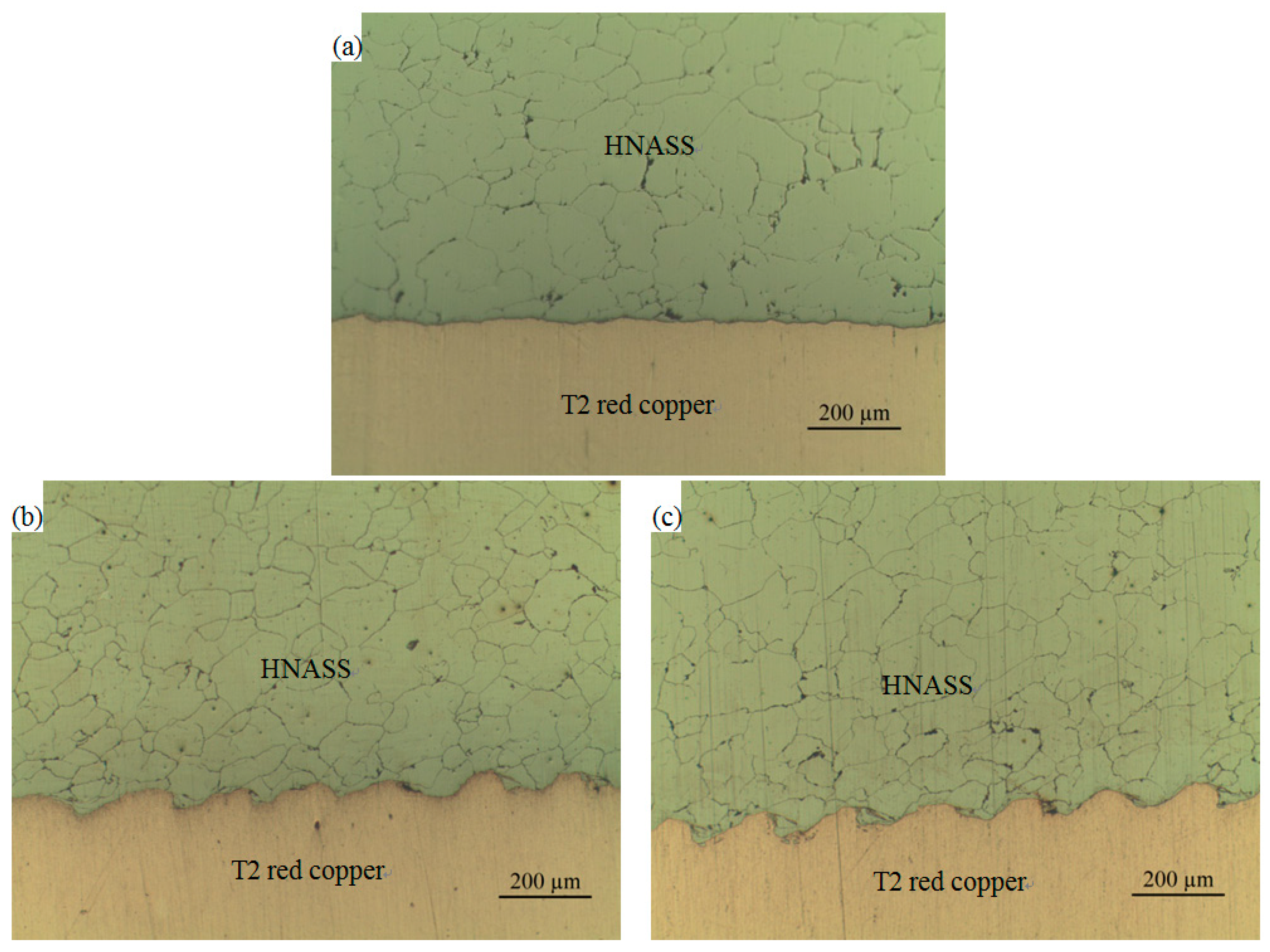

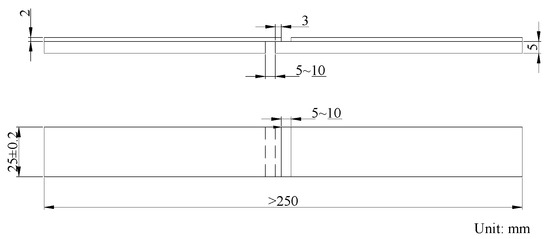

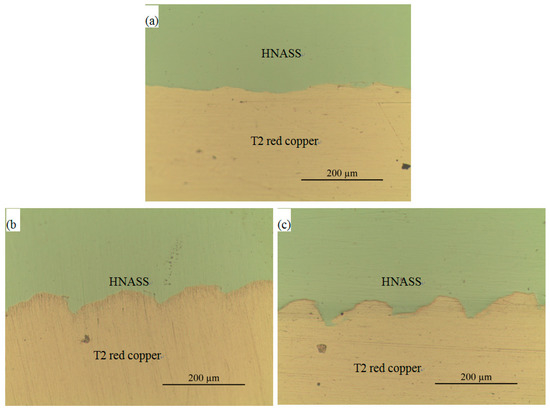

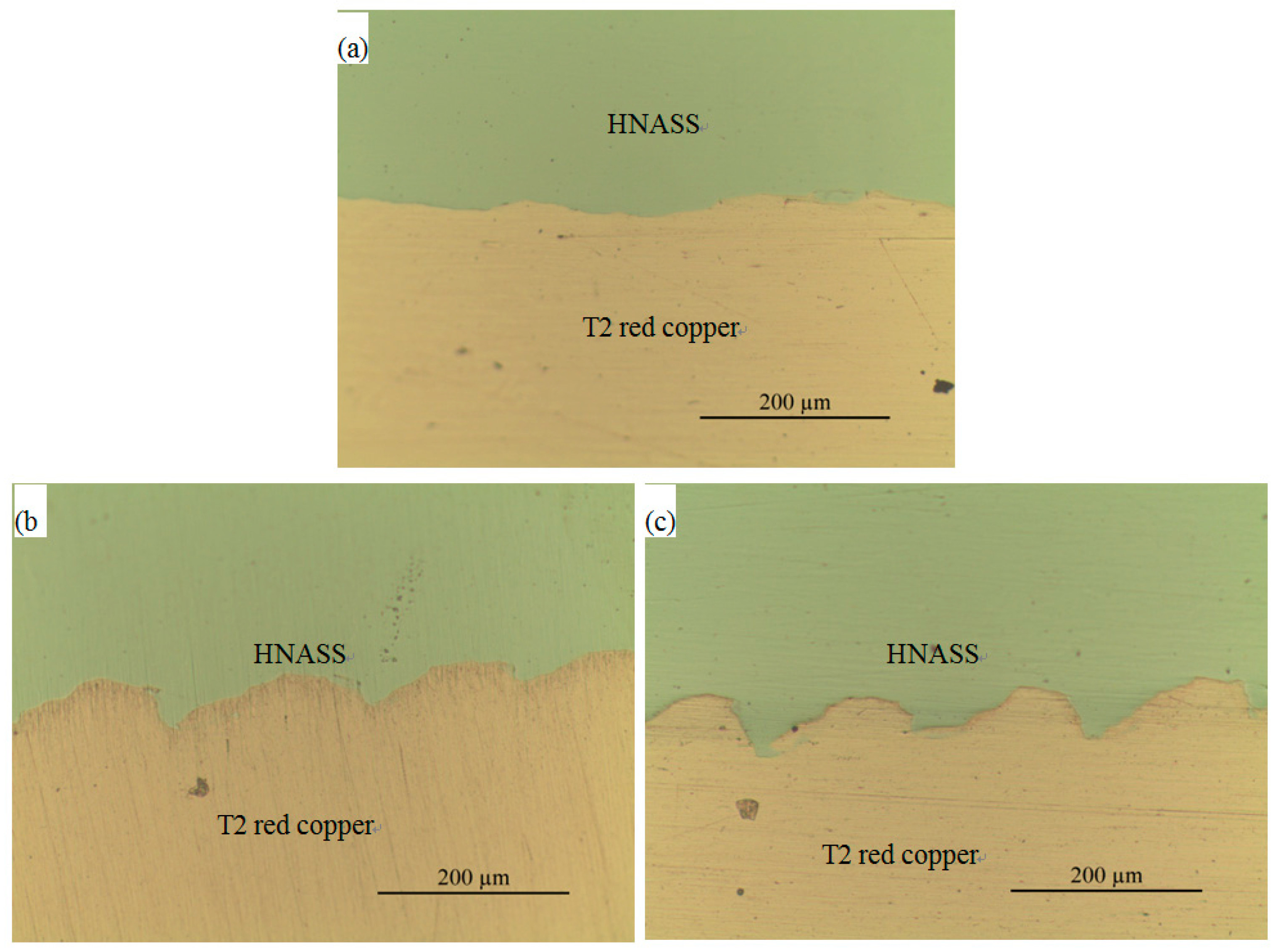

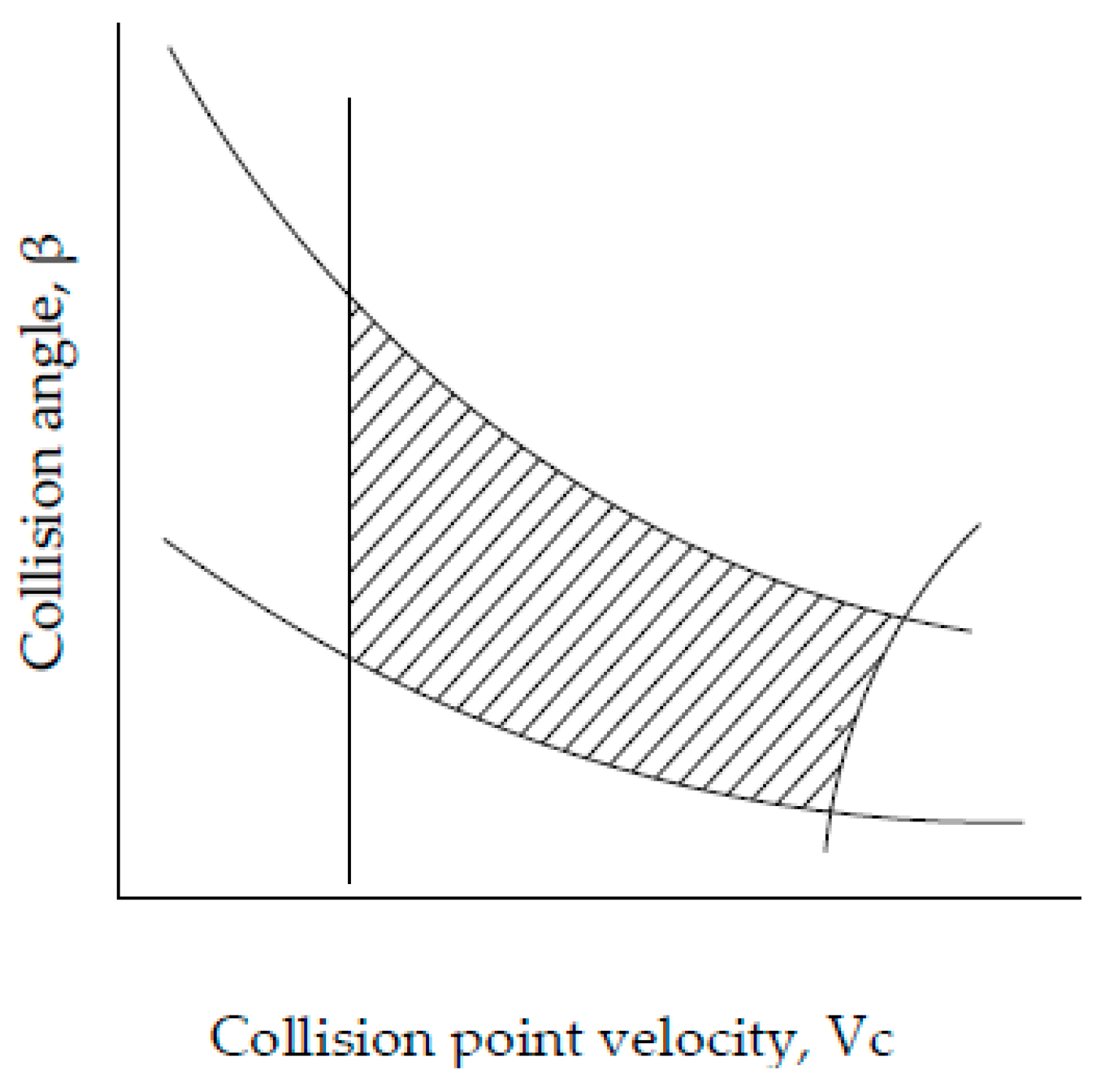

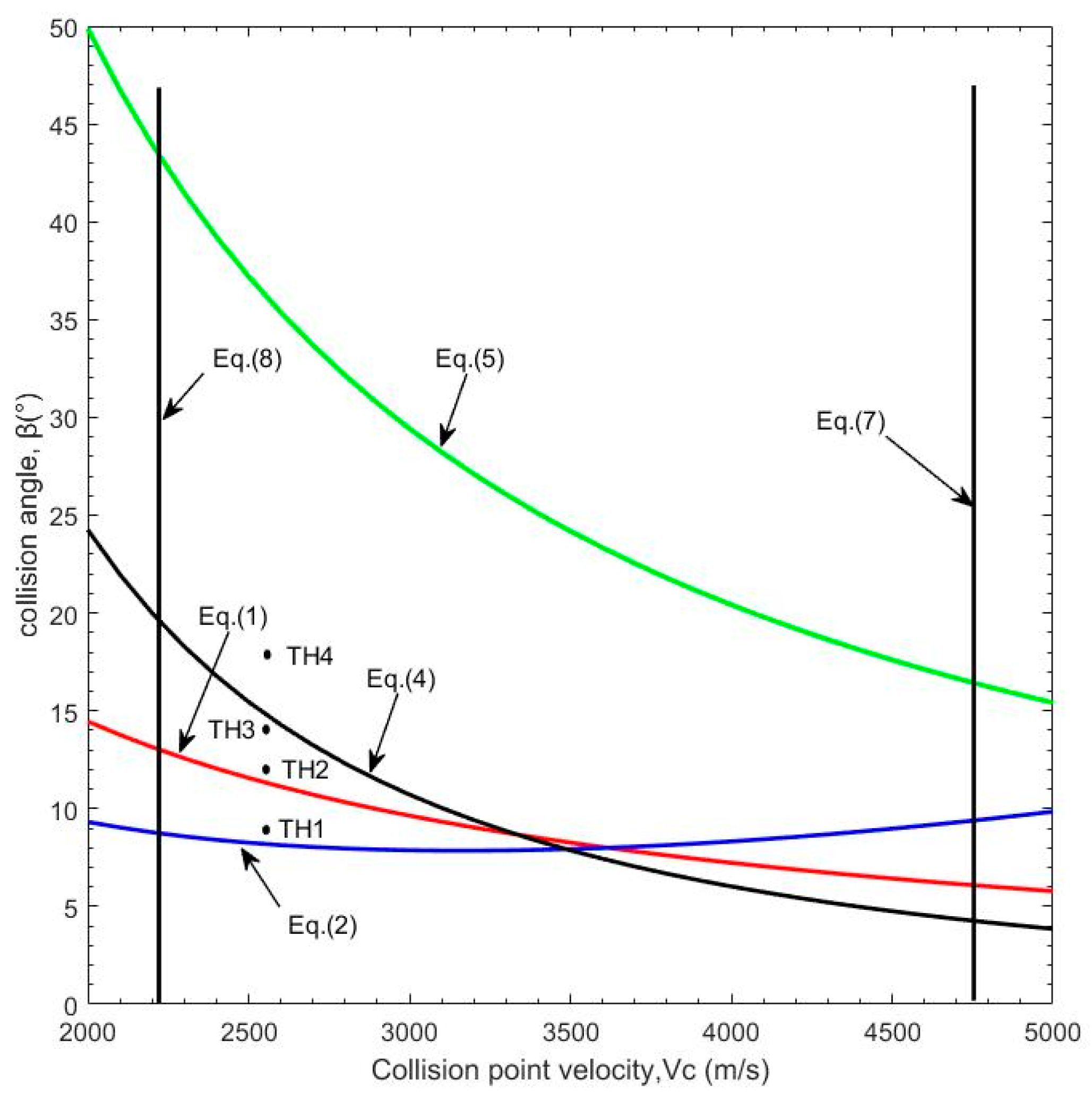

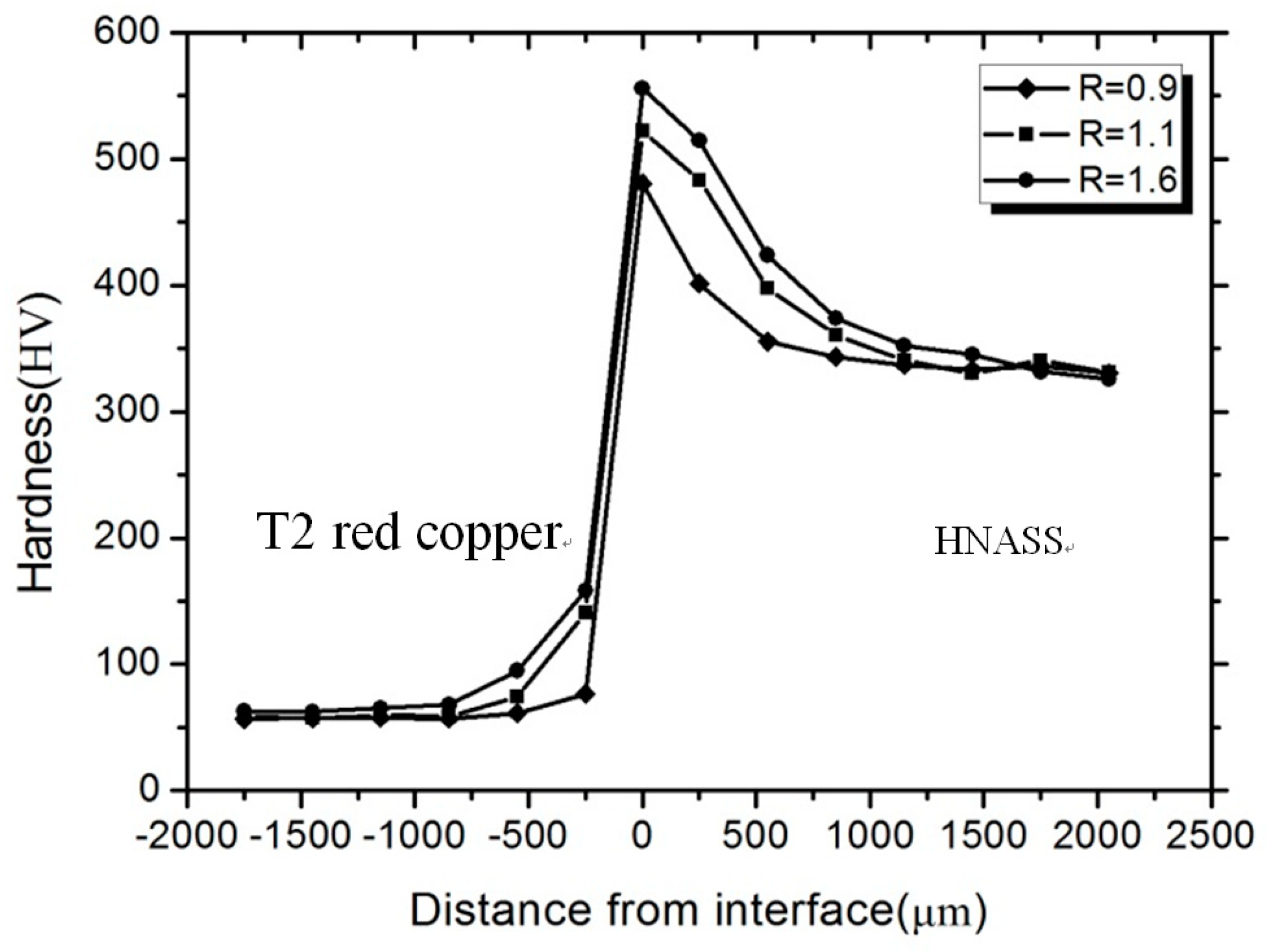

In this work, T2 red copper and high nitrogen austenitic stainless steel (HNASS) were explosively welded for the first time. The welding window was theoretically developed, and the experiment was designed by considering the effect of explosive loading on welding quality. To evaluate the welding quality, the microstructure and mechanical properties of the composite material were systematically investigated. The results showed that the welding quality was in good agreement with the results predicted by the welding window. The micromorphology of the welding interface changed with a varied welding parameter, and no intermetallic compounds were found at the welding interface by EDS analysis. The microhardness of the two raw materials both increased near the welding interface, and the enhancement increased with the explosive loading. The failure pattern of the welding interface in the tension-shear experiments was dominated by the strength failure of the red copper. View Full-Text
Keywords: explosive welding; copper/HNASS composite; weldability window; explosive ratio explosive welding; copper/HNASS composite; weldability window; explosive ratio
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Liu, Y.; Li, C.; Hu, X.; Yin, C.; Liu, T. Explosive Welding of Copper to High Nitrogen Austenitic Stainless Steel. Metals 2019, 9, 339.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
