Next Article in Journal
Effect of Ni Addition on Catalytic Performance of Fe87Si5B2P3Nb2Cu1 Amorphous Alloys for Degrading Methylene Blue Dyes
Previous Article in Journal
Explosive Welding of Copper to High Nitrogen Austenitic Stainless Steel
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Metals 2019, 9(3), 340; https://doi.org/10.3390/met9030340

Fabrication, Morphology Analysis, and Mechanical Properties of Ti Foams Manufactured Using the Space Holder Method for Bone Substitute Materials

1
Department of Mechanical Engineering, Hacettepe University, Ankara 06800, Turkey
2
Department of Materials Science and Engineering, Cankaya University, Ankara 06790, Turkey
*
Author to whom correspondence should be addressed.
Received: 15 February 2019 / Revised: 12 March 2019 / Accepted: 13 March 2019 / Published: 17 March 2019
Full-Text   |   PDF [4080 KB, uploaded 17 March 2019]   |

Abstract

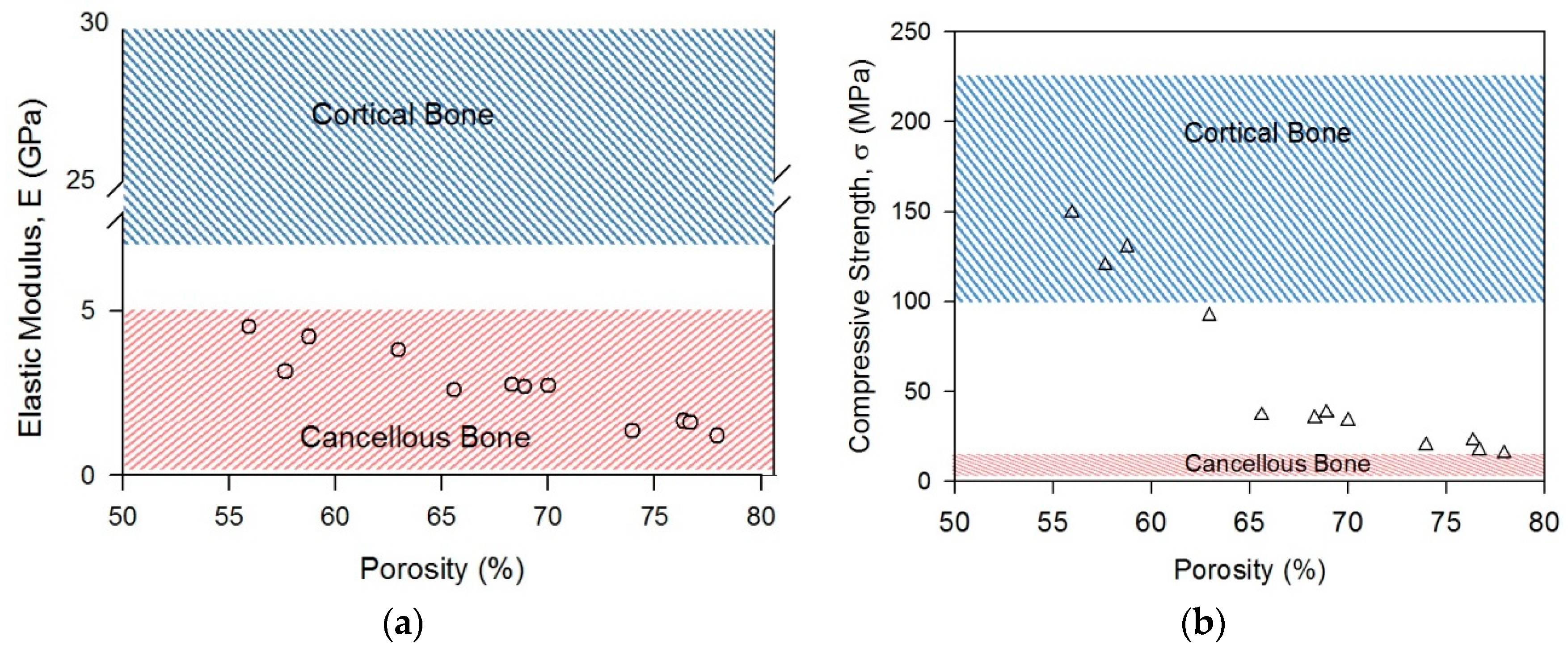

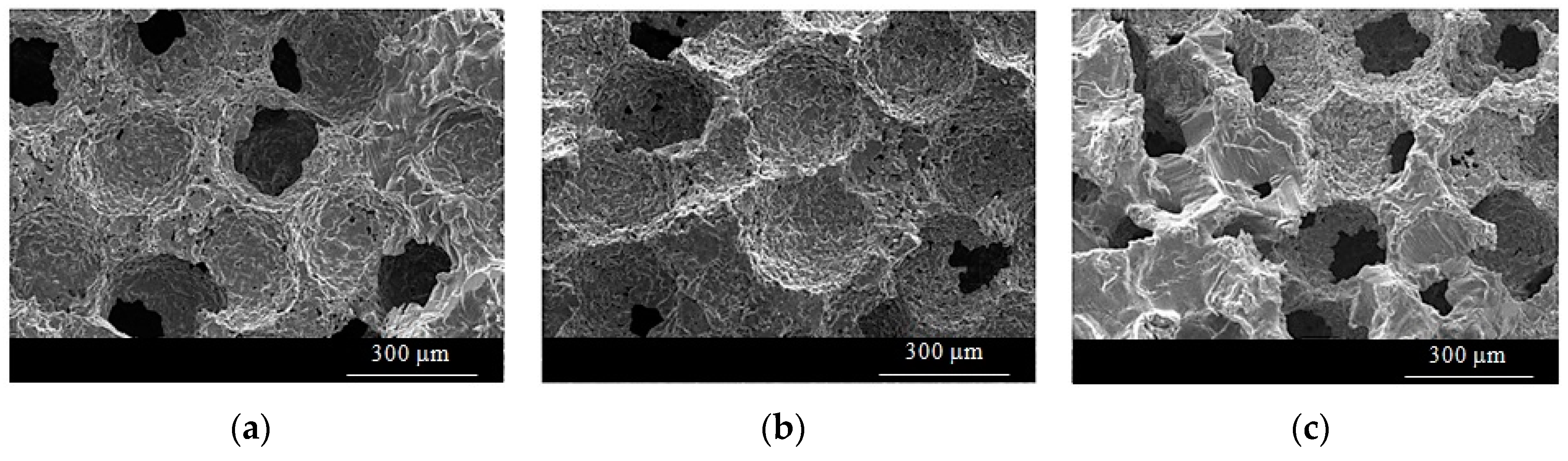

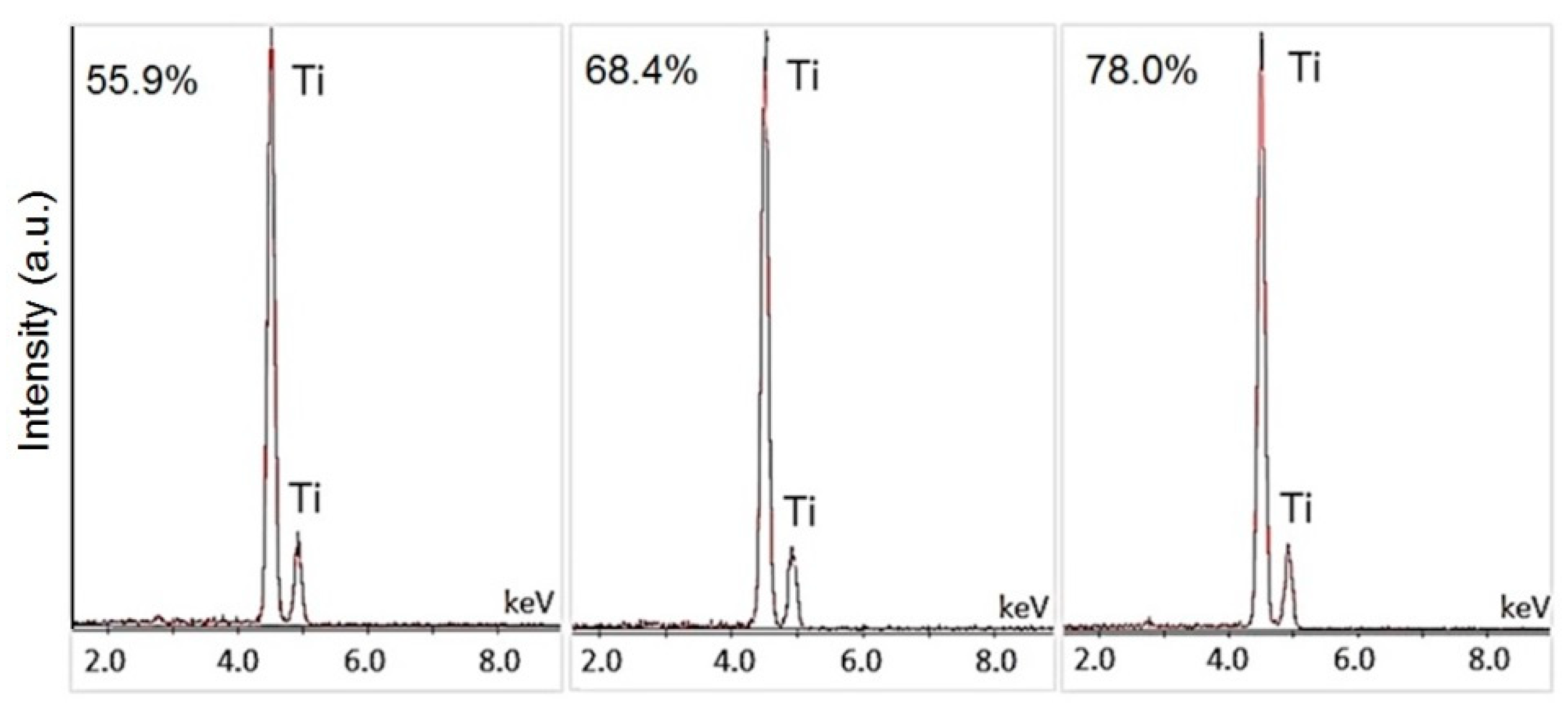

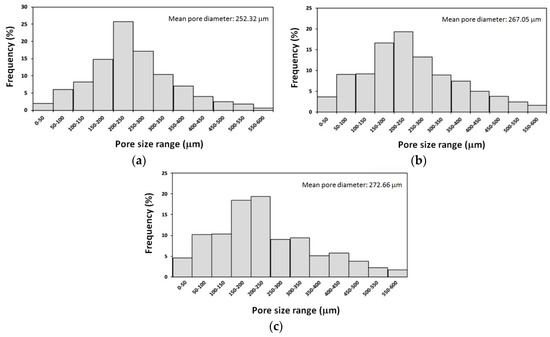

Porous titanium (Ti) offers several key attributes as a biomedical material. Among the known characteristics of Ti relevant to biomedical applications, the mechanical performance and effects of a pore structure on the deformation characteristics under compressive loading were examined. The space holder method was employed to generate Ti foams with target porosities of 60%, 70%, and 80%. A micro-computed to mography analysis and light and scanning electron microscopy were performed to examine the pore morphology and microstructure. The mechanical properties along with the elastic modulus and compressive strength were evaluated via uniaxial compression testing. Ti foam samples with three porosity levels displayed average elastic moduli and compressive strengths comparable with those of human cancellous and cortical bone. All the Ti foam samples had elastic moduli similar to those of cancellous bone with their open porous structures. Although the foam samples with ~60% porosity had compressive strength comparable to that of cortical bone, the samples with ~80% porosity displayed compressive strength similar to that of cancellous bone. The results indicate that Ti foam scaffolds produced using the space holder method have great potential for applications in hard tissue engineering, as their mechanical properties and pore structures are similar to those of bone. View Full-Text
Keywords: biomaterials; Ti foam; micro-CT analysis; mechanical properties biomaterials; Ti foam; micro-CT analysis; mechanical properties

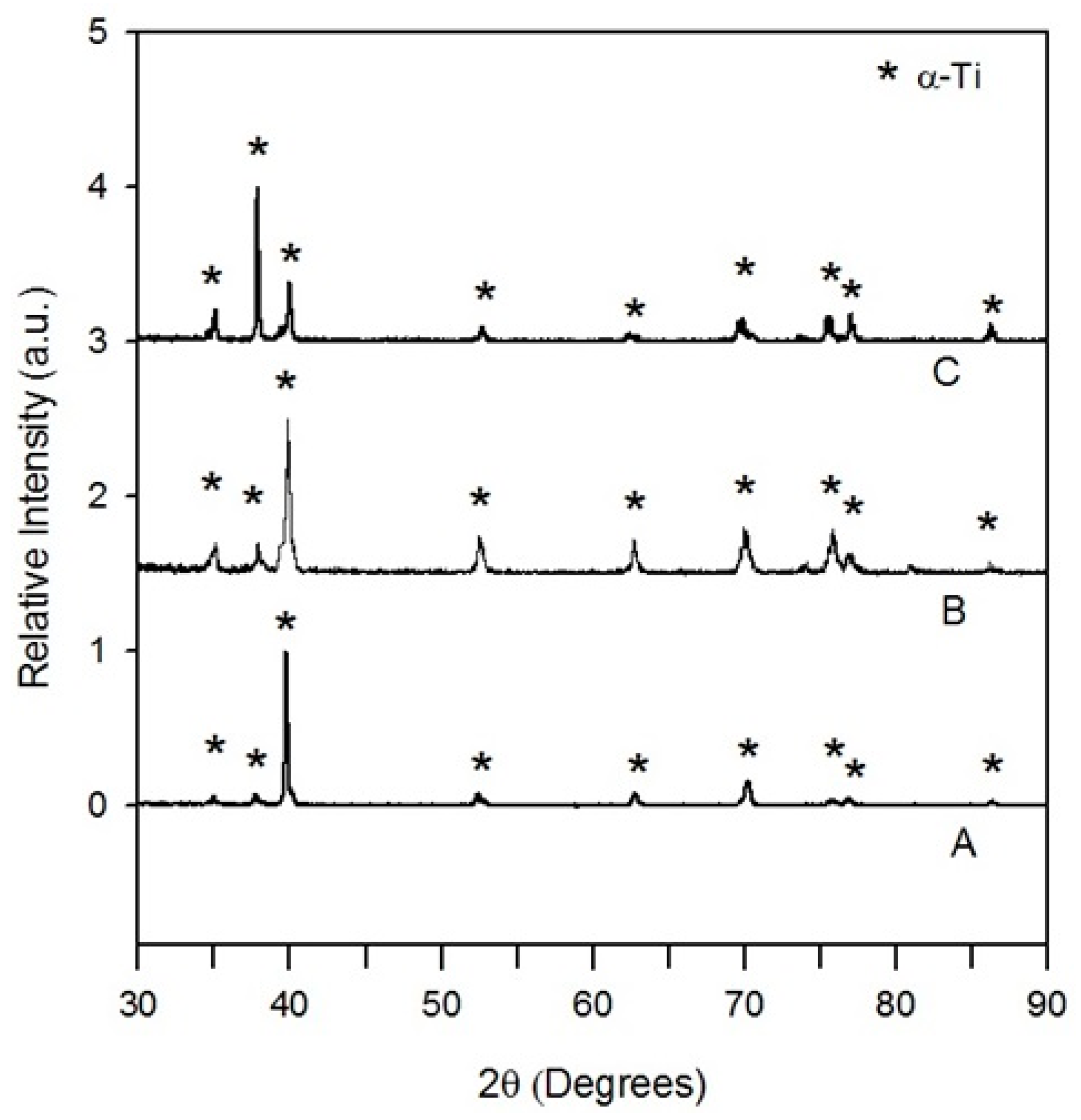

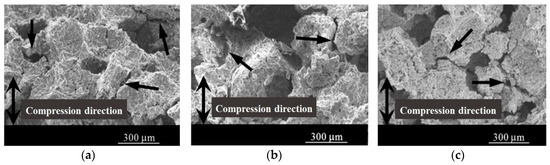

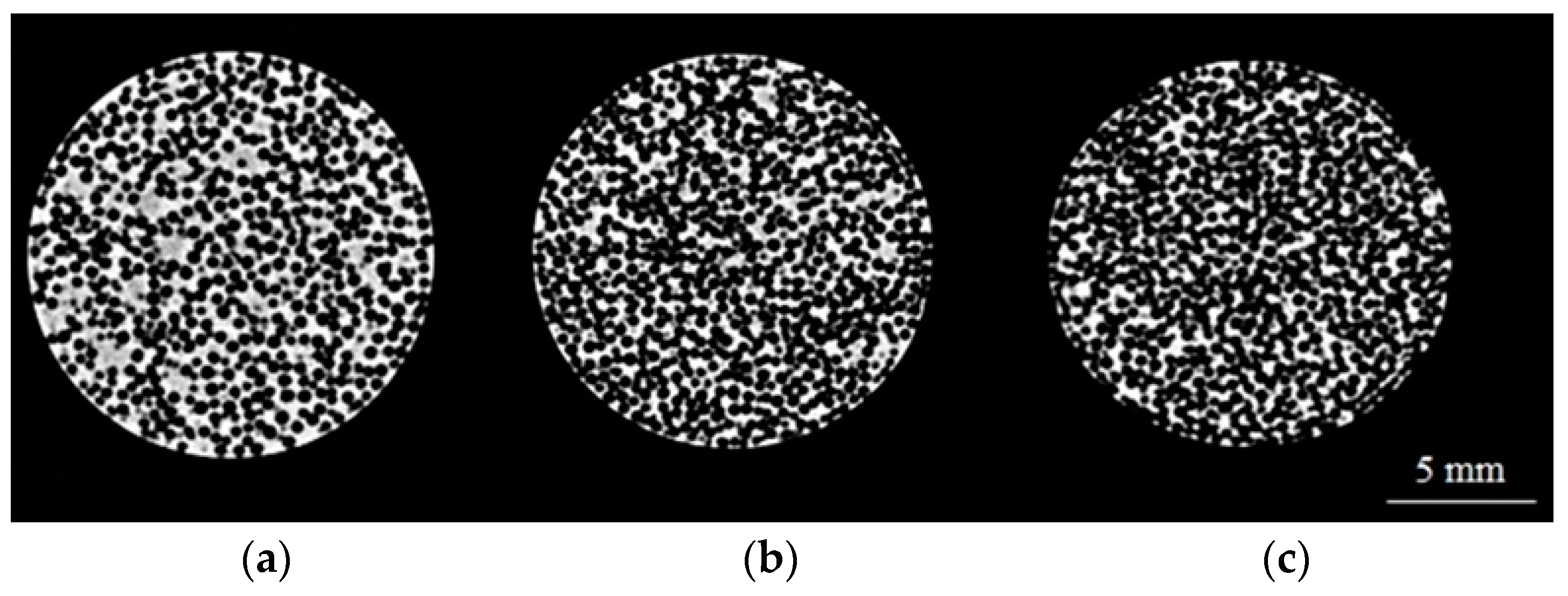

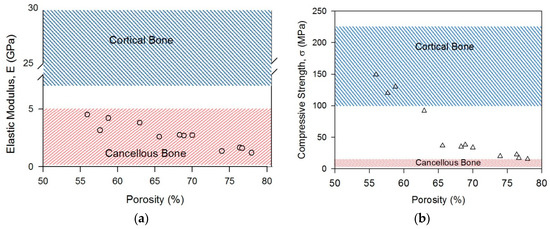

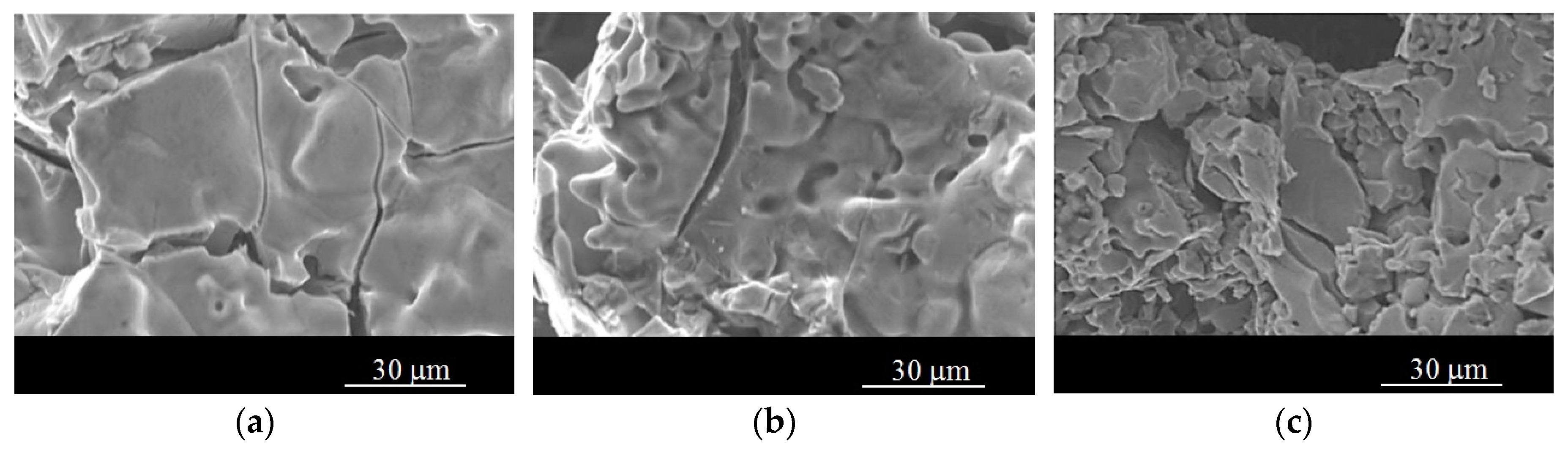

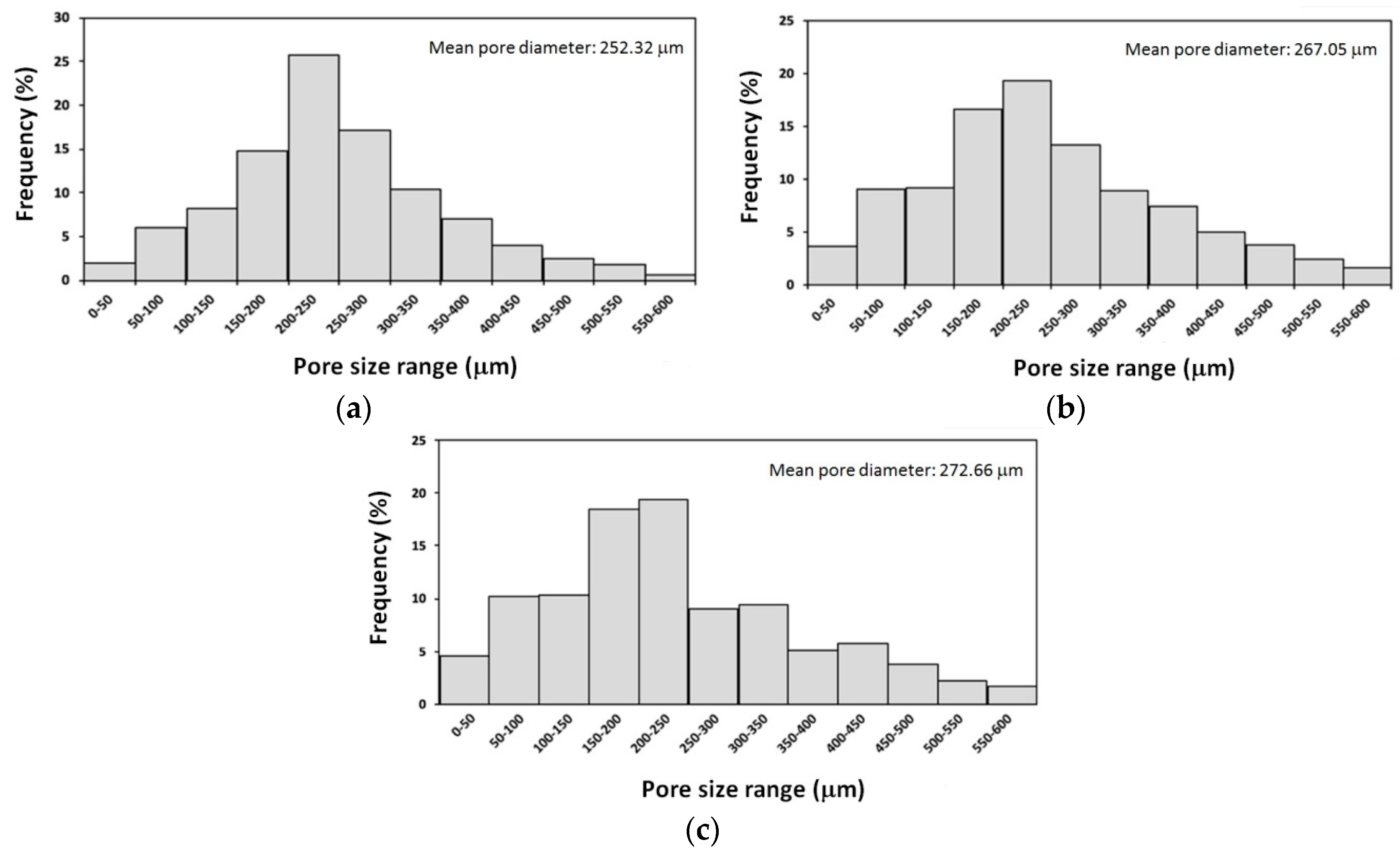

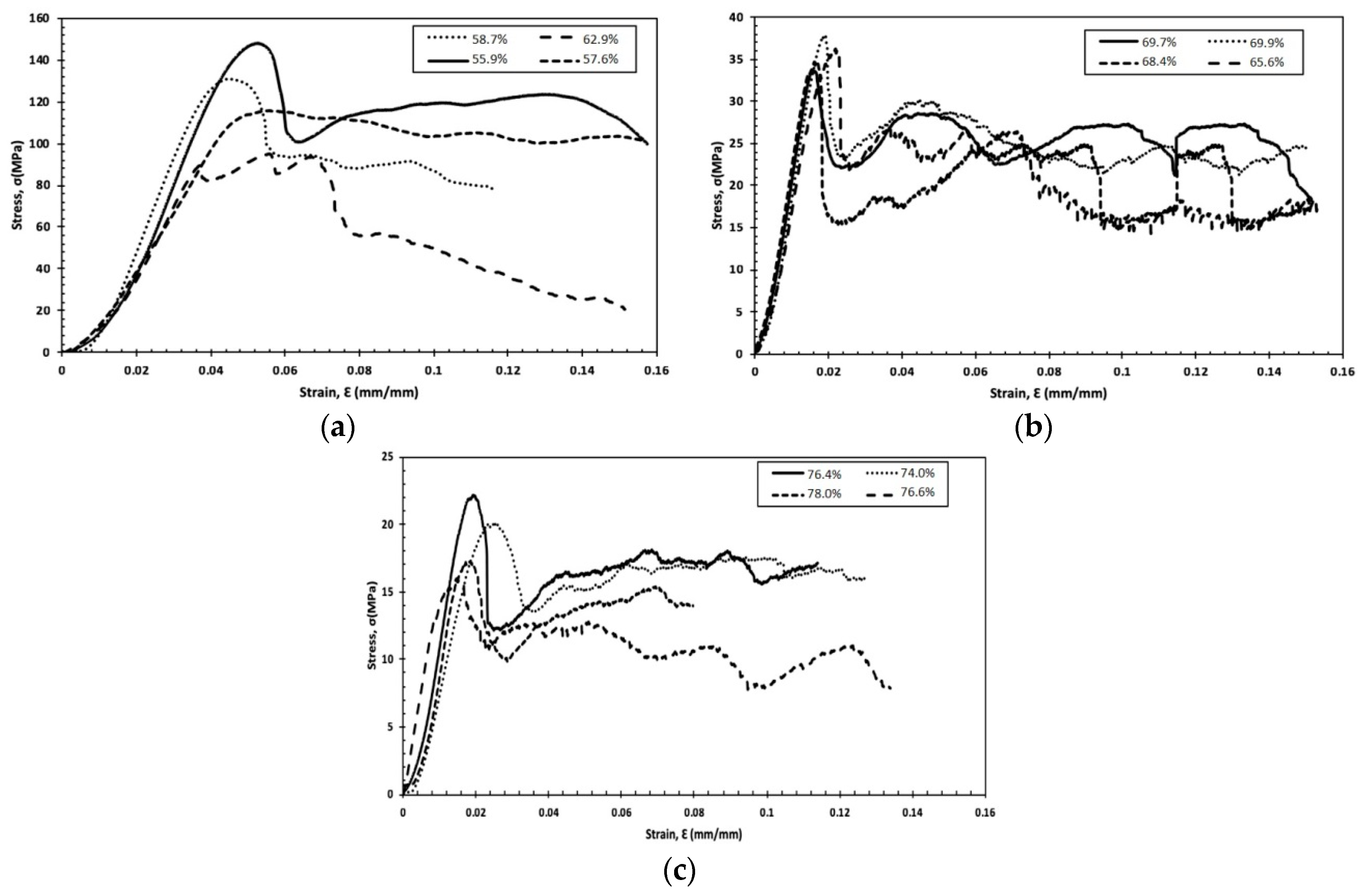

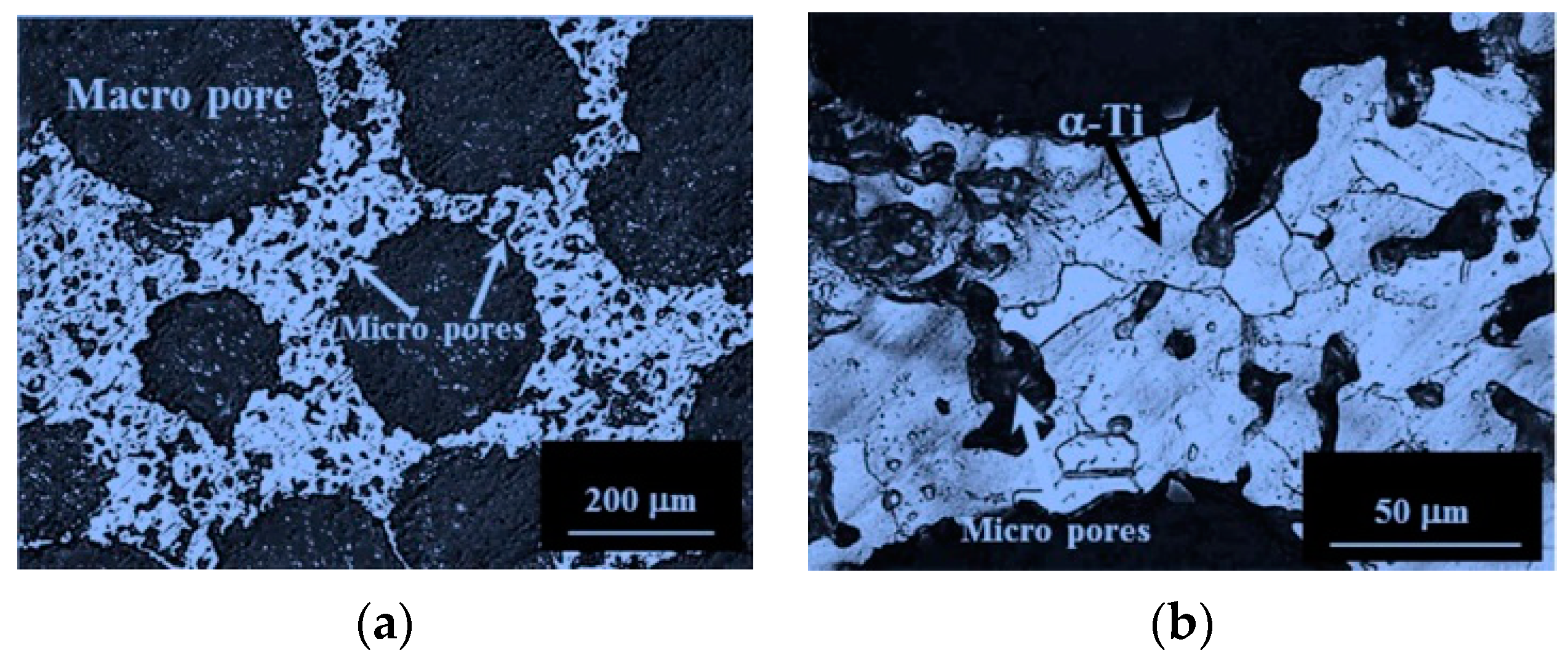

Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Cetinel, O.; Esen, Z.; Yildirim, B. Fabrication, Morphology Analysis, and Mechanical Properties of Ti Foams Manufactured Using the Space Holder Method for Bone Substitute Materials. Metals 2019, 9, 340.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
