Next Article in Journal
The Influence of Segregation Bands and Hot Rolling on the Precipitation of Secondary Phases during Aging at 750 °C for Nickel Alloy 625
Previous Article in Journal
Effect of Ultra-Fast Heat Treatment on the Subsequent Formation of Mixed Martensitic/Bainitic Microstructure with Carbides in a CrMo Medium Carbon Steel
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Metals 2019, 9(3), 313; https://doi.org/10.3390/met9030313

A Trade-Off between Mechanical Strength and Erosive Wear Resistance in AlSi12CuMgNi Alloy Used to Manufacture Fan Blades for Underground Mines

1
Departamento de Ciencia de los Materiales e Ingeniería Metalúrgica, Edificio departamental Este, Universidad de Oviedo, C, Wifredo Ricart s/n- 33204 Gijón (Asturias), Spain
2
Departamento de Construcción e Ingeniería de Fabricación, Edificio Departamental Oeste, Universidad de Oviedo, C/Pedro Puig Adam s/n- 33204 Gijón (Asturias), Spain
3
Departamento de Ciencia de los Materiales e Ingeniería Metalúrgica, Escuela de Ingeniería de Minas, Energía y Materiales, Universidad de Oviedo, C/Independencia 13, 33004 Oviedo (Asturias), Spain
*
Author to whom correspondence should be addressed.
Received: 21 December 2018 / Revised: 5 March 2019 / Accepted: 6 March 2019 / Published: 11 March 2019
Full-Text   |   PDF [17893 KB, uploaded 11 March 2019]   |

Abstract

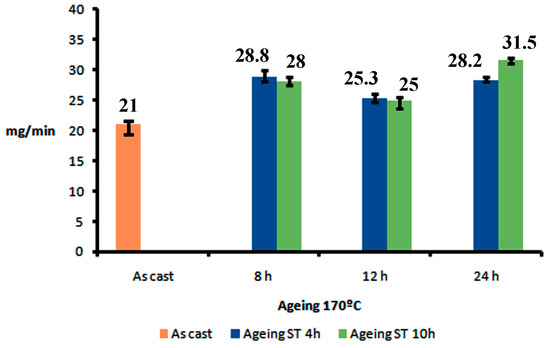

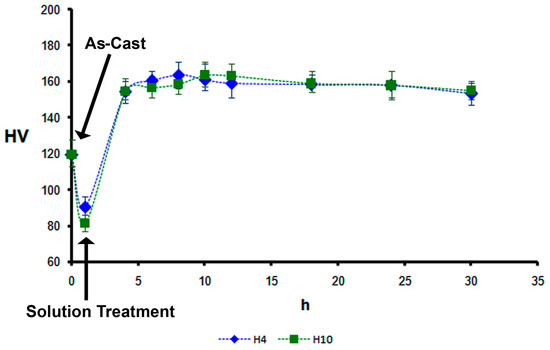

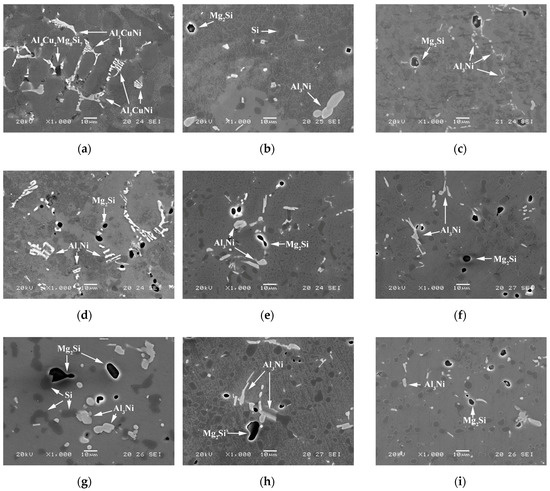

The axial fan blades used in underground mines are usually manufactured in AlSi12CuMgNi alloy (EN AC 48000). They must have a high mechanical strength to withstand the stresses resulting from the rotation speed of the rotor and a high resistance to erosive wear caused by suspended particles from underground mining and transport operations. The aim of this paper is to determine the most suitable thermal treatment to simultaneously improve their mechanical strength and erosive wear resistance. To this end, two solution treatments at 525 °C with cooling in water were analysed, as well as several ageing times at 170 °C. The crystalline phases present in the as-cast state were quantified by X-ray diffraction following quenching and different ageing processes. Furthermore, erosion wear resistance was measured by means of compressed air blasting with corundum particles according to ASTM G76 (2004). The highest wear resistance was obtained in the as-cast state using gravity die casting, with the presence of Al4Cu2Mg8Si7 and Al3CuNi. This wear resistance was higher than that obtained after the ageing treatment. However, a trade-off between mechanical strength and wear resistance was observed after 12 h ageing, where the hardness obtained exceeded 160 HV and the wear resistance became similar to that obtained in the as-cast state. View Full-Text
Keywords: mine fan blades; Mg2Si; Al3Ni; Al3CuNi; wear; ageing mine fan blades; Mg2Si; Al3Ni; Al3CuNi; wear; ageing

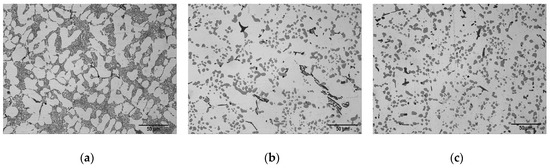

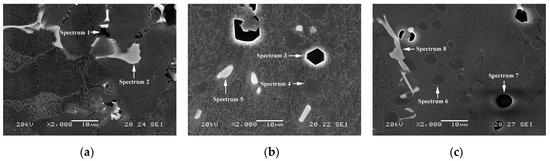

Figures

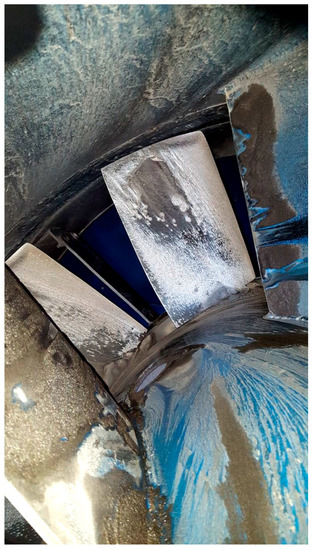

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Alvarez-Antolin, F.; Segurado-Frutos, E.; González-Pociño, A.; Cofiño-Villar, A.; Asensio-Lozano, J. A Trade-Off between Mechanical Strength and Erosive Wear Resistance in AlSi12CuMgNi Alloy Used to Manufacture Fan Blades for Underground Mines. Metals 2019, 9, 313.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
