Open AccessArticle
Metals 2019, 9(2), 259; https://doi.org/10.3390/met9020259

Molecular Simulations of Sputtering Preparation and Transformation of Surface Properties of Au/Cu Alloy Coatings Under Different Incident Energies

1
College of Aerospace Engineering, Chongqing University, Chongqing 400044, China
2
State Key Laboratory of Coal Mine Disaster Dynamics and Control, Chongqing University, Chongqing 400044, China
3
School of Civil Engineering, The University of Queensland, Brisbane, QLD 4072, Australia
4
Key Laboratory of Ministry of Education for Solid Waste Treatment and Resource Recycle, Southwest University of Science and Technology, Mianyang 621010, China
*
Authors to whom correspondence should be addressed.
Received: 13 January 2019 / Revised: 1 February 2019 / Accepted: 19 February 2019 / Published: 21 February 2019
(This article belongs to the Special Issue Synthesis and Properties of Metallic Multilayers)
Full-Text   |   PDF [2087 KB, uploaded 21 February 2019]   |
  |   Review Reports

Abstract

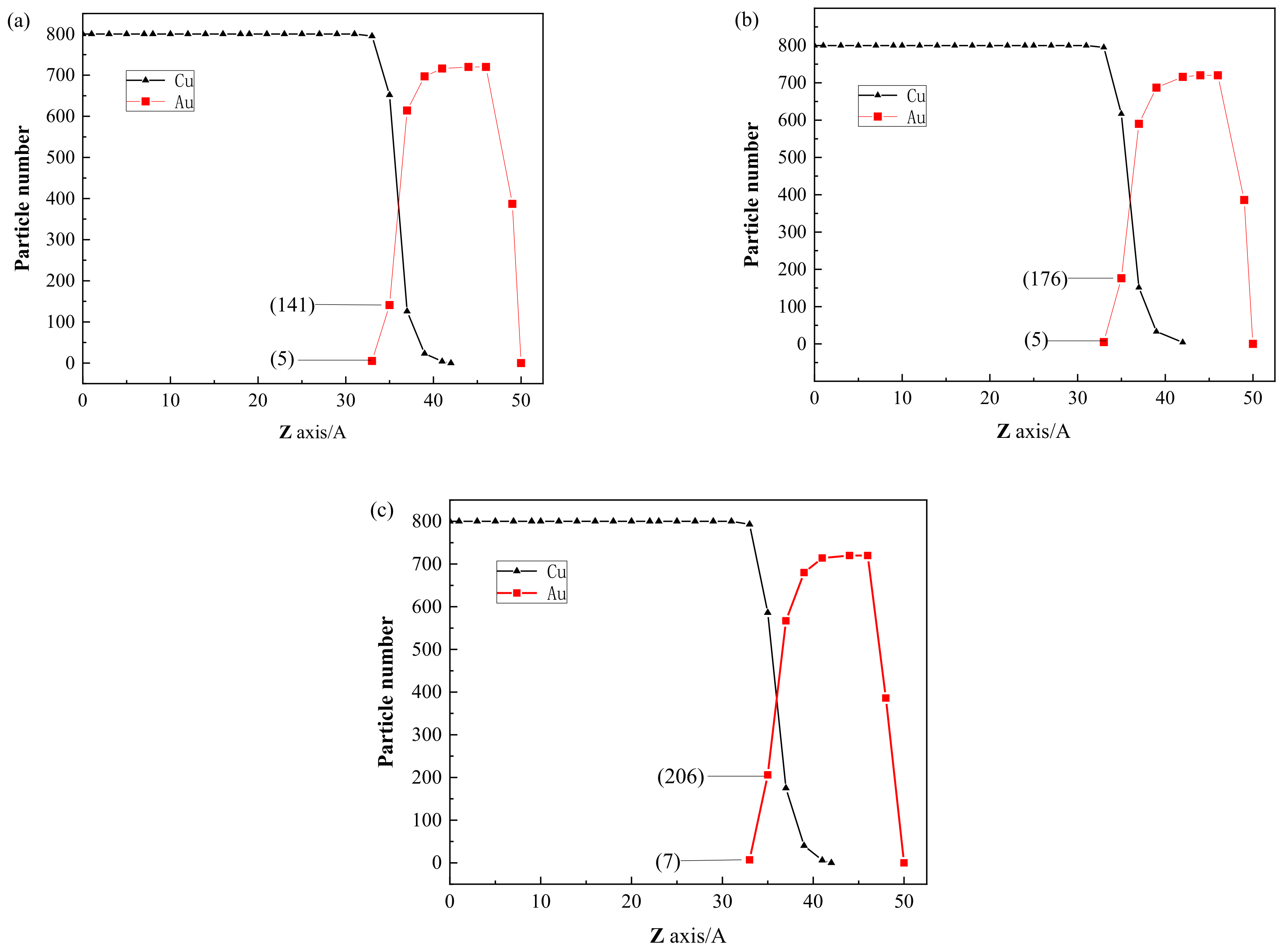

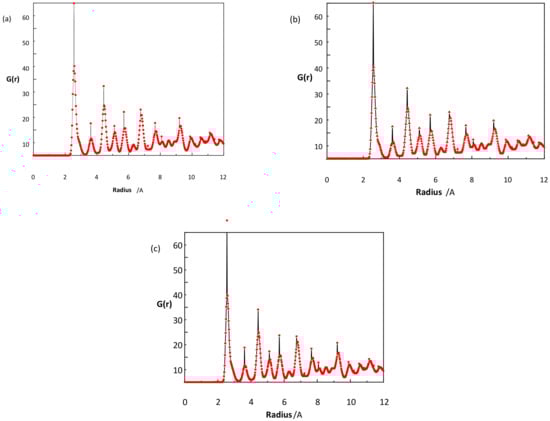

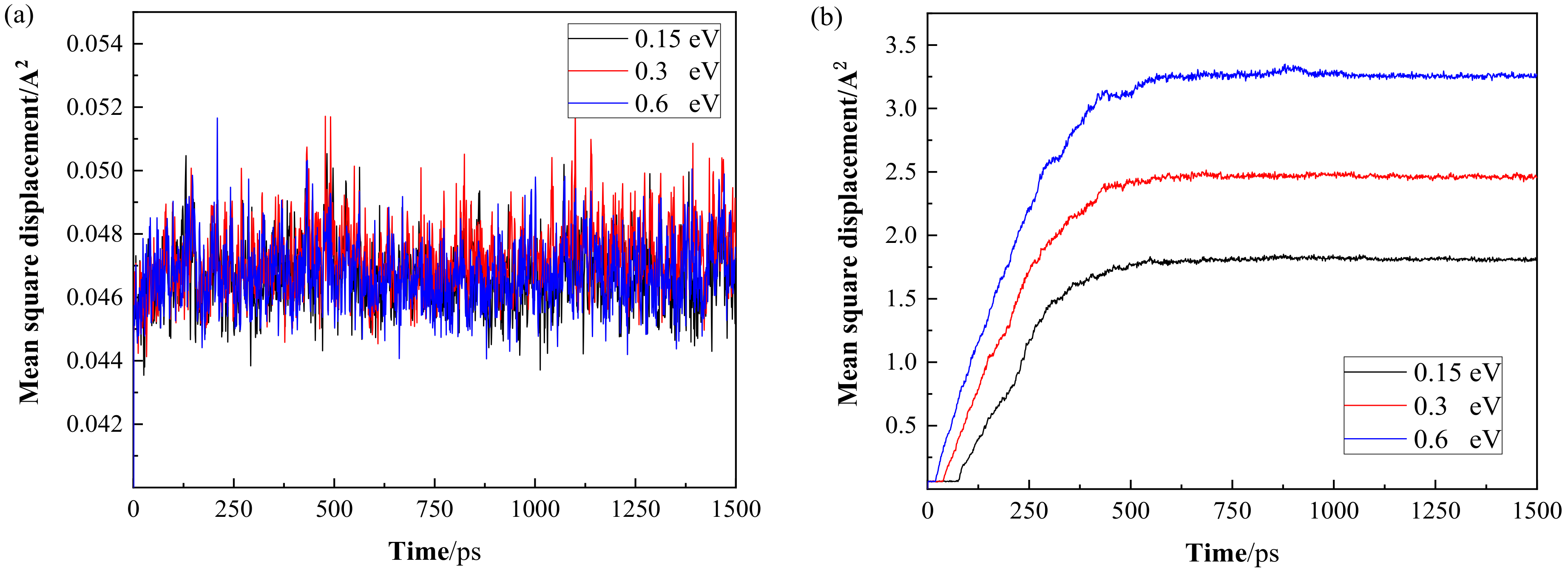

The surface properties of coatings during deposition are strongly influenced by temperature, particle fluxes, and compositions. In addition, the precursor incident energy also affects the surface properties of coatings during sputtering. The atomistic processes associated with the microstructure of coatings and the surface morphological evolution during sputtering are difficult to observe. Thus, in the present study, molecular dynamics simulation was employed to investigate the surface properties of Au/Cu alloy coatings (Cu substrate sputtering by Au atoms) with different incident energies (0.15 eV, 0.3 eV, 0.6 eV). Subsequently, the sputtering depth of the Au atoms, the particle distribution of the Au/Cu alloy coating system, the radial distribution function of particles in the coatings, the mean square displacement of the Cu atoms in the substrate, and the roughness of the coatings were analyzed. Results showed that the crystal structure and the sputtering depth of Au atoms were hardly influenced by the incident energy, and the incident energy had little impact on the motion of deep-lying atoms in the substrate. However, higher incident energy resulted in higher surface temperature of coatings, and more Au atoms existed in the coherent interface. Moreover, it strengthened the motion of Cu atoms and reduced the surface roughness. Therefore, the crystal structure of coatings and the motions of deep-lying atoms in the substrate are not influenced by the incident energy. However, the increase in incident energy will enhance the combination of coatings and the base while optimizing the surface structure. View Full-Text
Keywords: alloy coatings; incident energy; surface properties; molecular dynamics; radial distribution function; mean square displacement; roughness alloy coatings; incident energy; surface properties; molecular dynamics; radial distribution function; mean square displacement; roughness
Figures

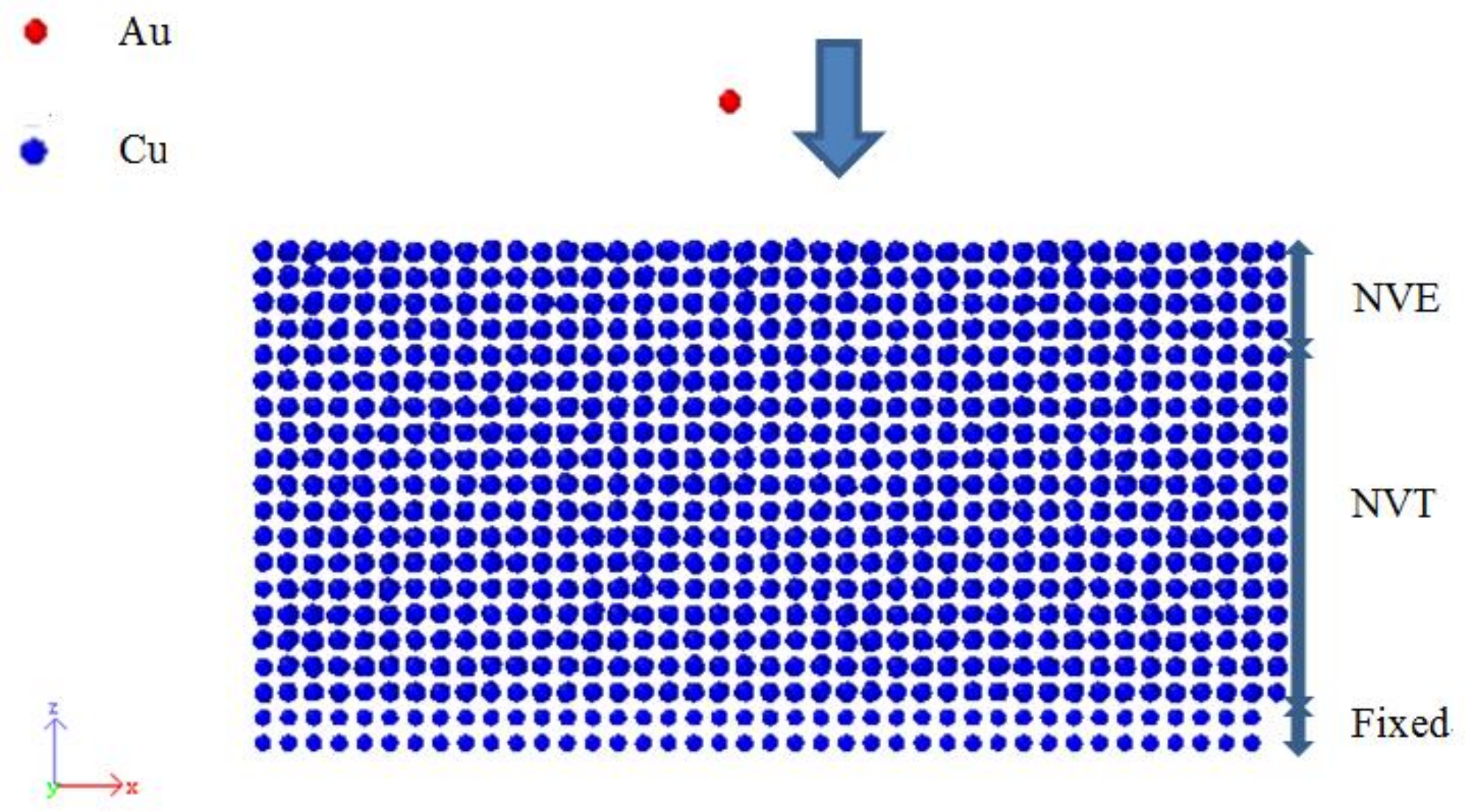

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhang, L.; Tian, S.; Peng, T. Molecular Simulations of Sputtering Preparation and Transformation of Surface Properties of Au/Cu Alloy Coatings Under Different Incident Energies. Metals 2019, 9, 259.
