Next Article in Journal
Development of Low Silver AgCuZnSn Filler Metal for Cu/Steel Dissimilar Metal Joining
Next Article in Special Issue
Modeling Electrical Resistivity of Naturally Aged Al–Mg–Si Alloys
Previous Article in Journal
Laminated TRIP/TWIP Steel Composites Produced by Roll Bonding
Previous Article in Special Issue
Investigation on Microstructural Evolution and Properties of an Al-Cu-Li Alloy with Mg and Zn Microalloying during Homogenization
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Metals 2019, 9(2), 196; https://doi.org/10.3390/met9020196

Examination of the High Tensile Ductility Improvement in an As-Solutionized AA7075 Alloy with the Aid of a Friction Stir Process

Department of Materials Science and Engineering, National Cheng Kung University, Tainan 701, Taiwan
*
Author to whom correspondence should be addressed.
Received: 9 January 2019 / Revised: 24 January 2019 / Accepted: 5 February 2019 / Published: 7 February 2019
(This article belongs to the Special Issue Heat Treatment of Aluminum Alloys)
Full-Text   |   PDF [6049 KB, uploaded 21 February 2019]   |
  |   Review Reports

Abstract

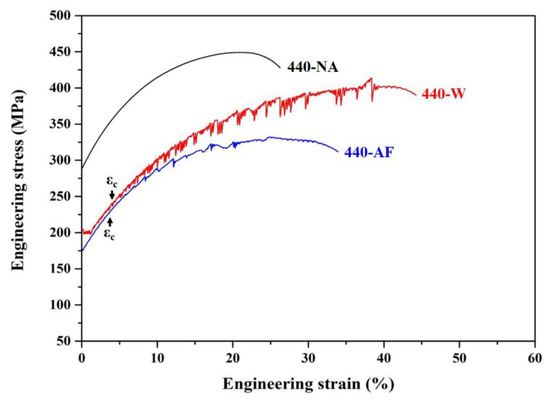

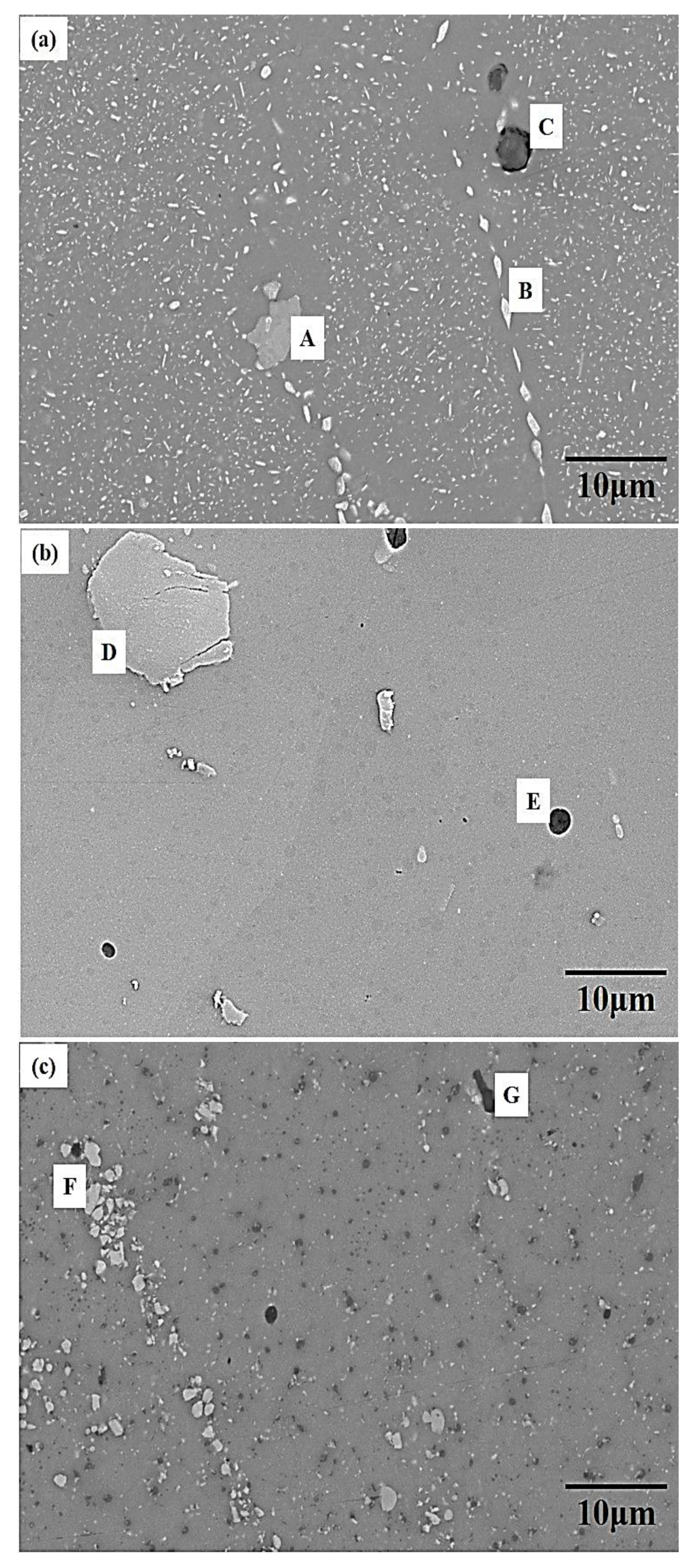

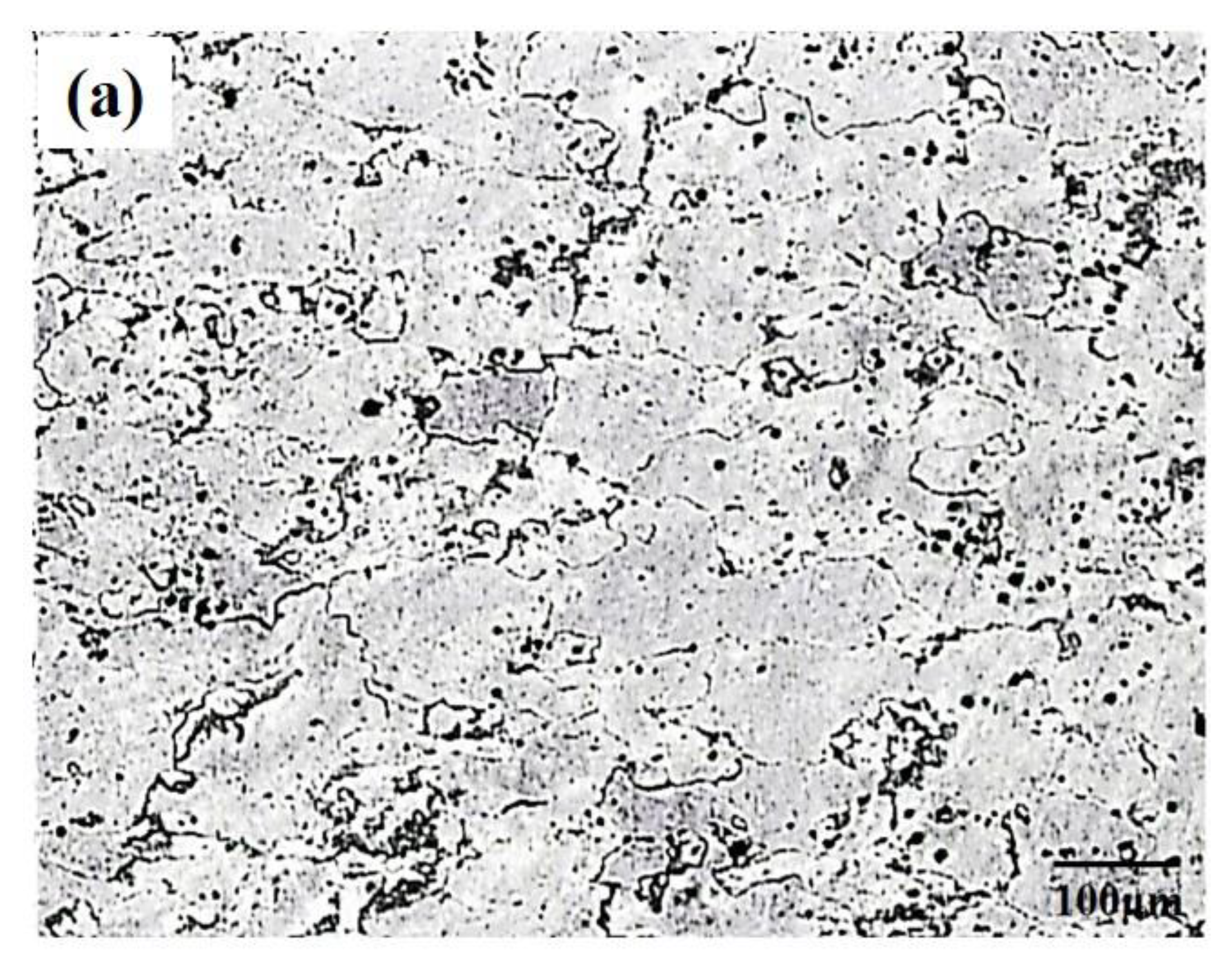

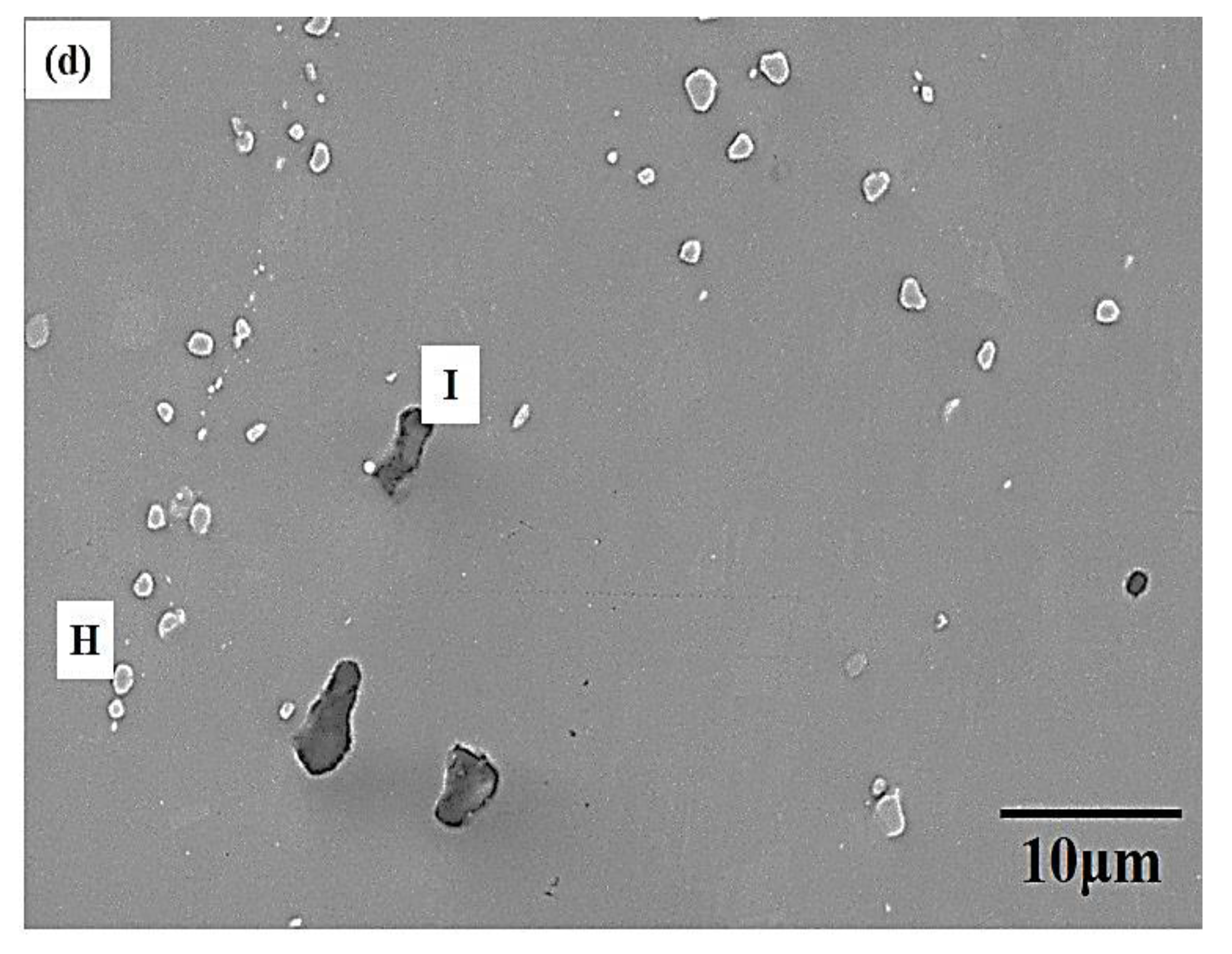

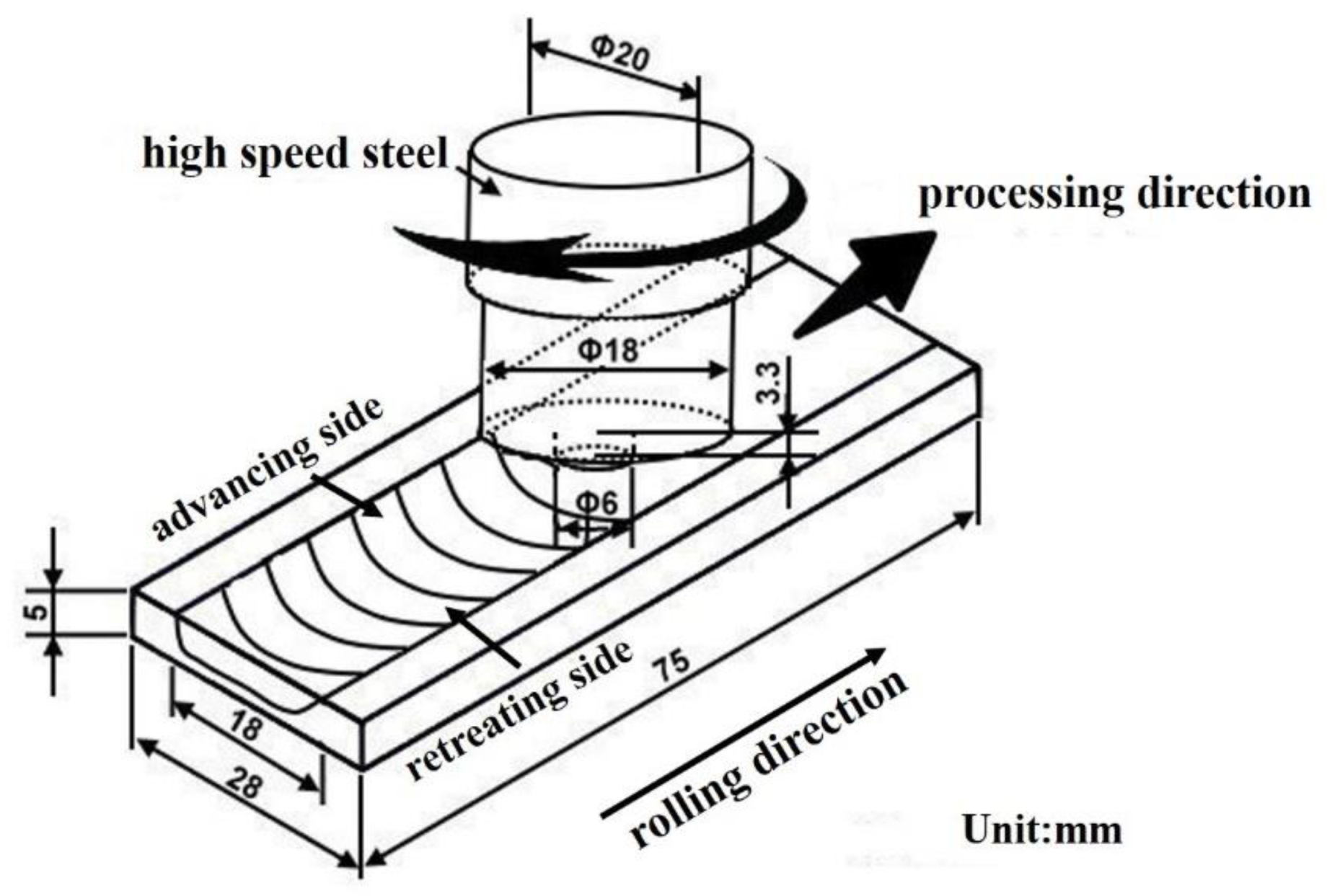

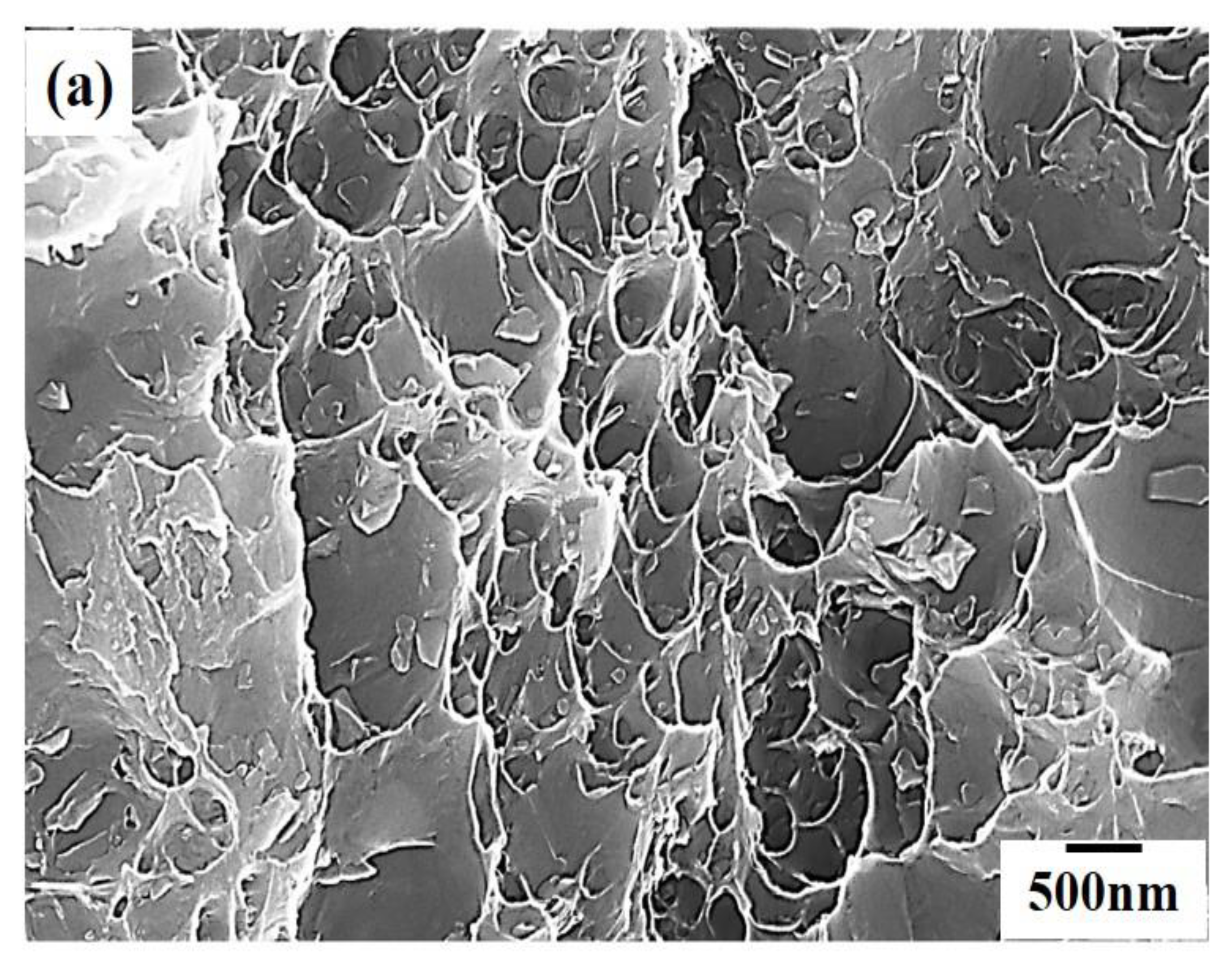

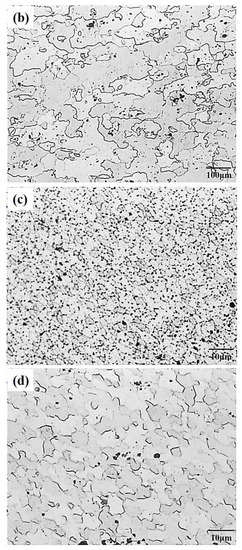

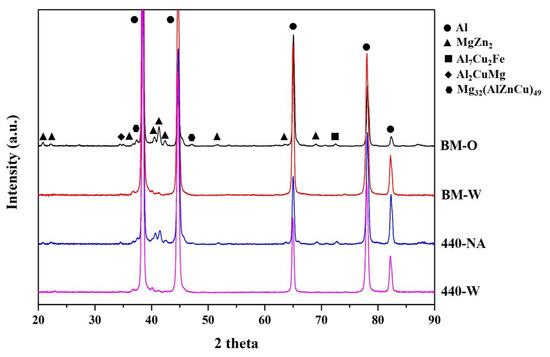

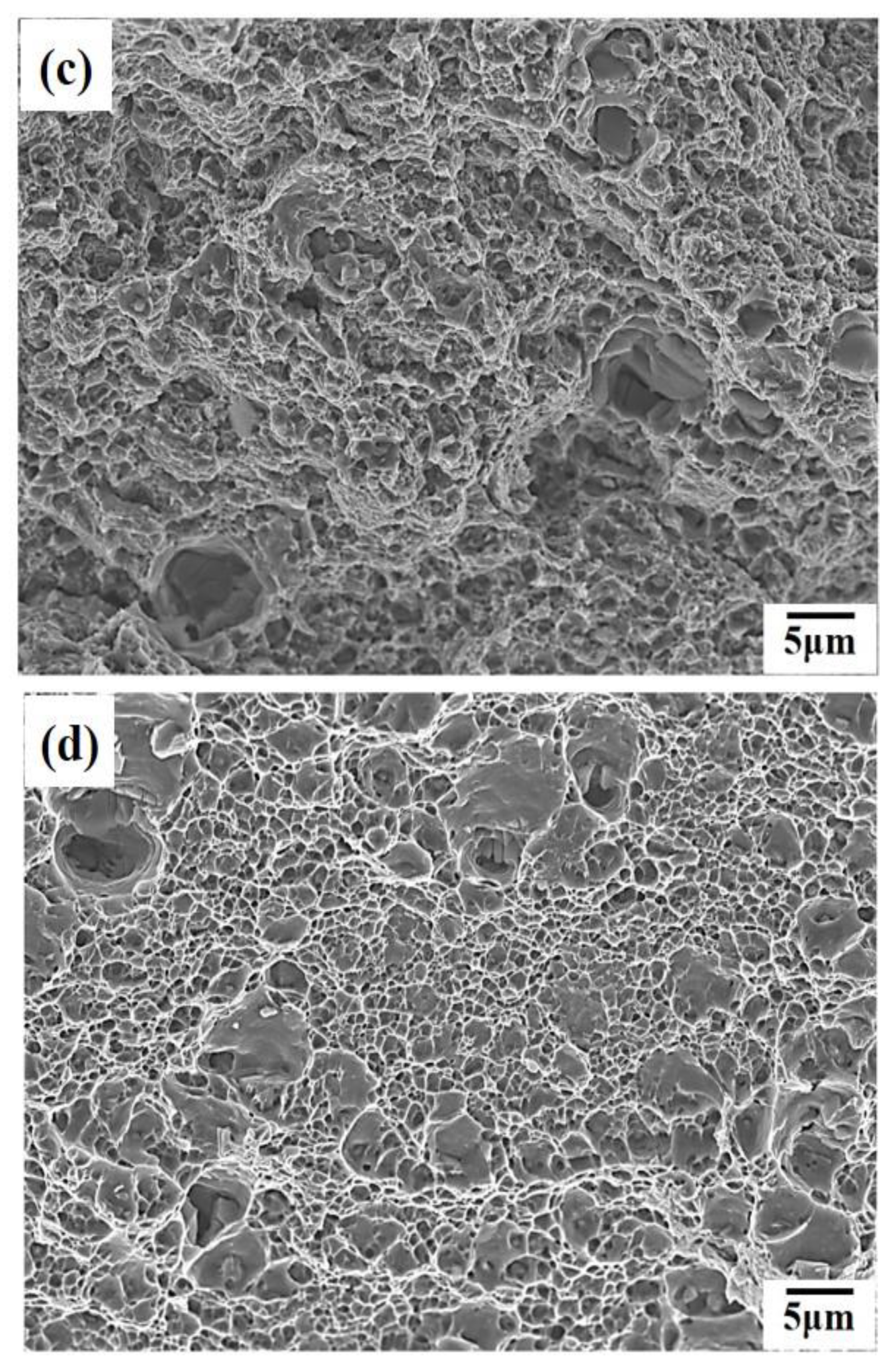

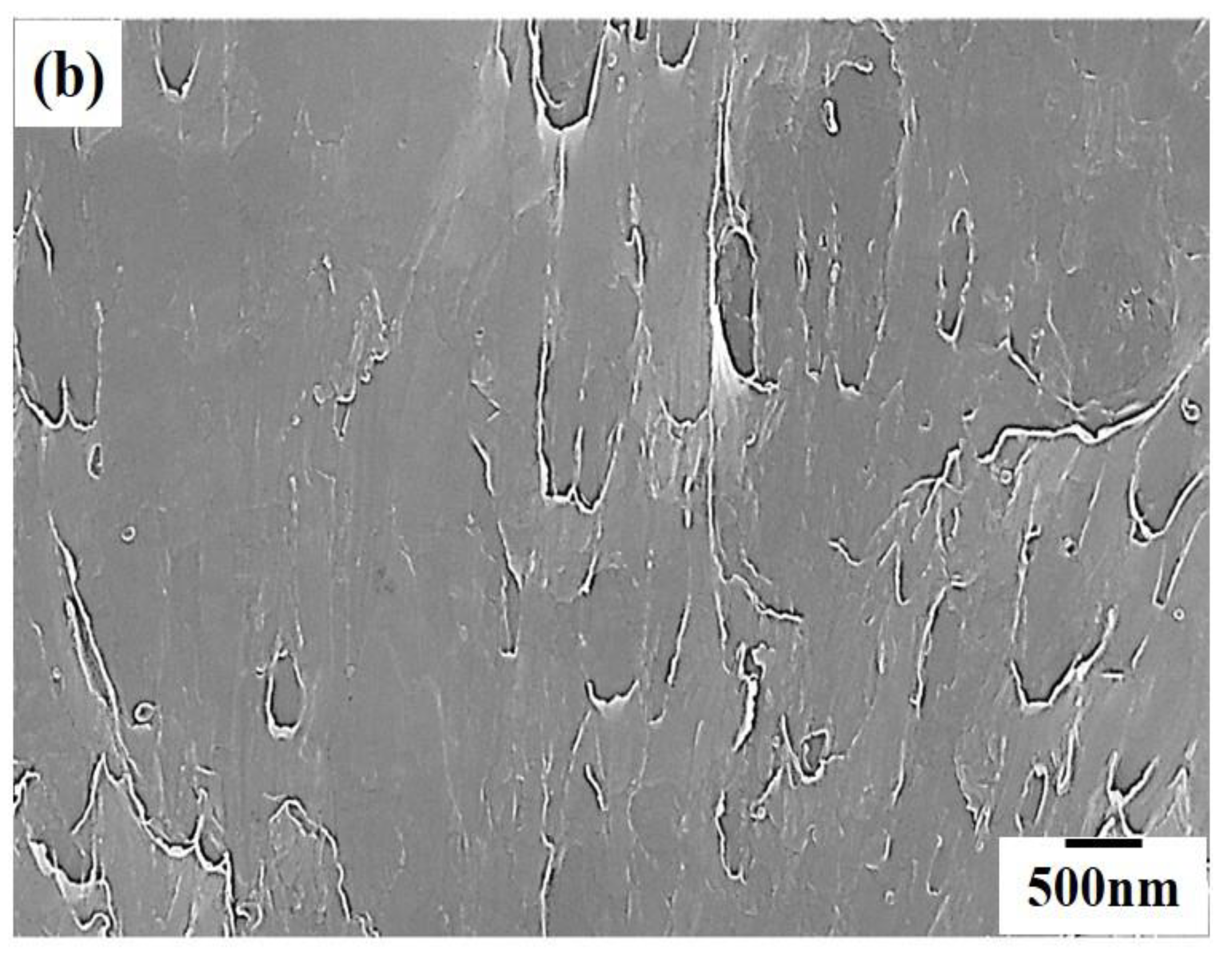

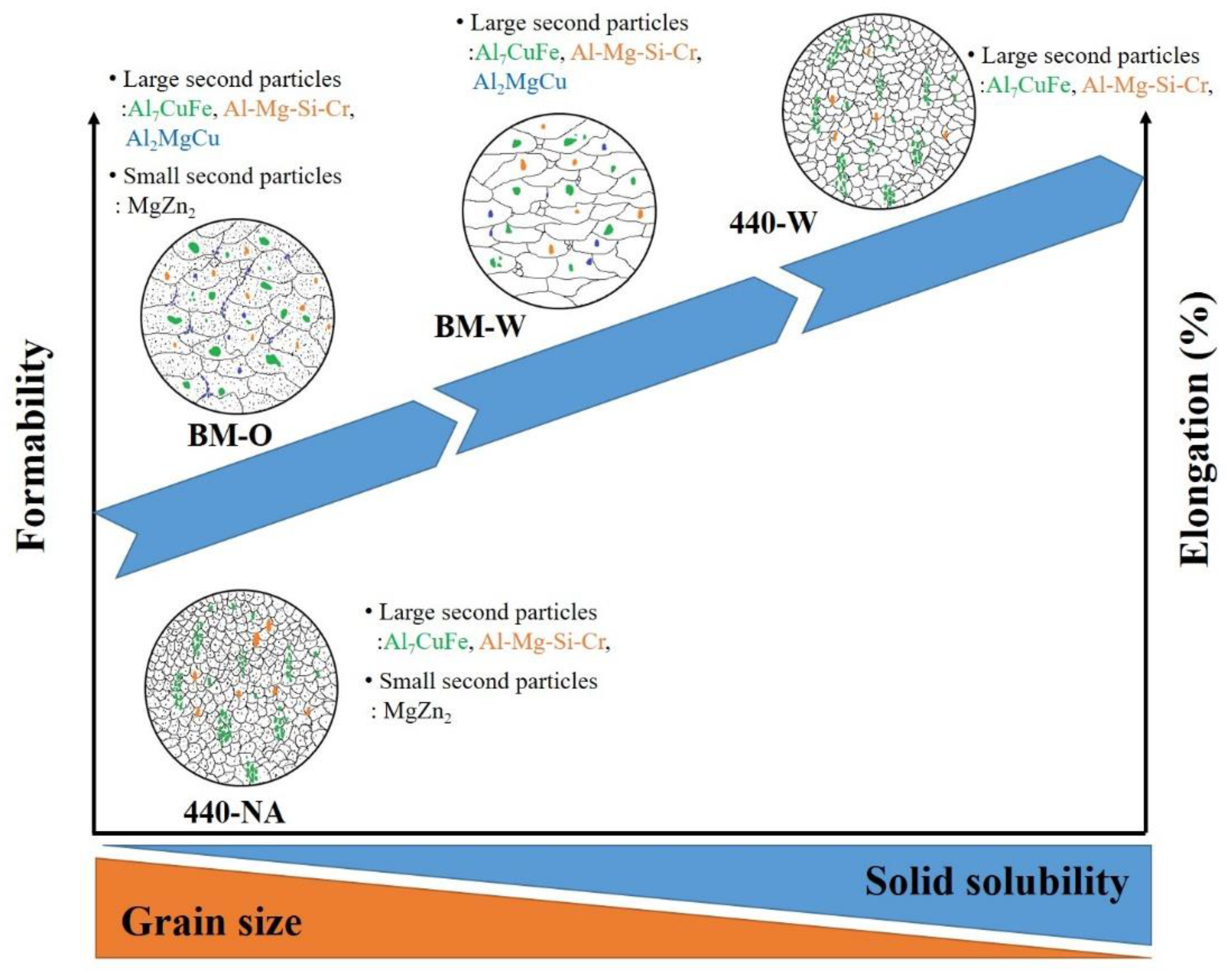

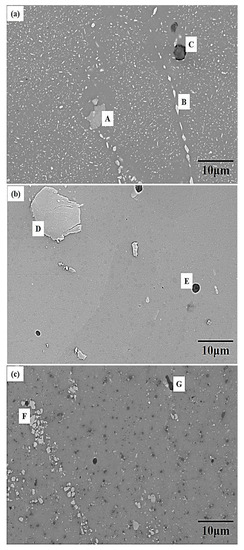

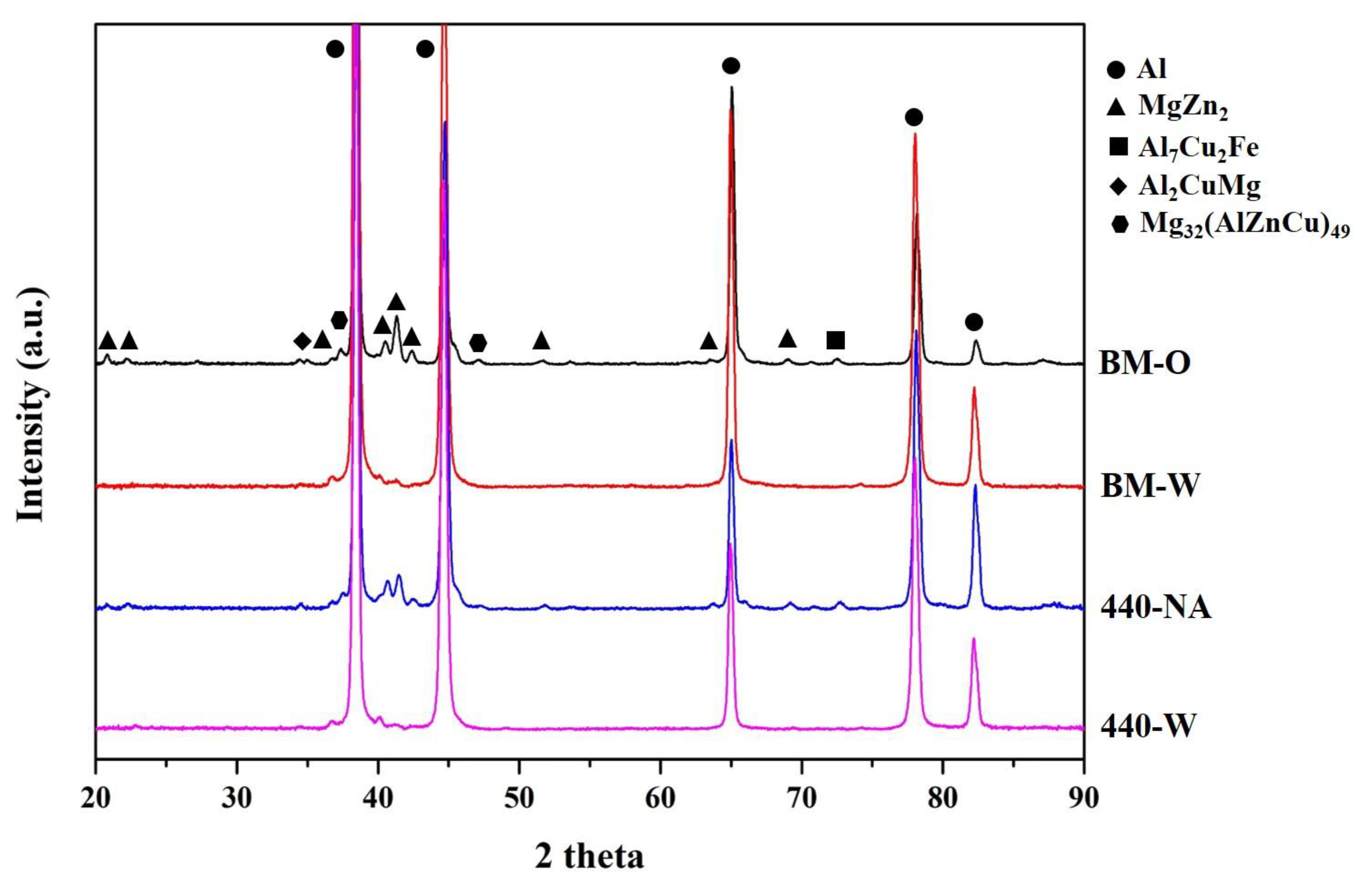

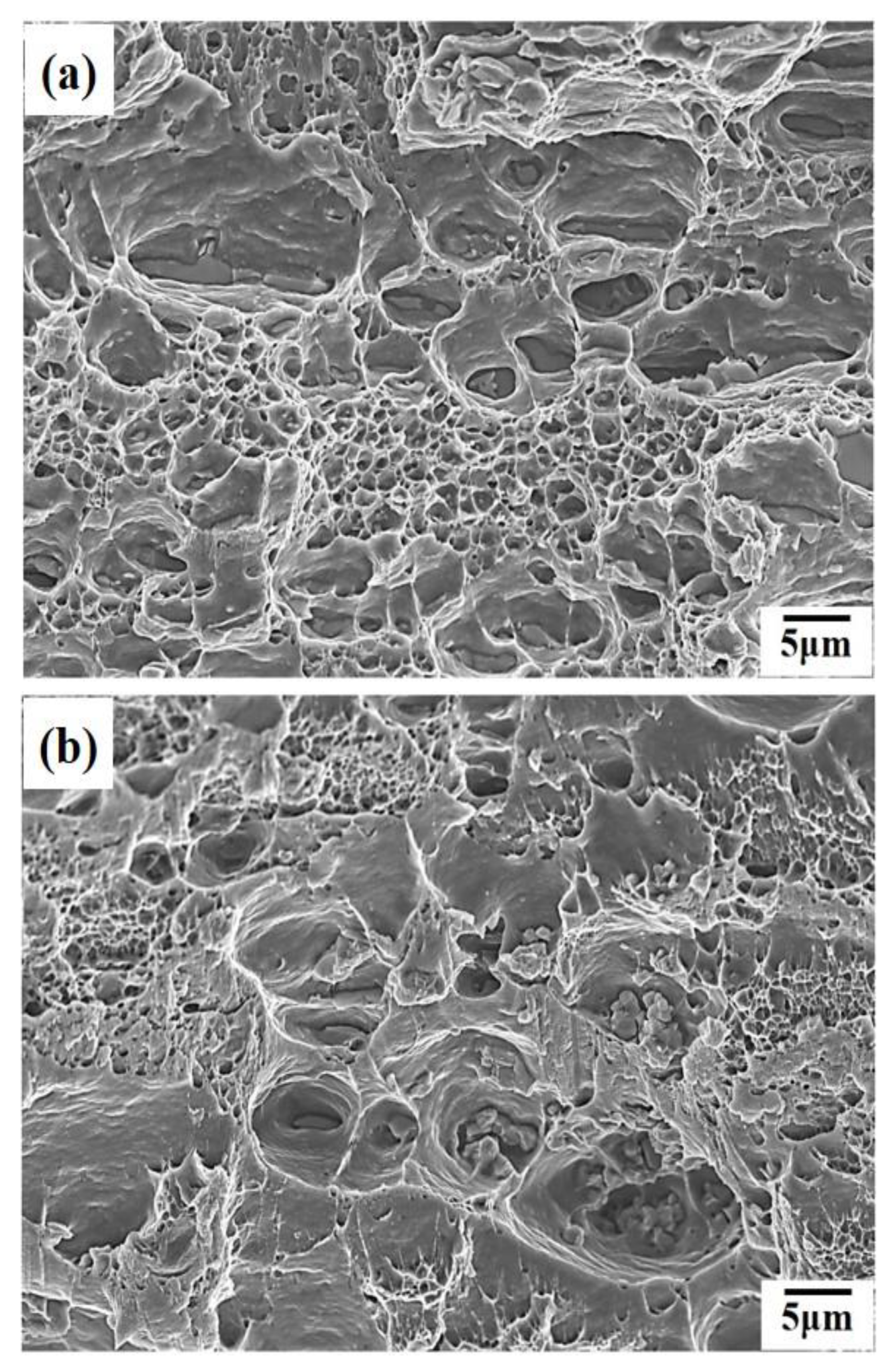

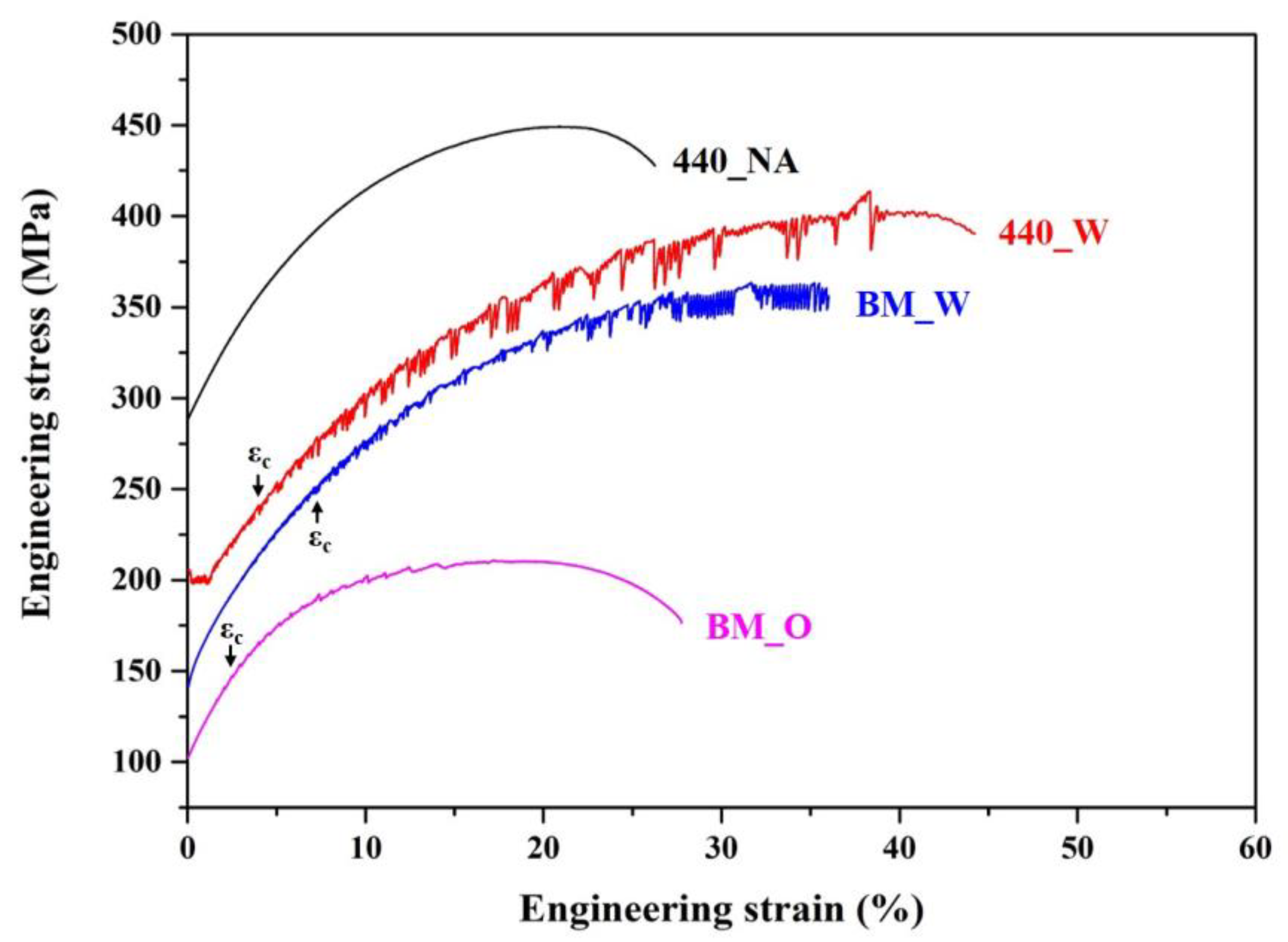

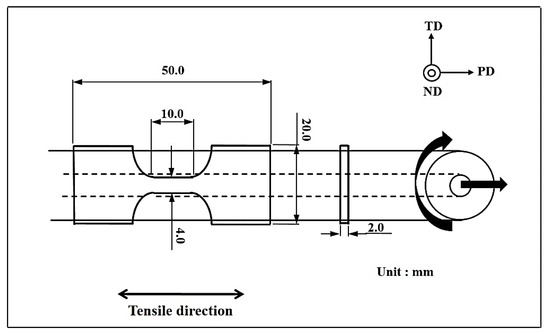

The ductility enhancement of an AA7075 aluminum alloy aided by a friction stir process (FSP) and various heat treatments was investigated and compared in terms of outcome with full annealing (O). The results indicate that a big improvement in the tensile ductility was achieved by freezing the sample at temperatures below 0 °C after the solution treatment and water quenching (W treatment), and further improvement could be acquired via a friction stir process due to grain refinement (<6 μm). Thus, the observed improvement in tensile ductility can be explained by the fact that the W treatment and friction stir processing scheme had an increased strain-hardening effect and decreased the presence of intermetallic particles that are harmful to uniform tensile deformation, consequently causing strain localization in the early stage of tensile deformation, which suggests that these treatment are a potential solution for insufficient formability. In general, the elongation to failure values for the W and FSP-treated specimens (>40%) were at least 1.5-fold greater than that of the annealed alloy. In addition, serrated flow could be observed in the tensile flow curves, and both the Piobert–Lüders effect and the Portevin–LeChatelier (PL) effect could be observed. The enhancement in the tensile ductility was examined in terms of the existence of intermetallic particles and the supersaturated concentration of the solid solution. View Full-Text
Keywords: AA7075 aluminum alloy; friction stir process (FSP); heat treatment; tensile ductility; Portevin–LeChatelier effect AA7075 aluminum alloy; friction stir process (FSP); heat treatment; tensile ductility; Portevin–LeChatelier effect
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Ku, M.-H.; Hung, F.-Y.; Lui, T.-S. Examination of the High Tensile Ductility Improvement in an As-Solutionized AA7075 Alloy with the Aid of a Friction Stir Process. Metals 2019, 9, 196.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
