Next Article in Journal
Hydrogen-Induced Phase Transformation and Microstructure Evolution for Ti-6Al-4V Parts Produced by Electron Beam Melting
Next Article in Special Issue
Research on Selective Laser Melting of Ti6Al4V: Surface Morphologies, Optimized Processing Zone, and Ductility Improvement Mechanism
Previous Article in Journal
Dependence of Macro- and Micro-Properties on α Plates in Ti-6Al-2Zr-1Mo-1V Alloy with Tri-Modal Microstructure
Previous Article in Special Issue
Sliding Contact Wear Damage of EBM built Ti6Al4V: Influence of Process Induced Anisotropic Microstructure
Open AccessArticle

Laser Powder Bed Fusion of a High Strength Al-Si-Zn-Mg-Cu Alloy

1
Department of Applied Science and Technology, Politecnico di Torino, Corso Duca degli Abruzzi 24, 10129 Torino, Italy
2
Center for Sustainable Futures [email protected], Istituto Italiano di Tecnologia, Corso Trento 21, 10129 Torino, Italy
3
Department of Management and Production Engineering (DIGEP), Politecnico di Torino, Corso Duca degli Abruzzi 24, 10129 Torino, Italy
*
Author to whom correspondence should be addressed.
Metals 2018, 8(5), 300; https://doi.org/10.3390/met8050300
Received: 14 March 2018 / Revised: 18 April 2018 / Accepted: 24 April 2018 / Published: 26 April 2018
  |
PDF [18056 KB, uploaded 30 May 2018]
  |

Abstract

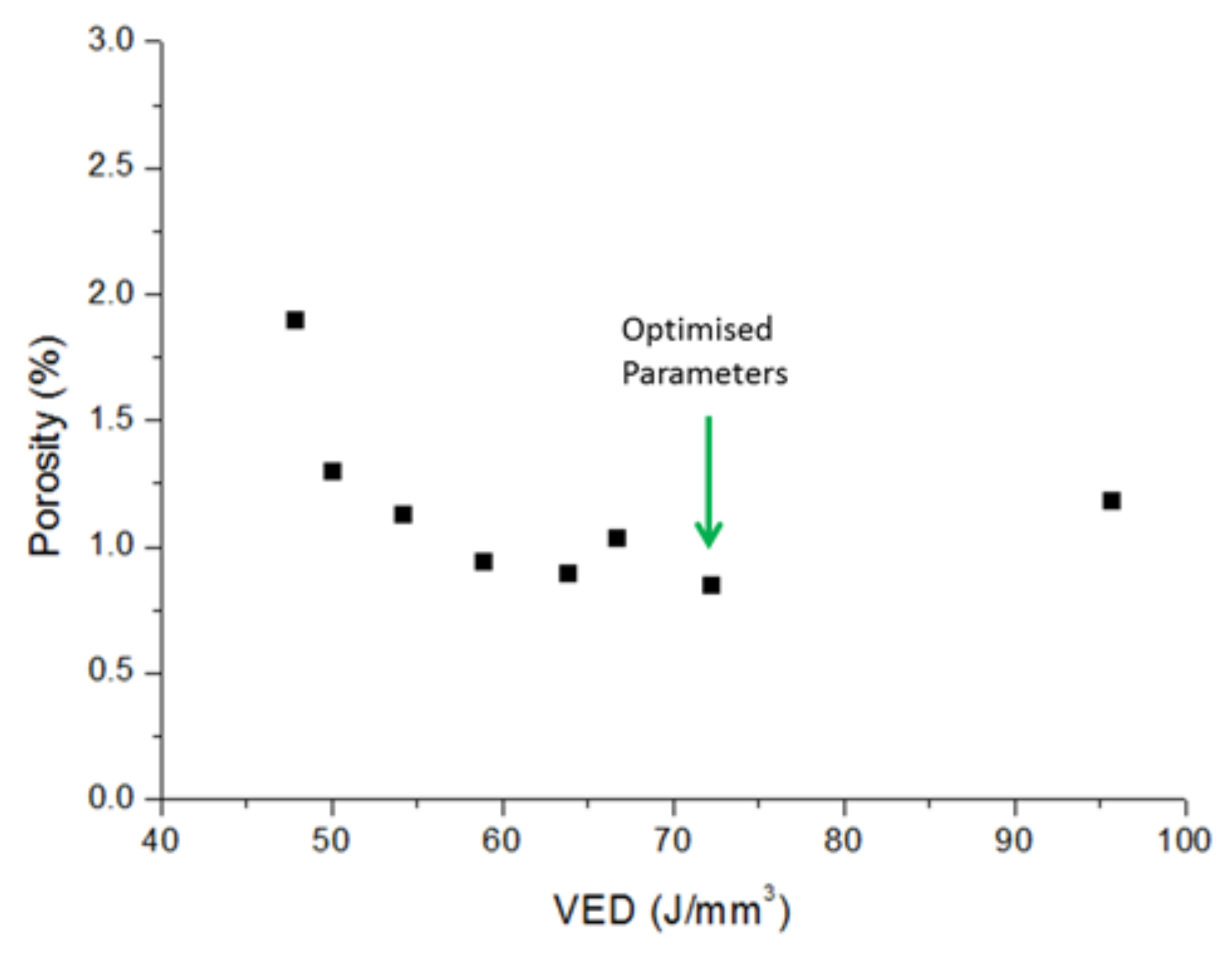

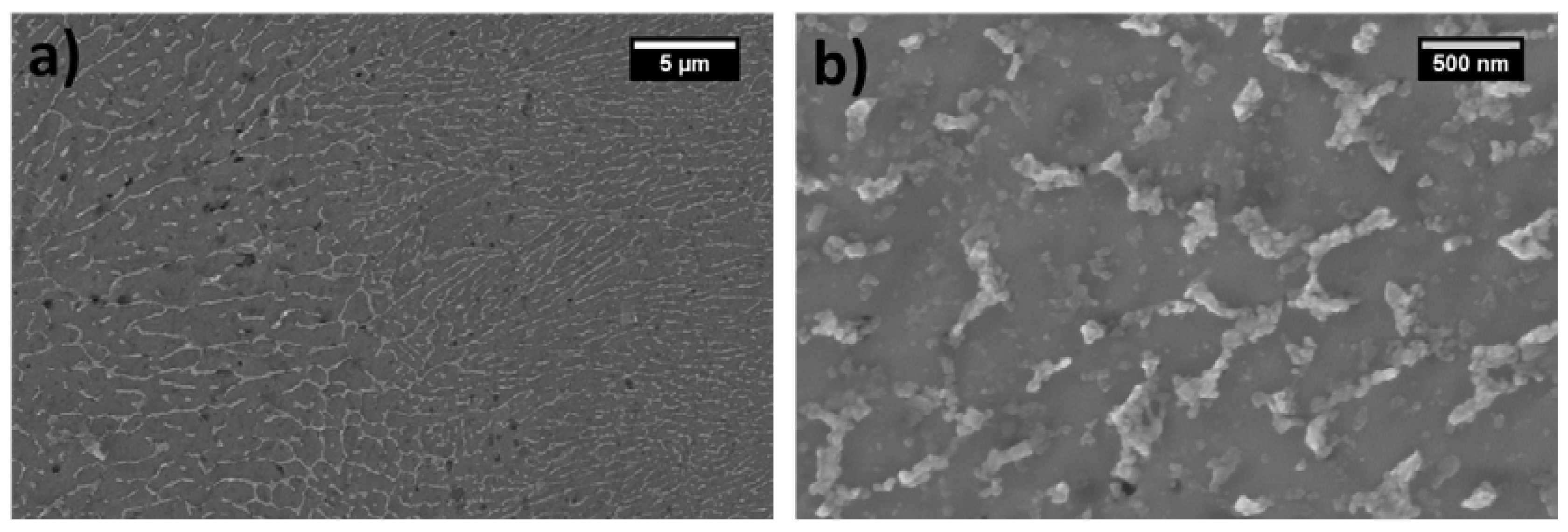

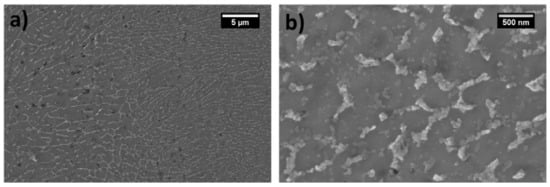

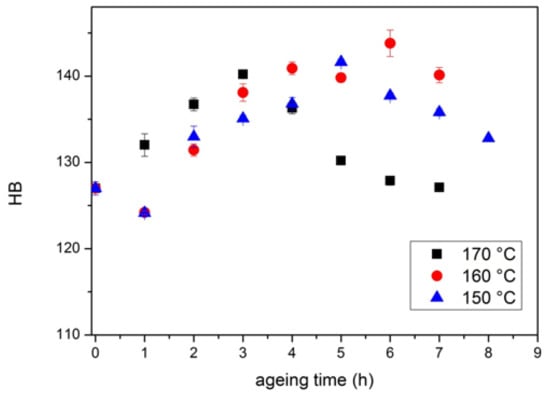

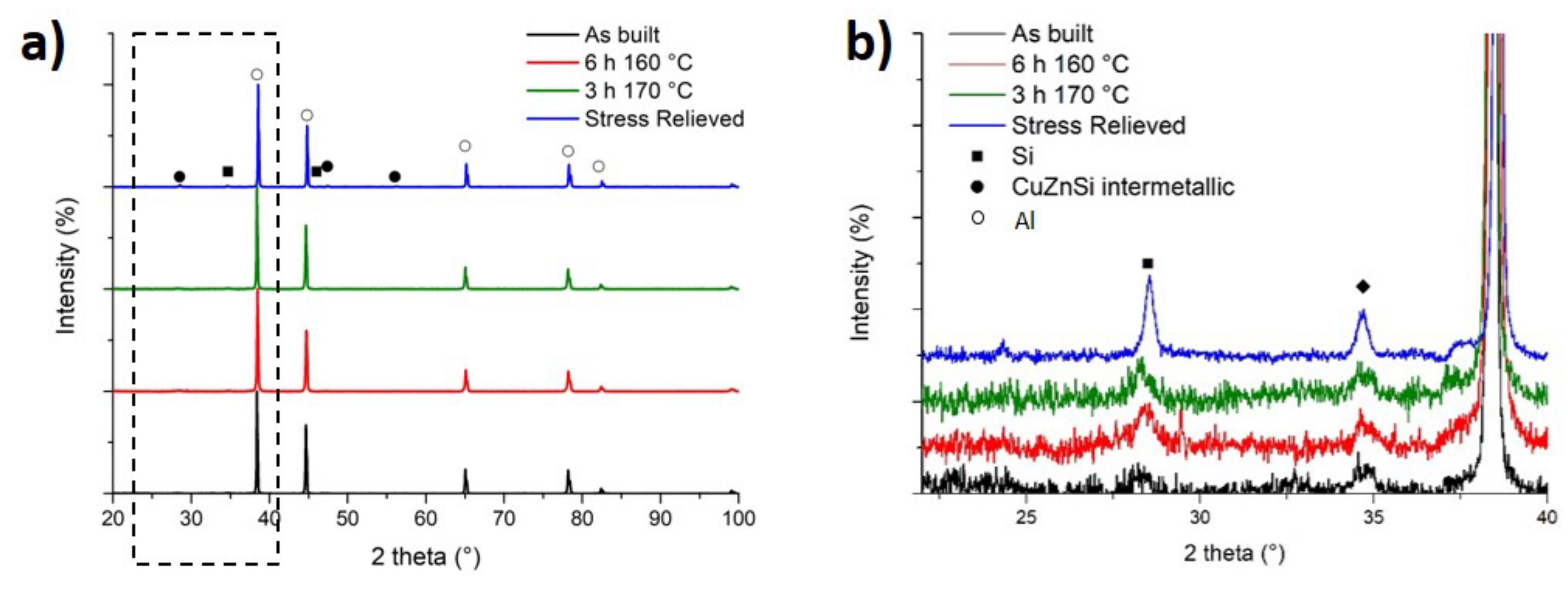

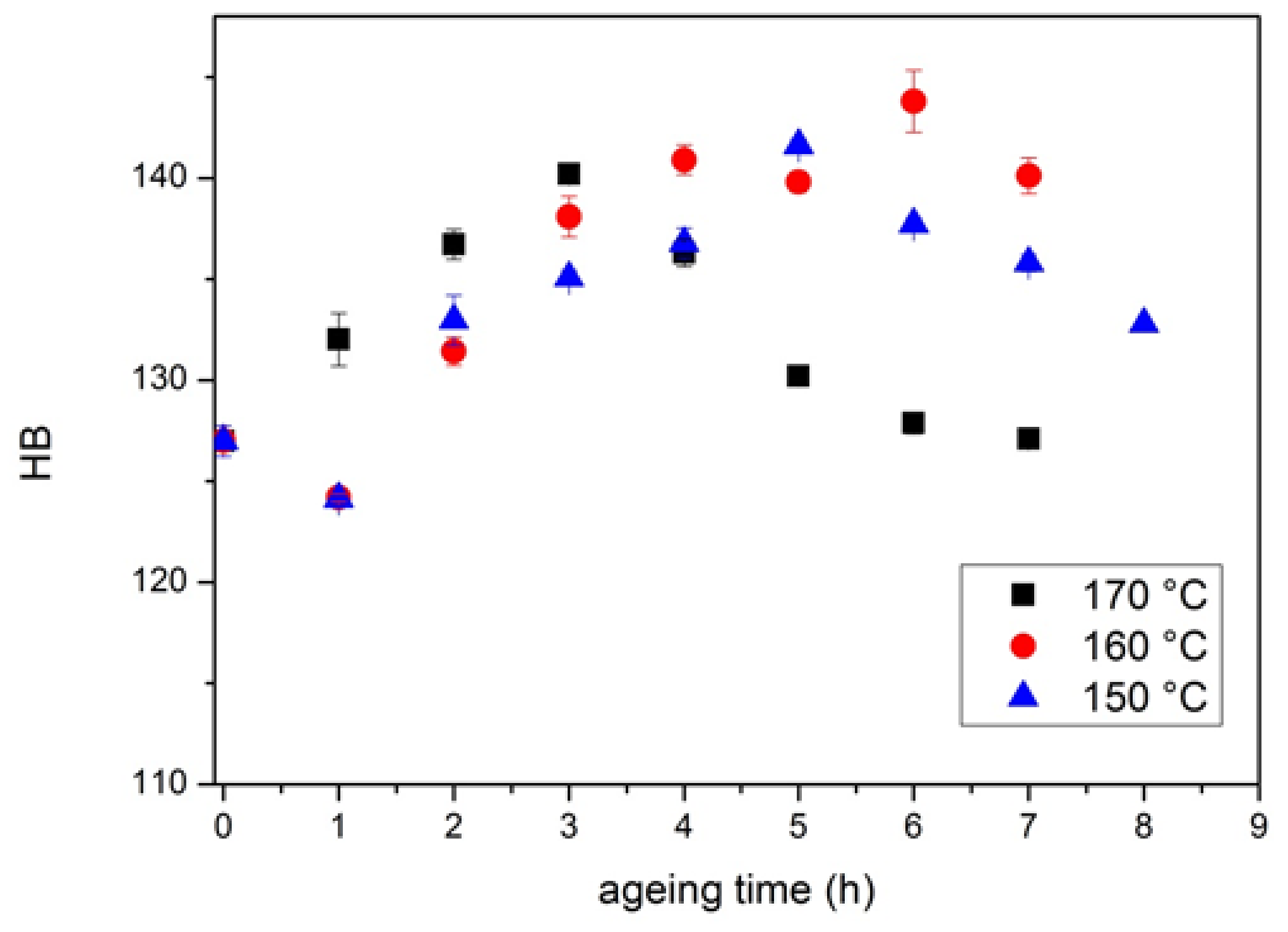

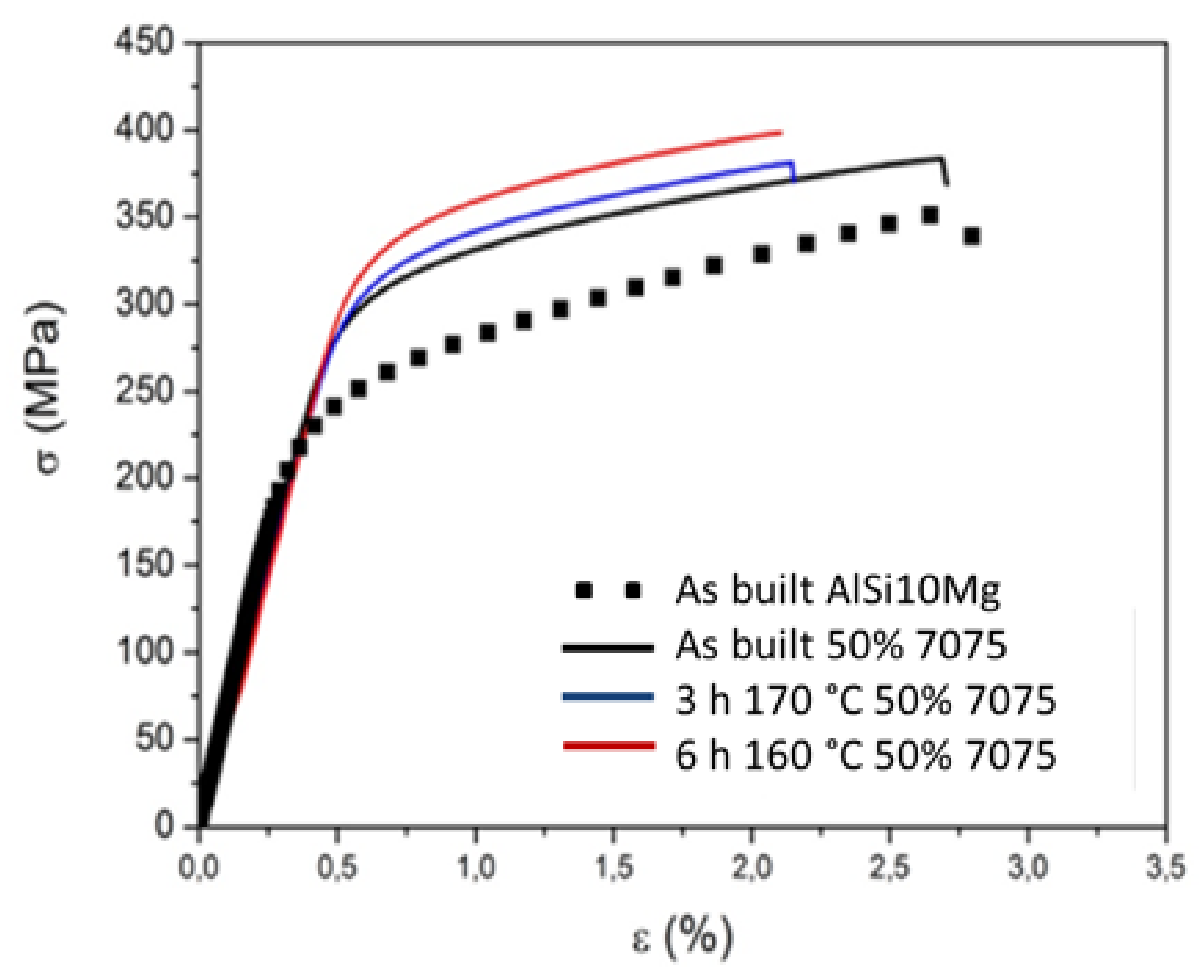

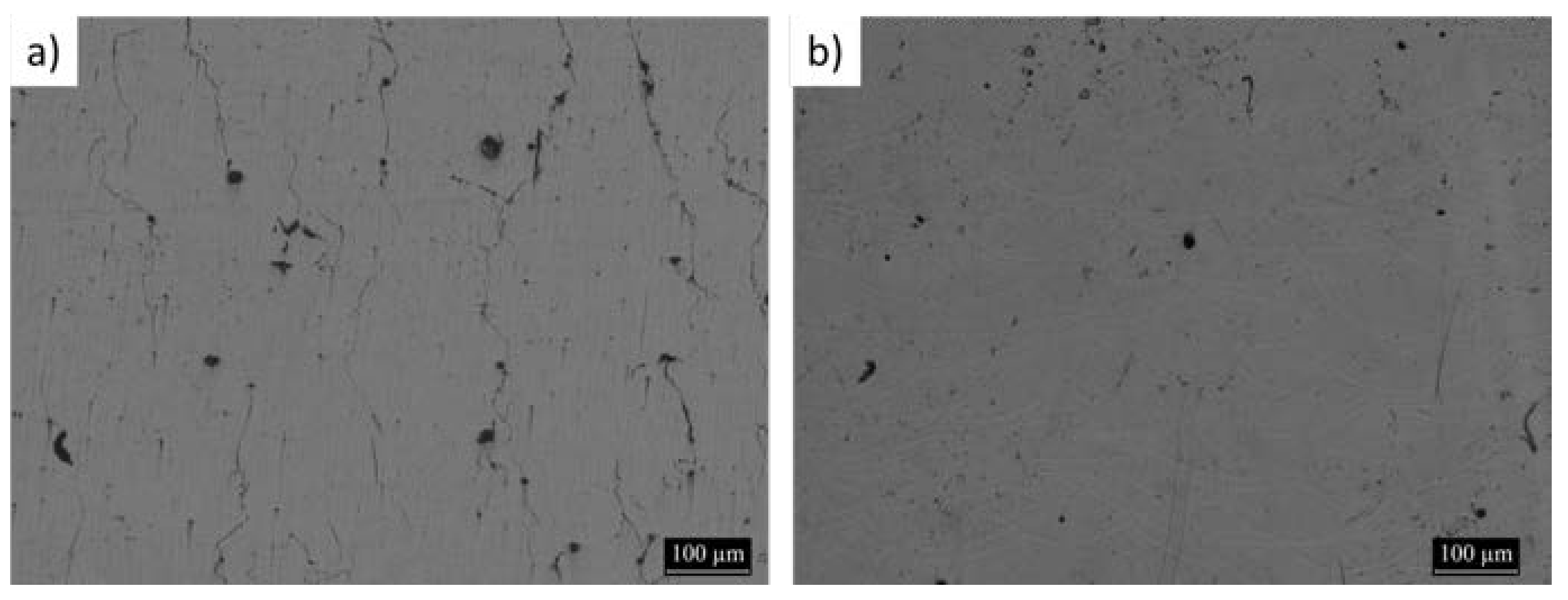

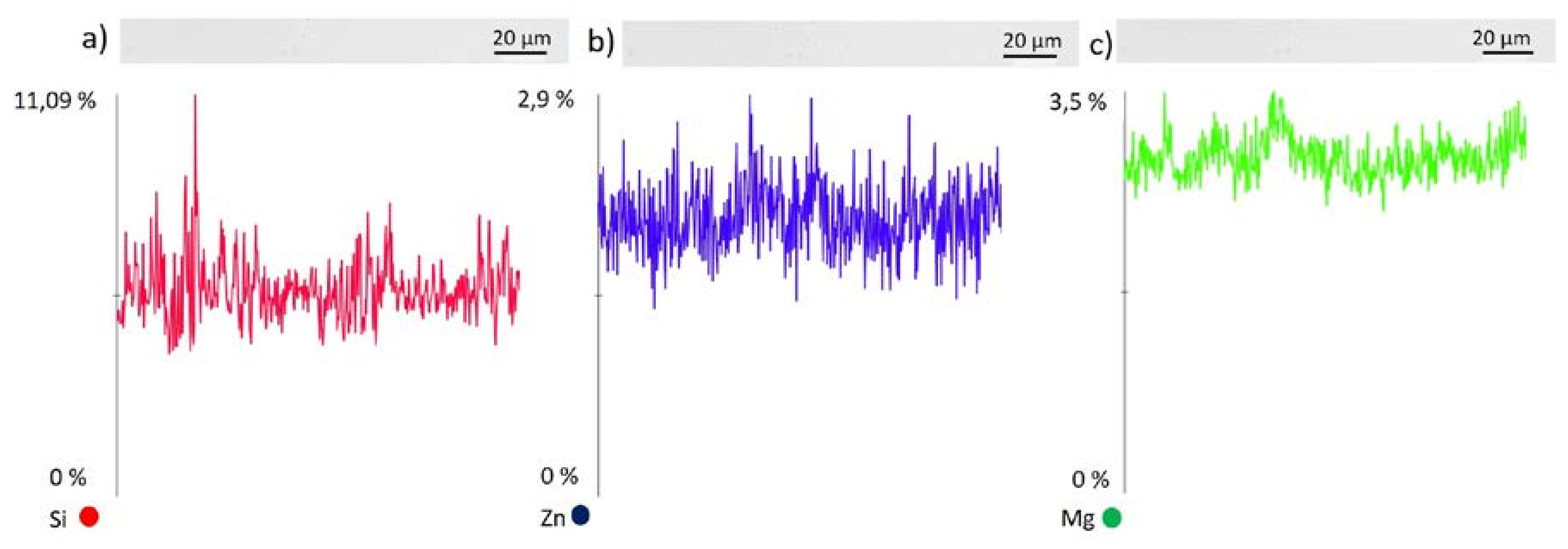

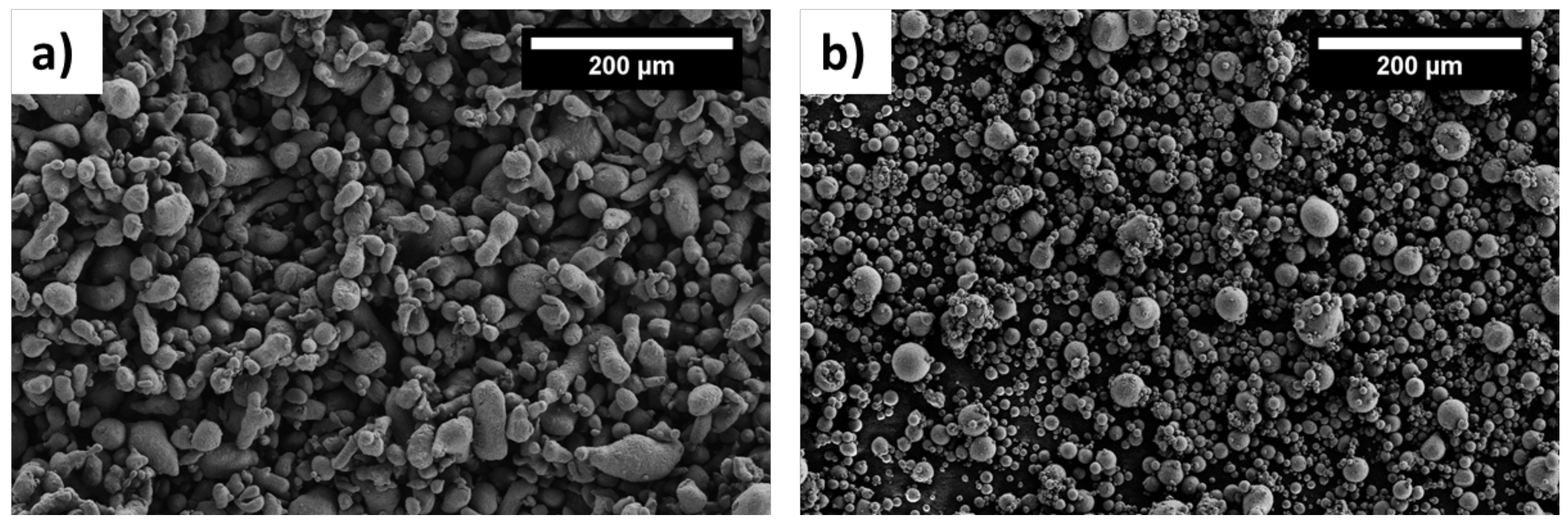

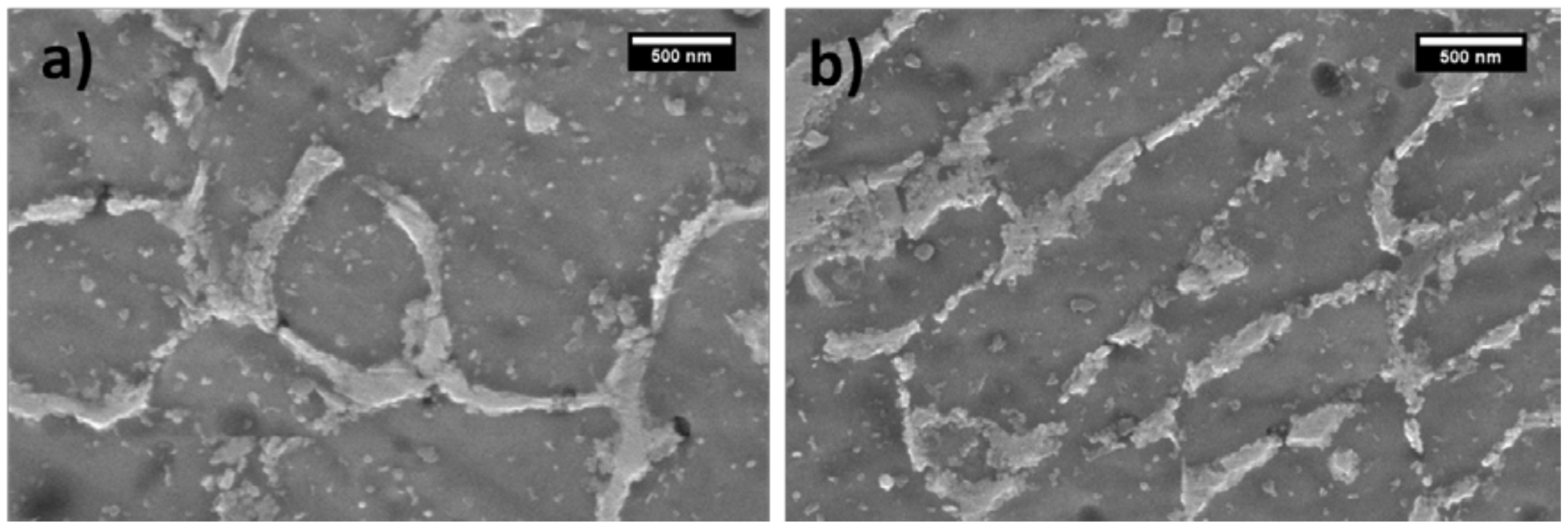

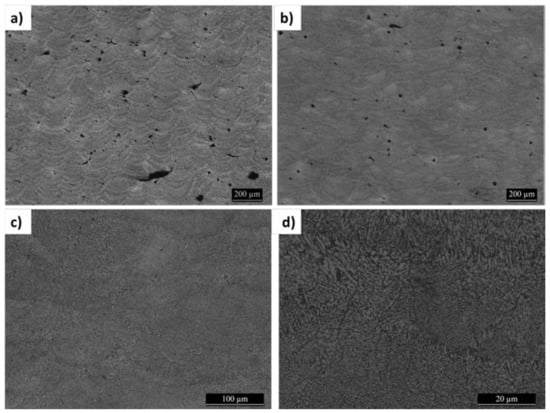

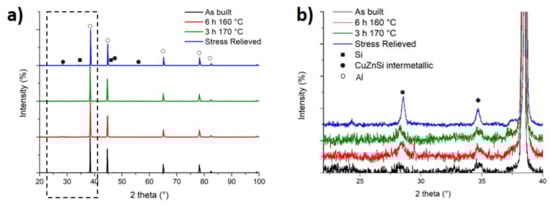

Al-Si-Zn-Mg-Cu samples were produced using Laser Powder Bed Fusion from mixed AlSi10Mg and 7075 powders. It was observed that the introduction of silicon to an Al-Zn-Mg-Cu alloy strongly reduced the crack density, probably because of the reduction of the solidification range, the improved fluidity of the molten phase and the reduction of the coefficient of thermal expansion. The density measurements showed that crack-free samples can be successfully produced with this powder mixture. The obtained Al-Si-Zn-Mg-Cu samples were characterized in terms of microstructure, hardness and tensile properties showing that this composition is very promising for future powder bed additive manufacturing processes. View Full-Text
Keywords: Laser Powder Bed Fusion (LPBF); Additive Manufacturing (AM); 7075 aluminum alloy; high strength; mechanical properties Laser Powder Bed Fusion (LPBF); Additive Manufacturing (AM); 7075 aluminum alloy; high strength; mechanical properties
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Aversa, A.; Marchese, G.; Manfredi, D.; Lorusso, M.; Calignano, F.; Biamino, S.; Lombardi, M.; Fino, P.; Pavese, M. Laser Powder Bed Fusion of a High Strength Al-Si-Zn-Mg-Cu Alloy. Metals 2018, 8, 300.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
