Next Article in Journal
The Properties of Arc-Sprayed Aluminum Coatings on Armor-Grade Steel
Previous Article in Journal
Effect of Nitric and Oxalic Acid Addition on Hard Anodizing of AlCu4Mg1 in Sulphuric Acid
Open AccessArticle

The Formation and Evolution of Shear Bands in Plane Strain Compressed Nickel-Base Superalloy

1
State Key Laboratory of Solidification Processing, Northwestern Polytechnical University, Xi’an 710072, China
2
AVIC Beijing Aeronautical Manufacturing Technology Research Institute, Beijing 100024, China
*
Author to whom correspondence should be addressed.
Metals 2018, 8(2), 141; https://doi.org/10.3390/met8020141
Received: 22 January 2018 / Revised: 2 February 2018 / Accepted: 9 February 2018 / Published: 18 February 2018

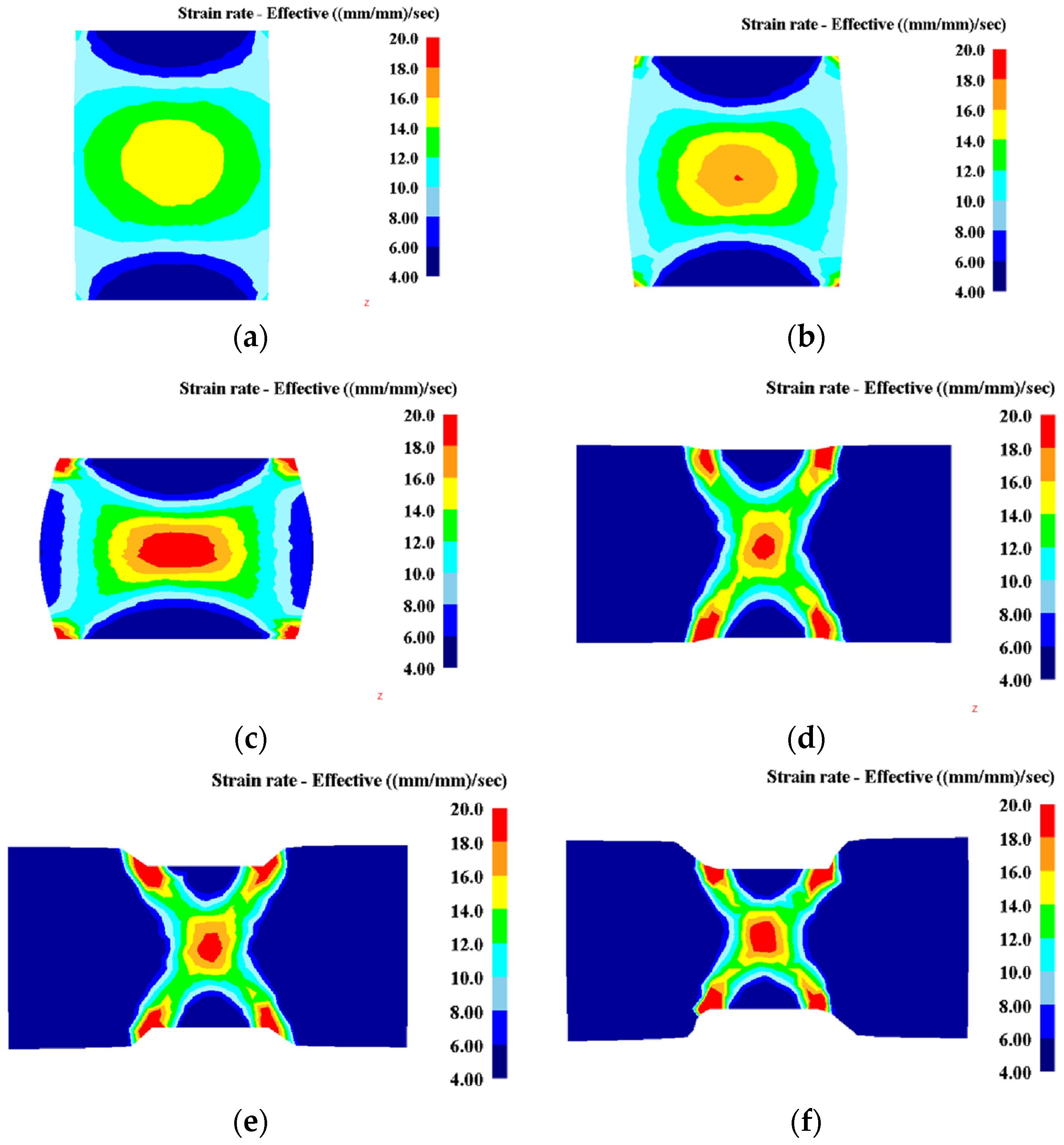

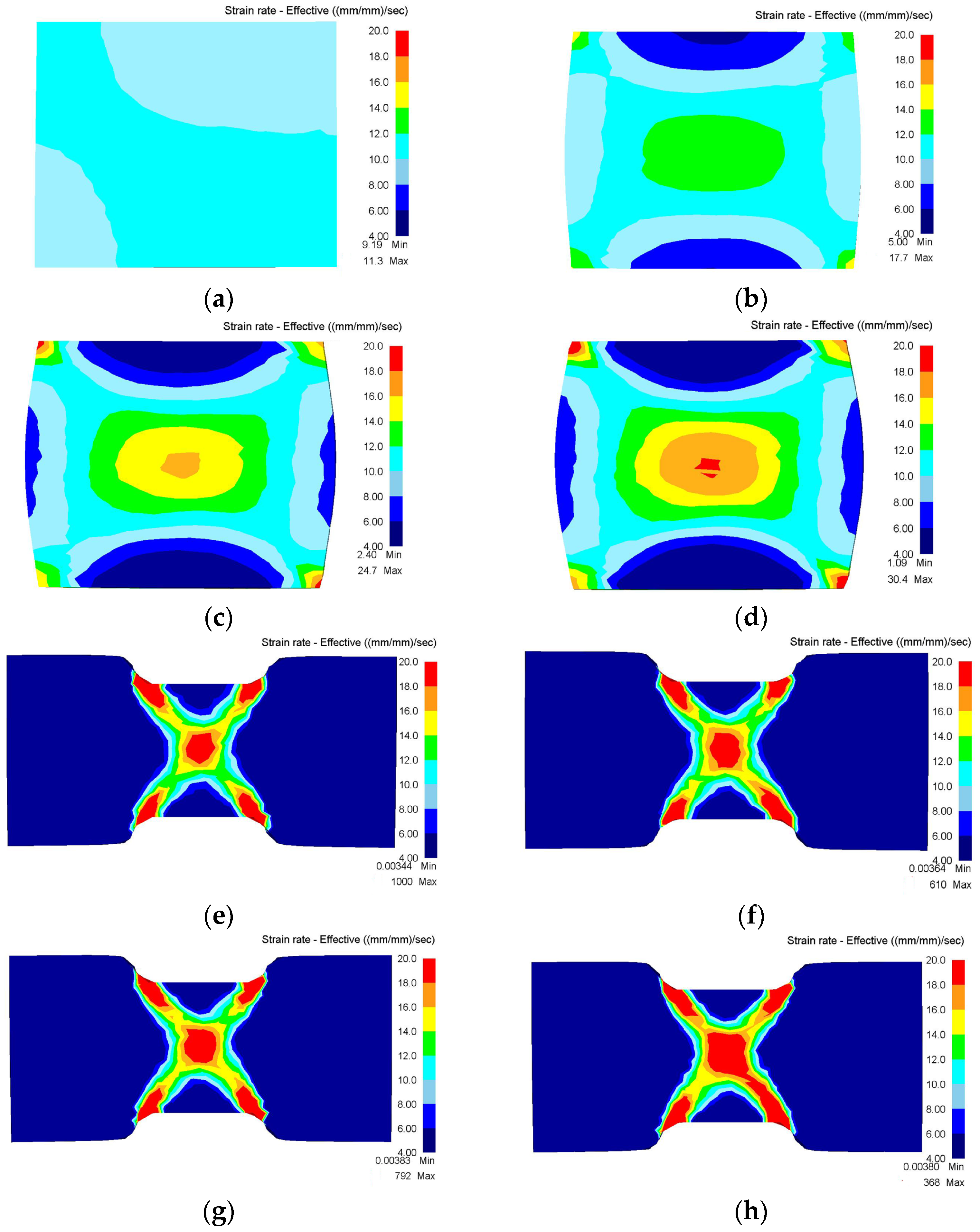

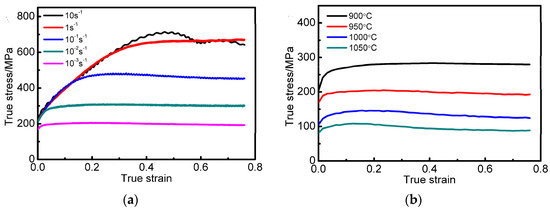

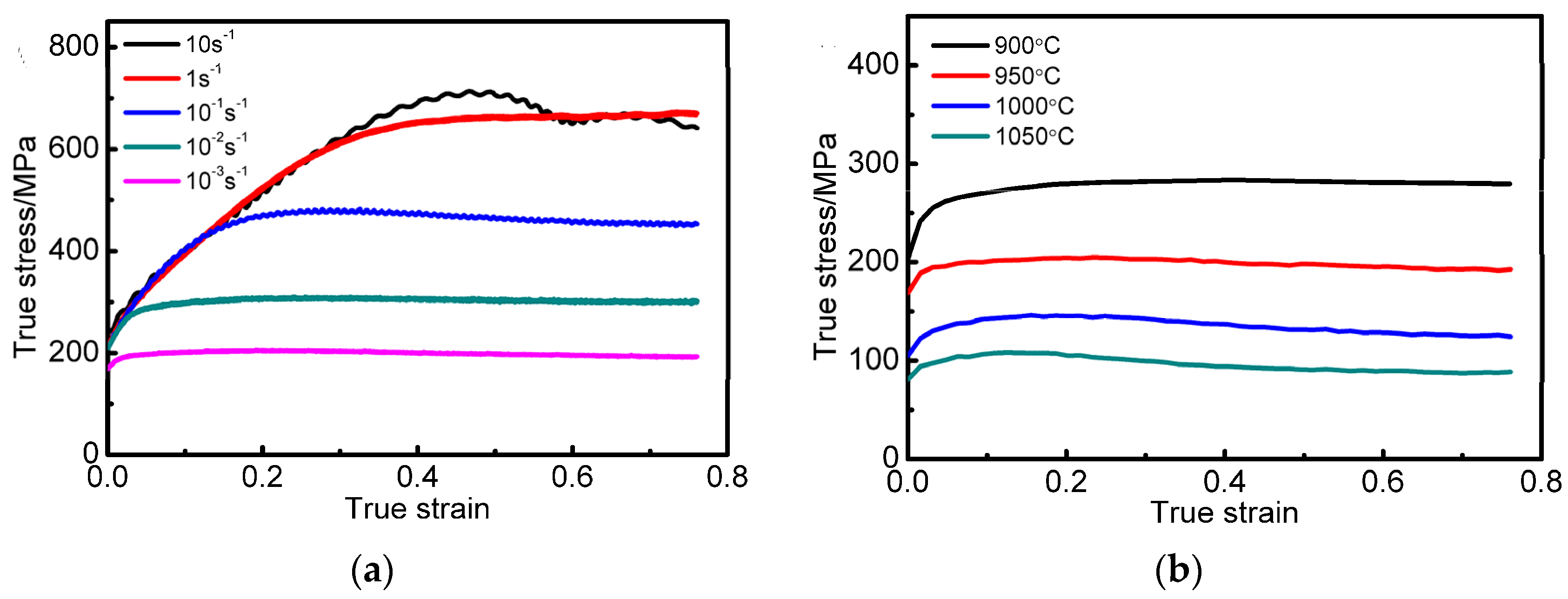

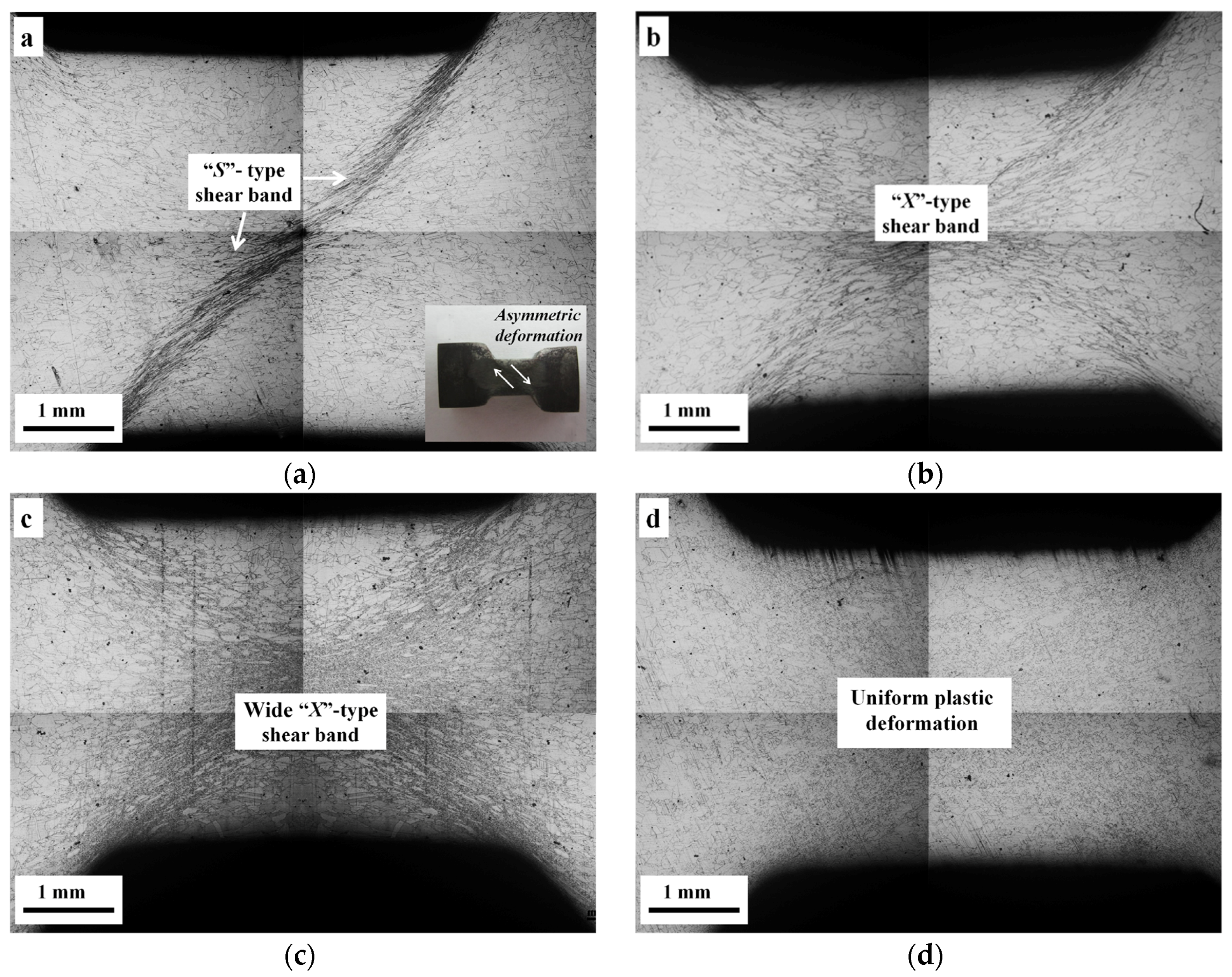

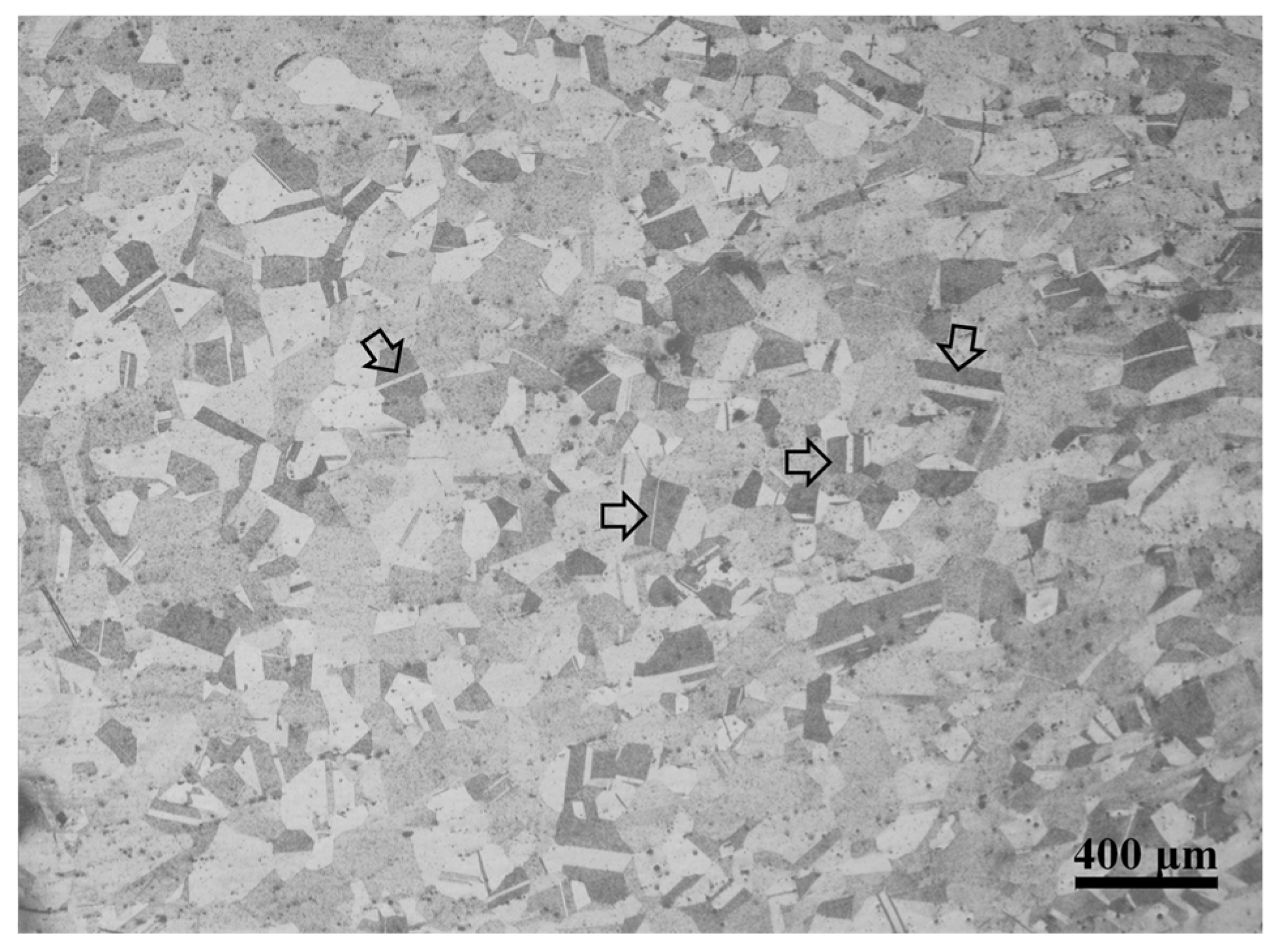

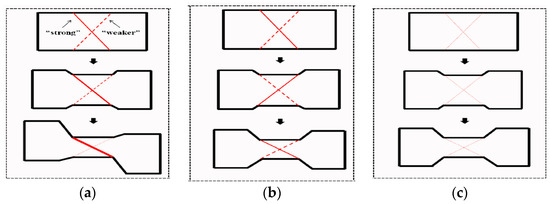

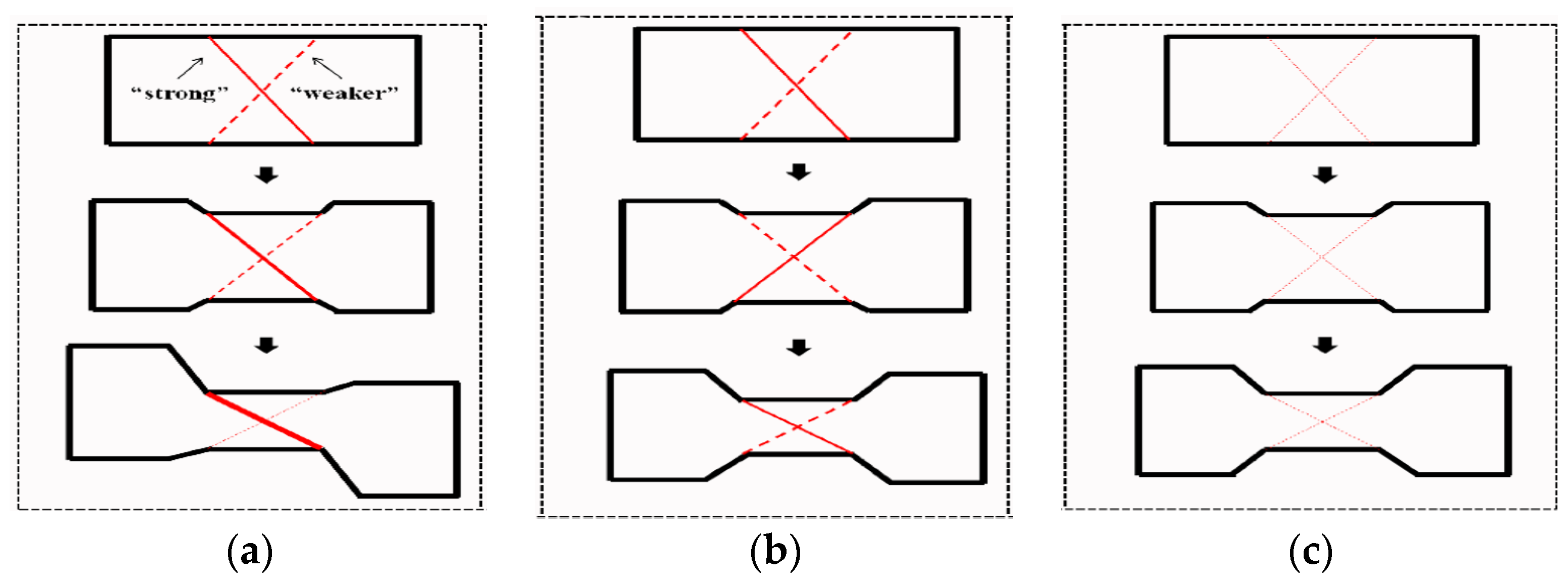

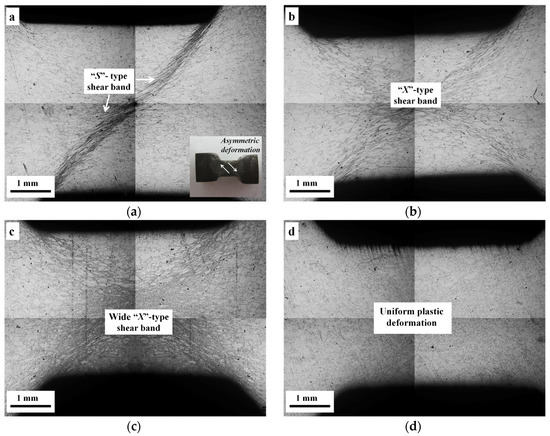

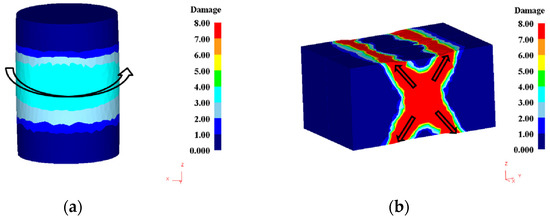

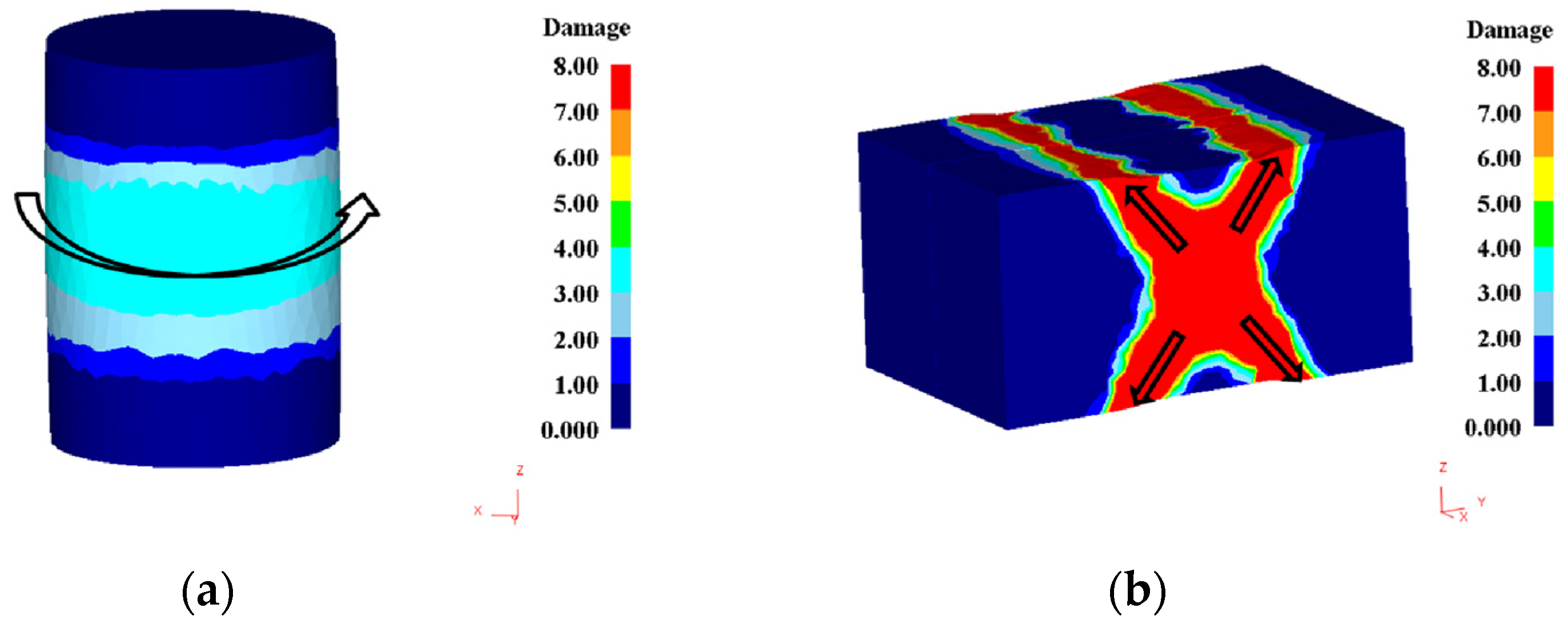

The formation and evolution of shear bands in Inconel 718 nickel-base superalloy under plane strain compression was investigated in the present work. It is found that the propagation of shear bands under plane strain compression is more intense in comparison with conventional uniaxial compression. The morphology of shear bands was identified to generally fall into two categories: in “S” shape at severe conditions (low temperatures and high strain rates) and “X” shape at mild conditions (high temperatures and low strain rates). However, uniform deformation at the mesoscale without shear bands was also obtained by compressing at 1050 °C/0.001 s−1. By using the finite element method (FEM), the formation mechanism of the shear bands in the present study was explored for the special deformation mode of plane strain compression. Furthermore, the effect of processing parameters, i.e., strain rate and temperature, on the morphology and evolution of shear bands was discussed following a phenomenological approach. The plane strain compression attempt in the present work yields important information for processing parameters optimization and failure prediction under plane strain loading conditions of the Inconel 718 superalloy. View Full-Text
Keywords: alloys; hot working; compression and shear; deformation alloys; hot working; compression and shear; deformation
Show Figures

Figure 1

MDPI and ACS Style

Tang, B.; Xiang, L.; Cheng, L.; Liu, D.; Kou, H.; Li, J. The Formation and Evolution of Shear Bands in Plane Strain Compressed Nickel-Base Superalloy. Metals 2018, 8, 141.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map

1
Back to TopTop
