Next Article in Journal
Investigation of the Weld Properties of Dissimilar S32205 Duplex Stainless Steel with AISI 304 Steel Joints Produced by Arc Stud Welding
Previous Article in Journal
A Novel Methods for Fracture Toughness Evaluation of Tool Steels with Post-Tempering Cryogenic Treatment
Previous Article in Special Issue
Tensile Strength Reliability Analysis of Cu48Zr48Al4 Amorphous Microwires
Open AccessArticle

Weibull Statistical Reliability Analysis of Mechanical and Magnetic Properties of FeCuNbxSiB Amorphous Fibers

State Key Laboratory for Advanced Metals and Materials, University of Science and Technology Beijing, No. 30, Xueyuan Road, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Academic Editor: K.C. Chan
Metals 2017, 7(3), 76; https://doi.org/10.3390/met7030076
Received: 16 December 2016 / Revised: 1 February 2017 / Accepted: 17 February 2017 / Published: 28 February 2017
(This article belongs to the Special Issue Amorphous Alloys and Related Transitions)

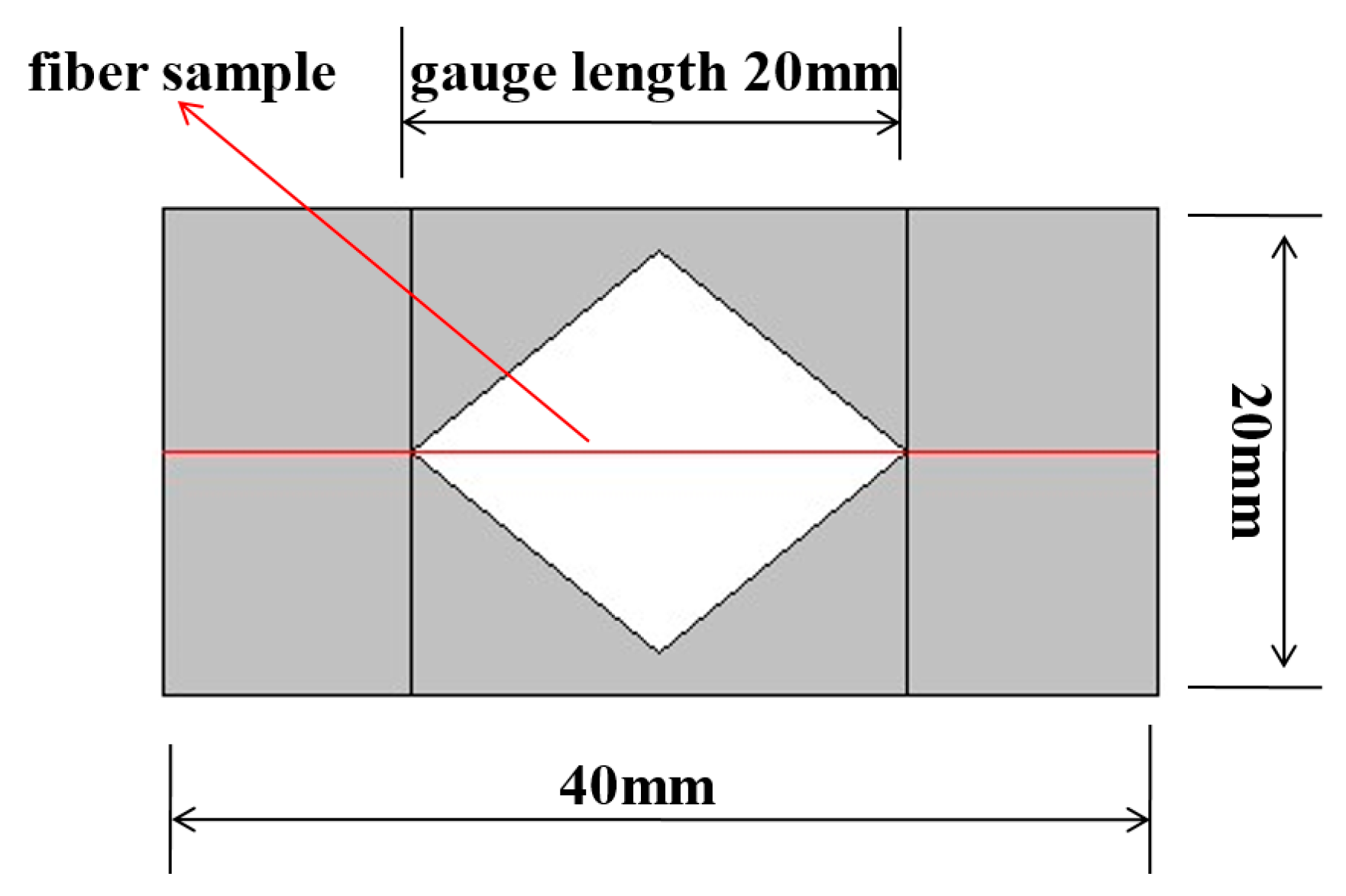

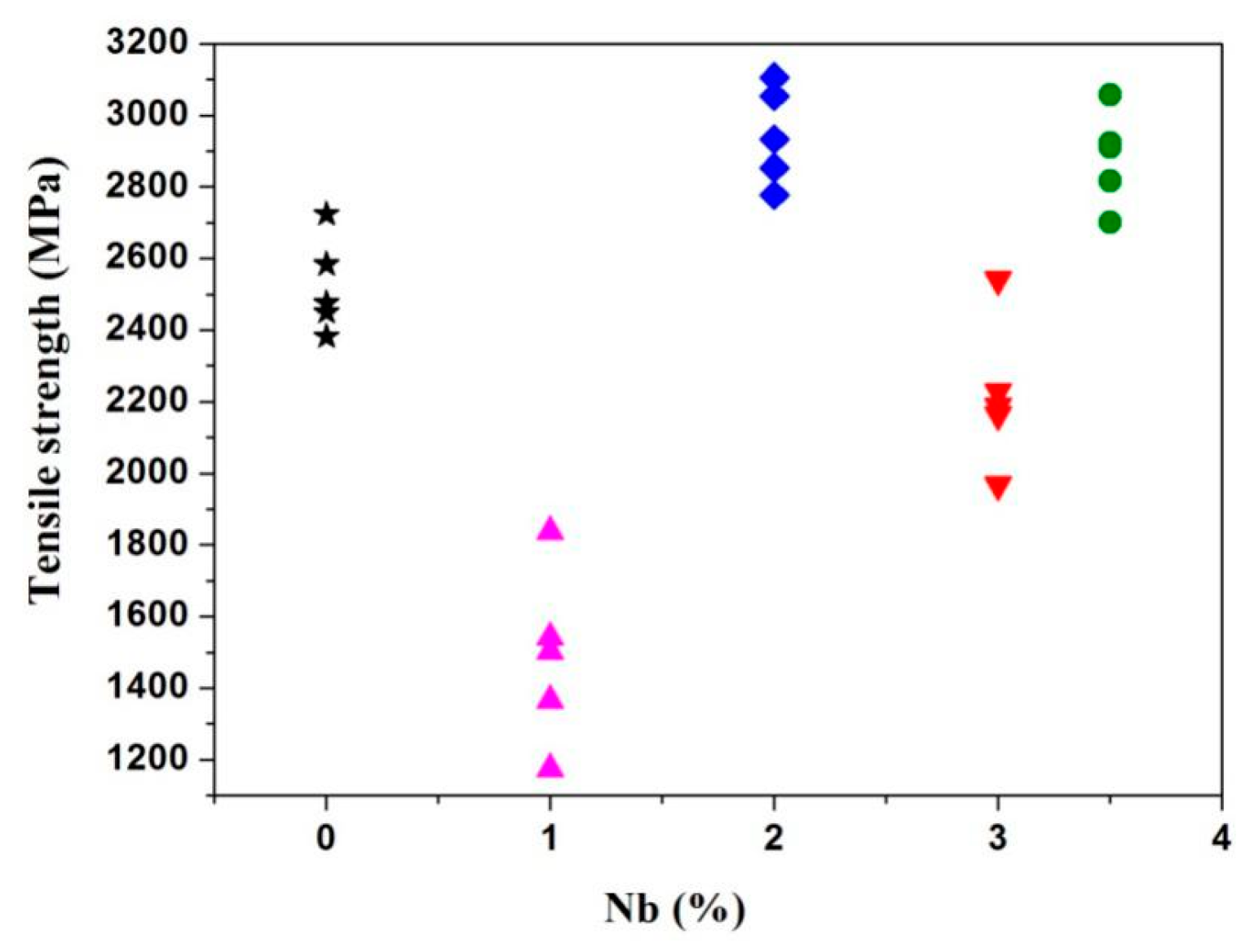

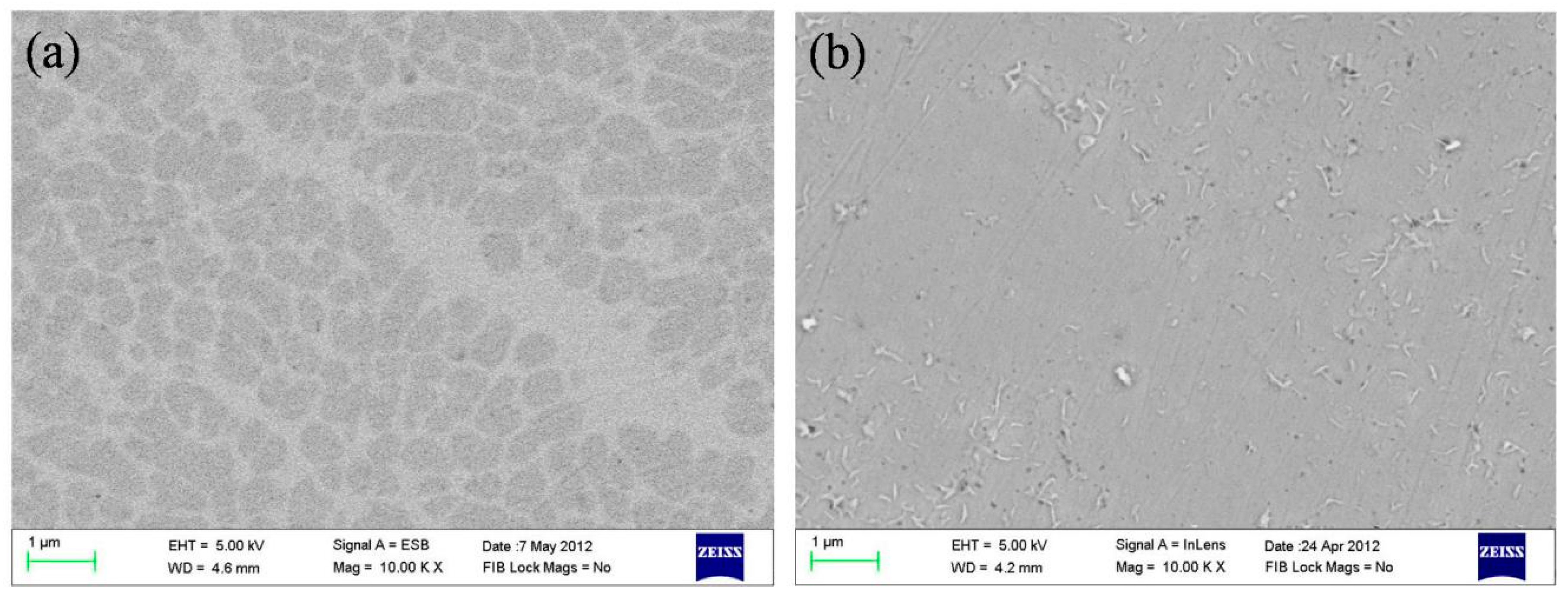

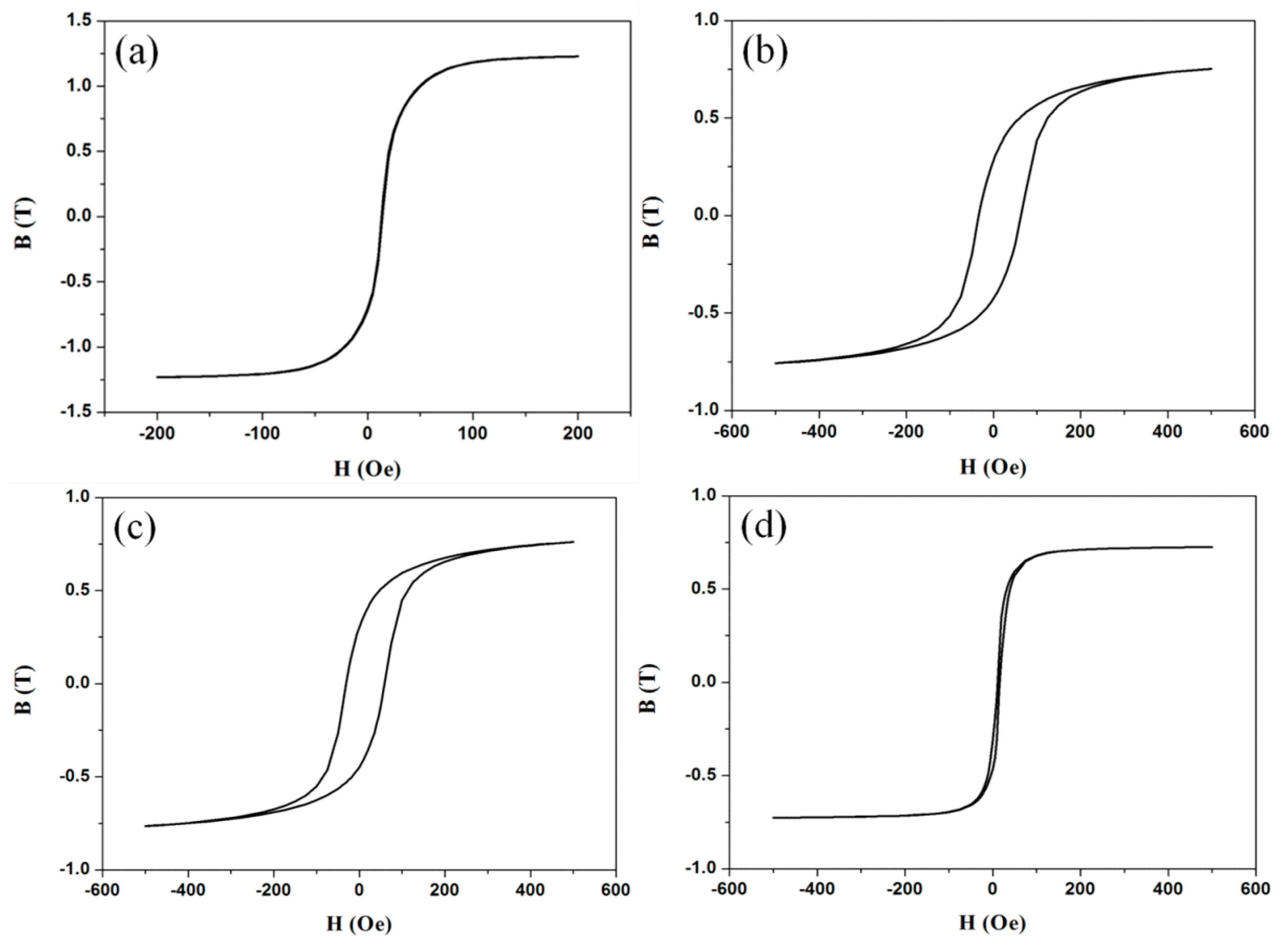

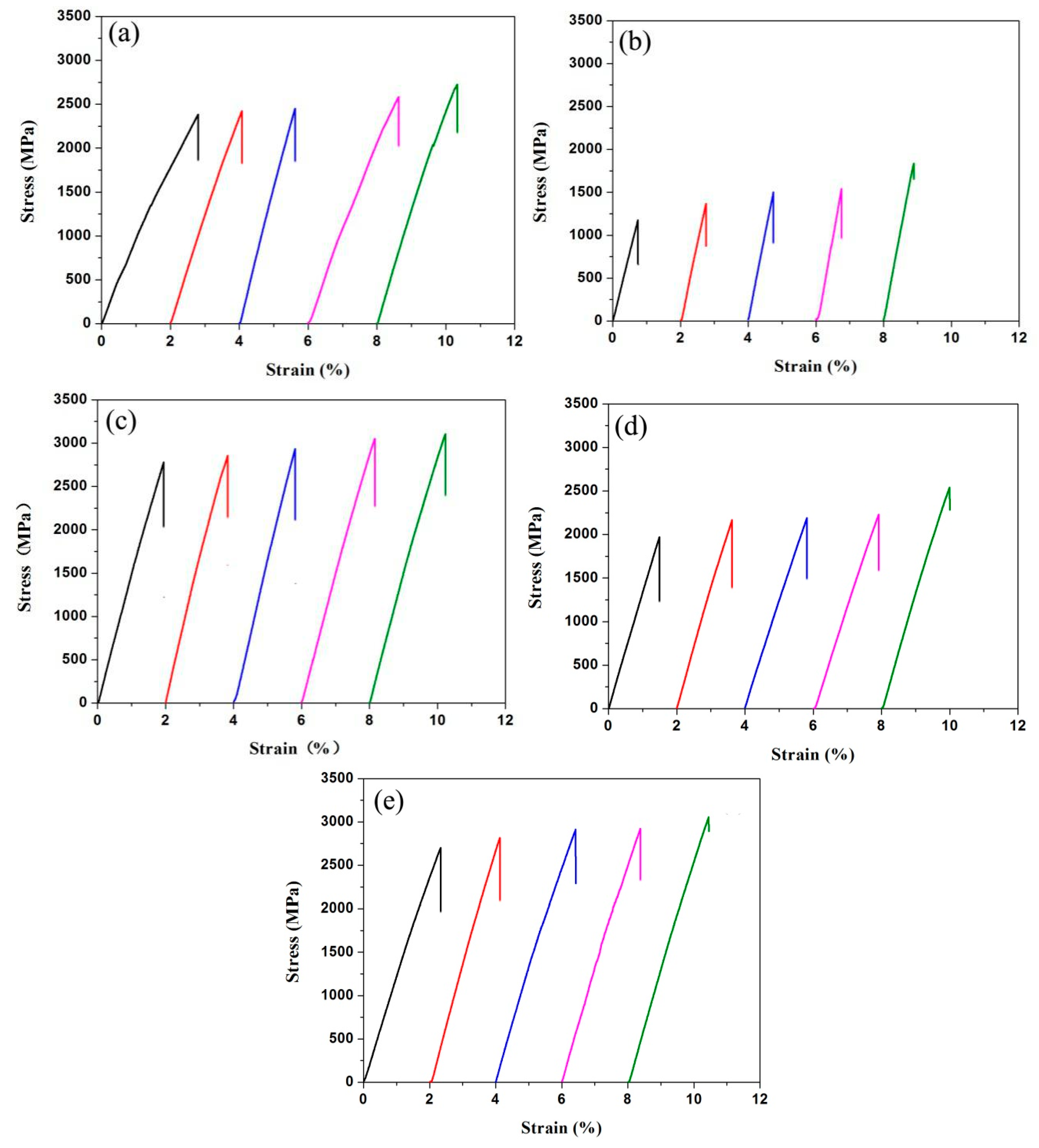

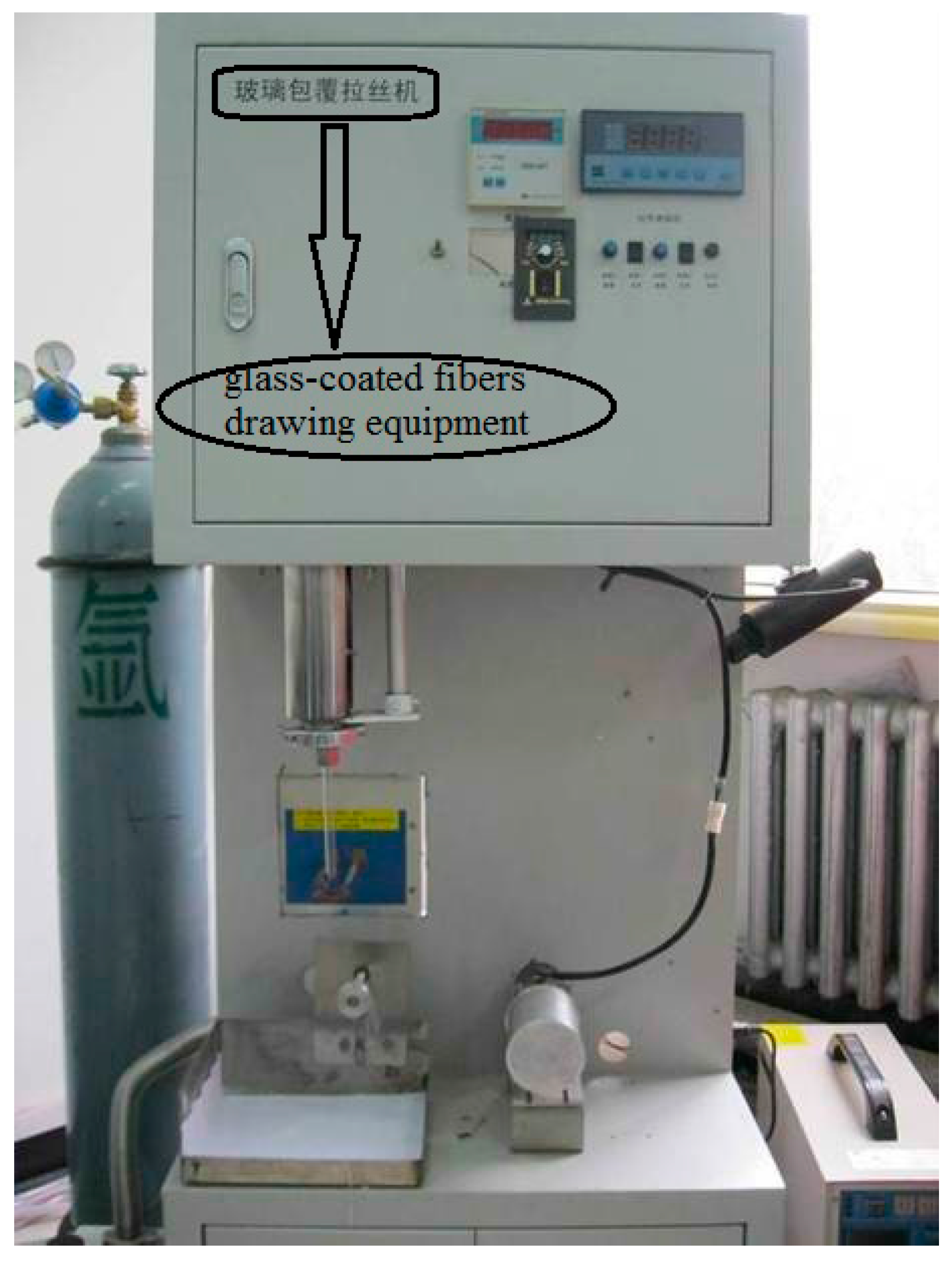

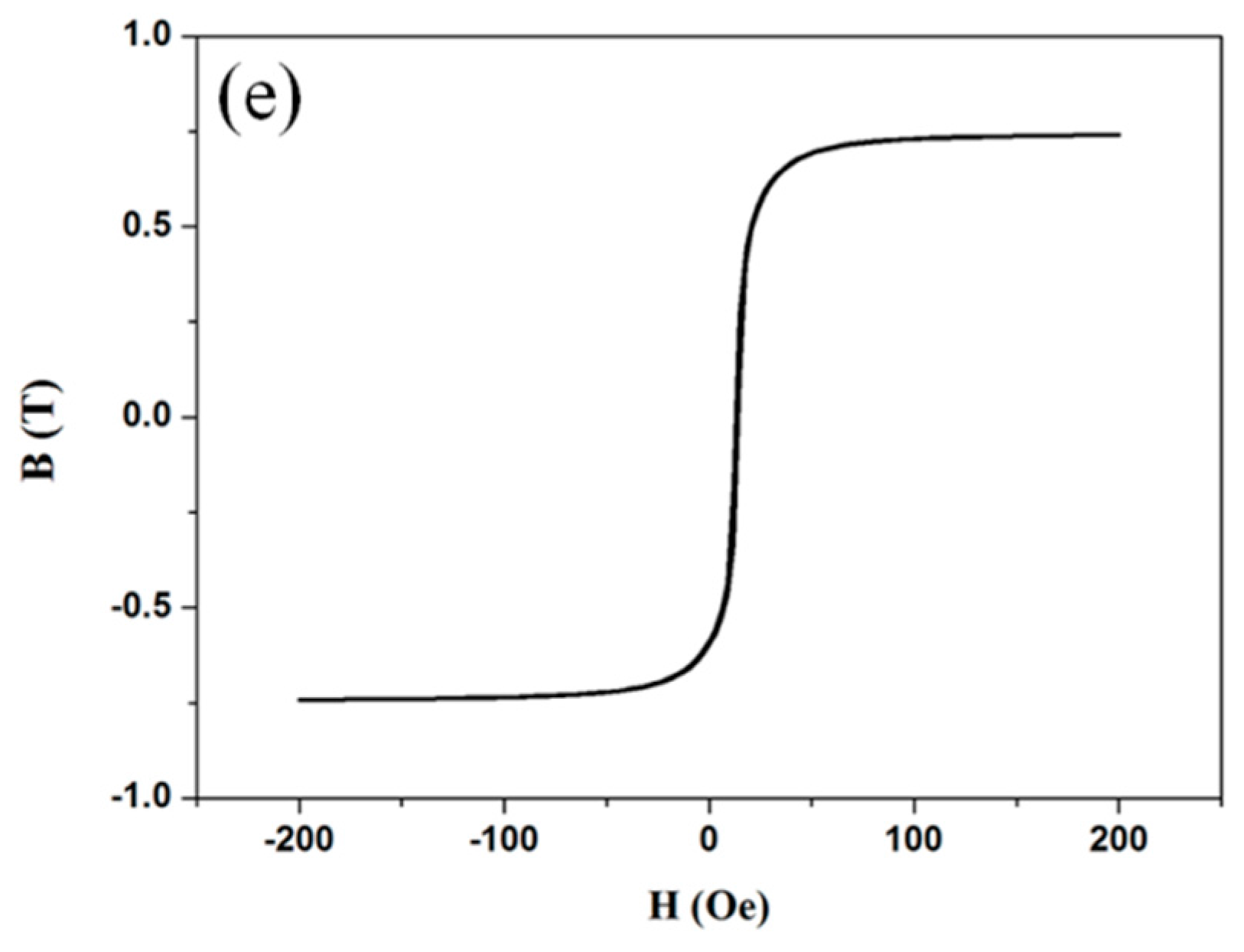

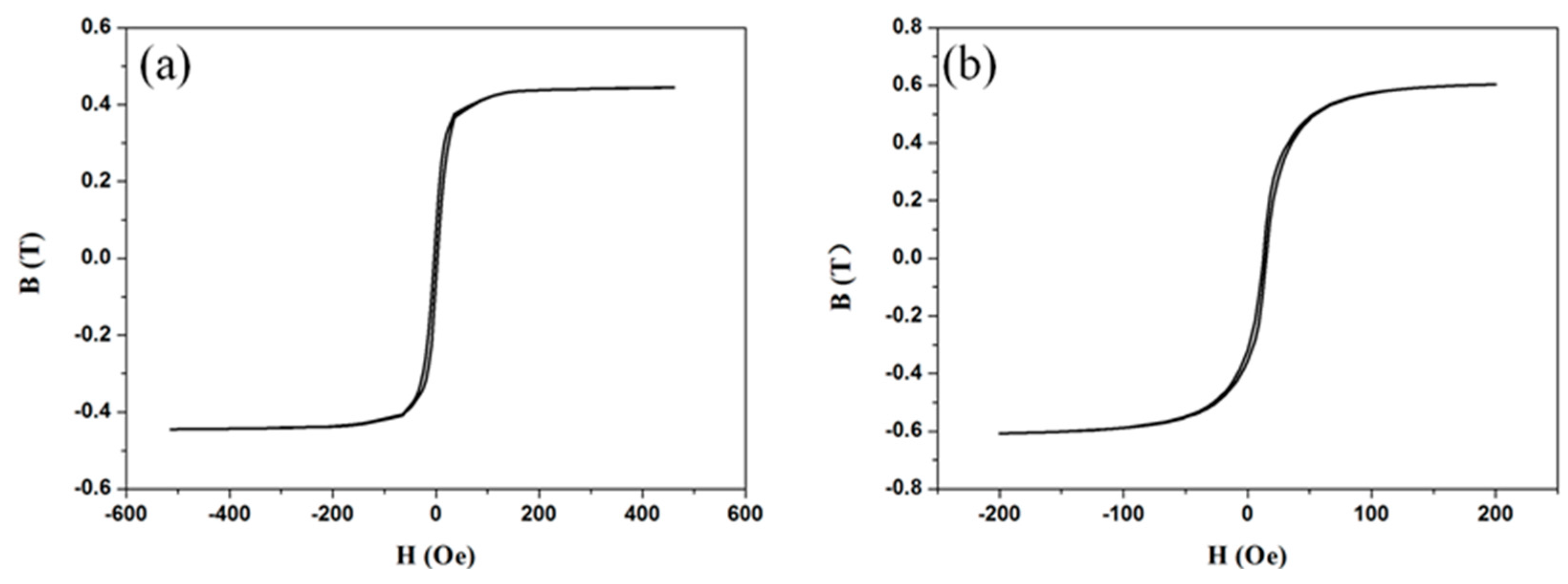

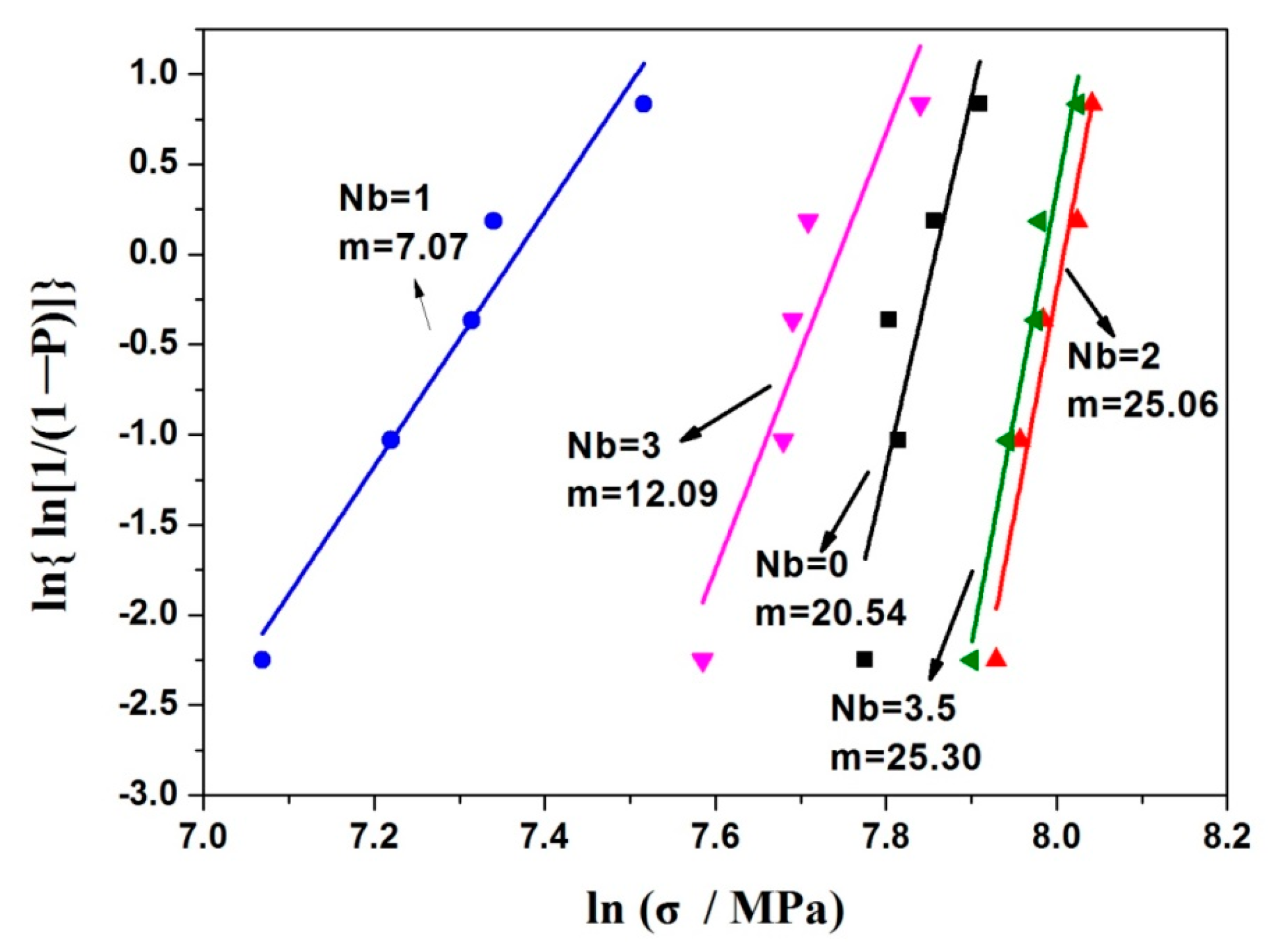

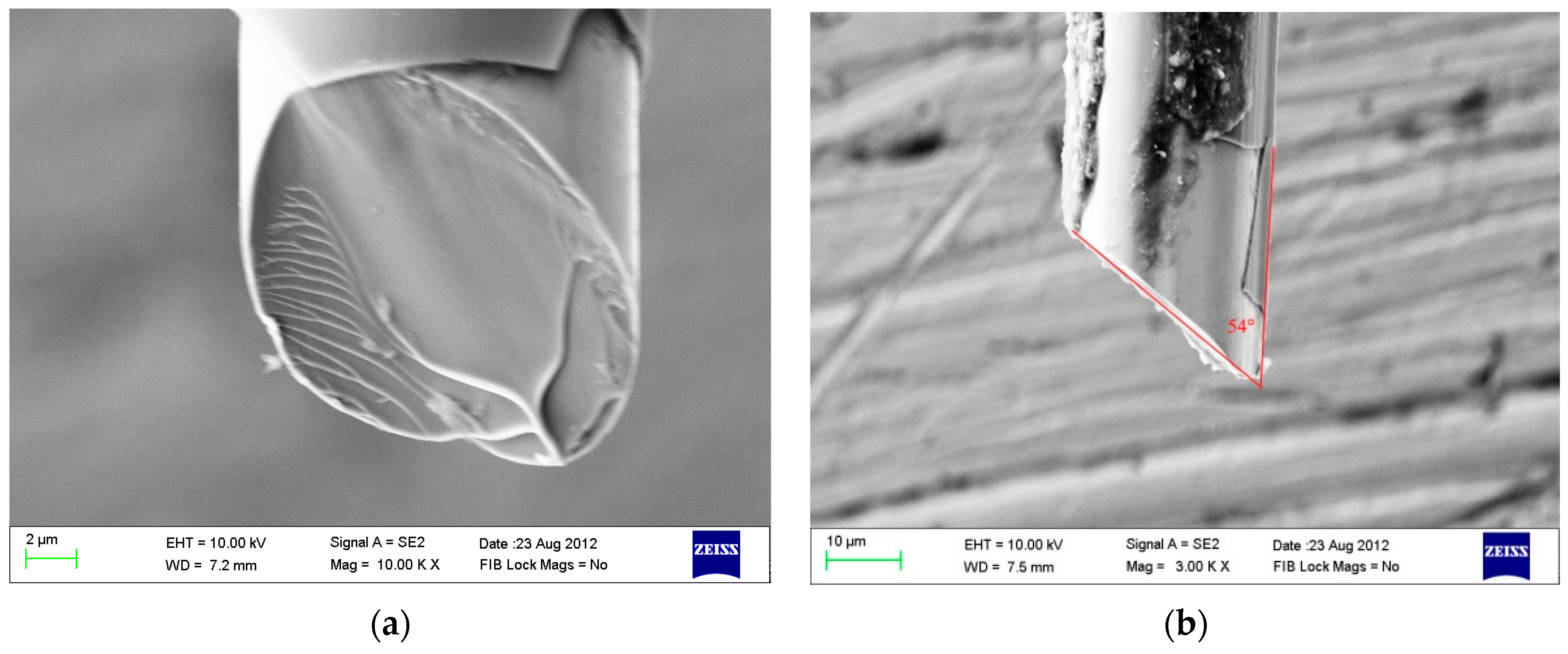

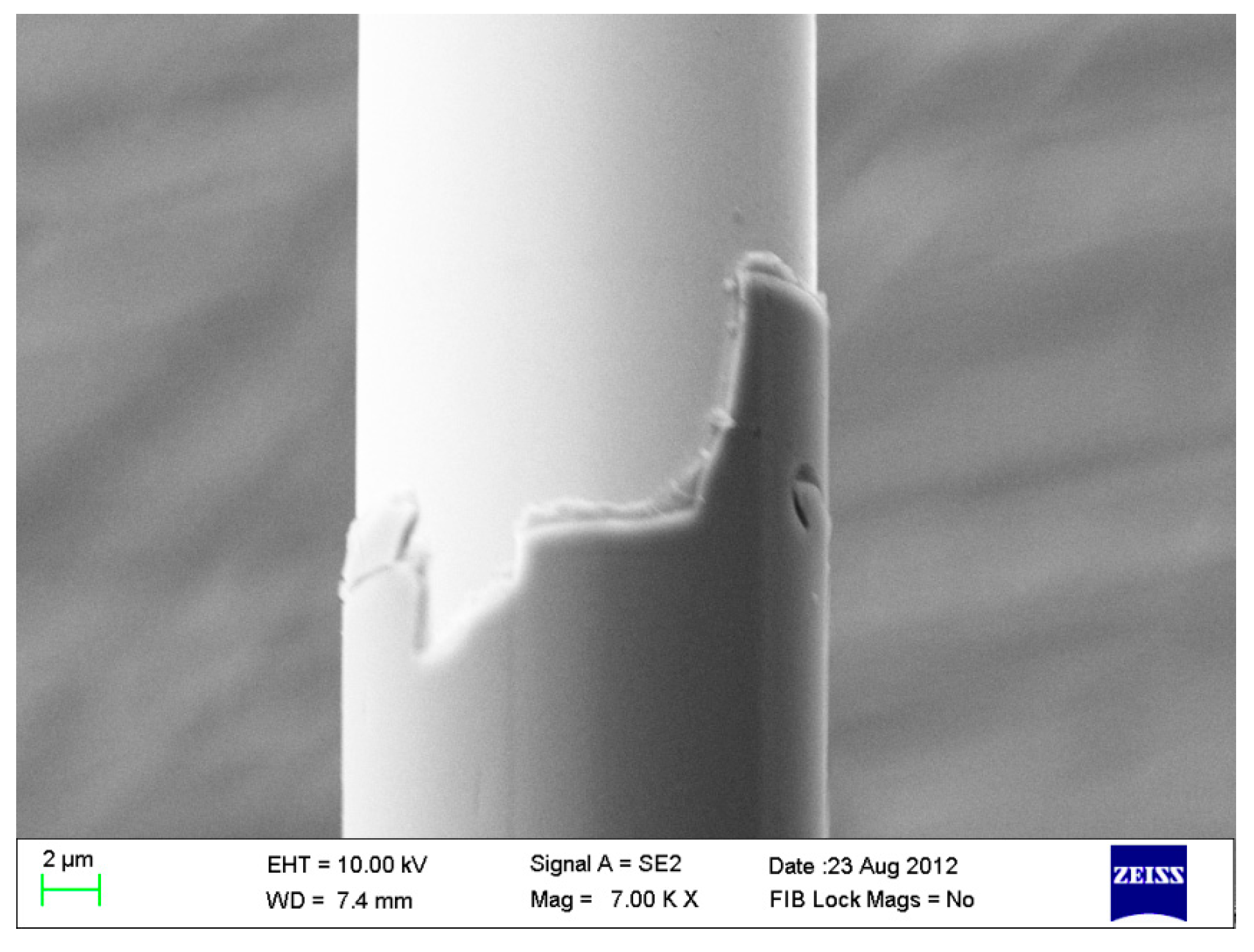

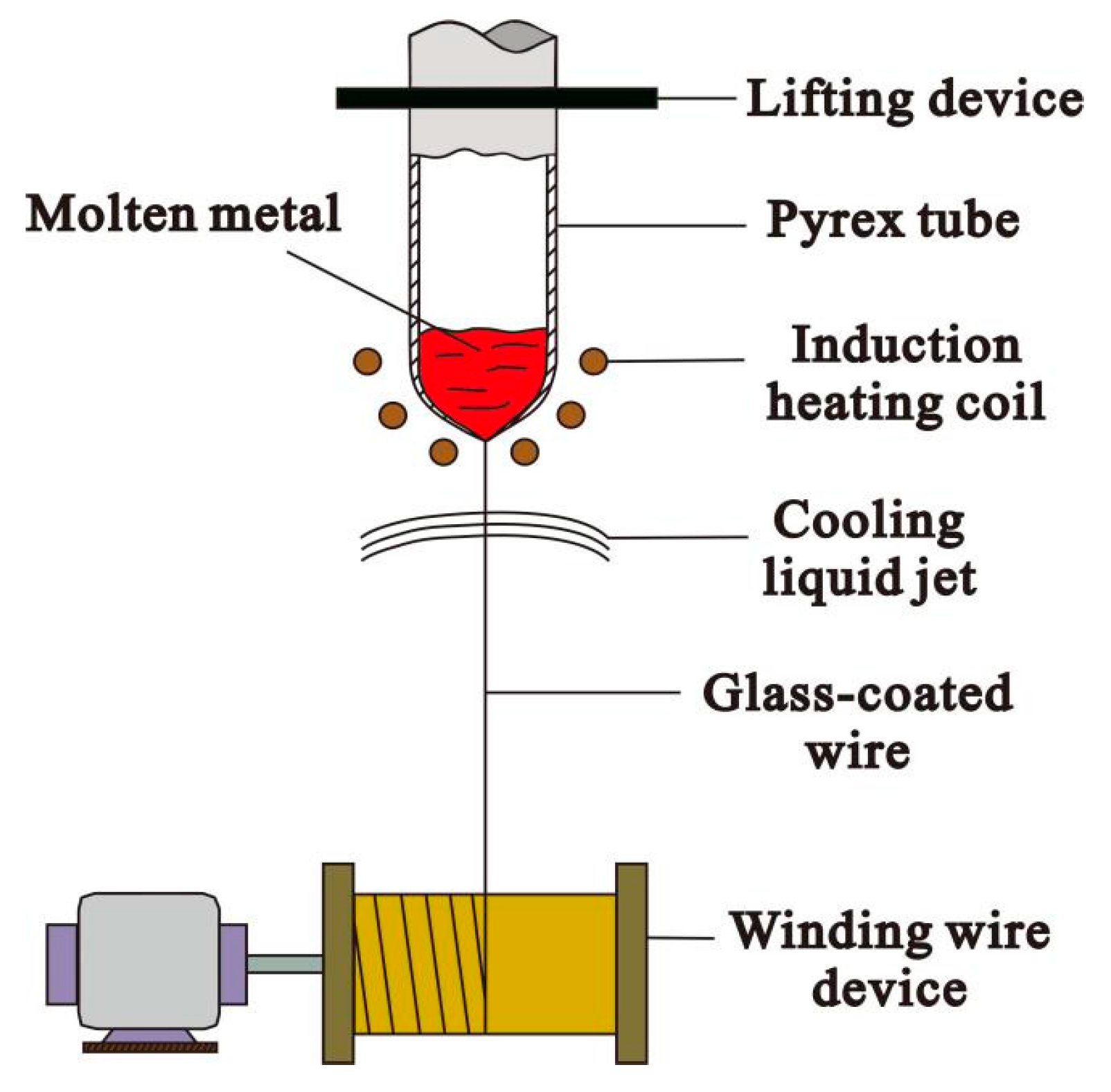

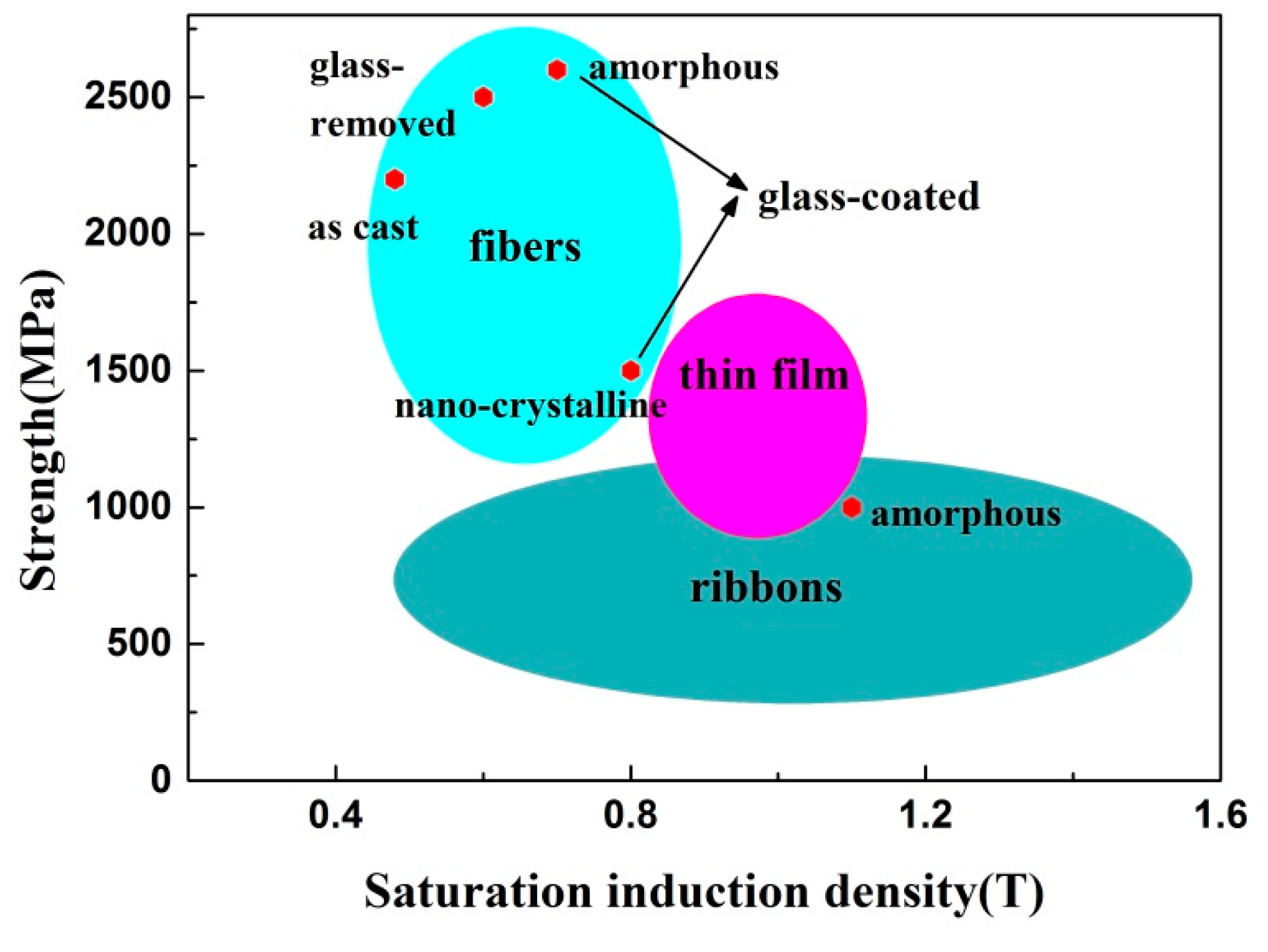

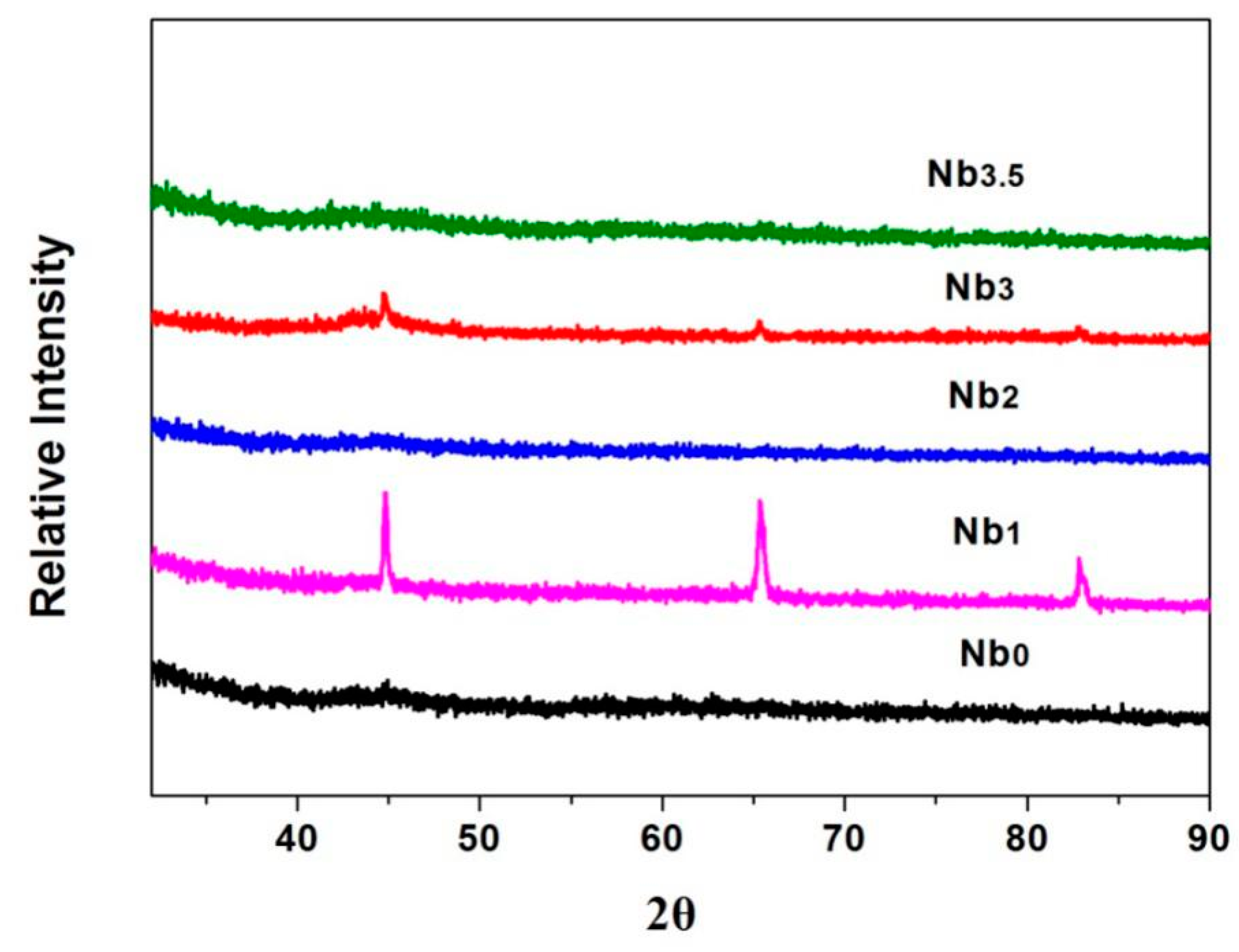

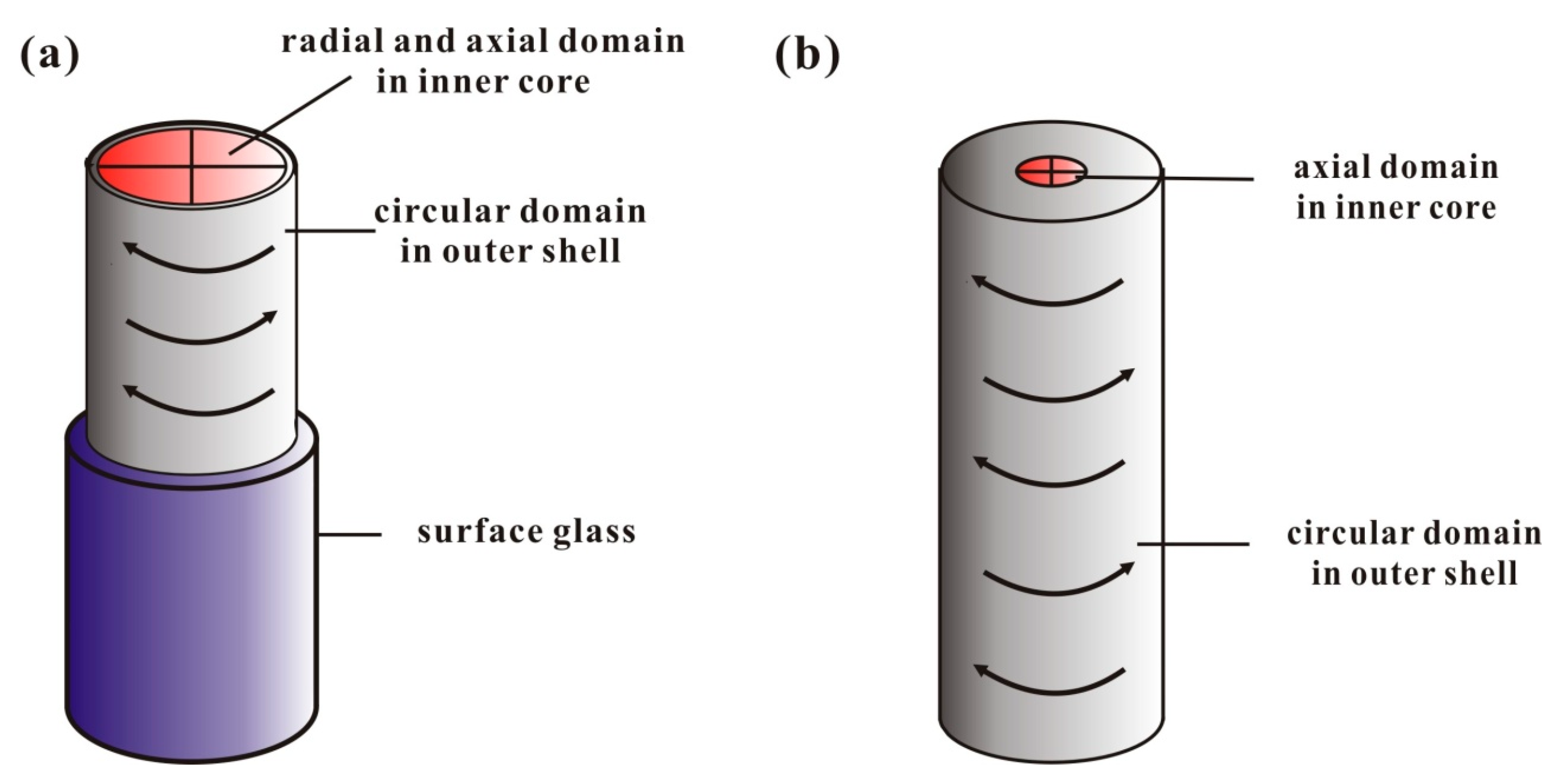

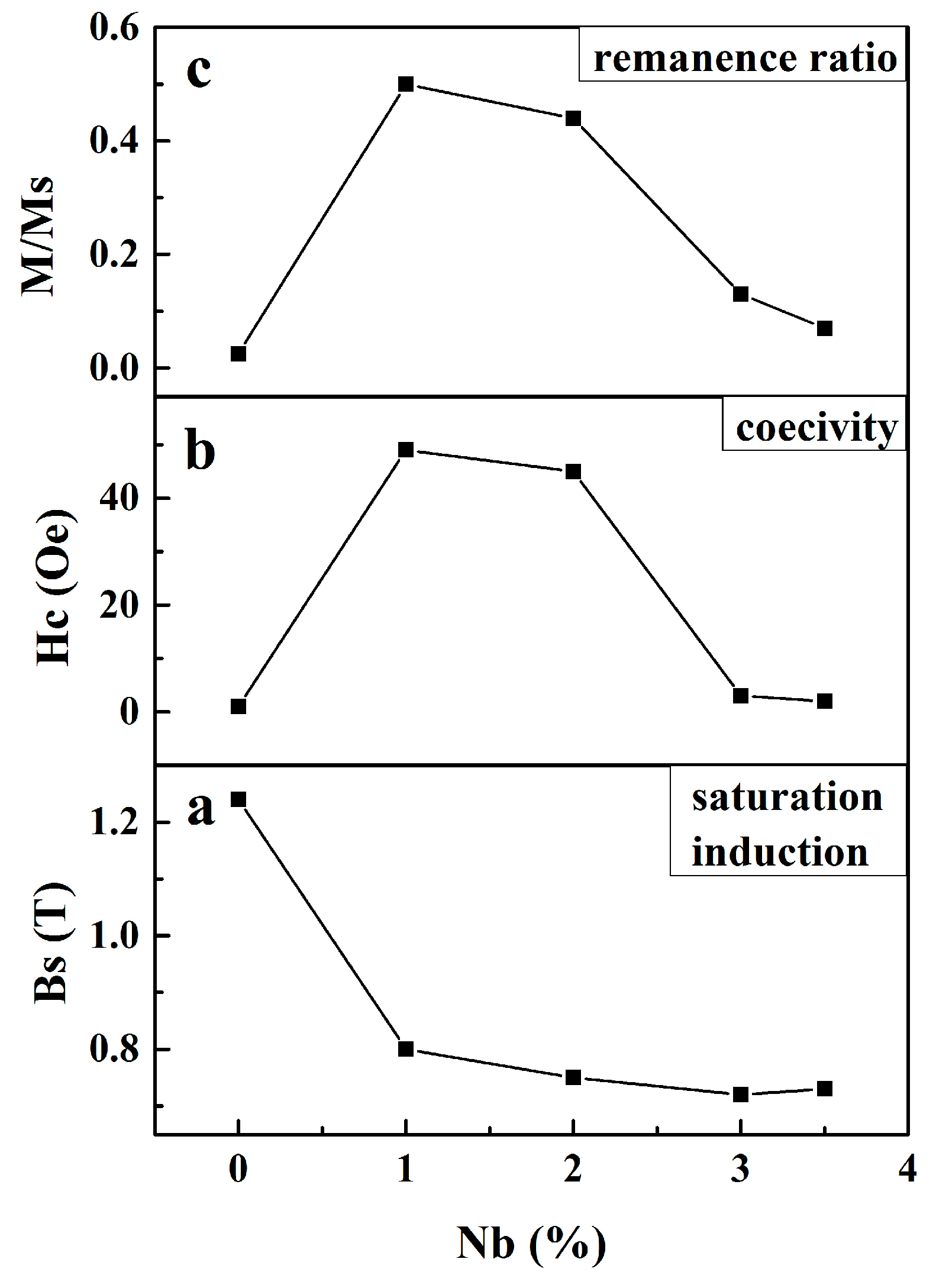

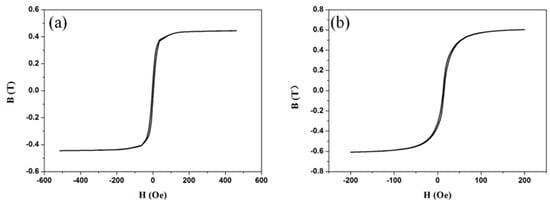

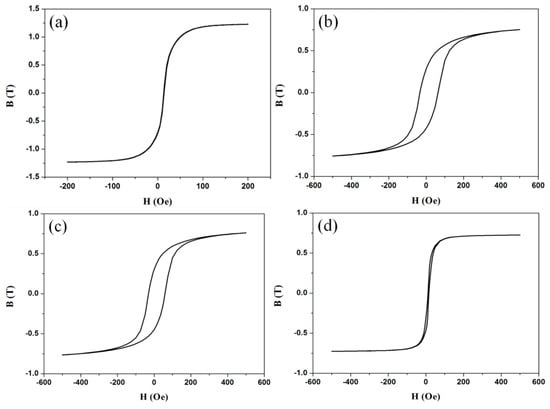

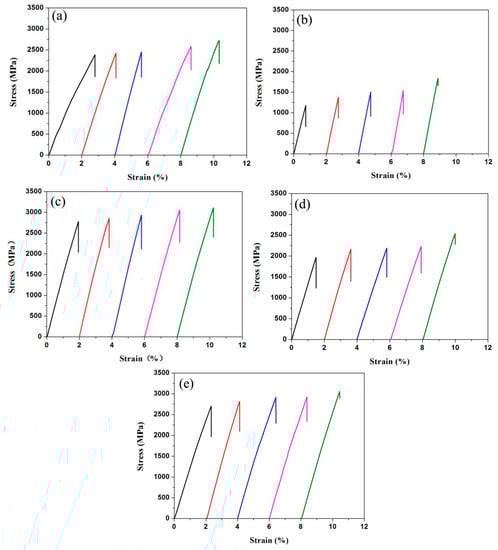

Glass-coated Fe76.5−xCu1NbxSi13.5B9 (x = 0, 1, 2, 3, 3.5) fibers were successfully fabricated by a modified Taylor method. The fibers showed circular morphology and smooth surface with different diameters. The mechanical properties of the fibers were evaluated and the Weibull statistical analysis has been introduced to characterize the strength reliability of the fibers, with the modulus m of the amorphous fibers reaching above 20. The magnetic properties were also studied. Lower coercivity was found for the fibers with amorphous, nanocrystalline, and microcrystalline structures rather than that for the coarse crystalline ones. The glass-coated FeCuNbSiB amorphous fibers have excellent comprehensive performance compared with the other kind of fibers. View Full-Text
Keywords: amorphous fibers; modified Taylor technique; mechanical properties; Weibull statistical analysis amorphous fibers; modified Taylor technique; mechanical properties; Weibull statistical analysis
Show Figures

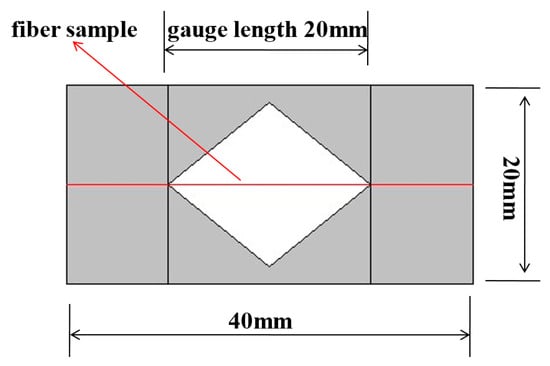

Figure 1

MDPI and ACS Style

Li, R.; Hao, H.; Zhao, Y.; Zhang, Y. Weibull Statistical Reliability Analysis of Mechanical and Magnetic Properties of FeCuNbxSiB Amorphous Fibers. Metals 2017, 7, 76. https://doi.org/10.3390/met7030076

AMA Style

Li R, Hao H, Zhao Y, Zhang Y. Weibull Statistical Reliability Analysis of Mechanical and Magnetic Properties of FeCuNbxSiB Amorphous Fibers. Metals. 2017; 7(3):76. https://doi.org/10.3390/met7030076

Chicago/Turabian Style

Li, Ruixuan; Hao, Haiying; Zhao, Yangyong; Zhang, Yong. 2017. "Weibull Statistical Reliability Analysis of Mechanical and Magnetic Properties of FeCuNbxSiB Amorphous Fibers" Metals 7, no. 3: 76. https://doi.org/10.3390/met7030076

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
