Impact of Diamond Indenter Sliding Velocity on Shear Deformation and Hardening of AISI 304 Steel Surface Layer in Nanostructuring Burnishing: Simulation and Experiment

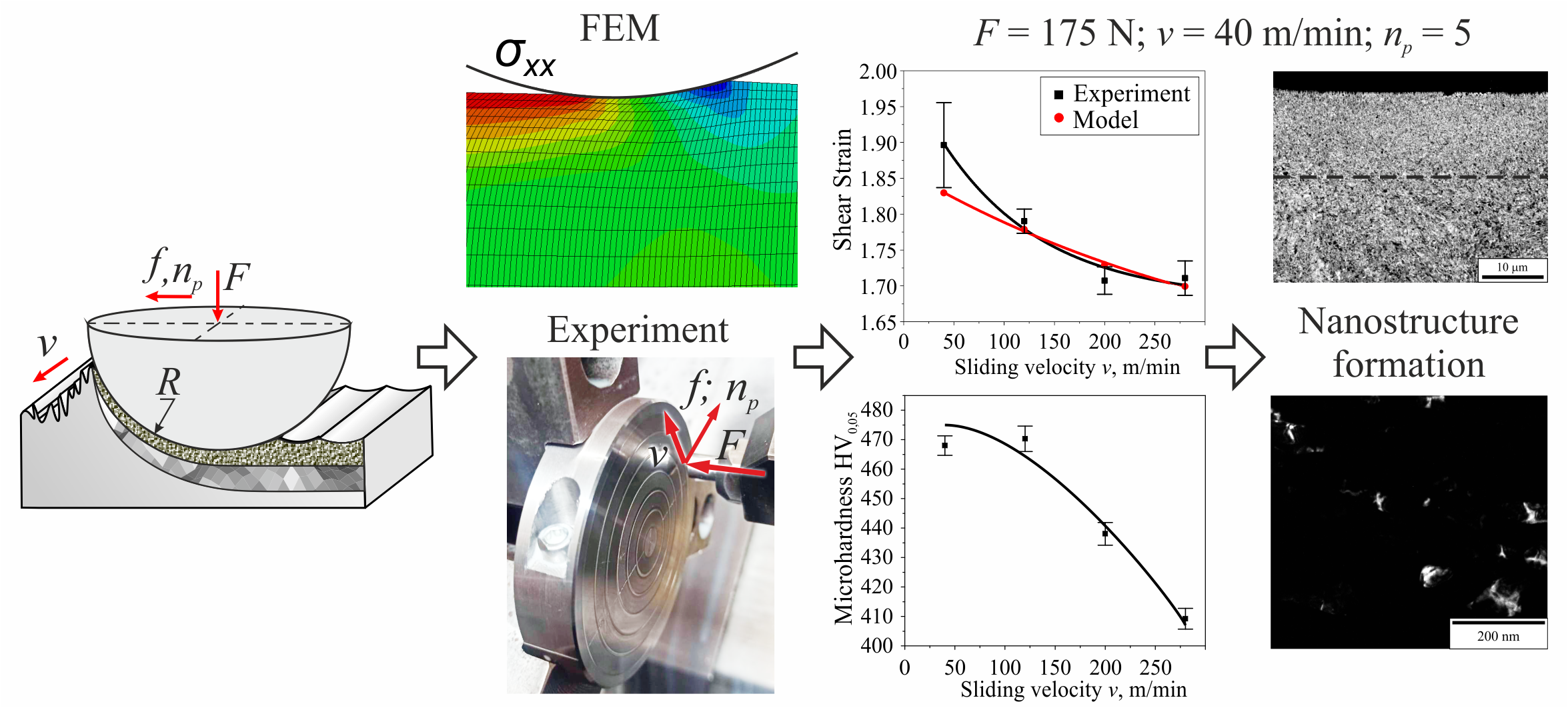

Abstract

This paper numerically and experimentally establishes a connection between shear deformation of the AISI 304 steel surface layer and the sliding velocity of a diamond indenter in multi-pass nanostructuring burnishing. Results of finite-element simulation of the process fully correspond to the experimental data obtained when changing the sliding velocity from 40 to 280 m/min after one and five tool passes. The experiment’s burnishing force was assumed to be 150 and 175 N, and feed was 0.025 mm/min. After surface machining, the maximum microhardness reached 400 HV_0.05 at the depth of 30 µm from the surface after five indenter passes with the sliding velocity values of 40 and 200 m/min and burnishing force of 175 N.

1. Introduction

Chrome–nickel-alloy austenitic steels—in particular, AISI 304 steel—are widely used in the chemical, oil and gas, and food industries owing to their high resistance to corrosion and workability. However, their significant downside is low durability which cannot be improved by thermal treatment. This significantly limits the usability of these steels in critical machine parts that work under increased friction and cyclic loads.

Study [1] analyzes the impact of diamond burnishing control parameters on microhardness of the surfaces of samples made of austenitic stainless steel AISI 304 in the delivery condition. Assessed parameters included burnishing force, feed rate, and sliding velocity of the diamond indenter. The planning of experimental process tests and regression analysis of the obtained results established that the maximum improvement of microhardness is achieved by increasing the burnishing force, which is connected with the expansion of equivalent plastic deformation in the surface layer. On the other hand, higher burnishing speeds decrease microhardness, which is caused by the rise of friction and temperature that make the material softer.

Authors of paper [2] utilized the 2D finite-element method to study the process of diamond burnishing of austenitic stainless steel X5CrNi18-10 (AISI 304) in the delivery condition by a hemispherical indenter. This study aimed to quantitatively analyze the impact of the burnishing force, feed, and indenter sliding speed on the depth of action of compressing normal stresses, width of shear stress zone, and maximum contact pressure. The researchers discovered that sliding velocity has a limited impact on the depth of stress activity. An increase in the burnishing force by 33%—from 30 N to 40 N—caused the contact pressure in the surface layer to rise by 20% on average.

R. Teimouri et al. [3] developed a multi-physical model to discover the main mechanism of surface layer hardening in roller burnishing of AISI 304 steel. They established that the biggest contribution to the hardening of the surface layer is made by twinning-induced hardening, whereas the burnishing force has the highest influence on the microhardness value and hardened layer depth. In the thin surface layer with a thickness of up to 0.1 mm, the plastic strain value can reach as high as 1.2–1.5 depending on the normal force value.

Study [4] quantitatively analyzes the impact of main parameters of roller burnishing on the formation of an isotropic topography in surfaces of cylindrical parts. It shows that said technology improves the surface quality and generates residual compressive stresses that increase wear resistance and operational life of parts under fatigue loads. The authors note that burnishing can be realized via turning centers using the maximum spindle rotation and feed speeds.

Article [5] demonstrates that the hardening of AISI 304 stainless austenitic steel can be achieved by a decrease in grain size, formation of dislocation substructure inside the grains, and deformation-induced martensitic transformation. Such hardening techniques are effectively used in modern severe plastic deformation (SPD) technologies that form fragmented, submicro- and nanocrystalline structures with improved service properties in the surface layer of austenitic steels. For example, sand blasting forms a nanostructured surface in metastable AISI 304 austenitic steel, as well as improves hardness, micromechanical properties, corrosion stability, and resistance to mechanical and corrosive wear [6].

Finish machining by nanostructuring burnishing is a promising industrial technology for production of parts with improved performance characteristics by SPD realized on high-yield turn-milling centers. Nanostructuring burnishing by a sliding diamond indenter of corrosion-resistant martensite steel (steel X20Cr13) not only provides for effective hardening of the surface layer with a nanocrystalline structure, but also achieves a nanometer range of the roughness parameter Ra ≤ 0.1 µm. Nanostructuring burnishing by an indenter made of dense boron nitride (DBN) forms on the surface of cemented steel X20Cr a layer with a nanocrystalline structure, improved durability, thermal resistance, and wear resistance. In the cases under study, hardened surface layers were also characterized by significant (up to −750…−1500 MPa) compressive stresses [7].

Work [7] by V.P. Kuznetsov theoretically and experimentally demonstrates that fragmentation of microstructure to a nanocrystalline state during nanostructuring burnishing occurs due to multiple consequent compressive deformation and simple shears of elementary volumes of the surface layer material. The degree of true shear deformation ε during nanocrystallization must be more than 1. It is recommended to keep the tool sliding velocity in the range of warm deformation of the hardened material.

In paper [8], the researchers experimentally determined optimal parameter combinations for nanostructuring burnishing by a diamond tool with the radius of 2 mm by the criteria of surface layer microhardness of an AISI 304 steel shaft with the diameter of 28 mm. The burnishing force was set at 125, 150, and 175 N, the feed at 0.01, 0.025, and 0.04 mm/rev, and the number of passes at 1, 3, and 5. The maximum microhardness HV_0.025 was obtained at burnishing force 150 N and feed rate 0.025 mm/rev with five passes. The burnishing speed in this experiment was 80 m/min. However, there are practically no studies of the influence of the burnishing process parameters on the development of plastic deformation, nanostructuring, and properties of austenitic stainless steels at higher diamond tool speeds.

Experimental studies of the nanostructuring burnishing process demonstrate its high effectiveness, although to optimize the process parameters, a deep understanding of stress distribution, deformations, and contact zone temperature is required. Numerical models allow the researchers to analyze the influence of burnishing process mechanics (normal force, sliding velocity, tool geometry, and friction force) on the distribution of deformations and stresses in the hardened surface layer, as well as the temperature in the contact zone and by depth.

Becerra-Becerra et al. [9] provide a review of studies focused on numerical simulation of spherical burnishing of steel and alloy surfaces. This process is shown to be complex, if all of the involved parameters are taken into account. The most widely used programs for FEM burnishing process simulation are ABAQUS (38%) and ANSYS (17%). In simulations, most machined materials are assumed to be elastic–plastic, and their behavior is described by the empirical relationships, e.g., the Johnson–Cook model. A spherical ball tool is mostly assumed to be a rigid body. This review underlines that there are practically no experimental studies of plastic deformation that would confirm the adequacy of results of the finite-element simulation of a diamond burnishing process.

Calculations are accelerated using 2D numerical models. This facilitates calculation by utilizing the symmetry principle and conditions of plane deformation in uniform isotropic materials. In particular, a 2D numerical model was used to assess the influence of technological parameters and coefficient of friction on the change of stresses and deformation by the surface layer depth in nanostructuring burnishing of X20Cr steel after a chemical and heat treatment [10]. Two-dimensional modeling enables the user to study the distribution of stresses and deformations in sub-surface layers with large spatial resolution. Dynamic load by a sliding indenter was demonstrated to generate exclusively non-uniform fields of plastic deformation and stresses by depth. Higher coefficients of friction also foster the accumulation of plastic deformation in the surface layer.

Study [11] included 2D finite-element modeling and laboratory experiments that aimed to investigate the burnishing of AISI 304 steel surface layer. The authors analyzed the force impact of 20, 40, and 100 N. The results demonstrate a correspondence of the model to the residual stress values that were measured experimentally. It is stated that the level of accuracy provided by 2D modeling is generally acceptable. The mean difference of results was only 13%.

Studies of diamond burnishing that use 3D simulation require large amounts of elements and time and are generally used for analysis of surface roughness and residual stresses.

Article [12] states that the finite-element method (FEM) is a powerful tool for diamond burnishing (DB) process studies. The deformation of the machined surface is thermal and mechanical in nature, which must be considered when choosing a suitable finite-element model. Friction and plastic deformation heat result in softening which causes a change in the stress-deformed state in the tool contact zone. This paper demonstrated that DB creates a very high deformation gradient in the normal direction. Because of this, it is necessary to form an extremely fine calculation grid adjacent to the machined surface. As the density of the heat flux created by the sliding friction rises in direct proportion to the burnishing speed, a simpler finite-element model is justified when the sliding velocity is lower than 80–90 m/min and the temperature effect can be disregarded. It is also necessary to check the results of FE-modeling by comparing them to the experimental results.

J. Maximov et al. [13] presented an economically efficient optimization solution built on the correlation between DB operational parameters (sliding speed, force, and tool feed), surface roughness aspects (Ra, Rsk, and Rku), and microhardness HV of the AISI 304 steel.

Article [14] studies the effect of lubricating and cooling conditions in diamond burnishing of the AISI 304 steel on surface parameters and fatigue limits. Four modes were compared as follows: flood lubrication, dry burnishing without cooling, dry burnishing with air cooling at −19 °C, and dry burnishing with nitrogen cooling at −31 °C. In all of the modes, mirror-finished surfaces were obtained (Ra ~ 0.04 µm), compressive stresses were formed at depths exceeding 0.5 mm, and the samples’ fatigue limits surpassed those of the surfaces initially machined by cutting. Dry burnishing in all of the machining modes formed micro-grained and sub-microcrystalline structures in the surface layers, characterized by high defect densities, presenting the best balance of surface quality and wear resistance enhancement.

In study [15], the finite-element method was enhanced using a mesoscopic method of discrete cell complexes to analyze the microstructure topology evolution of pure copper under SPD. This combination of two methods allowed the researchers to use equivalent plastic deformation obtained after finite-element modeling to analyze the changes in characteristics of the grain boundary network in the representative volume element of a polycrystal. This approach shows promise for analysis of the possibility to obtain a nanocrystalline state in intensive plastic deformation.

A finite-element 3D model of slide burnishing applied to the X6CrNiTi18 stainless steel in the explicit module of the Abaqus/CAE 2021 software was created in [16]. The authors analyzed consequent passes of a semi-spherical tool with a radius of 3 mm, in particular—the change of PEEQ-equivalent plastic deformations, interpreting the S11 stress component as residual stresses in the surface layer. This article established a connection between the plastic deformation experienced by one of the zones with the used burnishing forces of 90 N and 300 N, expressly stating that no significant impact of the feed on the distribution of residual stresses was observed.

Thus, as of this moment, there are no published numerical and experimental studies of AISI 304 steel at high speeds of friction burnishing by a diamond indenter that results in the formation of a nanostructured surface layer.

This work aims to assess the possibility of using numerical simulation of nanostructuring burnishing to forecast the influence of the sliding velocity and number of passes of the diamond indenter on the degree of plastic shear deformation that achieves a nanocrystalline state and hardens the surface layer of AISI 304 steel.

2. Materials and Methods

2.1. Materials

This work focused on studying the effect of hardening of AISI 304 steel. The chemical composition of the used AISI 304 steel was C: 0.07%; Si: 1.0%; Mn: 2.0%; Ni: 9.555%; S: 0.02%; P: 0.045%; and Cr: 17.824%. The hardness of the steel upon delivery was measured at ~130 HB. Disk-shaped workpieces with a diameter of 100 mm and thickness of 25 mm were subjected to heat treatment at 1050 °C for one hour and quenched in water. The hardness of the material after the heat treatment increased to 167 HB. Thereafter, flat surfaces of the disks were machined by finish turning using a Takisawa EX 300 (Takisawa Machine Tool Co., Ltd., Saitama, Japan) center. This produced surfaces with a roughness Ra of 0.268 µm. Subsequent nanostructuring burnishing was conducted without sample re-setups using a tool equipped with an artificial diamond hemispherical indenter with a radius of 2 mm.

2.2. Material Model of AISI 304 Steel in Burnishing

2.2.1. Formulating Modeling Objectives

The description of mechanical and thermal response of AISI 304 steel in finite-element modeling of the burnishing process used the Johnson–Cook model [17], which is widely used in modeling of mechanical machining of metallic materials.

In the Johnson–Cook model, the flow stress equation is presented as follows:

$$\mathsf{\sigma }=\left(A+B{\mathsf{\epsilon }}^n\right)\left(1+C\ln {\dot{\mathsf{\epsilon }}}^{*}\right)\left(1-T^{*m}\right),$$

(1)

where ε is the equivalent plastic strain; ${\dot{\mathsf{\epsilon }}}^{*}=\dot{\mathsf{\epsilon }}/{\dot{\mathsf{\epsilon }}}_0$ is the dimensionless strain rate; ${\dot{\mathsf{\epsilon }}}_0$ is the characteristic strain rate at which the model parameters are defined (in Johnson’s and Cook’s original articles and in many other works it is assumed that ${\dot{\mathsf{\epsilon }}}_0=1$ s⁻¹); $T^{*}=\left(T-T_r\right)/\left(T_m-T_r\right)$ is homologous temperature; T_r is the characteristic temperature at which the model parameters are determined (usually a room temperature); and T_m is the melting temperature.

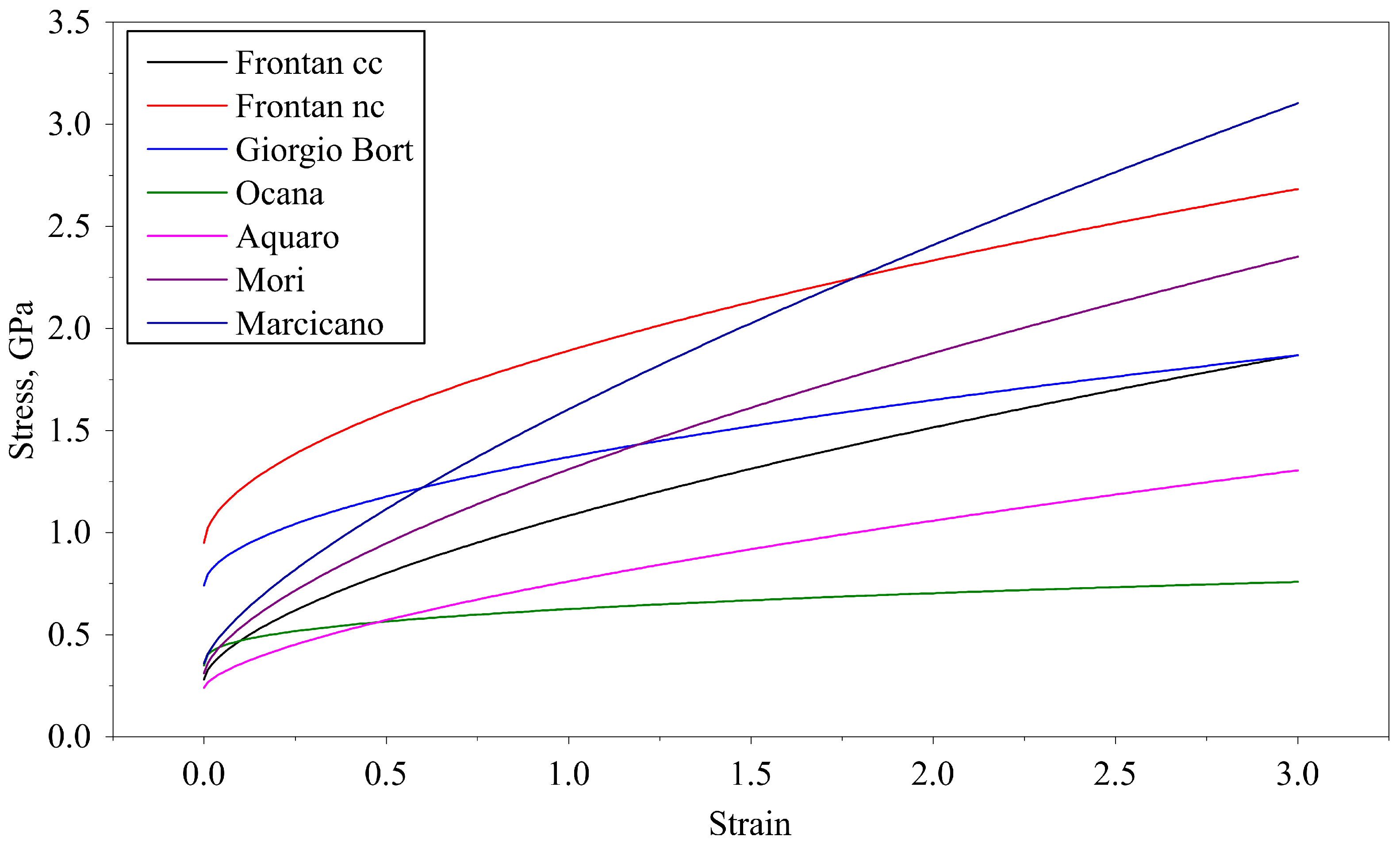

Figure 1 demonstrates the plots of strain hardening curves corresponding to values of Johnson–Cook model parameters for AISI 304 steel according to a literature review of papers [18,19,20,21,22,23,24]. It is evident that the values of parameters and appearance of the curves are substantially different. Notice that only Frontán et al. [18] state that different parameter values correspond to steels with different grain sizes—from nanocrystalline (nc) to coarse-crystalline (cc). Other studies do not provide any specific information on the state and possible preliminary machining of the steel. Data from the work by Frontán et al. [18] for coarse-crystalline steel were also used in article [19] and are very close to data from [23]. It is worth noting that temperature softening was not used in [18], but the value for the thermal softening exponent m in [19,23] is the same. In our case, the chemical composition and initial grain size match the corresponding values for [19,23] and Frontán et al. [18] with coarse-crystalline structure. This is why we decided to use, for our simulation, the data close to the ones in [19,23] and coarse-crystalline steel in [18]. The data we used are presented in Table 1.

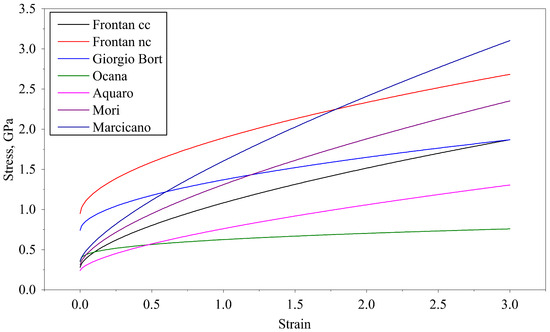

Figure 1. Stress–strain curves of AISI 304 steel at room temperature using the Johnson–Cook model according to various literary sources.

Table 1. Johnson–Cook model parameters for AISI 304 steel.

A, MPa	B, MPa	n	m	C	Tr, °C	Tm, °C
280	802.5	0.622	1.0	0.0799	20	1400

The second objective that we aimed to achieve when determining the parameters of constitutive relations was discovering temperature dependencies of physical and mechanical characteristics of AISI 304 steel. This is due to the fact that in burnishing under friction-force impact and extensive plastic deformation, the temperature increase may reach hundreds of degrees. Hence, to obtain correct results, it is necessary to consider the dependency of properties on the temperature.

The scientific literature provides various data on temperature dependencies of physical and mechanical parameters. Articles often present temperature dependencies in the form of plots. However, they have to be digitized to be used in calculations, which inevitably decreases their accuracy. Tabulated values of density, elastic moduli, and other physical parameters of AISI 304 steel depending on the temperature were provided only in article [25]. It presents data for five temperature values in the range of 20 to 800 °C (Table 2).

Table 2. Dependency of AISI 304 thermal and mechanical parameters on temperature.

Parameter	Temperature, °C
	20	200	400	600	800
Density, kg/m3	8010	7931	7840	7755	7667
Young’s modulus, GPa	199	180	166	150	125
Poisson’s ratio	0.28	0.28	0.28	0.28	0.28
Coefficient of linear thermal expansion, °C−1 × 10−6	16.0	17.2	18.2	18.6	19.5
Specific heat capacity, J/(kg × °C)	500	544.3	582	634	686
Thermal conductivity, W/(m × °C)	15.26	17.6	20.2	22.8	25.4

To investigate how differences in temperature dependencies of properties influence the simulation results, we compared results of a calculation that used digitized plot data from article [26] with results of a calculation that used numeric data from work [25]. This comparison showed that the differences in stress-deformation state parameters do not exceed 2%. As a result, we decided to use the tabulated data from article [25] (Table 2).

2.2.2. Formulating Simulation Tasks

For finite-element simulation of a stress-deformation state of surface layer material during burnishing in the ABAQUS finite-element analysis software, we formulated a two-dimensional coupled thermal–elastic–plastic problem under plane deformation conditions. We used the code ABAQUS/Explicit which enables quasi-static modeling using explicit dynamics in case of complex constitutive relations and contact conditions using computational special considerations.

Each indenter pass was simulated in two stages. The first stage concerned the pressing of the indenter into the sample surface under constant burnishing force. The second stage modeled the sliding of the indenter on the machined surface at the set sliding speed under burnishing force. The density of the calculation grid was defined by applied loads and boundary conditions. Since burnishing leads to extensive deformation, emergence of stresses, and rise of temperatures in the indenter-material contact zone, we used a fine calculation grid in the sub-surface area. Further from this stress zone, temperature gradients become insignificant, which allows for the use of a coarser grid. To obtain results that would not depend on the grid density, we conducted test calculations of grid convergence for distribution of stresses and equivalent plastic deformations in the site of deformation.

The indenter was considered a rigid body with a shape defined by an analytical surface in the form of a partial circumference with the radius of 2 mm. Natural diamond was adopted for the indenter’s material.

To account for heat removal in the indenter, we specified its point heat capacitance of 0.0589 J/K (specific heat capacity of diamond cp = 502 J/(kg × K), sphere volume V = (4/3)π × r³ = 33.5 × 10⁻⁹ m³, density ρ = 3500 kg/m³, and C = ρ × V × cp = 0.0589 J/K).

To imitate a contact with Coulomb friction between the indenter and machined material, we assumed a “surface-to-surface”-type contact. Considering the indenter material and conditions of use of cooling lubricants, based on the experimental investigation of the process, the coefficient of friction was assumed to be 0.07. To account for heat removal with the use of cooling lubricants in the upper section of the analyzed area, heat transfer coefficient was assumed to be 5000 W/(m²K).

A finite-element model with the set boundary conditions is presented in Figure 2.

Figure 2. Finite-element model with boundary conditions.

2.3. Experimental Study of the Process

In the experimental study, we implemented nanostructuring burnishing of AISI 304 steel in the annealed condition (~130 HB) by a spherical tool with the radius of 2 mm made of synthetic diamond.

The initial experimental process study aiming to determine the coefficient of friction in the contact of a hemispherical indenter with a radius of 2 mm and the surface of a disk with a diameter of 100 mm made of AISI 304 steel using a Kistler 9257BA dynamometer (Kistler, Winterthur, Switzerland). The measurement diagram and a test of contact forces in the burnishing of the disk surface on a KNUTH V-TURN 410 machine (KNUTH Machine Tools, Wasbek, Germany) using the Kistler dynamometer are presented in Figure 3.

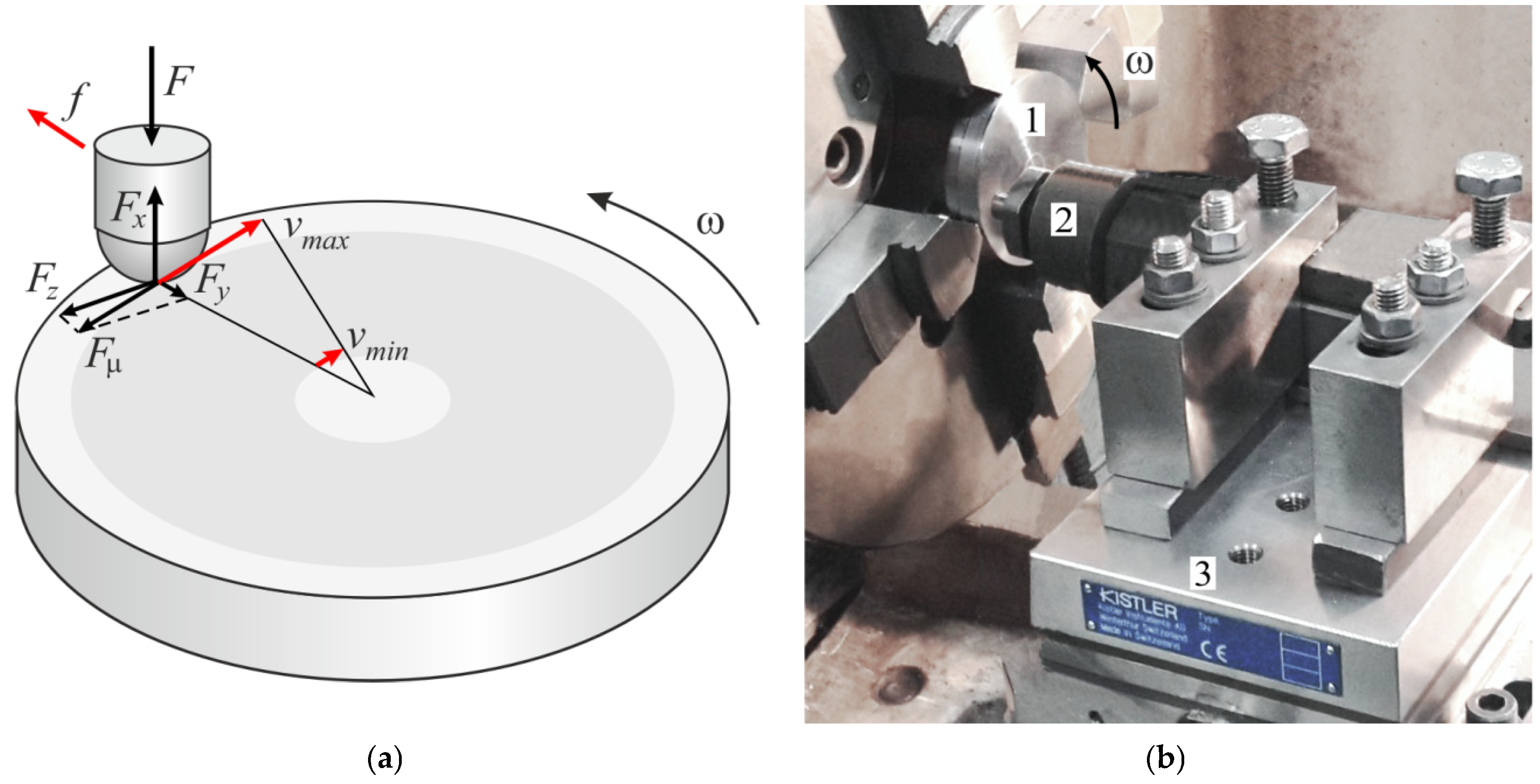

Figure 3. The scheme (a) and the photo (b) of the experimental study of contact forces in disk surface burnishing on a KNUTH V-TURN 410 machine using a Kistler 9257BA dynamometer: F—normal force, f—feed, F_µ—force of friction, v—linear sliding velocity of the indenter, ω—spindle rotation frequency, 1—machined part, 2—burnishing tool, and 3—dynamometer.

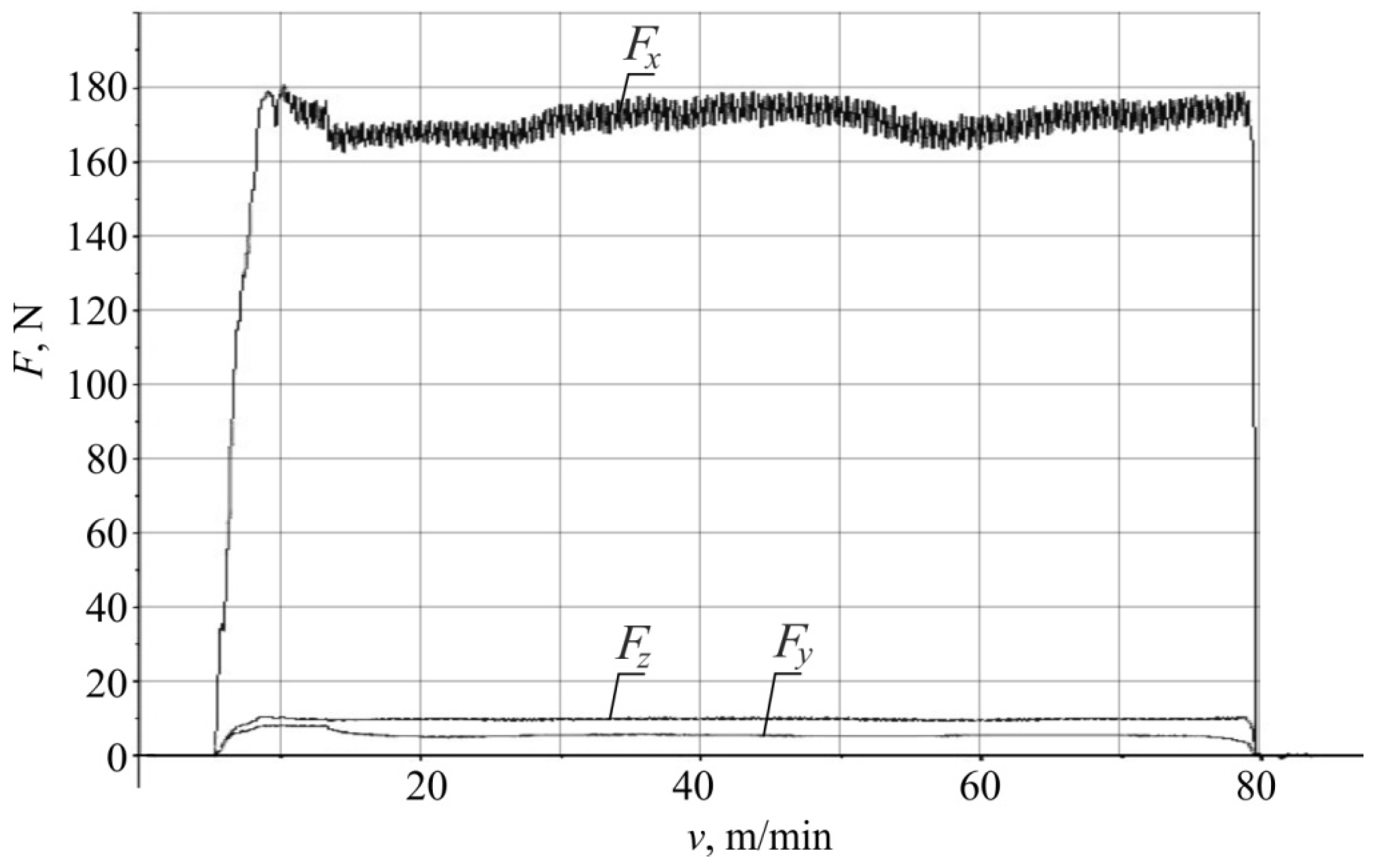

Obtained contact force values F_x, F_y, and F_z are shown in Figure 4.

Figure 4. Contact forces in nanostructuring burnishing of an AISI 304 steel disk using a hemispherical indenter with a radius of 2 mm and an increased sliding speed of 80 m/min.

Considering the dynamometry test results, the coefficient of friction in the indenter tool contact was calculated using the following equation:

$$\mathrm{\mu }={\displaystyle \frac{\sqrt{F_y^2+F_z^2}}{F_x}},$$

(2)

where F_x—normal contact force, and F_y and F_z—components of the directed friction force: feed and burnishing speed, respectively.

If the burnishing speed v falls below 15 m/min, it causes an instability of contact forces and the coefficient of friction µ. Further increasing the speed v up to 80 m/min barely causes any friction coefficient fluctuation, whose value, according to the Equation (2), if F_x = 175 N, F_z = 10.9 N, and F_y = 6.1 N, is µ = 0.071.

These results align well with those obtained in a study by J. Maximov et al. [27] that established through experiment and an ANOVA regression analysis that the indenter radius and burnishing force have the most significant impact on the coefficient of friction in low-alloy unhardened steel burnishing; furthermore, the impact of the sliding speed and feed was demonstrated to be low.

To establish the connection of plastic deformation in the AISI 304 steel surface layer with the tool’s sliding speed and number of passes in nanostructuring burnishing, we used custom split-type “disk” samples. This experiment technique for studying accumulated deformations in burnishing using flat cut samples was developed by the authors and tested in application to AISI 52100 steel surfaces [28].

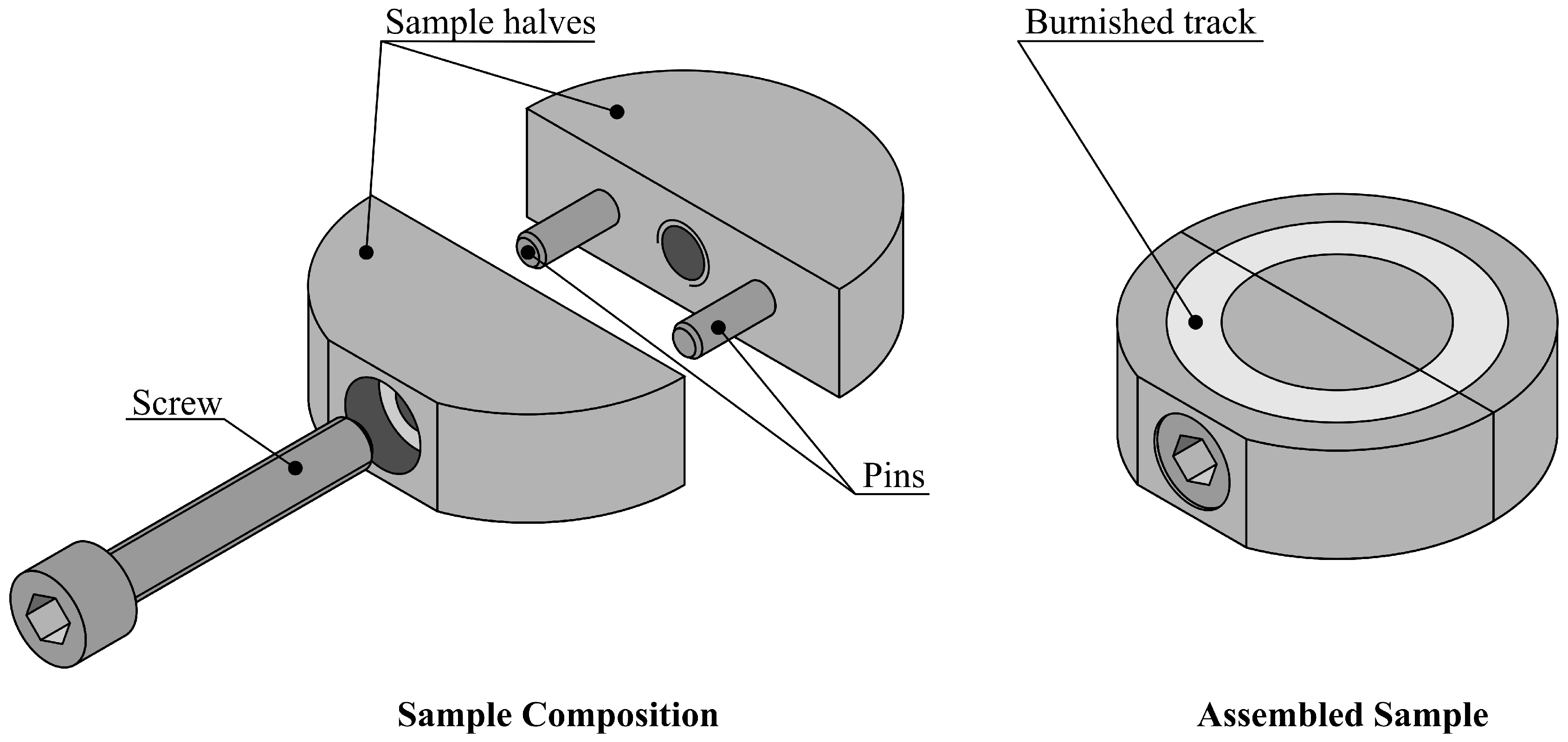

A cut sample (Figure 5) is a disk cut in halves along the central axis and re-assembled using two pins and a screw. To provide for tight connection, the contact surfaces of the sample halves are subjected to lapping on a plate using diamond pastes with the grain size from 80 to 5 µm.

Figure 5. Composition of split-type samples.

Before nanostructuring burnishing, assembled samples are subjected to finish turning that removes a layer of approx. 100 µm. After this, with no re-setups, nanostructuring burnishing of tracks with the width of 8 mm is realized so as to form three tracks on each side of the sample (Figure 6). Nanostructuring burnishing was carried out at the normal force of 175 N and feed of 0.025 mm/rev. The sliding velocity was set at 40, 120, 200, and 280 m/min. The number of tool passes was 1 and 5.

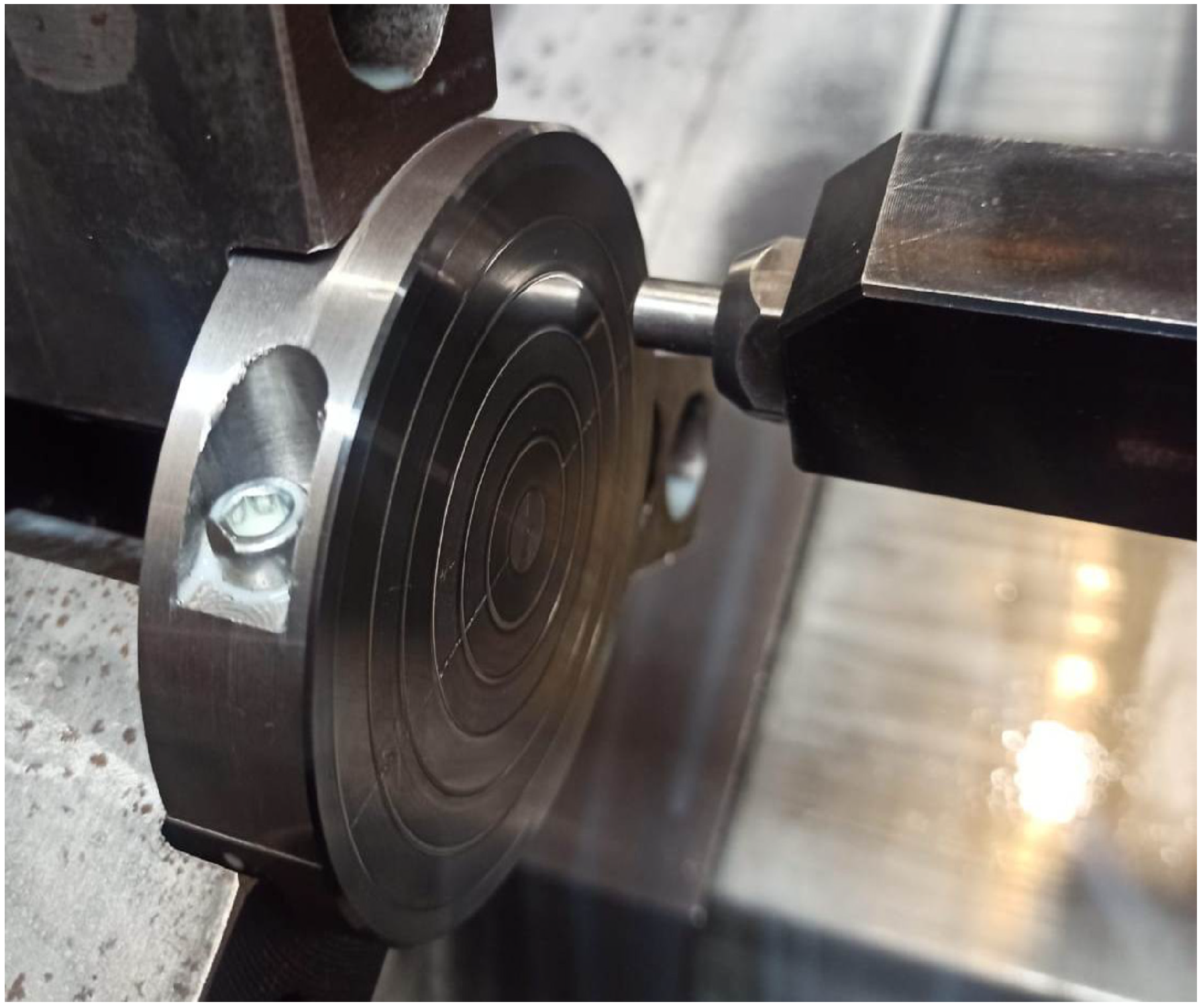

Figure 6. Nanostructuring burnishing of the surface of a cut sample made of AISI 304 steel on a Takisawa CNC center.

To measure the degree of the accumulated shear deformation of the surface layer material after nanostructuring burnishing, we disassembled the cut samples. After that, we observed, depending on the direction of the indenter movement, material dents and material burrs on the contact surfaces of each of the halves in the cross-section of burnished tracks (Figure 7). Notwithstanding, burr and dent profiles are similar and can both be used to detect deformation.

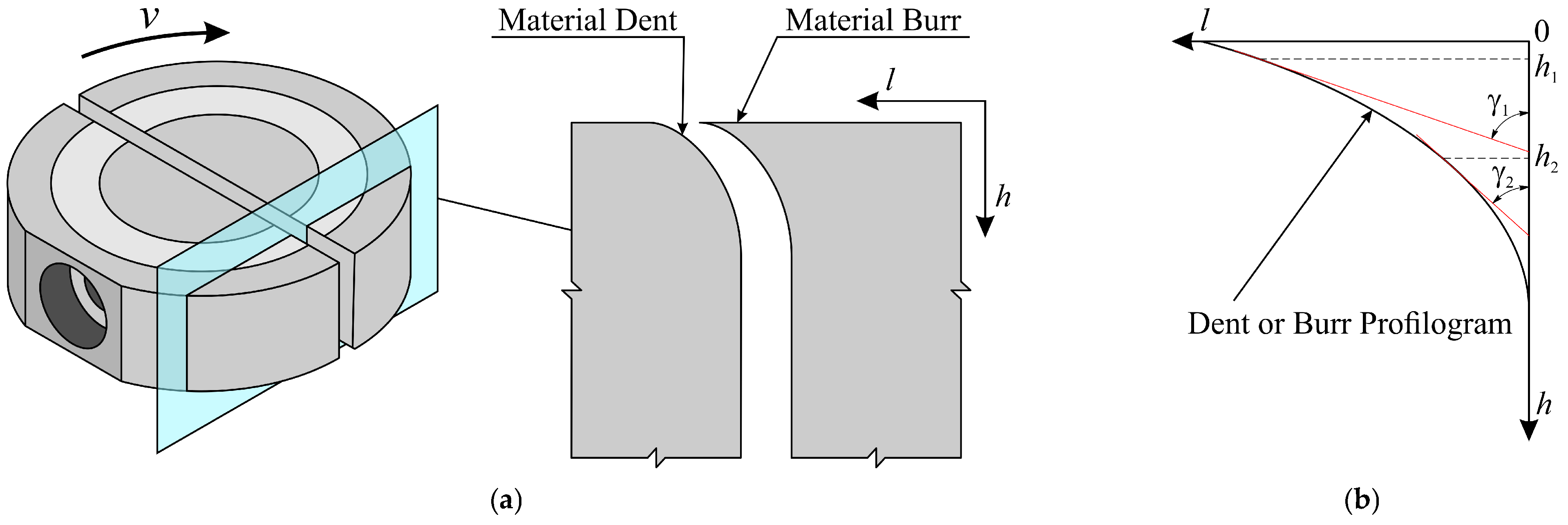

Figure 7. Formation of material dents and burrs on the contact surfaces of cut sample halves after nanostructuring burnishing (a) and the principle of change of the accumulated shear deformation by a profilogram of a material dent or material burr (b).

To evaluate the degree of accumulated shear deformation, an analysis of the profilogram of a dent or burr is in place (Figure 7b). Degree of accumulated shear deformation ε_c at a distance h from the burnished surface can be determined as a tangent of the γ acute angle formed by a tangent line drawn to the line of the dent or burr profile at the distance h from the machined surface, and the line of contact surface of the half of the cut sample (3). Moreover, deformation by depth of the surface layer can be defined as the first-order derivative of the dent or burr profilogram dl by dh.

$${\epsilon }_c(h)=tg\left(\gamma (h)\right)={\displaystyle \frac{dl}{dh}}.$$

(3)

Burr profilograms were produced on a Veeco WYCO NT1100 (Veeco Instruments Inc., Woodbury, NY, USA) optic 3D profilometer in the VSI mode at 2.5× magnification.

3. Results and Discussion

3.1. Results of Numerical Modelling

The obtained model provided data on the distribution of stresses, deformations, and temperatures in the analyzed area (Figure 8). The presented images are characteristic of the state of the surface layer after one left-to-right indenter movement under a normal force of 175 N and velocity of 40 m/min.

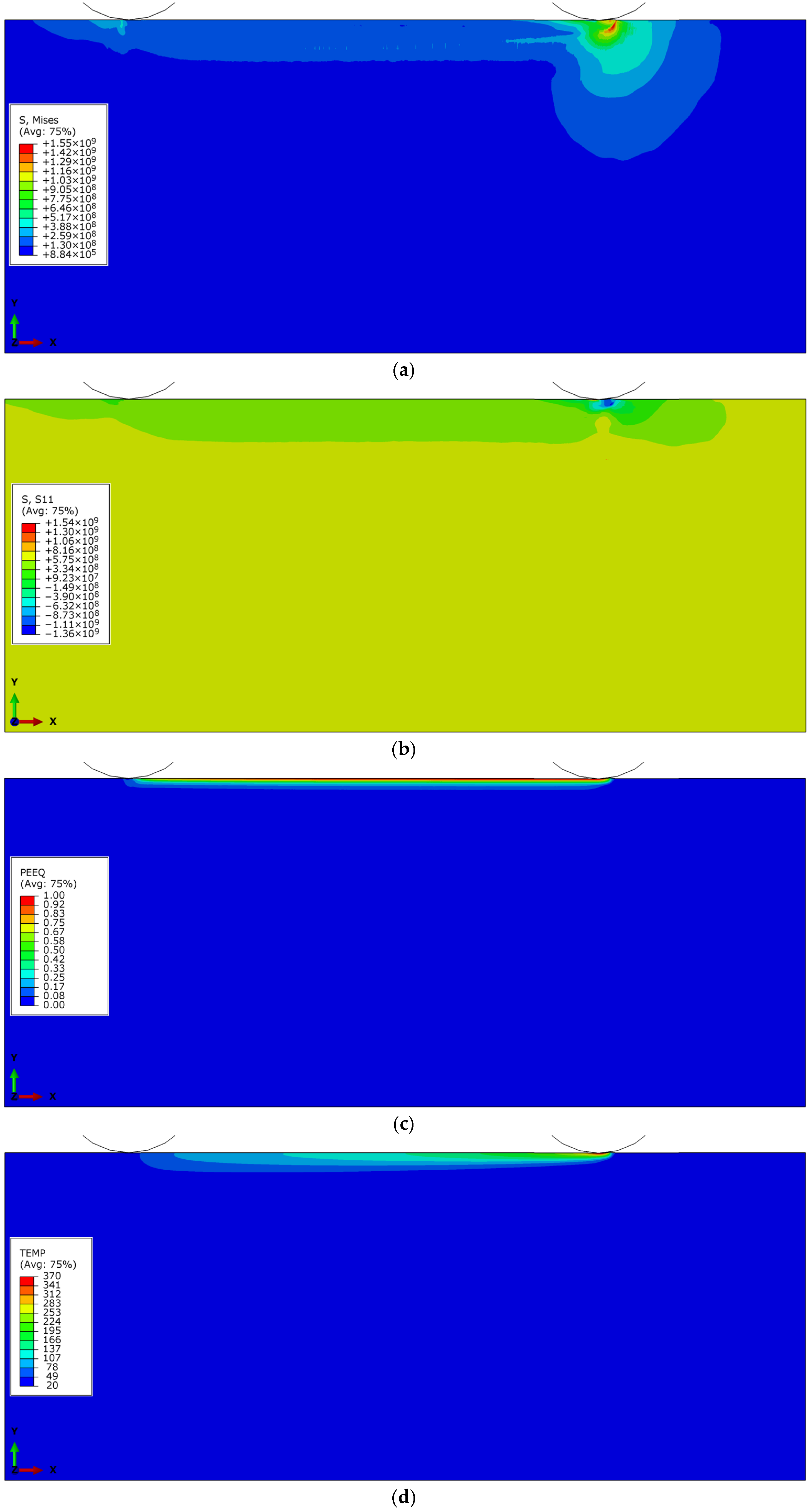

Figure 8. An example of von Mises stress distribution (a), stress components σ_xx (b), equivalent plastic deformation (c), and temperature (d) in the surface layer.

Further detailed assessment of nanostructuring burnishing characteristics was based on the analysis of maximum values of the specified parameters in the deformation core in the rightmost position of the indenter.

First and foremost, we looked into the influence of sliding velocity and burnishing force on the characteristics of the stressed state: von Mises stress (Figure 9) and stress component σ_xx along the burnishing direction (Figure 10). Von Mises stress reflects the level of shear stresses in the deformation epicenter that provide for the accumulation of plastic shears and emergence of nanocrystalline structures. Maximum values of stress component σ_xx show the magnitude of tensile stresses behind the indenter that can result in surface cracks.

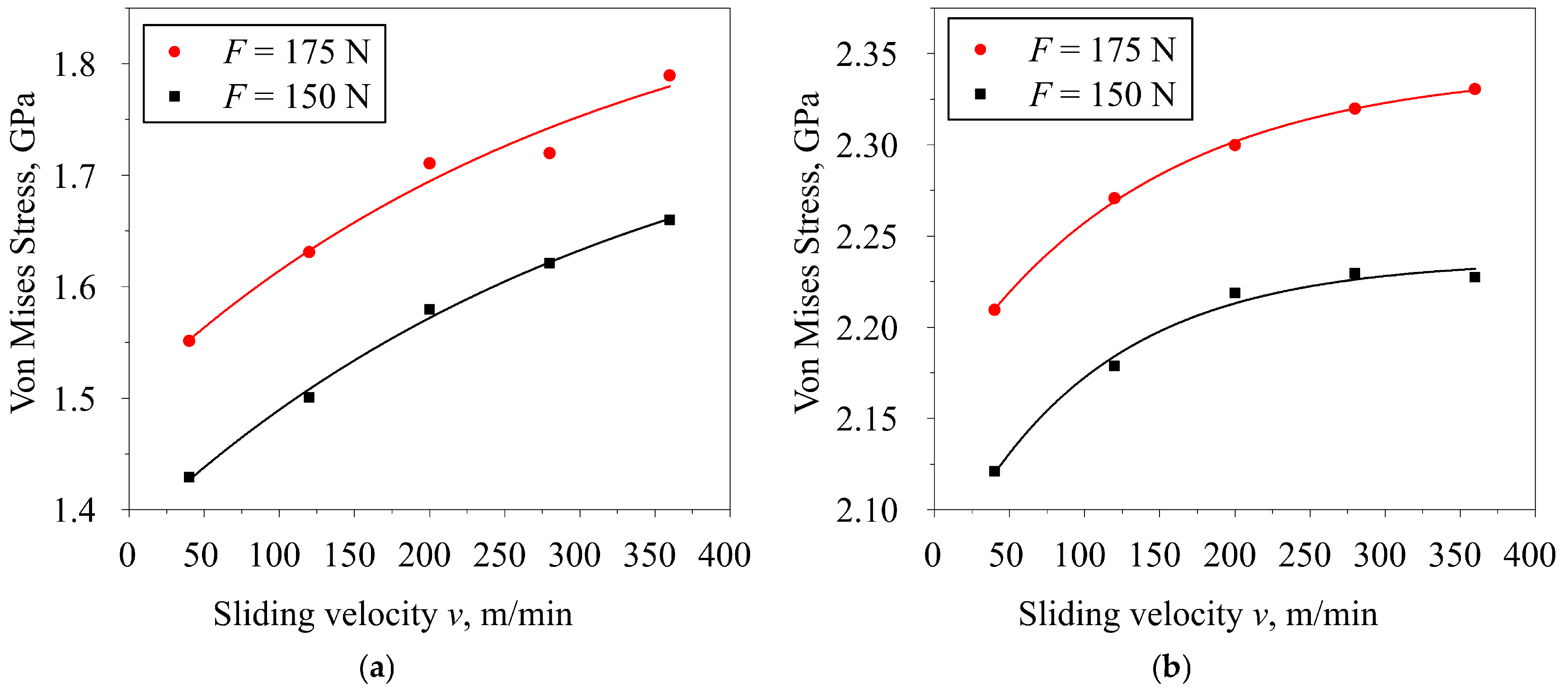

Figure 9. Dependencies of von Mises stress on controlling parameters after the first (a) and fifth (b) passes.

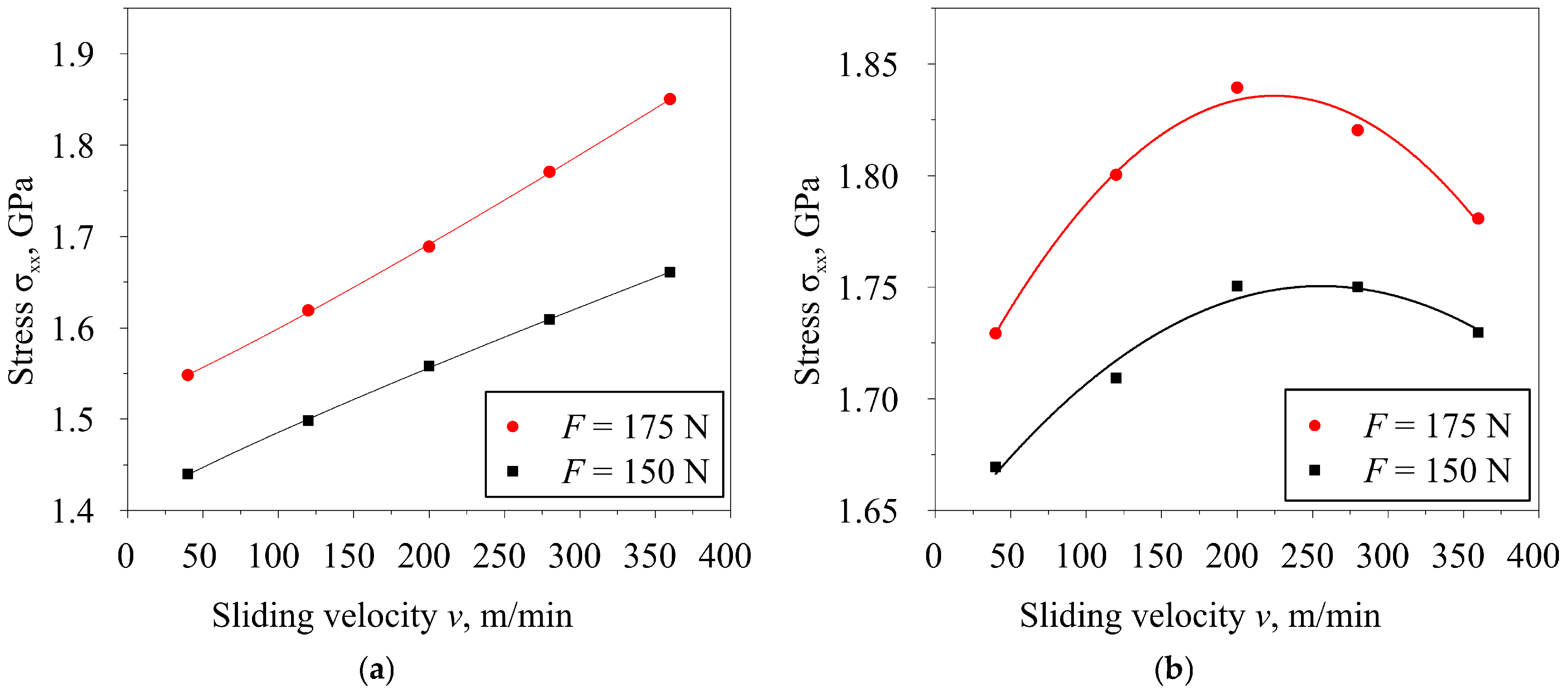

Figure 10. Dependencies of stress component σxx on controlling parameters after the first (a) and fifth (b) passes.

Simulation results demonstrate that five passes achieve a saturated level of shear stresses which does not increase at higher burnishing speeds, owing to the corresponding stress–strain curves of the AISI 304 steel that were integrated in the calculation. The level of tensile stresses after five passes even begins to lower if the burnishing velocity is set at more than 280 m/min (Figure 10b).

Figure 11 presents dependency graphs of maximum values of equivalent plastic stress on the sliding velocity at burnishing forces of 150 and 175 N after one and five indenter passes. Evidently, these dependencies on the burnishing velocity are different: while the accumulated plastic deformation undergoes no change whatsoever or increases slightly after one indenter pass, and five passes lead to decreasing of deformation that has a higher level at the force of F = 175 N (Figure 11b).

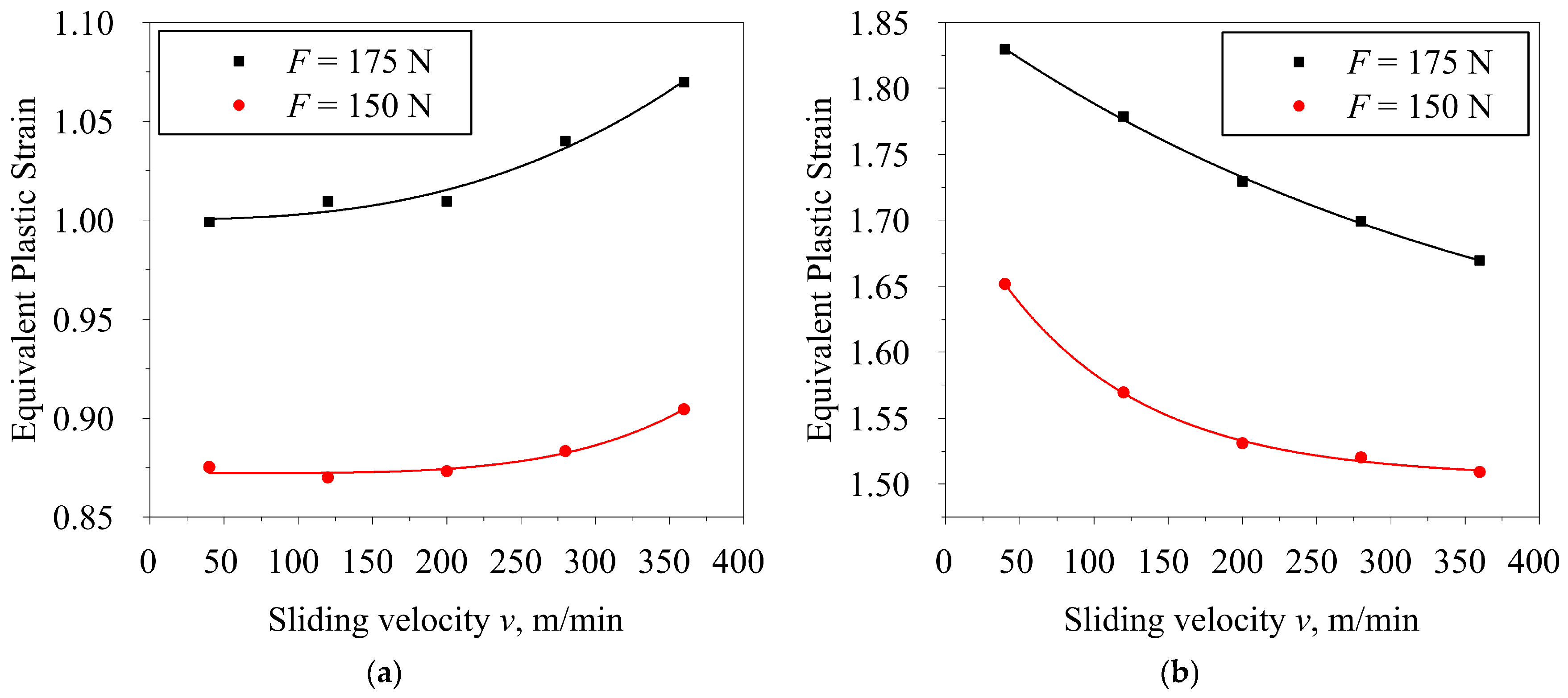

Figure 11. Dependencies of the equivalent plastic strain on the indenter’s sliding velocity after one (a) and five (b) indenter passes as obtained by simulation.

At the burnishing velocity of 40 m/min, increasing the burnishing force from 150 to 175 N causes the accumulated deformation to rise by 14.2% after one indenter pass and by 10.3% after five indenter passes. At higher burnishing velocities, this parameter increases by a small percentage. In general, raising the burnishing velocity to 380 m/min causes an insignificant growth of the accumulated plastic deformation after a one-pass machining; five passes even insignificantly decrease deformation to 6.5–8.3% (Figure 11b). However, the level of accumulated deformation remains sufficient for AISI 304 steel nanocrystallization.

Figure 12 presents dependency graphs of maximum values of contact temperature on the indenter sliding velocity at the burnishing force of 175 N after one and five indenter passes. Temperatures rise with the increase in burnishing velocity. The dependency on the burnishing velocity is non-linear, with diminishing growth. It is important to note that the change of surface layer temperature after five tool passes is within the range of warm deformation from 500 to 900 °C (approx. 0.4–0.6 from the melting temperature) for sliding velocities from 40 to 250 m/min, which forms and protects a nanostructured state [29]. After one sliding indenter pass, the temperature in the contact zone in the specified velocity range is significantly lower.

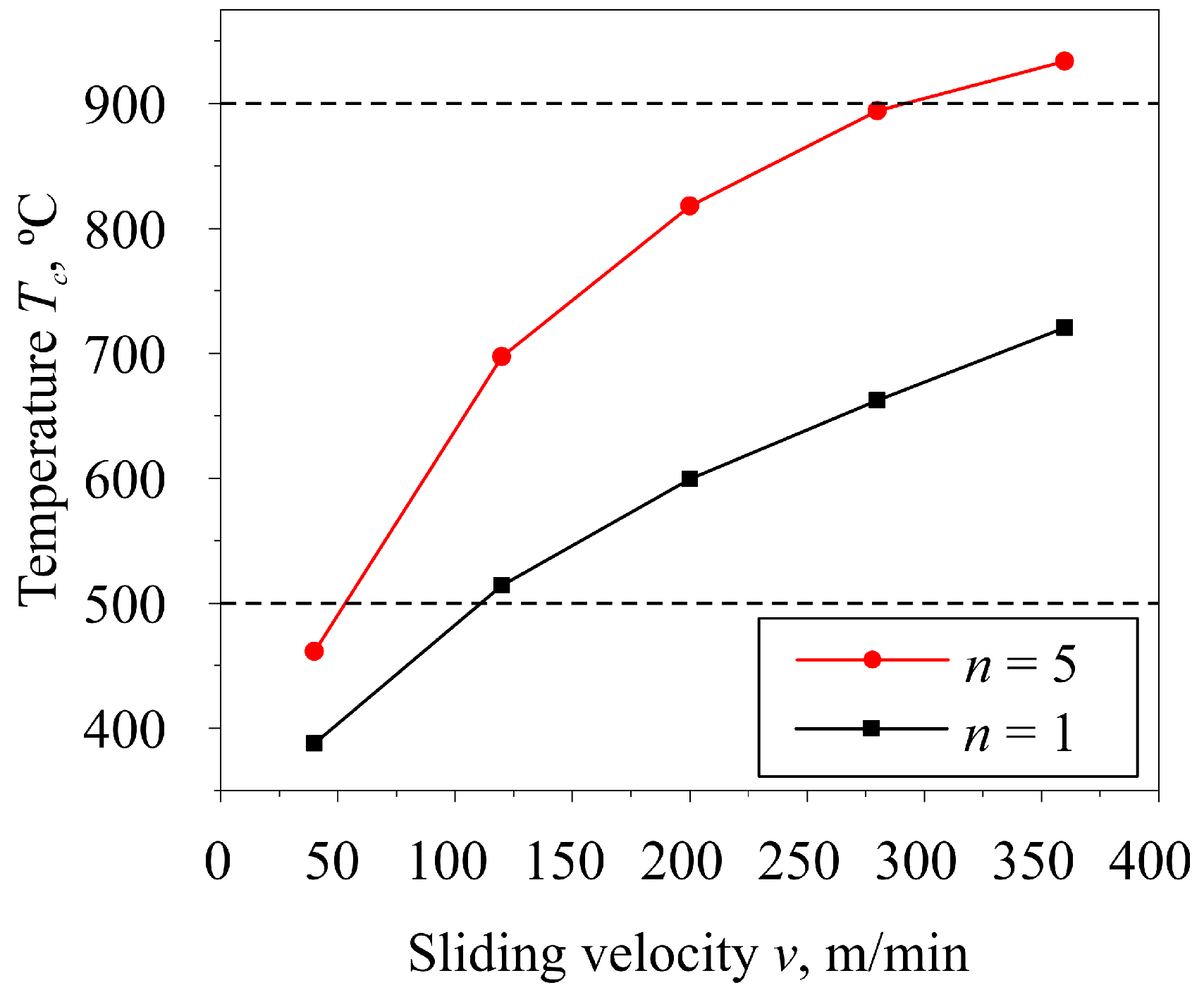

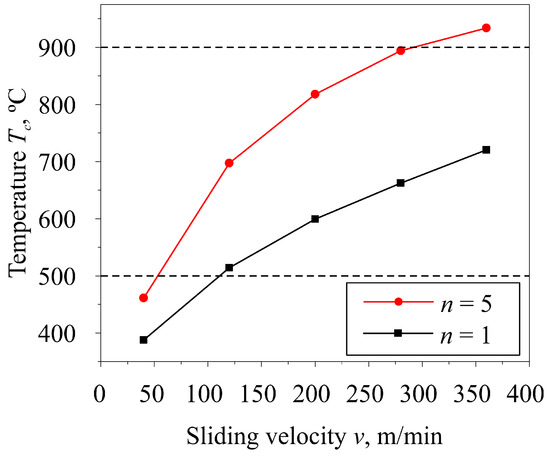

Figure 12. Dependency of contact temperature on the indenter sliding velocity after one and five indenter passes at the burnishing force of 175 N.

3.2. Experimental Results

The obtained profilograms clearly show an area of sheared material adjacent to the machined surface (Figure 13). In one-pass burnishing, the burr is about 60 µm in size, whereas it can be as big as 120 µm in five-pass burnishing. The results of the calculation of relative accumulated shear deformation demonstrate that in one-pass nanostructuring burnishing, the biggest deformation is found near the machined surface, at the depth not more than 5 µm. In contrast, in five-pass nanostructuring burnishing, the highest degree of deformation is found at the depth of 10 to 50 µm.

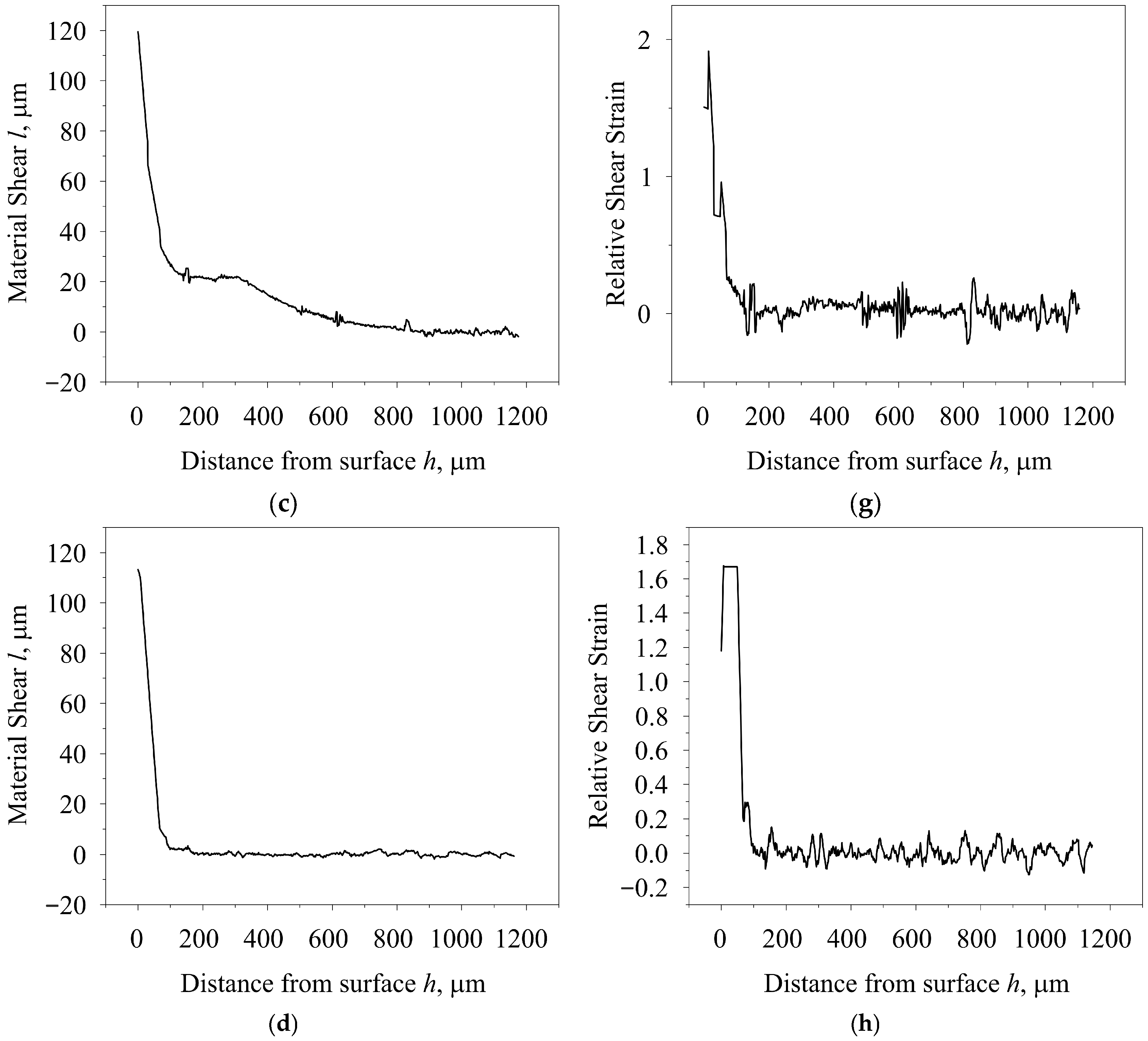

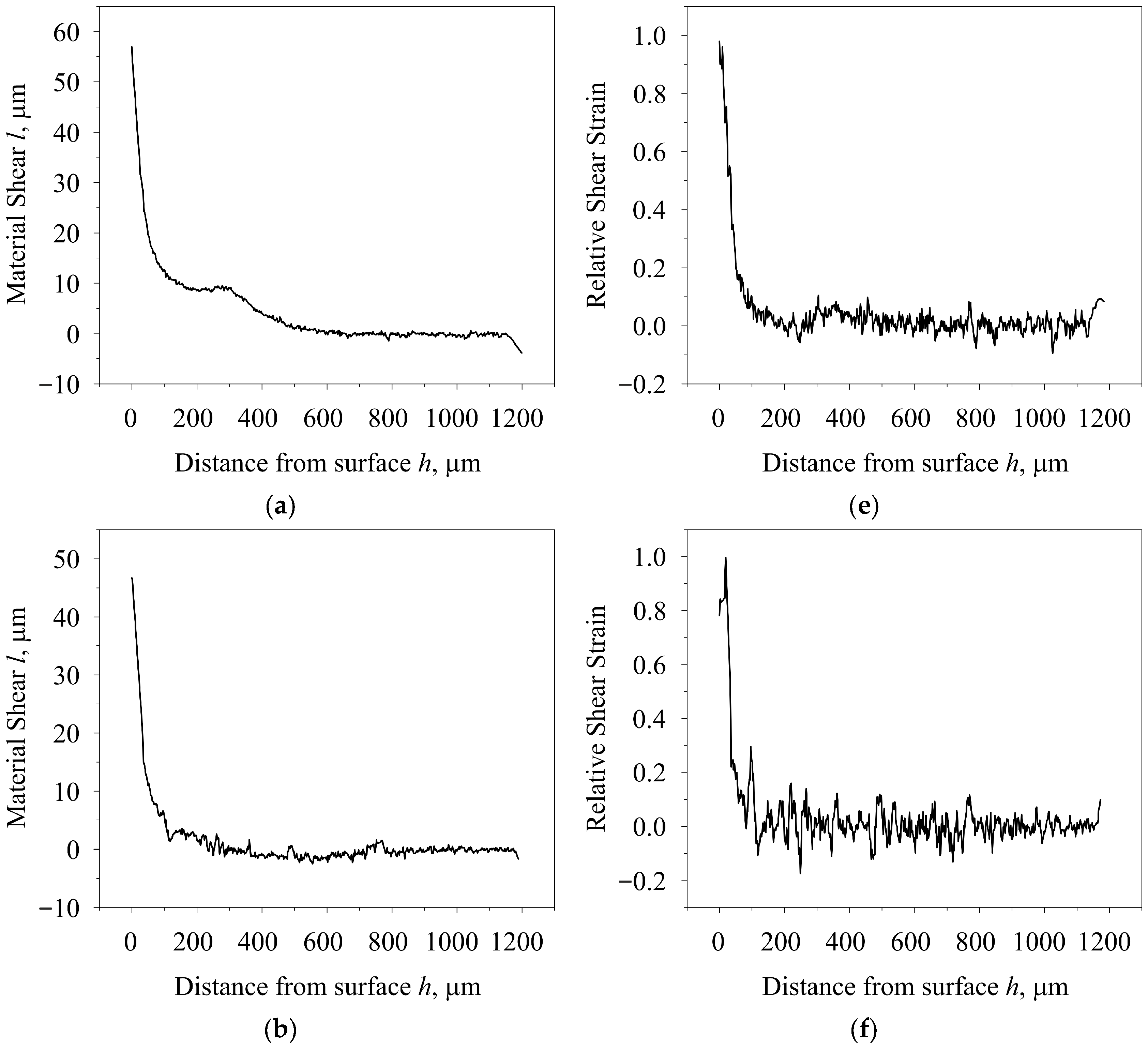

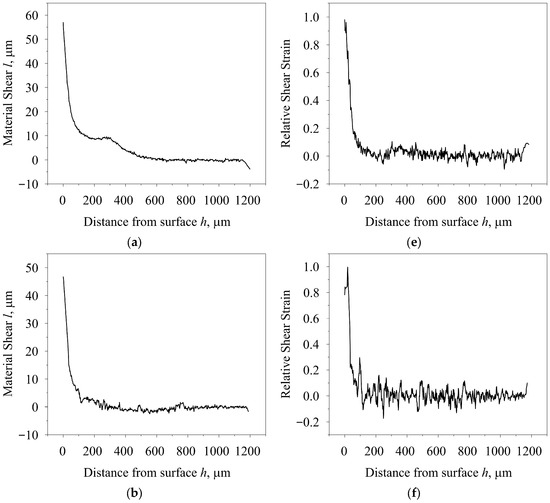

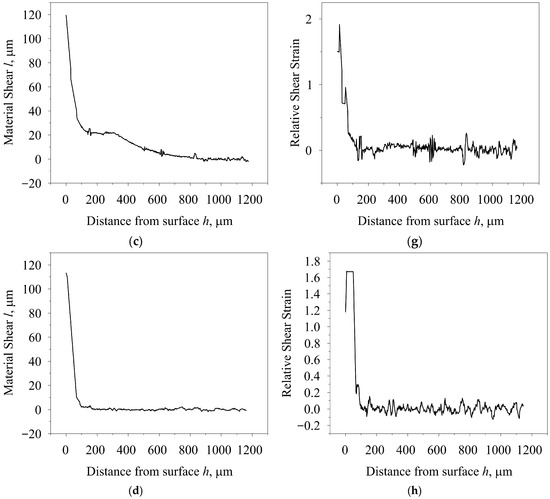

Figure 13. Burr profilograms (a–d) and correspondent dependencies of relative shear deformation (e–h) on the depth of surface layer.

For microdurometry and transmission microscopy analyses, we cut laps with an angle of 19.5° from the friction tracks using an AgieCut Spirit 20 electrical erosion machine (GF Machining Solutions, Losone, Switzerland). When grinding, we initially used a coarse P400 sandpaper and gradually replaced it with a fine-grit (P2500) coating abrasive towards the later stages of the process. For polishing, we used a finishing cloth with a diamond paste (particle size: 1 µm) and an alkaline solution of colloid silicon oxide (particle size: 50 nm), consequently. Grinding and polishing were conducted using an automatic SAPHIR 560 Grinding & Polishing Machine (ATM Qness GmbH, Mammelzen, Germany). No micrographical etching was realized. The test was carried out in a BSE fixation mode and used compositional contrast. Microdurometry tests were conducted using an Ahotech ecoHARD XM1270C microhardness tester (Future-Tech Corp., Quierschied, Germany) and a Vickers pyramid with the load of 50 gf.

To establish the impact of nanostructuring burnishing on hardening of the surface layer of AISI 304 steel, we ran a microdurometry test of transverse sections of the friction tracks on an Ahotech ecoHARD XM1270C microhardness tester using a Vickers pyramid at the load of 50 gf. We analyzed the surface layer with the thickness of 50 µm, where we implemented 20 consequent measurements. The obtained results show that dependencies on microhardness are similar to the relative deformation curves (Figure 14). Thus, one-pass burnishing increases microhardness from 365 to 410 HV_0.05 at velocities from 40 to 280 m/min. Five-pass burnishing achieves the highest degree of hardening (to 475 HV_0.05) at low sliding velocities. If the sliding velocity is raised to 280 m/min, microhardness drops to 410 HV_0.05.

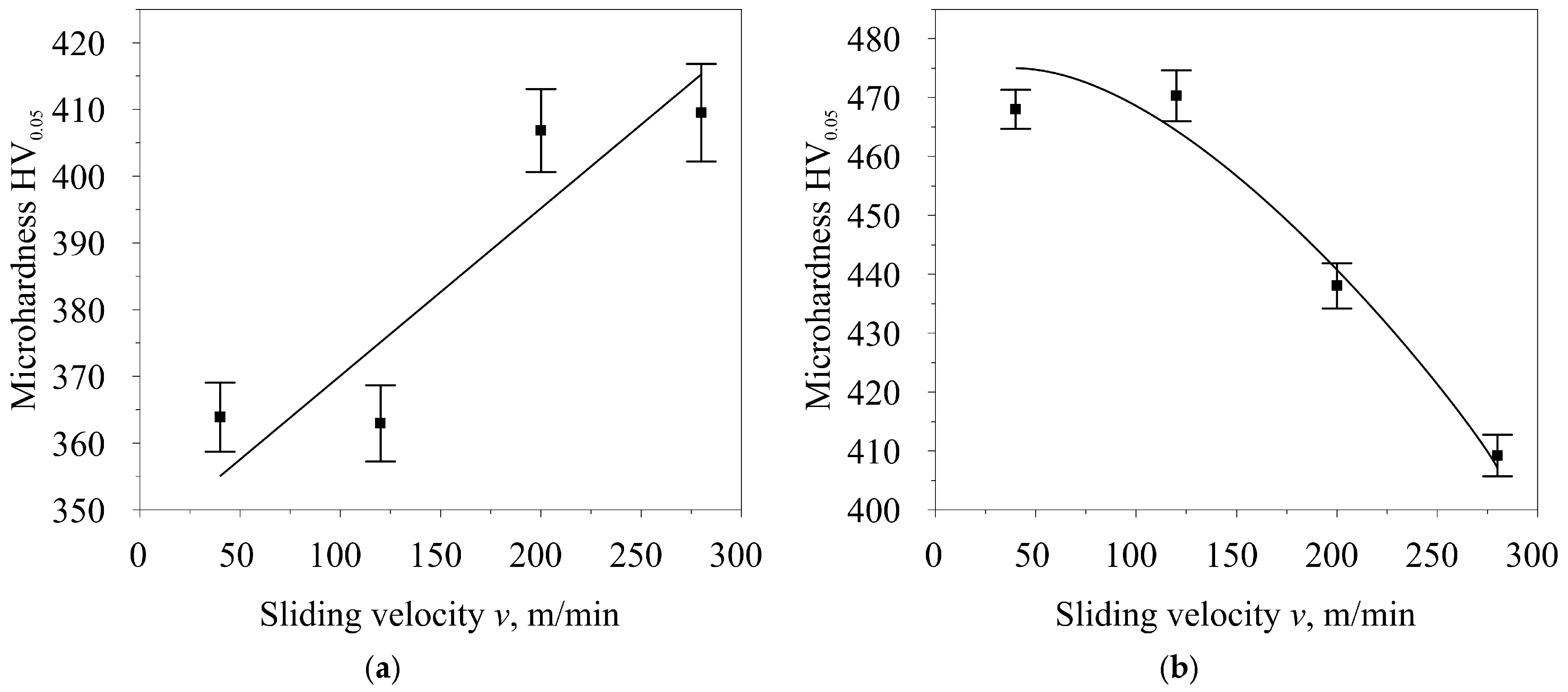

Figure 14. Dependencies of average microhardness of the surface layer with the thickness of 50 µm after nanostructuring burnishing with one (a) and five (b) tool passes.

Results of scanning microscopy of the surface layer show that both one-pass and five-pass nanostructuring burnishing disperse the grain structure at the depth of 8 to 17 µm (Figure 15). It is crucial to note that with one as well as with five passes, increasing the indenter sliding velocity leads to growth of the thickness of the layer with a dispersed structure. Using more passes in nanostructuring burnishing also increases the thickness of the formed dispersed layer. Thus, rise of the sliding velocity from 40 to 280 m/min increases the layer thickness from 8 to 13 µm in one-pass burnishing and from 12 to 17 µm in five-pass burnishing.

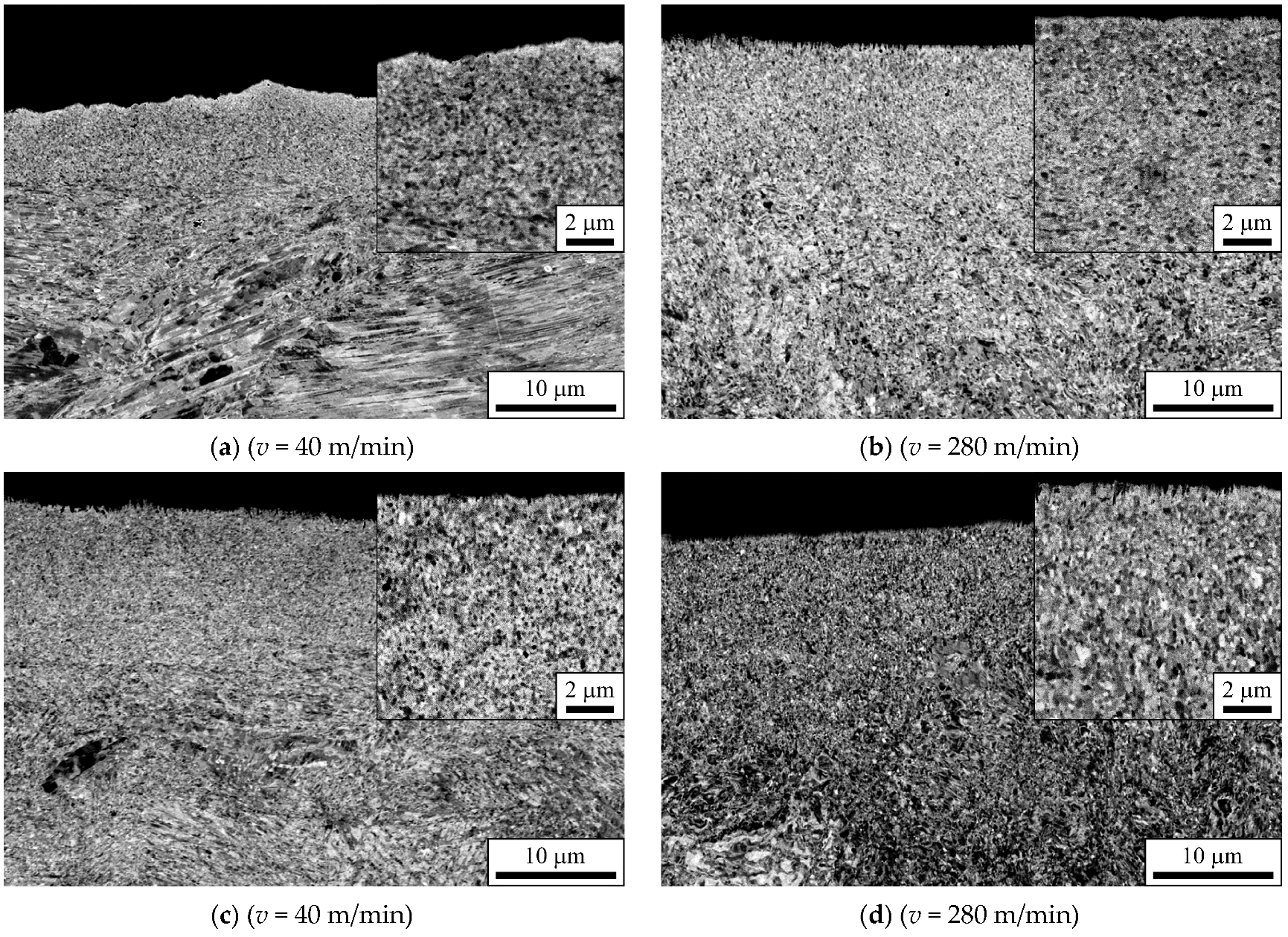

Figure 15. SEM shots of the microstructure of the surface layer with magnification ×2500 and ×5000 after one-pass (a,b) and five-pass (c,d) nanostructuring burnishing.

Transmission electron microscopy shows that nanostructuring burnishing form a mixed ultra-fine grain and nanocrystalline structure in the surface layer (Figure 16). This is demonstrated by the almost ring-like appearance of the electron diffraction patterns. One-pass nanostructuring burnishing yields a large number of ultra-fine grains with a size of 120 to 250 nm and some dispersed nanoparticles with a size of 10 to 100 nm in the surface layer. After five passes, the degree of dispersion of the grain structure is significantly increased. Relatively big ultra-fine grains are found much more rarely and are 110 to 170 nm in size. Most of the space is occupied by nanocrystalline particles that are also 10 to 100 nm in size.

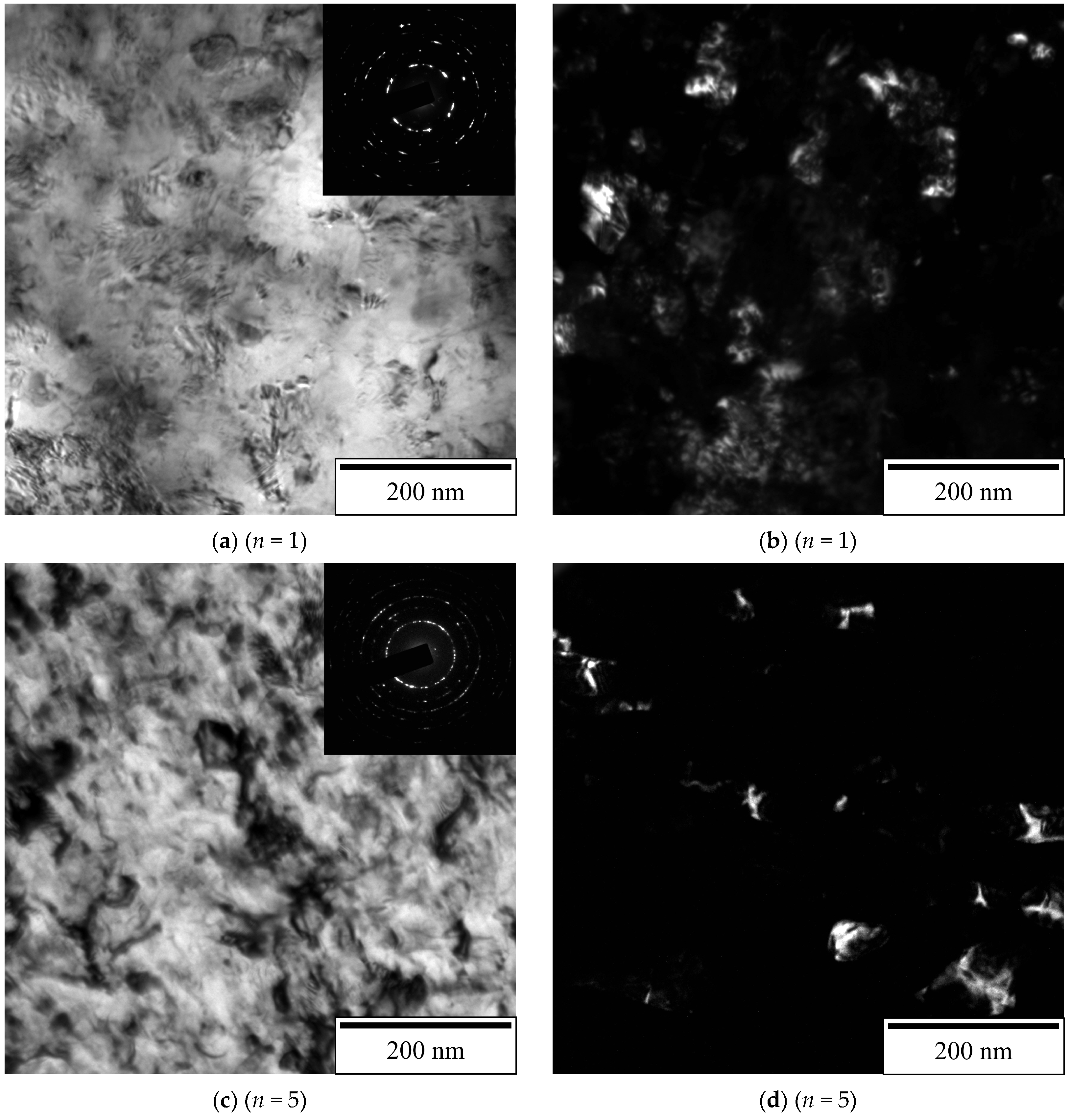

Figure 16. TEM shots of the microstructure of the surface layer after nanostructuring burnishing at the sliding velocity of 40 m/min: bright-field images and electron microdiffraction (a,c) and dark-field images (b,d).

These data on shrinking grain size with more indenter passes point to a correlation of the dispersion of the formed microstructure in the thin surface layer with the degree of accumulated plastic deformation therein. Higher degree of deformation fosters better dispersion of the grain structure and prevailing presence of nanocrystalline grains.

3.3. Compare Experimental and Modelling Results

A comparative analysis of relative shear deformation shows high conformity of the results of finite-element simulation and experimental study of nanostructuring burnishing of AISI 304 steel (Figure 17). Each point marker in the experimental results was obtained based on five parallel measurements of burr profilograms obtained from each of the burnished tracks. The biggest deviation of results in both one-pass and five-pass burnishing occurred at the indenter sliding velocity of 40 m/min. However, this deviation does not exceed 5%. The character of change of relative deformation at higher indenter sliding velocities also exhibits a good correlation with the results of the simulation and experiment. This character is, notably, significantly different for one and five nanostructuring burnishing passes. That is, one-pass burnishing exhibits a trend of increasing equivalent plastic strain at higher indenter sliding velocity. Nonetheless, when the number of passes is increased to five, this trend is reversed. This could be caused by a beginning of over-hardening and a higher stress component σ_xx. It is relevant to note that external signs of over-hardening manifested in the form of erosive deterioration of the surface were not observed in the experimentally studied modes of nanostructuring burnishing.

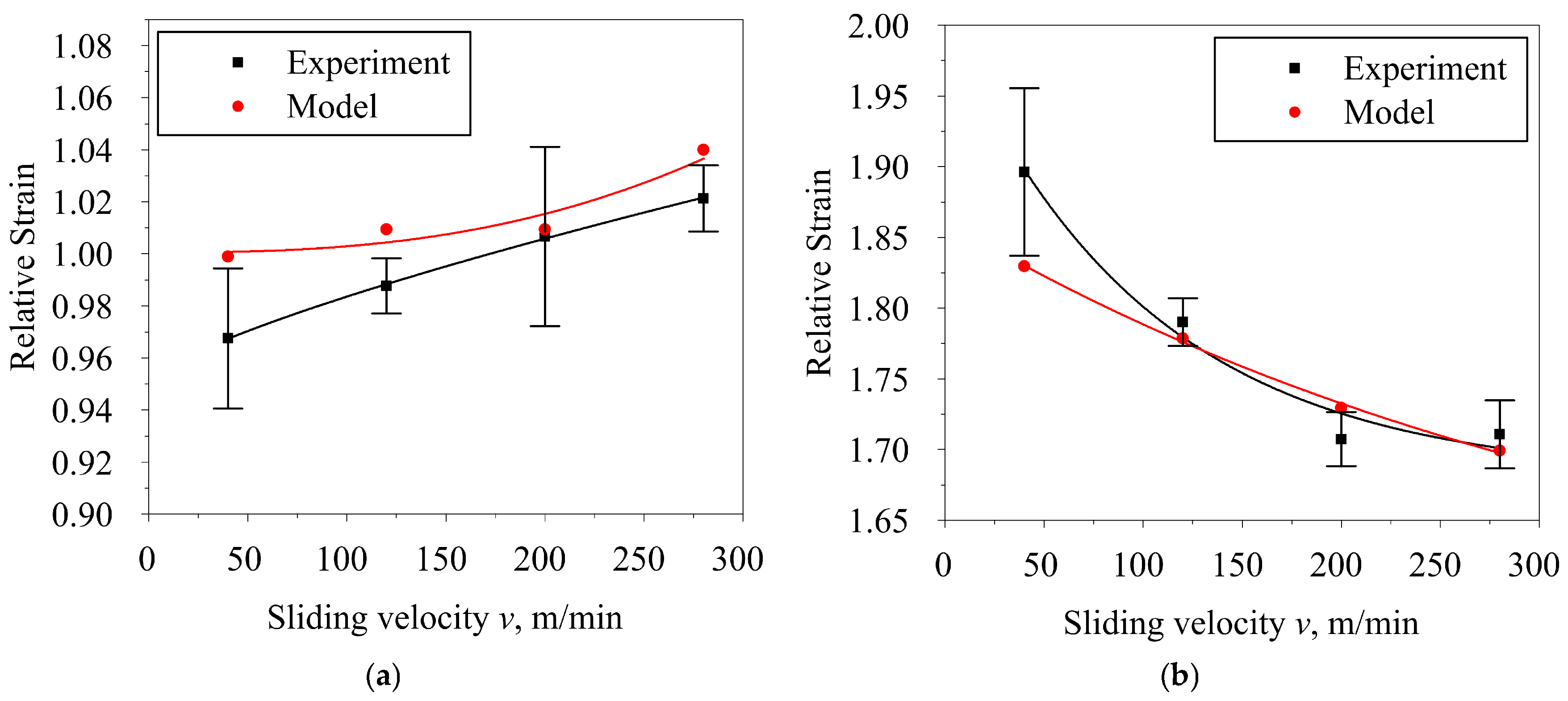

Figure 17. Comparison of the results of simulation and experimental study of relative strain after one (a) and five (b) tool passes.

The obtained modeling and experimental results regarding the intensity of plastic deformation are in line with previous research and add new data to the studies of the authors. Furthermore, the established values of microhardness HV_0.05 of the surface layer of AISI 304 steel when the sliding velocity is increased to more than 120 m/min with five indenter passes correspond to the conclusions presented by Ichkova et al. [1] and demonstrate the decrease in hardness at higher velocities due to increase in heat.

Analyzing comparison of the simulation and experimental results for cumulative plastic strain, we can draw the following conclusions. The simulation results are in better agreement with the experimental data for a large number of passes and higher indenter sliding speeds. The greater difference between the calculated and experimental results during the first pass of the indenter can be explained by the fact that the initial section of the strain hardening curve adopted in the calculation turned out to be not entirely consistent with the given material or specific sample. The different agreement between the results at different sliding speeds may indicate that the speed sensitivity assumed in the calculation does not describe the actual hardening at low speeds as well. A second reason may be the difference between the actual temperature dependence and that assumed in the model, since the role of temperature softening increases with increasing sliding speed. It is worth noting that at the lowest burnishing speed of 40 m/min, the maximum scatter of experimental values is observed. Therefore, the reason may also be the lower accuracy of determining the experimental values.

4. Conclusions

• Results of the finite-element modeling and experimental study of nanostructuring burnishing show that the selected phenomenological model and boundary conditions are justified. Validation of results demonstrate that this model is adequate and can be used to control the formation of accumulated shear deformation, nanostructuring of material, and hardening of the surface layer.
• The discovered dependencies of relative strain on indenter sliding velocity clearly correlate with the surface microhardness obtained after nanostructuring burnishing. Therefore, this new model can be used for the search of optimal nanostructuring burnishing modes by the criterion of maximum hardening of the surface layer.
• We established the impact of the equivalent plastic strain of the AISI steel surface layer on the dispersity of the formed microstructure in the thin surface layer. The accumulation of deformation in the surface layer induces a better dispersion of the grains to obtain a nanocrystalline structure. The sizes of the formed nanocrystallites are defined by the number of tool passes. After five burnishing passes, the majority of the nanocrystallites have a size of 10 to 100 nm. One microstructure-forming tool pass only achieves sizes of 110–170 nm.

The results of this research are intended for real-world application in improving the wear resistance of surface layers of spindles and rods used in AISI 304 steel valves and latches regularly installed in piping systems across the oil and chemical industries.
