Next Article in Journal
Investigation of the Effect of Heat Treatment on the Microstructures and Mechanical Properties of Al-13Si-5Cu-2Ni Alloy
Next Article in Special Issue
Microstructure, Mechanical, Corrosion, and Ignition Properties of WE43 Alloy Prepared by Different Processes
Previous Article in Journal
Warpage Analysis and Control of Thin-Walled Structures Manufactured by Laser Powder Bed Fusion
Previous Article in Special Issue
Influence of Ceramic Particles Character on Resulted Properties of Zinc-Hydroxyapatite/Monetite Composites
Article

Different Response of Cast and 3D-Printed Co-Cr-Mo Alloy to Heat Treatment: A Thorough Microstructure Characterization

1
FZU—Institute of Physics of the Czech Academy of Sciences, Na Slovance 1999/2, 182 00 Prague 8, Czech Republic
2
Department of Metals and Corrosion Engineering, University of Chemistry and Technology Prague, Technicka 5, 166 28 Prague 6, Czech Republic
3
NETME Centre, Faculty of Mechanical Engineering, Brno University of Technology, Technicka 2, 616 69 Brno, Czech Republic
*
Author to whom correspondence should be addressed.
Academic Editor: Paolo Ferro
Metals 2021, 11(5), 687; https://doi.org/10.3390/met11050687
Received: 1 April 2021 / Revised: 19 April 2021 / Accepted: 20 April 2021 / Published: 22 April 2021
(This article belongs to the Special Issue Processing and Treatment of Hexagonal Metallic Materials)

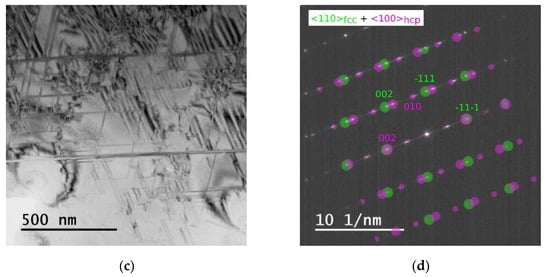

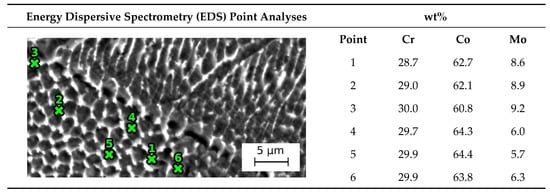

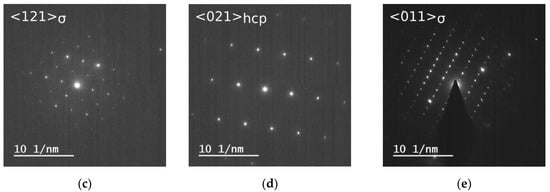

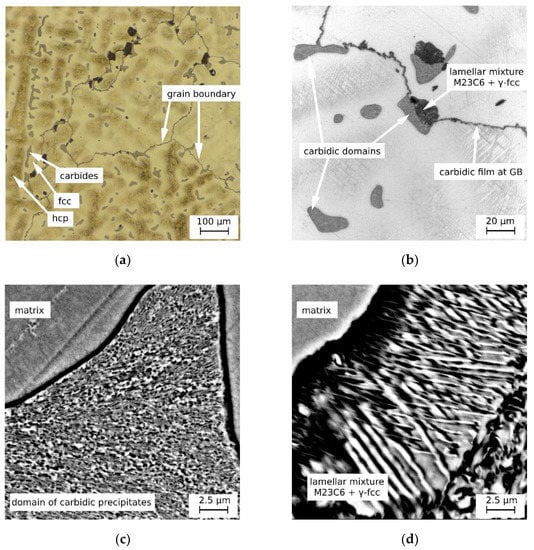

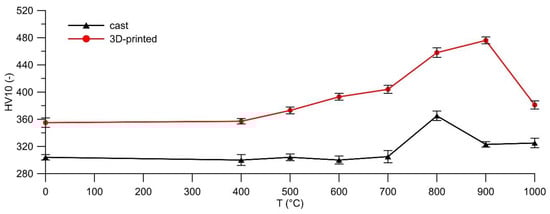

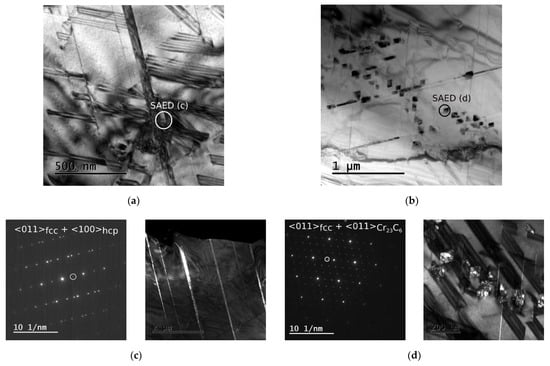

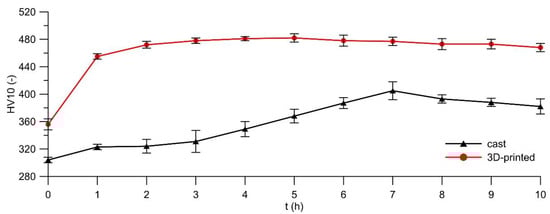

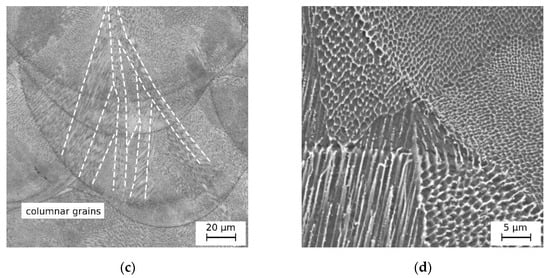

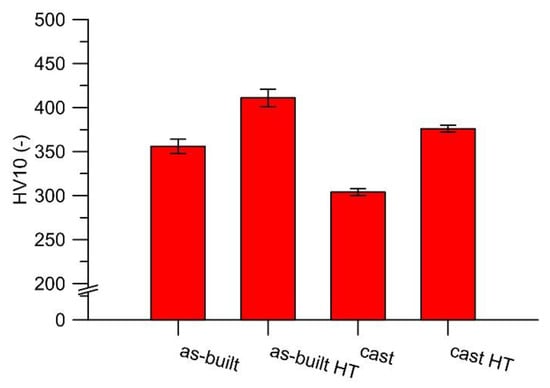

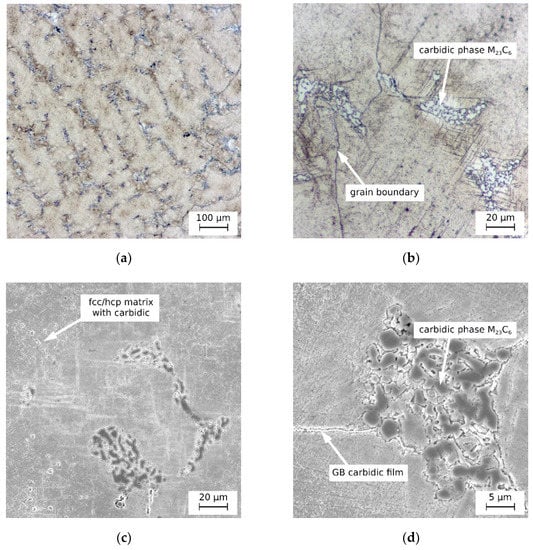

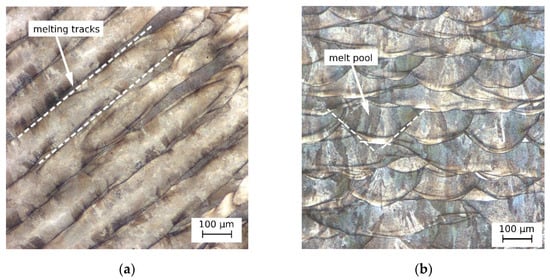

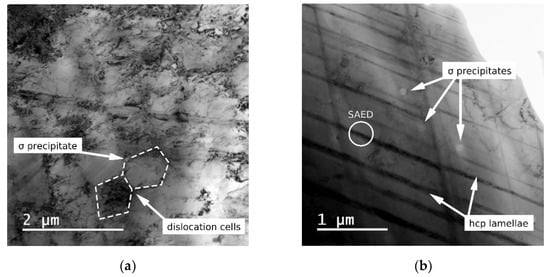

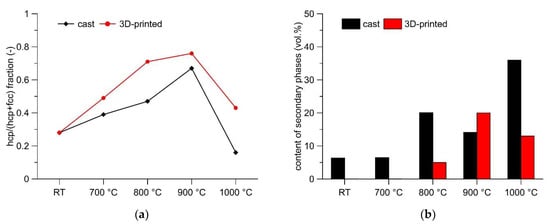

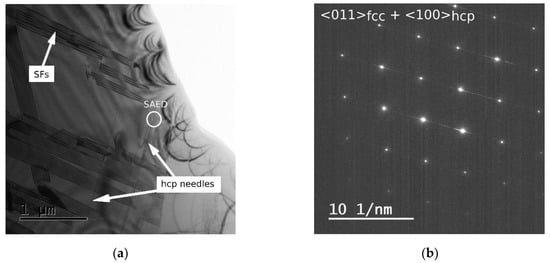

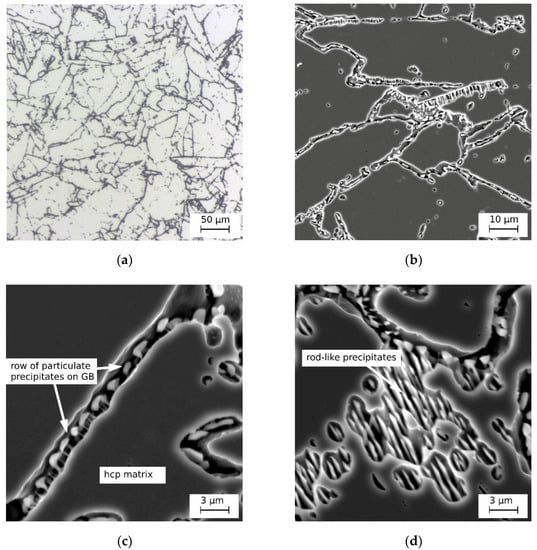

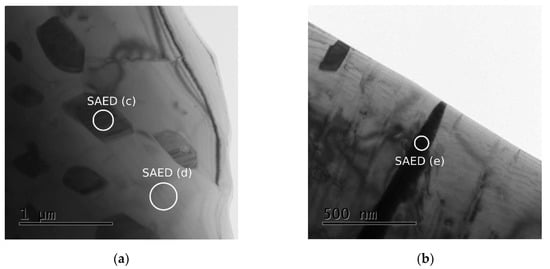

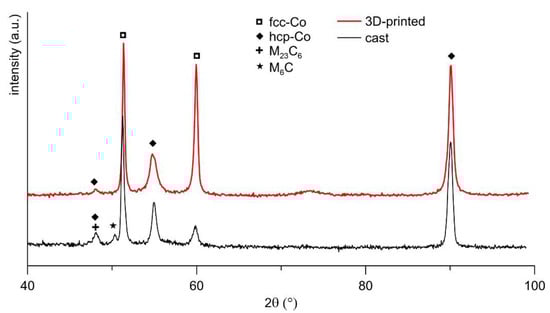

The Co-Cr-Mo alloy is a biomaterial with very good corrosion resistance and wear resistance; thus, it is widely applied for knee replacements. The wear resistance is influenced by the amount of hcp phase and morphology of carbidic precipitates, which can both be altered by heat treatment. This study compares a conventional knee replacement manufactured by investment casting with a material prepared by the progressive technology of 3D printing. The first set of results shows a different response of both materials in increasing hardness with annealing at increasing temperatures up to the transformation temperature. Based on these results, solution treatment and subsequent aging at conditions to reach the maximum hardness was applied. Microstructural changes were studied thoroughly by means of optical, scanning electron and transmission electron microscopy. While increased hardness in the conventional material is caused by the precipitation of fine hard carbides combined with an increase in the hcp phase by isothermal transformation, a massive fcc → hcp transformation is the main cause for the hardness increase in the 3D-printed material. View Full-Text
Keywords: Co-Cr-Mo alloy; additive manufacturing; selective laser melting; heat treatment Co-Cr-Mo alloy; additive manufacturing; selective laser melting; heat treatment
Show Figures

Figure 1

MDPI and ACS Style

Roudnicka, M.; Bigas, J.; Molnarova, O.; Palousek, D.; Vojtech, D. Different Response of Cast and 3D-Printed Co-Cr-Mo Alloy to Heat Treatment: A Thorough Microstructure Characterization. Metals 2021, 11, 687. https://doi.org/10.3390/met11050687

AMA Style

Roudnicka M, Bigas J, Molnarova O, Palousek D, Vojtech D. Different Response of Cast and 3D-Printed Co-Cr-Mo Alloy to Heat Treatment: A Thorough Microstructure Characterization. Metals. 2021; 11(5):687. https://doi.org/10.3390/met11050687

Chicago/Turabian Style

Roudnicka, Michaela, Jiri Bigas, Orsolya Molnarova, David Palousek, and Dalibor Vojtech. 2021. "Different Response of Cast and 3D-Printed Co-Cr-Mo Alloy to Heat Treatment: A Thorough Microstructure Characterization" Metals 11, no. 5: 687. https://doi.org/10.3390/met11050687

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
