Investigation of the Effect of Heat Treatment on the Microstructures and Mechanical Properties of Al-13Si-5Cu-2Ni Alloy
Abstract
:1. Introduction
2. Experimental Procedure
2.1. Fabrication and Heat Treatment of Al-13Si-5Cu-2Ni Alloy
2.2. Characterization

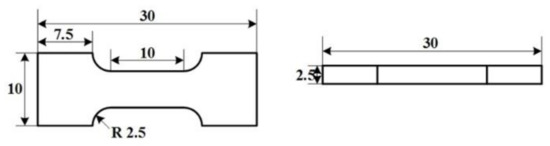

2.3. Performance Testing
3. Results

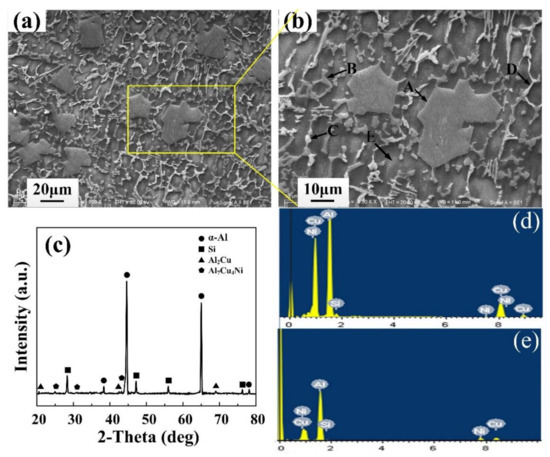

3.1. Microstructure of As-Cast Al-13Si-5Cu-2Ni Alloy

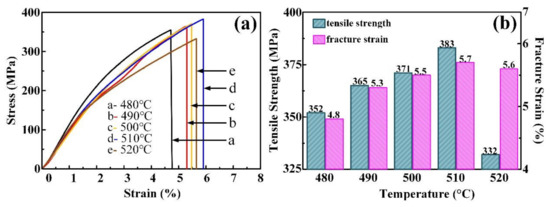

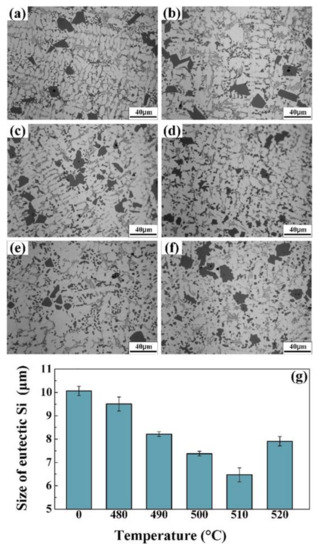

3.2. Effect of Solid Solution Treatment on Microstructure and Tensile Properties of Al-13Si-5Cu-2Ni Alloy

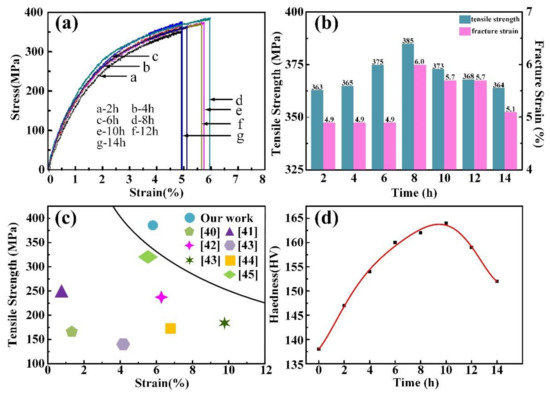

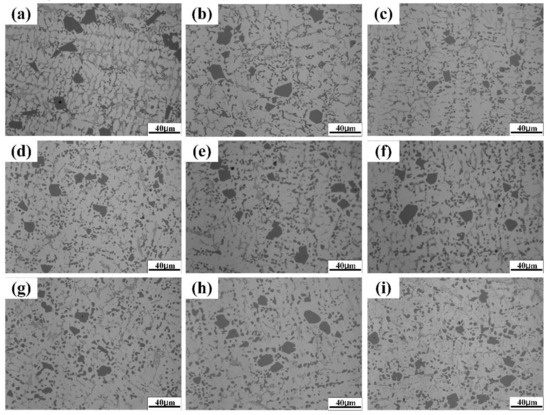

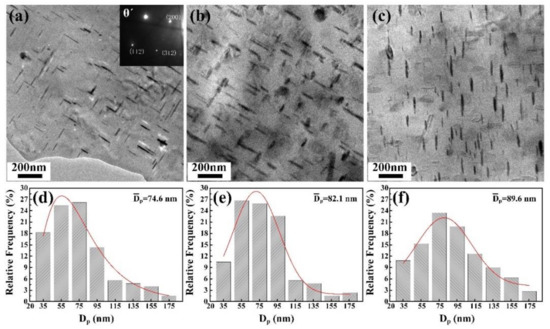

3.3. Effect of Aging Treatment on the Microstructure and Tensile Properties of Al-13Si-5Cu-2Ni Alloy

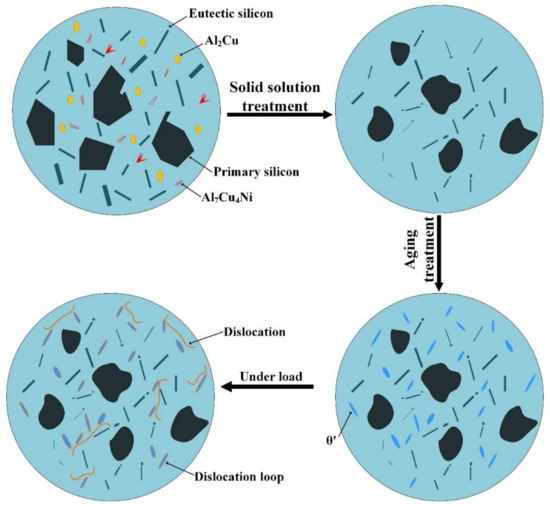

4. Discussion
5. Conclusions
- After solid solution treatment, the Al2Cu phase and a part of the Al7Cu4Ni phase at the dendrite boundary are solid-dissolved into the α-Al matrix. As the solid solution treatment temperature increases until 510 °C, the sharp corners of the primary silicon are passivated, and the strip-shaped eutectic silicon melts and spheroidizes. Beyond 520 °C, a coarsening of the eutectic silicon occurs. The optimum tensile strength and fracture strain for an Al-13Si-5Cu-2Ni alloy solid solution treated at 510 °C is 383 MPa and 5.7%, respectively.
- Different aging treatment times affect the amount and size of the θ′ precipitation phase, which then affects the properties of the materials. As the aging treatment time increases, the volume fraction, diameter, and length of the θ′ phase increases. The optimized T6 heat treatment involves solid solution treatment at 510 °C for 8 h followed by aging at 165 °C for 8 h, and the tensile strength and fracture strain of Al-13Si-5Cu-2Ni alloy processed to this heat treatment is 385 MPa and 6.0%, respectively.
- After T6 heat treatment, the size and amount of silicon phases and θ′ phases determine the performance of the Al-13Si-5Cu-2Ni alloy. The size of the eutectic silicon is the smallest when the solution treatment is 8 h, which effectively reduces stress concentration, wakens crack propagation, and elevates the performance of the alloy. A smaller diameter and greater number density for the θ′ precipitated phases can produce a more significant Orowan strengthening. The solid solution treatment and aging treatment improve the mechanical properties of the Al-13Si-5Cu-2Ni alloy through passivation and spheroidization of the silicon phase and Orowan strengthening.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Xie, J.F.; Liu, T.S.; Li, Q.; Li, Q.Y.; Xu, Z.H.; Qiu, F.; Tang, J.; Yang, H.Y.; Jiang, Q.C. Nanoparticulate dispersion, microstructure refinement and strengthening mechanisms in Ni-coated SiCp/Al-Cu nanocomposites. Mater. Sci. Eng. A 2019, 762, 138092. [Google Scholar] [CrossRef]
- Xu, C.l.; Wang, H.; Qiu, F.; Yang, Y.F.; Jiang, Q.C. Cooling rate and microstructure of rapidly solidified Al-20 wt.% Si alloy. Mater. Sci. Eng. A 2006, 417, 275–280. [Google Scholar] [CrossRef]
- Cao, R.; Sun, J.; Chen, J.; Wang, P.C. Cold Metal Transfer Joining of Aluminum AA6061-T6-to-Galvanized Boron Steel. J. Manuf. Sci. Eng. 2014, 136, 051015. [Google Scholar] [CrossRef]
- Li, X.P.; Wang, X.J.; Saunders, M.; Suvorova, A.; Zhang, L.C.; Liu, Y.J.; Fang, M.H.; Huang, Z.H.; Sercombe, T.B. A selective laser melting and solution heat treatment refined Al-12Si alloy with a controllable ultrafine eutectic microstructure and 25% tensile ductility. Acta Mater. 2015, 95, 74–82. [Google Scholar] [CrossRef]
- Jiang, Q.C.; Xu, C.L.; Wang, H.; Wang, J.G.; Yang, Y.F. Estimation of the shifting distance of the eutectic point in hypereutectic Al–Si alloys by the lever rule. Scr. Mater. 2007, 56, 329–332. [Google Scholar] [CrossRef]
- Li, Q.; Qiu, F.; Dong, B.X.; Yang, H.Y.; Shu, S.L.; Zha, M.; Jiang, Q.C. Investigation of the influences of ternary Mg addition on the solidification microstructure and mechanical properties of as-cast Al–10Si alloys. Mater. Sci. Eng. A 2020, 798 , 140247. [Google Scholar] [CrossRef]
- Liu, C.; Yu, L.; Ma, Z.; Liu, Y.; Liu, C.; Li, H.; Wang, H. Damping capacity of Al-12Si composites effected by negative thermal expansion of Y2W3O12 particle inclusions. J. Mater. Res. Technol. 2020, 9, 9985–9995. [Google Scholar] [CrossRef]
- Liu, X.; Yang, Y. Effects of Modification on Mechanical Properties and Microstructure of Al-Cu Alloy. Spec. Cast. Nonferrous Alloys 2017, 37, 1026–1029. [Google Scholar]
- Li, Q.; Qiu, F.; Dong, B.X.; Gao, X.; Shu, S.L.; Yang, H.Y.; Jiang, Q.C. Processing, multiscale microstructure refinement and mechanical property enhancement of hypoeutectic Al-Si alloys via in situ bimodal-sized TiB2 particles. Mater. Sci. Eng. A 2020, 777, 139081. [Google Scholar] [CrossRef]
- Cai, Q.; Mendis, C.L.; Chang, I.T.H.; Fan, Z. Effect of short T6 heat treatment on the microstructure and the mechanical properties of newly developed die-cast Al-Si-Mg-Mn alloys. Mater. Sci. Eng. A 2020, 788, 139610. [Google Scholar] [CrossRef]
- Xiong, Z.H.; Liu, S.L.; Li, S.F.; Shi, Y.; Yang, Y.F.; Misra, R.D.K. Role of melt pool boundary condition in determining the mechanical properties of selective laser melting AlSi10Mg alloy. Mater. Sci. Eng. A 2019, 740, 148–156. [Google Scholar] [CrossRef]
- Li, M.; Sun, Y.; Li, C.; Dong, J.; Yu, L.; Liu, Y. Effect of Cu addition on precipitation and age-hardening response of an Al-15%Mg2Si alloy. Mater. Charact. 2020, 169, 110611. [Google Scholar] [CrossRef]
- Sun, Y.; Li, C.; Liu, Y.; Yu, L.; Li, H. Intermetallic phase evolution and strengthening effect in Al-Mg2Si alloys with different Cu/Ni ratios. Mater. Lett. 2017, 215, 215–248. [Google Scholar] [CrossRef]
- Böyük, U.; Engin, S.; Maraşlı, N. Microstructural characterization of unidirectional solidified eutectic Al-Si-Ni alloy. Mater. Charact. 2011, 62, 844–851. [Google Scholar] [CrossRef]
- Li, C.; Sun, J.; Li, Z.; Gao, Z.; Liu, Y.; Yu, L.; Li, H. Microstructure and corrosion behavior of Al-10%Mg2Si cast alloy after heat treatment. Mater. Charact. 2016, 122, 142–147. [Google Scholar] [CrossRef]
- Chen, J.; Liao, H.; Wu, Y.; Li, H. Contributions to high temperature strengthening from three types of heat-resistant phases formed during solidification, solution treatment and ageing treatment of Al-Cu-Mn-Ni alloys respectively. Mater. Sci. Eng. A 2020, 772, 138819. [Google Scholar] [CrossRef]
- Asghar, Z.; Requena, G.; Boller, E. Three-dimensional rigid multiphase networks providing high-temperature strength to cast AlSi10Cu5Ni1-2 piston alloys. Acta Mater. 2011, 59, 6420–6432. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lin, Q.; Shen, P.; Yang, L.; Jin, S.; Jiang, Q.C. Wetting of TiC by molten Al at 1123–1323 K. Acta Mater. 2011, 59, 1898–1911. [Google Scholar] [CrossRef]
- Xu, C.l.; Jiang, Q.C.; Yang, Y.F.; Wang, H.; Wang, J.G. Effect of Nd on primary silicon and eutectic silicon in hypereutectic Al-Si alloy. J. Alloy. Compd. 2006, 422, L1–L4. [Google Scholar] [CrossRef]
- Sun, J.; Li, C.; Liu, X.; Yu, L.; Li, H.; Liu, Y. Investigation on AlP as the heterogeneous nucleus of Mg2Si in Al-Mg2Si alloys by experimental observation and first-principles calculation. Results Phys. 2017, 8, 146–152. [Google Scholar] [CrossRef]
- Li, Z.; Li, C.; Liu, Y.; Yu, L.; Guo, Q.; Li, H. Effect of heat treatment on microstructure and mechanical property of Al-10%Mg2Si alloy. J. Alloy. Compd. 2015, 663, 16–19. [Google Scholar] [CrossRef]
- Farkoosh, A.R.; Javidani, M.; Hoseini, M.; Larouche, D.; Pekguleryuz, M. Phase formation in as-solidified and heat-treated Al-Si-Cu-Mg-Ni alloys: Thermodynamic assessment and experimental investigation for alloy design. J. Alloy. Compd. 2013, 551, 596–606. [Google Scholar] [CrossRef]
- Li, C.; Sha, G.; Xia, J.; Liu, Y.; Ringer, S. Si-induced precipitation modification and related age-hardening response of an Al-4Mg-1Cu-0.5Si alloy. Mater. Chem. Phys. 2017, 193, 421–426. [Google Scholar] [CrossRef]
- Qi, Y.; Zhang, H.; Zhu, J.; Nie, X.; Hu, Z.; Zhu, H.; Zeng, X. Mechanical behavior and microstructure evolution of Al-Cu-Mg alloy produced by laser powder bed fusion: Effect of heat treatment. Mater. Charact. 2020, 165, 110364. [Google Scholar] [CrossRef]
- Xu, C.; Yang, Y.F.; Wang, H.; Jiang, Q.C. Effects of modification and heat-treatment on the abrasive wear behavior of hypereutectic Al-Si alloys. J. Mater. Sci. 2007, 42, 6331–6338. [Google Scholar] [CrossRef]
- Lin, Q.; Li, F.; Jin, P.; Zhong, W. Wetting of T2 Cu by molten 4043 and 6061 Al alloys at 923–1023 K. J. Alloy. Compd. 2017, 734, 1445–1451. [Google Scholar] [CrossRef]
- Costa, T.A.; Dias, M.; Gomes, L.G.; Rocha, O.L.; Garcia, A. Effect of solution time in T6 heat treatment on microstructure and hardness of a directionally solidified Al-Si-Cu alloy. J. Alloy. Compd. 2016, 683, 485–494. [Google Scholar] [CrossRef]
- Shaha, S.K.; Czerwinski, F.; Kasprzak, W.; Friedman, J.; Chen, D.L. Effect of Mn and heat treatment on improvements in static strength and low-cycle fatigue life of an Al-Si-Cu-Mg alloy. Mater. Sci. Eng. A 2016, 657, 441–452. [Google Scholar] [CrossRef]
- Zhou, Y.; Lin, Q.; Cao, R.; Chen, J. Wetting behavior of molten 4043 aluminum alloy on different steel plates in cold metal transfer. Trans. China Weld. Inst. 2016, 37, 115–118. [Google Scholar]
- Yao, J.Y.; Taylor, J.A. Characterisation of intermetallic particles formed during solution treatment of an Al-7Si-0.4Mg-0.12Fe alloy. J. Alloy. Compd. 2012, 519, 60–66. [Google Scholar] [CrossRef]
- Wang, L.F.; Sun, J.; Yu, X.L.; Shi, Y.; Zhu, X.G.; Cheng, L.Y.; Liang, H.H.; Yan, B.; Guo, L.J. Enhancement in mechanical properties of selectively laser-melted AlSi10Mg aluminum alloys by T6-like heat treatment. Mater. Sci. Eng. A 2018, 734, 299–310. [Google Scholar] [CrossRef]
- Beroual, S.; Boumerzoug, Z.; Paillard, P.; Borjon-Piron, Y. Effects of heat treatment and addition of small amounts of Cu and Mg on the microstructure and mechanical properties of Al-Si-Cu and Al-Si-Mg cast alloys. J. Alloy. Compd. 2019, 784, 1026–1035. [Google Scholar] [CrossRef]
- Beroual, S.; Boumerzoug, Z.; Paillard, P.; Borjon-Piron, Y. Comparative study on the microstructures and hardness of the AlSi10.6CuMg alloy produced by sand casting and high pressure die casting. Int. J. Cast Met. Res. 2019, 32, 1–22. [Google Scholar] [CrossRef]
- Bacaicoa, I.; Dwivedi, P.K.; Luetje, M.; Zeismann, F.; Brueckner-Foit, A.; Geisert, A.; Fehlbier, M. Effect of non-equilibrium heat treatments on microstructure and tensile properties of an Al-Si-Cu alloy. Mater. Sci. Eng. A 2016, 673, 562–571. [Google Scholar] [CrossRef]
- Wang, G.; Bian, X.; Wang, W.; Zhang, J. Influence of Cu and minor elements on solution treatment of Al-Si-Cu-Mg cast alloys. Mater. Lett. 2003, 57, 4083–4087. [Google Scholar] [CrossRef]
- Narayanan, L.A.; Samuel, F.H.; Gruzleski, J.E. Dissolution of iron intermetallics in Al-Si Alloys through nonequilibrium heat treatment. Metall. Mater. Trans. A 1995, 26, 2161–2174. [Google Scholar] [CrossRef]
- Zuo, L.; Ye, B.; Feng, J.; Zhang, H.; Kong, X.; Jiang, H. Effect of ε-Al3Ni phase on mechanical properties of Al-Si-Cu-Mg-Ni alloys at elevated temperature. Mater. Sci. Eng. A 2020, 772, 138794. [Google Scholar] [CrossRef]
- Moshtaghi, M.; Safyari, M.; Hojo, T. Effect of solution treatment temperature on grain boundary composition and environmental hydrogen embrittlement of an Al-Zn-Mg-Cu alloy. Vacuum 2021, 184, 109937. [Google Scholar] [CrossRef]
- Ma, P.P.; Liu, C.H.; Wu, C.L.; Liu, L.M.; Chen, J.H. Mechanical properties enhanced by deformation-modified precipitation of θ′-phase approximants in an Al-Cu alloy. Mater. Sci. Eng. A 2016, 676, 138–145. [Google Scholar] [CrossRef]
- Farahany, S.; Ourdjini, A.; Bakhsheshi-Rad, H.R. Microstructure, mechanical properties and corrosion behavior of Al-Si-Cu-Zn-X (X=Bi, Sb, Sr) die cast alloy. Trans. Nonferrous Met. Soc. China 2016, 26, 28–38. [Google Scholar] [CrossRef]
- Sui, Y.; Wang, Q.; Wang, G.; Liu, T. Effects of Sr content on the microstructure and mechanical properties of cast Al–12Si–4Cu–2Ni–0.8Mg alloys. J. Alloy. Compd. 2015, 622, 572–579. [Google Scholar] [CrossRef]
- Wang, Y.; Xu, H.; Hu, M.; Sugiyama, S.; Ji, Z. Enhanced mechanical properties of a chip-based Al-Si-Cu-Fe alloy with an in-situ emulsion decomposition recycled by solid-state processing. Results Phys. 2019, 12, 718–724. [Google Scholar] [CrossRef]
- Choudhary, C.; Sahoo, K.L.; Mandal, D. Microstructure and mechanical properties of Al-Si alloys processed by strain induced melt activation. Mater. Today Proc. 2018, 5, 27107–27111. [Google Scholar] [CrossRef]
- Gao, T.; Wang, D.; Du, X.; Li, D.; Liu, X. Phase transformation mechanism of Al4C3 by the diffusion of Si and a novel method for in situ synthesis of SiC particles in Al melt. J. Alloy. Compd. 2016, 685, 91–96. [Google Scholar] [CrossRef]
- Ashiri, R.; Niroumand, B.; Karimzadeh, F. Physical, mechanical and dry sliding wear properties of an Al-Si-Mg-Ni-Cu alloy under different processing conditions. J. Alloy. Compd. 2014, 582, 213–222. [Google Scholar] [CrossRef]
- Nie, J.F.; Muddle, B.C. Strengthening of an Al-Cu-Sn alloy by deformation-resistant precipitate plates. Acta Mater. 2008, 56, 3490–3501. [Google Scholar] [CrossRef]
- Han, X.; Zhang, Z.; Hou, J.; Barber, G.C.; Qiu, F. Tribological behavior of shot peened/austempered AISI 5160 steel. Tribol. Int. 2020, 145, 106197. [Google Scholar] [CrossRef]
- Yang, H.-Y.; Wang, Z.; Chen, L.-Y.; Shu, S.-L.; Qiu, F.; Zhang, L.-C. Interface formation and bonding control in high-volume-fraction (TiC+TiB2)/Al composites and their roles in enhancing properties. Compos. Part B Eng. 2021, 209, 108605. [Google Scholar] [CrossRef]
