Next Article in Journal
Theoretical Model of Residual Stress and Warpage for Wire and Arc Additive Manufacturing Stiffened Panels
Previous Article in Journal
The Microstructure and Mechanical Properties of TA1-Low Alloy Steel Composite Plate Manufactured by Explosive Welding
Previous Article in Special Issue
Revolution and Control of Fe-Al-(Mg, Ti)-O Oxide Inclusions in IF Steel during 260t BOF-RH-CC Process
Open AccessArticle

Effect of Heterogeneous Nucleation on Removal of Arsenic from Molten Steel by Rare Earth Addition

College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China
*
Authors to whom correspondence should be addressed.
Metals 2020, 10(5), 664; https://doi.org/10.3390/met10050664
Received: 6 May 2020 / Revised: 16 May 2020 / Accepted: 18 May 2020 / Published: 20 May 2020
(This article belongs to the Special Issue Inclusion/Precipitate Engineering in Steels)

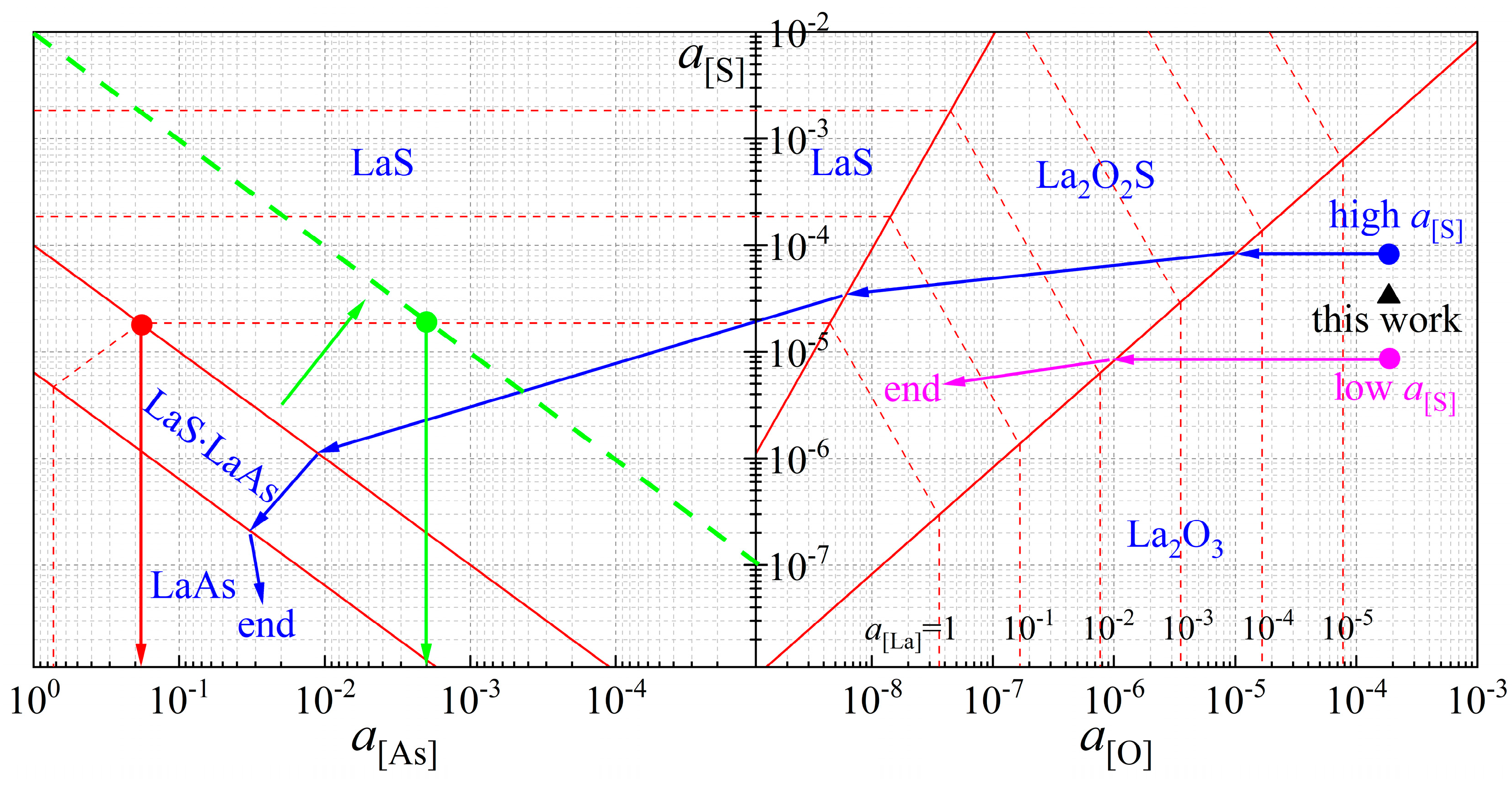

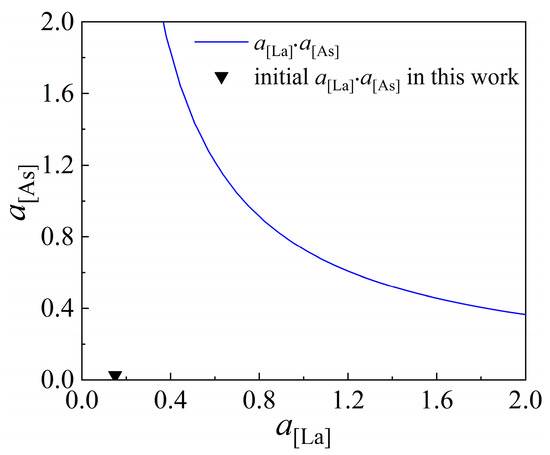

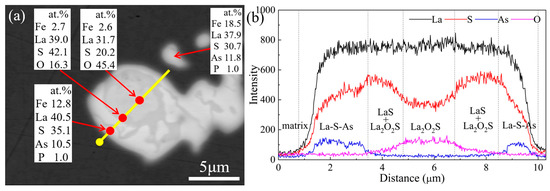

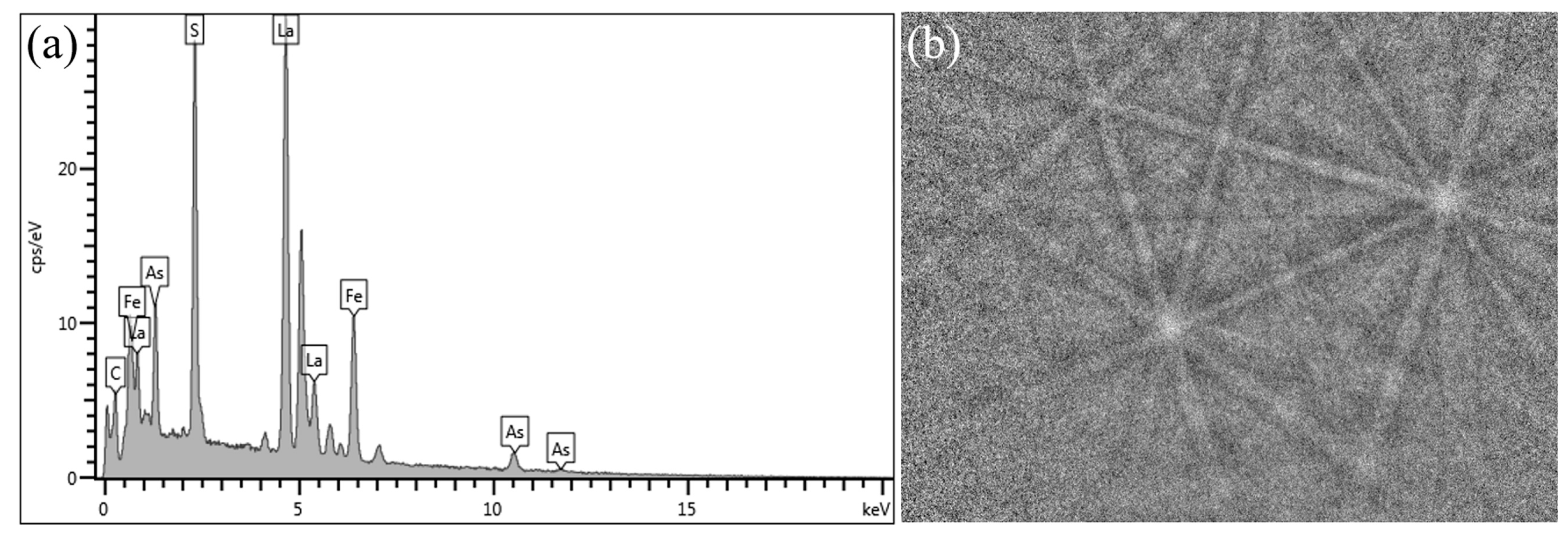

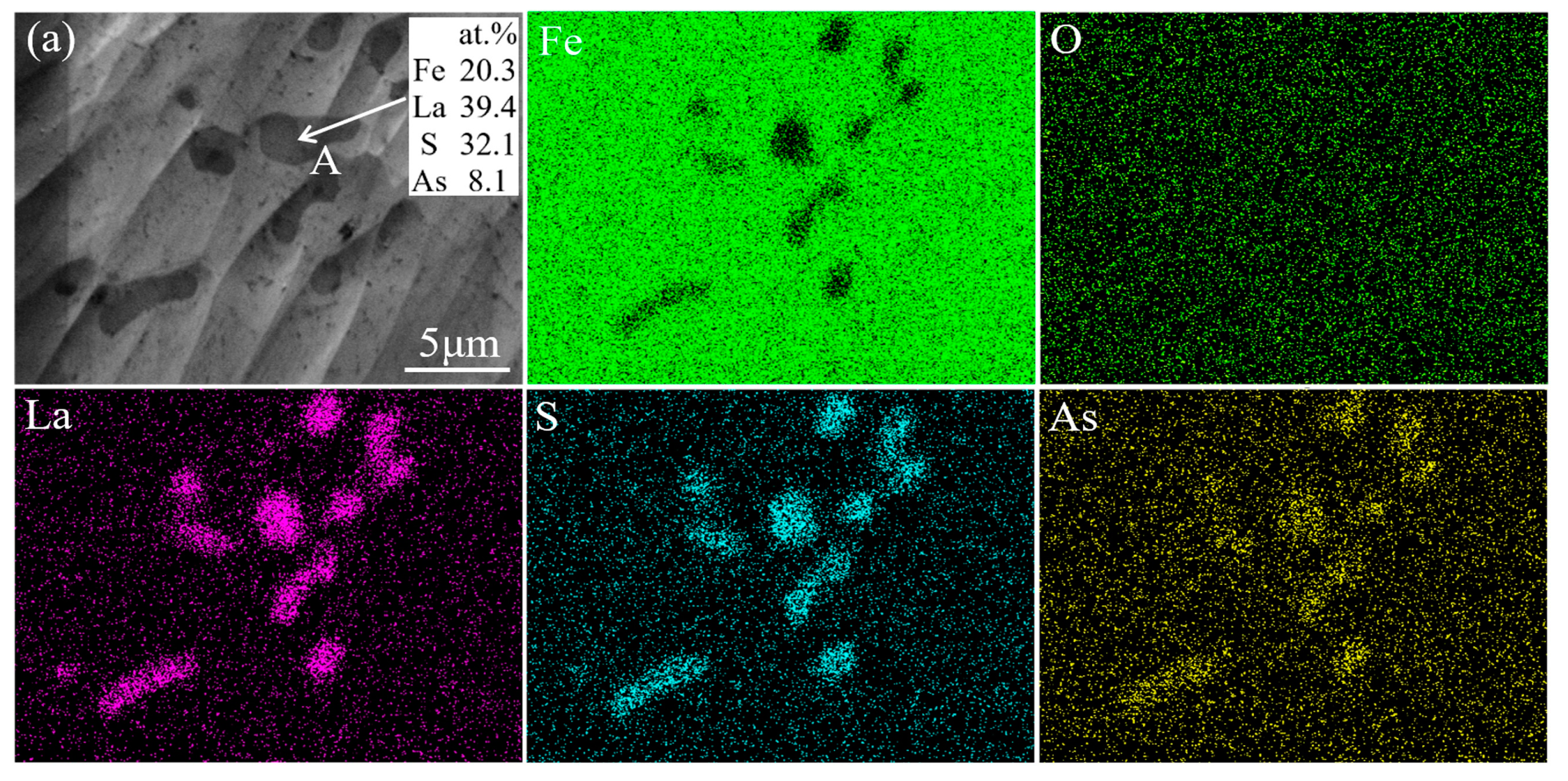

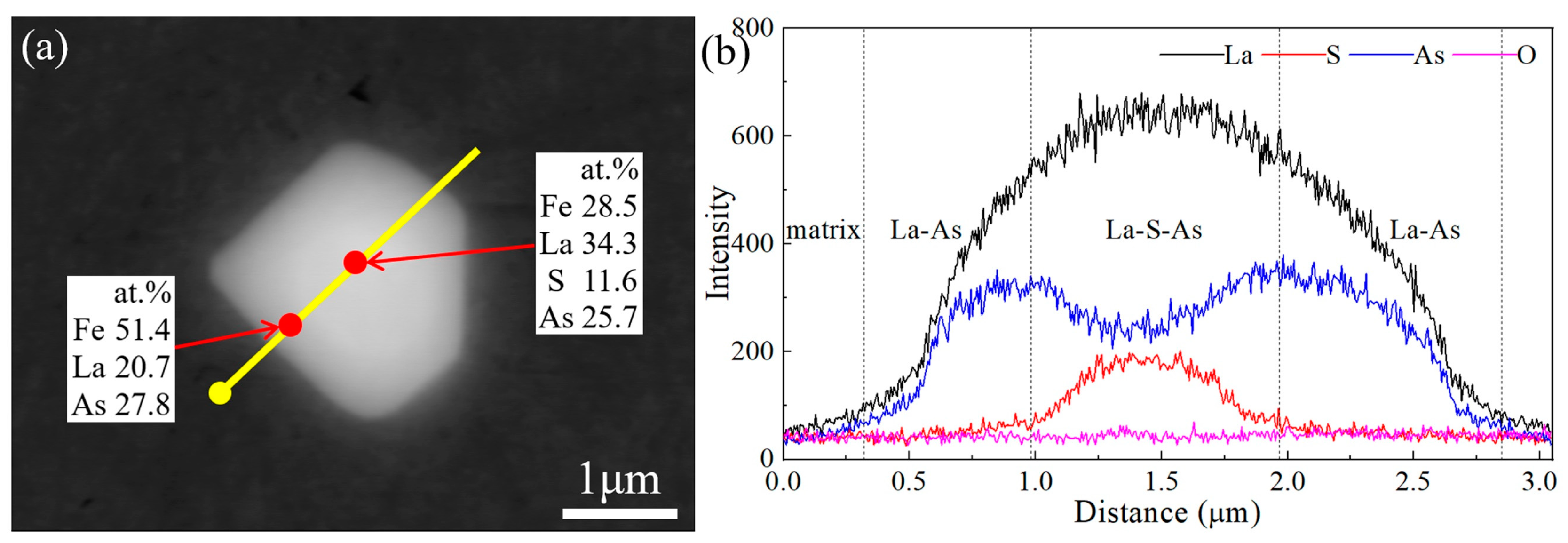

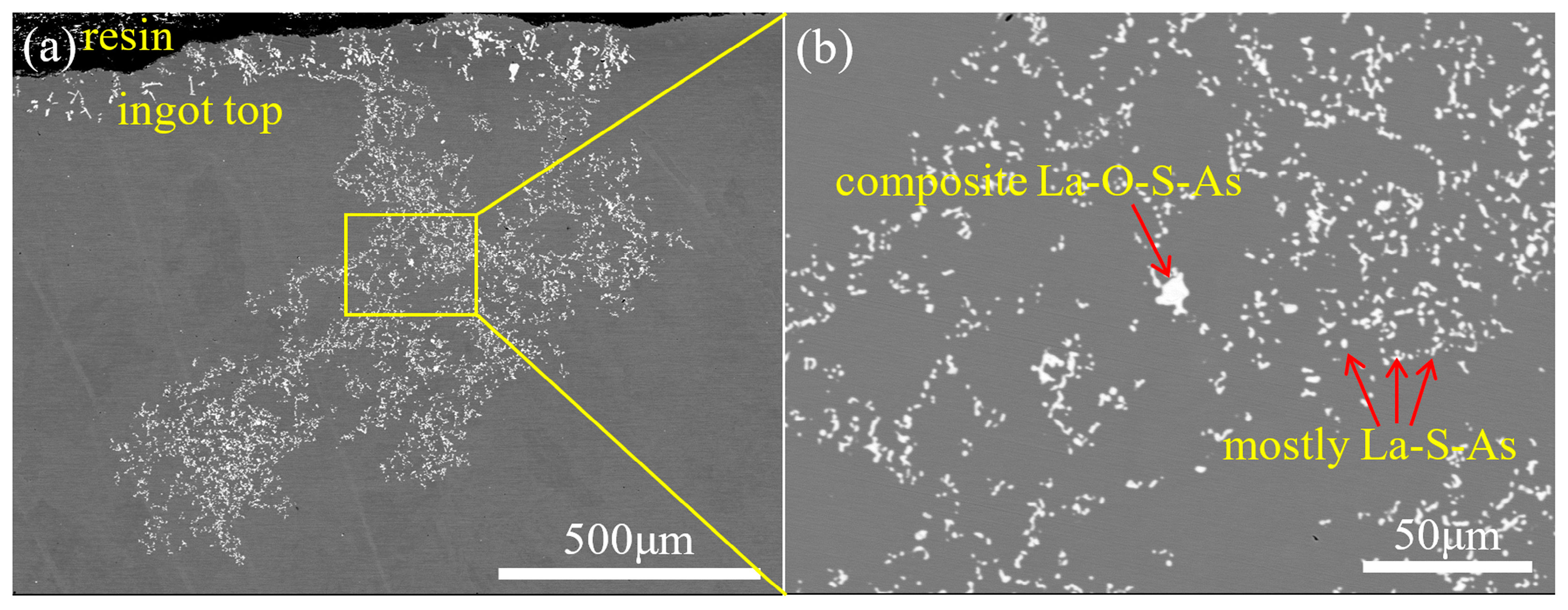

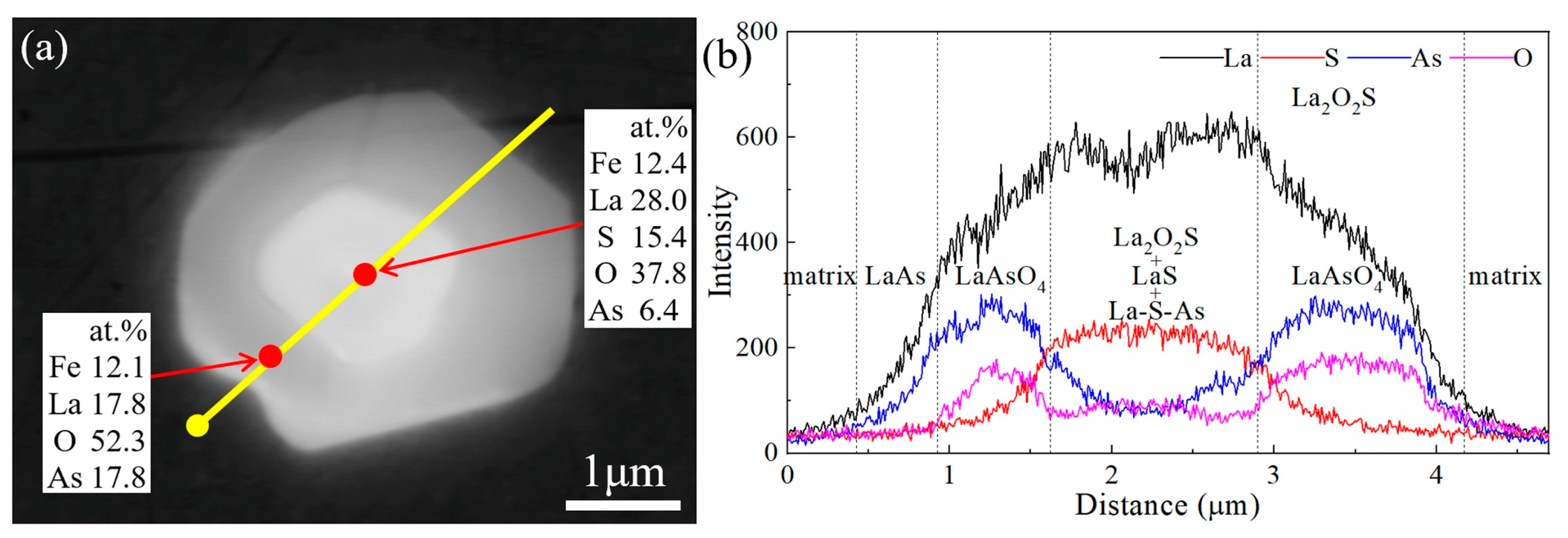

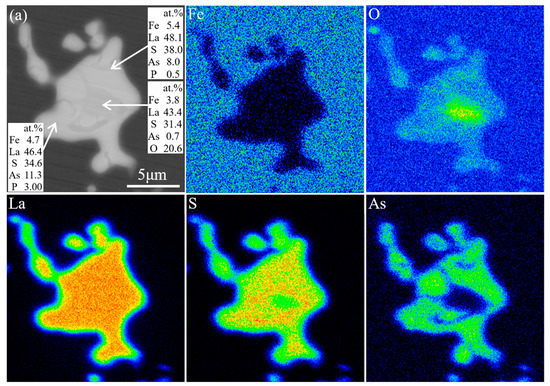

Cleanliness control is an eternal theme to improve the properties of steel products. With the increasing recycling rates of scrap steel, the removal and stabilization of residual elements have become a vital issue for improving the performance of steel products. Thermodynamic and mismatch calculations plus laboratory experiments were carried out to study the heterogeneous nucleation phenomena of inclusions when lanthanum was employed to remove arsenic from molten steel and stabilize arsenic in solid steel. The effect of heterogeneous nucleation on the mechanism of arsenic removal was discussed. A series of heterogeneous nucleation phenomena of inclusions in the La-O-S-As system were discovered, and the heterogeneous nucleation among the inclusions turned out to be selective. As the vital product of arsenic removal, La-S-As is most likely to generate with LaS as heterogeneous nucleation cores, and its possible chemical formula turned out to be 3LaS⸱LaAs. Sulfur plays an essential role in removing arsenic from molten steel by adding lanthanum. It needs to control the initial sulfur content in an appropriate range, because the high initial content causes too much loss of rare earth, and the low initial content cannot produce LaS and La-S-As. View Full-Text
Keywords: clean steel; rare earth; heterogeneous nucleation; inclusion; residual element clean steel; rare earth; heterogeneous nucleation; inclusion; residual element
Show Figures

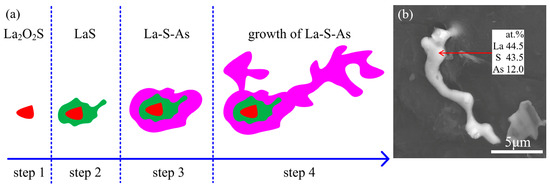

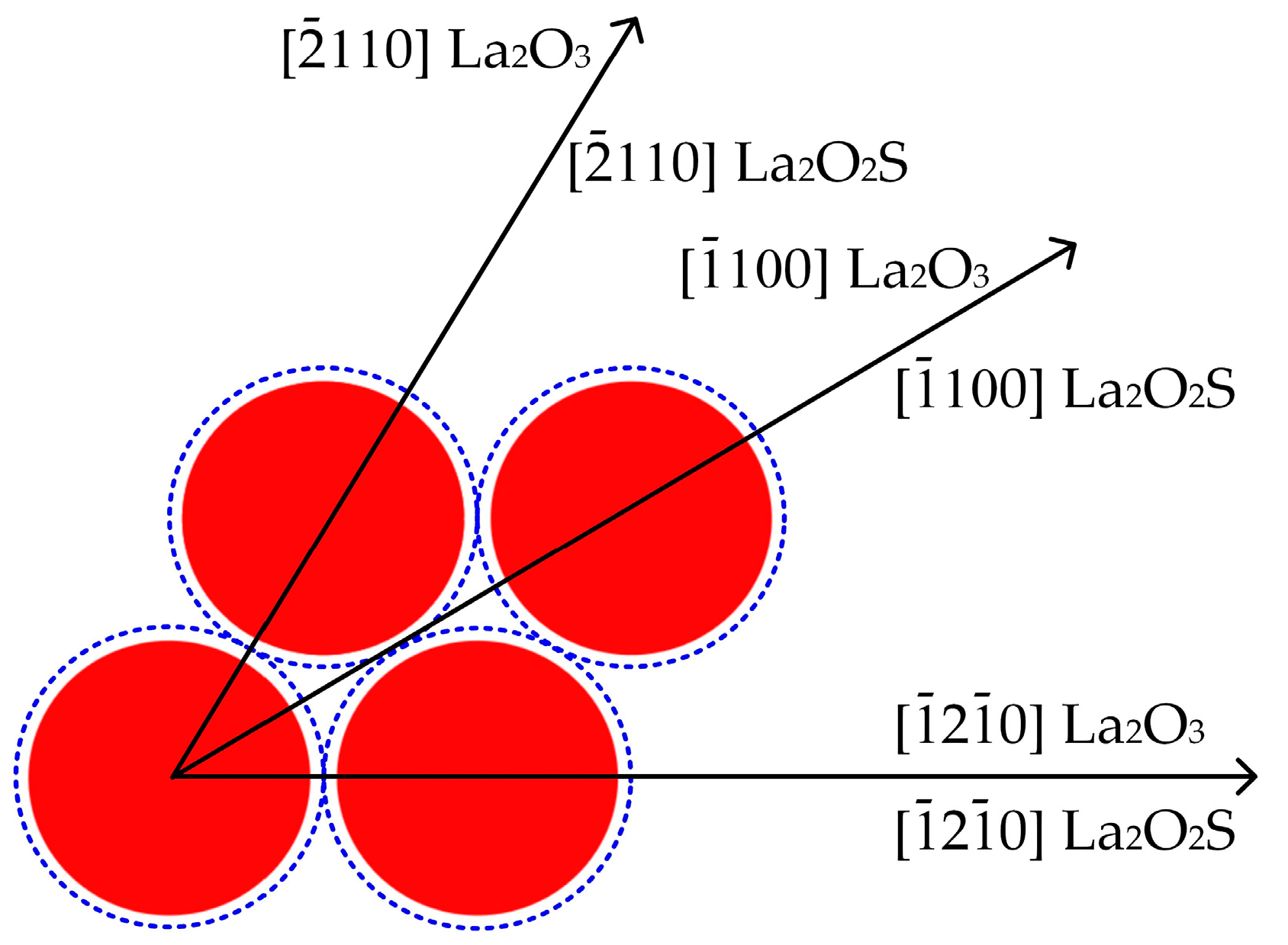

Figure 1

MDPI and ACS Style

Wang, H.; Yu, P.; Jiang, S.; Wang, Y. Effect of Heterogeneous Nucleation on Removal of Arsenic from Molten Steel by Rare Earth Addition. Metals 2020, 10, 664.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
