Reproducibility of Gaseous Phase Area on Journal Bearing Utilizing Multi-Phase Flow CFD Analysis under Flooded and Starved Lubrication Conditions

1
Department of Mechanical Engineering, Tokai University, Hiratsuka-shi, Kanagawa 259-1292, Japan
2
Mechanical Elements, Vibration and Acoustics Section, Fundamental Technologies Research Department, Technologies, R&D Division, Ebara Corporation, Honfujisawa, Fujisawa-shi, Kanagawa 251-8502, Japan
*
Author to whom correspondence should be addressed.
Lubricants 2019, 7(9), 74; https://doi.org/10.3390/lubricants7090074
Received: 25 June 2019 / Revised: 14 August 2019 / Accepted: 19 August 2019 / Published: 27 August 2019
(This article belongs to the Special Issue Fluid-Film Lubrication II)

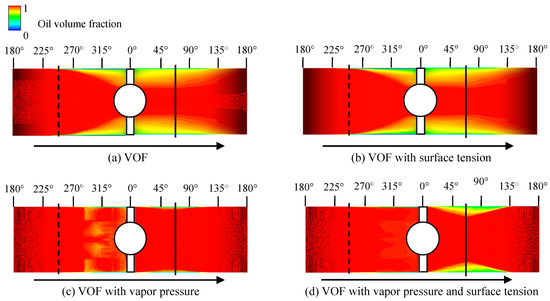

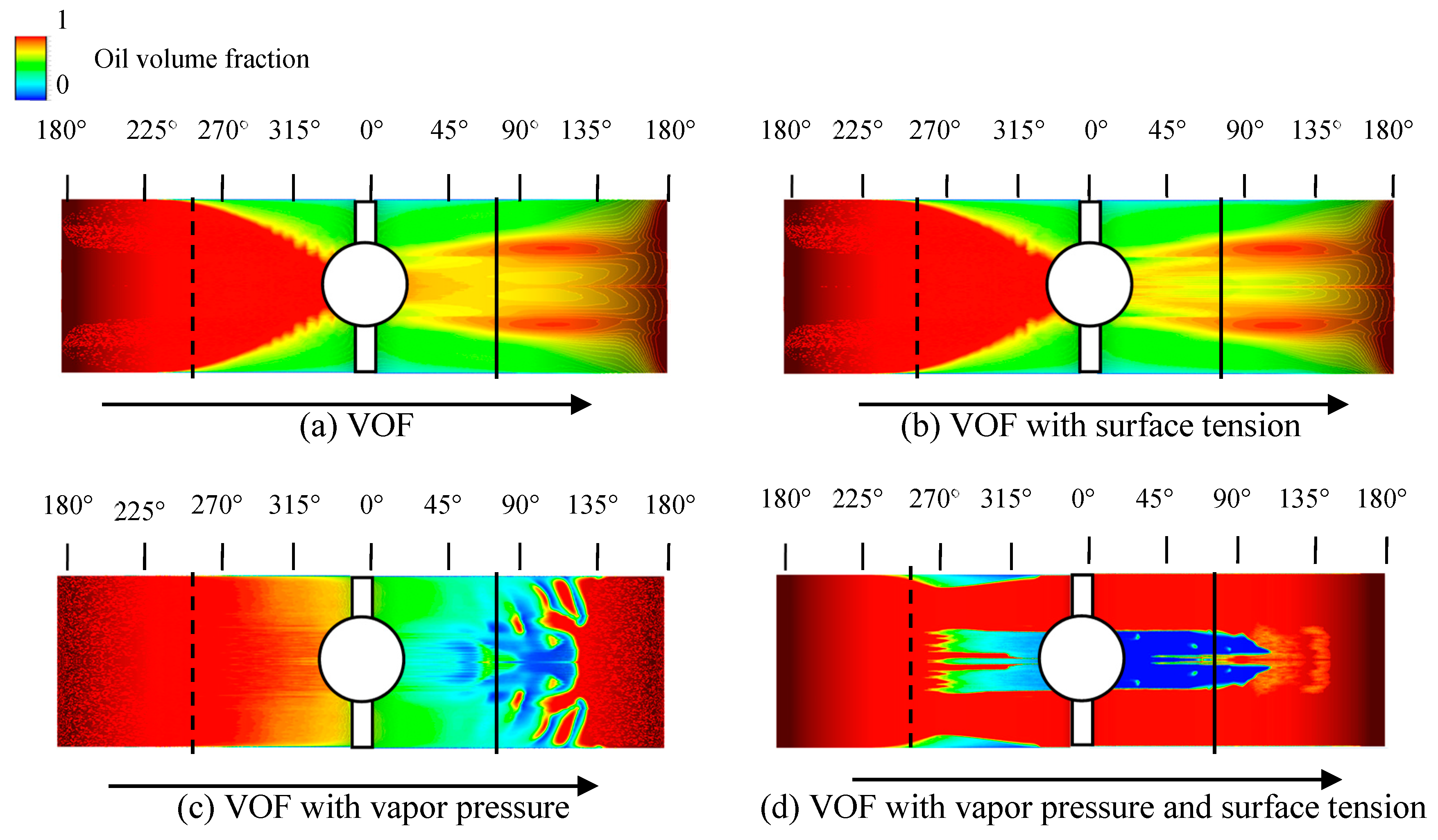

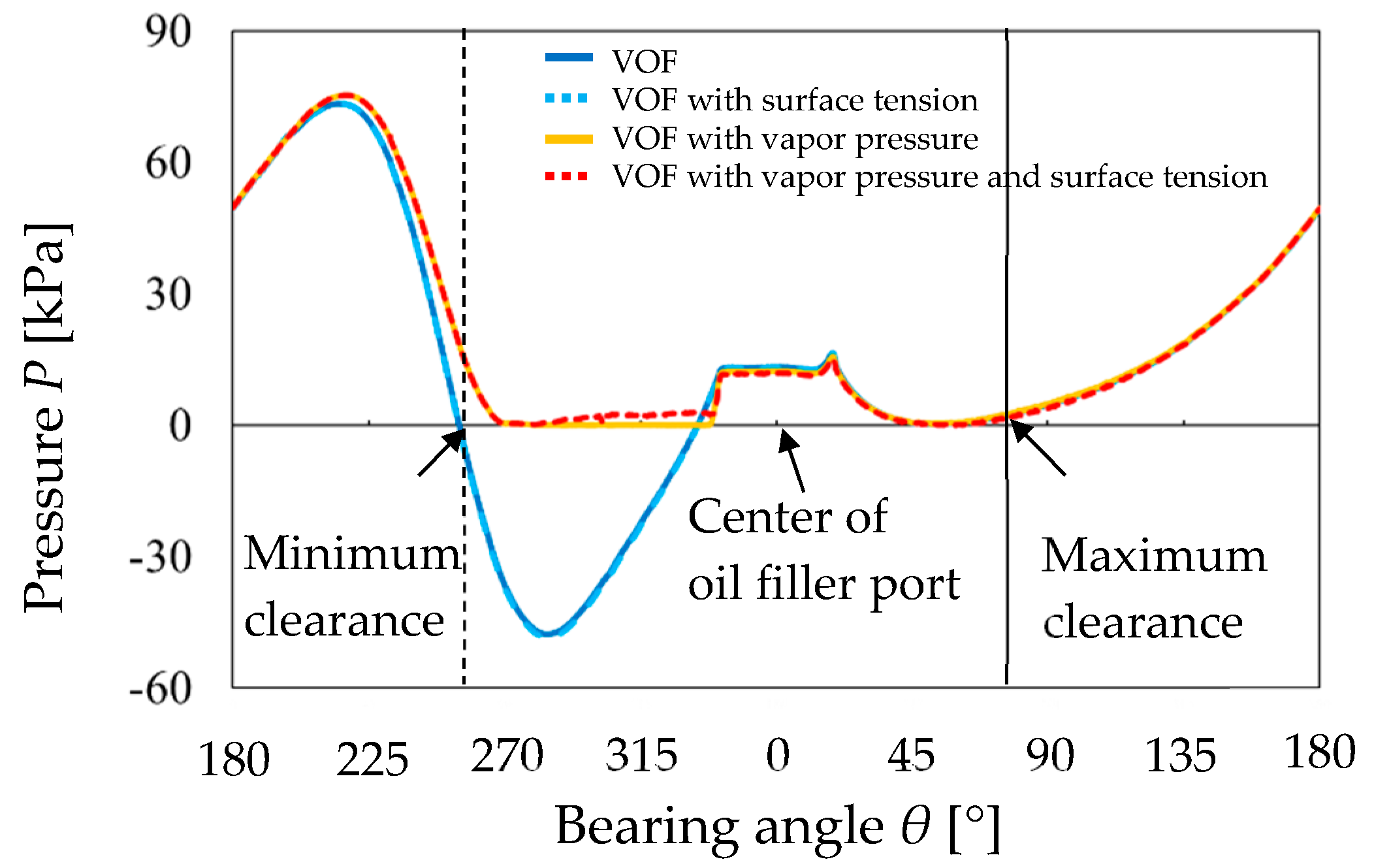

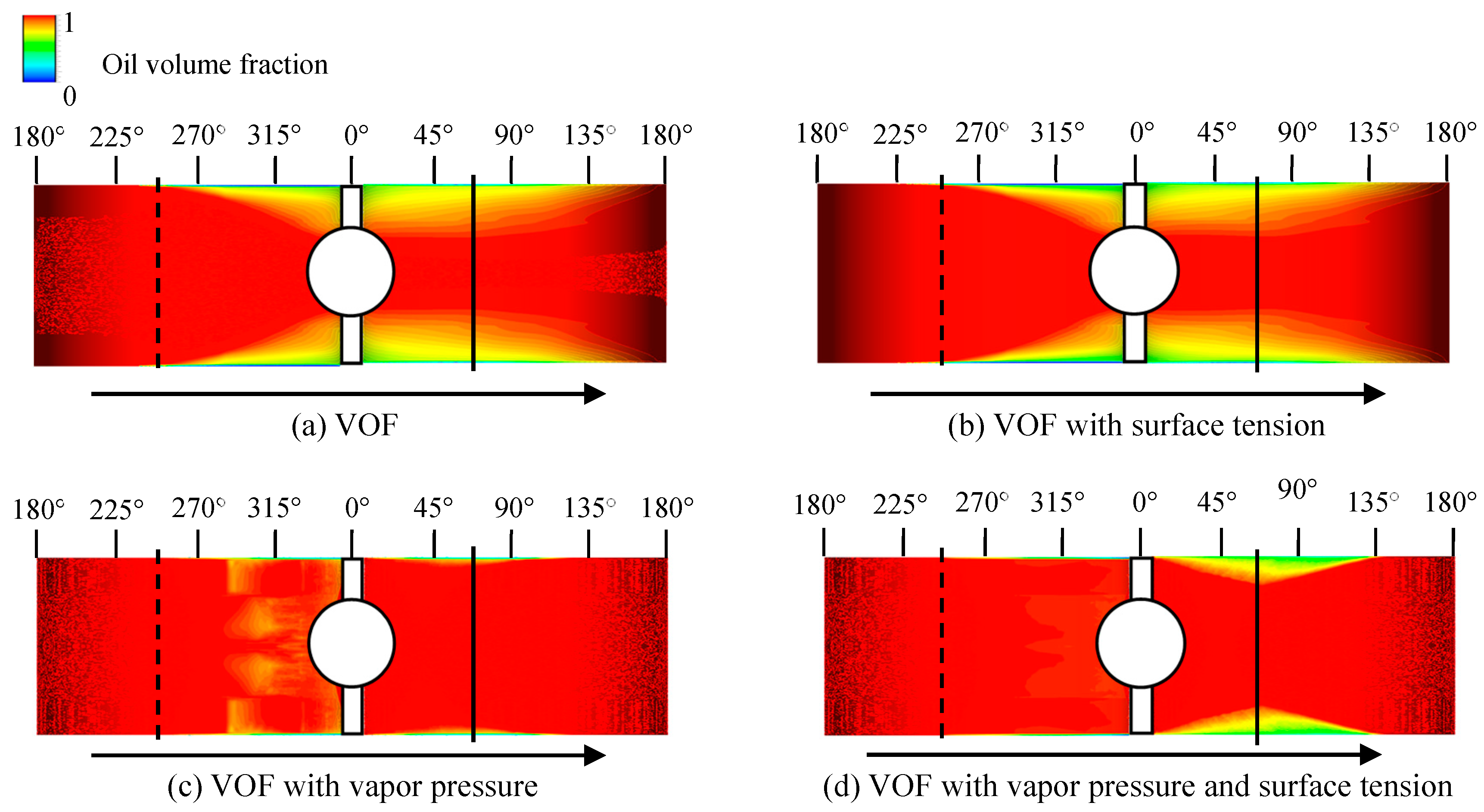

It is important to predict the gaseous phase area of journal bearing. However, a detailed calculation method for such gaseous phase areas has not yet been proposed. In this study, the gaseous-phase areas in small bore journal bearings under flooded and starved lubrication conditions are analyzed in terms of the computational fluid dynamics (CFD) of two-phase flow while using a volume of fluid (VOF) method. Furthermore, the influence of surface tension and vapor pressure conditions were investigated, and the analytical and experimental results were compared. The analytical results of VOF for vapor pressure and surface tension were observed to be consistent with the experimental observations under both flooded and starved lubrication conditions. Furthermore, under starved lubrication condition, the analytical results agree well with the observed results for the interface of the oil film and cavitation upon the rupture of the oil film. While using these results, CFD analysis of the two-phase flow of the VOF can be conducted in terms of vapor pressure and surface tension to estimate the gaseous-phase areas of journal bearings under flooded and starved lubrication conditions. View Full-Text
Keywords: hydrodynamic journal bearing; multi-phase; computational fluid dynamics analysis; gaseous-phase; surface tension; cavitation; starved lubrication; visualization experiment hydrodynamic journal bearing; multi-phase; computational fluid dynamics analysis; gaseous-phase; surface tension; cavitation; starved lubrication; visualization experiment
Show Figures

Figure 1

MDPI and ACS Style

Ochiai, M.; Sakai, F.; Hashimoto, H. Reproducibility of Gaseous Phase Area on Journal Bearing Utilizing Multi-Phase Flow CFD Analysis under Flooded and Starved Lubrication Conditions. Lubricants 2019, 7, 74.
