Inhibitory Effects of Caulerpa racemosa, Ulva intestinalis, and Lobophora challengeriae on Tyrosinase Activity and α-MSH-Induced Melanogenesis in B16F10 Melanoma Cells

by
Pradtana Choosuwan
1,
Jantana Praiboon
1,*,
Korawinwich Boonpisuttinant
2,
Anirut Klomjit
1,
Narongrit Muangmai
1,
Rapeeporn Ruangchuay
3 and
Anong Chirapart
1
1
Algal Bioresources Research Center, Department of Fishery Biology, Faculty of Fisheries, Kasetsart University, Chatuchak, Bangkok 10900, Thailand
2
Innovative Natural Products from Thai Wisdoms (INPTW), Faculty of Integrative Medicine, Rajamangala University of Technology Thanyaburi, Pathumthani 12130, Thailand
3
Division of Fishery Technology, Faculty of Science and Technology, Prince of Songkla University, Pattani 94000, Thailand
*
Author to whom correspondence should be addressed.
Life 2023, 13(4), 934; https://doi.org/10.3390/life13040934
Submission received: 27 February 2023 / Revised: 19 March 2023 / Accepted: 31 March 2023 / Published: 3 April 2023
(This article belongs to the Special Issue Natural Products and Their Applications in Pharmaceutical, Nutritional and Cosmetic Products)
Browse Figures
Versions Notes

Abstract

:
Melanogenesis involves a synthesis of melanin pigment and is regulated by tyrosinase. The addition of whitening agents with tyrosinase-inhibiting properties in cosmetics is becoming increasingly important. In this study, the ethanolic extracts from twelve seaweeds were assessed for tyrosinase-inhibiting activity using mushroom tyrosinase and melanin synthesis in B16F10 melanoma cells. The highest mushroom tyrosinase inhibition (IC50) was observed with Lobophora challengeriae (0.15 ± 0.01 mg mL−1); treatment was more effective than kojic acid (IC50 = 0.35 ± 0.05 mg mL−1), a well-known tyrosinase inhibitor. Three seaweeds, Caulerpa racemosa, Ulva intestinalis, and L. challengeriae, were further investigated for their ability to reduce melanogenesis in B16F10 cells. The ethanolic extracts of C. racemosa, U. intestinalis, and L. challengeriae showed inhibitory effects by reducing melanin and intracellular tyrosinase levels in B16F10 cells treated with α-melanocyte stimulating hormone in a dose-dependent manner. C. racemosa (33.71%) and L. challengeriae (36.14%) at 25 µg mL−1 reduced melanin production comparable to that of kojic acid (36.18%). L. challengeriae showed a stronger inhibition of intracellular tyrosinase (decreased from 165.23% to 46.30%) than kojic acid (to 72.50%). Thus, ethanolic extracts from C. racemosa, U. intestinalis, and L. challengeriae can be good sources of natural tyrosinase inhibitors and therapeutic or cosmetic agents in the future.

1. Introduction

The melanin content of mammals is the main determining factor of skin and hair colors [1]. In addition, melanin protects skin cells from ultraviolet (UV) radiation damage by absorbing UV radiation and removing reactive oxygen species (ROS) [2,3]. The overproduction of melanin is one of the main causes of melasma, freckles, dark spots, and post-inflammatory melanoderma [4]. Melanin is produced from epidermal melanocytes along with basal keratinocytes, and melanocytes synthesize melanin through a process called melanogenesis. Tyrosinase-related protein-1 (TRP-1), TRP-2, and tyrosinase are enzymes that regulate the process of melanin production [5]. Tyrosinase (enzyme commission number (EC) 1.14.18.1) is the rate-limiting enzyme that plays an important role in melanogenesis [6]. This enzyme is mainly involved in the initial steps of melanogenesis; it catalyzes the hydroxylation of L-tyrosine to L-DOPA and converts L-DOPA to dopaquinone by oxidation. Dopaquinone can be transformed to dopachrome in the production of eumelanin, and dopaquinone itself can also be converted to cysteinyl dopa to produce pheomelanin [7,8]. Tyrosinase inhibition is one of the most common methods for achieving skin hypopigmentation [9]. In addition, tyrosinase inhibitors may be of clinical benefit in the treatment of skin cancer and some dermatologic conditions associated with melanin hyperpigmentation [10].
Tyrosinase inhibitors are known from both natural and synthetic sources. Although many tyrosinase inhibitors are available today, only a few can be used in cosmetics because of their side effects. Hydroquinone, kojic acid, and arbutin are known inhibitors used for the treatment of hyperpigmentation disorders. Some studies have emphasized that hydroquinone can cause DNA damage, mutations and have reported various side effects, including contact dermatitis, leukoderma, transient erythema, burning, prickling sensations, and ochronosis [1,11,12,13]. Kojic acid has also been banned in some countries due to side effects and concerns about mutagenicity [14]. Although arbutin is a natural product, it affects the gene expression level of the skin [15]. Safe and effective tyrosinase inhibitors from natural resources thus continue to attract attention, and in recent years seaweed has become an increasingly promising potential source of tyrosinase inhibitors.
Several bioactive compounds from seaweed are considered excellent natural extracts that can be used as ingredients in the development of cosmetic and pharmaceutical products [3,16,17]. According to previous studies, seaweeds are promising sources of novel tyrosinase inhibitors because of their anti-melanogenic effects, especially brown seaweeds belonging to the genera Ecklonia, Laminaria, Sargassum, and Undaria [9,10,18,19,20,21,22]. Some studies have been reported on red seaweed [18,23,24] and green seaweed [19,25,26].
Caulerpa racemosa (Forsskål) J. Agardh (1873) [27], Ulva intestinalis Linnaeus (1753) [28], and Lobophora challengeriae C.W. Vieira (2019) [29] are seaweeds native to the southern Pacific Ocean and are typically distributed along the coasts of Thailand [30,31]. Currently, C. racemosa and U. intestinalis are green algae that can be produced in large quantities on farms and are used mainly as food or feed [32,33]. The investigation of high-value substances from these seaweeds for nutraceuticals, cosmeceuticals, and pharmaceuticals is still ongoing. Lobophora is a brown seaweed that has been reported to have a wide range of bioactivities, including antioxidative, antibacterial, antiviral, and antitumoral activities [34]. As far as is known, this is the first investigation on the inhibitory effect of extracts from U. intestinalis and L. challengeriae on melanin synthesis in B16F10 cells. Accordingly, the present study aimed to explore the inhibitory effect of seaweed extract using a mushroom tyrosinase system, which is commonly used to test and screen potential tyrosinase inhibitors. The ability of seaweed extract to inhibit melanin production and intracellular tyrosinase activity in B16F10 cells was also tested.

2. Materials and Methods

2.1. Seaweed

Twelve samples of seaweed were collected in the coastal regions of Thailand from May 2016 to August 2017 (Table 1). After collection, the sands, salts, and epiphytes were removed with fresh water. Seaweed was kept at −20 °C for further analysis. All seaweed samples were identified at the Algal Bioresources Research Center of the Department of Fishery Biology at Kasetsart University.

2.2. Seaweed Extract Preparation

The samples were extracted with 95% ethanol (1:10, w/v) for 24 h at room temperature. The extract was filtered with Whatman No. 2 filter paper. The residues were extracted two additional times under the same conditions. The resulting filtrate was evaporated at 40 °C under reduced pressure in a rotary evaporator (BUCHI rotavapor R-200) until crude extract was obtained. The extract was redissolved with 95% ethanol, filtered with a 0.45 μm polytetrafluoroethylene (PTFE) syringe filter, blown with N2, and stored at −20 °C until further analysis.

2.3. Determination of Total Phenolic Contents (TPC)

The TPC of seaweed extracts was analyzed according to the method of Park et al. [42] with slight modifications. Briefly, 100 µL of the sample solution (10 mg mL−1) was added to 750 μL of 10% Folin–Ciocalteu solution. After 5 min, 750 μL of 6% Na2CO3 was added, and the mixture was incubated at room temperature for 30 min in the dark. The absorbance of the samples was measured at 750 nm by a microplate reader (EZ Read 200 microplate reader). The TPC of each extract was then calculated based on a gallic acid standard curve and is reported as milligrams of the gallic acid equivalent (GAE) per gram of the extract.

2.4. Mushroom Tyrosinase Assay

The inhibitory effects of seaweed extracts were investigated according to the method described by Chan et al. [43] with slight modifications. The tyrosinase activity was determined using 3,4-dihydroxy-l-phenylalanine (L-DOPA) as a substrate. Briefly, 40 µL of 500 units mL−1 mushroom tyrosinase (Sigma, St. Louis, MO, USA) in 0.1 M phosphate buffer (pH 6.8), and 40 µL of various concentrations of the extract were added to each well of a 96-well plate. After 10 min of incubation at room temperature, 80 µL of 2.5 mM L-DOPA in 0.1 M phosphate buffer (pH 6.8) was added to each well and incubated for 30 min at 37 °C. Kojic acid was used as a positive control. The absorbance of samples at 475 nm was measured using a 96-well microplate reader, and results are expressed as a percentage of the control value (without seaweed extract).

2.5. Melanocyte Cell Culture

The B16F10 murine melanoma cell line was obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA) and cultured in Dulbecco’s modified Eagle’s medium (DMEM) with 10% fetal bovine serum, 100 units mL−1 penicillin, and 100 units mL−1 streptomycin at 37 °C in a humidified atmosphere containing 5% CO2. Cells were subcultured every 3–4 days. The cells were harvested by trypsinization and counted by a hemocytometer.

2.6. Cell Viability Assay

The cytotoxicity of seaweed extracts on B16F10 melanoma cells was determined using a 3-(4,5-dimethylthiazol-2yl)-2,5-diphenyltetrazolium bromide (MTT) assay according to the method of Boonpisuttinant et al. [44] with slight modification. The cells (3 × 104 cells well−1) were seeded in 96-well plates with culture media and allowed to adhere overnight at 37 °C in a 5% CO2 incubator. Cells were treated with various concentrations of extracts or kojic acid and incubated for an additional 72 h. After treatment, the cells were washed three times with phosphate buffer (pH 7.0), and 100 μL of MTT solution (5 mg mL−1 in PBS) was added to each well and incubated at 37 °C for 1 h. After incubation, the MTT solution was removed, and the formazan product in each well was dissolved by adding 100 μL of dimethyl sulfoxide (DMSO). The mixture was incubated at 37 °C for 10 min, and the absorbance was measured at 560 nm using a microplate reader (Expert Plus Microplate Reader, Biochrome, Ltd., Cambridge, UK).

2.7. Measurement of Cellular Melanin Contents

The melanin content in B16F10 melanoma cells was measured according to the method of Chan et al. [43] with slight modifications. In brief, cells (2 × 105 cells well−1) were suspended in 1 mL of media in 12-well plates and allowed to adhere for 24 h at 37 °C under a 5% CO2 atmosphere. Cells were exposed to various concentrations of seaweed extracts and kojic acid (2.5–25 μg mL−1) for 72 h in the presence or absence of 100 nM α-melanocyte stimulating hormone (α-MSH), and were washed with PBS (pH 7.0). Cell pellets were lysed in 100 mL of 1 M NaOH at 60 °C for 1 h. The supernatant was measured at 450 nm with a microplate reader, and melanin content was expressed as a percentage change from the α-MSH-treated cells. Cell changes were also observed under a microscope.

2.8. Intracellular Tyrosinase Activity Assay

The intracellular tyrosinase activity in B16F10 melanoma cells was determined according to the method of Wang et al. [45] with slight modifications. The cells (2 × 105 cells well−1) were seeded in 6-well plates and cultured for 24 h. Cells were exposed to various concentrations of seaweed extracts and kojic acid (2.5, 5, 10, and 25 μg mL−1) for 72 h in the presence or absence of 100 nM α-MSH and then washed with PBS (pH 7.0). Cells’ pellets were collected after treatment with trypsin-EDTA and centrifuged at 12,000 rpm for 5 min. The pellets were lysed with 0.1 mM protease inhibitor cocktail and 1% Triton X-100. The lysates were frozen/thawed three times and then centrifuged at 10,000 rpm for 10 min. The supernatant was used for the measurement of tyrosinase activity. The reaction mixture, consisting of 80 µL of cell supernatant and 80 µL of 10 mM L-DOPA, was placed in a 96-well plate and incubated at 37 °C for 1 h. The absorbance was measured at 475 nm with a microplate reader, and the results are expressed as a percentage change from the value of α-MSH-treated cells.

2.9. Statistical Analysis

The data are presented as the mean ± standard deviation (SD). All experiments were conducted in triplicate (n = 3). The assessment of statistical difference between mean values was performed with IBM SPSS Statistics 28 software using one-way ANOVA followed by Duncan’s multiple range test. p values less than 0.05 (p < 0.05) were considered statistically significant. Pearson correlation analysis was applied to determine the relationship between phenolic content and anti-tyrosinase or anti-melanogenic activity. Half-maximal inhibitory concentrations (IC50) were calculated using Sigma Plot 12.0 software.

3. Results

3.1. The Extraction Yields and Total Phenolic Content of Seaweed Extracts

The extraction yields of the ethanolic extract from twelve seaweed samples are shown in Figure 1. The highest yield was found in the brown seaweed L. challengeriae (LC) (18.61 ± 0.29%), followed by Sargassum polycystum (SP), Turbinaria conoides (TT), and Padina minor (PM), with extraction yields of 15.55 ± 1.14%, 15.99 ± 1.35%, and 15.33 ± 0.35%, respectively. Moreover, U. intestinalis (UI) showed the highest yield among the green seaweeds (13.41 ± 0.51%). The extract yield of the red seaweed Gracilaria dura (GR) was 3.79 ± 0.46%.
The TPC varied significantly depending on species (Figure 2). The highest TPC was found in L. challengeriae (LC) (47.43 ± 0.35 mg GAE g−1 dw) for brown seaweed and in U. intestinalis (UI) (5.88 ± 0.35 mg GAE g−1 dw) for green seaweed. The TPC of G. dura was 1.45 ± 0.08 mg GAE g−1 dw.

3.2. Mushroom Tyrosinase Inhibitory Activity

As shown in Figure 3, the mushroom tyrosinase inhibitory activities of U. intestinalis (96.04 ± 0.00%), S. polycystum (94.15 ± 0.00%), and L. challengeriae (91.34 ± 0.16%) showed the highest activity at 5 mg mL−1 and were comparable to those of kojic acid (94.30 ± 0.34%). Among the seaweed groups, the brown seaweed extracts showed the greatest tyrosinase inhibitory activity. The half maximal inhibitory concentration (IC50) values are shown in Table 2. A low IC50 value indicated that the sample had strong anti-tyrosinase activity. The ethanolic extract of L. challengeriae showed the highest mushroom tyrosinase inhibitory activity, with IC50 values of 0.15 ± 0.01 mg mL−1. This treatment showed a higher inhibitory effect on mushroom tyrosinase than kojic acid (IC50 = 0.35 ± 0.05 mg mL−1), a known tyrosinase inhibitor. In addition, a moderate correlation (r = 0.480) was found between the tyrosinase inhibitory activity of all ethanolic extracts and their phenolic content.

3.3. Cytotoxicity of Seaweed Extracts on B16F10 Cells

The α-MSH stimulated B16F10 cells were treated with different concentrations of twelve seaweed extracts, and kojic acid (1–1000 µg mL−1) for 72 h (Figure 4). The results showed that none of the extracts had a significant effect on cell viability at concentrations of 1–10 µg mL−1. At 100 µg mL−1, some of the extracts exhibited cytotoxicity (<85% viable cells) and displayed significant toxicity (<75% viable cells) at 1000 µg mL−1, except kojic acid. Therefore, we used seaweed extract at a concentration of 10 µg mL−1 to determine its effect on melanin content in B16F10 cells.
Later, the ethanolic extracts of C. racemosa, U. intestinalis, and L. challengeriae were selected to evaluate the effect of extract concentration on cell viability in B16F10 cells and compared with kojic acid. As shown in Figure 5, the cells treated with various concentrations (2.5–25 µg mL−1) of extracts from these three species exhibited more than 90% cell viability for up to 72 h.

3.4. Effects of Seaweed Extracts on Melanin Synthesis in B16F10 Cells

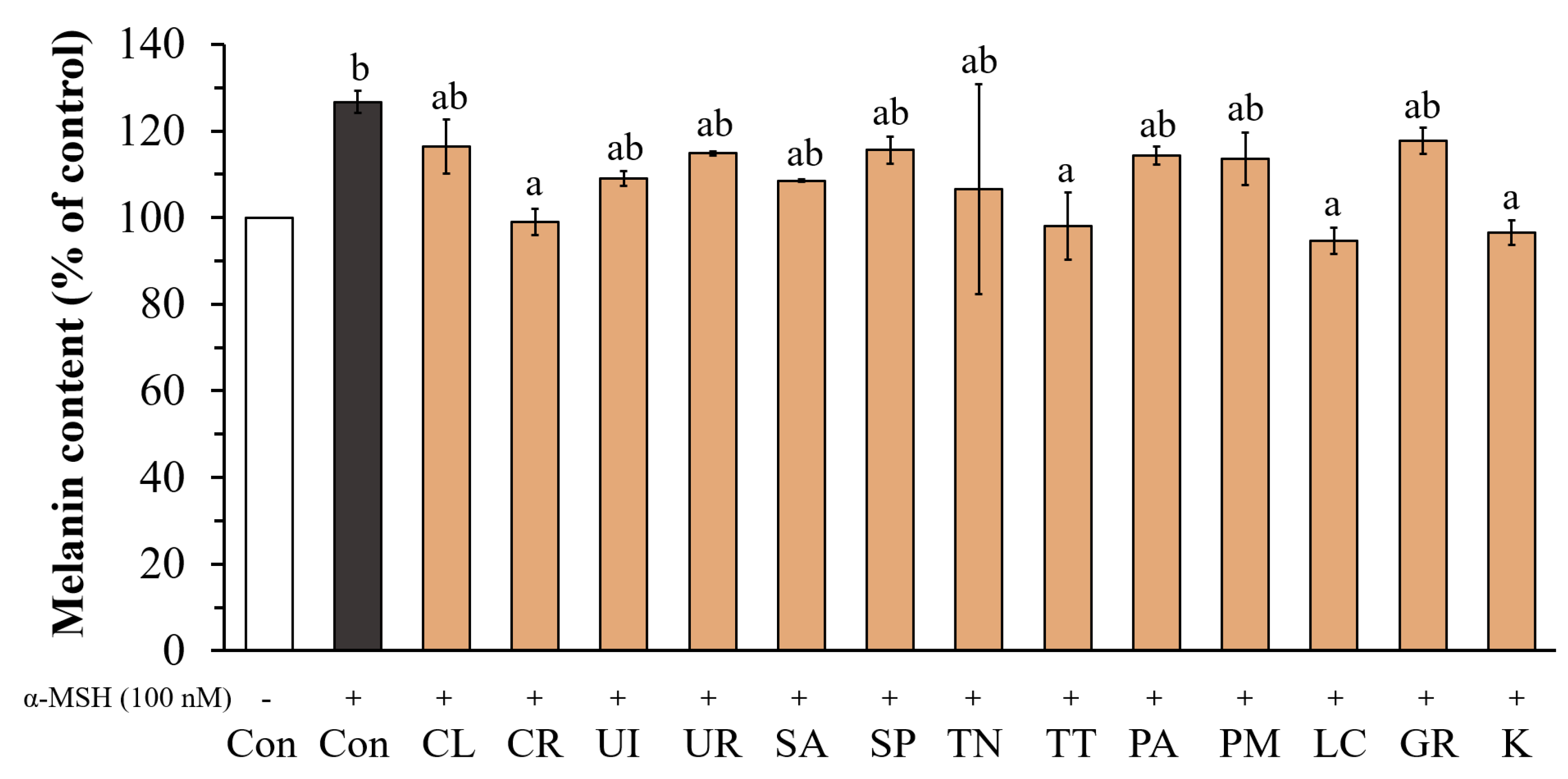

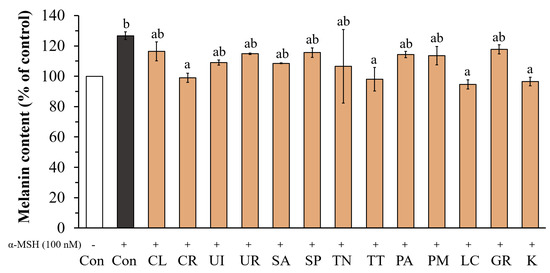

The melanin contents of B16F10 cells were measured after treatment with twelve seaweed extracts at 10 µg mL−1 in the presence or absence of 100 nM α-MSH. As shown in Figure 6, all the seaweed extracts and kojic acid showed a significant inhibition of melanin production compared with the control stimulated by α-MSH. After the stimulation of B16F10 cells with α-MSH, the melanin content increased to 126.70% of the control (cells without α-MSH treatment). The ethanolic extracts of C. racemosa (CR), T. conoides (TT), and L. challengeriae (LC) showed maximal reductions in melanin production of 99.08 ± 3.04, 98.12 ± 7.74, and 94.67 ± 3.07%, respectively, which were not significantly different from that of kojic acid (96.55 ± 2.88%). In addition, a high correlation (r = 0.611) was found between the tyrosinase inhibitory activity of all ethanolic extracts and their phenolic content.

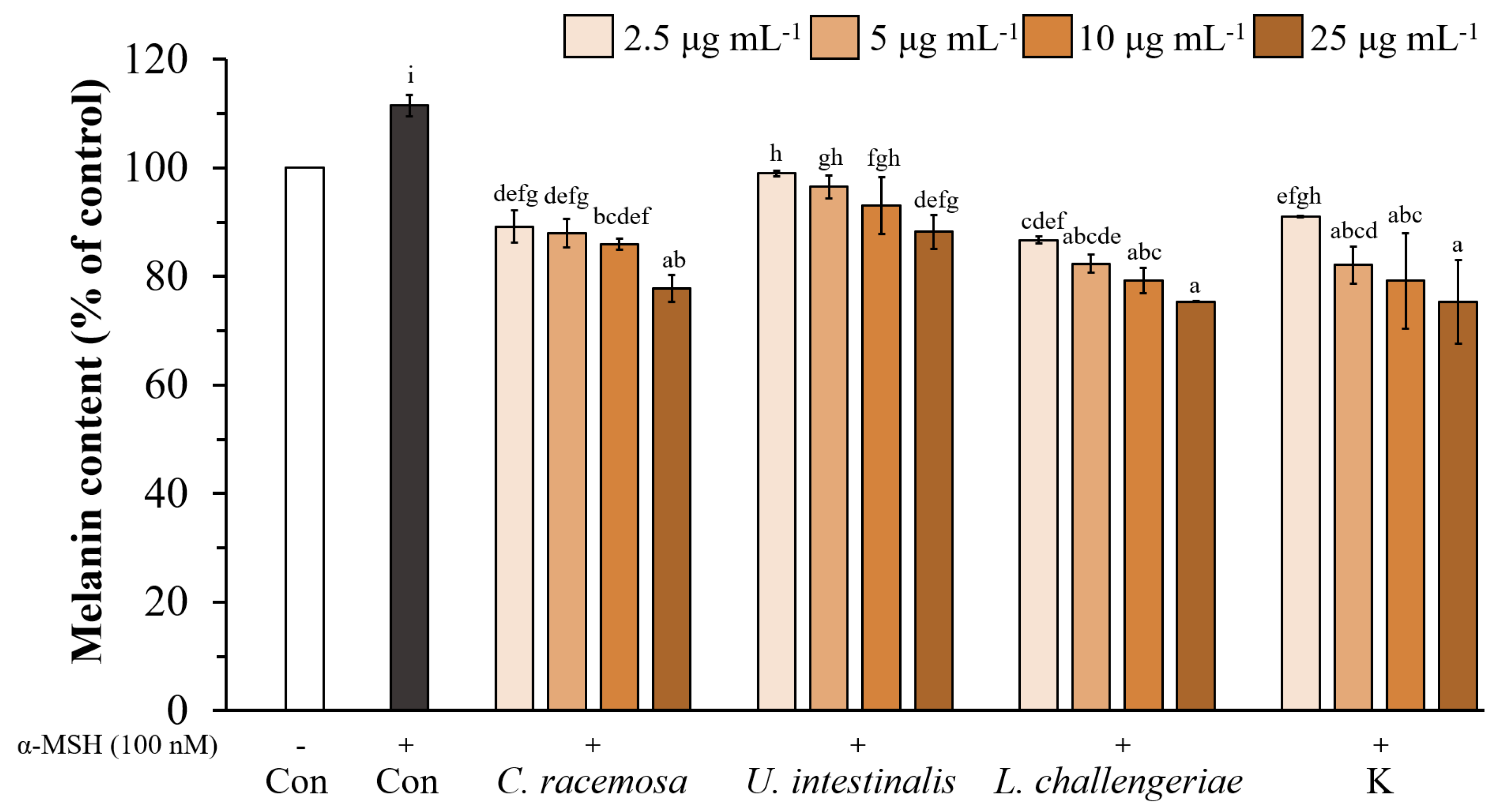

Moreover, when α-MSH-stimulated B16F10 cells were treated with various concentrations (2.5–25 µg mL−1) of the ethanolic extract of C. racemosa, U. intestinalis, L. challengeriae, and kojic acid, the melanin content of the cells decreased in a dose-dependent manner (Figure 7 and Figure 8). The melanin content of the α-MSH treated cells increased to 111.49% of the control cells (cells without α-MSH treatment). At 25 µg mL−1, the ethanolic extracts of C. racemosa, U. intestinalis, and L. challengeriae reduced melanin production in the α-MSH-stimulated cells to 77.78 ± 2.44%, 88.20 ± 3.09%, and 75.35 ± 0.05%, respectively. Moreover, the ability of C. racemosa and L. challengeriae to reduce melanin production was comparable to that of kojic acid (75.31 ± 7.71% at 25 µg mL−1).

3.5. Effects of Seaweed Extracts on Intracellular Tyrosinase Activity in B16F10 Cells

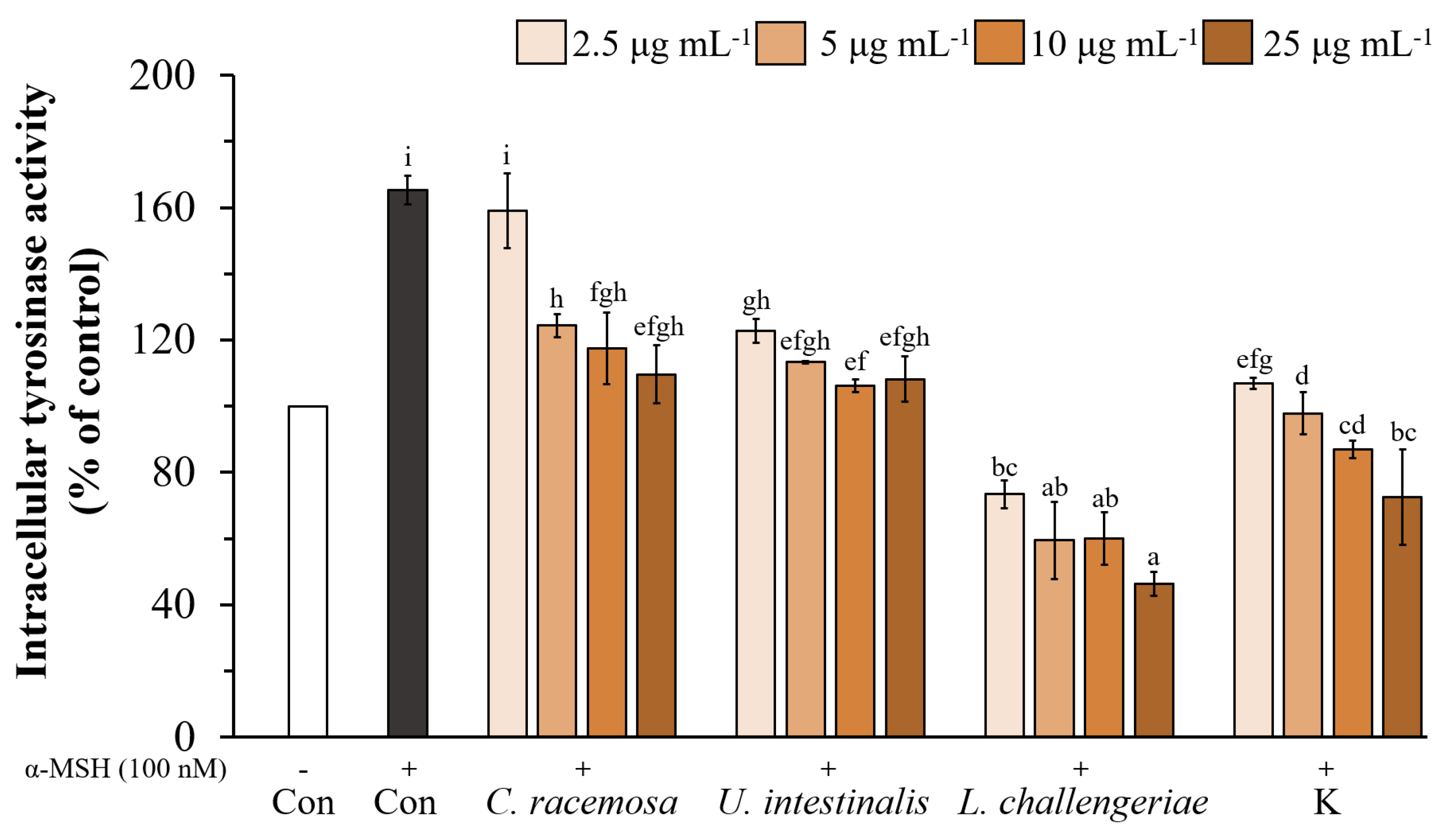

We investigated the effect of the ethanolic extracts of C. racemosa, U. intestinalis, L. challengeriae, and kojic acid on cellular tyrosinase activity in α-MSH-stimulated cells. The cellular tyrosinase activity was significantly decreased by C. racemosa, U. intestinalis, L. challengeriae, and kojic acid in a dose-dependent manner (Figure 9). After the stimulation of B16F10 cells with α-MSH, intracellular tyrosinase activity increased to 165.23% of the control (cell without α-MSH treatment). At 25 µg mL−1, C. racemosa, U. intestinalis, and L. challengeriae reduced intracellular tyrosinase activity in the α-MSH-stimulated cells to 109.63%, 108.20%, and 46.30%, respectively. Moreover, L. challengeriae exhibited stronger inhibitory activity on intracellular tyrosinase than kojic acid (72.50% at 25 µg mL−1).

4. Discussion

Various skin-whitening agents made from natural or synthetic chemical substances are commercially available, but some agents have various side effects. Thus, further research is needed to explore natural whitening agents that are effective and safe for users to replace the chemicals currently used. Many studies have reported the skin-whitening effects of extracts and compounds isolated from natural sources [6,12,46,47]. Currently, many marine resources, especially seaweed, have attracted attention in the search for bioactive compounds for drugs and cosmetics. Numerous studies have reported the effects of seaweed extract on melanogenesis. Most of the studies focused on brown seaweed, such as Ecklonia cava Kjellman (1885) [9,22], E. maxima (Osbeck) Papenfuss (1940) [21], Sargassum fusiforme (Harvey) Setchell (1931) [10], S. plagiophyllum C. Agardh (1824) [18], S. polycystum [43,48,49], Turbinaria conoides [50], and Undaria pinnatifida (Harvey) Suringar (1873) [51]. Phlorotannins, fucoxanthin, and fucoidan from brown seaweed can inhibit melanogenesis in B16F10 melanoma cells [9,52,53]. Some studies have reported the anti-tyrosinase or anti-melanogenic activities of red seaweed, Kappaphycus alvarezii (Doty) Doty ex P. C. Silva (1996) [18,54], Betaphycus gelatinus (Esper) Doty ex P. C. Silva (1996) [55], Gracilaria fisheri (B. M. Xia and I. A. Abbott) I. A. Abbott, J. Zhang and B. M. Xia (1991) [23], G. chouae Zhang and B. M. Xia (1992), G. blodgettii Harvey (1853), G. lemaneiformis (Bory de Saint-Vincent) Greville (1830), Gelidium amansii (J. V. Lamouroux) J. V. Lamouroux (1813) and Pyropia haitanensis (T. J. Chang and B. F. Zheng) N. Kikuchi and M. Miyata (2011) [55], and Symphyocladia latiuscula (Harvey) Yamada (1941) [24]. The chemical components that respond to their activity are a group of sulfated galactans and bromophenols. For green seaweed, a relatively low inhibitory effect on mushroom tyrosinase has been reported from C. racemosa [56], Ulva clathrata (Roth) C. Agardh (1811), and U. australis Areschoug (1854) [19], U. lactuca Linnaeus (1753) [25], Caulerpa spp., and Halimida spp. [26]. However, no information is available about the anti-melanogenic activity in B16F10 melanoma cells of C. racemosa, U. intestinalis, and L. challengeriae.
In the present study, we investigated the anti-melanogenic potential of twelve seaweeds from the coastal area of Thailand, with a particular focus on the abundant species. Ethanol was used for extraction because it is known as a compatible solvent for polyphenol extraction, can extract a wide range of compounds that have a different polarity, and is considered a “greener” solvent [26,57]. The highest extraction yield was found in L. challengeriae (LC), higher than that of the ethanolic extract of L. variegata (J. V. Lamouroux) Womersley ex E. C. Oliveira (1977) (5.36%) reported by Zárate et al. [58]. Differences in yield can occur due to different environmental factors, such as the season, salinity, depth, size, age, and life cycle of seaweed [59,60,61].
Phenolic compounds are a group of secondary metabolites that have important functions in plants and seaweed. Recently, many researchers have reported the bioactivity of phenolic compounds [62]. Phenolic compounds are also the largest groups of tyrosinase inhibitors, including flavonoids and phlorotannins [6,7,22]. The results of this study showed that the highest level of TPC per seaweed dry weight was found in the Dictyotaceae species L. challengeriae (47.43 ± 0.35 mg GAE g−1 dw, 4.74% dw). Dictyotales are known for their high levels of TPC among brown seaweeds [26,61]. This result was consistent with Targett et al. [63], who reported that the TPC in L. variegata ranged from 4.27% to 25.47% dw. However, this study reported a lower TPC than that of L. variegata (29.18% dw) reported by Zubia et al. [64]. TPC varies according to numerous factors, such as species, season, age, geographical location, and environmental conditions. Numerous studies on brown algae have reported high TPC levels, characterized by extremely high biological activity and higher content than green and red algae [65,66,67]. Moreover, the higher TPC of brown seaweed may be caused by phlorotannins, olymers of phloroglucinol, which are found only in brown seaweed [68,69].
Many melanocyte-related enzymes are involved in melanogenesis, especially tyrosinase, the rate-limiting enzyme that plays an important role in melanin biosynthesis [6]. Thus, compounds that can inhibit tyrosinase activity are considered to have potential as anti-melanogenic agents. According to the effects on mushroom tyrosinase activity, the ethanolic extract of L. challengeriae showed a high inhibitory activity on tyrosinase with an IC50 of 0.15 ± 0.01 mg mL−1 and a relatively stronger tyrosinase inhibitory effect than kojic acid (IC50 = 0.35 ± 0.05 mg mL−1), a well-known tyrosinase inhibitor. Moreover, the ethanolic extract of L. challengeriae in this study had stronger tyrosinase inhibitory activity than the ethanolic extract of L. variegata (IC50 > 0.25 mg mL−1) reported by Zárate et al. [58] and E. stolonifera Okamura (1913) (IC50 = 0.345 mg mL−1) reported by Kang et al. [19]. However, for tyrosinase inhibitors in the literature, the IC50 values might be incomparable due to the varied assay conditions, including different substrate concentrations, different incubation times, and different lots of commercial mushrooms tyrosinase [6]. However, the cell-free mushroom tyrosinase inhibition assay is a commonly used screening method for potential skin-whitening. This assay is simple and inexpensive to use. However, the ability of the extracts to inhibit mushroom tyrosinase were not fully consistent with the results of in vivo depigmentation [49].
In this study, B16F10 melanoma cells were used as a model because they are commonly used in studies of melanogenesis and depigmentation. The cells can produce melanin by associating with intracellular tyrosinase activity, responding to stimulation by α-MSH, and exhibiting most melanogenic properties similar to those of normal human melanocytes [23]. Therefore, we examined the effect of twelve seaweed extracts on B16F10 cells. All seaweed extracts and kojic acid at 10 µg mL−1 showed a significant inhibition of melanin production compared with the control in the presence of α-MSH (Figure 6). The ethanolic extract of L. challengeriae (LC) showed the strongest ability to reduce melanin production (by 32.03%), followed by T. conoides (TT) and C. racemosa (CR), which reduced melanin production by 28.58 and 26.92%, respectively; these results were not significantly different from those of kojic acid (by 30.15%). These results are consistent with the results for 1,9-dihydroxy-crenulide and epiloliolide isolated from Dictyota coriacea (Holmes) I. K. Wang, H.-S. Kim and W. J. Lee (2004), at a concentration of 30 µg mL−1, which reduced melanin production by 27.8 and 22.6%, respectively [70].
As it showed the highest inhibition of mushroom tyrosinase activity and melanin production in B16F10 cells, L. challengeriae was selected for further study. Two other species of green seaweed, U. intestinalis and C. racemosa, were also selected for study because of the high anti-mushroom tyrosinase activity of U. intestinalis (96.04% at 5 mg mL−1) and the ability to reduce melanin synthesis in B16F10 cells of C. racemosa (26.92% at 10 µg mL−1). Furthermore, these two species can be cultivated on a large scale in a pond [49,71], which might be useful for future utilization. Then, we studied the effect of extract concentration on melanin production and intracellular tyrosinase activity in B16F10 melanoma cells of these three species. The results showed that C. racemosa, U. intestinalis, L. challengeriae, and kojic acid reduced melanin synthesis in the α-MSH-treated B16F10 cells in a dose-dependent manner. The ethanolic extracts of C. racemosa and L. challengeriae at a concentration of 25 µg mL−1 reduced melanin content by 33.71 and 36.14%, respectively, which was not significantly different (p < 0.05) from that of kojic acid (36.18%). However, the ethanolic extract of U. intestinalis reduced melanin content by 23.29%. In addition, C. racemosa, U. intestinalis, L. challengeriae, and kojic acid showed a significant inhibition of intracellular tyrosinase activity in the α-MSH-treated cells. The ethanolic extract of L. challengeriae showed a strong inhibitory effect on intracellular tyrosinase activity (reduced from 165.23% to 46.30%), which was significantly higher than that of kojic acid (to 72.50%).
The mushroom tyrosinase assay was used to determine the direct effect of seaweed extract on tyrosinase activity. The ethanolic extract of C. racemosa had a weak ability to inhibit mushroom tyrosinase (25.84 ± 1.27% at 5 mg mL−1). However, there was a dose-dependent decrease in intracellular tyrosinase activity in B16F10 melanoma cells after treatment with C. racemosa at concentrations of 2.5–25 µg mL−1. In addition, ethanolic extracts of U. intestinalis, L. challengeriae, and kojic acid inhibited both mushroom tyrosinase activity and intracellular tyrosinase activity. This result suggests that the inhibition of melanogenesis by C. racemosa extract does not directly inhibit tyrosinase activity, but may inhibit intracellular tyrosinase expression. The results with C. racemosa are consistent with the findings of the ethanolic extract of S. polycystum and sulfated galactan isolated from G. fisheri, which did not show an inhibitory effect on mushroom tyrosinase but reduced intracellular tyrosinase activity in B16F10 melanoma cells [23,43]. The commonly used mushroom tyrosinase assay still has some limitations in the application of the fungal tyrosinase inhibitor since fugal tyrosinase and human tyrosinase are different. Mushroom tyrosinase is a cytosolic enzyme, while melanocyte tyrosinase is membrane-bound enzyme; thus, the effect of anti-melanogenic agents on these tyrosinases may not be the same. Since the target cells of the agents are melanocytes, it would be more reliable to use tyrosinase derived from melanin-producing cells instead of fungi [6,43].
Melanin production in human skin is a complex process involving many enzymatic cascades, including those of tyrosinase, TRP-1, TRP-2, and their transcription factors, such as microphthalmia-associated transcription factor (MITF), cyclic adenosine monophosphate (cAMP) response element binding protein (CREB), and extracellular-regulated kinase (ERK) [5]. The agents that inhibit the expression and activity of those enzymes or proteins may have value as potential anti-melanogenic agents. It has been reported that extracts from seaweed, G. fisheri, and Undaria pinnatifida (Harvey) Suringar (1873) mediate the inhibition of melanogenesis in cells through the regulation of MITF [23,51]. The inhibitory effect of Ishige foliacea Okamura (1935) and S. serratifolium (C. Agardh) C. Agardh (1820) on α-MSH-stimulated melanogenesis via the extracellular signal-regulated kinase (ERK) signaling pathway has also been reported [72,73]. Therefore, the mechanism by which seaweed extracts inhibit MITF or the expression of other related proteins needs further study.

5. Conclusions

In the cosmetics industry, skin lighteners are often added to products. Most of them are substances that reduce melanin pigmentation by inhibiting the activity of the enzyme tyrosinase. However, some of the chemicals currently used have also shown dangerous side effects. Therefore, the idea of using natural extracts as substitutes has been raised. Seaweeds are an interesting resource, and several studies have reported the inhibition of tyrosinase activity and melanin production by their extracts.
The results of the present study show that the ethanolic extracts of C. racemosa, U. intestinalis, and L. challengeriae can inhibit mushroom tyrosinase activity and reduce melanin synthesis in α-MSH-stimulated B16F10 cells. These results suggest that the extracts of these algae are promising candidates for the development of safe pharmacological or cosmetic agents that have potent inhibitory effects on tyrosinase activity and melanin synthesis. However, the purification, structure, and mechanisms of the active components of these selected algae need further investigation.

Author Contributions

Conceptualization, J.P.; methodology, P.C., K.B. and J.P.; formal analysis, J.P. and P.C.; decision on data analysis method, J.P.; resources, R.R.; interpretation of data analysis, A.C., A.K., K.B. and N.M.; writing—original draft preparation, P.C.; writing—review and editing, J.P. and K.B.; visualization., J.P., P.C. and K.B.; project administration, J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research is partly supported by the Graduate Program Scholarship from The Graduate School, Kasetsart University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; the collection, analyses, or interpretation of data; the writing of the manuscript, or in the decision to publish the results.

References

  1. Pillaiyar, T.; Manickam, M.; Namasivayam, V. Skin whitening agents: Medicinal chemistry perspective of tyrosinase inhibitors. J. Enzyme Inhib. Med. Chem. 2017, 32, 403–425. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. D’Mello, S.; Finlay, G.; Baguley, B.; Askarian-Amiri, M. Signaling pathways in melanogenesis. Int. J. Mol. Sci. 2016, 17, 1144. [Google Scholar] [CrossRef] [Green Version]
  3. Pimentel, F.B.; Alves, R.C.; Rodrigues, F.; Oliveira, P.P. Macroalgae-derived ingredients for cosmetic industry—An update. Cosmetics 2018, 5, 2. [Google Scholar] [CrossRef] [Green Version]
  4. Briganti, S.; Camera, E.; Picardo, M. Chemical and instrumental approaches to treat hyperpigmentation. Pigment Cell Res. 2003, 16, 101–110. [Google Scholar] [CrossRef]
  5. Kim, Y.M.; Cho, S.E.; Seo, Y.K. The activation of melanogenesis by p-CREB and MITF signaling with extremely low-frequency electromagnetic fields on B16F10 melanoma. Life Sci. 2016, 162, 25–32. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Chang, T.S. An Updated Review of Tyrosinase Inhibitors. Int. J. Mol. Sci. 2009, 10, 2440–2475. [Google Scholar] [CrossRef] [Green Version]
  7. Kubo, I.; Chen, Q.X.; Nihei, K.I. Molecular design of antibrowning agent: Antioxidative tyrosinase inhibitors. Food Chem. 2003, 81, 241–247. [Google Scholar] [CrossRef]
  8. Slominski, A.; Moellmann, G.; Kuklinska, E.; Bomirski, A.; Pawelek, J. Positive regulation of melanin pigmentation by two key substrates of the melanogenic pathway, L-tyrosine and L-DOPA. J. Cell Sci. 1988, 89, 287–296. [Google Scholar] [CrossRef]
  9. Kang, S.M.; Heo, S.J.; Kim, K.N.; Lee, S.H.; Yang, H.M.; Kim, A.D.; Jeon, Y.J. Molecular docking studies of phlorotannin, dieckol isolated from Ecklonia cava with tyrosinase inhibitory activity. Bioorg. Med. Chem. 2012, 20, 311–316. [Google Scholar] [CrossRef]
  10. Chen, B.J.; Shi, M.J.; Cui, S.; Hao, S.X.; Hider, R.C.; Zhou, T. Improved antioxidant and anti-tyrosinase activity of polysaccharide from Sargassum fusiforme by degradation. Int. J. Biol. Macromol. 2016, 92, 715–722. [Google Scholar] [CrossRef] [Green Version]
  11. Luo, L.; Jiang, L.; Geng, C.; Cao, J.; Zhong, L. Hydroquinone-induced genotoxicity and oxidative DNA damage in hepg2 cells. Chem. Biol. Interact. 2008, 173, 1–8. [Google Scholar] [CrossRef]
  12. Smit, N.; Vicanova, J.; Pavel, S. The hunt for natural skin whitening agents. Int. J. Mol. Sci. 2009, 1, 5326–5349. [Google Scholar] [CrossRef] [PubMed]
  13. Westerhof, W.; Kooyers, T.J. Hydroquinone and its analogues in dermatology-a potential health risk. J. Cosmet. Dermatol. 2005, 4, 55–59. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Burnett, C.L.; Bergfeld, W.F.; Belsito, D.V.; Hill, R.A.; Klaassen, C.D.; Liebler, D.C.; Marks, J.G.; Shank, R.C.; Slaga, T.J.; Snyder, P.W.; et al. Final report of the safety assessment of kojic acid as used in cosmetics. Int. J. Toxicol. 2010, 29, 244–273. [Google Scholar] [CrossRef]
  15. Cheng, S.L.; Liu, R.H.; Sheu, J.N.; Chen, S.T.; Sinchaikul, S.; Tsay, G.J. Toxicogenomics of A375 human malignant melanoma cell treated with Arbutin. J. Biomed. Sci. 2007, 14, 87–105. [Google Scholar] [CrossRef]
  16. Salehi, B.; Sharifi-Rad, J.; Seca, A.M.; Pinto, D.C.; Michalak, I.; Trincone, A.; Mishra, A.P.; Nigam, M.; Zam, W.; Martins, N. Current trends on seaweeds: Looking at chemical composition, phytopharmacology, and cosmetic applications. Molecules 2019, 24, 4182. [Google Scholar] [CrossRef] [Green Version]
  17. Thomas, N.V.; Kim, S.K. Beneficial effects of marine algal compounds in cosmeceuticals. Mar. Drugs 2013, 11, 146–164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Dolorosa, M.T.; Purwaningsih, S.; Anwar, E.; Hidayat, T. Tyrosinase inhibitory activity of Sargassum plagyophyllum and Eucheuma cottonii methanol extracts. Earth Environ. Sci. 2019, 278, 012020. [Google Scholar] [CrossRef]
  19. Kang, H.S.; Kim, H.R.; Byun, D.S.; Son, B.W.; Nam, T.J.; Choi, J.S. Tyrosinase inhibitors isolated from the edible brown alga Ecklonia stolonifera. Arch. Pharm. Res. 2004, 27, 1226–1232. [Google Scholar] [CrossRef]
  20. Wang, L.W.; Cui, Y.R.; Yang, H.W.; Lee, G.L.; Ko, J.Y.; Jeon, Y.J. A mixture of seaweed extracts and glycosaminoglycans from sea squirts inhibits α-MSH-induced melanogenesis in B16F10 melanoma cells. J. Fish. Aquat. Sci. 2019, 22, 11. [Google Scholar] [CrossRef]
  21. Wang, L.; Jayawardena, T.U.; Yang, H.W.; Lee, H.G.; Jeon, Y.J. The potential of sulfated polysaccharides isolated from the brown seaweed Ecklonia maxima in cosmetics: Antioxidant, anti-melanogenesis, and photoprotective activities. Antioxidants 2020, 9, 724. [Google Scholar] [CrossRef] [PubMed]
  22. Yoon, N.Y.; Eom, T.K.; Kim, M.M.; Kim, S.K. Inhibitory effect of phlorotannins isolated from Ecklonia cava on mushroom tyrosinase activity and melanin formation in mouse B16F10 melanoma cells. J. Agric. Food Chem. 2009, 57, 4124–4129. [Google Scholar] [CrossRef] [PubMed]
  23. Partoomthai, B.; Songtavisin, T.; Gangnonngiw, W.; Wongprasert, K. In vitro inhibitory effect of sulfated galactans isolated from red alga Gracilaria fisheri on melonogenesis in B16F10 cells. J. Appl. Phycol. 2018, 30, 2611–2618. [Google Scholar] [CrossRef]
  24. Paudel, P.; Wagle, A.; Seong, H.; Park, H.J.; Jung, H.A.; Choi, J.S. A new tyrosinase inhibitor from the red alga Symphyocladia latiuscula (Harvey) Yamada (Rhodomelaceae). Mar. Drugs 2019, 17, 295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Castejón, N.; Thorrinsdottir, K.A.; Einarsdóttir, R.; Krístbergsson, K.; Marteínsdóttir, G. Exploring the potential of Icelandic seaweeds extracts produced by aqueous pulsed electric field-assisted extraction for cosmetic application. Mar. Drugs 2021, 19, 662. [Google Scholar] [CrossRef] [PubMed]
  26. Zubia, M.; Thomas, O.P.; Soulet, S.; Demoy-Scheider, M.; Saulnier, D.; Connan, S.; Murphy, E.C.; Tintillier, F.; Stiger-Pouvreau, V.; Petek, S. Potential of tropical macroalgae from French Polynesia for biotechnological applications. J. Appl. Phycol. 2020, 32, 2343–2362. [Google Scholar] [CrossRef]
  27. Agardh, J.G. Till Algernes Systematik, Nya Bidrag; Lunds Universitets Årsskrift, Ny Foeljd, Afdelningen for Mathematik och Naturvetenskap: Lund, Sweden, 1873; 1872, pp. 1–71. [Google Scholar]
  28. Linnaeus, C. Species Plantarum, Exhibentes Plantas Rite Cognitas, ad Genera Relatas, Cum Differentiis Specificis, Nominibus Trivialibus, Synonymis Selectis, Locis Natalibus, Secundum Systema Sexuale Digestas; Holmiae: Stockholm, Sweden, 1753; pp. 561–1200. [Google Scholar]
  29. Vieira, C.; De Clerck, O.; Millet, L.; Payri, C.E. Description of ten new Lobophora species from the Bismarck Sea (Papua New Guinea). Phycol. Res. 2019, 67, 228–238. [Google Scholar] [CrossRef]
  30. Coppejans, E.; Prathep, A.; Lewmanomont, K.; Hayashizaki, K.; De Clerck, O.; Leliaert, F.; Terada, R. Seaweeds and Seagrasses of the Southern Andaman Sea Coast of Thailand; The Kagoshima University Museum: Kagoshima, Japan, 2017. [Google Scholar]
  31. Lewmanomont, K.; Ogawa, H. Common Seaweeds and Seagrasses of Thailand; Kasetsart University: Bangkok, Thailand, 1995. [Google Scholar]
  32. Chirapart, A.; Pimla, S.; Praiboon, J.; Boonprab, K.; Akakabe, Y.; Matsui, K.; Kajiwara, T. Contribution to the knowledge of morphometry and sulfated polysaccharides from Thai species of Caulerpa. Algal Resour. 2010, 3, 177–184. [Google Scholar] [CrossRef]
  33. Ruangchuay, R.; Dahamat, S.; Chirapat, A.; Notoya, M. Effects of culture conditions on the growth and reproduction of Gut Weed, Ulva intestinalis Linnaeus (Ulvales, Chlorophyta). Songklanakarin. J. Sci. Technol. 2012, 34, 501–507. [Google Scholar]
  34. Vieira, C.; Gaubert, J.; Clerck, O.D.; Payri, C.; Culioli, G.; Thomas, O.P. Biological activities associated to the chemodiversity of the brown algae belonging to genus Lobophora (Dictyotales, Pheophyceae). Phytochem. Rev. 2015, 16, 1–17. [Google Scholar] [CrossRef]
  35. Agardh, J.G. Novae Species Algarum, quas in Itinere ad oras Maris Rubri Collegit Eduardus Rüppell; cum Observationibus Nonnullis in Species Rariores Antea Cognitas; Museum Senckenbergianum: Frankfurt, Germany, 1837; pp. 169–174. [Google Scholar]
  36. Agardh, C.A. Species Algarum Rite Cognitae, Cum Synonymis, Differentiis Specificis et Descriptionibus Succinctis; Mauritius: New York, NY, USA, 1822. [Google Scholar]
  37. Agardh, C.A. Systema Algarum; Literis Berlingianis: Lund, Sweden, 1824. [Google Scholar]
  38. Kützing, F.T. Tabulae Phycologicae; Oder, Abbildungen der Tange; Algae: Nordhausen, Germany, 1860; pp. 1–39. [Google Scholar]
  39. Hauck, F. Ueber einige von J.M. Hildebrandt im Rothen Meere und Indischen Ocean gesammelte Algen III, IV. Hedwigia 1887, 26, 18–21, 41–45. [Google Scholar]
  40. Yamada, Y. Studien über die Meeresalgen von der Insel Formosa. 2. Phaeophyceae. Bot. Mag. 1925, 39, 239–254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Agardh, J.G. Algae Maris Mediterranei et Adriatici, Observationes in Diagnosin Specierum et Dispositionem Generum; Hardcover: Paris, France, 1842; pp. 1–164. [Google Scholar]
  42. Park, W.S.; Kim, H.-J.; Li, M.; Lim, D.H.; Kim, J.; Kwak, S.-S.; Kang, C.-M.; Ferruzzi, M.G.; Ahn, M.-J. Two Classes of Pigments, Carotenoids and C-Phycocyanin, in Spirulina Powder and Their Antioxidant Activities. Molecules 2018, 23, 2065. [Google Scholar] [CrossRef] [Green Version]
  43. Chan, Y.Y.; Kim, K.H.; Cheah, S.H. Inhibitory effects of Sargassum polycystum on tyrosinase activity and melanin formation in B16F10 murine melanoma cell. J. Ethnopharmacol. 2011, 137, 1183–1188. [Google Scholar] [CrossRef]
  44. Boonpisuttinant, K.; Sodamook, U.; Raksiriwanich, W.; Winitchai, S. In vitro anti-melanogenesis and collagen biosynthesis stimulating activities of Star Grass (Hypoxis aurea Lour.) extract. Asian J. Appl. Sci. 2014, 2, 405–413. [Google Scholar]
  45. Wang, Z.J.; Xu, W.; Liang, J.W.; Wang, C.S.; Kang, Y. Effect of fucoidan on murine melanoma cell melanin formation and apoptosis. Afr. J. Tradit. Complement. Med. 2017, 14, 149–155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Chiocchio, I.; Mandrone, M.; Sanna, C.; Maxia, A.; Tacchini, M.; Poli, F. Screening of a hundred plant extracts as tyrosinase and elastase inhibitors, two enzymatic targets of cosmetic interest. Ind. Crops Prod. 2018, 122, 498–505. [Google Scholar] [CrossRef]
  47. Maeda, K.; Fukuda, M. In vitro effectiveness of several whitening cosmetic components in human melanocytes. J. Soc. Cosmet. Chem. 1991, 42, 361–368. [Google Scholar]
  48. Fernando, I.P.S.; AsankaSanjeewa, K.K.; Samarakoon, K.W. The potential of fucoidans from Chnoospora minima and Sargassum polycystum in cosmetics: Antioxidant, anti-inflammatory, skin-whitening, and antiwrinkle activities. J. Appl. Phycol. 2018, 30, 3223–3232. [Google Scholar] [CrossRef]
  49. Quah, C.C.; Kim, K.H.; Lau, M.S.; Kim, W.R.; Cheah, S.H.; Gundamaraju, R. Pigmentation and dermal conservative effects of the astonishing algae Sargassum polycystum and Padina tenuis on guinea pigs, human epidermal melanocytes (HEM) and Chang cells. Afr. J. Tradit. Complement. 2014, 11, 77–83. [Google Scholar] [CrossRef] [Green Version]
  50. Sari, D.M.; Anwar, E.; Arifianti, A.E. Antioxidant and tyrosinase inhibitor activities of ethanol extracts of brown seaweed (Turbinaria conoides) as lightening ingredient. Pharmacogn. J. 2019, 11, 379–382. [Google Scholar] [CrossRef] [Green Version]
  51. Kim, M.J.; Kim, D.S.; Yoon, H.S.; Lee, W.J.; Lee, N.H.; Hyun, C.G. Melanogenesis inhibitory activity of Korean Undaria pinnatifida in mouse B16 melanoma cells. Interdiscip. Toxicol. 2014, 7, 89–92. [Google Scholar] [CrossRef] [PubMed]
  52. Shimoda, H.; Tanaka, J.; Shan, S.J.; Maoka, T. Anti-pigmentary activity of fucoxanthin and its influence on skin mRNA expression of melanogenic molecules. J. Pharm. Pharmacol. 2010, 62, 1137–1145. [Google Scholar] [CrossRef] [PubMed]
  53. Wijesinghe, W.A.J.P.; Jeon, Y.J. Biological activities and potential cosmeceutical applications of bioactive compounds from brown seaweeds: A review. Phytochem. Rev. 2011, 10, 431–443. [Google Scholar] [CrossRef]
  54. Chang, V.S.; Toe, S.S. Evaluation of heavy metal, antioxidant and anti-tyrosinase activities of red seaweed (Eucheuma cottonii). Int. Food Res. J. 2016, 23, 2370–2373. [Google Scholar]
  55. Xie, X.T.; Zhang, X.; Liu, Y.; Chen, X.Q.; Cheong, K.L. Quantification of 3,6-andydro-galactose in red seaweed polysaccharides and their potential skin-whitening activity. 3 Biotech 2020, 10, 189. [Google Scholar] [CrossRef]
  56. Permatasari, H.K.; Nurkolis, F.; Vivo, C.D.; Noor, S.L.; Rahmawati, R.; Radu, S.; Hardinsyah, H.; Taslim, N.A.; Mayulu, N.; Wewengkang, D.S.; et al. Sea grapes powder with the addition of tempe rich in collagen: An anti-aging functional food [version 3; peer review: 2 approved]. F1000Research 2022, 10, 789. [Google Scholar] [CrossRef]
  57. Do, Q.D.; Angkawijaya, A.E.; Tran-Nguyen, P.L.; Huynh, L.H.; Soetaredjo, F.E.; Ismadji, S.; Ju, Y.H. Effect of extraction solvent on total phenol content, total flavonoid content, and antioxidant activity of Limnophila aromatic. J. Food Drug Anal. 2014, 22, 296–302. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Zárate, R.; Portillo, E.; Teixidó, S.; Carvalho, M.A.P.D.; Nunes, N.; Ferraz, S.; Seca, A.M.; Rosa, G.P.; Barreto, M.C. Pharmacological and cosmeceutical potential of seaweed beach-casts of Macaronesia. Appl. Sci. 2020, 10, 5831. [Google Scholar] [CrossRef]
  59. Chung, H.Y.; Ma, W.C.J.; Ang, P.O.; Kim, J.S.; Chen, F. Seasonal variations of bromophenols in brown algae (Padina arborescens, Sargassum siliquastrum, and Lobophora variegata) collected in Hong Kong. J. Agric. Food Chem. 2003, 51, 2619–2624. [Google Scholar] [CrossRef] [PubMed]
  60. Gosch, B.J.; Paul, N.A.; de Nys, R.; Magnusson, M. Seasonal and within-plant variation in fatty acid content and composition in the brown seaweed Spatoglossum macrodontum (Dictyotales, Phaeophyceae). J. Appl. Phycol. 2015, 27, 387–398. [Google Scholar] [CrossRef]
  61. Targett, N.M.; Boettcher, A.A.; Targett, T.E.; Vrolijk, N.H. Tropical marine herbivore assimilation of phenolic-rich plant. Oecologia 1995, 103, 170–179. [Google Scholar] [CrossRef] [PubMed]
  62. Matanjun, P.; Mohamed, S.; Mustapha, N.M.; Muhammad, K.; Ming, C.H. Antioxidant activities and phenolics content of eight species of seaweeds from north Borneo. J. Appl. Phycol. 2008, 20, 367–373. [Google Scholar] [CrossRef]
  63. Targett, N.M.; Coen, L.D.; Boettcher, A.A.; Tanner, C.E. Biogeographic comparisons of marine algal polyphenolics: Evidence against a latitudinal trend. Oecologia 1992, 89, 464–470. [Google Scholar] [CrossRef]
  64. Zubia, M.; Robledo, D.; Freile-Pelegrin, Y. Antioxidant activities in tropical marine macroalgae from the Yucatan Peninsula, Mexico. J. Appl. Phycol. 2007, 19, 449–458. [Google Scholar] [CrossRef]
  65. Kim, Y.J.; Uyama, H. Tyrosinase inhibitors from natural and synthetic sources: Structure, inhibition mechanism and perspective for the future. Cell. Mol. Life Sci. 2005, 62, 1707–1723. [Google Scholar] [CrossRef] [PubMed]
  66. Mekinić, I.G.; Šimat, V.; Botić, V.; Crnjac, A.; Smoljo, M.; Soldo, B.; Ljubenkov, I.; Cagalj, M.; Skroza, D. Bioactive phenolic metabolites from Adriatic brown algae Dictyota dichotoma and Padina pavonica (Dictyotaceae). Foods 2021, 10, 1187. [Google Scholar] [CrossRef]
  67. Mekinić, I.G.; Skroza, D.; Šimat, V.; Hamed, I.; Čagalj, M.; Perković, P. Phenolic content of brown algae (Pheophyceace) species: Extraction, identification, and quantification. Biomolecules 2019, 9, 244. [Google Scholar] [CrossRef] [Green Version]
  68. Li, Y.X.; Wijesekara, I.; Li, Y.; Kim, S.K. Phlorotannins as bioactive agents from brown algae. Process. Biochem. 2011, 46, 2219–2224. [Google Scholar] [CrossRef]
  69. Shibata, T.; Kawaguchi, S.; Hama, Y.; Inagaki, M.; Yamaguchi, K.; Nakamura, T. Local and chemical distribution of phlorotannins in brown algae. J. Appl. Phycol. 2004, 16, 291–296. [Google Scholar] [CrossRef]
  70. Ko, R.K.; Kang, M.C.; Kim, S.S.; Oh, T.H.; Kim, G.O.; Hyun, C.G.; Hyun, J.W.; Lee, N.H. Anti-melanogenesis constituents from the seaweed Dictyota coriacea. Nat. Prod. Commun. 2013, 8, 1934578X1300800401. [Google Scholar] [CrossRef] [Green Version]
  71. Zubia, M.; Draisma, S.G.A.; Morrissey, K.L.; Varela-Álvarez, E.; Clerck, O.D. Concise review of the genus Caulerpa J.V. Lamouroux. J. Appl. Phycol. 2020, 32, 23–39. [Google Scholar] [CrossRef]
  72. Azam, M.S.; Joung, E.; Choi, J.; Kim, H.R. Ethanolic extract from Sargassum serratifolium attenuates hyperpigmentation through CREB/ERK signaling pathways in α-MSH-stimulated B16F10 melanoma cells. J. Appl. Phycol. 2017, 29, 2089–2096. [Google Scholar] [CrossRef]
  73. Kim, K.N.; Yang, H.M.; Kang, S.M.; Kim, D.; Ahn, G.; Jeon, Y.J. Octaphlorethol A isolated from Ishige foliacea inhibits α-MSH-stimulated induced melanogenesis via ERK pathway in B16F10 melanoma cells. Food Chem. Toxicol. 2013, 59, 521–526. [Google Scholar] [CrossRef] [PubMed]
Life 13 00934 g001 550

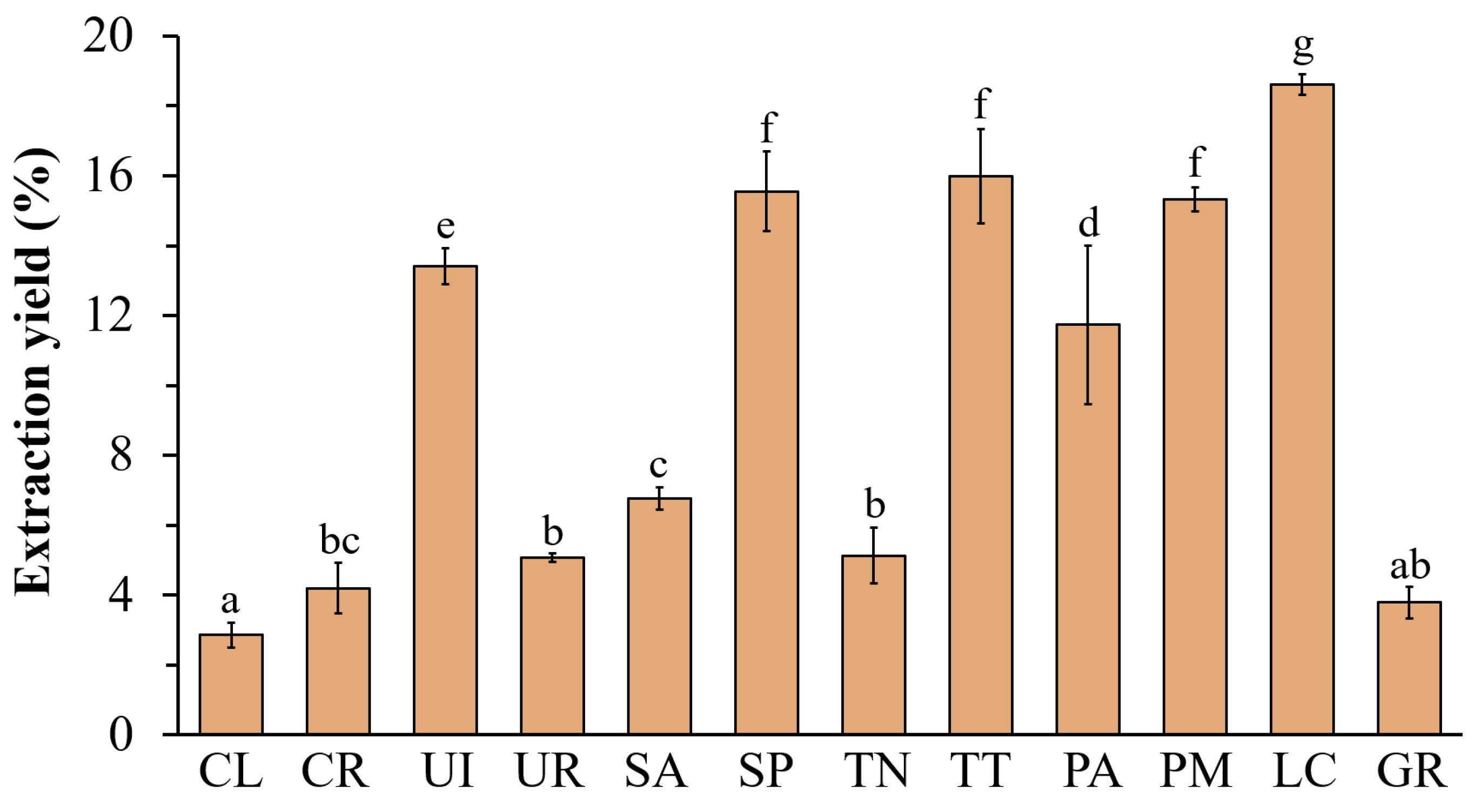

Figure 1. The extraction yields of ethanolic extracts were calculated based on the sample dry weight. The values are expressed as mean± SD (n = 3). Significant differences are indicated by different letters (p < 0.05).
Figure 1. The extraction yields of ethanolic extracts were calculated based on the sample dry weight. The values are expressed as mean± SD (n = 3). Significant differences are indicated by different letters (p < 0.05).
Life 13 00934 g001
Life 13 00934 g002 550

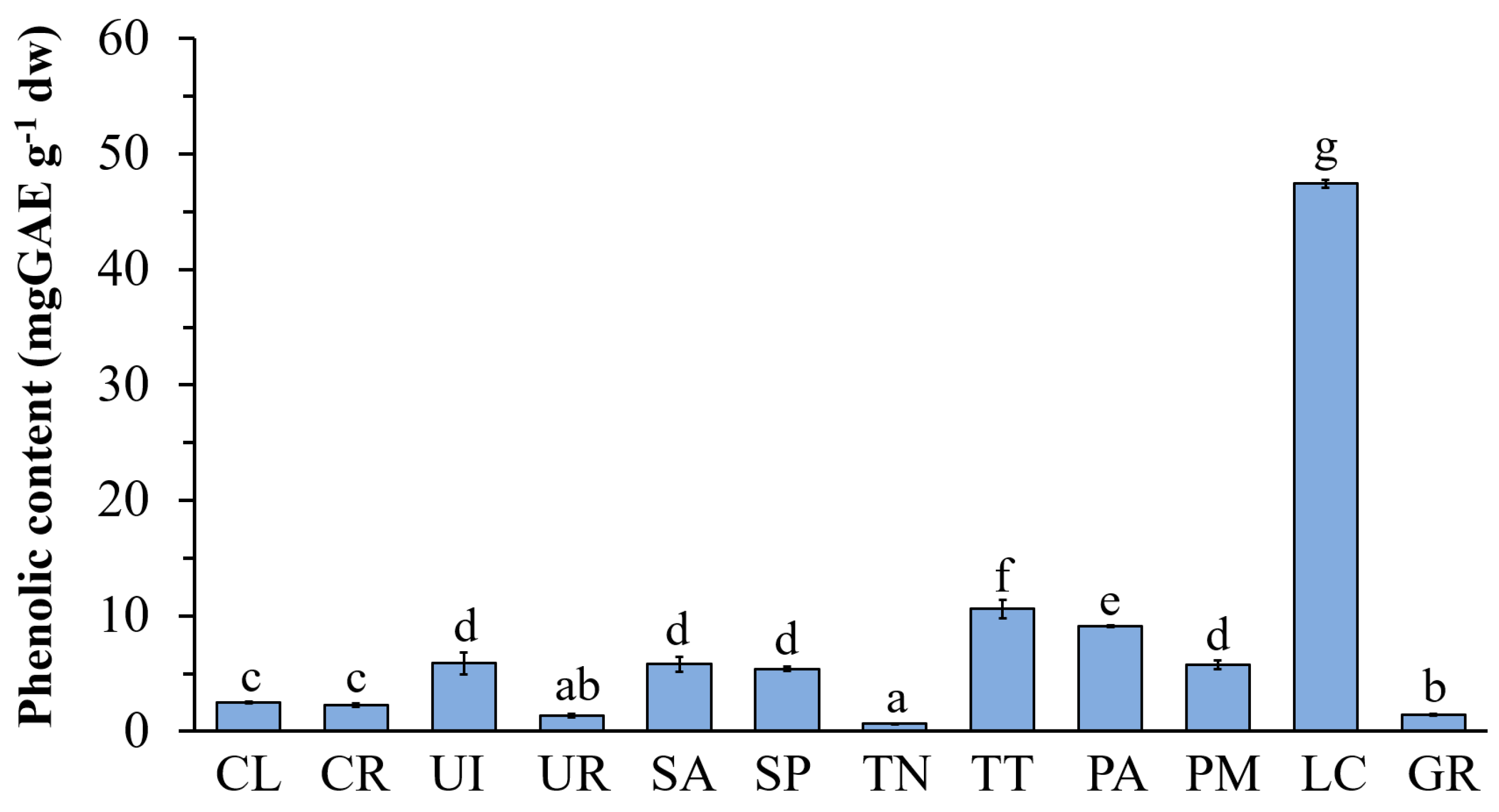

Figure 2. Total phenolic content (TPC) of the ethanolic extract from seaweed. The values are expressed as mean± SD (n = 3). Significant differences are indicated by different letters (p < 0.05).
Figure 2. Total phenolic content (TPC) of the ethanolic extract from seaweed. The values are expressed as mean± SD (n = 3). Significant differences are indicated by different letters (p < 0.05).
Life 13 00934 g002
Life 13 00934 g003 550

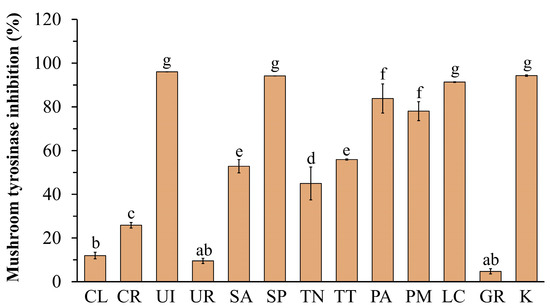

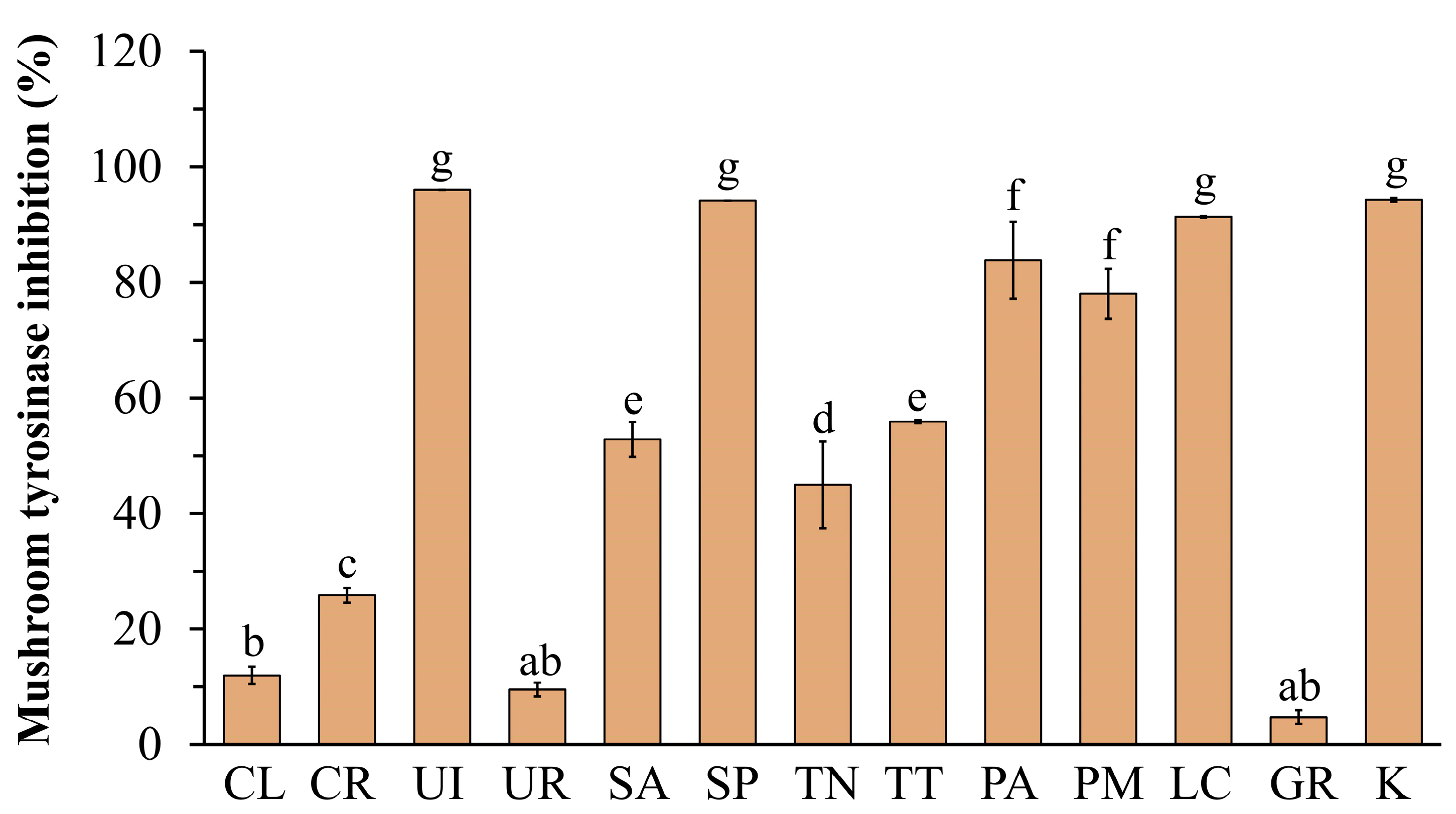

Figure 3. Effect of seaweed extracts and kojic acid (K) at 5 mg mL−1 on mushroom tyrosinase activity. The values are expressed as mean ± SD (n = 3). Significant differences are indicated by different letters (p < 0.05).
Figure 3. Effect of seaweed extracts and kojic acid (K) at 5 mg mL−1 on mushroom tyrosinase activity. The values are expressed as mean ± SD (n = 3). Significant differences are indicated by different letters (p < 0.05).
Life 13 00934 g003
Life 13 00934 g004 550

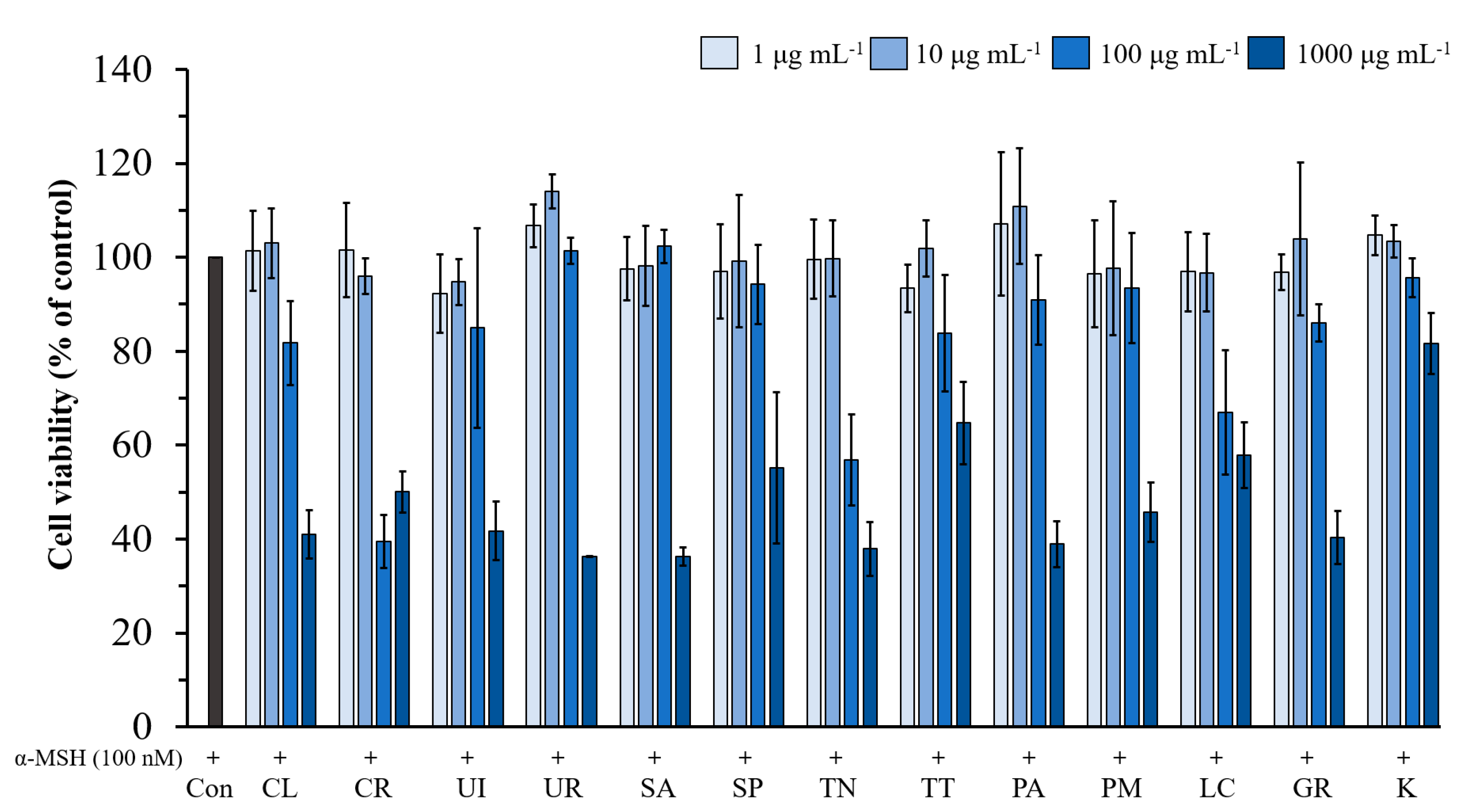

Figure 4. Effect of seaweed extract and kojic acid on cell viability in B16F10 melanoma cells. Cells were incubated with various concentrations (1–1000 µg mL−1) of seaweed extracts and kojic acid in the presence of α-MSH for 72 h. The values are expressed as mean ± SD (n = 3). Con; Control, K; Kojic acid.
Figure 4. Effect of seaweed extract and kojic acid on cell viability in B16F10 melanoma cells. Cells were incubated with various concentrations (1–1000 µg mL−1) of seaweed extracts and kojic acid in the presence of α-MSH for 72 h. The values are expressed as mean ± SD (n = 3). Con; Control, K; Kojic acid.
Life 13 00934 g004
Life 13 00934 g005 550

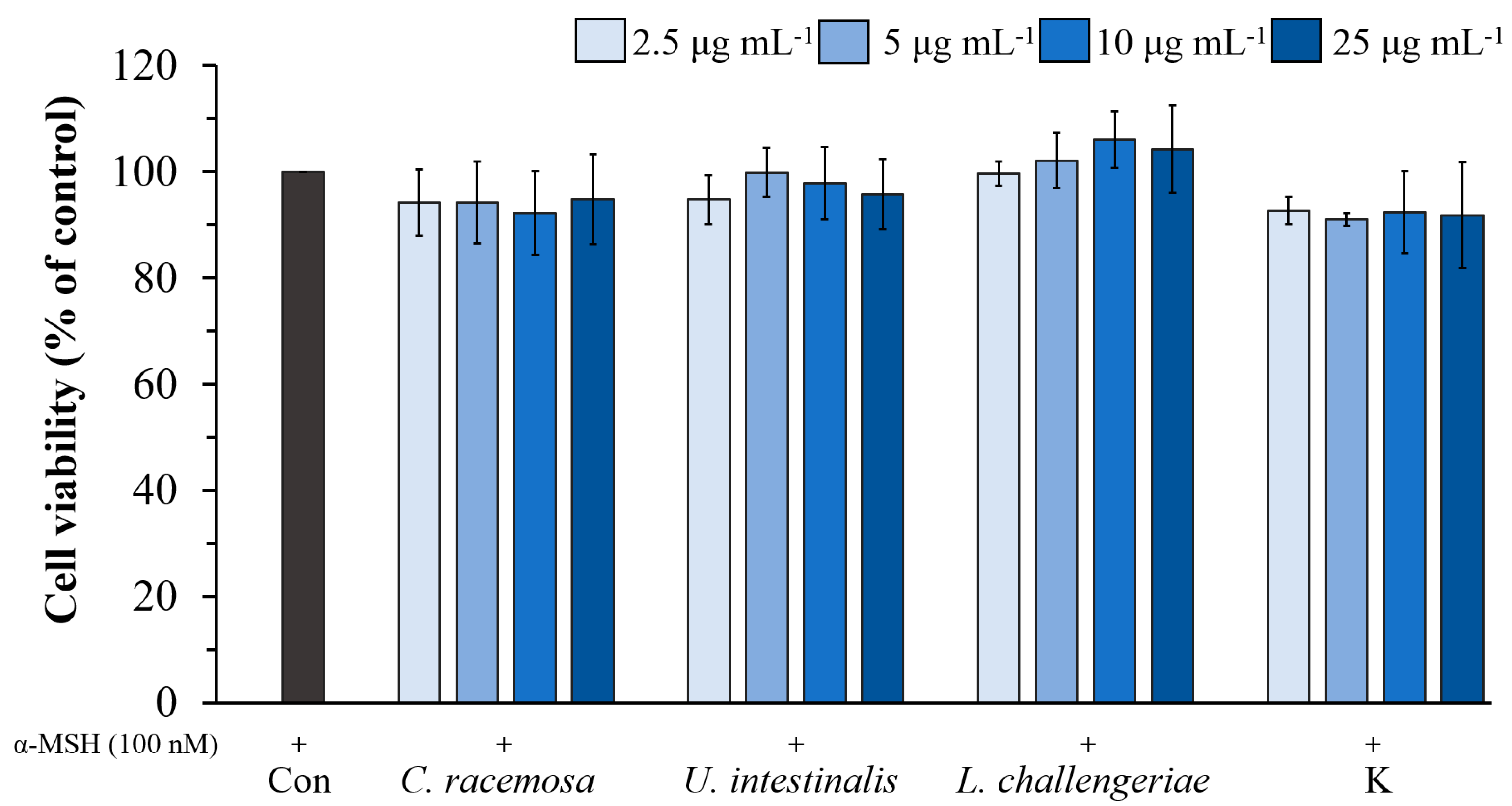

Figure 5. Effect of C. racemosa, U. intestinalis, and L. challengeriae on cell viability in α-MSH- stimulated B16F10 cells compared with kojic acid. Cells were incubated with various concentrations (2.5–25 µg mL−1) of seaweed extract and kojic acid for 72 h. The values are expressed as mean ± SD (n = 3). Con; Control, K; Kojic acid.
Figure 5. Effect of C. racemosa, U. intestinalis, and L. challengeriae on cell viability in α-MSH- stimulated B16F10 cells compared with kojic acid. Cells were incubated with various concentrations (2.5–25 µg mL−1) of seaweed extract and kojic acid for 72 h. The values are expressed as mean ± SD (n = 3). Con; Control, K; Kojic acid.
Life 13 00934 g005
Life 13 00934 g006 550
Figure 6. Effect of seaweed extracts and kojic acid at 10 µg mL−1 on cellular melanin content. The values are expressed as mean ± SD (n = 3). Significant differences are indicated by different letters (p < 0.05). Con; Control, K; Kojic acid.
Figure 6. Effect of seaweed extracts and kojic acid at 10 µg mL−1 on cellular melanin content. The values are expressed as mean ± SD (n = 3). Significant differences are indicated by different letters (p < 0.05). Con; Control, K; Kojic acid.
Life 13 00934 g006
Life 13 00934 g007 550
Figure 7. Effect of C. racemosa, U. intestinalis, and L. challengeriae on cellular melanin content in α-MSH-stimulated B16F10 melanoma cells compared with kojic acid. Cells were incubated with various concentrations (2.5, 5, 10, and 25 µg mL−1) of seaweed extract. The values are expressed as mean ± SD (n = 3). Significant differences are indicated by different letters (p < 0.05). Con; Control, K; Kojic acid.
Figure 7. Effect of C. racemosa, U. intestinalis, and L. challengeriae on cellular melanin content in α-MSH-stimulated B16F10 melanoma cells compared with kojic acid. Cells were incubated with various concentrations (2.5, 5, 10, and 25 µg mL−1) of seaweed extract. The values are expressed as mean ± SD (n = 3). Significant differences are indicated by different letters (p < 0.05). Con; Control, K; Kojic acid.
Life 13 00934 g007
Life 13 00934 g008 550
Figure 8. Effect of seaweed extracts and kojic acid on cellular melanin content in α-MSH-stimulated B16F10 melanoma cells. Cells were incubated with various concentrations of seaweed extract (2.5, 5, 10, and 25 µg mL−1) for 72 h. The melanin content (dark pigment) was observed under a microscope. Control in the presence of α-MSH (a), kojic acid (b–e), C. racemosa extract (f–i), U. intestinalis extract (j–m), L. challengeriae extract (n–q). Scale bar = 200 µm.
Figure 8. Effect of seaweed extracts and kojic acid on cellular melanin content in α-MSH-stimulated B16F10 melanoma cells. Cells were incubated with various concentrations of seaweed extract (2.5, 5, 10, and 25 µg mL−1) for 72 h. The melanin content (dark pigment) was observed under a microscope. Control in the presence of α-MSH (a), kojic acid (b–e), C. racemosa extract (f–i), U. intestinalis extract (j–m), L. challengeriae extract (n–q). Scale bar = 200 µm.
Life 13 00934 g008
Life 13 00934 g009 550
Figure 9. Effect of C. racemosa, U. intestinalis, and L. challengeriae on cellular tyrosinase activity in α-MSH-stimulated B16F10 melanoma cells compared with kojic acid. Cells were incubated with various concentrations (2.5–25 µg mL−1) of seaweed extract. The values are expressed as mean ± SD (n = 3). Significant differences are indicated by different letters (p < 0.05). Con; Control, K; Kojic acid.
Figure 9. Effect of C. racemosa, U. intestinalis, and L. challengeriae on cellular tyrosinase activity in α-MSH-stimulated B16F10 melanoma cells compared with kojic acid. Cells were incubated with various concentrations (2.5–25 µg mL−1) of seaweed extract. The values are expressed as mean ± SD (n = 3). Significant differences are indicated by different letters (p < 0.05). Con; Control, K; Kojic acid.
Life 13 00934 g009
Table
Table 1. List of seaweed collected during this study.
Table 1. List of seaweed collected during this study.
Sample CodeSpeciesLocationCollection TimeVoucher Number
Chlorophyta
CLCaulerpa lentillifera J. Agardh (1837) [35]Chonburi Province
(12°36′49.1″ N 100°55′26.2″ E)		March 2017FIKU_119
CRCaulerpa racemosa (Forsskål) J. Agardh (1873) [27]Chonburi Province
(12°36′49.1″ N 100°55′26.2″ E)		March 2017FIKU_120
UIUlva intestinalis Linnaeus (1753) [28]Pattani Province
(6°52′39.4″ N 101°14′12.1″ E)		January 2017FIKU_118
URUlva rigida C. Agardh (1823) [36]Phetchaburi Province
(13°02′36.2″ N 100°05′11.0″ E)		August 2017FIKU_127
Ochrophyta
SASargassum aquifolium (Turner) C. Agardh (1820) [36]Chonburi Province
(12°36′49.1″ N 100°55′26.2″ E)		May 2017FIKU_124
SPSargassum polycystum C. Agardh (1824) [37]Chonburi Province
(12°36′10.0″ N 100°57′09.7″ E)		March 2017FIKU_121
TNTurbinaria conoides (J. Agardh) Kützing (1860) [38]Chonburi Province
(12°36′49.1″ N 100°55′26.2″ E)		May 2017FIKU_125
TTTurbinaria coniodes (J. Agardh) Kützing (1860) [38]Trat Province
(12°11′13.2″ N 102°18′04.6″ E)		March 2017FIKU_122
PAPadina australis Hauck (1887) [39]Chonburi Province
(12°36′10.0″ N 100°57′09.7″ E)		April 2017FIKU_123
PMPadina minor Yamada (1925) [40]Trat Province
(12°11′13.2″ N 102°18′04.6″ E)		December 2016FIKU_117
LCLobophora challengeriae C. W. Vieira (2019) [29]Chonburi Province
(12°36′49.1″ N 100°55′26.2″ E)		May 2017FIKU_126
Rhodophyta
GRGracilaria dura (C. Agardh) J. Agardh (1842) [41]Chonburi Province
(13°12′30.0″ N 100°58′29.2″ E)		September 2016FIKU_116
Table
Table 2. The half-maximal inhibitory concentration (IC50) values of seaweed extract on mushroom tyrosinase activity.
Table 2. The half-maximal inhibitory concentration (IC50) values of seaweed extract on mushroom tyrosinase activity.
SampleIC50 (mg mL −1)
Caulerpa lentillifera (CL)>5.00
Caulerpa racemose (CR)>5.00
Ulva intestinalis (UI)3.35 ± 0.12
Ulva rigida (UR)>5.00
Sargassum aquifolium (SA)4.56 ± 0.14
Sargassum polycystum (SP)1.24 ± 0.24
Turbinalis coniodes (TN)>5.00
Turbinalis coniodes (TT)4.62 ± 0.04
Padina australis (PA)1.09 ± 0.03
Padina minor (PM)1.23 ± 0.06
Lobophora challengeriae (LC)0.15 ± 0.01
Gracilaria dura (GR)>5.00
Kojic acid (K)0.35 ± 0.05
Values are expressed as mean ± standard deviation (n = 3).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Choosuwan, P.; Praiboon, J.; Boonpisuttinant, K.; Klomjit, A.; Muangmai, N.; Ruangchuay, R.; Chirapart, A. Inhibitory Effects of Caulerpa racemosa, Ulva intestinalis, and Lobophora challengeriae on Tyrosinase Activity and α-MSH-Induced Melanogenesis in B16F10 Melanoma Cells. Life 2023, 13, 934. https://doi.org/10.3390/life13040934

AMA Style

Choosuwan P, Praiboon J, Boonpisuttinant K, Klomjit A, Muangmai N, Ruangchuay R, Chirapart A. Inhibitory Effects of Caulerpa racemosa, Ulva intestinalis, and Lobophora challengeriae on Tyrosinase Activity and α-MSH-Induced Melanogenesis in B16F10 Melanoma Cells. Life. 2023; 13(4):934. https://doi.org/10.3390/life13040934

Chicago/Turabian Style

Choosuwan, Pradtana, Jantana Praiboon, Korawinwich Boonpisuttinant, Anirut Klomjit, Narongrit Muangmai, Rapeeporn Ruangchuay, and Anong Chirapart. 2023. "Inhibitory Effects of Caulerpa racemosa, Ulva intestinalis, and Lobophora challengeriae on Tyrosinase Activity and α-MSH-Induced Melanogenesis in B16F10 Melanoma Cells" Life 13, no. 4: 934. https://doi.org/10.3390/life13040934

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
