A Design Method for a Variable Combined Brake System for Motorcycles Applying the Adaptive Control Method

Abstract

The variable combined brake system (VCBS) is a mechanism for motorcycles to simultaneously activate the front and rear brake systems by using one brake lever or pedal. The purpose is to reduce the risk of rollover accidents due to misuse of the front brake when panic braking. Due to its ability in a wide variation range of braking force distribution (BFD) ratios between the front and rear wheels, the VCBS can simultaneously achieve high braking effort and driving comfort performances, provided that the BFD ratio is designed appropriately. This paper aimed to develop the design method for the VCBS. A mathematical model of the VCBS mechanism is derived, and a parameter matching design method that applies adaptive control theory is proposed. A prototype of VCBS is designed and built based on the proposed method. The straight-line braking test results show that the motorcycle equipped with the VCBS prototype effectively obtained a high braking performance in deceleration. The obtained maximum deceleration is an average of 6.37 m/s² (0.65 g) under an average handbrake lever force of 154.29 N. For front brake failure, maximum deceleration is obtained at an average of 3.38 m/s² (0.34 g), which is higher than the homologation requirement of 2.9 m/s².

1. Introduction

A combined braking system (CBS) is a mechanism that links the front and rear brake systems of a motorcycle. The driver only needs to press a single handbrake lever to activate the front and rear wheels simultaneously. In a conventional independent brake system, the left handbrake lever brakes the rear wheel, while the right handbrake lever controls the front wheel brake. It quite often happens that the driver accidentally activates the front wheel brake alone when panic braking, causing rollover accidents. Therefore, the European Union enacts regulations to compel anti-lock braking systems (ABS) or CBS on motorcycles. Countries around the world have followed up to promote this regulation.

The advantages of using a CBS have been studied. Previous work [1,2] has shown that a CBS that appropriately allocates front and rear wheels’ braking forces can reduce the risk of crashing accidents due to poor driving skills. When straight-line braking, regardless of whether the driver’s skills are proficient or not, a motorcycle equipped with a CBS can be braked with higher decelerations and lower yaw rates than the conventional independent brake system. When braking during cornering, the motorcycle using a CBS produced less roll motion than the one using the front brake alone [3].

Application of the front braking force generates a torque to increase the motorcycle’s yaw rate. On the other hand, the rear braking force generates a stabilizing torque to align the motorcycle with its original direction. Therefore, when a motorcycle is braked during cornering with a small left handbrake lever force, a CBS allocating more rear braking force than the front brake is beneficial to the motorcycle’s directional stability. However, a rear braking force that is too large could lead the driver to feel cornering difficulty or even lead to server rear-tire sideslip. Therefore, a previous study [4] put the optimal rear braking force for their CBS through simulations to avoid rear wheel locking during cornering maneuvers.

For small and median force braking maneuvers, driving comfort is of most concern. A front braking force that is too large tends to dive the motorcycle’s body, leading to feelings of discomfort. In contrast, the rear braking force provides a squat torque to the vehicle body, which is comfortable for the driver. Therefore, a rear brake with a more considerable allocation than the front brake is better for small force braking maneuvers (e.g., Handbrake force < 100 N). Kazuhiko Tani et al. [5] suggested that the CBS should activate the rear wheel first for all road conditions to respond the same as that of the independent brake system. The purpose is to reduce the discomfort felt by drivers who are new to the CBS. Most importantly, the front wheel being locked first can cause the danger of rollover accidents.

Based on the above discussions, a CBS is required to provide an appropriate braking force distribution (BFD) ratio so that the driver can generate sufficient braking force under most driving conditions using only the left handbrake lever. The right handbrake lever is for auxiliary and backup purposes only. Most of the current CBS products on the market are designed with a constant leverage ratio for braking force allocation (called simple CBS). Simple CBS has the advantages of low costs and being simple to implement. However, due to limited design degree-of-freedom (DOF) constraints and the requirement of braking the rear wheel first, simple CBS is generally designed with a small front braking force allocation. Due to the load transfer effect, the front tire can offer a higher braking force than the rear tire. Excessive braking forces on the rear tire can cause it to become locked. Thus, a high enough front braking force distribution ratio is required to acquire high deceleration while keeping the motorcycle’s stability during emergence braking. Otherwise, a severe skid on the rear tire can occur, leading to unsatisfactory performance in deceleration and stability. A novel mechanism called the variable combined system (VCBS) has been proposed in our previous work [6] to render the problem mentioned above.

The basic idea behind the VCBS is shown in Figure 1 schematically. The input force F is from the left handbrake lever. A floating swingarm is utilized to distribute the input force to the front and rear brake systems. The input force acts on the swingarm’s cam surface through a roller. The magnitude of the input force, the balance of the spring force and the force component due to the cam determine the position of the roller and the force ratio of the front and rear brake systems. Therefore, the number of VCBS’s DOF can be increased to meet the requirements mentioned above simultaneously.

Figure 1. The concept of the variable combined system (VCBS).

In this mechanism, the cam profile and the returning spring’s rate matching design are critical for the BFD design. The design process requires taking the equivalent stiffnesses of the front and rear brake systems into account since the difference between the displacements of the swingarm’s two sides strongly affects the roller’s balancing position on the cam surface. The cam synthesis procedure has been explored during the last years [7,8,9]. However, because the stiffnesses of the brake systems are highly nonlinear in nature, the relationship between the input force and the BFD ratio by the VCBS is quite complicated. It is challenging to apply the existing methods for the VCBS design directly. First, this paper derives a mathematical model coupling the VCBS mechanism with the brake system’s equivalent stiffness and then proposes a parameter matching design method to resolve this difficulty. Both the simulation and experimental results show that the proposed method possesses the advantages of being feasible, easy to implement, and efficient in generating a cam profile to match the parameters of the VCBS. Road tests are carried out to verify the performance of the VCBS prototype designed by the developed method. Finally, the indexes for evaluating the VCBS’s braking performance are discussed.

2. The Mechanism of VCBS

The VCBS is a force distributor that distributes the input force of the front and rear brake systems. The force distribution ratio of a VCBS (denoted by R_f hereafter) is defined as, i.e.,

$$R_f=\frac{F_f}{F_f+F_r.}$$

(1)

F_f and F_r in Equation (1) are the forces (N) distributed between the front and rear brake systems, respectively, by the VCBS. With the distributed force, the front and rear wheels generate respective braking forces expressed as:

$$F_{fw}=F{R}_f{G}_f{E}_f,$$

(2)

$$F_{rw}=F\left(1-R_f\right)G_r{E}_r,$$

(3)

where F is the input force (N) to VCBS; G_f and G_r are the mechanical gains, and E_f and E_r are the efficiencies of front and rear brake systems, respectively. Efficiency includes transmitting and mechanical efficiencies. During braking, the maximum available brake forces provided by the front and rear tire-road contact patches, F_fμ and F_rμ, are determined by [10,11]:

$$F_{f\mu }=\frac{W}{L}\left(L_r+ah\right)\mu ,$$

(4)

$$F_{r\mu }=\frac{W}{L}\left(L_f-ah\right)\mu ,$$

(5)

where μ is the road adhesion coefficient, a the deceleration of the motorcycle in g, W the motorcycle’s weight (N), h the height (m) of center gravity (C.G.), L_f the distance (m) from the C.G. to the front axle, and L the wheelbase (m). From Equations (2)–(5), the actual braking forces produced by front and rear tire contact patches are:

F_ft = min (F_fw, F_fμ),

(6)

F_rt = min (F_rw, F_rμ).

(7)

The braking force distribution (BFD) ratio of the wheels (R_BFD) of a motorcycle on braking is defined as:

$$R_{BFD}=\frac{F_{ft}}{F_{ft}+F_{rt}}.$$

(8)

For a road condition of μ, the value of R_BFD that makes the front and rear wheels lock simultaneously is referred to as the ideal R_BFD in this paper. Since the amount of load being transferred increases with the increase of deceleration, the ideal R_BFD is a function of the input force F from the left handbrake lever. By letting a = μ, F_fw = F_fμ, and F_rw = F_rμ in Equations (2)–(5), the required R_f (called R_{f_ideal}) for a VCBS that achieves the ideal R_BFD for a motorcycle can be calculated as:

$$R_{f\_ideal}=\frac{W\left(-B+\sqrt{B^2-4ACF}\right)}{2AF\left(G_f{E}_f-G_r{E}_r\right)}-\frac{G_r{E}_r}{G_f{E}_f-G_r{E}_r},$$

(9)

where $A=\frac{Wh}{L}$, $B=W\left(\frac{L_r}{L}-\frac{G_f{E}_f}{G_f{E}_f-G_r{E}_r}\right)$ and $C=\frac{G_f{E}_f{G}_r{E}_r}{G_f{E}_f-G_r{E}_r}$. It is noted that the R_{f_ideal} in Equation (9) is determined under the condition of neglecting the effects of the motorcycle’s suspension system. In practice, a VCBS is designed to have an R_f slightly lower than R_{f_ideal} to account for the suspension system’s effect and parametric uncertainties existing in the calculations. From Equation (9), the value of R_{f_ideal} varied widely with the input force. For example, the value of R_{f_ideal} varied from 0.32 to 0.78 on F = 0~700 N for the target motorcycle in this study. The design of the VCBS aimed to meet this requirement, that is, having a wide range of R_f in response to variations of the input force F.

Figure 2 schematically shows the mechanism of the VCBS for motorcycles equipped with front disc and rear drum brake systems in detail. The main component of the VCBS is a swingarm with a contoured cam surface on its upper side. One side of the swingarm is connected to the rear brake wire through a pin that integrates the swingarm with roller R and link R. A bump on the bottom of the swingarm’s left-hand side is designed to push the front brake’s master cylinder piston. Link C is swingable with one end pin-connected to link LH and roller H, while its other end is pin-connected to roller C. The input force F from the left handbrake lever pulls link C and then roller C to act on the swingarm’s cam surface.

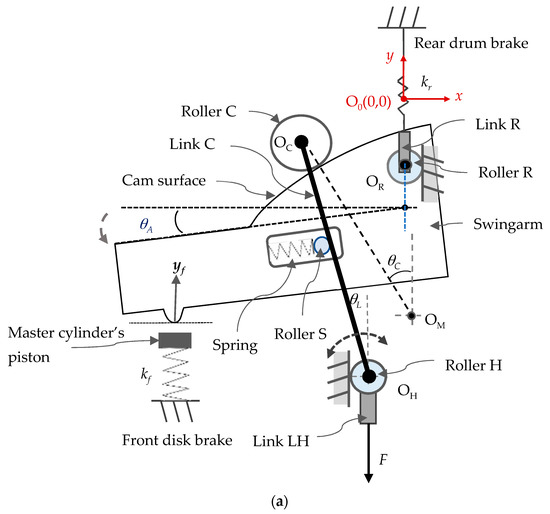

Figure 2. Schematic of the VCBS mechanism. (a) Schematic; (b) swingarm geometry.

Due to the cam profile, the input force F acting on the roller C generates a force component to move roller C along the cam surface to a balance position. Therefore, the position of F’s acting point can be varied to change the force distribution ratio R_f. To provide the required reacting forces for the movement of roller C, rollers H and R are confined to slide on their respective guides on the mechanism’s shell. A nonlinear returning spring mounted in the slot of the swingarm provides a balancing force against the movement of roller C. In this mechanism, the cam profile and the returning spring’s stiffness are the critical parameters for the braking forces distribution design.

3. Mathematical Model

For all the calculations hereafter, the origin O₀(0, 0) is set at the initial position of roller R’s center, and the weights of all the components in the system are neglected. With the braking forces of the front and rear brake systems (F_r and F_f) distributed by the VCBS, the master cylinder piston’s stroke y_f (mm) and the rear brake cable’s stroke y_r (mm) are determined by the equivalent spring rates k_f and k_r of the front and rear brake systems, respectively, i.e.,

$$y_r=\frac{-F_r}{k_r},\mathrm{and}{y}_f=\frac{-F_f}{k_f},$$

(10)

where k_f and k_r (N/mm) are measured from the brake systems of the target motorcycle. The stroke difference between the two sides of the swingarm results in the swingarm’s rotating angle θ_A (rad) of:

$${\theta }_A={\tan }^{-1}\left(\frac{y_r-y_f}{d_{ax}}\right),$$

(11)

where d_ax is the horizontal distance (mm) between the two force acting points of the swingarm, as shown in Figure 2b.

The cam surface on the swingarm is designed with a variable radius of L_c centered at O_M(x_m, y_m). According to the geometry of the swingarm shown in Figure 2b and Figure 3, the following relationship can be derived as:

$$L_{h}sin{\theta }_L-L_{cr}sin{\theta }_C+dsin{\theta }_A-x_h=0,$$

(12)

where $L_{cr}=L_c+r_c$. r_c is the radius (mm) of roller C; d is the distance (mm) between O_M (x_m, y_m) and O_R(x_r, y_r); x_h is the horizontal position (mm) of roller H; and L_h is the length (mm) of link C. The variable θ_L is the swing angle (rad) of link C; θ_C is the angle (rad) between the y axis and the line connected by O_C(x_c, y_c) and O_M(x_m, y_m). For the returning spring, a variable pitch spring [12] that realizes the nonlinear hardening spring characteristics is applied in this study to provide the spring force F_s expressed as:

$$F_s=k_{s1}\left(d_s-s_0\right)+k_{s2}{\left(d_s-s_0\right)}^3,$$

(13)

where k_s1 (N/mm) and k_s2 (N/mm³) are the spring rates. The variables s₀ and d_s are the distances (mm) from the center O_R to spring’s free end and roller S’s location, respectively, measured along the returning spring’s axis. In the design stage, the value of s₀ is given to determine the pre-stressed deformation of the spring, and d_s is calculated as:

$$d_s=\left(d-d_{ys}\right)tan{\theta }_{CA}+\left(L_{cr}-\frac{d-d_{ys}}{cos{\theta }_{cA}}\right)\frac{sin{\theta }_{CL}}{cos{\theta }_{LA}},$$

(14)

where ${\theta }_{CA}={\theta }_C-{\theta }_A,{\theta }_{LA}={\theta }_L-{\theta }_A,{\theta }_{CL}={\theta }_C-{\theta }_L$. The variable d_ys is the orthogonal distance (mm) between the returning spring’s axis and the center O_R.

Figure 3. Free body diagram of link C and the swingarm.

As shown in Figure 3, the application of input force F makes roller C generate a normal force, F_c, acting on the cam surface in the form of

$$F_c=\frac{Fcos{\theta }_{LA}sin{\theta }_L-F_s}{cos{\theta }_{c}cos{\theta }_{LA}sin{\theta }_L}.$$

(15)

By taking the moment about O_H of link C’s free body diagram in Figure 3, the relations among F_c, F_s, θ_A, θ_L, and θ_C can be obtained as:

$$F_c{L}_{h}sin{\theta }_{CA}-F_s{L}_{sh}/cos{\theta }_{LA}=0,$$

(16)

where L_sh is the distance (mm) between rollers S and H, which is calculated as:

$$L_{sh}=L_h-\left(L_{cr}-\frac{d-d_{ys}}{cos{\theta }_{cA}}\right)\frac{cos{\theta }_{CA}}{cos{\theta }_{LA}}.$$

(17)

Finally, the respective force distributed between the front and rear brakes can be determined by taking the moment about the center O_R using the free body diagram of the swingarm shown in Figure 3:

$$-F_{c}dsin{\theta }_{CA}+F_s\left(d_{ys}-d_{s}tan{\theta }_{LA}\right)+F_f{d}_{ax}cos{\theta }_A=0,$$

(18)

$$F_r=F-F_f.$$

(19)

4. Parameter Matching Design

Once the mechanical design of the VCBS has been finished, an optimal R_f curve for a target motorcycle can be obtained (or tuned) by designing a cam profile to match the returning spring’s stiffness (k_s1, k_s2). Thus, a method to generate an optimal cam profile to match the existing VCBS’s parameters is required. The cam profile of the swingarm is a curve centered at O_M(x_m, y_m) with its radius, L_c, varied with the angle difference θ_CA. Since the system that combined the VCBS model and the brake system’s stiffness is complicated and highly nonlinear, it is difficult to directly apply the existing methods of cam profile design. A method that applies the direct one-step-ahead adaptive control technique [13,14] is proposed to solve this problem.

For specific values of the spring rates k_s1 and k_s2, the proposed optimal L_c design is proceeded by building a surrogate model to capture the local behavior of R_f for F = 0~700 N. This method, called metamodeling, has been widely used in engineering applications. The surrogate model is used to represent the actual model to reduce computational cost. Extensive research has been carried out to generate the surrogate models based on limited samples [15,16]. In this study, a surrogate model is selected to represent the original system (the VCBS model coupled with the brake system’s stiffness):

$$R_f\left(k\right)=x{\left(k-1\right)}^T\theta \left(k-1\right).$$

(20)

with

$$\theta \left(k\right)={\left[\begin{array}{ccc}{c}_1\left(k\right)& c_2\left(k\right)& c_3\left(k\right)\end{array}\right]}^T,$$

(21)

$$x\left(k\right)={\left[\begin{array}{ccc}cos{\theta }_L\left(k\right)& cos{\theta }_{CA}\left(k\right)log{L}_c\left(k\right)& \frac{F\left(k\right)}{cos{\theta }_{CA}\left(k\right)}\end{array}\right]}^T,-\frac{\pi }{2}<{\theta }_{CA}<\frac{\pi }{2}$$

(22)

where F(k) is the discretized input force that takes values k = 1, 2, 3, …, i.e., F(k) = kΔF with ΔF, the sampling value of F. In control words, the original system can be considered as locally differentially flat since the system’s output R_f(k) is visible from its state, θ_L(k) and θ_CA(k), and the input F(k) is visible using Equation (20). Flat systems are useful in nonlinear control engineering for explicit trajectory tracking applications. Once the behavior of the flat system can be given by the flat output, planning trajectories in output space and then mapping them to the appropriate inputs are possible; please see [17] for details. The coefficients in Equation (21) can be estimated online using the Kalman estimator [18] or the least-squares estimator [19,20]. Because the system is free from noise, the sequential least-squares estimator [21] is applied as follows:

$$\begin{gathered} {\widehat{R}}_{f\_Lc0}\left(k\right)=x^T\left(k\right)\widehat{\theta }\left(k-1\right), \\ \epsilon \left(k\right)=R_{f{\_}_{Lc0}}\left(k\right)-{\widehat{R}}_{f_{\_Lc0}}\left(k\right), \\ \gamma \left(k\right)=\frac{1}{\lambda +x^T\left(k\right)P\left(k-1\right)x\left(k\right)}P\left(k-1\right)x\left(k\right), \\ P\left(k\right)=\frac{1}{\lambda }\left[I-\gamma \left(k\right)x^T\left(k\right)\right]P\left(k-1\right), \\ \widehat{\theta }\left(k\right)=\widehat{\theta }\left(k-1\right)+\gamma \left(k\right)\epsilon \left(k\right), \end{gathered}$$

(23)

where $\widehat{\theta }\left(k\right)$ is the estimate of $\theta \left(k\right)$, ε(k) the prediction error, P(k) the covariance matrix, and λ the forgetting factor. Initially, $\widehat{\theta }\left(0\right)$ is set arbitrarily, and P(0) = αI_3×3. A large α tends to be the high correction of $\widehat{\theta }$ and therefore tends towards fast convergence. The forgetting factor is in the range of 0.9 ≤ λ ≤ 1; a large λ behaves with high robustness against disturbance; on the other hand, a small λ behaves with fast-tracking capability. In this study, α = 1000 and λ = 0.95 are chosen.

We define the reference model that specifies the ideal response of Equation (20) to the target value R_f^*(k) as:

$$R_m\left(k+1\right)=a_m{R}_m\left(k\right)+b_m{R}_f{}^{*}\left(k\right),R_m\left(1\right)=R_{m0},$$

(24)

where R_m is the reference model’s output. Since the desired R_f curve is expected to have a pattern similar to R_{f_ideal}, the input to the reference model R_f^*(k) is defined as

R_f^*(k) = R_{f_ideal} (k) − R_f0,

(25)

where R_f0 is a constant used to make the resulting R_f curve slightly lower than R_{f_ideal}, as mentioned previously. We define the tracking error between the reference model output R_m(k) and the ${\widehat{R}}_{f\_new}\left(k\right)$ estimated by the surrogate model using the newly designed cam profile, L_{c_new}(k), as

$$e\left(k\right)={\widehat{R}}_{f\_new}\left(k\right)-R_m\left(k\right).$$

(26)

The problem is thus to design a controller with output L_c(k) to make the plant output ${\widehat{R}}_{f\_new}\left(k+1\right)$ track the reference model output R_m (k+1). We define the desired tracking error dynamics as:

$$e\left(k+1\right)+k_{p}e\left(k\right)=0,$$

(27)

where $\left|k_p\right|\le 1$ is selected to determine the error convergence rate. Using Equations (20)–(22) and (26), the left-hand side of Equation (27) can be rewritten as:

$$\begin{array}{c}e\left(k+1\right)+k_{p}e\left(k\right)=\\ k_{p}e\left(k\right)-R_m\left(k+1\right)+{\widehat{c}}_{1}cos{\theta }_L\left(k\right)+{\widehat{c}}_{2}cos{\theta }_{CA}\left(k\right)log{L}_c\left(k\right)+{\widehat{c}}_{3}F\left(k\right)/cos{\theta }_{CA}\left(k\right),\\ -\frac{\pi }{2}<{\theta }_{CA}\left(k\right)<\frac{\pi }{2}.\end{array}$$

(28)

Let the right-hand side of Equation (28) be zero to meet the requirement of Equation (27), a new sequence of L_c(k) can be obtained and expressed as:

$$L_{c\_new}\left(k\right)=e^{\frac{R_m\left(k+1\right)-k_{p}e\left(k\right)-{\widehat{c}}_{1}cos{\theta }_L\left(k\right)-{\widehat{c}}_{3}F\left(k\right)/cos{\theta }_{CA}\left(k\right)}{{\widehat{c}}_{2}cos{\theta }_{CA}\left(k\right)}},-\frac{\pi }{2}<{\theta }_{CA}\left(k\right)<\frac{\pi }{2}.$$

(29)

Equation (29) is the adaptive law that generates L_{c_new}(k) to make ${\widehat{R}}_{f\_new}$(k+1) converge to R_m (k+1), based on the data at instant k.

Remark 1.

In Equation (28), the convergence of the tracking error e(k) is guaranteed by selecting$\left|k_p\right|\le 1$and L_{c_new} in the form of Equation (29), provided that L_{c_new} is bounded. The boundness of L_{c_new} is ensured when$-\pi /2<{\theta }_{CA}<\pi /2$holds. Because of the designed geometrical dimensions of the VCBS in this study, the operation range of${\theta }_{CA}$is within$0<{\theta }_{CA}<1$for the target range of R_f within 0 ≤ R_f ≤ 0.6, implying that the boundness of L_{c_new}(k) is guaranteed automatically.

The procedure for designing the swingarm’s cam profile is summarized in Figure 4. Before starting the design, vehicle parameters such as the center of gravity, mechanical gains and efficiencies, and equivalent stiffness of the brake systems have to be measured. The equivalent brake systems’ stiffnesses are expressed as:

$$k_f=a_1{F}_f^2+a_2{F}_f+a_3,$$

(30)

$$k_r=b_1{F}_r^2+b_2{F}_r+b_3.$$

(31)

Figure 4. Block diagram for the cam profile design.

It is noticed that k_f represents the relationship between the master cylinder piston’s resisting force F_f (N) and stroke y_f (mm), while k_r is the relationship between the rear-brake wire’s resisting force F_r and displacement y_r. After the k_f and k_r have been calculated from the measured data, they are expressed as functions of the resisting forces for further calculations. The coefficients in Equations (30) and (31) are obtained through curve fitting. For the target motorcycle in this paper, the coefficients are obtained as: a₁ = −0.0006571, a₂ = 0.143, and a₃ = 1.012; and b₁ = 0.0006017, b₂ = 0.01, and b₃ = 3.633.

The target R_f curve (denoted by R_f^*) is calculated based on vehicle’s parameters and the required braking performance. After finishing a VCBS’s mechanical design, its geometrical parameters are used to construct the VCBS model of Equations (10)–(19). The cam profile design corresponding to a selected spring rate combination of k_s1 and k_s2 of Equation (13) is started by giving an initial profile of a constant radius of L_c0. The simulation of the VCBS model generates the R_f curve corresponding to the L_c0 (called R_{f_Lc0}). Based on the curve R_{f_Lc0}, the online parameter estimator of Equation (23) estimates the parameters $\widehat{\theta }\left(k\right)$ of Equation (21). The adaptive law of Equation (29) generates the sequence L_{c_new}(k) that makes the tracking error e(k) converge in the case of Equation (27). The sequence L_{c_new}(k) is a function of θ_CA, which is used to fabricate the cam profile. For this purpose, an equation is used to represent the cam profile expressed as:

$$L_{c\_new}=b_1+b_2/log{\theta }_{CA}+b_3/{(log{\theta }_{CA})}^5,0<{\theta }_{CA}<1,$$

(32)

where b₁~b₃ are obtained through curve fitting using the sequence L_{c_new}(k). A design example is demonstrated here by using the parameters of the target motorcycle and VCBS model listed in Table 1. The parameters for the adaptive law are selected as k_p = 0.5, R_m0 = −0.3, R_f0 = 0.1, a_m = 0.96, and b_m = 0.04. The spring rates are k_s1 = 8 N/mm and k_s2 = 0.08 N/mm³. The original cam profile used for the design basis has a constant radius of L_c0 = 22 mm.

Table 1. Parameters for simulations.

Vehicle Parameters	Value
Laden weight, W (N)	2589.8
Wheelbase, L (m)	1.205
Height of gravity center, h (m)	0.77
Front brake system
Mechanical gain, Gf	4.124
Efficiency of disk brake system, Ef	0.801
Rear brake system
Mechanical gain, Gr	3.30
Efficiency of drum brake system, Er	0.7055
VCBS parameters (see Figure 1)
Distance between spring axis and OR, dys (mm)	6
x coordinate of OH, xh (mm)	−4
Swingarm’s horizontal active length, dax (mm)	25
Distance between OM and OR, d (mm)	19.5
Radius of roller C, rc (mm)	3.5
Length of link C, Lh (mm)	36
Distance from OR to spring’s end at free length status, s0 (mm)	−3

The convergence of the identification procedure is illustrated in Figure 5 and Figure 6. Figure 5 presents the relationship between the trace of R_f__Lc0 simulated by the VCBS model and the trace of ${\widehat{R}}_{f\_Lc0}$ predicted by Equations (20)–(22) using the online estimated parameter $\widehat{\theta }$. It can be seen that the predicted output of the surrogate model converges with the VCBS model well. On the other hand, comparing the traces of R_m, R_f^*_, R_{f_new}, and R_{f_Lc0} in Figure 6a shows that R_{f_ Lc0} deviates from R_m significantly, while the trace of R_{f_new} tracks the R_m curve well, with the converged tracking error shown in Figure 6b. Here, the initial value R_m0 in Equation (24) is selected to be negative in order to have small values of R_{f_new} corresponding to small values of F.

Figure 5. The trace of R_f__Lc0 (solid blue line) simulated by the VCBS model, and the trace of ${\widehat{R}}_{f\_Lc0}$ (red dashed line) predicted by the surrogate model.

Figure 6. The design result: (a) comparison of the traces of R_f*, R_m, R_f__new, and R_f__Lc0; (b) the tracking error between R_m and R_{f_new}.

It is noticed that singularities may exist in Equations (14)–(17) for large values of F depending on the designed parameters of the VCBS. When this happens, a discontinuity followed by an unsmooth sequence can appear on the R_f__Lc0 sequence. Since the smooth part of the R_f__Lc0 sequence spans the entire reasonable operation range of θ_CA, it is sufficient for generating a satisfactory new cam profile. Therefore, only the smooth part of the R_f__Lc0 is utilized to generate the new cam profile in the design procedure, and the sequence after the discontinuity is discarded. For the present example, the simulation results show that the singularity presents around θ_CA = 0.945 (rad).

The effect of the newly designed cam profile is shown in Figure 7. In this figure, the trajectory of dimensionless braking forces F_rt/W and F_ft/W, varied with the increase of F, is defined as the braking force distribution curve (called BFD curve). This curve is useful for evaluating the performance of the VCBS because it can explore the relationship between the variation of decelerations and the force distribution ratio. In this diagram, the ideal BFD curve represents the traces of F_rt/W and F_ft/W that make the front and rear wheels locked simultaneously in all road conditions defined by μ. It can be seen that the original cam profile (L_c0) generates a BFD curve that falls below the ideal BFD curve on large input forces. This situation is undesirable because it may cause the front wheel to lock first and consequently cause rollover accidents on large braking forces. The BFD curve generated by the newly designed cam profile (L_{c_new}) is successfully pulled above the ideal BFD curve for large F values and has the same changing trend as the ideal BFD. The front braking force distribution ratio varies smoothly with the increase of F and achieves a high value for large input forces. The improvement of the BFD curve can be understood by observing the two cam profiles on the x-y coordinate shown in Figure 8. At the positions far from the profile’s center, corresponding to large values of θ_CA (so as to large values of F), L_{c_new} is increased gradually compared to L_c0 and thereby pulls up the BFD curve.

Figure 7. Comparison of the braking force distribution (BFD) curve using the original cam profile with that using the newly designed cam profile.

Figure 8. The newly designed cam profile L_{c_new} and the original cam profile L_c0 on x-y coordinates.

The newly designed cam profile can match various spring rates to obtain different BFD curves. Figure 9 presents variations of the BFD curve for different spring rates. As shown in Figure 9a, increases in the linear spring rate k_s1 move the overall BFD curve higher than the ideal BFD curve. On the other hand, the nonlinear spring rate k_s2 affects the curvature of the BFD curve. When k_s2 is increased, part of the BFD curve corresponding to high input forces is turned away from the ideal BFD curve, as shown in Figure 9b.

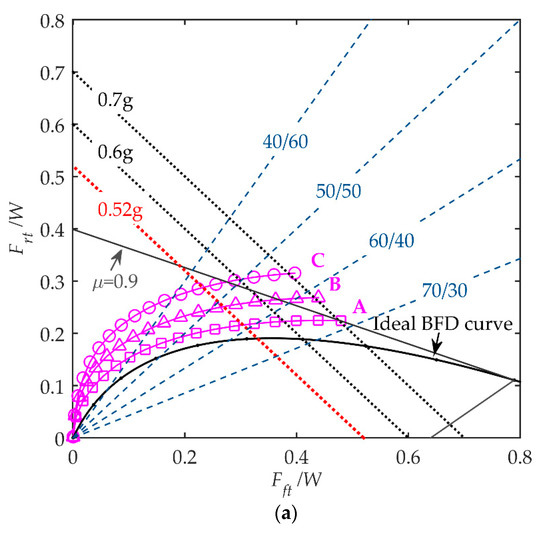

Figure 9. The BFD curves of different spring rates matching with the new designed cam profile. (a) Curves A~C: k_s1 = 4, 8, 12 N/mm with k_s2 = 0.08 N/mm³; (b) curves D~F: k_s2 = 0.06, 0.09, 0.14 N/mm³ with k_s1 = 8 N/mm.

5. Design Realization and Road Test Results

A prototype of the VCBS has been designed and developed based on the design method described in the previous sections. Figure 10a shows the layout of the VCBS on a motorcycle with a 125 cc gasoline engine and a disc-drum brake system. The input force to the VCBS is from the left handbrake lever through a braking wire, which is the primary source of the motorcycle’s braking force. The right handbrake lever independently activates the front brake by pulling the master cylinder’s piston through a wire. It is only for auxiliary or backup purposes. The prototype’s photo is also presented in Figure 10b, in which the mechanism’s cover is removed for clarity.

Figure 10. The layout of the VCBS prototype and the associated measurement system: (a) schematic; (b) photograph of the VCBS.

An auxiliary pin mounted onto link C and a slot on the swingarm are designed, as shown in Figure 11, to achieve a higher deceleration on failure mode operations. The geometry of the slot is well designed so that the following two operation conditions hold:

Figure 11. Schematic of failure mode operations. (a) swingarm and link C locked together when front brake failure occurs for θ_A ≥ θ_th > 0; (b) swingarm rotates freely with rear brake failure θ_A < 0.

(1)

θ_A ≥ θ_th >0: the swingarm and link C locked together by the pin, where θ_th is the maximum allowable anticlockwise rotating angle of the swingarm.

(2)

θ_A < θ_th: the pin without contact with the boundary of the slot.

The first condition is for front brake failure mode. When the master cylinder piston loses its resisting force against the swingarm because of front brake failure, its anticlockwise rotating angle θ_A could become enormous. If θ_A ≥ θ_th holds_, the auxiliary pin will contact the slot’s boundary to lock the swingarm with link C. Under this condition, the swingarm can no longer rotate such that the rear brake takes all the magnitude of the input force F. On the other hand, with rear brake failure, the swingarm loses the brake wire resisting force acting on the roller R, and the input force F makes the swingarm rotate clockwise freely. Consequently, both the front and rear brake receive no braking forces on the application of F. The value of θ_th is a compromise between the required deceleration on front brake failure and the maximum desired R_f value in a normal condition. In this study, θ_th = 6° is selected.

The straight-line braking test is carried out on the studied motorcycle to verify the performance of the VCBS. The measurement system includes the VBOX speed sensor to acquire speed, deceleration, and braking distance; a handbrake meter to measure the driver’s input force; a hydraulic pressure transducer installed on the caliper of the front brake, and a force sensor installed on the rear brake wire, as shown in Figure 12. The tests [22] are performed by a skilled driver on a standard road condition with an adhesion coefficient of about 0.9. When the vehicle accelerates to more than 60 km/h and reaches the brake start sign on the roadside, the driver presses the left handbrake lever (with force not larger than or equal 200 N within 0.6 s) to activate the VCBS and stop the motorcycle in an emergency. When the motorcycle stops, the braking distance is measured, and the recorded data during braking are stored.

Figure 12. The layout of the VCBS prototype and the associated measurement system.

Table 2 presents three test cycles’ recorded data, including the averaged maximum left handlever force, brake triggering speed, MFDD (Mean Fully Developed Deceleration) [22,23], and braking distance. The test results show that, with the averaged maximum handbrake lever force of 190.54 N, the averaged MFDD is 6.37 m/s²—much higher than the homologation requirement of 5.1 m/s² (0.52 g).

Table 2. Brake distance and deceleration at laden load.

Test No.	Left Handlever Force		Brake Triggering Speed	MFDD	Braking Distance	Pa	Pb	Pc
	Max.	Average
Unit	N		km/h	m/s2	m	-	m/s2	m/s2
Requirement	≤200		min(0.9Vmax *, 60) ± 5	≥5.1
1	193.87	171.71	60.13	6.27	25.54	0.09	5.78	6.58
2	184.96	123.90	59.95	6.34	24.38	0.09	5.78	6.44
3	192.78	167.25	60.93	6.49	25.6	0.10	5.74	6.61
Average	190.54	154.29	60.34	6.37	25.17	0.09	5.77	6.54

* Vmax: Vehicle maximum speed.

The dynamic left handbrake lever force, the front braking force calculated from the measured pressure, and the rear braking force during braking are used to plot the BFD curves as shown in Figure 13. There are three performance metrics for the BFD curve concerning braking performance and driving comfort: Pa, Pb, and Pc. The dimensionless rear braking force F_rt/W at point Pa represents the dimensionless delaying force of the front brake. A sufficiently large value of F_rt/W at point Pa can avoid the occurrence of rollover accidents caused by the front wheel locking first for all road conditions and help lower the motorcycle’s pitch rate on low braking forces operation, thus improving driving comfort. It is the professional drivers’ opinion through subjective evaluation that the optimal dimensionless delaying force Pa for the studied motorcycle is within 0.08 < F_rt/W < 0.1 at laden load. The tested result is within an average of 0.09, which agrees well with the requirement.

Figure 13. The BFD curves of the straight-line braking test.

Pb is the point where the BFD curve intersects with the line μ = 0.9 and the rear tire starts to skid. At this point, the values of the braking force distribution ratio of wheels (R_BFD), which is defined in Equation (8), and the deceleration are of interest. It is required that the deceleration at Pb is as high as possible to achieve high braking performance. A higher value of R_BFD is required to obtain higher deceleration corresponding to Pb, which is the purpose of the VCBS design. The curve shows that the averaged deceleration corresponding to the point Pb is 5.77 m/s² (0.59 g) and R_BFD = 0.507.

After passing through the point Pb, deceleration is increased with the increase of the input force F due to the increase of the front braking force (F_ft). Since the deceleration of the motorcycle, contributed to by the rear braking force, is decreased, the slope of the BFD curve is turned negatively. The curve ceases at the point Pc corresponding to the maximum input force. The estimated averaged maximum deceleration at Pc is calculated as 6.54 m/s², which approaches the averaged MFDD test result of 6.37 m/s². For the front brake failure mode test, the tested MFDD is with an average of 3.38 m/s², higher than the 2.9 m/s² of homologation requirement, as listed in Table 3. All the road test results verify that the VCBS prototype can achieve satisfying deceleration performance and driving comfort.

Table 3. Braking performance on front brake failure at laden load.

Test No.	Left Handlever Force		Brake Triggering Speed	MFDD	Braking Distance
	Max.	Average
Unit	N		km/h	m/s2	m
Requirement	≤250		min(0.9Vmax *, 60) ± 5	≥3.0
1	148.65	103.46	60.04	3.37	41.54
2	144.47	94.72	60.63	3.39	42.33
Average	146.56	99.09	60.34	3.38	41.94

* Vmax: Vehicle maximum speed.

6. Conclusions and Remarks

The VCBS is a mechanism for motorcycles that simultaneously meets safety, high braking performance, and driving comfort requirements. Except for its geometrical dimensions, the critical parameters for the VCBS are the cam profile and the stiffnesses of the returning spring. This paper derives a mathematical model for the VCBS mechanism. A parameter matching design method, based on adaptive control theory, is developed to design the cam profile. The simulation results show that the design method can generate an optimal cam profile to realize any target braking force distribution curve for a specific parameter combination and the spring rates.

A prototype of the VCBS is designed and developed based on the proposed design method in this paper. The road test results show that the motorcycle equipped with the VCBS prototype achieves high deceleration and driving comfort, verifying the feasibility of the proposed design method. It is worth remembering that the adaptive law is designed to make the BFD curve of the VCBS to track the target braking force distribution curve for a given parameter set and spring rates combination. An inappropriate combination of parameters and spring rates may result in an impractical cam profile. Therefore, fine-tuning the parameters of the VCBS, spring rates, reference model, and convergence rate is required in the design process.
