Modified Tseng’s Extragradient Method for Solving Variational Inequality Problems and Fixed Point Problems with Applications in Optimal Control Problems

Abstract

This paper presents an enhanced inertial Tseng’s extragradient method designed to address variational inequality problems involving pseudomonotone operators, along with fixed point problems governed by quasi-nonexpansive operators in real Hilbert spaces. Provided that the parameters satisfy appropriate conditions, the proposed method is shown to converge strongly. Finally, we provide computational results and illustrate their utility through optimal control applications. These aim to show the efficacy and superiority of the proposed algorithm compared with some existing algorithms.

1. Introduction

Throughout this paper, we make the following assumptions: let H denote a real Hilbert space equipped with the inner product $\langle ·,·\rangle$ and its induced norm $\parallel ·\parallel$, and let $\mathcal{C}$ be a nonempty, closed, and convex subset of H. For the mapping $\mathcal{K}:H\to H$ where $\mathcal{K}\subset \mathcal{C}$, the variational inequality problem (abbreviated as VIP) is formulated as find a point where $b\in \mathcal{C}$ satisfying

$$\langle \mathcal{K}b,c-b\rangle \ge 0,\forall c\in \mathcal{C},$$

(1)

where $\mathcal{K}$ represents a nonlinear mapping, and the solution set corresponding to the Equation (1) is denoted as $\mathrm{VI}(\mathcal{C},\mathcal{K})$.

As a fundamental modeling framework in applied mathematics, variational inequalities find wide applications across diverse domains, including optimal control, signal processing, image restoration, and composite minimization (see [1,2,3,4,5,6,7]). Researchers have proposed and analyzed numerous effective approaches for solving variational inequality problems over recent decades; see [8,9,10,11,12,13,14,15,16,17,18] and related references. It is worth noting that such approaches typically necessitate the mapping $\mathcal{K}$ to satisfy certain monotonicity properties.

Among projection-type schemes, the projected gradient method stands as the most rudimentary and historically antecedent approach to variational inequality problems, and its iteration can be succinctly expressed as

$$a_{n+1}=P_{\mathcal{C}}\left(a_n-\delta \mathcal{K}{a}_n\right).$$

(2)

Under the assumptions that the mapping $\mathcal{K}$ is L-Lipschitz continuous and $\lambda$-strongly monotone, and that the step size satisfies $\delta \in (0,2\lambda /L^2)$, the sequence $\left\{a_n\right\}$ generated by Equation (2) converges to an element of $\mathrm{VI}(\mathcal{C},\mathcal{K})$.

In numerous studies addressing variational inequalities governed by pseudomonotone and Lipschitz continuous operators, the extragradient method stands as the most prevalently employed algorithm. Indeed, the extragradient method (EGM), introduced by Korpelevich [19] for finite-dimensional saddle-point problems, proceeds as detailed below.

$$\left\{\begin{array}{c}{b}_n=P_{\mathcal{C}}\left(a_n-\delta \mathcal{K}{a}_n\right),\hfill \\ a_{n+1}=P_{\mathcal{C}}\left(a_n-\delta \mathcal{K}{b}_n\right),\hfill \end{array}\right.$$

(3)

where $\mathcal{K}$ is monotone and L-Lipschitz continuous, selecting a fixed step size $\delta \in (0,1/L)$ ensures that the sequence $\left\{a_n\right\}$ generated by Equation (3) converging weakly to a point in $\mathrm{VI}(\mathcal{C},\mathcal{K})$ provided that the solution set is nonempty. A notable drawback of the extragradient method is requiring two projections onto the set $\mathcal{C}$ at each iteration, which can severely impair the overall computational efficiency.

Subsequently, some researchers have presented two categories of methods aimed at improving the numerical efficiency of Equation (3). Tseng [20] first introduced the forward–backward–forward method, which is now commonly referred to as Tseng’s extragradient method (TEGM). Unlike standard extragradient methods, Equation (4) achieves improved efficiency by computing just one projection per iteration. The precise algorithmic formulation appears as follows:

$$\left\{\begin{array}{c}{b}_n=P_{\mathcal{C}}\left(a_n-\delta \mathcal{K}{a}_n\right),\hfill \\ a_{n+1}=b_n-\delta \left(\mathcal{K}{b}_n-\mathcal{K}{a}_n\right).\hfill \end{array}\right.$$

(4)

Provided that the mapping $\mathcal{K}$ is monotone and L-Lipschitz continuous, and that the constant step size is chosen as $\delta \in (0,1/L)$, the sequence $\left\{a_n\right\}$ generated by Equation (4) converges weakly to a point in $\mathrm{VI}(\mathcal{C},\mathcal{K})$. As the second alternative, the subgradient extragradient method (SEGM) was introduced by Censor, Gibali, and Reich [21]. Its iterations are specified below.

$$\left\{\begin{array}{c}{b}_n=P_{\mathcal{C}}\left(a_n-\delta \mathcal{K}{a}_n\right),\hfill \\ T_n=\{a\in H\mid \langle a_n-\delta \mathcal{K}{a}_n-b_n,a-b_n\rangle \le 0\},\hfill \\ a_{n+1}=P_{T_n}\left(a_n-\delta \mathcal{K}{b}_n\right).\hfill \end{array}\right.$$

(5)

Under the conditions that $\mathcal{K}$ is L-Lipschitz continuous and monotone and that the step size is fixed at $\delta \in (0,1/L)$, Equation (5) is known to converge weakly to solutions of both monotone variational inequalities (see [22]) and their pseudomonotone counterparts (see [23,24]).

Let $\mathcal{U}:\mathcal{C}\to \mathcal{C}$ be a nonlinear mapping, the fixed point problem (FPP) is defined as follows:

$$\mathrm{find}q\in \mathcal{C}\mathrm{such}\mathrm{that}\mathcal{U}q=q.$$

(6)

We denote the fixed point set of $\mathcal{U}$ as $\mathrm{Fix}\left(\mathcal{U}\right)$. The present work aims to find a point q that solves Equations (1) and (6) simultaneously, specifically satisfying the following conditions:

$$q\in \mathrm{Fix}\left(\mathcal{U}\right)\cap \mathrm{VI}(\mathcal{C},\mathcal{K}).$$

(7)

Numerous iterative methods have been developed for finding a common element of Equation (7) in a Hilbert space H, see, e.g., [25,26,27,28,29,30,31,32,33,34]. Specifically, Takahashi and Toyoda [35] introduced an iterative method for solving Equation (7), which is formulated as follows:

$$a_{n+1}=(1-{\beta }_n)a_n+{\beta }_n{P}_{\mathcal{C}}\mathcal{U}\left(a_n-{\lambda }_n\mathcal{K}{a}_n\right).$$

Here, the mapping $\mathcal{K}$ is $\lambda$-inverse and strongly monotone, and $\mathcal{U}$ is nonexpansive. Under certain conditions, they established that the iterative sequence $\left\{a_n\right\}$ generated by this algorithm converges weakly to a solution of Equation (7). Next, Censor, Gibali, and Reich [22] proved weak convergence to Equation (7) solutions under the condition of the Lipschitz continuity and monotonicity of $\mathcal{K}$ and the nonexpansiveness of $\mathcal{U}$. The algorithm is specified as follows:

$$\left\{\begin{array}{c}{b}_n=P_{\mathcal{C}}\left(a_n-\lambda \mathcal{K}{a}_n\right),\hfill \\ T_n=\left\{a\in H\mid \langle a_n-\lambda \mathcal{K}{a}_n-b_n,a-b_n\rangle \le 0\right\},\hfill \\ a_{n+1}={\beta }_n{a}_n+(1-{\beta }_n)\mathcal{U}{P}_{T_n}\left(a_n-\lambda \mathcal{K}{b}_n\right).\hfill \end{array}\right.$$

In infinite-dimensional spaces, norm convergence is generally preferable to weak convergence. This necessitates the development of algorithms with norm convergence guarantees for solutions of Equation (7) in Hilbert spaces. For the case where $\mathcal{K}$ is merely monotone and Lipschitz-continuous, Kraikaew and Saejung [36] proposed the Halpern subgradient extragradient method (HSEGM), which combines the subgradient extragradient method with Halpern’s iterative method. The complete algorithm is presented below:

$$\left\{\begin{array}{c}{b}_n=P_{\mathcal{C}}\left(a_n-\lambda \mathcal{K}{a}_n\right),\hfill \\ T_n=\left\{a\in H\mid \langle a_n-\lambda \mathcal{K}{a}_n-b_n,a-b_n\rangle \le 0\right\},\hfill \\ c_n={\gamma }_n{a}_0+(1-{\gamma }_n)P_{T_n}\left(a_n-\lambda \mathcal{K}{b}_n\right),\hfill \\ a_{n+1}={\beta }_n{a}_n+(1-{\beta }_n)\mathcal{U}{c}_n,\hfill \end{array}\right.$$

(8)

where $\lambda \in (0,1/L)$, $\mathcal{K}$ is a monotone and L-Lipschitz continuous mapping, and $\mathcal{U}$ is a quasi-nonexpansive mapping. Under these conditions, the sequence $\left\{a_n\right\}$ generated by Equation (8) converges strongly to $P_{\mathrm{Fix}\left(\mathcal{U}\right)\cap \mathrm{VI}(\mathcal{C},\mathcal{K})}\left(a_0\right)$. The Equation (8) has two main shortcomings. Firstly, its applicability is restricted to monotonic operators $\mathcal{K}$. Furthermore, it employs a fixed step size that depends on the Lipschitz constant of $\mathcal{K}$.

Inertial techniques can accelerate the convergence rate of algorithms, which has motivated extensive research on inertial methods [37,38,39,40,41]. Nest, Cai et al. [42] proposed an inertial Tseng extragradient method for solving Equation (7) by combining viscosity approximation and Tseng’s extragradient method. The algorithm is formally described as follows:

$$\left\{\begin{array}{c}{d}_n=a_n+{\theta }_n(a_n-a_{n-1}),\hfill \\ b_n=P_{\mathcal{C}}\left(d_n-\lambda \mathcal{K}{d}_n\right),\hfill \\ c_n=b_n-\lambda \left(\mathcal{K}{b}_n-\mathcal{K}{d}_n\right),\hfill \\ a_{n+1}={\beta }_{n}f\left(a_n\right)+(1-{\beta }_n)[{\gamma }_n\mathcal{U}{c}_n+(1-{\gamma }_n)c_n].\hfill \end{array}\right.$$

(9)

Consider a pseudomonotone, L-Lipschitz continuous mapping $\mathcal{K}$ and a nonexpansive mapping $\mathcal{U}$, with $\lambda \in (0,1/L)$. Under the assumption that $\mathrm{VI}(\mathcal{C},\mathcal{K})\cap \mathrm{Fix}\left(\mathcal{U}\right)$ is nonempty, the strong convergence of the iterative sequence $\left\{a_n\right\}$ generated by Equation (9) was established. Specifically, the sequence converges to a point q satisfying $q=P_{\mathrm{VI}}(\mathcal{C},\mathcal{K})\cap \mathrm{Fix}\left(\mathcal{U}\right)f\left(q\right)$, where $q\in \mathrm{VI}(\mathcal{C},\mathcal{K})\cap \mathrm{Fix}\left(\mathcal{U}\right)$. Like the Equation (8), this method employs a fixed step size dependent on the Lipschitz constant. This reliance necessitates an a priori estimate of the constant, posing a significant practical limitation as it is frequently unavailable or challenging to determine for nonlinear problems. However, in our new algorithm, a new adaptive step size was adopted to address this defect.

Inspired by the research works mentioned above, we put forward an enhanced adaptive inertial Tseng extragradient algorithm. The following are the advantages of this algorithm:

(1)

We propose a new step size rule. The rule allows the algorithm to function without relying on the pre-known information about the Lipschitz constant of the mapping.

(2)

Our convergence analysis establishes the strong convergence of the generated sequences to a solution of Equation (7) under relaxed conditions, where one of the mappings is assumed to be pseudomonotone and l-Lipschitz continuous, and the other is quasi-nonexpansive.

(3)

Numerical simulations confirm the theoretical analysis. Comparative results show that the proposed algorithm achieves significantly faster convergence than conventional methods [10,11,12,13,25,30].

(4)

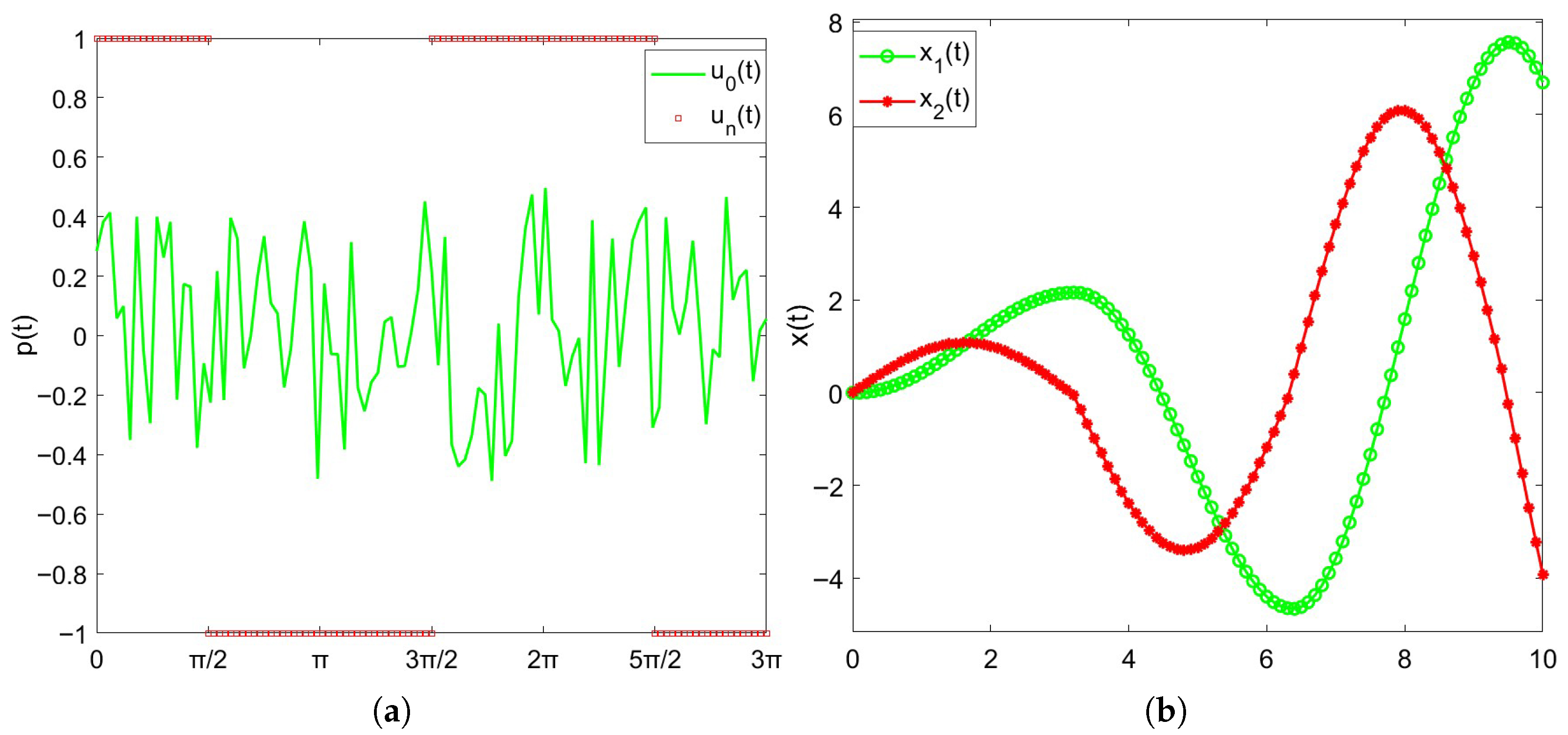

Applications of the algorithm in optimal control are presented.

Here is the organizational structure of our paper. In Section 2, we provide some essential definitions as well as technical lemmas that will be utilized later. Then, in Section 3, we be put forward an algorithm and analyze its convergence. Subsequently, Section 4 presents computational experiments validating the theoretical framework, including comparative performance analyses and practical applications. Finally, in Section 5, we present a concise summary.

2. Preliminaries

This section introduces several fundamental definitions necessary for understanding the core results. Let $\mathcal{C}$ be a closed and convex subset of the real Hilbert space H. For a sequence $\left\{c_n\right\}$, its weak convergence to a point c as $n\to \infty$ is denoted by $\left\{c_n\right\}\rightharpoonup c$, whereas its strong convergence to c is denoted by $\left\{c_n\right\}\to c$.

Definition 1.

Let $\mathcal{K}:H\to H$ be a mapping. Then, $\mathcal{K}$ is called:

(1)

L-Lipschitz continuous with $L>0$, if

$$\parallel \mathcal{K}b-\mathcal{K}c\parallel \le L\parallel b-c\parallel ,\forall b, c\in H.$$

(2)

nonexpansive, if

$$\parallel \mathcal{K}c-\mathcal{K}q\parallel \le \parallel c-q\parallel ,\forall c\in H, q\in Fix\left(\mathcal{K}\right).$$

(3)

quasi-nonexpansive, if

$$\parallel \mathcal{K}c-q\parallel \le \parallel c-q\parallel ,\forall c\in H, q\in Fix\left(\mathcal{K}\right).$$

(4)

monotone, if

$$\langle \mathcal{K}b-\mathcal{K}c, b-c\rangle \ge 0,\forall b, c\in H.$$

(5)

pseudomonotone, if

$$\langle \mathcal{K}c, b-c\rangle \ge 0\Rightarrow \langle \mathcal{K}b, b-c\rangle \ge 0,\forall b, c\in H.$$

(6)

β-strongly monotone, if there exists a constant $\beta >0$ such that

$$\langle \mathcal{K}b-\mathcal{K}c,b-c\rangle \ge {\beta \parallel b-c\parallel }^2,\forall b, c\in H.$$

(7)

sequentially weakly continuous, if for each sequence $\left\{c_n\right\}$ we have

$$c_n\rightharpoonup casn\to \infty implies\mathcal{K}{c}_n\rightharpoonup \mathcal{K}casn\to \infty .$$

For every element $a\in H$, there exists a unique closest point in $\mathcal{C}$, denoted by $P_{\mathcal{C}}a$, that satisfies the inequality $\parallel a-P_{\mathcal{C}}a\parallel \le \parallel a-b\parallel$ for all $b\in \mathcal{C}$. This operator $P_{\mathcal{C}}$ is termed the metric projection of H onto $\mathcal{C}$.

Remark 1.

A monotone mapping must be a pseudomonotone operator, and a nonexpansive mapping must be a quasi-nonexpansive mapping, but the converse is not true.

The lemmas presented below furnish indispensable support for the proof of this paper’s main results.

Lemma 1

([12]). The metric projection $c=P_{\mathcal{C}}a$ in a real Hilbert space H is equivalently characterized by the following variational inequality:

$$\langle c-a, c-b\rangle \le 0,\forall b\in \mathcal{C},$$

where $\mathcal{C}\subset H$ is any nonempty closed convex subset.

Lemma 2

([25]). For any vectors $c,b\in H$ and any scalars $\gamma ,\beta \in \mathbb{R}$, the following identities hold in the real Hilbert space H:

(i)

${\parallel c+b\parallel }^2\le {\parallel c\parallel }^2+2\langle b,c+b\rangle$,

(ii)

${\parallel \gamma c+\beta b\parallel }^2={\gamma (\gamma +\beta )\parallel c\parallel }^2+{\beta (\gamma +\beta )\parallel b\parallel }^2-\gamma \beta {\parallel c-b\parallel }^2$.

Lemma 3

([43]). Consider three sequences: $\left\{c_n\right\}$ of nonnegative real numbers, $\left\{{\delta }_n\right\}$ of real numbers in $(0,1)$ with ${\sum }_{n=1}^{\infty }{\delta }_n=\infty$, and $\left\{d_n\right\}$ of real numbers. Suppose that

$$c_{n+1}\le (1-{\delta }_n)c_n+{\delta }_n{d}_n,\forall n\ge 1.$$

if ${lim\; sup}_{k\to \infty }{d}_{n_k}\le 0$ and for every subsequence $\left\{c_{n_k}\right\}$ of $\left\{c_n\right\}$, we have ${lim\; inf}_{k\to \infty }(c_{n_k+1}-c_{n_k})\ge 0$, then ${lim}_{n\to \infty }{c}_n=0$.

Lemma 4

([44]). Let $\left\{c_n\right\}$ be a sequence of non-negative real numbers with a subsequence $\left\{c_{n_j}\right\}$ satisfying $c_{n_j}<c_{n_{j+1}}$ for all $j\in \mathbb{N}$. Then, there exists a nondecreasing sequence $\left\{v_k\right\}$ in N with ${lim}_{k\to \infty }{v}_k=\infty$, satisfying the following properties for all sufficiently large $k\in N$:

$$c_{v_k}\le c_{v_k+1}\mathrm{and}{c}_k\le c_{v_k+1}.$$

In fact, $v_k$ is defined as the maximum element n in the set $\{1,2,\dots ,k\}$ for which $c_n<c_{n+1}$.

Lemma 5

([45]). Let β be a parameter in $(0,1]$ and δ a positive constant. Let $S:H\to H$ be an L-Lipschitz and α–strongly monotone mapping, and $\mathcal{U}:H\to H$ for a nonexpansive mapping. A new mapping ${\mathcal{U}}^{\delta }:H\to H$ can then be defined by

$${\mathcal{U}}^{\delta }c=(I-\beta \delta S)\left(\mathcal{U}c\right),\forall c\in H.$$

Then, ${\mathcal{U}}^{\delta }$ is a contraction provided $\delta <{\displaystyle \frac{2\alpha }{L^2}}$, that is

$$\parallel {\mathcal{U}}^{\delta }c-{\mathcal{U}}^{\delta }d\parallel \le (1-\beta \eta )\parallel c-d\parallel ,\forall c\in H,$$

where $\eta =1-\sqrt{1-\delta (2\alpha -\delta L^2)}\in (0,1)$.

3. Main Results

In the present section, a modified version of Tseng’s extragradient method is introduced, which is designed to solve Equation (7). The subsequent assumptions are pivotal for the establishment of our main results.

(C1)

Let $\mathcal{C}$ denote a nonempty closed convex subset of the real Hilbert space H.

(C2)

The operator $\mathcal{K}:H\to H$ is assumed to be pseudomonotone and l-Lipschitz continuous on H, and sequentially weakly continuous when restricted to $\mathcal{C}$.

(C3)

Let $\mathcal{U}:H\to H$ be quasi-nonexpansive with $I-\mathcal{U}$ demiclosed at zero and $VI(\mathcal{C},\mathcal{K})\cap Fix\left(\mathcal{U}\right)\ne \varnothing$.

(C4)

Let $S:H\to H$ be $\alpha$-strongly monotone and L-Lipschitz continuous on H and let $g:H\to H$ be a contraction with a constant $\rho \in [0,1)$ such that $\rho <\eta$, where $\eta$ is defined by Lemma 5. Let $\left\{{\sigma }_n\right\}$ denote a positive sequence satisfying ${lim}_{n\to \infty }{\displaystyle \frac{{\sigma }_n}{{\gamma }_n}}=0$, where $\left\{{\gamma }_n\right\}$ is a sequence taking values in $(0,1)$ with ${lim}_{n\to \infty }{\gamma }_n=0$ and ${\sum }_{n=1}^{\infty }{\gamma }_n=\infty$. Furthermore, let $\left\{{\xi }_n\right\}$ be a sequence in $[0,1]$ that fulfills the following condition:

$$\underset{n\to \infty }{lim\; inf}{\xi }_n(1-{\xi }_n)>0.$$

We proceed to present the algorithm specified below.

Remark 2.

The sequence $\left\{{\tau }_n\right\}$ is well defined and it is a nondecreasing sequence, ${lim}_{n\to \infty }{\tau }_n=\tau \le max\{{\tau }_1,{\displaystyle \frac{L}{\mu }}\}$.

Proof.

From the definition of $\left\{{\tau }_n\right\}$, we have ${\tau }_n\le {\tau }_{n+1}$ for all $n\in N$, so $\left\{{\tau }_n\right\}$ is nondecreasing. In addition, set

$${\lambda }_n:={\displaystyle \frac{\parallel \mathcal{K}{d}_n-\mathcal{K}{b}_n\parallel }{\mu \parallel d_n-b_n\parallel }}.$$

Since $\mathcal{K}$ is l-Lipschitz continuous, we have

$${\lambda }_n={\displaystyle \frac{\parallel \mathcal{K}{d}_n-\mathcal{K}{b}_n\parallel }{\mu \parallel d_n-b_n\parallel }}\le {\displaystyle \frac{l\parallel d_n-b_n\parallel }{\mu \parallel d_n-b_n\parallel }}\le {\displaystyle \frac{l}{\mu }}.$$

If $\parallel d_n-b_n\parallel \ne 0$, then

$$\begin{array}{cc}\hfill {\tau }_2& =max\{{\tau }_1,{\lambda }_1\}\le max\left\{{\tau }_1,{\displaystyle \frac{l}{\mu }}\right\},\hfill \\ \hfill {\tau }_3& =max\{{\tau }_2,{\lambda }_2\}\le max\left\{{\tau }_2,{\displaystyle \frac{l}{\mu }}\right\}\le max\left\{{\tau }_1,{\displaystyle \frac{l}{\mu }}\right\}.\hfill \end{array}$$

By induction, we obtain ${\tau }_{n+1}\le max\left\{{\tau }_1,{\displaystyle \frac{l}{\mu }}\right\}$.

It follows that $\left\{{\tau }_n\right\}$ is a nondecreasing sequence and bounded above. Therefore, there exists ${lim}_{n\to \infty }{\tau }_n=\tau \le max\left\{{\tau }_1,{\displaystyle \frac{l}{\mu }}\right\}$. □

Lemma 6

([30]). Consider a sequence $\left\{d_n\right\}$ generated by Algorithm 1. If there exists a subsequence $\left\{d_{n_k}\right\}$ of $\left\{d_n\right\}$ such that $\left\{d_{n_k}\right\}$ converges weakly to $c\in H$ and ${lim}_{k\to \infty }\parallel d_{n_k}-b_{n_k}\parallel =0$, then it follows that $c\in \mathrm{VI}(\mathcal{C},\mathcal{K})$.

Algorithm 1 Modified inertial viscosity-type Tseng’s extragradient algorithm

Initialization: Given $\theta >0$, ${\tau }_1>0$, $a\in (0,1]$, $\mu \in (0,1)$, $\left\{{\gamma }_n\right\}\in (0,1)$. Let $a_0,a_1\in H$ be arbitrary. Iterative Steps: Calculate $a_{n+1}$ as follows:

Step 1. Given the iterates $a_{n-1}$ and $a_n$ ($n\ge 1$), choose ${\theta }_n$ such that $0\le {\theta }_n\le {\overline{\theta }}_n$, where $${\overline{\theta }}_n=\left\{\begin{array}{cc}min\left\{{\displaystyle \frac{{\sigma }_n}{\parallel a_n-a_{n-1}\parallel }},\theta \right\},\hfill & \mathrm{if}{a}_n\ne a_{n-1},\hfill \\ \theta ,\hfill & \mathrm{otherwise}.\hfill \end{array}\right.$$

Step 2. Set $d_n=a_n+{\theta }_n(a_n-a_{n-1})$ and compute $$\begin{array}{cc}\hfill b_n& =P_{\mathcal{C}}\left(d_n-{\displaystyle \frac{1}{{\tau }_n}}\mathcal{K}{d}_n\right),\hfill \\ \hfill c_n& =b_n-{\displaystyle \frac{a}{{\tau }_n}}(\mathcal{K}{b}_n-\mathcal{K}{d}_n),\hfill \end{array}$$

Step 3. Compute $$a_{n+1}={\gamma }_{n}g\left(a_n\right)+(I-{\gamma }_n\delta S)\left[{\xi }_n\mathcal{U}{c}_n+(1-{\xi }_n)c_n\right].$$

Update $${\tau }_{n+1}=\left\{\begin{array}{cc}max\left\{{\displaystyle \frac{\parallel \mathcal{K}{d}_n-\mathcal{K}{b}_n\parallel }{\mu \parallel d_n-b_n\parallel }},{\tau }_n\right\},\hfill & \mathrm{if}\parallel d_n-b_n\parallel \ne 0,\hfill \\ {\tau }_n,\hfill & \mathrm{otherwise}.\hfill \end{array}\right.$$

Set $n:=n+1$ and go to Step 1.

Lemma 7.

Given that Conditions 1-4 are satisfied, the sequences $\left\{d_n\right\}$, $\left\{b_n\right\}$, and $\left\{c_n\right\}$ produced by Algorithm 1 satisfy the property that

$${∥c_n-q∥}^2\le {∥d_n-q∥}^2-(1-a^2{\mu }^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}){∥b_n-d_n∥}^2,q\in VI(\mathcal{C},\mathcal{K}).$$

(10)

and

$$∥c_n-b_n∥\le a\mu {\displaystyle \frac{{\tau }_{n+1}}{{\tau }_n}}∥b_n-d_n∥.$$

(11)

Proof.

First, leveraging the definition of $\left\{{\tau }_n\right\}$, it can be easily deduced that

$$∥\mathcal{K}{d}_n-\mathcal{K}{b}_n∥\le \mu {\tau }_{n+1}∥d_n-b_n∥,\forall n\ge 0.$$

(12)

As defined, $\left\{c_n\right\}$ satisfies

$$\begin{array}{cc}\hfill \parallel c_n{-q\parallel }^2& = \parallel b_n-{\displaystyle \frac{a}{{\tau }_n}}(\mathcal{K}{b}_n-\mathcal{K}{d}_n){-q\parallel }^2\hfill \\ \hfill & = \parallel b_n-d_n-{\displaystyle \frac{a}{{\tau }_n}}(\mathcal{K}{b}_n-\mathcal{K}{d}_n)+d_n{-q\parallel }^2\hfill \\ \hfill & = \parallel b_n-d_n{\parallel }^2+\parallel d_n{-q\parallel }^2+{\displaystyle \frac{a^2}{{\tau }_n^2}}{\parallel \mathcal{K}{b}_n-\mathcal{K}{d}_n\parallel }^2+2〈b_n-d_n,d_n-q〉\hfill \\ \hfill & - {\displaystyle \frac{2a}{{\tau }_n}}〈b_n-q,\mathcal{K}{b}_n-\mathcal{K}{d}_n〉\hfill \\ \hfill & = \parallel b_n-d_n{\parallel }^2+\parallel d_n{-q\parallel }^2+{\displaystyle \frac{a^2}{{\tau }_n^2}}{\parallel \mathcal{K}{b}_n-\mathcal{K}{d}_n\parallel }^2+2〈b_n-d_n,b_n-q〉\hfill \\ \hfill & - 2〈b_n-d_n,b_n-d_n〉-{\displaystyle \frac{2a}{{\tau }_n}}〈b_n-q,\mathcal{K}{b}_n-\mathcal{K}{d}_n〉\hfill \\ \hfill & = \parallel d_n{-q\parallel }^2-\parallel b_n-d_n{\parallel }^2+{\displaystyle \frac{a^2}{{\tau }_n^2}}{\parallel \mathcal{K}{b}_n-\mathcal{K}{d}_n\parallel }^2+2〈b_n-d_n,b_n-q〉\hfill \\ \hfill & - {\displaystyle \frac{2a}{{\tau }_n}}〈b_n-q,\mathcal{K}{b}_n-\mathcal{K}{d}_n〉.\hfill \end{array}$$

(13)

By Lemma 1, since $\left\{b_n\right\}\in \mathcal{C}$, we have

$$〈b_n-(d_n-{\displaystyle \frac{1}{{\tau }_n}}\mathcal{K}{d}_n),b_n-q〉\le 0,$$

or equivalently

$$〈b_n-d_n,b_n-q〉\le -{\displaystyle \frac{1}{{\tau }_n}}〈\mathcal{K}{d}_n,b_n-q〉.$$

(14)

From (13), (14), and $a\in (0,1]$ i.e. $-{\displaystyle \frac{1}{a}}\le -1$, we get the following:

$$\begin{array}{cc}\hfill \parallel c_n{-q\parallel }^2& \le \parallel d_n{ - q\parallel }^2 - \parallel b_n - d_n{\parallel }^2 + a^2{\mu }^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}{\parallel b_n-d_n\parallel }^2\hfill \\ \hfill & - {\displaystyle \frac{2}{{\tau }_n}}〈\mathcal{K}{d}_n,b_n-q〉-{\displaystyle \frac{2a}{{\tau }_n}}〈b_n-q,\mathcal{K}{b}_n-\mathcal{K}{d}_n〉\hfill \\ \hfill & = \parallel d_n{-q\parallel }^2-(1-a^2{\mu }^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}){\parallel b_n-d_n\parallel }^2\hfill \\ \hfill & - {\displaystyle \frac{1}{a}}\times {\displaystyle \frac{2a}{{\tau }_n}}〈\mathcal{K}{d}_n,b_n-q〉-{\displaystyle \frac{2a}{{\tau }_n}}〈b_n-q,\mathcal{K}{b}_n-\mathcal{K}{d}_n〉\hfill \\ \hfill & \le \parallel d_n{-q\parallel }^2-(1-a^2{\mu }^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}){\parallel b_n-d_n\parallel }^2\hfill \\ \hfill & - {\displaystyle \frac{2a}{{\tau }_n}}〈\mathcal{K}{d}_n,b_n-q〉-{\displaystyle \frac{2a}{{\tau }_n}}〈b_n-q,\mathcal{K}{b}_n-\mathcal{K}{d}_n〉\hfill \\ \hfill & = \parallel d_n{-q\parallel }^2-(1-a^2{\mu }^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}){\parallel b_n-d_n\parallel }^2\hfill \\ \hfill & -{\displaystyle \frac{2a}{{\tau }_n}}〈K{b}_n,b_n-q〉.\hfill \end{array}$$

(15)

Since $\left\{b_n\right\}\in C$, we obtain $\langle \mathcal{K}q,b_n-q\rangle \ge 0$. Using $q\in VI(\mathcal{C},\mathcal{K})$ and the pseudomonotonicity of $\mathcal{K}$, we have

$$\langle \mathcal{K}{b}_n,b_n-q\rangle \ge 0.$$

(16)

Combining (15) and (16), we deduce

$${\parallel c_n-q\parallel }^2 \le \parallel d_n{-q\parallel }^2-(1-a^2{\mu }^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}){\parallel b_n-d_n\parallel }^2.$$

By (12) and the construction of $\left\{c_n\right\}$, we obtain

$$\parallel c_n-b_n\parallel = {\displaystyle \frac{a}{{\tau }_n}}\parallel \mathcal{K}{b}_n-\mathcal{K}{d}_n\parallel \le a\mu {\displaystyle \frac{{\tau }_{n+1}}{{\tau }_n}}\parallel b_n-d_n\parallel .$$

□

Theorem 1.

Assuming Conditions 1-4 and that $\left\{{\theta }_n\right\}$ is chosen with

$$\underset{n\to \infty }{lim}{\displaystyle \frac{{\theta }_n}{{\gamma }_n}}\parallel a_n-a_{n-1}\parallel =0,$$

the sequence $\left\{a_n\right\}$ from Algorithm 1 converges strongly to $q\in VI(\mathcal{C},\mathcal{K})\cap Fix\left(\mathcal{U}\right)$, which is uniquely determined by $q=P_{VI(\mathcal{C},\mathcal{K})\cap Fix\left(\mathcal{U}\right)}(I-\delta S+g)\left(q\right)$ for the following variational inequality:

$$\langle (g-\delta S)\left(q\right),b-q\rangle \le 0,\forall b\in VI(\mathcal{C},\mathcal{K})\cap Fix\left(\mathcal{U}\right).$$

Proof.

The proof proceeds via four distinct claims.

Claim 1. The sequence $\left\{a_n\right\}$ is bounded. Set $t_n={\xi }_n\mathcal{U}{c}_n+(1-{\xi }_n)c_n$; using Lemmas 2 and 7, we obtain the following:

$$\begin{array}{cc}\hfill \parallel t_n{-q\parallel }^2& = \parallel {\xi }_n\mathcal{U}{c}_n+(1-{\xi }_n)c_n-q+(1-{\xi }_n)q-(1-{\xi }_n){q\parallel }^2\hfill \\ \hfill & = \parallel {\xi }_n(\mathcal{U}{c}_n-q)+(1-{\xi }_n)(c_n-q){\parallel }^2\hfill \\ \hfill & = {\xi }_n\parallel \mathcal{U}{c}_n{-q\parallel }^2+(1-{\xi }_n)\parallel c_n{-q\parallel }^2-{\xi }_n(1-{\xi }_n){\parallel \mathcal{U}{c}_n-c_n\parallel }^2\hfill \\ \hfill & \le {\xi }_n\parallel c_n{-q\parallel }^2+(1-{\xi }_n)\parallel c_n{-q\parallel }^2-{\xi }_n(1-{\xi }_n){\parallel \mathcal{U}{c}_n-c_n\parallel }^2\hfill \\ \hfill & = \parallel c_n{-q\parallel }^2-{\xi }_n(1-{\xi }_n){\parallel \mathcal{U}{c}_n-c_n\parallel }^2\hfill \\ \hfill & \le \parallel d_n{-q\parallel }^2-(1-a^2{\mu }^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}})\parallel b_n-d_n{\parallel }^2-{\xi }_n(1-{\xi }_n){\parallel \mathcal{U}{c}_n-c_n\parallel }^2.\hfill \end{array}$$

(17)

which implies

$$\parallel t_n-q\parallel \le \parallel d_n-q\parallel .$$

(18)

From the definition of $\left\{d_n\right\}$, we get

$$\begin{array}{cc}\hfill \parallel d_n-q\parallel & = \parallel a_n+{\theta }_n(a_n-a_{n-1})-q\parallel \hfill \\ \hfill & \le \parallel a_n-q\parallel +{\theta }_n\parallel a_n-a_{n-1}\parallel \hfill \\ \hfill & = \parallel a_n-q\parallel +{\gamma }_n{\displaystyle \frac{{\theta }_n}{{\gamma }_n}}\parallel a_n-a_{n-1}\parallel .\hfill \end{array}$$

(19)

Due to ${lim}_{n\to \infty }{\displaystyle \frac{{\theta }_n}{{\gamma }_n}}\parallel a_n-a_{n-1}\parallel =0$, there exists a positive constant $M_1$ satisfying

$${\displaystyle \frac{{\theta }_n}{{\gamma }_n}}\parallel a_n-a_{n-1}\parallel \le M_1,\forall n\ge 1.$$

(20)

By (19) and (20), we have

$$\parallel d_n-q\parallel \le \parallel a_n-q\parallel +{\gamma }_n{M}_1.$$

(21)

According to Lemma 5, we obtain

$$\begin{array}{cc}\hfill \parallel a_{n+1}-q\parallel & = \parallel {\gamma }_{n}g\left(a_n\right)+(I-{\gamma }_n\delta S)t_n-q\parallel \hfill \\ \hfill & = \parallel {\gamma }_n(g\left(a_n\right)-\delta Sq)+(I-{\gamma }_n\delta S)(t_n-q)\parallel \hfill \\ \hfill & \le {\gamma }_n\parallel (g\left(a_n\right)-\delta Sq)\parallel +\parallel (1-{\gamma }_n\eta )(t_n-q)\parallel \hfill \\ \hfill & ={\gamma }_n\parallel (g\left(a_n\right)-g\left(q\right))+(g\left(q\right)-\delta Sq)\parallel +\parallel (1-{\gamma }_n\eta )(t_n-q)\parallel \hfill \\ \hfill & \le {\gamma }_n\rho \parallel a_n-q\parallel +{\gamma }_n\parallel g\left(q\right)-\delta Sq\parallel +(1-{\gamma }_n\eta )(\parallel a_n-q\parallel +{\gamma }_n{M}_1)\hfill \\ \hfill & \le {\gamma }_n\rho \parallel a_n-q\parallel +{\gamma }_n\parallel g\left(q\right)-\delta Sq\parallel +(1-{\gamma }_n\eta )\parallel a_n-q\parallel +{\gamma }_n{M}_1\hfill \\ \hfill & =(1-(\eta -\rho ){\gamma }_n)\parallel a_n-q\parallel +{\gamma }_n(\parallel g\left(q\right)-\delta Sq\parallel +M_1)\hfill \\ \hfill & =(1-(\eta -\rho ){\gamma }_n)\parallel a_n-q\parallel +{\gamma }_n(\eta -\rho ){\displaystyle \frac{\parallel g\left(q\right)-\delta Sq\parallel +M_1}{\eta -\rho }}\hfill \\ \hfill & \le max\left\{\parallel a_n-q\parallel ,{\displaystyle \frac{\parallel g\left(q\right)-\delta Sq\parallel +M_1}{\eta -\rho }}\right\}.\hfill \end{array}$$

Hence, we get $\parallel a_{n+1}-q\parallel \le max\left\{\parallel a_0-q\parallel ,{\displaystyle \frac{\parallel g\left(q\right)-\delta Sq\parallel +M_1}{\eta -\rho }}\right\}$.

It follows that the sequence $\left\{a_n\right\}$ is bounded. Thus, the sequences $\left\{c_n\right\}$, $\left\{t_n\right\}$, $\left\{d_n\right\}$, and $\left\{g\left(a_n\right)\right\}$ are also bounded.

Claim 2. We prove that

$$\begin{array}{cc}\hfill & \left(1-{\mu }^2{a}^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}\right)\parallel b_n-d_n{\parallel }^2+{\xi }_n(1-{\xi }_n){\parallel c_n-\mathcal{U}{c}_n\parallel }^2\hfill \\ \hfill & \le \parallel a_n{-q\parallel }^2-{\parallel a_{n+1}-q\parallel }^2+{\gamma }_n{M}_4,\hfill \end{array}$$

(22)

for some $M_4>0$. Actually, from (i) in Lemma 2 we obtain

$$\begin{array}{cc}\hfill \parallel a_{n+1}{-q\parallel }^2& = \parallel t_n-q+{\gamma }_n(g\left(a_n\right)-\delta S\left(t_n\right)){\parallel }^2\hfill \\ \hfill & \le \parallel t_n{-q\parallel }^2+2{\gamma }_n\langle g\left(a_n\right)-\delta S\left(t_n\right),a_{n+1}-q\rangle \hfill \\ \hfill & \le \parallel t_n{-q\parallel }^2+2{\gamma }_n\parallel g\left(a_n\right)-\delta S\left(t_n\right)\parallel \parallel a_{n+1}-q\parallel \hfill \\ \hfill & \le \parallel t_n{-q\parallel }^2+{\gamma }_n{M}_2,\hfill \end{array}$$

(23)

where $M_2:={sup}_{n\in \mathbb{N}}\{2\parallel g\left(a_n\right)-\delta S\left(t_n\right)\parallel \parallel a_{n+1}-q\parallel \}.$ Substituting (17) into (23), we have

$$\begin{array}{cc}\hfill \parallel a_{n+1}{-q\parallel }^2& \le \parallel d_n{-q\parallel }^2-\left(1-{\mu }^2{a}^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}\right){\parallel b_n-d_n\parallel }^2\hfill \\ \hfill & - {\xi }_n(1-{\xi }_n){\parallel c_n-\mathcal{U}{c}_n\parallel }^2+{\gamma }_n{M}_2.\hfill \end{array}$$

(24)

Using (21), we get

$$\begin{array}{cc}\hfill \parallel d_n{-q\parallel }^2& \le {\left(\parallel a_n-q\parallel +{\gamma }_n{M}_1\right)}^2\hfill \\ \hfill & = \parallel a_n{-q\parallel }^2+{\gamma }_n\left(2M_1\parallel a_n-q\parallel +{\gamma }_n{M}_1^2\right)\hfill \\ \hfill & \le \parallel a_n{-q\parallel }^2+{\gamma }_n{M}_3,\hfill \end{array}$$

(25)

where $M_3:={sup}_{n\in \mathbb{N}}\{2M_1\parallel a_n-q\parallel +{\gamma }_n{M}_1^2\}$. Substituting (25) into (24), we have

$$\begin{array}{cc}\hfill \parallel a_{n+1}{-q\parallel }^2& \le \parallel a_n{-q\parallel }^2+{\gamma }_n{M}_3+{\gamma }_n{M}_2-\left(1-{\mu }^2{a}^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}\right){\parallel b_n-d_n\parallel }^2\hfill \\ \hfill & - {\xi }_n(1-{\xi }_n){\parallel c_n-\mathcal{U}{c}_n\parallel }^2.\hfill \end{array}$$

This implies

$$\begin{array}{cc}\hfill & \left(1-{\mu }^2{a}^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}\right)\parallel b_n-d_n{\parallel }^2+{\xi }_n(1-{\xi }_n){\parallel c_n-\mathcal{U}{c}_n\parallel }^2\hfill \\ \hfill & \le \parallel a_n{-q\parallel }^2-{\parallel a_{n+1}-q\parallel }^2+{\gamma }_n{M}_4,\hfill \end{array}$$

(26)

where $M_4:=M_2+M_3$.

Claim 3. We prove that

$$\begin{array}{cc}\hfill \parallel a_{n+1}{-q\parallel }^2& \le \left[1-{\displaystyle \frac{2(\eta -\rho ){\gamma }_n}{1-{\gamma }_n\rho }}\right]{\parallel a_n-q\parallel }^2+{\displaystyle \frac{2(\eta -\rho ){\gamma }_n}{1-{\gamma }_n\rho }}[{\displaystyle \frac{{\gamma }_n{\eta }^2}{2(\eta -\rho )}}·M_6.\hfill \\ \hfill & +{\displaystyle \frac{1}{2(\eta -\rho )}}·{\displaystyle \frac{{\theta }_n}{{\gamma }_n}}\parallel a_n-a_{n-1}\parallel ·M_5\hfill \\ \hfill & +{\displaystyle \frac{1}{\eta -\rho }}\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle ],\hfill \end{array}$$

for some $M_5,M_6>0$. Actually, from the definition of $\left\{d_n\right\}$ and (i) in Lemma 2, we obtain

$$\begin{array}{cc}\hfill \parallel d_n{-q\parallel }^2& = \parallel a_n+{\theta }_n(a_n-a_{n-1}){-q\parallel }^2\hfill \\ \hfill & \le \parallel a_n{-q\parallel }^2+2{\theta }_n\langle d_n-q,a_n-a_{n-1}\rangle \hfill \\ \hfill & \le \parallel a_n{-q\parallel }^2+2{\theta }_n\parallel d_n-q\parallel \parallel a_n-a_{n-1}\parallel \hfill \\ \hfill & \le \parallel a_n{-q\parallel }^2+{\theta }_n\parallel a_n-a_{n-1}\parallel M_5,\hfill \end{array}$$

(27)

where $M_5:={sup}_{n\in \mathbb{N}}\{2\parallel d_n-q\parallel \}$. From (18) and (27), we have

$$\begin{array}{c}\hfill \parallel t_n{-q\parallel }^2 \le \parallel a_n{-q\parallel }^2+{\theta }_n\parallel a_n-a_{n-1}\parallel M_5,\end{array}$$

which follows that

$$\begin{array}{cc}\hfill \parallel a_{n+1}{-q\parallel }^2& = \parallel {\gamma }_{n}g\left(a_n\right)+(I-{\gamma }_n\delta S)t_n{-q\parallel }^2\hfill \\ \hfill & = \parallel {\gamma }_n(g\left(a_n\right)-\delta Sq)+(I-{\gamma }_n\delta S)(t_n-q){\parallel }^2\hfill \\ \hfill & \le {(1-{\gamma }_n\eta )}^2{\parallel t_n-q\parallel }^2+2{\gamma }_n\langle g\left(a_n\right)-\delta Sq,a_{n+1}-q\rangle \hfill \\ \hfill & = {(1-{\gamma }_n\eta )}^2{\parallel t_n-q\parallel }^2+2{\gamma }_n\langle g\left(a_n\right)-g\left(q\right),a_{n+1}-q\rangle \hfill \\ \hfill & + 2{\gamma }_n\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle \hfill \\ \hfill & \le {(1-{\gamma }_n\eta )}^2\parallel t_n{-q\parallel }^2+2{\gamma }_n\rho \parallel a_n-q\parallel \parallel a_{n+1}-q\parallel \hfill \\ \hfill & + 2{\gamma }_n\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle \hfill \\ \hfill & \le {(1-{\gamma }_n\eta )}^2{\parallel t_n-q\parallel }^2+{\gamma }_n\rho \left(\parallel a_n{-q\parallel }^2+{\parallel a_{n+1}-q\parallel }^2\right)\hfill \\ \hfill & + 2{\gamma }_n\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle \hfill \\ \hfill & \le \left[{(1-{\gamma }_n\eta )}^2+{\gamma }_n\rho \right]\parallel a_n{-q\parallel }^2+{\gamma }_n\rho {\parallel a_{n+1}-q\parallel }^2\hfill \\ \hfill & + {\theta }_n\parallel a_n-a_{n-1}\parallel M_5+2{\gamma }_n\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle .\hfill \end{array}$$

Then, we get that

$$\begin{array}{cc}\hfill (1-{\gamma }_n\rho ){\parallel a_{n+1}-q\parallel }^2& \le \left[{(1-{\gamma }_n\eta )}^2+{\gamma }_n\rho \right]\parallel a_n{-q\parallel }^2+{\theta }_n\parallel a_n-a_{n-1}\parallel M_5\hfill \\ \hfill & +2{\gamma }_n\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle .\hfill \end{array}$$

This means that

$$\begin{array}{cc}\hfill \parallel a_{n+1}{-q\parallel }^2& \le \left[1-{\displaystyle \frac{2(\eta -\rho ){\gamma }_n}{1-{\gamma }_n\rho }}\right]\parallel a_n{-q\parallel }^2+{\displaystyle \frac{{\eta }^2{\gamma }_n^2}{1-{\gamma }_n\rho }}{\parallel a_n-q\parallel }^2\hfill \\ \hfill & + {\displaystyle \frac{1}{1-{\gamma }_n\rho }}\left[{\theta }_n\parallel a_n-a_{n-1}\parallel M_5+2{\gamma }_n\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle \right]\hfill \\ \hfill & = \left[1-{\displaystyle \frac{2(\eta -\rho ){\gamma }_n}{1-{\gamma }_n\rho }}\right]\parallel a_n{-q\parallel }^2+{\displaystyle \frac{2(\eta -\rho ){\gamma }_n}{1-{\gamma }_n\rho }}[{\displaystyle \frac{{\gamma }_n{\eta }^2}{2(\eta -\rho )}}{\parallel a_n-q\parallel }^2\hfill \\ \hfill & + {\displaystyle \frac{1}{2(\eta -\rho )}}·{\displaystyle \frac{{\theta }_n}{{\gamma }_n}}\parallel a_n-a_{n-1}\parallel M_5+{\displaystyle \frac{1}{\eta -\rho }}\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle ]\hfill \\ \hfill & \le \left[1-{\displaystyle \frac{2(\eta -\rho ){\gamma }_n}{1-{\gamma }_n\rho }}\right]{\parallel a_n-q\parallel }^2+{\displaystyle \frac{2(\eta -\rho ){\gamma }_n}{1-{\gamma }_n\rho }}[{\displaystyle \frac{{\gamma }_n{\eta }^2}{2(\eta -\rho )}}{M}_6\hfill \\ \hfill & + {\displaystyle \frac{1}{2(\eta -\rho )}}·{\displaystyle \frac{{\theta }_n}{{\gamma }_n}}\parallel a_n-a_{n-1}\parallel M_5\hfill \\ \hfill & + {\displaystyle \frac{1}{\eta -\rho }}\langle g\left(q\right)-\delta Sq,a_{n+1}-q\rangle ],\hfill \end{array}$$

(28)

where $M_6:={sup}_{n\in \mathbb{N}}\{\parallel a_n-q{\parallel }^2\}$.

Claim 4. The convergence of $\{\parallel a_n-q{\parallel }^2\}$ to zero is established through an analysis of two possible cases concerning the sequence behavior.

Case 1. When there exists some N such that for all $n\ge N$, $\parallel a_{n+1}{-q\parallel }^2\le {\parallel a_n-q\parallel }^2$ is satisfied. This implication leads to the existence of ${lim}_{n\to \infty }{\parallel a_n-q\parallel }^2$.

• From (26), we obtain

$$\underset{n\to \infty }{lim}\parallel b_n-d_n\parallel =0,$$

(29)

$$\underset{n\to \infty }{lim}\parallel c_n-\mathcal{U}{c}_n\parallel =0.$$

(30)

In view of the construction of $\left\{d_n\right\}$, it follows that

$$\begin{array}{cc}\hfill \underset{n\to \infty }{lim}\parallel a_n-d_n\parallel & =\underset{n\to \infty }{lim}{\theta }_n\parallel a_n-a_{n-1}\parallel \hfill \\ \hfill & =\underset{n\to \infty }{lim}{\gamma }_n{\displaystyle \frac{{\theta }_n}{{\gamma }_n}}\parallel a_n-a_{n-1}\parallel \hfill \\ \hfill & =0.\hfill \end{array}$$

(31)

By combining (29) and (31), we derive

$$\begin{array}{c}\hfill \underset{n\to \infty }{lim}\parallel a_n-b_n \parallel \le \underset{n\to \infty }{lim}\parallel a_n-d_n\parallel +\underset{n\to \infty }{lim}\parallel d_n-b_n\parallel =0.\end{array}$$

From (11) and (29), we conclude

$$\underset{n\to \infty }{lim}\parallel c_n-b_n\parallel \le \underset{n\to \infty }{lim}a\mu {\displaystyle \frac{{\tau }_{n+1}}{{\tau }_n}}\parallel d_n-b_n\parallel =0.$$

(32)

Combining (29) and (32), we obtain

$$\begin{array}{c}\hfill \underset{n\to \infty }{lim}\parallel c_n-d_n\parallel \le \underset{n\to \infty }{lim}\parallel c_n-b_n\parallel +\underset{n\to \infty }{lim}\parallel b_n-d_n\parallel =0.\end{array}$$

(33)

According to (31) and (33), we get

$$\begin{array}{c}\hfill \underset{n\to \infty }{lim}\parallel c_n-a_n\parallel \le \underset{n\to \infty }{lim}\parallel c_n-d_n\parallel +\underset{n\to \infty }{lim}\parallel d_n-a_n\parallel =0.\end{array}$$

(34)

Moreover, applying the definition of $\left\{a_n\right\}$ reveals that

$$\begin{array}{cc}\hfill \parallel a_{n+1}-a_n\parallel & \le \parallel a_{n+1}-t_n\parallel +\parallel t_n-a_n\parallel \hfill \\ \hfill & = {\gamma }_n\parallel g\left(a_n\right)-\delta S\left(t_n\right)\parallel +\parallel {\xi }_n\mathcal{U}{c}_n+(1-{\xi }_n)c_n-a_n\parallel \hfill \\ \hfill & \le {\gamma }_n\parallel g\left(a_n\right)-\delta S\left(t_n\right)\parallel +{\xi }_n\parallel \mathcal{U}{c}_n-c_n\parallel +\parallel c_n-a_n\parallel .\hfill \end{array}$$

(35)

Applying ${lim}_{n\to \infty }{\gamma }_n=0$, (30), (34) to (35), we have

$$\underset{n\to \infty }{lim}\parallel a_{n+1}-a_n\parallel =0.$$

(36)

The boundedness of $\left\{a_n\right\}$ guarantees the existence of a subsequence $\left\{a_{n_k}\right\}$ that converges weakly to some $z\in H$, with

$$\begin{array}{cc}\hfill \underset{k\to \infty }{lim\; sup}\langle g\left(q\right)-\delta S\left(q\right),a_n-q\rangle & =\underset{n\to \infty }{lim}\langle g\left(q\right)-\delta S\left(q\right),a_{n_k}-q\rangle \hfill \\ \hfill & =\langle g\left(q\right)-\delta S\left(q\right),z-q\rangle .\hfill \end{array}$$

Relation (31) ensures that the subsequence $\left\{d_{n_k}\right\}$ converges weakly to z; hence, invoking (29) together with Lemma 6, we deduce that $z\in VI(\mathcal{C},\mathcal{K})$. Equation (34) implies that $c_{n_k}\to z$. Given (30) and the demiclosedness of $\mathcal{U}$ at zero, it follows that $z\in Fix\left(\mathcal{U}\right)$. Consequently, $z\in VI(\mathcal{C},\mathcal{K})\cap Fix\left(\mathcal{U}\right)$. Lemma 5 ensures that $P_{VI(\mathcal{C},\mathcal{K})\cap Fix\left(\mathcal{U}\right)}(I-\delta S+g)$ is a contraction; hence, by the Banach contraction mapping principle, there exists a unique q such that $q=P_{VI(\mathcal{C},\mathcal{K})\cap Fix\left(\mathcal{U}\right)}(I-\delta S+g)\left(q\right)$. From Lemma 1 we derive

$$\underset{k\to \infty }{lim\; sup}\langle g\left(q\right)-\delta S\left(q\right),a_n-q\rangle =\langle g\left(q\right)-\delta S\left(q\right),z-q\rangle \le 0.$$

(37)

From (36) and (37), we get

$$\begin{array}{cc}\hfill & \underset{n\to \infty }{lim\; sup}\langle g\left(q\right)-\delta S\left(q\right),a_{n+1}-q\rangle \hfill \\ \hfill & \le \underset{n\to \infty }{lim\; sup}\langle g\left(q\right)-\delta S\left(q\right),a_{n+1}-a_n\rangle +\underset{n\to \infty }{lim\; sup}\langle g\left(q\right)-\delta S\left(q\right),a_n-q\rangle \hfill \\ \hfill & \le 0.\hfill \end{array}$$

Employing Lemma 3 on (28), we obtain ${lim}_{n\to \infty }\parallel a_n-q\parallel =0$.

Case 2. There exists a subsequence $\{\parallel a_{n_j}-q{\parallel }^2\}$ of $\{\parallel a_n-q{\parallel }^2\}$ such that $\parallel a_{n_j}{-q\parallel }^2\le {\parallel a_{n_{j+1}}-q\parallel }^2$ for all $j\in N$. Under this circumstance, Lemma 4 guarantees the existence of a nondecreasing sequence $\left\{v_k\right\}$ in N with ${lim}_{k\to \infty }{v}_k=\infty$, and the following inequality is satisfied:

$$\parallel a_{v_k}{-q\parallel }^2 \le \parallel a_{v_{k+1}}{-q\parallel }^2\mathrm{and}\parallel a_k{-q\parallel }^2\le {\parallel a_{v_{k+1}}-q\parallel }^2,\forall k\in N.$$

(38)

Combining (22) and (38), we obtain

$$\begin{array}{cc}\hfill & \left(1-{\mu }^2{a}^2{\displaystyle \frac{{\tau }_{n+1}^2}{{\tau }_n^2}}\right)\parallel b_{v_k}-d_{v_k}{\parallel }^2+{\xi }_n(1-{\xi }_n){\parallel c_{v_k}-\mathcal{U}{c}_{v_k}\parallel }^2\hfill \\ \hfill & \le \parallel a_{v_k}{-q\parallel }^2-{\parallel a_{v_{k+1}}-q\parallel }^2+{\gamma }_{v_k}{M}_4\hfill \\ \hfill & \le {\gamma }_{v_k}{M}_4.\hfill \end{array}$$

We can deduce that ${lim}_{k\to \infty }\parallel b_{v_k}-d_{v_k}\parallel =0$ and ${lim}_{k\to \infty }\parallel c_{v_k}-\mathcal{U}{c}_{v_k}\parallel =0$. Applying a methodology parallel to Case 1 leads to the conclusion that

$$\underset{k\to \infty }{lim}\parallel c_{v_k}-d_{v_k}\parallel =0,$$

$$\underset{k\to \infty }{lim}\parallel a_{v_k}-c_{v_k}\parallel =0,$$

$$\underset{k\to \infty }{lim}\parallel a_{v_{k+1}}-a_{v_k}\parallel =0,$$

$$\underset{k\to \infty }{lim\; sup}\langle g\left(q\right)-\delta S\left(q\right),a_{v_{k+1}}-q\rangle \le 0.$$

Considering (28), we observe

$$\begin{array}{cc}\hfill \parallel a_{v_{k+1}}{-q\parallel }^2& \le \left[1-{\displaystyle \frac{2(\eta -\rho ){\gamma }_{v_k}}{1-{\gamma }_{v_k}\rho }}\right]{\parallel a_{v_k}-q\parallel }^2+{\displaystyle \frac{2(\eta -\rho ){\gamma }_{v_k}}{1-{\gamma }_{v_k}\rho }}[{\displaystyle \frac{{\gamma }_{v_k}{\eta }^2}{2(\eta -\rho )}}{M}_6\hfill \\ \hfill & +{\displaystyle \frac{1}{2(\eta -\rho )}}·{\displaystyle \frac{{\alpha }_{v_k}}{{\gamma }_{v_k}}}\parallel a_{v_k}-a_{v_{k-1}}\parallel M_5+{\displaystyle \frac{1}{\eta -\rho }}\langle g\left(q\right)-\delta Sq,a_{v_{k+1}}-q\rangle ].\hfill \end{array}$$

It implies that

$$\begin{array}{cc}\hfill \parallel a_{v_k+1}{-q\parallel }^2& \le {\displaystyle \frac{{\gamma }_{v_k}{\eta }^2}{2(\eta -\rho )}}{M}_6+{\displaystyle \frac{1}{2(\eta -\rho )}}·{\displaystyle \frac{{\alpha }_{v_k}}{{\gamma }_{v_k}}}\parallel a_{v_k}-a_{v_{k-1}}\parallel M_5\hfill \\ \hfill & + {\displaystyle \frac{1}{(\eta -\rho )}}\langle g\left(q\right)-\delta Sq,a_{v_k+1}-q\rangle .\hfill \end{array}$$

Then, from (38), we have

$$\begin{array}{cc}\hfill \parallel a_k{-q\parallel }^2& \le \parallel a_{v_k+1}{-q\parallel }^2\hfill \\ \hfill & \le {\displaystyle \frac{{\gamma }_{v_k}{\eta }^2}{2(\eta -\rho )}}{M}_6+{\displaystyle \frac{1}{2(\eta -\rho )}}·{\displaystyle \frac{{\alpha }_{v_k}}{{\gamma }_{v_k}}}\parallel a_{v_k}-a_{v_{k-1}}\parallel M_5\hfill \\ \hfill & +{\displaystyle \frac{1}{(\eta -\rho )}}\langle g\left(q\right)-\delta Sq,a_{v_k+1}-q\rangle .\hfill \end{array}$$

The limit ${lim}_{k\to \infty }{\parallel a_k-q\parallel }^2=0$ implies $a_k\to q$, completing the proof. □

According to Corollary 1, when we set $\mathcal{U}=I$ in Algorithm 1, the following result can be obtained.

Corollary 1.

Let $a_0,a_1\in H$ and the sequence $\left\{a_n\right\}$ be created by

$$\left\{\begin{array}{c}{d}_n=a_n+{\theta }_n(a_n-a_{n-1}),\hfill \\ b_n=P_{\mathcal{C}}\left(d_n-{\displaystyle \frac{1}{{\tau }_n}}\mathcal{K}{d}_n\right),\hfill \\ c_n=b_n-{\displaystyle \frac{a}{{\tau }_n}}\left(\mathcal{K}{b}_n-\mathcal{K}{d}_n\right),\hfill \\ a_{n+1}={\gamma }_{n}g\left(a_n\right)+c_n-{\gamma }_n\delta S{c}_n,\hfill \end{array}\right.$$

(39)

where ${\theta }_n$ and ${\tau }_n$ are defined in Algorithm 1, respectively. The iterative sequence $\left\{a_n\right\}$ generated by (39) converges in norm to $q\in VI(\mathcal{C},\mathcal{K})$, where $q=P_{VI(\mathcal{C},\mathcal{K})}(I-\delta S+g)\left(q\right)$.

Remark 3.

It is worth noting that, in our algorithm, the mapping $\mathcal{K}$ is pseudomonotone and l-Lipschitz continuous, whereas $\mathcal{U}$ is quasi-nonexpansive. Since the operators we consider satisfy weaker assumptions than those in the introduction, our algorithm has a broader scope of applicability.

4. Numerical Experiments

In this part, we present two numerical examples to verify the proposed algorithm. The effectiveness of the algorithm we proposed was evaluated through comparison with the algorithms in the literature (see [10,11,12,13,25,30]). Furthermore, a comparison is drawn between our algorithm and results that exclusively focus on solving the variational inequality problem. For the purpose of ensuring a fair comparison with existing algorithms tailored to monotone or pseudomonotone variational inequalities, the quasi-nonexpansive mapping $\mathcal{U}$ in Hilbert space H is taken as $\mathcal{U}a=a$ in each example.

For simplicity, we refer to the algorithms as follows: Algorithm 3.1 in Singh et al. [25] as the DIMIEM; Algorithm 1 in Shehu et al. [10] as the S Algorithm; Algorithm 3.2 in Thong et al. [12] as the T Algorithm; Algorithm 1 in Yao et al. [11] as the Y Algorithm; Algorithm 3.4 in Anh et al. [13] as the A Algorithm; and Algorithm 3 in Zeng et al. [30] as the Z Algorithm. We measure the error at step n using $∥a_{n+1}-a_n∥$. Iterations stop when this error falls below the tolerance $ϵ$, i.e., when $∥a_{n+1}-a_n∥<ϵ$. The practical applicability of our algorithm is illustrated herein. The codebase was developed using MATLAB 2024(b) and executed on a HUASUO computer. This computer is configured with an Intel(R) Core(TM) i5-8265U CPU that operates at a frequency of 1.60GHz and has 8.00 GB of RAM. Bulleted lists look like this:

Example 1.

Let $\mathcal{K}$: $R^2\to R^2$ be the nonlinear operator given by

$$\mathcal{K}(a,b)=(a+b+sina,-a+b+sinb).$$

The feasible set $\mathcal{C}$ is defined by $\mathcal{C}=[-2,5]\times [-2,5]$. $\mathcal{K}$ is confirmed to be monotonic and satisfy l-Lipschitz continuity with $l=3$. Initial points $a_0=(1,1)$ and $a_1=(2,2)$ are selected, while S is designated as $S(a,b)=\mathcal{K}(a,b)+{\displaystyle \frac{1}{2}}(a,b)$ and g is assigned as $g(a,b)={\displaystyle \frac{1}{2}}(a,b)$.

Additionally, set a = 0.5, $\theta =0.5$, ${\tau }_1=0.9$, $\mu =0.9$, $\delta =0.5$, ${\sigma }_n={\displaystyle \frac{1}{{(n+1)}^2}}$. Iterations are terminated once the residual satisfies $\parallel a_{n+1}-a_n\parallel ={10}^{-12}$. Figure 1 shows the differences in the convergence speed of the algorithm with varying values of a. Figure 2 and

Table 1. A comparison of iteration counts and computational errors is presented for the algorithms in Examples 1 and 2.

Algorithms	$\mathit{Example}1$			$\mathit{Example}2$
	Iter.	$E_{\mathbf{n}}$		Iter.	$E_{\mathbf{n}}$
Algorithm 3	40	1.52984$\times {10}^{-12}$		73	1.57752$\times {10}^{-12}$
DIMTEM	131	4.42261$\times {10}^{-12}$		300	3.16653$\times {10}^{-11}$
S Algorithm	145	2.49988$\times {10}^{-11}$		285	1.02457$\times {10}^{-14}$
T Algorithm	84	2.43963$\times {10}^{-12}$		110	1.00935 $\times {10}^{-14}$
Y Algorithm	150	6.15847$\times {10}^{-7}$		176	1.11008$\times {10}^{-14}$
A Algorithm	111	3.20422$\times {10}^{-11}$		241	1.03155$\times {10}^{-14}$
Z Algorithm	128	4.25814$\times {10}^{-12}$		153	1.42964$\times {10}^{-14}$

jointly reveal that Algorithm 1 drives the iterates to the solution markedly faster than its predecessors. The corresponding parameter settings are detailed below.

• DIMTEM: $\theta =0.5$, $\mu =0.9$, ${\tau }_1=0.9$, $v=0.3$.
• S Algorithm: $\mu =0.9$, ${\lambda }_1=0.9$, $\theta =0.5$.
• T Algorithm: ${ϵ}_n={\displaystyle \frac{1}{{(n+1)}^2}}$, $\mu =0.9$, ${\tau }_1=0.9$, $\alpha =0.5$.
• Y Algorithm: $\theta =0.5$, $\mu =0.9$, $\delta =0.8$, ${\lambda }_1=0.9$.
• A Algorithm: ${\tau }_n={\displaystyle \frac{1}{{(n+1)}^2}}$, $\mu =0.9$, ${\lambda }_1=0.9$, $\alpha =0.5$.
• Z Algorithm: ${ϵ}_n={\displaystyle \frac{1}{{(n+1)}^2}}$, $\mu =0.9$, $\gamma =0.5$, ${\tau }_1=0.9$, $\alpha =0.5$, a = 0.5.

Example 2.

Let $A\left(a\right):=Ma+q$ where

$$M=B{B}^T+C+D$$

and $B\in R^{m\times m}$, $C\in R^{m\times m}$ is skew-symmetric, and $D\in R^{m\times m}$ is diagonal with non-negative diagonal entries. Consequently, M is positive semidefinite, and q denotes a vector in $R^m$. Take the feasible set $\mathcal{C}$ to be the closed convex polyhedron $\mathcal{C}:=\{a\in R^m:Qa\le b\}$, where $Q\in R^{d\times m}$ and $b\in R^d$ with $b\ge 0$. That A is monotone and Lipschitz continuous with the Lipschitz constant $L= \parallel M\parallel$ holds evidently. By setting $q=0$, the solution set $VI(\mathcal{C},\mathcal{K})\cap Fix\left(\mathcal{U}\right)=\left\{0\right\}$ is then derived.

For the numerical experiment we fix $d=m=5$ and set the algorithmic parameters to a = 0.9, $\theta =0.4$, ${\tau }_1=0.1$, $\mu =0.9$, $\delta =0.5$, and ${\sigma }_n={\displaystyle \frac{1}{n+1}}$. The operators are prescribed as $S\left(a\right)={\displaystyle \frac{a}{8}}$ and $g\left(a\right)={\displaystyle \frac{a}{20}}$. Iterations are terminated once the residual satisfies $\parallel a_{n+1}-a_n\parallel ={10}^{-14}$. Figure 3 shows the effect of the parameter a on the convergence speed. Figure 4 and Table 1 jointly demonstrate that the iterates produced by Algorithm 1 approach the solution markedly faster than those generated by previously proposed methods. The adopted parameters are as follows:

• DIMTEM: $\mu =0.9$, $\theta =0.4$, ${\tau }_1=0.1$, $v=0.3$.
• S Algorithm: $\mu =0.9$, ${\lambda }_1=0.1$, $\theta =0.4$.
• T Algorithm: $\mu =0.9$, $\alpha =0.4$, ${\tau }_1=0.1$, ${ϵ}_n={\displaystyle \frac{1}{n+1}}$.
• Y Algorithm: $\mu =0.9$, $\theta =0.4$, ${\lambda }_1=0.1$, $\delta =0.5$.
• A Algorithm: $\mu =0.9$, $\alpha =0.4$, ${\lambda }_1=0.1$, ${\tau }_n={\displaystyle \frac{1}{n+1}}$.
• Z Algorithm: $\mu =0.9$, $\alpha =0.4$, ${\tau }_1=0.1$, a = 0.9, $\gamma =10$, ${ϵ}_n={\displaystyle \frac{1}{n+1}}$.

Subsequently, our proposed Corollary 1 is employed to solve the optimal control problems. Various methods for addressing this problem have been put forward by numerous scholars in recent years. For details regarding the relevant algorithms and problem descriptions, readers are referred to references [3,4,5].

Example 3

(Control of a harmonic oscillator, see [46]).

$$\begin{array}{cc}\hfill \mathit{minimize}& x_2\left(3\pi \right)\hfill \\ \hfill \mathit{subject}\mathit{to}& {\dot{x}}_1\left(t\right)=x_2\left(t\right),\hfill \\ \hfill & {\dot{x}}_2\left(t\right)=-x_1\left(t\right)+u\left(t\right),\forall t\in [0,3\pi ],\hfill \\ \hfill & x\left(0\right)=0,\hfill \\ \hfill & u\left(t\right)\in [-1,1].\hfill \end{array}$$

The parameters we utilize are specified as follows:

$$u^{*}\left(t\right)=\left\{\begin{array}{cc}1,\hfill & \mathrm{if}t\in [0,\pi /2)\cup (3\pi /2,5\pi /2);\hfill \\ -1,\hfill & \mathrm{if}t\in (\pi /2,3\pi /2)\cup (5\pi /2,3\pi ].\hfill \end{array}\right.$$

We set our parameters in the following way:

$a=0.9$, $\delta =0.5$, $\theta =0.6$, $g\left(x\right)=0.1x$, $N=100$, ${\sigma }_n={\displaystyle \frac{{10}^{-4}}{{(n+1)}^2}}$, ${\gamma }_n={\displaystyle \frac{{10}^{-4}}{n+1}}$.

Initial controls $u_0\left(t\right)=u_1\left(t\right)$ are generated randomly over the interval $[-1,1]$, with the termination condition defined as either $\parallel u_{n+1}-u_n\parallel \le {10}^{-4}$ or a maximum of 1000 iterations. Corollary 1 attained the required error precision in 97 iterations, with a total runtime of 0.1397 seconds. The approximate optimal control derived from Corollary 1, along with its corresponding trajectories, is presented in Figure 5.

Remark 4.

Regarding the experimental part, the following points are noteworthy:

(1)

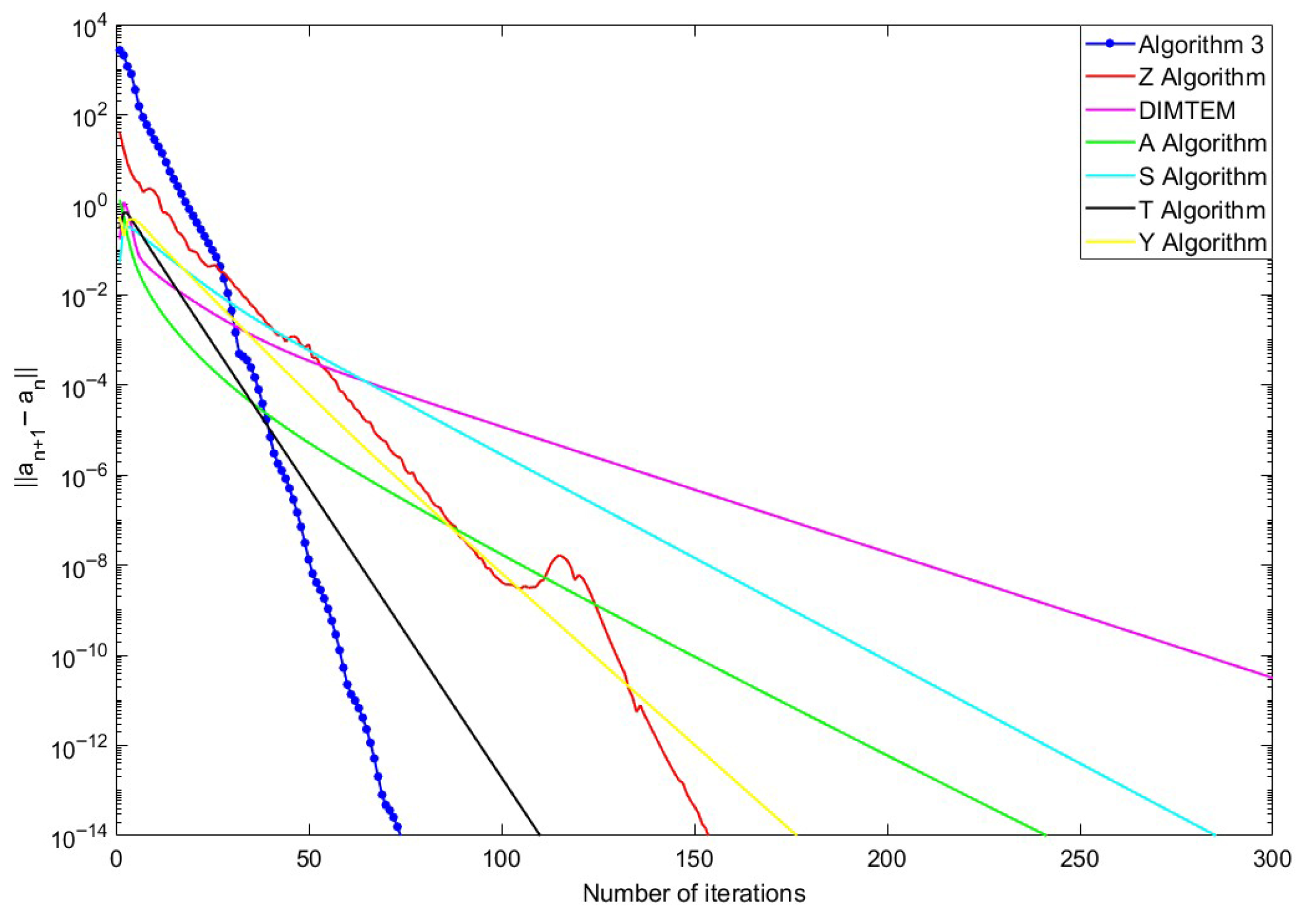

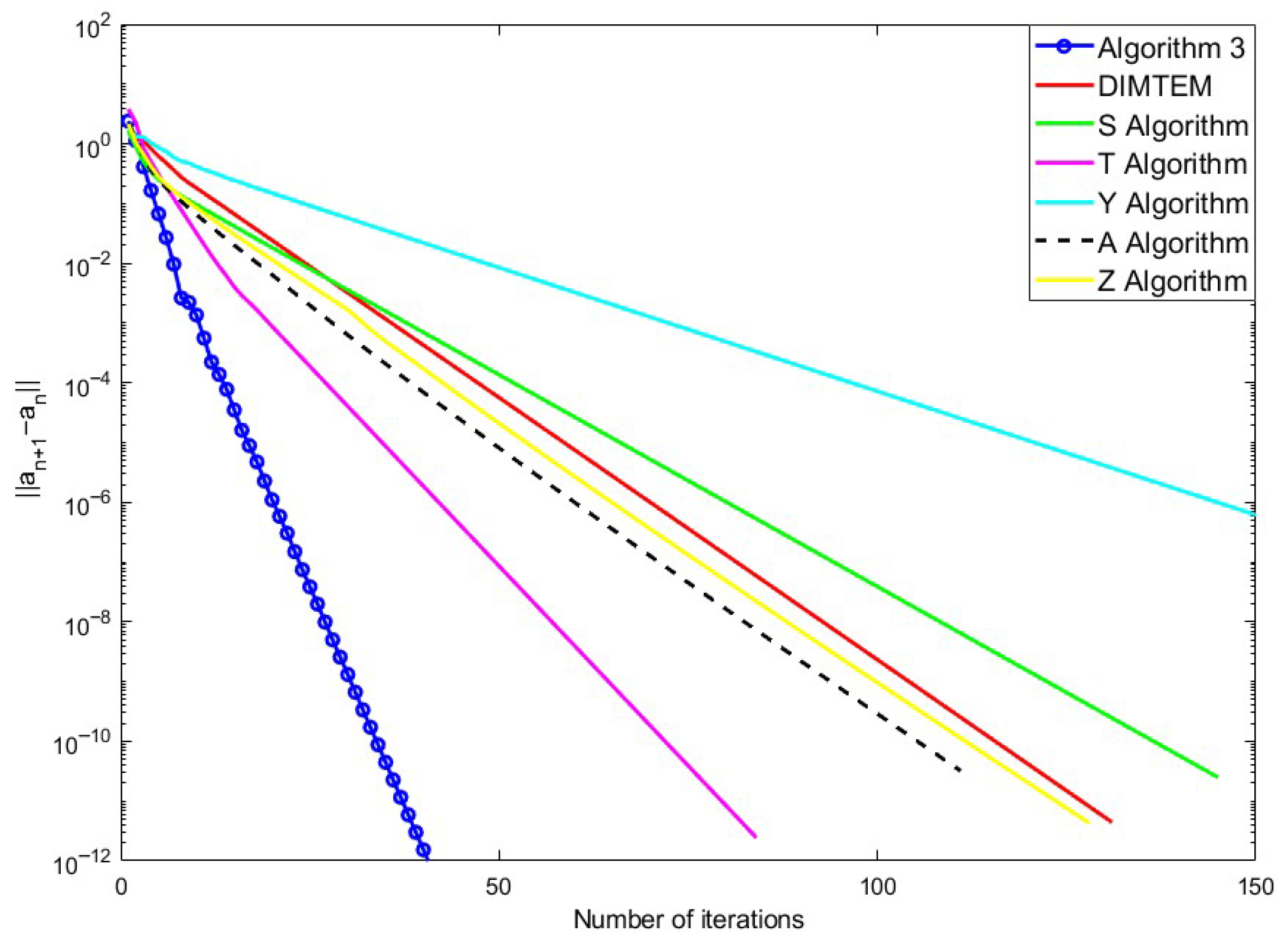

As can be observed from Figure 2 and Figure 4, compared with the existing algorithms, the algorithm we put forward converges more rapidly and demonstrates better computational performance.

(2)

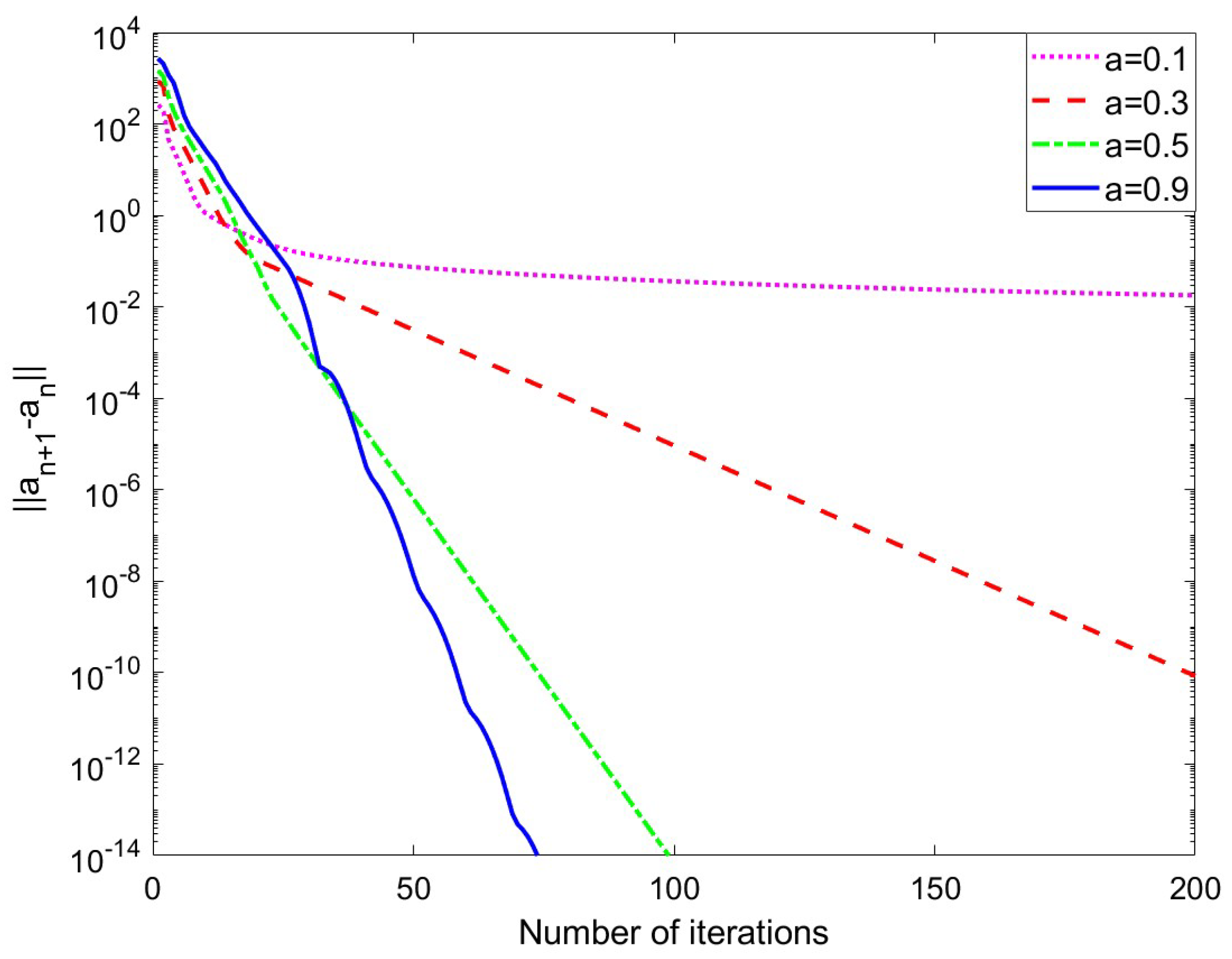

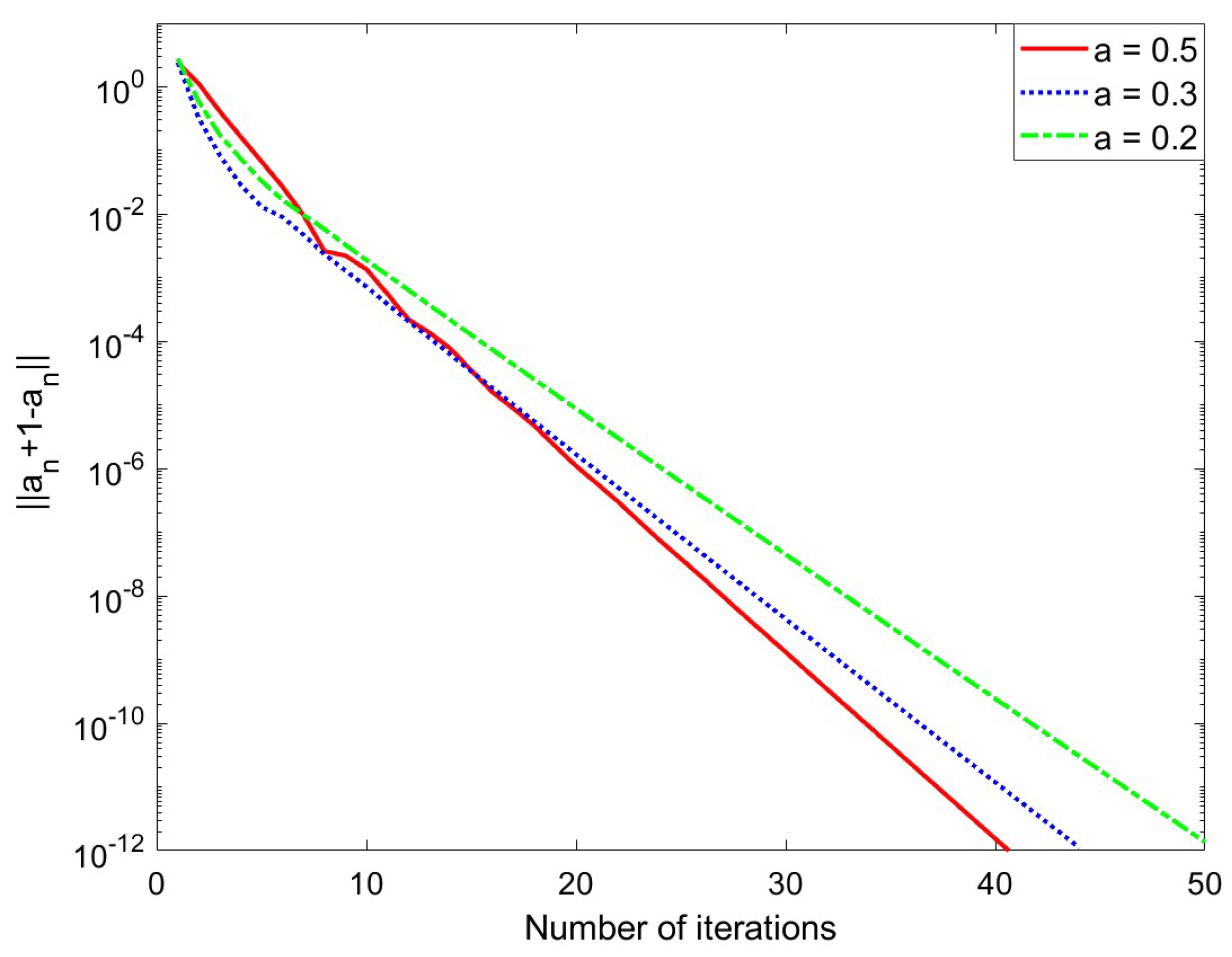

From Figure 1 and Figure 3, it can be observed that the convergence is influenced by the parameter a, and better performance of Algorithm 1 is achieved as the value of a increases.

(3)

Example 3 and the corresponding figure demonstrate that the algorithm proposed herein performs effectively in solving optimal control problems.

5. Conclusions

In this research paper, a novel algorithm is put forward for addressing both the pseudomonotone variational inequality problem and the quasi-nonexpansive fixed point problem within a Hilbert space. This algorithm is developed by combining Tseng’s extragradient method, the viscosity method, and an adaptive step size strategy. A key advantage of this method lies in the requirement that only one projection be computed per iteration. The strong convergence of the algorithm is proven without relying on prior knowledge of the mapping’s Lipschitz constant. Moreover, the incorporation of an inertial term further yields a substantial acceleration of the convergence rate. Numerical experiments indicate that, under certain specific scenarios, the algorithm put forward in this study outperforms the existing methods documented in the literature. Regarding its application, the algorithm is also employed to solve the optimal control problem.
