Post-Serpentinization Formation of Theophrastite-Zaratite by Heazlewoodite Desulfurization: An Implication for Shallow Behavior of Sulfur in a Subduction Complex

by
Shoji Arai
1,*,
Satoko Ishimaru
2,
Makoto Miura
3,
Norikatsu Akizawa
4 and
Tomoyuki Mizukami
5
1
Kanazawa University, Kanazawa 920-1192, Japan
2
Department of Earth Sciences, Kumamoto University, Kumamoto 860-8555, Japan
3
Identification Department, GIA Tokyo Godo Kaisha, Yamaguchi Building 7, 4-19-9 Taito, Taito-ku, Tokyo 110-0016, Japan
4
Department of Ocean Floor Geoscience, Atmosphere and Ocean Research Institute, The University of Tokyo, 5-1-5 Kashiwanoha, Kashiwa, Chiba 277-8564, Japan
5
Department of Earth Sciences, Kanazawa University, Kanazawa 920-1192, Japan
*
Author to whom correspondence should be addressed.
Minerals 2020, 10(9), 806; https://doi.org/10.3390/min10090806
Submission received: 23 August 2020 / Revised: 8 September 2020 / Accepted: 11 September 2020 / Published: 13 September 2020
(This article belongs to the Special Issue Emerging Insights into Serpentinites)
Browse Figures
Review Reports Versions Notes

Abstract

:
Rare nickel hydroxide-hydroxyl carbonate, theophrastite (Ni(OH)2)-zaratite (Ni3(CO3)(OH)4·4H2O) aggregates were found from a partially serpentinized dunite from Fujiwara, the Sanbagawa metamorphic belt of high-pressure intermediate type, Japan. The dunite was regionally metamorphosed within the Sanbagawa subduction complex of Cretaceous age. The theophrastite-zaratite aggregate from Fujiwara most typically occurs in association with nickel sulfides, which form a composite grain with awaruite and magnetite within an antigorite-rich part of the rock. The theophraste-zaratite formed possibly together with millerite (NiS) from heazlewoodite (Ni3S2). This represents a partial desulfurization of heazlewoodite, which contains or interlocks with laths of antigorite, suggesting their cogenesis. The desulfurization occurred at an early stage of, or during, exhumation of the subduction complex toward the surface, where sulfur was oxidized and removed as sulfate ions. Serpentinization of olivine has not been associated with the formation of theophrastite-zaratite, and an oxidized condition has been kept at this post-serpentinization stage. The sulfate ions liberated in part precipitated anhydrite where calcium was available in the surrounding rocks. This shows one of the shallow migration pathways of sulfur in the subduction zone, especially to the forearc area.

1. Introduction

The behavior of sulfur in a subduction zone is very important and has been controversial [1,2,3]. Sulfur is transported to deeper parts via the subduction of sediments and altered crustal rocks such as meta-basalts [4]. It is also taken from sea water into peridotite on sea-floor serpentinization [5,6,7], and serpentinized peridotites gradually release sulfur upon progressive metamorphism in the subducted slab [8]. This is consistent with the relative sulfur enrichment in arc magmas [9]. However, the manners of delivery of sulfur from the slab to the overlying crust-mantle have not been thoroughly delineated so far. We would like to show one of the ways of sulfur recycling through heazlewoodite, a nickel sulfide, in subducted serpentinite, possibly to the supra-subduction zone.
Nickel is compatible together with magnesium in a magmatic system and concentrated in early formed mafic minerals, especially in olivine [10] in addition to some sulfides. On the low temperature hydration of Mg-rich olivines, nickel then released from olivine is reduced to be crystallized mainly as Ni-Fe alloys (awaruites) and/or sulfides such as heazlewoodite [11,12,13,14]. Hydrogen is simultaneously produced, coupled with magnetite precipitation in the serpentinization process [15].
Theophrastite is a rare nickel hydroxide, first described from highly altered chromitite (magnetite-chromite ore) from northern Greece [16,17], as well as from altered chromitites in Unst, Shetland (Scotland) [18]. In addition to theophrastite, hydroxyl nickel carbonates such as zaratite [Ni3CO3(OH)4·4H2O], otwayite [Ni2CO3(OH)2·H2O], nullaginite [Ni2CO3(OH)2] and hellyerite [NiCO3·6H2O] and Ni-rich carbonates such as gaspéite [(Ni, Fe, Mg)CO3] are precipitated during low-temperature alteration or weathering of serpentinites and related nickel-rich ores [19,20,21,22,23,24]. In low-temperature alteration processes of serpentinites, nickel (II) is also incorporated in hydrous silicates (clay minerals) such as pecoraite [Ni3SiO5(OH)4] and nickel-rich sepiolite around nickel sulfides/oxides [21,22,23,24,25].
All of the previous works, however, have given us rather weak genetic constraints on theophrastite and hydroxyl nickel carbonates, as well as weak petrological implications. Aggregates of theophrastite, Ni(OH)2, and a nickel hydroxyl carbonate (zaratite = Ni3(CO3)(OH)4·4H2O) were found in a partly serpentinized (antigoritized) dunite from Fujiwara (Ehime Prefecture), the Sanbagawa metamorphic belt, southwest Japan (Figure 1). They show a very clear mode of occurrence, that is, a close association with nickel sulfides (heazlewoodite and millerite). The Fujiwara theophrastite-zaratite aggregate seems quite different in the mode of occurrence from the other reported occurrences, which were mostly along shear planes in altered chromitites and nickel ores. In this article, we describe the nickel-rich minerals, especially theophrastite-zaratite (nickel hydroxide-hydroxyl carbonate), in a partly antigoritized dunite, and discuss their origin with an implication of their occurrence in a subduction complex. More general petrological characteristics of the Fujiwara meta-dunites are available from Arai et al. [26].

2. Geological Background and Petrography

The dunite sample (T4-8) was obtained from the Fujiwara body, one of the abundant peridotite masses [29,30] in the Sanbagawa metamorphic belt in Shikoku Island, southwest Japan [31,32] (Figure 1). They are associated with crystalline schists of high-pressure intermediate type [29], representative of a subducting slab complex of the Cretaceous age. The Fujiwara dunite body (less than 200 × 400 m in plan) is associated with fine- to coarse-grained (mainly medium-grained) gabbros to form as a whole an ultramafic-mafic complex [26], enclosed by pelitic schists of a high-temperature part of the biotite zone to garnet-biotite transition zone [33]. The Fujiwara dunite suffered from the Sanbagawa high-pressure/low-temperature metamorphism [31,32], together with the surrounding schists [33], like other peridotites bodies in the Sanbagawa belt [29].
Detailed descriptions were made on one of the dunite samples (meta-dunite; T4-8) containing the theophrastite-zaratite aggregate (Figure 2; Figure 3), which is fresh and composed of olivine, chromian spinel (altered in part to ferritchromite and magnetite), titanoclinohumite, antigorite, magnetite, chlorite and dolomite [26,28,33]. The examined sample piece is completely free from a weathered (brownish-colored) portion. Serpentinization has proceeded in an uneven way; the rock consists of antigorite-rich and fresh olivine-rich domains. Antigorite occurs as laths partly penetrating adjacent olivine grains (Figure 2), if any, and occupies around 40 volume % of the rock on average. Awaruite and nickel sulfides (heazlewoodite and millerite) were found, associated with theophrastite-zaratite (Figure 4), as described in detail later. Minute rounded particles of nickel arsenide minerals were frequently included by heazlewoodite and magnetite (Figure 5).
The nickel hydroxide-hydroxyl carbonate (theophrastite-zaratite) aggregate is closely associated with heazlewoodite in the opaque composite grains, composed of awaruite, millerite and magnetite, in addition to heazlewoodite (Figure 4). The heazlewoodite is mottled with veinlet-like or irregular-shaped patches of millerite (Figure 4 and Figure 5), indicating that the millerite in part replaces heazlewoodite. Awaruite, millerite and magnetite form an apparent rim of heazlewoodite and/or theophrastite-zaratite (Figure 4). The theophrastite-zaratite aggregate is characterized by prominent cracking (Figure 4 and Figure 5). This cracking has been frequently observed in PGE oxides produced by desulfurization of PGE sulfides, such as laurite [34,35,36].
We found discrete grains of theophrastite-zaratite aggregate, which are appropriate to examine optical properties (Figure 2 and Figure 3). The largest is 0.1 to 0.2 mm across, and shows a pale green color, no pleochroism and very low birefringence (almost isotropic) in thin section (Figure 2 and Figure 3). It is similar in appearance to a kind of chlorite under the microscope (Figure 2 and Figure 3). It occurs in one of the antigorite-rich domains, mainly composed of antigorite and magnetite, of the rock (Figure 2). The aggregate encloses minute laths of antigorite (Figure 3). The optical properties (especially refractive indices, birefringence, and colors) of the aggregate are similar to those of zaratite [20] or the Greek theophrastite [16].
The mode of occurrence of theophrastite-zaratite in the Fujiwara meta-dunite is quite different from the other theophrastite occurrences available from the literature. The theophrastite from Greece exhibits a botryoidal texture, sometimes forming fibrous aggregates perpendicularly overgrowing on pre-existing minerals such as vesuvianite and chlorite in magnetite-chromite ores (= altered or metamorphosed chromitite?) [16,17]. Theophrastites from Shetland [18] and from Heazlewood River [19] form gel (or wax)-like mixtures with other low-temperature (sometimes poorly crystalline) nickel hydroxyl carbonates, such as zaratite or otwayite in altered chromitites.

3. Raman Spectroscopy

We conducted a Raman spectroscopic analysis on the discrete grain of nickel hydroxide-hydroxyl carbonate. We used a micro-Raman system (HORIBA Jobin Yvon, LabRAM HR800) equipped with an optical microscope (Olympus, BX41) at Kanazawa University, Kanazawa, Japan. An 830 nm semiconductor laser (Sacher Lasertechnik, TEC510) and an IR detector (512 × 1 pixels of InGaAs elements) were used, in order to obtain Raman spectra without the interference of a photoluminescence band of nickel hydroxide or carbonate (maximized at 593 nm). The laser beam was focused through a 100× objective lens for infrared (LEICA GERMANT, HCX PL FLUOTAR, 100×, NA = 0.75), yielding an irradiation power of 2.0 mW at the sample surface. Scattered light was collected in a backscattered geometry, in which a pinhole (300 μm in diameter) and a slit (100 μm in width) were positioned in front of the spectrometer. A 300 grooves/mm grating with a blaze wavelength of 1000nm gave a wavenumber resolution of 1.8–2.3 cm−1 and a spectral resolution of about 3.3 cm−1 to 5.0 cm−1. An edge filter effectively reduces the Rayleigh and anti-Stokes lines to lower than 70 cm−1 in Raman shift. For mapping analysis, a 514.5 nm Ar+ laser (MELLES GRIOT, 43 SERIES ION LASER, 543-GS-A02) and a Si-based CCD (charge-coupled device) detector (1024 × 256 pixels) were used. A combination of a 100× objective lens (Olympus, MPLN100×, NA = 0.90 for visible light) and a 300-μm pinhole yields a spatial resolution of about 1 μm. The laser irradiation power at a sample surface was 9.2 mW. The spectrometer was calibrated using a Si 520 cm−1 peak before measurements. This procedure provided a sufficient accuracy in the analytical wavenumber range; the peak centers of neon lines were reproduced within ±0.5 cm−1.
The Fujiwara theophrastite-zaratite and associated minerals were examined by Raman spectroscopy, although there have been few data on theophrastite for comparison [37,38]. As far as we know, no Raman spectroscopic characteristics of natural theophrastite have ever been published. We obtained Raman spectra of theophrastite from a part of the aggregate (Figure 6). They are characterized by a prominent band at 3580 cm−1 caused by OH stretching vibrations [37] (Figure 6), and some minor bands due to low-energy translational modes were observed at <1600 cm−1 (Figure 6). Almost all Raman spectral bands of the Fujiwara theophrastite are in agreement with those of synthetic Ni(OH)2 [37,38]. The other part of the aggregate yielded strong photoluminescence for some reason, but showed some bands derived from zaratite [39] and unknown mineral(s) (Figure 6). No clear spectra for other hydroxyl nickel carbonates, such as nullangite [Ni2(CO3)(OH)2] and otwayite, were detected by Raman spectroscopy [39,40]. This is consistent with the optical properties of the aggregate (Figure 3) similar to those of zaratite [20,21].
Our Raman spectroscopic analysis confirmed the serpentine mineral associated with the theophrastite-zaratite is antigorite [41] in the Fujiwara meta-dunite (Figure 2 and Figure 3). Olivine and titanoclinohumite grains contain micro-inclusions of hydrocarbons (methane and propane), serpentine and brucite [28]. They were originally trapped as hydrocarbon-bearing aqueous solutions in olivine and titanoclinohumite [28].

4. Mineral Chemistry

Minerals were mainly analyzed by a JEOL wave-length dispersive electron probe X-ray microanalyzer (JXA8800R) at Kanazawa University, Kanazawa, Japan. Analytical conditions were 15-kV accelerating voltage, 10-nA accelerating voltage, and 10-µm probe diameter for analysis of the nickel hydroxide-hydroxyl carbonate to minimize evaporation loss during analysis. A 5-µm probe diameter was adopted for antigorite analysis. 12-nA probe current and 3-µm probe diameter were used for other minerals.
Ferrous and ferric iron contents of chromian spinel were calculated assuming spinel stoichiometry, while all iron was assumed to be ferrous in minerals except spinel phases. Mg# is Mg/(Mg + Fe2+) atomic ratio, and Cr# is Cr/(Cr + Al) atomic ratio. Fe2+ and Fe3+ in spinels were calculated assuming spinel stoichiometry. Representative microprobe analyses of minerals are listed in Table 1.
Sulfides, arsenides and alloys were analyzed with FE-SEM (JSM-7001F, JEOL) with an EDS system (INCA Energy and/or AZtecEnergy, Oxford Instruments) at Kumamoto University, Kumamoto, Japan. The accelerating voltage, probe current, and probe diameter were 15 kV, 1 nA, and <1 µm, respectively. Representative analyses are listed in Table 2.
The part from which theophrastite-zaratite spectra were obtained by Raman spectroscopy was too small for microprobe analysis (Figure 6). The elemental distributions determined by microprobe (Figure 7) indicate that the zaratite-theophrastite aggregate is homogeneous in C, O, Mg and Ni contents; there is no clear area of Ni(OH)2 (theophrastite) composition (Figure 7). Microprobe analysis of the theophrastite-zaratite aggragate yielded low oxide totals, 63 to 65 wt.%, indicating the presence of substantial amounts of volatiles (Table 1). This is consistent with severe damage due to electron bombardment on polished surface of the theophrastite-bearing part in microprobe analysis (Figure 3). The analytical total is far lower than the ideal value, i.e., about 80.6 wt.% NiO for theophrastite, Ni(OH)2, but is not so different from an ideal value, i.e., about 60 wt.% of NiO for zaratite, Ni3(CO3)(OH)4·4H2O. Our ordinary microprobe point analysis also indicates chemical homogeneity of the theophrastite-zaratite aggregate (Figure 7). The aggregate contains 57 to 60 wt.% NiO and 4 to 5 wt.% MgO (Table 1). FeO (total iron) and CaO contents are low, up to 0.8 wt.% and up to 0.4 wt.%, respectively (Table 1). Sulfur was not detected from the Fujiwara theophrastite-zaratite.
Combined with the result of Raman spectroscopy and optical characters, the theophrastite-bearing aggregate is mostly composed of hydroxyl nickel carbonate. Theophrastite is frequently associated with nickel carbonates in previous descriptions. The Shetland theophrastite also occurs as a mixture with zaratite [18]. The Heazlewood (Tasmania) theophrastite is also finely mixed with otwayite, and difficult to analyze separately [19]. The theophrastite from Greece is rather exceptional, showing almost pure Ni(OH)2 in chemistry [16,17].
Hydrous silicates in the dunite are high-Mg#, 0.98 for antigorite and 0.95 for chlorite (Table 1). Both antigorite and chlorite are poor in nickel, containing around 0.1 to 0.2 wt.% NiO (Table 1). Olivine highly varies in Fo content (100Mg#), from 89 to 95, negatively correlated with NiO (0.4 to 0.2 wt.%) and MnO (0.8 to 0.2 wt.%). Titanoclinohumite is high in Mg# (0.93 to 0.96), and contains up to 4 wt.% TiO2 [28]. Chromian spinel exhibits around 0.4 Mg#, 0.5 to 0.6 Cr#, and is characterized by high TiO2 contents, 1 to 3 wt.%. The NiO content is 0.2 to 0.3 wt.% in chromian spinel, around 0.5 wt.% in ferritchromite, and 0.5 to 2 wt.% in magnetites (Table 1).
Awaruite shows the Ni/(Ni + Fe) ratio (in atom) of 0.76, and contains 1 to 2 wt.% Co (Table 2). One of the arsenides shows a Ni/As ratio from 2.3 to 2.6, and is possibly orcelite (Ni5-xAs2). It contains about 0.3 wt.% Fe (Table 2). The other exhibits a Ni/As ratio around 1.4 and is possibly maucherite (Ni11S8). Both the orcelite and maucherite contain 2 to 3 wt.% Sb (Table 2). They are similar in chemistry to those described in the literature [42,43,44,45,46]. Kadota et al. [46] especially reported both orcelite and maucherite from the Higashi-akaishi peridotite in the Sanbagawa belt, Shikoku island, located less than 10 km to the west of the Fujiwara peridotite body (Figure 1).

5. Discussion

5.1. Behavior of Nickel during Serpentinization of Olivine

Serpentinization of peridotites usually produces reduced Ni-Fe minerals such as awaruites (FeNi3), and/or sulfides if sulfur is available [12,14,47,48]. Arsenides such as nickeline, orcelite and maucherite, are widely produced in addition, although very small in amount if arsenic is available [42,45]. Arsenic and antimony can be supplied via fluids to peridotite during serpentinization in a subduction zone [49]. Awaruites may be stable in a wide range of serpentinization process, being associated with both antigorite at relatively high temperatures and lizardite at lower temperatures [12,50]. The source of nickel and iron in those minerals is mostly olivine [12,51,52,53]. Magnetite is one of the products of serpentinization of peridotites [14,54,55]. In our Fujiwara meta-dunite, nickel (II) was also incorporated in magnetite, which contains 0.5 to 0.8 wt.% NiO (Table 1). The ferritchromite (Fe2+2CrFe3+O4), an alteration product of primary chromian spinel during serpentinization [56,57], is also slightly enriched with NiO (0.5 wt.%) as compared with the precursor primary chromian spinel, containing 0.2 to 0.3 wt.% NiO (Table 1). The ultimate source of nickel in the Fujiwara theophrastite was olivine, because it is closely associated with antigorite (Figure 3 and Figure 4), which is lower in NiO (0.1 to 0.2 wt.%) than olivine (0.2 to 0.4 wt.%).
In the Sanbagawa subduction complex, subducted sulfur and arsenic have been fixed, at least in part, as nickel-rich sulfides and arsenides during serpentinization of peridotite in the subduction zone. The sulfur and arsenic were originally contained in sediments, altered basalts or ocean-floor serpentinites [4,5,6], and then incorporated in peridotites on dehydration of the surrounding rocks.

5.2. Origin of Theophrastite-Zaratite in the Fujiwara Meta-Dunite

The genetic relationship between theophrastite (nickel hydroxide) and zaratite (one of nickel hydroxyl carbonates) is not clear. Zaratite is possibly a lower temperature alteration product of theophrastite [cf. [21]], but, alternatively, it was co-precipitated with theophrastite with an involvement of H2O-CO2 solution. Stability and formation have been less constrained for nickel carbonates or hydroxyl carbonates than for theophrastite (cf. [22,23,58,59]). We will discuss the origin of theophrastite-zaratite and its implication for mobility of elements, especially sulfur, mainly after antigorite formation (serpentinization).
The textural characteristics suggest the coexistence of antigorite with heazlewoodite, magnetite and arsenides, because the antigorite laths are in part or wholly enclosed by the other minerals (Figure 4 and Figure 5). Awaruites may be cogenetic with them during serpentinization [12,48], although apparently rimming the composite grains in our sample (Figure 4). The millerite, mottling the interior of heazlewoodite, may be secondary to the heazlewoodite (Figure 4 and Figure 5). Antigorite seems to be in textural equilibrium with the discrete grain of theophrastite-zaratite (Figure 3), which is possibly pseudomorphous after heazlewoodite.
Theophrastite is possibly stable only at low temperatures (<247 °C at 1 atm) [60], but can coexist in equilibrium with antigorite, whose low-temperature stability limit is around 200 °C [61]. The Greek theophrastite was estimated to have formed at 80 to 115 °C [17]. Economou-Eliopoulos [62] also suggested an oxidizing condition for the low-temperature magnetite-chromite ore (or Fe-Ni laterites) from northern Greece, from which theophrastite was first described [16]. Nickel-rich alloys are absent, and chlorites, serpentines and magnetites instead contain appreciable amounts of nickel in the Greek Fe-Ni laterites [62]. Unfortunately, serpentine species have not been distinguished, but the surrounding rocks are crystalline schists of greenschist facies [62]. Their protolith was possibly antigorite-bearing meta-peridotite, more or less similar to the Fujiwara dunite.
The formation of theophrastite and anhydrous or hydroxyl nickel carbonates has been attributed to low-temperature alteration, because they formed along fissure or shear planes of serpentinite and related chromitite or nickel ores [19,20,22,23,59,60,63]. They sometimes fill fissure or shear planes or coat metamorphic minerals as weakly crystalline materials near the shear [22,58]. Some of them are not indigenous, and nickel-bearing solutions have been considered to be involved in their formation [18,63]. In contrast, the Fujiwara theophrastite-zaratite in situ formed, replacing the precursor heazlewoodite. The theophrastite from Unst, Shetland, is associated with heazlewoodite, which possibly supplied nickel in its formation [18].

5.3. Desulfurization of Heazlewoodite and the Behavior of Sulfur

Petrographic features suggest that desulfurization of heazlewoodite formed theophrastite-zaratite and millerite (Figure 8), that is, via a reaction such as
Ni3S2 (heazlewoodite) + 2H2O + 2O2 = NiS (millerite) + 2Ni(OH)2 + SO2.
If H2O-CO2 is involved, zaratite will be produced in addition to theophrastite.
This reaction means a stepwise desulfurization of a nickel sulfide, i.e., the formation of a less sulfur-rich nickel sulfide and theophrastite at the first step (Figure 8). This type of desulfurization of heazlewoodite was reproduced by experiments [64]. Awaruite, which is sometimes associated with theophrastite-zaratite (Figure 4), was possibly not involved in the formation of theophrastite-zaratite via desulfurization of heazlewoodite, which is very low in Fe content (Table 2). We expect that this type of reaction possibly occurs more widely. The partial replacement of heazlewoodite with millerite was also observed in an altered serpentinite that contain hydroxyl nickel carbonates (zaratite and hellyerite) in an altered serpentinite from Heazlewood, Tasmania [20]. Nickel et al. [23] observed the partial replacement of millerite (NiS) with polydymite (Ni3S4) in a nickel-mineralized part of a serpentinized peridotite, Western Australia, where hydroxyl nickel carbonates (nullangite and otwayite) and related nickel-rich minerals were found. An idealized reaction for these processes can be shown as
Ni-rich sulfide + H2O + CO2 + O2 = less Ni-rich sulfide + theophrastite + hydroxyl Ni carbonates + SO2.
Pentlandite ([Ni, Fe]9S8; Ni > Fe), the most common nickel-rich sulfide in ultramafic rocks [65], may be decomposed to violarite (FeNi2S4), possibly with iron-rich sulfides (or oxides) during the formation of nickel hydroxide or hydroxyl carbonates [20].
The situation of nickel sulfide desulfurization is quite different if the serpentinization of olivine is simultaneously in progress. A highly reduced condition is achieved by production of hydrogen and magnetite (Fe3+-bearing), mainly with awaruite [12,14,15] instead of nickel hydroxide or hydroxyl carbonates. That is, nickel is mainly stored not in hydroxide or hydroxyl carbonates, but in awaruite, because of the reduced condition with hydrogen. In a suboceanic peridotite from the Mid-Atlantic Ridge, millerite and polydymite are produced, instead of awaruite-pentlandite-heazlewoodite, in a steatized (talc-rich) part near gabbroic intrusions possibly via further desulfurization [14]. We then expect that the steatized abyssal serpentinite [14] possibly contains nickel hydroxide or hydroxyl carbonates. The formation of theophrastite-zaratite in the Fujiwara meta-dunite has been performed in a post-serpentinization stage, where little serpentinization of olivine has occurred and an oxidized environment was available.

6. Conclusions and Implications

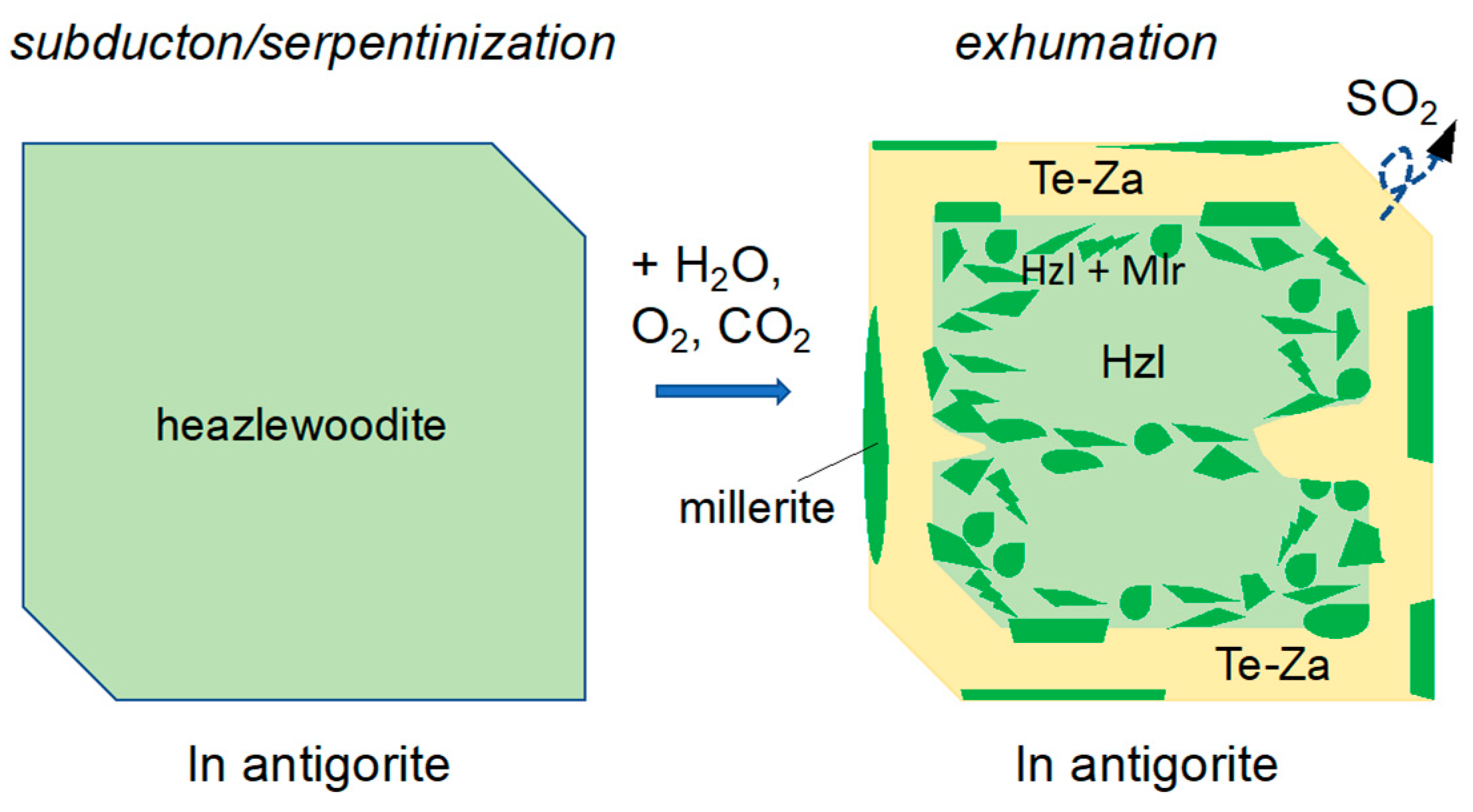

The reaction above (Figure 8) is due to the transportation of the subduction complex to the oxidizing and hydrous environment at an early stage or during exhumation [66]. This represents one of the oxidation processes of the serpentinized peridotite exposed to the oxidizing environment near the surface. The subducted sulfur is in part stabilized in serpentinized peridotite as heazlewoodite, and then released on its oxidation decomposition during exhumation. The oxidized sulfur liberated by this reaction has been transported and fixed as sulfates, such as anhydrite in the surrounding rocks in the Sanbagawa belt [67,68] (Figure 1). The anhydrite has been found from amphibolite, hornblendite and clinopyroxenite in a hydrated (retrogressively metamorphosed) part of the Iratsu body, overlying the Higashi-akaishi peridotite complex (Figure 1) [69,70]. Nickel-rich sulfides and arsenides similar to those in the Fujiwara meta-dunite have been also found from the Higashi-akaishi meta-peridotite [46], and we expect a similar desulfurization process in and around the Higashi-akaishi peridotite.
If we take the common occurrence of heazlewoodite in serpenetinized peridotites and chromitites [12,53,55,71] into account, we predict that nickel hydroxide and nickel hydroxyl carbonates are more common than we have thought in peridotites composing exhumed subduction complexes. Their formation occurs solely when the serpentinization of olivine does not occur, that is, most easily after serpentinization has been completed.

Author Contributions

Conceptualization, S.A. and S.I.; methodology, All authors; microprobe analysis, S.I., M.M. and N.A.; SEM analysis, S.I. and S.A.; Raman analysis, M.M. and T.M.; writing, All authors; editing, S.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Japan Mining Promotive Foundation to S.A. (Transportation and concentration processes of Cr and PGE by hydrothermal solutions) and JSPS KAKENHI Grant Numbers JP24540518 and JP16K1783400 to S.I.

Acknowledgments

R. Sawada kindly made thin sections used in this study. T. Nishiyama helped us in SEM analysis at Kumamoto University. Collaboration with H. Okamura in the field is highly appreciated. We thank the late H.M. Prichard for giving us information on the Shetland ophiolite. We appreciate critical comments by two anonymous reviewers, which were helpful in the revision of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schwarzenbach, E.M.; Caddick, M.J.; Petroff, M.; Gill, B.C.; Cooperdock, E.H.G.; Barnes, J.D. Sulphur and carbon cycling in the subduction zone mélange. Sci. Rep. 2018, 8, 15517. [Google Scholar] [CrossRef]
  2. Piccoli, F.; Hermann, J.; Pettke, T.; Connolly, J.A.; Kempf, E.D.; Duarte, J.F.V. Subducting serpentinites release reduced, not oxidized, aqueous fluids. Sci. Rep. 2019, 9, 19573. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Li, J.; Schwarzenbach, E.M.; John, T.; Ague, J.J.; Huang, F.; Gao, J.; Klemd, R.; Whitehouse, M.J.; Wang, X.-S. Uncovering and quantifying the subduction zone sulfur cycle from the slab perspective. Nat. Commun. 2020, 11, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Alt, J.C.; Shanks, W.C. Microbial sulfate reduction and the sulfur budget for a complete section of altered oceanic basalts, IODP Hole 1256D (eastern Pacific). Earth Planet. Sci. Lett. 2011, 310, 73–83. [Google Scholar] [CrossRef]
  5. Alt, J.C.; Shanks, W.C. Sulfur in serpentinized oceanic peridotites: Serpentinization processes and microbial sulfate reduction. J. Geophys. Res. 1998, 103, 9917–9929. [Google Scholar] [CrossRef]
  6. Schwarzenbach, E.M.; Früh-Green, G.L.; Bernasconi, S.M.; Alt, J.C.; Shanks, W.C., III; Gaggero, L.; Crispini, L. Sulfur geochemistry of peridotite-hosted hydrothermal systems: Comparing the Ligurian ophiolites with oceanic serpentinites. Geochim. Cosmochim. Acta 2012, 91, 283–305. [Google Scholar] [CrossRef]
  7. Alt, J.C.; Schwarzenbach, E.M.; Früh-Green, G.L.; Shanks, W.C., III; Bernasconi, S.M.; Garrido, C.J.; Crispini, L.; Gaggero, L.; Pardón-Navarta, J.A.; Marchesi, C. The role of serpenitnites in cycling of carbon and sulfur: Seafloor serpentinization and subduction metamorphism. Lithos 2013, 178, 40–54. [Google Scholar] [CrossRef]
  8. Alt, J.C.; Garrido, C.J.; Shanks, W.; Turchyn, A.V.; Padrón-Navarta, J.A.; Sánchez-Vizcaíno, V.L.; Gómez-Pugnaire, M.T.; Marchesi, C. Recycling of water, carbon, and sulfur during subduction of serpentinites: A stable isotope study of Cerro del Almirez, Spain. Earth Planet. Sci. Lett. 2012, 327, 50–60. [Google Scholar] [CrossRef]
  9. Richards, J.P. The oxidation state, and sulfur and Cu contents of arc magmas: Implications for metallogeny. Lithos 2015, 233, 27–45. [Google Scholar] [CrossRef]
  10. Sato, H. Nickel content of basaltic magmas: Identification of primary magmas and a measure of the degree of olivine fractionation. Lithos 1977, 10, 113–120. [Google Scholar] [CrossRef]
  11. Williams, K.L. An association of awaruite with heazlewoodite. Am. Mineral. 1960, 45, 450–453. [Google Scholar]
  12. Frost, B.R. On the Stability of Sulfides, Oxides, and Native Metals in Serpentinite. J. Petrol. 1985, 26, 31–63. [Google Scholar] [CrossRef]
  13. Abrajano, T.A.; Pasteris, J.D. Zambales ophiolite, Philippines II. Sulfide petrology of the critical zone of the Acoje Massif. Contrib. Mineral. Petrol. 1989, 103, 64–77. [Google Scholar] [CrossRef]
  14. Klein, F.; Bach, W. Fe-Ni-Co-O-S Phase Relations in Peridotite-Seawater Interactions. J. Petrol. 2009, 50, 37–59. [Google Scholar] [CrossRef] [Green Version]
  15. Sleep, N.H.; Meibom, A.; Fridriksson, T.; Coleman, R.G.; Bird, D.K. H2-rich fluids from serpentinization: Geochemical and biotic implications. Proc. Natl. Acad. Sci. USA 2004, 101, 12818–12823. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Marcopoulos, T.; Economou, M. Theophrstite, Ni(OH)2, a new mineral from northern Greece. Am. Mineral. 1981, 66, 1020–1021. [Google Scholar]
  17. Economou, M.; Marcopoulos, T. Genesis of the new mineral theophrastite, Ni(OH)2. Chem. Erde 1983, 42, 53–56. [Google Scholar]
  18. Livingstone, A.; Bish, D.L. On the new mineral thoephrastite, a nickel hydroxide, from Unst, Shetland, Scotland. Mineral. Mag. 1982, 46, 1–5. [Google Scholar] [CrossRef]
  19. Henry, D.A.; Birch, W.D. Otwayite and theophrastite from the Lord Brassey Mine, Tasmania. Mineral. Mag. 1992, 56, 252–255. [Google Scholar] [CrossRef]
  20. Williams, K.L.; Threadgold, I.M.; Hounslow, A.W. Hellyerite, a new nickel carbonate from Heazlewood, Tasmania. Am. Mineral. 1959, 44, 533–538. [Google Scholar]
  21. Isaacs, T. The mineralogy and chemistry of the nickel carbonates. Mineral. Mag. J. Mineral. Soc. 1963, 33, 663–678. [Google Scholar] [CrossRef]
  22. Nickel, E.H.; Hallberg, J.A.; Halligan, R. Unusual nickel mineralisation at Nullagine, Western Australia. J. Geol. Soc. Aust. 1979, 26, 61–71. [Google Scholar] [CrossRef]
  23. Nickel, E.H.; Robinson, B.W.; Davis, C.E.S.; MacDonald, R.D. Otwayite, a new nickel mineral from Western Australia. Am. Mineral. 1977, 62, 999–1002. [Google Scholar]
  24. Hudson, D.R.; Travis, G.A. A native nickel-heazlewoodite-ferroan trevorite assemblage from Mount Clifford, Western Australia. Econ. Geol. 1981, 76, 1686–1697. [Google Scholar] [CrossRef]
  25. Springer, G. Compositional and structural variations in garnierites. Can. Mineral. 1974, 12, 381–388. [Google Scholar]
  26. Arai, S.; Ishimaru, S.; Mizukami, T. Methane and propane micro-inclusions in olivine in titanoclinohumite-bearing dunites from the Sanbagawa high-P metamorphic belt, Japan: Hydrocarbon activity in a subduction zone and Ti mobility. Earth Planet. Sci. Lett. 2012, 353, 1–11. [Google Scholar] [CrossRef]
  27. Onuki, H.; Yoshida, T.; Suzuki, T. The Fujiwara mafic-ultramafic complex in the Sanbagawa metamorphic belt of central Shikoku 1. Petrochemistry and rock-forming mineralogy. J. Jpn. Assoc. Petrol. Mineral. Econ. Geol. 1978, 73, 311–322. (In Japanese) [Google Scholar] [CrossRef]
  28. Ishibashi, K.; Miyahisa, M.; Sasaki, M. Titanclinohumite from Fujiwara ultramafic complex in the Higashi-Akaishi mountainland, Shikoku, Japan. J. Jpn. Assoc. Petrol. Mineral. Econ. Geol. 1978, 73, 18–25. (In Japanese) [Google Scholar] [CrossRef]
  29. Kunugiza, K. Metamorphism and origin of ultramafic bodies of the Sanbagawa metamorphic belt in central Shikoku. J. Jpn. Assoc. Petrol. Mineral. Econ. Geol. 1984, 79, 20–32. (In Japanese) [Google Scholar] [CrossRef]
  30. Mizukami, T.; Wallis, S.R. Structural and petrological constraints on the tectonic evolution of the garnet-lherzolite facies Higashi-akaishi peridotite body, Sanbagawa belt, SW Japan. Tectonics 2005, 24, 6012. [Google Scholar] [CrossRef] [Green Version]
  31. Miyashiro, A. Metamorphism and Metamorphic Belts; George Allen & Unwin: London, UK, 1973; 492p. [Google Scholar]
  32. Banno, S.; Sakai, C. Geology and metamorphic evolution of the Sanbagawa metamorphic belt, Japan. Geol. Soc. Lond. Spec. Publ. 1989, 43, 519–532. [Google Scholar] [CrossRef]
  33. Enami, M. Petrology of the Fujiwara mass and the surrounding pelitic schists in the Sanbagawa metamorphic belt, central Shikoku. J. Geol. Soc. Jpn. 1980, 86, 461–473. (In Japanese) [Google Scholar] [CrossRef] [Green Version]
  34. Garuti, G.; Zaccarini, F. In situ alteration of platinum-group minerals at low temperature: Evidence from serpentinized and weathered chromitite of the Vourinos complex, Greece. Can. Mineral. 1997, 35, 611–626. [Google Scholar]
  35. Garuti, G.; Zaccarini, F.; Cabella, R.; Fershtater, G. Occurrence of unknown Ru-Os-Ir-Fe oxides in the chromitites of the Nurali ultramafic complex, southern Urals, Russia. Can. Mineral. 1997, 35, 1431–1439. [Google Scholar]
  36. Ahmed, A.H.; Arai, S.; Kadoshima, K. Possible platinum-group element (PGE) oxides in the PGE-mineralized chromitite from the Northern Oman Ophiolite. J. Mineral. Petrol. Sci. 2002, 97, 190–198. [Google Scholar] [CrossRef] [Green Version]
  37. Lutz, H.; Möller, H.; Schmidt, M. Lattice vibration spectra. Part LXXII. Brucite-type hydroxides M(OH)2 (M = Ca, Mn, Co, Fe, Cd)—IR and Raman spectra, neutron diffractions of Fe(OH)2. J. Mol. Struct. 1994, 328, 121–132. [Google Scholar] [CrossRef]
  38. Murli, C.; Sharma, S.M.; Kulshreshtha, S.K.; Sikka, S.K. High-pressure behavior of ß-Ni(OH)2—A Raman scattering study. Phys. B 2001, 307, 111–116. [Google Scholar] [CrossRef]
  39. Frost, R.L.; Dickfos, M.J.; Reddy, B.J. Raman spectroscopy of hydroxyl nickel carbonate minerals nullaginite and zaratite. J. Raman Spectr. 2008, 39, 1250–1256. [Google Scholar] [CrossRef] [Green Version]
  40. Frost, R.L.; Weier, M.L.; Martens, W.N.; Mills, S.J. The hydroxylated nickel carbonates otwayite and paraotwayite—A SEM, EDX and vibrational spectroscopic study. Neues Jahrbush Mineral. Abh. 2006, 183, 107–116. [Google Scholar] [CrossRef] [Green Version]
  41. Auzende, A.-L.; Daniel, I.; Reynard, B.; Lemaire, C.; Guyot, R. High-pressure behavior of serpentine minerals: A Raman spectroscopic study. Phys. Chem. Mineral. 2004, 31, 269–277. [Google Scholar] [CrossRef]
  42. Lorand, J.P.; Pinet, M. L’orcelite des péridotites de Beni Bousera (Maroc), Ronda (Espagne), Table Mountain et Blow-Me-Down Mountain (Terre-Neuve) et Du Pinde Septentrional (Grèce). Can. Mineral. 1984, 22, 553–560. (In French) [Google Scholar]
  43. Gritsenko, Y.D.; Spiridonov, E.M. Maucherite from metamorphic-hydrothermal assemblages of the Noril’sk ore field. Geol. Ore Depos. 2008, 50, 590–598. [Google Scholar] [CrossRef]
  44. Bindi, L.; Tredoux, M.; Zaccarini, F.; Miller, D.E.; Garuti, G. Non-stoichiometric nickel arsenides in nature: The structure of orcelite, Ni5−xAs2 (x = 0.25), from the Bon Accord oxide body, South Africa. J. Alloys Compd. 2014, 601, 175–178. [Google Scholar] [CrossRef]
  45. Haxel, G.B.; Wittke, J.H.; Epstein, G.S.; Jacobson, C.E. Serpentinization-related nickel, iron, and cobalt sulfide, arsenide, and intermetallic minerals in an unusual inland tectonic setting, southern Arizona, USA. Geol. Soc. Am. Spec. Pap. 2018, 540, 65–87. [Google Scholar]
  46. Kadota, R.; Minagawa, T.; Ohgoshi, Y.; Hamane, D. Ni-As-Sb metalloid alloys from Higashiakaishi peridotite mass. In Proceedings of the 118th Annual Meeting of the Geological Society of Japan and the 2011 Annual Meeting of the Japan Association of Mineralogical Sciences (Mito Conference), Mito, Japan, 9–11 September 2011; pp. R1–P14. (In Japanese). [Google Scholar]
  47. Kamenetsky, V.; Lygin, A.V.; Foster, J.G.; Meffre, S.; Maas, R.; Kamenetsky, M.B.; Goemann, K.; Beresford, S.W. A story of olivine from the McIvor Hill complex (Tasmania, Australia): Clues to the origin of the Avebury metasomatic Ni sulfide deposit. Am. Mineral. 2016, 101, 1321–1331. [Google Scholar] [CrossRef]
  48. Filippidis, A. Formation of awaruite in the system Ni-Fe-Mg-Si-O-H-S and olivine hydration with NaOH solution, an experimental study. Econ. Geol. 1985, 80, 1974–1980. [Google Scholar] [CrossRef]
  49. Savov, I.; Ryan, J.; D’Antonio, M.; Kelley, K.; Mattie, P. Geochemistry of serpentinized peridotites from the Mariana Forearc Conical Seamount, ODP Leg 125: Implications for the elemental recycling at subduction zones. Geochem. Geophys. Geosystems 2005, 6, Q04J15. [Google Scholar] [CrossRef]
  50. Peretti, A.; Dubessy, J.; Mullis, J.; Frost, B.R.; Trommsdorff, V. Highly reducing conditions during Alpine metamorphism of the Malenco peridotite (Sondrio, northern Italy) indicated by mineral paragenesis and H2 in fluid inclusions. Contrib. Mineral. Petrol. 1992, 112, 329–340. [Google Scholar] [CrossRef]
  51. Barnes, S.J. Chromite in Komatiites, II. Modification during Greenschist to Mid-Amphibolite Facies Metamorphism. J. Petrol. 2000, 41, 387–409. [Google Scholar] [CrossRef] [Green Version]
  52. Gahlan, H.A.; Arai, S.; Ahmed, A.H.; Ishida, Y.; Abdel-Aziz, Y.M.; Rahimi, A. Origin of magnetite veins in serpentinite from the Late Proterozoic Bou-Azzer ophiolite, Anti-Atlas, Morocco: An implication for mobility of iron during serpentinization. J. Afr. Earth Sci. 2006, 46, 318–330. [Google Scholar] [CrossRef]
  53. Tzamos, E.; Filippidis, A.; Michailidis, K.; Koroneos, A.; Rassios, A.; Grieco, G.; Pedrotti, M.; Stamoulis, K. Mineral Chemistry and Formation of Awaruite and Heazlewoodite in the Xerolivado Chrome Mine, Vourinos, Greece. Bull. Geol. Soc. Greece 2016, 50, 2047–2056. [Google Scholar] [CrossRef] [Green Version]
  54. Evans, B.W. Lizardite versus antigorite serpentinite: Magnetite, hydrogen, and life (?). Geology 2010, 38, 879–882. [Google Scholar] [CrossRef]
  55. Klein, F.; Bach, W.; Humbphris, S.E.; Kahl, W.-A.; Jöns, N.; Moskowitz, B.; Berquó, T.S. Magnetite in seafloor serpentinites—Some like it hot. Geology 2014, 42, 135–138. [Google Scholar] [CrossRef]
  56. Merlini, A.; Grieco, G.; Diella, V. Ferritchromite and chromian-chlorite formation in melange-hosted Kalkan chromitite (Southern Urals, Russia). Am. Mineral. 2009, 94, 1459–1467. [Google Scholar] [CrossRef]
  57. Khedr, M.Z.; Arai, S. Hydrous peridotites with Ti-rich chromian spinel as a low-temperature forearc mantle facies: Evidence from the Happo-O’ne metaperidotites (Japan). Contrib. Mineral. Petrol. 2010, 159, 137–157. [Google Scholar] [CrossRef]
  58. Nickel, E.H.; Berry, L.G. The new mineral nullaginite and additional data on the related minerals rosasite and glaukosphaerite. Can. Mineral. 1981, 19, 315–324. [Google Scholar]
  59. Nickel, E.H.; Graham, J. Paraotowayite, a new nickel hydroxide mineral from Western Australia. Can. Mineral. 1987, 25, 409–411. [Google Scholar]
  60. Ziemniak, S.; Goyette, M. Nickel (II) Oxide Solubility and Phase Stability in High Temperature Aqueous Solutions. J. Solut. Chem. 2004, 33, 1135–1159. [Google Scholar] [CrossRef]
  61. Evans, B.W.; Johannes, W.; Oterdoom, H.; Trommsdorff, V. Stability of chrysotile and antigorite in the serpentinite multisystem. Schweiz. Mineral. Petrogr. Mitt. 1976, 56, 79–93. [Google Scholar]
  62. Economou-Eliopoulos, M. Apatite and Mn, Zn, Co-enriched chromite in Ni-laterites of northern Greece and their genetic significance. J. Geochem. Explor. 2003, 80, 41–54. [Google Scholar] [CrossRef]
  63. Prichard, H.M.; Ixer, R.B.; Lord, R.A.; Maynard, J.; Williams, N. Assemblages of platinum-group minerals and sulfides in silicate lithologies and chromite-rich rocks within the Shetland ophiolite. Can. Mineral. 1994, 32, 271–294. [Google Scholar]
  64. Buckley, A.N.; Woods, R. Electrochemical and XPS studies of the surface oxidation of synthetic heazlewoodite (Ni3S2). J. Appl. Electrochem. 1991, 21, 575–582. [Google Scholar] [CrossRef]
  65. Naldrett, A.J. Magmatic Sulfide Deposits: Geology, Geochemistry and Exploration; Clarendon Press/Oxford University Press: New York, NY, USA, 1989; 186p. [Google Scholar]
  66. Guillot, S.; Hattori, K.; Agard, P.; Schwartz, S.; Vidal, O. Exhumation processes in oceanic and continental subduction contexts: A review. In Subduction Zone Geodynamics; Lallemand, S., Funiciello, F., Eds.; Springer: Berlin, Germany, 2009; pp. 175–205. [Google Scholar]
  67. Shibata, T. On the Occurrence of Anhydrite in the Iratsu Ultramafic Complex, Central Shikoku. J. Jpn. Assoc. Miner. Petrol. Econ. Geol. 1972, 67, 76–83. [Google Scholar] [CrossRef]
  68. Yamamoto, M.; Shibata, T.; Kusakabe, M. Sulfur and oxygen isotope ratios of anhydrite from the Iratsu peridotite-hornblendite-epidote amphibolite complex, central Shikoku, Japan. Geochem. J. 1987, 21, 247–251. [Google Scholar] [CrossRef]
  69. Ota, T.; Terabayashi, M.; Katayama, I. Thermobaric structure and metamorphic evolution of the Iratsu eclogite body in the Sanbagawa belt, central Shikoku, Japan. Lithos 2004, 73, 95–126. [Google Scholar] [CrossRef]
  70. Endo, S.; Mizukami, T.; Wallis, S.R.; Tamura, A.; Arai, S. Orthopyroxene-rich Rocks from the Sanbagawa Belt (SW Japan): Fluid–Rock Interaction in the Forearc Slab–Mantle Wedge Interface. J. Petrol. 2015, 56, 1113–1137. [Google Scholar] [CrossRef] [Green Version]
  71. Ahmed, Z.; Hall, A. Nickeliferous opaque minerals associated with chromite alteration in the Sakhakot-Qila complex, Pakistan, and their compositional variation. Lithos 1982, 15, 39–47. [Google Scholar] [CrossRef]
Minerals 10 00806 g001 550

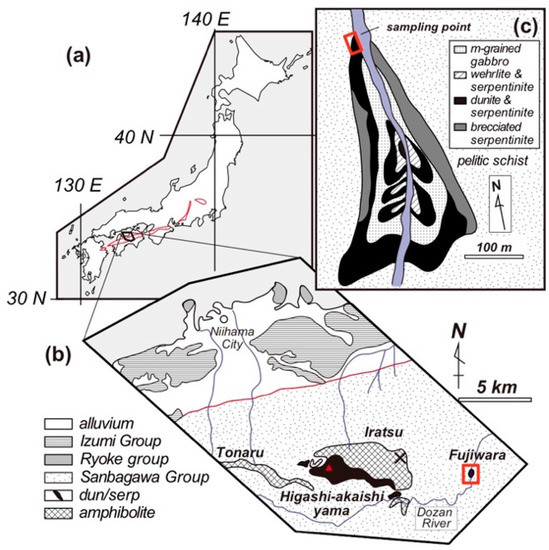

Figure 1. Location of the Fujiwara dunite in the Sanbagawa metamorphic belt, Japan. Modified from [27,28]. (a) The Sanbagawa metamorphic belt in Shikoku Island, southwest Japan. (b) Part of the Sanbagawa belt and the location of the Fujiwara body (c).
Figure 1. Location of the Fujiwara dunite in the Sanbagawa metamorphic belt, Japan. Modified from [27,28]. (a) The Sanbagawa metamorphic belt in Shikoku Island, southwest Japan. (b) Part of the Sanbagawa belt and the location of the Fujiwara body (c).
Minerals 10 00806 g001
Minerals 10 00806 g002 550

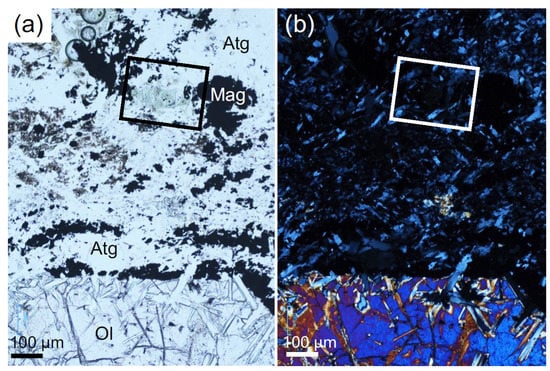

Figure 2. Photomicrographs of the partially serpentinized dunite that contains theophrastite-zaratite aggregates from Fujiwara, the Sanbagawa metamorphic belt, southwest Japan. Atg, antigorite. Mag, magnetite. Ol, olivine. (a) Antigorite-rich part with relic olivine. Note the penetration of antigorite laths into olivine. Plane-polarized light. The theophrastite-zaratite aggregate was found in the rectangle, which is enlarged as Figure 3. (b) Crossed-polarized light image of (a).
Figure 2. Photomicrographs of the partially serpentinized dunite that contains theophrastite-zaratite aggregates from Fujiwara, the Sanbagawa metamorphic belt, southwest Japan. Atg, antigorite. Mag, magnetite. Ol, olivine. (a) Antigorite-rich part with relic olivine. Note the penetration of antigorite laths into olivine. Plane-polarized light. The theophrastite-zaratite aggregate was found in the rectangle, which is enlarged as Figure 3. (b) Crossed-polarized light image of (a).
Minerals 10 00806 g002
Minerals 10 00806 g003 550

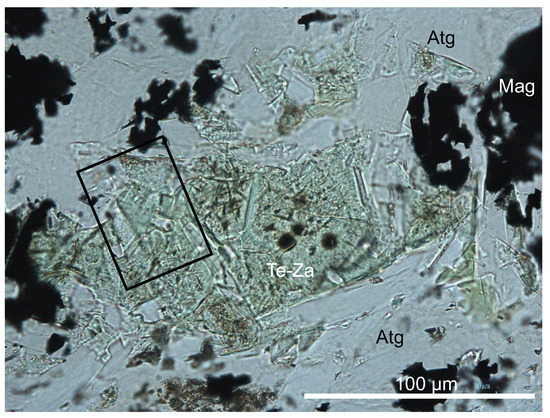

Figure 3. Discrete grain of theophrastite-zaratite aggregate (light green; Te-Za) within an antigorite-rich part. Note the penetration of antigorite laths into the aggregate. Dark spots represent damages due to the evaporation of volatiles in microprobe analysis. Plane-polarized light. The rectangle shows an area for Raman spectroscopic analysis below.
Figure 3. Discrete grain of theophrastite-zaratite aggregate (light green; Te-Za) within an antigorite-rich part. Note the penetration of antigorite laths into the aggregate. Dark spots represent damages due to the evaporation of volatiles in microprobe analysis. Plane-polarized light. The rectangle shows an area for Raman spectroscopic analysis below.
Minerals 10 00806 g003
Minerals 10 00806 g004 550

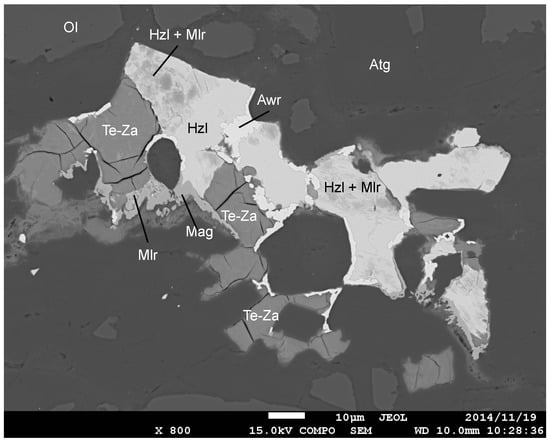

Figure 4. SEM (scanning electron microscope) image of a composite grain containing theophrastite-zaratite aggregate (Te-Za). Note the cracking in the Te-Za aggregate. Awr, awaruite. Hzl, heazlewoodite. Mlr, millerite. Mag, magnetite. Ol, olivine. Atg, antigorite. Bar is 10 µm.
Figure 4. SEM (scanning electron microscope) image of a composite grain containing theophrastite-zaratite aggregate (Te-Za). Note the cracking in the Te-Za aggregate. Awr, awaruite. Hzl, heazlewoodite. Mlr, millerite. Mag, magnetite. Ol, olivine. Atg, antigorite. Bar is 10 µm.
Minerals 10 00806 g004
Minerals 10 00806 g005 550

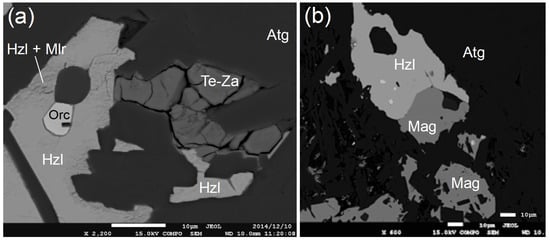

Figure 5. SEM images of heazlewoodite and related minerals. (a) Theophrastite-zaratite aggregate (Te-Za) associated with heazlewoodite. Note the inclusion of orcelite (Orc; arsenide) which contains am antigorite lath. Hzl, heazlewoodite. Mlr, millerite. Atg, antigorite. (b) Magnetite (Mag) associated with heazlewoodite. Note that the antigorite laths included by Hzl and Mag. Bright dots in Hzl are orcelite.
Figure 5. SEM images of heazlewoodite and related minerals. (a) Theophrastite-zaratite aggregate (Te-Za) associated with heazlewoodite. Note the inclusion of orcelite (Orc; arsenide) which contains am antigorite lath. Hzl, heazlewoodite. Mlr, millerite. Atg, antigorite. (b) Magnetite (Mag) associated with heazlewoodite. Note that the antigorite laths included by Hzl and Mag. Bright dots in Hzl are orcelite.
Minerals 10 00806 g005
Minerals 10 00806 g006 550

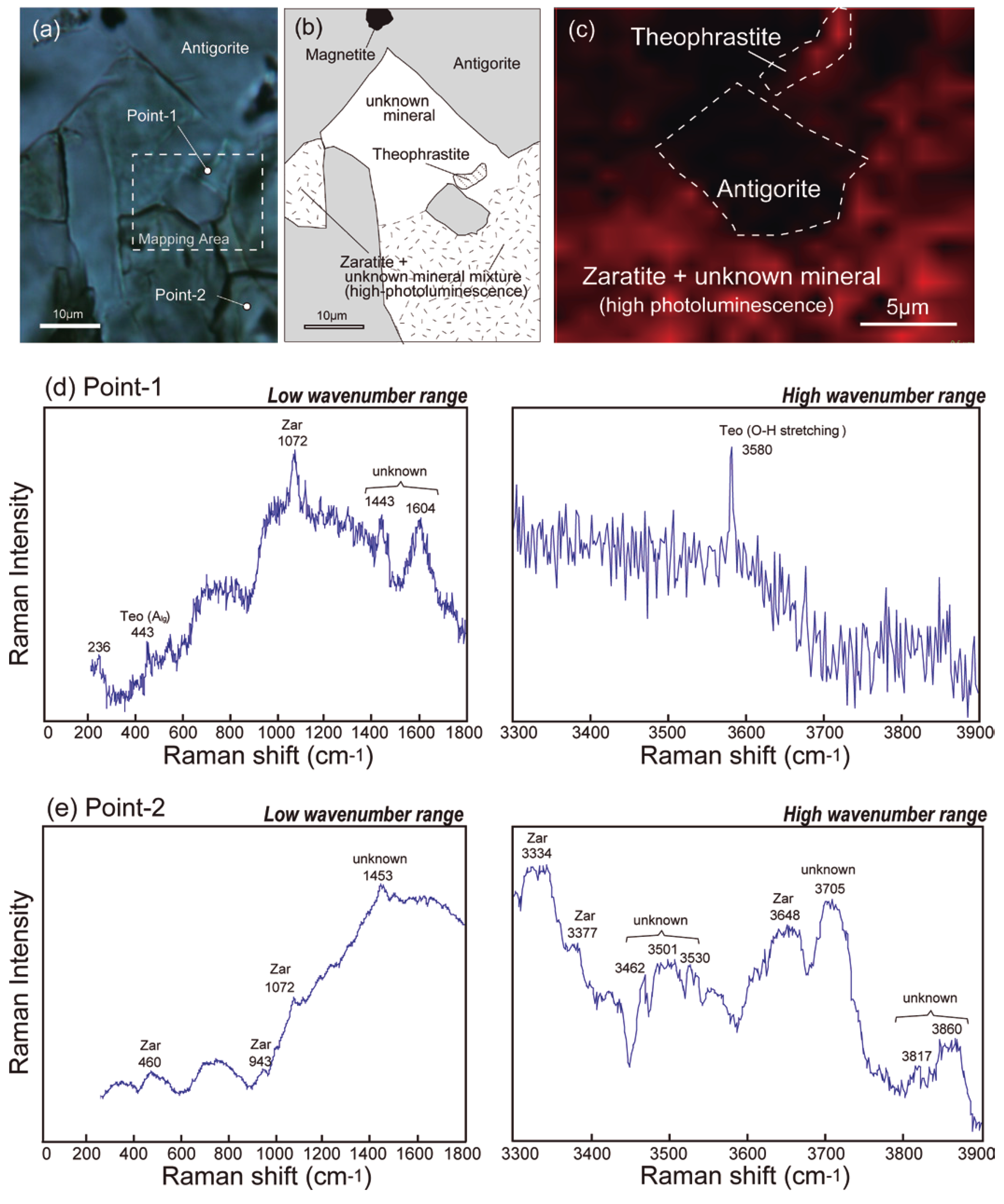

Figure 6. Laser Raman spectroscopy of the theophrastite-zaratite aggregate in the dunite from Fujiwara, Japan. (a) Plane-polarized image of the examined area, which is equivalent to the rectangle in Figure 3. The rectangle shows the area for Raman spectroscopic mapping (c). Spectra for points 1 and 2 are shown in panels (d,e), respectively. (b) Summary of identification of mineral species for the area of panel (a). (c) Distribution of Raman spectral intensity in terms of wavenumber = 3580 cm−1, where one of the main peaks for theophrastite is available [37]. Theophrastite was identified only from an encircled area, but the other area shows high photoluminescence, where only zaratite was identified [39]. (d) Raman spectra from Point 1 (panel (a)), where theophrastite was identified. Note a prominent band at 3580 cm−1 caused by O-H stretching vibrations of theophrastite [37]. (e) Raman spectra from Point 2 (panel (a)), where only zaratite was identified with high photoluminescence background. Teo, theophrastite. Zar, zaratite.
Figure 6. Laser Raman spectroscopy of the theophrastite-zaratite aggregate in the dunite from Fujiwara, Japan. (a) Plane-polarized image of the examined area, which is equivalent to the rectangle in Figure 3. The rectangle shows the area for Raman spectroscopic mapping (c). Spectra for points 1 and 2 are shown in panels (d,e), respectively. (b) Summary of identification of mineral species for the area of panel (a). (c) Distribution of Raman spectral intensity in terms of wavenumber = 3580 cm−1, where one of the main peaks for theophrastite is available [37]. Theophrastite was identified only from an encircled area, but the other area shows high photoluminescence, where only zaratite was identified [39]. (d) Raman spectra from Point 1 (panel (a)), where theophrastite was identified. Note a prominent band at 3580 cm−1 caused by O-H stretching vibrations of theophrastite [37]. (e) Raman spectra from Point 2 (panel (a)), where only zaratite was identified with high photoluminescence background. Teo, theophrastite. Zar, zaratite.
Minerals 10 00806 g006
Minerals 10 00806 g007 550

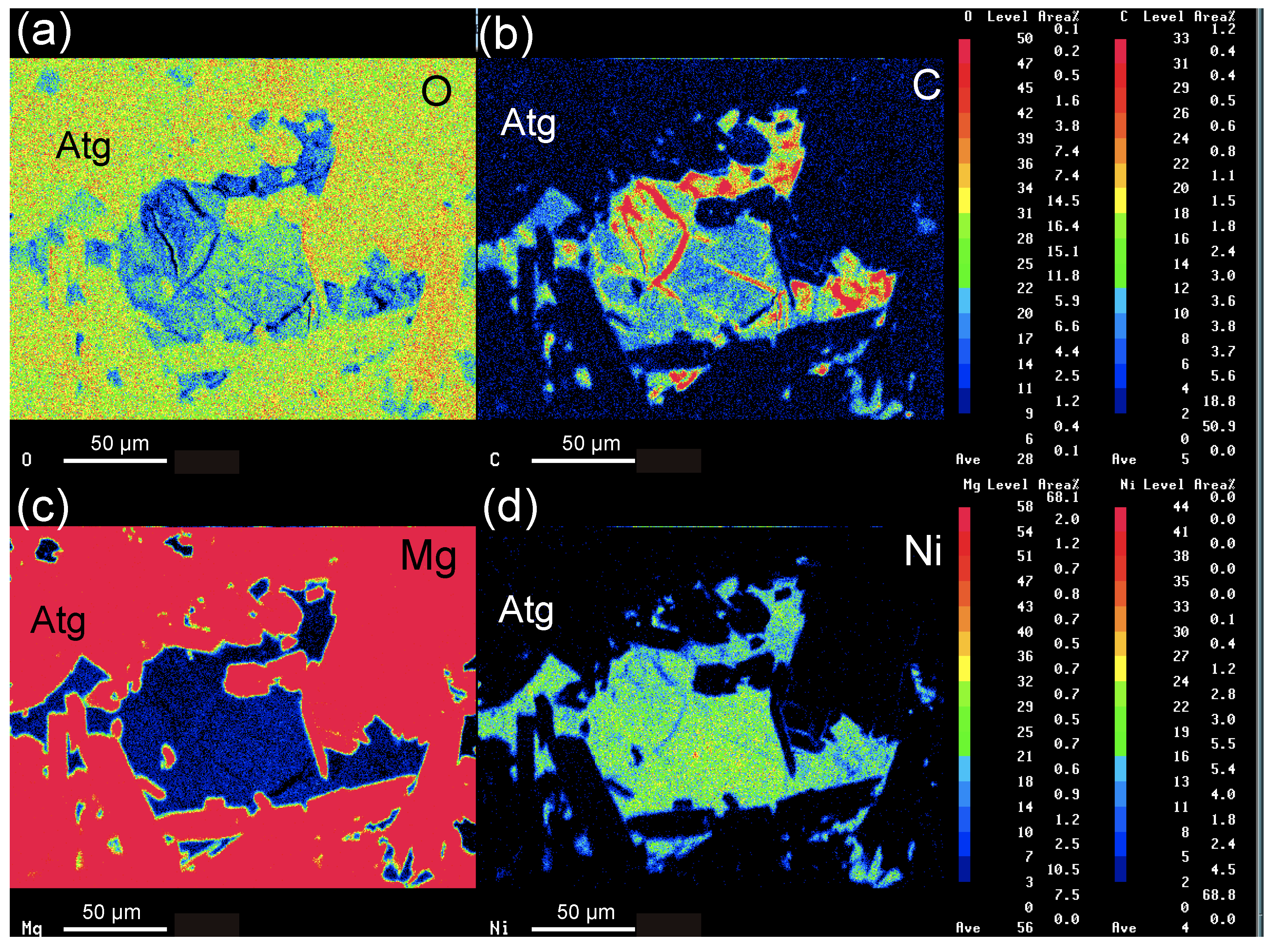

Figure 7. Distributions of elements (O, C, Mg and Ni) determined by microprobe in the zaratite-theophrastite aggregate and surroundings. The beam size was less than 1 (nominally 0) µm across, and the scanning step was 1 µm in microprobe analysis. The analyzed field is almost equivalent to that of Figure 3. Warmer colors represent higher contents than cooler colors. (a) O. Note that the low O content along fine cracks in the zaratite-theophrastite aggregate was due to remnants of carbon coating for previous microprobe analysis. (b) C. Note the sporadic high C contents (red to orange colors) due to incomplete cleaning of carbon coating for previous microprobe analysis. (c) Mg. Note the low and homogeneous Mg content in the aggregate. (d) Ni. Note the homogeneous Ni content in the aggregate.
Figure 7. Distributions of elements (O, C, Mg and Ni) determined by microprobe in the zaratite-theophrastite aggregate and surroundings. The beam size was less than 1 (nominally 0) µm across, and the scanning step was 1 µm in microprobe analysis. The analyzed field is almost equivalent to that of Figure 3. Warmer colors represent higher contents than cooler colors. (a) O. Note that the low O content along fine cracks in the zaratite-theophrastite aggregate was due to remnants of carbon coating for previous microprobe analysis. (b) C. Note the sporadic high C contents (red to orange colors) due to incomplete cleaning of carbon coating for previous microprobe analysis. (c) Mg. Note the low and homogeneous Mg content in the aggregate. (d) Ni. Note the homogeneous Ni content in the aggregate.
Minerals 10 00806 g007
Minerals 10 00806 g008 550
Figure 8. Schematic illustration of the process of desulfurization of heazlewoodite. The metamorphic heazlewoodite (Hzl, Ni3S2; pale green) has been decomposed to millerite (Mlr, NiS; green) and theophrastite [Te, Ni(OH)2] and zaratite [Za, Ni3(CO3)(OH)4·4H2O)] (dark yellow) during/after exhumation of the complex.
Figure 8. Schematic illustration of the process of desulfurization of heazlewoodite. The metamorphic heazlewoodite (Hzl, Ni3S2; pale green) has been decomposed to millerite (Mlr, NiS; green) and theophrastite [Te, Ni(OH)2] and zaratite [Za, Ni3(CO3)(OH)4·4H2O)] (dark yellow) during/after exhumation of the complex.
Minerals 10 00806 g008
Table
Table 1. Selected microprobe analyses of minerals in the meta-dunite (T4-8) from Fujiwara, the Sanbagawa metamorphic belt, Southwest Japan.
Table 1. Selected microprobe analyses of minerals in the meta-dunite (T4-8) from Fujiwara, the Sanbagawa metamorphic belt, Southwest Japan.
PhaseOlTi-ChuChlAtgChrFchMagTe-Za
SiO240.4740.9037.0234.7544.09nd0.440.010.170.220.20
TiO20.030.403.31nd0.030.910.73016ndnd0.03
Al2O3ndndnd11.760.4017.513.160.030.01nd0.01
Cr2O3ndnd0.020.51nd35.3931.110.18ndndnd
FeO*10.954.956.633.201.1635.6653.4991.810.150.280.81
MnO0.790.210.350.010.041.182.500.17ndndnd
MgO48.3653.1450.7835.5240.358.333.730.984,175.054.49
CaO0.010.010.010.01nd0.02ndnd0.370.310.26
Na2Ondnd0.010.01nd0.020.050.040.030.030.05
K2Ondndnd0.010.01ndndndndndnd
NiO0.410.270.130.100.110.220.530.6660.4557.2258.97
Total101.0499.8898.2585.8786.1899.2495.7294.0265.3863.1164.81
O4413147444101010
Si0.9920.9852.9963.3192.0560.0000.0180.0000.0300.0410.036
Ti0.0010.0070.2010.0000.0010.0230.0220.0060.0000.0000.003
Al0.0000.0000.0001.3230.0220.7010.1530.0020.0010.0000.003
Cr0.0000.0000.0010.0380.0000.9501.0110.0070.0000.0000.000
Fe*0.2240.1000.4480.2550.0451.0131.8393.8650.0230.0420.122
Mn0.0160.0040.0240.0000.0020.0340.0870.0070.0000.0000.000
Mg1.7661.9056.1225.0542.8020.4220.2293.8651.1151.3781.024
Ca0.0000.0000.0010.0010.0000.0010.0000.0070.0710.0620.049
Na0.0000.0000.0010.0020.0000.0020.0040.0000.0100.0090.018
K0.0000.0000.0000.0010.0000.0000.0000.0040.0000.0000.000
Ni0.0080.0050.0090.0080.0040.0060.0180.0008.7218.4328.533
Total3.0083.0089.80310.0024.9323.1523.3383.9919.9739.9649.968
Mg#0.8870.9500.9320.9520.9840.4050.2110.0560.9800.9700.908
Cr# 0.5760.8690.812
YCr 0.4650.4710.003
YAl 0.3430.0710.001
YFe 0.1920.4580.997
In wt.% for oxides. Ol, olivine. Ti-Chu, titanoclinohumite. Chl, chlorite. Atg, antigorite. Chr, chromian spinel. Fch, ferritchromite. Mag, magnetite. Te-Za, theophrastite-zaratite agggregate. FeO* & Fe*, total iron as FeO & Fe*, respectively. nd, not detected. Mg#, Mg/(Mg + Fe2+) atomic ratio. Cr#, Cr/(Cr + Al) atomic ratio. YCr, YAl & YFe, atomic fractions of Cr, Al & Fe3+ to (Cr + Al + Fe3+).
Table
Table 2. Selected SEM analyses of sulfides, arsenides and alloy in the meta-dunite (T4-8) from Fujiwara in the Sanbagawa metamorphic belt, southwest Japan.
Table 2. Selected SEM analyses of sulfides, arsenides and alloy in the meta-dunite (T4-8) from Fujiwara in the Sanbagawa metamorphic belt, southwest Japan.
MineralsHzlMlrHzl*Mlr*OrcMauAwr
Fe 1.660.660.31 22.01
Co0.69 0.64 1.48
Ni71.4564.2771.4663.4961.9052.1633.02
Sb 3.563.16
S27.2233.0226.1335.00 0.15
As 34.4845.99
Total99.1297.2999.8999.15100.25101.3197.29
Fe 0.0140.0050.004 0.235
Co0.004 0.005 0.015
Ni0.5870.5150.5870.4950.6810.5810.747
Sb 0.0190.017
S0.4090.4850.3930.499 0.003
As 0.2970.402
Total1.0001.0001.0001.0001.0001.0001.000
Ni/(Ni + Fe)1.001.000.980.990.991.000.76
Ni/As 2.291.45
Hzl, heazlewoodite; Mlr, millerite; Orc, orcelite; Mau, maucherite; Awr, awaruite. Hzl*, Mlr*, bright and dark parts, respectively, in (Hzl + Mlr) (Figure 4 and Figure 5). Blank, not detected. wt.% and number of atoms (total = 1) in the upper and lower rows, respectively.

Share and Cite

MDPI and ACS Style

Arai, S.; Ishimaru, S.; Miura, M.; Akizawa, N.; Mizukami, T. Post-Serpentinization Formation of Theophrastite-Zaratite by Heazlewoodite Desulfurization: An Implication for Shallow Behavior of Sulfur in a Subduction Complex. Minerals 2020, 10, 806. https://doi.org/10.3390/min10090806

AMA Style

Arai S, Ishimaru S, Miura M, Akizawa N, Mizukami T. Post-Serpentinization Formation of Theophrastite-Zaratite by Heazlewoodite Desulfurization: An Implication for Shallow Behavior of Sulfur in a Subduction Complex. Minerals. 2020; 10(9):806. https://doi.org/10.3390/min10090806

Chicago/Turabian Style

Arai, Shoji, Satoko Ishimaru, Makoto Miura, Norikatsu Akizawa, and Tomoyuki Mizukami. 2020. "Post-Serpentinization Formation of Theophrastite-Zaratite by Heazlewoodite Desulfurization: An Implication for Shallow Behavior of Sulfur in a Subduction Complex" Minerals 10, no. 9: 806. https://doi.org/10.3390/min10090806

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
