Mineralization Age and Hydrothermal Evolution of the Fukeshan Cu (Mo) Deposit in the Northern Great Xing’an Range, Northeast China: Evidence from Fluid Inclusions, H–O–S–Pb Isotopes, and Re–Os Geochronology

1
College of Earth Sciences, Jilin University, Changchun 130061, China
2
Geological Survey Institute of Jilin Province, Changchun 130102, China
3
Geological Science Institute of Heilongjiang Province, Harbin 150088, China
4
Key Laboratory of Mineral Resources Evaluation in Northeast Asia, Ministry of Land and Resources, Changchun 130061, China
5
College of Earth Science and Engineering, Shandong University of Science and Technology, Qingdao 266590, China
*
Authors to whom correspondence should be addressed.
Minerals 2020, 10(7), 591; https://doi.org/10.3390/min10070591
Received: 15 June 2020 / Revised: 28 June 2020 / Accepted: 29 June 2020 / Published: 30 June 2020
(This article belongs to the Special Issue Magmatic–Hydrothermal Alteration and Mineralizing Processes)

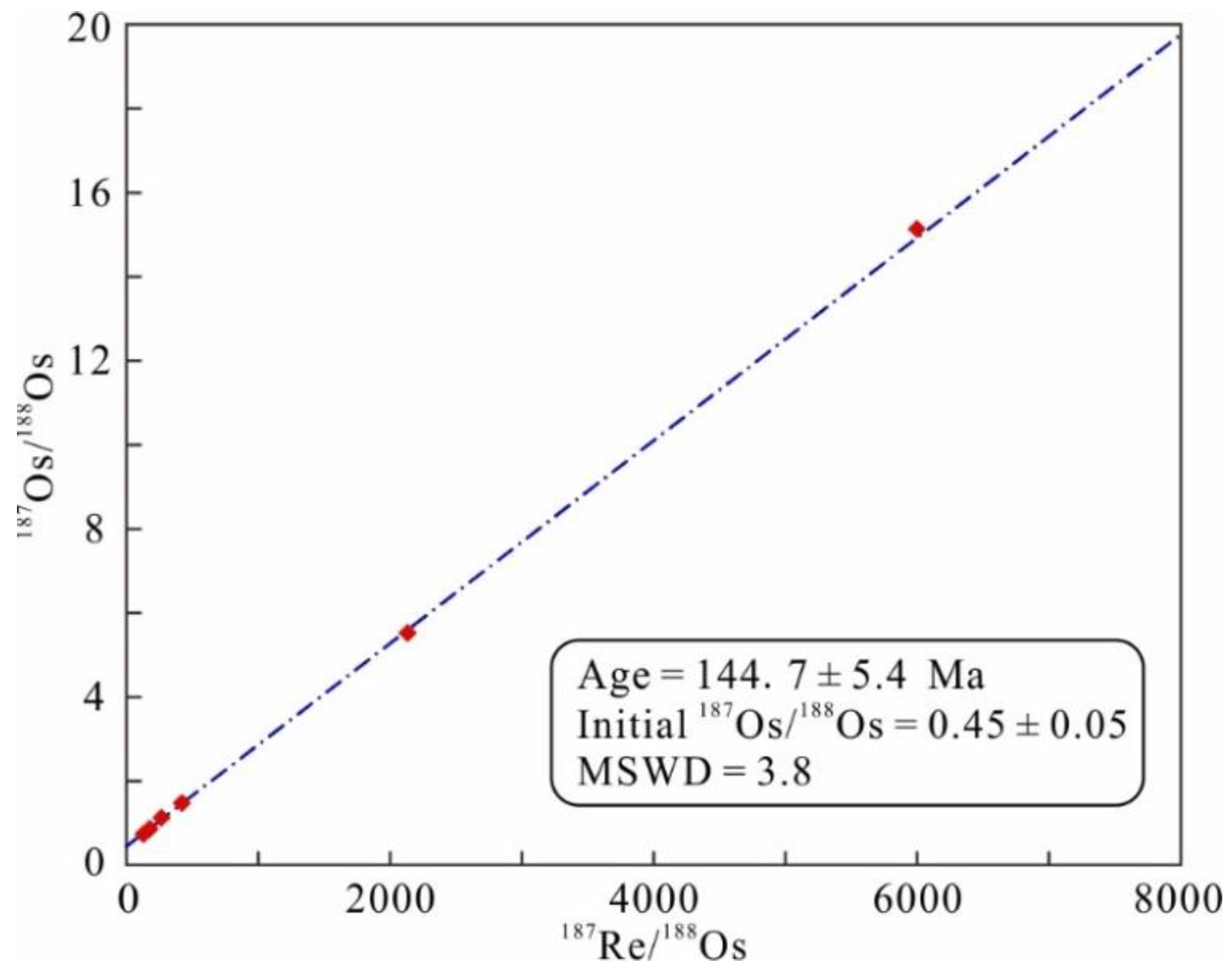

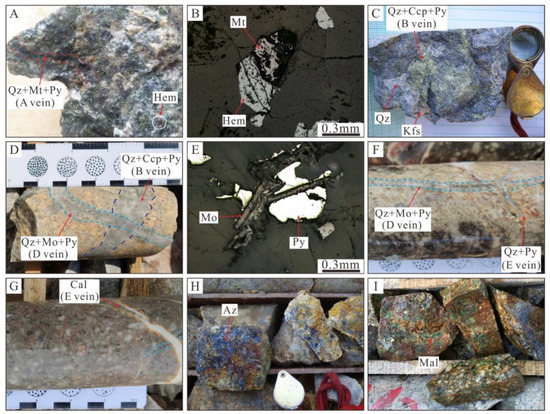

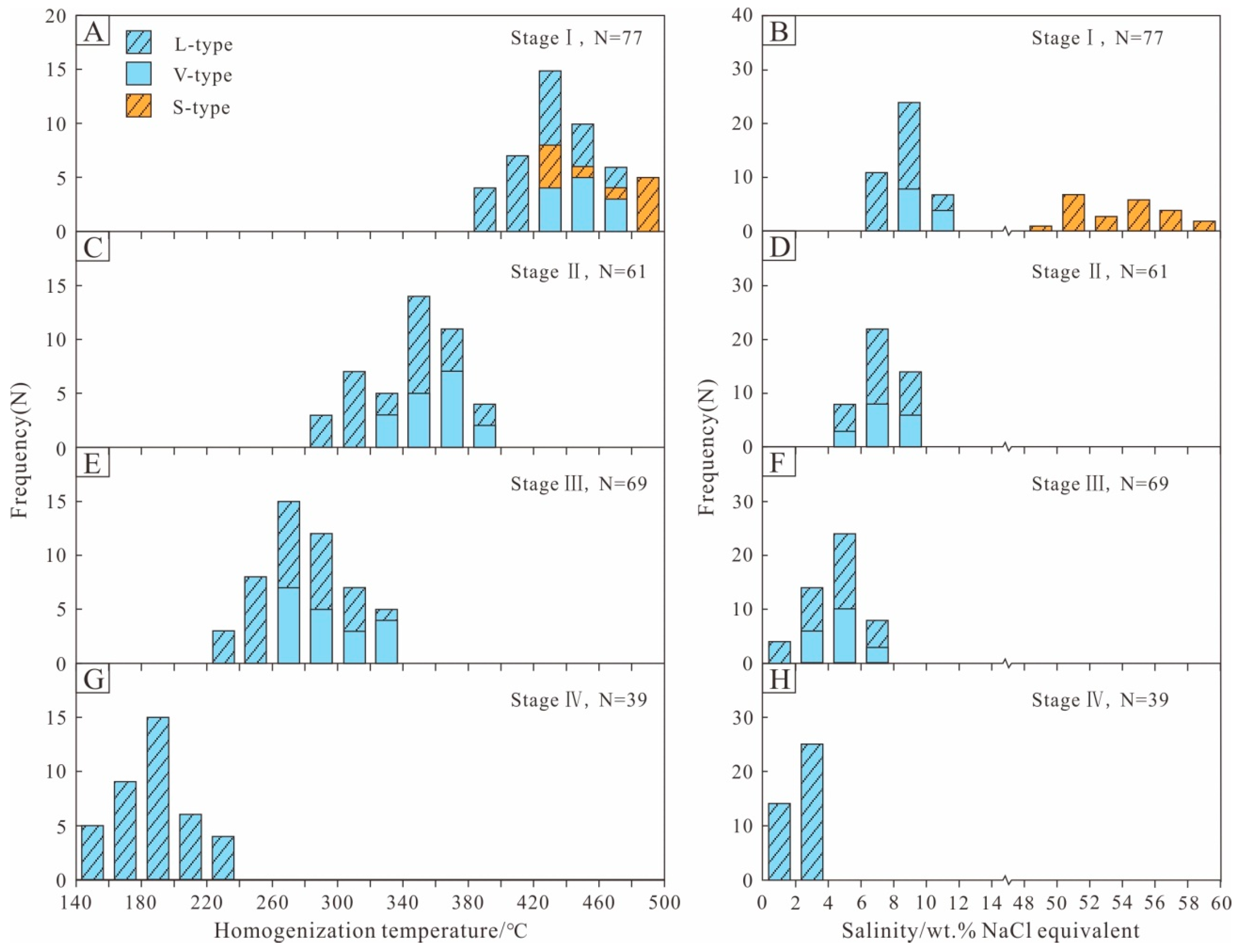

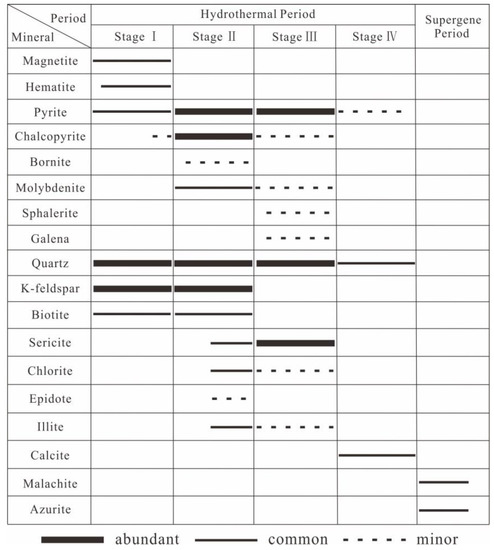

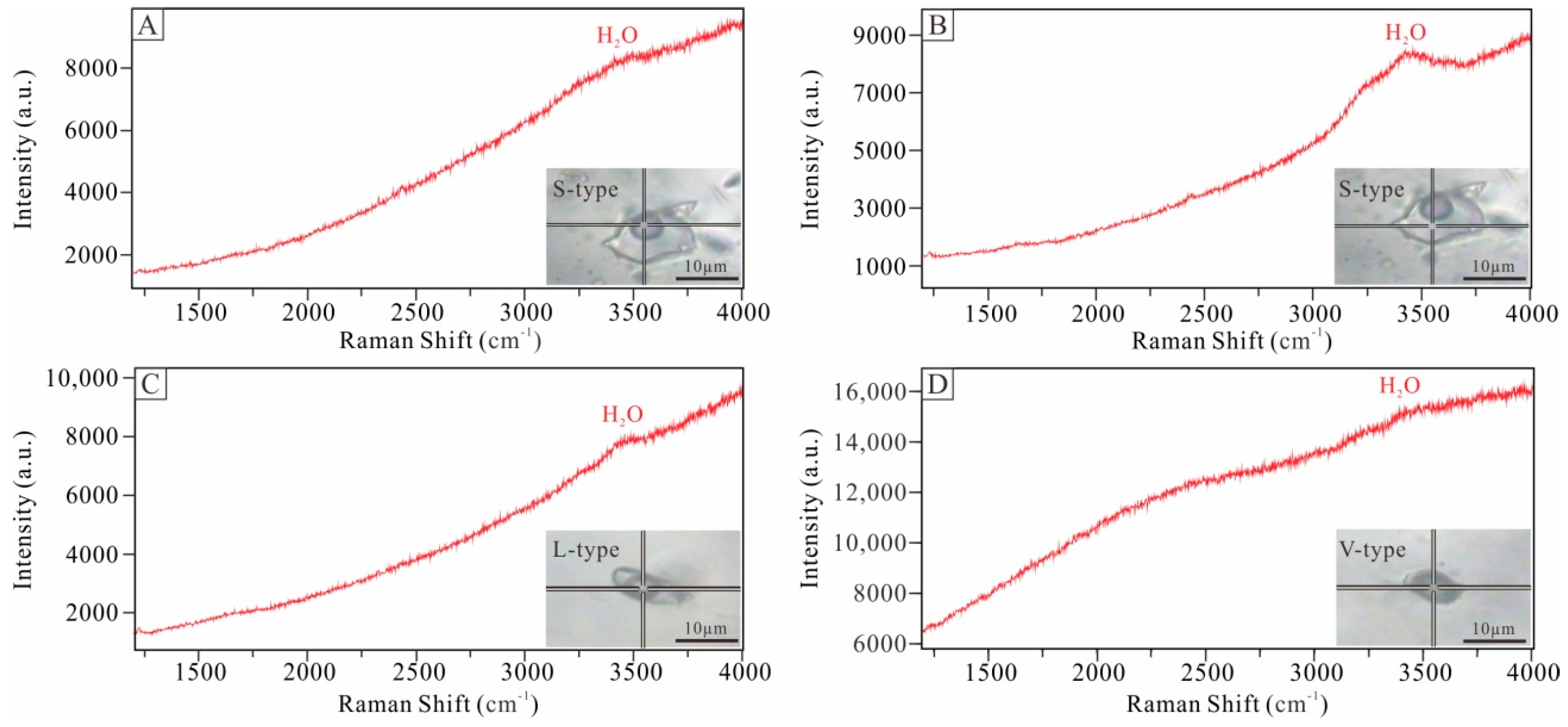

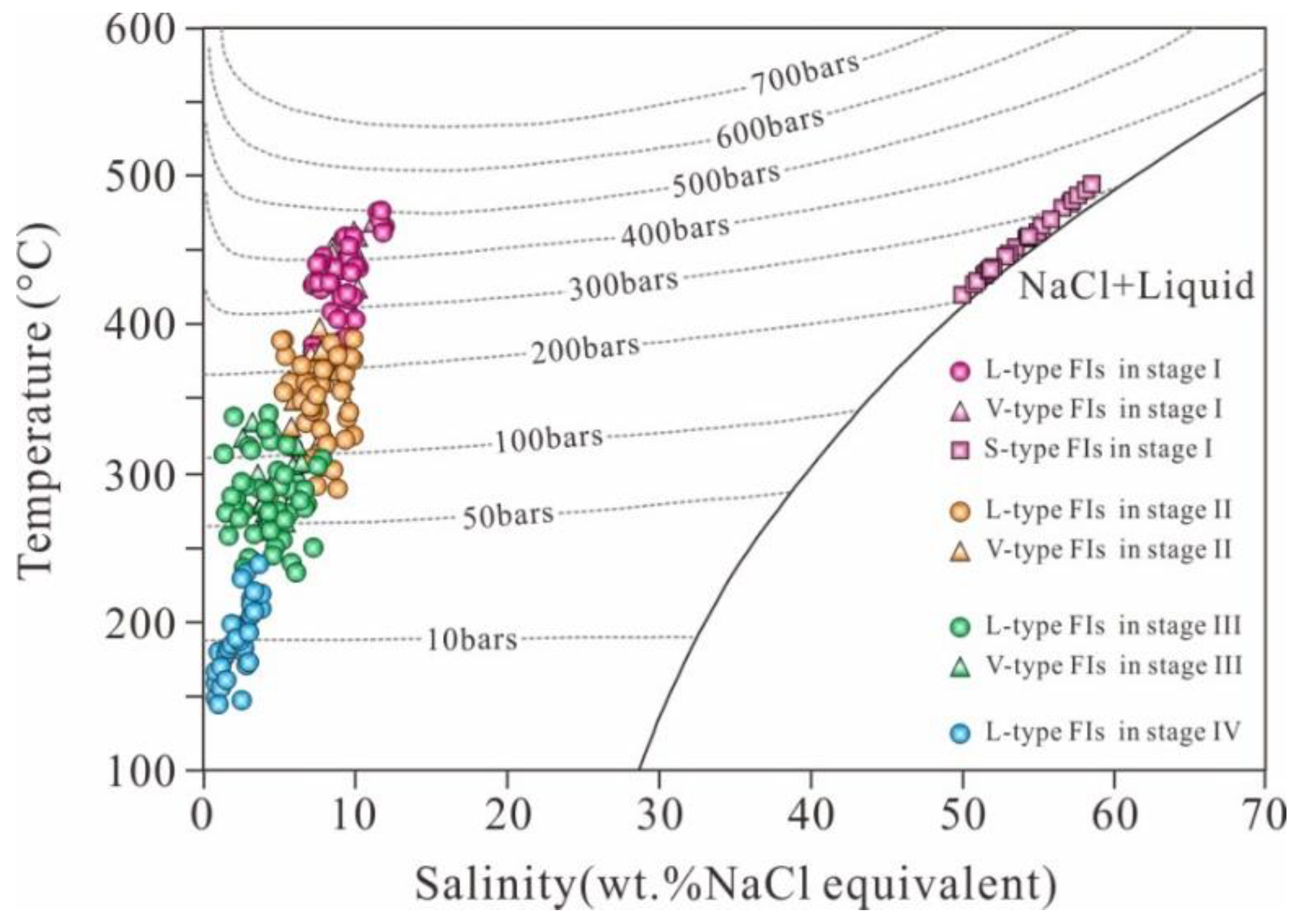

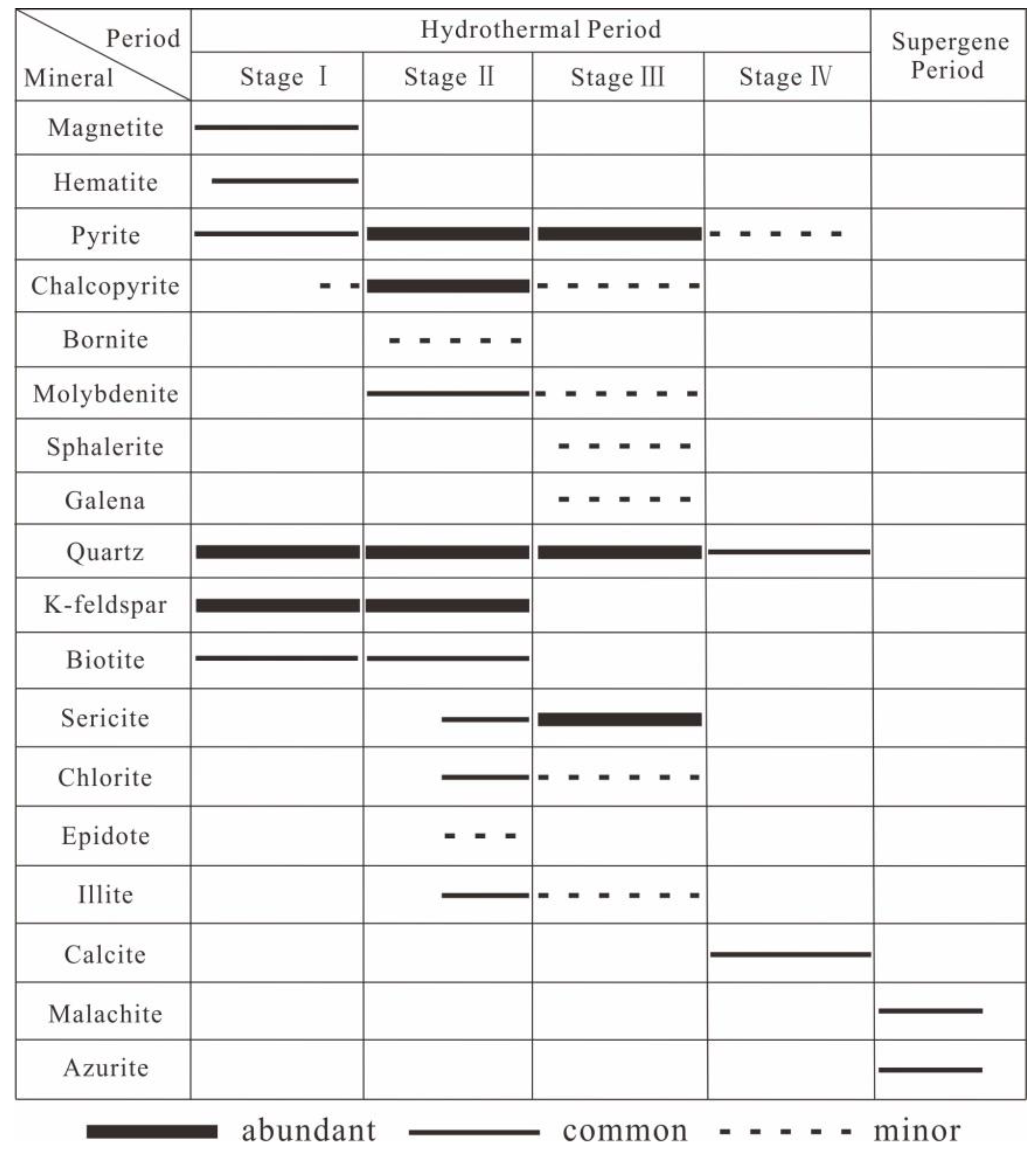

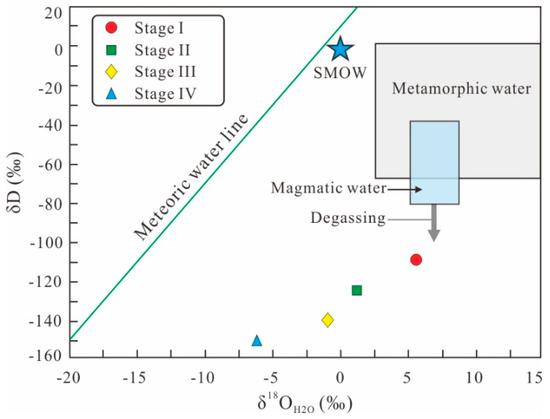

The Fukeshan Cu (Mo) deposit is a newfound porphyry deposit in the northern Great Xing’an Range (GXR), northeast China. In this paper, we present results of chalcopyrite Re–Os geochronology, microthermometry of the fluid inclusions (FIs), and isotopic (H–O–S–Pb) compositions of the Fukeshan Cu (Mo) deposit. Its ore-forming process can be divided into sulfide-barren quartz veins (A vein; stage I), quartz + chalcopyrite + pyrite veins (B vein; stage II), quartz + polymetallic sulfide veins (D vein; stage III), and barren quartz + carbonate ± pyrite veins (E vein; stage IV), with Cu mineralization mainly occurred in stage II. Three types of FIs are identified in this deposit: liquid-rich two-phase (L-type) FIs, vapor-rich two-phase (V-type) FIs, daughter mineral-bearing three-phase (S-type) FIs. The homogenization temperatures of primary FIs hosted in quartz of stages I–IV are 381–494 °C, 282–398 °C, 233–340 °C, and 144–239 °C, with salinities of 7.2–58.6, 4.8–9.9, 1.4–7.9, and 0.9–3.9 wt. % NaCl equivalent, respectively. FIs microthermometry and H–O isotope data suggest that the ore-forming fluids were magmatic in origin and were gradually mixed with meteoric water from stages II to IV. Sulfur and lead isotope results indicate that the ore-forming materials of the Fukeshan Cu (Mo) deposit were likely to have originated from Late Jurassic intrusive rocks. The available data suggest that fluid cooling and incursions of meteoric water into the magmatic fluids were two important factors for Cu precipitation in the Fukeshan Cu (Mo) deposit. Chalcopyrite Re–Os dating yielded an isochron age of 144.7 ± 5.4 Ma, which is similar to the zircon U–Pb age of the quartz diorite porphyry, indicating that Late Jurassic quartz diorite porphyry and Cu mineralization occurred contemporaneously. View Full-Text
Keywords: Fukeshan Cu (Mo) deposit; fluid inclusions; H–O–S–Pb isotope; chalcopyrite Re–Os dating; Great Xing’an Range Fukeshan Cu (Mo) deposit; fluid inclusions; H–O–S–Pb isotope; chalcopyrite Re–Os dating; Great Xing’an Range
