A Wider Impedance Bandwidth Dual Filter Symmetrical MIMO Antenna for High-Speed Wideband Wireless Applications

1
Chitkara University Institute of Engineering and Technology, Chitkara University, Rajpura 140401, India
2
Department of Information Technology, G.L. Bajaj Institute of Technology and Management, Greater Noida 201308, India
3
Department of Computer Science, College of Computer, Qassim University, Buraydah 51452, Saudi Arabia
4
School of Computer Science and Engineering, Lovely Professional University, Phagwara, Punjab 144411, India
5
Higher Polytechnic School, Universidad Europea del Atlántico, C/Isabel Torres 21, 39011 Santander, Spain
6
Institute of Software Design and Development, Obuda University, 1034 Budapest, Hungary
*
Author to whom correspondence should be addressed.
Academic Editors: Christos Volos and Tomohiro Inagaki
Symmetry 2022, 14(1), 29; https://doi.org/10.3390/sym14010029
Received: 23 September 2021 / Revised: 19 October 2021 / Accepted: 26 October 2021 / Published: 27 December 2021

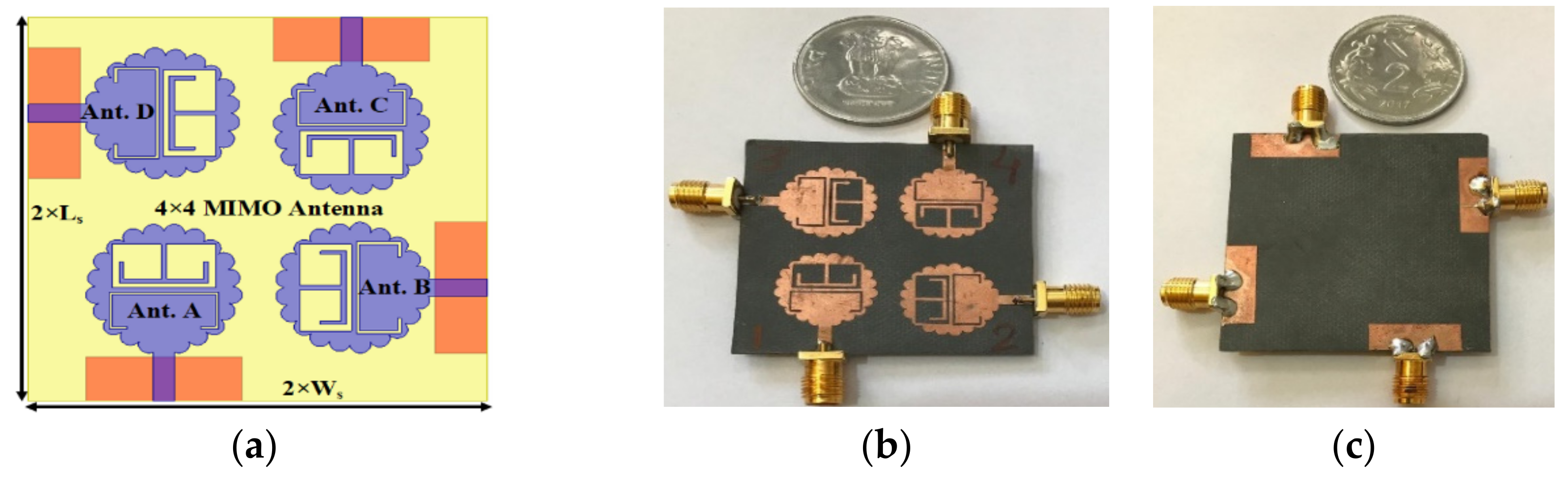

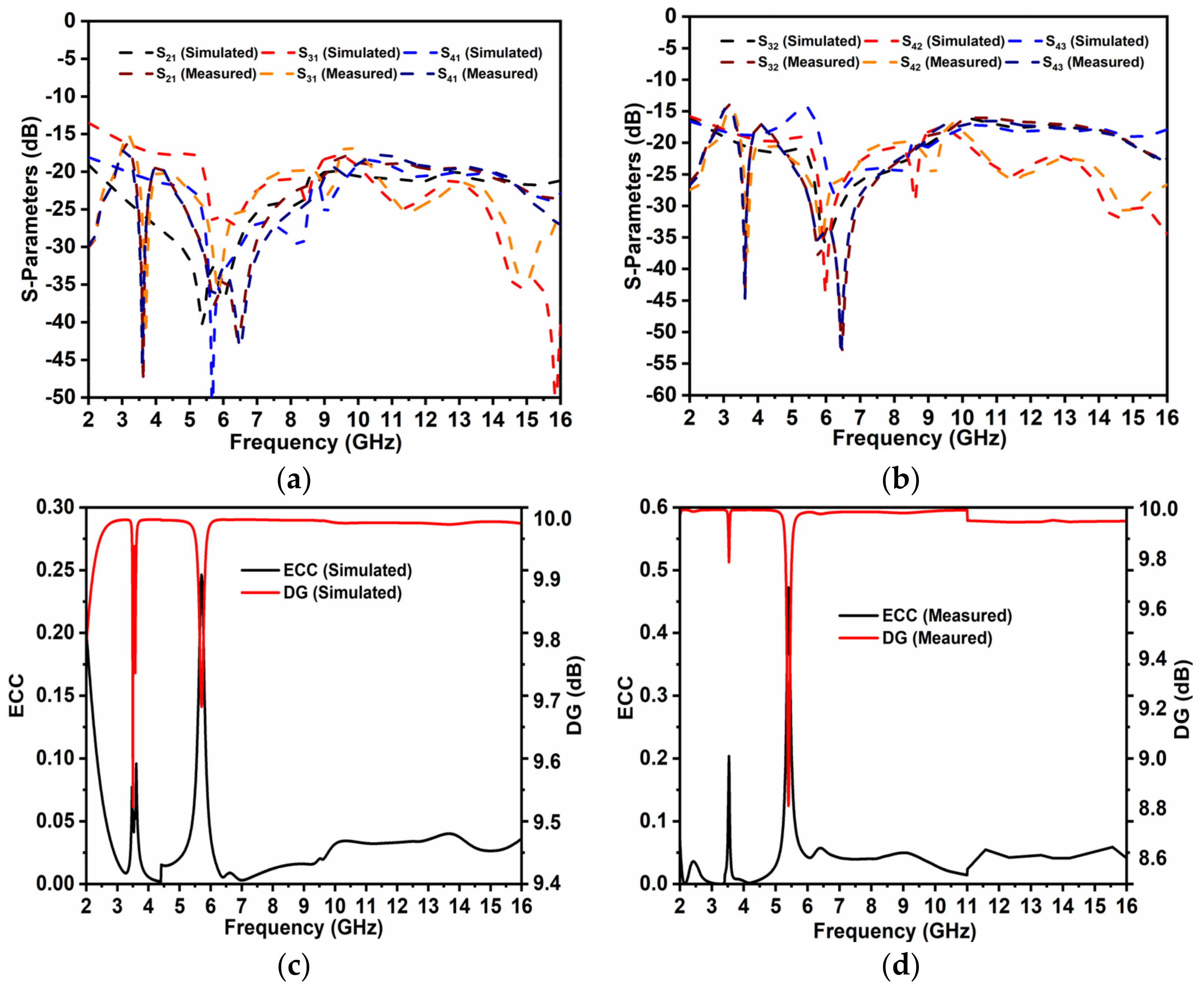

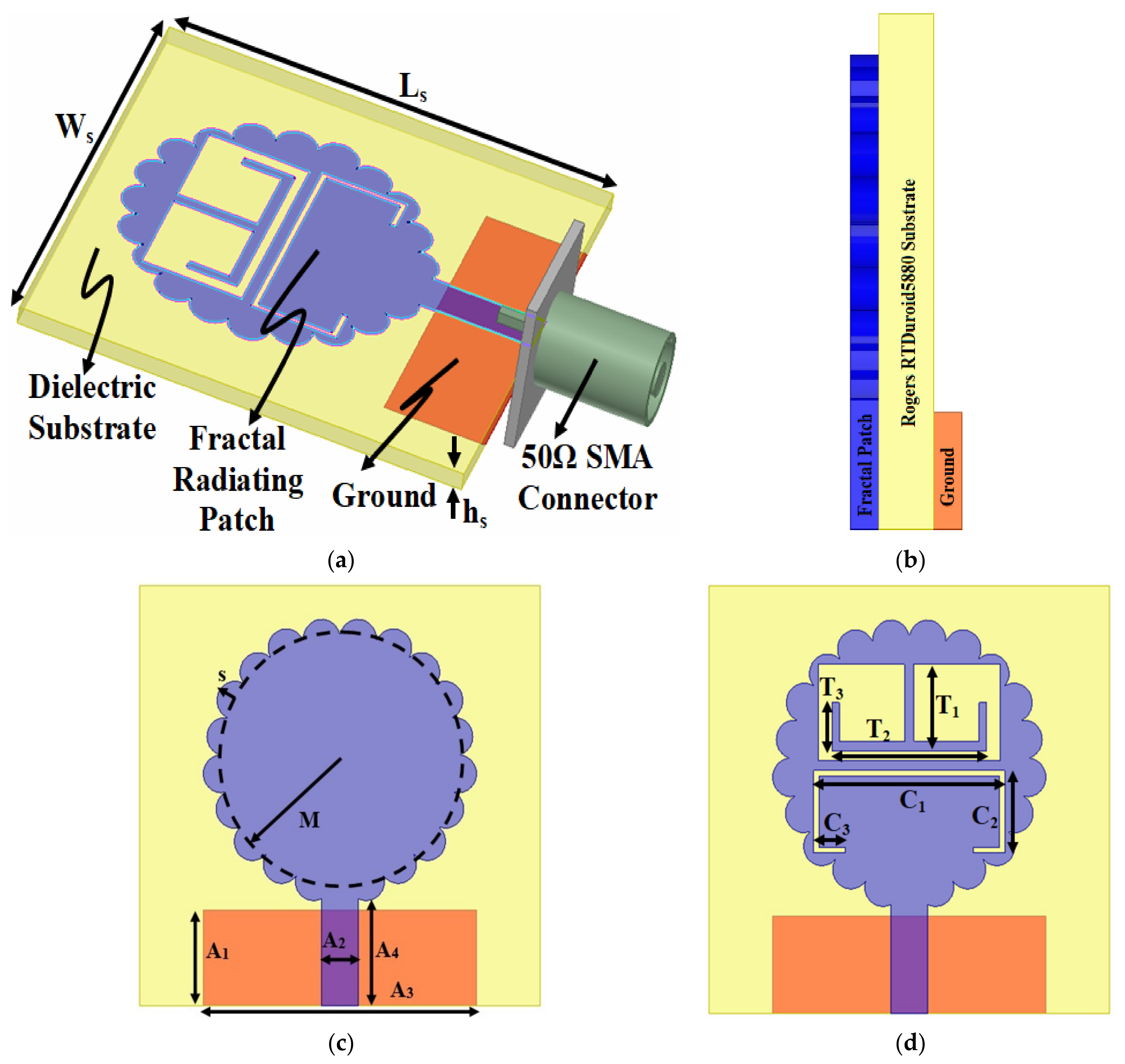

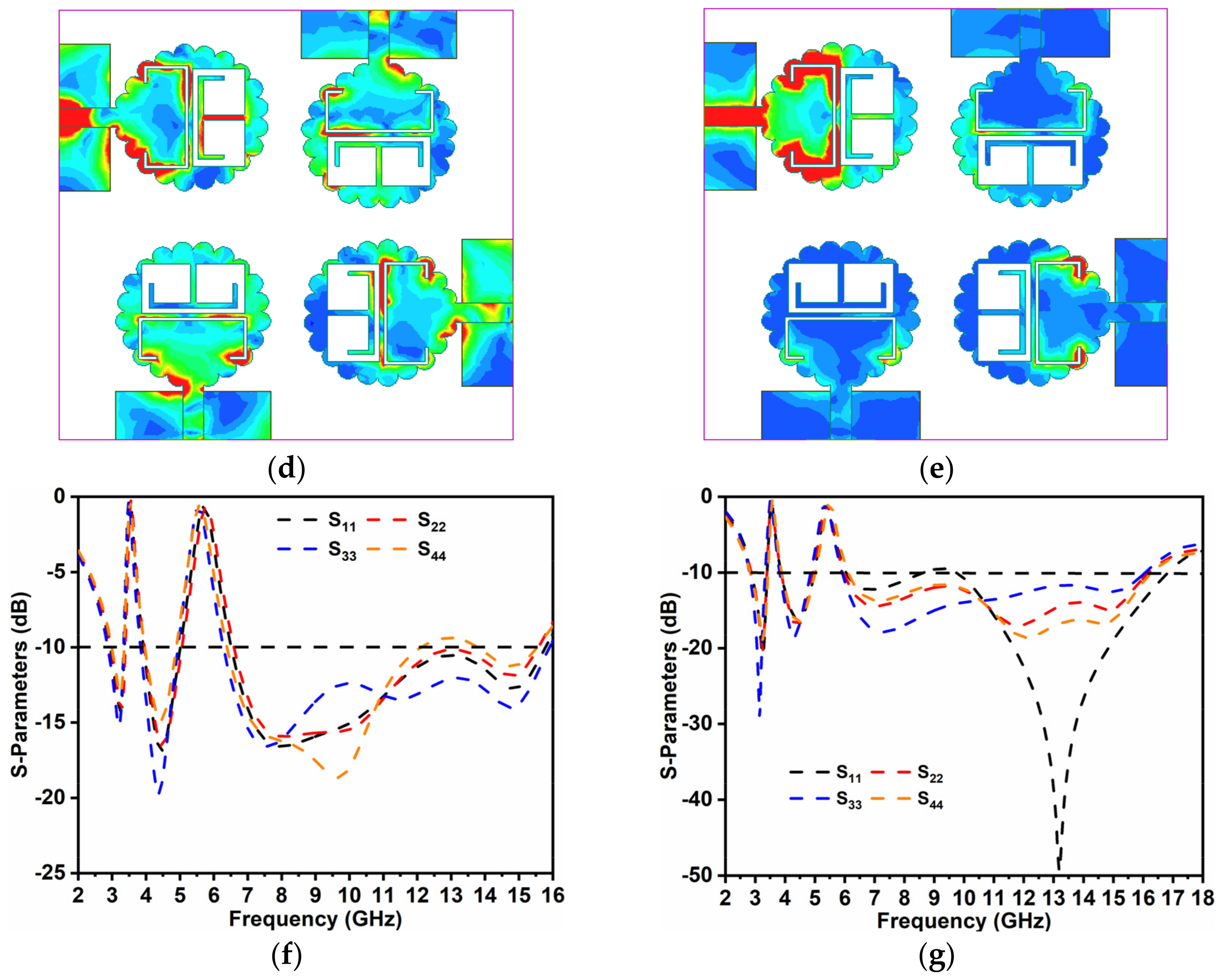

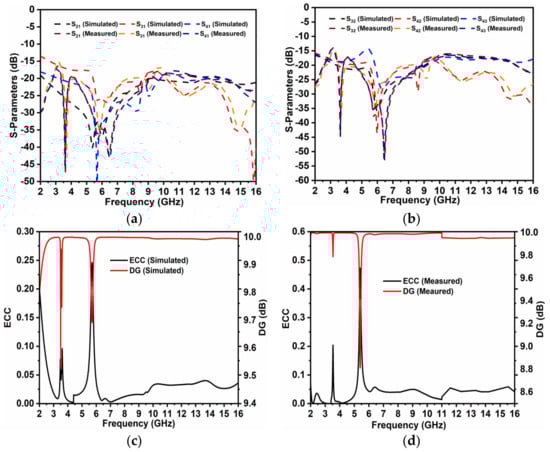

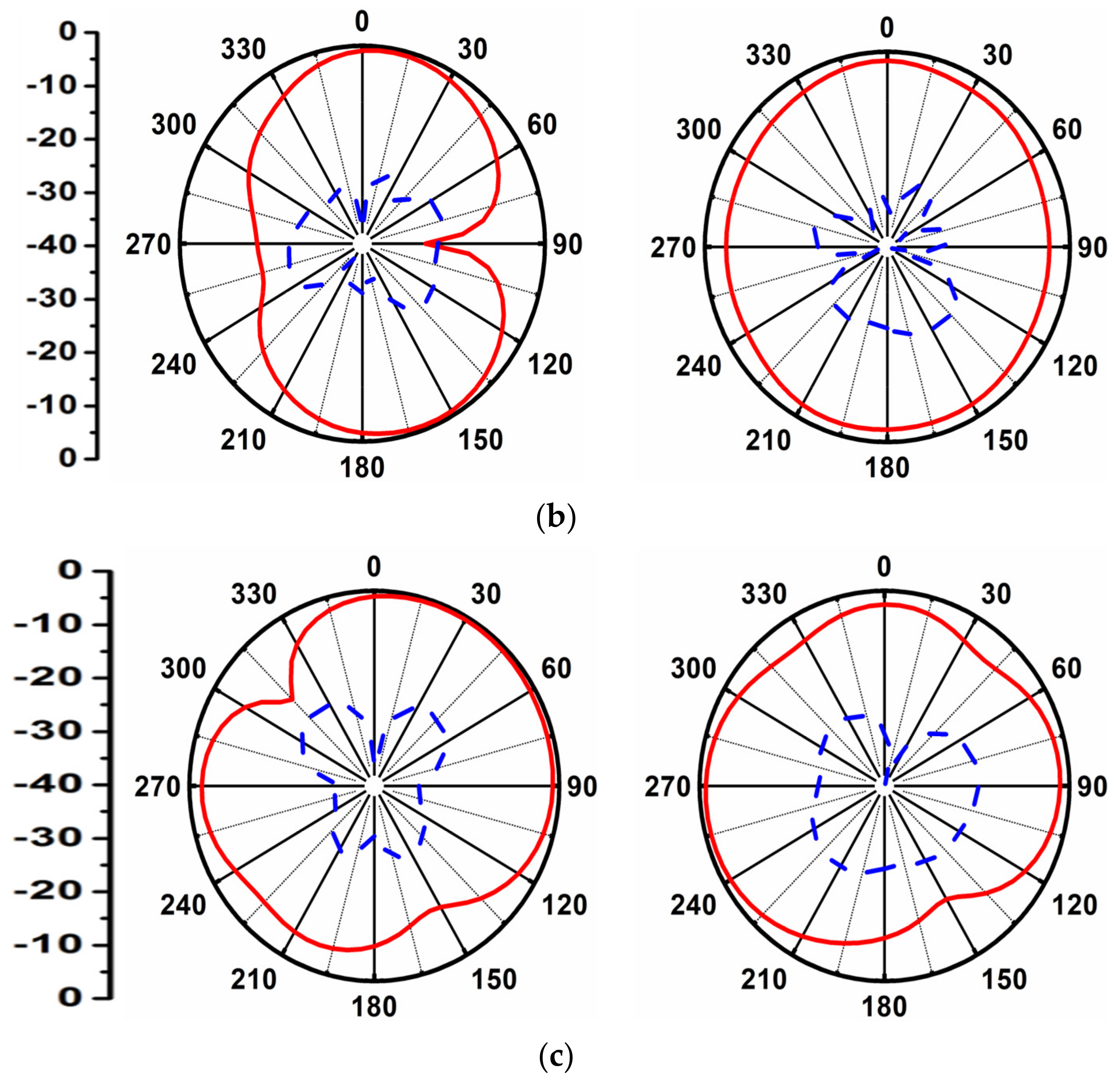

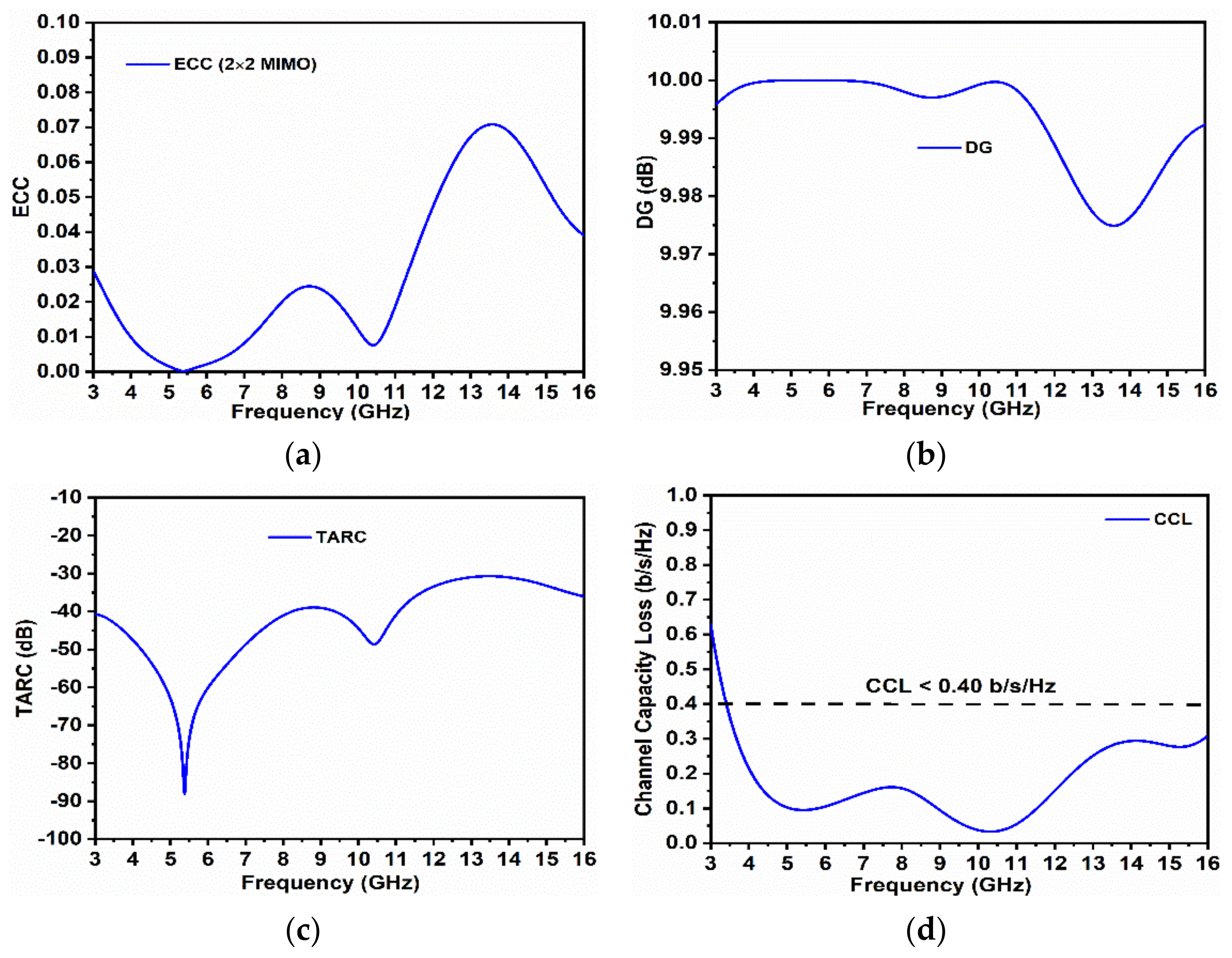

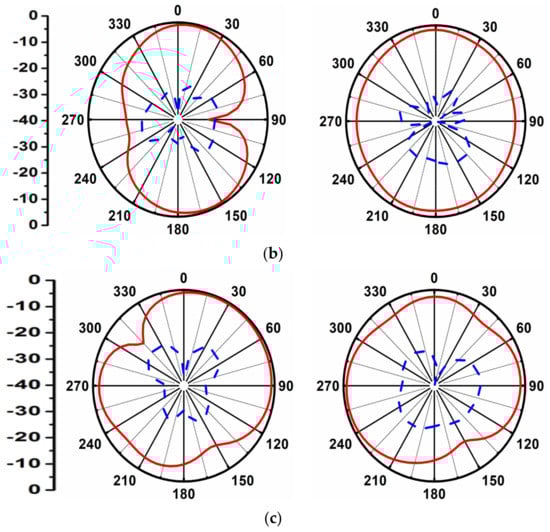

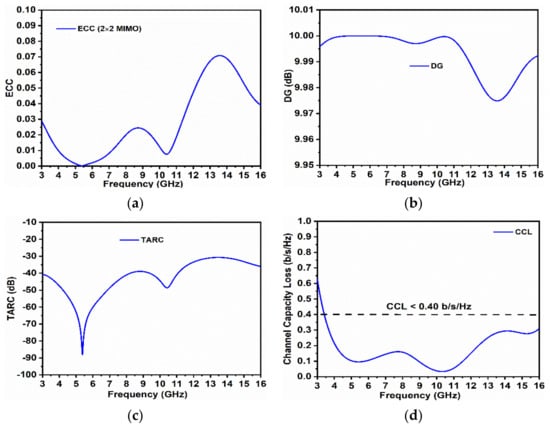

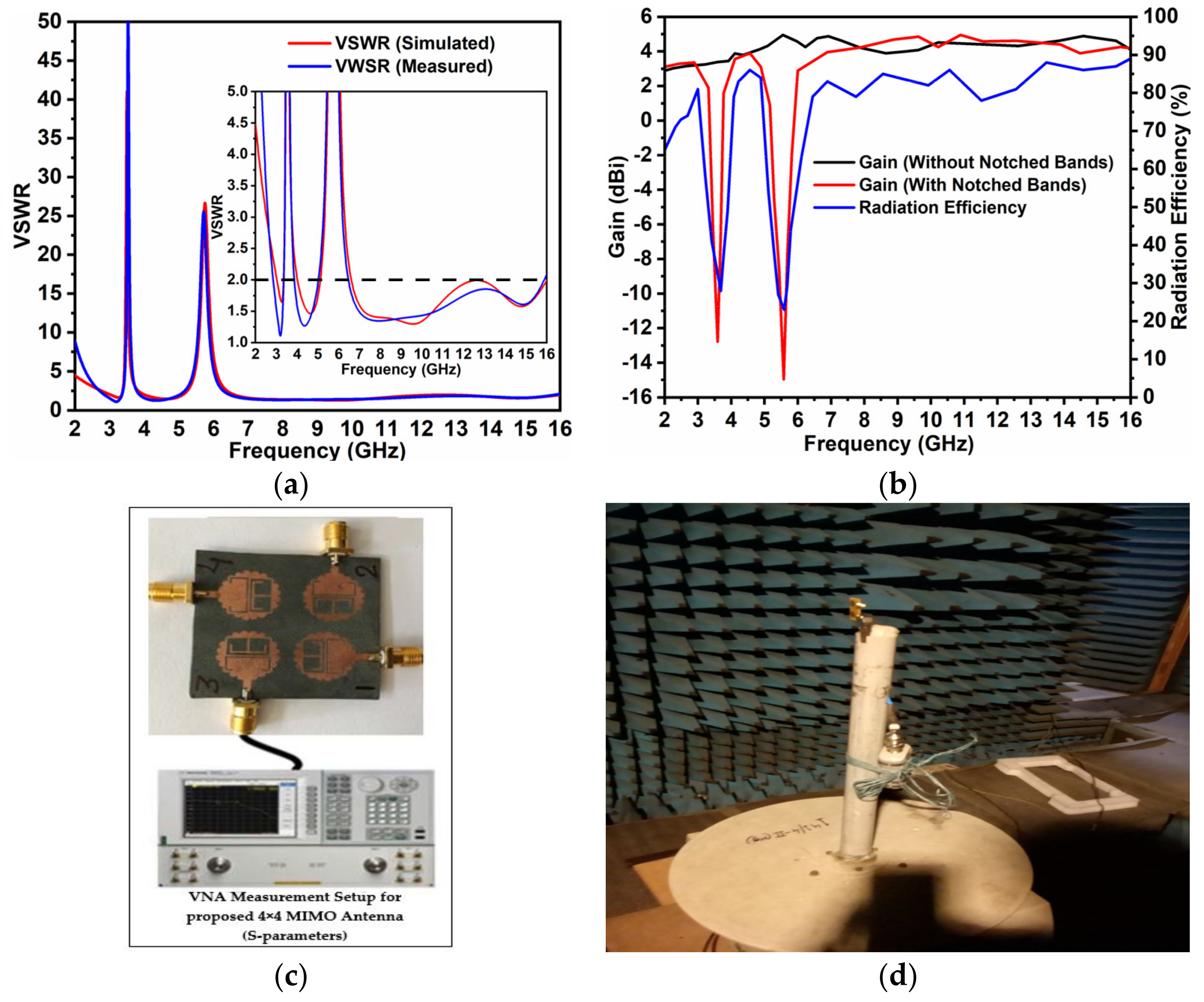

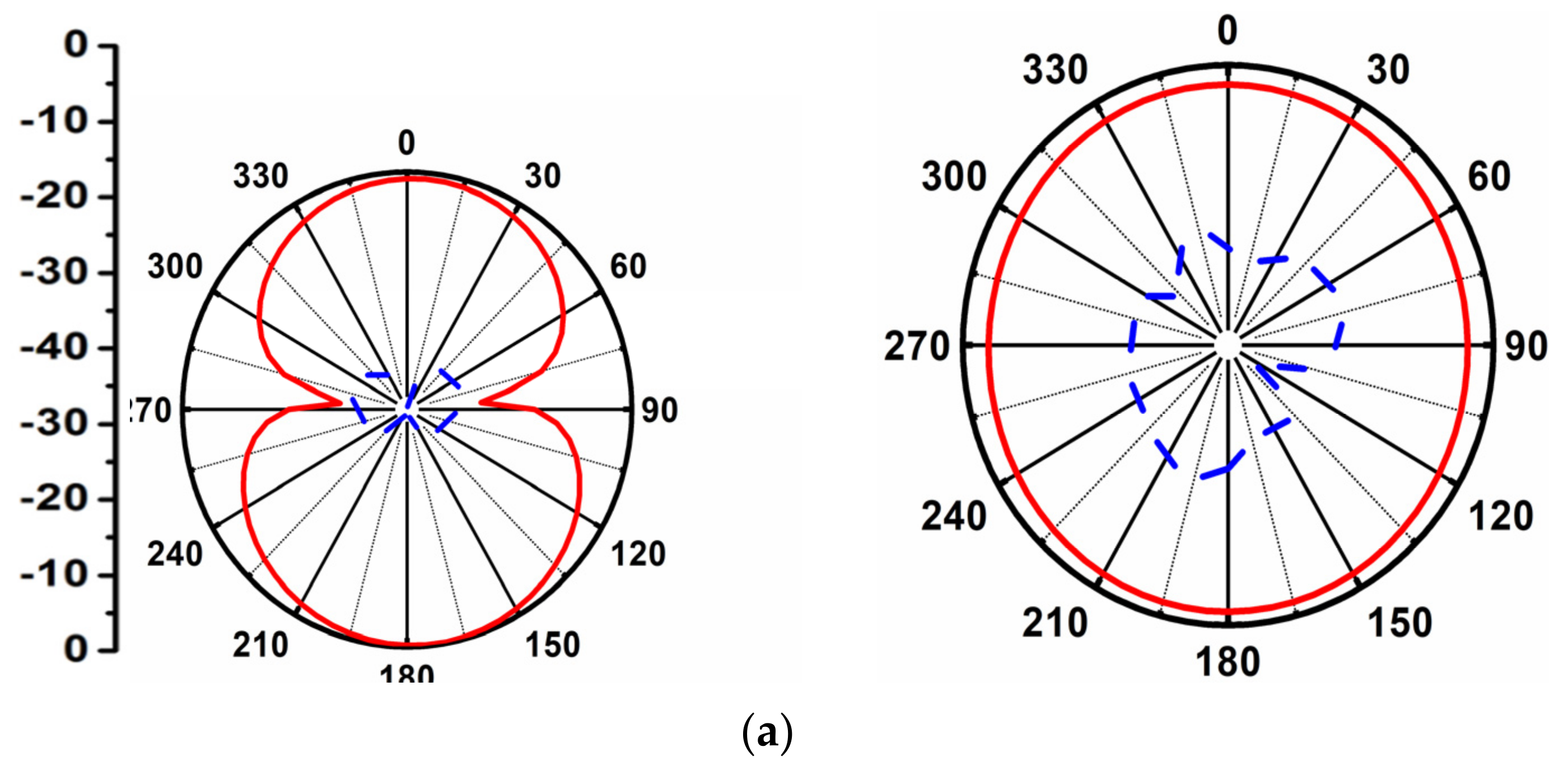

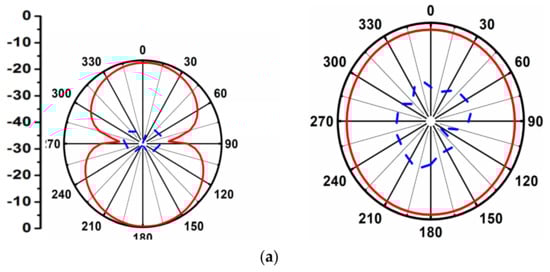

This research article reports a compact fractal 4 × 4 UWB extended bandwidth MIMO antenna with physical dimensions of 44 × 44 mm2 for high-speed wireless applications. The reported antenna comprises four fractal radiating elements that are symmetrical and placed orthogonal to each other with a respective rectangular ground printed on the opposite plane. A higher isolation is achieved between the radiating elements by the placement of a fractal patch orthogonally and no separate decoupling structure is required. The antenna offers a −10 dB transmission capacity of 2.84–15.88 GHz. The fractal radiating element, which is embedded by an inverted T-type stub placed within a rectangular slot and an etched rotated C-type slot, provides band-stop filters for WiMAX (Worldwide inter-operability for Microwave Access) and WLAN (wireless local area network)-interfering bands. The key parameters of diversity performance are compared by simulation and measurement (fabricated prototype) of ECC (envelope correlation coefficient), DG (directive gain), TARC (total active reflection coefficient) and CCL (channel capacity loss). The antenna offers an omnidirectional radiation pattern with an average gain of 3.52 dBi. View Full-Text
Keywords: MIMO antenna; fractal radiating patch; symmetry; WiMAX; WLAN; high isolation; wireless networking; total active reflection coefficient; omnidirectional; multiple input multiple output MIMO antenna; fractal radiating patch; symmetry; WiMAX; WLAN; high isolation; wireless networking; total active reflection coefficient; omnidirectional; multiple input multiple output
Show Figures

Figure 1
