# Nonlinear Problems of Equilibrium Charge State Transport in Hot Plasmas

## Abstract

**:**

## 1. Introduction

## 2. Charge State Equilibrium and Transport

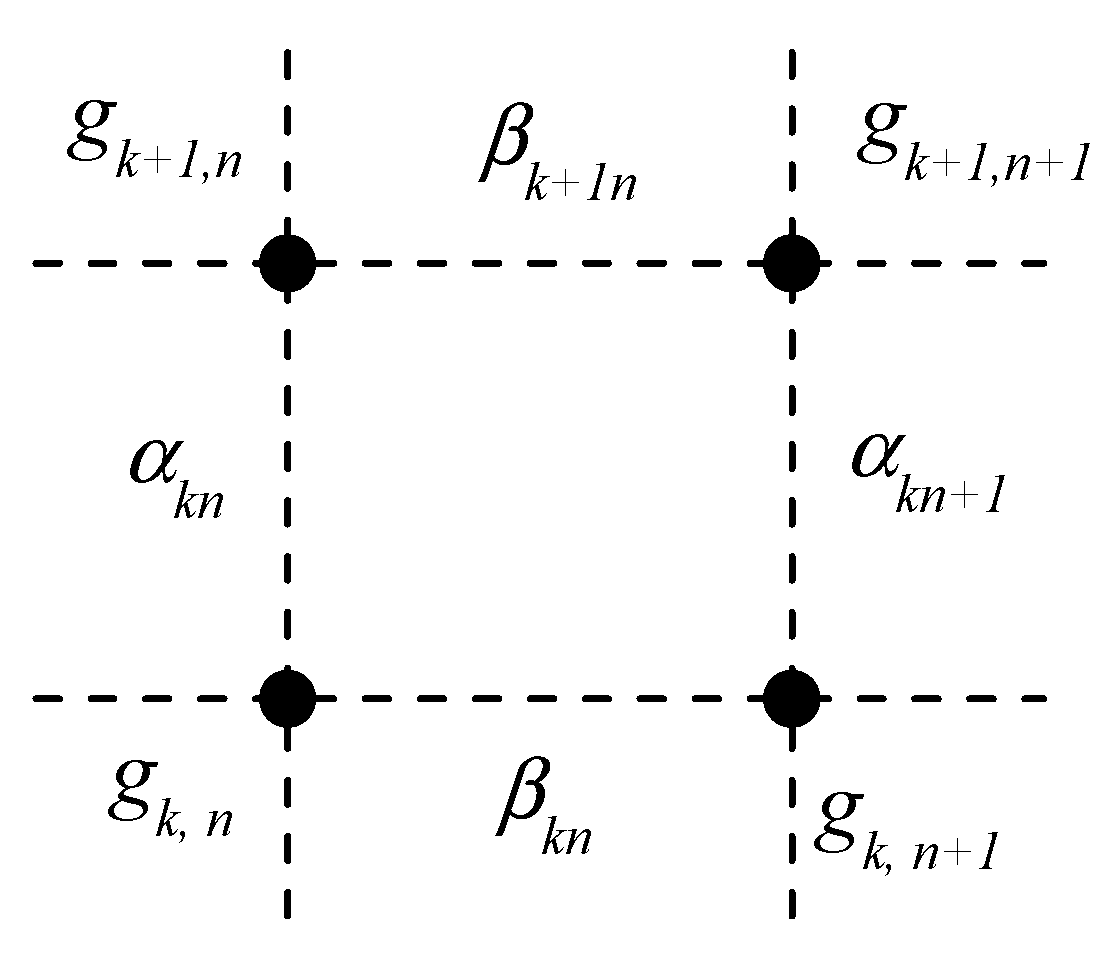

#### 2.1. The Discrete Transport and Equilibrium Conditions

_{i}and x

_{j}are changed almost continuously. The function $g\left({x}_{1},{x}_{2},\dots ,{x}_{m}\right)$ must satisfy the Smoluchowski Equation with integration over mD phase volume $\prod d{x}_{i}$. The derivation of Equation (3) can be found elsewhere [4,5].

^{−1}) could be denoted as ${w}_{kn}^{p}$ if the CS motion by p-transport is directed from n to n + 1 and as ${u}_{kn+1}^{p}$ if the motion is directed from n + 1 to n. Note that these introduced transport coefficients are just a modified form of the conventional D and V and present the same, albeit unidirectional, particle fluxes. So, for rough numerical estimates, D and V could be obtained from these 1D matrix coefficients simply as $D\propto \left({w}_{kn}^{p}+{u}_{kn+1}^{p}\right)/2$ and $V\propto \left({u}_{kn+1}^{p}-{w}_{kn}^{p}\right)$ for the most abundant k states (see in detail in [28]).

#### 2.2. Reduced Equilibrium Cell

#### 2.3. Reduction Schemes

## 3. Equilibrium Constant

#### 3.1. Time Scale of Transport Rates

^{t}is the transposed orthogonal matrix (see, e.g., in [20]).

#### 3.2. Impurity Equilibrium and Transport Coefficients

_{1}and A

_{2}with central accumulation correspond to a decrease in D in the plasma core, which is in qualitative agreement with the experiments [26] and modelling [17].

#### 3.3. Impurity Equilibrium and Confinement Time

#### 3.4. Types of Impurity CS Equilibrium

^{19}m

^{−3}. The selected profiles of temperatures, electron density, and relative density of hydrogen neutrals ${\xi}_{n}={n}_{n}/{n}_{e}$ remain the same as previously used for modeling Ar transport in JET.

_{f}, calculated for almost flat in the core and peaked at the plasma edge, also related to R-equilibrium (with He/Li—like ions). The calculations shown in Figure 7b show that a change of the levels He/Li (in R-equilibrium) to He/H (in S-equilibrium) leads to a significant decrease in D. This is obviously due to the low ionization and recombination rates of He-like and H-like ions.

#### 3.5. The Radial Scale of the CS Equilibrium

## 4. The Recovery of CS Equilibrium on the Density Profile

## 5. Conclusions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

1D, 2D, mD | one-dimensional, two-dimensional, multi-dimensional |

CS, CSs | charge state, charge states |

FPKE | Fokker-Planck-Kolmogorov Equation |

DCM | diffusive-convective model |

GM | grid model |

CEC | central equilibrium cell |

CE | coronal equilibrium, the term refers to the 1D balance of ionization/recombination processes, that is, to the charge state distribution of impurity particles |

DCE | double coronal equilibrium is the 2D balance of impurity charge states |

EC | equilibrium cell, the 2D reduction scheme shown in Figure 4 |

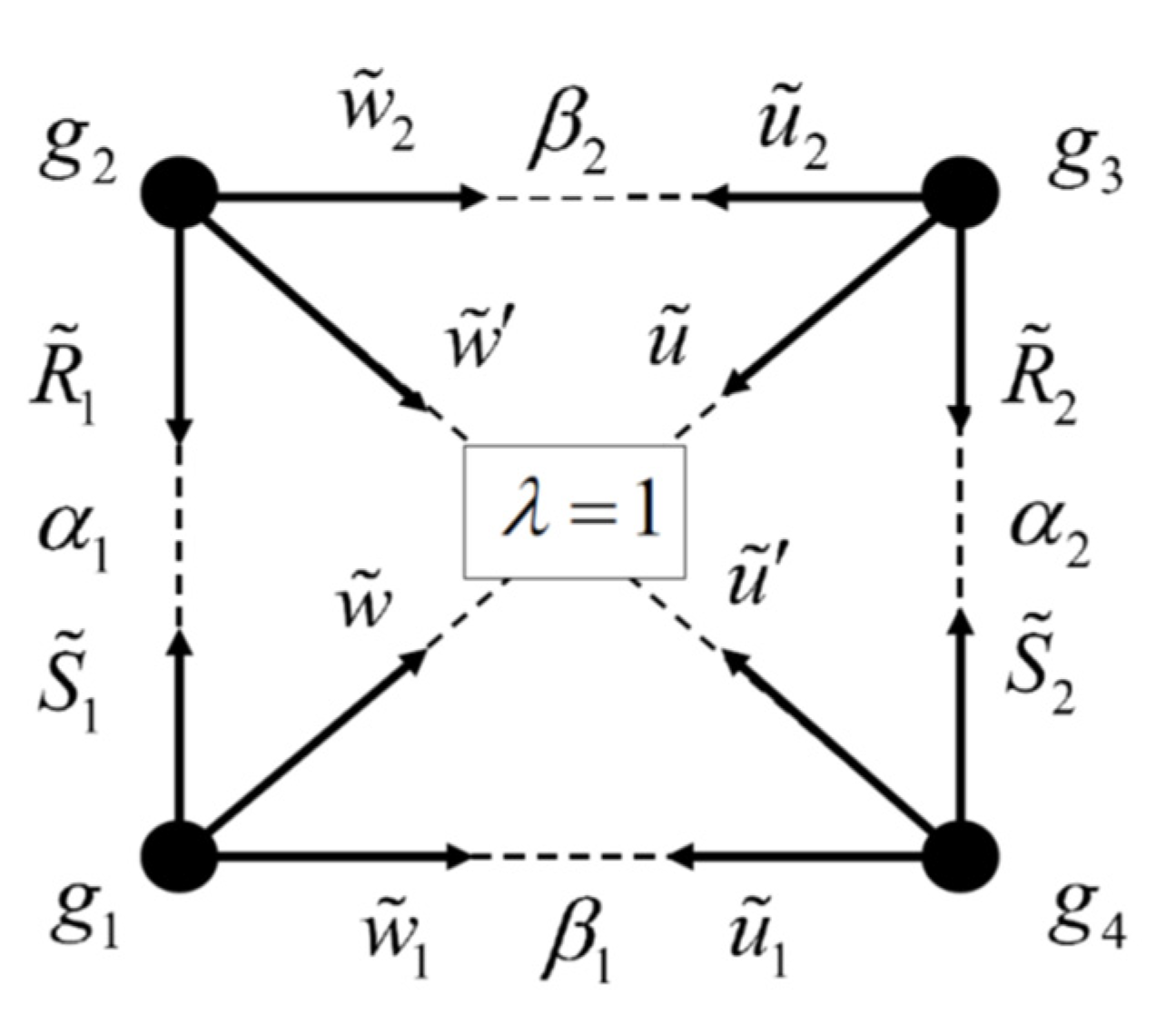

REC | reduced equilibrium cell, the 2D reduction scheme shown in Figure 2 |

CCs | coupled cells, the 2D reduction scheme shown in Figure 4 |

HL | horizontal line, the 1D reduction scheme shown in Figure 4 |

VL | vertical line, the 1D reduction scheme shown in Figure 4 |

SP | separate pair of charge states, the 1D reduction scheme shown in Figure 4 |

A_{1}, A_{2}, F, H | the types of the total density profiles in Figure 5. |

TICS | Transport of impurity charge states, numerical transport code described in [17] |

S-equilibrium is of a 2D one given by the values ${\alpha}_{1},{\alpha}_{2},s$ described by Equation (16) | |

R- equilibrium is of a 2D one given by the values ${\alpha}_{1}^{-1},{\alpha}_{2}^{-1},\tilde{r}$ described by Equation (17) |

## References

- Köchl, F.; Loarte, A.; De La Luna, E.; Parail, V.; Corrigan, G.; Harting, D.; Nunes, I.; Reux, C.; Rimini, F.G.; Polevoi, A.; et al. W transport and accumulation control in the termination phase of JET H-mode discharges and implications for ITER. Plasma Phys. Control. Fusion
**2018**, 60, 074008. [Google Scholar] [CrossRef] - Mukai, K.; Nagaoka, K.; Takahashi, H.; Yokoyama, M.; Murakami, S.; Nakano, H.; Ida, K.; Yoshinuma, M.; Seki, R.; LHD Experiment Group; et al. Carbon impurities behavior and its impact on ion thermal confinement in high-ion-temperature deuterium discharges on the Large Helical Device. Plasma Phys. Control. Fusion
**2018**, 60, 074005. [Google Scholar] [CrossRef] - Kolmogoroff, A. Über die analytischen Methoden in der Wahrscheinlichkeitsrechnung. Math. Ann.
**1931**, 104, 415–458. [Google Scholar] [CrossRef] - Kolmogoroff, A. Zur Theorie der stetigen zufälligen Prozesse. Math. Ann.
**1933**, 108, 149–160. [Google Scholar] [CrossRef] - Caughey, T.K. Derivation and Application of the Fokker-Planck Equation to Discrete Nonlinear Dynamic Systems Subjected to White Random Excitation. J. Acoust. Soc. Am.
**1963**, 35, 1683–1692. [Google Scholar] [CrossRef] [Green Version] - Dux, R. STRAHL User Manual Technical Report. IPP 10/ 30 IPP Max-Planck-Istitut für Plasmaphysik. 2006. Available online: http://www.ipp.mpg.de/ippcms/de/kontakt/bibliothek/ipp_reports/index.html (accessed on 15 December 2020).
- Bertschinger, G.; Biel, W.; Bitter, M.; Koslowski, H.R.; Krämer-Flecken, A.; Weinheimer, J.; Kunze, H.-J. Behaviour of Ar XVII Spectra in Sawtoothing Discharges at TEXTOR-94. In Proceedings of the 26th EPS Conference on Controlled Fusion Plasma Physics ECA, Maastricht, The Netherlands, 14–18 June 1999; Volume 23J, p. 661, P2.018. Available online: http://epsppd.epfl.ch/Maas/web/pdf/p2018.pdf (accessed on 15 December 2020).
- Sertoli, M.; Angioni, C.; Dux, R.; Neu, R.; Pütterich, T.; Igochine, V.; ASDEX Upgrade Team. Local effects of ECRH on argon transport in L-mode discharges at ASDEX Upgrade. Plasma Phys. Control. Fusion
**2011**, 53, 035024. [Google Scholar] [CrossRef] [Green Version] - Stratton, B.; Ramsey, A.; Boody, F.; Bush, C.; Fonck, R.; Groebner, R.; Hulse, R.; Richards, R.; Schivell, J. Spectroscopic study of impurity behaviour in neutral beam heated and ohmically heated TFTR discharges. Nucl. Fusion
**1987**, 27, 1147–1164. [Google Scholar] [CrossRef] - Demokan, O.; Waelbroeck, F.; Demokan, N. Iron transport in a confined high-temperature plasma. Nucl. Fusion
**1982**, 22, 921–934. [Google Scholar] [CrossRef] - Content, D.; Moos, H.; Perry, M.; Brooks, N.; Mahdavi, M.A.; Petrie, T.; John, H.S.; Schissel, D.; Hulse, R. Impurity profiles for H-mode discharges in DIII-D. Nucl. Fusion
**1990**, 30, 701–715. [Google Scholar] [CrossRef] - Stratton, B.; Fonck, R.; Hulse, R.; Ramsey, A.; Timberlake, J.; Efthimion, P.; Fredrickson, E.; Grek, B.; Hill, K.; Johnson, D.; et al. Impurity transport in ohmically heated TFTR plasmas. Nucl. Fusion
**1989**, 29, 437–447. [Google Scholar] [CrossRef] - Suckewer, S.; Cavallo, A.; Cohen, S.A.; Daughney, C.C.; Denne, B.; Hinnov, E.; Hosea, J.C.; Hulse, R.A.; Hwang, D.Q.; Schilling, G.; et al. Impurity ion transport studies on the PLT tokamak during neutral-beam injection. Nucl. Fusion
**1984**, 24, 815–826. [Google Scholar] [CrossRef] - Asmussen, K.; Fournier, K.; Laming, J.; Neu, R.; Seely, J.; Dux, R.; Engelhardt, W.; Fuchs, J.; ASDEX Upgrade Team. Spectroscopic investigations of tungsten in the EUV region and the determination of its concentration in tokamaks. Nucl. Fusion
**1998**, 38, 967–986. [Google Scholar] [CrossRef] [Green Version] - Pütterich, T.; Neu, R.; Dux, R.; Whiteford, A.D.; O’Mullane, M.G.; ASDEX Upgrade Team. Modelling of measured tungsten spectra from ASDEX Upgrade and predictions for ITER. Plasma Phys. Control. Fusion
**2008**, 50, 085016. [Google Scholar] [CrossRef] [Green Version] - Hirshman, S.; Sigmar, D. Neoclassical transport of impurities in tokamak plasmas. Nucl. Fusion
**1981**, 21, 1079–1201. [Google Scholar] [CrossRef] - Shurygin, V. Impurity charge state transport in tokamak and stellarator plasmas. Nucl. Fusion
**2020**, 60, 046001. [Google Scholar] [CrossRef] - Ivanov, V.V.; Kukushkin, A.B.; Lisitsa, V.S. Analytical model of nonstationary kinetics of atom ionization in hot plasmas. Sov. J. Plasma Phys.
**1987**, 13, 774. [Google Scholar] - Shurygin, V.A. Anomalous impurity transport: Charge-state diffusion due to atomic processes in tokamak plasmas. Plasma Phys. Control. Fusion
**1999**, 41, 355–375. [Google Scholar] [CrossRef] - Shurygin, V.A. Kinetics of impurity charge-state distributions in tokamak plasmas. Plasma Phys. Rep.
**2004**, 30, 443–472. [Google Scholar] [CrossRef] - Shurygin, V.A. Analytical approach to impurity transport studies: Charge state dynamics in tokamak plasmas. Phys. Plasmas
**2006**, 13, 082506. [Google Scholar] [CrossRef] - Shurygin, V.A. Analytical impurity transport model: Coupling between particle and charge state transports in tokamak plasmas. Phys. Plasmas
**2008**, 15, 012506. [Google Scholar] [CrossRef] - TFR Group. Space-resolved vacuum ultra-violet spectroscopy on T.F.R. Tokamak plasmas. Plasma Physics.
**1978**, 20, 207–223. [Google Scholar] [CrossRef] - TFR Group. Are heavy impurities in TFR Tokamak plasmas at ionization equilibrium? Plasma Phys.
**1980**, 22, 851–860. [Google Scholar] [CrossRef] - Giannella, R.; Lauro-Taroni, L.; Mattioli, M.; Alper, B.; Denne-Hinnov, B.; Magyar, G.; O’Rourke, J.; Pasini, D. Role of current profile in impurity transport in JET L mode discharges. Nucl. Fusion
**1994**, 34, 1185–1202. [Google Scholar] [CrossRef] - Dux, R.; Neu, R.; Peeters, A.G.; Pereverzev, G.; Ck, A.M.; Ryter, F.; Stober, J.; ASDEX Upgrade Team. Influence of the heating profile on impurity transport in ASDEX Upgrade. Plasma Phys. Control. Fusion
**2003**, 45, 1815–1825. [Google Scholar] [CrossRef] - Braginskii, S.I. Transport Processes in Plasma. In Reviews of Plasma Physics; Leontovich, M.A., Ed.; Consultants Bureau: New York, NY, USA, 1965; Volume 1, pp. 205–311. [Google Scholar]
- Demura, A.V.; Kadomtsev, M.B.; Lisitsa, V.S.; Shurygin, V.A. Tungsten Ions in Plasmas: Statistical Theory of Radiative-Collisional Processes. Atoms
**2015**, 3, 162–181. [Google Scholar] [CrossRef] [Green Version] - Wade, M.; Houlberg, W.; Baylor, L.; West, W.; Baker, D. Low-Z impurity transport in DIII-D—Observations and implications. J. Nucl. Mater.
**2001**, 290, 773–777. [Google Scholar] [CrossRef] - Kubo, H.; Sakurai, S.; Higashijima, S.; Takenaga, H.; Itami, K.; Konoshima, S.; Nakano, T.; Koide, Y.; Asakura, N.; Shimizu, K.; et al. Radiation enhancement and impurity behavior in JT-60U reversed shear discharges. J. Nucl. Mater.
**2003**, 313–316, 1197–1201. [Google Scholar] [CrossRef] - Puiatti, M.E.; Mattioli, M.; Telesca, G.; Valisa, M.; Coffey, I.; Dumortier, P.; Giroud, C.; Ingesson, L.C.; Lawson, K.D.; Contributors to the EFDA-JET Workprogramme; et al. Radiation pattern and impurity transport in argon seeded ELMy H-mode discharges in JET. Plasma Phys. Control. Fusion
**2002**, 44, 1863–1878. [Google Scholar] [CrossRef] [Green Version] - Puiatti, M.E.; Valisa, M.; Mattioli, M.; Bolzonella, T.; Bortolon, A.; Coffey, I.; Dux, R.; von Hellermann, M.; Monier-Garbet, P.; Contributors to the EFDA-JET Workprogramme; et al. Simulation of the time behaviour of impurities in JET Ar-seeded discharges and its relation with sawtoothing and RF heating. Plasma Phys. Control. Fusion.
**2003**, 45, 2011–2024. [Google Scholar] [CrossRef] [Green Version] - Krupin, V.; Nurgaliev, M.; Klyuchnikov, L.; Nemets, A.; Zemtsov, I.; Dnestrovskij, A.; Sarychev, D.; Lisitsa, V.; Shurygin, V.; Leontiev, D.; et al. Experimental study of tungsten transport properties in T-10 plasma. Nucl. Fusion
**2017**, 57, 066041. [Google Scholar] [CrossRef] - Seguin, F.H.; Petrasso, R.; Marmar, E.S. Effects of Internal Disruptions on Impurity Transport in Tokamaks. Phys. Rev. Lett.
**1983**, 51, 455–458. [Google Scholar] [CrossRef] - Leung, W.K.; Rowan, W.L.; Wiley, J.C.; Bravenec, R.V.; Gentle, K.W.; Hodge, W.L.; Patterson, D.M.; Phillips, P.E.; Price, T.R.; Richards, B. Interpretation of impurity confinement time measurements in Tokamaks. Plasma Phys. Control. Fusion
**1986**, 28, 1753–1763. [Google Scholar] [CrossRef] - Fussmann, G. Analytical modelling of impurity transport in toroidal devices. Nucl. Fusion
**1986**, 26, 983–1002. [Google Scholar] [CrossRef] - Mattioli, M.; Puiatti, M.E.; Valisa, M.; Coffey, I.; Dux, R.; Monier-Garbet, P.; Nave, M.F.F.; Ongena, J.; Stamp, M.; Contributors to the EFDA-JET Workprogramme; et al. Simulation of the time behavior of impurities in Jet Ar-seeded discharges and its relation with sawteething. In Proceedings of the 29th EPS Conference on Plasma Physics and Controlled Fusion, Montreux, Switzerland, 17–21 June 2002; ECA Vol. 26B (Geneva: EPS) P2.042 (CD-ROM). Available online: http://epsppd.epfl.ch/Montreux/pdf/P2_042.pdf (accessed on 15 December 2020).
- Mattioli, M.; Giannella, R.; Myrnas, R.; Demichelis, C.; Denne-Hinnov, B.; De Wit, T.D.; Magyar, G. Laser blow-off injected impurity particle confinement times in JET and Tore Supra. Nucl. Fusion
**1995**, 35, 1115–1124. [Google Scholar] [CrossRef] - Rice, J.; Reinke, M.; Gao, C.; Howard, N.; Chilenski, M.; Delgado-Aparicio, L.; Granetz, R.; Greenwald, M.; Hubbard, A.; Hughes, J.; et al. Core impurity transport in Alcator C-Mod L-, I- and H-mode plasmas. Nucl. Fusion
**2015**, 55, 33014. [Google Scholar] [CrossRef] [Green Version] - Perry, M.; Brooks, N.; Content, D.; Hulse, R.; Mahdavi, M.A.; Moos, H. Impurity transport during the H-mode in DIII-D. Nucl. Fusion
**1991**, 31, 1859–1875. [Google Scholar] [CrossRef] - Pasini, D.; Giannella, R.; Taroni, L.L.; Mattioli, M.; Denne-Hinnov, B.; Hawkes, N.; Magyar, G.; Weisen, H. Measurements of impurity transport in JET. Plasma Phys. Control. Fusion
**1992**, 34, 677–685. [Google Scholar] [CrossRef] - Krieger, K.; Fussmann, G.; ASDEX Team. Determination of impurity transport coefficients by harmonic analysis. Nucl. Fusion
**1990**, 30, 2392–2396. [Google Scholar] [CrossRef] - Ida, K.; Yoshinuma, M.; Osakabe, M.; Nagaoka, K.; Yokoyama, M.; Funaba, H.; Suzuki, C.; Ido, T.; Shimizu, A.; Murakami, I.; et al. Observation of an impurity hole in a plasma with an ion internal transport barrier in the Large Helical Device. Phys. Plasmas
**2009**, 16, 056111. [Google Scholar] [CrossRef] [Green Version]

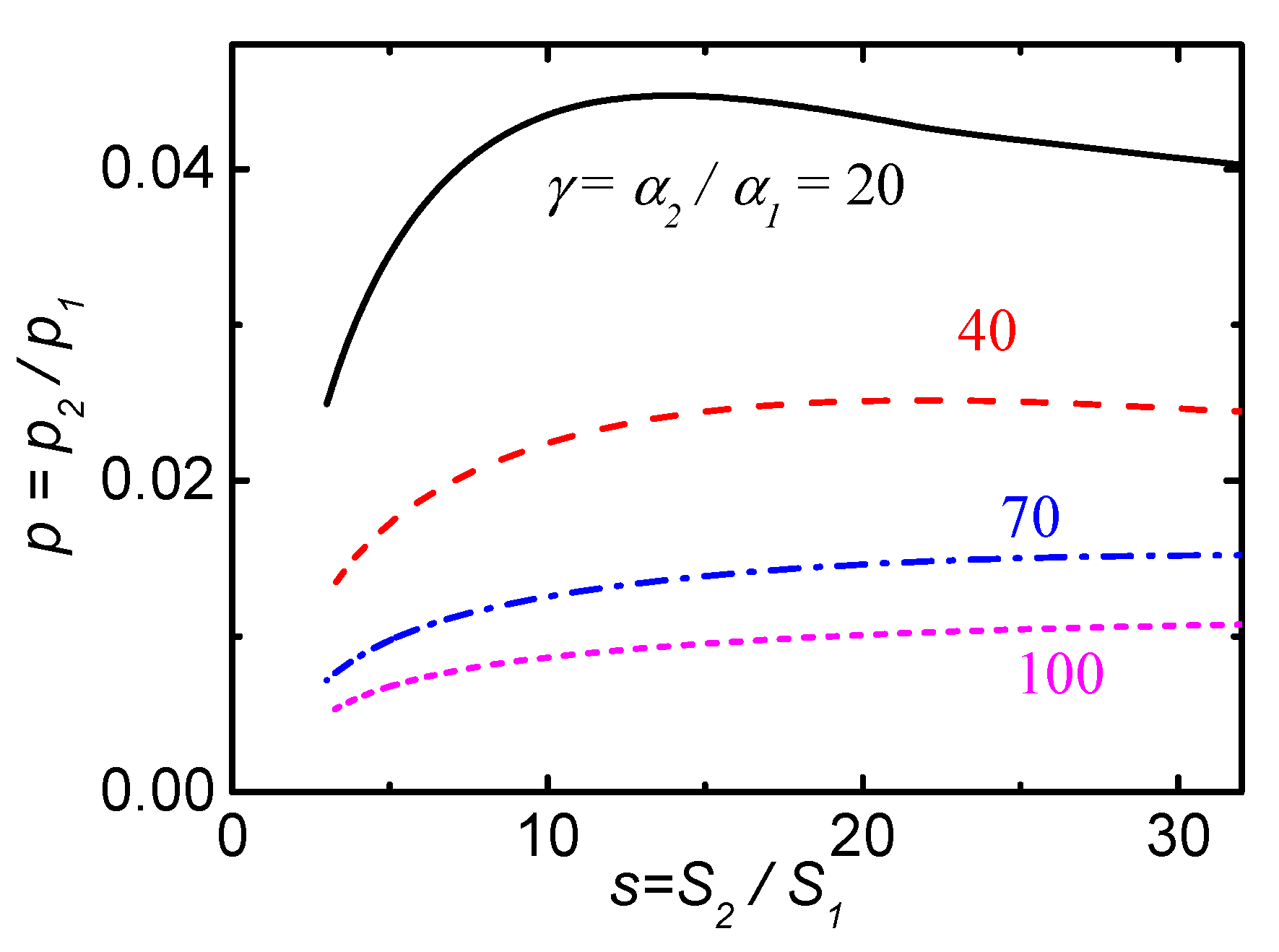

**Figure 3.**Dependence of the limit ratio of densities in the boundary EC under the condition of the defined ionization rate gradient in this cell.

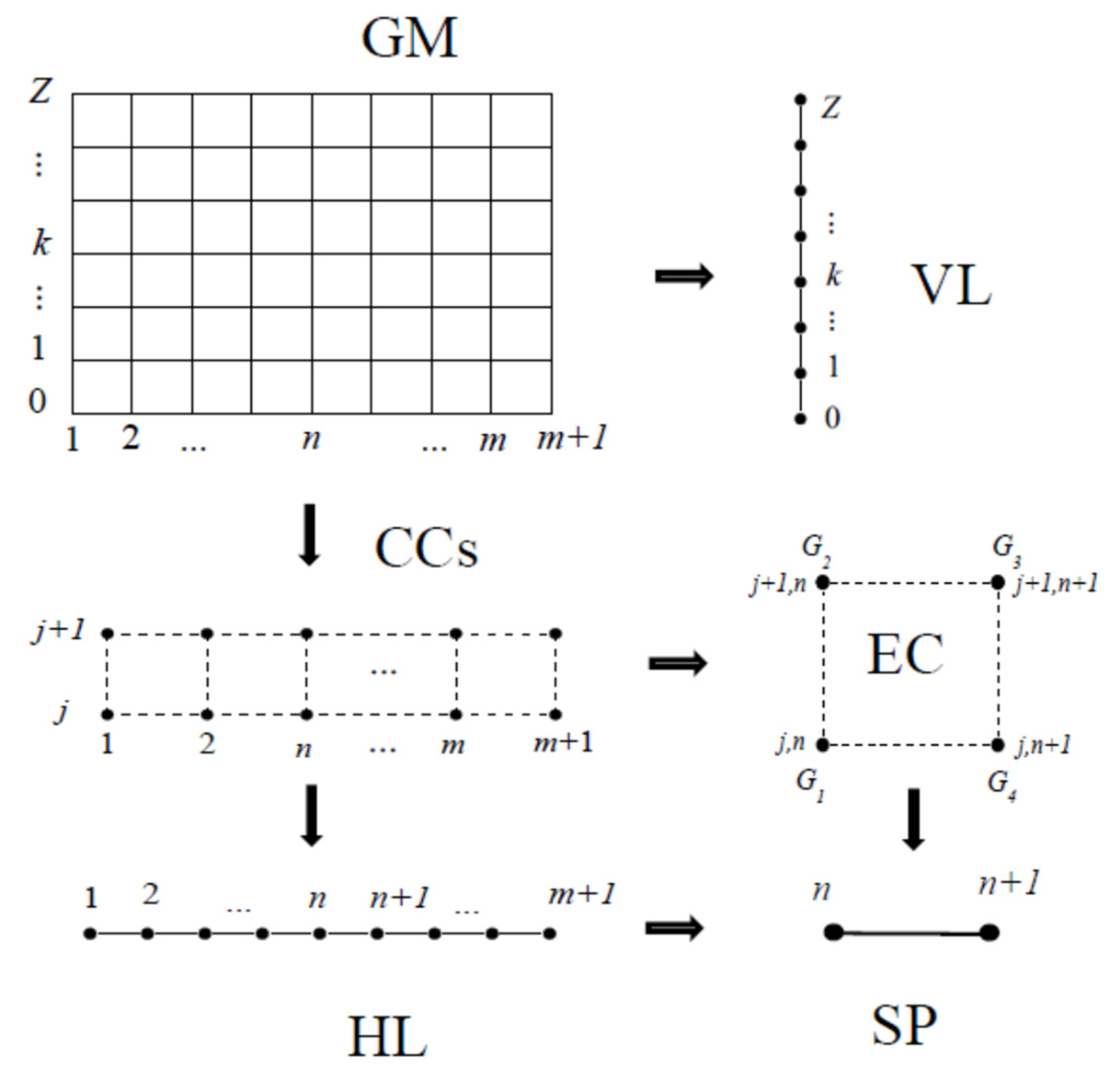

**Figure 4.**The main schemes of GM reduction by the pseudo-state technique: GM—the initial grid model of impurity distributions, CCs—coupled cells, HL and VL denote horizontal and vertical CS lines, respectively, EC—an equilibrium cell, SP—a separate pair of states.

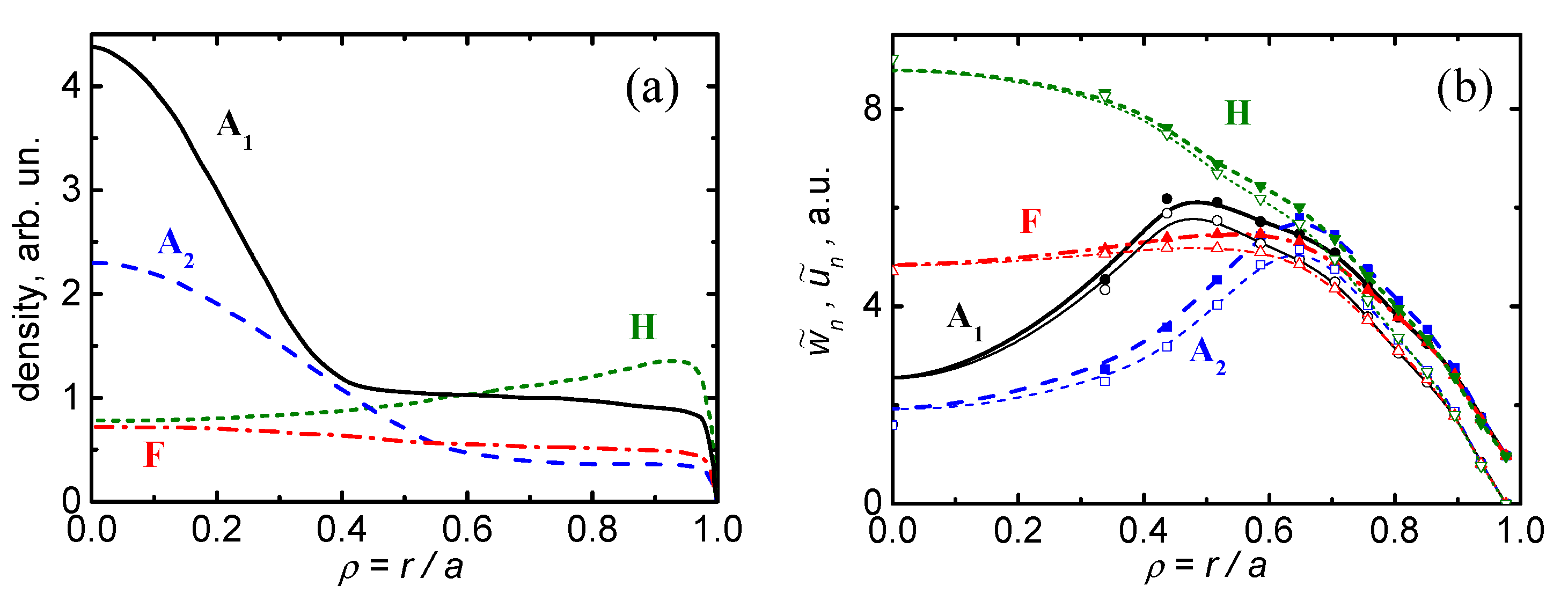

**Figure 5.**(

**a**) Typical total impurity density profiles (A

_{1}, A

_{2}denote accumulation, F—almost flat, H—hollow) obtained in experiments on the DIII-D [29] (A

_{1}for C), JT-60 [30] (A

_{2}for C) and JET [31,32,37] (A1, A2, F, H for Ar) tokamaks; (

**b**) reduced velocity profiles ${\tilde{w}}_{n}$ (dashed) and ${\tilde{u}}_{n}$ (dotted) calculated using Formulas (33).

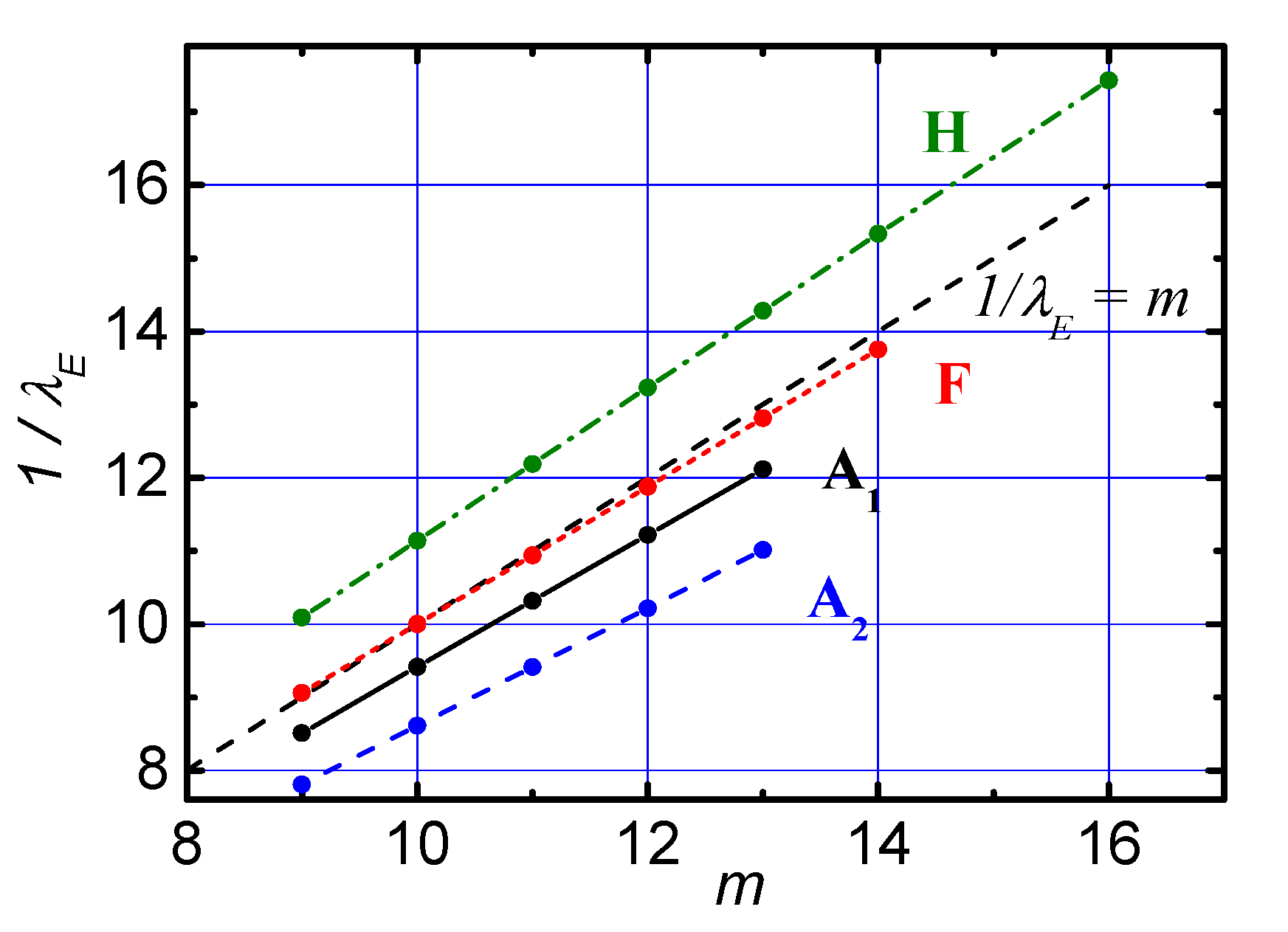

**Figure 6.**Dependences of the smallest (in absolute value) non-zero eigenvalue of the matrices $\tilde{N}$, corresponding to the profiles ${n}_{Z}\left(\rho \right)$ in Figure 5a, on the number of m cells.

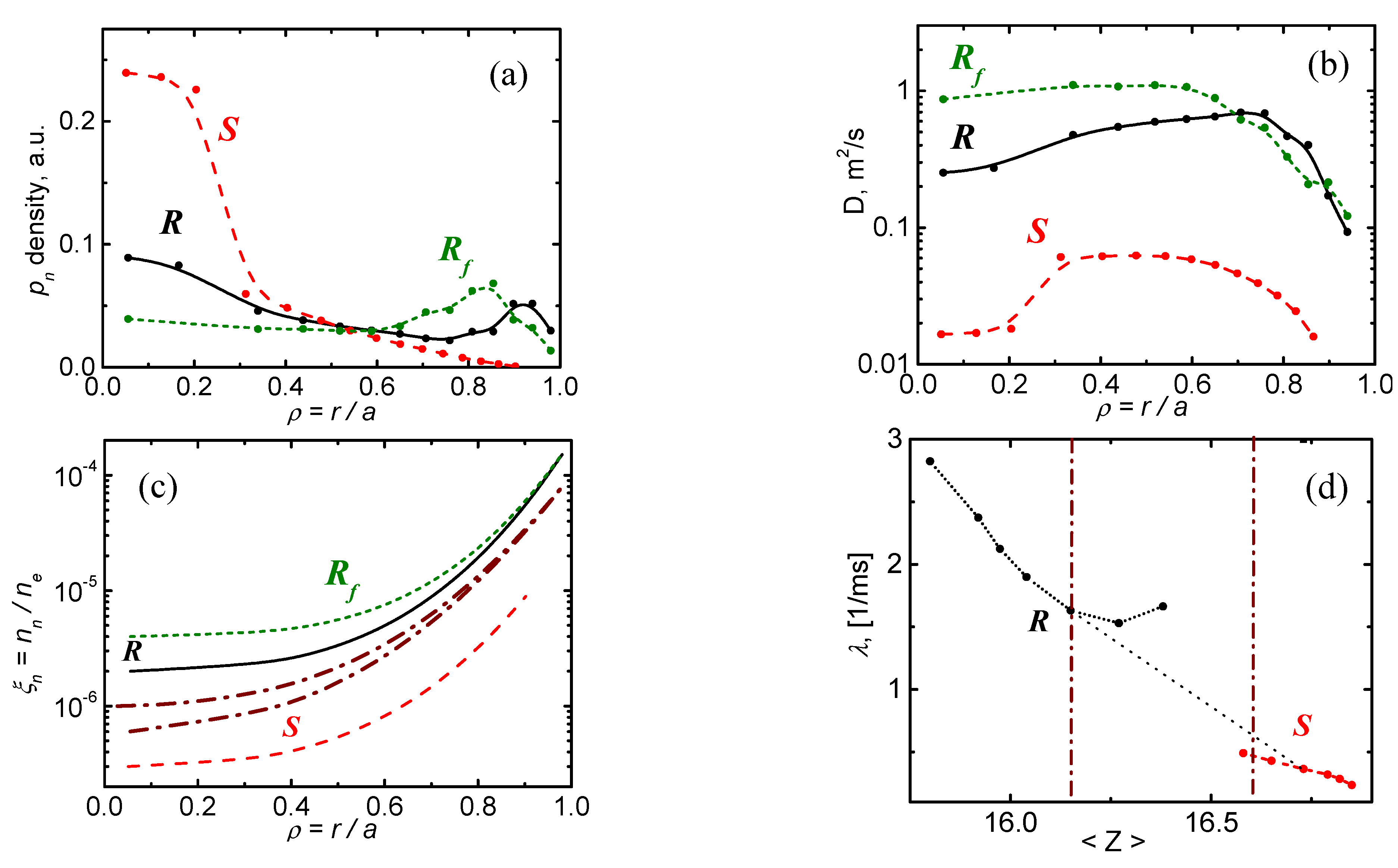

**Figure 7.**The equilibrium of Ar calculated with a recombination (R, R

_{f}curves) and ionization (S curves) equilibrium base: (

**a**) profiles with and without central accumulation; (

**b**) profiles of the diffusivity calculated by Formula (37); (

**c**) S- and R-equilibrium regions determined by the relative profiles of hydrogen neutrals ${\xi}_{n}={n}_{n}/{n}_{e}$ separated by dash-dotted curves showing the limits of the transition region; (

**d**) abrupt change in the equilibrium constant depending on the average impurity charge with a gradual transition between the R and S regions due to changes in the profiles ${\xi}_{n}\left(\rho \right)$. The dash-dotted curves on (

**d**) show the same limits of the transition region.

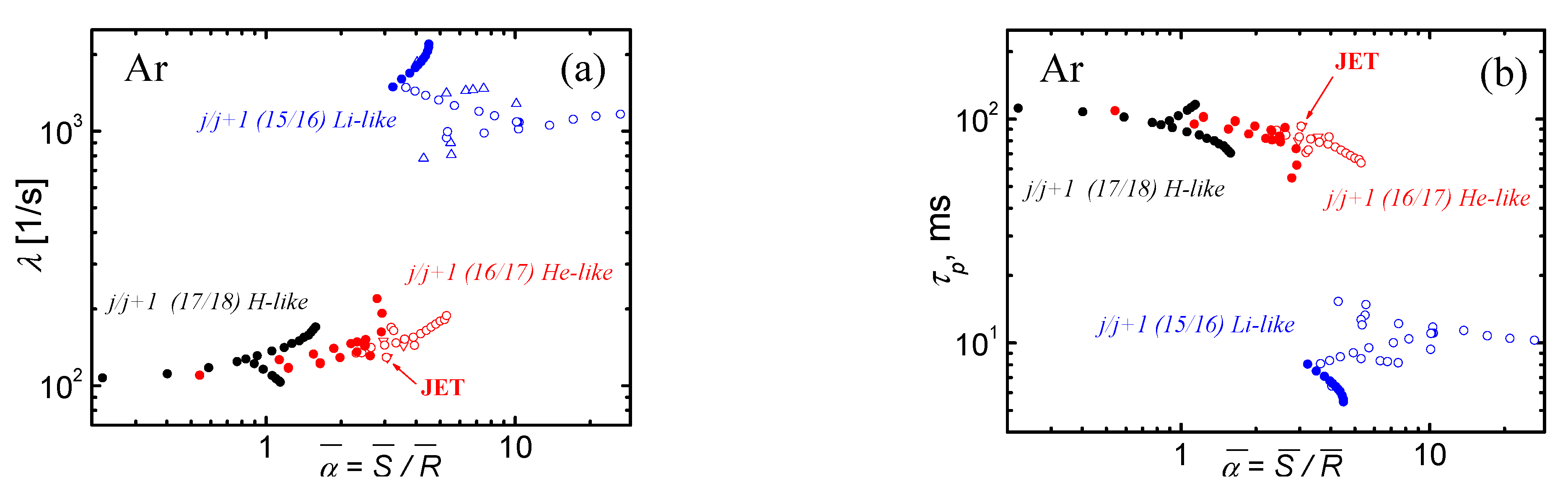

**Figure 8.**Model calculations of equilibrium constant (

**a**) and confinement time (

**b**) calculated for Ar by Formula (42) with m = 12, various $j/j+1$ (as denoted), the equilibrium base (for S-equilibrium—full symbols and for R– equilibrium—open symbols), ${T}_{e}\left(0\right)$ and ${T}_{i}\left(0\right)$ varying within 1.5–8 keV, corresponding ${\xi}_{n}\left(\rho \right)$, ${n}_{e}=(4-9)\times {10}^{19}{\mathrm{m}}^{-3}$. The points denoted by JET correspond to the modelling data from JET [17].

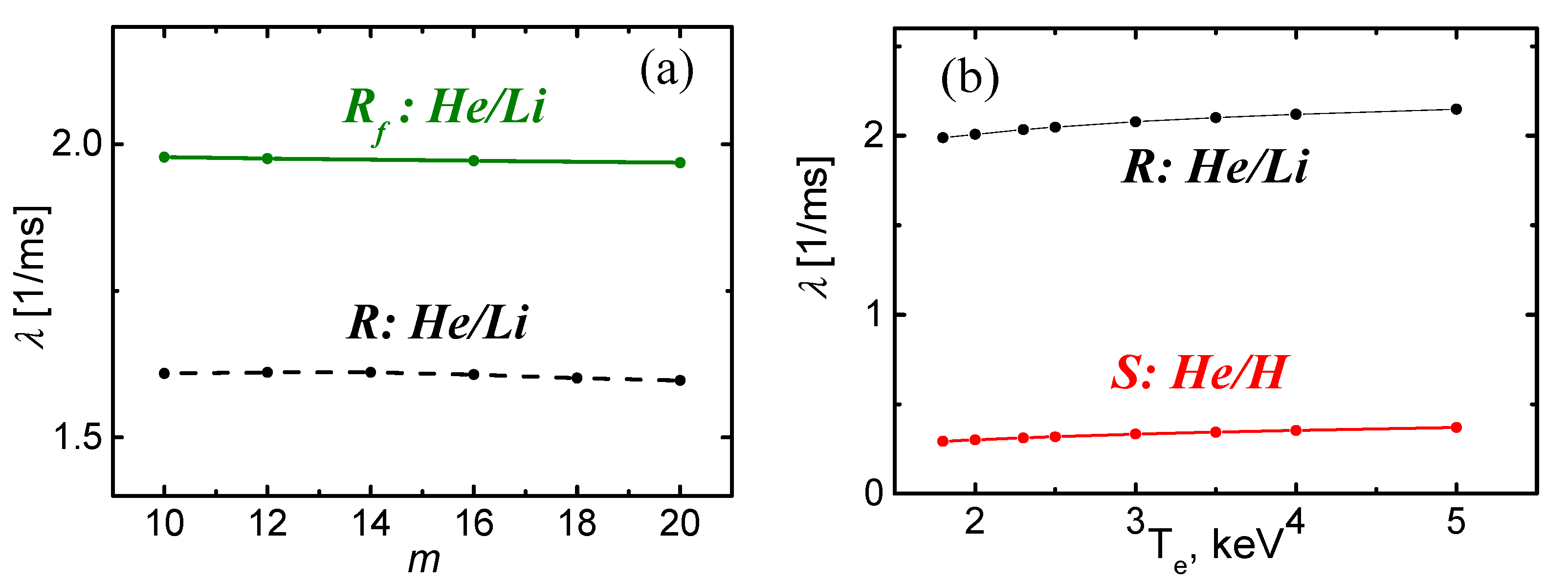

**Figure 9.**The equilibrium constant of Ar in dependence on (

**a**) the number of cells m; (

**b**) on the central plasma electron temperature ${T}_{e}\left(0\right)$.

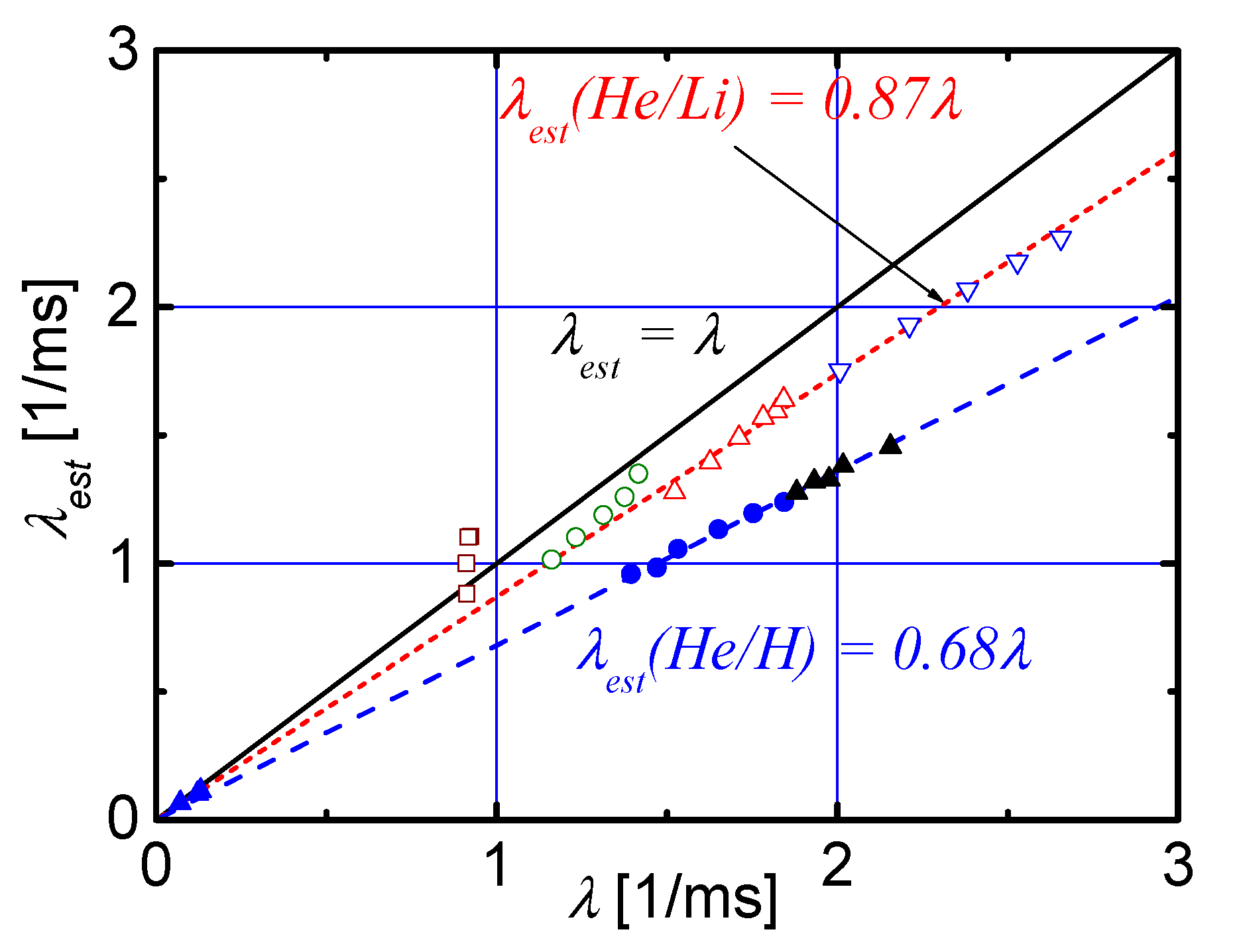

**Figure 10.**A comparison of the calculations using the exact Equation (43) and the approximate Equation (44) in the various equilibrium cases of C and Ar. Points shown with open symbols are related to He/Li equilibrium of Ar, while full symbols are of the He/H equilibrium type. Carbon data ($j/j+1$ are H-like ions and nucleous) are shown in black triangles.

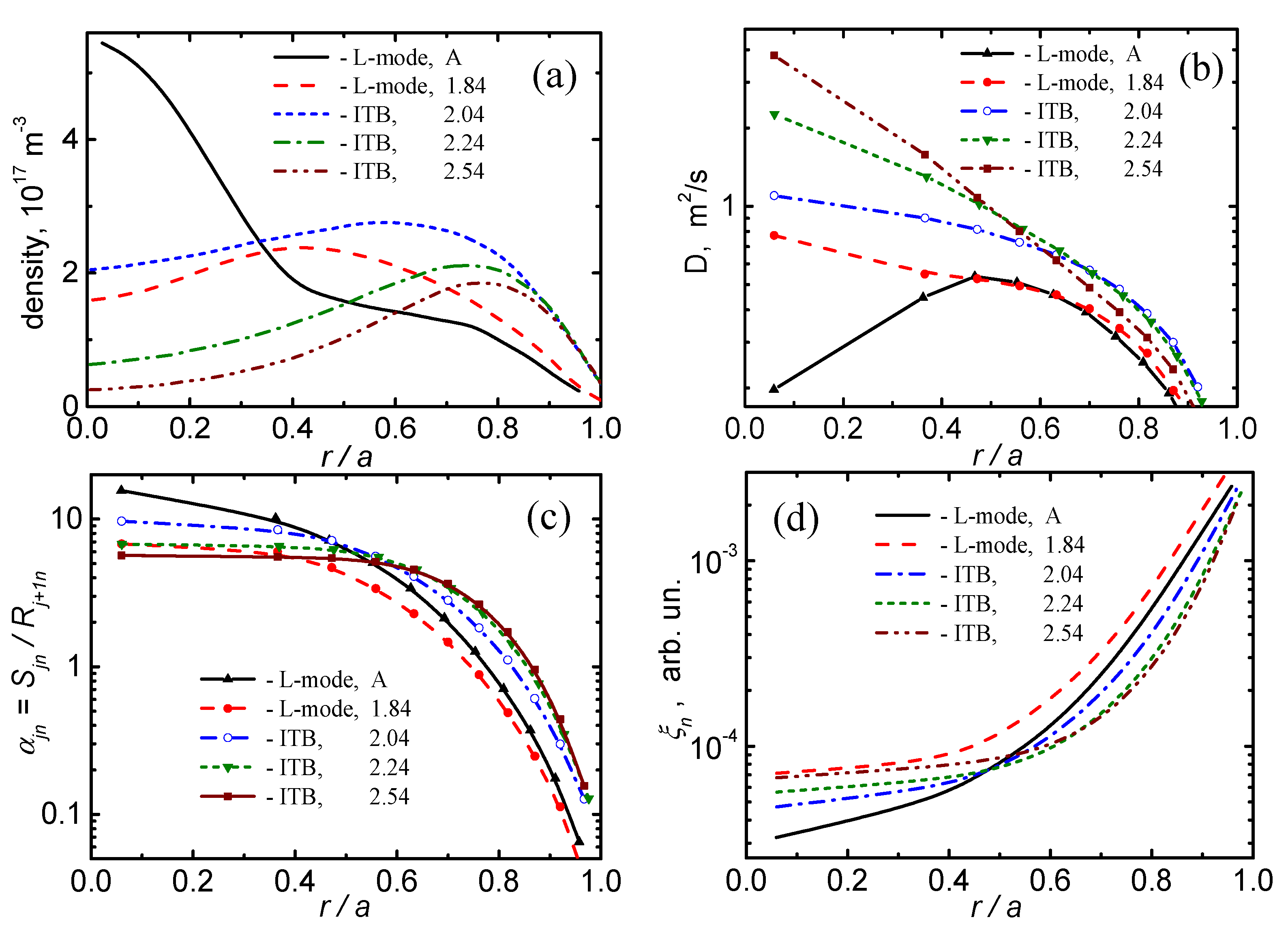

**Figure 11.**The calculated quasi-stationary equilibrium of C in L-mode at ${t}_{1}=1.84$ s along with modelled central accumulation (curves A) and in H-mode at ${t}_{2}=2.04$ s, ${t}_{3}=2.24$ s, ${t}_{4}=2.54$ s: (

**a**) input total density profiles measured in the experiment [43]; (

**b**) the profiles of diffusion coefficient, calculated according to Formula (37); (

**c**) the equilibrium functions; (

**d**) calculated profiles of the relative density of hydrogen neutrals.
