# A Matching Pursuit Algorithm for Backtracking Regularization Based on Energy Sorting

^{1}

^{2}

^{*}

## Abstract

**:**

`(`ROMP) algorithm backtracking. The support set is continuously updated and expanded during each iteration. While the signal energy distribution is not uniform, or the energy distribution is in an extreme state, the reconstructive performance of the ROMP algorithm becomes unstable if the maximum energy is still taken as the selection criterion. The proposed method for the regularized orthogonal matching pursuit algorithm can be adopted to improve those drawbacks in signal reconstruction due to its high reconstruction efficiency. The experimental results show that the algorithm has a proper reconstruction.

## 1. Introduction

## 2. Compressed Sensing Theory

## 3. Reconstruction Processes

- (1)
- Initialization: Set the residual ${r}_{0}=y$, $\Lambda =\varphi $.
- (2)
- Calculate the inner product between the residuals ${r}_{i-1}$ and the atoms of the observation matrix.
- (3)
- Set the threshold value, select the value larger than the threshold value $Th$ from $u$, and make up the set $J$ of the sequence number $j$ corresponding to these values.
- (4)
- Energy sorting and finding subsets ${J}_{0}\in J$.
- (5)
- Update the index set ${\Lambda}_{i}={\Lambda}_{i-1}\cup {J}_{0}$ and update the support set ${\Gamma}_{i}={\Gamma}_{i-1}\cup {J}_{0}$.
- (6)
- Solve the least squares problem $\widehat{\theta}=\mathrm{arg}\mathrm{min}\Vert y-{A}_{t}{\theta}_{t}\Vert $.
- (7)
- Backtracking update support set: Based on the backtracking idea, a new support set is made up of the larger $aL$ elements ($0<a<1$, A is the number of B)
- (8)
- Update the residual ${\widehat{r}}_{t}=y-{A}_{t}\widehat{\theta}$.
- (9)
- Judge whether ${\Vert {\widehat{r}}_{t}\Vert}_{2}\le {\Vert {\widehat{r}}_{t-1}\Vert}_{2}$ is established. If it is established, stop iterating; if it is not established, determine whether the number of initial stages s can be reached. If it is reached, the iteration is stopped; if it is not reached, return to the second step and continue to iterate.

## 4. Experimental Results and Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

ESBRMP | backtracking regularization matching pursuit algorithm based on energy sorting |

MR | magnetic resonance |

CS | compressed sensing |

CS-MRI | compressed sensing magnetic resonance imaging |

OMP | orthogonal matching pursuit algorithm |

ROMP | regularized orthogonal matching pursuit algorithm |

CoSaMP | compressive sampling matching pursuit algorithm |

SP | subspace tracking |

LP | linear programming |

RIP | restricted isometry property |

BRAMP | Backtracking Regularized Adaptive Matching Pursuit |

## References

- Yahyazadeh, S.; Mehraeen, R. A Comparison of the Diagnostic Value of Magetic Resonance Mammography Versus Ultrasound Mammography in Moderate-and High-risk Breast Cancer Patients. J. Evolut. Med. Dent. Sci.
**2018**, 7, 5629–5633. [Google Scholar] [CrossRef] - Afsar, J.; Khazaei, A.; Zolfigol, M.A. A novel nano perfluoro ionic liquid as an efficient catalyst in the synthesis of chromenes under mild and solvent-free conditions. Iran. J. Catal.
**2018**, 9, 37–49. [Google Scholar] - Nasiriavanaki, M.; Xia, J.; Wan, H.; Bauer, A.Q.; Culver, J.P.; Wang, L.V. High-resolution photoacoustic tomography of resting-state functional connectivity in the mouse brain. Proc. Natl. Acad. Sci. USA
**2014**, 111, 21–26. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chkifa, A.; Dexter, N.; Hoang, T.; Webster, C.G. Polynmial approximation via compressed sensing of high-dimensional functions on lower sets. Math. Comput.
**2018**, 87, 1415–1450. [Google Scholar] [CrossRef] - Donoho, D.L. Compressed Sensing. IEEE Trans. Inf. Theory
**2006**, 52, 1289–1306. [Google Scholar] [CrossRef] - Baraniuk, R. Compressive sensing. IEEE Signal Process. Mag.
**2007**, 24, 118–121. [Google Scholar] [CrossRef] - Saha, T.; Srivastava, S.; Khare, S.; Stanimirović, P.S.; Petković, M.D. An improved algorithm for basis pursuit problem and its applications. Appl. Math. Comput.
**2019**, 355, 385–398. [Google Scholar] [CrossRef] - Wei, Y.; Liu, S. Numerical analysis of the dynamic behavior of a rotor-bearing-brush seal system with bristle interference. J. Mech. Sci. Tech.
**2019**, 33, 3895–3903. [Google Scholar] [CrossRef] - Xiao, S.; Liu, S.; Song, M.; Ang, N.; Zhang, H. Coupling rub-impact dynamics of double translational joints with subsidence for time-varying load in a planar mechanical system. Multibody Syst. Dyn.
**2019**. [Google Scholar] [CrossRef] - Xiao, S.; Liu, S.; Jiang, F.; Song, M.; Cheng, S. Nonlinear dynamic response of reciprocating compressor system with rub-impact fault caused by subsidence. J. Vib. Control
**2019**, 25, 1737–1751. [Google Scholar] [CrossRef] - Chen, S.S.; Donoho, D.L.; Saunders, M.A. Atomic decomposition by basis pursuit. SIAM Rev.
**2001**, 43, 129–159. [Google Scholar] [CrossRef] [Green Version] - Chi-Duran, R.; Comte, D.; Diaz, M.; Silva, J.F. Automatic detection of P- and S-wave arrival times: new strategies based on the modified fractal method and basic matching pursuit. J. Seismol.
**2017**, 21, 1171–1184. [Google Scholar] [CrossRef] - Zhang, F.; Jin, Z.; Sheng, X.; Li, X.; Shi, J.; Liu, X. A direct inversion for brittleness index based on GLI with basic-pursuit decomposition. Chin. J. Geophys.
**2017**, 60, 3954–3968. [Google Scholar] - Cui, L.; Yao, T.; Zhang, Y.; Gong, X.; Kang, C. Application of pattern recognition in gear faults based on the matching pursuit of characteristic waveform. Measurement
**2017**, 104, 212–222. [Google Scholar] [CrossRef] - Nam, N.; Needell, D.; Woolf, T. Linear Convergence of Stochastic Iterative Greedy Algorithms with Sparse Constraints. IEEE Trans. Inf. Theory
**2017**, 63, 6869–6895. [Google Scholar] - Tkacenko, A.; Vaidyanathan, P.P. Iterative greedy algorithm for solving the FIR paraunitary approximation problem. IEEE Trans. Signal Process.
**2006**, 54, 146–160. [Google Scholar] [CrossRef] [Green Version] - Mallat, S.G.; Zhang, Z. Matching pursuits with time-frequency dictionaries. IEEE Trans. Signal Process.
**1993**, 41, 3397–3415. [Google Scholar] [CrossRef] [Green Version] - Tropp, J.A.; Gilbert, A.C. Signal Recovery from Random Measurements Via Orthogonal Matching Pursuit. IEEE Trans. Inf. Theory
**2007**, 53, 4655–4666. [Google Scholar] [CrossRef] [Green Version] - Li, H.; Ma, Y.; Fu, Y. An Improved RIP-Based Performance Guarantee for Sparse Signal Recovery via Simultaneous Orthogonal Matching Pursuit. Signal Process.
**2017**, 144, 29–35. [Google Scholar] [CrossRef] - Michel, V.; Telschow, R. The Regularized Orthogonal Functional Matching Pursuit for Ill-Posed Inverse Problems. Siam J. Numer. Anal.
**2016**, 54, 262–287. [Google Scholar] [CrossRef] - Needell, D.; Vershynin, R. Greedy signal recovery and uncertainty principles. Proc. SPIE Int. Soc. Opt. Eng.
**2008**, 6806, 1–12. [Google Scholar] - Needell, D.; Vershynin, R. Uniform Uncertainty Principle and Signal Recovery via Regularized Orthogonal Matching Pursuit. Found. Comput. Math.
**2007**, 9, 317–334. [Google Scholar] [CrossRef] - Needell, D.; Tropp, J.A. CoSaMP: Iterative signal recovery from incomplete and inaccurate samples. Appl. Comput. Harmon. Anal.
**2008**, 26, 301–321. [Google Scholar] [CrossRef] [Green Version] - Rao, M.S.; Naik, K.K.; Reddy, K.M. Radar Signal Recovery using Compressive Sampling Matching Pursuit Algorithm. Def. Sci. J.
**2016**, 67, 94–99. [Google Scholar] [CrossRef] - Dai, W.; Milenkovic, O. Subspace pursuit for compressive sensing signal reconstruction. IEEE Trans. Inf. Theory
**2009**, 55, 2230–2249. [Google Scholar] [CrossRef] [Green Version] - Satpathi, S.; Chakraborty, M. On the Number of Iterations for Convergence of CoSaMP and Subspace Pursuit Algorithms. Appl. Comput. Harmon. Anal.
**2017**, 43, 568–576. [Google Scholar] [CrossRef] [Green Version] - Candes, E.; Tao, T. Decoding by linear programming. IEEE Trans. Inf. Theory
**2005**, 51, 4203–4215. [Google Scholar] [CrossRef] [Green Version] - Candes, E.; Romberg, J.; Tao, T. Robust uncertainty principles: Exact signal reconstruction from highly incomplete frequency information. IEEE Trans. Inf. Theory.
**2006**, 52, 489–509. [Google Scholar] [CrossRef] [Green Version]

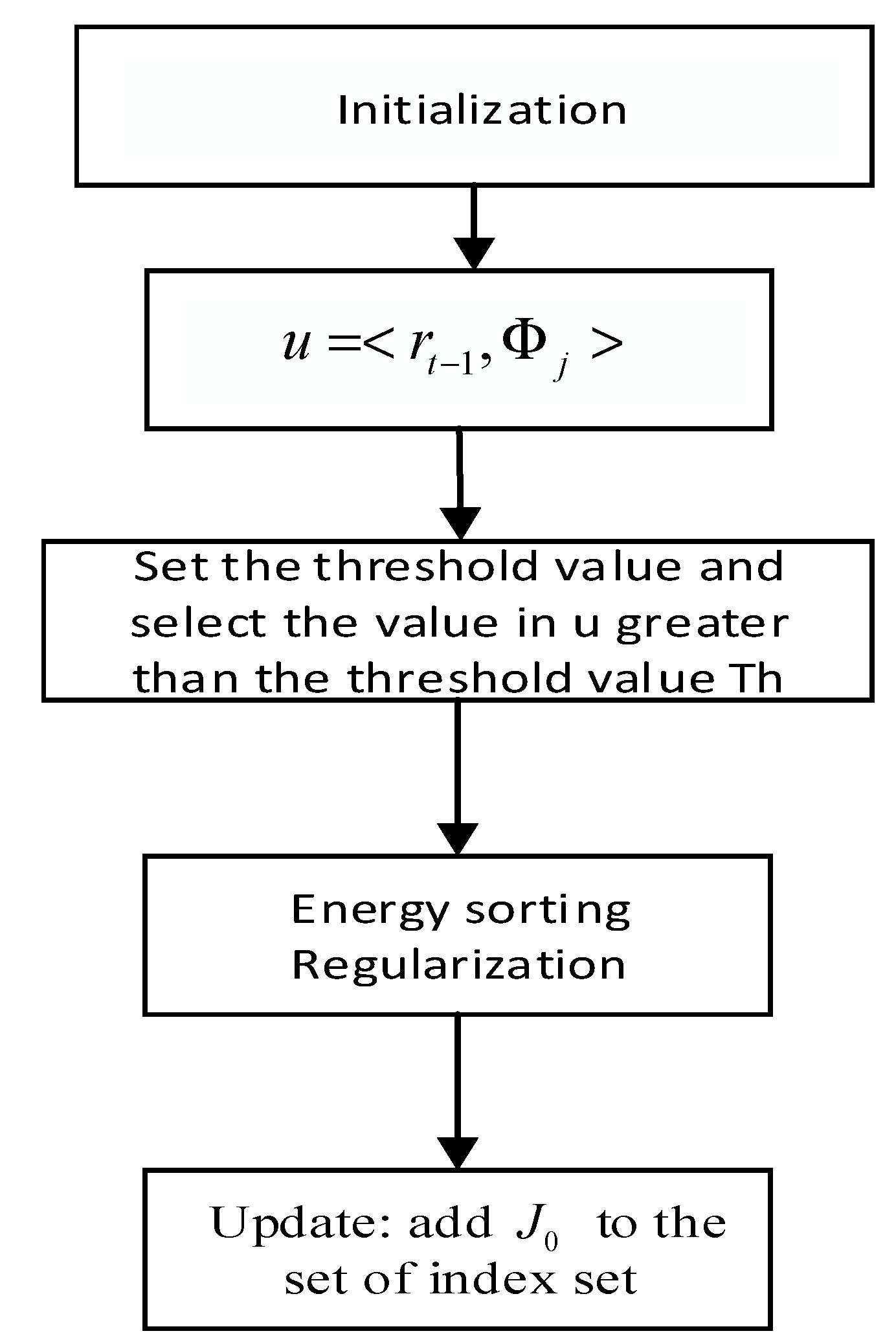

**Figure 2.**The flow chart of the matching pursuit algorithm for regular backtracking based on the energy ranking (ESBRMP).

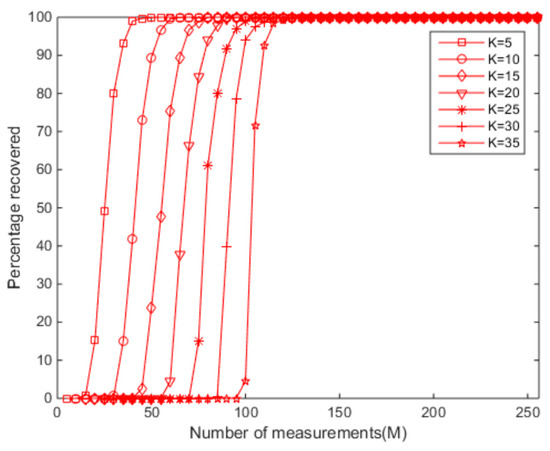

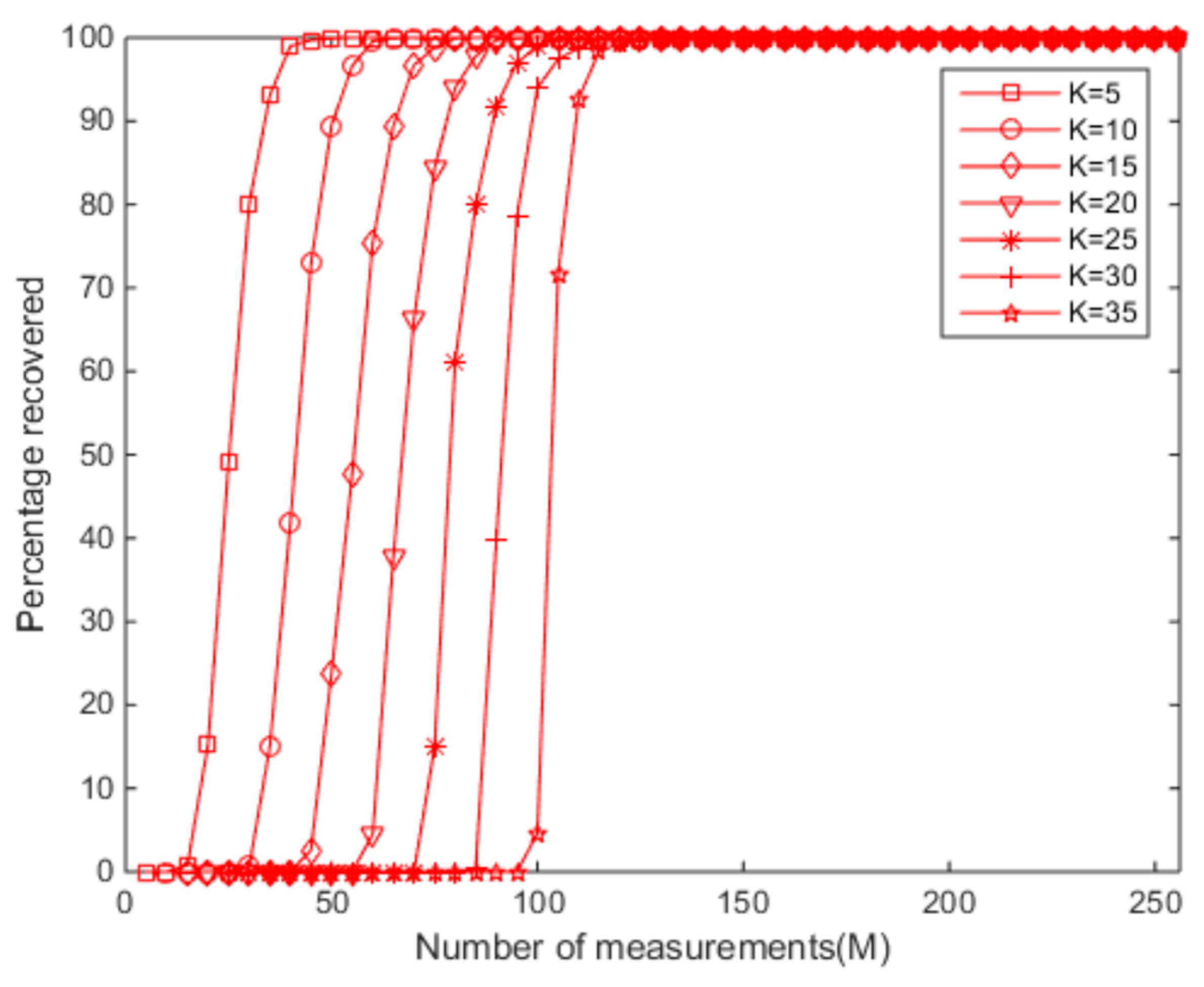

**Figure 5.**The ESBRMP algorithm’s relationship between the signal reconfiguration rate and the number of measurements.

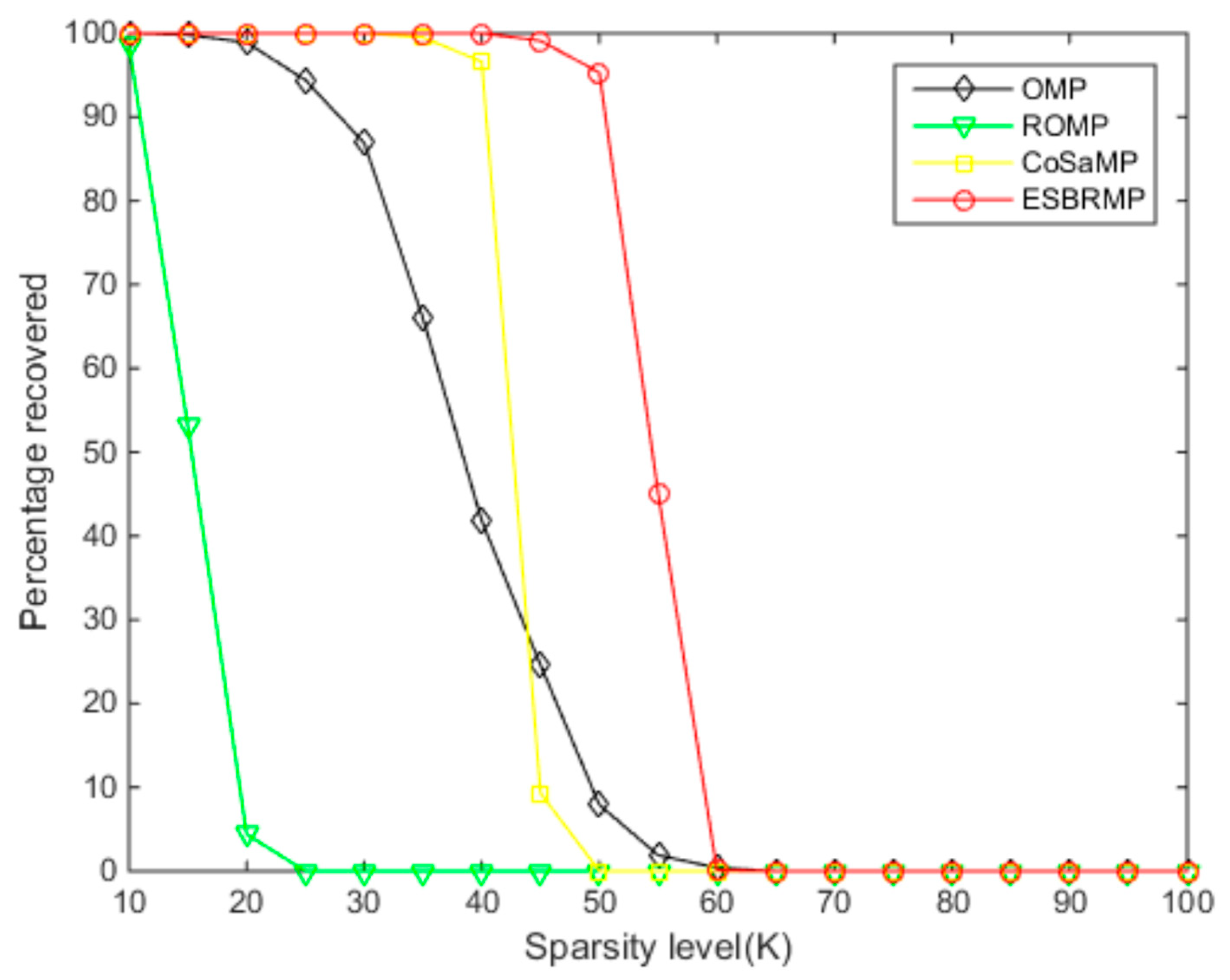

**Figure 6.**The ESBRMP algorithm’s relationship between the signal reconfiguration rate and the sparsity.

**Table 1.**Qualities of images reconstructed and running time by different algorithms. PSNR: Peak signal to noise ratio.

Algorithms | M/N = 0.3 | M/N = 0.4 | M/N = 0.5 | |||
---|---|---|---|---|---|---|

PSNR (dB) | T (s) | PSNR (dB) | T (s) | PSNR (dB) | T (s) | |

OMP | 23.7848 | 16.3249 | 26.3581 | 35.4372 | 29.6349 | 62.9146 |

ROMP | 19.3325 | 2.8873 | 22.6383 | 3.0273 | 26.8823 | 3.5338 |

CoSaMP | 22.1336 | 4.1558 | 24.0518 | 6.3511 | 25.8473 | 9.2915 |

ESBRMP | 26.2538 | 3.2903 | 28.6912 | 5.1083 | 31.2703 | 8.9474 |

Algorithms | Lena | Fruits | Cameraman | Pepers |
---|---|---|---|---|

OMP | 29.6349 | 30.9803 | 28.0214 | 29.1471 |

ROMP | 26.8921 | 28.8023 | 24.0257 | 25.7125 |

CoSaMP | 25.8473 | 27.2755 | 24.1903 | 25.0361 |

ESBRMP | 31.2703 | 33.4108 | 29.1827 | 30.5297 |
