# Peristaltic Pumping of Nanofluids through a Tapered Channel in a Porous Environment: Applications in Blood Flow

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Formulation

## 3. Convective Boundary Conditions

## 4. Non-Dimensional Analysis

## 5. Analytical Solution

## 6. Computational Results and Discussion

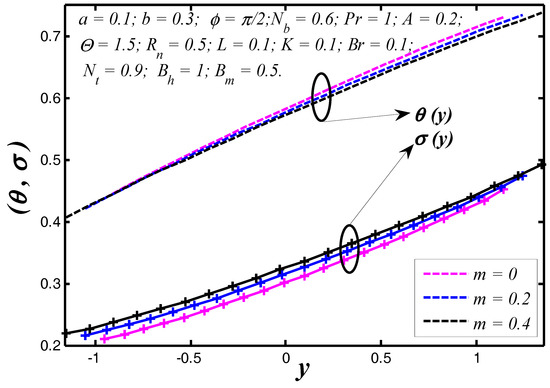

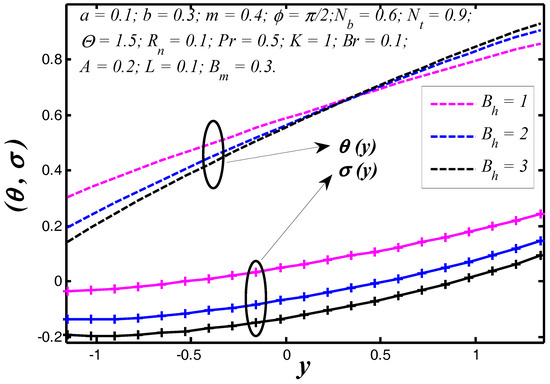

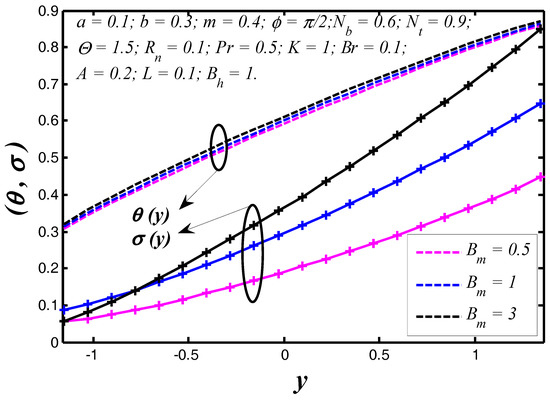

#### 6.1. Thermal and Concentration Profiles

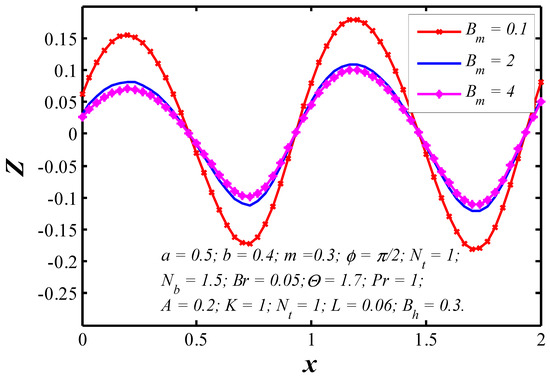

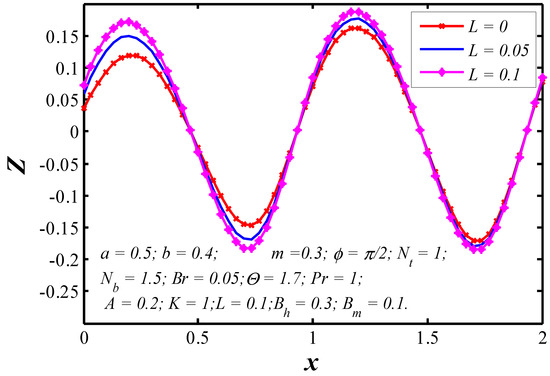

#### 6.2. Nanoparticle Heat Transfer Coefficient

#### 6.3. Trapping

#### 6.4. Validation

## 7. Conclusions

- Nanoparticle heat transfer between the tapered walls strongly depends on Brinkman number because the tissue presents the chief resistance to heat flow.
- Thermal radiation contains the potential to contribute a significant change in the nanoparticle temperature distribution.

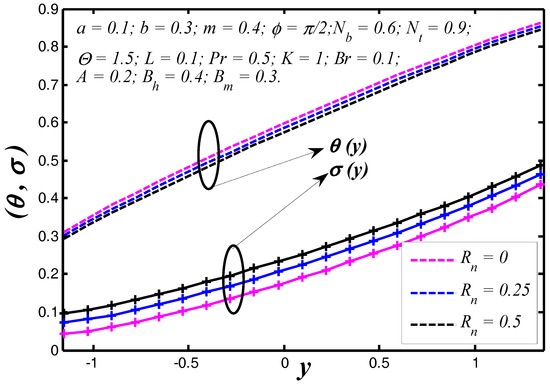

- With increasing the radiation parameter, the nanoparticle temperature and heat transfer coefficient enhance.

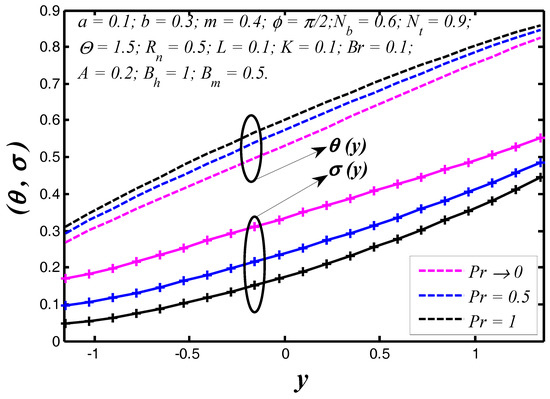

- The nanoparticle temperature reduces with enhancing the Prandtl number, however, reverse behavior is noticed for nanoparticle concentration.
- Heat transfer coefficient depends on the flow, thermal and geometrical nature of flow regime.
- The trapping phenomenon also alters with changing the magnitude of slip and permeability parameters.
- The findings of the present models can be utilized to engineer smart peristaltic pumps which can be applicable for transporting drugs and delivery of nanoparticles.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Nomenclature

Symbol | description | Unit |

$\left({a}_{1},\text{}{a}_{2}\right)$ | Dimensional amplitude of the lower and upper walls | m |

$c$ | Wave speed | m/s |

$\overline{C}$ | Nanoparticle volumetric volume fraction | Kg/m^{3} |

${C}_{0},\text{}{C}_{1}$ | Nanoparticle concentration at the lower and upper walls | Kg/m^{3} |

${D}_{B}$ | Brownian diffusion coefficient | m/s |

${D}_{T}$ | Themophoretic diffusion coefficient | m^{2}/s |

$\overline{d}$ | Dimensionless half width of the channel | m |

${\overline{h}}_{h}$ | Heat transfer coefficient | W/m^{2}K (or) kg/s^{3}K |

${\overline{h}}_{m}$ | Mass transfer coefficient | m/s |

$k$ | Permeable of porous medium | H/m |

$\overline{k}$ | Permeability of the porous wavy wall | Darcy (or) m^{2} |

${\overline{k}}_{h}$ | Thermal conductivity of wavy wall | W/mK |

${\overline{k}}_{m}$ | Mass conductivity of wavy wall | W/mK |

$\overline{m}$ | Dimensional non-uniform parameter | m |

$\overline{P}$ | Dimensional pressures | Pa (or) N/m^{2} (or) kg/ms^{2} |

${\overline{q}}_{r}$ | Uni-directional thermal radiative flux | kg/s^{3} (or) W/m^{2} |

${t}^{\prime}$ | Dimensional time | s |

$\overline{T}$ | Nanoparticle temperature | K |

${T}_{m}$ | Mean temperature | K |

$\left({T}_{0},{T}_{1}\right)$ | Temperature at the lower and upper walls | K |

$\overline{U},\overline{V}$ | Velocity components in the wave frame | m/s |

$\overline{\xi},\overline{\eta}$ | Rectangular coordinates | m |

${\rho}_{f}$ | Density of the fluid | Kg/m^{3} |

${\rho}_{p}$ | Density of the particle | Kg/m^{3} |

$\mu $ | Dynamic Viscosity | kg/m.s |

$\kappa $ | Thermal conductivity of the fluid | m^{2}/s |

$\lambda $ | Wave length | m |

## Dimensionless parameters:

$\overline{\alpha}$ | Slip coefficient at the surface of the porous walls |

$A$ | Blood flow constant |

$\left(a,\text{}b\right)$ | Dimensionless amplitude of the lower and upper walls |

${B}_{h}$ | Heat transfer Biot number |

${B}_{m}$ | Mass transfer Biot number |

$Br$ | Brinkman number |

$Ec$ | Eckert number |

$F$ | Dimensionless flow rate |

$\left({\overline{H}}_{1},\text{}{\overline{H}}_{2}\right)$ | Lower and upper wall boundaries of the micro- asymmetric channel |

$\left({h}_{1},\text{}{h}_{2}\right)$ | Dimensionless lower and upper wall shapes in wave frame |

$L$ | Slip parameter |

$m$ | Dimensionless non-uniform parameter |

${N}_{t}$ | Thermophoresis parameter |

${N}_{b}$ | Brownian motion parameter |

$p$ | Dimensionless pressure |

$\mathrm{Pr}$ | Prandtl number |

R | Reynolds number |

${R}_{n}$ | Thermal radiation |

$Sc$ | Schmidt number |

$t$ | Dimensionless time |

$\left(u,\text{}v\right)$ | Velocity components in the wave frame $\left(x,\text{}y\right)$ |

$\Theta $ | Constant flow rate |

$\sigma $ | Dimensionless rescaled nanoparticle volume fraction |

$\theta $ | Dimensionless nanoparticle temperature |

$\psi $ | Stream function |

$\varphi $ | Phase difference |

$K$ | Permeability parameter |

$\delta $ | Wave number |

## Appendix A

## References

- Burns, J.C.; Parkes, T. Peristaltic motion. J. Fluid Mech.
**1967**, 29, 731–743. [Google Scholar] [CrossRef] - Zien, T.F.; Ostrach, S. A long wave approximation to peristaltic motion. J. Biomech.
**1970**, 3, 63–75. [Google Scholar] [CrossRef] - Raju, K.K.; Devanathan, R. Peristaltic motion of a non-Newtonian fluid. Rheol. Acta
**1972**, 11, 170–178. [Google Scholar] [CrossRef] - Ellahi, R.; Zeeshan, A.; Hussain, F.; Asadollahi, A. Peristaltic blood flow of couple stress fluid suspended with nanoparticles under the influence of chemical reaction and activation energy. Symmetry
**2019**, 11, 276. [Google Scholar] [CrossRef] - Zeeshan, A.; Ijaz, N.; Abbas, T.; Ellahi, R. The sustainable characteristic of Bio-bi-phase flow of peristaltic transport of MHD Jeffery fluid in human body. Sustainability
**2018**, 10, 2671. [Google Scholar] [CrossRef] - Hussain, F.; Ellahi, R.; Zeeshan, A.; Vafai, K. Modelling study on heated couple stress fluid peristaltically conveying gold nanoparticles through coaxial tubes: A remedy for gland tumors and arthritis. J. Mol. Liq.
**2018**, 268, 149–155. [Google Scholar] [CrossRef] - Choi, S.U.S.; Eastman, J.A. Enhancing Thermal Conductivity of Fluids with Nanoparticles. In Proceedings of Enhancing Thermal Conductivity of Fluids with Nanoparticles, San Francisco, CA, USA; American Society of Mechanical Engineers, FED: New York, NY, USA, 1995; Volume 231, pp. 99–105. Available online: https://www.osti.gov/biblio/196525-enhancing-thermal-conductivity-fluids-nanoparticles (accessed on 21 June 2019).
- Masuda, H.; Ebata, A.; Teramae, K.; Hishinuma, N. Alteration of thermal conductivity and viscosity of liquids by dispersing ultra-fine particles. Netsu Bussei.
**1993**, 7, 227–233. [Google Scholar] [CrossRef] - Buongiorno, J.; Hu, W. Nanofluid Coolants for Advanced Nuclear Power Plants. In Proceedings of the nternational Congress on Advances in Nuclear Power Plants (ICAPP’05), Seoul, Korea, 15–19 May 2005. [Google Scholar]
- Buongiorno, J. Convective transport in nanofluids. J. Heat Transf.
**2005**, 128, 240–250. [Google Scholar] [CrossRef] - Akbar, N.S.; Nadeem, S. Endoscopic effects on the peristaltic flow of a nanofluid. Commun. Theor. Phys.
**2011**, 56, 761–768. [Google Scholar] [CrossRef] - Akbar, N.S. Peristaltic Sisko nanofluid in an asymmetric channel. Appl. Nanosci.
**2014**, 4, 663–673. [Google Scholar] [CrossRef] - Tripathi, D.; Beg, O.A. A study on peristaltic flow of nanofluids: Application in drug delivery systems. Int. J. Heat Mass Transf.
**2014**, 70, 61–70. [Google Scholar] [CrossRef] - Akbar, N.S.; Nadeem, S.; Khan, Z.H. Numerical simulation of peristaltic flow of a Carreau nanofluid in an asymmetric channel. Alexandria Eng. J.
**2013**, 53, 191–197. [Google Scholar] [CrossRef] - Bég, O.A.; Tripathi, D. Mathematica simulation of peristaltic pumping with double-diffusive convection in nanofluids: A bio-nano-engineering model. Proc. Inst. Mech. Eng. Part N J Nanoeng. Nanosyst.
**2012**, 225, 99–114. [Google Scholar] [CrossRef] - Akbar, N.S.; Tripathi, D.; Bég, A.O. Modeling nanoparticle geometry effects on peristaltic pumping of medical magnetohydrodynamic nanofluids with heat transfer. J. Mechan. Med. Bio.
**2016**, 16, 1650088. [Google Scholar] [CrossRef] - Reddy, M.G.; Makinde, O.D. Magnetohydrodynamic peristaltic transport of Jeffrey nanofluid in an asymmetric channel. J. Mol. Liq.
**2016**, 223, 1242–1248. [Google Scholar] [CrossRef] - Akbar, N.S.; Huda, A.B.; Tripathi, D. Thermally developing MHD peristaltic transport of nanofluids with velocity and thermal slip effects. Eur. Phys. J. Plus.
**2016**, 131, 332. [Google Scholar] [CrossRef] - Nadeem, S.; Riaz, A.; Ellahi, R.; Akbar, N.S.; Zeeshan, A. Heat and mass transfer analysis of peristaltic flow of nanofluid in a vertical rectangular duct by using the optimized series solution and genetic algorithm. J. Comput. Theor. Nanosci.
**2014**, 11, 1133–1149. [Google Scholar] [CrossRef] - Ellahi, R.; Riaz, A.; Nadeem, S. A theoretical study of Prandtl nanofluid in a rectangular duct through peristaltic transport. Appl. Nanosci.
**2014**, 4, 753–760. [Google Scholar] [CrossRef] - Ellahi, R.; Bhatti, M.M.; Riaz, A.; Sheikholeslami, M. Effects of magnetohydrodynamics on peristaltic flow of Jeffrey fluid in a rectangular duct through a porous medium. J. Por. Med.
**2014**, 17, 143–157. [Google Scholar] [CrossRef] - Kothandapani, M.; Prakash, J. Influence of heat source, thermal radiation and inclined magnetic field on peristaltic flow of a hyperbolic tangent nanofluid in a tapered asymmetric channel. IEEE Trans. NanoBiosci.
**2015**, 14, 385–392. [Google Scholar] [CrossRef] - Nadeem, S.; Riaz, A.; Ellahi, R.; Akbar, N.S. Effects of heat and mass transfer on peristaltic flow of a nanofluid between eccentric cylinders. Appl. Nanosci.
**2014**, 4, 393–404. [Google Scholar] [CrossRef] - Prakash, J.; Sharma, A.; Tripathi, D. Thermal radiation effects on electroosmosis modulated peristaltic transport of ionic nanoliquids in biomicrofluidics channel. J. Mol. Liq.
**2018**, 249, 843–855. [Google Scholar] [CrossRef] - Tripathi, D.; Shashi, B.; Bég, O.A.; Akbar, N.S. Transient peristaltic diffusion of nanofluids: A model of micropumps in medical engineering. J. Hydrodyn.
**2018**, 30, 1001–1011. [Google Scholar] [CrossRef] - Tripathi, D.; Sharma, A.; Bég, O.A. Joule heating and buoyancy effects in electro-osmotic peristaltic transport of aqueous nanofluids through a microchannel with complex wave propagation. Adv. Powder Technol.
**2018**, 29, 639–653. [Google Scholar] [CrossRef] - Prakash, J.; Siva, E.P.; Tripathi, D.; Kuharat, S.; Bég, O.A. Peristaltic pumping of magnetic nanofluids with thermal radiation and temperature-dependent viscosity effects: Modelling a solar magneto-biomimetic nanopump. Renew. Energ.
**2019**, 133, 1308–1326. [Google Scholar] [CrossRef] - Prakash, J.; Tripathi, D. Electroosmotic flow of Williamson ionic nanoliquids in a tapered microfluidic channel in presence of thermal radiation and peristalsis. J. Mol. Liq.
**2018**, 256, 352–371. [Google Scholar] [CrossRef] - Prakash, J.; Jhorar, R.; Tripathi, D.; Azese, M.N. Electroosmotic flow of pseudoplastic nanoliquids via peristaltic pumping. J. Braz. Soc. Mech. Sci. Eng.
**2019**, 41, 61. [Google Scholar] [CrossRef] - Mosayebidorcheh, S.; Hatami, M. Analytical investigation of peristaltic nanofluid flow and heat transfer in an asymmetric wavy wall channel (Part I: Straight channel). Int. J. Heat Mass Transf.
**2018**, 126, 790–799. [Google Scholar] [CrossRef] - Abbasi, F.M.; Gul, M.; Shehzad, S.A. Hall effects on peristalsis of boron nitride-ethylene glycol nanofluid with temperature dependent thermal conductivity. Physica E Low Dimens. Syst Nanostruct.
**2018**, 99, 275–284. [Google Scholar] [CrossRef] - Ranjit, N.K.; Shit, G.C.; Tripathi, D. Joule heating and zeta potential effects on peristaltic blood flow through porous micro vessels altered by electrohydrodynamic. Microvasc. Res.
**2018**, 117, 74–89. [Google Scholar] [CrossRef] - Sadiq, M.A. MHD stagnation point flow of nanofluid on a plate with anisotropic slip. Symmetry
**2019**, 11, 132. [Google Scholar] [CrossRef] - Ellahi, R. The effects of MHD and temperature dependent viscosity on the flow of non-Newtonian nanofluid in a pipe: Analytical solutions. Appl. Math. Model.
**2013**, 37, 1451–1457. [Google Scholar] [CrossRef] - Zeeshan, A.; Shehzad, N.; Abbas, A.; Ellahi, R. Effects of radiative electro-magnetohydrodynamics diminishing internal energy of pressure-driven flow of titanium dioxide-water nanofluid due to entropy generation. Entropy
**2019**, 21, 236. [Google Scholar] [CrossRef] - Hussain, F.; Ellahi, R.; Zeeshan, A. Mathematical models of electro magnetohydrodynamic multiphase flows synthesis with nanosized hafnium particles. Appl. Sci.
**2018**, 8, 275. [Google Scholar] [CrossRef] - Ellahi, R.; Zeeshan, A.; Hussain, F.; Abbas, T. Study of shiny film coating on multi-fluid flows of a rotating disk suspended with nano-sized silver and gold particles: A comparative analysis. Coatings
**2018**, 8, 422. [Google Scholar] [CrossRef] - Harvey, R.W.; Metge, D.W.; Kinner, N.; Mayberry, N. Physiological considerations in applying laboratory-determined buoyant densities to predictions of bacterial and protozoan transport in groundwater, Results of in-situ and laboratory tests. Enviorn. Sci. Technol.
**1997**, 31, 289–295. [Google Scholar] [CrossRef] - Mishra, M.; Rao, A.R. Peristaltic transport in a channel with a porous peripheral layer: Model of a flow in gastrointestinal tract. J. Biomech.
**2005**, 38, 779–789. [Google Scholar] [CrossRef] - Mekheimer, K.S. Nonlinear peristaltic transport through a porous medium in an inclined planar channel. J. Por. Med.
**2003**, 6, 13. [Google Scholar] [CrossRef] - Siddiqui, A.M.; Ansari, A.R. A note on the swimming problem of a singly flagellated microorganism in a fluid flowing through a porous medium. J. Porous Med.
**2005**, 8, 551–556. [Google Scholar] [CrossRef] - Wernert, V.; Schäf, O.; Ghobarkar, H.; Denoyel, R. Adsorption properties of zeolites for artificial kidney applications. Microporous Mesoporous Mat.
**2005**, 83, 101–113. [Google Scholar] [CrossRef] - Jafari, A.; Zamankhan, P.; Mousavi, S.M.; Kolari, P. Numerical investigation of blood flow part II: In capillaries. Commun. Nonlinear Sci. Numeri. Simulat.
**2009**, 14, 1396–1402. [Google Scholar] [CrossRef] - Goerke, A.R.; Leung, J.; Wickramasinghe, S.R. Mass and momentum transfer in blood oxygenators. Che. Eng. Sci.
**2002**, 57, 2035–2046. [Google Scholar] [CrossRef] - Mneina, S.S.; Martens, G.O. Linear phase matched filter design with causal real symmetric impulse response. AEU Int. J. Electron. Commun.
**2009**, 63, 83–91. [Google Scholar] [CrossRef] - Andoh, Y.H.; Lips, B. Prediction of porous walls thermal protection by effusion or transpiration cooling. An analytical approach. Appl. Thermal. Eng.
**2003**, 23, 1947–1958. [Google Scholar] [CrossRef] - Runstedtler, A. On themodified Stefan–Maxwell equation for isothermal multi component gaseous diffusion. Chemical Eng. Sci.
**2006**, 61, 5021–5029. [Google Scholar] [CrossRef] - Uddin, M.J.; Khan, W.A.; Ismail, A.I.M. Free convection boundary layer flow from a heated upward facing horizontal flat plate embedded in a porous medium filled by a nanofluid with convective boundary condition. Transp. Porous Med.
**2012**, 92, 867–881. [Google Scholar] [CrossRef] - Chamkha, A.J.; Abbasbandy, S.; Rashad, A.M.; Vajravelu, K. Radiation effects on mixed convection over a wedge embedded in a porous medium filled with a nanofluid. Transp. Porous Med.
**2011**, 91, 261–279. [Google Scholar] [CrossRef] - Kuznetsov, A.V.; Nield, D.A. Effect of local thermal non-equilibrium on the onset of convection in a porous medium layer saturated by a nanofluid. Transp. Porous Med.
**2010**, 83, 425–436. [Google Scholar] [CrossRef] - Akbar, N.S. Double-diffusive natural convective peristaltic flow of a Jeffrey nanofluid in a porous channel. Heat Trans. Res.
**2014**, 45, 293–307. [Google Scholar] [CrossRef] - Nadeem, S.; Riaz, A.; Ellahi, R.; Akbar, N.S. Mathematical model for the peristaltic flow of nanofluid through eccentric tubes comprising porous medium. Appl. Nanosci.
**2014**, 4, 733–743. [Google Scholar] [CrossRef] - Bhatti, M.M.; Zeeshan, A.; Ellahi, R.; Shit, G.C. Mathematical modeling of heat and mass transfer effects on MHD peristaltic propulsion of two-phase flow through a Darcy-Brinkman-Forchheimer porous medium. Adv. Powder Technol.
**2018**, 29, 1189–1197. [Google Scholar] [CrossRef] - Alamri, S.Z.; Ellahi, R.; Shehzad, N.; Zeeshan, A. Convective radiative plane Poiseuille flow of nanofluid through porous medium with slip: An application of Stefan blowing. J. Mol. Liq.
**2019**, 273, 292–304. [Google Scholar] [CrossRef] - Shehzad, N.; Zeeshan, A.; Ellahi, R.; Rashidid, S. Modelling study on internal energy loss due to entropy generation for non-Darcy Poiseuille flow of silver-water nanofluid: An application of purification. Entropy
**2018**, 20, 851. [Google Scholar] [CrossRef] - Kothandapani, M.; Prakash, J. The peristaltic transport of Carreau nanofluids under effect of a magnetic field in a tapered asymmetric channel: Application of the cancer therapy. J. Mech. Med. Bio.
**2015**, 15, 1550030. [Google Scholar] [CrossRef] - Hayat, T.; Abbasi, F.M.; Al-Yami, M.; Monaquel, S. Slip and Joule heating effects in mixed convection peristaltic transport of nanofluid with Soret and Dufour effects. J. Mol. Liq.
**2014**, 194, 93–99. [Google Scholar] [CrossRef] - Kothandapani, M.; Prakash, J. Effects of thermal radiation parameter and magnetic field on the peristaltic motion of Williamson nanofluids in a tapered asymmetric channel. Int. J. Heat Mass Transf.
**2015**, 51, 234–245. [Google Scholar] [CrossRef] - Hayat, T.; Yasmin, H.; Ahmad, B.; Chen, B. Simultaneous effects of convective conditions and nanoparticles on peristaltic motion. J. Mol. Liq.
**2014**, 193, 74–82. [Google Scholar] [CrossRef] - Makinde, O.D. Thermal stability of a reactive viscous flow through a porous-saturated channel with convective boundary conditions. Appl. Therm. Eng.
**2009**, 29, 1773–1777. [Google Scholar] [CrossRef] - Parti, M. Mass transfer Biot numbers. Periodica Polytechnica Mech. Eng.
**1994**, 38, 109–122. [Google Scholar] - Kikuchi, Y. Effect of leukocytes and platelets on blood flow through a parallel array of microchannels: Micro-and Macroflow relation and rheological measures of leukocytes and platelate acivities. Microvasc. Res.
**1995**, 50, 288–300. [Google Scholar] [CrossRef] - Mishra, M.; Rao, A.R. Peristaltic transport of a Newtonian fluid in an asymmetric channel. Z. Angew. Math. Phys.
**2003**, 54, 532–550. [Google Scholar] [CrossRef]

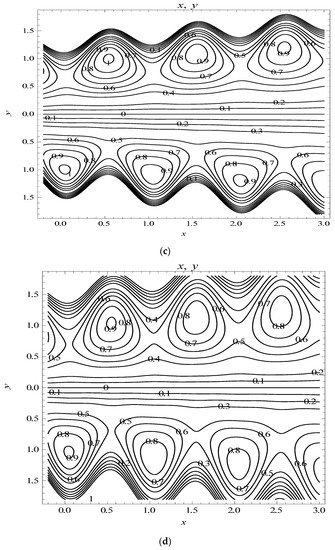

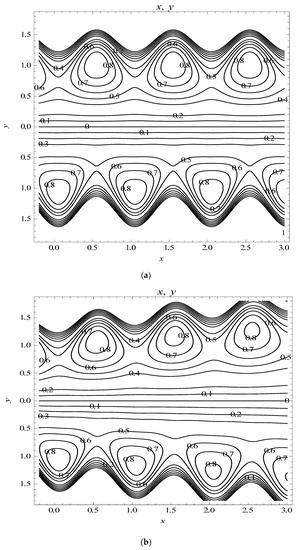

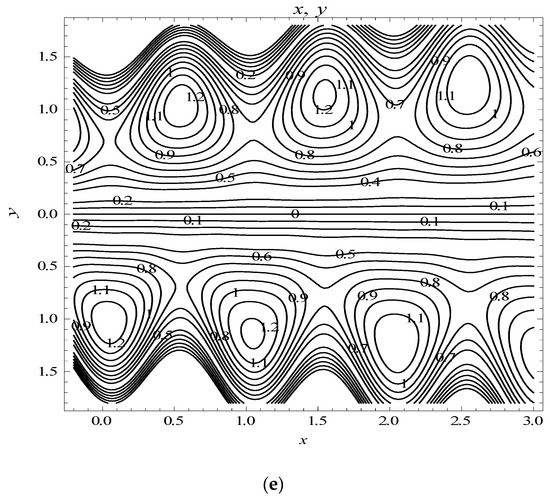

**Figure 19.**Streamlines when $a=0.4$, $b=0.3$, $\varphi =\pi /2$, $t=0.3$, $A=0.2$, (

**a**) $m=0$, $L=0.1$, $K=0.1$, $\Theta =1.25$, (

**b**) $m=0.1$, $L=0.1$, $K=0.1$, $\Theta =1.25$, (

**c**) $m=0.1$, $L=0.15$, $K=0.1$, $\Theta =1.25$, (

**d**) $m=0.1$, $L=0.15$, $K\to \infty $, $\Theta =1.25$, (

**e**) $m=0.1$, $L=0.15$, $K\to \infty $, $\Theta =1.5$.

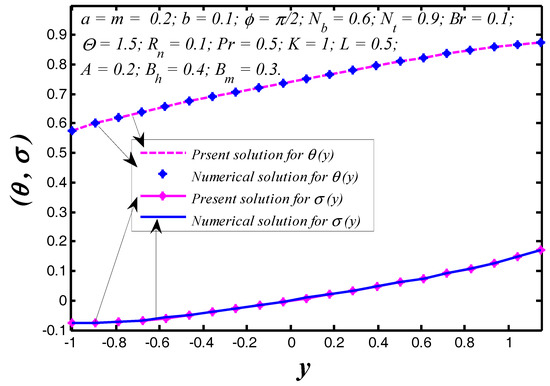

**Figure 20.**Comparison between numerical and present solutions for temperature and nanoparticle volume fraction profiles.
