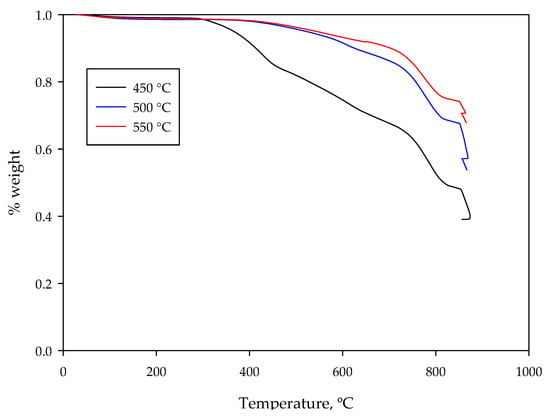

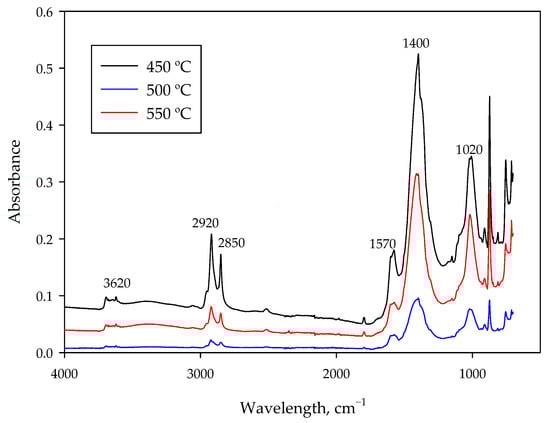

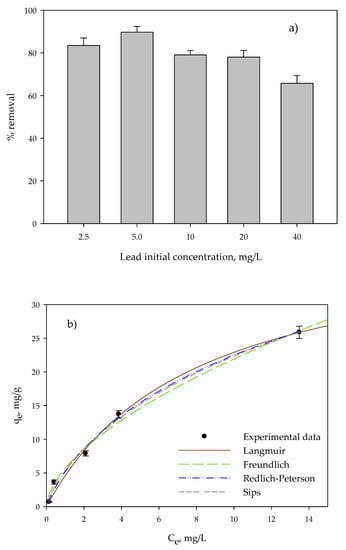

In this work, the pyrolysis of post-consumer mixed plastic waste (polypropylene (PP), polystyrene (PS) and polyethylene film (PE)) is carried out. The solid product of the pyrolysis is characterized and tested for its use as adsorbent of lead present in aqueous media. The pyrolysis temperature has a great influence on the solid product yield, decreasing when the temperature increases. The highest yield to solid product obtained is from the pyrolysis of film at lower temperature (450 °C), reaching almost 14%. The results of product solid characterization reveal that the carbon, hydrogen and nitrogen content decreases with increasing pyrolysis temperature. Furthermore, both the ash and the volatile content are related to the pyrolysis temperature. The ash content is higher when the pyrolysis temperature is higher, while when the temperature increases, a solid product with lower volatile content is obtained. In respect to specific surface area, a higher pyrolysis temperature improves the properties of the solid product as an adsorbent. The adsorption capacity increases as the pyrolysis temperature increases, with the highest value of 7.91 mg/g for the solid obtained in the pyrolysis at 550 °C. In addition, adsorption capacity increases as the initial concentration of lead rises, reaching a maximum value close to 26 mg/g for an initial concentration of 40 mg/L. The Sips model is the one that best reproduces the experimental results of the adsorption process equilibrium study.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
