# Simulation of Non-Gaussian Correlated Random Variables, Stochastic Processes and Random Fields: Introducing the anySim R-Package for Environmental Applications and Beyond

^{*}

## Abstract

**:**

`anySim`, specifically designed for the simulation of non-Gaussian correlated random variables, stochastic processes at single and multiple temporal scales, and random fields. The functionality of the package is demonstrated through seven simulation studies, accompanied by code snippets, which resemble real-world cases of stochastic simulation (i.e., generation of synthetic weather data) of hydrometeorological processes and fields (e.g., rainfall, streamflow, temperature, etc.), across several spatial and temporal scales (ranging from annual down to 10-min simulations).

## 1. Introduction

“Oh, Lord, please keep the world linear and Gaussian.”

#### 1.1. Motivation

#### 1.2. Modeling Rationale and Historical Overview

#### 1.3. Contribution and Organization of the Paper

`anySim`. This endeavor aims to facilitate the easy simulation of non-Gaussian correlated random variables, stochastic processes, and random fields, providing this way the means to practitioners and researchers to easily access and employ state-of-the-art stochastic simulation methods, required by a variety of uncertainty-aware frameworks and analyses (e.g., risk-based engineering studies).

`anySim`R-package. Section 4 presents a suite of simulation problems focused on the stochastic simulation of hydrometeorological processes (e.g., rainfall, streamflow, temperature, etc.), demonstrating the functionalities of the package and the associated models, while Section 5 provides the simulation results of the demonstration problems, as well as the associated R-code (i.e., a tutorial). Finally, Section 6 concludes this work, highlighting also interesting future research activities to improve the functionalities and utility of

`anySim`. It is noted that a reader familiar with the rationale of NDM and the related methods could skip Section 2 and go directly to Section 3, Section 4 and Section 5 where the

`anySim`package is detailed and demonstrated.

#### 1.4. A Brief Note on Notation and Style Used

`Courier New`fonts. For instance, the ICDF of the Gamma distribution (

`qgamma`). Moreover, and unless stated otherwise, regarding distribution functions, we typically use the Greek letters $\alpha $ and $\beta $ to denote the distribution’s shape and scale parameters, respectively, as well as the letter $c$ to denote the location parameter. In the case of more than one shape parameter, we use the same letter using subscripts (e.g., ${\alpha}_{1}$ and${\alpha}_{2}$). Furthermore, we use (intuitively-chosen) script letters to abbreviate distributions, e.g., a random variable $X$ that follows the Gamma distribution is denoted by $X~\mathcal{G}\left(\alpha ,\beta \right)$.

## 2. Methods

#### 2.1. Theoretical Background of NDM Approach

`anySim`supports all these modeling applications, here we choose to present the key theoretical aspects of Nataf-based schemes on the basis of a problem that studies the generation of two random variables with predefined marginal distributions and correlation. This bivariate simulation problem describes the simplest simulation scenario but is the cornerstone of any Nataf-based approach (e.g., that could regard stochastic processes or random fields) since the linear stochastic models (that are used to establish the auxiliary Gaussian process or field) are also based on Pearson’s correlation coefficient which is a two-point dependence measure. The interested reader may also refer to Tsoukalas et al. [78] and Tsoukalas et al. [21,25] for alternative descriptions of the theoretical background of NDM approach on the basis of multivariate stationary and cyclostationary stochastic processes, respectively.

#### 2.2. Establishing Target-Equivalent Correlation Relationship

`anySim`, aiming to simplify the establishment of the target-equivalent correlation relationship, we have automated this procedure via a function called

`NatafInvD`. In brief, this function avoids the use of iterative methods (in the sense of [81]) and works as follows (further details can also be found in the manual of the package): Equation (3) is solved (e.g., via Monte-Carlo or an integration method) for a specific set of $\tilde{\rho}$ values, and the corresponding target $\rho $ values are obtained. Then, an approximation function (either a polynomial or a parametric one) is fitted to these known anchor points, establishing an approximation of the true $\mathcal{F}(\xb7)$. The equivalent correlation $\tilde{\rho}$, given a target correlation$\rho $, is obtained by inverting the fitted function. Regarding the first step, the user can choose between three integration methods by providing appropriate values (in the form of a string) in the argument

`NatafIntMethod`of

`NatafInvD`. The integration methods supported are Gauss–Hermite integration (

`GH`), adaptive multidimensional integration (

`Int`), and Monte-Carlo integration (

`MC`). Regarding the second step,

`polydeg`argument of

`NatafInvD`is a scalar indicating the order of the fitted polynomial, while, if

`polydeg = 0`, then the function fits an alternative and simpler two-parameter function (see [72]). It is noted that the “

`MC`” method (see [21]) captures the whole form of $\mathcal{F}(\xb7)$ and is applicable irrespective of the type of marginal distributions (i.e., continuous, discrete or mixed-type of distributions), hence recommended when the target marginals are discrete.

#### 2.3. Developing Nataf-Based Stochastic Simulation Schemes

`anySim`package is the use of Gaussian linear stochastic models (often called ARMA models). In this respect, the widely-known stationary autoregressive model of order $p$ (AR($p$)), in a univariate or multivariate context, can be employed in the case of stationary processes. An alternative option is offered by the univariate or multivariate Symmetric Moving Average model of order $q$ (SMA($q$)), introduced by Koutsoyiannis [44]. In the case of cyclostationary processes, i.e., when the distribution function and correlation structure of the process vary periodically from season-to-season, any stochastic scheme from the family of standard periodic autoregressive model of order $n$ (PAR($n$)) could be used. For the sake of simplicity and parsimony,

`anySim`focuses on the univariate and multivariate contemporaneous PAR(1) model [108] that supports the reproduction of season-to-season lag-1 correlations as well as the lag-0 cross-correlations among processes. Especially for most of practical applications in hydrology, it is argued that this model suffices, keeping the number of parameters to a minimum [43] (provided that the process at the temporal scale of simulation is characterized by cyclostationary, e.g., monthly runoff).

`anySim`we also employ the concept of theoretical (auto) correlation structures (see also Section 2.5). In this vein, the theoretical structure completely determines the autocorrelation structure of the target process, while the order $p$ or q of the models essentially determines the maximum time lag up to which the target structure will be reproduced. Having said this, the parameters of the AR or SMA models are simply regarded as internal coefficients, to be estimated from the target autocorrelation structure [25,44,78].

#### 2.3.1. A Layman’s Step-by-Step Guide for the Simulation of Non-Gaussian Processes

**Step 1**. Identify the type (i.e., stationary or cyclostationary, univariate or multivariate) of the processes, accounting for the process’ properties and the time scale of simulation.

**Step 2.**Based on the available information (e.g., historical data), as well as the user expertise, assign appropriate target marginal distributions for the processes and identify the target correlation structure, in time and space (in the case of multivariate simulation). For more details, see Section 2.5.

**Step 3.**Select a suitable stochastic model to simulate the auxiliary Gaussian process (Gp), based on the analysis of Step 1.

**Step 4.**Estimate the equivalent correlation coefficients for all pairs of interest, which are required by the parameter estimation procedure of the auxiliary Gp model.

**Step 5.**Estimate the parameters of the auxiliary Gp model using the equivalent correlation coefficients.

**Step 6.**Generate a synthetic Gaussian time series by employing the auxiliary Gp model.

**Step 7.**Map the auxiliary Gaussian time series to the actual domain (using the target ICDF) in order to attain a realization of the target process.

#### 2.3.2. A layman’s Step-by-Step Guide for the Simulation of Non-Gaussian Random Fields

**Step 1.**Identify the type (i.e., spatial or spatiotemporal) of the RF to simulate, accounting also for its properties and the time scale of simulation.

**Step 2.**Based on the available information (e.g., gridded historical data or satellite observations), as well as the user expertise, assign an appropriate target marginal distribution for the RF and identify the target correlation structure, in time and space (for more details, see Section 2.5).

**Step 3.**Select a suitable stochastic model to simulate the auxiliary Gaussian RF, based on the analysis of Step 1.

**Step 4.**Estimate the equivalent correlation coefficients for all pairs of interest, which are required by the parameter estimation procedure of the auxiliary Gaussian RF model.

**Step 5.**Estimate the parameters of the auxiliary Gaussian RF model using the equivalent correlation coefficients.

**Step 6.**Generate a synthetic Gaussian RF by employing the auxiliary Gaussian RF model.

**Step 7.**Map the auxiliary Gaussian RF to the actual domain (using the target ICDF) in order to attain a realization of the target RF.

`anySim`implements a great variety of Nataf-based schemes, capable of simulating a wide range of non-Gaussian processes and fields. These schemes along with the corresponding R-functions are presented in Section 3.2.

#### 2.4. Multi-Scale Stochastic Simulation Via Disaggregation

`anySim`package is the multi-scale stochastic simulation that targets the simultaneous reproduction of the marginal and stochastic behavior of processes across multiple temporal levels. It is well known that multi-scale consistency cannot be achieved via single-scale simulation since the reproduction of the characteristics of the process at a specific spatiotemporal level (expressed in terms of either a distribution function or a set of statistical characteristics) does not ensure the resemblance of the relevant characteristics of the aggregated process at any higher spatiotemporal level.

`CastaliaR`[113] is a solution based on linear stochastic models with non-gaussian white noise (see also [16]), while

`HyetosMinute`(see [114] and references therein) makes use of the Bartlett–Lewis clustering mechanism for the simulation of rainfall at fine time scales. Moreover, it is noted that both solutions aim at the preservation of the process moments, and not its distribution. On the contrary,

`anySim`aims at the preservation of the process marginal distribution and correlation structure via using an approach based on multi-scale simulation via disaggregation. Specifically,

`anySim`implements the so-called Nataf-based Disaggregation to Anything (NDA) framework ([25]; see also the brief discussion on alternative methods). NDA consists a scale-free disaggregation approach for the pairwise coupling of Nataf-based schemes, each applied individually to simulate the process at a coarser and finer time scale. A key element of this approach is a mathematical transformation, termed as adjusting procedure, which is applied to the lower-level series (e.g., monthly) to establish full consistency, i.e., preservation of the additive property, with the series of the higher-level (e.g., annually). Additionally, NDA incorporates a Monte Carlo-type repetitive sampling procedure to ensure that the sum of the independently generated lower-level series are close to the given higher-level values, establishing an a priori consistency between the two series and improving in this way the efficiency of the method. These two key elements are thoroughly discussed by Koutsoyiannis and Manetas [43] and Koutsoyiannis [88].

**Step 1.**Using a Nataf-based model, generate $N$ temporary realizations ${\tilde{x}}_{l}$ of the lower-level process ${\tilde{X}}_{l}$, of length $k$.

**Step 2.**Aggregate (e.g., using the sum operator) the lower-level temporary realizations ${\tilde{x}}_{l}$ to obtain the $N$ higher-level temporary realizations ${\tilde{\xi}}_{t}.$i.e., ${\tilde{\xi}}_{t}\u2254{X}_{t}^{\left(k\right)}={\displaystyle \sum}_{l=\left(t-1\right)k+1}^{kt}{X}_{l}$

**Step 3.**Estimate the distance ${d}_{i}$, where $i=1,\dots ,N$, between the temporary realizations ${\tilde{\xi}}_{t}$ and the given one ${\xi}_{t}$ via an appropriate distance metric.

**Step 4.**Select the temporary realization ${\tilde{x}}_{l}$, whose corresponding aggregated value (i.e., ${\tilde{\xi}}_{t}$) has the minimum ${d}_{i}$. The selected lower-level realization is hereafter denoted as ${\tilde{x}}_{t}^{\prime}$, and its corresponding aggregated value is denoted by ${\tilde{\xi}}_{t}^{\prime}.$

**Step 5.**Produce the final synthetic realizations ${x}_{l}$ by modifying the selected temporary realization ${\tilde{x}}_{t}^{\prime}$ via an adjusting procedure that allocates the difference between the given realization ${\xi}_{t}$ and the sum of the selected auxiliary realizations, ${\tilde{\xi}}_{t}$.

`anySim`currently supports the disaggregation of univariate coarser-level processes to stationary or cyclostationary processes.

`anySim`employs the simple squared difference between ${\xi}_{t}$ and ${\tilde{\xi}}_{t}$; while the consistency between the selected realization ${\tilde{x}}_{t}^{\prime}$ and the given higher-level realization ${\xi}_{t}$ (Step 5) is established using the so-called proportional adjusting procedure, which is mathematically defined by ${x}_{l}={\tilde{x}}_{t}^{\prime}\left({\xi}_{t}/{\tilde{\xi}}_{t}^{\prime}\right).$

#### 2.5. Technical Details

`anySim`can be used in combination with any marginal distribution function (with such parameters that ensure finite variance) and valid (i.e., positive definite) correlation structures, describing either the temporal or spatial dependence of the process/field. In this section, we provide technical details on the marginal distribution functions and correlation structures, which are used in the simulation studies examined next, consisting though generic modeling paradigms.

#### 2.5.1. Marginal Distributions

`pzi`), and ICDF, denoted as ${F}_{X}^{-1}$ (

`qzi`), of the zero-inflated distribution are given, respectively, by,

#### 2.5.2. Correlation Structures

`anySim`currently implements three correlation structures (CSs), i.e., ${\rho}_{h}\u2254\mathrm{Corr}\left[{X}_{t},{X}_{t+h}\right]$, where a $h$ is an index that could denote either the separation distance (typically Euclidean) of two points in space (hereafter, we use the letter $d$ for that case) or the time lag (in this case, we use the letter $\tau $). In the former case, we refer to it as the cross-correlation structure (CCS; i.e., spatial) of the process, while in the latter as the auto-correlation structure (ACS; i.e., temporal).

`anySim`, and the corresponding notation (i.e., the use of index $\tau $), is oriented towards the representation of the ACS of a process, yet we remark that the same models can be also employed for the representation of spatial dependencies (i.e., cross-correlation) by using instead of $\tau $, an index $d$ (see Section 5.5 for an example).

`cscas`), introduced by Koutsoyiannis [44] as an ACS, which is able to capture a wide range of processes. CAS is given by:

`csHurst`) process, or else known as fractional Gaussian noise (fGn) process [122,123,124,125,126], whose form is given by:

`anySim`, typically used only as an ACS, is a simple periodic function (

`csPeriodic`) given by MacKay [130]:

`anySim`, the structure of the package enables the user to define alternative (valid) correlation structures. For instance, one could resort to the non-separable CSs literature (e.g., [131,132,133,134]) to identify and use a full spatiotemporal model that simultaneously describes the complete spatiotemporal structure of the process/field or could resort to the use of separable models [135,136,137]. Further to these classical approaches, the interested reader is referred to the recent work of Papalexiou and Serinaldi [73], who presented a convenient and flexible framework for the construction of non-separable spatiotemporal CSs by using copulas [138,139] and survival functions, as link functions.

`anySim`current functionality, it is noted that the use of separable models is already enabled, since they model the spatiotemporal of a process/field independently (i.e., as product of two functions), by using one CS for the spatial dependence (CCS) and one for the temporal (ACS). Such an example is given Section 5.5 where we use the product of two Cauchy-type (CAS) CSs to model the spatiotemporal CS of a RF.

## 3. The `anySim` R-Package

#### 3.1. Package Structure

`anySim`package is composed by 28 individual R-functions which can be grouped into four main categories with respect to their functionality. To facilitate the user, we adopted a common prefix to name the R-functions of each category:

- R-functions prefixed by “
`cs`” concern theoretical correlation structures, such as those presented in Section 2.5 (e.g.,`cscas`corresponds to Cauchy-type autocorrelation structure). - Prefix “Nataf” is used for the R-functions that support the solution of Equation (3) and the establishment of relationship $\mathcal{F}(\xb7)$ between the target and equivalent (in Gaussian domain) correlation coefficient (see Section 2.2).
- Prefix “
`Est`” indicates R-functions that support the estimation of parameters of the linear auxiliary Gaussian models (e.g.,`EstARTAp`supports the parameterization of ARTA (p) models), wrapping also the functions of previous category for the estimation of equivalent correlation coefficients. - The functions that support simulation and generation of synthetic data are prefixed by “
`Sim`”. Finally, the package enables multi-scale stochastic simulation (see Section 2.4) via the functions prefixed by “`Disagg`”.

`anySim`contains four supplementary R-functions that allow: (a) the construction of a zero-inflated distributions (

`dpqzi`; see Section 2.5 for further details); (b) the estimation of some typical statistical characteristics (i.e., mean, variance, skewness, and kurtosis) of a given distribution (

`DistrStats`and

`DistrStats2`); and (c) the estimation of lag-1 season-to-season correlation coefficients of a series in the case of cyclostationarity (

`s2scor`; see also the simulation example in Section 5.3).

`anySim`package is currently available via GitHub and can be obtained and loaded using the R code presented in Box 1.

**Box 1.**Installation (using devtools) of

`anySim`R package via GitHub and loading to R.

`devtools::install_github(repo = ‘itsoukal/anysim’)`

`library(anySim)`

#### 3.2. Package Simulation Modules

`anySim`consists of three major modules that regard the simulation of correlated random variables, stochastic processes and random fields.

`EstCorrRVs`and

`SimCorrRVs`(see simulation example in Section 5.1).

- Autoregressive To Anything model of order p (ARTA(p)): This model is used for the simulation of univariate stationary processes, employing a univariate AR(p) model for the auxiliary Gp (R-functions:
`EstARTAp`and`SimARTAp`; see simulation example in Section 5.2). It is noted that a similar, yet lower-order (i.e., with p = 2), implementation of this modeling approach was demonstrated by Cario and Nelson [76], while the use of higher-order models (in combination with theoretical ACSs to ensure parsimony) is employed in [20,25,72,79]. - Stochastic Periodic Autoregressive To Anything model of order 1 (SPARTA) [21,77]: This model is used for the simulation of multivariate (or univariate) cyclostationary processes, employing the PAR(1) model for the auxiliary Gp (R-functions:
`EstSPARTA`and`SimSPARTA`; see simulation example in Section 5.3). - Symmetric Moving Average (neaRly) To Anything (SMARTA(q)) [78]: This model is used for the simulation of multivariate (or univariate) stationary processes, employing a Gaussian SMA(q) model for the simulation of the auxiliary Gp (R-functions:
`EstSMARTA`and`SimSMARTA`; see simulation example in Section 5.4).

`anySim`implements the above Nataf-based schemes stochastic models in a disaggregation framework (see Section 2.4) to support the reproduction of the marginal and stochastic properties of the process at multiple temporal levels; specifically:

`Disagg_ARTAp`enables the disaggregation of a given coarser-level series to a finer-level stationary series, using the ARTA(p) model for the simulation of the finer-level process (see also the simulation example in Section 5.6).`Disagg_SPARTA`enables the disaggregation of a given coarser-level series to a finer-level cyclostationary series, using the SPARTA model for the simulation of the finer-level process (see also the simulation example in Section 5.7).

`anySim`uses again the SMARTA(q)) model, as implemented by the R-functions:

`EstSMARTA_RFs`and

`SimSMARTA`(see simulation example in Section 5.5). It is noted that

`EstSMARTA_RFs`function is just an optimized (i.e., faster) version of

`EstSMARTA`, devised to speed-up the parameter estimation procedure for RFs.

`anySim`using typical distributions and correlation structures, widely employed in the modeling of hydrometeorological processes.

## 4. Demonstration of `anySim` Capabilities

#### Simulation Examples

`anySim`package are demonstrated via seven simulation examples that cover a wide range of modeling applications that involve the simulation random variables, stochastic processes, and random fields. The simulation examples are designed to realistically resemble real-world cases of stochastic simulation of hydrometeorological processes (e.g., rainfall, streamflow, temperature, etc.), i.e., generation of synthetic weather data. The main characteristics of the examples (which in most cases are based on real-world data), such as the distribution functions and correlation structures involved, as well as the corresponding R-functions, are summarized in Table 1. A detailed description of these examples, accompanying with the corresponding R-code and the simulation results, is presented in Section 5.1, Section 5.2, Section 5.3, Section 5.4, Section 5.5, Section 5.6 and Section 5.7.

`anySim`package is already installed and loaded to the user’s R environment (see Box 1), while they are supported by several comments aiming to enhance readability, as well as reproducibility and modification of these examples. Here, we focus on the demonstration of the functionalities of

`anySim`, and due to this the procedures for the identification of parameters of the distribution functions and CSs are omitted. It is worth noting that NDM approach, as well as the R-functions of

`anySim`, are fully independent to the parameter identification procedure, and hence the selection and fitting of these two key components are fully controlled by the user.

`ggplot2`package [141].

## 5. Results

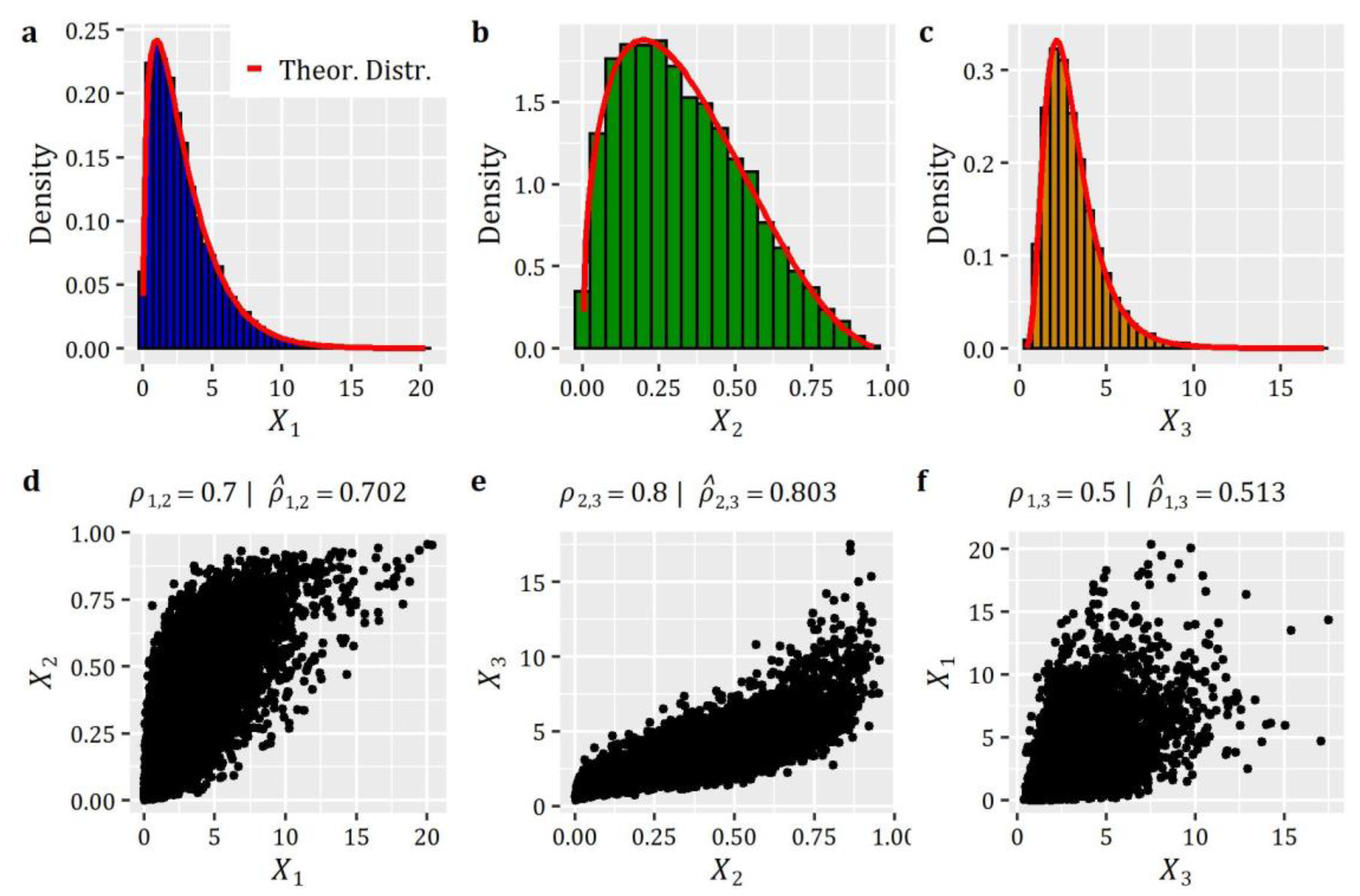

#### 5.1. Simulation of Correlated Non-Gaussian Random Variables

`anySim`implements the NORTA approach [75] differentiated regarding the estimation of the equivalent (i.e., Gaussian) correlation coefficients.

`EstCorrRVs`function is used for the estimation of the auxiliary Gaussian model parameters, while these parameters are inserted into

`SimCorrRVs`function to perform the generation of correlated RVs (see Box 2).

`qgamma`), Beta (

`qbeta`), and Log-Normal (

`qlnorm`) distribution, respectively, with parameters, ${X}_{1}~\mathcal{G}\left(\alpha =1.5,\beta =2\right)$, ${X}_{2}~\mathcal{B}\left({\alpha}_{1}=1.5,{\alpha}_{2}=3\right)$ and ${X}_{3}~\mathcal{L}\mathcal{N}\left(\alpha =0.5,\beta =1\right)$ - the parameters have been chosen arbitrarily for demonstration purposes (see Appendix A for further details on the distribution functions). We assume also the following target correlation matrix denoted by$\mathit{R}$ (parameter

`R`in

`EstCorrRVs`):

`anySim`), it is possible to generate stationary and non-stationary non-Gaussian processes and fields [79], yet, in this work and in the following sections, we limit our focus on models (and code) particularly designed for the cases of stationary and cyclostationary processes as well as on stationary fields.

**Box 2.**R-code for the generation of correlated RVs with specific target marginal distributions and correlation matrix.

`set.seed(13)`

`# Define the target distribution functions (ICDFs) of X1, X2 and X3 RV.`

`FX1=‘qgamma’; FX2=‘qbeta’; FX3=‘qlnorm’`

`Distr=c(FX1,FX2,FX3) # store the 3 ICDFs in a vector`

`# Define the parameters of the target distribution functions.`

`# and store them in a list`

`pFX1=list(shape=1.5,scale=2); pFX2=list(shape1=1.5,shape2=3)`

`pFX3=list(meanlog=1,sdlog=0.5)`

`DistrParams=list()`

`DistrParams[[1]]=pFX1;DistrParams[[2]]=pFX2;DistrParams[[3]]=pFX3`

`# Define the target correlation matrix.`

`CorrelMat=matrix(c(1,0.7,0.5,`

`0.7,1,0.8,`

`0.5,0.8,1),ncol=3,nrow=3,byrow=T);`

`# Estimate the parameters of the auxiliary Gaussian model.`

`paramsRVs=EstCorrRVs(R=CorrelMat,dist=Distr,params=DistrParams,`

`NatafIntMethod=‘GH’,NoEval=9,polydeg=8)`

`# Generate 10000 synthetic realisations of the 3 correlated RVs.`

`SynthRVs=SimCorrRVs(n=10000,paramsRVs=paramsRVs)`

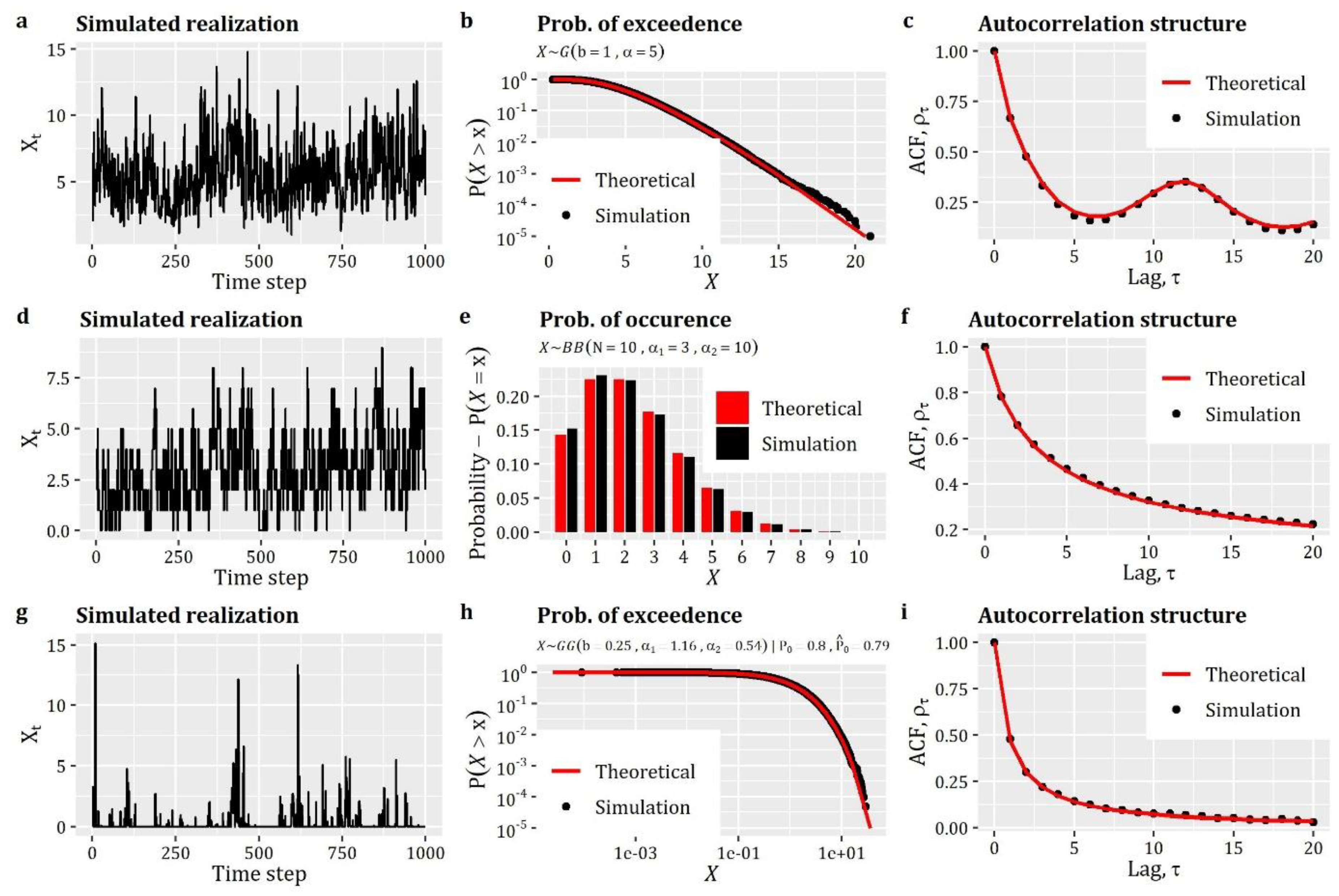

#### 5.2. Simulation of Univariate Stationary Non-Gaussian Processes

`anySim`for the simulation of univariate stationary non-Gaussian processes, we demonstrate package capabilities via three distinct examples involving processes with continuous, discrete, and zero-inflated marginal distribution, respectively. The simulation scheme of this section is based to some extent on the so-called ARTA approach [76], with modifications regarding the order of the auxiliary Gp model, the use of theoretical ACS, and the method for the estimation of equivalent correlation coefficients. This scheme, termed as ARTA(p), is implemented via two key R-functions: the

`EstARTAp`for the estimation of parameters of the auxiliary (Gaussian) AR(p) model and the

`SimARTAp`for the generation of synthetic data according to a target stationary process. Further details on this modeling approach can be found in the literature [20,25,72,79], where the use alternative distribution models are discussed (e.g., three components mixtures, focusing also on the modeling of extremes), as well as high-order multivariate models are presented in detail [25,79].

`qgamma`) and autocorrelation structure given by the product of a CAS (

`cscas`) and a periodic ACS (

`csPeriodic`). Particularly, we assume ${X}_{t}~\mathcal{G}\left(\alpha =5,\beta =1\right)$ and ${\rho}_{\tau}\u2254\mathrm{Corr}\left[{X}_{t},{X}_{t+\tau}\right]={\rho}_{\tau}^{CAS}\left(\beta =3,\kappa =0.6\right)\times {\rho}_{\tau}^{P}\left(p=12,l=1.5\right)$.

`qbb`), i.e., ${X}_{t}~\mathcal{B}\mathcal{B}\left(N=10,{\alpha}_{1}=3,{\alpha}_{2}=10\right)$, and autocorrelation structure given by CAS (

`cscas`), i.e., ${\rho}_{\tau}={\rho}_{\tau}^{CAS}\left(\beta =1.5,\kappa =0.3\right)$.

`qzi`and

`qgengamma`) with ${p}_{0}=0.8$ for the discrete part and $\mathcal{G}\mathcal{G}\left({\alpha}_{1}=1.16,{\alpha}_{2}=0.54,\beta =0.25\right)$ for the continuous part. The process has an autocorrelation structure given by CAS (

`cscas`), i.e., ${\rho}_{\tau}={\rho}_{\tau}^{CAS}\left(\beta =0.91,\kappa =1.09\right)$. We note that in this case the parameterization of the process resembles the empirical properties obtained from the hourly rainfall dataset of month July (extending over the period 1 September 1995 to 31 December 2017) at Oberstdorf, Germany (German Weather Service; station ID 3730) (for further details on this dataset and simulation cases, see also [25]).

**Box 3.**R-code for the simulation of univariate stationary process with continuous marginal distribution and autocorrelation structure given by the product of a CAS and a periodic ACS.

`set.seed(12)`

`# Define the target autocorrelation structure.`

`acsS=cscas(param=c(3,0.6),lag=1000) # CAS with b=3 and k=0.6`

`acsP=csPeriodic(param=c(12,1.5),lag=10^3) # Periodic with p=12 and l=1.5`

`ACS=acsP*acsS # The target ACS as product of the two previous ones`

`# Define the target distribution function (ICDF).`

`FX=‘qgamma’ # Gamma distribution`

`# Define the parameters of the target distribution.`

`pFX=list(shape=5,scale=1)`

`# Estimate the parameters of the auxiliary Gaussian AR(p) model.`

`ARTApar=EstARTAp(ACF=ACS,dist=FX,params=pFX,NatafIntMethod=‘GH’)`

`# Generate a synthetic series of 10000 length.`

`SynthARTAcont=SimARTAp(ARTApar=ARTApar,steps=10^4)`

**Box 4.**R-code for the simulation of univariate stationary process with discrete marginal distribution and autocorrelation structure given by CAS.

`set.seed(16)`

`# Define the target autocorrelation structure.`

`ACS=cscas(param=c(1.5,0.3),lag=1000) # CAS with b=1.5 and k=0.3`

`# Define the target distribution function (ICDF).`

`require(TailRank)`

`FX=‘qbb’ # the Beta-Binomial distribution`

`# Define the parameters of the target distribution.`

`pFX=list(N=10,u=3,v=10)`

`# Estimate the parameters of the auxiliary Gaussian AR(p) model.`

`ARTApar=EstARTAp(ACF=ACS,dist=FX,params=pFX,NatafIntMethod="MC")`

`# Generate a synthetic series of 10000 length.`

`SynthARTAdiscr=SimARTAp(ARTApar=ARTApar,steps=10^4)`

**Box 5.**R-code for the simulation of univariate stationary process with zero-inflated marginal distribution and autocorrelation structure given by CAS.

`set.seed(18)`

`# Define the target autocorrelation structure.`

`ACS=cscas(param=c(0.91,1.09),lag=1000) # CAS with b=0.91 and k=1.09`

`# Define the target distribution function (ICDF).`

`FX=‘qzi’ # Define that distribution is of zero-inflated type`

`# Define the distribution for the continuous part of the process.`

`# Here, a re-parameterized version of Gen. Gamma distribution is used.`

`qgengamma=function(p,scale,shape1,shape2){`

`require(VGAM)`

`X=qgengamma.stacy(p=p,scale=scale,k=(shape1/shape2),d=shape2)`

`return(X)`

`}`

`# Define the parameters of the zero-inflated distribution function.`

`pFX=list(Distr=qgengamma,p0=0.8,scale=0.25,shape1=1.16,shape2=0.54)`

`# Estimate the parameters of the auxiliary Gaussian AR(p) model.`

`ARTApar=EstARTAp(ACF=ACS,dist=FX,params=pFX,NatafIntMethod="GH",`

`NoEval=9,polydeg=8)`

`# Generate a synthetic series of 10000 length.`

`SynthARTAzi=SimARTAp(ARTApar=ARTApar,steps=10^4)`

#### 5.3. Simulation of Univariate Cyclostationary Non-Gaussian Processes

`anySim`can also be used for the generation of univariate cyclostationary processes ${\left\{{X}_{t}\right\}}_{t\in {\mathsf{\mathbb{Z}}}^{>}}$, reproducing the target lag-1 season-to-season correlations, as well as the seasonally varying target marginal distributions. Recall that a cyclostationary process consisted of $s=1,\dots ,S$ sub-periods (e.g., months) can be denoted by ${X}_{s,t}$ or simply ${X}_{t}$, where in that case the sub-period (i.e., season—e.g., month) that corresponds to a time step $t$ may be recovered by $s=t\mathrm{mod}\left(S\right)$, while when $t\mathrm{mod}\left(S\right)=0\mathrm{we}\mathrm{get}\mathrm{s}=S$. Moreover, the period (say $n$; e.g., year) may be obtained by $n=1+\left(t-s\right)/S$.

`anySim`implements the SPARTA model that is described in detail in the works of Tsoukalas et al. [21,25,77] (also used for monthly large-scale simulations of streamflow processes [142], as well as for the simulation of non-physical processes at hourly time scale; see Kossieris et al. [20]). The procedure is evolved via two key R-functions (see Box 6): the

`EstSPARTA`function for the estimation of parameters of the auxiliary PAR(1) model and the

`SimSPARTA`function for the generation of synthetic data according to a target cyclostationary process.

`qgengamma`) or $\mathcal{B}\U0001d4c7XII$ (

`qburr`), as well as the empirical lag-1 season-to-season correlations (12 values).

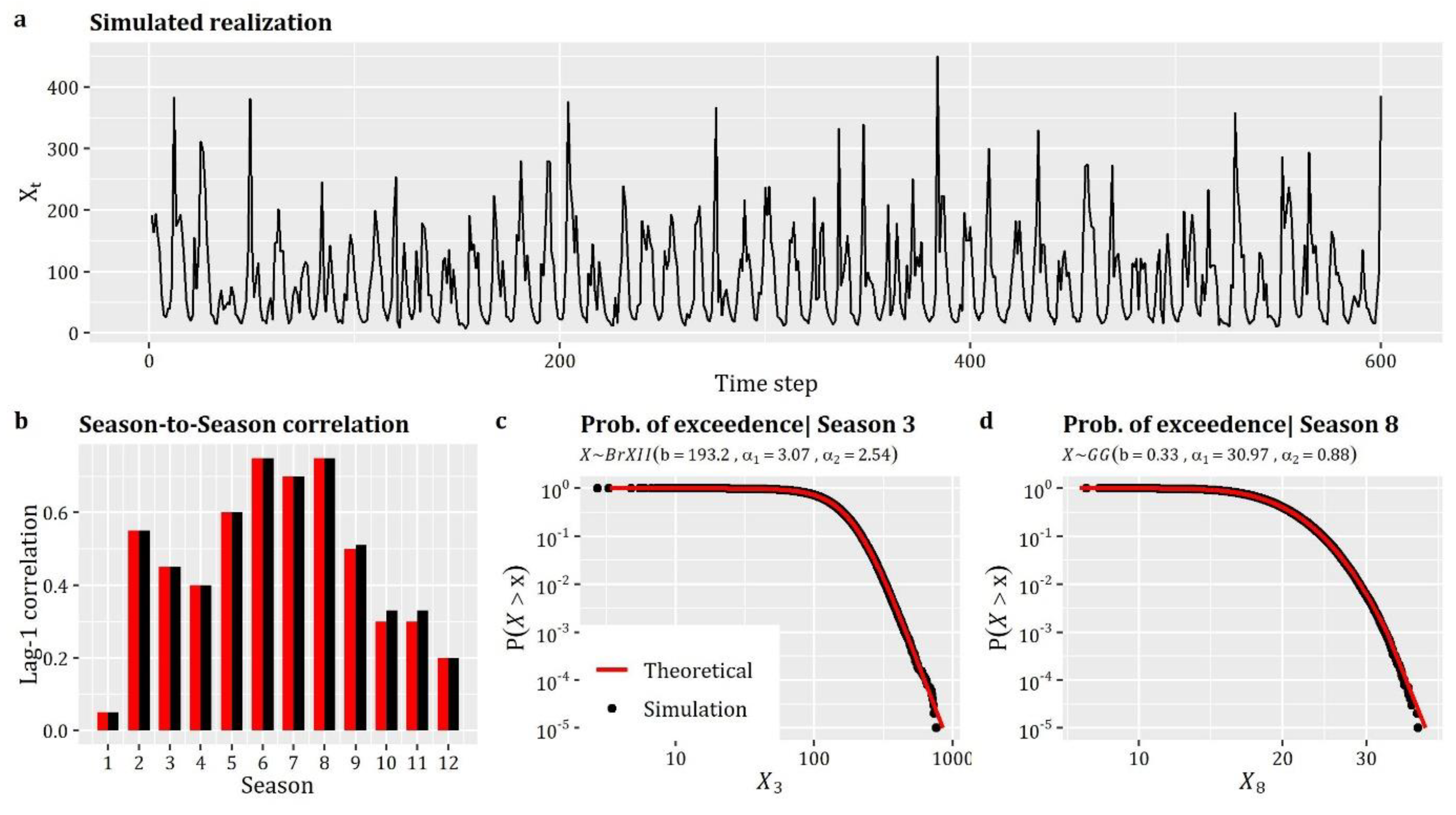

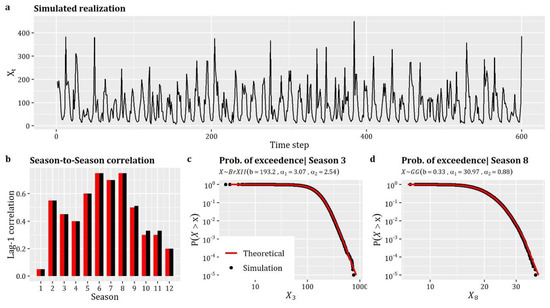

**Box 6.**R-code for the simulation of univariate cyclostationary process with specific distribution function at each season and specific lag-1 season-to-season correlations.

`set.seed(21)`

`# Define the number of seasons.`

`NumOfSeasons=12 # number of months`

`# Define the (12) lag-1 season-to-season correlation coefficients`

`rtarget<-c(0.05,0.55,0.45,0.4,0.6,0.75,0.7,0.75,0.5,0.3,0.3,0.2)`

`# Define the target distribution functions for each season.`

`# In this example, the Gen. Gamma distribution is used in the`

`# formulation given in Box 5.`

`# Or, a re-parameterized version of Burr type-XII distribution.`

`qburr=function(p,scale,shape1,shape2) {`

`require(ExtDist)`

`x=ExtDist::qBurr(p=p,b=scale,g=shape1,s=shape2)`

`return(x)`

`}`

`# Here, we define the target distribution of each season as a zero-`

`# inflated, though being of continuous type, to demonstrate the more`

`# general case. Alternatively, the definition can be conducted as in`

`# EstARTAp function (see Box 2).`

`# Define that distributions are of zero-inflated type.`

`FXs<-rep(‘qzi’,NumOfSeasons)`

`# Define the parameters of the distribution function for each season.`

`PFXs<-vector("list",NumOfSeasons)`

`PFXs[[1]]=list(p0=0.0,Distr=qgengamma,scale=47.22,shape1=2.7,shape2=0.97)`

`PFXs[[2]]=list(p0=0.0,Distr=qgengamma,scale=199.4,shape1=1.74,shape2=3.45)`

`PFXs[[3]]=list(p0=0.0,Distr=qburr,scale=193.2,shape1=3.07,shape2=2.54)`

`PFXs[[4]]=list(p0=0.0,Distr=qburr,scale=172.16,shape1=4.42,shape2=2.50)`

`PFXs[[5]]=list(p0=0.0,Distr=qgengamma,scale=53.40,shape1=4.11,shape2=1.66)`

`PFXs[[6]]=list(p0=0.0,Distr=qgengamma,scale=0.017,shape1=26.23,shape2=0.51)`

`PFXs[[7]]=list(p0=0.0,Distr=qgengamma,scale=27.70,shape1=5.15,shape2=5.30)`

`PFXs[[8]]=list(p0=0.0,Distr=qgengamma,scale=0.33,shape1=30.97,shape2=0.876)`

`PFXs[[9]]=list(p0=0.0,Distr=qburr,scale=14.46,shape1=7.6,shape2=0.44)`

`PFXs[[10]]=list(p0=0.0,Distr=qburr,scale=29.36,shape1=2.73,shape2=0.87)`

`PFXs[[11]]=list(p0=0.0,Distr=qgengamma,scale=53.15,shape1=3.12,shape2=1.4)`

`PFXs[[12]]=list(p0=0.0,Distr=qgengamma,scale=116.02,shape1=2.21,shape2=1.3)`

`# Estimate the parameters of SPARTA model.`

`SPARTApar<-EstSPARTA(s2srtarget=rtarget, dist=FXs, params=PFXs,`

`NatafIntMethod=‘GH’, NoEval=9, polydeg=8, nodes=11)`

`# Generate a cyclostationary synthetic series of 10000 length.`

`simSPARTA<-SimSPARTA(SPARTApar=SPARTApar, steps=10^4)`

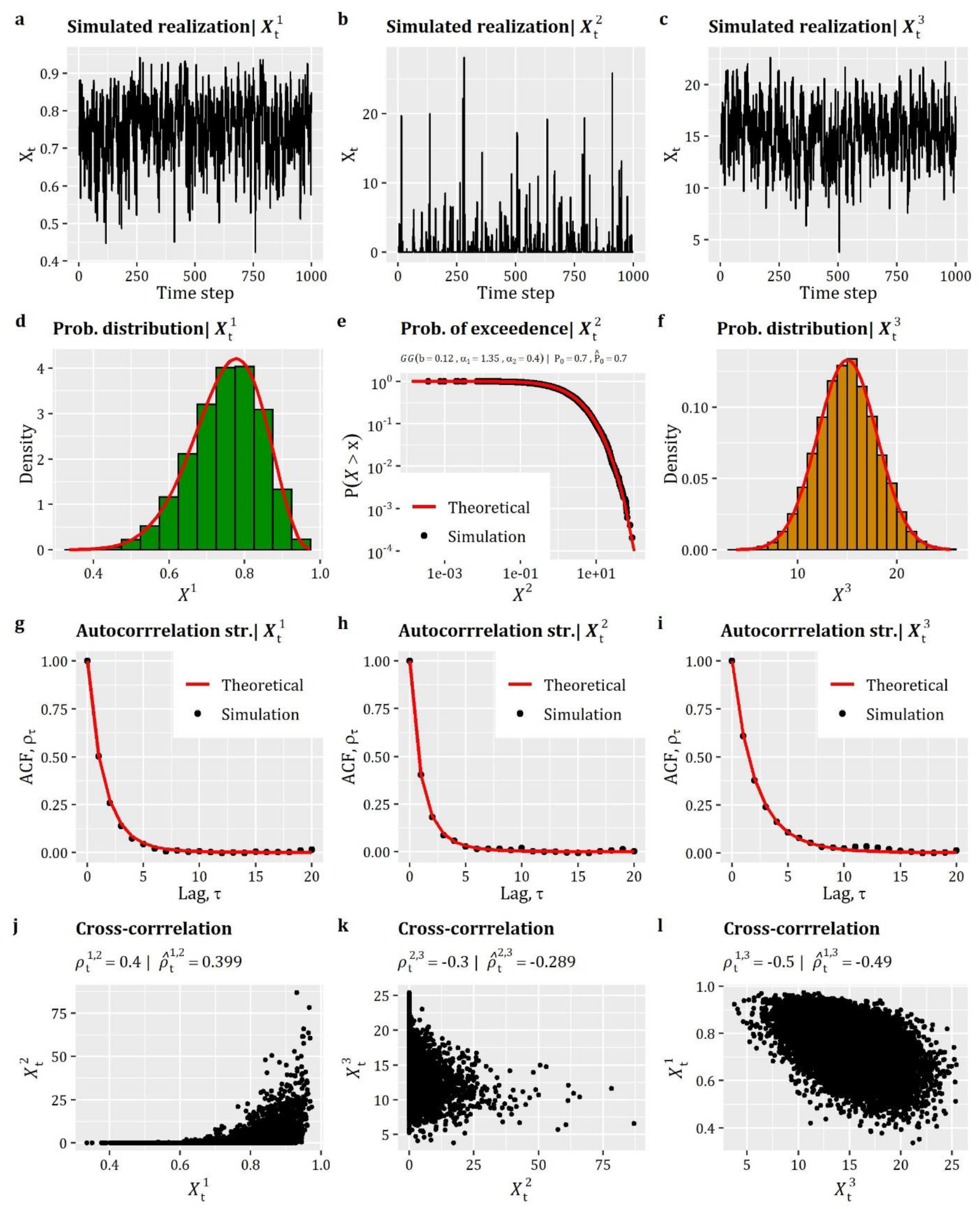

#### 5.4. Simulation of Multivariate Stationary Processes with Continuous and Zero-Inflated Marginal Distributions

`anySim`through a simulation example involving three contemporaneously cross-correlated processes, i.e., ${\left\{{\mathit{X}}_{t}\right\}}_{t\in {\mathsf{\mathbb{Z}}}^{>}}=\left\{{X}_{t}^{1},{X}_{t}^{2},{X}_{t}^{3}\right\}$. In this case, apart from auto-dependence, the processes exhibit cross-dependence at lag-0. It is noted that such type of simulation may regard different processes at the same location (e.g., humidity, rainfall, and temperature) or processes of the same type (e.g., rainfall) at different locations. In this simulation study, we focus on the former case, assuming that the three processes represent the daily humidity, rainfall, and temperature, respectively, of a specific month (to support the assumption of stationarity).

`anySim`implements the SMARTA(q) model [78] via two key R-functions (see Box 7): the

`EstSMARTA`function for the estimation of parameters of the auxiliary (Gaussian) SMA model and the

`SimSMARTA`function for the generation of synthetic data.

`qbeta`) for humidity (i.e., ${X}_{t}^{1}~\mathcal{B}\left({\alpha}_{1}=15,{a}_{2}=5\right)$), a zero-inflated Generalized Gamma distribution ($\mathcal{Z}\mathcal{I}\mathcal{G}\mathcal{G}$; combination of

`qzi`and

`qgengamma`) for rainfall (i.e., ${X}_{t}^{2}~\mathcal{Z}\mathcal{I}\mathcal{G}\mathcal{G}\left({p}_{0}=0.7,{\alpha}_{1}=1.35,{a}_{2}=0.4,\beta =0.12\right)$), and a Normal distribution (

`qnorm`) for temperature (i.e., ${X}_{t}^{3}~\mathcal{N}\left(\mu =15,\sigma =3\right)$). Regarding the auto-dependence structure, we employed the CAS (

`cscas`) with different parameters for each process, i.e.,${\rho}_{\tau}^{1}={\rho}_{\tau}^{CAS}\left(\beta =0.1,\kappa =0.7\right)$, ${\rho}_{\tau}^{2}={\rho}_{\tau}^{CAS}\left(\beta =0.2,\kappa =1\right)$ and ${\rho}_{\tau}^{3}={\rho}_{\tau}^{CAS}\left(\beta =0.1,\kappa =0.5\right)$, where ${\rho}_{\tau}^{i}\u2254\mathrm{Corr}\left[{X}_{t}^{i},{X}_{t+\tau}^{i}\right]$. Finally, the three processes were assumed contemporaneously cross-correlated, as given by the following lag-0 cross-correlation matrix ${\mathit{R}}_{0}$ (parameter

`Cmat`in

`EstSMARTA`), where each element represents the lag-0 correlation, ${\rho}_{0}^{i,j}\u2254\mathrm{Corr}\left[{X}_{t}^{i},{X}_{t}^{j}\right]$. Specifically, the target matrix ${\mathit{R}}_{0}$ is given by:

^{14}time steps according to the above simulation scenario, while the results of this example are summarized graphically in Figure 4. As can be seen, the method enables the reproduction of the target distribution function and autocorrelation structure of all three processes (see Figure 4d–i), while the scatter plots in Figure 4j–l provide an illustrative representation of the established cross-dependencies among the processes. Figure 4j–l also highlights the efficiency of the method in terms of reproducing the lag-0 cross-correlation coefficients (as shown in the titles of Figure 4j–l where the target and simulated lag-0 cross-correlation coefficients are presented).

**Box 7.**R-code for the simulation of multivariate stationary processes with specific distribution functions and autocorrelation structures, as well as specific lag-0 cross-correlation matrix.

`set.seed(9)`

`# Define the target autocorrelation structure of the 3 processes.`

`ACSs=list()`

`ACSs[[1]]=cscas(param=c(0.1,0.7),lag=2^6)`

`ACSs[[2]]=cscas(param=c(0.2,1),lag=2^6)`

`ACSs[[3]]=cscas(param=c(0.1,0.5),lag=2^6)`

`# Define the matrix of lag-0 cross-correlation coefficients.`

`Cmat=matrix(c(1,0.4,-0.5,`

`0.4,1,-0.3,`

`-0.5,-0.3,1),ncol=3,nrow=3)`

`# Define the target distribution functions (ICDF) of the 3 processes`

`# Define that distributions are of zero-inflated type.`

`FXs=rep(‘qzi’,3)`

`# Define the distributions for the continuous part of the processes.`

`# In this example, the Gen. Gamma distribution is used in the`

`# formulation given in Box 5.`

`# Define the parameters of the target distributions.`

`pFXs[[1]]=list(Distr=qbeta,p0=0,shape1=15,shape2=5) # Beta distribution`

`pFXs[[2]]=list(Distr=qgengamma,p0=0.7,scale=0.12, shape1=1.35, shape2=0.4) # Gen. Gamma`

`pFXs[[3]]=list(Distr=qnorm,p0=0,mean=15,sd=3) # Normal distribution`

`# Estimate the parameters of SMARTA model`

`SMAparam=EstSMARTA(dist=FXs,params=pFXs,ACFs=ACSs,Cmat=Cmat,`

`DecoMethod=‘cor.smooth’,FFTLag = 2^7,`

`NatafIntMethod=‘GH’,NoEval=9,polydeg=8)`

`# Generate the synthetic series of 2^14 length.`

`simSMARTA=SimSMARTA(SMARTApar=SMAparam,steps=2^14,SMALAG=2^6)`

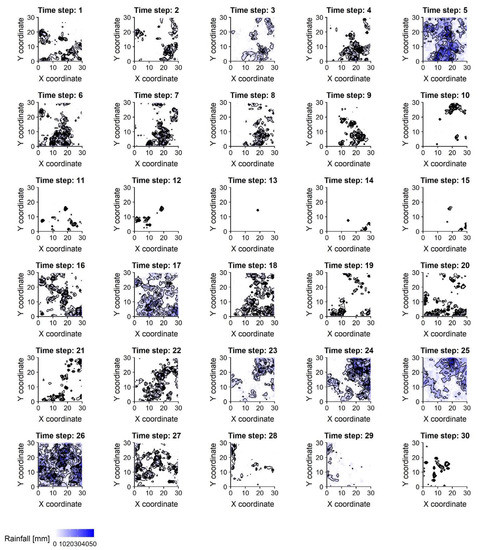

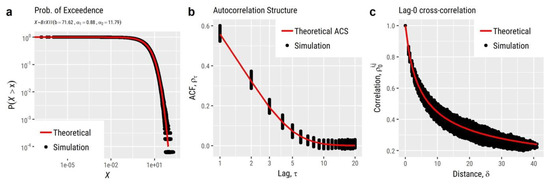

#### 5.5. Simulation of Spatiotemporal Random Fields with Zero-Inflated Marginal Distributions

`anySim`can also be used for simulation of spatiotemporal random fields (RFs). Particularly, the currently implemented model in

`anySim`model called SMARTA(q), is able to simulate homogenous and stationary non-Gaussian RFs, and to generate realizations reproducing the field’s target marginal distribution, temporal correlation structure (up to time lag equal to q) and lag-0 spatial correlation structure. The simulation is performed using two functions of the package:

`EstSMARTA_RFs`(a faster version of

`EstSMARTA`function, designed for RFs) and

`SimSMARTA`.

`anySim`, the first step is to discretize it through the definition of a ${n}_{\mathrm{X}}$ × ${n}_{\mathrm{Y}}$ grid (where ${n}_{\mathrm{X}}$ and ${n}_{\mathrm{Y}}$ stand for the number of cells in the horizontal and vertical direction, respectively). Such an example is given in Figure 5, where a field is discretized with 5 × 5 grid points, where each point represents the center of the cell (see also Lines 1–7 in Box 8). Having done that, it is straightforward to see what is mentioned above, i.e., that the simulation of a spatiotemporal RF $\left\{{\Xi}_{\mathit{s},t}\right\}$ can be viewed as a multivariate simulation problem of ${n}_{\mathrm{X}}$ × ${n}_{\mathrm{Y}}$ processes. Hence, we may employ the multivariate SMARTA(q), or any other multivariate (Nataf-based) ARMA-type model (see, for instance, Appendix B in Tsoukalas et al. [25] and Section 5.4 in Tsoukalas [79], who elaborated on high-order AR Nataf-based models, as well as Papalexiou and Serinaldi [73], who employed high-order AR models for the simulation of RFs), to simulate the spatiotemporal RF. Moving to the re-formulated RF simulation problem, i.e., to simulate a multivariate process ${\left\{{\mathit{\Xi}}_{t}\right\}}_{t\in {\mathsf{\mathbb{Z}}}^{>}}=\left\{{\Xi}_{t}^{1},{\Xi}_{t}^{2},\dots ,{\Xi}_{t}^{i},\dots ,{\Xi}_{t}^{{n}_{\mathrm{X}}\times {n}_{\mathrm{Y}}}\right\}$, it is recalled that ${\Xi}_{t}^{i}$ represents the process at cell $i$, which, in this case, due to properties of homogeneity and stationarity, all cells have the same marginal distribution and ACS (hence, it is straightforward to parameterize accordingly the SMARTA(q) model), while their CCS is solely determined by the distance among the points. In particular, for each $i\in \{1,\dots ,({n}_{\mathrm{X}}\times {n}_{\mathrm{Y}}\left)\right\}$, we have the corresponding coordinates ${\mathit{s}}^{i}$, hence we can easily compute, e.g., the Euclidean, distance among any two points $i$ and $j$ via ${d}_{i,j}=\left|\right|{\mathit{s}}^{i}-{\mathit{s}}^{j}\left|\right|$. Having done that, and using the target theoretical spatiotemporal correlation structure, we can now specify the required (by SMARTA(q) model) lag-0 cross-correlation coefficients among the ${n}_{\mathrm{X}}$ × ${n}_{\mathrm{Y}}$ processes (parameter

`Cmat`in

`EstSMARTA_RFs`).

`EstSMARTA`, it was assumed that the marginal distribution of the RF was identical to the one fitted to the daily rainfall data recorded at Bologna, Italy gauge. Since the RF is an intermittent one, we employed a zero-inflated Burr Type-XII distribution ($\mathcal{B}\U0001d4c7\mathrm{XII}$) [143,144] marginal distribution, denoted by$\mathcal{Z}\mathcal{I}\mathcal{B}\U0001d4c7\mathrm{XII}$ (combination of

`qzi`and

`qburr`) with ${p}_{0}=0.75$ for the discrete part and $\mathcal{B}\U0001d4c7\mathrm{XII}\left({\alpha}_{1}=0.88,{\alpha}_{2}=11.79,\beta =71.62\right)$ for the continuous part.

`cscas`). Particularly, the former is given by${\rho}_{\tau}={\rho}_{\tau}^{CAS}\left(\beta =0.1,\kappa =0.6\right)$, while the latter is given by ${\rho}_{d}={\rho}_{d}^{CAS}\left(\beta =0.2,\kappa =2\right)$. Therefore, the spatiotemporal CS can be expressed as the product of these two CS, i.e., ${\rho}_{d,\tau}={\rho}_{d}\times {\rho}_{\tau}$.

**Box 8.**R-code for the simulation of a spatiotemporal random field (RF) with specific distribution function, autocorrelation structure (temporal), as well as specific lag-0 cross-correlation structure (spatial).

`# Define a 30x30 grid to be simulated.`

`nx=30 # number of cells in the horizontal direction`

`ny=30 # number of cells in the vertical direction`

`Sites=nx*ny # number of grid points`

`Xp=seq(from=(0.5),to=nx,by=1) # points’ coordinates in horizontal axis`

`Yp=seq(from=(0.5),to=ny,by=1) # points’ coordinates in vertical axis`

`grid=expand.grid(X=Xp,Y=Yp)`

`# Estimate the Euclidean distances between grid points.`

`DZ=dist(x=grid,method=‘euclidean’,upper=T,diag=T)`

`DZmat=as.matrix(DZ)`

`EuclDist=DZmat[upper.tri(DZmat, diag = T)]`

`# Define the matrix of lag-0 cross-correlations among grid points.`

`CCF=(1+0.2*2*EuclDist)^(-1/b) # CAS with b=0.2 and k=2.`

`Cmat=matrix(NA,nrow=nx*ny,ncol=nx*ny)`

`Cmat[upper.tri(Cmat,diag=T)]=CCF`

`Cmat[lower.tri(Cmat,diag=T)]=rev(CCF)`

`# Define the target autocorrelation structure and`

`# distribution function (ICDF) at each point.`

`# The distribution functions are of zero-inflated type.`

`# For the continuous part, the Burr type-XII distribution is used`

`# in the formulation given in Box 6.`

`FXs=rep(‘qzi’,Sites) # Define that distributions are zero-inflated.`

`PFXs=vector("list",length=Sites) # List with ICDF of each point`

`ACFs=vector("list",length=Sites) # List with ACF of each point`

`for (i in 1:Sites) {`

`PFXs[[i]]=list(Distr=qburr,p0=0.75,scale=71.62,shape1=0.88,shape2=11.79)`

`ACFs[[i]]=cscas(param=c(0.1,0.6),lag=2^6) # CAS with b=0.1 and k=0.6`

`}`

`# Estimate the parameters of SMARTA model`

`SMAparam=EstSMARTA_RFs(dist=FXs,params=PFXs,ACFs=ACFs,Cmat=Cmat,`

`DecoMethod=‘cor.smooth’,FFTLag=2^7,`

`NatafIntMethod=‘GH’,NoEval=9,polydeg=8)`

`# Generate a synthetic realisation of random fields with 2^15 length`

`SimField=SimSMARTA(SMARTApar=SMAparam,steps=2^15,SMALAG=2^6)`

#### 5.6. Univariate Disaggregation of Coarser-Level Stationary Series to Finer-Level Stationary Series

`anySim`addresses it by implementing functions that support disaggregation, i.e., generation of synthetic time series at a lower temporal scale which sum up exactly to the given coarser-level data.

`anySim`implements the NDA approach (see Tsoukalas et al. [25], as well as Section 2.4) via

`Disagg_ARTAp`R-function that enables the disaggregation of a stationary coarser-level series to a stationary one at a finer level. The key input arguments of this R-function are the higher-level series (input argument

`HLSeries`) and the parameters of ARTA(p) model (input argument

`ARTApar`) that control the lower-level stationary model (see Section 3.2).

`qburr`) distribution, i.e., $\mathcal{B}\U0001d4c7\mathrm{XII}\left({\alpha}_{1}=7.64,{\alpha}_{2}=0.30,\beta =0.18\right)$, and an autocorrelation structure, given by CAS (

`cscas`; see Section 2.5), which has been fitted to the empirical estimates of autocorrelation coefficients up to time lag 24, i.e., ${\rho}_{\tau}={\rho}_{\tau}^{CAS}\left(\beta =1.69,\kappa =1\right)$. The parameters of the auxiliary (Gaussian) AR(p) model are estimated via

`EstARTAp`function.

`max.iter = 500`in

`Disagg_ARTAp`).

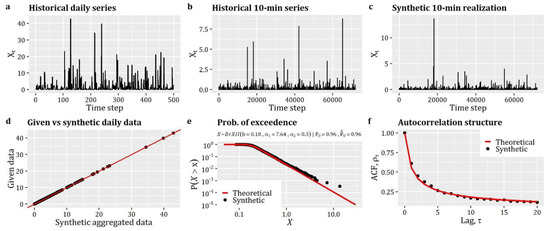

**Box 9.**R-code for the generation of synthetic univariate stationary series at a higher level and its disaggregation into finer-level cyclostationary series.

`set.seed(124)`

`# Define the target autocorrelation structure of finer-level process.`

`ACS=cscas(param=c(1.688,1), lag=24) # CAS with b=1.688 and k=1`

`# Define the target distribution function (ICDF).`

`FX=‘qzi’ # Define that distribution is of zero-inflated type`

`# Define the distribution for the continuous part of the process.`

`# In this example, the Burr type-XII distribution is used in the`

`# formulation given in Box 6.`

`# Define the parameters of the zero-inflated distribution function.`

`pFX=list(p0=0.96,Distr=qburr,scale=0.181,shape1=7.642,shape2=0.296)`

`# Estimate the parameters of the auxiliary Gaussian AR(p) model.`

`param=EstARTAp(ACF=ACS,dist=FX, params=pFX, NatafIntMethod=‘GH’)`

`# Compose the daily series to be disaggregated`

`Sim=SimARTAp(ARTApar=param, burn=1000, steps=(24*6*500))`

`DailySeries=apply(X=matrix(data=Sim$X, ncol=24*6,byrow=1),MARGIN=1,FUN=sum)`

`## Disaggregate the daily series to 10-min data`

`disag10min=Disagg_ARTAp(HLSeries=DailySeries,ARTApar=param,`

`max.iter=500,steps=24*6)`

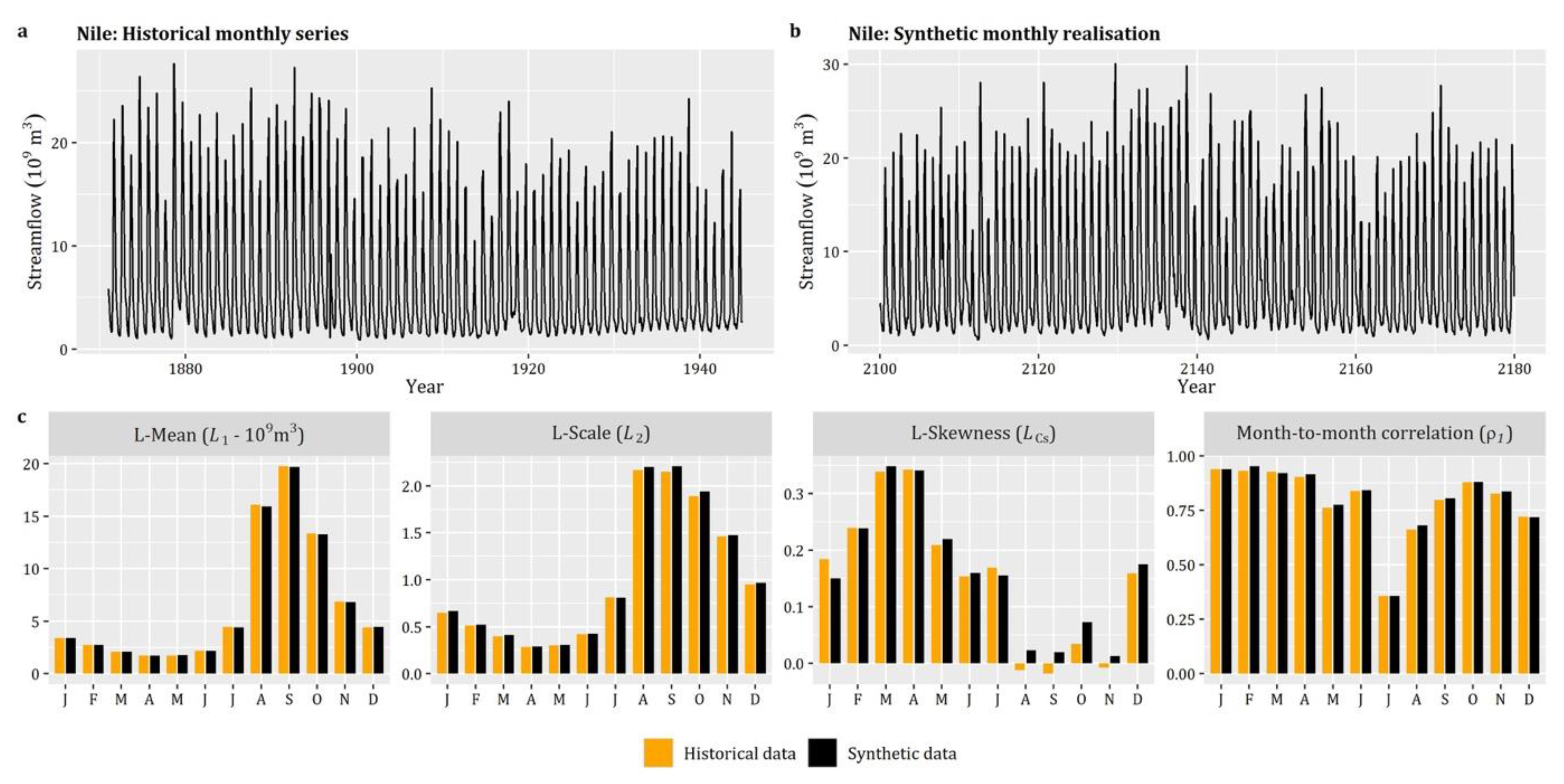

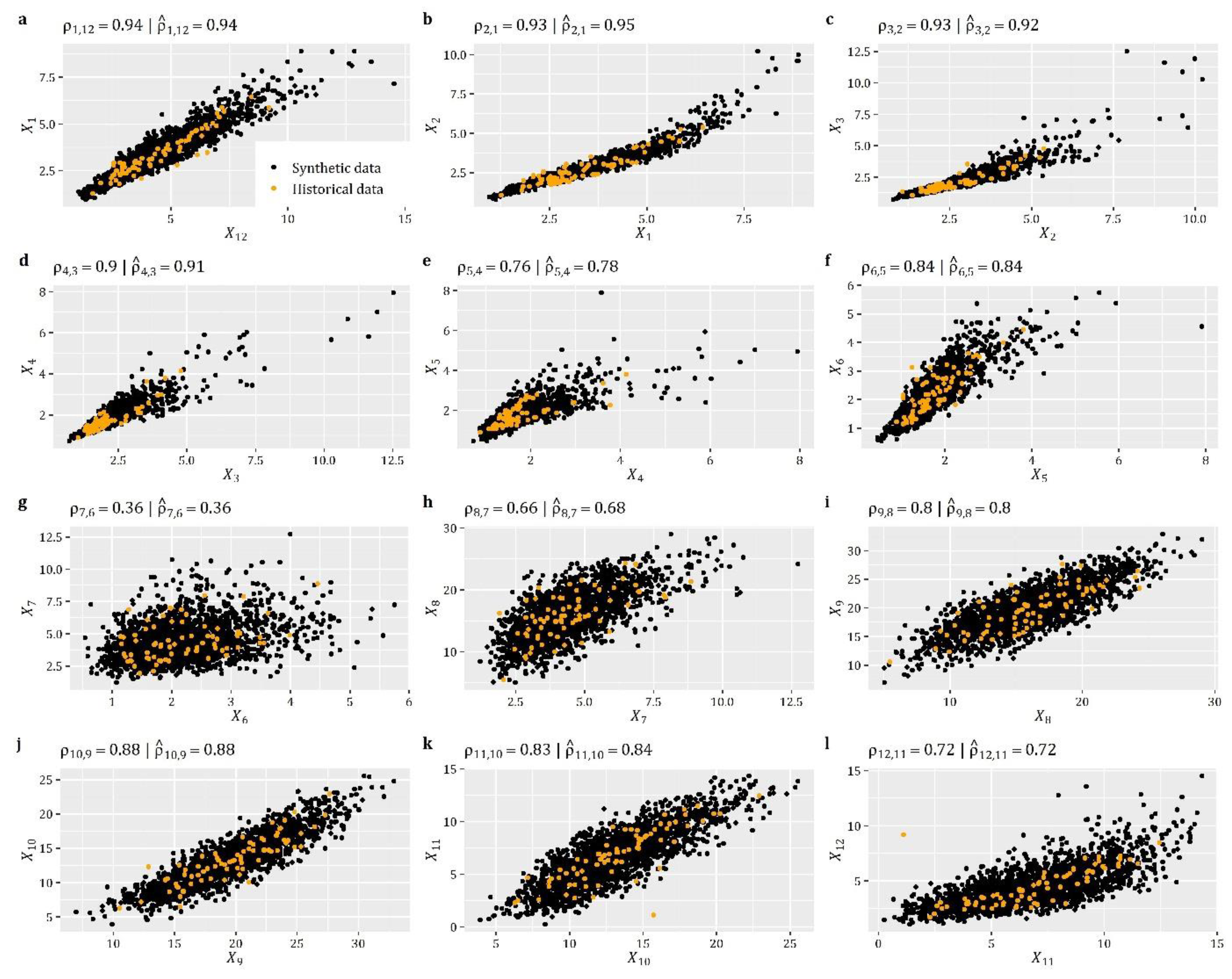

#### 5.7. Univariate Disaggregation of Coarser-Level Stationary Series to Finer-Level Cyclostationary Series

`anySim`implements the so-called NDA approach [25] via

`Disagg_SPARTA`R-function that enables the disaggregation of a stationary coarser-level series to a finer cyclostationary one. The key input arguments of this R-function are the higher-level series (input argument

`HLSeries`) and the parameters of SPARTA model (input argument

`SPARTApar`) that control the lower-level cyclostationary model (see Section 3.2).

`SimARTAp`; see Section 5.2) to generate a stationary synthetic series at the coarser-level (annual), which resemble the marginal and stochastic characteristics of the observed annual streamflow of Nile. For the simulation of the annual process, we assume a Generalized Gamma (

`qgengamma`) distribution, i.e., $\mathcal{G}\mathcal{G}\left({\alpha}_{1}=20.42,{\alpha}_{2}=1.20,\beta =7.41\right)$, and an autocorrelation structure given by CAS (

`cscas`; see Section 2.5), which has been fitted to the empirical estimates of autocorrelation coefficients up to time lag 10, i.e., ${\rho}_{\tau}={\rho}_{\tau}^{CAS}\left(\beta =2.62,\kappa =1.56\right)$. The parameters of the auxiliary (Gaussian) AR(p) model are estimated via

`EstARTAp`function. Regarding the parameterization of the cyclostationary process at the lower temporal level (monthly), we fit either a Generalized Gamma (

`qgengamma`) or a Burr Type-XII (

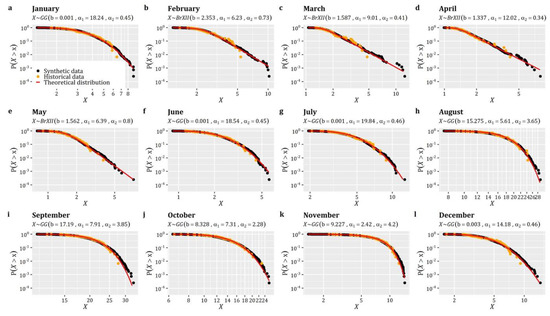

`qburr`) distribution to each month, as well as estimate the empirical lag-1 month-to-month correlations (12 values) of the Nile streamflow data.

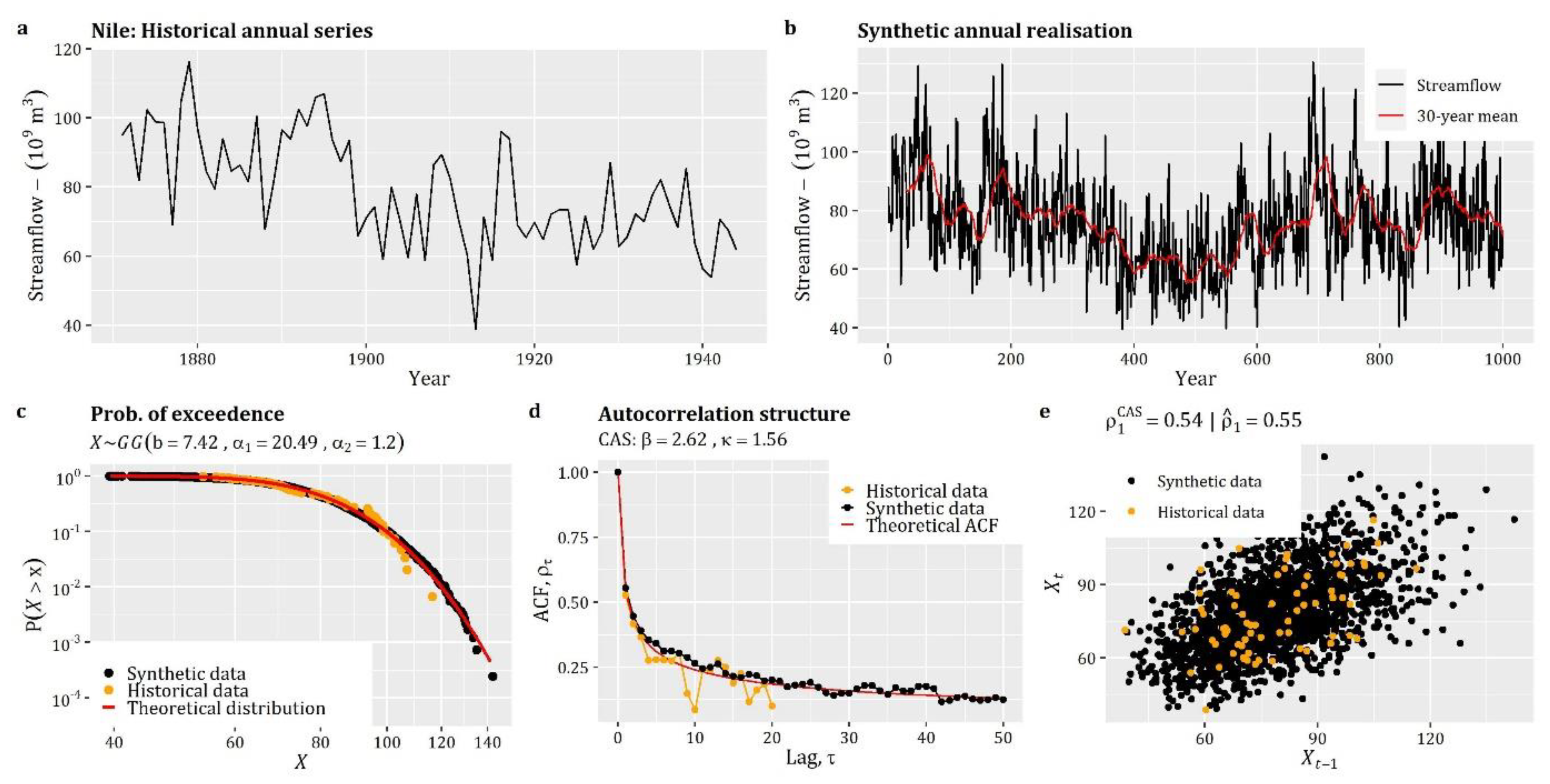

**Box 10.**R-code for the generation of synthetic univariate stationary series at a higher level and its disaggregation into finer-level cyclostationary series.

`## Simulation of coarser-level (Annual) stationary process ##`

`# Define the target autocorrelation structure of coarser-level process`

`ACS_annual=cscas(param=c(2.623,1.557),lag=200)`

`# Define the target distribution function of coarser-level process.`

`# In this case, the Gen. Gamma distribution is used in the`

`# formulation given in Box 5.`

`FX=‘qgengamma’`

`# Define the parameters of the target distribution.`

`pFX=list(scale=7.419,shape1=20.493,shape2=1.198)`

`# Estimate the parameters of the auxiliary Gaussian AR(p) model.`

`ARTApar=EstARTAp(ACF=ACS_annual,dist=FX,params=pFX,NatafIntMethod=‘GH’)`

`# Generate the annual synthetic series of 10000 length.`

`simAnnual=SimARTAp(ARTApar = ARTApar, steps = 10^3)`

`## Simulation of lower-level (Monthly) cyclostationary process ##`

`# Define the number of seasons.`

`NumOfSeasons=12 # number of months`

`# Define the lag-1 season-to-season correlation coefficients`

`# (12 values) of monthly Nile Streamflow.`

`rtarget_mon=c(0.938,0.931,0.926,0.903,0.761,0.837,0.355,0.662,0.796,0.876,0.826,0.720)`

`# Define the target distribution functions for each season.`

`# In this example, the Gen. Gamma or Burr type-XII distribution are`

`# used in the formulations given in Box 5 and 6, respectively`

`FXs=c(‘qgengamma’,‘qburr’,‘qburr’,‘qburr’,‘qburr’,‘qgengamma’,‘qgengamma’,‘qgengamma’,‘qgengamma’,‘qgengamma’,‘qgengamma’,‘qgengamma’)`

`# Define the parameters of distribution functions for each season.`

`PFXs<-vector("list",NumOfSeasons)`

`PFXs[[1]]=list(scale=0.000862254,shape1=18.24168,shape2=0.4491688)`

`PFXs[[2]]=list(scale=2.352517,shape1=6.233872,shape2=0.7284742)`

`PFXs[[3]]=list(scale=1.586728,shape1=9.007934,shape2=0.4096283)`

`PFXs[[4]]=list(scale=1.337449,shape1=12.01606,shape2=0.3374601)`

`PFXs[[5]]=list(scale=1.56249,shape1=6.386645,shape2=0.8020387)`

`PFXs[[6]]=list(scale=0.0005479373,shape1=18.54147,shape2=0.4500553)`

`PFXs[[7]]=list(scale=0.001297873,shape1=19.83979,shape2=0.4629369)`

`PFXs[[8]]=list(scale=15.27454,shape1=5.607777,shape2=3.654064)`

`PFXs[[9]]=list(scale=17.18964,shape1=7.913649,shape2=3.848175)`

`PFXs[[10]]=list(scale=8.327586,shape1=7.307034,shape2=2.280058)`

`PFXs[[11]]=list(scale=9.226506,shape1=2.42338,shape2=4.200226)`

`PFXs[[12]]=list(scale=0.002727125,shape1=14.18116,shape2=0.4648454)`

`# Estimate the parameters of SPARTA model.`

`SPARTApar<-EstSPARTA(s2srtarget=rtarget_mon,dist=FXs,params=PFXs,`

`NatafIntMethod=‘GH’,NoEval=9,polydeg=8,nodes=11)`

`# Disaggregate the annual series to monthly amounts.`

`disagMonthly<-Disagg_SPARTA(HLSeries=simAnnual$X[1:100], SPARTApar=SPARTApar,max.iter=300,steps=NumOfSeasons)`

## 6. Conclusions

`anySim`. The package implements a suite of state-of-the art models, all based on the notion of Nataf’ joint distribution model (i.e., Gaussian copula), which facilitate the simulation of non-Gaussian correlated random variables, stochastic processes, and random fields.

`anySim`covers the needs of these three omnipresent modeling tasks, and aims this way to provide an easy-to-use, one-stop solution for practitioners, engineers, and researchers working towards the development of a variety of uncertainty-related applications (e.g., development of Monte-Carlo-type experiments for engineering and environmental studies).

`anySim`is able to perform tasks that regard:

- The simulation of non-Gaussian correlated random variables with target correlation matrix.
- The simulation of non-Gaussian univariate and multivariate processes with given target auto-correlation and lag-0 cross-correlation structure.
- The simulation of non-Gaussian univariate processes (stationary and cyclostationary) at multiple temporal scales, preserving the target distributions, as well as the target auto-correlation structures at multiple temporal scales.
- The disaggregation of univariate coarser-level sequences to finer-level sequences exhibiting the target (non-Gaussian) distributions and auto-correlation structure.
- The simulation of non-Gaussian homogenous random fields with target spatiotemporal correlation structure (preserving the lag-0 contemporaneous spatial correlations, as well as autocorrelation up to large time lags).

`anySim`offers a scale-free approach since the implemented simulation models are suitable for processes/fields of any time (or spatial) scale and can be used as long as the models are being parameterized by any marginal distribution (including zero-inflated models; to account for processes/fields characterized by intermittency, such as rainfall) with finite variance and valid correlation structure (i.e., positive definite). It is remarked that in the cases where the last constraint is not satisfied,

`anySim`can still be employed if combined with procedures that correct non-positive definite matrices [34,146], i.e., identify a valid (nearest) correlation structure in case of inconsistency. However, this problem is not encountered throughout the simulation studies presented herein.

`anySim`, the package is viewed as dynamic entity that will be continuously enhanced with new functionalities. Ongoing research in this direction includes:

- The implementation of alternative multivariate models (for stationary and cyclostationary processes) for both simulation and disaggregation purposes.
- The implementation of methods and functions for conditional simulations.
- The implementation of alternative correlation structures (i.e., spatial, temporal, or combination of them), as well as methods that correct potential non-positive definite correlation structures.
- The implementation of functions dedicated for fitting distribution functions and correlation structures to historical data.
- Introduction of stochastic methods that rely on alternative copulas [138,139], such as asymmetric ones (e.g., Clayton and Gumbel copulas). This way, beyond NDM-based methods (i.e., Gaussian copula), which are suitable for symmetric dependence structures,
`anySim`could be employed to describe more complex dependencies and thus further extend the simulation capabilities of the package (e.g., reproduction of extremes; tail dependencies). - The implementation of some part of the code, and especially the more time-consuming functions (e.g., those related with disaggregation), in other programming languages (e.g., C++) to speed-up the package’s run times.

`anySim`brings into fruition, as well as practical implementation in real-world studies, the desideratum of Klemeš and Borůvka [86], highlighted by Tsoukalas et al. [21], for generalized generation schemes which are able to represent processes from any distribution and any correlation structure, thus moving beyond the classical paradigm of stochastic modeling in hydrology that aim at the resemblance of a process/field in terms of summary statistical characteristics and low-order correlations (cf. [147]). Of course, the need and utility of non-Gaussian models spans beyond the realm of hydrology and engineering, since it is widely acknowledged that such processes are omnipresent in many other scientific domains, such as, finance, biology, communication networks, and operations research. It is our belief, and hope, that

`anySim`can and may find fertile ground of application also in such domains, and hopefully resolve existing problems and trigger new developments.

## Author Contributions

`anySim`package. I.T. and P.K. designed and run the simulation examples presented herein, as well as developed the R code for the associated visualizations. I.T., and P.K. organized, prepared and drafted the manuscript. Funding acquisition by I.T. C.M. supervised the work during all stages. All authors have read and agreed to the published version of the manuscript.

## Funding

## Acknowledgments

`anySim`R package is available GitHub repository at: https://github.com/itsoukal/anySim.

## Conflicts of Interest

## Appendix A. Distribution Functions Used to Demonstrate anySim

## References

- Kisiel, C.C. Transformation of deterministic and stochastic processes in hydrology. In Proceedings of the International Symposium in Hydrology, Fort Collins, CO, USA, 11–14 September 1967; Volume 1, pp. 600–607. [Google Scholar]
- Klemeš, V. Water storage: Source of inspiration and desperation. In Reflections on Hydrology: Science and Practice; American Geophysical Union: Washington, DC, USA, 1997; ISBN 9781118668085. [Google Scholar]
- Koutsoyiannis, D.; Economou, A. Evaluation of the parameterization-simulation-optimization approach for the control of reservoir systems. Water Resour. Res.
**2003**, 39. [Google Scholar] [CrossRef][Green Version] - Celeste, A.B.; Billib, M. Evaluation of stochastic reservoir operation optimization models. Adv. Water Resour.
**2009**, 32, 1429–1443. [Google Scholar] [CrossRef] - Haberlandt, U.; Hundecha, Y.; Pahlow, M.; Schumann, A.H. Rainfall generators for application in flood studies. In Flood Risk Assessment and Management; Springer: Berlin/Heidelberg, Germany, 2011; pp. 117–147. [Google Scholar]
- Giuliani, M.; Herman, J.D.; Castelletti, A.; Reed, P. Many-objective reservoir policy identification and refinement to reduce policy inertia and myopia in water management. Water Resour. Res.
**2014**, 50, 3355–3377. [Google Scholar] [CrossRef][Green Version] - Tsoukalas, I.; Makropoulos, C. A Surrogate Based Optimization Approach for the Development of Uncertainty-Aware Reservoir Operational Rules: the Case of Nestos Hydrosystem. Water Resour. Manag.
**2015**, 29, 4719–4734. [Google Scholar] [CrossRef] - Tsoukalas, I.; Makropoulos, C. Multiobjective optimisation on a budget: Exploring surrogate modelling for robust multi-reservoir rules generation under hydrological uncertainty. Environ. Model. Softw.
**2015**, 69, 396–413. [Google Scholar] [CrossRef] - Tsoukalas, I.; Kossieris, P.; Efstratiadis, A.; Makropoulos, C. Surrogate-enhanced evolutionary annealing simplex algorithm for effective and efficient optimization of water resources problems on a budget. Environ. Model. Softw.
**2016**, 77, 122–142. [Google Scholar] [CrossRef] - Feng, M.; Liu, P.; Guo, S.; Gui, Z.; Zhang, X.; Zhang, W.; Xiong, L. Identifying changing patterns of reservoir operating rules under various inflow alteration scenarios. Adv. Water Resour.
**2017**, 104, 23–36. [Google Scholar] [CrossRef] - Do, N.C.; Razavi, S. Correlation Effects? A Major but Often Neglected Component in Sensitivity and Uncertainty Analysis. Water Resour. Res.
**2020**, 56. [Google Scholar] [CrossRef] - Robert, C.; Casella, G. Introducing Monte Carlo Methods with R; Springer: New York, NY, USA, 2010; ISBN 978-1-4419-1582-5. [Google Scholar]
- Kroese, D.P.; Taimre, T.; Botev, Z.I. Handbook of Monte Carlo Methods; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2011; ISBN 9781118014967. [Google Scholar]
- Kroese, D.P.; Brereton, T.; Taimre, T.; Botev, Z.I. Why the Monte Carlo method is so important today. Wiley Interdiscip. Rev. Comput. Stat.
**2014**, 6, 386–392. [Google Scholar] [CrossRef] - Grigoriu, M. Applied Non-Gaussian Processes: Examples, Theory, Simulation, Linear Random Vibration, And Matlab Solutions; PTR Prentice Hall: Upper Saddle River, NJ, USA, 1995; ISBN 0133670953. [Google Scholar]
- Efstratiadis, A.; Dialynas, Y.G.; Kozanis, S.; Koutsoyiannis, D. A multivariate stochastic model for the generation of synthetic time series at multiple time scales reproducing long-term persistence. Environ. Model. Softw.
**2014**, 62, 139–152. [Google Scholar] [CrossRef] - Koutsoyiannis, D. Stochastic Simulation of Hydrosystems. In Water Encyclopedia; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2005; ISBN 9780471478447. [Google Scholar]
- Moran, P.A.P. Simulation and Evaluation of Complex Water Systems Operations. Water Resour. Res.
**1970**, 6, 1737–1742. [Google Scholar] [CrossRef] - Salas, J.D.; Delleur, J.W.; Yevjevich, V.; Lane, W.L. Applied modeling of hydrologic time series; 2nd Print; Water Resources Publication: Littleton, CO, USA, 1980; ISBN 0918334373. [Google Scholar]
- Kossieris, P.; Tsoukalas, I.; Makropoulos, C.; Savic, D. Simulating Marginal and Dependence Behaviour of Water Demand Processes at Any Fine Time Scale. Water
**2019**, 11, 885. [Google Scholar] [CrossRef][Green Version] - Tsoukalas, I.; Efstratiadis, A.; Makropoulos, C. Stochastic Periodic Autoregressive to Anything (SPARTA): Modeling and Simulation of Cyclostationary Processes With Arbitrary Marginal Distributions. Water Resour. Res.
**2018**, 54, 161–185. [Google Scholar] [CrossRef] - Tsoukalas, I.; Papalexiou, S.; Efstratiadis, A.; Makropoulos, C. A Cautionary Note on the Reproduction of Dependencies through Linear Stochastic Models with Non-Gaussian White Noise. Water
**2018**, 10, 771. [Google Scholar] [CrossRef][Green Version] - Ailliot, P.; Allard, D.; Monbet, V.; Naveau, P. Stochastic weather generators: an overview of weather type models. J. la Société Française Stat.
**2015**, 156, 101–113. [Google Scholar] - Wilks, D.S.; Wilby, R.L. The weather generation game: a review of stochastic weather models. Prog. Phys. Geogr.
**1999**, 23, 329–357. [Google Scholar] [CrossRef] - Tsoukalas, I.; Efstratiadis, A.; Makropoulos, C. Building a puzzle to solve a riddle: A multi-scale disaggregation approach for multivariate stochastic processes with any marginal distribution and correlation structure. J. Hydrol.
**2019**, 575, 354–380. [Google Scholar] [CrossRef] - Srikanthan, R.; McMahon, T.A. Stochastic generation of annual, monthly and daily climate data: A review. Hydrol. Earth Syst. Sci.
**2001**, 5, 653–670. [Google Scholar] [CrossRef][Green Version] - Onof, C.; Chandler, R.E.; Kakou, A.; Northrop, P.; Wheater, H.S.; Isham, V. Rainfall modelling using Poisson-cluster processes: a review of developments. Stoch. Environ. Res. Risk Assess.
**2000**, 14, 0384–0411. [Google Scholar] [CrossRef] - Wheater, H.S.; Chandler, R.E.; Onof, C.J.; Isham, V.S.; Bellone, E.; Yang, C.; Lekkas, D.; Lourmas, G.; Segond, M.-L. Spatial-temporal rainfall modelling for flood risk estimation. Stoch. Environ. Res. Risk Assess.
**2005**, 19, 403–416. [Google Scholar] [CrossRef] - Chen, J.; Brissette, F.P. Comparison of five stochastic weather generators in simulating daily precipitation and temperature for the Loess Plateau of China. Int. J. Climatol.
**2014**, 34, 3089–3105. [Google Scholar] [CrossRef] - Waymire, E.; Gupta, V.K. The mathematical structure of rainfall representations: 1. A review of the stochastic rainfall models. Water Resour. Res.
**1981**, 17, 1261–1272. [Google Scholar] [CrossRef] - Deodatis, G.; Micaletti, R.C. Simulation of highly skewed non-Gaussian stochastic processes. J. Eng. Mech.
**2001**, 127, 1284–1295. [Google Scholar] [CrossRef] - Matalas, N.C. Mathematical assessment of synthetic hydrology. Water Resour. Res.
**1967**, 3, 937–945. [Google Scholar] [CrossRef] - Thomas, H.A.; Fiering, M.B. The nature of the storage yield function. In Operations Research in Water Quality Management; Harvard University Water Program: Cambridge, MA, USA, 1963. [Google Scholar]
- Koutsoyiannis, D. Optimal decomposition of covariance matrices for multivariate stochastic models in hydrology. Water Resour. Res.
**1999**, 35, 1219–1229. [Google Scholar] [CrossRef][Green Version] - Li, J.; Li, C. Simulation of Non-Gaussian Stochastic Process with Target Power Spectral Density and Lower-Order Moments. J. Eng. Mech.
**2012**, 138, 391–404. [Google Scholar] [CrossRef] - Lawrance, A.J.; Lewis, P.A.W. Modelling and residual analysis of nonlinear autoregressive time series in exponential variables. J. R. Stat. Soc. Ser. B
**1985**, 47, 165–183. [Google Scholar] [CrossRef] - Dimitriadis, P.; Koutsoyiannis, D. Stochastic synthesis approximating any process dependence and distribution. Stoch. Environ. Res. risk Assess.
**2018**, 32, 1493–1515. [Google Scholar] [CrossRef] - McMahon, T.A.; Miller, A.J. Application of the Thomas and Fiering Model to Skewed Hydrologic Data. Water Resour. Res.
**1971**, 7, 1338–1340. [Google Scholar] [CrossRef] - Fiering, B.; Jackson, B. Synthetic Streamflows; Water Resources Monograph; American Geophysical Union: Washington, DC, USA, 1971; Volume 1, ISBN 0-87590-300-2. [Google Scholar]
- Moran, P.A.P. Statistical Inference with Bivariate Gamma Distributions. Biometrika
**1969**, 56, 627. [Google Scholar] [CrossRef] - Lawrance, A.J.; Kottegoda, N.T. Stochastic Modelling of Riverflow Time Series. J. R. Stat. Soc. Ser. A
**1977**, 140, 1. [Google Scholar] [CrossRef] - Vogel, R.M.; Stedinger, J.R. The value of stochastic streamflow models in overyear reservoir design applications. Water Resour. Res.
**1988**, 24, 1483–1490. [Google Scholar] [CrossRef] - Koutsoyiannis, D.; Manetas, A. Simple disaggregation by accurate adjusting procedures. Water Resour. Res.
**1996**, 32, 2105–2117. [Google Scholar] [CrossRef] - Koutsoyiannis, D. A generalized mathematical framework for stochastic simulation and forecast of hydrologic time series. Water Resour. Res.
**2000**, 36, 1519–1533. [Google Scholar] [CrossRef][Green Version] - Adeloye, A.J.; Soundharajan, B.-S.; Musto, J.N.; Chiamsathit, C. Stochastic assessment of Phien generalized reservoir storage–yield–probability models using global runoff data records. J. Hydrol.
**2015**, 529, 1433–1441. [Google Scholar] [CrossRef][Green Version] - Nataf, A. Statistique mathematique-determination des distributions de probabilites dont les marges sont donnees. C. R. Acad. Sci. Paris
**1962**, 255, 42–43. [Google Scholar] - Liu, P.-L.; Der Kiureghian, A. Multivariate distribution models with prescribed marginals and covariances. Probabilistic Eng. Mech.
**1986**, 1, 105–112. [Google Scholar] [CrossRef] - Mardia, K. V A Translation Family of Bivariate Distributions and Frechet’s Bounds. Sankhya Indian J. Stat. Ser. A
**1970**, 32, 119–122. [Google Scholar] - Lebrun, R.; Dutfoy, A. An innovating analysis of the Nataf transformation from the copula viewpoint. Probabilistic Eng. Mech.
**2009**, 24, 312–320. [Google Scholar] [CrossRef] - Chen, D.; Xu, D.; Ren, G.; Jiang, Q.; Liu, G.; Wan, L.; Li, N. Simulation of cross-correlated non-Gaussian random fields for layered rock mass mechanical parameters. Comput. Geotech.
**2019**, 112, 104–119. [Google Scholar] [CrossRef] - Sudret, B.; Der Kiureghian, A. Stochastic finite element methods and reliability: A state-of-the-art report; Department of Civil and Environmental Engineering, University of California: Berkeley, CA, USA, 2000. [Google Scholar]
- Li, C.-C.; Der Kiureghian, A. Optimal discretization of random fields. J. Eng. Mech.
**1993**, 119, 1136–1154. [Google Scholar] [CrossRef] - Melchers, R.E.; Beck, A.T. (Eds.) Structural Reliability Analysis and Prediction; John Wiley & Sons Ltd: Chichester, UK, 2017; ISBN 9781119266105. [Google Scholar]
- Ditlevsen, O.; Madsen, H.O. Structural Reliability Methods; Wiley: New York, NY, USA, 1996; Volume 178, ISBN 0471960861. [Google Scholar]
- Rebora, N.; Ferraris, L.; von Hardenberg, J.; Provenzale, A. RainFARM: Rainfall Downscaling by a Filtered Autoregressive Model. J. Hydrometeorol.
**2006**, 7, 724–738. [Google Scholar] [CrossRef] - Vio, R.; Andreani, P.; Wamsteker, W. Numerical Simulation of Non-Gaussian Random Fields with Prescribed Correlation Structure. Publ. Astron. Soc. Pacific
**2001**, 113, 1009–1020. [Google Scholar] [CrossRef][Green Version] - Popescu, R.; Deodatis, G.; Prevost, J.H. Simulation of homogeneous nonGaussian stochastic vector fields. Probabilistic Eng. Mech.
**1998**, 13, 1–13. [Google Scholar] [CrossRef] - Christakos, G. Random Field Models in Earth Sciences; Courier Corporation: North Chelmsford, MA, USA, 2012; ISBN 0486160912. [Google Scholar]
- Grigoriu, M. Crossings of Non-Gaussian Translation Processes. J. Eng. Mech.
**1984**, 110, 610–620. [Google Scholar] [CrossRef] - Grigoriu, M. Simulation of stationary non-Gaussian translation processes. J. Eng. Mech.
**1998**, 124, 121–126. [Google Scholar] [CrossRef] - Kelly, K.S.; Krzysztofowicz, R. A bivariate meta-Gaussian density for use in hydrology. Stoch. Hydrol. Hydraul.
**1997**, 11, 17–31. [Google Scholar] [CrossRef] - Guillot, G.; Lebel, T. Approximation of Sahelian rainfall fields with meta-Gaussian random functions. Stoch. Environ. Res. Risk Assess.
**1999**, 13, 113–130. [Google Scholar] [CrossRef] - Guillot, G. Approximation of Sahelian rainfall fields with meta-Gaussian random functions. Stoch. Environ. Res. Risk Assess.
**1999**, 13, 100–112. [Google Scholar] [CrossRef] - Rasmussen, P.F. Multisite precipitation generation using a latent autoregressive model. Water Resour. Res.
**2013**, 49, 1845–1857. [Google Scholar] [CrossRef] - Kleiber, W.; Katz, R.W.; Rajagopalan, B. Daily spatiotemporal precipitation simulation using latent and transformed Gaussian processes. Water Resour. Res.
**2012**, 48. [Google Scholar] [CrossRef][Green Version] - Glasbey, C.A.; Nevison, I.M. Rainfall Modelling Using a Latent Gaussian Variable. In Modelling Longitudinal and Spatially Correlated Data: Methods, Applications, and Future Directions; Springer: Berlin, Germany, 1997; pp. 233–242. [Google Scholar]
- Baxevani, A.; Lennartsson, J. A spatiotemporal precipitation generator based on a censored latent Gaussian field. Water Resour. Res.
**2015**, 51, 4338–4358. [Google Scholar] [CrossRef][Green Version] - Bell, T.L. A space-time stochastic model of rainfall for satellite remote-sensing studies. J. Geophys. Res.
**1987**, 92, 9631. [Google Scholar] [CrossRef] - Lanza, L.G. A conditional simulation model of intermittent rain fields. Hydrol. Earth Syst. Sci.
**2000**, 4, 173–183. [Google Scholar] [CrossRef] - Gong, R.; Haslauer, C.P.; Chen, Y.; Luo, J. Analytical relationship between Gaussian and transformed-Gaussian spatially distributed fields. Water Resour. Res.
**2013**, 49, 1735–1740. [Google Scholar] [CrossRef] - Allard, D. Modeling spatial and spatio-temporal non Gaussian processes. In Advances and Challenges in Space-time Modelling of Natural Events; Springer: Berlin, Germany, 2012; pp. 141–164. [Google Scholar]
- Papalexiou, S.M. Unified theory for stochastic modelling of hydroclimatic processes: Preserving marginal distributions, correlation structures, and intermittency. Adv. Water Resour.
**2018**, 115, 234–252. [Google Scholar] [CrossRef] - Papalexiou, S.M.; Serinaldi, F. Random Fields Simplified: Preserving Marginal Distributions, Correlations, and Intermittency, With Applications From Rainfall to Humidity. Water Resour. Res.
**2020**, 56. [Google Scholar] [CrossRef][Green Version] - Serinaldi, F.; Kilsby, C.G. Unsurprising Surprises: The Frequency of Record-breaking and Overthreshold Hydrological Extremes Under Spatial and Temporal Dependence. Water Resour. Res.
**2018**, 54, 6460–6487. [Google Scholar] [CrossRef] - Cario, M.C.; Nelson, B.L. Modeling and Generating Random Vectors with Arbitrary Marginal Distributions and Correlation Matrix; Technical Report; Department of Industrial Engineering and Management Sciences, Northwestern University: Evanston, IL, USA, 1997. [Google Scholar]
- Cario, M.C.; Nelson, B.L. Autoregressive to anything: Time-series input processes for simulation. Oper. Res. Lett.
**1996**, 19, 51–58. [Google Scholar] [CrossRef] - Tsoukalas, I.; Efstratiadis, A.; Makropoulos, C. Stochastic simulation of periodic processes with arbitrary marginal distributions. In Proceedings of the 15th International Conference on Environmental Science and Technology. CEST 2017, Rhodes, Greece, 31 August–2 September 2017. [Google Scholar]
- Tsoukalas, I.; Makropoulos, C.; Koutsoyiannis, D. Simulation of Stochastic Processes Exhibiting Any-Range Dependence and Arbitrary Marginal Distributions. Water Resour. Res.
**2018**, 54, 9484–9513. [Google Scholar] [CrossRef] - Tsoukalas, I. Modelling and Simulation of Non-Gaussian Stochastic Processes for Optimization of Water-Systems under Uncertainty. Ph.D. Thesis, National Technical University of Athens, Athens, Greece, 20 December 2018. [Google Scholar]
- Biller, B.; Nelson, B.L. Modeling and generating multivariate time-series input processes using a vector autoregressive technique. ACM Trans. Model. Comput. Simul.
**2003**, 13, 211–237. [Google Scholar] [CrossRef] - Yamazaki, F.; Shinozuka, M. Digital generation of non-Gaussian stochastic fields. J. Eng. Mech.
**1988**, 114, 1183–1197. [Google Scholar] [CrossRef] - Li, S.T.; Hammond, J.L. Generation of Pseudorandom Numbers with Specified Univariate Distributions and Correlation Coefficients. IEEE Trans. Syst. Man. Cybern.
**1975**, SMC-5, 557–561. [Google Scholar] [CrossRef] - van der Geest, P.A.G. An algorithm to generate samples of multi-variate distributions with correlated marginals. Comput. Stat. Data Anal.
**1998**, 27, 271–289. [Google Scholar] [CrossRef] - Emrich, L.J.; Piedmonte, M.R. A Method for Generating High-Dimensional Multivariate Binary Variates. Am. Stat.
**1991**, 45, 302–304. [Google Scholar] - Gujar, U.; Kavanagh, R. Generation of random signals with specified probability density functions and power density spectra. IEEE Trans. Automat. Contr.
**1968**, 13, 716–719. [Google Scholar] [CrossRef] - Klemeš, V.; Borůvka, L. Simulation of Gamma-Distributed First-Order Markov Chain. Water Resour. Res.
**1974**, 10, 87–91. [Google Scholar] [CrossRef] - Harms, A.A.; Campbell, T.H. An extension to the Thomas-Fiering Model for the sequential generation of streamflow. Water Resour. Res.
**1967**, 3, 653–661. [Google Scholar] [CrossRef] - Koutsoyiannis, D. Coupling stochastic models of different timescales. Water Resour. Res.
**2001**, 37, 379–391. [Google Scholar] [CrossRef][Green Version] - Vanmarcke, E. Random Fields; USA MIT Press: Cambridge, MA, USA, 1983; p. 372. ISBN 0-262-72045-0. [Google Scholar]
- Vanmarcke, E. Random fields: analysis and synthesis; World Scientific: Singapore, 2010; ISBN 9812563539. [Google Scholar]
- Rosenblatt, M. Stationary Sequences and Random Fields; Springer Science & Business Media: Berlin, Germany, 2012; ISBN 1461251567. [Google Scholar]
- Gioffrè, M.; Gusella, V.; Grigoriu, M. Simulation of non-Gaussian field applied to wind pressure fluctuations. Probabilistic Eng. Mech.
**2000**, 15, 339–345. [Google Scholar] [CrossRef] - Kossieris, P. Multi-Scale Stochastic Analysis and Modelling of Residential Water Demand Processes. Ph.D. Thesis, National Technical University of Athens, Athens, Grace, 2020. [Google Scholar]
- Embrechts, P.; McNeil, A.J.; Straumann, D. Correlation and Dependence in Risk Management: Properties and Pitfalls. In Risk Management; Dempster, M.A.H., Ed.; Cambridge University Press: Cambridge, MA, USA, 1999; pp. 176–223. ISBN 9780521169639. [Google Scholar]
- Fréchet, M. Sur les tableaux de corrélation dont les marges sont données. Ann. Univ. Lyon, 3^ e Ser. Sci. Sect. A
**1951**, 14, 53–77. [Google Scholar] - Whitt, W. Bivariate Distributions with Given Marginals. Ann. Stat.
**1976**, 4, 1280–1289. [Google Scholar] [CrossRef] - Hoeffding, W. Scale—invariant correlation theory. In The collected works of Wassily Hoeffding; Fisher, N.I., Sen, P.K., Eds.; Springer: New York, NY, USA, 1994; pp. 57–107. ISBN 978-1-4612-0865-5. [Google Scholar]
- Armstrong, M. Positive definiteness is not enough. Math. Geol.
**1992**, 24, 135–143. [Google Scholar] [CrossRef] - Pires, C.A.; Perdigão, R.A.P. Non-Gaussianity and Asymmetry of the Winter Monthly Precipitation Estimation from the NAO. Mon. Weather Rev.
**2007**, 135, 430–448. [Google Scholar] [CrossRef] - Pires, C.A.L.; Perdigão, R.A.P. Minimum Mutual Information and Non-Gaussianity Through the Maximum Entropy Method: Theory and Properties. Entropy
**2012**, 14, 1103–1126. [Google Scholar] [CrossRef][Green Version] - Chen, H. Initialization for NORTA: Generation of Random Vectors with Specified Marginals and Correlations. INFORMS J. Comput.
**2001**, 13, 312–331. [Google Scholar] [CrossRef] - Xiao, Q. Evaluating correlation coefficient for Nataf transformation. Probabilistic Eng. Mech.
**2014**, 37, 1–6. [Google Scholar] [CrossRef] - Baum, R. The correlation function of smoothly limited Gaussian noise. IEEE Trans. Inf. Theory
**1957**, 3, 193–197. [Google Scholar] [CrossRef] - Mostafa, M.D.; Mahmoud, M.W. On the problem of estimation for the bivariate lognormal distribution. Biometrika
**1964**, 51, 522–527. [Google Scholar] [CrossRef] - Mejía, J.M.; Rodríguez-Iturbe, I. Correlation links between normal and log normal processes. Water Resour. Res.
**1974**, 10, 689–690. [Google Scholar] [CrossRef] - Esscher, F. On a method of determining correlation from the ranks of the variates. Scand. Actuar. J.
**1924**, 1924, 201–219. [Google Scholar] [CrossRef] - Kruskal, W.H. Ordinal measures of association. J. Am. Stat. Assoc.
**1958**, 53, 814–861. [Google Scholar] [CrossRef] - Salas, J.D. Analysis and modeling of hydrologic time series. In Handbook of hydrology; Maidment, D.R., Ed.; Mc-Graw-Hill, Inc.: London, UK, 1993; p. Ch. 19.1-19.72. ISBN 0070397325. [Google Scholar]
- Eriksson, M.; Siska, P.P. Understanding anisotropy computations. Math. Geol.
**2000**. [Google Scholar] [CrossRef] - Allard, D.; Senoussi, R.; Porcu, E. Anisotropy Models for Spatial Data. Math. Geosci.
**2016**, 48, 305–328. [Google Scholar] [CrossRef][Green Version] - Zhu, H.; Zhang, L.M. Characterizing geotechnical anisotropic spatial variations using random field theory. Can. Geotech. J.
**2013**, 50, 723–734. [Google Scholar] [CrossRef] - Klemeš, V. Applied stochastic theory of storage in evolution. In Advances in hydroscience; Elsevier: Amsterdam, The Netherlands, 1981; Volume 12, pp. 79–141. ISBN 0065-2768. [Google Scholar]
- Tsoukalas, I.; Kossieris, P.; Efstratiadis, A.; Makropoulos, C.; Koutsoyiannis, D. CastaliaR: An R package for multivariate stochastic simulation at multiple temporal scales. In Proceedings of the European Geosciences Union General Assembly 2018, Geophysical Research Abstracts, Vol. 20, Vienna, Austria, 8–13 April 2018. EGU2018-18433. [Google Scholar]
- Kossieris, P.; Makropoulos, C.; Onof, C.; Koutsoyiannis, D. A rainfall disaggregation scheme for sub-hourly time scales: Coupling a Bartlett-Lewis based model with adjusting procedures. J. Hydrol.
**2016**, 556, 980–992. [Google Scholar] [CrossRef][Green Version] - Bárdossy, A.; Pegram, G. Copula based multisite model for daily precipitation simulation. Hydrol. Earth Syst. Sci. Discuss.
**2009**, 6, 4485–4534. [Google Scholar] [CrossRef] - Serinaldi, F. A multisite daily rainfall generator driven by bivariate copula-based mixed distributions. J. Geophys. Res.
**2009**, 114, D10103. [Google Scholar] [CrossRef][Green Version] - Williams, P. Modelling seasonality and trends in daily rainfall data. Adv. Neural Inf. Process. Syst.
**1998**, 10, 985–991. [Google Scholar] - Cannon, A.J. Probabilistic Multisite Precipitation Downscaling by an Expanded Bernoulli–Gamma Density Network. J. Hydrometeorol.
**2008**, 9, 1284–1300. [Google Scholar] [CrossRef] - Bárdossy, A.; Pegram, G.G.S. Space-time conditional disaggregation of precipitation at high resolution via simulation. Water Resour. Res.
**2016**, 52, 920–937. [Google Scholar] [CrossRef][Green Version] - Kedem, B.; Chiu, L.S.; North, G.R. Estimation of mean rain rate: Application to satellite observations. J. Geophys. Res.
**1990**, 95, 1965. [Google Scholar] [CrossRef] - Aitchison, J. On the Distribution of a Positive Random Variable Having a Discrete Probability Mass at the Origin. J. Am. Stat. Assoc.
**1955**, 50, 901–908. [Google Scholar] - Koutsoyiannis, D.; Montanari, A. Statistical analysis of hydroclimatic time series: Uncertainty and insights. Water Resour. Res.
**2007**, 43, 1–9. [Google Scholar] [CrossRef] - Hurst, H.E. Long-term storage capacity of reservoirs. Trans. Amer. Soc. Civ. Eng.
**1951**, 116, 770–808. [Google Scholar] - O’Connell, P.E.; Koutsoyiannis, D.; Lins, H.F.; Markonis, Y.; Montanari, A.; Cohn, T. The scientific legacy of Harold Edwin Hurst (1880–1978). Hydrol. Sci. J.
**2016**, 61, 1571–1590. [Google Scholar] [CrossRef][Green Version] - Molz, F.J.; Liu, H.H.; Szulga, J. Fractional Brownian motion and fractional Gaussian noise in subsurface hydrology: A review, presentation of fundamental properties, and extensions. Water Resour. Res.
**1997**, 33, 2273–2286. [Google Scholar] [CrossRef] - Mandelbrot, B.B.; Wallis, J.R. Noah, Joseph, and Operational Hydrology. Water Resour. Res.
**1968**, 4, 909–918. [Google Scholar] [CrossRef][Green Version] - Koutsoyiannis, D. The Hurst phenomenon and fractional Gaussian noise made easy. Hydrol. Sci. J.
**2002**, 47, 573–595. [Google Scholar] [CrossRef] - Beran, J.; Feng, Y.; Ghosh, S.; Kulik, R. Long-Memory Processes; Springer: Berlin/Heidelberg, Germany, 2013; ISBN 978-3-642-35511-0. [Google Scholar]
- Beran, J. Statistics for long-memory processes; CRC press: Boca Raton, FL, USA, 1994; Volume 61, ISBN 0412049015. [Google Scholar]
- MacKay, D.J.C. Introduction to Gaussian processes. NATO ASI Ser. F Comput. Syst. Sci.
**1998**, 168, 133–166. [Google Scholar] - Chilès, J.-P.; Delfiner, P. Geostatistics: Modeling Spatial Uncertainty; Jhon Wiley Sons Inc.: New York, NY, USA, 1999; Volume 695. [Google Scholar]
- Gneiting, T.; Genton, M.G.; Guttorp, P. Geostatistical space-time models, stationarity, separability, and full symmetry. Monogr. Stat. Appl. Probab.
**2006**, 107, 151. [Google Scholar] - Genton, M.G.; Kleiber, W. Cross-Covariance Functions for Multivariate Geostatistics. Stat. Sci.
**2015**, 30, 147–163. [Google Scholar] [CrossRef] - Gneiting, T.; Kleiber, W.; Schlather, M. Matérn Cross-Covariance Functions for Multivariate Random Fields. J. Am. Stat. Assoc.
**2010**, 105, 1167–1177. [Google Scholar] [CrossRef] - Genton, M.G. Separable approximations of space-time covariance matrices. Environmetrics
**2007**, 18, 681–695. [Google Scholar] [CrossRef] - Rodríguez-Iturbe, I.; Mejía, J.M. The design of rainfall networks in time and space. Water Resour. Res.
**1974**, 10, 713–728. [Google Scholar] [CrossRef] - Mardia, K.V.; Goodall, C.R. Spatial-temporal analysis of multivariate environmental monitoring data. Multivar. Environ. Stat.
**1993**, 6, 347–385. [Google Scholar] - Sklar, A. Random variables, joint distribution functions, and copulas. Kybernetika
**1973**, 9, 449–460. [Google Scholar] - Nelsen, R.B. An introduction to copulas; Springer Science & Business Media: Berlin, Germany, 2007; ISBN 0387286780. [Google Scholar]
- Koutsoyiannis, D. Generic and parsimonious stochastic modelling for hydrology and beyond. Hydrol. Sci. J.
**2016**, 61, 225–244. [Google Scholar] [CrossRef] - Wickham, H. ggplot2: Elegant Graphics for Data Analysis; Statistics and Computing; Springer: New York, NY, USA, 2016. [Google Scholar]
- Elsayed, H.; Djordjevic, S.; Savic, D.; Tsoukalas, I.; Christos, M. The Nile Water-Food-Energy Nexus under Uncertainty: Impacts of the Grand Ethiopian Renaissance Dam. J. Water Resour. Plan. Manag.
**2020**, in press. [Google Scholar] - Burr, I.W. Cumulative Frequency Functions. Ann. Math. Stat.
**1942**, 13, 215–232. [Google Scholar] [CrossRef] - Tadikamalla, P.R. A look at the Burr and related distributions. Int. Stat. Rev. Int. Stat.
**1980**, 337–344. [Google Scholar] [CrossRef] - Hipel, K.W.; McLeod, A.I. Time series modelling of water resources and environmental systems; Elsevier: Amsterdam, The Netherlands, 1994; Volume 45, ISBN 0080870368. [Google Scholar]
- Higham, N.J. Computing the nearest correlation matrix--a problem from finance. IMA J. Numer. Anal.
**2002**, 22, 329–343. [Google Scholar] [CrossRef][Green Version] - Matalas, N.C.; Wallis, J.R. Generation of synthetic flow sequences, Systems Approach to Water Management; Biswas, A.K., Ed.; McGraw-Hill: New York, NY, USA, 1976. [Google Scholar]
- Stacy, E.W. A Generalization of the Gamma Distribution. Ann. Math. Stat.
**1962**, 33, 1187–1192. [Google Scholar] [CrossRef]

**Figure 1.**Simulation of correlated RVs: (

**a**–

**c**) histograms of simulated data along with the target theoretical distribution functions; and (

**d**–

**f**) scatter plots depicting the established correlation between the 3 RVs under study.

**Figure 2.**Simulation of univariate stationary processes with: (first row,

**a**–

**c**) continuous distribution function; (second row,

**d**–

**f**) with discrete distribution; and (third row,

**g**–

**i**) with zero-inflated distribution. The figure displays: (first column,

**a**,

**d**and

**g**) the simulated realization of the processes; (second column,

**b**,

**e**and

**h**) the comparison between theoretical and simulated empirical probability plots; and (third column,

**c**,

**f**and

**i**) the comparison between theoretical and simulated autocorrelation structures.

**Figure 3.**Simulation of univariate cyclostationary processes: (

**a**) simulated realization of the process; (

**b**) comparison between theoretical and simulated Lag-1 season-to-season correlation coefficients; and (

**c**,

**d**) comparison between theoretical and simulated empirical probability plots.

**Figure 4.**Simulation of multivariate stationary processes: (

**a**–

**c**) simulated realizations of the three correlated processes (randomly selected window of 1000 time steps); (

**d**–

**e**) comparison between theoretical and simulated empirical probability plots; (

**g**–

**i**) comparison between theoretical and simulated autocorrelation structures; and (

**j**–

**l**) scatter plots depicting the lag-0 cross-correlation between the 3 processes under study.

**Figure 6.**Time step (

**1**–

**30**) of the simulated non-Gaussian spatiotemporal RF, spanning across 30 time steps. White cells represent cells with zero values (i.e., no rainfall), while blue color palette is used to depict the non-zero values (light rainfall is depicted with light blue, while heavy rainfall with dark blue).

**Figure 7.**Comparison between RF’s target and simulated: (

**a**) distribution function; (

**b**) autocorrelation structure; and (

**c**) lag-0 cross-correlation.

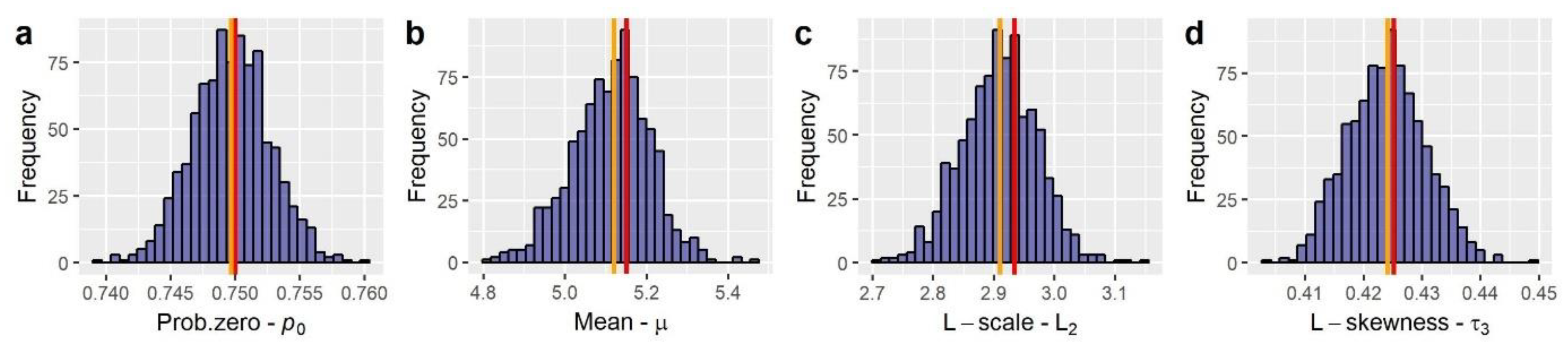

**Figure 8.**Comparison between RF’s target and simulated key statistics, particularly: (

**a**) probability dry; (

**b**) mean; (

**c**) L-scale; and (

**d**) L-skewness.

**Figure 9.**Historical (

**a**) daily and (

**b**) 10-min rainfall series; (

**c**) synthetic (disaggregated) 10-min rainfall realization; (

**d**) consistency check, comparing the values of the aggregated synthetically generated 10-min data, i.e., when aggregated to daily scale, with the corresponding target values; (

**e**) comparison of distribution function of non-zero amounts for 10-min historical and disaggregated series (the fitted theoretical model is shown with red line); and (

**f**) comparison of autocorrelation function (ACF) for 10-min historical and disaggregated series (the fitted theoretical model is shown with the red line).

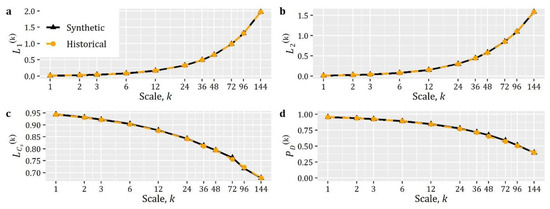

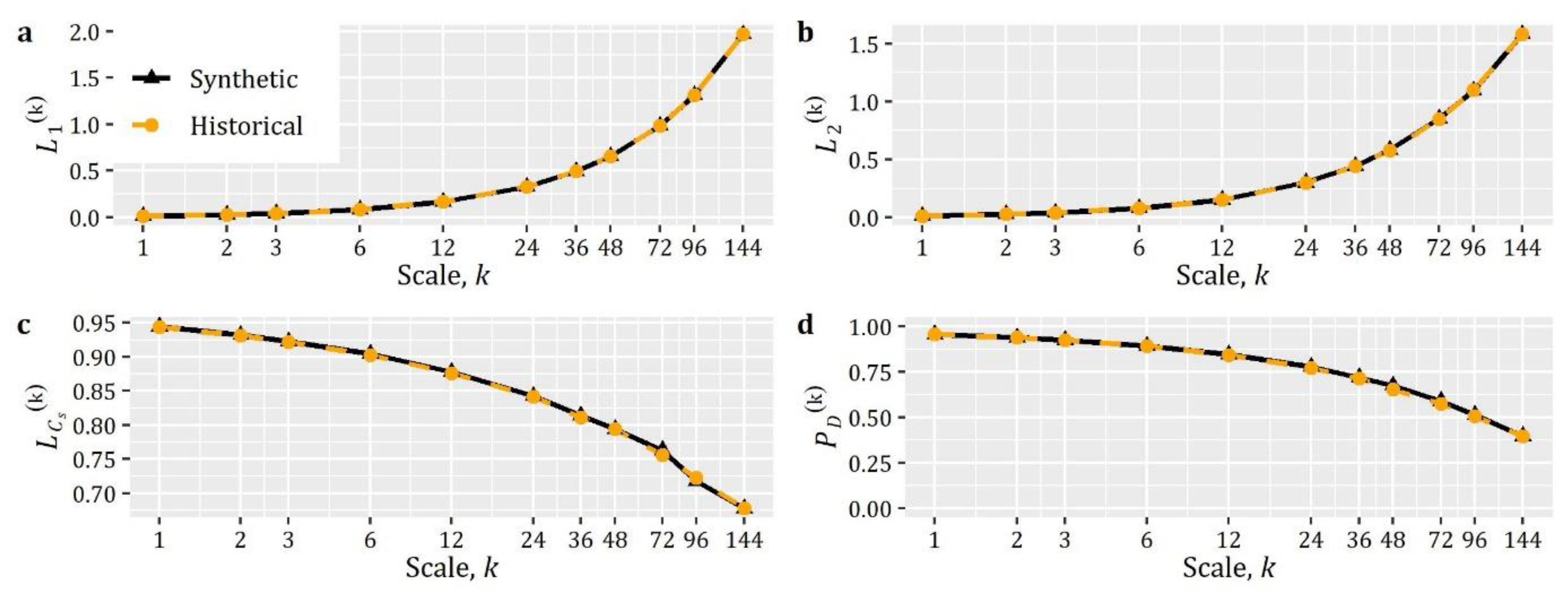

**Figure 10.**Comparison of historical (empirical) and synthetically (disaggregated) generated data, as a function of aggregation scale $k\in \left\{1,2,\dots ,144\right\}$, in terms of: (

**a**) L-mean (${L}_{1}^{\left(k\right)}$); (

**b**) L-scale (${L}_{2}^{\left(k\right)}$); (

**c**) L-skewness (${L}_{Cs}^{\left(k\right)}$); and (

**d**) probability dry (${P}_{0}^{\left(k\right)}$).

**Figure 11.**(

**a**) Historical Nile monthly streamflow series (March 1870 to December 1945); and (

**b**) synthetically generated time series using the

`anySim`package (randomly selected window of 80 years). Monthly-based comparison of historical and simulated (bottom row (

**c**)) L-mean, L-scale, and L-skewness, as well as lag-1 month-to-month correlations coefficients.

**Figure 12.**(

**a**) Historical annual time series of Nile streamflow at Aswan Dam; (

**b**) synthetic time series (1000 years); (

**c**) empirical, simulated, and theoretical distribution function, with the parameters of the theoretical distribution given in the title of the plot; (

**d**) empirical, simulated, and theoretical and autocorrelation coefficients, with the parameters of CAS given in the title of the plot; and (

**e**) scatter plot of annual historical and synthetic time series for time lag 1.

**Figure 13.**Monthly-based (

**a**–

**l**) comparison of empirical, simulated, and theoretical distribution functions. The title of each subplot provides the selected distribution and its parameters.

**Figure 14.**Month-to-month (

**a**–

**l**) scatter plots of historical and simulated Nile streamflow data (10

^{9}m

^{3}). The title of each subplot provides the lag-1 month-to-month target $\left({\rho}_{s,s-1}\right)$ and simulated $\left({\widehat{\rho}}_{s,s-1}\right)$ correlation coefficients.

Section | Simulation Example | Marginal Distribution | Correlation Structure | anySim Functions |
---|---|---|---|---|

5.1 | Simulation of correlated RVs | Gamma, Beta, Log-Normal | Predefined correlation matrix | EstCorrRVsSimCorrRVs |

5.2 | Simulation of univariate stationary processes | Gamma | Product of CAS and periodic ACS | EstARTApSimARTAp |

Beta-Binomial | CAS ACS | |||

Zero-inflated Burr Type-XII ^{1} | CAS ACS | |||

5.3 | Simulation of univariate cyclostationary (12 seasons) process ^{2} | Generalized Gamma, Burr Type-XII | Periodic autoregressive of order 1 | EstSPARTASimSPARTA |

5.4 | Simulation of multivariate stationary process | Beta, Zero-inflated Generalized Gamma, Normal | CAS ACS | EstSMARTASimSMARTA |

5.5 | Simulation of spatiotemporal RF ^{3} | Zero-inflated Burr Type-XII | Separable (product of two CAS) | EstSMARTA_RFsSimSMARTA |

5.6 | Disaggregation of a given coarser-level univariate timeseries to a lower level sequence, assuming stationarity ^{4} | Lower time scale: Zero-inflated Burr Type-XII | Lower time scale: CAS ACS | Lower time scale:EstARTApDisagg_ARTAp |

5.7 | Multi-scale simulation of univariate timeseries via disaggregation ^{5}: A two-level scheme, assuming stationarity in the coarser time scale and cyclostationarity in the lower time scale | Coarse time scale: Gamma Lower time scale: Generalized Gamma, Burr Type-XII | Coarser time scale: CAS ACS Lower time scale: Periodic autoregressive of order 1 | Coarser time scale:EstARTApSimARTApLower time scale: EstSPARTADisagg_SPARTA |

^{1}Resembling the distributional and correlation properties of hourly rainfall recorded at Oberstdorf, Germany gauge (station ID: 3730).

^{2}Resembling the distributional and correlation properties of Kremasta, Greece monthly runoff.

^{ 3}Resembling the distributional properties of daily rainfall recorded at station in Bologna, Italy.

^{4}Resembling the distributional and correlation properties of 10-min rainfall recorded at a station in Soltau, Germany (station ID: 4745).

^{5}Resembling the distributional and correlation properties of Nile’s monthly streamflow gauge at both annual and monthly scale.

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Tsoukalas, I.; Kossieris, P.; Makropoulos, C.
Simulation of Non-Gaussian Correlated Random Variables, Stochastic Processes and Random Fields: Introducing the anySim R-Package for Environmental Applications and Beyond. *Water* **2020**, *12*, 1645.
https://doi.org/10.3390/w12061645

**AMA Style**

Tsoukalas I, Kossieris P, Makropoulos C.
Simulation of Non-Gaussian Correlated Random Variables, Stochastic Processes and Random Fields: Introducing the anySim R-Package for Environmental Applications and Beyond. *Water*. 2020; 12(6):1645.
https://doi.org/10.3390/w12061645

**Chicago/Turabian Style**

Tsoukalas, Ioannis, Panagiotis Kossieris, and Christos Makropoulos.
2020. "Simulation of Non-Gaussian Correlated Random Variables, Stochastic Processes and Random Fields: Introducing the anySim R-Package for Environmental Applications and Beyond" *Water* 12, no. 6: 1645.
https://doi.org/10.3390/w12061645
