# Modeling of Hydrodynamics and Dilution in Coastal Waters

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Mixing Process and Dilution

#### 2.1.1. Near-Field Dilution

#### 2.1.2. Far-Field Dilution

_{p}= −ln(0.1)/T

_{90}

_{p}is the decay rate of pollutant, D

_{x}, D

_{y}, D

_{z}are turbulent diffusion coefficients in x-, y-, z- directions, respectively, S

_{s}is the concentration at the farthest point of near-field region (pollutant source). The decay rate k

_{p}is a function of T

_{90}, that is the disappearance time of 90% of the microorganisms. The value of T

_{90}depends on the season: in summer it is equal to at least 1.5 h in the Aegean Sea and the Mediterranean Sea and 2 h in the Black Sea, and is greater in winter when can reach 3–5 h.

## 3. Study Field

## 4. Wind and Wave Climate

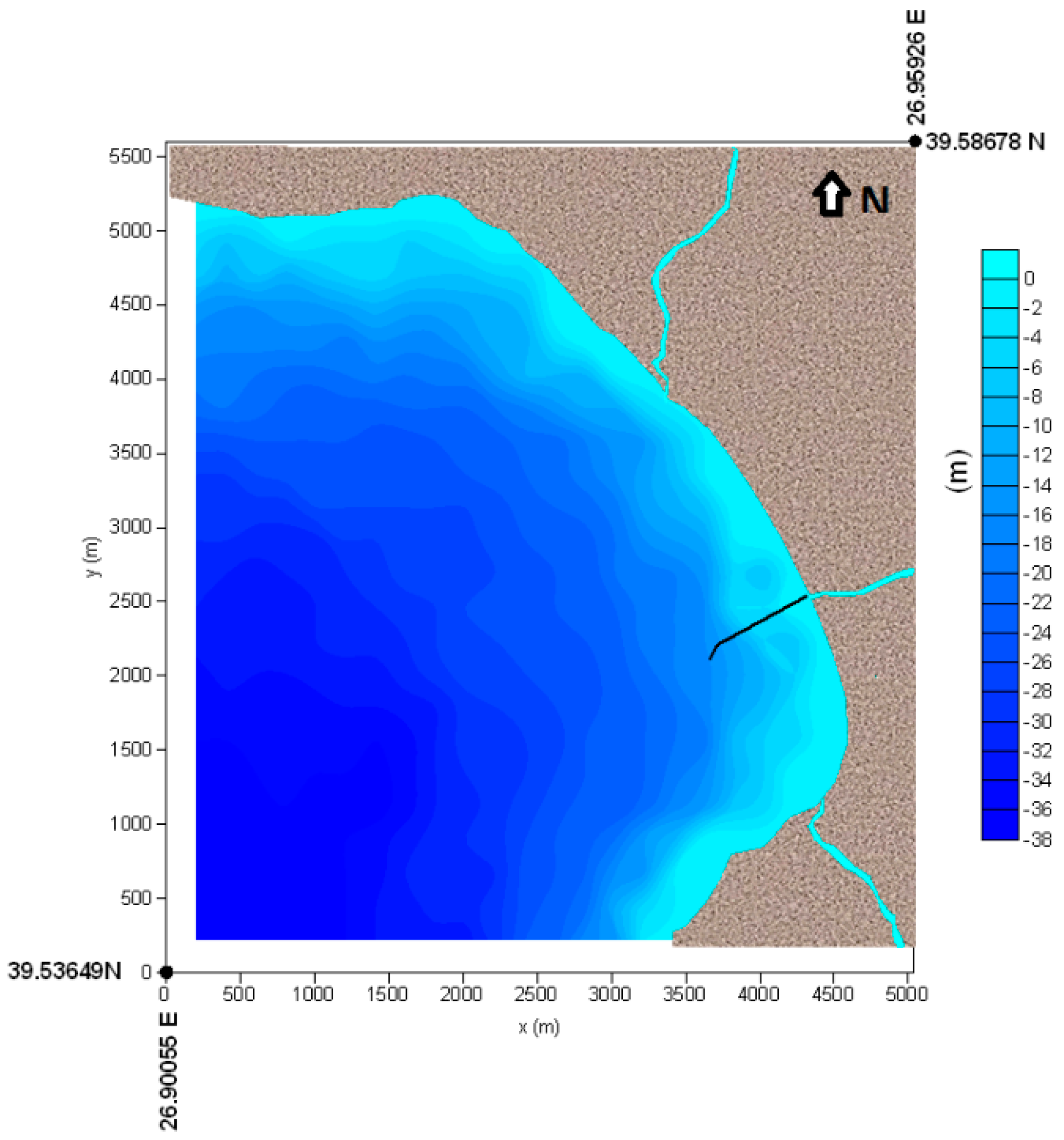

## 5. Current Pattern

_{a}= 1028 kg/m

^{3}. The temperature of sea water, salinity, and density were taken as constant in the numerical model. The steady state circulation patterns at the surface and bottom layers under the shear forcing of wind blowing from WSW, WNW, and NE at 10 m/s are shown in Figure 8, Figure 9 and Figure 10.

## 6. Modeling of Pollutant Transport

## 7. Results and Discussion

_{90}was taken as 1.5 h in summer and 2.5 h in winter in numerical modeling.

## 8. Conclusions

## Funding

## Acknowledgments

## Conflicts of Interest

## Nomenclature

${g}^{\prime}$ | Buoyant gravitational acceleration |

${\rho}_{0}$ | Effluent density |

${\rho}_{a\left(z\right)}$ | Vertical ambient distribution |

${\rho}_{ref}$ | Reference density |

C | Pollutant concentration |

D_{x} | Turbulent diffusion coefficients in x-direction |

D_{y} | Turbulent diffusion coefficients in y-direction |

D_{z} | Turbulent diffusion coefficients in z-direction |

k_{p} | Decay rate of pollutant |

S_{s} | Concentration at the farthest point of near-field region (pollutant source) |

u | Velocities in s (axial) direction of the buoyant jet |

v | Velocity in r (transverse) direction of the buoyant jet |

bac | Bacteria |

## References

- Malcangio, D.; Ben Meftah, M.; Mossa, M. Physical Modelling of Buoyant Effluents Discharged into a Cross Flow. In Proceedings of the 2016 IEEE Workshop on Environmental, Energy and Structural Monitoring Systems, Bari, Italy, 13–14 June 2016. [Google Scholar]
- Malcangio, D.; Petrillo, A.F. Modeling of Brine Outfall at the Planning Stage of Desalination Plants. Desalination
**2010**, 254, 114–125. [Google Scholar] [CrossRef] - Ben Meftah, M.; Malcangio, D.; De Serio, F. Vertical Dense Jet in Flowing Current. Environ. Fluid Mech.
**2018**, 18, 75–96. [Google Scholar] [CrossRef] - Tian, X.; Roberts, P.J.W.; Daviero, G.J. Marine wastewater discharges from multiport diffusers I: Unstratified stationary water. J. Hydraul. Eng.
**2004**, 130, 1137–1146. [Google Scholar] [CrossRef] - Roberts, P.J.W.; Salas, H.J.; Reiff, F.M.; Libhaber, M.; Labbe, A.; Thomson, J.C. Marine Wastewater Outfalls and Treatment Systems, 2nd ed.; IWA Publishing: London, UK, 2011; pp. 51–134. ISBN 9781843391890. [Google Scholar]
- Wood, I.R.; Bell, R.G.; Wilkinson, D.L. Ocean Disposal of Wastewater, Advanced Series on Ocean Engineering; World Scientific Publishing Co. Pte. Ltd.: Singapore, 1993; Volume 8, pp. 178–214. ISBN 978-981-02-0956-8. [Google Scholar]
- Malcangio, D.; Mossa, M. A Laboratory Investigation into the Influence of a Rigid Vegetation on the Evolution of a Round Turbulent Jet Discharged within a Cross Flow. J. Environ. Manag.
**2016**, 173, 105–120. [Google Scholar] [CrossRef] - Malcangio, D.; Melena, A.; Damiani, L.; Mali, M.; Saponieri, A. Numerical Study of Water Quality Improvement in a Port through a Forced Mixing System. WIT Trans. Ecol. Environ.
**2017**, 220, 69–80. [Google Scholar] - Mali, M.; Malcangio, D.; Dell’Anna, M.M.; Damiani, L.; Mastrorilli, P. Influence of Hydrodynamic Features in the Transport and Fate of Hazard Contaminants within Touristic Ports. Case study: Torre a Mare (Italy). Heliyon
**2018**, 4, e00494. [Google Scholar] [CrossRef] [PubMed] - Montessori, A.; Prestininzi, P.; La Rocca, M.; Malcangio, D.; Mossa, M. Two Dimensional Lattice Boltzman Numerical Simulation of a Buoyant Jet. In Proceedings of the 4th IAHR Europe Congress, Liege, Belgium, 27–29 July 2016. [Google Scholar]
- Bleninger, T. Coupled 3D Hydrodynamic Models for Submarine Outfalls: Environmental Hydraulic Design and Control of Multiport Diffusers. Ph.D. Thesis, Hydromechanic Institute, Karlsruhe University, Karlsruhe, Germany, 2006. [Google Scholar]
- Daviero, G.J.; Roberts, P.W.J. Marine wastewater discharges from multiport diffusers III: Stratified stationary water. J. Hydraul. Eng.
**2006**, 132, 404–410. [Google Scholar] [CrossRef] - Doneker, R.L.; Jirka, G.H. CORMIX User Manual: A Hydrodynamic Mixing Zone Model and Decision Support System for Pollutant Discharges into Surface Waters; U.S. Environmental Protection Agency: Washington, DC, USA, 2007; pp. 7–110.
- Frick, W.E. Visual plumes mixing zone modelling software. Environ. Model. Softw.
**2004**, 19, 645–654. [Google Scholar] [CrossRef] - Bombardelli, F.A.; Cantero, M.I.; Buscaglia, G.C.; García, M.H. Comparative study of convergence of CFD commercial codes when simulating dense underflows. Mecánica Comput.
**2004**, 23, 1187–1199. [Google Scholar] - Kaminski, E.; Tait, S.; Carzzo, G. Turbulent entrainment in jets with arbitrary buoyancy. J. Fluid Mech.
**2005**, 526, 361–376. [Google Scholar] [CrossRef] - Choi, K.W.; Lee, J.H.W. Distributed entrainment sink approach for modeling mixing and transport in the intermediate field. J. Hydraul. Eng.
**2007**, 133, 804–815. [Google Scholar] [CrossRef] - Morelissen, R.I.; van der Kaaij, T.; Bleninger, T. Dynamic coupling of near-field and far-field models for simulating effluent discharges. Water Sci. Technol.
**2013**, 67, 2210–2220. [Google Scholar] [CrossRef] - Naidu, V.S. Estimation of near-field and far-field dilutions for site selection of effluent outfall in a coastal region-a case study. J. Coast. Res.
**2013**, 29, 1326–1340. [Google Scholar] [CrossRef] - Mixing Zone Model (CORMIX). Available online: www.mixzon.com (accessed on 15 September 2018).
- Bleninger, T.; Jirka, G.H. Modelling and Environmental Sound Management of Brine Discharges from Desalination Plant. Desalination
**2008**, 221, 585–597. [Google Scholar] [CrossRef] - Jirka, G.H. Integral Model for Turbulent Buoyant Jets in Unbounded Stratified Flows Part 2: Plane Jet Dynamics Resulting from Multiport Diffuser Jets. Environ. Fluid Mech.
**2006**, 6, 43–100. [Google Scholar] [CrossRef] - Maia, L.P.; Bezerra, M.O.; Pinheiro, L.; Redondo, J.M. Application of the Cormix model to assess environmental impact in the coastal area: An example of the ocean disposal system for sanitary sewers in the city of Fortaleza (Ceará, Brazil). J. Coast. Res.
**2011**, 64, 922–926. [Google Scholar] - Schreiner, S.; Krebs, T.A.; Strebel, D.E.; Brindley, A. Testing the CORMIX Model Using the Thermal Plume Data from Four Maryland Power Plants. Environ. Modell. Softw.
**2002**, 17, 321–331. [Google Scholar] [CrossRef] - Yılmaz, N.; Inan, A. Modeling of near field dilution of heated discharges of sea outfalls. J. Fac. Eng. Archit. Gazi Univ.
**2018**, 33, 875–886. [Google Scholar] - Balas, L. Simulation of pollutant transport in Marmaris Bay. In China Ocean Engineering; Nanjing Hydraulics Research Institute (NHRI): Nanjing, China, 2002; Volume 15, pp. 565–578. [Google Scholar]
- Yılmaz, N.; Cebe, K.; Yıldırım, P.; İnan, A.; Balas, L. The need for the integration of land use planning and water quality modeling in the case of Fethiye Bay. J. Polytech.
**2017**, 2, 427–435. [Google Scholar] - Cebe, K.; Balas, L. Monitoring and modeling land-based marine pollution. Reg. Stud. Mar. Sci.
**2018**, 24, 23–39. [Google Scholar] [CrossRef] - Balas, L.; Ozhan, E. Three dimensional modelling of stratified coastal waters. J. Estuar. Coast. Shelf Sci.
**2001**, 54, 75–87. [Google Scholar] [CrossRef] - Balas, L.; Inan, A.; Numanoğlu Genç, A. Modelling of dilution of thermal discharges in enclosed coastal waters. Res. J. Chem. Environ.
**2013**, 17, 82–89. [Google Scholar] - Cebe, K.; Balas, L. Water quality modelling in Kaş Bay. Appl. Math. Model.
**2016**, 40, 1887–1913. [Google Scholar] [CrossRef] - Yılmaz, N. Modeling of wind climate, wave climate and current pattern in Samsun Bay coastal waters. J. Fac. Eng. Archit. Gazi Univ.
**2018**, 33, 279–297. [Google Scholar] - Three Dimensional Hydrodynamic Transport Model (HYDROTAM-3D). Available online: http://www.hydrotam3d.com (accessed on 1 September 2018).
- General Directorate of Water Management Staff, Action Plan of North Aegean Basin; Ministry of Forestry and Water Affairs: Ankara, Republic of Turkey, 2014; pp. 80–124.
- Irtem, E.; Kabdaşlı, S.; Azbar, N. Coastal zone problems and environmental strategies to be implemented at Edremit Bay, Turkey. Environ. Manag.
**2005**, 36, 37–47. [Google Scholar] [CrossRef] [PubMed] - Google Earth. 2018. Available online: https://www.google.com/earth/ (accessed on 1 July 2018).
- Coastal Engineering Research Center Staff. Coastal Engineering Manual (CEM) Part II; Coastal Engineering Research Center, Department of the Army, US Army Corps of Engineers: Washington, DC, USA, 2006; ISBN 9781782661900. [Google Scholar]
- Etemad-Shadidi, A.; Kazeminezhad, M.H.; Mousavi, S.J. On the wave predictions of wave parameters using simplified methods. J. Coast. Res.
**2009**, SI56, 505–509. [Google Scholar] - Kazeminezhad, M.H.; Etemad-Shadidi, A.; Mousavi, S.J. Testing of CEM wave prediction model for Lake Ontario. In Proceedings of the 6th International Conference on Hydrodynamics, Perth, Western Australia, 24–26 November 2004; Cheng, L., Yeow, K., Eds.; Taylor & Francis Group: Boca Raton, FL, USA, 2004. [Google Scholar]
- Ozturk, I.; Eroglu, V.; Altay, A.; Bayhan, H. Oceanographic Research Report for Edremit- Zeytinli Sea Outfall and Refinement Unit; Turkey’s Bank of Provinces: Turkey, 1992; pp. 32–55. (In Turkish) [Google Scholar]
- Regulation of Water Pollution Control, (RWPC); No. 25687, Clause 35; Official Gazette: Ankara, Turkey, 2004. (In Turkish)

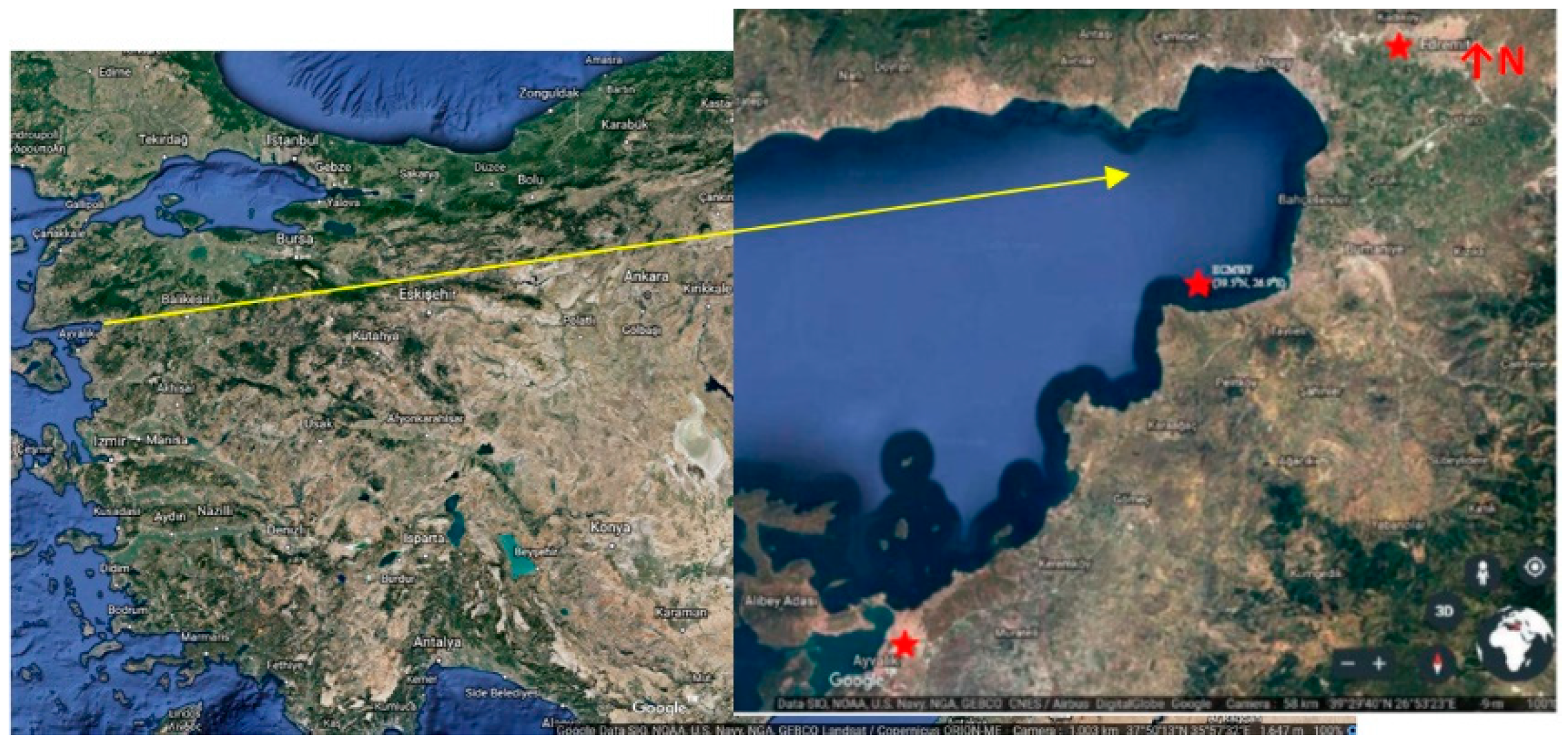

**Figure 1.**Geographical location of the study area in Edremit Bay [36].

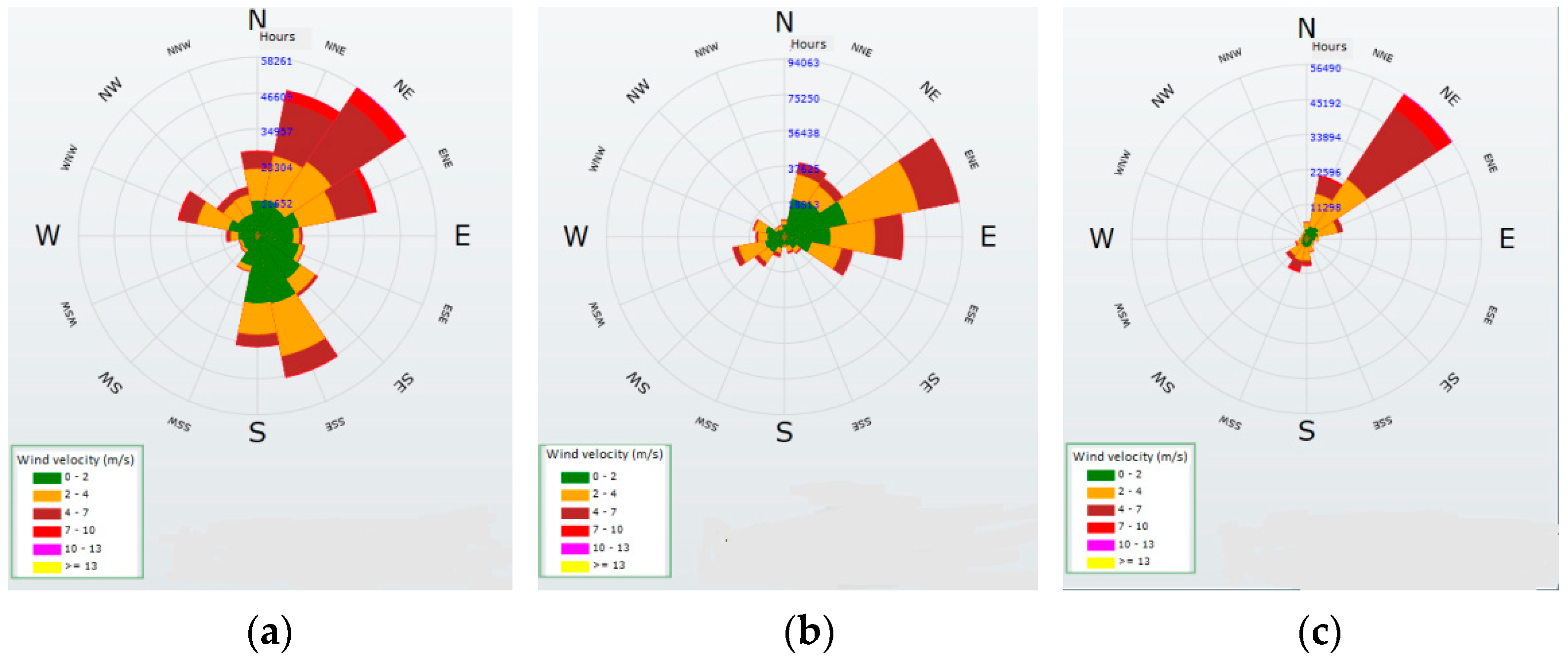

**Figure 2.**Wind rose based on hourly wind measurements for 1970–2016: (

**a**) Ayvalık Meteorological Station; (

**b**) Edremit Meteorological Station; and

**(c)**wind rose based on wind predictions with 6 h intervals for 2000–2016 from European Centre for Medium Range Weather Forecast (ECMWF) operational archive for coordinates of 39.50 °N–26.90 °E [33].

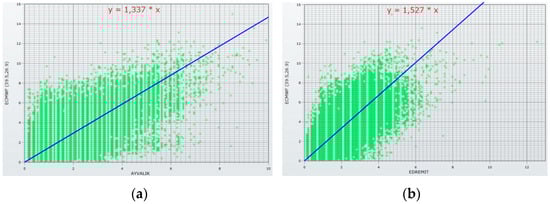

**Figure 3.**Correlations of wind velocities (m/s) between: (

**a**) Ayvalık Meteorological Station and ECMWF operational archive for coordinates of 39.50° N–26.90° E; (

**b**) Edremit Meteorological Station and ECMWF operational archive for coordinates of 39.50° N–26.90° E [33].

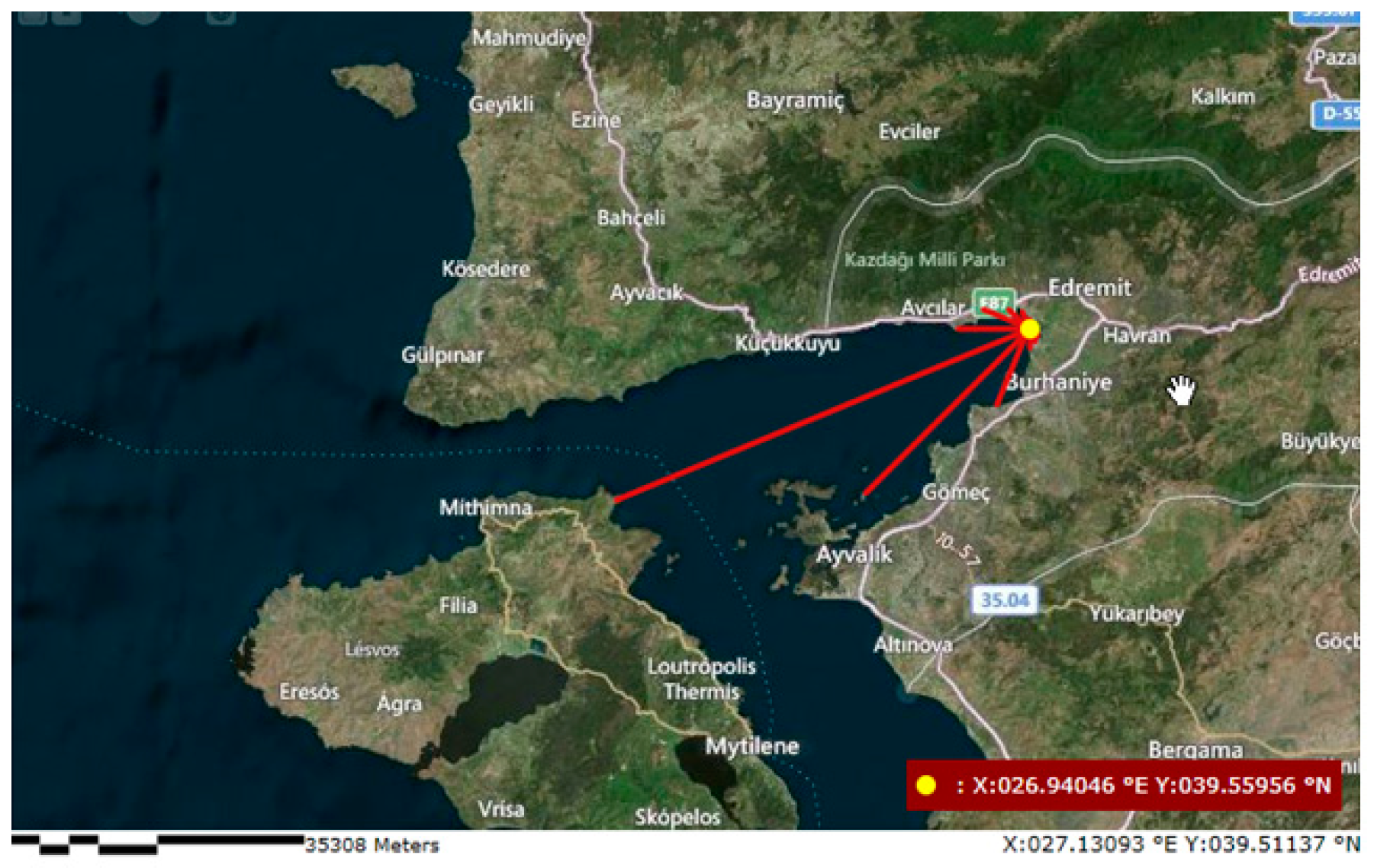

**Figure 4.**Fetch distances according to directions [33].

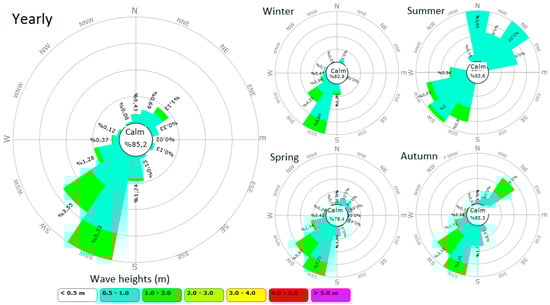

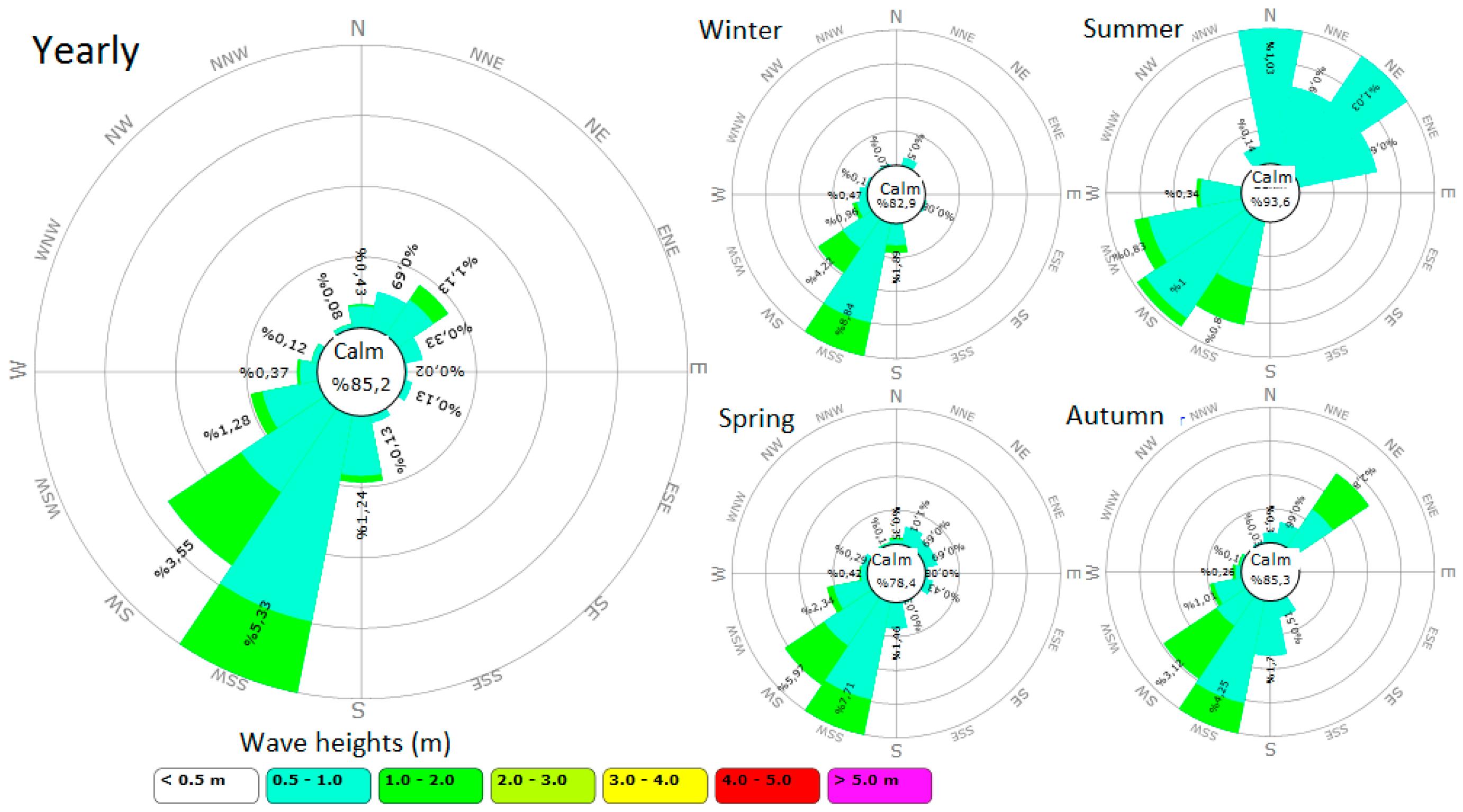

**Figure 5.**Wave roses [33].

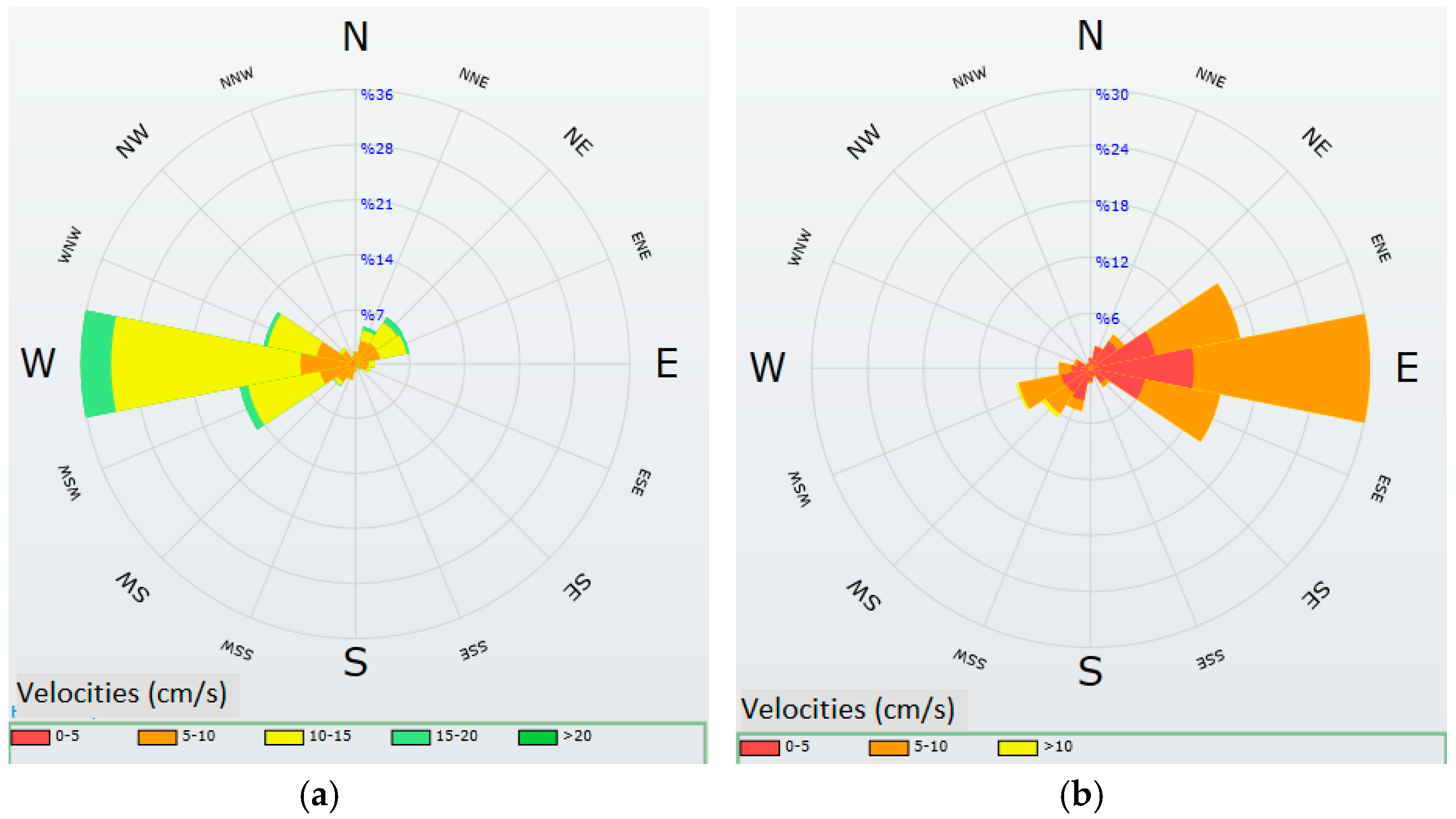

**Figure 7.**Current roses: (

**a**) sea surface layer and (

**b**) bottom layer from ECMWF for 2012–2016 for coordinates 39.50° N–26.90° E [33].

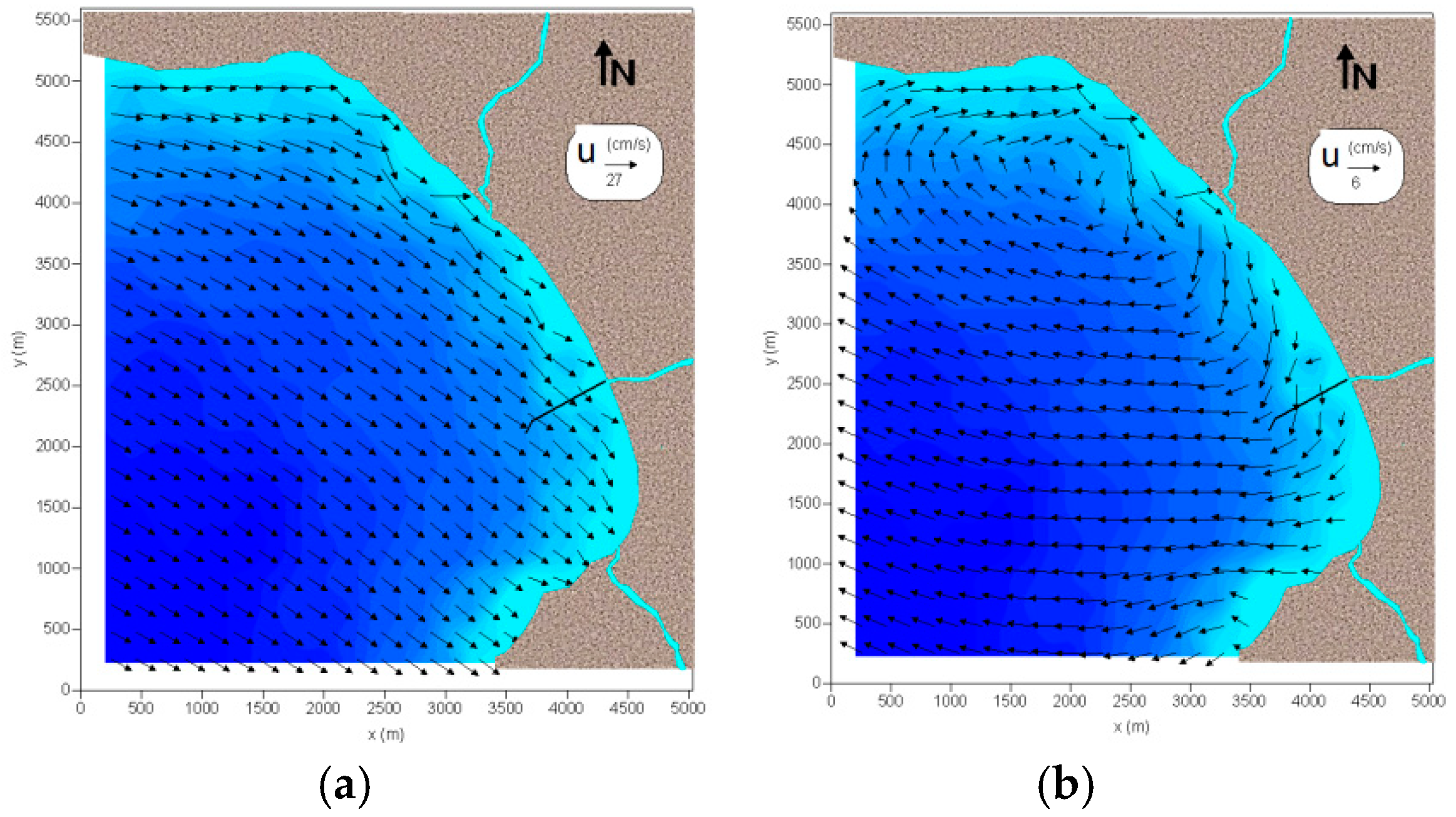

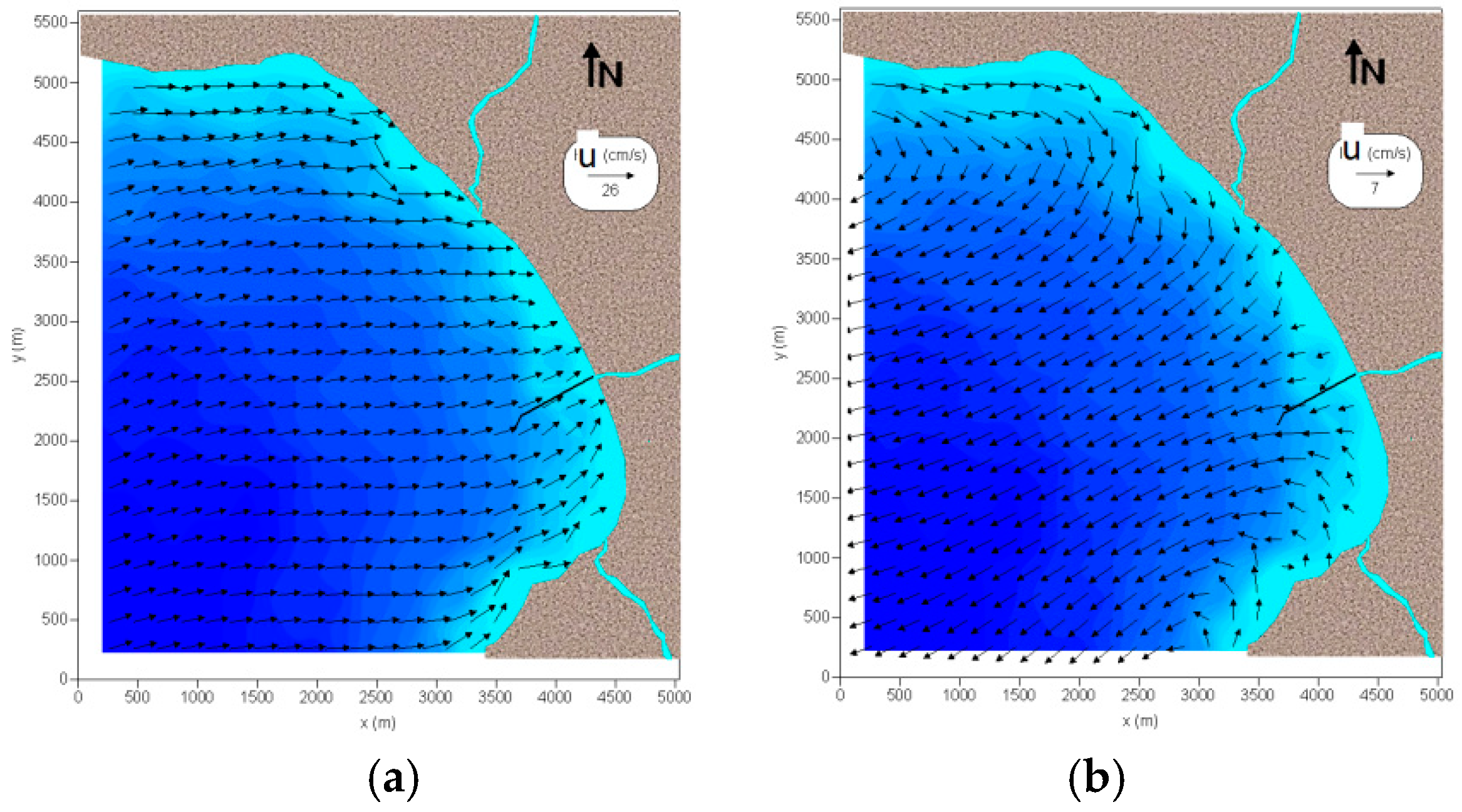

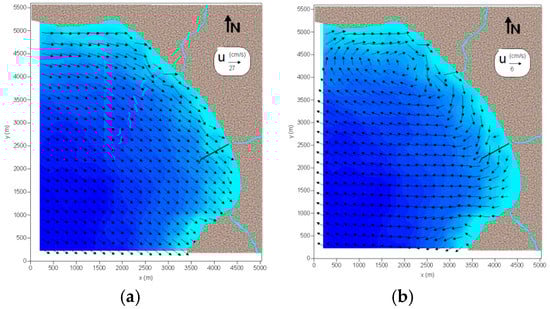

**Figure 8.**Current pattern: (

**a**) sea surface layer and (

**b**) bottom layer, for wind blowing from WSW with speed 10 m/s at the steady state [33].

**Figure 9.**Current pattern: (

**a**) sea surface layer and (

**b**) bottom layer, for wind blowing from WNW with speed 10 m/s at the steady state [33].

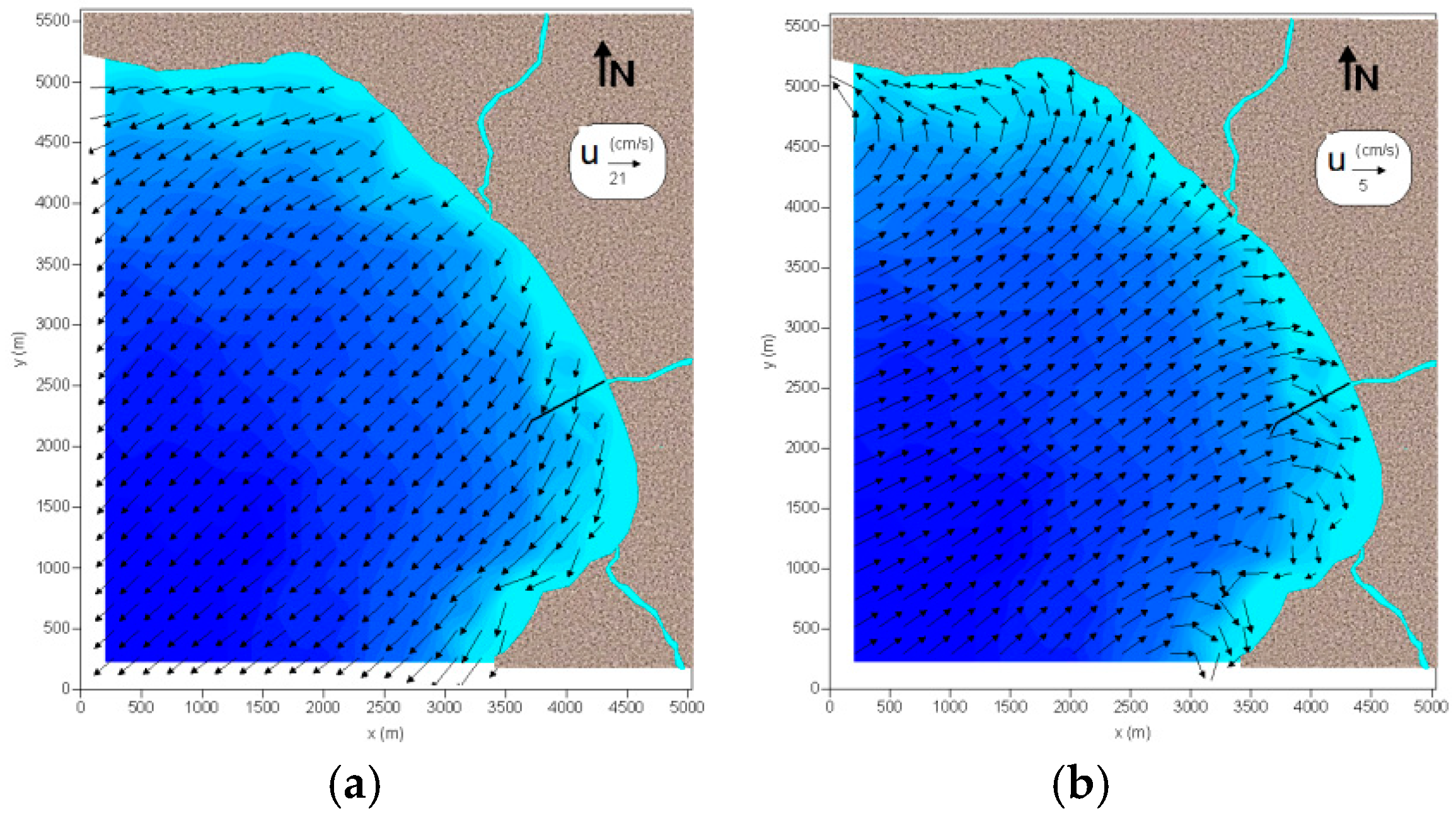

**Figure 10.**Current pattern: (

**a**) sea surface layer and (

**b**) bottom layer, for wind blowing from NE with speed 10 m/s at the steady state [33].

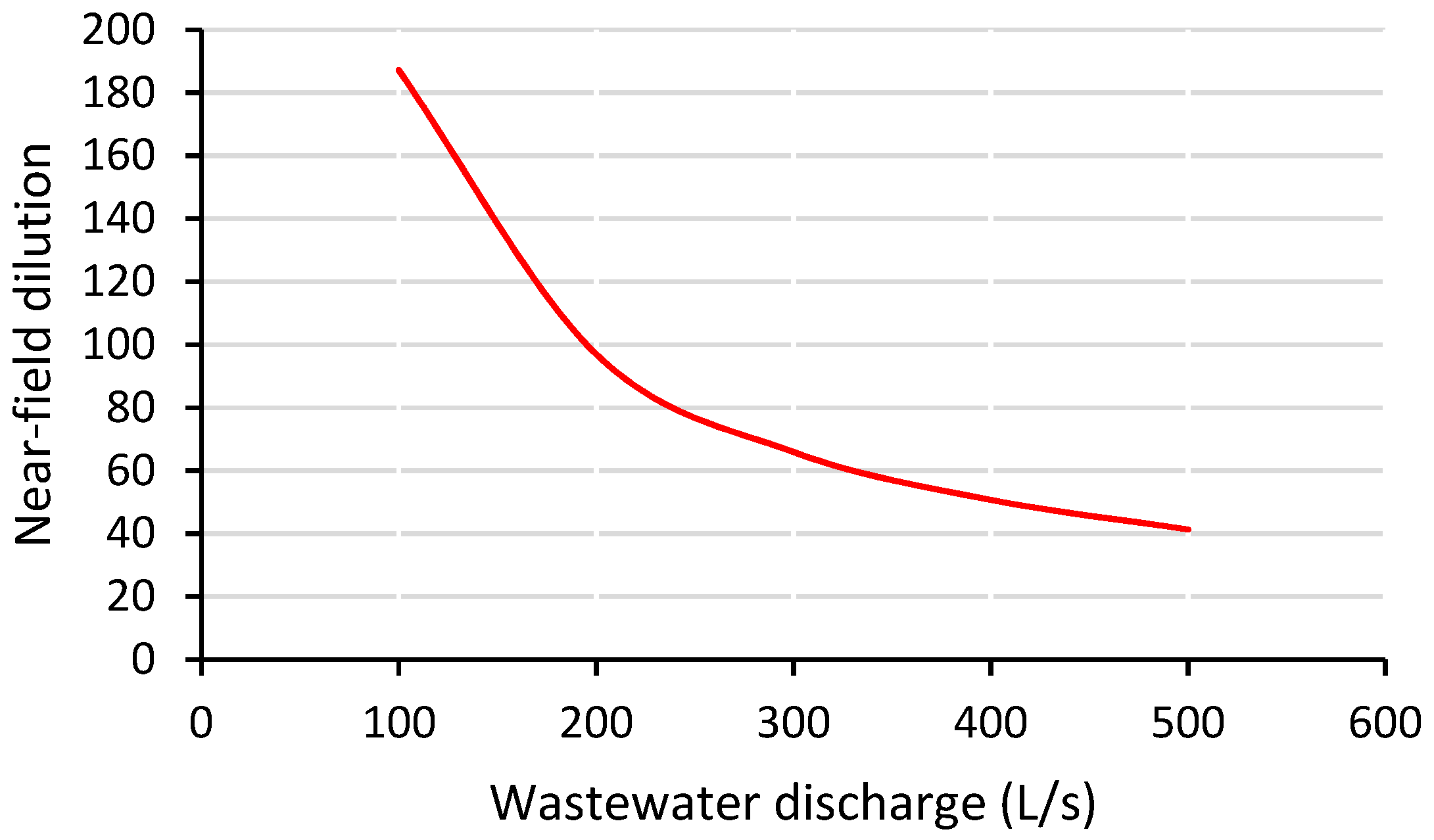

**Figure 12.**The effect of wastewater discharge on near-field dilution [20].

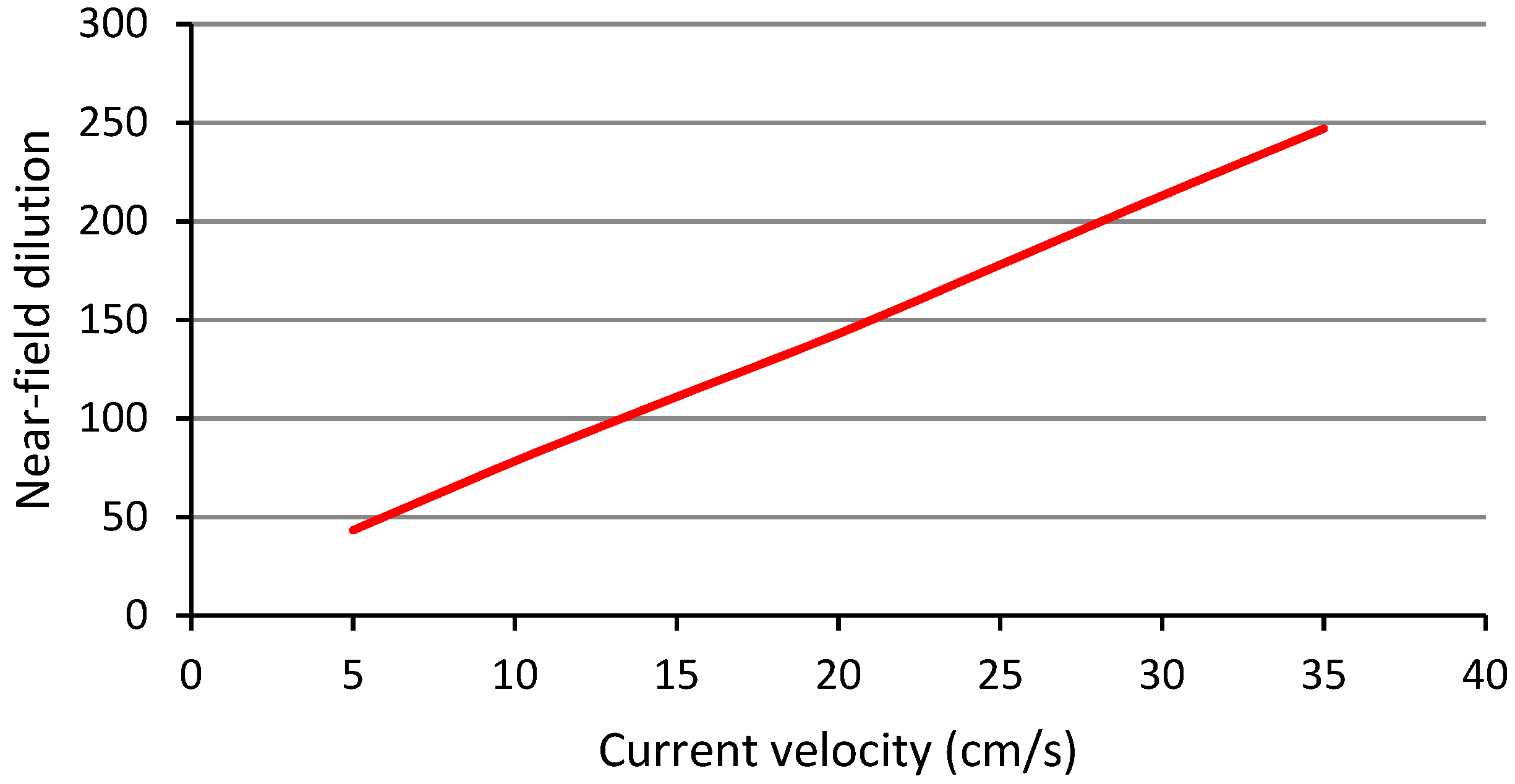

**Figure 13.**Effect of current velocity on near-field dilution [20].

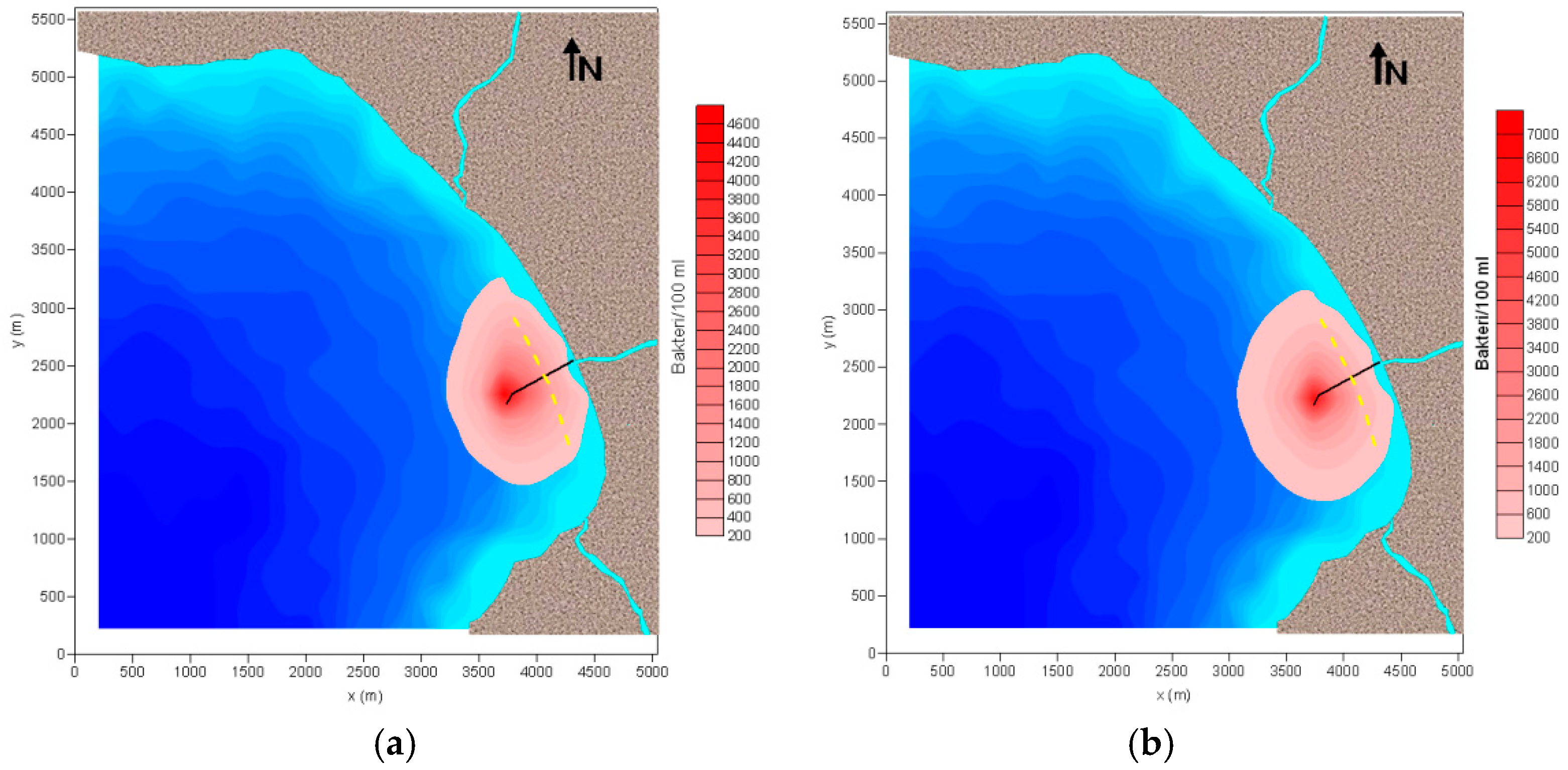

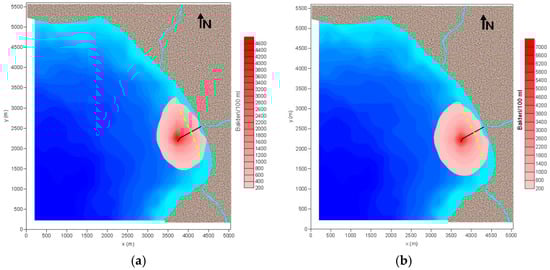

**Figure 14.**Distribution of the pollutant cloud caused by the wind blowing from WSW at: (

**a**) 10 m/s and (

**b**) 2 m/s [33].

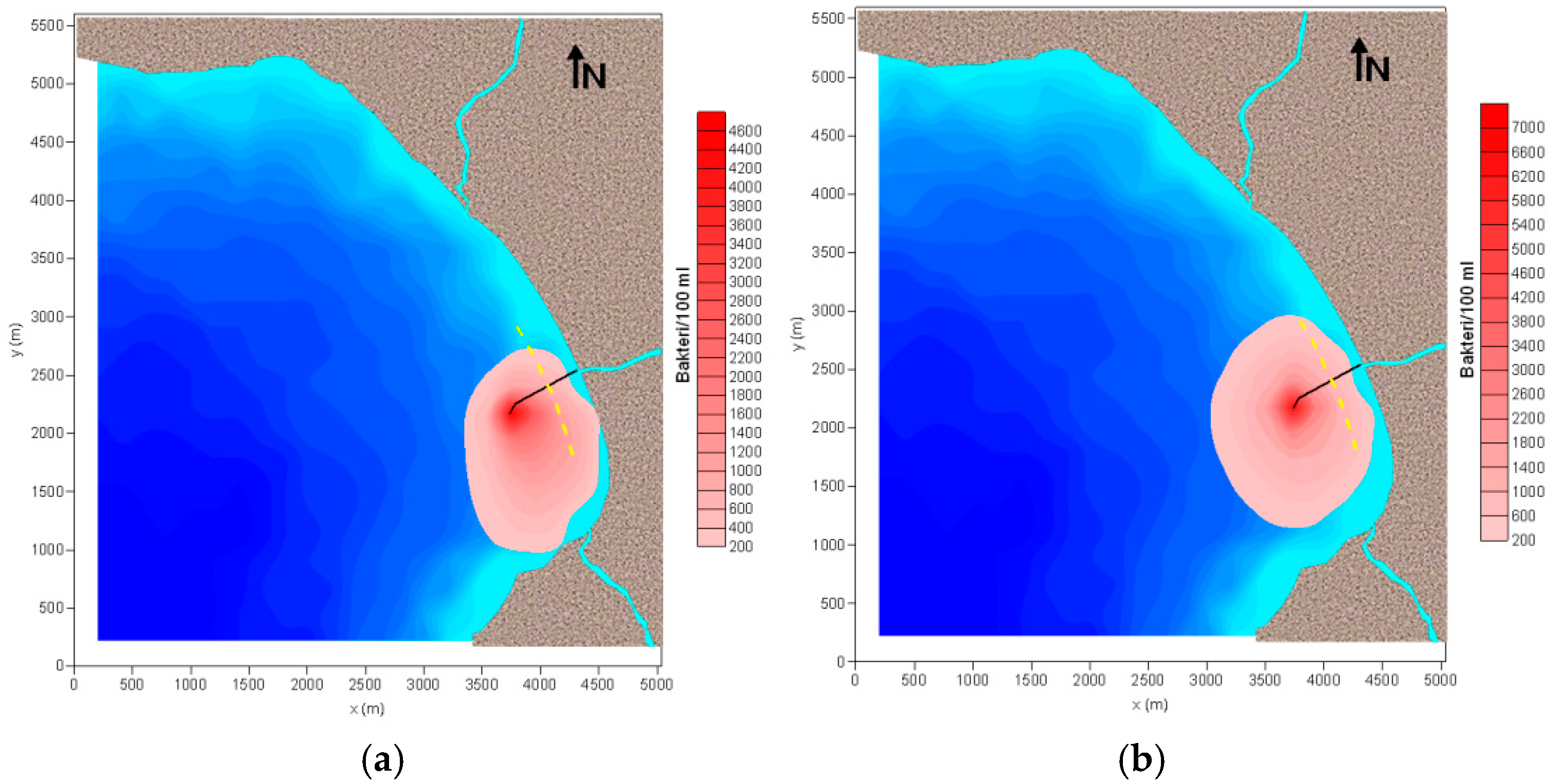

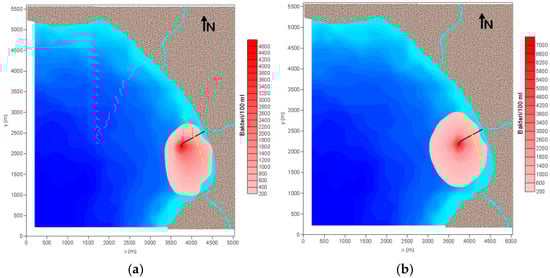

**Figure 15.**Distribution of the pollutant cloud caused by the wind blowing from WNW at: (

**a**) 10 m/s and (

**b**) 2 m/s [33].

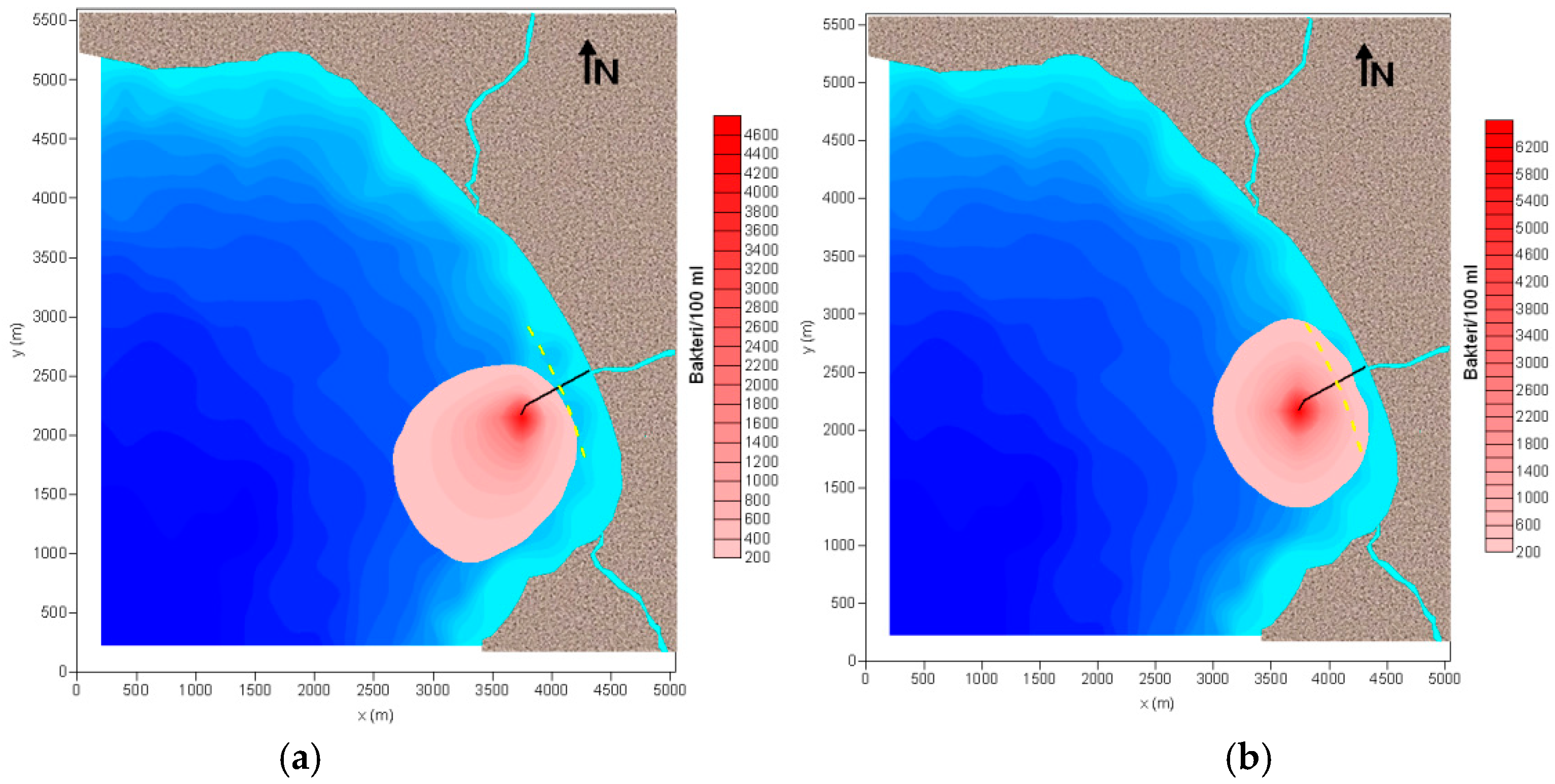

**Figure 16.**Distribution of the pollutant cloud caused by the wind blowing from NE at: (

**a**) 10 m/s and (

**b**) 2 m/s [33].

**Table 1.**Exceedance time interval and the probability distribution of significant wave heights (H

_{s}) of ECMWF data for 2000–2016 [33].

Direction | Distribution Equation | 1 h/year | 5 h/year | 10 h/year |
---|---|---|---|---|

H_{s} (m) | H_{s} (m) | H_{s} (m) | ||

WNW | H_{s} = −1.11 − 0.268ln(p(H)) | 1.3 | 0.9 | 0.7 |

W | H_{s} = −0.714 − 0.225ln(p(H)) | 1.3 | 1.0 | 0.8 |

WSW | H_{s} = −0.708 − 0.283ln(p(H)) | 1.9 | 1.4 | 1.2 |

SW | H_{s} = −0.781 − 0.424ln(p(H)) | 3.0 | 2.4 | 2.1 |

SSW | H_{s} = −0.404 − 0.323ln(p(H)) | 2.5 | 2.0 | 1.8 |

S | H_{s} = −0.479 − 0.233ln(p(H)) | 1.6 | 1.3 | 1.1 |

SSE | H_{s} = −0.193 − 0.104ln(p(H)) | 0.8 | 0.6 | 0.5 |

**Table 2.**Wind velocities and occurrence frequency [33].

Wind Speed (m/s) | Wind Direction | Occurrence Frequency (%) | |||
---|---|---|---|---|---|

Summer | Winter | Spring | Autumn | ||

>10 | WSW | 0.006 | 0.005 | 0.006 | 0.003 |

>10 | WNW | 0.001 | 0.001 | 0.001 | 0.005 |

>10 | NE | 0.001 | 0.006 | 0.005 | 0.006 |

<2 | WSW | 98.5 | 97.2 | 98.5 | 98.6 |

<2 | WNW | 98.2 | 97.8 | 98.5 | 98.7 |

<2 | NE | 98.6 | 97.4 | 98.2 | 98.9 |

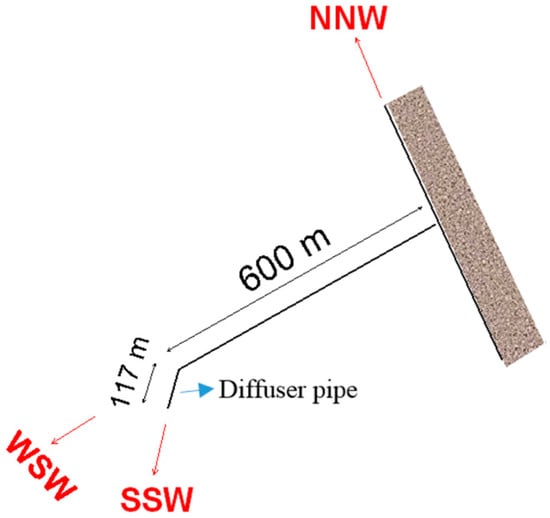

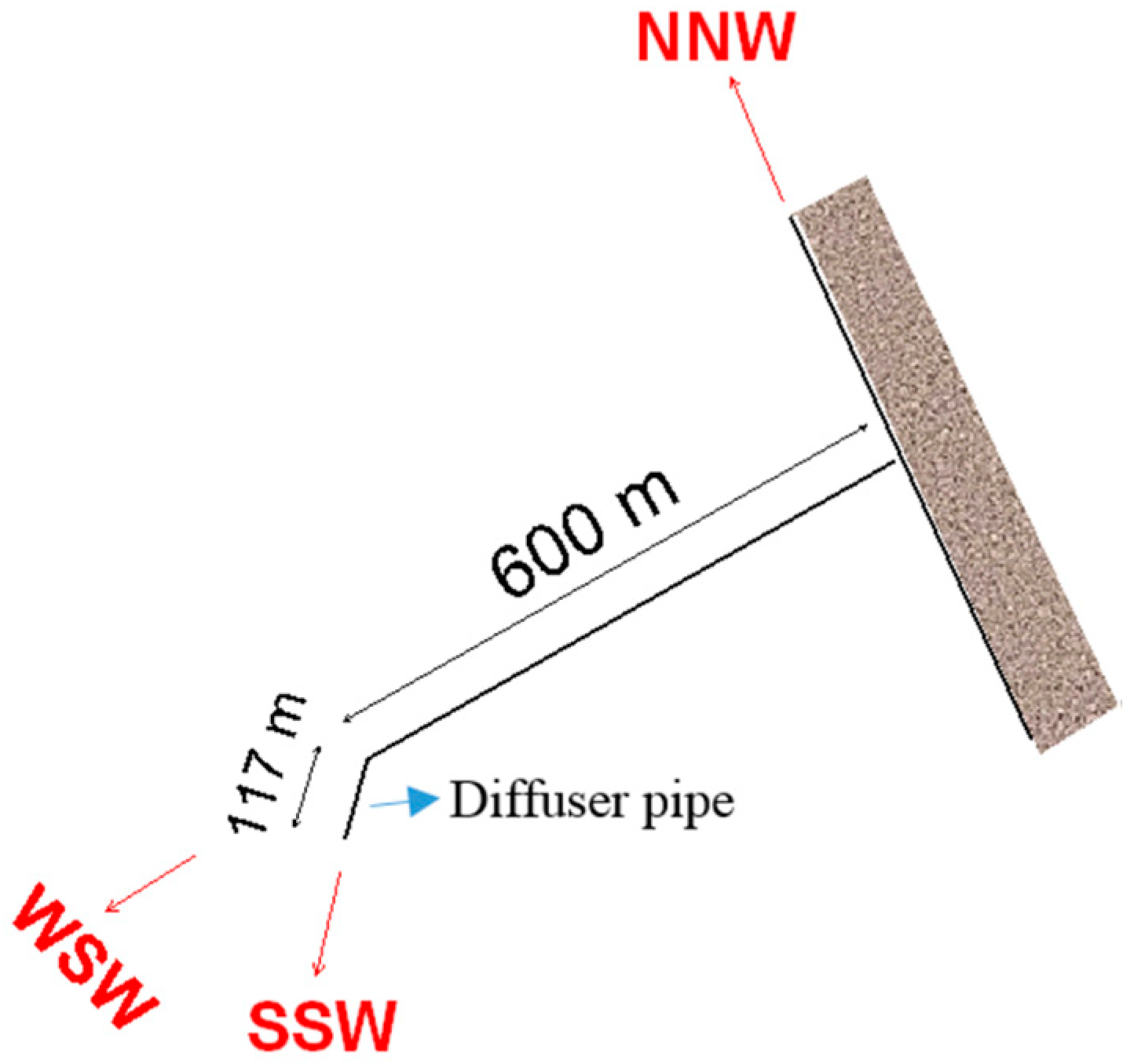

Total diffuser length | 117 m |

Depth of discharge | −15 m |

Pipe diameter of sea outfall | 0.56 m |

Diameter of diffuser port | 0.075m |

Number of ports | 40 |

Density of wastewater, ρ_{a} | 999 kg/m^{3} |

Average density of sea water, ρ_{0} | 1028 kg/m^{3} |

Initial coliform concentration, Co | 1 × 10^{6} bac/100mL |

Discharge of wastewater, Q | 250 L/s |
