Article

Genome-Wide Identification and Analysis of bZIP Transcription Factor Gene Family in Broomcorn Millet (Panicum miliaceum L.)

by
Peipei An
1,*,
Tianxiang Liu
2,
Zhijie Shui
2,
Panrong Ren
1 and
Shan Duan
1
1
Gansu Key Laboratory of Conservation and Utilization of Biological Resources and Ecological Restoration in Longdong, School of Agriculture and Bioengineering, Longdong University, Qingyang 745000, China
2
State Key Laboratory of Crop Stress Biology for Arid Areas, College of Agronomy, Northwest A & F University, Yangling 712100, China
*
Author to whom correspondence should be addressed.
Genes 2025, 16(7), 734; https://doi.org/10.3390/genes16070734
Submission received: 5 June 2025 / Revised: 20 June 2025 / Accepted: 23 June 2025 / Published: 24 June 2025
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

Background: Basic (region) leucine zippers (bZIPs) make up one of the largest families and are some of the most prevalent evolutionarily conserved transcription factors (TFs) in eukaryotic organisms. Plant bZIP family members are involved in seed germination, vegetative growth, flower development, light response, and various biotic/abiotic stress response pathways. Nevertheless, a detailed identification and genome-wide analysis of the bZIP family genes in broomcorn millet have not been conducted. Methods: In this research, we performed genome-wide identification, phylogenetic analysis, cis-elements analysis, and expression pattern analysis. Results: 144 bZIP transcription factors were identified from the P. miliaceum genome and classified into eleven subfamilies using a phylogenetic analysis. Motif and bZIP domain sequence alignment analyses indicated that the members in each subfamily were relatively conserved. Furthermore, a promoter analysis revealed that bZIP transcription factor family genes were responsive to multiple hormones and environmental stresses. Additionally, cis-element MYB binding sites were identified in the promoters of most PmbZIP genes. A gene expression analysis showed that 18 PmbZIP genes were differentially expressed during seed germination in salt stress, with 7 being significantly downregulated and 11 upregulated, thus suggesting that these PmbZIP genes may play an important role in the salt stress response and seed germination. Conclusions: Current research provides valuable information for further functional analyses of the PmbZIP gene family and as a reference for future studies on broomcorn millet’s stress response.

1. Introduction

Broomcorn millet (Panicum miliaceum L.) is one of the plants that was cultivated the earliest in the world and is also known as millet, common millet, or proso millet. It has been cultivated for more than 10,000 years and played significant roles in food security and cultural history in China [1]. Broomcorn millet has a short growing period and is the most water-efficient; has a high salt tolerance and good nutrient resource usage efficiency; and is high in proteins, certain minerals, and antioxidants compared to most other cereals [2,3,4]. Broomcorn millet is an allotetraploid with 36 chromosomes (2n = 4× = 36) [5], and its genome size is approximated to be ~923 Mb [6]. As a C4 photosynthesis crop that is closely related to the bioenergy crop switchgrass (Panicum virgatum L.), broomcorn millet has been reported to have the maximum water use efficiency (WUE), which may be due to its slow breathing rate, short generation time (about 60–90 days), and high harvest index [7,8,9]. Progress in molecular biology research on broomcorn millet is slow, and only a simple genetic map and a few genetic markers have been found. In 2019, the millet genome was sequenced, and phylogenetic analysis showed that millet divided into broomcorn millet and foxtail millet ~13.1 million years ago (Mya), while broomcorn millet became an allotetraploid ~5.91 million years ago [10]. One study also identified C4 candidate genes in broomcorn millet, and these genes were found to be spread over all three C4 subtypes, thus suggesting that broomcorn millet coexisted in three different carbon fixation pathways [6]. In the immediate future, broomcorn millet will become a crucial crop that can help in diversifying agriculture and promoting a healthier diet for humans. Therefore, searching for and identifying advantageous genes in millet will facilitate further basic scientific research on molecular breeding processes.
Transcription factors (TFs, also called trans-regulatory factors) are proteins with DNA-binding function, and they bind to specific cis-regulatory elements (cis-elements) and directly regulate the transcription of DNA to mRNA [11]. There are more divergent TF families and more unique DNA-binding domains (DBDs) in plant genomes [12], which also play a vital role in the regulation of growth, development, and environmental response. Structurally, TFs are usually classified by their DNA-binding domains: Basic (region) leucine zipper (bZIP) TFs have a basic region that binds DNA in the N-terminal and a leucine zipper dimerization motif in the C-terminal [13]. The basic DNA-binding region is an invariant N-X7-R/K motif, which has asparagine (N) and basic (R/K) residues with exact spacing; meanwhile, the ZIP domain within an alpha helix consists of heptad repeats of leucine (L) or a related hydrophobic amino acid [14]. Charged amino acids produce attractive and repulsive g-e’ pairs to regulate dimerization specificity and bind to DNA [15].
Among various transcription factor families in plants, basic leucine zipper (bZIP) proteins represent one of the most conserved and extensively studied groups. They are involved in diverse biological processes, particularly in mediating plant responses to abiotic stresses such as drought, salinity, and cold. bZIP transcription factors are well known for their central role in abscisic acid (ABA)-dependent signaling pathways, especially the PP2C–SnRK2–AREB cascade, which regulates key stress-adaptive responses and seed germination [16]. Compared to other transcription factor families (e.g., zinc finger and bHLH), bZIP genes have been more directly linked to core hormonal and environmental response mechanisms. To date, many plant bZIP transcription factor families have been identified and characterized extensively, including 78 AtbZIPs in Arabidopsis thaliana [13,14], 89 OsbZIPs in rice (Oryza sativa) [17], 187 TabZIPs in wheat (Triticum aestivum) [18], 85 SibZIPs in foxtail millet (Setaria italica), 103 OebZIPs in olive (Olea europaea) [19], 154 PhebZIPs in bamboo (Phyllostachys edulis) [20], 247 BnbZIPs in Brassica napus [21], 50 FvbZIPs in strawberry (Fragaria vesca) [22], 115 ZlbZIPs in Zizania latifolia [23], and 66 ItfbZIPs in sweet potato (Ipomoea trifida) [24]. Numerous studies have shown that different subgroups of bZIP TFs are involved in multiple regulation pathways in plants. bZIP TFs in Group A mainly take part in ABA signaling [25,26,27], abiotic stress responses [28,29,30,31], seed germination [32,33], and plant floral transition control [34,35,36]; bZIP TFs in Groups B and K are important regulators of endoplasmic reticulum (ER) stress response [14,37]; those in Groups C and S regulate sucrose signaling and seed storage protein production [38,39,40]; those in Group D are involved in detoxification processes and pathogen defense responses with salicylic acid (SA) defenses against biotrophic pathogens, as well as the defense of hormones jasmonic acid (JA) and ethylene (ET) against necrotrophies [14,41,42,43,44,45,46]; E-members and M-members might control pollen development [47]; F subfamily members control genes that encode for Zn transporters [14,48,49]; those in Groups G and J have been reported to regulate ER–Golgi transport and pathogen defense [50,51]; H-members are implicated in multiple hormone signaling pathways and development during light regulation [52,53,54]; bZIP TFs in Group I participate in osmosensory responses and root bending regulation [55,56]. bZIP target sequences often contain an ACGT core [57], such as G-box (CACGTG), C-box (GACGTC), A-box (TACGTA), etc. However, one investigator also found that some bZIPs can bind non-ACGT sequences [58,59].
Although the function of bZIP TFs has been reported and their identification and analysis have been conducted in Arabidopsis and many species, their roles in broomcorn millet remain largely unknown. In our previous transcriptome analysis of broomcorn millet (P.miliaceum) under salt stress [60], we observed that a substantial number of bZIP genes were differentially expressed during seed germination. This suggests that bZIP transcription factors may play important regulatory roles in the stress tolerance mechanisms of this highly resilient cereal crop. This study systematically analyzes biological information about bZIP TFs in broomcorn millet, aiming to provide a reference for the identification of various functions.

2. Materials and Methods

2.1. Genome-Wide Identification and Prediction of Physicochemical Properties

Broomcorn millet genomic sequences, coding region sequences (coding sequence, CDS), and protein sequences were downloaded from NCBI under BioProject number PRJNA431363 (https://www.ncbi.nlm.nih.gov/bioproject/?term=PRJNA431363, accessed on 23 June 2022). We referred to the Pfam number (PF00170) of bZIP transcription factors in the Pfam database (http://pfam.xfam.org/, accessed on 23 June 2022) and used the HMMER program based on a Hidden Markov Model (3.3.2) to search for the candidate bZIP proteins in broomcorn millet. The HMM profile was used to perform an hmmscan search against the P.miliaceum protein database with an E-value threshold of 1 × 10−5. We used protein sequences with a result greater than “0” as candidate sequences, and then, the candidate gene protein sequence was extracted using TBtools (v1.0692) [61]. Finally, all candidate protein sequences were further detected and identified via CDD (http://www.ncbi.nlm.nih.gov/cdd/, accessed on 22 June 2022) and PFAM, and proteins without bZIP domains were removed. The proteins were named according to the location of the bZIP transcription factor on the chromosome. The theoretical isoelectric point and molecular weight of the bZIP transcription factor proteins in broomcorn millet were calculated using ExPASy—Compute pI/Mw (https://web.expasy.org/compute_pi/, accessed on 25 June 2022).

2.2. Phylogeny Analyses and bZIP Domain Amino Acid Sequence Alignment

A.thaliana bZIP TF protein sequences were downloaded from the database TAIR (https://www.arabidopsis.org/index.jsp, accessed on 2 July 2022), and S.italica bZIP TF protein sequences were downloaded from the database Phytozome v12 (http://phytozome.jgi.doe.gov/pz/portal.html, accessed on 2 July 2022). A bootstrap neighbor-joining (NJ) evolutionary tree was created using MEGA 6.06 (https://www.megasoftware.net/, accessed on 7 July 2022) software with 1000 bootstrap replicates based on the sequence alignments. Additionally, the sequence alignment of the bZIP domain from broomcorn millet was performed using Clustal X 1.8.

2.3. Motif and Intron/Exon Gene Structure Analysis

The MEME v5.3.0 online service (http://meme-suite.org/tools/meme, accessed on 13 August 2022) was employed to identify conserved motifs in PmbZIP proteins, using parameters that included a maximum of 12 motifs and an optimal motif width ranging from 6 to 50 amino acids. Afterward, all identified motifs were annotated using InterProScan (http://www.ebi.ac.uk/Tools/pfa/iprscan/, accessed on 16 August 2022), and the gene structure display server program (http://gsds.cbi.pku.edu.cn/, accessed on 30 August 2022) was used to draw the gene structures of PmbZIPs.

2.4. Promoter Analysis

The 2000 base pairs preceding the initiation codon of each PmbZIP gene was obtained. These sequences were analyzed to find cis-elements using the PlantCARE online tool (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 17 October 2022), and the outcomes were visualized with TBtools (v1.0692) [61].

2.5. RNA Isolation and bZIP Gene Expression Analysis

The samples of yumi1 and yumi9, which were grown in 0 mM of NaCl (RO water) and 250 mM NaCl, respectively, were collected at 0 h and 3 h, and dew white seeds were harvested after continuous light conditions commenced. (There were three independent biological replicates for each sample). The samples were swiftly frozen with liquid nitrogen and stored at −80 °C. In total, thirty-six samples were employed for RNA-Seq and differential expression analyses.
For transcriptome analysis, total RNA was isolated from seeds using the RNA prep Pure polysaccharide polyphenol plant total RNA extraction kit (DP441) (TIANGEN, Beijing, China). Using 1% agarose gels tested RNA degradation and contamination, and RNA purity was evaluated using a NanoPhotometer® spectrophotometer (IMPLEN, Munich, Germany). RNA concentration was measured using Qubit® RNA Assay Kit in Qubit® 2.0 Flurometer (Life Technologies, Carlsbad, CA, USA). The Agilent Bioanalyzer 2100 system’s RNA Nano 6000 Assay Kit was used to assess RNA integrity (Agilent Technologies, Santa Clara, CA, USA).
A differential expression analysis of two conditions/groups was performed. The DESeq R package (version 1.10.1) was used to analyze differential expression between two conditions or groups. DESeq offers statistical methods to identify differential expression data, utilizing a model based on the negative binomial distribution. The Benjamini and Hochberg method was used to adjust the resulting p-values to control the false discovery rate, and differentially expressed genes were those with an adjusted p-value under 0.05. The creation of heatmaps and the cluster analysis of PmbZIPs were accomplished using TBtools software [61].

3. Results

3.1. Identification of PmbZIPs in Broomcorn Millet

To identify bZIP genes in the complete P. miliaceum genome, the Hidden Markov Model (HMM) profile file of the bZIP domain (PF00170) was exploited as a query file for a search across the P. miliaceum protein sequence data, and the Pfam and CDD databases were used to confirm the presence of the complete bZIP domain. As shown in Table 1, we identified 144 PmbZIP genes in the P. miliaceum genome after removing redundant sequences and designated them as PmbZIP1 to PmbZIP144 according to their chromosome locus. Moreover, the physical and chemical properties of the 144 PmbZIPs were analyzed, such as amino acid (aa) length, molecular weight (MW), and protein isoelectric (PI) points. Chromosomal localization shows that there are 14 PmbZIPs in Chr5, which has the most bZIP genes, but Chr15, Chr16, and Chr17 only have 2 PmbZIPs. Genome sequence analyses were conducted and showed that PmbZIPs ranged from 369 base pairs (bp, PmbZIP100, PmbZIP114) to 12,828 bp (PmbZIP45). Protein sequence analyses showed that the PmbZIPs ranged from 78 aa (PmbZIP59) to 650 aa (PmbZIP51) in length. The predicted MWs ranged from 9.19 kDa (PmbZIP59) to 68.3 kDa (PmbZIP51), and the PIs ranged from 4.52 (PmbZIP102) to 11.57 (PmbZIP43).

3.2. Phylogenetic and Sequence Conservation Analysis of PmbZIPs

A phylogenetic analysis was performed with all 144 identified PmbZIP proteins, as well as 75 Arabidopsis and 78 foxtail millet bZIP family members (Figure 1 and Figure S1), using the neighbor-joining (NJ) algorithm in MEGA software (MEGA6.06). The 144 PmbZIP genes were divided into ten groups (designated as A to E, G, H, I, S, and U) according to the subfamilies classified for Arabidopsis. Based on phylogenetic relationships, Group S contains 29 members and is the largest subfamily, and the smallest subfamilies are Groups B, E, and U, with only 3 members in each. It is interesting to note that no PmbZIP member was assigned to Group F. A total of 22 PmbZIPs were classified as belonging to Group A, 25 to Group D, 23 to Group I, 21 to Group G, 8 to Group C, and 7 to Group H.

3.3. Motif and Structural Analysis of PmbZIPs

To investigate the protein sequence features of PmbZIPs, 12 different motifs were identified in PmbZIPs (Figure 2), with lengths ranging from 21 to 50 aa. The phylogenetic analysis showed that the same clusters of PmbZIPs had similar conserved domain compositions, and obvious differences between different groups were also found. Motif 1, as a “basic region” of the bZIP domain, existed in all PmbZIPs. Additionally, motifs 4 and 7, as two different “leucine zippers” of the bZIP domain, existed in Groups B, C, E, G, I, and S and Groups A, D, H, and U, respectively. Specifically, the PmbZIPs in Group D contain the most motif types, including motifs 1, 2, 3, 5, 7, 8, and 11. However, only motif 1 was present in PmbZIP135, PmbZIP128, PmbZIP38, and PmbZIP23 in Group S. This may be the reason why different subfamilies have different functions.
The structural diversity of the PmbZIP family was analyzed in terms of the exon/intron arrangement of the coding sequences. The number of introns in PmbZIPs ranged from zero to twelve. The detailed gene structure of PmbZIPs is pictured in Figure 3. Twelve introns were identified in PmbZIP104 and PmbZIP112, whereas 24 PmbZIPs were identified as intronless. Subgroups G and D generally contain more than seven introns, while subgroup S often has no introns. Most closely related PmbZIPs in the same class or subfamily share a similar gene structure in terms of the number of introns.

3.4. Promoter Analysis of PmbZIPs

To predict the biological function of PmbZIPs, 2000 bp upstream sequences from the translation start sites of PmbZIPs were analyzed using the PlantCARE database (Figure 4). The promoter of each PmbZIP consists of several cis-acting elements, such as phytohormone-responsive elements, MYB binding sites, light-responsive elements, anoxic-specific inducibility elements, abiotic stress-responsive elements, defense- and stress-responsive elements, seed-specific regulation elements, and root-specific elements. As illustrated in Table 2, a light-responsive element was identified in the promoters of all PmbZIPs. An abscisic acid-responsive element, methyl jasmonate (MeJA)-responsive element, and meristem expression element were identified in the promoters of 135, 128, and 99 PmbZIP genes, respectively. The promoters of 66 PmbZIPs contained an auxin-responsive element, 75 PmbZIPs contained a gibberellin-responsive element, and 55 PmbZIPs contained a salicylic acid-responsive element. Additionally, an MYB binding site, defense- and stress-responsive elements, a low-temperature-responsive element, and a zein metabolism regulation element were all found in 97, 33, 64, and 46 PmbZIPs, respectively. In total, PmbZIP143 promoters contained 73 (maximum) cis-elements, which included 34 light-responsive elements, 17 abscisic acid-responsive elements, 14 MeJA-responsive elements, 7 anoxic-specific inducibility elements, and 1 meristem expression element. However, PmbZIP21 promoters only contained 11 cis-elements. These findings demonstrate that PmbZIPs might be associated with various transcriptional regulations involving development, hormones, and stress responses.

3.5. Expression Analysis of PmbZIPs in Seed Germination Under Salt Stress

To explore the expression patterns of these millet bZIP genes, we used RNA-seq data of yumi1 (Y1) and yumi9 (Y9) under salt stress in the seed germination stage. Based on the millet RNA-seq data, 67 bZIP genes were detected in all three sampling stages at the gene level (Figure 5). This suggests that nearly half of bZIP genes are broadly expressed during millet germination and development. In addition, the fact that 18 bZIP genes have different expression levels suggests that these genes were induced by salt and have a vital function in tolerance responses. The heatmap analysis found that PmbZIP6, PmbZIP11, PmbZIP15, PmbZIP71, PmbZIP78, PmbZIP89, and PmbZIP97 are downregulated salinity-responsive genes (SRGs). Upregulated SRGs include PmbZIP26, PmbZIP30, PmbZIP33, PmbZIP65, PmbZIP70, PmbZIP104, PmbZIP107, PmbZIP113, PmbZIP118, PmbZIP125, and PmbZIP131. Interestingly, the differential expression of most SRGs occurs when water is imbibed for 3 h or during radicle protrusion (RAP) in the seed envelope stage, thus indicating that the seeds reinitiate metabolic processes and stress response in this period.

4. Discussion

In the immediate future, broomcorn millet will become a crucial crop that can help in diversifying agriculture and promoting a healthier diet for humans. Several plant bZIP transcription factor families have been identified and characterized extensively, which play a vital role in the regulation of growth, development, and environmental response. However, these gene families have not been reported in broomcorn millet. Therefore, searching for and identifying advantageous bZIP genes in millet will facilitate further basic scientific research on molecular breeding processes.

4.1. Characterization of Broomcorn Millet bZIP Gene Family

The genes involved in genome replication events can evolve into genes with new functions, which play an important role in expanding genome content and diversifying gene functions [62]. Previous research showed that the emergence of the broomcorn millet genome was the result of the ~5.6 MYA hybridization of two closely related genomes. Most Panicum species are polyploids native to the tropical/semi-arid regions of the world. Many gene families in the millet genome are double copies, most of which are retained by the parental species and single-copy genes of the parental species [6]. Since there are 78 bZIP genes in the foxtail millet genome, 144 bZIP genes were predicted to be in the P. miliaceum genome. In addition, many subfamily bZIP genes are double copies in broomcorn millet, except those in Groups B, E, F, and U; this is consistent with previous research. After genome duplication, nonfunctionalization (duplicated genes are silenced), subfunctionalization (function is partitioned between the new paralogs), and neofunctionalization (duplicated genes gain new functions) generally take place [63,64,65]. In this study, we found that Group F genes could have been lost or had changed functions during their evolution, thus suggesting that there was extensive gene loss during genome duplication.
A phylogenetic analysis of the PmbZIP gene family revealed that subfamilies A, D, and S contain a relatively large number of members that form well-supported and tightly clustered groups, thus suggesting potential functional conservation and lineage-specific expansion. Notably, the S subfamily appears to be divided into four smaller clades, which are interspersed among the members of the G, A, and C subfamilies. This branching pattern suggests that during evolution, some ancestral S-type bZIP members may have undergone functional divergence and structural differentiation, thus giving rise to new regulatory subgroups such as G, A, and C. These findings support the hypothesis that bZIP subfamily diversification has been driven by both sequence divergence and the acquisition of specialized regulatory roles in different stress and developmental contexts.
Among these subfamilies, Group A bZIP genes stand out due to their well-established roles in abscisic acid (ABA)-mediated stress responses. In our study, PmbZIP30 (PmABI5) and PmbZIP131, both belonging to Group A, were significantly induced by ABA during seed development in broomcorn millet [60]. This is consistent with findings in Arabidopsis and rice, where homologous Group A bZIPs (e.g., ABI5) act as core components in the ABA signaling pathway. Furthermore, cross-species evidence supports the involvement of Group A bZIPs in the conserved PP2C–SnRK2–AREB signaling module, which regulates plant responses to drought and other abiotic stresses. The promoter architecture and expression dynamics of Group A PmbZIP genes in this study reinforce the notion that their functional roles in ABA-dependent stress signaling are evolutionarily conserved. These results not only provide insight into the diversification and conservation of bZIP transcription factors in broomcorn millet but also highlight the adaptive significance of Group A members in stress tolerance.

4.2. Structural Analysis of PmbZIPs

The detailed understanding of the functional domain of A. thaliana and S. italica bZIPs enabled us to analyze similar domains within the broomcorn millet bZIP gene family. In this research, all 144 PmbZIP proteins contain the necessary basic domain, which provides the structural basis for their conserved function. Moreover, different subgroups have different ZIP motifs, which makes their functions differ. Groups A, D, H, and U have type I ZIP domains (motif 7, K-L-X7-R), and the main function of these subfamily genes is the regulation of biological and abiotic stresses. However, Groups B, C, E, G, I, and S have type II ZIP domains (motif 4, V-L-X8-R) that are involved in carbohydrate biosynthesis, post-transcriptional inhibition, development, and hormone synthesis. It has been reported that intron retention regulates protein isoform production, RNA stability and translation efficiency, and the rapid induction of expression via the post-transcriptional splicing of retained introns [66]. An analysis of the bZIP gene structure revealed that most intronless PmbZIPs occurred in Groups S and C, and a similar observation was reported for banana (Musa spp. L.) and switchgrass (P. virgatum L.) [67,68]. The PmbZIPs of subgroups A, C, and I, with relatively fewer introns, were associated with stress responses. This conclusion aligns with the results of the present and past studies [60].

4.3. Cis-Element Analysis in the Promoters of PmbZIPs

The cis-elements of different transcription factors have different functions. The number and form of cis-elements in promoter regions could play an essential role in the regulation of gene expression. The results illustrate that abiotic stress-related cis-elements, including abscisic acid-responsive elements, anoxic-specific inducibility elements, low-temperature-responsive elements, MeJA-responsive elements, MYB binding sites, salicylic acid-responsive elements, and wound-responsive elements, are major regulatory elements in the PmbZIP promoters activated by ABA, NaCl, or other forms of abiotic stress. In addition, many development-related cis-elements were also found, such as auxin-responsive elements, endosperm expression elements, gibberellin-responsive elements, root-specific elements, seed-specific regulation elements, and meristem expression elements. These findings suggest that light-responsive elements, abscisic acid-responsive elements, and MeJA-responsive elements play a vital role in transcriptional regulation in broomcorn millet. PmbZIP promoters present a lot of stress-responsive cis-elements and hormone response cis-elements, which indicates their potential roles in the response to stress and pathogen infections. Consequently, PmbZIPs are often taken as candidate genes to understand the responses to biotic stresses and plant development.

4.4. PmbZIP Involvement in Development and Stress Response

Previous reports have revealed that bZIP TFs function in many stress responses and development by regulating diverse biochemical and physiological pathways [17,69,70,71]. bZIP transcription factors possess different characteristics in different species. The overexpression of TabZIP15 in wheat can enhance root length and fresh weight during salt stress, thus suggesting that the TabZIP15 gene is involved in the regulation of wheat salt stress tolerance [72]. The homozygous T-DNA insertional mutants Osabf1-1 and Osabf1-2 are more sensitive in response to drought and salinity treatments than wild-type plants, and the OsNAC, OsLEA3, and OsABA45 genes are significantly suppressed in Osabf1 mutants. Hence, OsABF1 likely plays a positive role as an ABA-responsive transcription factor in abiotic stress signaling [26]. We incorporated and highlighted experimental data from our previous work, wherein PmbZIP30 was overexpressed in rice. The transgenic rice lines exhibited significantly shorter seed germination times compared to the wild-type, thus indicating a positive regulatory role of PmbZIP30 in seed germination and stress response. This functional validation supports the biological relevance of our bioinformatic findings (Figure S2). The overexpression of StbZIP65 in Arabidopsis enhanced salt tolerance [73]. However, some research shows that GmbZIP19 expression is significantly induced by ABA (abscisic acid), JA (jasmonic acid), and SA (salicylic acid) but is reduced under salt and drought stress conditions, thus suggesting that GmbZIP19 is a positive regulator of pathogen resistance and a negative regulator of salt and drought stress tolerance [74]. TabZIP6 can bind to the promoters of CBFs and decrease the expression of downstream COR genes in TabZIP6-overexpressing Arabidopsis seedlings; therefore, TabZIP6 is a negative regulator in the cold stress response [75].
In this study, a total of 144 PmbZIP genes were identified in the P. miliaceum genome and classified into eleven subfamilies based on phylogenetic relationships. Conserved motif and domain structure analyses revealed that the members within each subfamily exhibit high sequence conservation. The promoter analysis indicated that PmbZIP genes may be involved in multiple hormone signaling pathways and environmental stress responses, as reflected by the presence of diverse cis-acting regulatory elements, including MYB binding sites. The transcriptome analysis further showed that 18 PmbZIP genes were differentially expressed during seed germination under salt stress, thus suggesting their potential regulatory roles in abiotic stress adaptation. These findings provide a valuable resource for understanding the functional roles of bZIP transcription factors in broomcorn millet and lay the foundation for future stress resilience breeding and gene function studies.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/genes16070734/s1. Figure S1: Sequence conservation analysis of PmbZIPs. Figure S2: Overexpression of PmbZIP30 in rice accelerates seed germination.

Author Contributions

Writing—original draft preparation, P.A.; writing—review and editing, P.R., S.D. and P.A.; supervision, T.L. and Z.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Doctoral Research Fund of Longdong University, grant number XYBYZK2206.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Acknowledgments

We used the TBtools software (v1.0692) for this study.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lu, H.; Zhang, J.; Liu, K.-B.; Wu, N.; Li, Y.; Zhou, K.; Ye, M.; Zhang, T.; Zhang, H.; Yang, X.; et al. Earliest domestication of common millet (Panicum miliaceum) in East Asia extended to 10,000 years ago. Proc. Natl. Acad. Sci. USA 2009, 106, 7367–7372. [Google Scholar] [CrossRef] [PubMed]
  2. Yue, H.; Wang, M.; Liu, S.; Du, X.; Song, W.; Nie, X. Transcriptome-wide identification and expression profiles of the WRKY transcription factor family in Broomcorn millet (Panicum miliaceum L.). BMC Genom. 2016, 17, 343. [Google Scholar] [CrossRef] [PubMed]
  3. Rajput, S.G.; Santra, D.K.; Schnable, J.J.M.B. Mapping QTLs for morpho-agronomic traits in proso millet (Panicum miliaceum L.). Mol. Breed. 2016, 36, 37. [Google Scholar] [CrossRef]
  4. Hunt, H.V.; Badakshi, F.; Romanova, O.; Howe, C.J.; Jones, M.K.; Heslop-Harrison, J.S. Reticulate evolution in Panicum (Poaceae): The origin of tetraploid broomcorn millet, P. miliaceum. J. Exp. Bot. 2014, 65, 3165–3175. [Google Scholar] [CrossRef]
  5. Wang, H.; Wang, J.; Chen, C.; Chen, L.; Li, M.; Qin, H.; Tian, X.; Hou, S.; Yang, X.; Jian, J.; et al. A complete reference genome of broomcorn millet. Sci. Data 2024, 11, 657. [Google Scholar] [CrossRef]
  6. Zou, C.; Li, L.; Miki, D.; Li, D.; Tang, Q.; Xiao, L.; Rajput, S.; Deng, P.; Peng, L.; Jia, W.; et al. The genome of broomcorn millet. Nat. Commun. 2019, 10, 436. [Google Scholar] [CrossRef]
  7. Baltensperger, D.D. Foxtail and Proso Millet. In Progress in New Crops; ASHS Press: Alexandria, VA, USA, 1996. [Google Scholar]
  8. Washburn, J.D.; Schnable, J.C.; Davidse, G.; Pires, J.C. Phylogeny and photosynthesis of the grass tribe Paniceae. Am. J. Bot. 2015, 102, 1493–1505. [Google Scholar] [CrossRef]
  9. Cedric, H.; Matanguihan, J.B.; D’Alpoim Guedes, J.; Ganjyal, G.M.; Whiteman, M.R.; Kidwell, K.K.; Murphy, K.M. Proso Millet (Panicum miliaceum L.) and Its Potential for Cultivation in the Pacific Northwest, U.S.: A Review. Front. Plant Sci. 2016, 7, 1961. [Google Scholar]
  10. Shi, J.; Ma, X.; Zhang, J.; Zhou, Y.; Liu, M.; Huang, L.; Sun, S.; Zhang, X.; Gao, X.; Zhan, W. Chromosome conformation capture resolved near complete genome assembly of broomcorn millet. Nat. Commun. 2019, 10, 464. [Google Scholar] [CrossRef]
  11. Lai, X.; Chahtane, H.; Martin-Arevalillo, R.; Zubieta, C.; Parcy, F. Contrasted evolutionary trajectories of plant transcription factors. Curr. Opin. Plant Biol. 2020, 54, 101–107. [Google Scholar] [CrossRef]
  12. de Mendoza, A.; Sebé-Pedrós, A.; Šestak, M.S.; Matejcic, M.; Torruella, G.; Domazet-Loso, T.; Ruiz-Trillo, I. Transcription factor evolution in eukaryotes and the assembly of the regulatory toolkit in multicellular lineages. Proc. Natl. Acad. Sci. USA 2013, 110, E4858–E4866. [Google Scholar] [CrossRef] [PubMed]
  13. Jakoby, M.; Weisshaar, B.; Dröge-Laser, W.; Vicente-Carbajosa, J.; Tiedemann, J.; Kroj, T.; Parcy, F. bZIP transcription factors in Arabidopsis. Trends Plant Sci. 2002, 7, 106–111. [Google Scholar] [CrossRef] [PubMed]
  14. Droge-Laser, W.; Snoek, B.L.; Snel, B.; Weiste, C. The Arabidopsis bZIP transcription factor family-an update. Curr. Opin. Plant Biol. 2018, 45, 36–49. [Google Scholar] [CrossRef]
  15. Deppmann, C.D.; Acharya, A.; Rishi, V.; Wobbes, B.; Smeekens, S.; Taparowsky, E.J.; Vinson, C. Dimerization specificity of all 67 B-ZIP motifs in Arabidopsis thaliana: A comparison to Homo sapiens B-ZIP motifs. Nucleic Acids Res. 2004, 32, 3435–3445. [Google Scholar] [CrossRef]
  16. Mathura, S.R.; Sutton, F.; Bowrin, V. Characterization and expression analysis of SnRK2, PYL, and ABF/AREB/ABI5 gene families in sweet potato. PLoS ONE 2023, 18, e0288481. [Google Scholar] [CrossRef]
  17. Nijhawan, A.; Jain, M.; Tyagi, A.K.; Khurana, J.P. Genomic survey and gene expression analysis of the basic leucine zipper transcription factor family in rice. Plant Physiol. 2008, 146, 333–350. [Google Scholar] [CrossRef]
  18. Li, X.; Gao, S.; Tang, Y.; Li, L.; Zhang, F.; Feng, B.; Fang, Z.; Ma, L.; Zhao, C. Genome-wide identification and evolutionary analyses of bZIP transcription factors in wheat and its relatives and expression profiles of anther development related TabZIP genes. BMC Genom. 2015, 16, 976. [Google Scholar] [CrossRef]
  19. Rong, S.; Wu, Z.; Cheng, Z.; Zhang, S.; Liu, H.; Huang, Q. Genome-Wide Identification, Evolutionary Patterns, and Expression Analysis of bZIP Gene Family in Olive (Olea europaea L.). Genes 2020, 11, 510. [Google Scholar] [CrossRef]
  20. Pan, F.; Wu, M.; Hu, W.; Liu, R.; Yan, H.; Xiang, Y. Genome-Wide Identification and Expression Analyses of the bZIP Transcription Factor Genes in moso bamboo (Phyllostachys edulis). Int. J. Mol. Sci. 2019, 20, 2203. [Google Scholar] [CrossRef]
  21. Zhou, Y.; Xu, D.; Jia, L.; Huang, X.; Ma, G.; Wang, S.; Zhu, M.; Zhang, A.; Guan, M.; Lu, K.; et al. Genome-Wide Identification and Structural Analysis of bZIP Transcription Factor Genes in Brassica napus. Genes 2017, 8, 288. [Google Scholar] [CrossRef]
  22. Wang, X.L.; Chen, X.; Yang, T.B.; Cheng, Q.; Cheng, Z.M. Genome-Wide Identification of bZIP Family Genes Involved in Drought and Heat Stresses in Strawberry (Fragaria vesca). Int. J. Genom. 2017, 2017, 3981031. [Google Scholar] [CrossRef]
  23. Jiang, Y.; Chen, X.; Wang, F.; Li, X.; Qin, Z.; Fan, S.; Yan, N.; Xie, Y.; Zhao, R. Metabolomic response of Zizania latifolia to low-temperature stress and identification of the bZIP transcription factor family. GM Crops Food 2025, 16, 413–434. [Google Scholar] [CrossRef] [PubMed]
  24. Yang, Z.; Sun, J.; Chen, Y.; Zhu, P.; Zhang, L.; Wu, S.; Ma, D.; Cao, Q.; Li, Z.; Xu, T. Genome-wide identification, structural and gene expression analysis of the bZIP transcription factor family in sweet potato wild relative Ipomoea trifida. BMC Genet. 2019, 20, 41. [Google Scholar] [CrossRef] [PubMed]
  25. Banerjee, A.; Roychoudhury, A. Abscisic-acid-dependent basic leucine zipper (bZIP) transcription factors in plant abiotic stress. Protoplasma 2017, 254, 3–16. [Google Scholar] [CrossRef]
  26. Amir Hossain, M.; Lee, Y.; Cho, J.I.; Ahn, C.H.; Lee, S.K.; Jeon, J.S.; Kang, H.; Lee, C.H.; An, G.; Park, P.B. The bZIP transcription factor OsABF1 is an ABA responsive element binding factor that enhances abiotic stress signaling in rice. Plant Mol. Biol. 2010, 72, 557–566. [Google Scholar] [CrossRef]
  27. Basso, M.F.; Iovieno, P.; Capuana, M.; Contaldi, F.; Ieri, F.; Menicucci, F.; Celso, F.L.; Barone, G.; Martinelli, F. Identification and expression of the AREB/ABF/ABI5 subfamily genes in chickpea and lentil reveal major players involved in ABA-mediated defense response to drought stress. Planta 2025, 262, 22. [Google Scholar] [CrossRef]
  28. Zou, M.; Guan, Y.; Ren, H.; Zhang, F.; Chen, F. A bZIP transcription factor, OsABI5, is involved in rice fertility and stress tolerance. Plant Mol. Biol. 2008, 66, 675–683. [Google Scholar] [CrossRef]
  29. Hossain, M.A.; Cho, J.I.; Han, M.; Ahn, C.H.; Jeon, J.S.; An, G.; Park, P.B. The ABRE-binding bZIP transcription factor OsABF2 is a positive regulator of abiotic stress and ABA signaling in rice. J. Plant Physiol. 2010, 167, 1512–1520. [Google Scholar] [CrossRef]
  30. Orellana, S.; Yañez, M.; Espinoza, A.; Verdugo, I.; González, E.; Ruiz-Lara, S.; Casaretto, J.A. The transcription factor SlAREB1 confers drought, salt stress tolerance and regulates biotic and abiotic stress-related genes in tomato. Plant Cell Environ. 2010, 33, 2191–2208. [Google Scholar] [CrossRef]
  31. Kim, S.; Kang, J.Y.; Cho, D.I.; Park, J.H.; Kim, S.Y. ABF2, an ABRE-binding bZIP factor, is an essential component of glucose signaling and its overexpression affects multiple stress tolerance. Plant J. 2004, 40, 75–87. [Google Scholar] [CrossRef]
  32. Kim, J.H.; Hyun, W.Y.; Nguyen, H.N.; Jeong, C.Y.; Xiong, L.; Hong, S.W.; Lee, H. AtMyb7, a subgroup 4 R2R3 Myb, negatively regulates ABA-induced inhibition of seed germination by blocking the expression of the bZIP transcription factor ABI5. Plant Cell Environ. 2015, 38, 559–571. [Google Scholar] [CrossRef] [PubMed]
  33. Skubacz, A.; Daszkowska-Golec, A.; Szarejko, I. The Role and Regulation of ABI5 (ABA-Insensitive 5) in Plant Development, Abiotic Stress Responses and Phytohormone Crosstalk. Front. Plant Sci. 2016, 7, 1884. [Google Scholar] [CrossRef] [PubMed]
  34. Maier, A.T.; Stehling-Sun, S.; Wollmann, H.; Demar, M.; Hong, R.L.; Haubeiss, S.; Weigel, D.; Lohmann, J.U. Dual roles of the bZIP transcription factor PERIANTHIA in the control of floral architecture and homeotic gene expression. Development 2009, 136, 1613–1620. [Google Scholar] [CrossRef]
  35. Abe, M.; Kobayashi, Y.; Yamamoto, S.; Daimon, Y.; Yamaguchi, A.; Ikeda, Y.; Ichinoki, H.; Notaguchi, M.; Goto, K.; Araki, T. FD, a bZIP protein mediating signals from the floral pathway integrator FT at the shoot apex. Science 2005, 309, 1052–1056. [Google Scholar] [CrossRef]
  36. Shu, K.; Chen, Q.; Wu, Y.; Liu, R.; Zhang, H.; Wang, S.; Tang, S.; Yang, W.; Xie, Q. ABSCISIC ACID-INSENSITIVE 4 negatively regulates flowering through directly promoting Arabidopsis FLOWERING LOCUS C transcription. J. Exp. Bot. 2016, 67, 195–205. [Google Scholar] [CrossRef]
  37. Howell, S.H. Endoplasmic reticulum stress responses in plants. Annu. Rev. Plant Biol. 2013, 64, 477–499. [Google Scholar] [CrossRef]
  38. Oñate, L.; Vicente-Carbajosa, J.; Lara, P.; Díaz, I.; Carbonero, P. Barley BLZ2, a seed-specific bZIP protein that interacts with BLZ1 in vivo and activates transcription from the GCN4-like motif of B-hordein promoters in barley endosperm. J. Biol. Chem. 1999, 274, 9175–9182. [Google Scholar] [CrossRef]
  39. Onodera, Y.; Suzuki, A.; Wu, C.Y.; Washida, H.; Takaiwa, F. A rice functional transcriptional activator, RISBZ1, responsible for endosperm-specific expression of storage protein genes through GCN4 motif. J. Biol. Chem. 2001, 276, 14139–14152. [Google Scholar] [CrossRef]
  40. Vicente-Carbajosa, J.; Oñate, L.; Lara, P.; Diaz, I.; Carbonero, P. Barley BLZ1: A bZIP transcriptional activator that interacts with endosperm-specific gene promoters. Plant J. 1998, 13, 629–640. [Google Scholar] [CrossRef]
  41. Mueller, S.; Hilbert, B.; Dueckershoff, K.; Roitsch, T.; Krischke, M.; Mueller, M.J.; Berger, S. General detoxification and stress responses are mediated by oxidized lipids through TGA transcription factors in Arabidopsis. Plant Cell 2008, 20, 768–785. [Google Scholar] [CrossRef]
  42. Zander, M.; La Camera, S.; Lamotte, O.; Métraux, J.P.; Gatz, C. Arabidopsis thaliana class-II TGA transcription factors are essential activators of jasmonic acid/ethylene-induced defense responses. Plant J. 2010, 61, 200–210. [Google Scholar] [CrossRef] [PubMed]
  43. Jin, H.; Choi, S.M.; Kang, M.J.; Yun, S.H.; Kwon, D.J.; Noh, Y.S.; Noh, B. Salicylic acid-induced transcriptional reprogramming by the HAC-NPR1-TGA histone acetyltransferase complex in Arabidopsis. Nucleic Acids Res. 2018, 46, 11712–11725. [Google Scholar] [CrossRef] [PubMed]
  44. Hussain, R.M.F.; Sheikh, A.H.; Haider, I.; Quareshy, M.; Linthorst, H.J.M. Arabidopsis WRKY50 and TGA Transcription Factors Synergistically Activate Expression of PR1. Front. Plant Sci. 2018, 9, 930. [Google Scholar] [CrossRef]
  45. Ndamukong, I.; Abdallat, A.A.; Thurow, C.; Fode, B.; Zander, M.; Weigel, R.; Gatz, C. SA-inducible Arabidopsis glutaredoxin interacts with TGA factors and suppresses JA-responsive PDF1.2 transcription. Plant J. 2007, 50, 128–139. [Google Scholar] [CrossRef]
  46. Gachon, F.; Olela, F.F.; Schaad, O.; Descombes, P.; Schibler, U. The circadian PAR-domain basic leucine zipper transcription factors DBP, TEF, and HLF modulate basal and inducible xenobiotic detoxification. Cell Metab. 2006, 4, 25–36. [Google Scholar] [CrossRef]
  47. Gibalová, A.; Reňák, D.; Matczuk, K.; Dupl’áková, N.; Cháb, D.; Twell, D.; Honys, D. AtbZIP34 is required for Arabidopsis pollen wall patterning and the control of several metabolic pathways in developing pollen. Plant Mol. Biol. 2009, 70, 581–601. [Google Scholar] [CrossRef]
  48. Assunção, A.G.; Herrero, E.; Lin, Y.F.; Huettel, B.; Talukdar, S.; Smaczniak, C.; Immink, R.G.; van Eldik, M.; Fiers, M.; Schat, H.; et al. Arabidopsis thaliana transcription factors bZIP19 and bZIP23 regulate the adaptation to zinc deficiency. Proc. Natl. Acad. Sci. USA 2010, 107, 10296–10301. [Google Scholar] [CrossRef]
  49. Inaba, S.; Kurata, R.; Kobayashi, M.; Yamagishi, Y.; Mori, I.; Ogata, Y.; Fukao, Y. Identification of putative target genes of bZIP19, a transcription factor essential for Arabidopsis adaptation to Zn deficiency in roots. Plant J. 2015, 84, 323–334. [Google Scholar] [CrossRef]
  50. Lopes-da-Silva, M.; McCormack, J.J.; Burden, J.J.; Harrison-Lavoie, K.J.; Ferraro, F.; Cutler, D.F. A GBF1-Dependent Mechanism for Environmentally Responsive Regulation of ER-Golgi Transport. Dev. Cell 2019, 49, 786–801.e786. [Google Scholar] [CrossRef]
  51. Giri, M.K.; Singh, N.; Banday, Z.Z.; Singh, V.; Ram, H.; Singh, D.; Chattopadhyay, S.; Nandi, A.K. GBF1 differentially regulates CAT2 and PAD4 transcription to promote pathogen defense in Arabidopsis thaliana. Plant J. 2017, 91, 802–815. [Google Scholar] [CrossRef]
  52. Yang, Y.; Liang, T.; Zhang, L.; Shao, K.; Gu, X.; Shang, R.; Shi, N.; Li, X.; Zhang, P.; Liu, H. UVR8 interacts with WRKY36 to regulate HY5 transcription and hypocotyl elongation in Arabidopsis. Nat. Plants 2018, 4, 98–107. [Google Scholar] [CrossRef] [PubMed]
  53. Osterlund, M.T.; Hardtke, C.S.; Wei, N.; Deng, X.W. Targeted destabilization of HY5 during light-regulated development of Arabidopsis. Nature 2000, 405, 462–466. [Google Scholar] [CrossRef] [PubMed]
  54. Li, J.; Terzaghi, W.; Gong, Y.; Li, C.; Ling, J.J.; Fan, Y.; Qin, N.; Gong, X.; Zhu, D.; Deng, X.W. Modulation of BIN2 kinase activity by HY5 controls hypocotyl elongation in the light. Nat. Commun. 2020, 11, 1592. [Google Scholar] [CrossRef] [PubMed]
  55. Tsugama, D.; Liu, S.; Takano, T. Analysis of functions of VIP1 and its close homologs in osmosensory responses of Arabidopsis thaliana. PLoS ONE 2014, 9, e103930. [Google Scholar] [CrossRef]
  56. Tsugama, D.; Liu, S.; Fujino, K.; Takano, T. Calcium signalling regulates the functions of the bZIP protein VIP1 in touch responses in Arabidopsis thaliana. Ann. Bot. 2018, 122, 1219–1229. [Google Scholar] [CrossRef]
  57. Choi, H.; Hong, J.; Ha, J.; Kang, J.; Kim, S.Y. ABFs, a family of ABA-responsive element binding factors. J. Biol. Chem. 2000, 275, 1723–1730. [Google Scholar] [CrossRef]
  58. Fukazawa, J.; Sakai, T.; Ishida, S.; Yamaguchi, I.; Kamiya, Y.; Takahashi, Y. Repression of shoot growth, a bZIP transcriptional activator, regulates cell elongation by controlling the level of gibberellins. Plant Cell 2000, 12, 901–915. [Google Scholar] [CrossRef]
  59. Izawa, T.; Foster, R.; Nakajima, M.; Shimamoto, K.; Chua, N.H. The rice bZIP transcriptional activator RITA-1 is highly expressed during seed development. Plant Cell 1994, 6, 1277–1287. [Google Scholar] [CrossRef]
  60. An, P.; Li, X.; Liu, T.; Shui, Z.; Chen, M.; Gao, X.; Wang, Z. The Identification of Broomcorn Millet bZIP Transcription Factors, Which Regulate Growth and Development to Enhance Stress Tolerance and Seed Germination. Int. J. Mol. Sci. 2022, 23, 6448. [Google Scholar] [CrossRef]
  61. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  62. Liu, Z.; Zhang, M.; Kong, L.; Lv, Y.; Zou, M.; Lu, G.; Cao, J.; Yu, X. Genome-wide identification, phylogeny, duplication, and expression analyses of two-component system genes in Chinese cabbage (Brassica rapa ssp. pekinensis). DNA Res. Int. J. Rapid Publ. Rep. Genes. Genomes 2014, 21, 379–396. [Google Scholar] [CrossRef] [PubMed]
  63. Krishnamurthy, P.; Hong, J.K.; Kim, J.A.; Jeong, M.-J.; Lee, Y.-H.; Lee, S.I. Genome-wide analysis of the expansin gene superfamily reveals Brassica rapa-specific evolutionary dynamics upon whole genome triplication. Mol. Genet. Genom. MGG 2015, 290, 521–530. [Google Scholar] [CrossRef] [PubMed]
  64. Barker, M.S.; Baute, G.J.; Liu, S.L. Duplications and Turnover in Plant Genomes. In Plant Genome Diversity; Springer: Vienna, Austria, 2012; Volume 1, pp. 155–169. [Google Scholar]
  65. Zhang, J. Evolution by gene duplication: An update. Trends Ecol. Evol. 2003, 18, 292–298. [Google Scholar] [CrossRef]
  66. Jacob, A.G.; Smith, C.W.J. Intron retention as a component of regulated gene expression programs. Hum. Genet. 2017, 136, 1043–1057. [Google Scholar] [CrossRef]
  67. Wang, W.; Wang, Y.; Zhang, S.; Xie, K.; Zhang, C.; Xi, Y.; Sun, F. Genome-wide analysis of the abiotic stress-related bZIP family in switchgrass. Mol. Biol. Rep. 2020, 47, 4439–4454. [Google Scholar] [CrossRef]
  68. Hu, W.; Wang, L.; Tie, W.; Yan, Y.; Ding, Z.; Liu, J.; Li, M.; Peng, M.; Xu, B.; Jin, Z. Genome-wide analyses of the bZIP family reveal their involvement in the development, ripening and abiotic stress response in banana. Sci. Rep. 2016, 6, 30203. [Google Scholar] [CrossRef]
  69. Yang, S.; Xu, K.; Chen, S.; Li, T.; Xia, H.; Chen, L.; Liu, H.; Luo, L. A stress-responsive bZIP transcription factor OsbZIP62 improves drought and oxidative tolerance in rice. BMC Plant Biol. 2019, 19, 260. [Google Scholar] [CrossRef]
  70. Ma, H.; Liu, C.; Li, Z.; Ran, Q.; Xie, G.; Wang, B.; Fang, S.; Chu, J.; Zhang, J. ZmbZIP4 Contributes to Stress Resistance in Maize by Regulating ABA Synthesis and Root Development. Plant Physiol. 2018, 178, 753–770. [Google Scholar] [CrossRef]
  71. Zhang, M.; Liu, Y.; Cai, H.; Guo, M.; Chai, M.; She, Z.; Ye, L.; Cheng, Y.; Wang, B.; Qin, Y. The bZIP Transcription Factor GmbZIP15 Negatively Regulates Salt- and Drought-Stress Responses in Soybean. Int. J. Mol. Sci. 2020, 21, 7778. [Google Scholar] [CrossRef]
  72. Bi, C.; Yu, Y.; Dong, C.; Yang, Y.; Zhai, Y.; Du, F.; Xia, C.; Ni, Z.; Kong, X.; Zhang, L. The bZIP transcription factor TabZIP15 improves salt stress tolerance in wheat. Plant Biotechnol. J. 2021, 19, 209–211. [Google Scholar] [CrossRef]
  73. Zhao, P.; Ye, M.; Wang, R.; Wang, D.; Chen, Q. Systematic identification and functional analysis of potato (Solanum tuberosum L.) bZIP transcription factors and overexpression of potato bZIP transcription factor StbZIP-65 enhances salt tolerance. Int. J. Biol. Macromol. 2020, 161, 155–167. [Google Scholar] [CrossRef] [PubMed]
  74. He, Q.; Cai, H.; Bai, M.; Zhang, M.; Chen, F.; Huang, Y.; Priyadarshani, S.V.G.N.; Chai, M.; Liu, L.; Liu, Y.; et al. A Soybean bZIP Transcription Factor Confers Multiple Biotic and Abiotic Stress Responses in Plant. Int. J. Mol. Sci. 2020, 21, 4701. [Google Scholar] [CrossRef] [PubMed]
  75. Cai, W.; Yang, Y.; Wang, W.; Guo, G.; Liu, W.; Bi, C. Overexpression of a wheat (Triticum aestivum L.) bZIP transcription factor gene, TabZIP6, decreased the freezing tolerance of transgenic Arabidopsis seedlings by down-regulating the expression of CBFs. Plant Physiol. Biochem. 2018, 124, 100–111. [Google Scholar] [CrossRef] [PubMed]
Genes 16 00734 g001

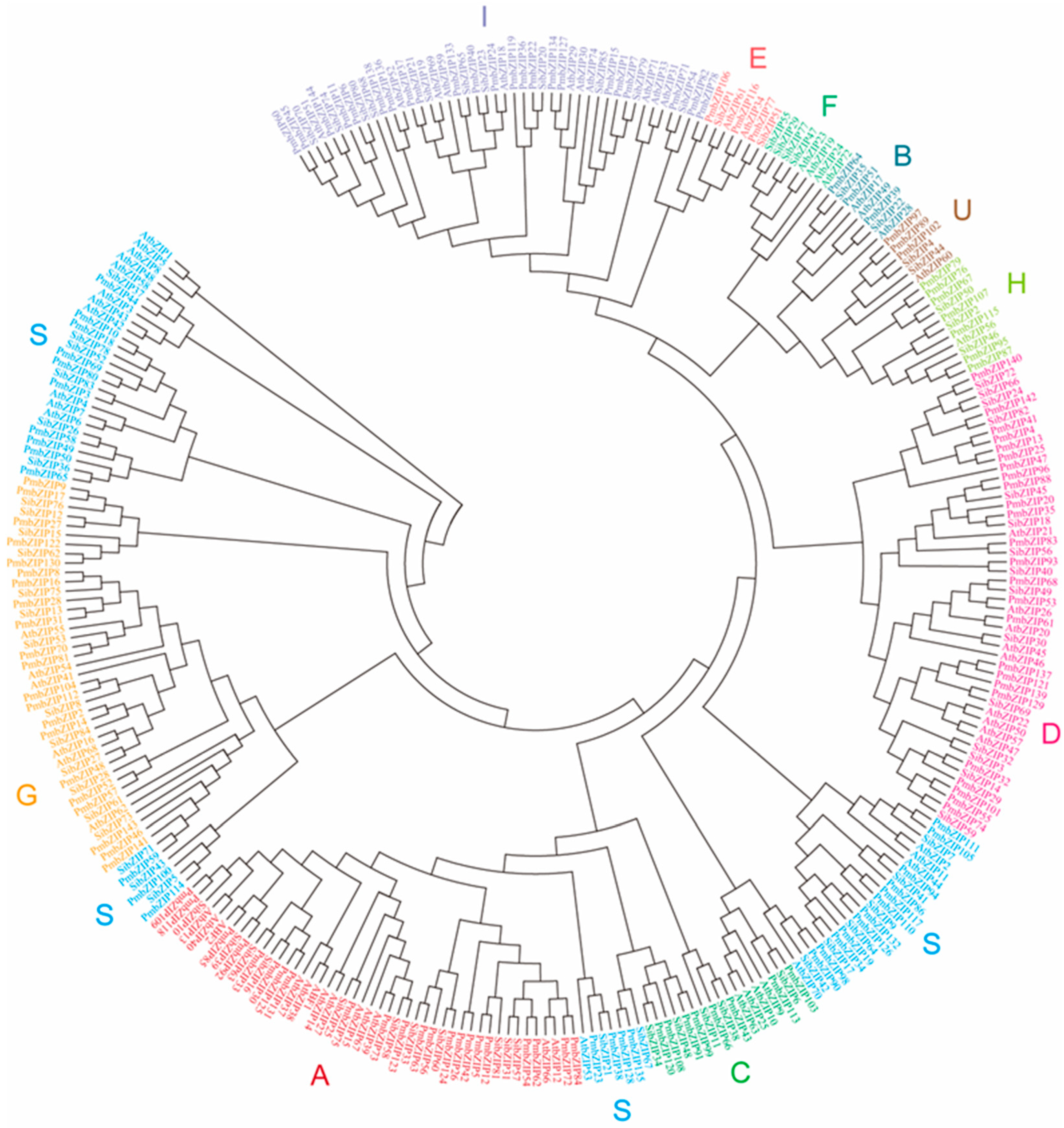

Figure 1. Phylogenetic analysis of bZIP transcription factors in Arabidopsis thaliana, Setaria italica, and P. miliaceum. A maximum likelihood phylogenetic tree was constructed using the full-length bZIP protein sequences from A. thaliana (At), S. italica (Si), and P. miliaceum (Pm). The bZIP proteins were classified into 11 subgroups, each represented by a distinct color. Subgroup names are indicated outside the tree. The grouping was supported by sequence similarity and domain conservation, revealing evolutionary relationships and potential functional conservation among bZIP family members across the three species.
Figure 1. Phylogenetic analysis of bZIP transcription factors in Arabidopsis thaliana, Setaria italica, and P. miliaceum. A maximum likelihood phylogenetic tree was constructed using the full-length bZIP protein sequences from A. thaliana (At), S. italica (Si), and P. miliaceum (Pm). The bZIP proteins were classified into 11 subgroups, each represented by a distinct color. Subgroup names are indicated outside the tree. The grouping was supported by sequence similarity and domain conservation, revealing evolutionary relationships and potential functional conservation among bZIP family members across the three species.
Genes 16 00734 g001
Genes 16 00734 g002

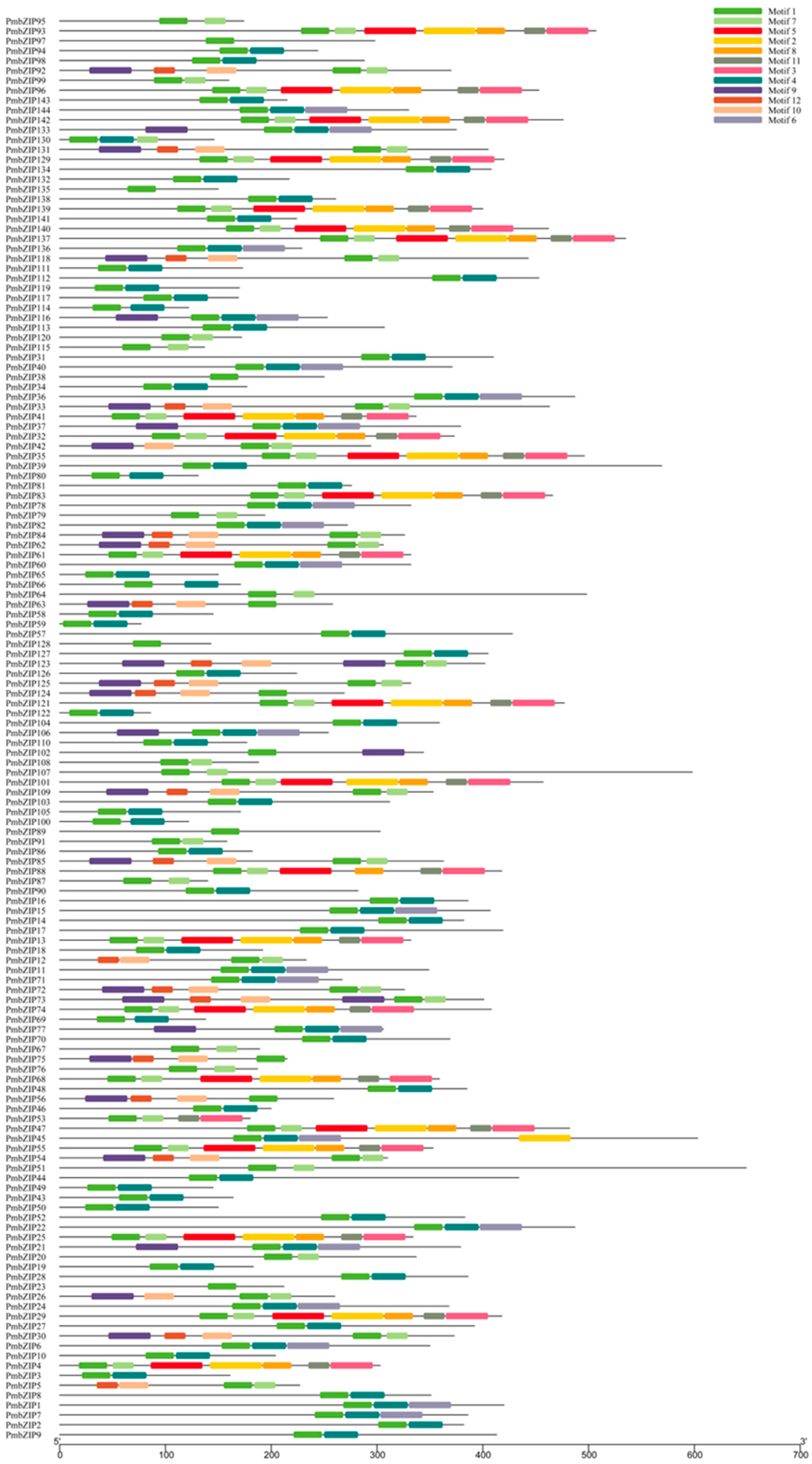

Figure 2. Motif analysis of P. miliaceum bZIP proteins. Twelve conserved motifs were identified. Each motif is represented by a colored box with a unique color corresponding to the motif number, as shown in the legend.
Figure 2. Motif analysis of P. miliaceum bZIP proteins. Twelve conserved motifs were identified. Each motif is represented by a colored box with a unique color corresponding to the motif number, as shown in the legend.
Genes 16 00734 g002
Genes 16 00734 g003

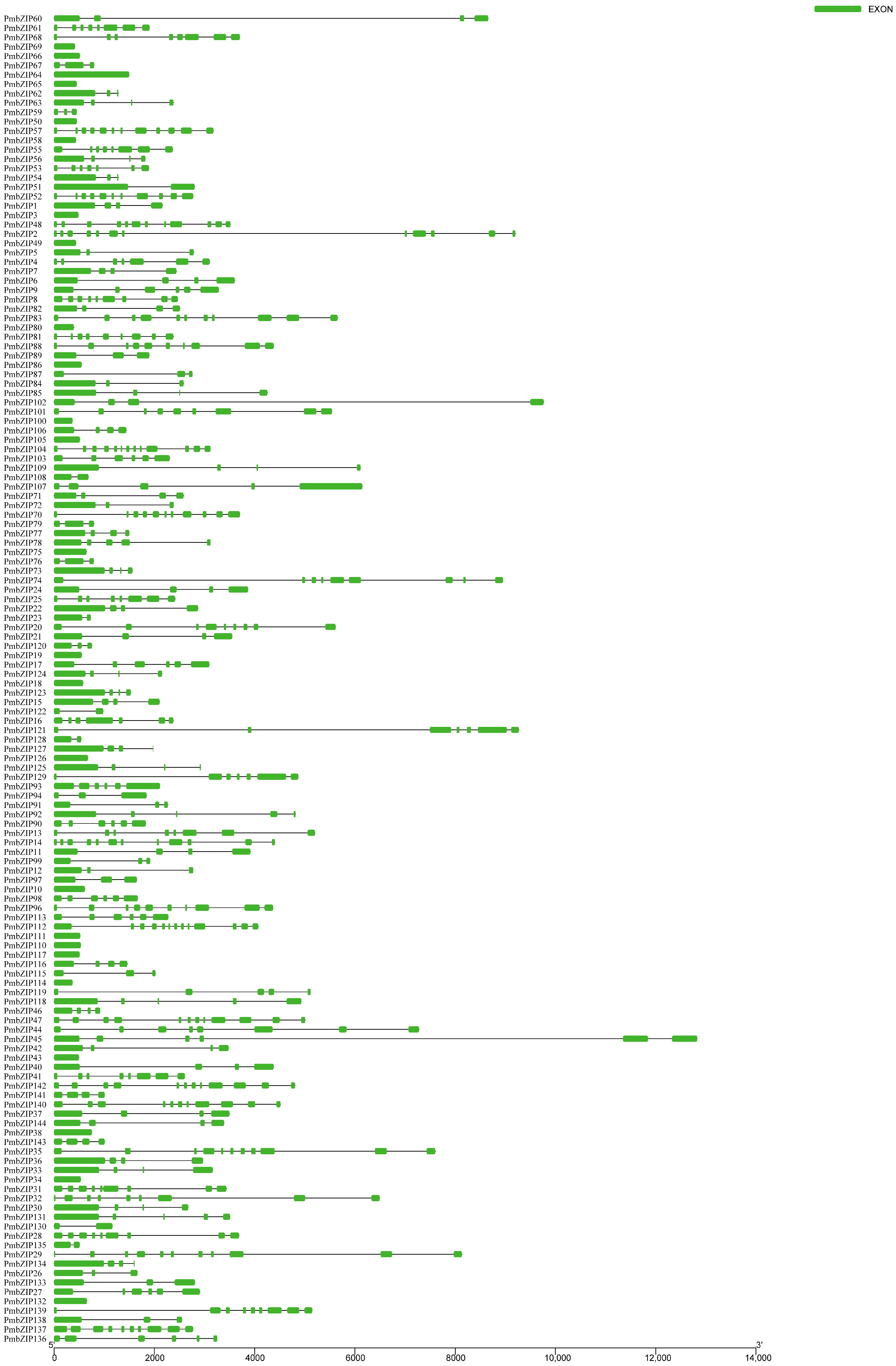

Figure 3. Gene structural analysis of PmbZIPs. The exon–intron structures of bZIP genes were visualized to compare their gene organization. Green rounded rectangles represent exons, and black solid lines indicate introns.
Figure 3. Gene structural analysis of PmbZIPs. The exon–intron structures of bZIP genes were visualized to compare their gene organization. Green rounded rectangles represent exons, and black solid lines indicate introns.
Genes 16 00734 g003
Genes 16 00734 g004

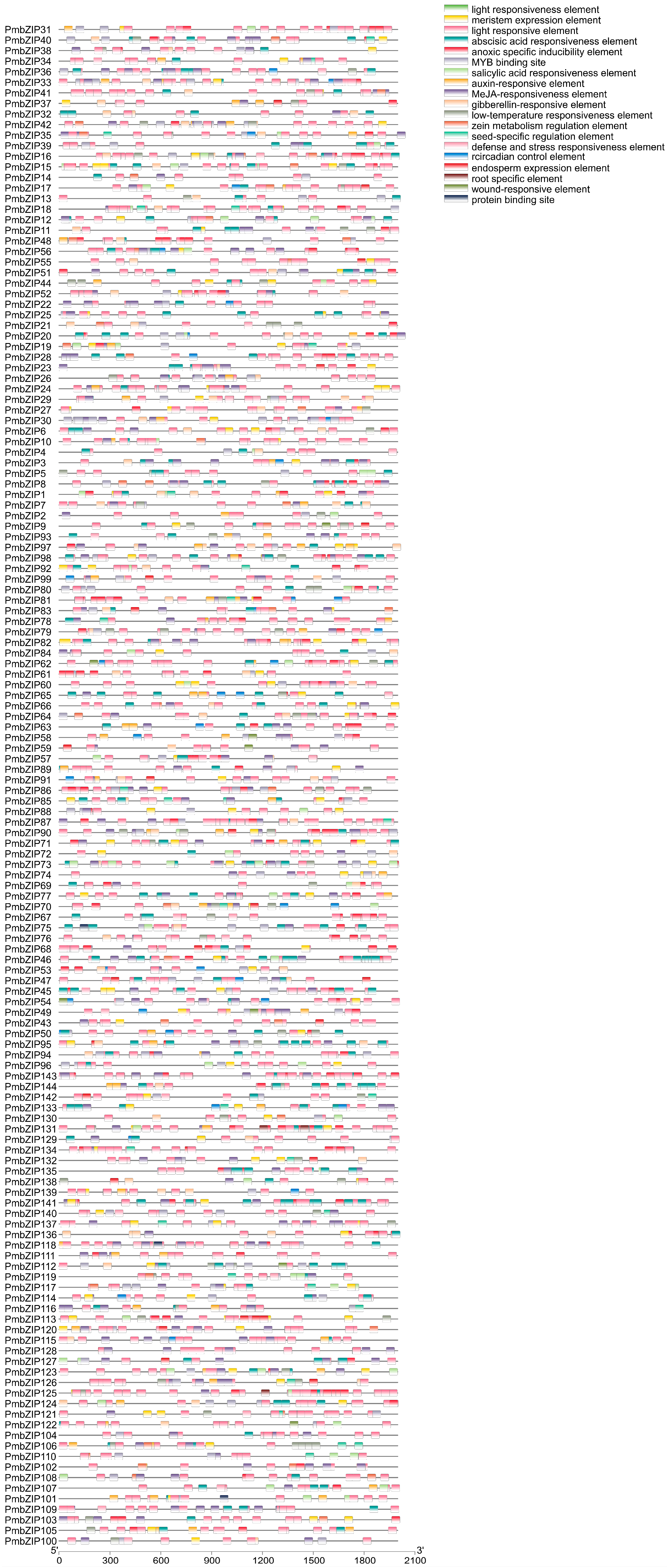

Figure 4. Cis-element analysis of promoter regions of PmbZIPs. The cis-acting regulatory elements within the 2000 bp upstream promoter regions of bZIP genes were analyzed. Different cis-elements are represented by colored boxes, each corresponding to a specific functional category.
Figure 4. Cis-element analysis of promoter regions of PmbZIPs. The cis-acting regulatory elements within the 2000 bp upstream promoter regions of bZIP genes were analyzed. Different cis-elements are represented by colored boxes, each corresponding to a specific functional category.
Genes 16 00734 g004
Genes 16 00734 g005

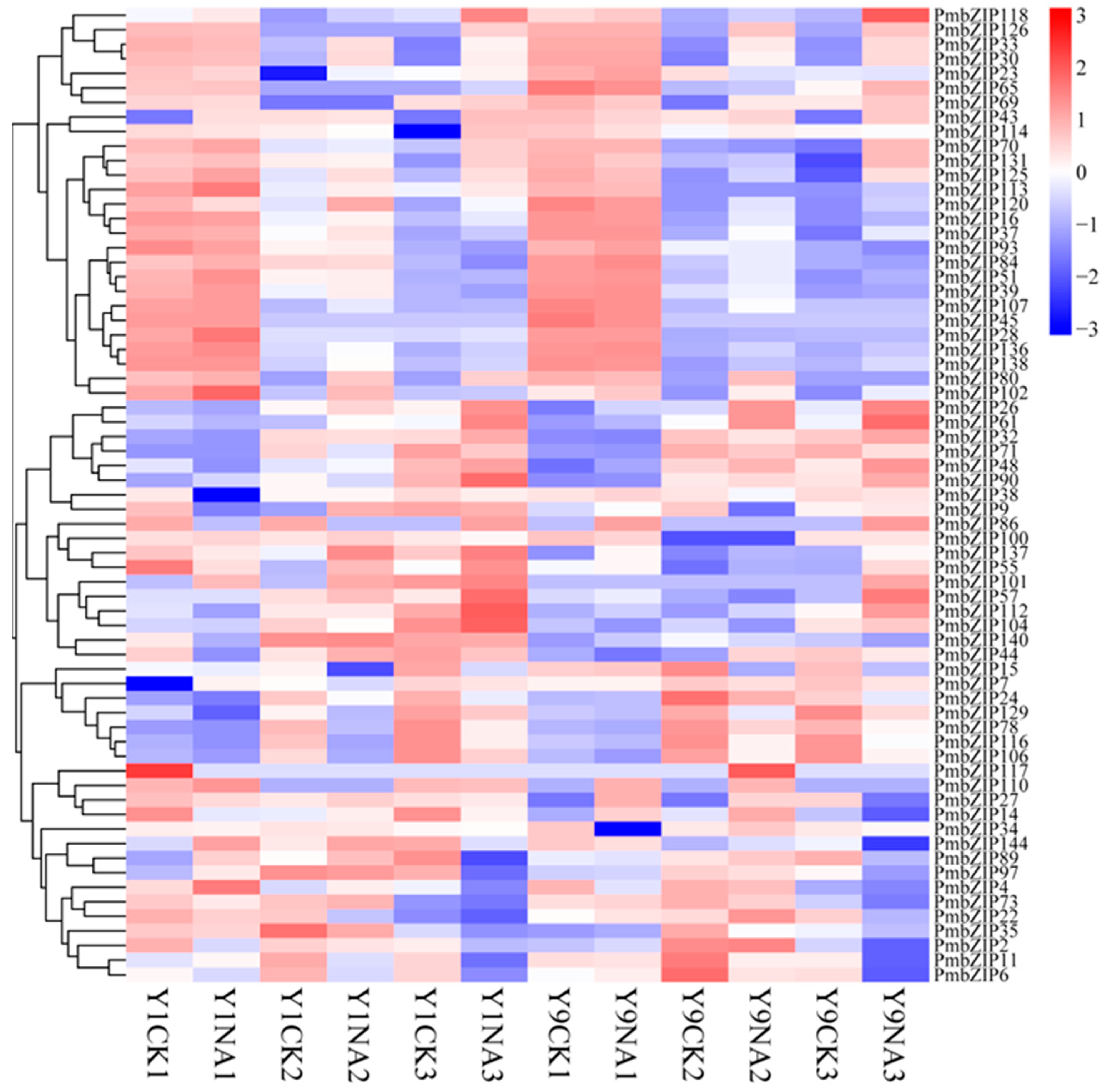

Figure 5. Expression heatmap of 67 differentially expressed bZIP genes. Samples were collected from two P. miliaceum varieties, Y1 and Y9, under control (CK) and salt treatment (NA) conditions at three time points. Gene expression levels were normalized (log2 (FPKM + 1)) and visualized to reveal temporal and treatment-specific expression patterns.
Figure 5. Expression heatmap of 67 differentially expressed bZIP genes. Samples were collected from two P. miliaceum varieties, Y1 and Y9, under control (CK) and salt treatment (NA) conditions at three time points. Gene expression levels were normalized (log2 (FPKM + 1)) and visualized to reveal temporal and treatment-specific expression patterns.
Genes 16 00734 g005
Table 1. Identification and summary of information on Panicum miliaceum bZIP transcription factors (PmbZIPs) in broomcorn millet.
Table 1. Identification and summary of information on Panicum miliaceum bZIP transcription factors (PmbZIPs) in broomcorn millet.
Gene IDProtein
Number		Gene
Number		ChrGene LocationGene Length/bpCDS/ntAmino
Acids		PIMolecular Weight/u
PmbZIP1RLN41431.1PM01G003701454801–457374257412634215.7144,828.00
PmbZIP2RLN41707.1PM01G0879017046270–705903912,77011493839.1340,969.23
PmbZIP3RLN40362.1PM01G12600110097025–10098402137848616210.5517,692.55
PmbZIP4RLN40088.1PM01G13370110863218–1086632131049123049.4534,047.74
PmbZIP5RLN40734.1PM01G13620111058035–1106082027866842289.8424,396.40
PmbZIP6RLN39254.1PM01G14300111670497–11674442394610533516.23 37,904.15
PmbZIP7RLN41556.1PM01G19740116954898–16957707281011613877.23 41,543.20
PmbZIP8RLN41102.1PM01G22630119957313–19960138282610563526.88 37,179.95
PmbZIP9RLN42614.1PM01G23610120646169–20649807363912424145.06 42,598.17
PmbZIP10RLN40049.1PM01G26880122949190–22950304111561520510.18 22,321.56
PmbZIP11RLN19317.1PM02G26900239030059–39034459440110503506.28 37,679.93
PmbZIP12RLN19126.1PM02G27550239595051–39597823277370223410.00 24,691.66
PmbZIP13RLN18095.1PM02G27800239766627–3977183052049993337.04 37,066.87
PmbZIP14RLN17017.1PM02G32070243256944–43264901795811493839.20 40,881.04
PmbZIP15RLN15790.1PM02G38970248295652–48298282263112244085.60 43,833.94
PmbZIP16RLN15762.1PM02G44000251665787–51668165237911613876.10 41,310.03
PmbZIP17RLN17495.1PM02G44930252341406–52345126372112604204.97 43,404.97
PmbZIP18RLN18647.1PM02G46570253532299–5353287757957919310.48 21,390.51
PmbZIP19RLN33487.1PM03G006603678937–6794885525521847.21 20,564.99
PmbZIP20RLN33484.1PM03G0153031468835–1474450561610143389.88 36,231.59
PmbZIP21RLN33244.1PM03G0317032666045–2670259421511403806.22 40,613.30
PmbZIP22RLN32939.1PM03G0354032944837–2947710287414644889.20 51,669.75
PmbZIP23RLN34898.1PM03G0481033889634–389084812156392136.84 22,223.95
PmbZIP24RLN35613.1PM03G16340312865234–12869532429911073696.61 39,460.24
PmbZIP25RLN33050.1PM03G16790313287052–13290598354710053358.90 37,308.18
PmbZIP26RLN35551.1PM03G16900313342155–13343818166478326110.02 28,735.61
PmbZIP27RLN35711.1PM03G21650318768221–18771281306111793935.01 42,558.22
PmbZIP28RLN33934.1PM03G24730322107028–22110718369111613876.61 39,600.43
PmbZIP29RLN35629.1PM03G29190335167059–35175866880812574198.44 46,181.77
PmbZIP30RLN35964.1PM03G36770357531413–57534679326711223745.10 39,436.23
PmbZIP31RLM84895.1PM04G0727046860114–6863550343712334117.18 42,128.33
PmbZIP32RLM86983.1PM04G16890429725581–29732074649411223749.54 41,241.35
PmbZIP33RLM85912.1PM04G17970431027628–31030792316513924649.15 49,993.48
PmbZIP34RLM85616.1PM04G18960431857501–3185854210425341788.95 20,269.87
PmbZIP35RLM87231.1PM04G19820432472417–32480988857214914977.51 55,166.25
PmbZIP36RLM85816.1PM04G21680433883522–33886493297214644889.53 51,605.73
PmbZIP37RLM86211.1PM04G22100434132892–34136810391911403806.38 40,629.39
PmbZIP38RLM85470.1PM04G22810434716923–3471818512637532517.83 26,101.09
PmbZIP39RLM87366.1PM04G29540439691716–39694242252714914975.86 60,644.54
PmbZIP40RLM85147.1PM04G34030442747464–42752113465011163726.27 39,659.45
PmbZIP41RLM86171.1PM04G34490443064867–43067475260910143388.90 37,565.47
PmbZIP42RLM87099.1PM04G34620443157454–4316093334808852959.59 32,209.76
PmbZIP43RLN30372.1PM05G004705481032–48179176049516511.57 17,411.98
PmbZIP44RLN29606.1PM05G0246052429710–2436988727913054355.93 47,002.20
PmbZIP45RLN28633.1PM05G0490054731398–474422512,82818126044.88 65,083.35
PmbZIP46RLN27945.1PM05G0523055015435–501661911856032019.19 21,729.48
PmbZIP47RLN28345.1PM05G0538055101092–5106900580914494836.25 52,474.70
PmbZIP48RLN27488.1PM05G0803057121364–7128050668711583867.17 40,824.69
PmbZIP49RLN29878.1PM05G11380510166559–1016975431964381469.49 16,063.02
PmbZIP50RLN30397.1PM05G14850513174076–1317599119164531516.32 16,585.54
PmbZIP51RLN29599.1PM05G25250546340685–46343488280419506508.15 68,282.36
PmbZIP52RLN31068.1PM05G29120549501420–49504193277411523849.07 41,007.77
PmbZIP53RLN28247.1PM05G33670553089874–5309176518925431819.75 20,078.72
PmbZIP54RLN28944.1PM05G33910553238531–5323981412849333116.47 33,380.34
PmbZIP55RLN28901.1PM05G36440555255118–55257485236810623546.68 39,751.11
PmbZIP56RLN27558.1PM05G36770555582519–5558433818207802609.55 26,952.16
PmbZIP57RLN01174.1PM06G0270061946640–1949819318012874299.30 45,780.45
PmbZIP58RLN00773.1PM06G0816065838864–584046516024381469.93 15,983.02
PmbZIP59RLN01167.1PM06G14080610158766–101592164512347810.63 9190.60
PmbZIP60RLM98944.1PM06G14410610441629–1045055989319993336.26 35,600.39
PmbZIP61RLM98085.1PM06G17810612976476–1298017236979993336.55 36,500.10
PmbZIP62RLM98033.1PM06G17990613102719–1310400112839213076.46 32,832.58
PmbZIP63RLN00565.1PM06G20460614965993–1496899230007772599.73 26,937.16
PmbZIP64RLM99485.1PM06G21690616055800–16057296149714974997.03 52,598.69
PmbZIP65RLM99017.1PM06G30890639341652–393421044534531516.85 16,674.63
PmbZIP66RLM99272.1PM06G35160643290439–4329095451651617211.51 18,029.63
PmbZIP67RLN24624.1PM07G004407317276–3180737985701909.98 20,307.29
PmbZIP68RLN25705.1PM07G0685076745210–6748914370510803607.69 40,074.24
PmbZIP69RLN24094.1PM07G1023078252890–82533064174171397.65 15,279.28
PmbZIP70RLN24562.1PM07G17750736088695–36092402370811103709.19 39,245.04
PmbZIP71RLN22304.1PM07G23470741273483–4127606525838042685.93 28,650.69
PmbZIP72RLN22621.1PM07G25750743086731–4308911523859813277.18 35,585.99
PmbZIP73RLN22673.1PM07G29370745806587–45808150156412064026.29 42,396.98
PmbZIP74RLN23257.1PM07G29380745812241–45821193895312274096.90 46,071.37
PmbZIP75RLN24712.1PM07G29810746066329–460669766486482169.75 21,645.44
PmbZIP76RLN25012.1PM07G36760751457907–51459054114856418810.01 20,446.76
PmbZIP77RLN24441.1PM07G38580753023815–5302614323299213076.62 32,963.72
PmbZIP78RLM93109.1PM08G0176081448785–145190231189993336.00 36,038.19
PmbZIP79RLM93604.1PM08G0393083296164–32969597965851959.94 20,689.71
PmbZIP80RLM91692.1PM08G15750830944899–309452943963961328.40 14,577.57
PmbZIP81RLM92180.1PM08G20990836451978–3645435723808312779.31 30,542.73
PmbZIP82RLM93703.1PM08G25890840248925–4025209531718192736.01 28,971.03
PmbZIP83RLM92419.1PM08G28810842140458–42146113565614014676.34 50,908.00
PmbZIP84RLM94116.1PM08G29030842303295–4230587825849813277.15 35,542.86
PmbZIP85RLN12842.1PM09G0650095334910–5339163425410923648.70 39,102.69
PmbZIP86RLN12841.1PM09G12140921889497–218900455495491839.67 20,244.55
PmbZIP87RLN13025.1PM09G17690943522067–43524827276142314110.16 15,149.82
PmbZIP88RLN12905.1PM09G18590944792601–44796981438112574199.11 44,598.29
PmbZIP89RLN12453.1PM09G18780945041072–4504460335329123044.83 32,658.00
PmbZIP90RLN13126.1PM09G20800947002029–4700385918318492836.24 30,013.48
PmbZIP91RLN12623.1PM09G24100950246233–5024850222704771599.00 17,365.70
PmbZIP92RLM55632.1PM10G06050104576359–4581176481811133719.00 40,165.13
PmbZIP93RLM54848.1PM10G06130104623806–4625917211215245089.16 55,261.12
PmbZIP94RLM55196.1PM10G107501010699576–10701422184773524510.88 27,271.78
PmbZIP95RLM54794.1PM10G155001026027305–2602967423705251759.75 18,810.58
PmbZIP96RLM56218.1PM10G162501026722529–26726897436913624549.13 48,594.99
PmbZIP97RLM55027.1PM10G164101026862899–2686454916518972995.43 32,538.26
PmbZIP98RLM55428.1PM10G182501028349450–2835111716688672896.07 30,673.21
PmbZIP99RLM56082.1PM10G215701031094548–3109646319164831618.62 17,579.92
PmbZIP100RLN09938.1PM11G0029011452913–4532813693691238.97 13,810.34
PmbZIP101RLN08312.1PM11G02090112470988–2476530554313744588.92 49,484.85
PmbZIP102RLN07652.1PM11G02220112606668–2616433976610353454.52 35,333.37
PmbZIP103RLN09078.1PM11G02900113245503–324828927879393135.42 33,095.76
PmbZIP104RLN07125.1PM11G134601125503439–25506558312010803605.79 38,511.02
PmbZIP105RLN09230.1PM11G137901125784422–2578680123805161726.29 17,688.93
PmbZIP106RLN07329.1PM11G194301138531228–3853287416477652555.78 27,050.34
PmbZIP107RLN08025.1PM11G205501140200637–40206785614917975999.76 65,299.21
PmbZIP108RLN07962.1PM11G207601140430132–4043131011795671899.02 20,553.29
PmbZIP109RLN09062.1PM11G247601143626713–43632822611010623546.48 37,768.04
PmbZIP110RLN07622.1PM11G272501146387650–463881835345341788.65 20,643.10
PmbZIP111RLM78368.1PM12G01810121318893–13194145225221746.83 17,739.04
PmbZIP112RLM78875.1PM12G02550121757193–1761266407413624548.20 47,603.58
PmbZIP113RLM80422.1PM12G04340123257399–326027928819243085.20 32,615.15
PmbZIP114RLM79681.1PM12G05380124052057–40524253693691239.35 13,871.48
PmbZIP115RLM80771.1PM12G06150124748641–4750662202241413810.11 15,166.99
PmbZIP116RLM79948.1PM12G08110126857609–685978721797622545.78 26,937.22
PmbZIP117RLM79671.1PM12G270101238519464–385203298665101707.93 19,646.96
PmbZIP118RLM78209.1PM12G280801239453559–39458489493113324449.41 47,492.18
PmbZIP119RLM79651.1PM12G293101240484976–4049008951145131714.93 18,799.88
PmbZIP120RLM80583.1PM12G319701242325452–423262077565191739.00 18,729.10
PmbZIP121RLN05398.1PM13G04720135033013–5042282927014344787.24 51,950.15
PmbZIP122RLN05595.1PM13G099601325084063–25085042980261879.65 9705.76
PmbZIP123RLN04073.1PM13G140101335015891–35017421153112094036.37 42,408.97
PmbZIP124RLN05004.1PM13G144701335292857–3529567128158102709.25 28,271.05
PmbZIP125RLN04831.1PM13G199901341033378–4103630229259993335.76 34,879.32
PmbZIP126RLN04579.1PM13G208301341770762–417717599986752258.54 24,211.82
PmbZIP127RLN03801.1PM13G245101345184706–45186681197612184066.61 43,025.01
PmbZIP128RLN03549.1PM13G250901345582601–4558314254243214410.02 15,452.52
PmbZIP129RLM61107.1PM14G04080143139207–3146477727112634216.53 45,595.62
PmbZIP130RLM60470.1PM14G095601420687606–2068877011654411479.34 16,666.93
PmbZIP131RLM60601.1PM14G167701429385478–29388989351212184065.52 42,836.29
PmbZIP132RLM61427.1PM14G174801430010114–300110449316542188.82 23,453.05
PmbZIP133RLM60401.1PM14G198001431888088–31890896280911283766.32 39,473.30
PmbZIP134RLM61133.1PM14G199901432037397–32038999160312274096.43 43,304.39
PmbZIP135RLM61596.1PM14G214501433079164–330796755124531519.55 16,265.44
PmbZIP136RLM74471.1PM15G129701528520231–2852348232526902309.83 24,604.94
PmbZIP137RLM74357.1PM15G258201539118732–39121503277216085367.97 58,416.77
PmbZIP138RLM65300.1PM16G121301625119044–2512159425517862625.10 27,207.24
PmbZIP139RLM66084.1PM16G213101631781217–31790325910912034016.18 44,727.90
PmbZIP140RLM70069.1PM17G01920171423232–1427747451613894636.25 50,766.87
PmbZIP141RLM69114.1PM17G02070171594724–159573210096752258.98 24,596.61
PmbZIP142RLM59076.1PM18G0082018648118–653777566014314776.09 52,218.33
PmbZIP143RLM57820.1PM18G0093018761889–76289810106482168.61 23,467.31
PmbZIP144RLM58717.1PM18G01220181078921–108312842089933316.37 35,578.56
Table 2. A summary of cis-elements in the PmbZIPs promoter.
Table 2. A summary of cis-elements in the PmbZIPs promoter.
Cis-Acting ElementElement NumberGene Number
Abscisic acid responsiveness element618135
Anoxic specific inducibility element22090
Auxin-responsive element9566
Defense and stress responsiveness element3933
Endosperm expression element2925
Gibberellin-responsive element10875
Light responsive element1655144
Low-temperature responsiveness element9564
MeJA-responsiveness element752128
Meristem expression element15499
MYB binding site17597
Protein binding site44
Rcircadian control element4030
Root specific element75
Salicylic acid responsiveness element7250
Seed-specific regulation element3026
Wound-responsive element88
Zein metabolism regulation element6146
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

An, P.; Liu, T.; Shui, Z.; Ren, P.; Duan, S. Genome-Wide Identification and Analysis of bZIP Transcription Factor Gene Family in Broomcorn Millet (Panicum miliaceum L.). Genes 2025, 16, 734. https://doi.org/10.3390/genes16070734

AMA Style

An P, Liu T, Shui Z, Ren P, Duan S. Genome-Wide Identification and Analysis of bZIP Transcription Factor Gene Family in Broomcorn Millet (Panicum miliaceum L.). Genes. 2025; 16(7):734. https://doi.org/10.3390/genes16070734

Chicago/Turabian Style

An, Peipei, Tianxiang Liu, Zhijie Shui, Panrong Ren, and Shan Duan. 2025. "Genome-Wide Identification and Analysis of bZIP Transcription Factor Gene Family in Broomcorn Millet (Panicum miliaceum L.)" Genes 16, no. 7: 734. https://doi.org/10.3390/genes16070734

APA Style

An, P., Liu, T., Shui, Z., Ren, P., & Duan, S. (2025). Genome-Wide Identification and Analysis of bZIP Transcription Factor Gene Family in Broomcorn Millet (Panicum miliaceum L.). Genes, 16(7), 734. https://doi.org/10.3390/genes16070734

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
