Transcriptome Profiling of Primary Skin Fibroblasts Reveal Distinct Molecular Features Between PLOD1- and FKBP14-Kyphoscoliotic Ehlers–Danlos Syndrome

by
Pei Jin Lim
1,
Uschi Lindert
1,
Lennart Opitz
2,
Ingrid Hausser
3,
Marianne Rohrbach
1,*,† and
Cecilia Giunta
1,*,†
1
Connective Tissue Unit, Division of Metabolism and Children’s Research Centre, University Children’s Hospital, 8032 Zürich, Switzerland
2
Functional Genomics Center Zurich, University of Zurich/ETH Zurich, Winterthurerstrasse 190, 8057 Zürich, Switzerland
3
Institute of Pathology, Heidelberg University Hospital, 69120 Heidelberg, Germany
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this manuscript.
Genes 2019, 10(7), 517; https://doi.org/10.3390/genes10070517
Received: 27 May 2019 / Revised: 4 July 2019 / Accepted: 4 July 2019 / Published: 8 July 2019
(This article belongs to the Special Issue Molecular Genetics and Pathogenesis of Ehlers–Danlos Syndrome and Related Connective Tissue Disorders)
Browse Figures
Review Reports Versions Notes

Abstract

:
Kyphoscoliotic Ehlers–Danlos Syndrome (kEDS) is a rare genetic heterogeneous disease clinically characterized by congenital muscle hypotonia, kyphoscoliosis, and joint hypermobility. kEDS is caused by biallelic pathogenic variants in either PLOD1 or FKBP14. PLOD1 encodes the lysyl hydroxylase 1 enzyme responsible for hydroxylating lysyl residues in the collagen helix, which undergo glycosylation and form crosslinks in the extracellular matrix thus contributing to collagen fibril strength. FKBP14 encodes a peptidyl-prolyl cis–trans isomerase that catalyzes collagen folding and acts as a chaperone for types III, VI, and X collagen. Despite genetic heterogeneity, affected patients with mutations in either PLOD1 or FKBP14 are clinically indistinguishable. We aim to better understand the pathomechanism of kEDS to characterize distinguishing and overlapping molecular features underlying PLOD1-kEDS and FKBP14-kEDS, and to identify novel molecular targets that may expand treatment strategies. Transcriptome profiling by RNA sequencing of patient-derived skin fibroblasts revealed differential expression of genes encoding extracellular matrix components that are unique between PLOD1-kEDS and FKBP14-kEDS. Furthermore, we identified genes involved in inner ear development, vascular remodeling, endoplasmic reticulum (ER) stress, and protein trafficking that were differentially expressed in patient fibroblasts compared to controls. Overall, our study presents the first transcriptomics data in kEDS revealing distinct molecular features between PLOD1-kEDS and FKBP14-kEDS, and serves as a tool to better understand the disease.

1. Introduction

According to the 2017 revised Nosology of the Ehlers–Danlos syndrome (EDS) [1], kyphoscoliotic EDS (kEDS, OMIM 225400 and 614557) groups two rare autosomal recessive disorders which are clinically indistinguishable, but genetically distinct as they are caused by pathologic biallelic variants in either procollagen-lysine,2-oxoglutarate 5-dioxygenase 1 (PLOD1) or FK506-binding protein 14 (FKBP14). PLOD1 encodes the lysyl hydroxylase 1 (LH1) enzyme, which hydroxylates lysyl residues of Xaa-Lys-Gly tripeptide motif in collagens. Subsequently, the hydroxylated lysyl residues undergo glycosylation with the attachment of galactose or glucosyl-galactose units and after collagen secretion into the extracellular matrix (ECM) they form inter- and intra-molecular crosslinks known to contribute to collagen fibril strength and thus to tissue stability [2]. The lack or loss of function of LH1 leads to underhydroxylation and underglycosylation of lysyl residues in the helical domain of collagen, thereby impairing collagen cross-linking and consequentially causing mechanical instability of the affected connective tissues. Patients deficient in LH1 have an increased ratio of urinary lysyl-pyridinoline to hydroxylysyl-pyridinoline (LP/HP) due to underhydroxylation of collagen lysyl residues. Only recently, pathogenic variants in FKBP14 have been described in a group of patients with a clinical diagnosis of kEDS but a normal LP/HP ratio [3,4]. FKBP14 encodes the endoplasmic reticulum (ER)-resident FKBP22 protein, a 22kDa member of the family of FK506-binding peptidyl-prolyl cis–trans isomerases. FKBP22 catalyzes the cis–trans isomerization of prolyl peptide bonds, which is the rate limiting step in procollagen protein folding due to its abundance in proline residues, and has been shown to catalyze the folding of collagen type III [5]. FKBP22 also functions as a chaperone for collagen types III, VI and X where it is thought to prevent premature interactions between collagen during its assembly in the ER [5].
Despite harboring mutations in two genes with different functions, PLOD1-kEDS and FKBP14-kEDS patients share a common clinical phenotype with major criteria consisting of congenital muscle hypotonia, congenital or early onset kyphoscoliosis, and generalized joint hypermobility; shared minor criteria include skin hyperextensibility, rupture, or aneurysm of medium-sized arteries, easy bruising of skin, and osteopenia or osteoporosis. Gene-specific minor criteria for PLOD1-kEDS include skin fragility, while that of FKBP14-kEDS include congenital hearing impairment [1]. Pronounced inter- and intrafamilial variability of the clinical presentation have been described in both genetic forms of kEDS [3,4]. In the absence of genetic information, collagen type VI-related myopathies which present with severe neonatal hypotonia, delayed motor development, kyphoscoliosis and joint hypermobility [6,7,8] represent the major differential diagnosis to kEDS.
Currently, there is no pharmacological treatment for kEDS and the treatment of manifestations aims to alleviate symptoms and focuses on the musculoskeletal and hearing systems [3,4,9]: physical therapy for muscular hypotonia, bracing of unstable joints, corrective surgeries for kyphoscoliosis and prescription of hearing aids for hearing impairment.
The aim of our study is to better understand the pathomechanism of kEDS and to identify overlapping and distinguishing molecular signatures of PLOD1-kEDS and FKBP14-kEDS. The application of an untargeted general omics approach may serve as a valuable tool to identify novel proteins or pathways involved in the pathogenesis of kEDS that can be pharmacologically targeted to improve the disease symptoms. As a first step towards this goal, by performing RNA sequencing on an in vitro cell culture model of kEDS we obtained and compared the transcriptome profiles of normal control, PLOD1-kEDS and FKBP14-kEDS patients. Furthermore, the transcriptome profiles of kEDS patients were compared to published transcriptomics data of patients with collagen VI-associated myopathies [10].

2. Materials and Methods

2.1. Subjects and Cell Culture

This study was conducted according to the Declaration of Helsinki for Human Rights and approved by Swiss Ethics (KEK-ZH-Nr. 2019-00811) in the presence of a signed informed consent of the patients or their parents.
As part of the diagnostic workup of kEDS, punch biopsies of the skin for electron microscopy investigations and establishment of fibroblast cultures were previously obtained. The biological material was stored in the Biobank of the Division of Metabolism at the Children’s Hospital Zurich. For this study, fibroblasts of three FKBP14-kEDS patients, three PLOD1-kEDS patients and four healthy controls were used (Table S1). Pathological mutations and clinical findings of the patients are recorded in Table 1. Cells were cultured at 37 °C and 5% CO2 in Dulbecco’s Modified Eagle’s Medium (Gibco, 31966-021) supplemented with 10% fetal bovine serum, 100 U/ml penicillin, 100 mg/ml streptomycin, and 0.25 mg/ml Amphotericin B.

2.2. Gene Expression Profiling

Cells were passaged into T75 flasks, fed fresh medium 24 hours after passaging, and RNA was isolated 24 hours later for transcriptome profiling. RNA was harvested using miRNeasy Mini Kit (QIAGEN, 217004) according to the manufacturer’s instructions. RNA quality control was performed on an Agilent 2100 Bioanalyzer with RNA integrity number (RIN) values between 9.6 and 10.0. Poly-A purified libraries were prepared using the TruSeq mRNA sample preparation kit (Illumina, 20020595). RNA sequencing was performed on an Illumina HiSeq 4000 instrument at the Functional Genomics Center Zurich. The raw reads were cleaned by removing adapter sequences, trimming low quality ends, and filtering reads with low quality (phred quality <20). Sequence alignment of the resulting high-quality reads to the human genome (build GRCh38.p10) and quantification of transcript expression was carried out using RNA-Seq by Expectation Maximization (RSEM, version 1.3.0) with Ensembl gene models of release 89. A count-based negative binomial model implemented in the software package edgeR (R-version 3.5.1, edgeR 3.24.2) was applied to detect differentially expressed genes (DEGs). DEGs were defined as genes with p-value <0.05 and log2(fold change) >0.5 or <−0.5. To identify enriched biological processes and cellular components, over-representation enrichment analysis (ORA) using a list of DEGs generated with a more stringent cutoff of p-value <0.01 and gene set enrichment analysis (GSEA) using ranked gene lists were performed with the online toolkit WebGestalt (2017 version) [13,14]. The RNA sequencing data, including raw sequence files for each subject, is available on the European Nucleotide Archive (ENA) and the Gene Expression Omnibus (GEO) database under the accession number PRJEB31335.

2.3. Quantitative RT-PCR for Validation

Candidate genes were selected from the lists of DEGs for validation by quantitative RT-PCR in four independent replicates. RNA was harvested using RNeasy Mini Kit (QIAGEN, 74104) according to manufacturer’s instructions, and reverse transcribed to cDNA using the High-Capacity RNA-to-cDNA Kit (Applied Biosysyems, 4387406). cDNA was diluted in RNase-free water to 3 ng/µl for quantitative RT-PCR using Taqman assays (Table 2) on a 7900HT Fast Real-Time PCR System machine (Applied Biosystems). Fold change in gene expression was calculated by the 2–∆∆Ct method with glyceraldehyde-3-phosphate dehydrogenase (GAPDH) as an endogenous control.

3. Results

3.1. Transcriptome Profiling and Differential Expression Analysis

Transcriptome profiling by RNA sequencing identified 298 DEGs in PLOD1-kEDS patient-derived fibroblasts compared to controls, of which 139 genes were up-regulated and 159 genes were down-regulated in the patients’ cells, as represented in a volcano plot (Figure 1A, Tables S2 and S3). 488 DEGs were identified in FKBP14-kEDS patient-derived fibroblasts compared to controls, of which 309 genes were up-regulated and 179 genes were down-regulated (Figure 1B, Tables S4 and S5). The low numbers of DEGs observed in our datasets may be contributed by heterogeneity in multiple factors such as ethnicity, age of biopsy, and sex of patients. Nevertheless, several genes encoding proteins related to ECM composition, protein trafficking, vasculature development, and inner ear development were identified in the lists of DEGs, which can potentially contribute to the pathogenesis as discussed later in this paper.
To further explore the similarities and differences between PLOD1-kEDS and FKBP14-kEDS patient-derived fibroblasts, we compared DEGs with p < 0.05 and log2 (fold change) >0.5 or <−0.5 in both patient groups, and found 58 overlapping genes (Figure 1C). Of these 58 genes, 37 were up-regulated (Figure 1D) and 18 were down-regulated (Figure 1E) in both PLOD1-kEDS and FKBP14-kEDS compared to controls. Furthermore, from the more stringent list of DEGs with p < 0.01, 11 genes overlapped between PLOD1-kEDS and FKBP14-kEDS fibroblasts (Figure 1F). Of these 11 DEGs, 9 genes were up-regulated (Figure 1G) in both groups, 1 gene was down-regulated (Figure 1H) in both groups, and 1 gene was up-regulated in PLOD1-kEDS but down-regulated in FKBP14-kEDS fibroblasts (further discussed in Figure 2A).

3.2. Gene Ontology and Pathway Analyses

Due to limitations in obtaining patient skin fibroblasts in a rare disease with newly described gene mutations, the sample size in our study was inevitably inadequate to generate a list of DEGs adjusted for false discovery rate (FDR). Instead, using the WebGestalt toolkit, we analyzed the RNA sequencing datasets with two approaches: (i) by setting a more stringent p-value cutoff whereby DEGs with p < 0.01 in PLOD1-kEDS and FKBP14-kEDS patient-derived fibroblasts were used to identify over-represented biological processes and cellular components by ORA and (ii) by performing GSEA in which a list of all detected genes ranked by their average fold change is used to calculate enrichment scores of Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways. Gene ontology terms with an FDR <10% were considered significantly enriched in both approaches.
In the ORA using DEGs with p < 0.01, the significantly enriched biological processes and cellular components are summarized in Table 3; DEGs that contribute to these enriched Gene Ontology (GO) terms are listed in Tables S6 and S7. Notably, genes encoding ECM proteins were enriched in the DEGs in both PLOD1-kEDS and FKBP14-kEDS patient-derived fibroblasts; each patient group was compared to control fibroblasts. However, comparison of DEGs that contributed to over-representation of ECM components demonstrated only one overlapping gene, EFEMP1, which was up-regulated in PLOD1-kEDS and down-regulated in FKBP14-kEDS fibroblasts (Figure 2A). The expression levels of each DEG encoding ECM components in individual control and patient-derived fibroblasts are depicted in a heatmap (Figure 2B). To further investigate the differential expression in ECM-related genes between PLOD1-kEDS and FKBP14-kEDS, we performed ORA of the DEGs between PLOD1-kEDS and FKBP14-kEDS fibroblasts with p-value <0.01 and log2 (fold change) >0.5 or <−0.5 (Table S8) using WebGestalt and observed an enrichment of ECM genes (GO:0005578) with an enrichment ratio of 7.64 and FDR of 6.41 × 10−5. The expression of these ECM genes that are significantly different between PLOD1-kEDS and FKBP14-kEDS are summarized in a heatmap (Figure 2C). Hence, the RNA sequencing datasets revealed distinct ECM signatures between PLOD1-kEDS and FKBP14-kEDS fibroblasts at the transcriptome level.
GSEA of the ranked gene lists from PLOD1-kEDS fibroblasts did not identify significantly enriched KEGG pathways. In contrast, KEGG pathways involved in carbohydrate metabolism, namely fructose and mannose metabolism (Figure 3A) as well as glycolysis and gluconeogenesis (Figure 3B), were positively enriched in FKBP14-kEDS fibroblasts. Furthermore, genes involved in cell cycle (Figure 3C) and DNA replication (Figure 3D) were over-represented by down-regulated genes in FKBP14-kEDS fibroblasts, suggesting alterations in cell proliferation.
The findings from the ORA and GSEA analyses collectively suggests different molecular signatures between PLOD1-kEDS and FKBP14-kEDS.

3.3. Comparison of Transcriptome Profiles between kEDS and Collagen VI-Related Muscular Dystrophies

Due to the overlaps in clinical presentation between collagen VI-related muscular dystrophies (COL6-RD) and kEDS patients, we compared the transcriptome profiles of patient-derived fibroblasts from PLOD1-kEDS and FKBP14-kEDS (DEGs with p < 0.01) with that of COL6-RD patients available through GEO Series accession number GSE103270 [10]. Only one gene, OLFM2, was significantly up-regulated in all three patient groups; EFEMP1 was significantly up-regulated in PLOD1-kEDS and COL6-RD but down-regulated in FKBP14-kEDS (Figure 4A). While the ECM component, which is biologically relevant to disorders of the connective and muscle tissues, was over-represented in the DEGs from all three groups (Table 3 and [10]), comparison of DEGs encoding ECM components also revealed only a few overlapping genes among the three patient groups (Figure 4B). Furthermore, the over-representation of muscle system process in FKBP14-kEDS fibroblasts (GO:0003012, Table 3) prompted us to compare the genes contributing to this GO term in FKBP14-kEDS to the DEGs in COL6-RD fibroblasts. Of the nine genes contributing to the enrichment of muscle system process, only two were significantly differentially regulated in COL6-RD fibroblasts carrying dominant negative (DN) collagen VI mutations; six of these nine genes (three at p < 0.01, three at p < 0.05) were also differentially regulated in PLOD1-kEDS (Figure 4C). These suggest that each disease group have a unique transcriptome profile.

3.4. DEGs with Biological Functions that May Contribute to the Pathogenesis of kEDS

From our transcriptomics analysis, we also identified several DEGs with biological functions that may contribute to the pathogenesis of kEDS. We validated the differential expression of these candidate genes by quantitative RT-PCR (Figure 5). How the encoded products of these genes could contribute to the disease pathology is further discussed under Section 4.1 to Section 4.6.

4. Discussion

kEDS represents a paradigm heterogeneous connective tissue disorder in that genetic defects in two different proteins, LH1 and FKBP22, involved in the biosynthesis of collagens lead to a similar clinical phenotype. As an explanation thereof, we hypothesize that PLOD1 and FKBP14 mutations might lead to similar alterations of the ECM of connective tissue, either by affecting the same molecular pathways, or by converging the different altered pathways to the same target molecules. To answer this question, we have applied an untargeted omics approach to the identification of common and distinct molecular pathways altered in FKBP14-kEDS and PLOD1-kEDS.
Our studies were performed in patient-derived primary skin fibroblasts, which are clinically relevant to connective tissue disorders since they are the major cell type producing ECM proteins, and are relatively easy to obtain via skin biopsies. We do, however, acknowledge that clinical characteristics of kEDS patients extend beyond abnormalities in the skin and that the functions of some DEGs may appear more relevant in other ECM-producing cells, including chondrocytes, osteoblasts, and muscle fibroblasts. Nevertheless, the transcriptomics datasets will help to identify candidate DEGs for functional characterization when the other cell types or animal models eventually become available.
Here, we present the outcome of our investigations by transcriptomics of cultured dermal fibroblasts from individuals with FKBP14-kEDS and PLOD1-kEDS which led to the identification of over-represented biological processes and cellular components. By GSEA, we observed positive enrichment of fructose and mannose metabolism, as well as glycolysis and gluconeogenesis in FKBP14-kEDS fibroblasts. Additionally, cell cycle and DNA replication were negatively enriched in FKBP14-kEDS fibroblasts, suggesting that cells deficient in FKBP22 may undergo a metabolic switch and alteration in cell proliferation. In vitro studies using mammary epithelial cells have shown that changes in the density of the ECM lead to alterations in glucose metabolism [15]. In another study, up-regulation of glycolysis was observed in healthy skin from the footpad of mice with a dense ECM compared to the abdominal skin with a thinner ECM; glycolysis was also up-regulated in fibrotic skin compared to healthy skin [16]. Reciprocally, perturbations in metabolism can cause alterations in the ECM. In particular, gene and protein expression of ECM components are down-regulated upon suppression of glycolysis [16]. As such, it will be interesting to investigate whether the abnormal deposition of ECM proteins by FKBP22-deficient cells as previously shown [4] cause metabolic changes which can eventually alter cellular bioenergetics and proliferation, or whether alterations in metabolism affects the formation of the ECM by the fibroblasts.
From the transcriptome profiling analysis, we also observed differential expression of several genes encoding products with biological functions that may contribute to the pathogenesis of kEDS (Figure 5). In the following sections, we discuss how the encoded products of these DEGs could contribute to the disease pathology.

4.1. ECM Components

Gene ontology analysis showed significant enrichment of the ECM by DEGs in both PLOD1-kEDS and FKBP14-kEDS. We validated the up-regulation of ELN (encoding elastin), POSTN (encoding periostin) and WNT4 (encoding Wnt family member 4) specifically in PLOD1-kEDS (Figure 5A).
Elastin, like collagens, is a structural component of the ECM that is rich in glycine and proline. However, elastin adopts random coil conformations rather than a triple helix structure that give rise to its stretchable properties.
Periostin is preferentially expressed in connective tissues under constant mechanical stress. It accelerates collagen cross-linking through promoting the proteolytic activation of lysyl oxidase (LOX) by bone morphogenetic protein-1 (BMP-1) and serves as a scaffold for collagen and BMP-1 [17]. Periostin also facilitates the formation of ECM meshwork by interacting with other ECM components, including fibronectin and tenascin-C [18]. The protective role of periostin is demonstrated by its induction upon skin injury to promote wound healing [19,20,21]. Overexpression of periostin has also been described in hypertrophic scar and keloid formation [22] and linked to the pathogenesis of skin fibrosis in systemic sclerosis [23,24]. In contrast, despite elevated POSTN expression in the skin fibroblasts (Table 1 and Figure 5A), PLOD1-kEDS patients present with poor wound healing and atrophic scarring. A plausible explanation for this observation is the under-hydroxylation of lysine residues in the collagen helical domain due to LH1 deficiency, which impairs collagen cross-linking and fibril assembly, and cannot be compensated for by the activation of LOX by periostin.
The physiological role of WNT4 has been described in the formation of synovial joints [25] and neuromuscular junctions [26]. Up-regulation of Wnt4 expression during wound healing was demonstrated in a mouse model [27], which could facilitate wound closure by promoting cell migration [28].
Notably, the transcript levels of ELN, POSTN and WNT4 can be up-regulated in response to transforming growth factor-beta1 (TGF-β1) stimulation [29,30,31]. Hence, it remains to be elucidated whether the elevated expression of ELN, POSTN and WNT4 is a consequence of enhanced TGF-β signaling in PLOD1-kEDS patient fibroblasts, and if so, via which mechanism(s) TGF-β signaling is enhanced.
The down-regulation of COL15A1 (encoding collagen type XV alpha 1 chain) in FKBP14-kEDS was confirmed by quantitative RT-PCR (Figure 5B). Type XV collagen is present widely in the basement membrane zones of cardiac and skeletal myocytes [32]. Studies performed in Col15a1-knockout mice demonstrated that deficiency in type XV collagen led to progressive skeletal muscle degeneration and variation in muscle fiber size starting from 13 weeks of age, and increased susceptibility to exercise-induced muscle injury [33]. However, the absence of these abnormal muscular phenotypes in newborn mice suggest that suppressed COL15A1 expression unlikely explains for the presentation of congenital muscle hypotonia in FKBP14-kEDS patients. Nevertheless, rescuing COL15A1 expression could be a potential therapeutic target to prevent worsening of the muscular phenotype with age in FKBP14-kEDS patients.
Interestingly, EFEMP1 is down-regulated in FKBP14-kEDS patient-derived fibroblasts (Figure 5C). EFEMP1 encodes the EGF-containing fibulin-like extracellular matrix protein, also known as fibulin-3. It is noteworthy that 47% of the FKBP14-kEDS patients described [3,4] developed inguinal or umbilical hernias, a phenotype that is also observed in Efemp1-knockout mice. Moreover, Efemp1-knockout mice have less elastic fibers in the dermis, which also appear more fragmented than elastic fibers in wildtype mice [34]. Therefore, we examined electron micrographs of skin biopsies taken from a control, a PLOD1-kEDS patient and two FKBP14-kEDS patients and observed fragmentation of elastic fibers in FKBP14-kEDS patients but not in the PLOD1-kEDS patient (Figure 6). Furthermore, a reduced incorporation of elastin into the network of elastic fibers in FKBP14-kEDS patients was observed. These observations, in concordance with the observations by McLaughlin and co-workers in Efemp1-knockout mice, suggest that fibulin-3 contributes to the maintenance of ECM integrity and particularly in the formation of elastic fibers. We are currently investigating whether there is indeed a reduction in fibulin-3 protein secretion by FKBP14-kEDS fibroblasts in vitro, and whether addition of recombinant fibulin-3 protein can overcome the deficiency and facilitate the formation of elastic fibers in an in vitro model.
Contrary to EFEMP1 down-regulation in FKBP14-kEDS, EFEMP1 was up-regulated in PLOD1-kEDS. The overexpression of EFEMP1 in a chondrogenic cell line in vitro led to suppressed chondrocyte differentiation and dampened expression of aggrecan and types II and X collagen [35]. Thus, whether elevated expression of EFEMP1 contributes to the pathogenesis of PLOD1-kEDS via altering cartilage development remains to be explored, despite the absence of reports on cartilage growth-plate pathologies in both human patients and Plod1-knockout mice.

4.2. Inner Ear Development

Sensorineural hearing loss has been reported in 73% of FKBP14-kEDS patients [3,4], but not in PLOD1-kEDS patients. The transcriptome profiles showed an elevated expression of ALDH1A3 encoding aldehyde dehydrogenase 1 family member A3 enzyme in FKBP14-kEDS patient-derived fibroblasts only, which was confirmed by quantitative RT-PCR (Figure 5D). During normal inner ear canal formation, Aldh1a3 is repressed by the chromatin remodeler Chd7. Deficiency in Chd7 causes abnormally high levels of Aldh1a3 expression and inner ear malformation; inner ear development is rescued by the loss of Aldh1a3 expression in mice deficient in Chd7 [36]. Hence, we postulate a molecular link between enhanced ALDH1A3 expression and hearing loss in FKBP14-kEDS patients that warrants further investigation.

4.3. Vasculature Integrity

We sought to identify DEGs in PLOD1-kEDS and FKBP14-kEDS that are involved in modulating the vasculature, since rupture or aneurysm of medium-sized arteries have been described in both PLOD1-kEDS [12,37] and FKBP14-kEDS [3,38,39] and serves as a minor criteria in the diagnosis of kEDS [1]. We observed an up-regulation of OLFM2 expression (encoding olfactomedin 2) in both PLOD1-kEDS and FKBP14-kEDS patient-derived fibroblasts (Figure 5E). OLFM2 is also significantly up-regulated in COL6-RD patient-derived fibroblast [10], although vascular complications involving medium-sized arteries have not been reported in COL6-RD to our knowledge; instead, fenestration and narrow lumens in capillaries have been described in some cases of Ulrich congenital muscular dystrophy [40]. Olfm2 is up-regulated in balloon-injured arteries and involved in smooth muscle cell phenotypic modulation and vascular remodeling. Olfm2-deficient mice are more protected against injury-induced suppression of smooth muscle cell markers and neointimal hyperplasia [41], suggesting that enhanced expression of OLFM2 may correlate with poorer vascular phenotypes. Notably, OLFM2 expression was not significantly altered in fibroblasts of vascular EDS patients [42]. Hence, whether elevated OLFM2 expression contributes to the causation and/or severity of vascular complications in kEDS remains an interesting topic to be explored. The up-regulation of OLFM2 in PLOD1-kEDS, FKBP14-kEDS, and COL6-RD also warrants further investigation into whether olfactomedin 2 plays a physiological role in skeletal muscles, which has not yet been described.
In addition, we noted that TM4SF1 expression was down-regulated in FKBP14-kEDS and up-regulated in PLOD1-kEDS (Figure 5E). TM4SF1 encodes the transmembrane-4-L-six-family-1 protein, also known as L6 cell surface antigen, and is highly expressed in the vascular endothelium. In a previous study, knockdown of TM4SF1 in human umbilical vein endothelial cells (HUVEC cell line) resulted in a senescence phenotype and poor migration in a wound healing assay in vitro. Moreover, the authors showed that the angiogenesis inducer Vascular Endothelial Growth Factor A (VEGF-A) enhanced Tm4sf1 expression in vivo in mice, while knockdown of Tm4sf1 blunted the angiogenic effect of VEGF-A, thus demonstrating the importance of TM4SF1 in vessel maturation [43]. As such, it would be interesting to determine if the dysregulation of TM4SF1 expression contributes to vascular fragility in kEDS.

4.4. Unfolded Protein Response (UPR)

Another striking observation described in the first cohort of FKBP14-kEDS patients is the enlargement of ER in skin biopsies [4]. This dilatation of ER is thought to arise from the accumulation of misfolded proteins, in particular of collagens since the rate limiting step in collagen protein folding involves cis–trans isomerization of the prolyl peptide bonds which is catalyzed by FKBP22. ER dilatation coupled with the induction of UPR involving binding immunoglobulin protein (BiP) activation has been demonstrated in several models of connective tissue disorders, including (i) the Osteogenesis Imperfecta (OI) Aga2 mouse model harboring Col1a1 mutations which ablates the conserved C-terminal cysteine C244 residue and introduces additional amino acids into the C-terminal propeptide [44], (ii) in skin fibroblasts isolated from OI patients carrying COL1A1 mutations in the C-terminal propeptide domain [45], and (iii) in engineered cells with COL10A1 mutations modelling Schmid metaphyseal chondrodysplasia [46]. However, the transcriptome profiles and gene ontology analyses revealed that genes associated with classical ER associated degradation and UPR, including CANX, CALR, HSPA5, ATF4, and DDIT3, were not differentially expressed in FKBP14-kEDS patient-derived fibroblasts; the same trend was observed in PLOD1-kEDS patient-derived fibroblasts (Table S9). The absence of classical UPR activation was also previously observed in other connective tissue disorders, such as in OI patients with mutations in COL1A1 disrupting triple helix formation [45] and in vascular EDS patients carrying COL3A1 mutations [42].
Nevertheless, one of the most up-regulated genes in FKBP14-kEDS patient-derived fibroblasts was SCAMP5 encoding the secretory carrier-associated membrane protein 5, which was also induced in PLOD1-kEDS patient-derived fibroblasts albeit at a smaller magnitude (Figure 5F). SCAMP5 expression can be rapidly induced by autophagic stimulation under the control of the master autophagy transcriptional regulator transcription factor EB (TFEB), and its elevated expression was previously described in the striatum of Huntington disease patients [47,48]. Interestingly, SCAMP5 enhances the aggregation of mutant huntingtin by impairing endocytosis [47], yet promotes Golgi fragmentation and unconventional secretion of α-synuclein via exosomes [48]. This warrants for future exploration into the role of SCAMP5 in kEDS patient-derived fibroblasts in relation to ER stress, autophagy and whether it promotes the retention or non-classical secretion of misfolded collagen proteins.

4.5. Bone Remodeling

Osteopenia or osteoporosis is a minor criteria in the diagnosis of kEDS [1], and occurrence of fractures were described in 13% of FKBP14-kEDS [3,4]. We observed elevated expression of FGF11, which encodes the intracellular fibroblast growth factor 11, in both PLOD1-kEDS and FKBP14-kEDS (Figure 5G). Bone resorption by osteoclasts is mediated by hypoxic conditions which lead to overexpression of FGF11 and knockdown of FGF11 lead to inhibition of bone resorption by osteoclasts in response to hypoxic stimulation [49]. Furthermore, FGF11 protein is strongly expressed in osteoclasts in osteolytic diseases such as rheumatoid synovium and giant cell tumor of bone [49], suggesting that it plays a role in pathological bone resorption. Thus, it will be interesting to determine if FGF11 levels are also elevated in the osteoclasts of kEDS patients, and whether FGF11 is a driver of the bone phenotype in kEDS.

4.6. Others

The expression of PLXNA2 is down-regulated in PLOD1-kEDS and FKBP14-kEDS patient fibroblasts (Figure 5H). PLXNA2 encodes the transmembrane protein plexin-A2, a member of the plexin-A family of semaphorin co-receptors, and is demonstrated to be involved in axon guidance [50]. However, nerve conduction appeared normal in FKBP14-kEDS patients [3,4] and PLOD1-kEDS patients [12,51]. Nevertheless, the suppression of PLXNA2 expression was of a higher magnitude in FKBP14-kEDS patients, in which sensorineural hearing loss has been reported. Hence, whether diminished PLXNA2 expression has a causal effect on sensorineural hearing impairment in FKBP14-kEDS patients requires further investigation.
In another study, knockdown of Plxna2 blocked osteoblast differentiation and mineralization in vitro, highlighting the pro-osteogenic role of Plxna2. Thus, it may be interesting to investigate whether PLXNA2 expression is also suppressed in mesenchymal cells of PLOD1-kEDS and FKBP14-kEDS patients, which may hinder osteoblast differentiation and bone remodeling.
The expression of PLEKHA2 is diminished in both PLOD1-kEDS and FKBP14-kEDS patient fibroblasts compared to controls (Figure 5I). PLEKHA2 expression in dermal fibroblasts of patients with COL6 dominant negative mutations, where mutant type VI collagen chains are incorporated into the collagen fibers, is also significantly lower [10]. PLEKHA2 encodes pleckstrin homology (PH) domain-containing family A member 2, which is also known as Tandem PH domain-containing protein 2 (TAPP2). TAPP2 is recruited to the plasma membrane via its interaction with phosphatidylinositol-3,4-bisphosphate (PI(3,4)P2) [52,53]. The physiological role of TAPP2 has been well characterized in B-cells, where mice carrying knock-in inactivating mutations of TAPP2 that disrupt its interaction with PI(3,4)P2 develop chronic germinal centers, hyperactive B-cells with higher survival and produce more autoantibodies that worsened with age [54]. Autoimmune phenotypes have, however, not yet been characterized in kEDS patients. Additionally, TAPP2 has also been shown to facilitate the migration of esophageal squamous cell carcinoma cells [55] and malignant B-cells [56] via cytoskeleton reorganization. Hence, further studies on the role of TAPP2 in fibroblast survival, activity, and migration may shed light on its relation to the pathogenesis of kEDS.

5. Conclusions

We have performed the first transcriptomics studies on kEDS which revealed distinct transcriptome signatures between PLOD1-kEDS and FKBP14-kEDS despite clinical similarities. ECM components are enriched by DEGs in both PLOD1-kEDS and FKBP14-kEDS, although the genes are unique to each genetic form of kEDS. We aim to validate the candidate DEGs on more patient samples when they become available to strengthen the findings reported here. Proteomics analysis of the ECM component and functional characterization of candidate genes described are currently ongoing and these promise to deepen our understanding of the pathomechanism(s) underlying kEDS.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/10/7/517/s1, Table S1: Age, sex, and origin of controls and patients, Table S2: List of DEGs that are up-regulated in PLOD1-kEDS over controls, Table S3: List of DEGs that are down-regulated in PLOD1-kEDS over controls, Table S4: List of DEGs that are up-regulated in FKBP14-kEDS over controls, Table S5: List of DEGs that are down-regulated in FKBP14-kEDS over controls, Table S6: DEGs contributing to over-representation of gene ontology terms in PLOD1-kEDS patient-derived fibroblasts, Table S7: DEGs contributing to over-representation of gene ontology terms in FKBP14-kEDS patient-derived fibroblasts, Table S8: List of DEGs in PLOD1-kEDS over FKBP14-kEDS (p-value <0.01 and log2 ratio >0.5 or <−0.5), Table S9: Genes involved in ER associated degradation and unfolded protein response.

Author Contributions

Conceptualization: C.G., M.R., U.L., L.O., P.J.L.; data analysis: U.L., P.J.L., L.O., I.H.; manuscript preparation: P.J.L.; manuscript reviewing: C.G., M.R., L.O.

Funding

This work has been supported by the Swiss National Science Foundation Grant No. 31003A-173183 to CG and MR, the Vontobel Foundation and the Armin & Jeannine Kurz Foundation.

Acknowledgments

The authors wish to thank Mike Pope (Ehlers–Danlos Syndrome National Diagnostic Service, London), Matthias Baumann, Christine Fauth and Johannes Zschocke (Medical University of Innsbruck) for sharing patient’s material, and Daisy Rymen (Children’s Hospital Zurich) for her expert opinion on ER associated degradation and UPR, and for critically evaluating the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Malfait, F.; Francomano, C.; Byers, P.; Belmont, J.; Berglund, B.; Black, J.; Bloom, L.; Bowen, J.M.; Brady, A.F.; Burrows, N.P.; et al. The 2017 international classification of the Ehlers-Danlos syndromes. Am. J. Med. Genet. Part C Semin. Med. Genet. 2017, 175, 8–26. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Kivirikko, K.I.; Myllylä, R. Posttranslational Enzymes in the Biosynthesis of Collagen: Intracellular Enzymes. Methods Enzymol. 1982, 82, 245–304. [Google Scholar] [PubMed]
  3. Giunta, C.; Baumann, M.; Fauth, C.; Lindert, U.; Abdalla, E.M.; Brady, A.F.; Collins, J.; Dastgir, J.; Donkervoort, S.; Ghali, N.; et al. A cohort of 17 patients with kyphoscoliotic Ehlers-Danlos syndrome caused by biallelic mutations in FKBP14: Expansion of the clinical and mutational spectrum and description of the natural history. Genet. Med. 2018, 20, 42–54. [Google Scholar] [CrossRef] [PubMed]
  4. Baumann, M.; Giunta, C.; Krabichler, B.; Rüschendorf, F.; Zoppi, N.; Colombi, M.; Bittner, R.E.; Quijano-Roy, S.; Muntoni, F.; Cirak, S.; et al. Mutations in FKBP14 cause a variant of Ehlers-Danlos syndrome with progressive kyphoscoliosis, myopathy, and hearing loss. Am. J. Hum. Genet. 2012, 90, 201–216. [Google Scholar] [CrossRef]
  5. Ishikawa, Y.; Bächinger, H.P. A substrate preference for the rough endoplasmic reticulum resident protein FKBP22 during collagen biosynthesis. J. Biol. Chem. 2014, 289, 18189–18201. [Google Scholar] [CrossRef]
  6. Bönnemann, C.G. The collagen VI-related myopathies: Muscle meets its matrix. Nat. Rev. Neurol. 2011, 7, 379–390. [Google Scholar] [CrossRef]
  7. Kirschner, J.; Hausser, I.; Zou, Y.; Schreiber, G.; Christen, H.J.; Brown, S.C.; Anton-Lamprecht, I.; Muntoni, F.; Hanefeld, F.; Bönnemann, C.G. Ullrich congenital muscular dystrophy: Connective tissue abnormalities in the skin support overlap with Ehlers-Danlos syndromes. Am. J. Med. Genet. 2005, 132, 296–301. [Google Scholar] [CrossRef]
  8. Yiş, U.; Dirik, E.; Chambaz, C.; Steinmann, B.; Giunta, C. Differential diagnosis of muscular hypotonia in infants: The kyphoscoliotic type of Ehlers-Danlos syndrome (EDS VI). Neuromuscul. Disord. 2008, 18, 210–214. [Google Scholar] [CrossRef]
  9. Giunta, C.; Rohrbach, M.; Fauth, C.; Baumann, M. FKBP14-Kyphoscoliotic Ehlers-Danlos Syndrome; GeneReviews; Adam, M., Ardinger, H., Pagon, R., Eds.; University of Washington: Seattle, WA, USA, 2019. [Google Scholar]
  10. Butterfield, R.J.; Dunn, D.M.; Hu, Y.; Johnson, K.; Bönnemann, C.G.; Weiss, R.B. Transcriptome profiling identifies regulators of pathogenesis in collagen VI related muscular dystrophy. PLoS ONE 2017, 12, e0189664. [Google Scholar] [CrossRef]
  11. Giunta, C.; Randolph, A.; Steinmann, B. Mutation analysis of the PLOD1 gene: An efficient multistep approach to the molecular diagnosis of the kyphoscoliotic type of Ehlers-Danlos syndrome (EDS VIA). Mol. Genet. Metab. 2005, 86, 269–276. [Google Scholar] [CrossRef]
  12. Rohrbach, M.; Vandersteen, A.; Yi, U.; Serdaroglu, G.; Ataman, E.; Chopra, M.; Garcia, S.; Jones, K.; Kariminejad, A.; Kraenzlin, M.; et al. Phenotypic variability of the kyphoscoliotic type of Ehlers-Danlos syndrome (EDS VIA): Clinical, molecular and biochemical delineation. Orphanet J. Rare Dis. 2011, 6, 46. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, J.; Vasaikar, S.; Shi, Z.; Greer, M.; Zhang, B. WebGestalt 2017: A more comprehensive, powerful, flexible and interactive gene set enrichment analysis toolkit. Nucleic Acids Res. 2017, 45, W130–W137. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, B.; Kirov, S.; Snoddy, J. WebGestalt: An integrated system for exploring gene sets in various biological contexts. Nucleic Acids Res. 2005, 33, W741–W748. [Google Scholar] [CrossRef] [PubMed]
  15. Morris, B.A.; Burkel, B.; Ponik, S.M.; Fan, J.; Condeelis, J.S.; Aguire-Ghiso, J.A.; Castracane, J.; Denu, J.M.; Keely, P.J. Collagen Matrix Density Drives the Metabolic Shift in Breast Cancer Cells. EBioMedicine 2016, 13, 146–156. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Zhao, X.; Psarianos, P.; Ghoraie, L.S.; Yip, K.; Goldstein, D.; Gilbert, R.; Witterick, I.; Pang, H.; Hussain, A.; Lee, J.H.; et al. Metabolic regulation of dermal fibroblasts contributes to skin extracellular matrix homeostasis and fibrosis. Nat. Metab. 2019, 1, 147–157. [Google Scholar] [CrossRef]
  17. Maruhashi, T.; Kii, I.; Saito, M.; Kudo, A. Interaction between periostin and BMP-1 promotes proteolytic activation of lysyl oxidase. J. Biol. Chem. 2010, 285, 13294–13303. [Google Scholar] [CrossRef]
  18. Kii, I.; Nishiyama, T.; Li, M.; Matsumoto, K.I.; Saito, M.; Amizuka, N.; Kudo, A. Incorporation of tenascin-C into the extracellular matrix by periostin underlies an extracellular meshwork architecture. J. Biol. Chem. 2010, 285, 2028–2039. [Google Scholar] [CrossRef]
  19. Nishiyama, T.; Kii, I.; Kashima, T.G.; Kikuchi, Y.; Ohazama, A.; Shimazaki, M.; Fukayama, M.; Kudo, A. Delayed re-epithelialization in periostin-deficient mice during cutaneous wound healing. PLoS ONE 2011, 6, e18410. [Google Scholar] [CrossRef]
  20. Elliott, C.G.; Wang, J.; Guo, X.; Xu, S.-W.; Eastwood, M.; Guan, J.; Leask, A.; Conway, S.J.; Hamilton, D.W. Periostin modulates myofibroblast differentiation during full-thickness cutaneous wound repair. J. Cell Sci. 2012, 125, 121–132. [Google Scholar] [CrossRef][Green Version]
  21. Ontsuka, K.; Kotobuki, Y.; Shiraishi, H.; Serada, S.; Ohta, S.; Tanemura, A.; Yang, L.; Fujimoto, M.; Arima, K.; Suzuki, S.; et al. Periostin, a matricellular protein, accelerates cutaneous wound repair by activating dermal fibroblasts. Exp. Dermatol. 2012, 21, 331–336. [Google Scholar] [CrossRef]
  22. Zhou, H.M.; Wang, J.; Elliott, C.; Wen, W.; Hamilton, D.W.; Conway, S.J. Spatiotemporal expression of periostin during skin development and incisional wound healing: Lessons for human fibrotic scar formation. J. Cell Commun. Signal. 2010, 4, 99–107. [Google Scholar] [CrossRef] [PubMed]
  23. Yang, L.; Serada, S.; Fujimoto, M.; Terao, M.; Kotobuki, Y.; Kitaba, S.; Matsui, S.; Kudo, A.; Naka, T.; Murota, H.; et al. Periostin facilitates skin sclerosis via PI3K/Akt dependent mechanism in a mouse model of scleroderma. PLoS ONE 2012, 7, e41994. [Google Scholar] [CrossRef] [PubMed]
  24. Yamaguchi, Y.; Ono, J.; Masuoka, M.; Ohta, S.; Izuhara, K.; Ikezawa, Z.; Aihara, M.; Takahashi, K. Serum periostin levels are correlated with progressive skin sclerosis in patients with systemic sclerosis. Br. J. Dermatol. 2013, 168, 717–725. [Google Scholar] [CrossRef] [PubMed]
  25. Guo, X.; Day, T.F.; Jiang, X.; Garrett-Beal, L.; Topol, L.; Yang, Y. Wnt/β-catenin signaling is sufficient and necessary for synovial joint formation. Genes Dev. 2004, 18, 2404–2417. [Google Scholar] [CrossRef] [PubMed]
  26. Strochlic, L.; Falk, J.; Goillot, E.; Sigoillot, S.; Bourgeois, F.; Delers, P.; Rouvière, J.; Swain, A.; Castellani, V.; Schaeffer, L.; et al. Wnt4 participates in the formation of vertebrate neuromuscular junction. PLoS ONE 2012, 7, e29976. [Google Scholar] [CrossRef] [PubMed]
  27. Okuse, T.; Chiba, T.; Katsuumi, I.; Imai, K. Differential expression and localization of WNTs in an animal model of skin wound healing. Wound Repair Regen. 2005, 13, 491–497. [Google Scholar] [CrossRef] [PubMed]
  28. Prunskaite-Hyyryläinen, R.; Skovorodkin, I.; Xu, Q.; Miinalainen, I.; Shan, J.; Vainio, S.J. Wnt4 coordinates directional cell migration and extension of the müllerian duct essential for ontogenesis of the female reproductive tract. Hum. Mol. Genet. 2015, 25, 1059–1073. [Google Scholar] [CrossRef] [PubMed]
  29. Kucich, U.; Rosenbloom, J.C.; Abrams, W.R.; Rosenbloom, J. Transforming growth factor-β stabilizes elastin mRNA by a pathway requiring active smads, protein kinase c-δ, and p38. Am. J. Respir. Cell Mol. Biol. 2002, 26, 183–188. [Google Scholar] [CrossRef]
  30. Colwell, A.S.; Krummel, T.M.; Longaker, M.T.; Lorenz, H.P. Wnt-4 expression is increased in fibroblasts after TGF-beta1 stimulation and during fetal and postnatal wound repair. Plast. Reconstr. Surg. 2006, 117, 2297–2301. [Google Scholar] [CrossRef]
  31. Chen, G.; Nakamura, I.; Dhanasekaran, R.; Iguchi, E.; Tolosa, E.J.; Romecin, P.A.; Vera, R.E.; Almada, L.L.; Miamen, A.G.; Chaiteerakij, R.; et al. Transcriptional Induction of Periostin by a Sulfatase 2-TGFb1-SMAD Signaling Axis Mediates Tumor Angiogenesis in Hepatocellular Carcinoma. Cancer Res. 2017, 77, 632–645. [Google Scholar] [CrossRef]
  32. Muona, A.; Eklund, L.; Väisänen, T.; Pihlajaniemi, T. Developmentally regulated expression of type XV collagen correlates with abnormalities in Col15a1-/-mice. Matrix Biol. 2002, 21, 89–102. [Google Scholar] [CrossRef]
  33. Eklund, L. Lack of type XV collagen causes a skeletal myopathy and cardiovascular defects in mice. Proc. Natl. Acad. Sci. USA 2001, 98, 1194–1199. [Google Scholar] [CrossRef]
  34. McLaughlin, P.J.; Bakall, B.; Choi, J.; Liu, Z.; Sasaki, T.; Davis, E.C.; Marmorstein, A.D.; Marmorstein, L.Y. Lack of fibulin-3 causes early aging and herniation, but not macular degeneration in mice. Hum. Mol. Genet. 2007, 16, 3059–3070. [Google Scholar] [CrossRef] [PubMed]
  35. Wakabayashi, T.; Matsumine, A.; Nakazora, S.; Hasegawa, M.; Iino, T.; Ota, H.; Sonoda, H.; Sudo, A.; Uchida, A. Fibulin-3 negatively regulates chondrocyte differentiation. Biochem. Biophys. Res. Commun. 2010, 391, 1116–1121. [Google Scholar] [CrossRef] [PubMed]
  36. Yao, H.; Hill, S.F.; Skidmore, J.M.; Sperry, E.D.; Swiderski, D.L.; Sanchez, G.J.; Bartels, C.F.; Raphael, Y.; Scacheri, P.C.; Iwase, S.; et al. CHD7 represses the retinoic acid synthesis enzyme ALDH1A3 during inner ear development. JCI Insight 2018, 3, 97440. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Gok, E.; Goksel, O.S.; Alpagut, U.; Dayioglu, E. Spontaneous brachial pseudo-aneurysm in a 12-year-old with kyphoscoliosis-type ehlers-danlos syndrome. Eur. J. Vasc. Endovasc. Surg. 2012, 44, 482–484. [Google Scholar] [CrossRef]
  38. Murray, M.L.; Yang, M.; Fauth, C.; Byers, P.H. FKBP14-related Ehlers-Danlos syndrome: Expansion of the phenotype to include vascular complications. Am. J. Med. Genet. Part A 2014, 164, 1750–1755. [Google Scholar] [CrossRef]
  39. Dordoni, C.; Ciaccio, C.; Venturini, M.; Calzavara-Pinton, P.; Ritelli, M.; Colombi, M. Further delineation of FKBP14-related Ehlers-Danlos syndrome: A patient with early vascular complications and non-progressive kyphoscoliosis, and literature review. Am. J. Med. Genet. Part A 2016, 170, 2031–2038. [Google Scholar] [CrossRef]
  40. Niiyama, T.; Higuchi, I.; Hashiguchi, T.; Suehara, M.; Uchida, Y.; Horikiri, T.; Shiraishi, T.; Saitou, A.; Hu, J.; Nakagawa, M.; et al. Capillary changes in skeletal muscle of patients with Ullrich’s disease with collagen VI deficiency. Acta Neuropathol. 2003, 106, 137–142. [Google Scholar] [CrossRef]
  41. Shi, N.; Li, C.X.; Cui, X.B.; Tomarev, S.I.; Chen, S.Y. Olfactomedin 2 Regulates Smooth Muscle Phenotypic Modulation and Vascular Remodeling Through Mediating Runt-Related Transcription Factor 2 Binding to Serum Response Factor. Arterioscler. Thromb. Vasc. Biol. 2017, 37, 446–454. [Google Scholar] [CrossRef][Green Version]
  42. Chiarelli, N.; Carini, G.; Zoppi, N.; Ritelli, M.; Colombi, M. Transcriptome analysis of skin fibroblasts with dominant negative COL3A1 mutations provides molecular insights into the etiopathology of vascular Ehlers-Danlos syndrome. PLoS ONE 2018, 13, 1–24. [Google Scholar] [CrossRef] [PubMed]
  43. Shih, S.C.; Zukauskas, A.; Li, D.; Liu, G.; Ang, L.H.; Nagy, J.A.; Brown, L.F.; Dvorak, H.F. The l6 protein TM4SF1 is critical for endothelial cell function and tumor angiogenesis. Cancer Res. 2009, 69, 3272–3277. [Google Scholar] [CrossRef]
  44. Lisse, T.S.; Thiele, F.; Fuchs, H.; Hans, W.; Przemeck, G.K.H.; Abe, K.; Rathkolb, B.; Quintanilla-Martinez, L.; Hoelzlwimmer, G.; Helfrich, M.; et al. ER stress-mediated apoptosis in a new mouse model of Osteogenesis imperfecta. PLoS Genet. 2008, 4, e7. [Google Scholar] [CrossRef] [PubMed]
  45. Chessler, S.D.; Byers, P.H. BiP binds type I procollagen pro?? chains with mutations in the carboxyl-terminal propeptide synthesized by cells from patients with osteogenesis imperfecta. J. Biol. Chem. 1993, 268, 18226–18233. [Google Scholar] [PubMed]
  46. Wilsoni, R.; Freddi, S.; Chan, D.; Cheah, K.S.E.; Bateman, J.F. Misfolding of collagen X chains harboring schmid metaphyseal chondrodysplasia mutations results in aberrant disulfide bond formation, intracellular retention, and activation of the unfolded protein response. J. Biol. Chem. 2005, 280, 15544–15552. [Google Scholar] [CrossRef] [PubMed]
  47. Noh, J.Y.; Lee, H.; Song, S.; Kim, N.S.; Im, W.; Kim, M.; Seo, H.; Chung, C.W.; Chang, J.W.; Ferrante, R.J.; et al. SCAMP5 links endoplasmic reticulum stress to the accumulation of expanded polyglutamine protein aggregates via endocytosis inhibition. J. Biol. Chem. 2009, 284, 11318–11325. [Google Scholar] [CrossRef] [PubMed]
  48. Yang, Y.; Qin, M.; Bao, P.; Xu, W.; Xu, J. Secretory carrier membrane protein 5 is an autophagy inhibitor that promotes the secretion of α-synuclein via exosome. PLoS ONE 2017, 12, e0180892. [Google Scholar] [CrossRef]
  49. Knowles, H.J. Hypoxia-Induced Fibroblast Growth Factor 11 Stimulates Osteoclast-Mediated Resorption of Bone. Calcif. Tissue Int. 2017, 100, 382–391. [Google Scholar] [CrossRef][Green Version]
  50. Mitsogiannis, M.D.; Little, G.E.; Mitchell, K.J. Semaphorin-Plexin signaling influences early ventral telencephalic development and thalamocortical axon guidance. Neural Dev. 2017, 12, 6. [Google Scholar] [CrossRef]
  51. Kariminejad, A.; Bozorgmehr, B.; Khatami, A.; Kariminejad, M.H.; Giunta, C.; Steinmann, B. Ehlers-Danlos Syndrome Type VI in a 17-Year-Old Iranian Boy with Severe Muscular Weakness—A Diagnostic Challenge? Iran. J. Pediatr. 2010, 20, 358–362. [Google Scholar]
  52. Marshall, A.J.; Krahn, A.K.; Ma, K.; Duronio, V.; Hou, S. TAPP1 and TAPP2 are targets of phosphatidylinositol 3-kinase signaling in B-cells: Sustained plasma membrane recruitment triggered by the B-cell antigen receptor. Mol. Cell. Biol. 2002, 22, 5479–5491. [Google Scholar] [CrossRef] [PubMed]
  53. Kimber, W.A.; Trinkle-Mulcahy, L.; Cheung, P.C.F.; Deak, M.; Marsden, L.J.; Kieloch, A.; Watt, S.; Javier, R.T.; Gray, A.; Downes, C.P.; et al. Evidence that the tandem-pleckstrin-homology-domain-containing protein TAPP1 interacts with Ptd(3,4)P2 and the multi-PDZ-domain-containing protein MUPP1 in vivo. Biochem. J. 2002, 361, 525–536. [Google Scholar] [CrossRef] [PubMed]
  54. Jayachandran, N.; Landego, I.; Hou, S.; Alessi, D.R.; Marshall, A.J. B-cell-intrinsic function of TAPP adaptors in controlling germinal center responses and autoantibody production in mice. Eur. J. Immunol. 2017, 47, 280–290. [Google Scholar] [CrossRef] [PubMed]
  55. Liu, F.; Ye, F.; Guan, Z.; Zhou, Y.; Ji, F.; Zhang, Q.; Zhang, J.; Zhang, T.; Lu, S. The down-regulation of TAPP2 inhibits the migration of esophageal squamous cell carcinoma and predicts favorable outcome. Pathol. Res. Pract. 2017, 213, 1556–1562. [Google Scholar] [CrossRef] [PubMed]
  56. Li, H.; Hou, S.; Wu, X.; Nandagopal, S.; Lin, F.; Kung, S.; Marshall, A.J. The Tandem PH Domain-Containing Protein 2 (TAPP2) Regulates Chemokine-Induced Cytoskeletal Reorganization and Malignant B Cell Migration. PLoS ONE 2013, 8, e57809. [Google Scholar] [CrossRef] [PubMed]
Genes 10 00517 g001 550

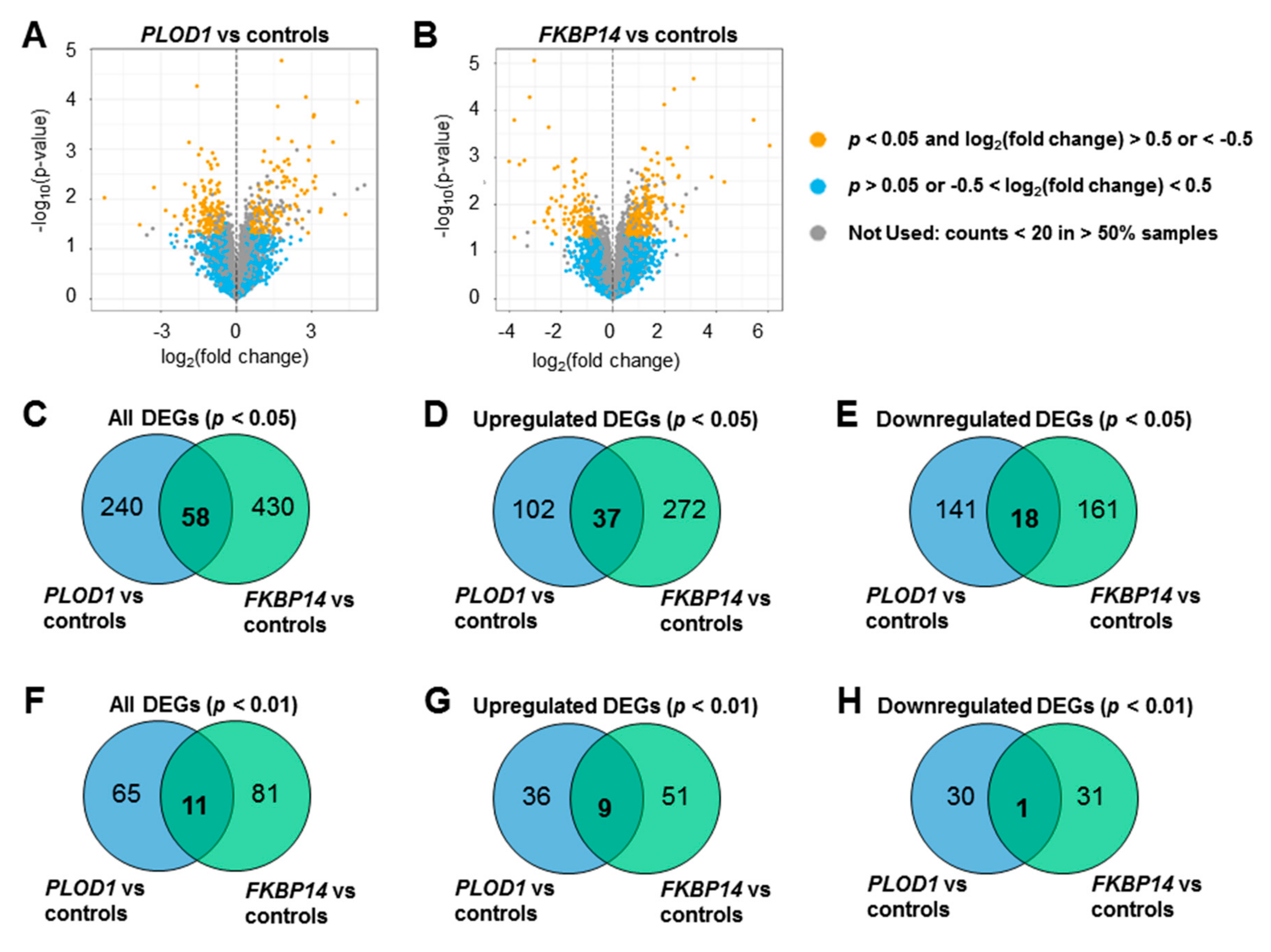

Figure 1. Transcriptome profiles of PLOD1-kEDS and FKBP14-kEDS patient-derived fibroblasts. Volcano plots of DEGs in (A) PLOD1-kEDS versus controls and (B) FKBP14-kEDS versus controls. (C–E) Venn diagrams showing number of overlapping and non-overlapping DEGs at p < 0.05 (C: all, D: up-regulated, E: down-regulated). (F–H) Venn diagrams showing number of overlapping and non-overlapping DEGs at p < 0.01 (F: all, G: up-regulated, H: down-regulated).
Figure 1. Transcriptome profiles of PLOD1-kEDS and FKBP14-kEDS patient-derived fibroblasts. Volcano plots of DEGs in (A) PLOD1-kEDS versus controls and (B) FKBP14-kEDS versus controls. (C–E) Venn diagrams showing number of overlapping and non-overlapping DEGs at p < 0.05 (C: all, D: up-regulated, E: down-regulated). (F–H) Venn diagrams showing number of overlapping and non-overlapping DEGs at p < 0.01 (F: all, G: up-regulated, H: down-regulated).
Genes 10 00517 g001
Genes 10 00517 g002 550

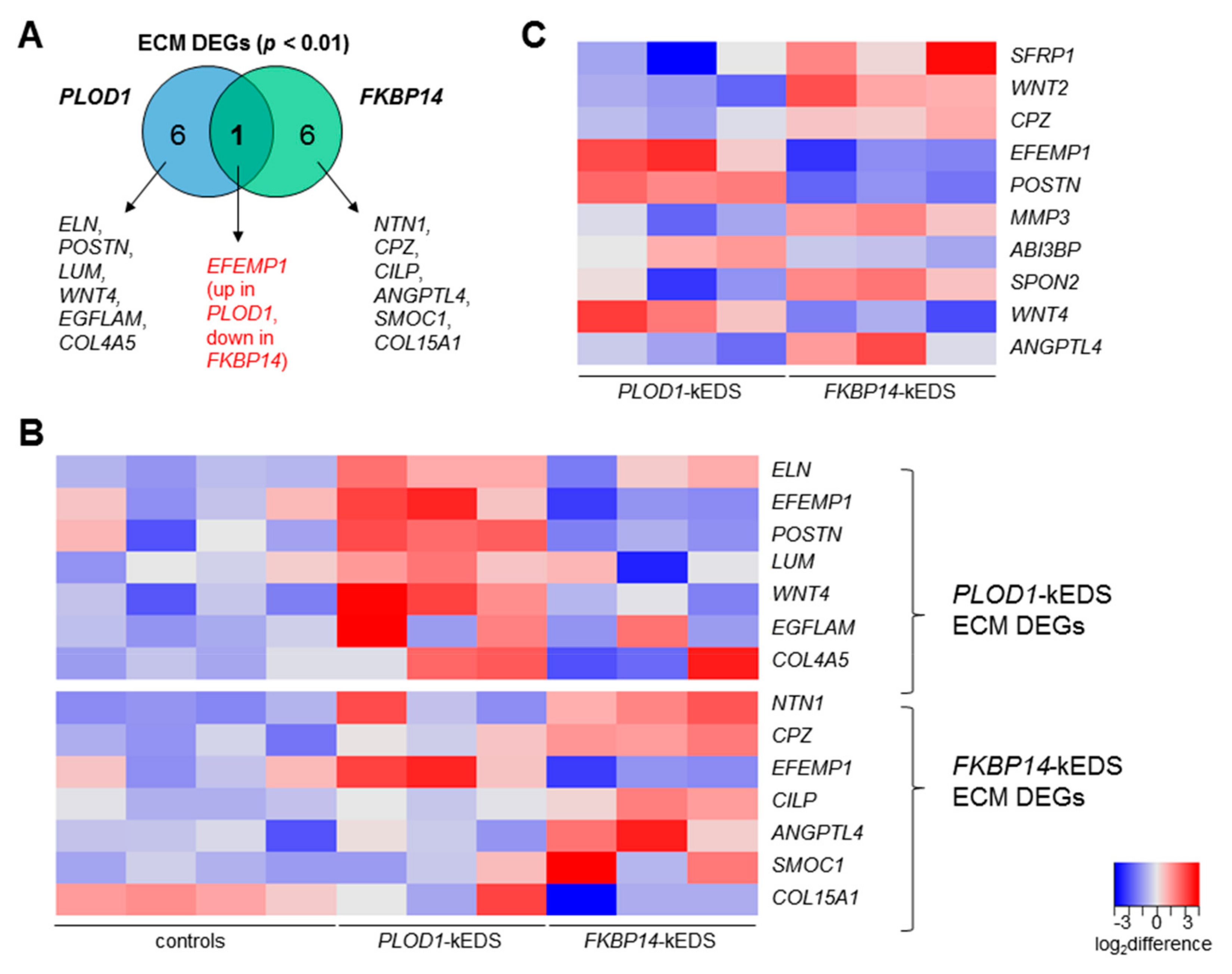

Figure 2. (A) Venn diagram depicting unique DEGs contributing to the enrichment of ECM in PLOD1-kEDS and FKBP14-kEDS patient-derived fibroblasts versus controls. (B) Heatmap depicting expression levels of DEGs encoding ECM components per subject. Top panel consists of genes that are differentially regulated in PLOD1-kEDS versus controls. Bottom panel consists of genes that are differentially regulated in FKBP14-kEDS versus controls. (C) Heatmap depicting expression levels of ECM genes that are significantly different between PLOD1-kEDS and FKBP14-kEDS. The colors indicate the log2 difference relative to the average expression of all samples within the comparison.
Figure 2. (A) Venn diagram depicting unique DEGs contributing to the enrichment of ECM in PLOD1-kEDS and FKBP14-kEDS patient-derived fibroblasts versus controls. (B) Heatmap depicting expression levels of DEGs encoding ECM components per subject. Top panel consists of genes that are differentially regulated in PLOD1-kEDS versus controls. Bottom panel consists of genes that are differentially regulated in FKBP14-kEDS versus controls. (C) Heatmap depicting expression levels of ECM genes that are significantly different between PLOD1-kEDS and FKBP14-kEDS. The colors indicate the log2 difference relative to the average expression of all samples within the comparison.
Genes 10 00517 g002
Genes 10 00517 g003 550

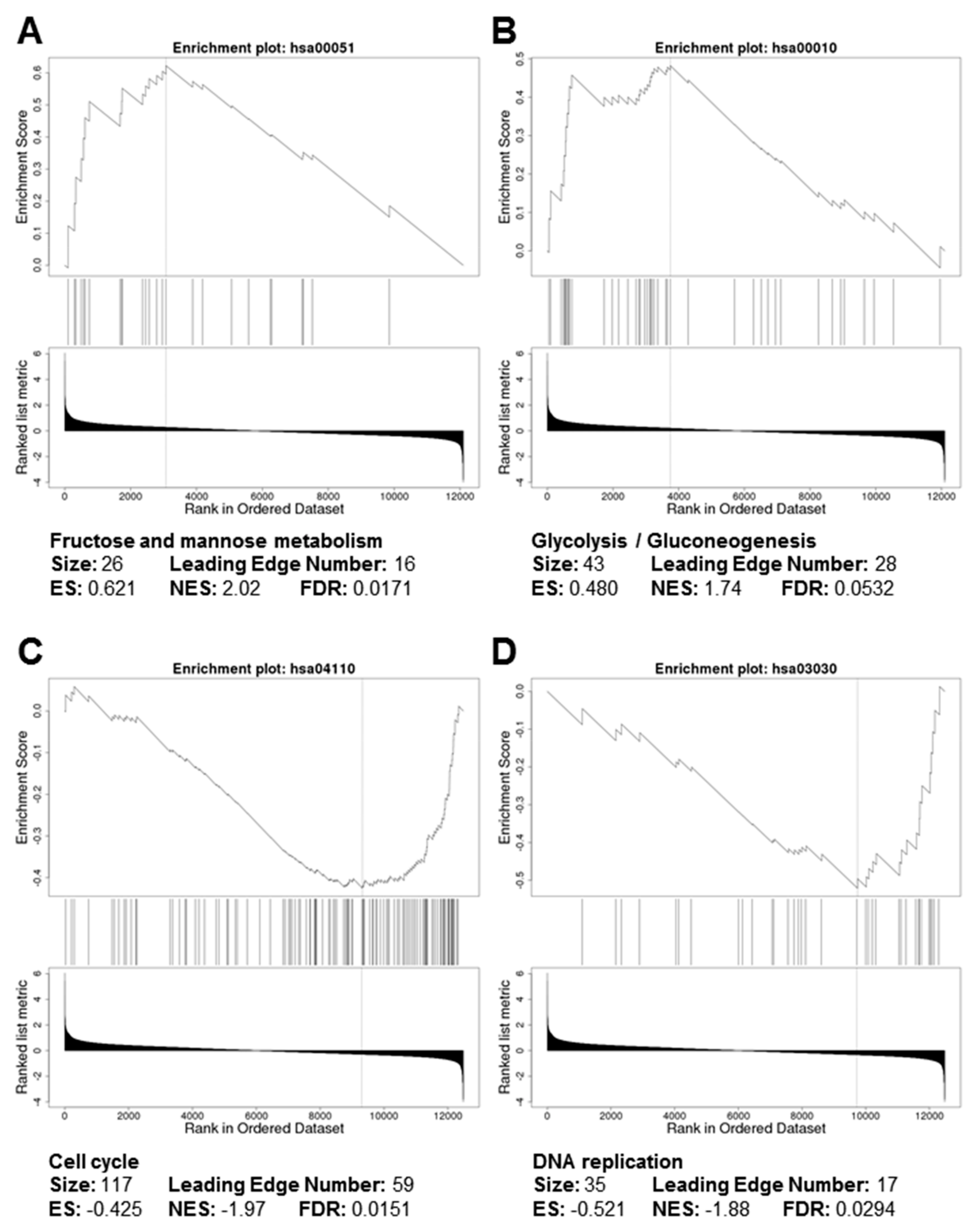

Figure 3. Gene set enrichment analysis (GSEA) plots depicting positive enrichment of (A) fructose and mannose metabolism and (B) glycolysis / gluconeogenesis and negative enrichment of (C) cell cycle and (D) DNA replication in FKBP14-kEDS versus control fibroblasts.
Figure 3. Gene set enrichment analysis (GSEA) plots depicting positive enrichment of (A) fructose and mannose metabolism and (B) glycolysis / gluconeogenesis and negative enrichment of (C) cell cycle and (D) DNA replication in FKBP14-kEDS versus control fibroblasts.
Genes 10 00517 g003
Genes 10 00517 g004 550

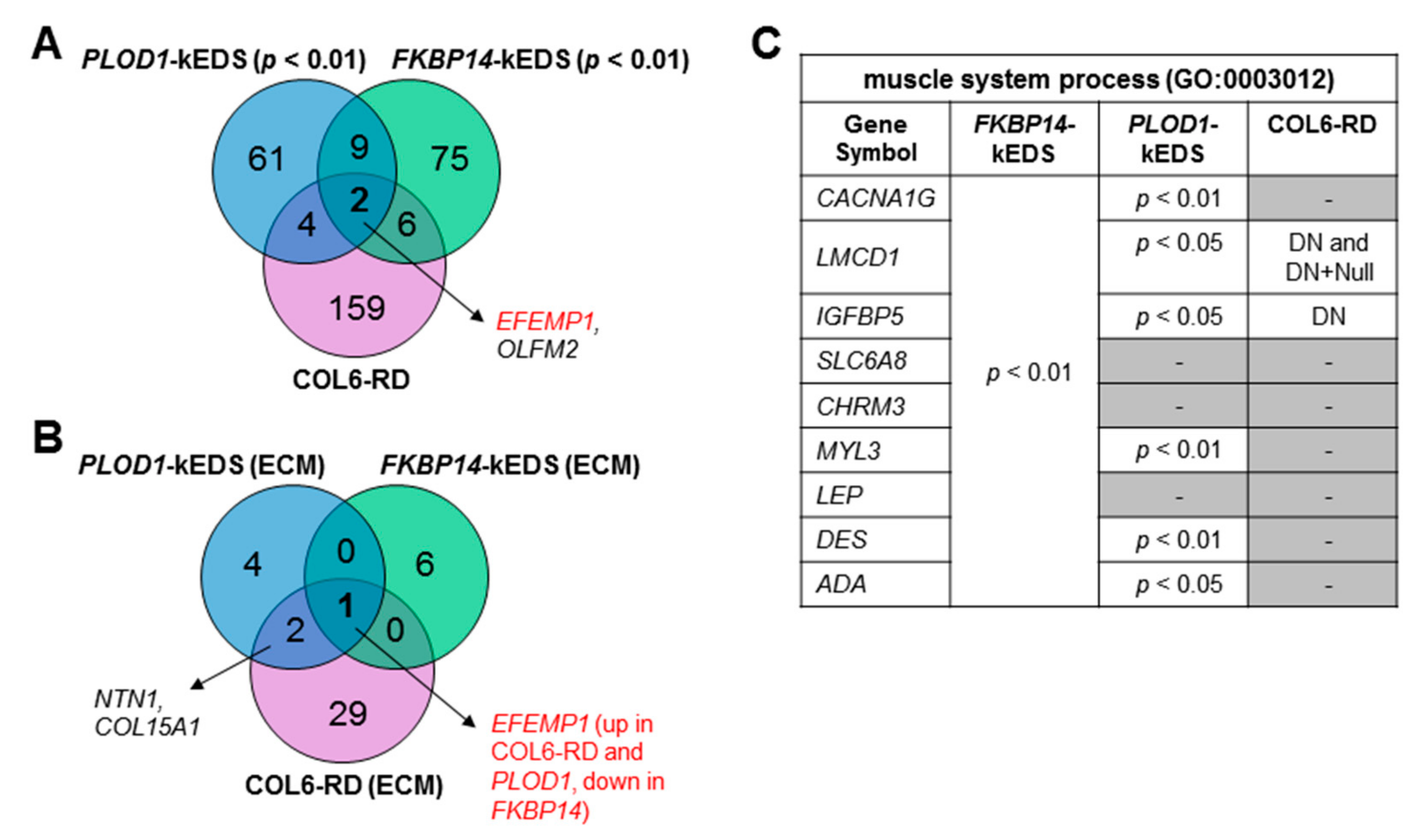

Figure 4. Comparison of transcriptome profiles of PLOD1-kEDS, FKBP14-kEDS and collagen VI-related muscular dystrophies (COL6-RD) patient-derived fibroblasts. (A) Venn diagram depicting number of overlapping and non-overlapping DEGs among three patient groups. (B) Venn diagram depicting number of overlapping and non-overlapping DEGs encoding ECM components among three patient groups. (C) List of genes contributing to over-representation of muscle system process in FKBP14-kEDS versus control fibroblasts and significance of their differential expression in PLOD1-kEDS and COL6-RD fibroblasts. DN = dominant negative COL6-RD mutations allowing incorporation of abnormal collagen VI chains; Null = recessive COL6-RD mutations that do not allow incorporation of abnormal chains as described in Butterfield et al., 2017; gene expressions that are non-significantly altered are represented by dashes (-).
Figure 4. Comparison of transcriptome profiles of PLOD1-kEDS, FKBP14-kEDS and collagen VI-related muscular dystrophies (COL6-RD) patient-derived fibroblasts. (A) Venn diagram depicting number of overlapping and non-overlapping DEGs among three patient groups. (B) Venn diagram depicting number of overlapping and non-overlapping DEGs encoding ECM components among three patient groups. (C) List of genes contributing to over-representation of muscle system process in FKBP14-kEDS versus control fibroblasts and significance of their differential expression in PLOD1-kEDS and COL6-RD fibroblasts. DN = dominant negative COL6-RD mutations allowing incorporation of abnormal collagen VI chains; Null = recessive COL6-RD mutations that do not allow incorporation of abnormal chains as described in Butterfield et al., 2017; gene expressions that are non-significantly altered are represented by dashes (-).
Genes 10 00517 g004
Genes 10 00517 g005 550

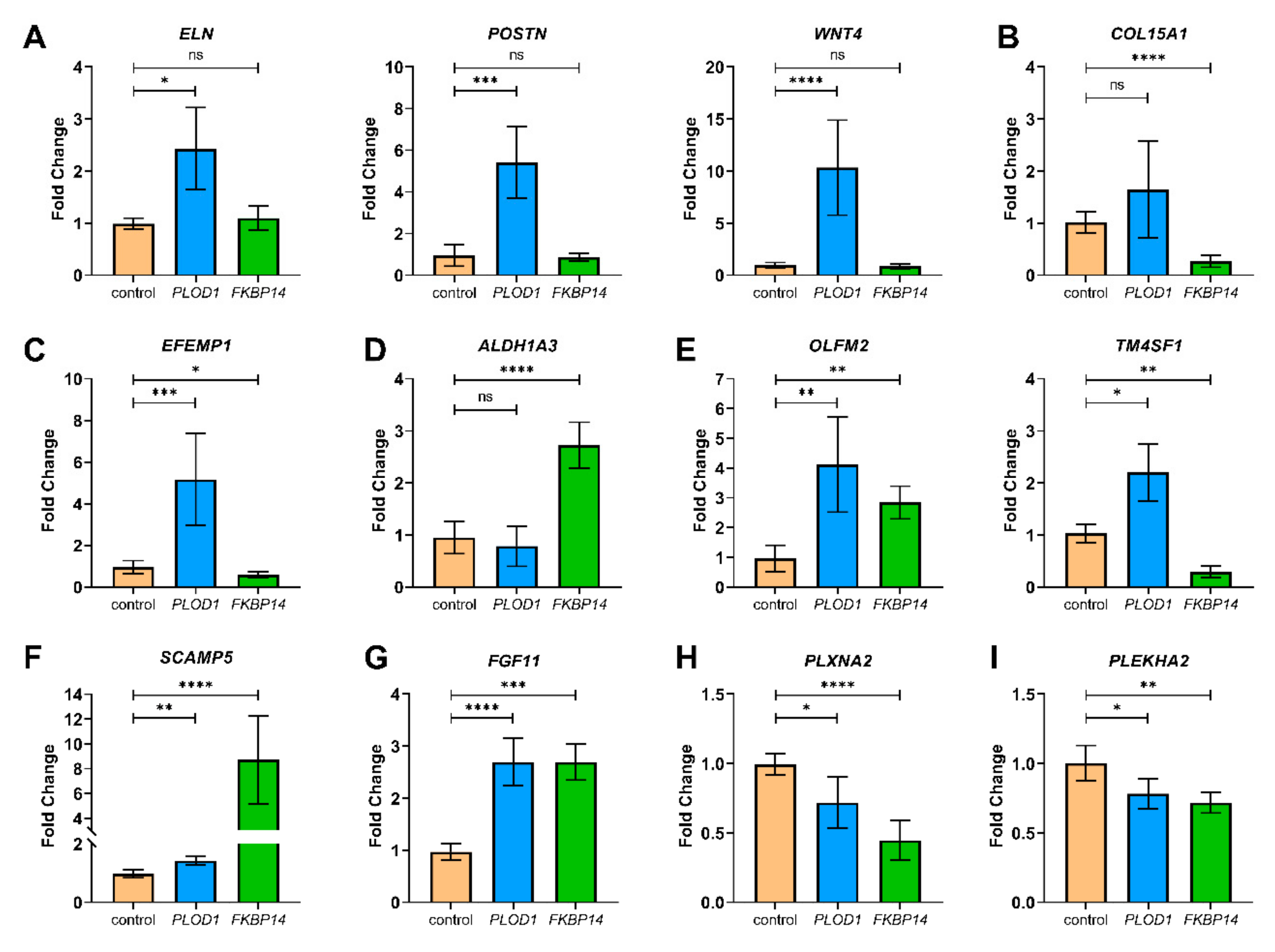

Figure 5. Quantitative RT-PCR was performed to validate the RNA sequencing results. Gene expression levels were measured in four independent replicates per subject, and t-tests were performed (ns = not significant, * = p < 0.05, ** p < 0.005, *** p < 0.0005, **** p < 0.0001). Data are expressed as mean ± SEM.
Figure 5. Quantitative RT-PCR was performed to validate the RNA sequencing results. Gene expression levels were measured in four independent replicates per subject, and t-tests were performed (ns = not significant, * = p < 0.05, ** p < 0.005, *** p < 0.0005, **** p < 0.0001). Data are expressed as mean ± SEM.
Genes 10 00517 g005
Genes 10 00517 g006 550
Figure 6. Electron micrographs of skin biopsies from (A) a healthy control, (B) a PLOD1-kEDS patient and (C,D) two unrelated FKBP14-kEDS patients. Elastic fibers are indicated by red arrows. Electron micrographs were taken at the Center for Microscopy and Image Analysis, University of Zurich with a Philips CM 100, a 100 KV transmission electron microscope equipped with a digital charge-coupled device (CCD) camera for image acquisition.
Figure 6. Electron micrographs of skin biopsies from (A) a healthy control, (B) a PLOD1-kEDS patient and (C,D) two unrelated FKBP14-kEDS patients. Elastic fibers are indicated by red arrows. Electron micrographs were taken at the Center for Microscopy and Image Analysis, University of Zurich with a Philips CM 100, a 100 KV transmission electron microscope equipped with a digital charge-coupled device (CCD) camera for image acquisition.
Genes 10 00517 g006
Table
Table 1. Gene mutations and clinical presentations of FKBP14-kEDS and PLOD1-kEDS patients included in this study
Table 1. Gene mutations and clinical presentations of FKBP14-kEDS and PLOD1-kEDS patients included in this study
Gene MutationsClinical Findings
Hyperextensible SkinKyphoscoliosisMuscle Hypotonia Joint HypermobilityVascular Abnormality
PLOD1
compound heterozygote
c.975+975_1755+?dup/c.1362del
p.Glu326_Lys585dup/ p.(Tyr455Thrfs*2)
(described as P4 in [11])		++
(progressive)		++NR
PLOD1
p.Glu326_Lys585dup homozygous
exon 10-16 duplication
(described as P1 in [12])		–+++–
PLOD1
Leu85Pro homozygous
(described as P2 in [12])		–––+ + (rupture of artery)
FKBP14
c.362dupC p.(Glu122Argfs*7) homozygous
(described as P3 in [4])		++
(progressive)		++–
(#)
FKBP14
c.362dupC p.(Glu122Argfs*7) homozygous
(described as P1 in [4])		++
(progressive)		++–
FKBP14
c.197 + 5_197 + 8del / p.His67* homozygous
(described as P4 in [3])		++
(progressive)		++NR
The following symbols and abbreviations are used: +, present; –, absent; NR, not reported. (#) A second-degree cousin died of aortic rupture at age 12, suspected FKBP14 mutation but DNA not available for confirmation. Another second-degree cousin had a dissection of the internal carotid artery at age 50 years [4]. Please refer to the original publications in which the patients were first described in [3,4,11,12] for more detailed clinical characteristics.
Table
Table 2. Taqman gene expression assays used for quantitative RT-PCR.
Table 2. Taqman gene expression assays used for quantitative RT-PCR.
Gene SymbolGene NameAssay ID
GAPDHglyceraldehyde-3-phosphate dehydrogenaseHs02758991_g1
ELNelastinHs00355783_m1
POSTNperiostinHs01566750_m1
WNT4Wnt family member 4Hs01573505_m1
COL15A1collagen type XV alpha 1Hs00266332_m1
EFEMP1EGF-containing Fibulin-like extracellular matrix protein 1Hs00244575_m1
ALDH1A3aldehyde dehydrogenase 1 family member A3Hs00167476_m1
OLFM2olfactomedin 2Hs01017934_m1
TM4SF1transmembrane 4 L six family member 1Hs01547334_m1
SCAMP5secretory carrier membrane protein 5Hs01547727_m1
FGF11fibroblast growth factor 11Hs00182803_m1
PLXNA2plexin A2Hs00300697_m1
PLEKHA2Pleckstrin homology domain-containing family A member 2Hs00952489_m1
Table
Table 3. Over-represented gene ontology terms among DEGs in FKBP14-kEDS and PLOD1-kEDS patient-derived fibroblasts versus controls.
Table 3. Over-represented gene ontology terms among DEGs in FKBP14-kEDS and PLOD1-kEDS patient-derived fibroblasts versus controls.
Gene OntologyDescriptionEnrichment Ratiop-valueFDR
FKBP14-kEDS: Biological Process
GO:0003012muscle system process5.523.19 × 10−52.42 × 10−2
GO:0007586digestion14.11.74 × 10−46.60 × 10−2
FKBP14-kEDS: Cellular Component
GO:0005578proteinaceous extracellular matrix5.073.90 × 10−45.77 × 10−2
GO:0043235receptor complex5.288.53 × 10−46.32 × 10−2
PLOD1-kEDS: Biological Process
GO:0007219Notch signaling pathway8.861.26 × 10−59.58 × 10−3
GO:0007423sensory organ development4.773.84 × 10−51.46 × 10−2
GO:0030048actin filament-based movement10.79.73 × 10−52.02 × 10−2
GO:0045730respiratory burst31.21.07 × 10−42.02 × 10−5
GO:0060326cell chemotaxis7.341.56 × 10−42.38 × 10−2
GO:0070098chemokine-mediated signaling pathway23.02.77 × 10−43.50 × 10−2
GO:0050920regulation of chemotaxis6.748.43 × 10−49.16 × 10−2
GO:0042490mechanoreceptor differentiation14.61.10 × 10−39.61 × 10−2
GO:0001655urogenital system development4.301.14 × 10−39.61 × 10−2
PLOD1-kEDS: Cellular Component
GO:0005578proteinaceous extracellular matrix5.731.77 × 10−42.61 × 10−2
GO:1990351transporter complex6.361.03 × 10−35.96 × 10−2
GO:0044420extracellular matrix component7.881.56 × 10−35.96 × 10−2
GO:0031594neuromuscular junction12.71.61 × 10−35.96 × 10−2
GO:0043235receptor complex4.983.03 × 10−38.97 × 10−2

Share and Cite

MDPI and ACS Style

Lim, P.J.; Lindert, U.; Opitz, L.; Hausser, I.; Rohrbach, M.; Giunta, C. Transcriptome Profiling of Primary Skin Fibroblasts Reveal Distinct Molecular Features Between PLOD1- and FKBP14-Kyphoscoliotic Ehlers–Danlos Syndrome. Genes 2019, 10, 517. https://doi.org/10.3390/genes10070517

AMA Style

Lim PJ, Lindert U, Opitz L, Hausser I, Rohrbach M, Giunta C. Transcriptome Profiling of Primary Skin Fibroblasts Reveal Distinct Molecular Features Between PLOD1- and FKBP14-Kyphoscoliotic Ehlers–Danlos Syndrome. Genes. 2019; 10(7):517. https://doi.org/10.3390/genes10070517

Chicago/Turabian Style

Lim, Pei Jin, Uschi Lindert, Lennart Opitz, Ingrid Hausser, Marianne Rohrbach, and Cecilia Giunta. 2019. "Transcriptome Profiling of Primary Skin Fibroblasts Reveal Distinct Molecular Features Between PLOD1- and FKBP14-Kyphoscoliotic Ehlers–Danlos Syndrome" Genes 10, no. 7: 517. https://doi.org/10.3390/genes10070517

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
