Next Article in Journal
The Study of Thermal, Mechanical and Shape Memory Properties of Chopped Carbon Fiber-Reinforced TPI Shape Memory Polymer Composites
Previous Article in Journal
Synthesis and Characterization of Cellulose Nanofibril-Reinforced Polyurethane Foam
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(11), 600; https://doi.org/10.3390/polym9110600

Hygral Behavior of Superabsorbent Polymers with Various Particle Sizes and Cross-Linking Densities

1
Department of Civil Engineering, Kangwon National University, Chuncheon 24341, Korea
2
North Gyeonggi Branch, Korea Conformity Laboratories, Pocheon 11184, Korea
3
Department of Architectural Engineering, Gachon University, Seongnam 13120, Korea
4
Department of Civil and Environmental Engineering, Gachon University, Seongnam 13120, Korea
*
Author to whom correspondence should be addressed.
Received: 5 October 2017 / Revised: 5 November 2017 / Accepted: 7 November 2017 / Published: 10 November 2017
Full-Text   |   PDF [4939 KB, uploaded 10 November 2017]   |

Abstract

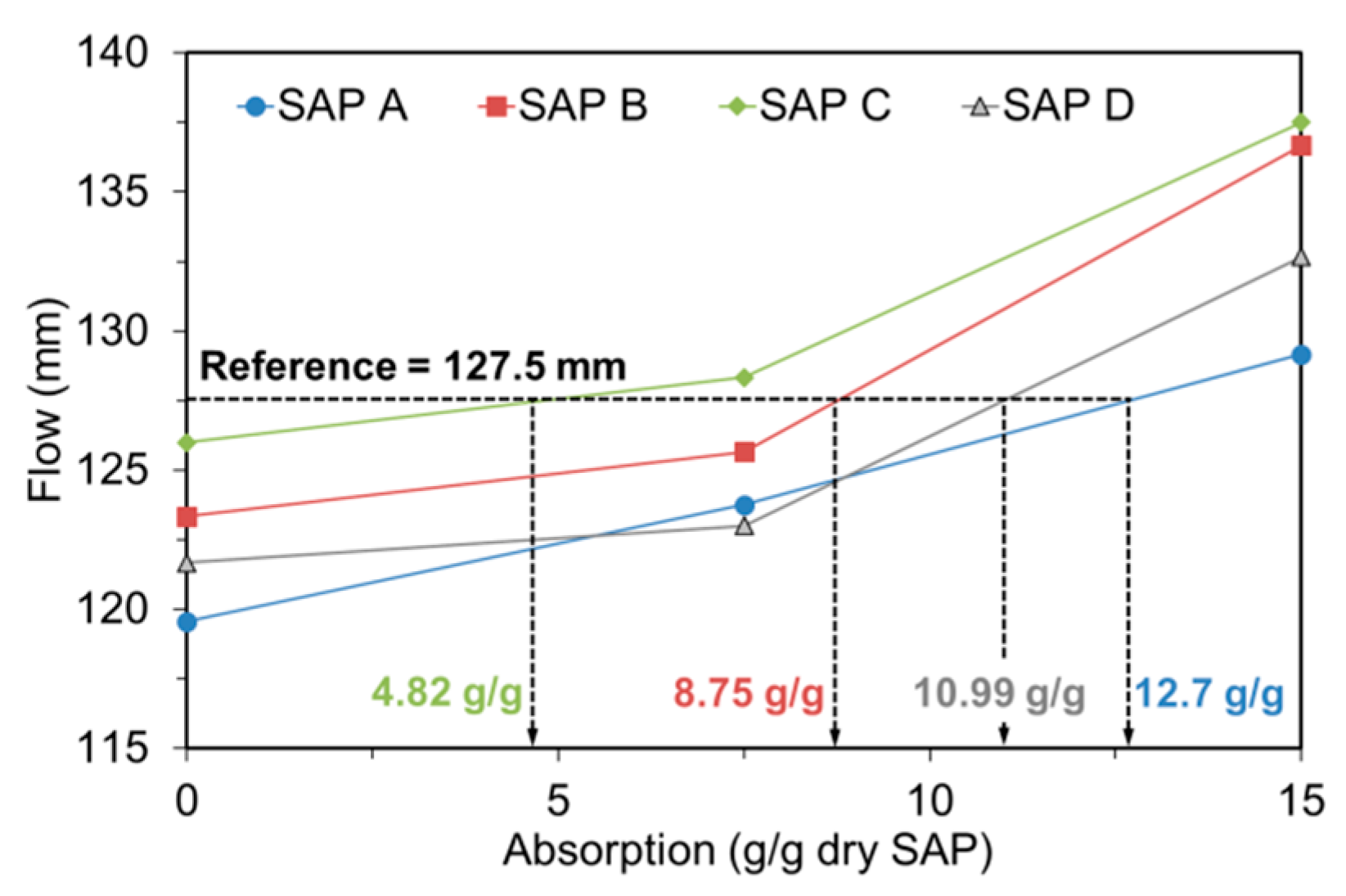

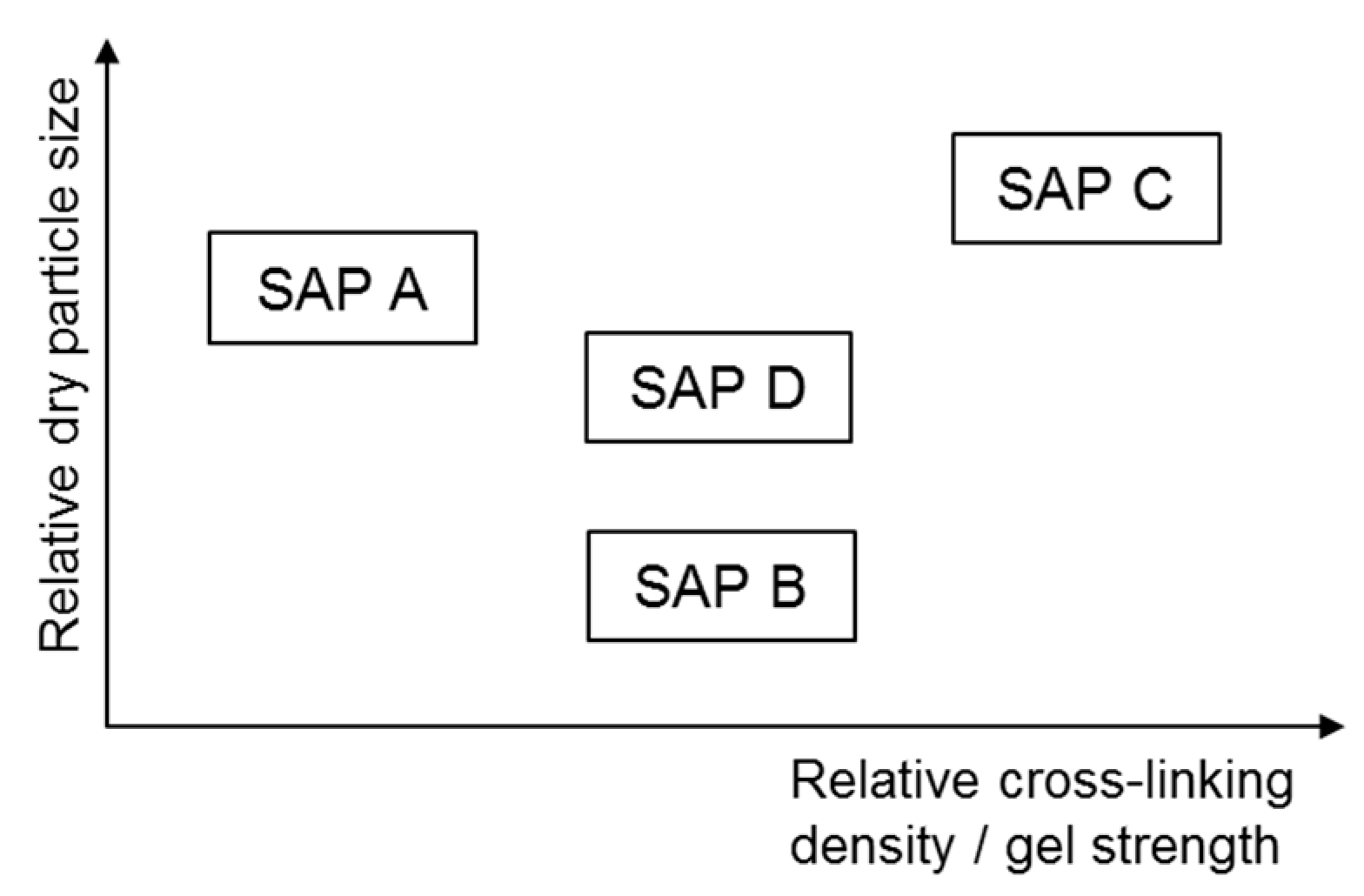

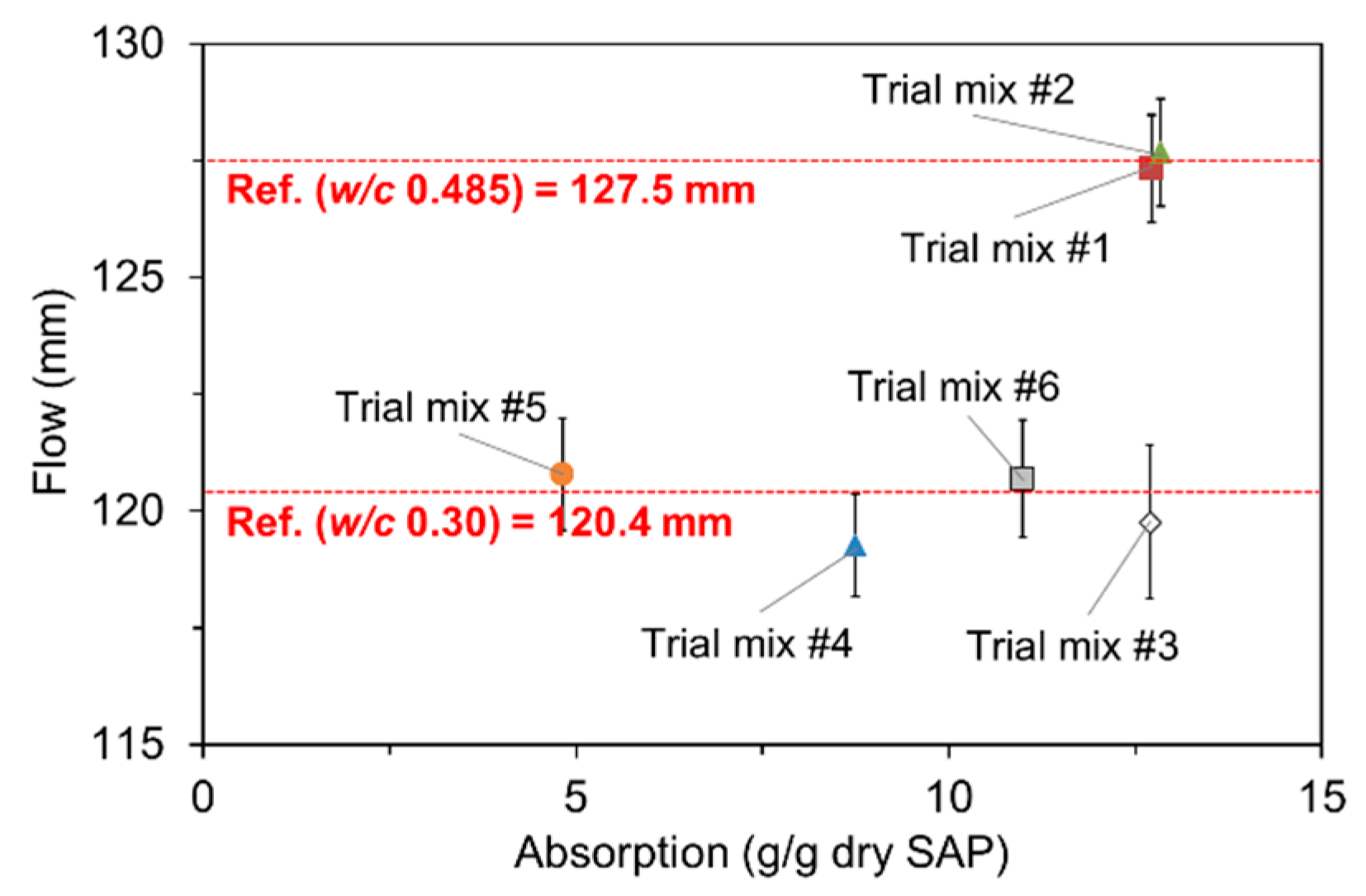

This study focuses on investigating the effects of particle size and cross-linking density on the hygral behavior of superabsorbent polymers (SAPs), which are increasingly used as an internal curing material for high-performance concrete. Four SAPs with different mean particle diameters and cross-linking densities were tested under controlled wetting and drying conditions to measure free absorption and desorption kinetics. Absorption capacities of SAPs under actual mixing conditions were additionally measured and verified by means of mortar flow and semi-adiabatic hydration heat measurements. In addition, the effects of SAP type and dosage (i.e., 0.2, 0.4, and 0.6% by mass of cement) on the mechanical properties of hardened mortar were assessed. The results indicated that: (1) the absorption capacity increased with decreased cross-linking density and increased particle size under both load-free and mixing conditions; and (2) the greater the cross-linking density and the lower the particle size, the shorter the desorption time. It was also confirmed that while the early-age mechanical properties were more related with the gel strength of swollen SAP, the later-age mechanical properties were more affected by the water retention capacity and spatial distribution of SAP in the matrix. View Full-Text
Keywords: superabsorbent polymers; particle size; cross-linking density; absorption; desorption; internal curing; mortar; mechanical properties superabsorbent polymers; particle size; cross-linking density; absorption; desorption; internal curing; mortar; mechanical properties
Figures

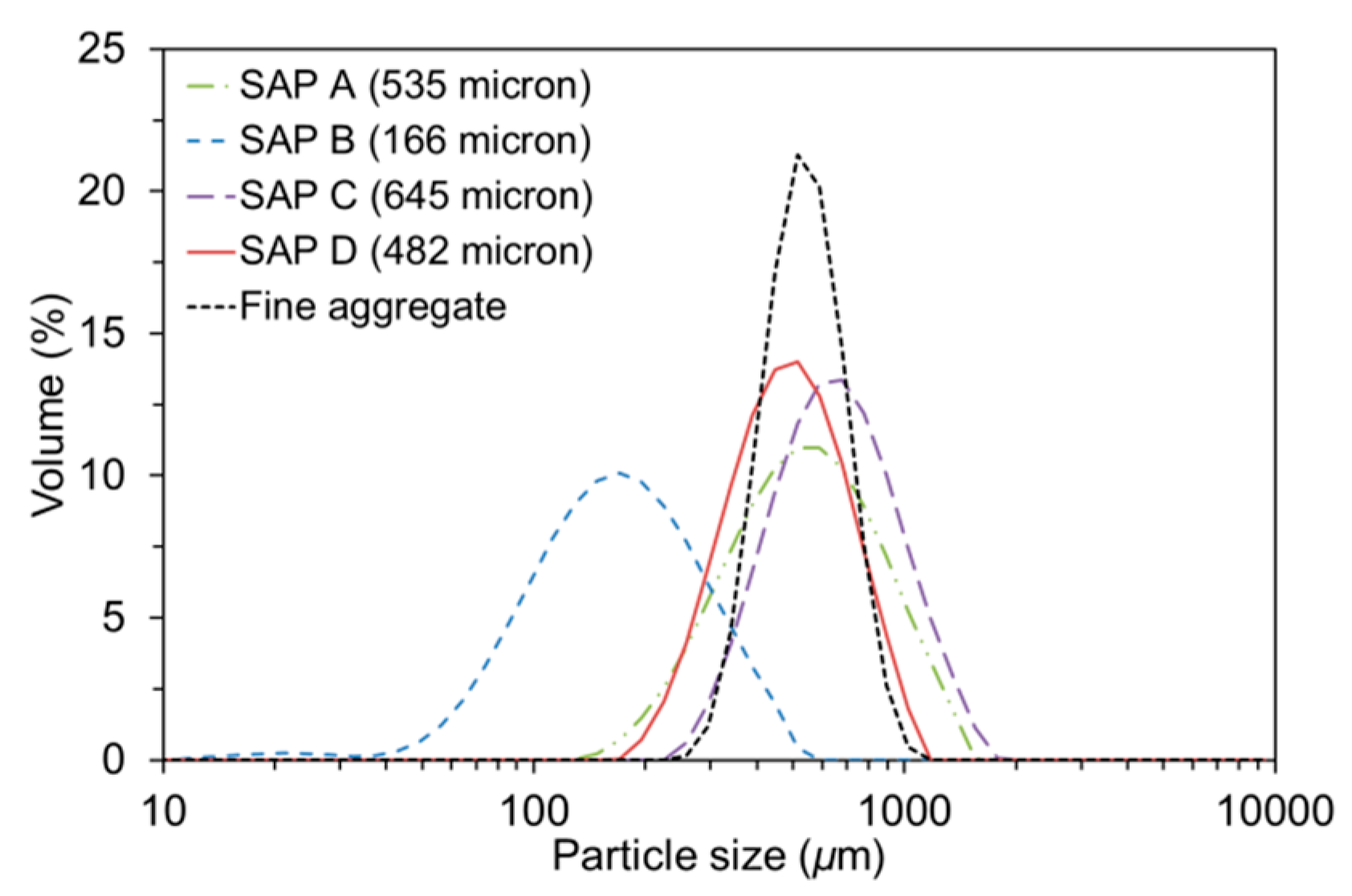

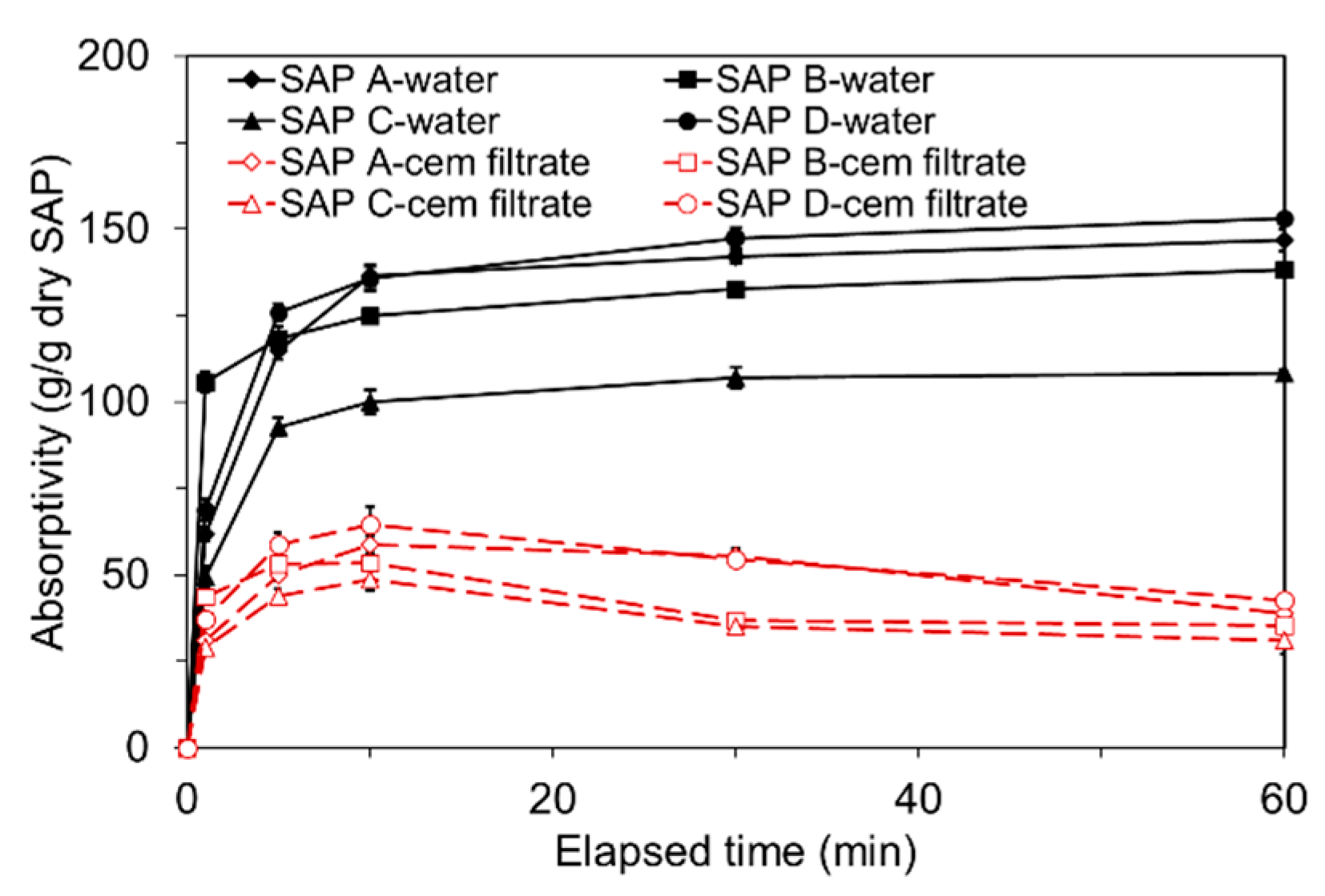

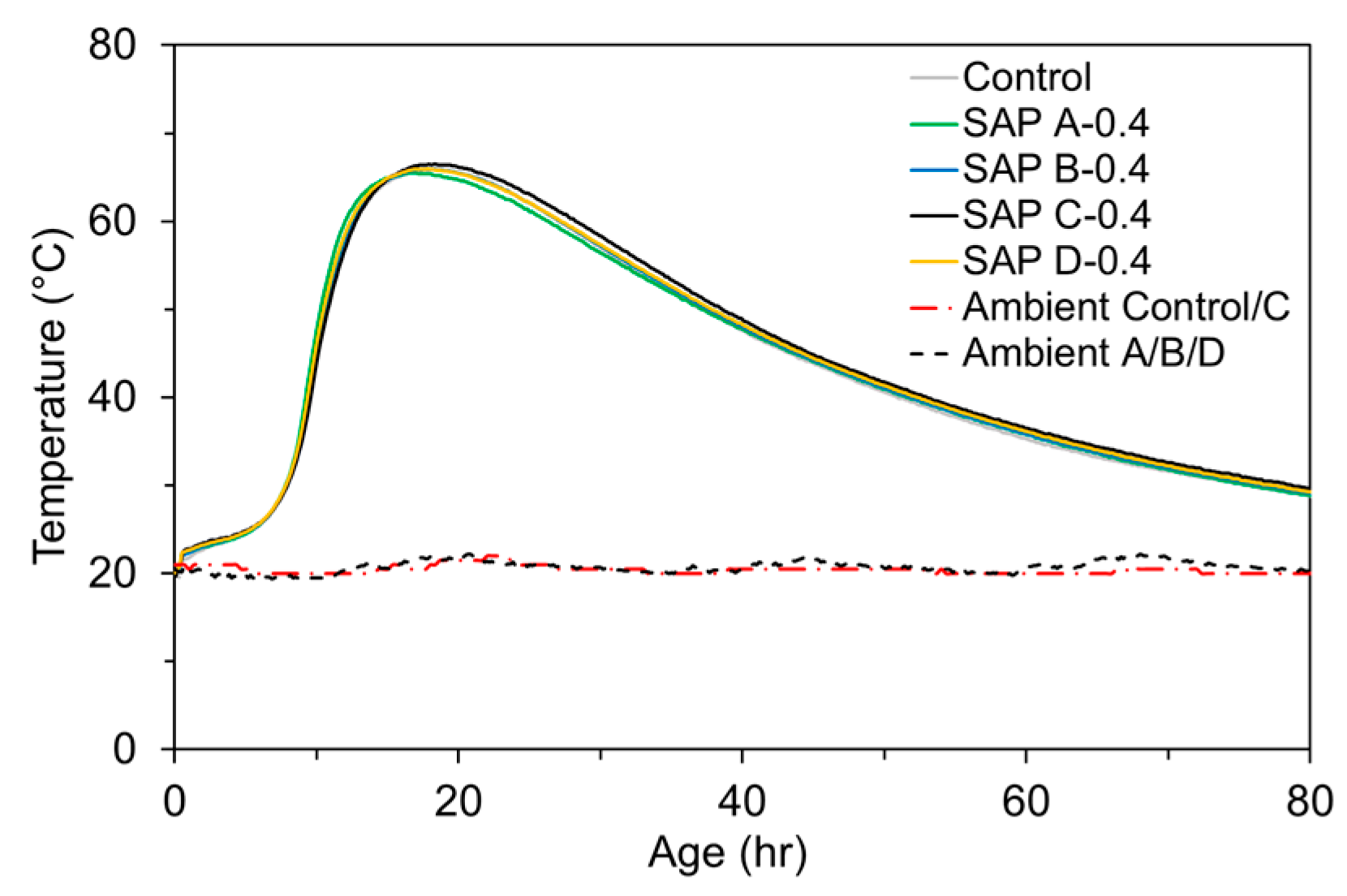

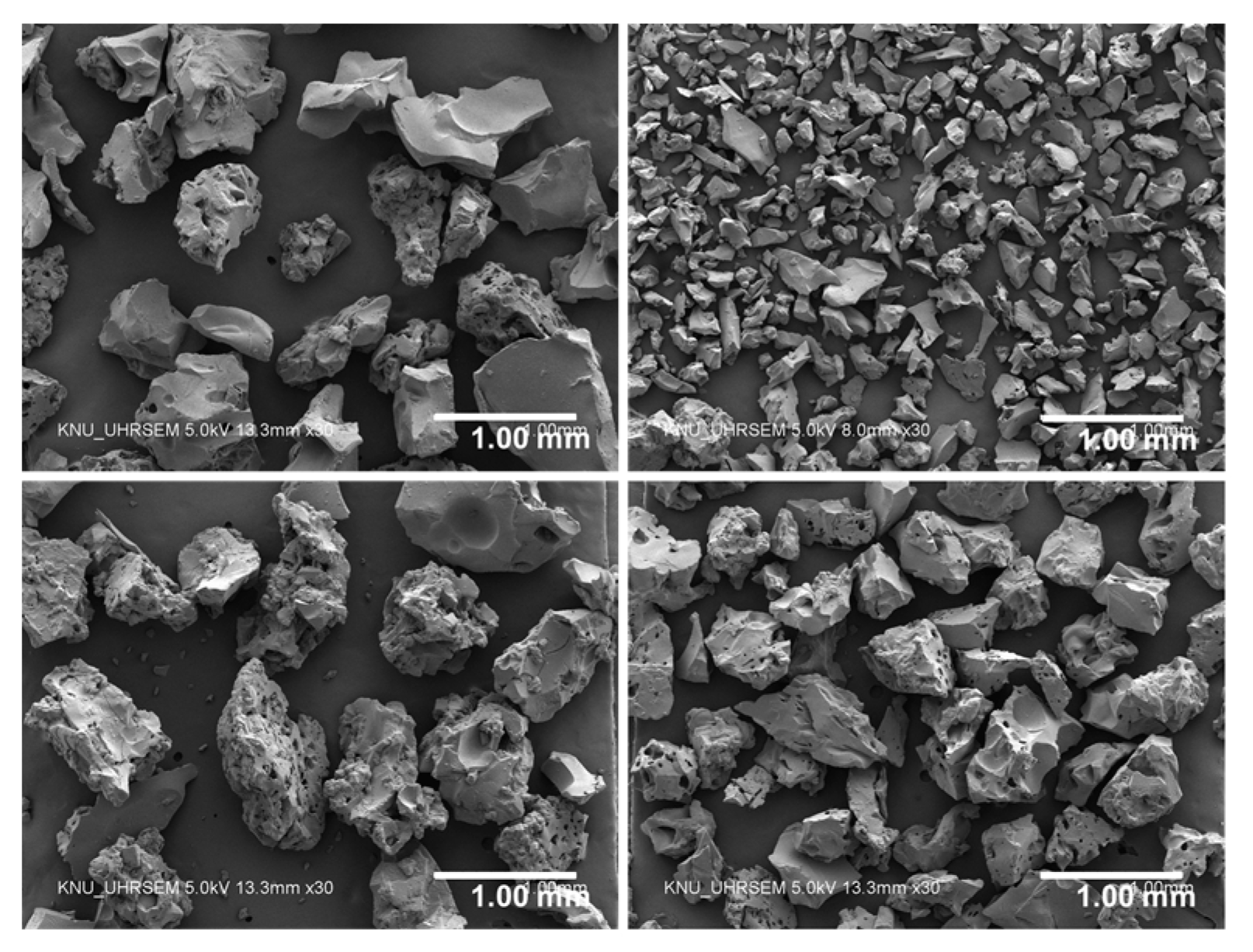

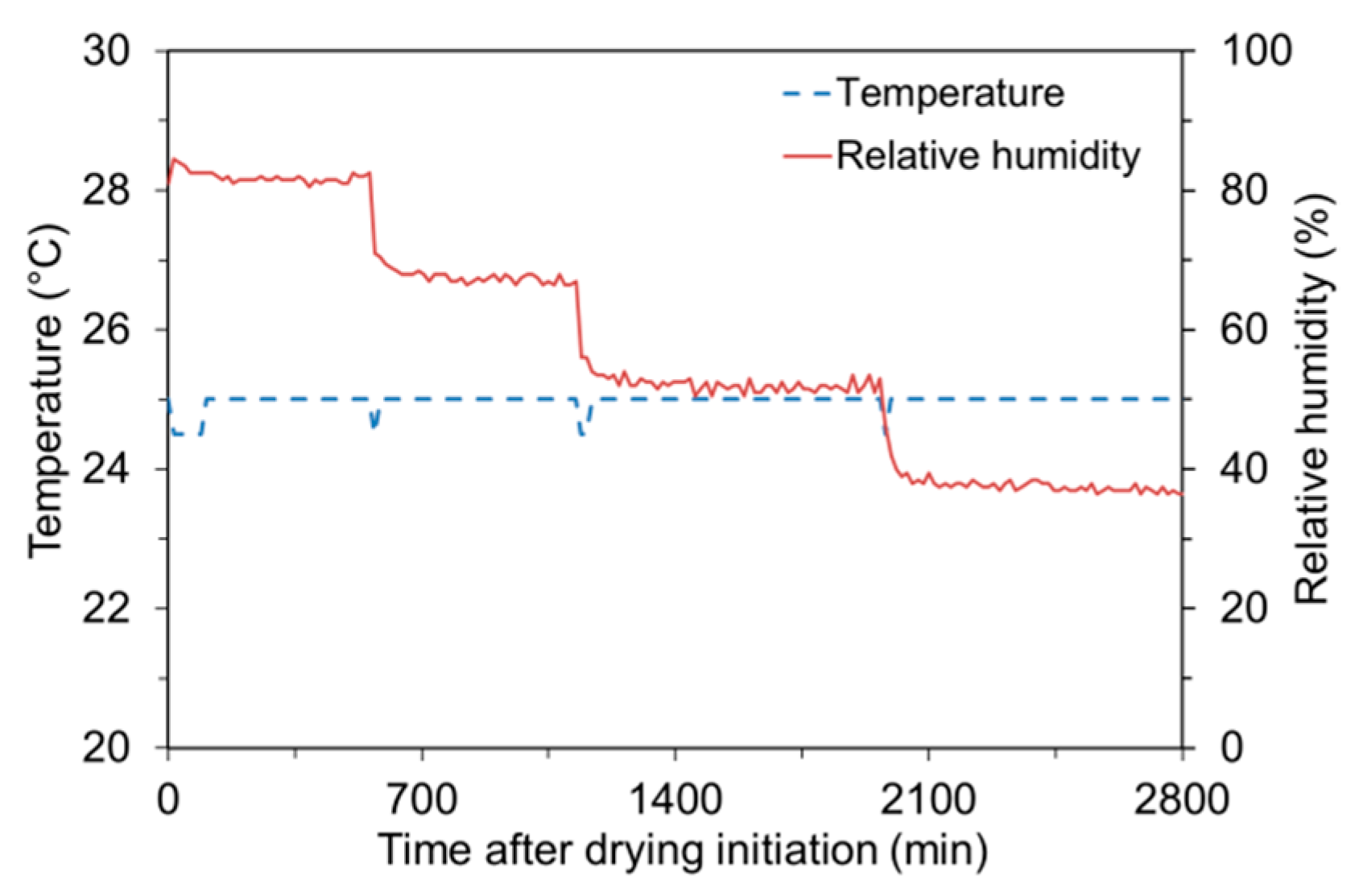

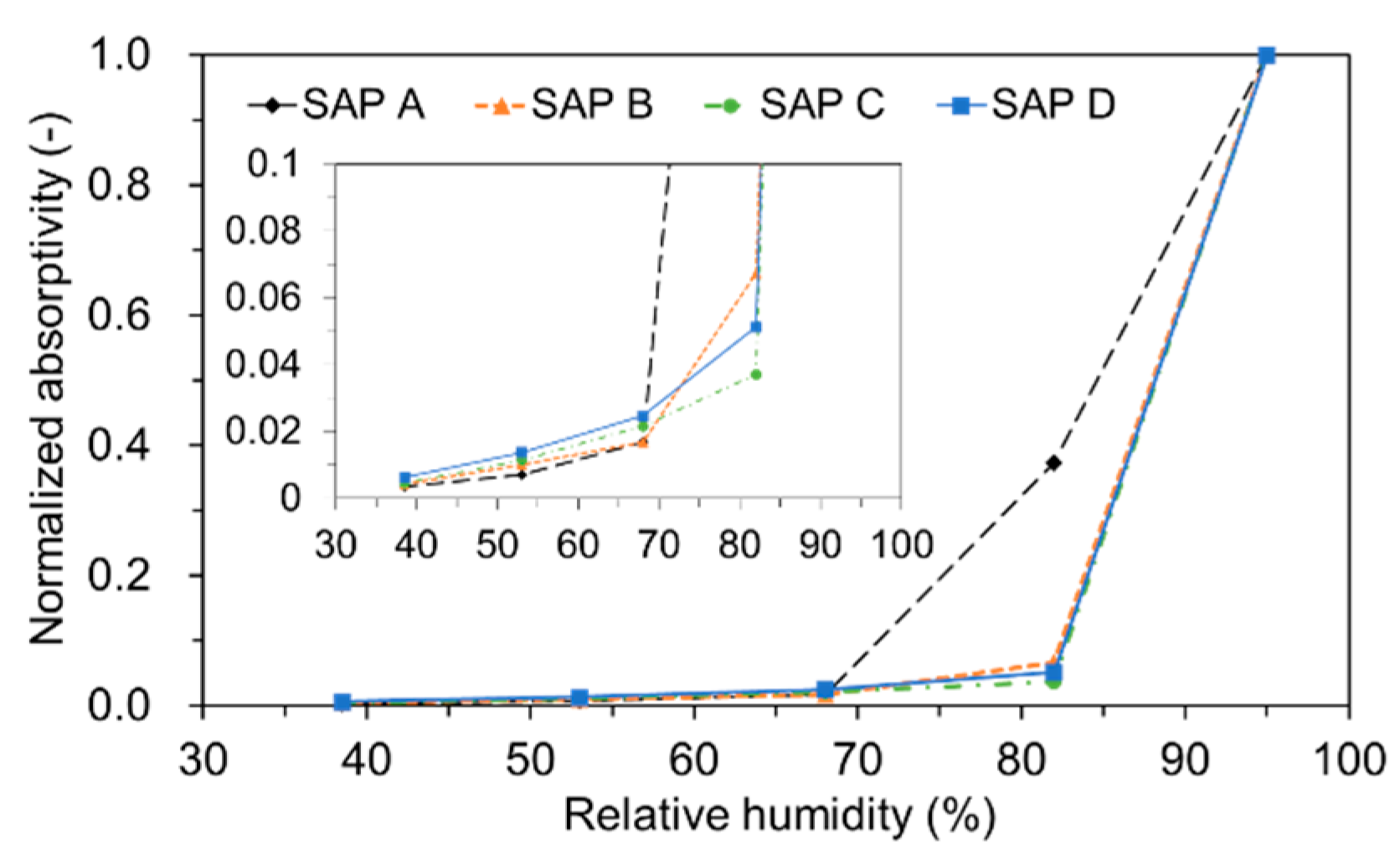

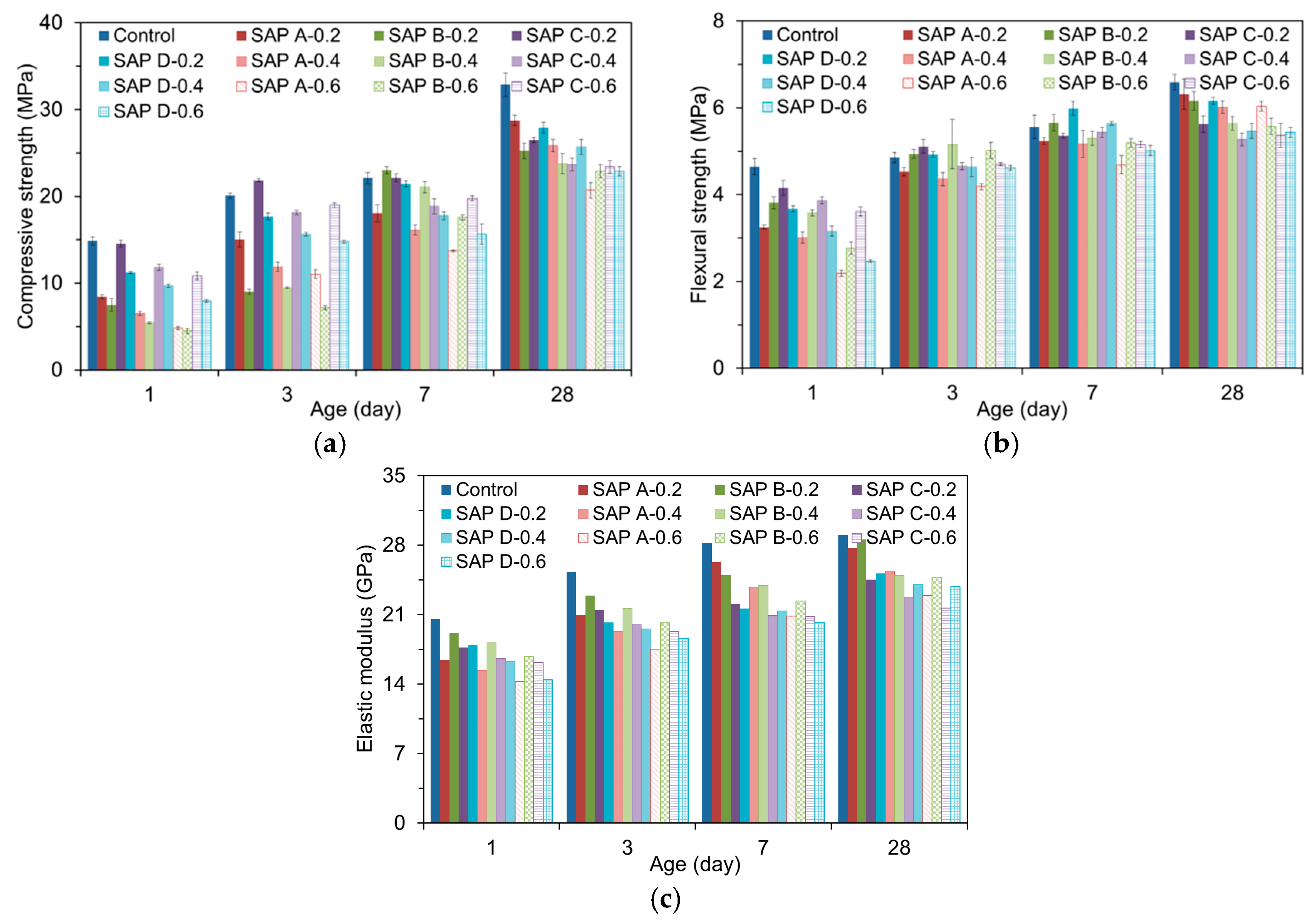

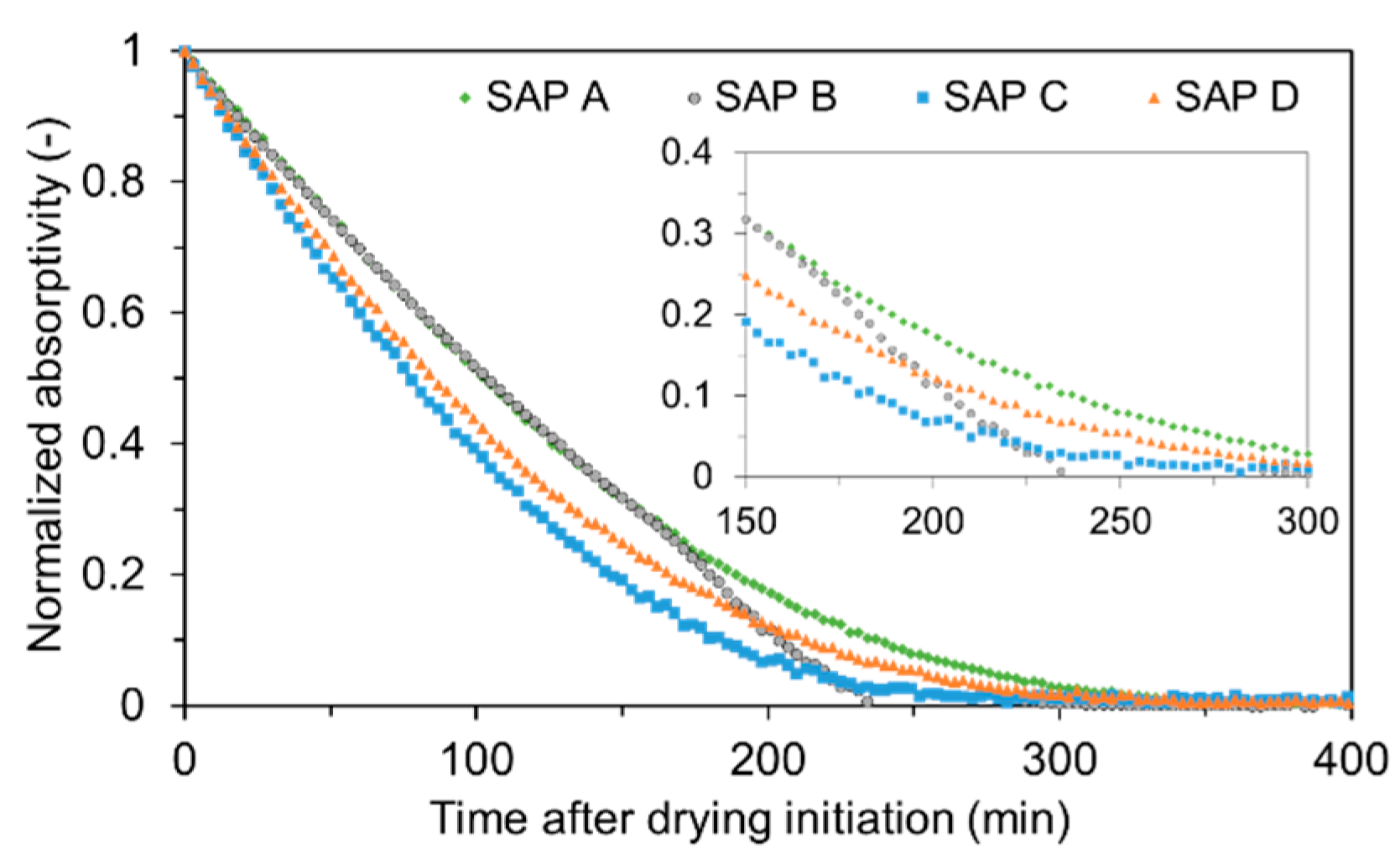

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yun, K.-K.; Kim, K.-K.; Choi, W.; Yeon, J.H. Hygral Behavior of Superabsorbent Polymers with Various Particle Sizes and Cross-Linking Densities. Polymers 2017, 9, 600.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
