Article

Construction of Four Zn(II) Coordination Polymers Used as Catalysts for the Photodegradation of Organic Dyes in Water

by
Lei-Lei Liu
*,
Cai-Xia Yu
,
Wei Zhou
,
Qi-Gui Zhang
,
Shi-Min Liu
and
Yun-Feng Shi
*
College of Chemistry and Chemical Engineering, Anyang Normal University, Anyang 455000, China
*
Authors to whom correspondence should be addressed.
Polymers 2016, 8(1), 3; https://doi.org/10.3390/polym8010003
Submission received: 12 November 2015 / Revised: 17 December 2015 / Accepted: 21 December 2015 / Published: 6 January 2016
(This article belongs to the Special Issue Coordination Polymers: New Materials for Multiple Applications)
Browse Figures
Versions Notes

Abstract

:
Hydrothermal reactions of Zn(OAc)2·2H2O with flexible bipyridyl benzene ligand and three dicarboxylic derivatives gave rise to four new coordination polymers, [Zn7(μ4-O)2(OAc)10(bpmb)]n (1), [Zn(5-OH-1,3-BDC)(bpmb)]n (2), [Zn(1,2-BDC)(bpmb)]n (3) and [Zn2(ADB)2(bpmb)]n (4) (bpmb = 1,4-bis(pyridine-3-ylmethoxy)benzene, 5-OH-1,3-H2BDC = 5-hydroxy-1,3-benzenedicarboxylic acid, 1,2-H2BDC = 1,2-benzenedicarboxylic acid, H2ADB = 2,2’-azodibenzoic acid). Their structures were characterized by single-crystal X-ray diffraction, elemental analyses, IR spectra, powder X-ray diffraction (PXRD) and thermogravimetric analyses (TGA). Compound 1 features a one-dimensional (1D) chain structure based on the rare heptanuclear [Zn7(μ4-O)(μ3-OAc)2(μ2-OAc)8] units. Compound 2 exhibits a novel 2D bilayer structure built from the two parallel 2D (4,4) layers. Compound 3 holds a 2D structure in which the 1,2-BDC ligands work as lockers interlocking 1D [Zn(bpmb)]n chain. Compound 4 comprises a 3D framework constructed by 2D wrinkled [Zn2(ADB)4]n networks and bpmb linkers with a six-connected pcu net. These results suggest that the motifs of the dicarboxylic ligands have significant effect on the final structures. These compounds exhibited relatively good photocatalytic activity towards the degradation of methylene blue (MB) in aqueous solution under a Xe lamp irradiation.

Graphical Abstract

1. Introduction

In recent years, increasing attention on functional coordination polymers (CPs) has led to the fast development of this type of solid material, which are due to their intriguing aesthetic structures and topological features, as well as their potential applications in catalysis, adsorption, separation and so on [1,2,3,4,5,6,7,8,9,10,11,12]. Significant effort has been devoted to producing CPs with desired structures and properties using various approaches [13]. Practically, a variety of examples have demonstrated that the physical and chemical properties of the linkers play a decisive role in the structures and functions of novel CPs [14,15,16]. Many flexible bipyridyl ligands, such as 1,4-bis(pyridine-2-ylmethoxy)benzene, 1,3-bis(pyridine-3-ylmethoxy)benzene, and 1,2-bis(pyridine-4-ylmethoxy)benzene have been employed to construct varied functional CPs [17,18,19]. Such flexible ligands could adopt various conformations and make changeable CPs [20,21].
Photocatalysis is a green technology for the treatment of all kinds of contaminants that has many advantages over other treatment methods; for instance, the use of the environmentally friendly oxidant (O2 or H2O2), the ambient temperature reaction condition, and oxidation of the organic compounds, even at low concentrations [22,23]. Recently, considering the novelty of this field in CPs, much effort has been devoted to developing new photocatalytic materials based on CPs in the degradation of many kinds of organic contaminants with up to 90% efficiency [24,25,26,27,28]. Compared to the traditional semiconductor metal oxide, the advantages of CPs as photocatalyst lie in the fact that their combination of inorganic and organic moieties results in different metal–ligand charge transfer, which can give rise to tunable photocatalysts [29]. Lately, some metal CPs corresponding to the Cd(II), Cu(II) and Mn(II) ions, have been reported to be active in catalyzing the photodegradation of organic dyes [30,31,32,33,34]. However, the exploration of Zn(II)-based coordination complexes as effective photocatalysts is relatively rare [35,36,37].
We have been interested in the construction of CPs derived from metal ions and bridging N- or O- donor ligands [38,39,40]. Some of them could efficiently catalyze the photodegradation of organic dyes [41]. Aiming to search for more effective photocatalysts, four new CPs, [Zn7(μ4-O)2(OAc)10(bpmb)]n (1), [Zn(5-OH-1,3-BDC)(bpmb)]n (2), [Zn(1,2-BDC)(bpmb)]n (3) and [Zn2(ADB)2(bpmb)]n (4), were successfully synthesized by the starting materials flexible bipyridyl ligand 1,4-bis(pyridine-3-ylmethoxy)benzene (bpmb) and Zn(OAc)2·2H2O together with different rigid/flexible dicarboxylic auxiliary ligands 5-OH-1,3-H2BDC, 1,2-H2BDC and H2ADB under solvothermal conditions. These four CPs were found to be able to photocatalytically degrade methylene blue (MB) in water in a relatively efficient way.

2. Experimental Section

2.1. Chemicals and Characterization

The ligand bpmb was prepared according to the previously reported procedure with modification [38]. All other chemicals and reagents were obtained from commercial sources and used as received. Infrared (IR) spectra were recorded with a Varian 800 Fourier transform infrared (FT-IR) spectrometer (Varian, Inc., Palo Alto, CA, USA) as KBr disks (4000–400 cm−1). The elemental analysis for C, H, and N was performed on an EA1110 CHNS elemental analyzer (Carlo Erba, Inc., Milan, Italy). Powder X-ray diffraction (PXRD) was performed using a PANalytical X’Pert3 Powder instrument (PANalytical B.V., Almelo, The Netherlands) with Cu Kα radiation. Thermal gravimetric (TG) analysis was performed on a NETZSCH STA-449F3 instrument (Netzsch, Co., Selb, Germany) in flowing N2 with a heating rate of 10 °C·min−1, coupled with a Bruker TENSOR27 Fourier Transform Infrared Spectrometer (Bruker Optics, Inc., Ettlingen, Germany).

2.2. Synthesis

2.2.1. Synthesis of Compound 1

[Zn7(μ4-O)2(OAc)10(bpmb)]n (1). A 10 mL Pyrex glass tube was loaded with Zn(OAc)2·2H2O (9 mg, 0.04 mmol), bpmb (6 mg, 0.02 mmol) and 4 mL of MeCN. The tube was then sealed and heated in an oven to 150 °C for four days, and then cooled to ambient temperature at a rate of 5 °C·h−1. The colorless blocks of 1 were formed four day later, which were collected and dried in air. Yield: 8 mg (29%, based on bpmb). Anal. Calcd. for C38H46N2Zn7O24: C, 33.25; H, 3.38; N, 2.04. Found: C, 33.58; H, 3.55; N, 1.89. IR (KBr disc): 3378 (m), 2963 (w), 1612 (m), 1590 (s), 1506 (m), 1438 (m), 1403 (s), 1341 (m), 1231 (m), 1108 (w), 1052 (m), 1023 (m), 933 (w), 862 (w), 823 (w), 797 (w), 780 (w), 700 (m), 656 (m)·cm−1.

2.2.2. Synthesis of Compound 2

[Zn(5-OH-1,3-BDC)(bpmb)]n (2). A mixture of Zn(OAc)2·2H2O (9 mg, 0.04 mmol), bpmb (6 mg, 0.02 mmol), 5-OH-1,3-H2BDC (4 mg, 0.02 mmol), and 4 mL of H2O was sealed in a 10 mL Pyrex glass tube and heated at 170 °C for four days, then cooled to room temperature at a rate of 5 °C·h−1. The colorless blocks of 2 were collected and dried in air. Yield: 6 mg (56%, based on bpmb). Anal. Calcd. for C26H20N2ZnO7: C, 58.06; H, 3.75; N, 5.21. Found: C, 58.38; H, 3.55; N, 5.51. IR (KBr disc): 3300 (m), 3081 (w), 1627 (m), 1575 (s), 1508 (s), 1436 (m), 1400 (m), 1381 (m), 1349 (m), 1271 (m), 1237 (s), 1199 (m), 1107 (w), 1055 (m), 1000 (w), 831 (w), 794 (m), 782 (m), 728 (w), 700 (m), 656 (w)·cm−1.

2.2.3. Synthesis of Compound 3

[Zn(1,2-BDC)(bpmb)]n (3). Compound 3 (colorless rods) was prepared in the same way as 2, except using 1,2-H2BDC (3 mg, 0.02 mmol) instead of 5-OH-1,3-H2BDC. Yield: 5 mg (48%, based on bpmb). Anal. Calcd. for C26H20N2ZnO6: C, 59.84; H, 3.86; N, 5.39. Found: C, 59.90; H, 3.60; N, 5.60. IR (KBr disc): 3465 (m), 3073 (w), 1610 (m), 1508 (m), 1562 (s), 1442 (m), 1390 (m), 1271 (w), 1234 (m), 1213 (m), 1192 (w), 1128 (w), 1049 (m), 1023 (m), 798 (m), 749 (m), 708 (m), 654 (w)·cm−1.

2.2.4. Synthesis of Compound 4

[Zn2(ADB)2(bpmb)]n (4). Compound 4 (orange blocks) was prepared in the same way as 2, except using H2ADB (6 mg, 0.02 mmol) instead of 5-OH-1,3-H2BDC and the reaction temperature was fixed at 150 °C. Yield: 7 mg (36%, based on bpmb). Anal. Calcd. for C46H32N6Zn2O10: C, 57.58; H, 3.36; N, 8.76. Found: C, 57.79; H, 3.80; N, 8.57. IR (KBr disc): 3358 (m), 2928 (w), 1637 (s), 1581 (m), 1507 (m), 1411 (m), 1326 (w), 1228 (w), 1216 (w), 1119 (w), 1022 (m), 864 (w), 830 (m), 770 (m), 717 (w), 664 (w)·cm−1.

2.3. X-Ray Data Collection and Structure Determination

Single crystals of 1–4 were obtained directly from the above preparations. All measurements were made on a Bruker Smart Apex-II CCD area detector by using graphite monochromated Mo Kα (λ = 0.071073 nm). These crystals were mounted on glass fibers at 296 K for 1–4. Diffraction data were collected at f and ω modes with a detector distance of 35 mm to the crystals. Cell parameters were refined using the program Bruker SAINT. The collected data were reduced using the program Bruker SAINT A, and the absorption corrections (multi-scan) were applied. The reflection data were also corrected for Lorentz and polarization effects. The crystal structures of 1–4 were solved by direct method refined on F2 by full-matrix least-squares techniques with the SHELXTL-97 program [42]. A summary of the key crystallographic information for 1–4 is tabulated in Table 1.
Table
Table 1. Summary of crystallographic data for 1–4.
Table 1. Summary of crystallographic data for 1–4.
Compounds1234
Empirical formulaC38H46N2O24Zn7C26H20N2O7ZnC26H20N2O6ZnC23H16N3O5Zn
Formula weight1372.50537.83521.81479.76
Crystal systemTriclinicTriclinicMonoclinicTriclinic
Space groupPīPīP21Pī
a/Å10.231(2)9.6355(19)9.4819(19)10.259(2)
b/Å11.627(2)9.950(2)10.746(2)10.563(2)
c/Å12.602(3)13.936(3)11.348(2)10.846(2)
α/°114.18(3)78.20(3)90.00106.60(3)
β/°110.45(3)84.53(3)92.56(3)96.99(3)
γ/°91.34(3)61.85(3)90.00109.45(3)
V/Å31256.9(6)1153.2(4)1155.1(4)1030.9(4)
Z1222
Temperature/K296(2)296(2)296(2)296(2)
Dc/g·cm−31.8131.5491.5001.545
μ/Mo Kα, mm−13.3661.1171.1091.233
F(000)690.0552.0536.0490.0
Total reflections9665806581787268
Unique reflections(Rint)4406(0.0206)4054(0.0430)3961(0.0198)3618(0.0647)
No. of observations3784318937582601
No. of parameters327325317289
R1 a0.02820.04160.02320.0485
wR2 b0.07100.11850.05250.1379
GOF c1.0301.0541.0381.036
a R1 = Σ||Fo| − |Fc|/Σ|Fo|; b wR2 = {Σw(Fo2 − Fc2)2/Σw(Fo2)2}1/2; c GOF = {Σw(Fo2 − Fc2)2/(n − p)}1/2, where n = number of reflections and p = total numbers of parameters refined.

2.4. Photocatalytic Activity Measurements

The photocatalytic activities of as-prepared samples were evaluated by the degradation of MB under irradiation of a 350 W Xe lamp with the whole spectrum. The as-synthesized single crystals obtained from the above preparations, which were further grinded into microcrystals with a size of about 70 μm (Figure S1). In a typical process, 20 mg grinded samples as photocatalysts were added into 50 mL of MB aqueous solution (4 × 10−5 mol·L−1). The MB aqueous solution was stirred for 30 min in the dark before irradiation to reach adsorption equilibrium between the catalyst and solution and then it was exposed to the Xe lamp irradiation. About 4 mL suspension was continually taken from the reaction cell and collected by centrifugation at each 30 min interval during irradiation. The resulting solution was analyzed on a Varian 50 UV–Vis spectrophotometer (Varian, Inc., Palo Alto, CA, USA).

3. Results and Discussion

3.1. Synthetic and Spectral Aspects

Treatment of bpmb with Zn(OAc)2·2H2O in MeCN followed by a hydrothermal condition at 150 °C for four days produced crystals of 1 (29% yield). Furthermore, similar reactions of Zn(OAc)2·2H2O with bpmb and dicarboxylic derivatives at 170 °C (2–3) and 150 °C (4) in water generated crystals of 2 (56% yield), 3 (48% yield) and 4 (36% yield), respectively. When the reaction temperatures were decreased to 120 °C, only precipitates were isolated and their PXRD patterns were inconsistent with those of 1–4. Compounds 1–4 were stable towards oxygen and moisture, and almost insoluble in common organic solvents. Their elemental analyses were consistent with the chemical formulas of 1–4. In order to check the phase purity of 1–4, the powder X-ray diffraction (PXRD) patterns were measured at room temperature (Figure 1). The identities of 1–4 were finally confirmed by single-crystal diffraction analysis.
Polymers 08 00003 g001 550

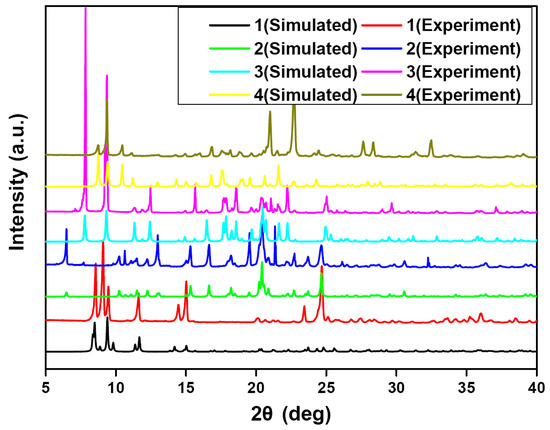

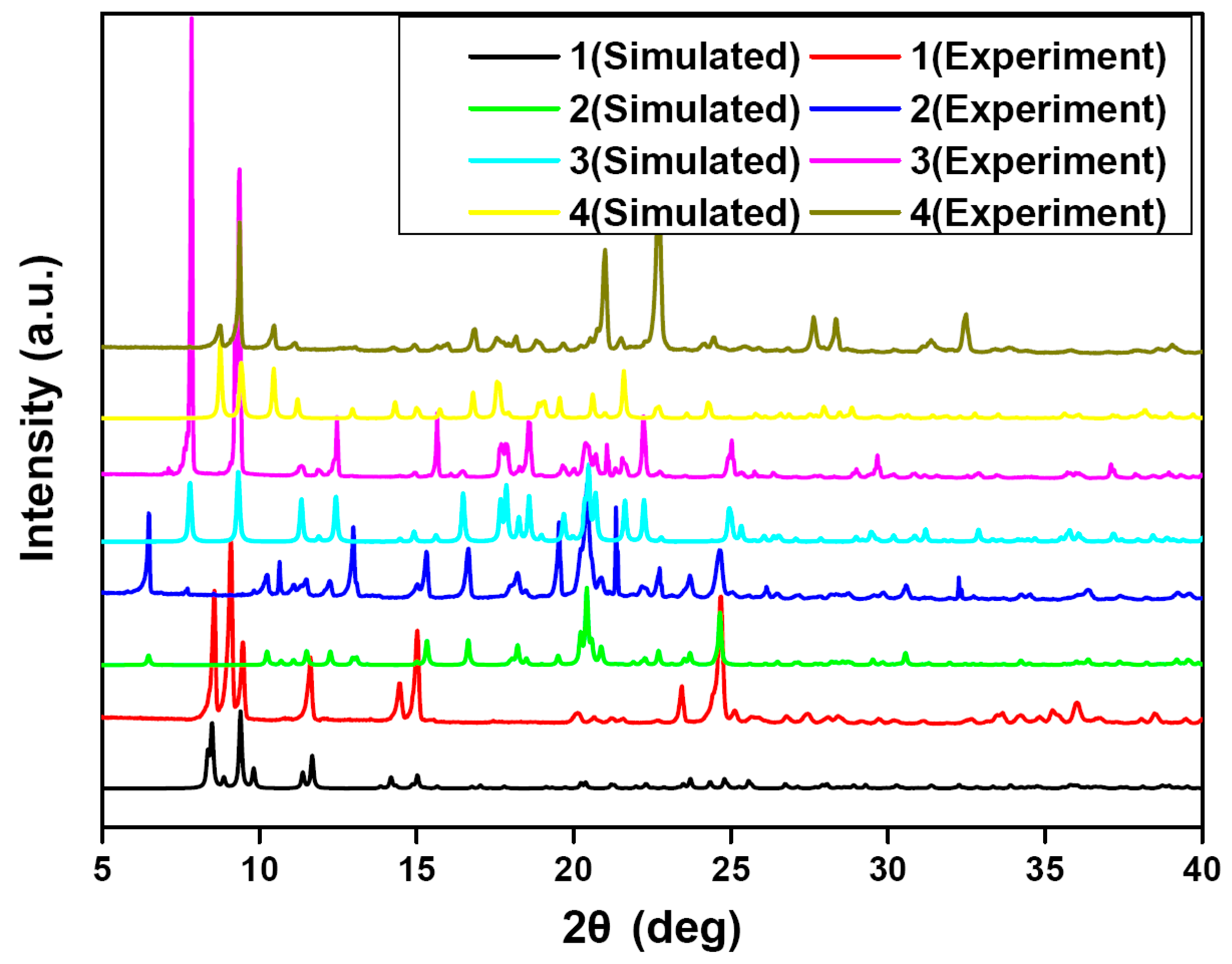

Figure 1. Experimental and simulated powder X-ray diffraction (PXRD) patterns for 1–4.
Figure 1. Experimental and simulated powder X-ray diffraction (PXRD) patterns for 1–4.
Polymers 08 00003 g001

3.2. Crystal Structure of 1

Compound 1 crystallizes in the triclinic space group Pī, and its asymmetric unit contains three and a half crystallographically independent Zn atoms, one μ4-O group, five OAc− ligands and a half bpmb ligand. As shown in Figure 2a, Zn1 atom adopts an octahedral coordination geometry and is six-coordinated by two O atoms of two μ4-O groups, four O atoms of four bridging carboxylate groups from four OAc− anions. While each Zn2 atom adopts a trigonal bipyramidal coordination geometry, coordinated by one O atom of μ4-O group, four O atoms of four bridging carboxylate groups from four OAc− anions and one N atom from one bpmb ligand (Figure 2a). Zn3 and Zn4 atoms are tetrahedrally coordinated by four O atoms from one μ4-O group and three bridging OAc− anions (Figure 2a). Zn1, Zn2, Zn3, Zn4 and its symmetry-related Zn2A, Zn3A and Zn4A are bridged by two μ4-O atoms and ten bridging OAc− groups to generate a heptanuclear [Zn7(μ4-O)(μ3-OAc)2(μ2-OAc)8] unit (Figure 2b). The Zn∙∙∙Zn separations in heptanuclear unit are 3.035–3.217 Å. The heptanuclear [Zn7(μ4-O)(μ3-OAc)2(μ2-OAc)8] units are further linked by bpmb ligands to form a 1D chain extending along the a-axis (Figure 2c).
Polymers 08 00003 g002 550

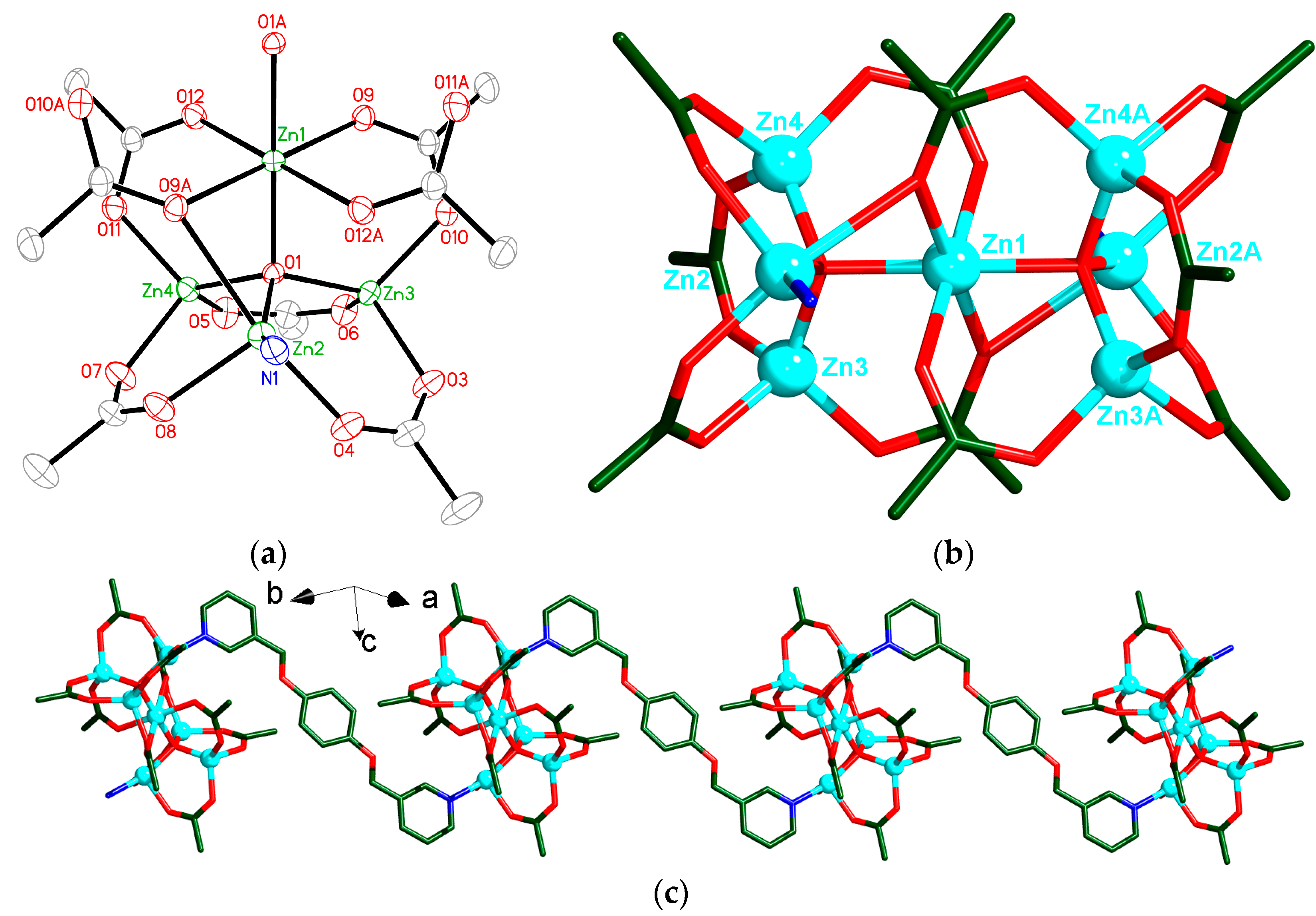

Figure 2. (a) View of the coordination environments of Zn centers in 1 with labeling schemes. Symmetry codes: (A) 1 − x, 1 − y, 1 − z. (b) View of one heptanuclear [Zn7(μ4-O)(μ3-OAc)2(μ2-OAc)8] unit of 1. Symmetry codes: (A) 1 − x, 1 − y, 1 − z. (c) View of the 1D chain in 1 extending along the a-axis. Atom color codes: Zn, cyan; O, red; N, blue; C, dark green. All H atoms are omitted for clarity.
Figure 2. (a) View of the coordination environments of Zn centers in 1 with labeling schemes. Symmetry codes: (A) 1 − x, 1 − y, 1 − z. (b) View of one heptanuclear [Zn7(μ4-O)(μ3-OAc)2(μ2-OAc)8] unit of 1. Symmetry codes: (A) 1 − x, 1 − y, 1 − z. (c) View of the 1D chain in 1 extending along the a-axis. Atom color codes: Zn, cyan; O, red; N, blue; C, dark green. All H atoms are omitted for clarity.
Polymers 08 00003 g002

3.3. Crystal Structure of 2

Compound 2 crystallizes in the monoclinic space group P2/c, its asymmetric unit contains one [Zn(5-OH-1,3-BDC)(bpmb)] unit. Each Zn atom is coordinated by two N atoms from two different bpmb ligands and two O atoms of bridging carboxylate groups from two 5-OH-1,3-BDC ligands to complete the tetrahedral geometry (Figure 3a). Each ZnII atom is interlinked by bis-monodentate 5-HO-1,3-BDC ligands to form a 1D [Zn(5-HO-1,3-BDC)]n chain extending along the a-axis (Figure 3b). Each chain is connected to adjacent chains via bpmb ligands to produce a 2D (4,4) layer (extending along the ac plane), with parallelogram-shaped meshes (9.635 Å × 16.363 Å, between Zn atoms at the corners) (Figure 3b). Interestingly, such 2D layer parallels to the equivalent one with a interleaving, resulting in a rare bilayer structure extending along the ac plane (Figure 3c,d). From the topological view [43], if the Zn centres are considered as nodes and the 5-HO-1,3-BDC and bpmb ligands are considered as linkers, the bilayer structure of 2 can be specified by a Schläfli symbol of 4462 (Figure 3d). Further investigation of the crystal packing of compound 2 suggests that each bilayer structure is interconnected with adjacent ones through intermolecular H-bonding interactions among the uncoordinated O atoms of the carboxylate groups from 5-HO-1,3-BDC ligands and the H atoms of the hydroxyl groups [O7–H7···O3, (− x, − y + 1, − z), 1.87(3) Å], which leads to the formation of a 3D supramolecular framework (Figure 3e).
Polymers 08 00003 g003 550

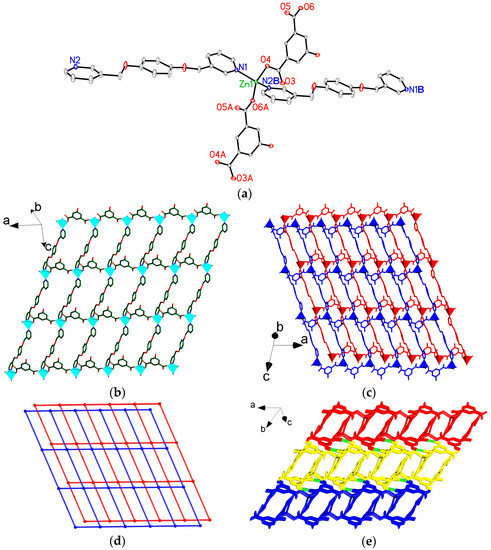

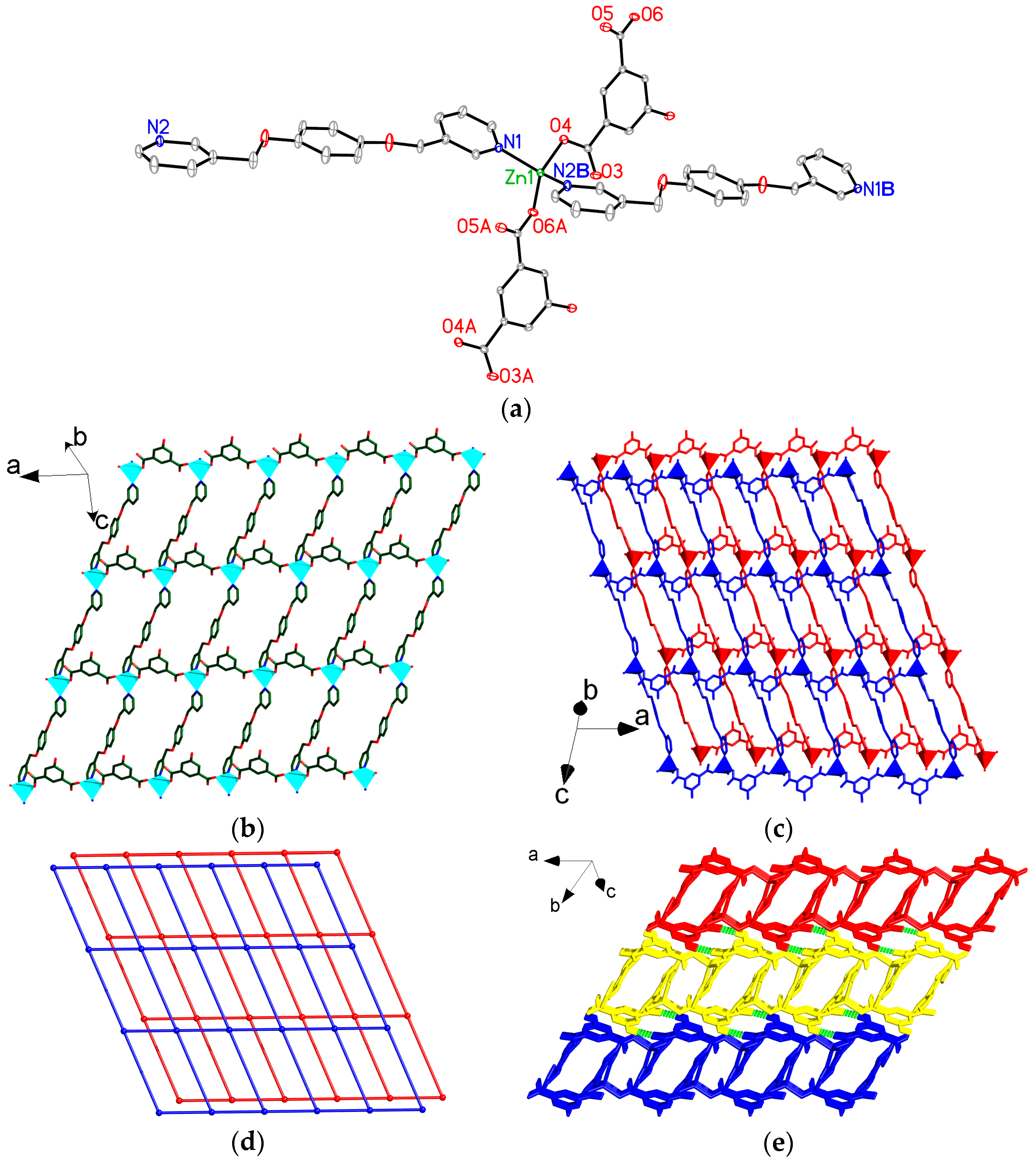

Figure 3. (a) View of the coordination environments of Zn center in 2 with labeling schemes. Symmetry codes: (A) − 1 + x, 1 + y, − 1 + z; (B) 1 + x, y, z; and (C) − 1 + x, 1 − y, − 1/2 + z; (b) View of the 2D (4,4) layer in 2; (c) View of the 2D bilayer structure in 2 looking down b-axis; (d) View of the 2D bilayer model in 2. Each single net represents a topology with a Schläfli symbol of 4462; (e) View of a 3D supramolecular framework in 2. Green dashed lines represent the hydrogen-bonded interactions. Atom color codes: Zn, cyan polyhedrons; O, red; N, blue; C, dark green and pink. All hydrogen atoms except those related to H-bonding interactions are omitted for clarity.
Figure 3. (a) View of the coordination environments of Zn center in 2 with labeling schemes. Symmetry codes: (A) − 1 + x, 1 + y, − 1 + z; (B) 1 + x, y, z; and (C) − 1 + x, 1 − y, − 1/2 + z; (b) View of the 2D (4,4) layer in 2; (c) View of the 2D bilayer structure in 2 looking down b-axis; (d) View of the 2D bilayer model in 2. Each single net represents a topology with a Schläfli symbol of 4462; (e) View of a 3D supramolecular framework in 2. Green dashed lines represent the hydrogen-bonded interactions. Atom color codes: Zn, cyan polyhedrons; O, red; N, blue; C, dark green and pink. All hydrogen atoms except those related to H-bonding interactions are omitted for clarity.
Polymers 08 00003 g003

3.4. Crystal Structure of 3

Compound 3 crystallizes in the monoclinic space group P21, and its asymmetric unit contains an independent [Zn(1,2-BDC)(bpmb)] molecule. Zn1 atom in 3 is six-coordinated by two N atoms (N1 and N2B) from two bpmb ligands, four O atoms (O3, O4, O5A and O6A) of two chelating carboxylate groups from two 1,2-BDC ligands (Figure 4a). As shown in Figure 4b, the Zn(II) ions are bridged by bpmb ligands generating a 1D [Zn(bpmb)]n chain. Interestingly, the 1,2-BDC ligands bond to Zn atoms in the up and down fashion in the 1D [Zn(bpmb)]n chain, producing a 2D structure extending along the ac plane (Figure 4c). Topologically, the overall structure of 3 can be described as a six-connected 41263 topology (Figure 4d).
Polymers 08 00003 g004 550

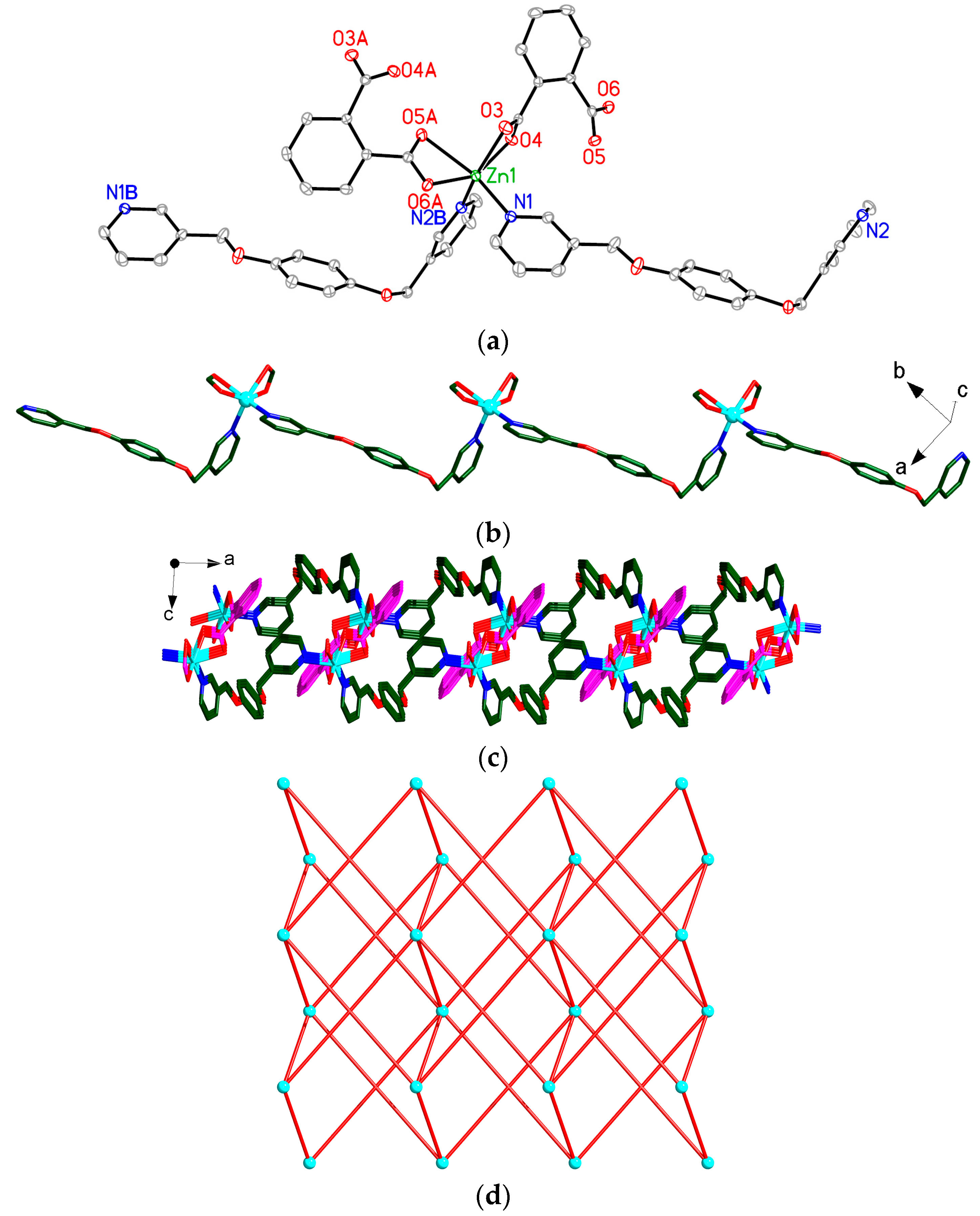

Figure 4. (a) View of the coordination environments of Zn center in 3 with labeling schemes. Symmetry codes: (A) 1 − x, 1/2 + y, 1 − z; (B) 1 + x, 1 + y, z; (b) View of the 1D [Zn(bpmb)]n chain in 3; (c) View of the 2D structure in 3 looking down b-axis; (d) Schematic view of the six-connected 41263 net of 3. Atom color codes: Zn, cyan; O, red; N, blue; C, dark green and pink. All H atoms are omitted for clarity.
Figure 4. (a) View of the coordination environments of Zn center in 3 with labeling schemes. Symmetry codes: (A) 1 − x, 1/2 + y, 1 − z; (B) 1 + x, 1 + y, z; (b) View of the 1D [Zn(bpmb)]n chain in 3; (c) View of the 2D structure in 3 looking down b-axis; (d) Schematic view of the six-connected 41263 net of 3. Atom color codes: Zn, cyan; O, red; N, blue; C, dark green and pink. All H atoms are omitted for clarity.
Polymers 08 00003 g004

3.5. Crystal Structure of 4

Compound 4 crystallizes in the triclinic space group Pī, and its asymmetric unit contains half of [Zn2(ADB)2(bpmb)] unit. The Zn1 atom adopts a pyramidal coordination geometry and is five-coordinated by four O atoms of four bridging carboxylate groups from four ADB ligands and one N atom of one bpmb ligand (Figure 5a). The Zn1 atom and its symmetry-related Zn1A atom are bridged by four carboxylate groups to generate a paddle-wheel [Zn2(μ2-CO2)4] unit (Figure 5b). The Zn∙∙∙Zn separation in this dinuclear unit is 2.9301 Å. Each paddle-wheel [Zn2(μ2-CO2)4] unit serves as a four-fold node, which links four equivalent ones via sharing of four ADB ligands to form a 2D wrinkled network extending along the bc plane (Figure 5b). Furthermore, the bpmb ligands are employed as linkers (pink) to bridge the 2D networks producing a 3D framework (Figure 5c). Topologically, the overall structure of 4 can be described as a pcu net with the six-connected 41263 topology (Figure 5d).
Polymers 08 00003 g005 550

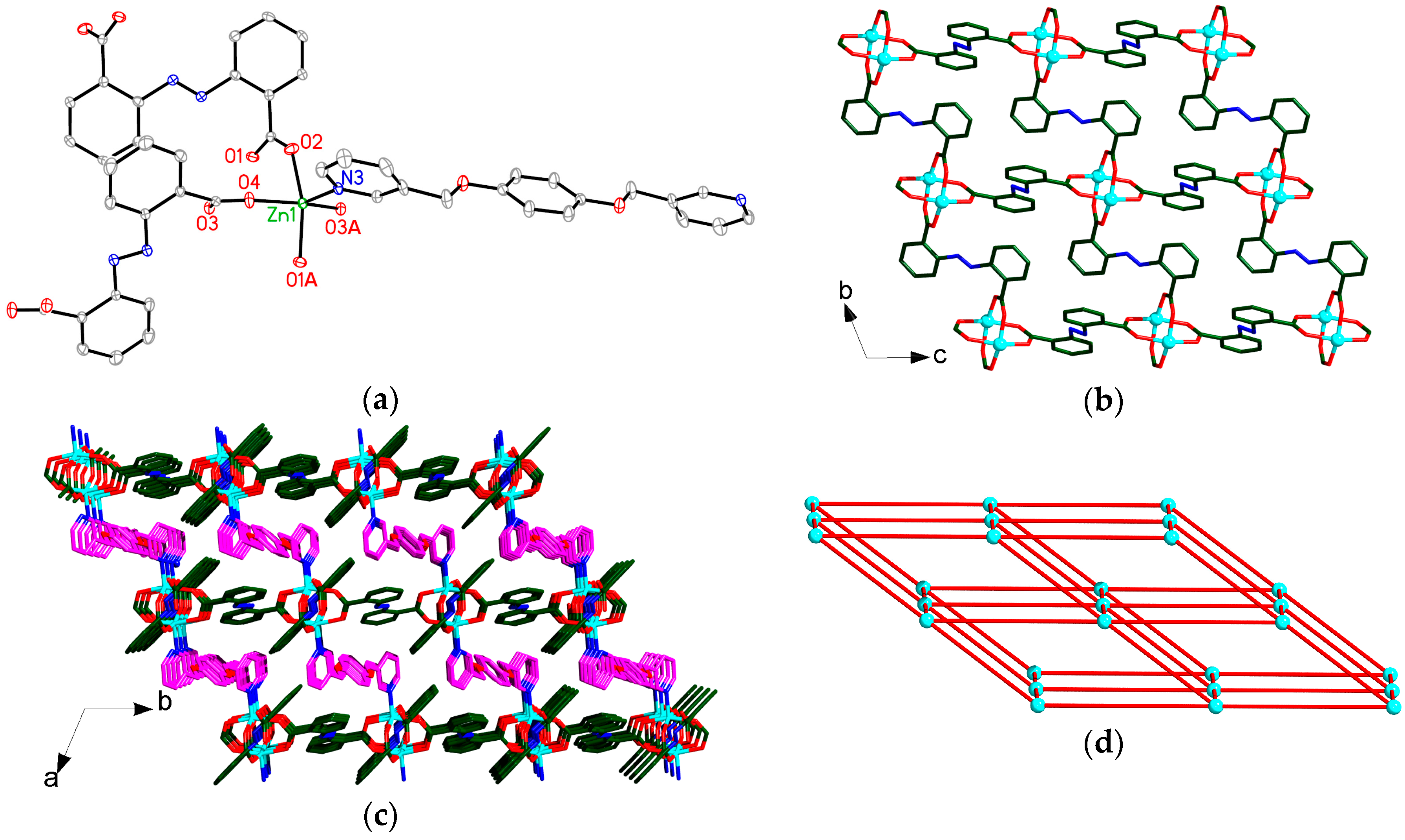

Figure 5. (a) View of the coordination environment of Zn center in 4 with labeling schemes. Symmetry codes: (A) 1 − x, 1 − y, 1 − z; (b) View of a wrinkled 2D network in 4 extending along the bc plane; (c) View of a 3D framework of 4 looking down the c-axis; (d) Schematic view of the six-connected pcu net of 4. Atom color codes: Zn, cyan; O, red; N, blue; C, dark green and pink. All H atoms are omitted for clarity.
Figure 5. (a) View of the coordination environment of Zn center in 4 with labeling schemes. Symmetry codes: (A) 1 − x, 1 − y, 1 − z; (b) View of a wrinkled 2D network in 4 extending along the bc plane; (c) View of a 3D framework of 4 looking down the c-axis; (d) Schematic view of the six-connected pcu net of 4. Atom color codes: Zn, cyan; O, red; N, blue; C, dark green and pink. All H atoms are omitted for clarity.
Polymers 08 00003 g005
The structures of 1–4 are different in the following aspects. Firstly, Zn atoms in 1 are surrounded by four, five and six O atoms, exhibiting the trigonal pyramidal, trigonal bipyramidal and octahedral coordination geometries, respectively, while in 2–4, Zn atoms only show one type of coordination geometry, namely, trigonal pyramid for 2, distorted octahedron for 3 and trigonal bipyramid for 4. Secondly, the bpmb ligands in 1–2 and 4 are employed as the linkers connecting the 0D heptanuclear [Zn7(μ4-O)(μ3-OAc)2(μ2-OAc)8] units (1), 1D [Zn(5-HO-1,3-BDC)]n chains (2) and 2D [Zn2(ADB)4]n networks (4) to produce the higher dimensional structures. In 3, the bpmb ligands are connected by Zn atoms, resulting in a 1D [Zn(bpmb)]n chain. Thirdly, the carboxylate groups of the ancillary ligands display μ2-η1:η1 and μ3-η1:η2 coordination modes in 1, μ1-η1:η0 in 2, μ1-η1:η1 (3) and μ2-η1:η1 in 4. In 1, the OAc− anions work as the terminal ligands joining the seven Zn atoms to afford the heptanuclear [Zn7(μ4-O)(μ3-OAc)2(μ2-OAc)8] unit. In 4, the ADB ligands serve as two-connectted nodes to link Zn2 subunits forming 2D network, which may be due to the species of ancillary ligands. Fourthly, in 2, the OH groups at the five-position of 1,3-BDC ligands act as hydrogen-bonding donors expand the 2D bilayers into the 3D hydrogen-bonded framework. While in 3, as the H atom of 1,2-BDC ligand acts neither as a hydrogen-bonding donor nor as a hydrogen-bonding acceptor, it could not induce any hydrogen-bonding interactions. Therefore, the substituted groups in BDC ligands play important roles in determining the structures of 2–3. From the above-mentioned comparison, it is noted that the species of ancillary ligands in this study greatly affected the formation of different coordination geometries of Zn(II) atoms, the conformations of the bpmb ligands and the whole structures of these compounds.

3.6. Thermal Property

Thermogravimetric (TGA) experiments were carried out to study the thermal stability of 1–4. As shown in Figure 6, the TGA curves of 1–4 show similar profiles. They are stable up to 326 °C for 1, 285 °C for 2–3 and 235 °C for 4, followed by the collapse upon further calcinations. The final residue of 40.27%, 16.72%, 18.90% and 14.55% for 1–4, respectively, is in agreement with the percentage of ZnO (calculated 41.52%, 15.14%, 15.60% and 16.97%), indicating that this is the final product.
Polymers 08 00003 g006 550

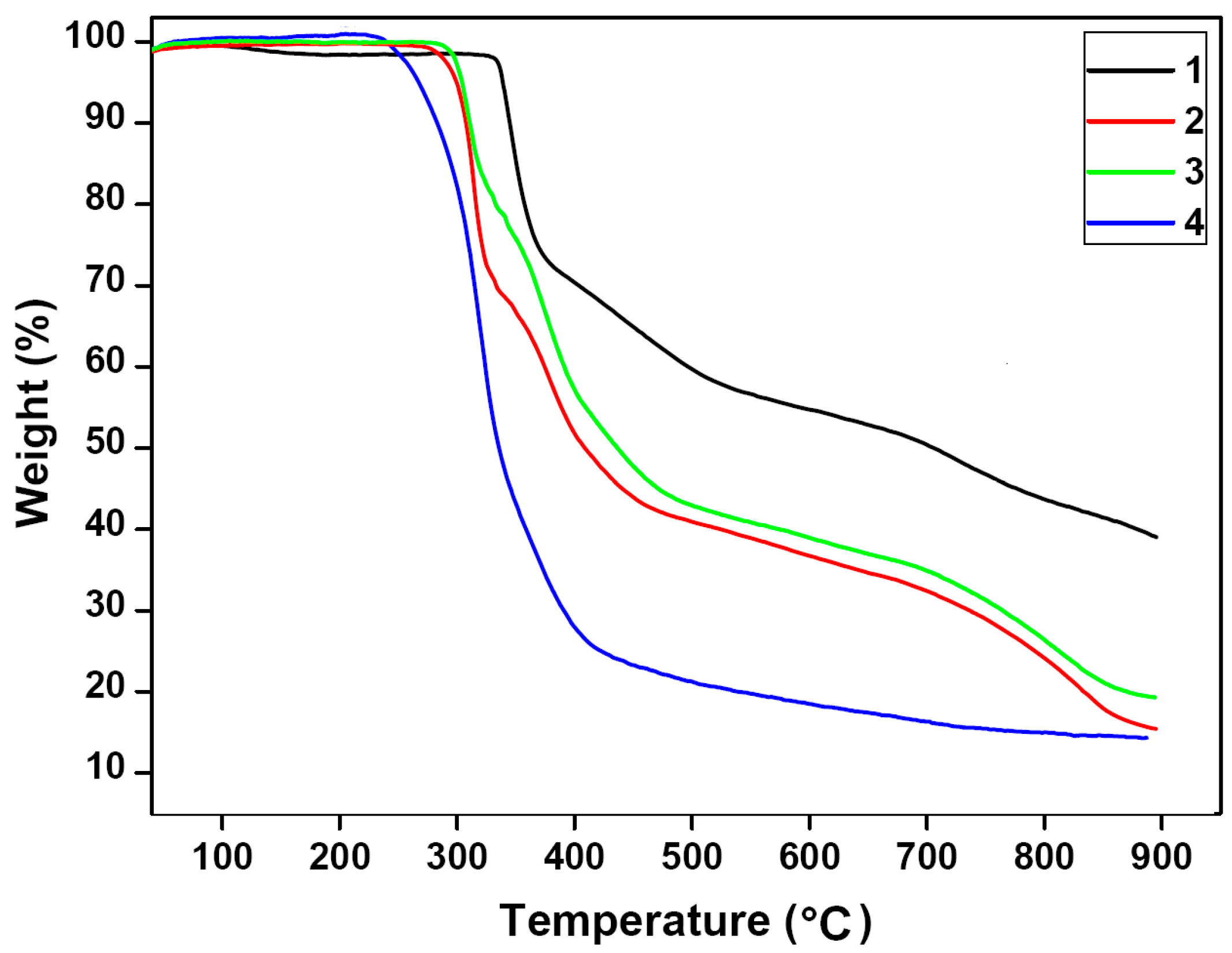

Figure 6. The thermogravimetric analyses (TGA) curves for 1–4.
Figure 6. The thermogravimetric analyses (TGA) curves for 1–4.
Polymers 08 00003 g006

3.7. Photocatalytic Activity

As is well-known, organic dyes such as MO, MB and RhB that were extensively used in the textile industry have been found to be toxic, stable and difficult to biodegrade. Thus, it is urgent to decompose such dye molecules into some simple molecules to reduce the environment pollution. Hence, in this work, the photocatalytic activities of the compounds 1–4 were evaluated by the degradation of MB under irradiation at room temperature as the test pollutant. To evaluate the band gaps, the UV–vis absorption spectrum of 1–4 is measured at room temperature (Figure S2). The results give Eg (band-gap energy) values of 3.46, 3.56, 3.62 and 3.64 eV for 1–4, respectively (Figure S3). As illustrated in Figure 7a–d, the absorption peaks of MB in water decreased patently following the reaction time in the presence of 1–4. The concentrations of organic dye were estimated by the absorbance at 665 nm (MB, absorption coefficient: 5.53 × 104 L·mol−1·cm−1). The degradation efficiencies are defined as C/C0, where C and C0 represent the remnant and initial concentration of MB, respectively (Figure 7e). By contrast, the simple photolysis experiment was also performed under the same conditions without any catalyst. A comparison of the photocatalytic activities of 1–4 was presented in Figure 7e. The calculation results demonstrate that the photocatalytic activities increase from 23.0% (controlled experiment without any catalyst) to 95.3% for 1, 92.8% for 2, 95.5% for 3 and 95.2% for 4 after 120 min of irradiation, which are better than the commercial Degussa P25 TiO2 reference catalyst (84%), the pure ZnO (74%) and the ZnO@ZIF-8 materials [44]. Even compound 1 holds the narrowest Eg among these compounds, however, it exhibits almost same photocatalytic activity compared with compounds 3 and 4, which may be due to the heptanuclear units in compound 1 that hinder the migration of excited electrons/holes and slow down the photocatalytic degradation process [34]. It is clear that compound 2 possesses lower activity than other compounds, which may be ascribed to the bilayer structures in 2, leading to the MB molecules inaccessibility of the zinc centers. The catalyst was filtered and obtained a colorless solution, which was extracted by acetic ether, and the organic phase was analyzed by gas chromatography-mass spectrometer. No corresponding species of MB was observed, and thus we assumed that the dyes might be degradation of CO2 and H2O [22,45].
And the photocatalytic efficiencies of these compounds are comparable to those of other Zn-based CP materials. Such as, using the known CPs {[Zn2(Tipa)(4,4′-bpdc)1.5(H2O)(NO3)]·2(DMF)·H2O}n (Tipa = tris(4-(1H-imidazol-1-yl)-phenyl)amine, 4,4′-bpdc = 4,4′-biphenyldicarboxylate) [36] and {[Zn2(H2O)(1,4-ndc)2(tpcb)]}n (1,4-H2ndc = 1,4-naphthalenedicarboxylic acid, tpcb = tetrakis(4-pyridyl)cyclobutane) [35] as catalysts, which could degrade most of the MB with a relatively long times (240 and 600 min). Compared with other Cd-based CP materials, {[Cd(tpcb)0.75(OH)(H2O)2](NO3)}n [45], {[Cd(btbb)0.5(btec)0.5(H2O)]·2H2O}n (btbb = 1,4-bis(2-(4-thiazolyl)benzimidazole-1-ylmethyl)benzene, H4btec = 1,2,4,5-benzenetetracarboxylate) [28] and {[Cd3(bcb)2(H2O)5]·H2O}n (H3bcb = 3,4-bi(4-carboxyphenyl)-benzoic acid) [26] as catalysts, ca. 82.0%, 92.7% and 88.7% of MB was degraded in 120, 140 and 180 min, respectively. Combined with the UV–Vis adsorption spectra of 1–4 in the solid state (Figure S2), we inferred that the photocatalytic activities of these compounds could be attributed to the ZnO units. The valence and the conduction bands of ZnO are mainly due to O(2p) and Zn(4s) orbitals, respectively, this electronic transition can basically be described as an O2−Zn2+ → O−Zn+ LMCT. The organic linker acts as a photon antenna that could efficiently transfer the energy to the ZnO units [46]. In addition, the PXRD patterns of each powder for 1–4 were basically identical to those of the parent compounds, indicating that these compounds are stable during photocatalysis.
Polymers 08 00003 g007 550

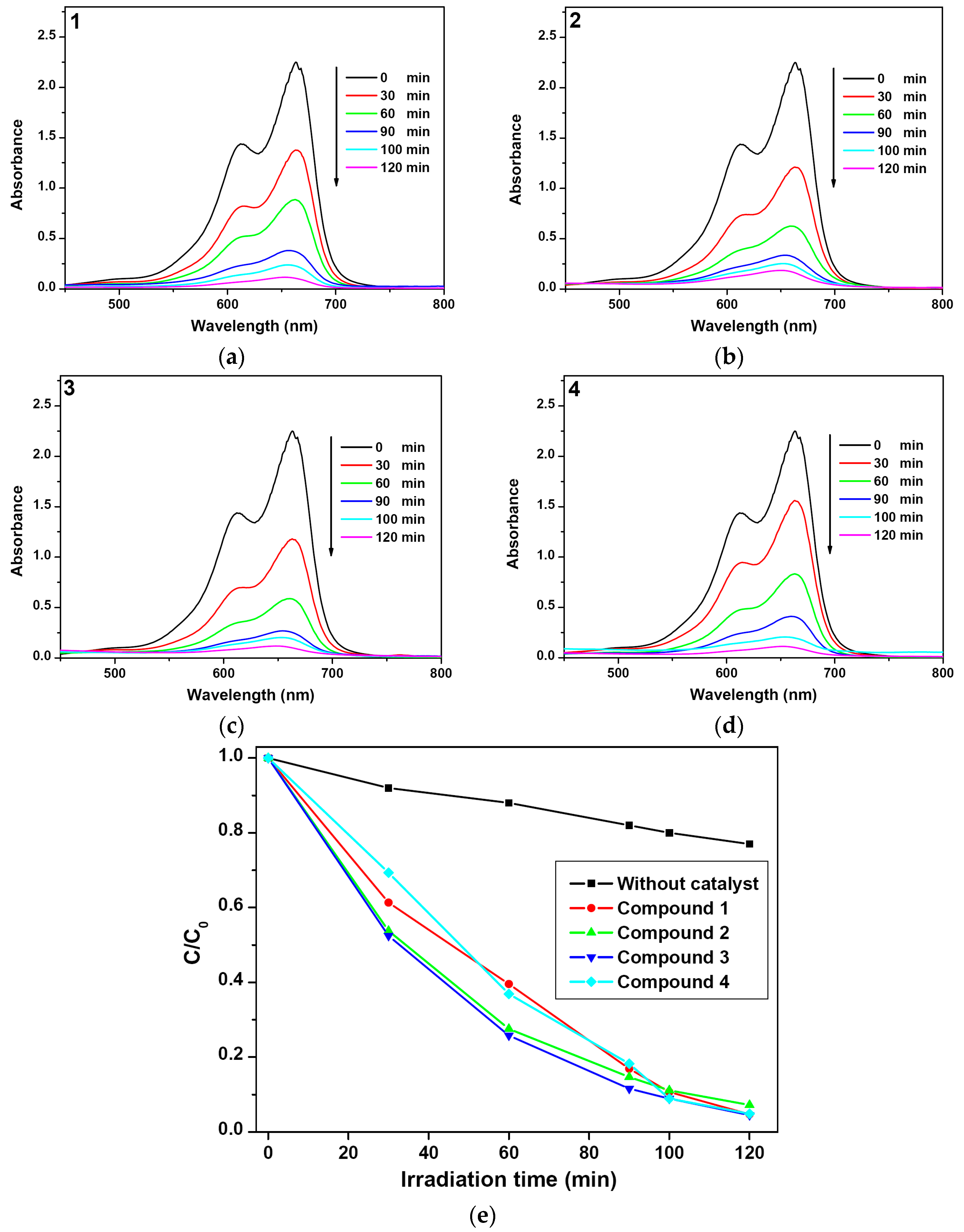

Figure 7. (a–d) Absorption spectra of the MB solution (4 × 10−5 mol·L−1, 50 mL) during the decomposition reaction under the Xe lamp irradiation with the presence of compounds 1–4 (20 mg); (e) Concentration changes of MB at different time intervals under Xe lamp irradiation with 1–4 as catalysts and without catalyst.
Figure 7. (a–d) Absorption spectra of the MB solution (4 × 10−5 mol·L−1, 50 mL) during the decomposition reaction under the Xe lamp irradiation with the presence of compounds 1–4 (20 mg); (e) Concentration changes of MB at different time intervals under Xe lamp irradiation with 1–4 as catalysts and without catalyst.
Polymers 08 00003 g007

4. Conclusions

In summary, we demonstrated that treatment of Zn(OAc)2·2H2O with bpmb and dicarboxylic ligands with different motifs formed four different CPs 1–4. These compounds exhibit various structural features. The photocatalytic activities of 1–4 were evaluated by the decomposition of organic dyes in aqueous solutions under the Xe lamp irradiation. These compounds showed good catalytic performance for the degradation of MB, which were excellent candidates for decomposing other organic dyes.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4360/8/1/3/s1. Figure S1 performs the SEM image of the grinded samples for 1; Figure S2 presents the UV–vis adsorption spectra of 1–4 in the solid state at ambient temperature; Figure S3 shows the (Ahν)2–hν curves of 1–4. Figure S4 displays the UV–vis adsorption spectra of the initial MB solution and the MB solution after stirring with the catalyst about 30 min.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (U1304210, 21401006, U1204213 and 21304001) and the Sci-tech Development Project of the Science and Technology Department of Henan Province (132102210454).

Author Contributions

Lei-Lei Liu conceived and designed the experiments; Wei Zhou, Qi-Gui Zhang and Shi-Min Liu performed the experiments; Cai-Xia Yu analyzed the data; Lei-Lei Liu and Yun-Feng Shi contributed reagents/materials/analysis tools; and Lei-Lei Liu wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Buchwalter, P.; Rosè, J.; Braunstein, P. Multimetallic catalysis based on heterometallic complexes and clusters. Chem. Rev. 2015, 115, 28–126. [Google Scholar] [CrossRef] [PubMed]
  2. Manna, K.; Zhang, T.; Lin, W. Postsynthetic metalation of bipyridyl-containing metal–organic frameworks for highly efficient catalytic organic transformations. J. Am. Chem. Soc. 2014, 136, 6566–6569. [Google Scholar] [CrossRef] [PubMed]
  3. Sun, D.; Ye, L.; Li, Z. Visible-light-assisted aerobic photocatalytic oxidation of amines to imines over NH2-MIL-125 (Ti). Appl. Catal. B Environ. 2015, 164, 428–432. [Google Scholar] [CrossRef]
  4. Wang, S.; Yao, W.; Lin, J.; Ding, Z.; Wang, X. Cobalt imidazolate metal–organic frameworks photosplit CO2 under mild reaction conditions. Angew. Chem. Int. Ed. 2014, 53, 1034–1038. [Google Scholar] [CrossRef] [PubMed]
  5. Yan, Y.; Yang, S.H.; Blake, A.J.; Schröder, M. Studies on metal–organic frameworks of Cu(II) with isophthalate linkers for hydrogen Storage. Acc. Chem. Res. 2014, 47, 296–307. [Google Scholar] [CrossRef] [PubMed]
  6. Sato, H.; Kosaka, W.; Matsuda, R.; Hori, A.; Hijikata, Y.; Belosludov, R.V.; Sakaki, S.; Takata, M.; Kitagawa, S. Self-accelerating CO sorption in a soft nanoporous crystal. Science 2014, 343, 167–170. [Google Scholar] [CrossRef] [PubMed]
  7. Farha, O.K.; Shultz, A.M.; Sarjeant, A.A.; Nguyen, S.T.; Hupp, J.T. Active-site-accessible, Porphyrinic metal–organic framework materials. J. Am. Chem. Soc. 2011, 133, 5652–5655. [Google Scholar] [CrossRef] [PubMed]
  8. Wu, P.Y.; He, C.; Wang, J.; Peng, X.J.; Li, X.Z.; An, Y.L.; Duan, C.Y. Photoactive chiral metal–organic frameworks for light-driven asymmetric α-alkylation of aldehydes. J. Am. Chem. Soc. 2012, 134, 14991–14999. [Google Scholar] [CrossRef] [PubMed]
  9. Zhao, Y.; Deng, D.S.; Ma, L.F.; Ji, B.M.; Wang, L.Y. A new copper-based metal–organic framework as a promising heterogeneous catalyst for chemo-and regio-selective enamination of β-ketoesters. Chem. Commun. 2013, 49, 10299–10301. [Google Scholar] [CrossRef] [PubMed]
  10. Li, H.X.; Zhao, W.; Li, H.Y.; Xu, Z.L.; Wang, W.X.; Lang, J.P. [Cu30I16(mtpmt)12(μ10-S4)]: An unusual 30-membered copper(I) cluster derived from the C–S bond cleavage and its use in heterogeneous catalysis. Chem. Commun. 2013, 49, 4259–4261. [Google Scholar] [CrossRef] [PubMed]
  11. Huang, S.L.; Lin, Y.J.; Hor, T.S.A.; Jin, G.X. Cp*Rh-based heterometallic metallarectangles: Size-dependent Borromean link structures and catalytic acyl transfer. J. Am. Chem. Soc. 2013, 135, 8125–8128. [Google Scholar] [CrossRef] [PubMed]
  12. Hu, Z.; Deibert, B.J.; Li, J. Luminescent metal–organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815–5840. [Google Scholar] [CrossRef] [PubMed]
  13. O’Keeffe, M.; Yaghi, O.M. Deconstructing the crystal structures of metal–organic frameworks and related materials into their underlying nets. Chem. Rev. 2012, 112, 675–702. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, M.W.; Chen, Y.P.; Bosch, M.; Gentle, T.; Wang, K.C.; Feng, D.W.; Wang, Z.Y.U.; Zhou, H.C. Symmetry-guided synthesis of highly porous metal–organic frameworks with fluorite topology. Angew. Chem. Int. Ed. 2014, 53, 815–818. [Google Scholar] [CrossRef] [PubMed]
  15. Zhao, X.; Bu, X.H.; Wu, T.; Zheng, S.T.; Wang, L.; Feng, P.Y. Selective anion exchange with nanogated isoreticular positive metal-organic frameworks. Nat. Commun. 2013, 4, 2344. [Google Scholar] [CrossRef] [PubMed]
  16. Herm, Z.R.; Wiers, B.M.; Mason, J.A.; van Baten, J.M.; Hudson, M.R.; Zajdel, P.; Brown, C.M.; Masciocchi, N.; Krishna, R.; Long, J.R. Separation of hexane isomers in a metal-organic framework with triangular channels. Science 2013, 340, 960–964. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, Y.; Yan, P.F.; Yu, Y.H.; Hou, G.F.; Gao, J.S.; Lu, J.Y. Syntheses, structures, and characterizations of a series of polymers constructed by two V-shape dipyridine-containing ligands. Cryst. Growth Des. 2010, 10, 1559–1568. [Google Scholar] [CrossRef]
  18. Oh, M.; Stern, C.L.; Mirkin, C.A. Coordination polymers from silver(I) and bifunctional pyridyl ligands. Inorg. Chem. 2005, 44, 2647–2653. [Google Scholar] [CrossRef] [PubMed]
  19. Liu, Y.; Yu, Y.H.; Liu, Y.F.; Hou, G.F.; Wang, X.D.; Wen, B.; Gao, J.S. A luminescent cage-Like complex constructed by bidentate pyridine-containing ligand and silver nitrate. Z. Anorg. Allg. Chem. 2013, 639, 193–196. [Google Scholar] [CrossRef]
  20. Steel, P.J.; Fitchett, C.M. Flexibility in the self-assembly of silver complexes: Coordination polymers from multi-armed pyridylmethyleneoxy ligands. Aust. J. Chem. 2013, 66, 443–451. [Google Scholar] [CrossRef]
  21. Li, L.J.; Qin, C.; Wang, X.L.; Wang, S.; Zhao, L.; Yang, G.S.; Wang, H.N.; Yuan, G.; Shao, K.Z.; Su, Z.M. pH variation induced construction of a series of entangled frameworks based on bi- and tri-metallic cores as nodes. CrystEngComm 2012, 14, 124–130. [Google Scholar] [CrossRef]
  22. Ma, W.; Li, J.; Tao, X.; He, J.; Xu, Y.; Yu, J.C.; Zhao, J. Efficient degradation of organic pollutants by using dioxygen activated by resin-exchanged iron(II) bipyridine under visible irradiation. Angew. Chem. 2003, 115, 1059–1062. [Google Scholar] [CrossRef]
  23. Liu, S.W.; Yu, J.G.; Jaroniec, M. Tunable photocatalytic selectivity of hollow TiO2 microspheres composed of anatase polyhedra with exposed {001} facets. J. Am. Chem. Soc. 2010, 132, 11914–11916. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, H.H.; Yang, J.; Liu, Y.Y.; Song, S.Y.; Ma, J.F. Heterotrimetallic organic framework assembled with FeIII/BaII/NaI and schiff base: Structure and visible photocatalytic degradation of chlorophenols. Cryst. Growth Des. 2015, 15, 4986–4992. [Google Scholar] [CrossRef]
  25. Zhang, H.; Yu, K.; Lv, J.H.; Gong, L.H.; Wang, C.M.; Wang, C.X.; Sun, D.; Zhou, B.B. Organic-inorganic hybrid materials based on basket-like {Ca⊂P6Mo18O73} cages. Inorg. Chem. 2015, 54, 6744–6757. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, L.; Ding, J.; Huang, C.; Li, M.; Hou, H.W.; Fan, Y.T. Polynuclear CdII polymers: Crystal structures, topologies, and the photodegradation for organic dye contaminants. Cryst. Growth Des. 2014, 14, 3035–3043. [Google Scholar] [CrossRef]
  27. Wu, X.Y.; Qi, H.X.; Ning, J.J.; Wang, J.F.; Ren, Z.G.; Lang, J.P. One silver(I)/tetraphosphine coordination polymer showing good catalytic performance in the photodegradation of nitroaromatics in aqueous solution. Appl. Catal. B Environ. 2015, 168–169, 98–104. [Google Scholar] [CrossRef]
  28. Liu, L.; Ding, J.; Li, M.; Lv, X.F.; Wu, J.; Hou, H.W.; Fan, Y.T. Structural variability, topological analysis and photocatalytic properties of neoteric Cd(II) coordination polymers based on semirigid bis(thiazolylbenzimidazole) and different types of carboxylic acid linkers. Dalton Trans. 2014, 43, 12790–12799. [Google Scholar] [CrossRef] [PubMed]
  29. Wen, L.L.; Zhao, J.B.; Lv, K.L.; Wu, Y.H.; Deng, K.J.; Leng, X.K.; Li, D.F. Visible-light-driven photocatalysts of metal–organic frameworks derived from multi-carboxylic acid and imidazole-based spacer. Cryst. Growth Des. 2012, 12, 1603–1612. [Google Scholar] [CrossRef]
  30. Chen, Y.Q.; Liu, S.J.; Li, Y.W.; Li, G.R.; He, K.H.; Qu, Y.K.; Hu, T.L.; Bu, X.H. A two-fold interpenetrated coordination framework with a rare (3,6)-connected loh1 topology: Magnetic properties and photocatalytic behavior. Cryst. Growth Des. 2012, 12, 5426–5431. [Google Scholar] [CrossRef]
  31. Wen, T.; Zhang, D.X.; Zhang, J. Two-dimensional copper(I) coordination polymer materials as photocatalysts for the degradation of organic dyes. Inorg. Chem. 2013, 52, 12–14. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, F.; Liu, Z.S.; Yang, H.; Tan, Y.X.; Zhang, J. Hybrid zeolitic imidazolate frameworks with catalytically active TO4 building blocks. Angew. Chem. Int. Ed. 2011, 50, 450–453. [Google Scholar] [CrossRef] [PubMed]
  33. Hou, Y.L.; Sun, R.W.Y.; Zhou, X.P.; Wang, J.H.; Li, D. A copper(I)/copper(II)-salen coordination polymer as a bimetallic catalyst for three-component strecker reactions and degradation of organic dyes. Chem. Commun. 2014, 50, 2295–2297. [Google Scholar] [CrossRef] [PubMed]
  34. Meng, W.; Xu, Z.Q.; Ding, J.; Wu, D.Q.; Han, X.; Hou, H.W.; Fan, Y.T. A systematic research on the synthesis, structures, and application in photocatalysis of cluster-based coordination complexes. Cryst. Growth Des. 2014, 14, 730–738. [Google Scholar] [CrossRef]
  35. Dai, M.; Su, X.R.; Wang, X.; Wu, B.; Ren, Z.G.; Zhou, X.; Lang, J.P. Three zinc(II) coordination polymers based on tetrakis(4-pyridyl)cyclobutane and naphthalenedicarboxylate linkers: Solvothermal syntheses, structures, and photocatalytic properties. Cryst. Growth Des. 2014, 14, 240–248. [Google Scholar] [CrossRef]
  36. Fu, H.R.; Kang, Y.; Zhang, J. Highly selective sorption of small hydrocarbons and photocatalytic properties of three metal–organic frameworks based on tris(4-(1H‑imidazol-1-yl)phenyl)amine ligand. Inorg. Chem. 2014, 53, 4209–4214. [Google Scholar] [CrossRef] [PubMed]
  37. Hu, F.L.; Shi, Y.X.; Chen, H.H.; Lang, J.P. A Zn(II) coordination polymer and its photocycloaddition product: Syntheses, structures, selective luminescence sensing of iron(III) ions and selective absorption of dyes. Dalton Trans. 2015, 44, 18795–18803. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, L.L.; Yu, C.X.; Li, Y.R.; Han, J.J.; Ma, F.J.; Ma, L.F. Positional isomeric effect on the structural variation of Cd(II) coordination polymers based on flexible linear/V-shaped bipyridyl benzene ligands. CrystEngComm 2015, 17, 653–664. [Google Scholar] [CrossRef]
  39. Liu, L.L.; Yu, C.X.; Sun, J.; Meng, P.P.; Ma, F.J.; Du, J.M.; Ma, L.F. Three coordination polymers constructed from various polynuclear clusters spaced by 2,2′-azodibenzoic acid: Syntheses and fluorescent properties. Dalton Trans. 2014, 43, 2915–2924. [Google Scholar] [CrossRef] [PubMed]
  40. Liu, L.L.; Yu, C.X.; Zhou, Y.; Sun, J.; Meng, P.P.; Liu, D.; Sa, R.J. Three Cd(II) coordination polymers assembled by flexible 2,2′-azodibenzoic acid and N-donor auxiliary ligand: Structural diversities and luminescent properties. Inorg. Chem. Commun. 2014, 40, 194–199. [Google Scholar] [CrossRef]
  41. Liu, L.L.; Yu, C.X.; Ma, F.J.; Li, Y.R.; Han, J.J.; Lin, L.; Ma, L.F. Structural diversity and photocatalytic properties of Cd(II) coordination polymers constructed by a flexible V-shaped bipyridyl benzene ligand and dicarboxylate derivatives. Dalton Trans. 2015, 44, 1636–1645. [Google Scholar] [CrossRef] [PubMed]
  42. Sheldrick, G.M. SHELXS-97 and SHELXL-97, Program for X-ray Crystal Structure Solution; University of Göettingen: Göettingen, Germany, 1997. [Google Scholar]
  43. Wells, A.F. Three-Dimensional Nets and Polyhedra; Wiley-Interscience: New York, NY, USA, 1977. [Google Scholar]
  44. Wee, L.H.; Janssens, N.; Sree, S.P.; Wiktor, C.; Gobechiya, E.; Fischer, R.A.; Kirschhock, C.E.A.; Martens, J.A. Local transformation of ZIF-8 powders and coatings into ZnO nanorods for photocatalytic application. Nanoscale 2014, 6, 2056–2060. [Google Scholar] [CrossRef] [PubMed]
  45. Li, D.X.; Ni, C.Y.; Chen, M.M.; Dai, M.; Zhang, W.H.; Yan, W.Y.; Qi, H.X.; Ren, Z.G.; Lang, J.P. Construction of Cd(II) coordination polymers used as catalysts for the photodegradation of organic dyes in polluted water. CrystEngComm 2014, 16, 2158–2167. [Google Scholar] [CrossRef]
  46. Bordiga, S.; Lamberti, C.; Ricchiardi, G.; Regli, L.; Bonino, F.; Damin, A.; Lillerud, K.P.; Bjorgen, M.; Zecchin, A. Electronic and vibrational properties of a MOF-5 metal–organic framework: ZnO quantum dot behavior. Chem. Commun. 2004, 20, 2300–2301. [Google Scholar] [CrossRef] [PubMed]
