Figure 1.

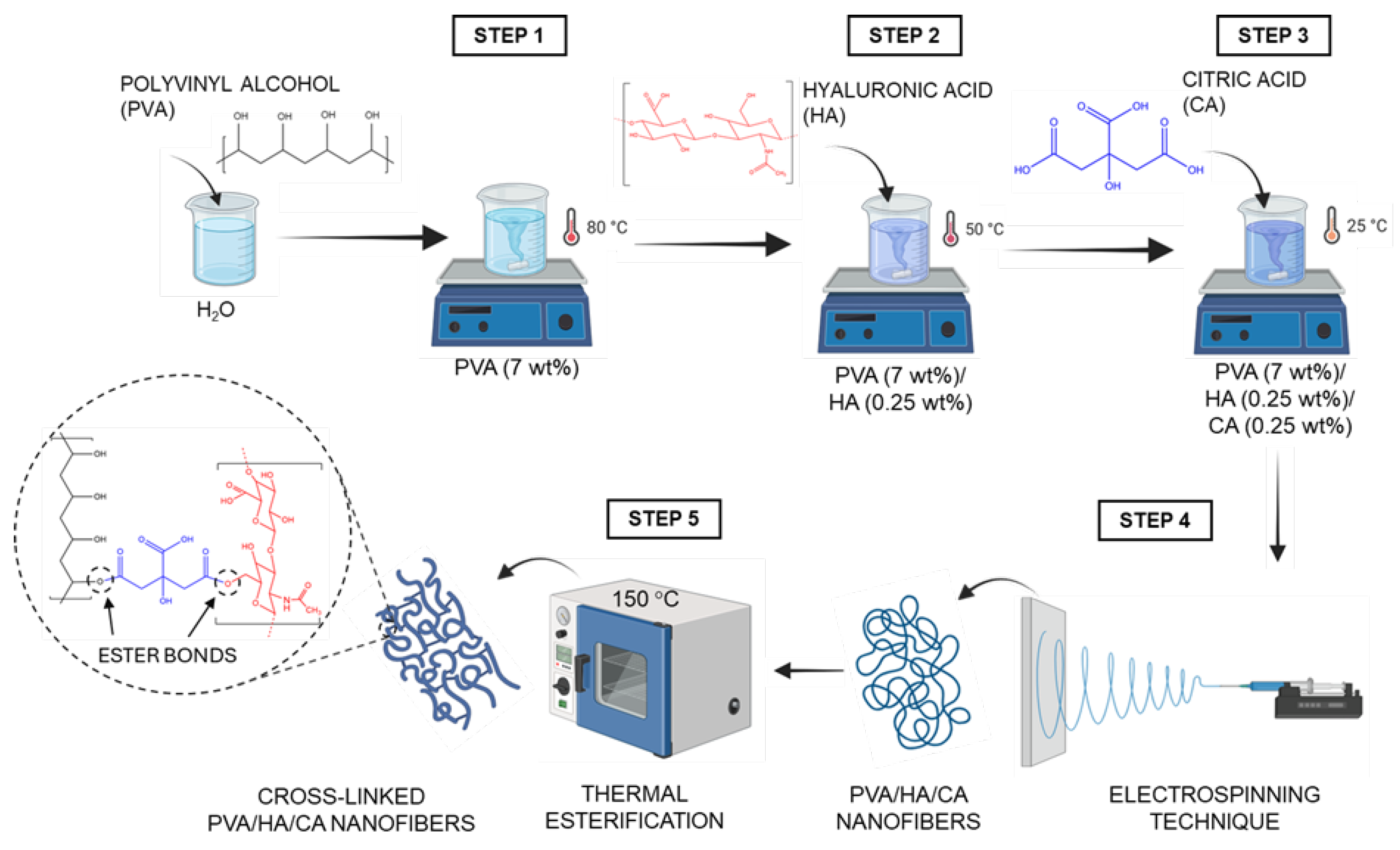

Schematic representation of the nanofiber fabrication process, involving electrospinning of water-based solutions containing PVA, hyaluronic acid (HA) and citric acid (CA), followed by thermal esterification crosslinking at 150 °C. Created in Biorender.Gianluca Ciarleglio (2025).
Figure 1.
Schematic representation of the nanofiber fabrication process, involving electrospinning of water-based solutions containing PVA, hyaluronic acid (HA) and citric acid (CA), followed by thermal esterification crosslinking at 150 °C. Created in Biorender.Gianluca Ciarleglio (2025).

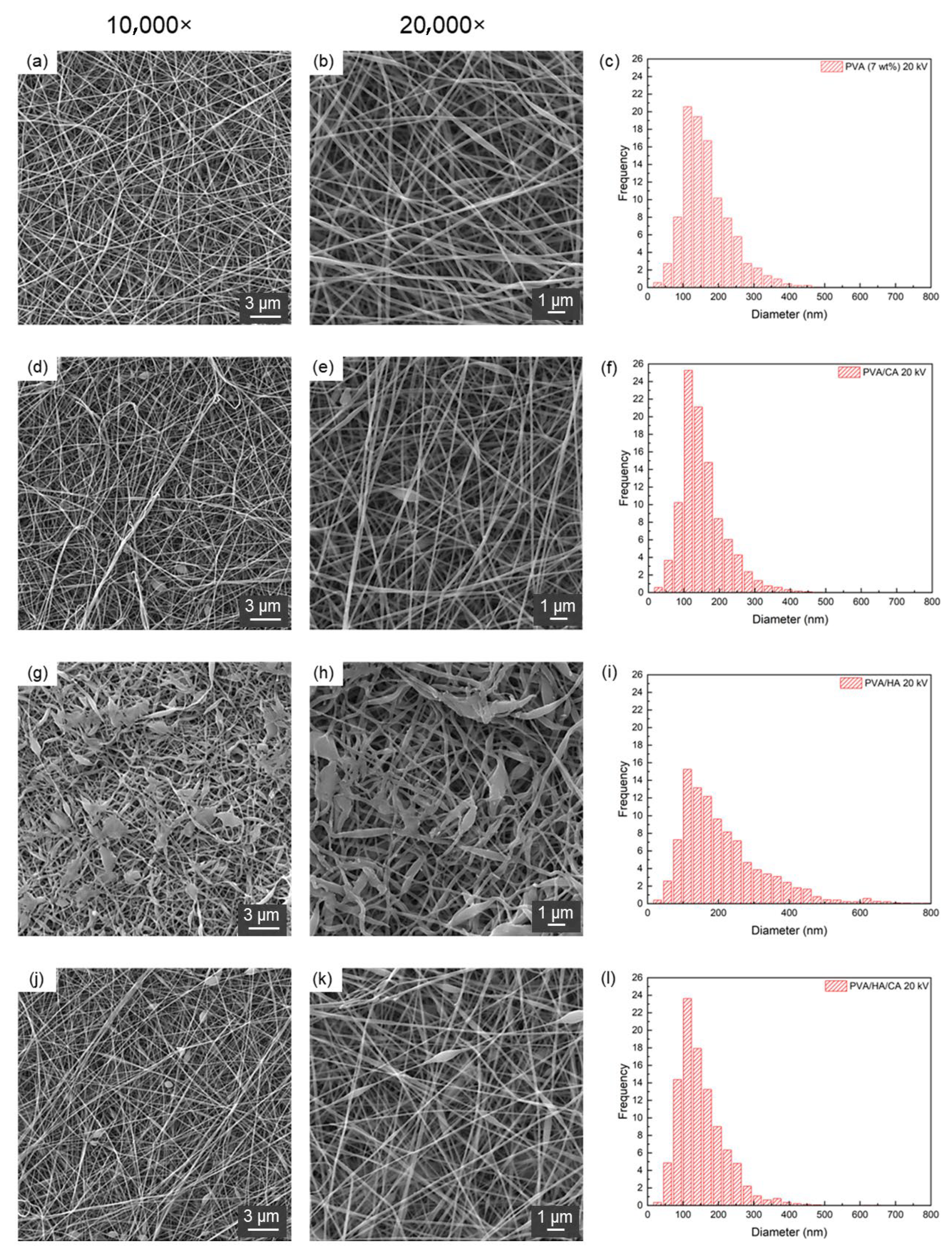

Figure 2.
SEM images acquired at (a,d,g,j) 10,000× and at (b,e,h,k) 20,000× and (c,f,i,l) nanofiber diameter distribution of (a–c) PVA, (d–f) PVA/CA, (g–i) PVA/HA and (j–l) PVA/HA/CA. The nanofibers were fabricated using a voltage of 20 kV.
Figure 2.
SEM images acquired at (a,d,g,j) 10,000× and at (b,e,h,k) 20,000× and (c,f,i,l) nanofiber diameter distribution of (a–c) PVA, (d–f) PVA/CA, (g–i) PVA/HA and (j–l) PVA/HA/CA. The nanofibers were fabricated using a voltage of 20 kV.
Figure 3.

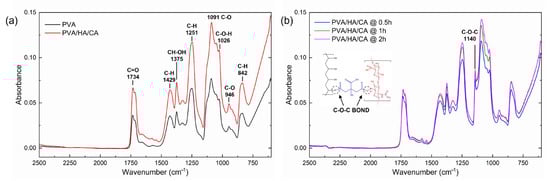

FTIR spectra of electrospun PVA and PVA/HA/CA nanofibers (a) without thermal treatment and (b) after treatment at 150 °C for different times showing the appearance of the 1140 cm–1 band corresponding to the formation of the ester bond.
Figure 3.
FTIR spectra of electrospun PVA and PVA/HA/CA nanofibers (a) without thermal treatment and (b) after treatment at 150 °C for different times showing the appearance of the 1140 cm–1 band corresponding to the formation of the ester bond.

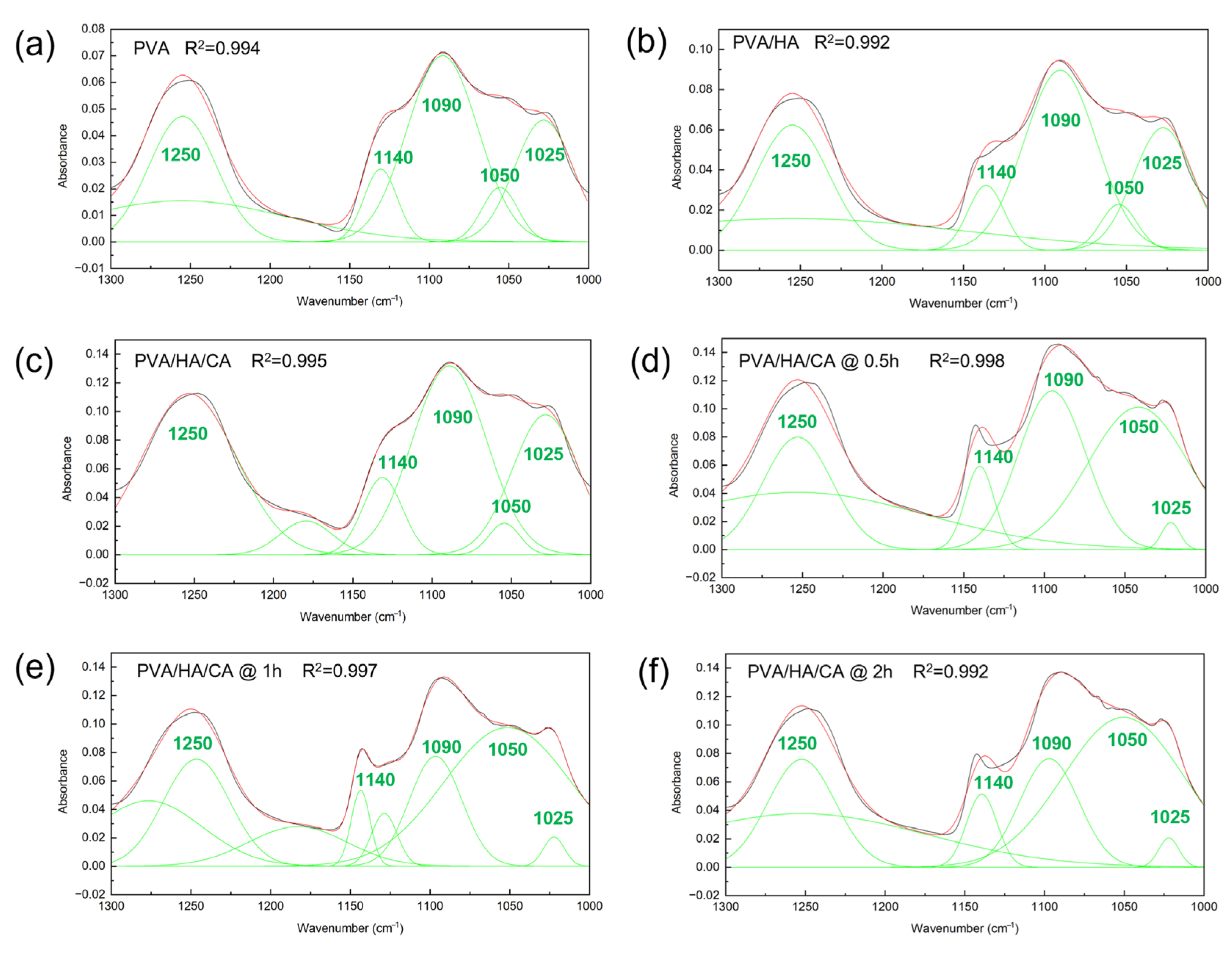

Figure 4.

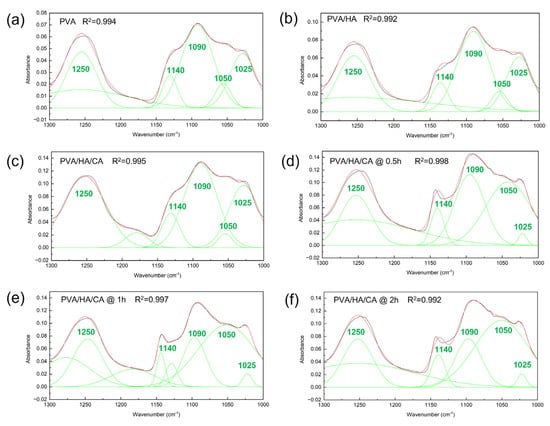

Deconvolution of FTIR spectra in the region from 1300 cm–1 to 1000 cm–1 for (a) PVA, (b) PVA/HA, (c) PVA/HA/CA, and thermally crosslinked PVA/HA/CA at different times: (d) 0.5 h, (e) 1 h, (f) 2 h. The black curve is the experimental FTIR spectrum, the red curve the global fitted curve, while the green curves correspond to the individual Gaussian components used for the deconvolution.
Figure 4.
Deconvolution of FTIR spectra in the region from 1300 cm–1 to 1000 cm–1 for (a) PVA, (b) PVA/HA, (c) PVA/HA/CA, and thermally crosslinked PVA/HA/CA at different times: (d) 0.5 h, (e) 1 h, (f) 2 h. The black curve is the experimental FTIR spectrum, the red curve the global fitted curve, while the green curves correspond to the individual Gaussian components used for the deconvolution.

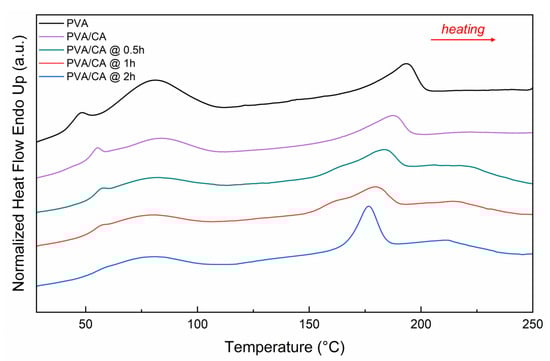

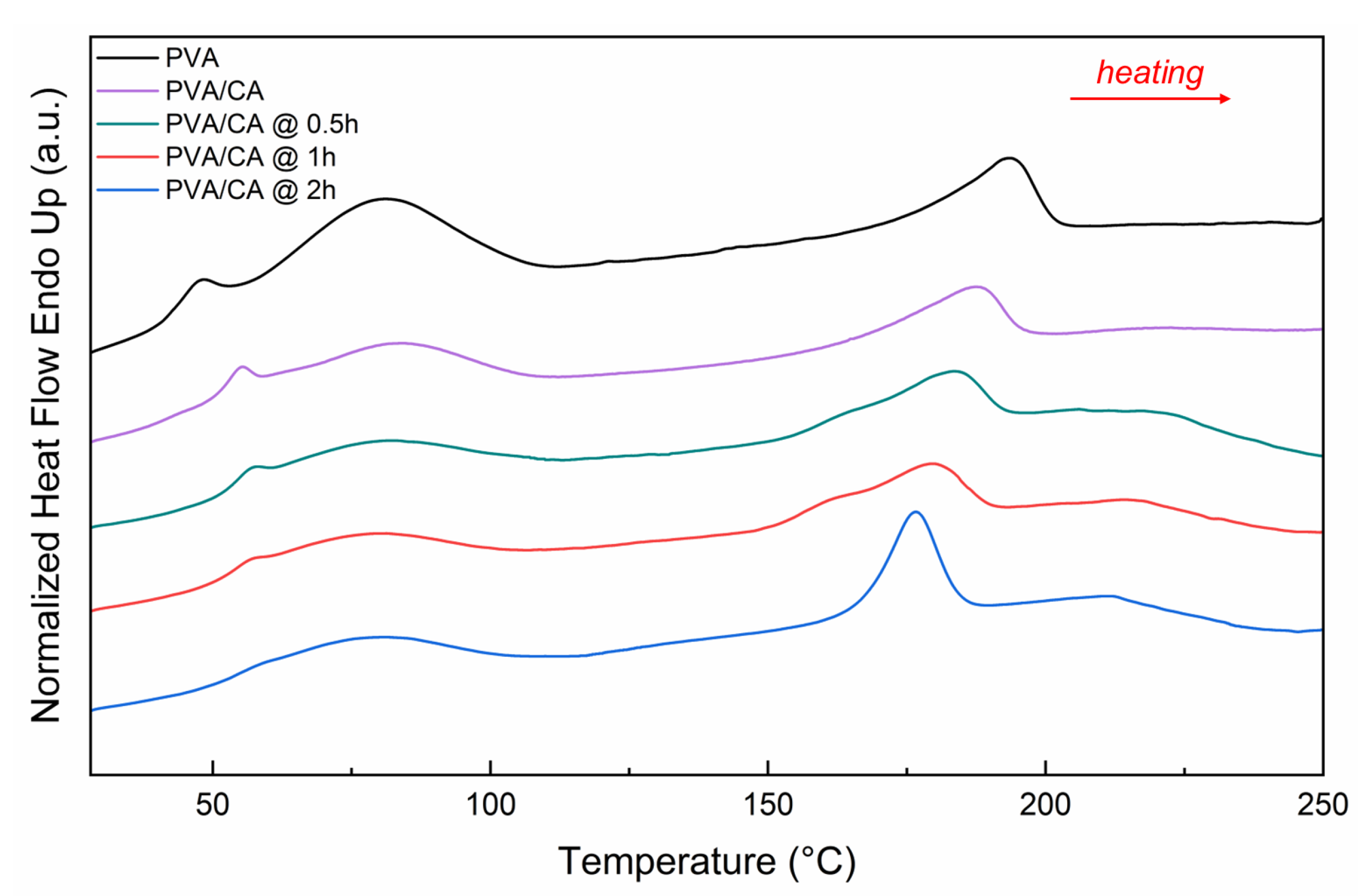

Figure 5.
DSC thermograms (heating rate 10 °C/min) of crosslinked PVA, PVA/CA nanofibers with different times (0.5 h, 1 h, 2 h) of thermal treatment.
Figure 5.
DSC thermograms (heating rate 10 °C/min) of crosslinked PVA, PVA/CA nanofibers with different times (0.5 h, 1 h, 2 h) of thermal treatment.

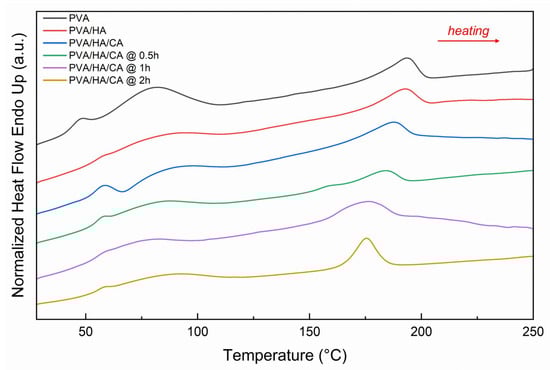

Figure 6.

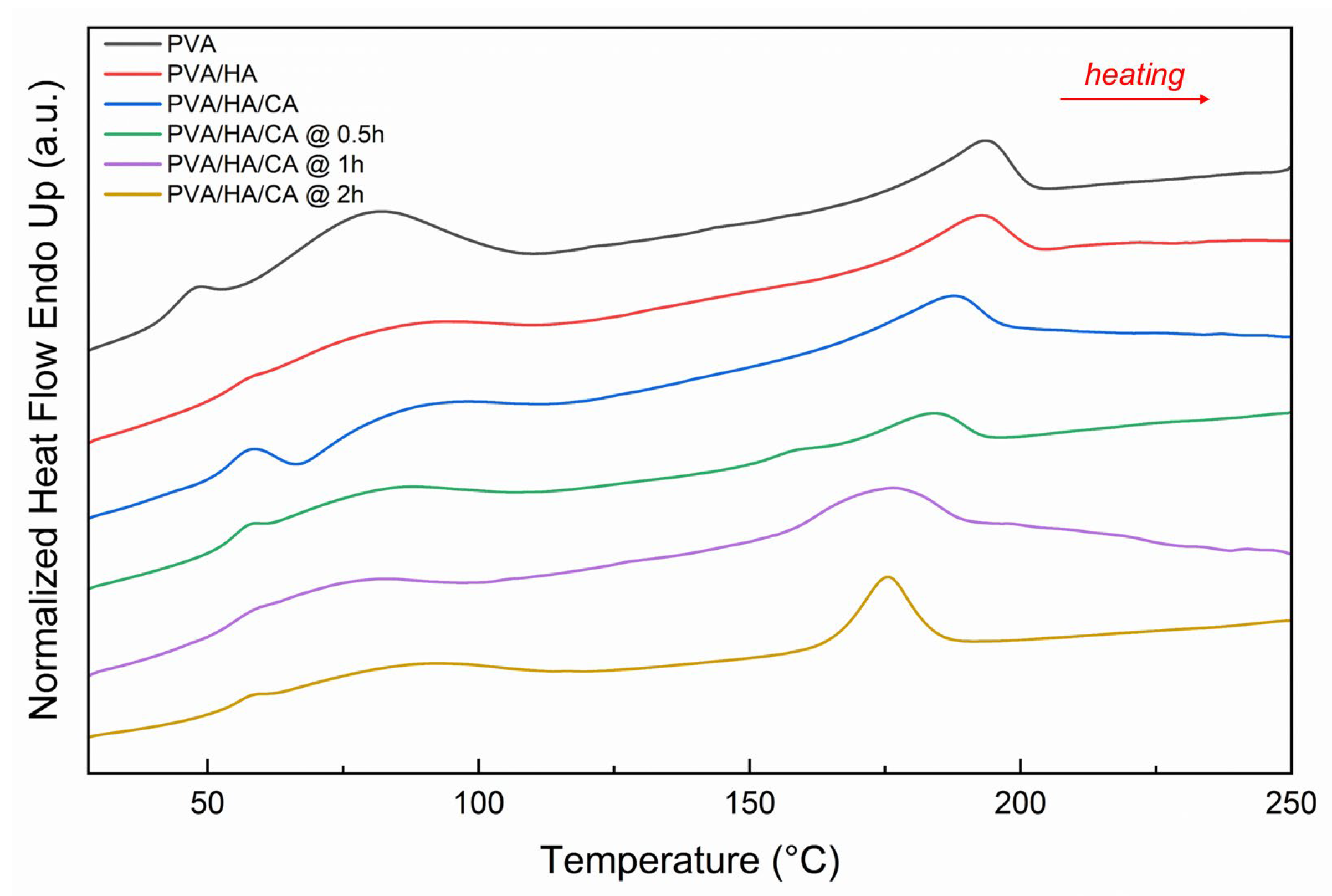

DSC thermograms (heating rate 10 °C/min) of crosslinked PVA, PVA/HA, and PVA/HA/CA nanofibers with different times (0.5 h, 1 h, 2 h) of thermal treatment.
Figure 6.
DSC thermograms (heating rate 10 °C/min) of crosslinked PVA, PVA/HA, and PVA/HA/CA nanofibers with different times (0.5 h, 1 h, 2 h) of thermal treatment.

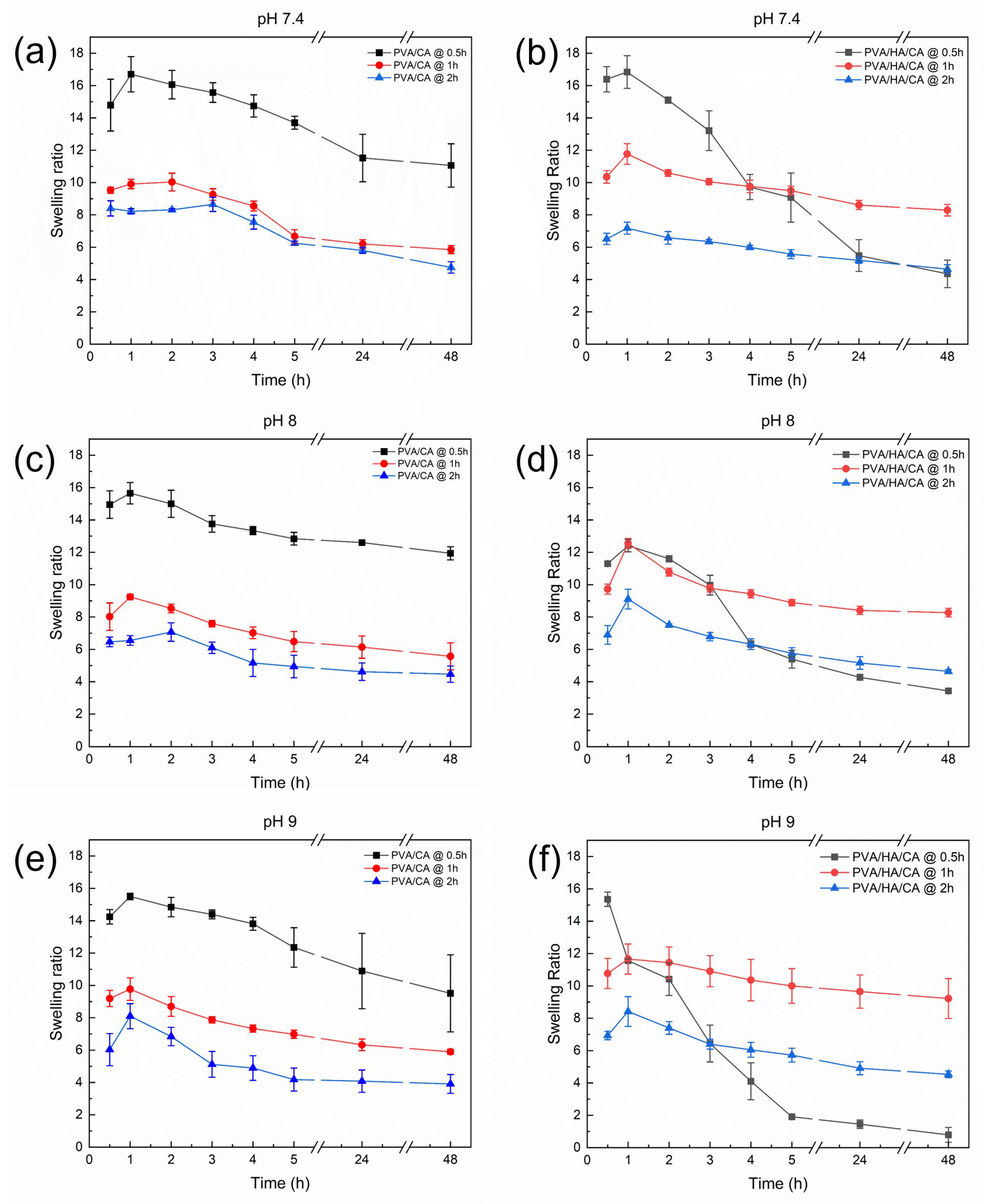

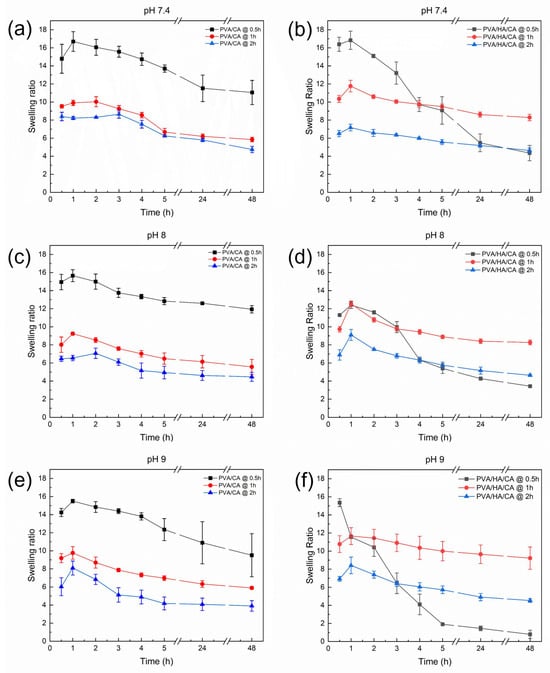

Figure 7.
Swelling kinetics of the (a,c,e) PVA/CA and (b,d,f) PVA/HA/CA nanofibers at 37 °C and different pH values: (a,b) 7.4, (c,d) 8.0, and (e,f) 9.0.
Figure 7.
Swelling kinetics of the (a,c,e) PVA/CA and (b,d,f) PVA/HA/CA nanofibers at 37 °C and different pH values: (a,b) 7.4, (c,d) 8.0, and (e,f) 9.0.
Figure 8.

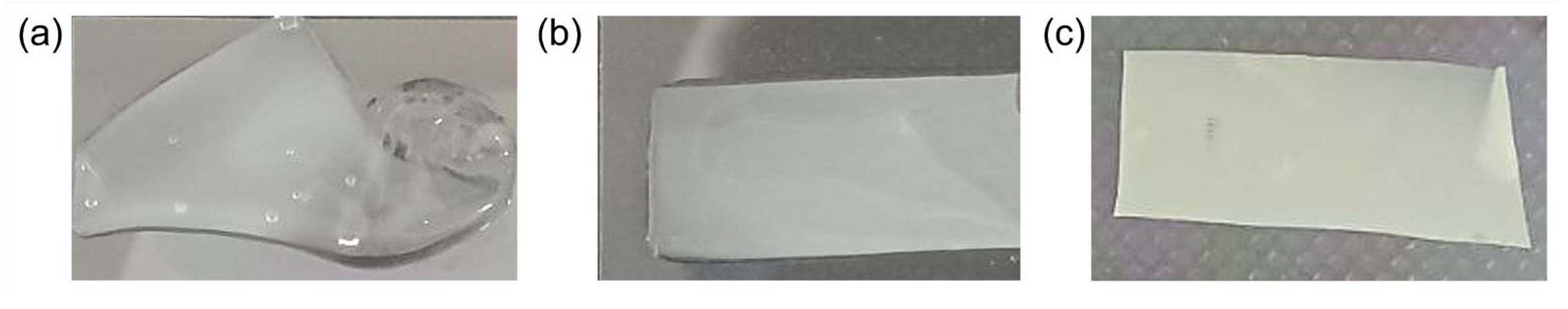

(a) PVA/HA/CA @ 0.5 h, (b) PVA/HA/CA @ 1 h, and (c) PVA/HA/CA @ 2 h nanofibers after 2 h of immersion in PBS solution at pH 8.
Figure 8.
(a) PVA/HA/CA @ 0.5 h, (b) PVA/HA/CA @ 1 h, and (c) PVA/HA/CA @ 2 h nanofibers after 2 h of immersion in PBS solution at pH 8.

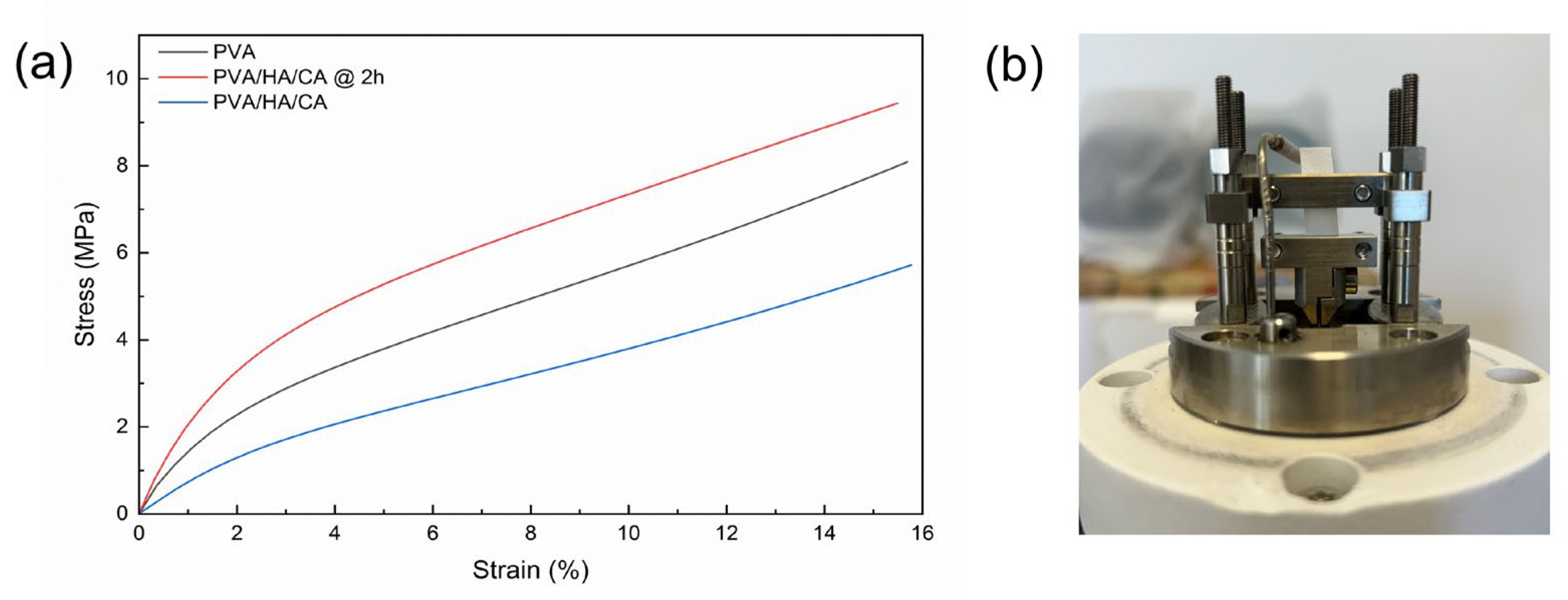

Figure 9.

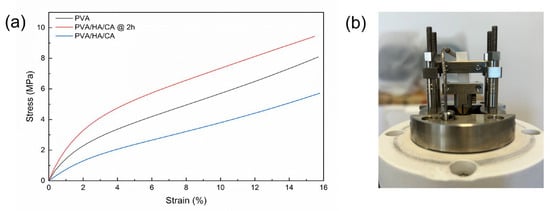

(a) Stress–strain curves of PVA, PVA/HA/CA, and PVA/HA/CA @ 2 h. Curves are obtained from quasi-static tensile tests by DMA. (b) DMA measurement configuration.
Figure 9.
(a) Stress–strain curves of PVA, PVA/HA/CA, and PVA/HA/CA @ 2 h. Curves are obtained from quasi-static tensile tests by DMA. (b) DMA measurement configuration.
Table 1.
Summary of electrospinning parameters for NFs production.
Table 1.
Summary of electrospinning parameters for NFs production.
| PVA (wt%) | HA (wt%) | CA (wt%) | Voltage (kV) | Comments |
|---|
| 10 | 0 | 0 | 15–30 | Successfully electrospun nanofibers |
| 10 | 1 | 0 | 20–30 | Fibers not formed |
| 10 | 0.5 | 0 | 20–30 | Fibers not formed |
| 7 | 0 | 0 | 20 | Successfully electrospun nanofibers |
| 7 | 0.5 | 0 | 20 | Fibers not formed |
| 7 | 0.25 | 0 | 20 | Successfully electrospun nanofibers |
| 7 | 0 | 0.25 | 20 | Successfully electrospun nanofibers |
| 7 | 0.25 | 1 | 20 | Fibers not formed |
| 7 | 0.25 | 1 | 25 | Fibers not formed |
| 7 | 0.25 | 0.5 | 20 | Fibers not formed |
| 7 | 0.25 | 0.25 | 20 | Successfully electrospun nanofibers |
Table 2.
Effect of voltage on morphological characteristics of PVA NFs with a concentration of 10 wt%. The table shows the mean diameter, diameter kurtosis, porosity percentage, and intersection density of electrospun PVA nanofibers at different voltages (15 kV, 20 kV, 25 kV, and 30 kV).
Table 2.
Effect of voltage on morphological characteristics of PVA NFs with a concentration of 10 wt%. The table shows the mean diameter, diameter kurtosis, porosity percentage, and intersection density of electrospun PVA nanofibers at different voltages (15 kV, 20 kV, 25 kV, and 30 kV).
| | PVA 15 kV | PVA 20 kV | PVA 25 kV | PVA 30 kV |
|---|
| Mean Diameter(nm) | 185.7 ± 62.6 | 183.3 ± 62.3 | 164.6 ± 63.4 | 149.5 ± 60.2 |
| Diameter Kurtosis | 0.74 | 1.24 | 1.18 | 0.83 |
| % Porosity (%) | 51.48 | 49.16 | 49.45 | 48.89 |
| Intersection Density (ints/μm2) | 2.90 | 3.26 | 3.85 | 4.75 |
Table 3.
Comparative analysis of morphological and rheological characteristics of PVA (7 wt%) nanofibers electrospun at 20 kV. The table presents the mean diameter, diameter kurtosis, porosity percentage, intersection density, and dynamic viscosity (η) of PVA, PVA/HA, PVA/CA, and PVA/HA/CA NFs.
Table 3.
Comparative analysis of morphological and rheological characteristics of PVA (7 wt%) nanofibers electrospun at 20 kV. The table presents the mean diameter, diameter kurtosis, porosity percentage, intersection density, and dynamic viscosity (η) of PVA, PVA/HA, PVA/CA, and PVA/HA/CA NFs.
| | PVA | PVA/CA | PVA/HA | PVA/HA/CA |
|---|
| Mean diameter (nm) | 152.7 ± 54.4 | 133.3 ± 43.7 | 164.3 ± 77.7 | 130.2 ± 50.3 |
| Diameter kurtosis | 2.04 | 2.28 | 2.87 | 3.60 |
| Porosity (%) | 48.31 | 52.87 | 45.27 | 54.37 |
| Intersection density (ints/μm2) | 4.30 | 4.65 | 3.45 | 4.43 |
| Dynamic viscosity (mPa·s) | 81.2 | 86.5 | 814.1 | 393.9 |
| Electrical conductivity (μS/cm) | 301.9 ± 1.5 | 620.7 ± 0.7 | 511.8 ± 1.5 | 770.6 ± 0.8 |
Table 4.
Crystallinity index (CI) of the electrospun NFs as determined by FTIR spectra after deconvolution.
Table 4.
Crystallinity index (CI) of the electrospun NFs as determined by FTIR spectra after deconvolution.
| Crosslinking Time | CI (FTIR) (%) |
|---|
| PVA | PVA/HA | PVA/CA | PVA/HA/CA |
|---|
| t = 0 h | 42.9 ± 1.6 | 40.3 ± 1.0 | 45.1 ± 1.1 | 41.8 ± 0.6 |
| t = 0.5 h | - | - | 48.8 ± 1.5 | 48.4 ± 0.4 |
| t = 1 h | - | - | 54.8 ± 0.3 | 46.6 ± 0.1 |
| t = 2 h | - | - | 48.3 ± 0.4 | 47.4 ± 0.9 |
Table 5.
Thermal properties of PVA, PVA/CA, and crosslinked PVA/CA nanofibers as measured by DSC under nitrogen flow (40 mL/min). Values are reported as mean ± standard deviation (n = 3).
Table 5.
Thermal properties of PVA, PVA/CA, and crosslinked PVA/CA nanofibers as measured by DSC under nitrogen flow (40 mL/min). Values are reported as mean ± standard deviation (n = 3).
| Sample | Tg (°C) | Δcp (J/g × °C) | Tm (°C) | ΔHm (J/g) |
|---|
| PVA | 41.36 ± 1.65 | 0.48 ± 0.08 | 194.02 ± 0.36 | 36.57 ± 1.48 |
| PVA/CA | 48.78 ± 1.86 | 0.43 ± 0.21 | 186.48 ± 0.81 | 36.88 ± 1.58 |
| PVA/CA @ 0.5 h | 52.32 ± 0.24 | 0.52 ± 0.05 | 182.13 ± 0.61 | 35.35 ± 0.68 |
| PVA/CA @ 1 h | 52.48 ± 0.38 | 0.28 ± 0.06 | 179.04 ± 0.30 | 37.72 ± 1.73 |
| PVA/CA @ 2 h | 53.00 ± 1.10 | 0.16 ± 0.03 | 177.39 ± 0.80 | 39.15 ± 1.58 |
Table 6.
Thermal properties of PVA/HA, PVA/HA/CA, and crosslinked PVA/HA/CA nanofibers as measured by DSC under nitrogen flow (40 mL/min). Values are reported as mean ± standard deviation (n = 3).
Table 6.
Thermal properties of PVA/HA, PVA/HA/CA, and crosslinked PVA/HA/CA nanofibers as measured by DSC under nitrogen flow (40 mL/min). Values are reported as mean ± standard deviation (n = 3).
| Sample | Tg (°C) | Δcp (J/g × °C) | Tm (°C) | ΔHm (J/g) |
|---|
| PVA/HA | 52.03 ± 0.58 | 0.27 ± 0.05 | 192.46 ± 0.47 | 37.99 ± 1.98 |
| PVA/HA/CA | 52.92 ± 1.36 | 0.42 ± 0.08 | 188.24 ± 0.82 | 30.91 ± 1.22 |
| PVA//HACA @ 0.5 h | 53.89 ± 0.43 | 0.49 ± 0.05 | 183.30 ± 0.31 | 37.41 ± 2.41 |
| PVA/HA/CA @ 1 h | 53.81 ± 0.68 | 0.38 ± 0.02 | 178.22 ± 1.35 | 34.41 ± 2.90 |
| PVA/HA/CA @ 2 h | 55.43 ± 1.12 | 0.29 ± 0.03 | 176.78 ± 0.46 | 37.71 ± 1.38 |
Table 7.
Weight loss (%) of crosslinked PVA/CA and PVA/HA/CA nanofibers with different crosslinking times (0.5, 1, 2 h) evaluated in PBS solution with different pH values (7.4, 8, 9) after 48 h. Values are reported as mean ± standard deviation (n = 5).
Table 7.
Weight loss (%) of crosslinked PVA/CA and PVA/HA/CA nanofibers with different crosslinking times (0.5, 1, 2 h) evaluated in PBS solution with different pH values (7.4, 8, 9) after 48 h. Values are reported as mean ± standard deviation (n = 5).
| Sample | Weight Loss (%) After 48 h |
|---|
| PBS pH 7.4 | PBS pH 8 | PBS pH 9 |
|---|
| PVA/CA @ 0.5 h | 64.80 ± 3.05 | 61.37 ± 11.30 | 55.5 ± 7.57 |
| PVA/CA @ 1 h | 3.17 ± 0.81 | 2.77 ± 1.48 | 2.32 ± 0.27 |
| PVA/CA @ 2 h | 1.34 ± 0.59 | 0.25 ± 0.12 | 2.97 ± 0.45 |
| PVA/HA/CA @ 0.5 h | 85.32 ± 4.03 | 87.95 ± 3.07 | 95.04 ± 2.70 |
| PVA/HA/CA @ 1 h | 12.63 ± 3.66 | 8.85 ± 1.13 | 23.04 ± 2.69 |
| PVA/HA/CA @ 2 h | 2.96 ± 0.45 | 5.92 ± 2.27 | 3.06 ± 0.90 |
Table 8.
Young’s modulus and standard deviation of the PVA, PVA/HA/CA, and PVA/HA/CA @2 h samples. Mechanical properties are expressed as mean ± standard deviation (n = 3).
Table 8.
Young’s modulus and standard deviation of the PVA, PVA/HA/CA, and PVA/HA/CA @2 h samples. Mechanical properties are expressed as mean ± standard deviation (n = 3).
| Sample | Young’s Modulus (MPa) |
|---|
| PVA | 152.13 ± 27.76 |
| PVA/HA/CA | 72.73 ± 7.45 |
| PVA/HA/CA @ 2 h | 237.96 ± 14.66 |
