Next Article in Journal
Topological Phase Transition in a One-Dimensional Elastic String System
Next Article in Special Issue
Niobium Base Superalloys: Achievement of a Coherent Ordered Precipitate Structure in the Nb Solid-Solution
Previous Article in Journal
Liquid Crystal Based Head-Up Display with Electrically Controlled Contrast Ratio
Previous Article in Special Issue
Elasticity of Phases in Fe-Al-Ti Superalloys: Impact of Atomic Order and Anti-Phase Boundaries
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessArticle

Effect of Local Recrystallized Grains on the Low Cycle Fatigue Behavior of a Nickel-Based Single Crystal Superalloy

1
Sino-French Institute of Nuclear Engineering and Technology, Sun Yat-Sen University, Zhuhai 519082, Guangdong, China
2
AML, School of Aerospace, Tsinghua University, Beijing 100084, China
3
Department of Materials Science and Engineering, Tsinghua University, Beijing 100084, China
*
Authors to whom correspondence should be addressed.
Crystals 2019, 9(6), 312; https://doi.org/10.3390/cryst9060312
Received: 29 April 2019 / Revised: 11 June 2019 / Accepted: 11 June 2019 / Published: 18 June 2019
(This article belongs to the Special Issue Fundamentals of Superalloys)
  |
PDF [4235 KB, uploaded 19 June 2019]
  |

Abstract

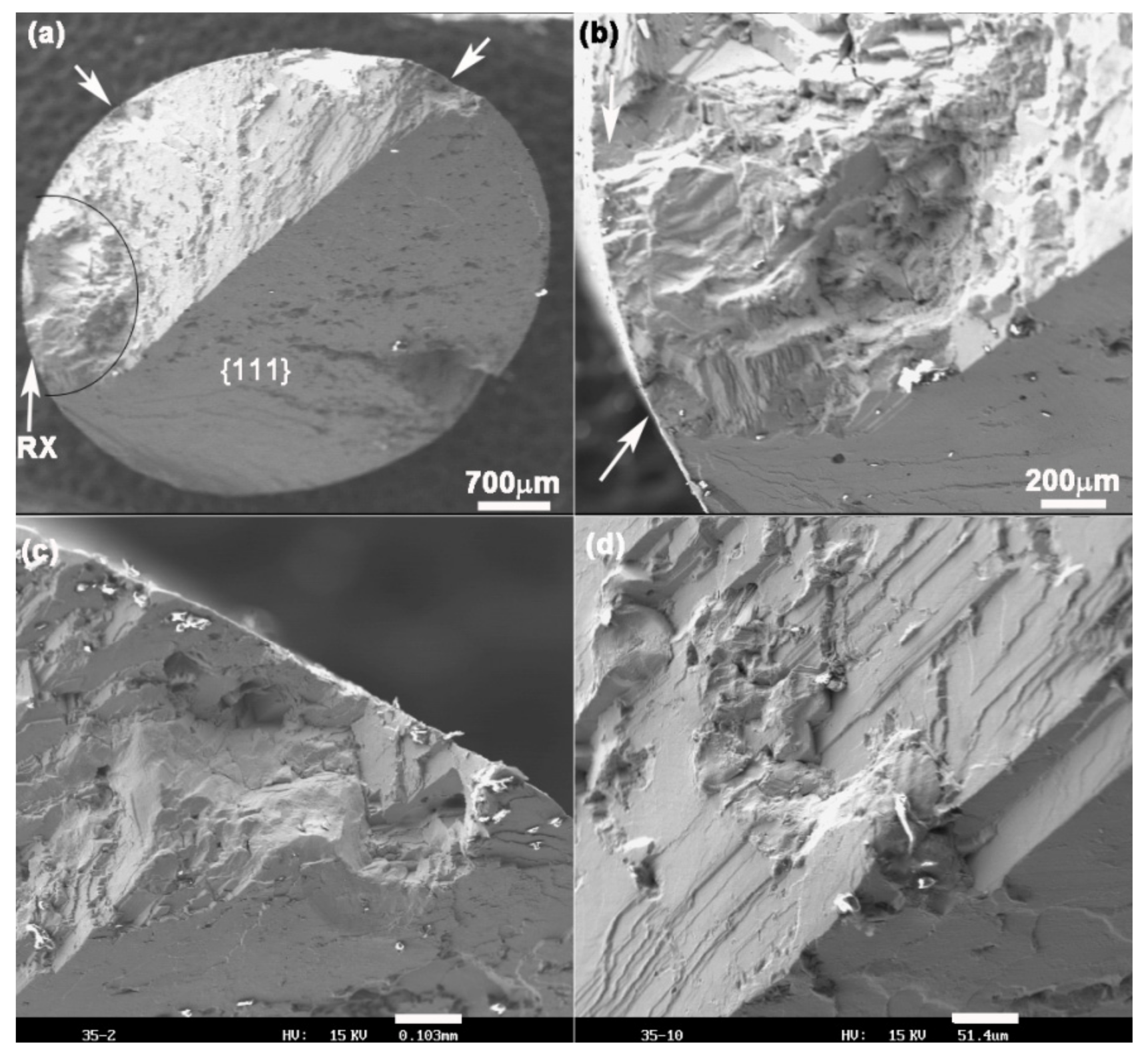

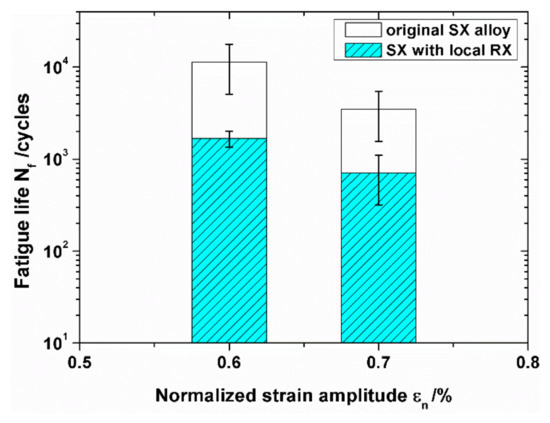

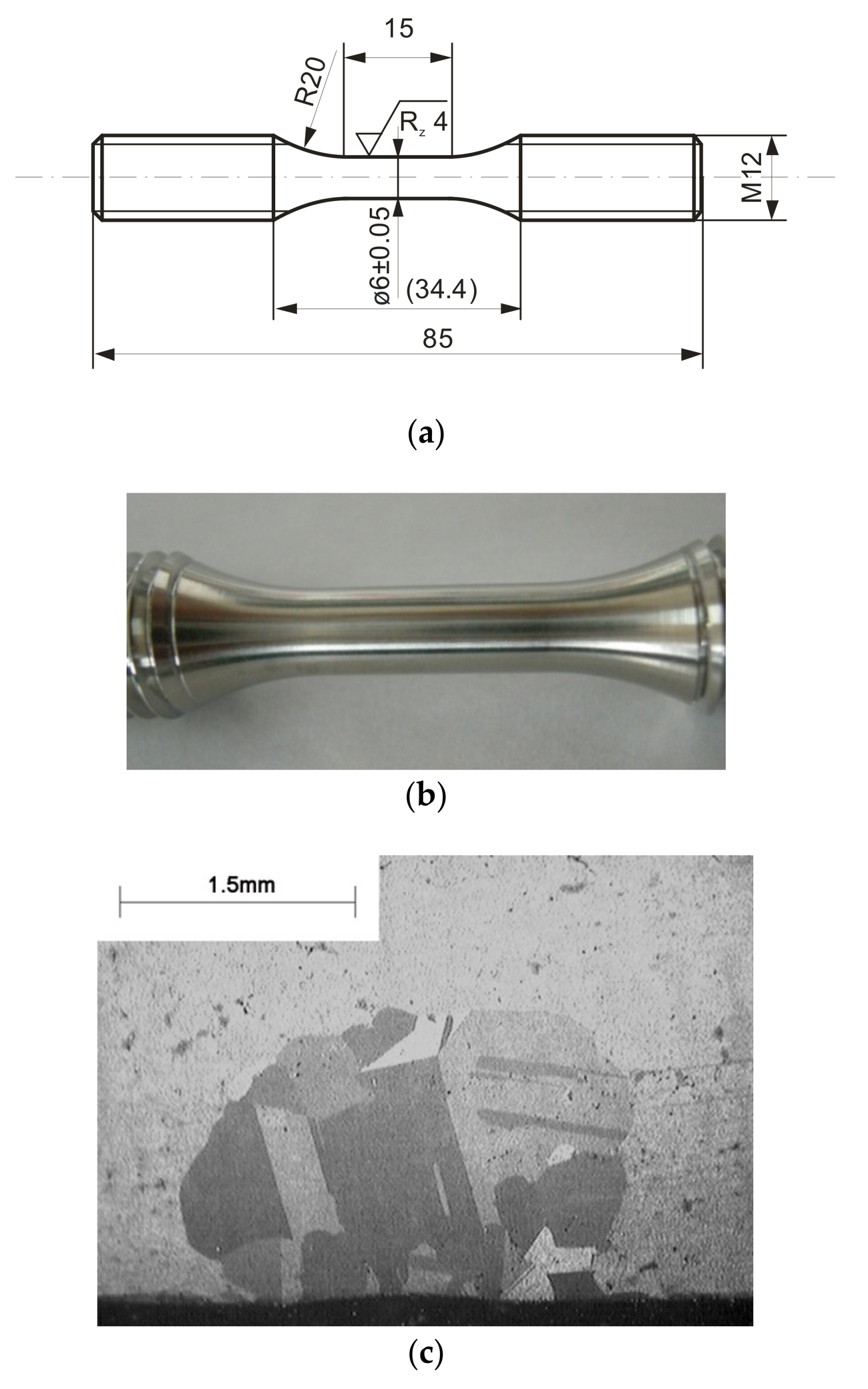

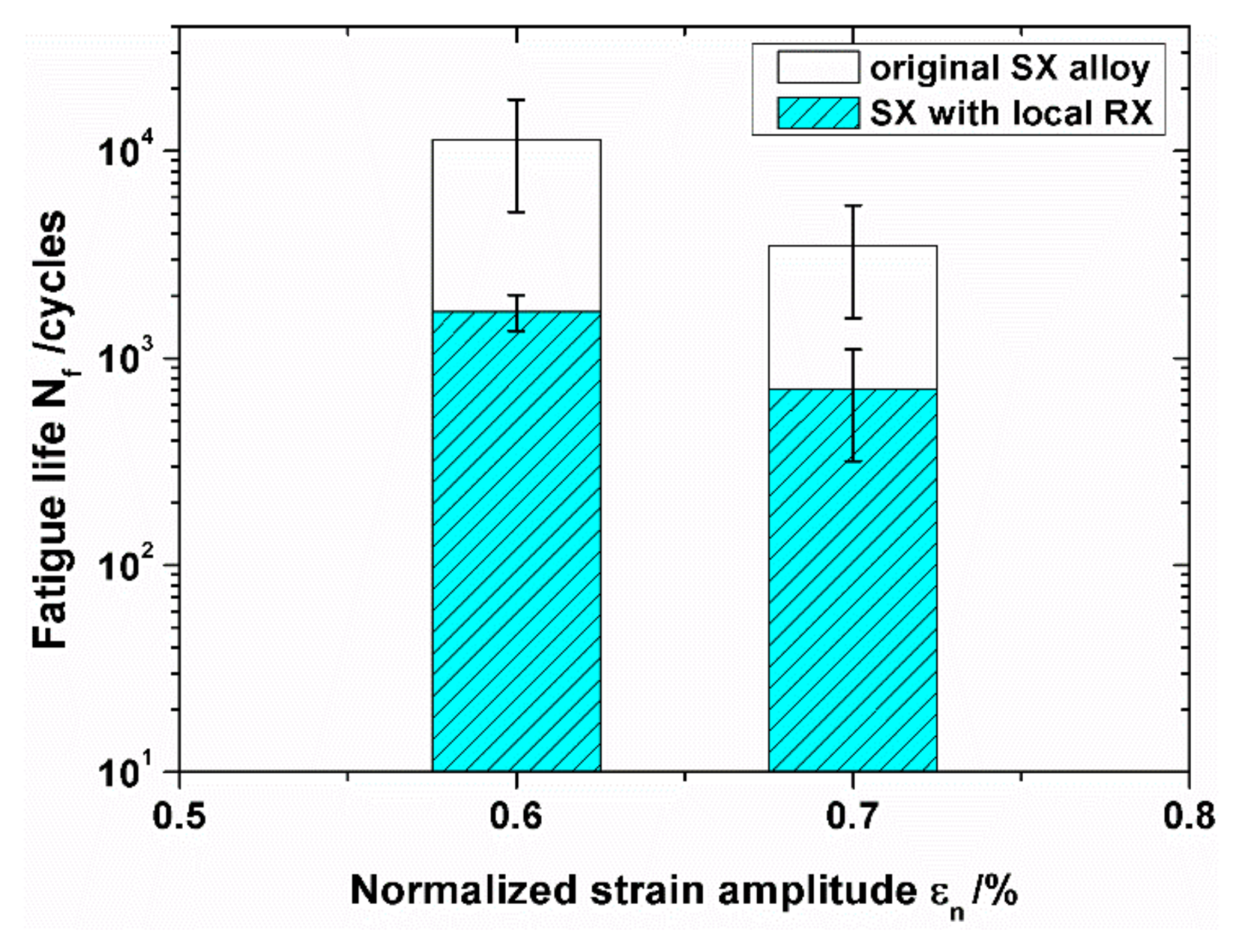

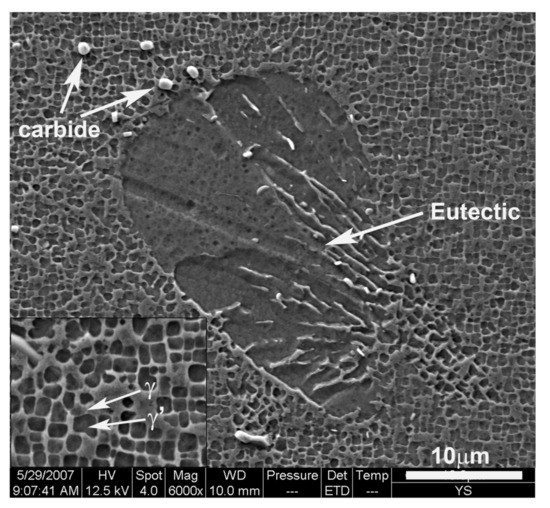

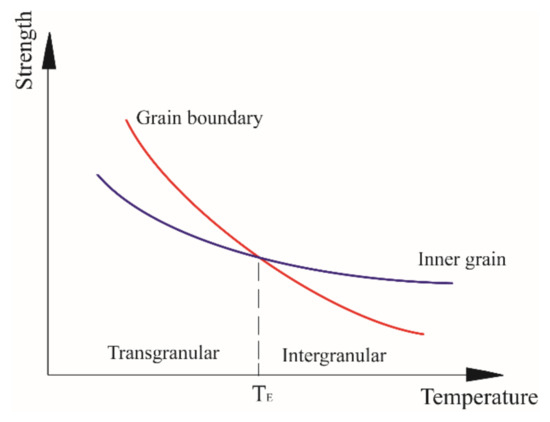

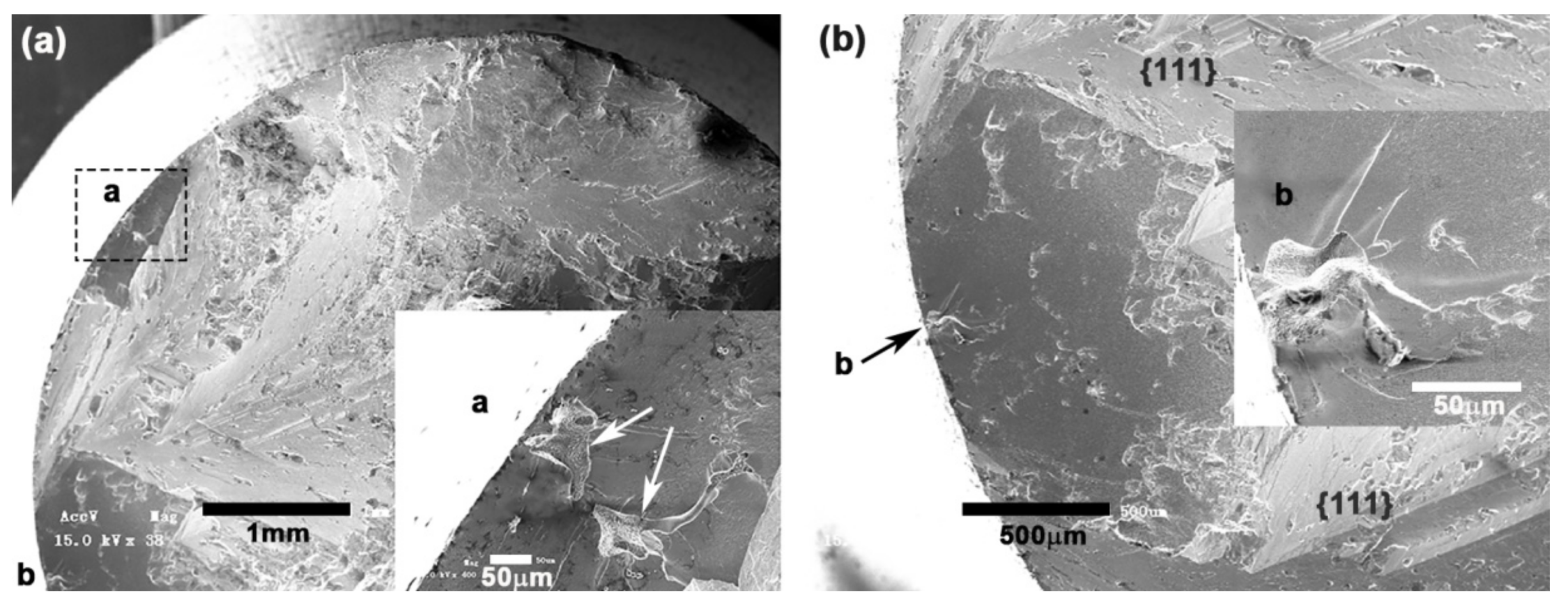

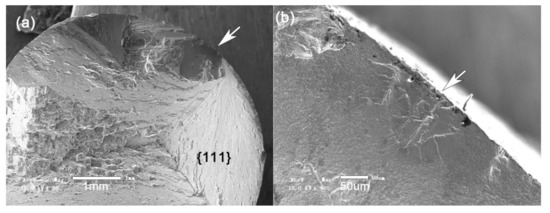

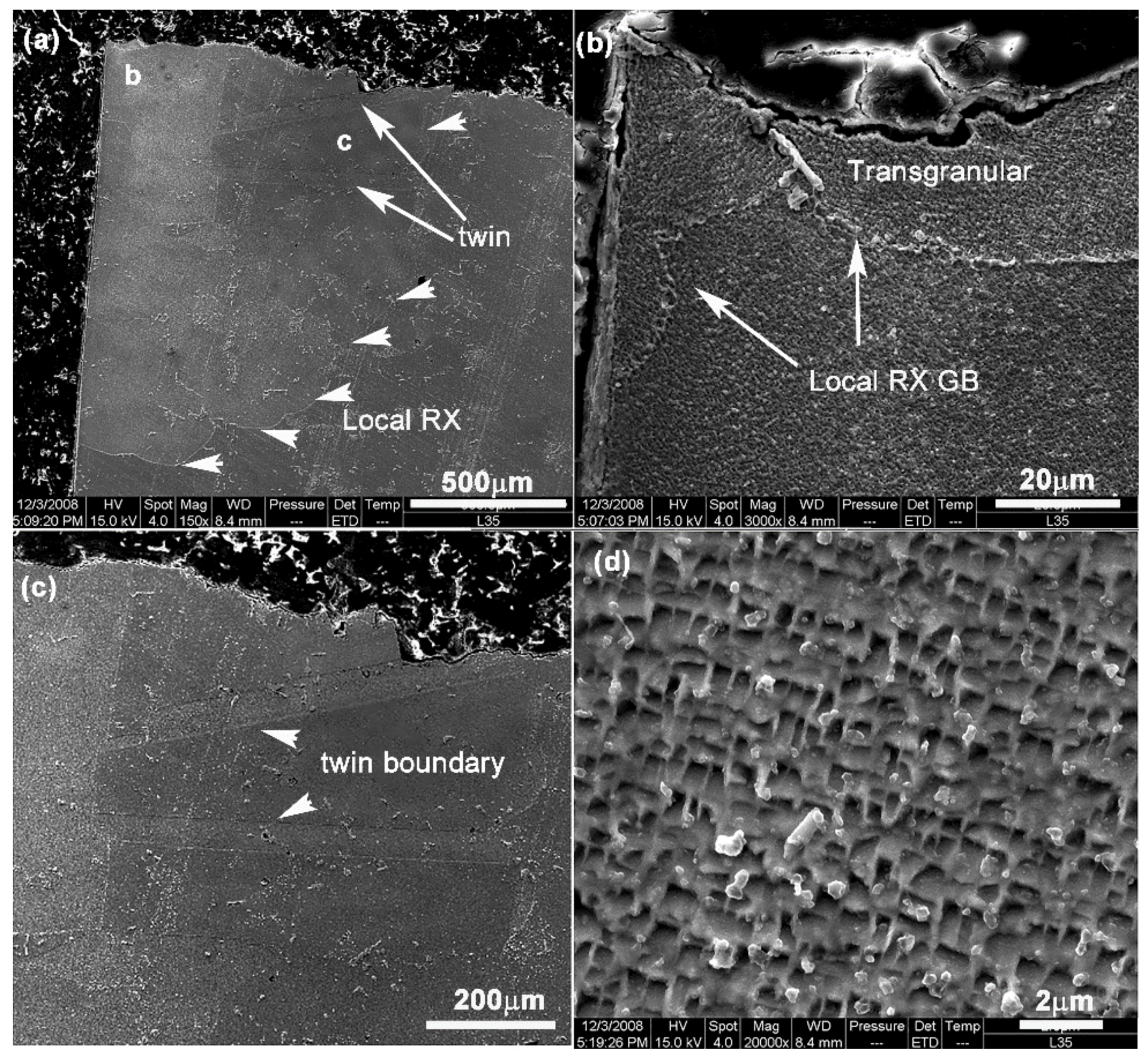

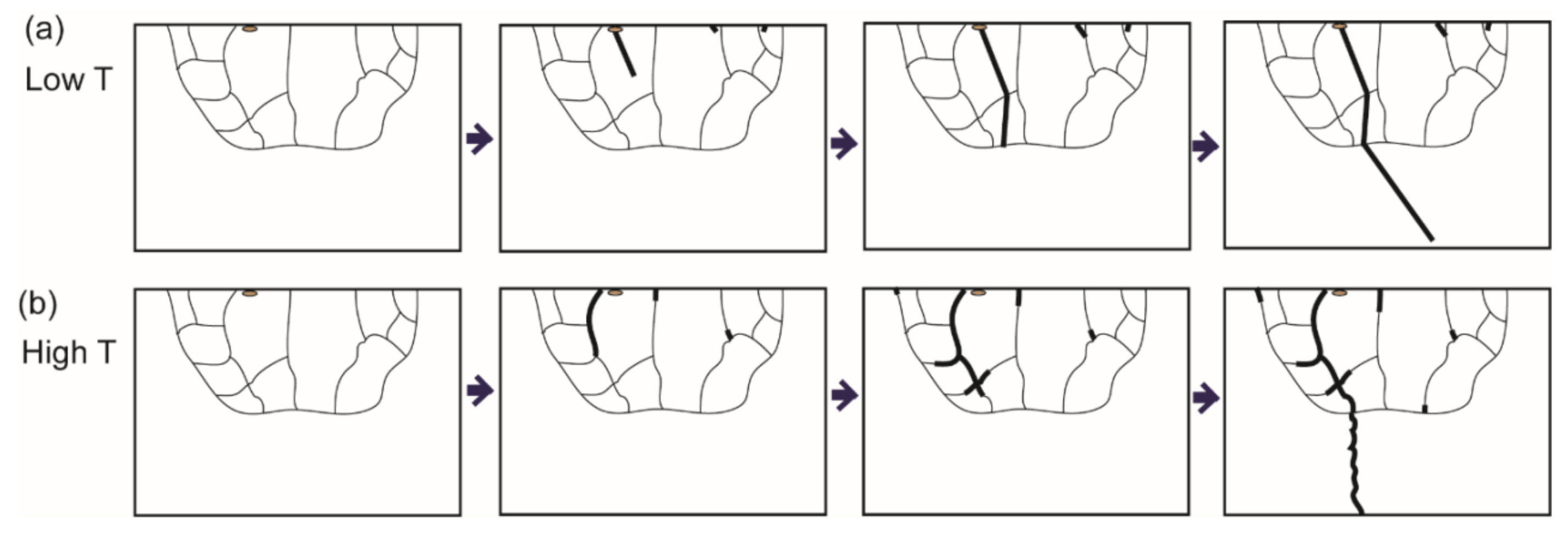

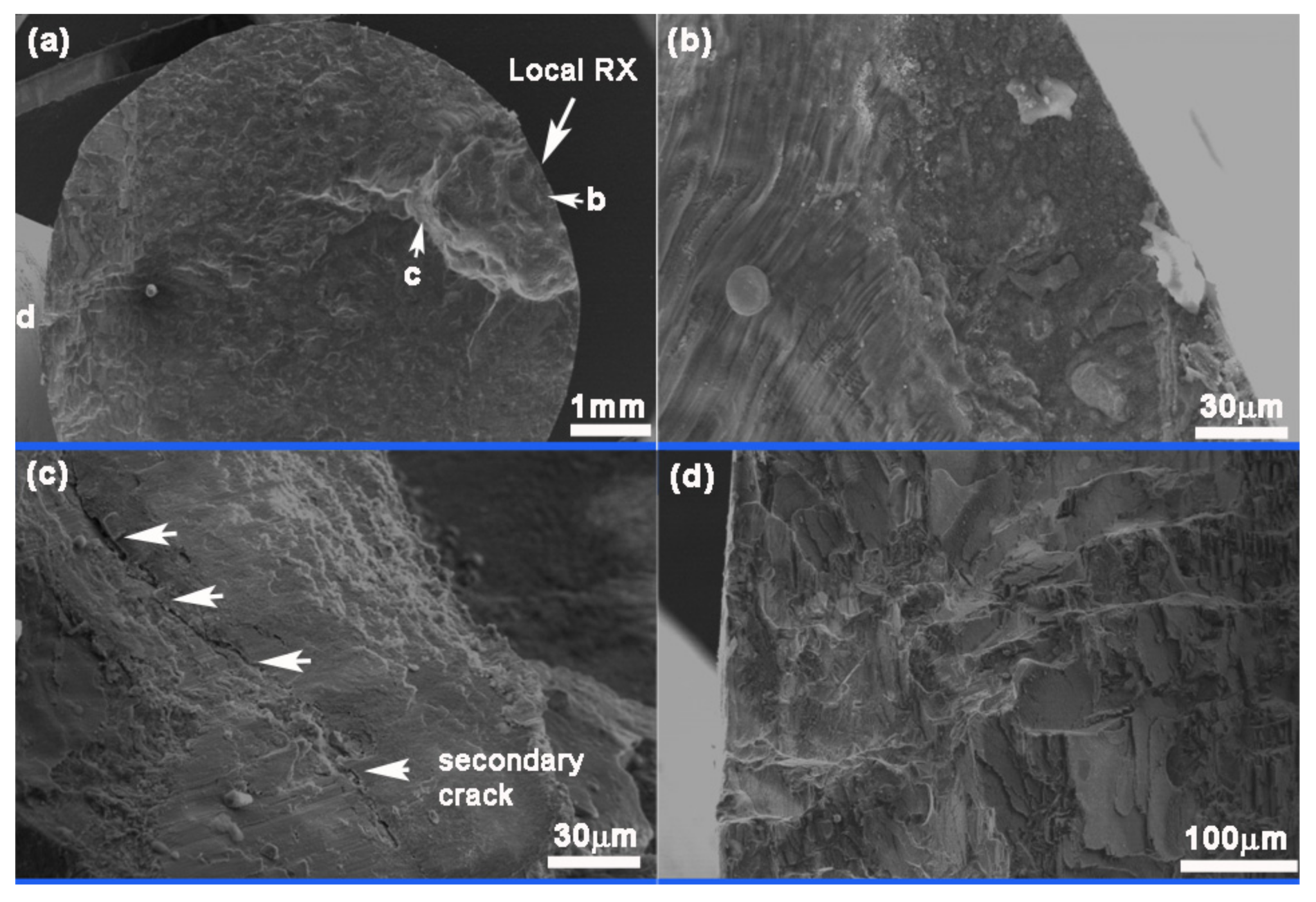

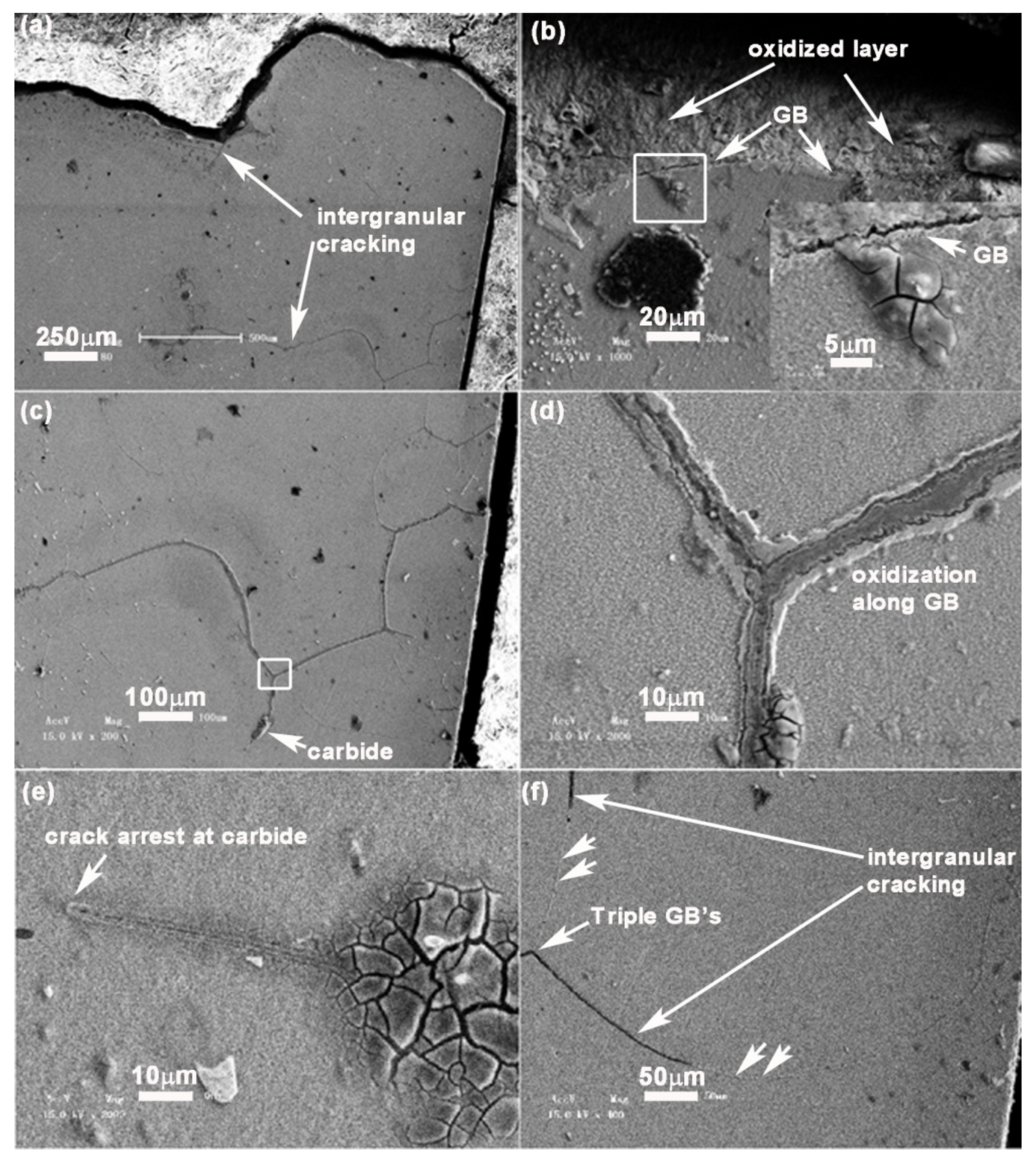

This paper aims to understand the effect of local recrystallization (RX) on the low cycle fatigue fracture of a turbine-blade single crystal nickel-based superalloy. The fatigue life of the single crystal superalloy was evidently decreased by local recrystallization. In single crystal specimens, casting porosity is the preferential fatigue crack initiation site, which is followed by crystallographic crack propagation along one or several octahedral slip planes. For all RX specimens, fatigue cracks preferred to initiate from local recrystallized grains and propagated through the recrystallized grains in a transgranular manner, followed by crystallographic crack propagation in the substrate single crystal superalloy. Moreover, fatigue tests indicated that locally recrystallized specimens exhibited temperature dependent fracture modes, i.e., transgranular cracking dominated at 550 °C, whereas intergranular cracking was preferred at 850 °C. Evident oxidation of fracture surfaces and strength degradation of grain boundaries at 850 °C was evidenced by scanning electronic microscopic observations. The present study emphasized the need to evaluate the effect of recrystallization according to the working conditions of turbine components, i.e., the local temperature. View Full-Text
Keywords: nickel-based superalloy; fatigue; recrystallization; microstructure; temperature nickel-based superalloy; fatigue; recrystallization; microstructure; temperature
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Ma, X.; Jiang, J.; Zhang, W.; Shi, H.-J.; Gu, J. Effect of Local Recrystallized Grains on the Low Cycle Fatigue Behavior of a Nickel-Based Single Crystal Superalloy. Crystals 2019, 9, 312.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
