X-Ray Structures of Some Heterocyclic Sulfones

Abstract

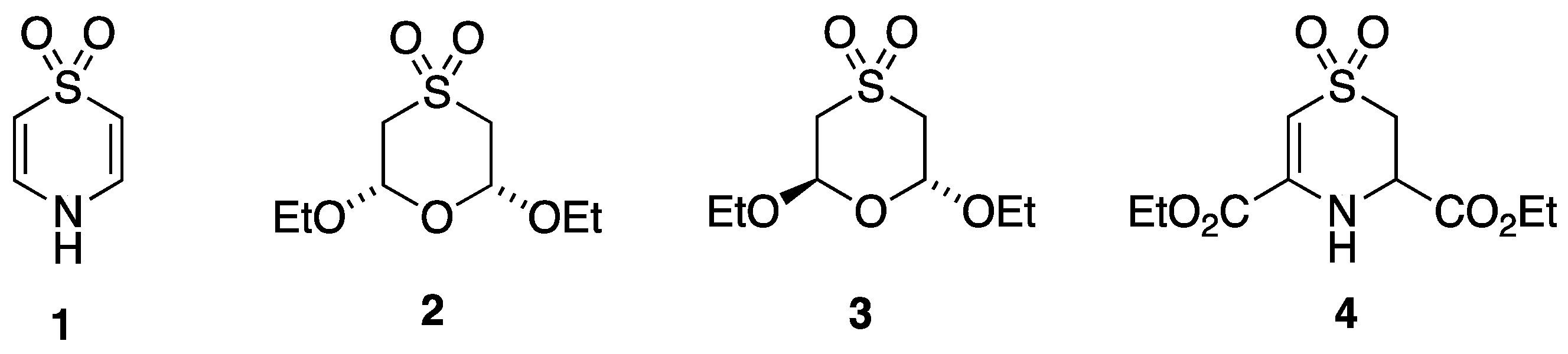

1,4-Thiazine S,S-dioxide 1, the cis- and trans-isomers 2 and 3 of its precursor 2,6-diethoxy-1,4-oxathiane S,S-dioxide, and diethyl 2,3-dihydro-1,4-thiazine-3,5-dicarboxylate S,S-dioxide 4 have been fully characterised, both in solution by ¹H and ¹³C NMR and in the solid state by X-ray diffraction. Simulation has been used to model the unexpectedly complex ¹H NMR spectra and arrive at a full assignment of all chemical shifts and coupling constants. The crystal structures of both 1 and 4, which adopt, respectively, boat and half-chair conformations, are dominated by strong NH to O=S hydrogen bonding leading to chains of molecules. In the case of 4, the NMR data point to an equatorial position of the C(2)-ester group in solution, while in the crystal, this adopts an axial orientation. Compounds 2 and 3 adopt chair conformations both in solution and in the solid state with ring inversion on the NMR timescale leading to unexpected simplification of the spectra in the case of 3.

1. Introduction

Some time ago, we described the X-ray structures of a range of ten symmetrical and unsymmetrical sulfones, but these were all acyclic [1]. More recently, we have reported the structures of some five-membered ring cyclic sulfones [2], as well as two examples of the heterocyclic 1,3-oxathiolane S,S-dioxides [3,4]. However, in general terms, the crystallographic investigation of heterocyclic sulfones remains an under-researched area, and there is ample scope for further studies, particularly in cases where the presence of a hydrogen-bond donor allows for the possibility of intermolecular hydrogen bonding.

Although there is one early claim to have isolated 1,4-thiazine as a stable liquid [5], this has never been reproduced and must be treated with scepticism. In the course of recent studies aimed at generation and isolation of this fundamental but hitherto unknown heterocyclic compound, we have prepared and characterised several related compounds, and we present here the structural characterisation of 1,4-thiazine S,S-dioxide 1, cis-2,6-diethoxy-1,4-oxathiane S,S-dioxide 2, trans-2,6-diethoxy-1,4-oxathiane S,S-dioxide 3, and diethyl 3,4-dihydro-2H-1,4-thiazine-3,5-dicarboxylate S,S-dioxide 4 (Figure 1). Rather remarkably for such simple compounds, the extent of previous NMR characterisation is rather limited. Specifically, for 1, 2, and 3, there are only low frequency ¹H spectra [6,7], and 4 is a previously unknown compound. We therefore also present here fully analysed and assigned ¹H and ¹³C NMR data for all four compounds.

2. Materials and Methods

2.1. Instrumentation and General Details

Melting points were recorded on a Reichert hot-stage microscope (Reichert, Vienna, Austria) and are uncorrected. NMR spectra were recorded in CD₃SOCD₃ for 1 and in CDCl₃ for 2–4 using Bruker AV 300, AV II 400 or AV III 500 instruments (Bruker, Billerica, MA, USA). Chemical shifts are reported in ppm to high frequency of the reference and are referenced to internal Me₄Si (δ 0.00) for ¹H and to the solvent signal (δ 39.50 CD₃SOCD₃, 77.00 CDCl₃) for ¹³C, and coupling constants are in Hz. Spectra were processed and simulations performed using iNMR Reader version 6.3.3 (Mestrelab Research, Santiago de Compostela, Spain). Compound 6 was prepared as described [8]. A stream of ozone in oxygen was produced using a Fischer OZ 500/5 Ozone Generator (i-Fischer Engineering, Waldbüttelbrunn, Germany).

2.2. Synthesis of Sulfones 1–4

2.2.1. Preparation of cis- and trans-2,6-diethoxy-1,4-oxathiolane 4,4-dioxide 2 and 3

Following a literature procedure [6], ozone gas was passed into a solution of 3-sulfolene 5 (6 g, 50.8 mmol) in CH₂Cl₂ (50 cm³) and ethanol (10 cm³) cooled at −78 °C until a bubbler with potassium iodide in acetic acid in the exit gas stream indicated that ozone was no longer being absorbed. Liquid SO₂ (7 cm³, 156 mmol) was then rapidly added, and the solution was stirred in the cold bath for 2 min before removing the bath and allowing it to stir at room temperature overnight. The resulting dark brown solution was poured into a vigorously stirred mixture of aqueous sodium carbonate (24 g in 200 cm³ water) and 40 g of ice, and stirring continued for 5 min. The reaction mixture was poured into a separating funnel, and the CH₂Cl₂ layer was collected. The aqueous layer was washed with CH₂Cl₂ (2 × 50 cm³), and the organic extracts were all combined. The combined layers were washed with water (1 × 60 cm³) and saturated brine (1 × 60 cm³), dried over magnesium sulfate, and the solvent evaporated in vacuo to yield the crude product as an off-white solid mixture (55:45) of the cis and trans isomers 2 and 3 (9.7 g, quant.), mp 75–130 °C (lit. [6] 76–118 °C). For the synthesis of 1, this was used without further purification. However, in order to characterise the two isomers, they were separated by column chromatography (SiO₂, ethyl acetate/hexane 1:2) to give at R_f 0.6 (cis 2) and at R_f 0.4 (trans 3). The separated isomers were both recrystallised from methanol.

cis-2,6-diethoxy-1,4-oxathiolane 4,4-dioxide 2

mp 102–105 °C (lit. [6] 103–105 °C); ¹H NMR (500 MHz, CDCl₃) δ 4.93 (2H, dd, J 9.5, 2.0, H-2, H-6), 3.99 (2H, dq, J 9.5, 7.0, OCH₂), 3.64 (2H, dq, J 9.5, 7.0, OCH₂), 3.25 (2H, dt, J 13.5, 2.0, H-3, H-5), 3.05 (2H, dd, J 13.5, 9.5, H-3, H-5) and 1.27 (6H, t, J 7.0, 2 × CH₃); ¹³C NMR (125 MHz, CDCl₃) δ 95.1 (CH), 65.3 (OCH₂), 55.6 (SCH₂) and 14.9 (CH₃).

trans-2,6-diethoxy-1,4-oxathiolane 4,4-dioxide 3

mp 134–136 °C (lit. [6] 136–137 °C); ¹H NMR (500 MHz, CDCl₃) δ 5.34 (2H, dd, J 5.5, 3.0, H-2, H-6), 3.91 (2H, dq, J 9.5, 7.0, OCH₂), 3.63 (2H, dq, J 9.5, 7.0, OCH₂), 3.30 (2H, ddd, J 14.0, 3.0, 2.0, H-3, H-5), 3.20 (2H, ddd, J 14.0, 5.5, 2.0, H-3, H-5) and 1.28 (6H, t, J 7.0, 2 × CH₃); ¹³C NMR (125 MHz, CDCl₃) δ 93.4 (CH), 64.9 (OCH₂). 55.5 (SCH₂) and 14.8 (CH₃).

2.2.2. Preparation of 4H-1,4-Thiazine 1,1-dioxide 1

Following a literature procedure [6], a mixture of 2,6-diethoxy-1,4-oxathiane 4,4-dioxides 2 and 3 (5 g, 22.3 mmol) and ammonium chloride (1.23 g, 23.3 mmol) in glacial acetic acid (100 cm³) was heated under reflux for 30 min, during which the ammonium chloride dissolved, and the solution turned brownish yellow in colour. The mixture was then cooled to room temperature and the acetic acid evaporated off under reduced pressure to yield a yellow solid. This residue was stirred in a mixture of isopropanol (4 cm³) and diethyl ether (25 cm³) for 10 min. The suspension was then filtered, and the solid dried to yield the crude product 1. Recrystallisation from MeOH yielded pure product 1 as yellow crystals (1.87 g, 55%), mp 239–243 °C (lit. [6] 237–240 °C). ¹H NMR (400 MHz, CD₃SOCD₃) δ 10.26 (1H, br s, NH), 7.09 (2H, m, H-3, H-5) and 5.99 (2H, m, H-2, H-6); ¹³C NMR (100 MHz, CD₃SOCD₃) δ 132.6 (=CH-N) and 104.0 (S-CH=); HRMS (ESI) m/z calculated for C₄H₄NO₂S [M–H] 129.9963, found 129.9960.

2.2.3. Preparation of diethyl 3,4-dihydro-2H-1,4-thiazine-3,5-dicarboxylate 1,1-dioxide 4

Following a literature procedure [8], a solution of m-chloroperoxybenzoic acid (2.27 g, 13.16 mmol) in CH₂Cl₂ (10 cm³) was added over the course of 5 min to a solution of diethyl 3,4-dihydro-2H-1,4-thiazine-3,5-dicarboxylate 6 (2.69 g, 10.97 mmol) in CH₂Cl₂ (30 cm³) at –70 °C under nitrogen. The reaction was stirred at –70 °C for 20 min. After being warmed to room temperature, the reaction mixture was washed with NaHCO₃ (3 × 10 cm³) and water (3 × 10 cm³) and dried over MgSO₄. Evaporation of solvent in vacuo followed by purification using column chromatography (SiO₂, CH₂Cl₂ + 1% MeOH, R_f 0.3) produced the sulfoxide product 7 as an amber oil. (2.53 g, 88%); ¹H NMR (300 MHz, CDCl₃) δ 6.26 (1H, br s, =CH-), 4.35 (1H, m, -CH-NH-), 4.34 (4H, q, J 7, CH₂ of Et), 3.42 (1H, br d, J 13.4, H-2_a), 2.34 (1H, dd, J 13.5, 13.4, H-2_b) and 1.36 (6H, t, J 7, CH₃); ¹³C NMR (125 MHz, CDCl₃) δ 170.1 (C=O, =C-CO₂Et), 161.5 (C=O, CH-CO₂Et), 137.8 (C), 96.2 (CH), 63.1 (OCH₂), 61.9 (OCH₂), 43.0 (CH-NH), 42.6 (SCH₂), 14.3 (CH₃) and 14.2 (CH₃). The ¹H and ¹³C spectral data was in accordance with that previously reported [8].

A minor side-product obtained in earlier fractions (R_f 0.35) was diethyl 3,4-dihydro-2H-1,4-thiazine-3,5-dicarboxylate 1,1-dioxide 4 (0.15 g, 6%), mp 152–155 °C (dec.). IR (ATR): 3343, 2981, 1746, 1724, 1609, 1518, 1447, 1371, 1329, 1290, 1263, 1236, 1177, 1167, 1128, 1111, 1063, 1026, 1011 cm⁻¹; ¹H NMR (CDCl₃, 300 MHz) δ 6.14 (1H, br s, NH), 6.11 (1H, br s, =CH-), 4.67 (1H, ddd, J 12.3, 3.3, 1.7, CH-N), 4.36 (2H, q, J 7.0, OCH₂), 4.34 (2H, q, J 7.0, OCH₂), 3.53 (1H, dddd, J 13.2, 3.3, 2.4, 1.0, SCH₂) 3.17 (1H, dd, J 13.2, 12.3, SCH₂) 1.36 (3H, t, J 7.0, CH₃) and 1.35 (3H, t, J 7.0, CH₃); ¹³C NMR (CDCl₃, 125 MHz) δ 167.4 (C=O, CH-CO₂Et), 161.2 (C=O, =C-CO₂Et), 138.0 (C), 100.4 (=CH), 63.3 (OCH₂), 63.1 (OCH₂), 52.7 (CH-N), 48.5 (SCH₂), 13.92 (CH₃) and 13.86 (CH₃); HRMS (ESI) m/z calculated for C₁₀H₁₅NSO₆Na [M+Na] 300.0518, found 300.0507; calculated for C₂₀H₃₀N₂S₂O₁₂Na [2M+Na] 577.1138, found 577.1121.

2.3. Crystallography

X-ray diffraction data for compound 1 were collected at 125 K using a Rigaku MM-007HF High Brilliance RA generator/confocal optics with XtaLAB P200 diffractometer [Cu Kα radiation (λ = 1.54187 Å)] (Rigaku Corporation, Tokyo, Japan). X-ray diffraction data for compounds 2 and 3 were collected at 125 K using a Rigaku FR-X Ultrahigh Brilliance Microfocus RA generator/confocal optics with XtaLAB P200 diffractometer [Mo Kα radiation (λ = 0.71073 Å)] (Rigaku Corporation, Tokyo, Japan). X-ray diffraction data for compound 4 were collected at 173 K using a Rigaku SCXmini CCD diffractometer with a SHINE monochromator [Mo Kα radiation (λ = 0.71073 Å)] (Rigaku Corporation, Tokyo, Japan). Data for compounds 1–3 were collected (using a calculated strategy) and processed (including correction for Lorentz, polarization, and absorption) using CrysAlisPro [9], while data for 4 were collected using ω steps accumulating area detector images spanning at least a hemisphere of reciprocal space and processed (including correction for Lorentz, polarization, and absorption) using CrystalClear [10]. Structures were solved by either direct (SHELXS [11]) or dual-space methods (SHELXT [12]) with all structures refined by full-matrix least-squares against F² (SHELXL-2018/3 or 2019/3 [13]). Non-hydrogen atoms were refined anisotropically, and hydrogen atoms were refined using a riding model, except for the hydrogen atoms on N1 in 1 and 4, which were located from the difference Fourier map and refined isotropically subject to a distance restraint. The terminal carbon (C8) of one ethoxy group in 3 was disordered over multiple sites related by rotations around the O2-C7 axis. The terminal carbon was split over three sites (36.5:31.2:32.3) and refined with their occupancies summed to 1 with restraints on the C-C distances and thermal ellipsoids. Calculations were performed using either the Olex2 [14] or CrystalStructure [15] interfaces. Selected crystallographic data are presented in

Table 1. Summary of crystallographic data obtained for compounds 1–4.

Compound	1	2	3	4
CCDC deposit no.	2449906	2449907	2449908	2449909
Empirical formula	C4H5NO2S	C8H16O5S	C8H16O5S	C10H15NO6S
Crystal system	monoclinic	monoclinic	monoclinic	monoclinic
Space group	P21/n (No. 14)	P21/c (No. 14)	I2/a (No. 15)	P21/n (No. 14)
Temperature (K)	125	125	125	173
Crystal form	colourless plate	colourless plate	colourless plate	colourless prism
Size (mm)	0.08 × 0.04 × 0.008	0.30 × 0.16 × 0.03	0.18 × 0.12 × 0.02	0.17 × 0.07 × 0.07
a (Å)	6.8189(2)	9.26086(15)	9.05992(12)	5.5089(3)
b (Å)	9.9891(3)	13.2940(2)	12.75336(18)	19.7489(13)
c (Å)	8.3841(3)	8.58184(14)	19.5748(3)	11.5347(8)
β (°)	110.087(4)	96.5134(15)	95.2016(13)	100.1790(10)
Volume (Å3)	536.34(3)	1049.72(3)	2252.44(6)	1235.16(14)
Z	4	4	8	4
Dc (g cm–3)	1.624	1.419	1.323	1.491
Absorption coefficient (mm–1)	4.560	0.304	0.283	0.282
Radiation type, wavelength (Å)	Cu Kα, 1.54187	Mo Kα, 1.71073	Mo Kα, 1.71073	Mo Kα, 1.71073
F(000)	272.00	480.00	960.00	584.00
θ range (°)	7.161–75.646	2.213–29.151	1.908–29.214	2.069–27.479
Limiting indices	–8 ≤ h ≤ 8, –12 ≤ k ≤ 12, –10 ≤ l ≤ 10	–12 ≤ h ≤ 12, –17 ≤ k ≤ 18, –11 ≤ l ≤ 11	–12 ≤ h ≤ 12, –17 ≤ k ≤ 16, –26 ≤ l ≤ 26	–7 ≤ h ≤ 7, –25 ≤ k ≤ 25, –14 ≤ l ≤ 14
Reflns collected/unique	8448/1098	44,431/2673	46,039/2858	12,586/2822
Rint	0.0565	0.0343	0.0547	0.1003
Restraints/parameters	1/77	0/129	19/152	1/169
Data with I > 2σ(I)	926	2422	2486	1747
Goodness of fit on F2	1.100	1.062	1.069	1.021
R1, wR2 (data I > 2σ(I))	0.0459, 0.1111	0.0286, 0.0750	0.0410, 0.1023	0.0497, 0.0946
R1, wR2 (all data)	0.0572, 0.1200	0.0322, 0.0769	0.0512, 0.1054	0.1060, 0.1160
Largest diff. peak/hole (e Å2)	0.39 and −0.44	0.40 and −0.36	0.75 and −0.21	0.38 and −0.40

. CCDC 2449906–2449909 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/structures.

3. Results and Discussion

3.1. Synthesis

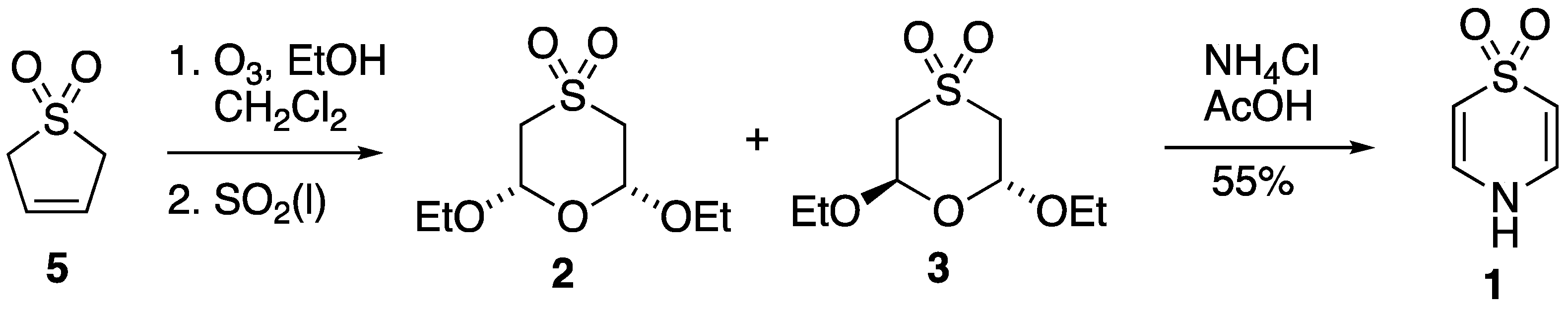

A reliable although unusual synthesis of compound 1 appeared in 1972 [6], and in fact, this is its only reported synthesis to date. The method starts from the readily available 2,5-dihydrothiophene 1,1-dioxide (butadiene sulfone) 5, which is subjected to ozonolysis in dichloromethane containing ethanol (Scheme 1). Once ozone absorption is complete, the mixture is reductively quenched by rapid addition of liquid sulfur dioxide to give a mixture of the cis- and trans-2,6-diethoxy-1,4-oxathiane 4,4-dioxides 2 and 3 in essentially quantitative yield. Treatment of this mixture with ammonium chloride in boiling acetic acid directly produced thiazine dioxide 1, but for spectroscopic and structural characterisation, 2 and 3 were readily separated by column chromatography. It might be noted here that compound 3 has been prepared in low yield by treatment of sulfonyldiacetaldehyde with boron trifluoride and ethanol [16], and both 2 and 3 have also been prepared by peracetic acid oxidation of the corresponding 1,4-oxathianes [7].

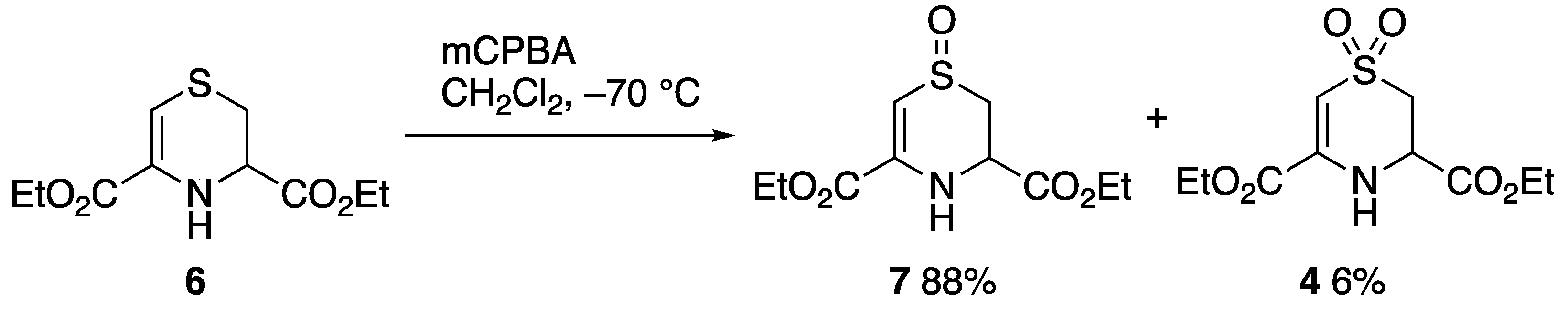

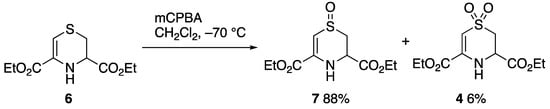

Compound 4 was obtained as a minor product in the low-temperature mCPBA oxidation of the dihydrothiazine diester 6 (Scheme 2), itself obtained by condensation of cysteine ethyl ester with ethyl bromopyruvate [8]. Chromatography of the product yielded sulfone 4 as a minor product eluting before the main sulfoxide product 7.

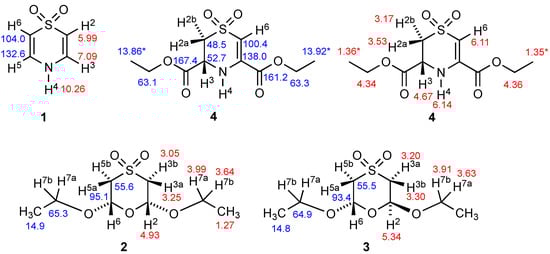

3.2. NMR Characterisation of Compounds 1–4

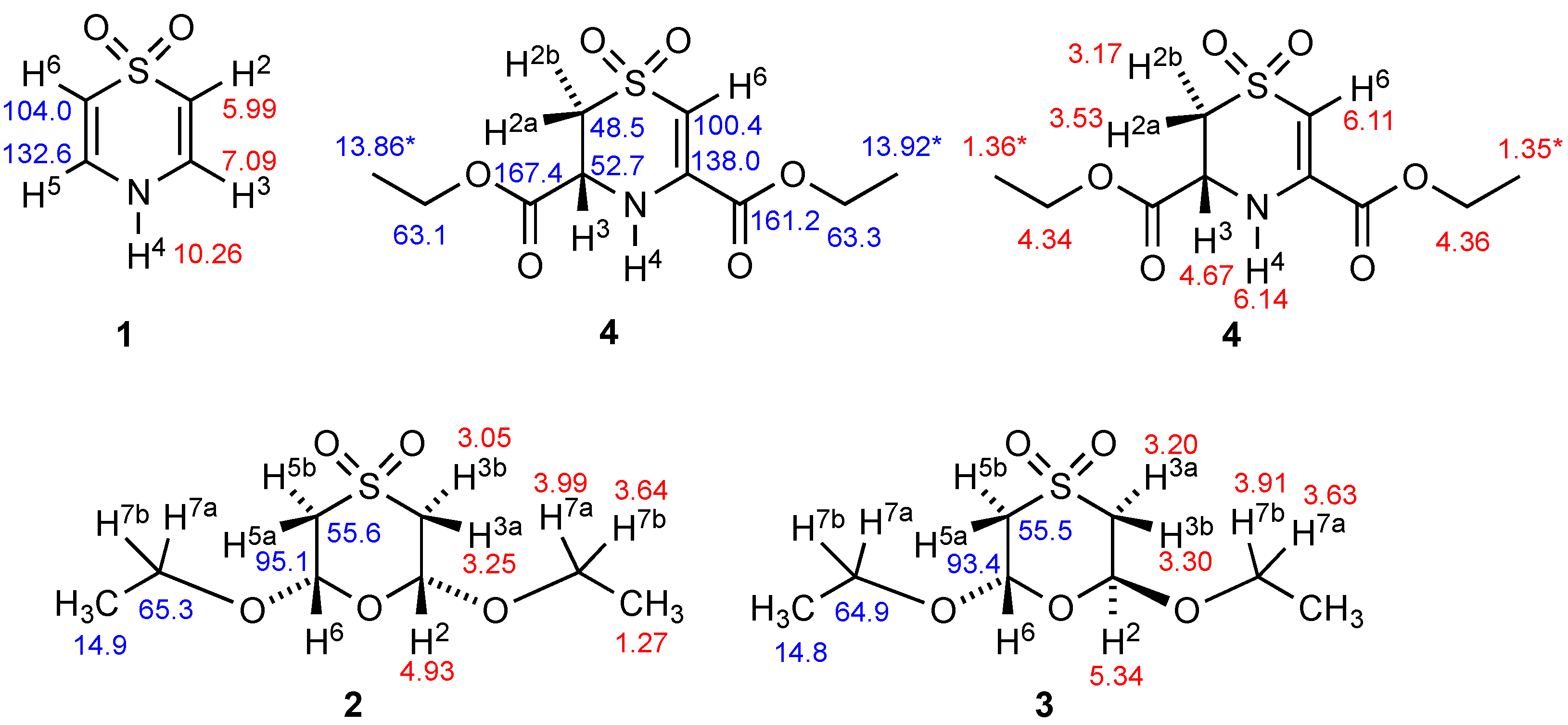

Because of the early date of the previous work, only low-resolution ¹H spectra of compounds 1–3 were reported [6,7], although a later study [17] did attempt assignment of coupling constants for the ¹H spectrum of 1 and also gave ¹³C chemical shifts for 1. No ¹³C NMR data for 2 or 3 seem to have been reported, and compound 4 is previously unknown, so no spectroscopic data exist. We therefore conducted a detailed NMR study of compounds 1–4, and the resulting chemical shift values with assignments are summarised in Figure 2. All spectra including simulations are presented in the Supplementary Materials. By using DEPTQ and HSQC techniques, unambiguous assignment of all carbon signals was possible for all four compounds, with the sole exception of the CH₃ signals in 4. Unambiguous assignment of the OCH₂ signals was possible in this case from observation of an HMBC correlation of the carbon signal at 161.2 to the proton signals at both 6.11 and 4.36, whilst the signal at 167.4 was only correlated to the signal at 4.34. HSQC then confirmed that 4.36 corresponded to 63.3, while 4.34 corresponded to 63.1.

The other feature of interest from the NMR spectra was the presence of only four carbon environments in both 2 and 3, thus confirming their symmetry with a mirror plane in 2 and a C-2 axis in 3. As will be seen from the X-ray structures, both these molecules exist in chair forms in the solid state, and, for 3, this places one OEt axial and the other equatorial. However, in solution, there is clearly rapid inversion on the NMR timescale, which results in the axial OEt becoming equatorial and vice versa, thus resulting in averaging to give the simple four-line spectrum. For 2, the contribution of the chair form with two axial OEt groups is negligible, again leading to only four lines.

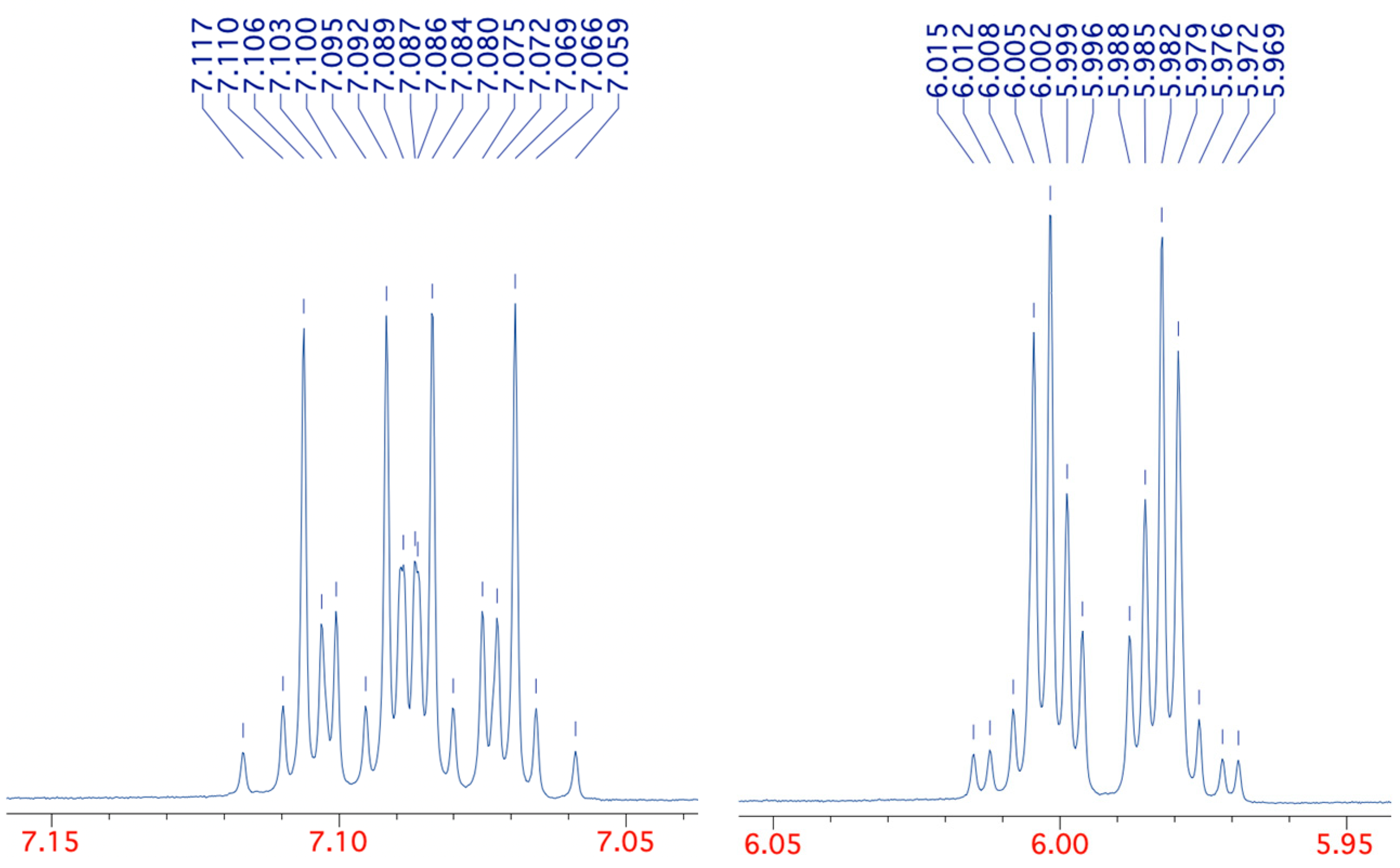

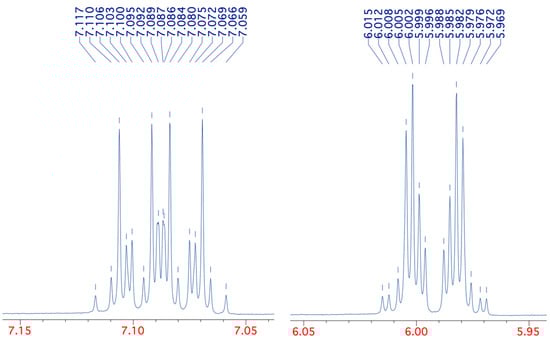

While the ¹³C spectra for all four compounds were relatively simple, this was certainly not the case for the ¹H spectra, which showed remarkable complexity for such simple structures. To take compound 1 as an example, while the NH signal was observed as a broad singlet at 10.26 ppm, the complex form of the CH signals is shown in Figure 3.

This pattern could be successfully simulated, however, using the precise chemical shifts of 7.088 and 5.992 and the coupling constants in

Table 2. H–H coupling constants observed in 1–4 (Hz).

Compound	2JH-H	3JH-H	4JH-H
1 *	—	H2-H3 = H5-H6 = 10.0 H3-H4 = H4-H5 = 6.6	H2-H6 = 1.8 H3-H5 = 4.4 H2-H4 = H4-H6 = 1.2
2	H3a-H3b = H5a-H5b = 13.5 H7a-H7b = 9.5	H2-H3a = H5a-H6 = 9.5 H2-H3b = H5b-H6 = 2.0 H7a-CH3 = H7b-CH3 = 7.0	H3a-H5a = 2.0
3	H3a-H3b = H5a-H5b = 14.0 H7a-H7b = 9.5	H2-H3a = H5a-H6 = 5.5 H2-H3b = H5b-H6 = 3.0 H7a-CH3 = H7b-CH3 = 7.0	H3a-H5b = H3b-H5a = 2.0
4	H2a-H2b = 13.2	H2a-H3 = 12.3 H2b-H3 = 3.3 H3-H4 = 1.7 CH2-CH3 = 7.0	H2a-H4 = 2.4 H2a-H6 = 1.0

* ⁵J_H2-H5 = ⁵J_H3-H6 = 0.4.

. With these values, we were able to reproduce the pattern exactly with the same number and relative size of peaks and all 32 chemical shifts agreeing to ±0.002 ppm (see Supplementary Materials). The complexity of the patterns for the simple AA’MM’X system is explained by a total of six different coupling constants, including between chemically equivalent but magnetically non-equivalent protons H²/H⁶ and H³/H⁵ and even a weak five-bond coupling diagonally across the ring. The values are also in reasonable agreement with those previously reported [17], although in that case, no coupling to NH was apparently observed.

The spectra of compounds 2 and 3 also showed unexpected complexity but for a different reason: in this case, the CH₂ protons of the OEt groups as well as those on the ring were non-equivalent and coupled to one another. In addition, for the cis compound 2, there was a four-bond coupling between the magnetically non-equivalent protons H^3a/H^5a, which being equatorial form a W-shape favourable for long-range coupling. Again, satisfactory simulation was possible with agreement to ±0.001 ppm on all peaks using the values in Table 2. A similar pattern was observed for the trans compound 3 with the distinction that in this case, four-bond coupling was observed between the chemically non-equivalent H^3a/H^5b and H^3b/H^5a pairs, each of which can take up the favourable W-shape in one of the rapidly interconverting chair forms.

The spectrum of the unsymmetrical compound 4 was somewhat simpler and was consistent with a half-chair conformation with the 3-CO₂Et substituent taking up an equatorial position. This leads to a large diaxial coupling between H³ and H^2b and places H^2a in an equatorial position allowing favourable W-shape long-range coupling to both the =CH hydrogen and the NH (Table 2).

3.3. Molecular and Crystal Structures of 1–4 from X-Ray Diffraction

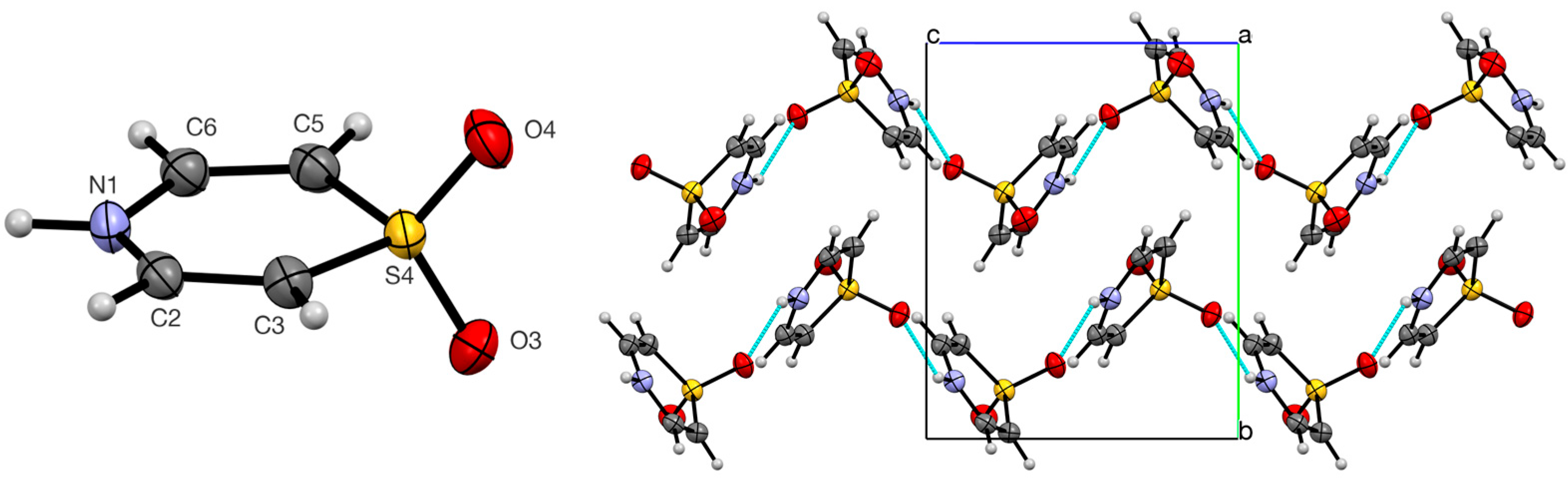

The molecular structure of 1 is almost but not quite planar, showing a slight boat shape with N1 0.040(4) and S4 0.093(4) Å below the plane defined by the four carbon atoms (Figure 4). More significantly, the sulfone function is distinctly unsymmetrical with one shorter bond S4–O4 of 1.442(2) Å placing O4 1.022(6) Å above the carbon atom plane and one longer bond S4–O3 of 1.453(3) Å placing O3 1.383(6) Å below it. This is explained by strong intermolecular hydrogen bonding between O3 and the NH (

Table 3. Hydrogen bonding (including non-classical) parameters for 1 and 4 (Å, °).

	D—H···A	D—H	H···A	D···A	D—H···A
1	N(1)–H(1)···O(3)#1	0.952(18)	2.11(3)	2.851(3)	134(3)
	C(3)-H(3)···O(3)#2	0.95	2.551(3)	3.408(4)	150.1(2)
	C(5)-H(5)···O(3)#3	0.95	2.5029(18)	3.260(4)	136.61(19)
4	N(1)–H(1)···O(3)#4	0.98(3)	2.10(3)	2.887(3)	136(2)

Symmetry codes: #1 x − 1/2, −y + 3/2, z + 1/2; #2 − x, −y + 1, z; #3 x + 1/2, −y +3/2, z + 1/2; #4 x + 1/2, −y + 1/2, z − 1/2.

), which results in the molecules forming infinite zig-zag chains when viewed along the a-axis and additional non-classical hydrogen bonds from C3 and C5 (Table 3), which link adjacent intermolecular chains.

The bond lengths and angles around the heterocyclic ring (

Table 4. Comparison of key ring dimensions between the four compounds (Å, °).

Bond Length	1	2	3	4
N/O(1)–C(2)	1.352(4)	1.4307(12)	1.4379(16)	1.348(3)
C(2)–C(3)	1.351(4)	1.5265(14)	1.518(2)	1.350(4)
C(3)–S(4)	1.711(3)	1.7761(11)	1.7670(15)	1.718(3)
S(4)–C(5)	1.713(3)	1.7799(11)	1.7734(14)	1.770(3)
C(5)–C(6)	1.342(4)	1.5256(14)	1.526(2)	1.531(3)
C(6)–N/O(1)	1.361(4)	1.4297(12)	1.4283(16)	1.448(3)
S(4)–O(3)	1.453(2)	1.4402(9)	1.4382(12)	1.4439(19)
S(4)–O(4)	1.442(2)	1.4455(9)	1.4433(11)	1.439(2)
Angle
C(6)–N/O(1)–C(2)	122.5(2)	113.22(8)	115.38(10)	123.5(2)
N/O(1)–C(2)–C(3)	124.3(3)	110.86(8)	110.56(11)	126.3(2)
C(2)–C(3)–S(4)	123.3(2)	110.71(7)	110.06(10)	121.0(2)
C(3)–S(4)–C(5)	101.58(15)	102.29(5)	101.00(7)	101.13(13)
S(4)–C(5)–C(6)	123.1(3)	109.00(7)	113.86(9)	110.51(18)
C(5)–C(6)–N/O(1)	124.7(3)	109.40(8)	112.55(11)	111.6(2)

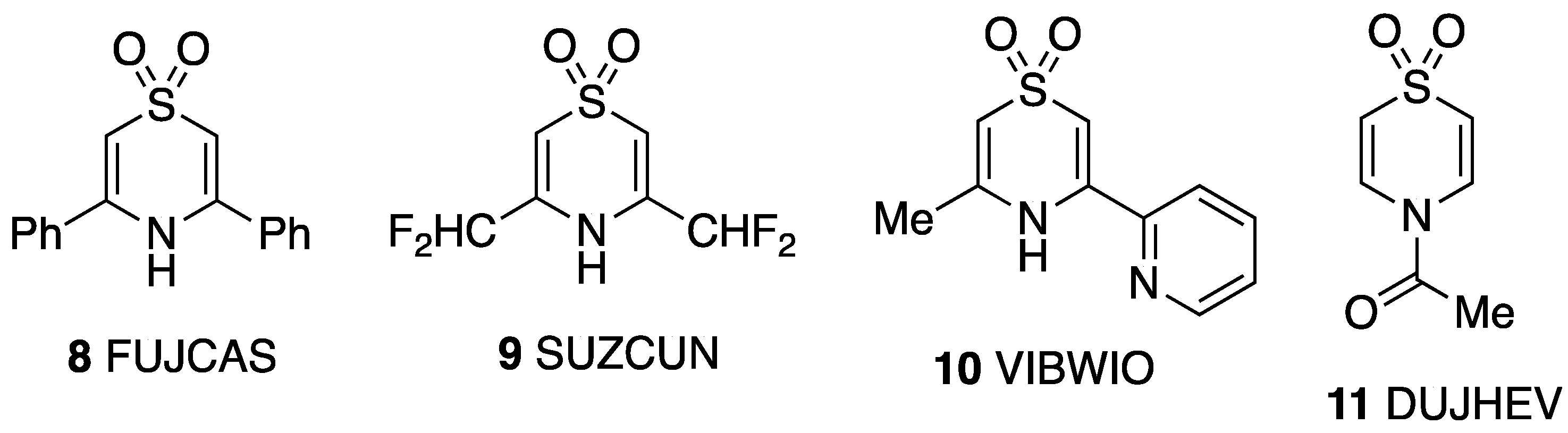

) are in good agreement with those reported for the four 1,4-thiazine S,S-dioxides that have previously been crystallographically characterised (Figure 5). The first three of these also exhibit hydrogen bonding between NH and one of the sulfone oxygens: the diphenyl compound 8 forms hydrogen-bonded stacks [18], the bis(difluoromethyl) compound 9 forms linear hydrogen-bonded chains [19] and the 2-pyridyl compound 10 forms linear chains with an additional intramolecular hydrogen-bonding interaction with the pyridyl N [20]. The N-acetyl compound 11 has ring dimensions most similar to 1, but no hydrogen bonding is possible in this case, and there are no significant intermolecular interactions in the crystal [21].

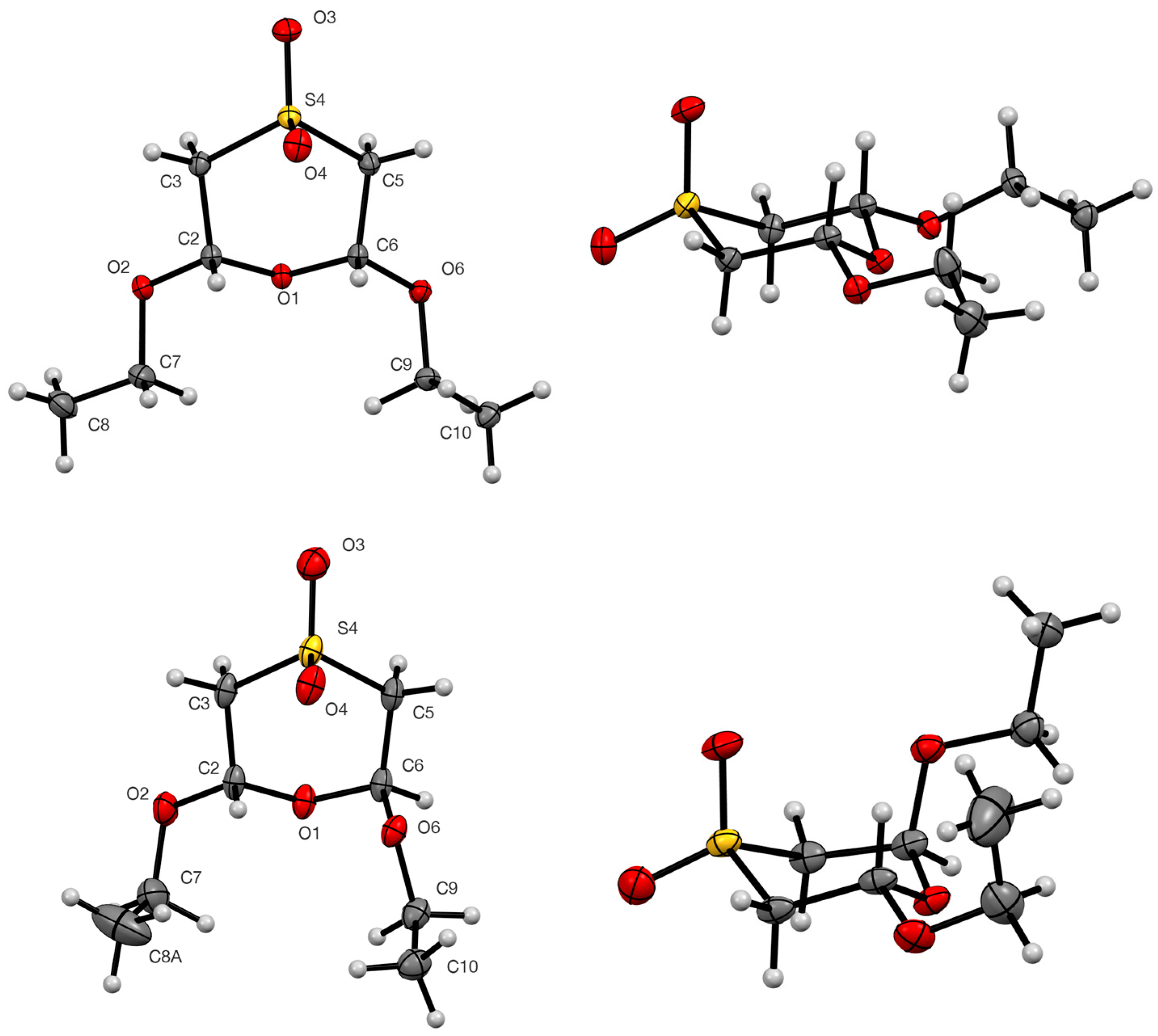

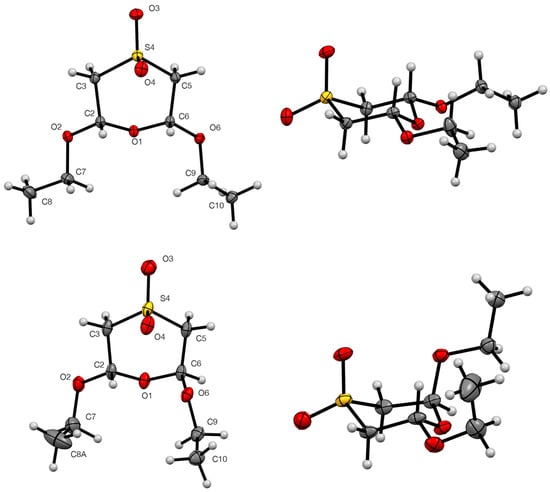

The molecular structures of the cis compound 2 and the trans compound 3 both adopt a regular chair conformation, with both ethoxy groups equatorial in the first case and one equatorial and one axial in the second (Figure 6). There is some rotational disorder in the equatorial ethoxy group for 3 with the methyl group occupying two alternative sites in addition to the one shown. In both structures, there are a variety of weak CH···O interactions (2.4403(8)–2.8017(9) Å and 2.3650(10)–2.7824(10) Å, respectively) which are at or beyond the sum of the Van der Waals radii.

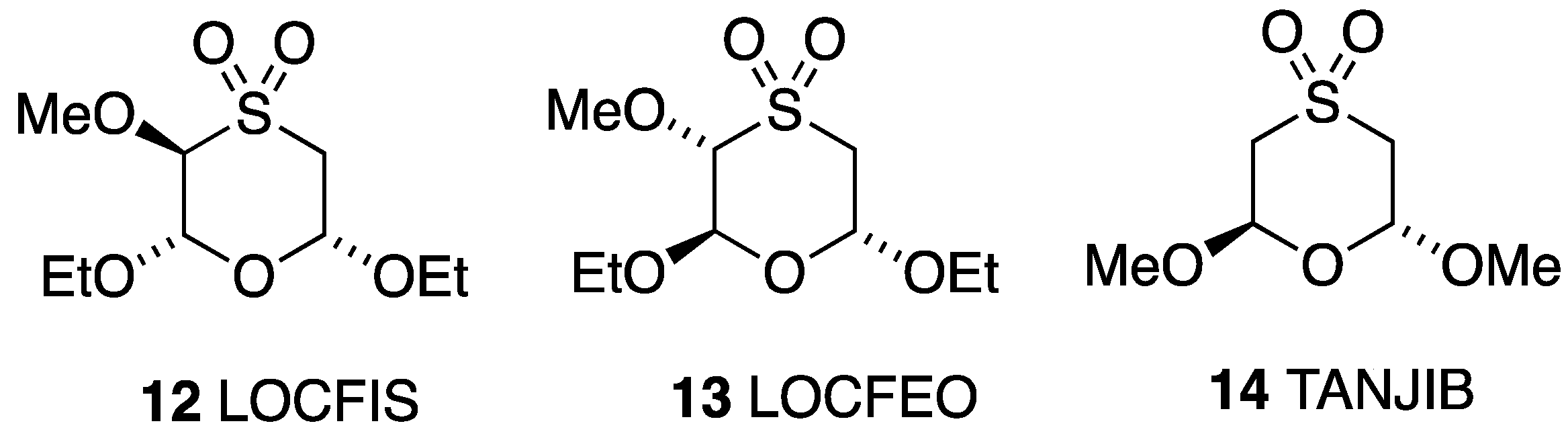

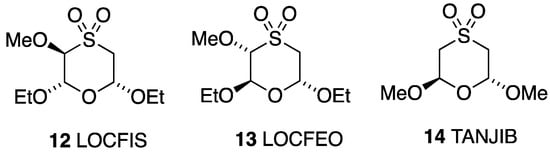

The bond lengths and angles around the heterocyclic rings (Table 4) are in good agreement with those reported for the three 1,4-oxathiane S,S-dioxides that have previously been crystallographically characterised (Figure 7). Compound 12 also adopts a chair conformation with all substituents equatorial, while the isomer 13 has the adjacent methoxy and ethoxy groups both axial and the remaining ethoxy equatorial [22]. The structure of the trans dimethoxy compound 14 [23] is exactly analogous to that of 3 with one group axial and one equatorial. As might be expected, none of these compounds show significant intermolecular interactions.

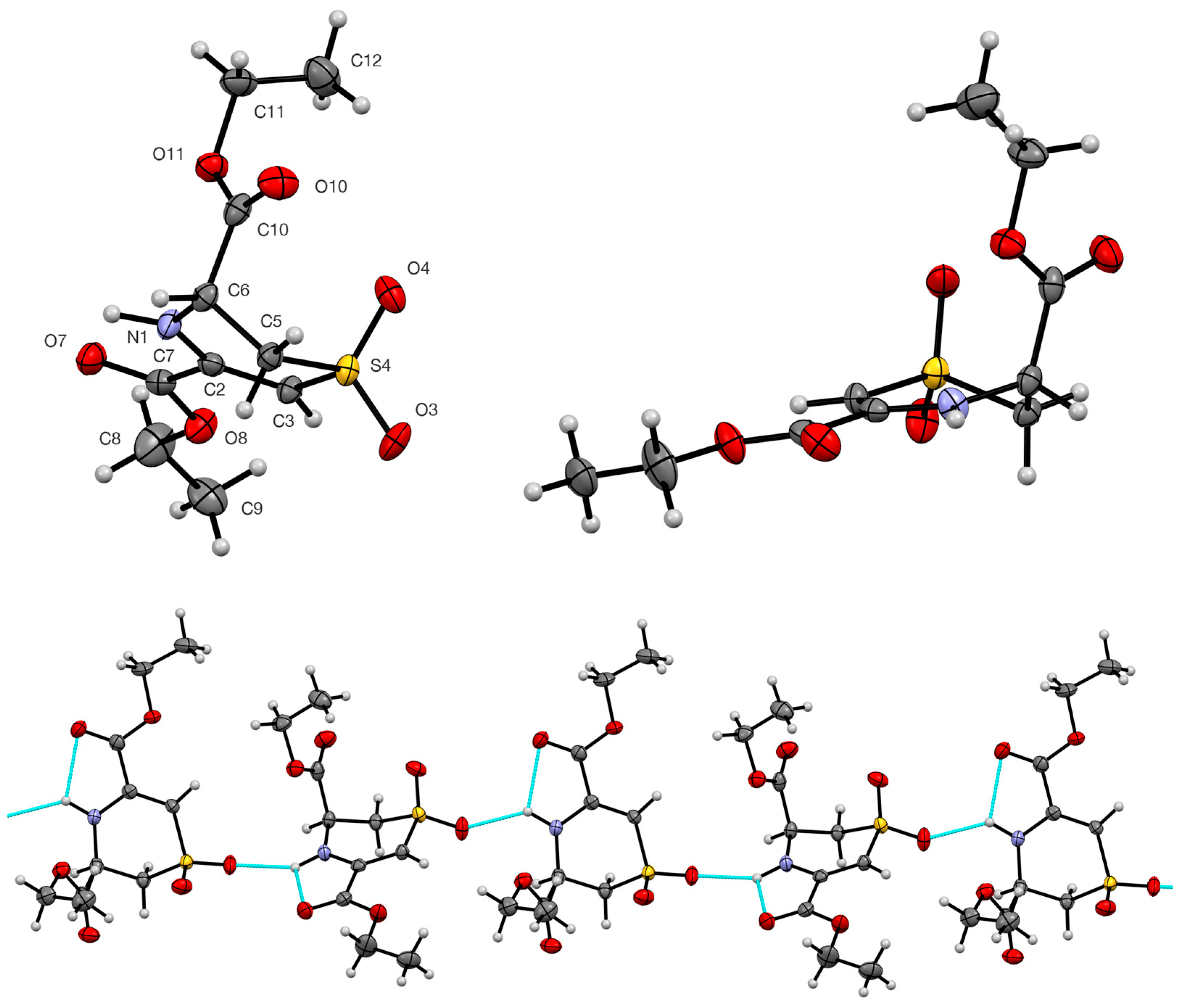

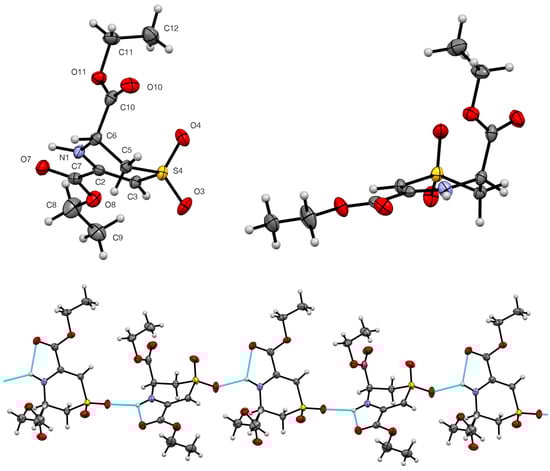

The dihydro-1,4-thiazine S,S-dioxide diester 4 adopts a half-chair conformation in the crystal with N(1), C(2), C(3), and S(4) as well as the C-2 ester group in a plane, with C(5) significantly (0.659(4) Å) below it while C(6) is slightly(0.071(4) Å) above it. The C-6 ester group adopts an axial position (Figure 8). The cyclic amine NH is involved in both an electrostatic-type intermolecular interaction with the C=O of the in-plane C-2 ester group and an intermolecular hydrogen bond to the S=O(3) of an adjacent molecule (Table 3) leading to chains perpendicular to the b axis with two alternating molecular orientations (Figure 8, Table 3).

It is notable that the axial orientation of the C(6)-ester group in the crystal structure is not in agreement with the NMR data presented earlier, which clearly indicated an equatorial ester group, and we conclude that the molecule adopts different conformations in the solid state and in solution.

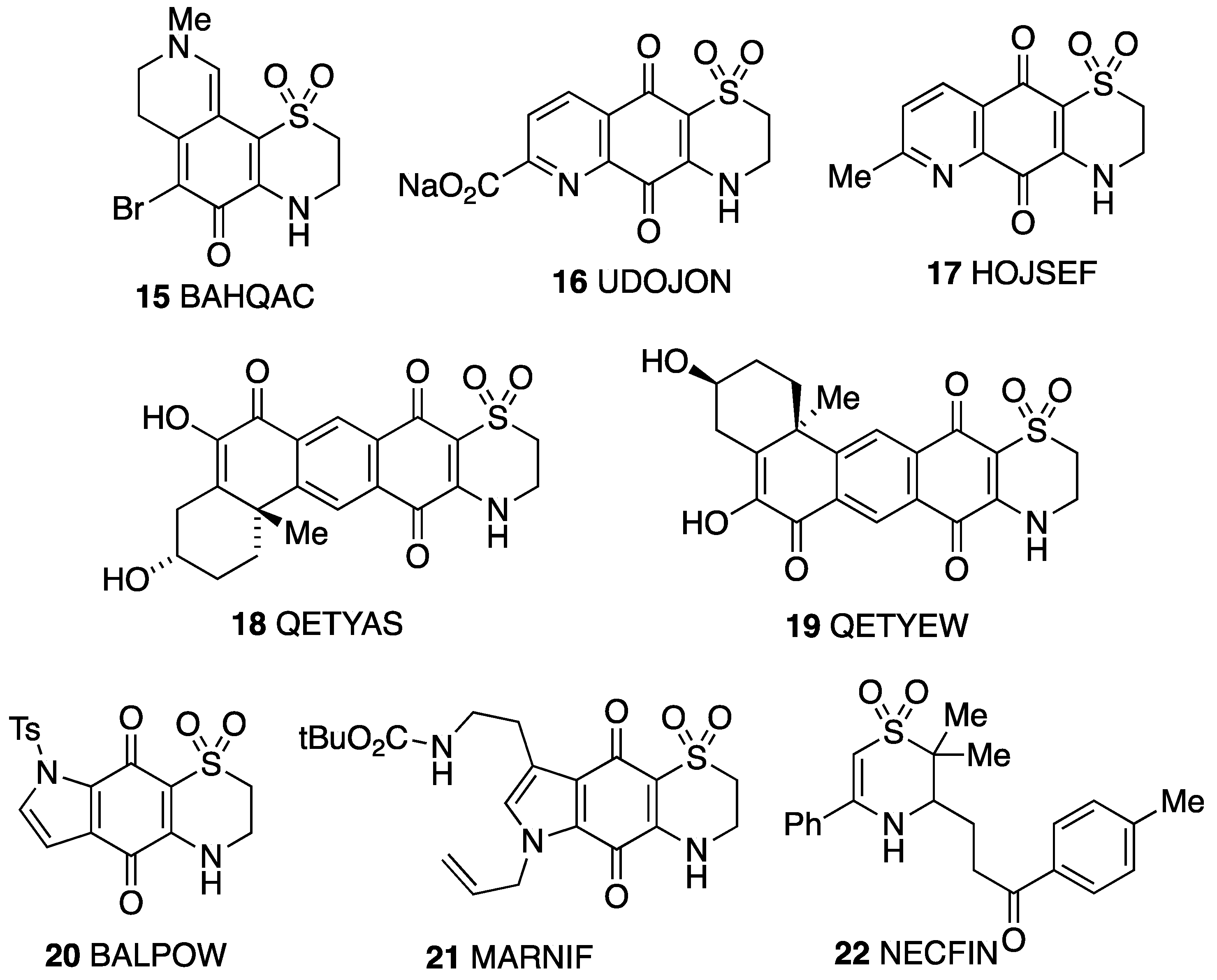

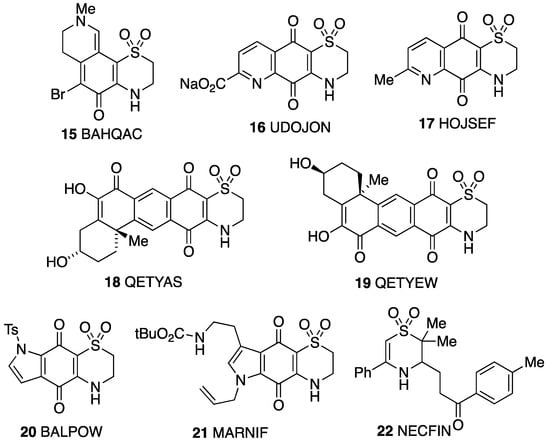

A good number of structures containing a 2,3-dihydro-1,4-thiazine S,S-dioxide ring have been determined (Figure 9), but these almost all have two or more additional rings fused to the thiazine double bond and no substituent at the 3-position adjacent to NH. The interest in these structures stems from their isolation as natural products from marine sources and potential medicinal activity. Thus, euthyroideone A 15 [24] was obtained from a New Zealand bryozoan, while ascidiathiazone A 16 [25] was obtained from a New Zealand ascidian, and both it and its analogue 17 [26] were tested for anti-inflammatory activity. The regioisomers xestosaprol O 18 and xestosaprol N 19 isolated from a Micronesian marine sponge are inhibitors of indoleamine 2,3-dioxygenase [27]. The compound 20 is an intermediate in the synthesis of the core structure of antimalarial thiaplakortone analogues [28], and the same group also determined the structure of an intermediate 21 with the regioisomeric ring system [29]. The structural parameters of the dihydrothiazine ring in all these examples are in good agreement with those for 4 with the same half-chair conformation in each case. These examples show a range of interesting hydrogen bonding patterns, but these generally involve bonding of NH to a carbonyl oxygen rather than to sulfone SO. In compound 20, however, there is intermolecular NH to sulfone SO bonding forming cyclic tetramers.

Perhaps the most relevant example for comparison with 4 is the monocyclic compound 22 obtained as a by-product in studies on the radical sulfonylative cyclisation of alkenes [30]. Like compound 4, this has a half-chair conformation, but in contrast to 4, the large benzoylethyl substituent in 22 is equatorial. This compound also forms chains by intermolecular NH to sulfone SO hydrogen bonding, as does 4.

4. Conclusions

Valuable structural information has been obtained on the four compounds studied, both in solution using NMR and in the solid state by X-ray crystallography. The intermolecular NH to O=S hydrogen bonding observed in the structures of 1 and 4 is consistent with the pattern observed for previously determined structures of these ring systems. The unexpectedly complex ¹H NMR pattern observed for 1 can be explained by invoking long-range coupling through four and five bonds. For the oxathiane dioxides 2 and 3, the data are consistent with chair conformations both in solution and in the solid state. Perhaps unexpectedly, the sp³-linked ester group in 4 adopts an equatorial position in solution but an axial position in the crystal.
