The High-Pressure Phase Transition in Jamesonite: A Single-Crystal Synchrotron X-ray Diffraction Study

Abstract

The high-pressure behavior of jamesonite (FePb₄Sb₆S₁₄, a = 4.08(3) Å, b = 19.08(3) Å, c = 15.67(3) Å, β= 91.89°, space group P2₁/c) has been investigated using in situ HP synchrotron X-ray single-crystal diffraction up to ~17 GPa with a diamond anvil cell under hydrostatic conditions. Results of the volume isothermal equation of state (EoS), determined by fitting the P-V data with a third-order Birch–Murnaghan (BM) EoS, are V₀ = 1207.1(4) ų, K₀ = 36(1) GPa and K’ = 5.7(7). At high pressure, jamesonite undergoes a phase transition to an orthorhombic structure with a Pmcb space group (β-jamesonite). The analysis of β-jamesonite’s compressibility up to 16.6 GPa, studied by fitting the data with a second-order BM-EoS, gives V₀ = 1027(2) ų, K₀ = 74(2) GPa. The comparison of the structural refinements at different pressures indicates that Fe, Pb and Sb do not change their coordination number over the whole investigated P range, respectively, 6 for Fe, 7 and 8 for Pb and 5 + 2 for Sb. However, a significant change occurs on the orientation of Sb lone electron pairs upon the phase transition in accordance with the change in symmetry. Furthermore, a discontinuity in the Fe chain evolution at the transition pressure is observed.

1. Introduction

The term “sulfosalts” was proposed for complex salts in which sulfur plays the role of the anion instead of oxygen, with a general chemical formula of A_xX_yS_z, where A stands for metallic cations (e.g., Pb²⁺, Ag¹⁺; Cu¹⁺); X for semimetal elements As³⁺, Sb³⁺, Bi³⁺ and Te⁴⁺; and S for sulfur [1]. Chalcogenides, because of their distinctive characteristics, are interesting as next-generation smart materials, such as thermoelectrics [2], photoelectrics [3], photovoltaics [4], materials for optical data storage [5] and solid-state electrolytes [6]. The wide application range of sulfosalts in these fields is due not only to their chemical and structural construction units but also to their physical properties, such as the band gap, which can be adjusted from almost 0 eV to more than 2.0 eV [7]. This allows sulfosalts to be used in a wide range of semiconductor materials.

Jamesonite (FePb₄Sb₆S₁₄) belongs to the group of rod-based sulfosalt structures made of infinite rods of M-S polyhedral clusters [8]. Jamesonite crystals are commonly found with needlelike morphology associated with sulfides such as pyrite (FeS₂), stibnite (Sb₂S₃), galena (PbS) and sphalerite (ZnS) in hydrothermal veins [9]. The crystals are lead-gray in color, up to a centimeter long and filling the quartz veins [10]. Due to its morphology and properties, jamesonite attracted scientific interest for applications in selective absorption and catalysis [11] and microelectronic devices [7]. In addition, jamesonite is one of the most important antimony resources [12]. With benavidesite (Pb₄MnSb₆S₁₄), jamesonite forms a complete solid-solution series in the PbS-FeS-MnS-Sb₂S₃ system with a melting point from 583 ± 3 °C (Fe) to 592 ± 3 °C (Mn) [13].

Jamesonite’s crystal structure was first described and determined by Niizeki and Buerger [14] with space group P2₁/a and unit-cell dimensions equal to the following: a = 15.07 Å, b = 18.98 Å, c = 4.03 Å and β = 91.48°. Recently, Léone et al. [15] refined the crystal structure of jamesonite in the space group P2₁/c and unit-cell dimensions equal to the following: a = 4.02 Å, b = 19.07 Å, c = 15.73 Å and β = 91.89°. The (Pb₆Sb₆S₁₄)∞ rods extending along a are connected by the Fe coordination octahedra into layers parallel to (010). Each rod shares its Pb2 atoms with four rods, two from each (010) neighboring layer, leaving for each rod four Pb on average. The Fe coordination octahedra share two opposite edges with the neighboring two Fe coordination octahedra to form the chains (FeS₄)∞, parallel to the a axis. All orientations refer to the P2₁/c setting (Figure 1).

The rods are four atomic planes thick and three coordination pyramids long in the direction perpendicular to the rod extension. They are based on the SnS archetype [16] with a mutual 2 Å shift of their two halves along the rod’s extension, when compared to a simple PbS-like arrangement. The middle of a rod comprises a lone electron pair’s (LEP) micelle, where Sb atoms orient their LEP. The full coordination of Sb atoms can thus be described as a monocapped trigonal prism (CN 7) in which tight Sb-S bonds, forming a square pyramid, are supplemented by two S atoms across the micelle at significantly longer distances, forming the body of the prism together with the pyramid’s base. The coordination is, strictly speaking, a 5 + 2 one, or even a 3 + 2 + 2 one, because of a bond-length gap between the closest three and the next-closest two in the distorted square pyramid. The Sb configuration is described in Comodi et al. [17] and, as shown by Balic-Zunic and Makovicky [18], the centroid of the coordination, calculated considering the seven coordination, expresses the maximum of the electron density of the lone electron pairs. The additional two long distances between Sb and S, measured in all three Sb polyhedra, indicate that at room pressure, there are just weak interactions between the Sb and S across the LEP micelles (in Figure 1, these bonds are represented with red dashed lines).

Pb polyhedra are significantly distorted. Pb1 has a 6 + 1 coordination with six distances lower than 3.1 Å, and Pb2 has a 7 + 1 coordination with seven bond distances lower than 3.2 Å. The longest distances are at 3.3 and 3.5 Å, respectively.

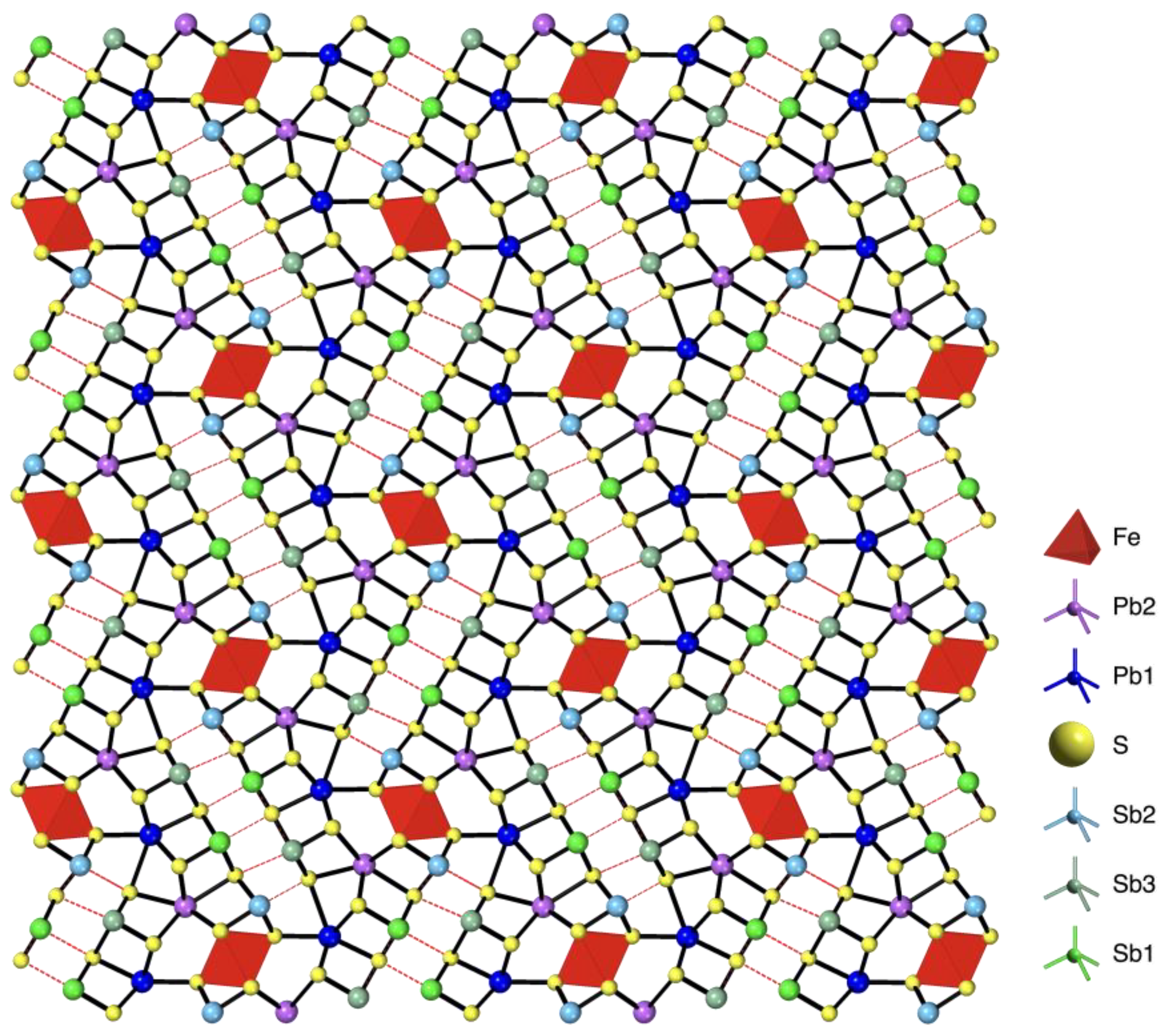

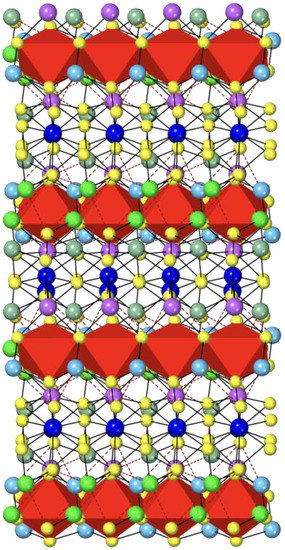

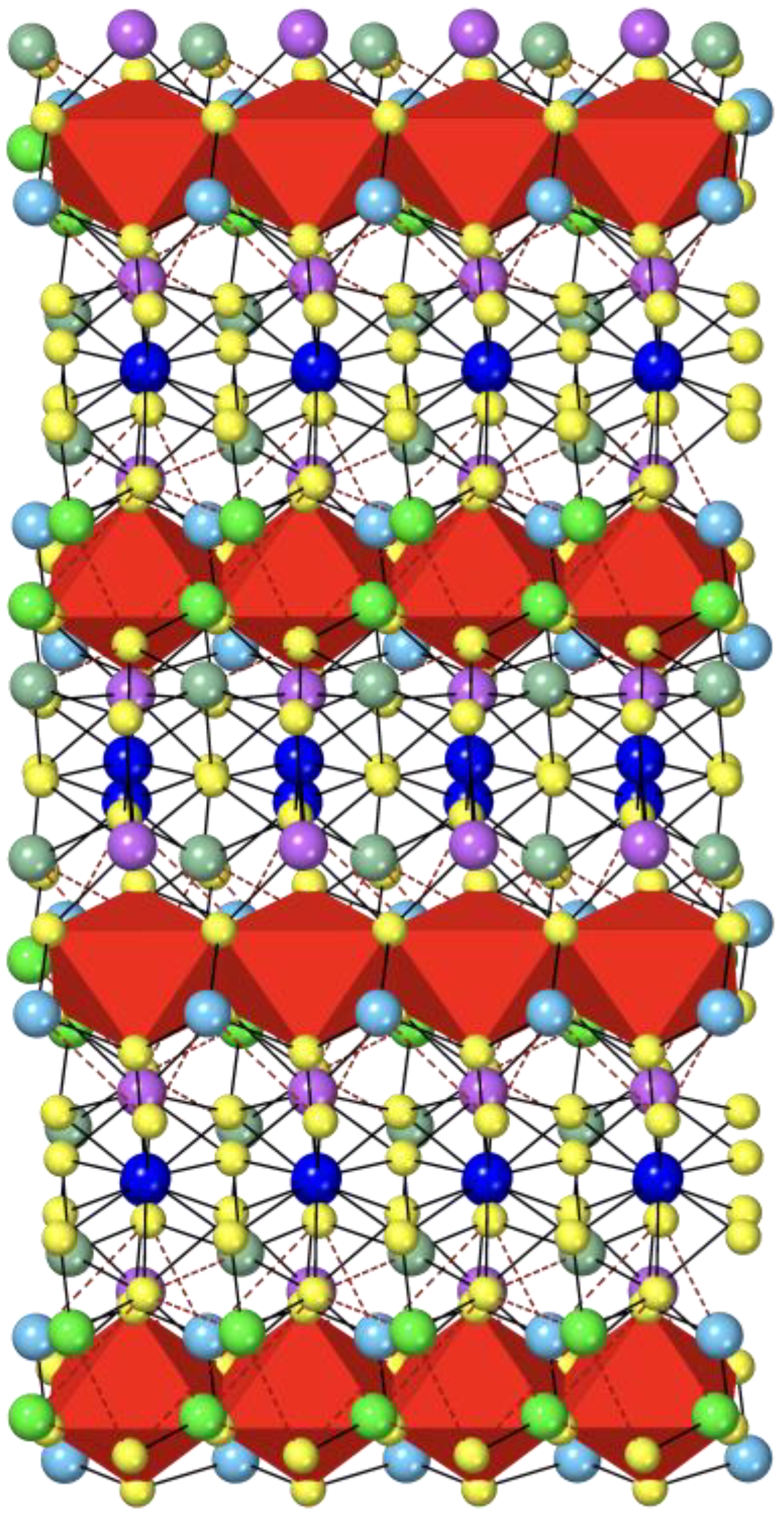

Figure 2 shows the jamesonite structure projected along the a axis, where the octahedral iron chains, running along the a axis, are well evident. That projection shows the layered character of the jamesonite structure, i.e., layers with Fe octahedra are alternated with Sb and Pb polyhedra along the a axis.

The distance between the iron and the sulfur shared with other iron is significantly longer (over 2.6 Å) than the distance between the iron and sulfur not shared with other iron (2.4 Å), producing a distorted Fe octahedron. The same behavior is observed at room pressure on the edges of iron polyhedra: S3-S3 (shared edges) = 3.445 Å and S3-S3 (unshared edges) = 4.023 Å.

In jamesonite, the strength of covalent bonds Sb-S and Pb-S can drastically modify the octahedral coordination and thus also influence the nature and degree of the two-spin superposition interference on the contiguous centers of the transition metal [19,20]. A possible polymorph of jamesonite, the orthorhombic parajamesonite, has been debated in the literature record [19,21,22]. To date, there is only one report containing mineralogical information on the parajamesonite phase [22]. However, in recent studies, no evidence of the potential presence of parajamesonite in nature has been obtained [21]. It must be noted, however, that the structure of the monoclinic jamesonite is conspicuously close to an orthorhombic one.

Although the interest in the flotation, smelting, selective leaching and extraction of antimony prompted serious investigations [10,23], analyses on the crystal structure of jamesonite at nonambient conditions are extremely limited [19].

Jamesonite has remarkably interesting electric and magnetic properties. Having low electric conductivity, this compound is an intrinsic semiconductor with an optical band gap equal to 0.48 eV. In magnetic measurements, Matsushita and Ueda [18] found a 1d-HAF behavior and a change in the magnetic susceptibility at 120 K, together with other anomalies at lower temperatures. Furthermore, Leone et al. [15] showed an unusual magnetic anisotropy: the susceptibility parallel to the a axis is superior that the susceptibility perpendicular to that axis. The a axis is an easy axis of magnetization.

High-pressure studies of selected sulfosalts such as heyrovskyite Pb₆Bi₂S₉ [24], lillianite Pb₃Bi₂S₆ [25] and chalcostibite CuSbS₂ [17] evidenced the occurrence of pressure-induced phase transitions, and these physical parameters could play a key role in the structural properties of these thermoelectric compounds.

In this work, the high-pressure (HP) behavior of a natural jamesonite sample was investigated, for the first time, by means of in situ synchrotron single-crystal X-ray diffraction (SC-XRD) to study the effect of pressure on the jamesonite crystal structure, to evaluate the possible occurrence of pressure-induced phase transitions and to measure the lattice parameters’ compressibility as well as the main components of the elastic tensors. Moreover, the effect of pressure on the lone pair activity of Sb and Pb, and the change in Fe coordination, which might have a profound influence on the magnetic properties, were studied.

2. Materials and Methods

2.1. Experimental Procedure

A natural jamesonite sample was provided by Yves Moëlo. The quality of the mineral sample was first evaluated by means of SC-XRD at the Department of Physics and Geology of the University of Perugia (Italy), confirming its typical diffraction pattern. A crystal with the dimensions 80 × 20 × 30 μm was selected for the HP SC-XRD analyses (ESRF synchrotron in Grenoble, France). The HP SC-XRD experiments were performed on the ESRF synchrotron in Grenoble (France) at the ID-15B beamline. The measurements were made using a membrane-type diamond anvil cell with an opening angle of 64°, equipped with 600 μm culet diamonds. The pressure-transmitting medium was helium, and a ruby sphere was loaded with the sample as the P-calibrant. The pre-indented stainless-steel gasket had a 300 μm diameter hole and 80 μm thickness. A monochromatized beam (λ = 0.41125 Å) was used, focused down to a 10 × 10 μm² area. Data were registered with an angular step of 0.5° using an MAR555 flat-panel detector with a 430 × 350 mm² (555 mm diagonal) active area. The wavelength and the sample-to-detector distance (279.88 mm) were calibrated using Si standard and Fit2D software [26].

The investigated pressure range varied from 1.26 to 16.6 GPa. Measurements were made in 7 steps in increasing pressure. Pressure was measured before and after each data collection, and the gasket relaxation was ensured by waiting ~15 min after changing the load. CrysAlisPro software (Agilent Technologies U.K. Ltd., Yarnton, UK) was used for data extraction, reflection intensity correction, reflection merging and refinement of the lattice parameters. Diffraction peak indexing and integration of the peak intensities were performed using the CrysAlisPro package (Rigaku Oxford Diffraction 2018, Agilent Technologies U.K. Ltd., Yarnton, UK). X-ray absorption effects corrections were made by applying the semiempirical ABSPECK routine present in CrysAlisPro.

2.2. Refinement Protocol and Elasticity Analysis

The structural refinements were performed using ShelXle software [27]. The crystal structure of jamesonite was refined up to 6.76 GPa, starting from the crystal structure published in Léone et al. [15], in the space group P2₁/c. The unit cell and crystal structure refinements of data collected from 9.70 to 16.60 GPa showed the beta angle of jamesonite approaching 90° and the x atomic positions of all the atoms in the unit cell approaching special positions. Thus, the occurrence of a phase transition from monoclinic to orthorhombic symmetry was checked, and SHELXT [28] software was used to solve the crystal structure of jamesonite after phase transition. Satisfactory structure refinements were performed in the Pmcb space group for the last four data collections. The crystal structures before and after phase transition are hereafter named α-jamesonite and β-jamesonite, respectively, which can be explained by a displacive character of the phase transition. The good crystallinity of the jamesonite sample was maintained during the whole experiment.

The unit-cell parameters and volumes are reported in

Table 1. Unit-cell parameters of α- and β-jamesonite and details of data collection and refinement at different pressures. P precision ± 0.05 GPa.

P (GPa)	P1 1.26	P2 4.50	P3 6.76	P4 9.70	P5 12.30	P6 14.40	P7 16.60
a (Å)	3.9848 (1)	3.8858 (1)	3.8348 (1)	3.7457 (1)	3.70526 (9)	3.6852 (1)	3.6624 (2)
b (Å)	18.901 (6)	18.514 (2)	18.322 (2)	18.039 (1)	17.845 (2)	17.715 (3)	17.565 (3)
c (Å)	15.5453 (6)	15.2605 (1)	15.1042 (4)	14.8801 (3)	14.7276 (3)	14.6271 (5)	14.5040 (6)
Beta (°)	91.609 (2)	91.158 (1)	90.899 (2)
Space group	P21/c	P21/c	P21/c	Pmcb	Pmcb	Pmcb	Pmcb
V (Å3)	1170.3 (3)	1097.65 (8)	1061.13 (1)	1005.42 (8)	973.79 (9)	954.90 (9)	933.04 (2)
Density (g/cm3)	5.857	6.245	6.460	6.818	7.039	7.178	7.346
All reflect.	2610	2365	2419	2279	2194	2144	2057
Unique reflect.	1134	1046	1418	966	923	899	880
Rint	0.0122	0.0209	0.0203	0.0210	0.0222	0.0176	0.0218
Rσ	0.0157	0.0248	0.0239	0.0256	0.0225	0.0227	0.0200
2θ max	41.53	41.72	39.45	39.91	40.04	40.18	43.02
Range hkl	−5 < h < 5 −10 < k< 8 −21 < l < 21	−5 < h < 4 −10 < k< 8 −20 < l < 20	−5 < h < 5 −15 < k< 14 −20 < l < 21	−5 < h < 5 −13 < k< 15 −20< l < 21	−5 < h < 5 −13 < k< 14 −20 < l < 20	−5 < h < 5 −13 < k< 14 −20 < l < 20	−5 < h < 5 −12 < k< 14 −19 < l < 22
Reflect. F0 > 4sig(F0)	1075	1003	1338	930	877	815	785
Refine n. parameters	116	116	116	78	78	78	78
Goodness of fit	1.2	1.1	1.2	1.1	1.1	1.1	1.1
wR2	0.0648	0.0558	0.0962	0.0603	0.0956	0.1074	0.1179
R1 (F0 > 4σ > F0)	0.0254	0.0219	0.0329	0.0244	0.0371	0.0527	0.0475
Highest peak In difference Fourier	0.71	0.57	3.11	2.01	2.75	2.64	3.23
Deepest hole in difference Fourier	−0.73	−0.74	−2.22	−1.31	−1.77	−1.90	−1.92

together with data collection and refinement details. Figure 3 shows the evolution of lattice parameters with pressure, normalized to the room-pressure value and to 9.7 GPa for α- and β-jamesonite, respectively. Atomic coordinates at different pressures (Table S1) and crystal information files (CIFs) are deposited in the Supplementary Materials section.

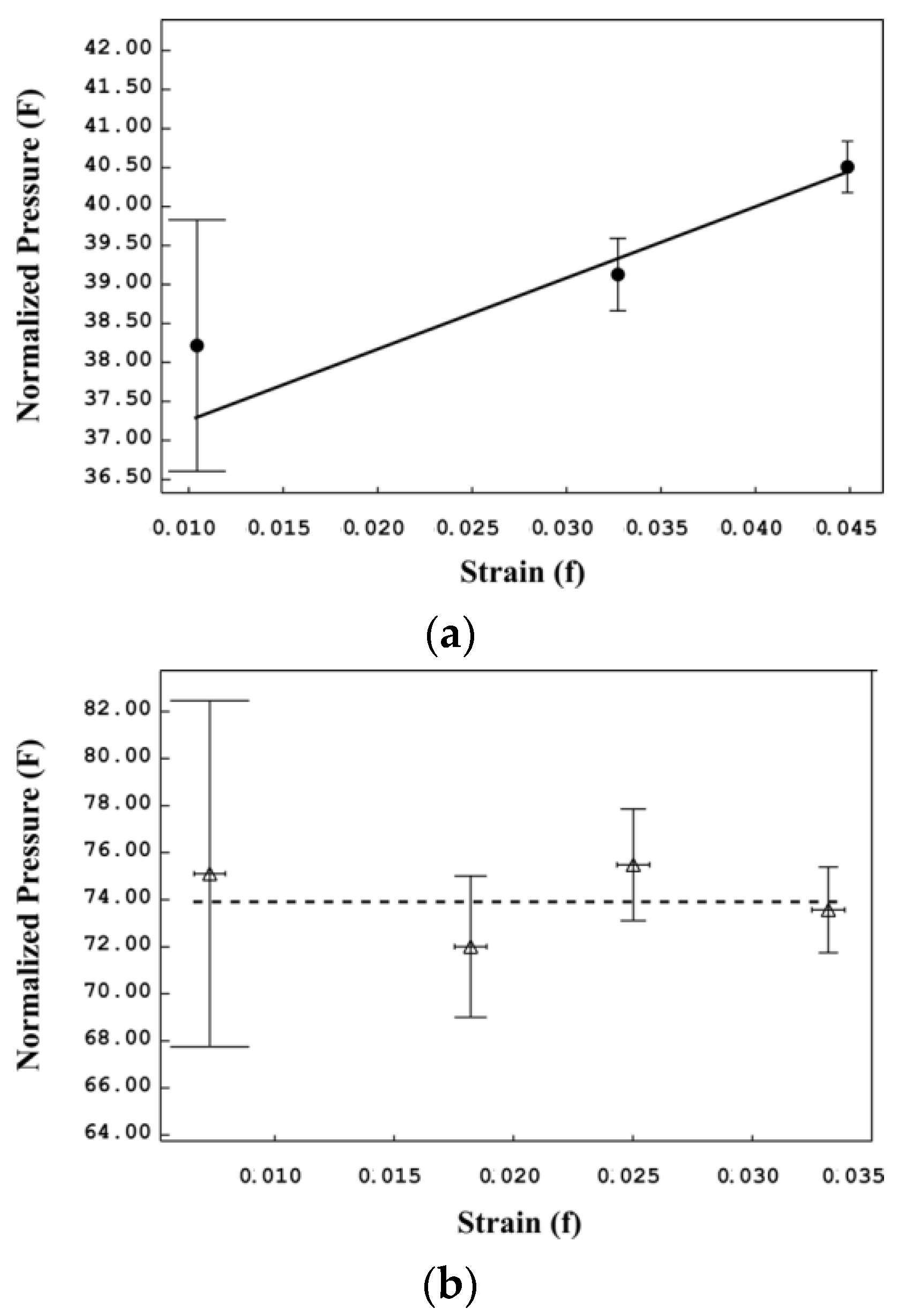

The compressibility of jamesonite before and after phase transition was analyzed using EosFit GUI [29] (Figure 3). The f–F plots in Figure 4 [30] show that data for α-jamesonite lie on an inclined straight line (Figure 4a), that is, they can be adequately described by a 3rd-order Birch–Murnaghan (BM) equation of state (EoS), whereas, data for β-jamesonite lie on a horizontal line of constant F (Figure 4b), meaning that a 2nd-order BM-EoS (K’ fixed to 4) is the best choice to describe its volumetric elastic behavior [30]. Results of the BM-EoS fittings are listed in

Table 2. Results of the EoS fittings for α- and β-jamesonite using a 3rd-order BM-EoS and a 2nd-order BM-EoS, respectively.

	α-Jamesonite		β-Jamesonite
V0 (Å3)	1207.1 (4)	V9.7 (Å3)	1027 (2)
K0 (GPa)	36 (1)	K9.7 (GPa)	74 (2)
K’	5.7 (7)	K’	4.0
a0 (Å)	4.024 (2)	a9.7 (Å)	3.768 (5)
M0 (GPa)	105 (2)	M9.7 (GPa)	252 (18)
b0 (Å)	19.073 (8)	b9.7 (Å)	18.19 (1)
M0 (GPa)	130 (3)	M9.7 (GPa)	204 (6)
c0 (Å)	15.73 (2)	c9.7 (Å)	15.00 (1)
M0 (GPa)	128 (7)	M9.7 (GPa)	213 (9)

Notes: V indicates volume; a, b and c indicate cell parameters; K and M indicate bulk moduli parameters.

and shown in Figure 3.

3. Results

3.1. Compressibility

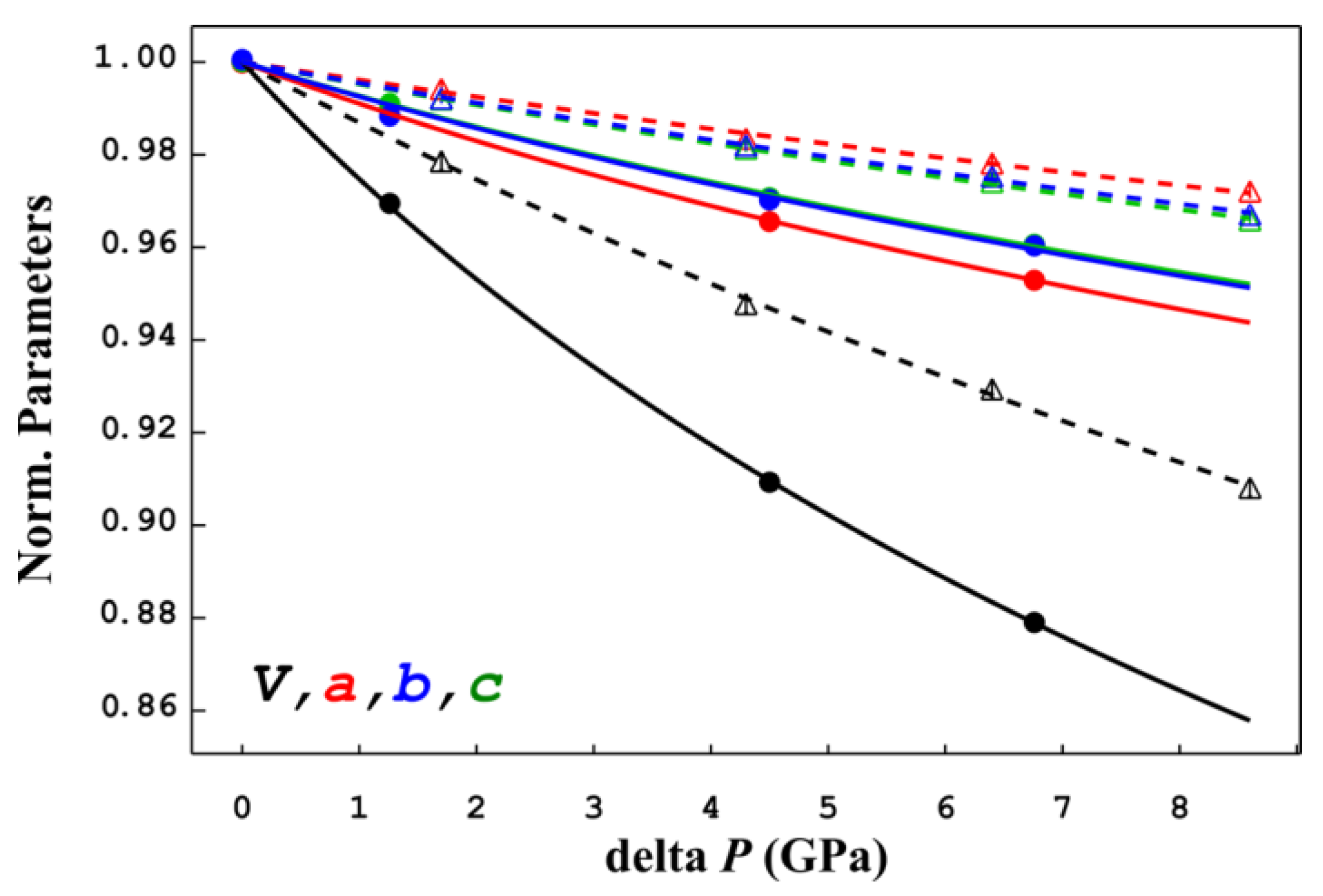

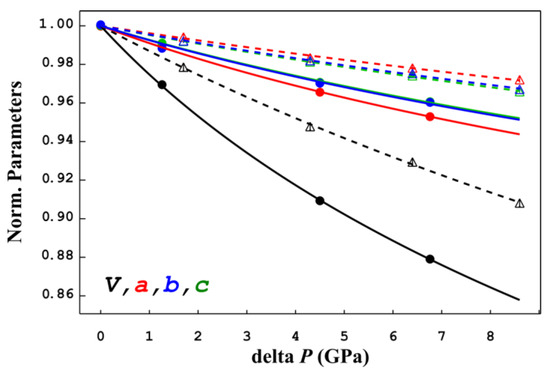

Results of the BM-EoS fittings show that α-jamesonite has an anisotropic compressional behavior with the highest compressibility along [100] and the lowest compressibility along [001], whereas the [010] direction has an intermediate value close to [001] (Table 2). The monoclinic beta angle decreases with P approaching the 90° at the transition pressure (>9 GPa) (Table 1). The β-jamesonite (dashed lines in Figure 3) shows a more isotropic rigid behavior with respect to the α polymorph. Moreover, while in α-jamesonite, the most compressible lattice parameter is a, in the β polymorph, it becomes the stiffest direction.

This behavior is well shown, considering the ratio between the lattice parameters moduli, which indicates a quite anisotropic compressional behavior in both α and β polymorphs, with 1/M_0a:1/M_0b:1/M_0c = 1.24:1.00:1.02 in the former and 1/M_0a:1/M_0b:1/M_0c = 1.00:1.24:1.1 in the latter.

3.2. High-Pressure Structural Evolution from α-Jamesonite to β-Jamesonite

The geometry and distortion of the coordination polyhedra were analyzed by means of the IVTON program [31].

Table 3. Selected bond distances (Å), average bond length (Å) and polyhedral volume (ų) with estimated standard deviations in parentheses for α- and β-jamesonite. The apexes mean different atoms related by symmetry operations. P values are given in Table 1.

Bond Types and Coordination Numbers	α-Jamesonite					β-Jamesonite
		P0	P1	P2	P3		P4	P5	P6	P7
Pb 1 CN = 7	S4	2.873(1)	2.871(3)	2.857(2)	2.843(2)	S4(x2)	2.827(2)	2.806(2)	2.792(3)	2.775(3)
	S4	2.901(1)	2.901(2)	2.893(2)	2.876(3)
	S1	2.899(1)	2.904(6)	2.859(5)	2.822(4)	S1	2.775(3)	2.760(3)	2.749(6)	2.732(6)
	S7	2.950(1)	2.919(7)	2.868(6)	2.838(5)	S7	2.847(4)	2.826(5)	2.804(7)	2.778(7)
	S2	3.033(1)	2.991(4)	2.914(3)	2.873(3)	S2(x2)	2.842(2)	2.811(3)	2.789(4)	2.768(4)
	S2	3.065(1)	3.019(4)	2.931(3)	2.886(3)
	S6	3.345(1)	3.264(4)	3.147(3)	3.091(3)	S6	3.011(2)	2.961(2)	2.938(4)	2.903(4)
Average bond length (CN = 7)		3.010	2.982	2.924	2.890		2.85	2.83	2.80	2.79
Pb 2 CN = 8	S2	2.939(1)	2.931(2)	2.894(2)	2.877(2)	S2(x2)	2.853(2)	2.836(2)	2.824(2)	2.806(2)
	S2	2.955(1)	2.940(2)	2.911(2)	2.893(2)
	S3	3.047(1)	3.014(4)	2.941(4)	2.917(3)	S3(x2)	2.917(3)	2.892(3)	2.863(5)	2.846(5)
	S3	3.056(1)	3.024(4)	2.957(4)	2.927(3)
	S6	3.048(1)	3.028(7)	2.970(6)	2.942(4)	S6	2.923(1)	2.902(4)	2.886(7)	2.862(7)
	S5	3.076(1)	3.107(6)	3.121(5)	3.128(4)	S5	3.072(2)	3.049(3)	3.039(6)	2.900(4)
	S4	3.474(1)	3.372(4)	3.070(3)	3.031(3)	S4(x2)	2.990(2)	2.947(3)	2.925(4)	2.900(4)
	S4	3.230(1)	3.165(4)	3.196(4)	3.121(3)
Average bond length (CN = 8)		3.103	3.073	3.007	2.979		2.94	2.91	2.89	2.87
Sb 1 CN = 7 3 + 2 + 2	S2	2.450(1)	2.472(6)	2.468(6)	2.453(4)	S2	2.438(3)	2.438(5)	2.434(7)	2.424(7)
	S5	2.584(1)	2.558(4)	2.540(3)	2.536(3)	S5 (x2)	2.642(2)	2.618(2)	2.604(3)	2.589(3)
	S1	2.577(1)	2.569(4)	2.583(3)	2.604(3)	S1(x2)	2.734(2)	2.717(2)	2.711(4)	2.704(4)
	S5′	3.006(1)	2.997(4)	2.894(3)	2.833(3)
	S1′	3.074(1)	3.043(4)	2.977(3)	2.936(3)
	S1′’	3.537(1)	3.429(7)	3.303(5)	3.263(4)	S1″(x2)	3.382(3)	3.321(3)	3.278(5)	3.234(5)
	S1′’’	4.268(1)	4.124(6)	3.827(5)	3.696(4)
Average bond length (CN = 7)		3.071	3.028	2.942	2.903		2.85	2.82	2.75	2.78
Sb 2 CN = 7 (3 + 2 + 2)	S3	2.444(1)	2.449(6)	2.453(6)	2.445(4)	S3	2.435(3)	2.441(3)	2.446(7)	2.431(6)
	S7	2.486(1)	2.483(4)	2.482(3)	2.484(3)	S7(x2)	2.553(1)	2.534(2)	2.523(2)	2.510(2)
	S5	2.714(1)	2.666(5)	2.669(4)	2.680(3)	S5(x2)	2.778(2)	2.759(2)	2.743(4)	2.726(4)
	S7′	2.871(1)	2.873(4)	2.775(3)	2.725(3)
	S5′	3.113(1)	3.077(4)	2.993(4)	2.942(3)
	S6	3.331(1)	3.260(7)	3.181(5)	3.147(4)	S6(x2)	3.252(3)	3.187(3)	3.149(5)	3.108(5)
	S6′	4.107(1)	3.991(6)	3.726(5)	3.592(4)
Average bond length (CN = 7)		3.009	2.971	2.897	2.859		2.80	2.77	2.75	2.73
Sb 3 CN = 7 3 + 2 + 2	S4	2.435(1)	2.444(6)	2.439(6)	2.425(6)	S4	2.421(3)	2.416(5)	2.406(7)	2.393(7)
	S6	2.478(1)	2.484(4)	2.493(3)	2.495(3)	S6(x2)	2.550(2)	2.536(2)	2.524(3)	2.518(3)
	S6′	2.807(1)	2.775(4)	2.706(3)	2.670(3)
	S1	2.889(1)	2.866(4)	2.829(3)	2.805(3)	S1(x2)	2.858(2)	2.824(2)	2.802(3)	2.768(3)
	S1′	3.193(1)	3.141(4)	3.039(3)	2.981(3)
	S5	3.642(1)	3.594(7)	3.522(5)	3.492(4)	S5(x2)	3.583(3)	3.535(3)	3.504(6)	3.467(6)
	S5′	4.297(1)	4.169(6)	3.931(5)	3.825(4)
Average bond length (CN 7)		3.106	3.067	2.994	2.956		2.92	2.89	2.87	2.84
Fe CN = 6	S7(x2)	2.396(1)	2.374(6)	2.340(5)	2.327(4)	S7(x2)	2.230(3)	2.195(5)	2.185(7)	2.173(7)
	S3(x2)	2.614(1)	2.588(3)	2.544(2)	2.509(2)	S3(x2)	2.380(1)	2.337(1)	2.326(2)	2.309(2)
	S3(x2)	2.682(1)	2.646(3)	2.560(2)	2.518(3)	S3(x2)	2.380(1)	2.337(1)	2.326(2)	2.309(2)
Average bond length (CN = 6)		2.564	2.536	2.482	2.451		2.33	2.28	2.27	2.26

reports the bond distances for all Fe, Sb and Pb polyhedra, and Figure 5 reports the compressibility of all polyhedra normalized to the room-pressure values.

The stereochemical activity of the lone electron pair (LEP) of Sb and Pb, quantified by measuring the eccentricity, namely, the distance of the cation from the centroid of the coordination polyhedra (centroid = the point with the smallest standard deviation of distances from all the coordinated ligands), as well as their evolution with P, are given in

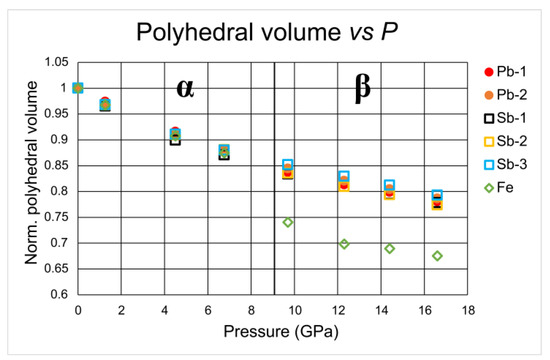

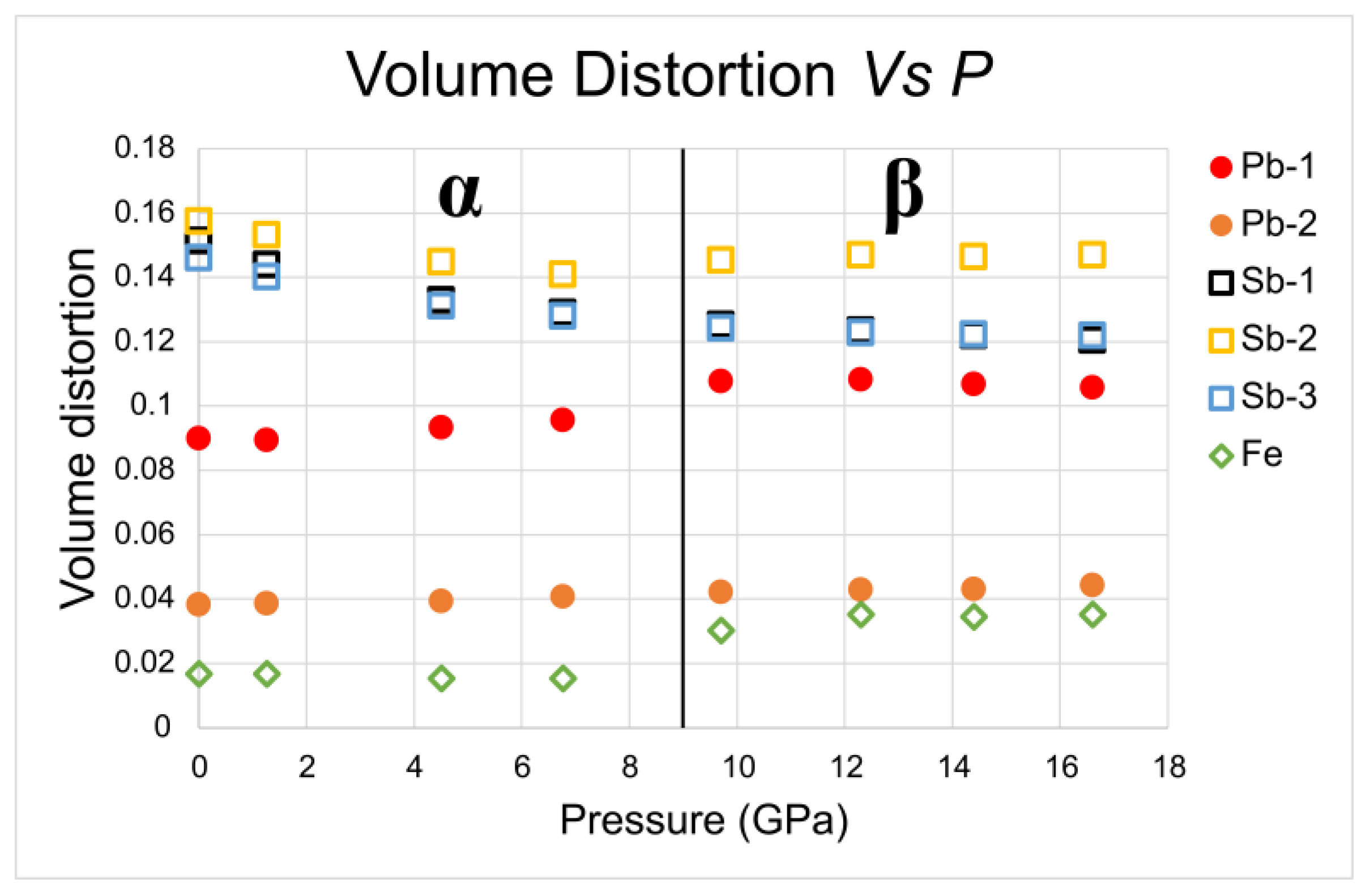

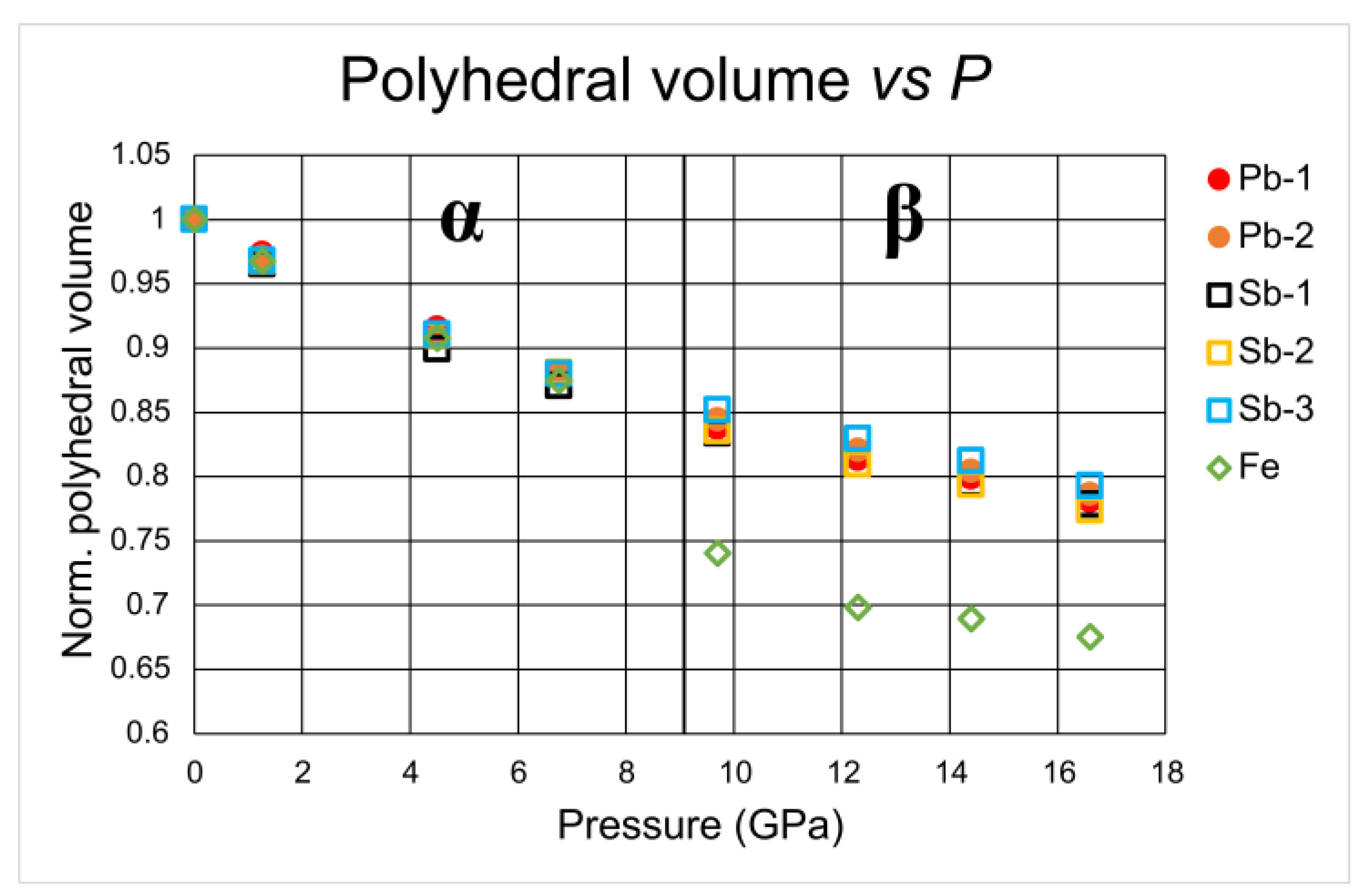

Table 4. Polyhedral eccentricity, sphericity, total polyhedral volume (ų) and volume distortion at different pressures in α- and β-jamesonite. P values are given in Table 1.

Polyhedra	Phase	P	Eccentricity	Sphericity	Total Polyhedral Volume	Volume Distortion
Pb1	α	P0	0.0757	0.9758	39.224	0.09
		P1	0.0606	0.9771	38.179	0.0894
		P2	0.0427	0.9781	35.905	0.0933
		P3	0.0372	0.9788	34.59	0.0957
	β	P4	0.035	0.9865	32.852	0.1077
		P5	0.0303	0.9882	31.902	0.1082
		P6	0.0283	0.9877	31.332	0.1069
		P7	0.0249	0.9882	30.631	0.1058
Pb2	α	P0	0.0719	0.9647	52.431	0.0383
		P1	0.0544	0.9666	50.875	0.0387
		P2	0.0288	0.9682	47.616	0.0394
		P3	0.0199	0.9683	46.198	0.0408
	β	P4	0.0160	0.9766	44.270	0.0422
		P5	0.0131	0.9776	43.009	0.0430
		P6	0.0102	0.9765	42.150	0.0431
		P7	0.0116	0.9765	41.223	0.0443
Sb1	α	P0	0.32	0.9388	38.72	0.1515
		P1	0.2974	0.9434	37.368	0.1439
		P2	0.2547	0.9556	34.818	0.133
		P3	0.2362	0.9611	33.708	0.1291
	β	P4	0.2026	0.9668	32.284	0.1253
		P5	0.1923	0.9676	31.344	0.1235
		P6	0.1850	0.9694	30.754	0.1220
		P7	0.1786	0.9716	30.134	0.1206
Sb2	α	P0	0.2948	0.941	36.653	0.1575
		P1	0.2783	0.9469	35.454	0.1532
		P2	0.2397	0.9585	33.335	0.1449
		P3	0.2207	0.9647	32.281	0.141
	β	P4	0.1841	0.9779	30.611	0.1453
		P5	0.1714	0.9795	29.661	0.1470
		P6	0.1639	0.9798	29.083	0.1465
		P7	0.1588	0.9820	28.363	0.1470
Sb3	α	P0	0.3281	0.9363	39.941	0.1460
		P1	0.3107	0.9392	38.651	0.1403
		P2	0.2811	0.9461	36.361	0.1312
		P3	0.2704	0.9488	32.281	0.141
	β	P4	0.2524	0.9525	34.016	0.1242
		P5	0.2455	0.9521	33.118	0.1229
		P6	0.2427	0.9519	32.431	0.1223
		P7	0.2387	0.9522	31.667	0.1220
Fe	α	P0	0	0.9479	22.101	0.0169
		P1	0	0.9494	21.383	0.0168
		P2	0	0.9557	20.059	0.0154
		P3	0	0.9606	19.332	0.0155
	β	P4	0	0.9666	16.359	0.0304
		P5	0	0.9681	15.433	0.0353
		P6	0	0.9680	15.232	0.0346
		P7	0	0.9689	14.924	0.0353

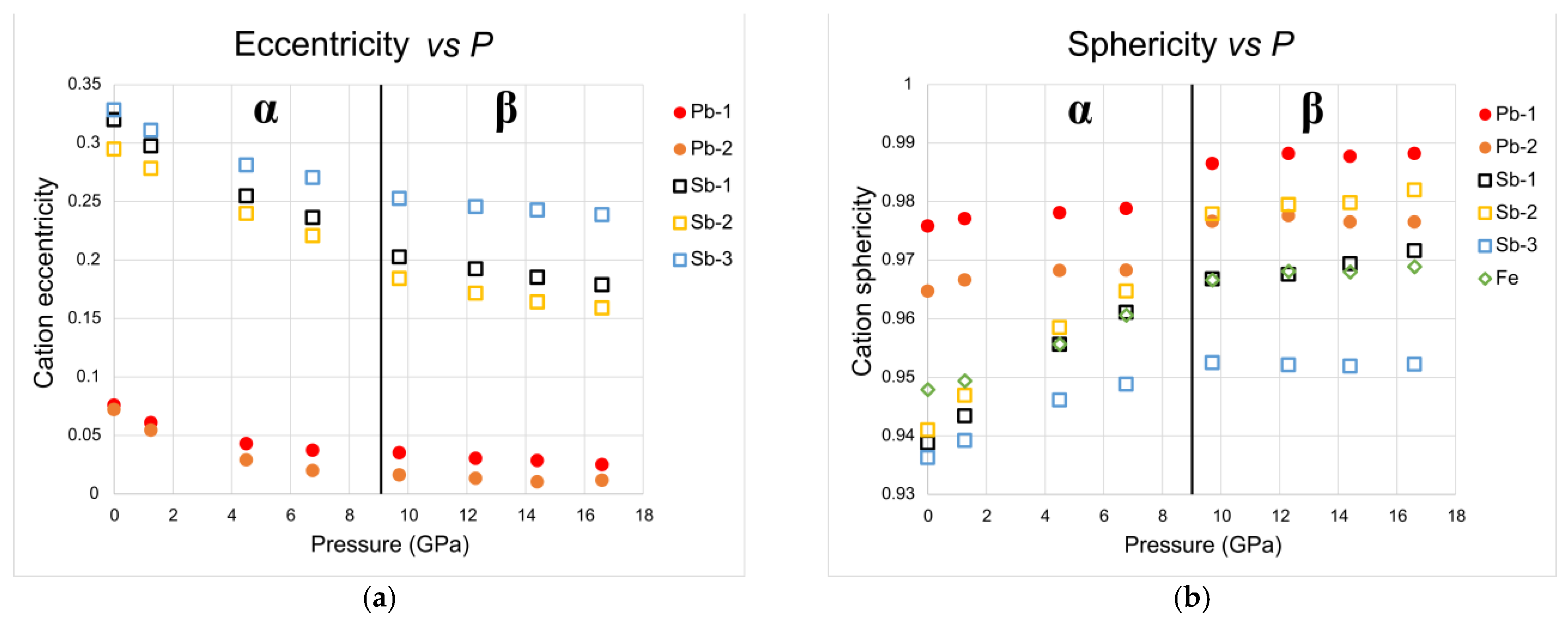

. In addition, in Table 4, sphericity values, defined as the inverse standard deviation of ligands from the sphere fitted to the positions of ligands, are also given.

The comparison of the structural data collected at different P allows us to describe the evolution of Sb, Pb and Fe polyhedra.

3.2.1. Sb polyhedra

(a)

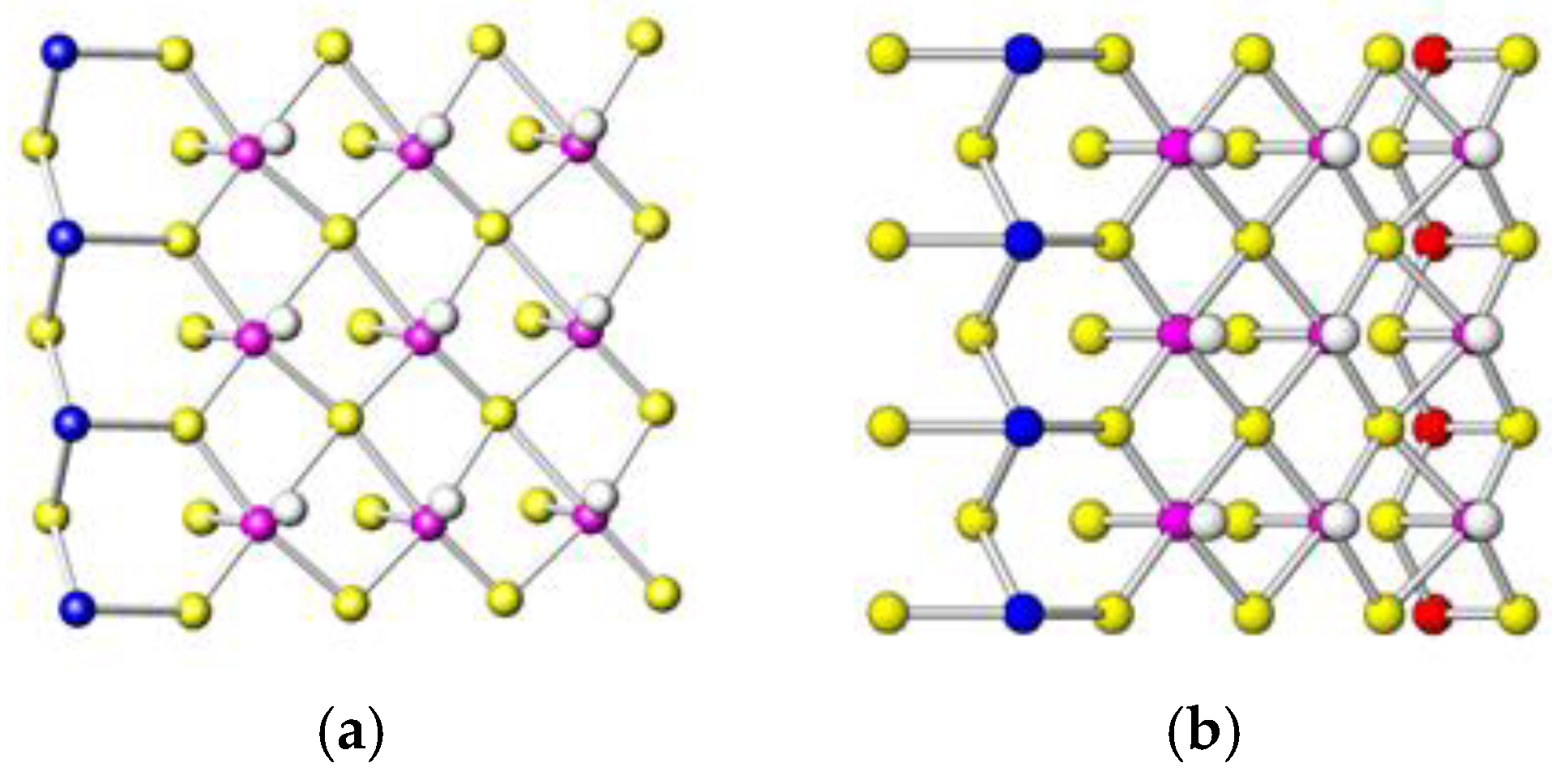

All Sb polyhedra turn out to have quite similar compressibilities: the polyhedral bulk moduli, calculated as the reciprocal value of the average polyedral compressibilities in the investigated P range, are 53, 53 and 31 GPa for Sb1, Sb2 and Sb3, respectively, in α-jamesonite; in contrast, they become 100, 90 and 96 GPa for Sb1, Sb2 and Sb3, respectively, in β-jamesonite. A similar value was measured for Sb polyhedra in chalcostibite by Comodi et al. [17]. The pyramid apexes are directed perpendicular to the rods, and the lone electron pairs of Sb are located in the LEP micelle. However, a significant change occurs in the orientation of the LEP upon the phase transition in accordance with the change in symmetry (Figure 6). Note that the three shortest Sb-S bonds from which the LEP is pointing include the apical atom of the square pyramid and the two atoms in its base; in α-jamesonite, these are the two below or above Sb (looking along the rod extension), whereas in the β polymorph, they are both on the side of the Sb atom. In other words, the LEP becomes perpendicular to the rods, which is a consequence of their mutual repulsion from Sb atoms to those Sb on the opposite side of a micelle (Figure 7). With increasing P, the distances between Sb and S on the opposite side of the micelle drastically decrease: at 1.6 GPa and 16.6 GPa, Sb1-S1 changes from 4.125(5) to 3.234(5) Å, Sb2-S6 from 3.992(5) to 3.108(5) Å and Sb3-S5 from 4.169(5) to 3.467(6) Å.

(b)

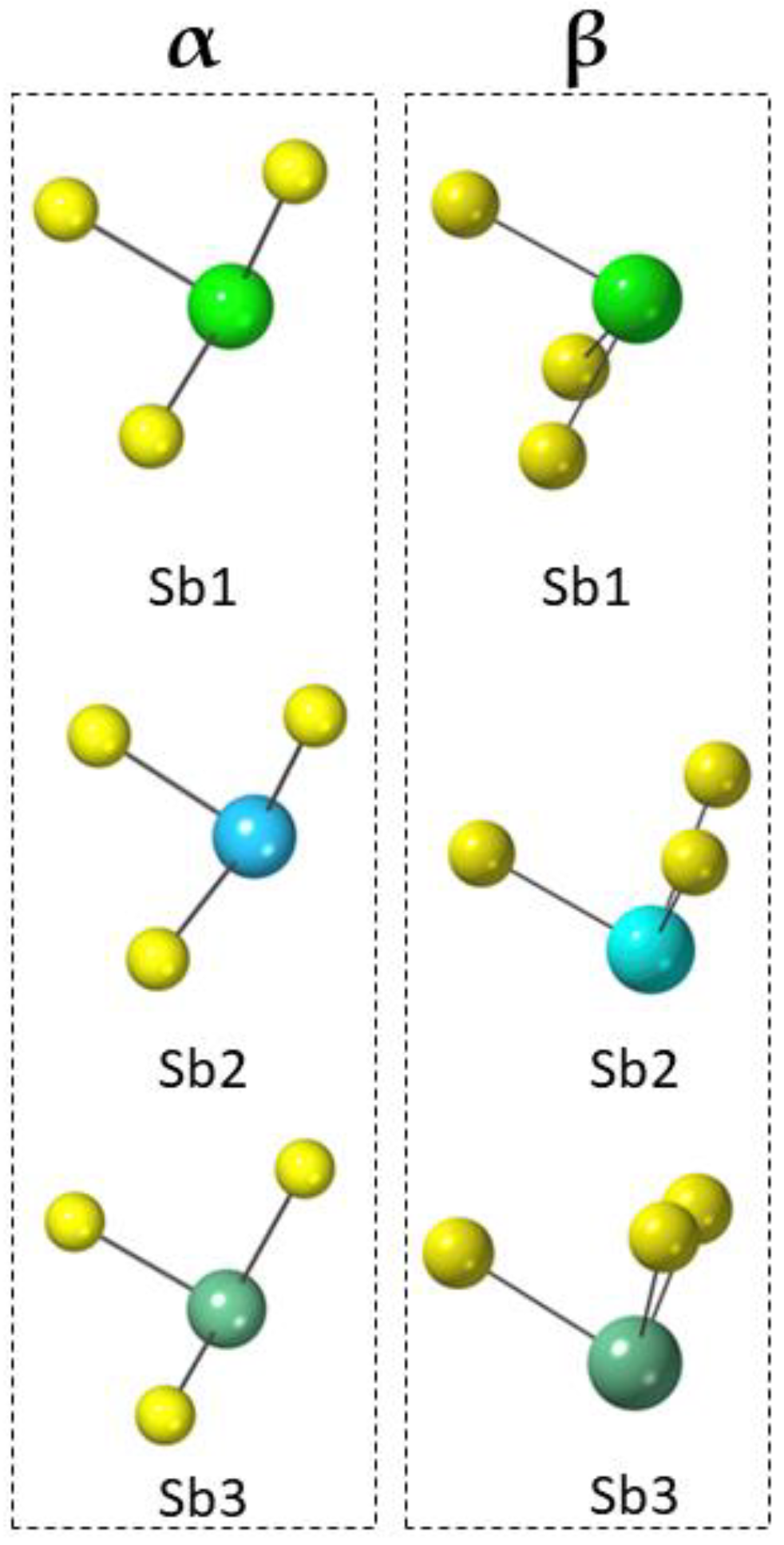

The stereochemical activity of Sb LEPs at room pressure is quite high: the eccentricities are 0.32, 0.29 and 0.33 for Sb1, Sb2 and Sb3, respectively, very similar to the value measured in chalcostibite by Comodi et al. [17] that is equal to 0.31 (Table 4). With increasing P, the stereochemical activity of the three Sb decreases (Table 4) in a similar way as can be observed with the reduction in the eccentricity (Figure 8a) and the increase in the sphericity (Figure 8b) of the Sb polyhedra. At the same time, the distorted quadratic bases of Sb polyhedra become more regular as P increases, as indicated by the Sb-S distance in Table 4, with a usually equalizing trend observed in other sulfosalts, where the longest Sb-S distances decrease more strongly than the shortest ones. This behavior can be also evaluated by the reduction in distortion (Figure 9) and eccentricity evolution (Table 4) with P. The regularization of polyhedra is a common behavior in high-pressure structures [32], as regular polyhedra have lower volume with respect to distorted polyhedra with the same superficial extension.

3.2.2. Pb polyhedra

Lead atoms are located along the rod edges, and Pb-S bonds connect two adjacent rod layers. At ambient P, the coordination of Pb1 is 6 + 1 and that of Pb2 is 7 + 1, considering the 6 and 7 distances less than 3.2 Å in Pb1 and Pb2 coordination polyhedra, respectively. With increasing pressure, both Pb atoms increase their coordination as the Pb1-S6 distance decreases from 3.272 to 2.8 Å and the Pb2-S4 distance decreases from 3.37 to 2.94 Å. The bulk moduli of Pb1 and Pb2 (by considering 7 and 8 for Pb1 and Pb2 coordination, respectively) are 54 and 54 GPa, respectively, for the α-jamesonite and 98 and 95 GPa, respectively, for the β-jamesonite. They represent the most rigid polyhedra in the jamesonite structure.

Again, this is the well-known high-pressure behavior in which atoms, both cations and anions, tend to increase their coordination number with increasing pressure to increase packing efficiency. In jamesonite, the increase in the lead coordination number promotes better bonding between the rods in the 3D directions.

Usually, the LEP activity of lead is less expressed than that of Sb or Bi, and in some cases, as in galena, it is completely suppressed [34]. In α-jamesonite at room pressure, the LEP activity of Pb atoms is lower than in Sb; the eccentricity and sphericity values of Pb1 and Pb2 are 0.076 and 0.976 for Pb1 and 0.072 and 0.965 for Pb2, respectively. The same behavior is observed in in β-jamesonite, where eccentricity and sphericity are 0.025 and 0.988 for Pb1 and 0.012 and 0.977 for Pb2 at 16.6 GPa (Table 4), respectively.

3.2.3. Fe polyhedra

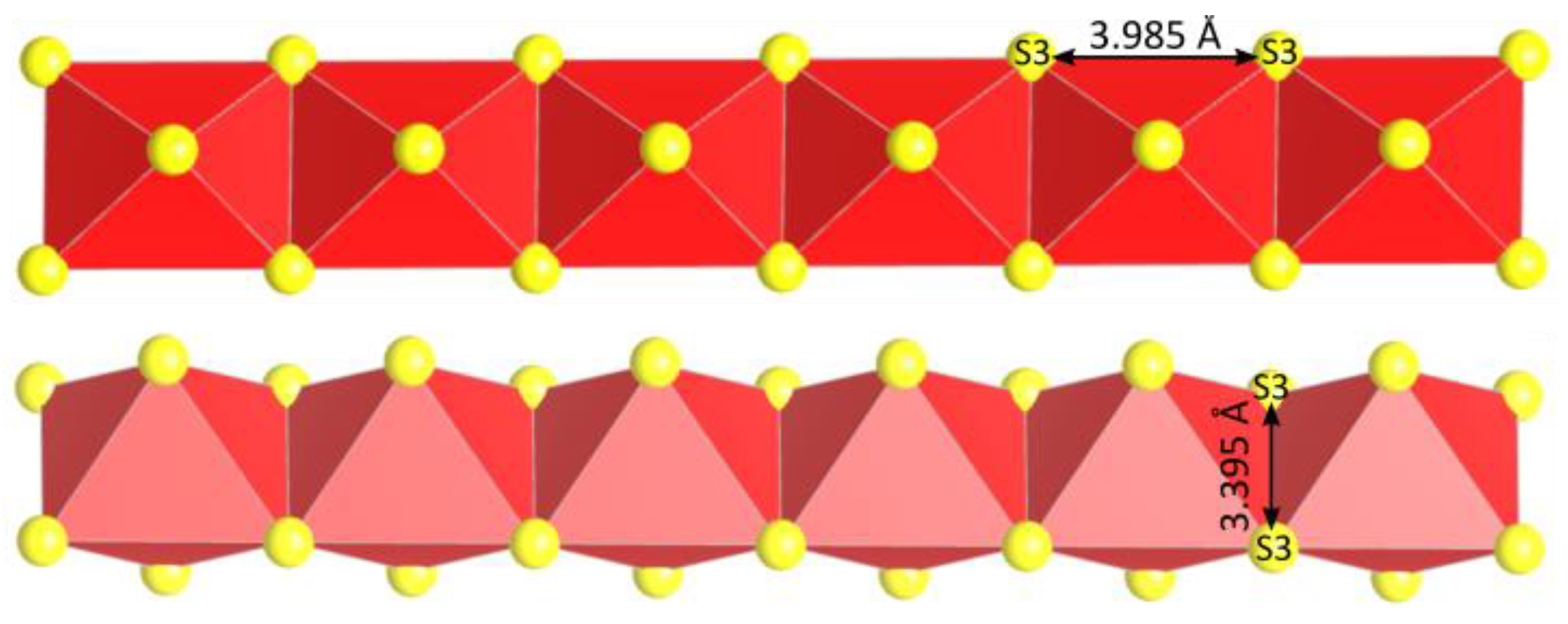

FeS₆ octahedra are connected by two opposite edges and form chains parallel to [100]. The iron polyhedral bulk moduli results are equal to 50 and 72 GPa in α- and β-jamesonite, respectively.

The evolution of the Fe chain can be described considering that the S-S shared edges are shorter with respect to the S-S unshared edges to increase the distance between the two iron atoms.

With pressure, the shared and unshared edges have a different compressibility. In Figure 10, the FeS₆ chain is shown and both the shared and unshared edges (S3-S3 distances) are indicated. The evolution with P of the shared and unshared S3-S3 distances are in

Table 5. Evolution with pressure of significant interatomic distance along the Fe chain and in the interchain region (See Figure 1) in α- and β-jamesonite.

Pressure (GPa)		S3-S3 Shared Edges	S3-S3 Unshared Edges
P0	α	3.46	4.02
P1		3.40	3.99
P2		3.31	3.89
P3		3.25	3.84
P4	β	2.94	3.75
P5		2.85	3.71
P6		2.84	3.69
P7		2.81	3.66

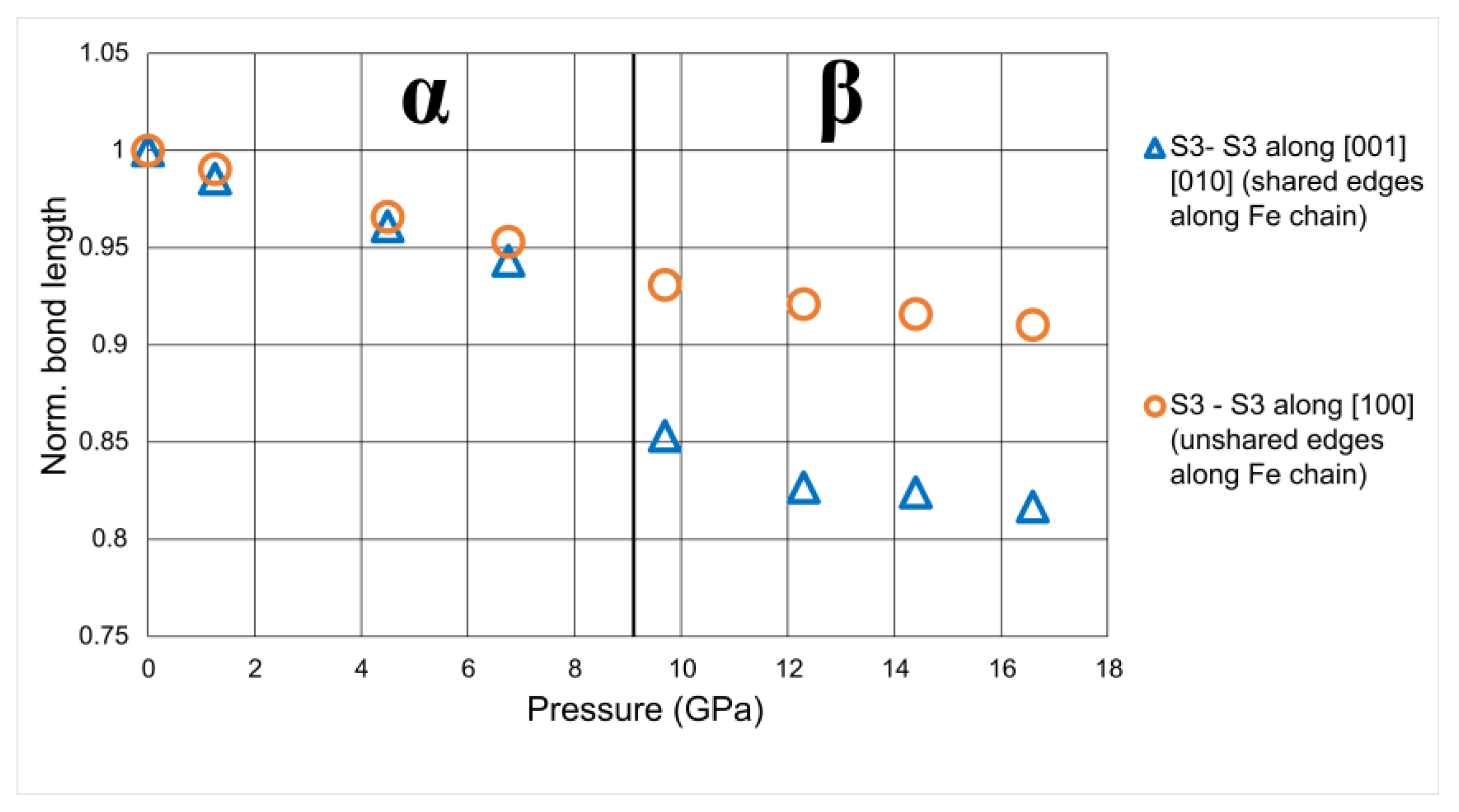

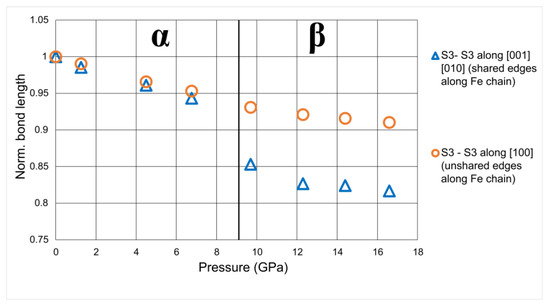

. The plot in Figure 11 shows how the compressibility of shared edges is higher than that of the unshared ones, that is, the distortion of Fe polyhedra increases with P (Figure 9).

This apparently anomalous behavior, i.e., the increase in polyhedral distortion with P (exactly the opposite of what is observed in Sb polyhedra) may be related to the balancing effect whereby the reduction in volume must avoid the strong approach of the Fe atoms, which would produce a strong increase in repulsive power.

Looking in more detail at the evolution of iron edges along the chains, at the transition from the α to the β polymorph, a sharp drop in the evolution of the shared edges of the Fe polyhedra is clear (Figure 11). Polyhedral iron evolution could be associated with the high–low spin transition of iron, as observed in other sulfide structures, which occurs at pressures around 10 GPa, very low compared to similar oxygenated compounds [35]. Indeed, Huang et al. [35] observed in greigite Fe₃S₄, a mineral isostructural with magnetite Fe₃O₄, the high-spin–low-spin transition of the Fe²⁺ and Fe³⁺ at approximately 9 GPa and at 17 GP, respectively.

However, new high-pressure spectroscopic measurements, currently in progress, are needed to determine whether the electron–iron transition in jamesonite occurs around the same pressure (~9 GPa) as in the other S-structures.

4. Discussions and Conclusions

In conclusion, this in situ HP-synchrotron SC-XRD study of natural jamesonite allowed the carefully study of the high-pressure phase transition from α-jamesonite (P2₁/c space group) to β-jamesonite (Pmcb space group) and the compressibility of the two polymorphs. Both crystal structures showed an anisotropic compressional behavior, with the a lattice parameter being the softest and the stiffest one in α-jamesonite and β-jamesonite, respectively. At 9.7 GPa, a change in the structural evolution and a phase transition to β-jamesonite occurs, which has a much more rigid behavior [K_9.7 = 74(2) GPa, K’ = 4] with respect to the α polymorph [K₀ = 36(1) GPa, K’ = 5.7(7)], as also reflected in the increased bulk moduli of Sb, Pb and Fe polyhedra in the β polymorph. A similar behavior was observed in lillianite [25], for which the authors measured K₀ = 44(2) GPa and K’ = 7(1) for lillianite, and K_4.9 = 67(3) GPa and K’ = 5.1(4) for its high-pressure polymorph β-Pb₃Bi₂S₆.

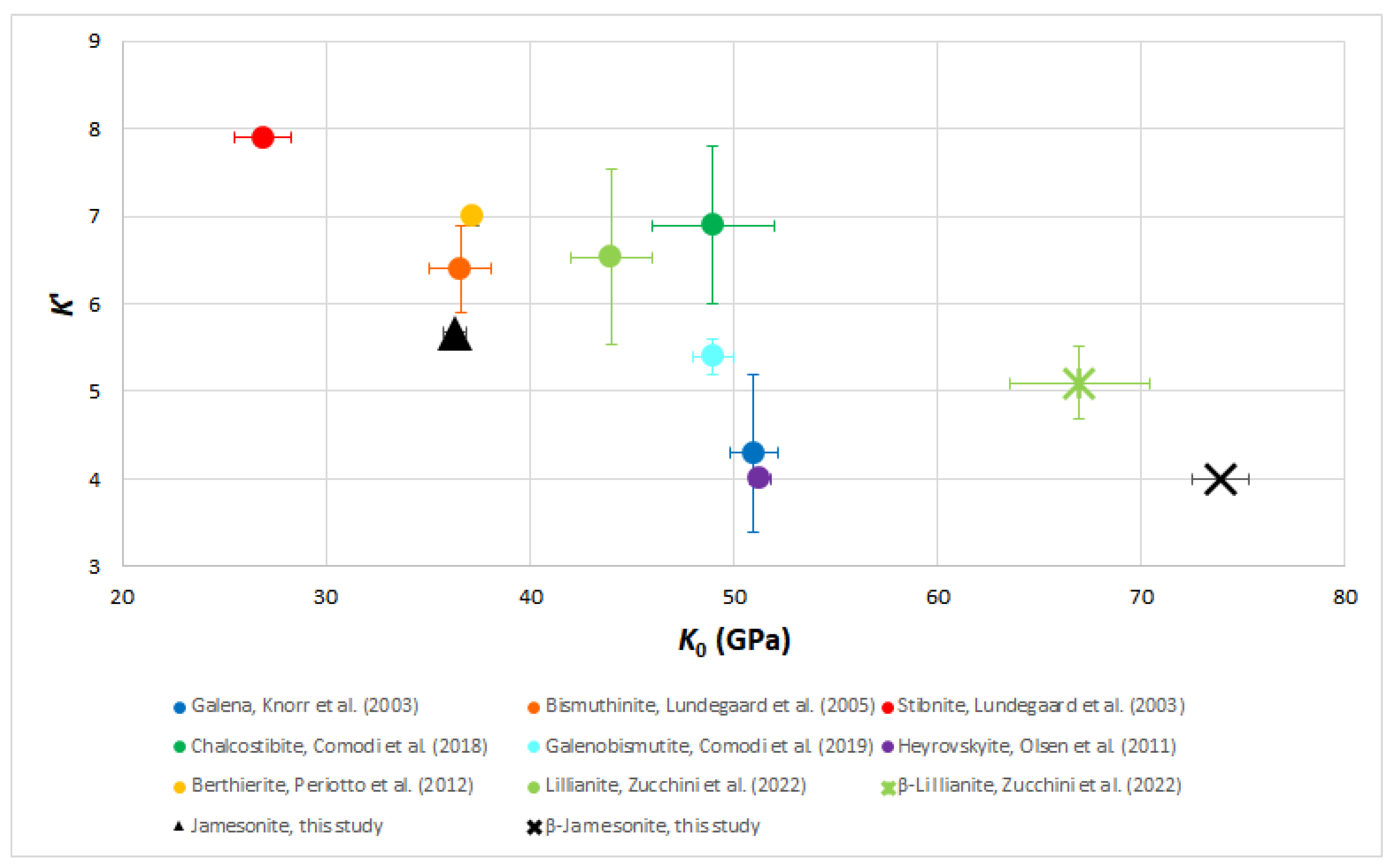

Sulfosalts have a rather compressible behavior with pressure, with bulk moduli ranging from 27 to 72 GPa and a value of the first derivative of the bulk modulus ranging from 4 to 8, as measured in stibnite by Lundegaard et al. [36]. The classic inverse behavior between the bulk modulus and its first derivative observed in several mineral groups is also shown in sulfosalts. The bulk modulus of α-jamesonite has an intermediate value among those measured in other sulfosalts, as can be seen in Figure 12, being close to other Sb sulfosalts, such as berthierite and chalcostibite, but with a lower first derivative. β-jamesonite shows the highest bulk modulus and the lowest first derivative (akin to heyrovskiite).

Satisfactory crystal structure refinements of α- and β-jamesonite were performed, and the results pointed out, on the one hand, a significant change in the orientation of Sb lone electron pairs upon the phase transition, in accordance with the change in symmetry, and, on the other hand, a discontinuity in the Fe chain evolution at the transition pressure. A complex cooperative mechanism between the structural modules should be involved, as well as the different LEP activities, which impacts on polyhedral distortion and in turn on structural compressibility.

Jamesonite shows an interesting physical characteristic, in particular the strong anisotropy in magnetic susceptibility. In fact, as described by Leone et al. [15], the magnetic susceptibility of jamesonite along the a axis is significantly higher than the susceptibility values measured along b and c. As P increases, the proximity of the Fe atoms increases this effect even more, and the magnetic anisotropy is expected to increase with pressure; however, if suspicion of the high- to low-spin transition is correct, the magnetism vanishes after the phase transition to β-jamesonite.

The 1D magnetic property as well as the band-gap properties should change in quite interesting ways in the new β-jamesonite polymorph, following the different anisotropic compressibility of the observed lattice parameters. That is, the next measurements of band-gap and magnetic susceptibility at high-pressure conditions are welcome.

Finally, the possibility of a high- to low-spin iron transition is under investigation through the elaboration of additional diffractometric and spectroscopic data. The new results might explain the role of the electron spin transition in the phase transition here reported and the relationship with stereochemical activity of Pb and Sb.
