Hydrothermal Synthesis and Crystal Structure of Vesuvianite Compounds, Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇ and Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆

Abstract

New compositions of synthetic vesuvianite were investigated using hydrothermal synthesis. High quality single crystals with the formula Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇ (I) having the vesuvianite-type structure were crystallized during a high temperature hydrothermal growth reaction. Starting materials of Al₂O₃ and CaSiO₃ reacted at 670 °C and 2 kbar in 0.5 M aqueous alkali hydroxide mineralizer to form single crystals up to 0.25 mm per edge. Similar reactions employing SrO, Fe₂O₃, and GeO₂ reacting at 580 °C and 2 kbar in 6 M aqueous alkali hydroxide mineralizers led to the formation of the analogous Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆ (II). These crystals were obtained in sizes up to 0.5 mm per edge. The structures of both compounds were refined in space group P4/nnc after careful evaluation of the diffraction data and subsequent test refinements. Elemental analysis indicated only the presence of Ca²⁺, Al³⁺, and Si⁴⁺ cations in I and only the presence of Sr²⁺, Fe³⁺, and Ge⁴⁺ cations in II, representing synthetic vesuvianite comprising the minimum number of unique cations. The use of larger cations than are typically found in natural vesuvianite, such as Sr²⁺, Fe³⁺, and Ge⁴⁺, resulted in an expanded crystalline lattice and extended the vesuvianite analogs to include an increasing variety of elements.

1. Introduction

Vesuvianite is one of the most architecturally ambiguous structure types known [1,2,3,4]. It is a fairly common mineral isolated all over the world, but it has considerable structural complexity due to its tendency to accommodate an enormously wide range of elements within its various lattice sites [5,6,7,8,9,10]. As an indicator of its complicated behavior, there have been no less than three complete PhD theses dedicated to its structural determination [11,12,13]. The compound has the generic formula X₁₉Y₁₃Z₁₈O₆₈W₁₀, where X, Y, and Z are cation sites and W sites are mono- or dianion sites. The X sites are generally eight to nine coordinates, while the Y sites are generally approximately six coordinate octahedral sites; the Z sites are four coordinate tetrahedral sites. While there is an enormous range of atoms and ionic charges that are known to substitute into the basic framework, the bulk of the substitutions occur on the X and Y sites, with the Z site mostly remaining tetrahedral silicon in the vast majority of natural samples. The W site can be occupied by monovalent (OH⁻, F⁻) anions, though it can also have some divalent oxide anion occupancy, allowing for variation of the number of hydrogen ions on this site providing another flexible mode to accommodate charge balance. Within the lattice, there are three unique crystallographic sites for X, Y, and Z, each with different site symmetry and occupancy number; these are combined with 10 unique oxygen sites and the additional monovalent anion site.

The selection of coordination environments in vesuvianite is reminiscent of garnet and, indeed, the materials have a number of similarities. The primary difference is that vesuvianite is a more open structure because it contains channels down one axis that are occupied in a disordered fashion by various amounts of additional X and Y ions. The presence of these channels lowers the symmetry to tetragonal, with the most common space group being P4/nnc. The variation of the disorder pattern along the channels and the variation of ions in the channels provide an extensive array of structural possibilities; a number of other space groups have been identified, such as P4/n and acentric P4nc [14,15,16,17]. These lower symmetry tetragonal structures are based on the ordering pattern of the X and Y ions within the columns and the relationship of the columns with each in the lattice. All of these variabilities and chemical and structural degrees of freedom make it easy to see why this structure type has such a rich structural history.

To our knowledge a “parent” vesuvianite phase (analogous to grossular garnet) with the formula Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇ has not been reported from either natural or synthetic conditions. Typically, the Ca and Al sites are heavily substituted with a wide range of other ions, notably iron and magnesium. We have previously had good success in employing high temperature hydrothermal conditions (500–700 °C) in preparing a wide range of mineralogically inspired materials as high quality single crystals [18,19,20,21]. In our attempts to prepare grossular single crystals (garnet, Ca₃Al₂Si₃O₁₂) in high temperature hydrothermal systems, we sometimes observed vesuvianite accompanied by the grossular formation. It is not surprising that vesuvianite crystals occurred in similar synthetic environment as grossular, as, in many cases, vesuvianite occurs commonly with grossular in natural systems as well. The two phases, grossular and vesuvianite, have long been joined together as structurally and chemically similar relatives. In fact, the original study of vesuvianite called attention to this relationship [22].

There have been several previous attempts to synthesize vesuvianite under controlled conditions, mostly using hydrothermal methods. These attempts were reviewed by Ito and Arem [3]. In particular, some syntheses of Mg-free vesuvianite summarized in that work led to nebulous results that deviate from today’s accepted formula for vesuvianite and could not be structurally characterized in detail. Those results on the Mg-free system could not be reproduced during a thorough synthetic effort, where only grossular was reported [3]. Those researchers did succeed in synthesizing a powder identified as Ca₁₉Mg₄Al₁₀Si₁₇O₆₈(OH)₈·nH₂O and characterized it as a vesuvianite using powder X-ray diffraction and electron microprobe analysis. This previous work was done at sufficiently high temperatures (300–700 °C), but usually contained Mg²⁺ in the starting material and did not have very high base concentrations in the mineralizer; these factors may account for their failure to obtain high quality single crystals of Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇.

We were also curious if the vesuvianite structure type could be expanded into a new phase space through the substitution of the larger tetrahedral Ge⁴⁺ ion for Si⁴⁺. We have recently been examining the role of germanate as a building block in transition metal oxides and have observed some complex structural chemistry [23,24]. In the present case, we found that the larger germanate can accommodate the larger Fe³⁺ ion in the trivalent Al³⁺ sites, as well as the larger Sr²⁺ ion in the Ca²⁺ sites. Under the appropriate conditions, we can isolate well-formed single crystals (pure Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆) in an essentially quantitative yield. Given that it has the same structure as the iron-free Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇, we think that it provides an opportunity to study these interesting end members of a fascinating and complex material. Furthermore, the growth of Fe³⁺-containing materials lays the groundwork for subsequent magnetic studies of this phase. The detailed structural and crystallographic examinations of these two end-member formulations are reported here.

2. Materials and Methods

2.1. Synthesis

Single crystals of the vesuvianite compounds were obtained from hydrothermal reactions performed at 670 °C and 580 °C, for Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇, I, and Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆, II, respectively. For I, starting materials consisting of CaSiO₃ and Al₂O₃ were mixed in a 1:1 molar ratio and loaded into silver reaction ampoules. Aqueous sodium hydroxide mineralizer (0.5 M, 0.4 mL) was added to the ampoules, which were subsequently weld-sealed. For II, the synthesis used SrO, Fe₂O₃, and GeO₂ in a 3:1:3 molar ratio, with 0.4 mL of 6 M KOH as the mineralizer. It was found that II could also be successfully synthesized with FeO as the transition metal source and with NaOH, RbOH, and CsOH mineralizers at 3 M and 6 M concentrations. The ampoules were placed in a Tuttle cold seal autoclave; the autoclave was filled with deionized water to provide a positive counter pressure. The autoclave was outfitted with external band heaters and heated to the target temperature, where it was held for five days for I and seven days for II, generating approximately 2 kbar pressure. The autoclave was then cooled to room temperature over 12 h and the products were harvested from the ampoules. Two morphologies of colorless crystals were observed in approximately equal quantities for the first set of reactions: elongated prismatic crystals corresponding to I and rhombic dodecahedra corresponding to synthetic grossular garnet. In contrast, the synthesis for II produced elongated prismatic crystals and large blocks of a very dark red color, with PXRD patterns showing phase-pure vesuvianite as the sole reaction product.

2.2. Single Crystal X-ray Diffraction

Single crystal X-ray diffraction of a colorless columnar crystal was performed at room temperature for colorless I and a dark red block crystal at 105(2) K for II, using a Bruker D8 Venture diffractometer. The data were collected using phi and omega scans (0.50° oscillations) with a Mo Kα (λ = 0.71073 Å) microfocus source and Photon 100 detector. Data were processed using the SAINT software program and corrected for absorption using the SADABS multi-scan technique, both within the Apex3 suite [25]. The structures were solved by direct methods and subsequently refined by full matrix least squares on F² using the SHELXTL software package [26]. Space group symmetry of P4/nnc was determined based on the systematic absences for both compounds, though further analysis was also performed in P4nc and P4/n. All non-hydrogen atoms were refined anisotropically. Atoms Ca4 and Al1 were refined as half-occupied, based on geometric constraints in I (typical of the vesuvianite structure type). For II, the refinement of atoms Sr4a/Sr4b and Ge4a/Ge4b were first performed through a combination of the SUMP and FVAR commands in SHELX and were then fixed to the nearest 1/10th site occupancy for an overall 50:50 Sr:Ge ratio across the four sites. Hydrogen atoms corresponding to the OH groups in the structure were identified from the difference electron density map and distance fixing restraints were used to maintain appropriate O-H contact distances. The structure solution for I was refined to a final R1 of 0.0337 and wR2 of 0.0782, based on the observed data (I > 2σI), with the refinements resulting in a final R1 of 0.0461 and a wR2 of 0.0694 for II. Complete refinement details for both compounds are summarized in

Table 1. Crystallographic data and refinement details for I and II.

	I	II
Empirical Formula	Ca19Al13Si18O78H7	Sr19Fe12Ge19O78H6
F. W. (g/mol)	2872.94	4968.24
Temperature (K)	296(2)	105(2)
Crystal System	Tetragonal	Tetragonal
Space Group	P4/nnc (no. 126)	P4/nnc (no. 126)
a (Å)	15.5429(16)	16.4498(8)
c (Å)	11.8210(12)	12.4779(6)
Volume (Å3)	2855.7(7)	3376.5(4)
Z	2	2
D(calcd) (mg/m3)	3.341	4.887
Wavelength (Å)	0.71073	0.71073
μ, mm−1	2.494	25.793
F(000)	2864	4544
Crystal Size (mm)	0.055 × 0.061 × 0.101	0.114 × 0.085 × 0.055
θ range,°	2.621 to 30.530	3.215 to 30.469
Reflections Collected	2188	2579
Independent Reflections	1958	2149
R indices (I > 2σ(I))	R1 = 0.0337 a wR2 = 0.0782 b	R1 = 0.0461 a wR2 = 0.0694 b
R indices (all data)	R1 = 0.0404 a wR2 = 0.0803 b	R1 = 0.0624 a wR2 = 0.0727 b
Goodness-of-fit on F2	1.228	1.164

^a R₁ = ||F_o| – [F_c||/|F_o|. ^b wR₂ = {[w(F_o² – F_c²)²]/[wF_o²]²}^1/2.

. CSD 2284129-2284130 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).

2.3. Additional Characterization

Elemental analysis of the crystalline products was performed using energy dispersive X-ray analysis (EDX). Samples of the colorless and dark red elongated prismatic crystals and rhombic dodecahedra were mounted on carbon tape and loaded into a Hitachi S-3400N scanning electron microscope equipped with an Oxford INCA EDX detector. An accelerating voltage of 20 kV was used and multiple data points were inspected on multiple crystals. At all analysis points, only the presence of Ca, Al, Si, and O was observed for the colorless elongated prismatic vesuvianite I and only Sr, Fe, Ge, and O for the dark red vesuvianite II.

Bulk reaction products were evaluated by powder X-ray diffraction using a Rigaku Ultima IV diffractometer. Well-ground samples were analyzed in Bragg–Brentano geometry using Cu Kα (λ = 1.5406 Å) radiation. Data were collected from 15 to 65 degrees in 2-theta at a rate of 1 degree per minute. Analysis of the resulting patterns for I confirmed the presence of two products corresponding to the vesuvianite and garnet structure types, with the patterns for II corresponding only to the vesuvianite-type phase.

Single crystal Raman scattering measurements for I were performed using an Olympus IX71 inverted microscope with a 20× objective lens coupled to a TRIAX 552 spectrometer equipped with a thermoelectrically cooled CCD detector (Andor Technology, Model DU420A-BV) operating at −60 °C. An argon ion laser (Innova 100, Coherent) was used to excite the Raman signal with 514.5 nm light in a 180° backscattering geometry. A PR-550 broadband polarization rotator (Newport Corp., Irvine, CA, USA) was used to rotate the polarization of the incident laser source, denoted by S and P polarizations. All spectra were processed and figures were prepared with Spectra-Solve for Windows software (LasTek Pty. Ltd., Thebarton, SA, Australia). Spectra were obtained with the incident beam aligned both along and normal to the four-fold rotation axis of vesuvianite.

3. Results and Discussion

3.1. Synthesis

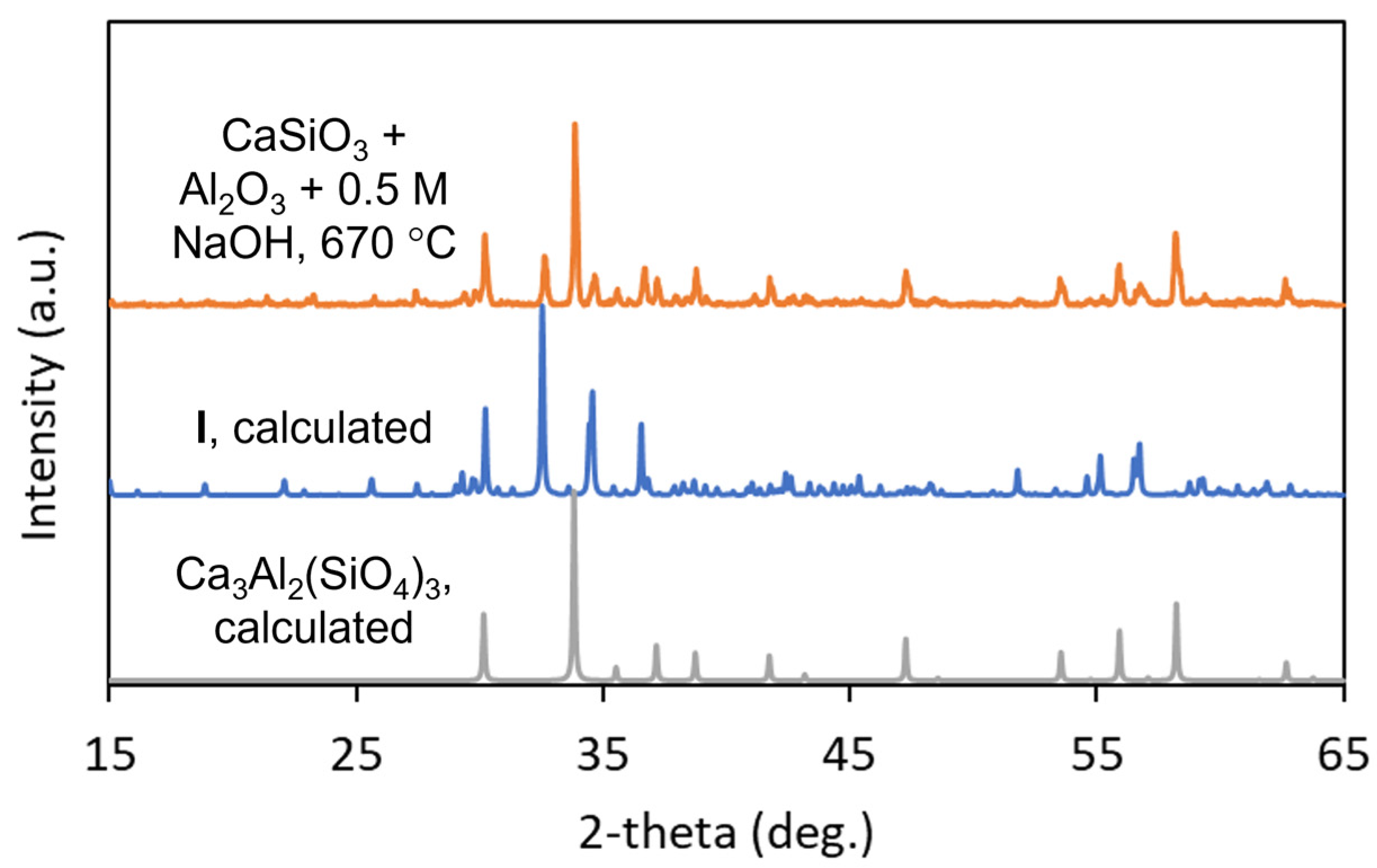

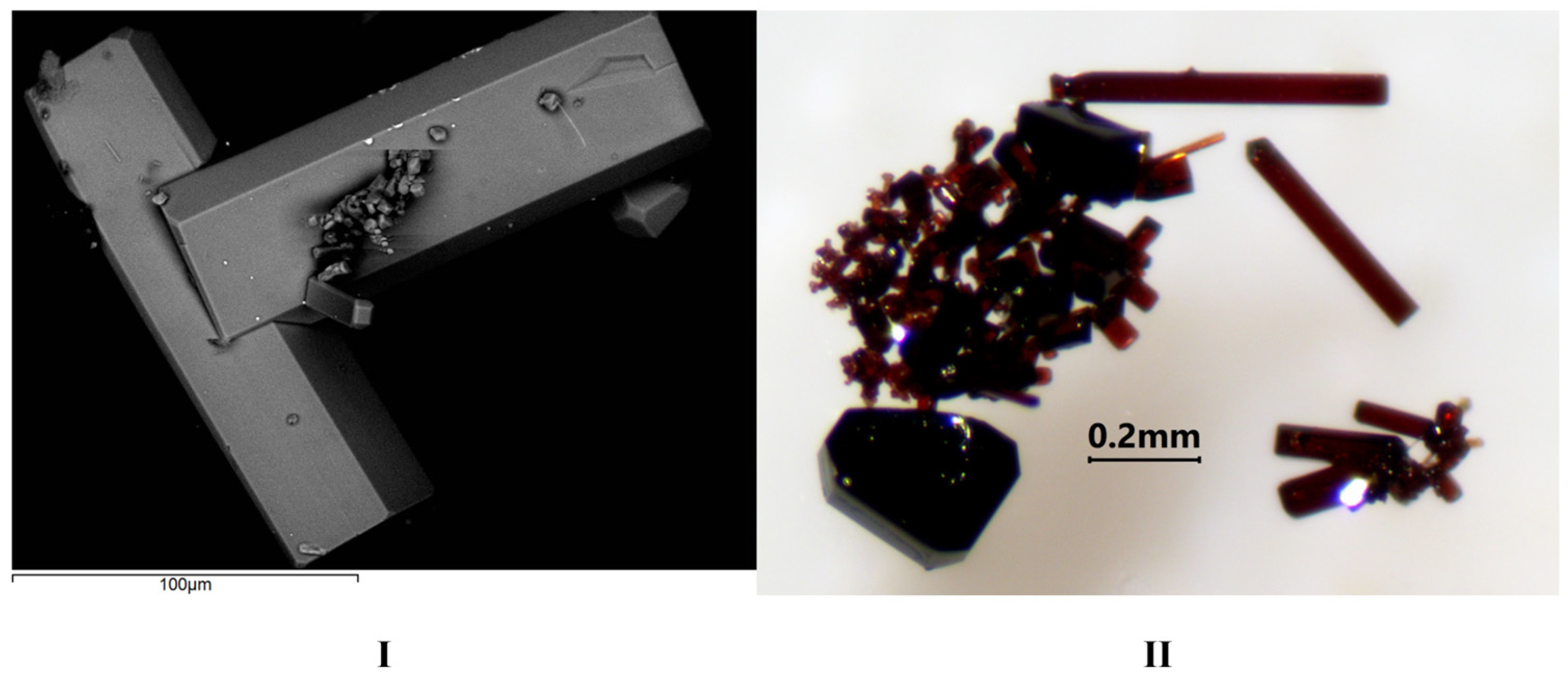

Crystals of the synthetic vesuvianite, Ca₁₉Al₁₃Si₁₈O₆₈O₃(OH)₇ (I), were co-crystallized with synthetic grossular, Ca₃Al₂(SiO₄)₃, from the hydrothermal reaction of CaSiO₃ and Al₂O₃. The vesuvianite phase formed as elongated prismatic crystals (Figure 1, left) up to about 0.25 mm in length and were easily distinguishable from the rhombic dodecahedral grossular crystals. Powder X-ray diffraction confirmed the reaction product was a mixture of these two phases (Figure 2). The resulting grossular and vesuvianite crystals had similar sizes after the five-day reaction period, so it was not clear that one was necessarily the secondary product of the other. Crystals of I were obtained from various alkali hydroxide mineralizers, including 0.5 M NaOH, 0.1 M KOH, and 0.5 M RbOH. These mineralizers corresponded with much more highly basic solutions than were employed by Ito and Arem (pH 7–9.5), where Mg-free vesuvianite was not obtained under similar temperature and pressure conditions [3]. Thus, it seems that the basicity of the solution may be a key reaction variable.

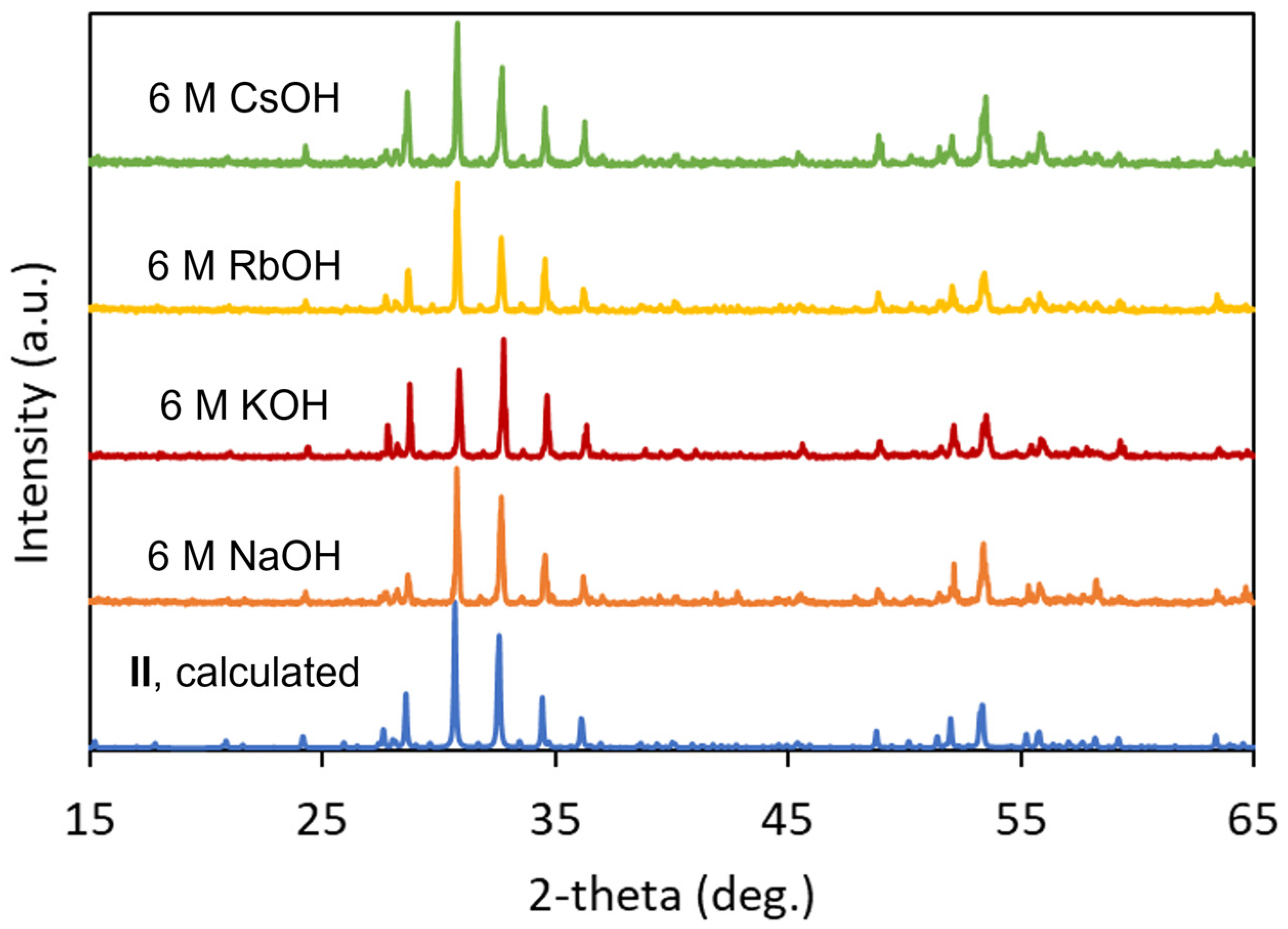

The synthetic vesuvianite, Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆ (II), formed as dark red crystals, both of columnar and block-like morphologies (Figure 1, right), with the color being indicative of the presence of Fe³⁺ ions in various relatively low site symmetries. The 3:1:3 reaction of SrO + Fe₂O₃ + GeO₂ used for the synthesis was nearly stoichiometric for the chemical formula of II, with respect to Sr:Fe:Ge. Powder X-ray diffraction confirmed that both the columnar and block-like morphologies corresponded to the germanate vesuvianite II, as the composite reaction products were found to contain only the vesuvianite phase (Figure 3). This was found to be the case for reactions involving both 3 M and 6 M alkali hydroxide mineralizers (NaOH, KOH, RbOH, CsOH) and the formation and crystal size was found to be independent of the identity of the alkali metal. Likewise, reactions that used Fe₂O₃ or FeO were both found to produce crystals of II. In the case of FeO, a molar ratio of 3:2:3 was used in the reaction of SrO + FeO + GeO₂ in 6 M KOH, also a nearly stoichiometric reaction for II. We saw several possible avenues to the in situ oxidation of Fe²⁺ of the feedstock to the Fe³⁺ state in the final product. One was the simple oxidation due to O₂ from the air in the sealed silver ampoules since we made no effort to exclude air when the ampoules were weld-sealed. The other could be the well-known stabilization of Fe³⁺ relative to Fe²⁺ in a strong aqueous base via Fe²⁺ + OH⁻ → Fe³⁺ + 1/2H₂ + O²⁻. Ultimately, crystals of II formed in sizes up to 0.5 mm after seven days, from reactions utilizing Fe₂O₃ as the transition metal source and 6 M KOH as the mineralizer.

3.2. Structural Analysis

3.2.1. Space Group Assignment

While the majority of natural vesuvianite has been refined in space group P4/nnc, subtle variations in the structure can lead the samples to crystallize in P4nc or P4/n with strong P4/nnc pseudosymmetry; these possibilities were well discussed in the previous literature [14,15,16]. Thus, we first sought to carefully evaluate the space group symmetry of the synthetic analogs I and II. While acentric P4nc vesuvianite can be verified through measurement of properties such as piezoelectricity or second-harmonic generation, P4/n vesuvianite cannot be easily distinguished from P4/nnc, other than through careful examination of the glide plane violating reflections in the diffraction data.

Table 2. Comparison of the systematic absence exceptions in the single-crystal X-ray diffraction reflections of P4/nnc Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇ and Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆, the P4nc vesuvianite from the N’chwaning II mine (Republic of South Africa), and the P4/n vesuvianite from the Asbestos mine (Quebec) [16]. N = number of candidate reflections that should be systematically absent, N I > 3σ = number of candidate reflections having I/σ values greater than 3, <I> = average intensity of candidate reflections, <I/σ> = average intensity/uncertainty of candidate reflections.

	Ca19Al13Si18O71(OH)7 P4/nnc			Sr19Fe12Ge19O72(OH)6 P4/nnc			N’chwaning P4nc			Asbestos P4/n
Symmetry	n--	-n-	--c	n--	-n-	--c	n--	-n-	--c	n--	-n-	--c
N	332	624	375	1328	1828	1355	333	422	268	405	664	426
N I>3σ	5	141	98	1	39	13	140	125	68	5	270	177
<I>	0.1	0.4	0.5	0.3	0.4	0.4	1.1	0.7	0.7	0.2	1.5	1.5
<I/σ>	0.6	2.1	2.4	0.5	0.8	0.7	3.0	2.1	2.1	0.9	4.1	4.6

compares these glide plane violating reflections for the P4/nnc vesuvianite of this study (I and II), with one vesuvianite of each lower symmetry space group as previously presented by Armbruster and Gnos [16]. In evaluating the reflections corresponding to the n-glide perpendicular to the c-axis, (n--), it was clear that the lack of glide plane violating reflections in I and II was not consistent with space group P4nc, particularly when comparing the N I>3σ and <I/σ> values to those of the N’chwaning mine sample, which was shown to have P4nc symmetry. The (-n-) and (--c) classes of glide plane violating reflections can then be used to distinguish between P4/nnc and P4/n. The Asbestos mine sample shown to have P4/n symmetry had, by proportion, about 1.6–1.8 times more glide plane violating reflections for these classes than I and these reflections in I were much weaker, having nearly half of the <I/σ> values of those in the Asbestos mine sample. The proportions of N I > 3σ and <I/σ> values for (-n-) and (--c) in I were quite similar to those in the N’chwaning mine sample, which indeed did contain the respective n- and c-glides (though again, not the n-glide derived from the (n--) class). In these ways, the diffraction data of I was consistent with P4/nnc. In the case of II, there were virtually no appreciable glide plane violating reflections for any of the (n--), (-n-), or (--c) classes, which was consistent with P4/nnc.

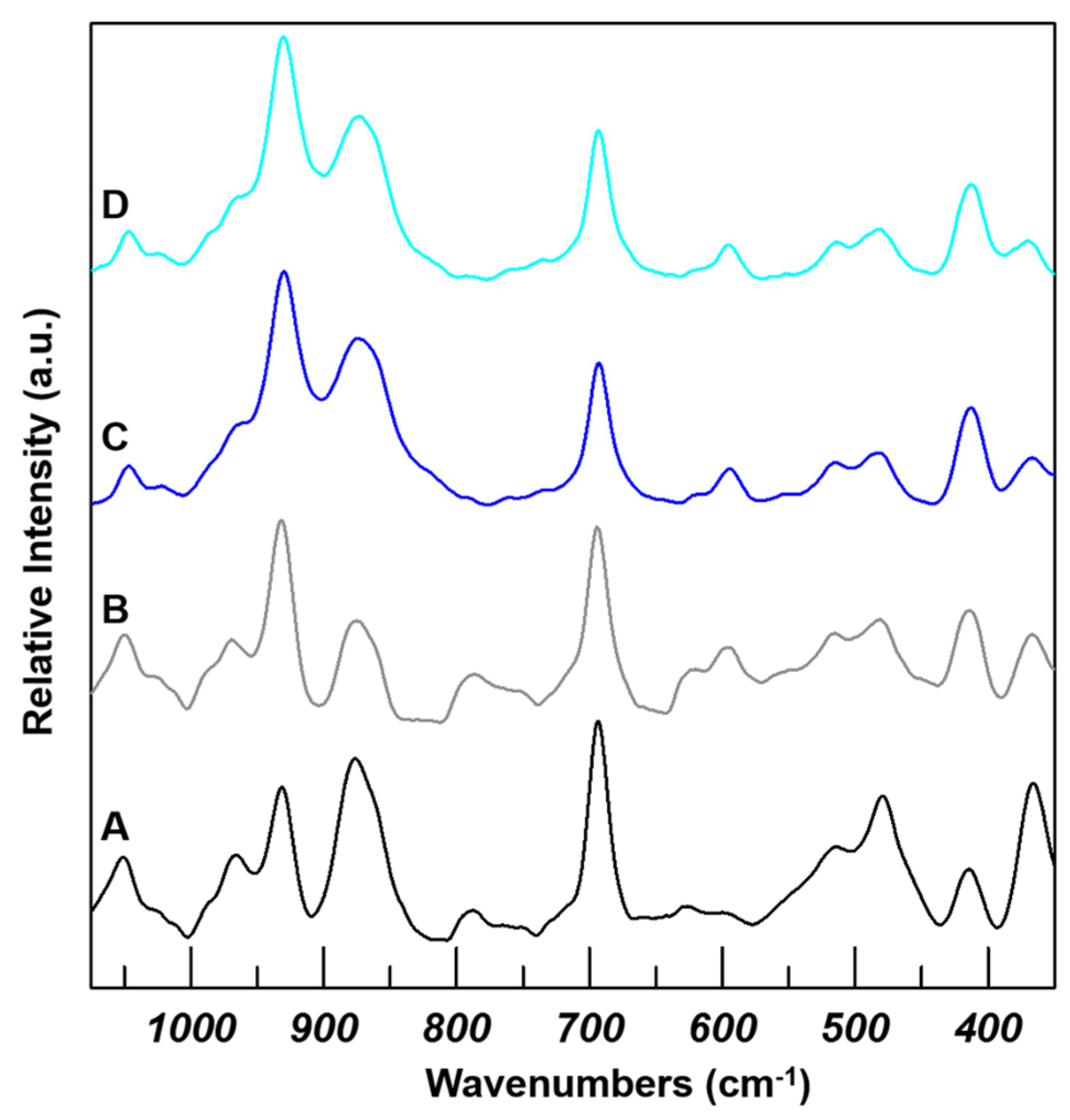

As further support of the space group assignment for I, we evaluated the single crystal Raman spectra (Figure 4). The spectra were consistent with vesuvianite having P4/nnc symmetry, most notably in the absence of an intense band around 640 cm⁻ that is characteristic of P4/n and other low-temperature ordered vesuvianite [27,28]. This was not unreasonable, as our material was prepared at a significantly higher temperature (670 °C) than those reported previously. A somewhat broad feature was present from 750 to 790 cm⁻ in the spectra taken normal to the four-fold rotation axis that was not present in the spectra obtained along the four-fold rotation axis. In general, there were only minor intensity changes in the bands that occurred with regards to the incident polarization.

Finally, a series of test refinements were performed on the diffraction data of I and II, testing the quality of the models in P4nc and P4/n. In these test cases, the residual R1 values increased by about 0.005–0.01 compared with refinement in P4/nnc. Importantly, the P4nc and P4/n test refinements also resulted in significantly less favorable displacement parameters for the atoms, including numerous atoms with non-positive definite anisotropic displacement parameters. Refinement in P4/nnc was much more favorable in this respect, with all atoms exhibiting positive and reasonable displacement parameters. Details of the test refinements are provided in the Supplementary Information.

3.2.2. Structural Features

For ease of structural comparison, the atomic site numbering scheme was derived from that of Groat and coworkers in their review of the crystal chemistry of natural vesuvianite samples [1]. The synthetic Ca₁₉Al₁₃Si₁₈O₆₈O₃(OH)₇ in space group P4/nnc contained identical crystallographic sites and symmetry to crystals having the ideal vesuvianite formula X₁₉Y₁₃Z₁₈O₆₈W₁₀, namely three unique Si (Z) sites, four unique Ca (X) sites, three unique Al (Y) sites, and eleven unique O (O, W) sites (

Table 3. Positional and displacement parameters for Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇ (I).

Site	Atom	x/a	y/b	z/c	Ueq (Å2)	sof
X1	Ca1	0.250000	0.750000	0.750000	0.0089(2)	1
X2	Ca2	0.68930(4)	0.45589(4)	0.62048(5)	0.00824(12)	1
X3	Ca3	0.39865(5)	0.31832(5)	0.88814(7)	0.01636(15)	1
X4	Ca4	0.750000	0.750000	0.6500(2)	0.0107(4)	0.5
Y1	Al1	0.750000	0.750000	0.5350(4)	0.0118(6)	0.5
Y2	Al2	0.500000	0.500000	0.500000	0.0069(2)	1
Y3	Al3	0.37885(6)	0.61264(6)	0.62594(8)	0.00720(16)	1
Z1	Si1	0.250000	0.750000	0.500000	0.0060(3)	1
Z2	Si2	0.31920(6)	0.54145(6)	0.87110(7)	0.00617(15)	1
Z3	Si3	0.58384(6)	0.65099(6)	0.63484(7)	0.00760(15)	1
O1	O1	0.32742(14)	0.71949(15)	0.58569(19)	0.0082(4)	1
O2	O2	0.34061(15)	0.61747(15)	0.77819(19)	0.0093(4)	1
O3	O3	0.22184(14)	0.54881(15)	0.92346(19)	0.0085(4)	1
O4	O4	0.39337(14)	0.56251(15)	0.97038(19)	0.0087(4)	1
O5	O5	0.48577(16)	0.67069(15)	0.6775(2)	0.0113(4)	1
O6	O6	0.62081(18)	0.72815(16)	0.5592(2)	0.0179(5)	1
O7	O7	0.32773(15)	0.44477(15)	0.8219(2)	0.0118(4)	1
O8	O8	0.59127(14)	0.56069(14)	0.56660(19)	0.0089(4)	1
O9	O9	0.64494(14)	0.64494(14)	0.750000	0.0105(5)	1
O10	O10	0.750000	0.750000	0.3672(5)	0.0191(9)	1
H10	H10	0.750000	0.750000	0.2900(19)	0.050	0.5
O11	O11	0.43844(15)	0.50514(15)	0.63642(19)	0.0094(4)	1
H11	H11	0.457(7)	0.474(6)	0.715(7)	0.08(3)	0.75

). Of these sites, Ca4 and Al1 were half-occupied in a channel, due to geometric considerations and consistent with the natural samples, which corresponded to a formula of Ca₁₉Al₁₃(Si₂O₇)₄(SiO₄)₁₀O₃(OH)₇. The synthetic Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆ II was also solved in the space group P4/nnc; the sites in II were also consistent with the ideal vesuvianite formula, with four unique Ge (Z, Y1) sites, four unique Sr (X) sites, two unique Fe (Y2/Y3) sites, and eleven unique O (O, W) sites (

Table 4. Positional and displacement parameters for Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆ (II).

Site	Atom	x/a	y/b	z/c	Ueq (Å2)	sof
X1	Sr1	0.250000	0.750000	0.250000	0.0033(2)	1
X2	Sr2	0.45670(3)	0.80989(3)	0.61902(5)	0.00307(12)	1
X3	Sr3	0.67853(4)	0.60061(4)	0.38584(5)	0.00668(13)	1
X4a	Sr4a	0.750000	0.750000	0.652(5)	0.0094(14)	0.2
X4b	Sr4b	0.750000	0.750000	0.650(3)	0.0084(10)	0.3
Y1a	Ge4a	0.750000	0.750000	0.5316(5)	0.0113(9)	0.3
Y1b	Ge4b	0.750000	0.750000	0.5936(10)	0.0132(13)	0.2
Y2	Fe2	0.500000	1.000000	0.500000	0.0052(2)	1
Y3	Fe3	0.38831(5)	0.87928(5)	0.37237(8)	0.00393(17)	1
Z1	Ge1	0.250000	0.750000	0.500000	0.0054(3)	1
Z2	Ge2	0.45893(4)	0.68107(4)	0.36976(5)	0.00250(13)	1
Z3	Ge3	0.65076(4)	0.91725(4)	0.63439(5)	0.00414(14)	1
O1	O1	0.2811(3)	0.8297(3)	0.4128(4)	0.0027(8)	1
O2	O2	0.3793(3)	0.6592(3)	0.2776(4)	0.0041(9)	1
O3	O3	0.4504(3)	0.7807(3)	0.4218(4)	0.0050(9)	1
O4	O4	0.4374(3)	0.6071(3)	0.4723(3)	0.0031(9)	1
O5	O5	0.6690(3)	1.0164(3)	0.6815(4)	0.0068(9)	1
O6	O6	0.7312(3)	0.8823(3)	0.5571(4)	0.0133(11)	1
O7	O7	0.5566(3)	0.6748(3)	0.3192(4)	0.0059(9)	1
O8	O8	0.5606(3)	0.9073(3)	0.5627(4)	0.0049(9)	1
O9	O9	0.6473(3)	0.8527(3)	0.750000	0.0073(12)	1
O10	O10	0.750000	0.750000	0.3676(12)	0.026(3)	1
H10	H10	0.750000	0.750000	0.28(4)	0.050	0.5
O11	O11	0.4942(3)	0.9381(3)	0.3622(3)	0.0043(8)	1
H11	H11	0.497800	0.969600	0.303400	0.050	0.625

), leading to a structural formula of Sr₁₉Fe₁₂Ge(Ge₂O₇)₄(GeO₄)₁₀O₄(OH)₆. In this case, the complex disorder within the channels often observed in the vesuvianite structure type was displayed via multi-site disorder within the channel, where Ge4 and Sr4 were both split into two sub-sites, Ge4a/Ge4b and Sr4a/Sr4b, with the combination of the site occupancies of each site adding up to 50% Ge and 50% Sr in the channel (an overall identical content to the Ca and Al channel contents in I).

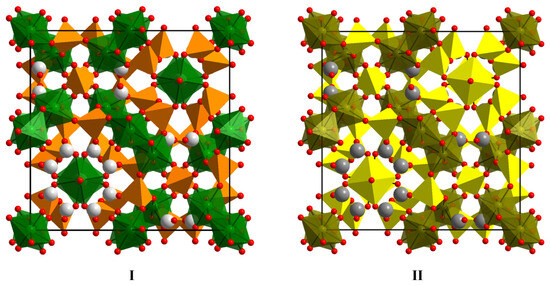

The resulting structures are shown in Figure 5. Prominent features of the vesuvianite structure were the characteristic channels propagating along the c-axis that were bound by the well-ordered aluminosilicate framework in I or the iron germanate framework in II. In I, one channel contained alternating SiO₄ and CaO₈ units and this is often considered as part of the calcium aluminosilicate framework. Similarly, this channel was occupied by alternating GeO₄ and SrO₈ units in II. The other channel contained alternating AlO₅ and CaO₈ units and alternating GeO₅ and SrO₈ units in I and II, respectively (Figure 6). This second channel also contained a hydrogen bonding connection (O10-H10---O10), as discussed below. The long-range ordering of the building blocks in this channel has been shown to be the source of the variation in space groups, including P4/n and P4nc, in the various natural vesuvianite samples (see also Supporting Information, Figure S1) [15,16]. Crystals in those space groups were also associated with lower formation temperatures [15]. The crystals of the present study were prepared in the thermal regime where space group P4/nnc appeared to be the most stable structure type; the X-ray data were refined as such. Test refinements for I were performed, where the occupancies of the X4 (Ca4) and Y1 (Al1) sites were allowed to freely refine, since the occupancy of these sites was integral in defining vesuvianite symmetry. The occupancies freely refined to 51.1% for Al1 and 48.7% for Ca4, supporting the occupancy pattern in P4/nnc. A similar free refinement was performed for II, but it was found that utilizing only two half-occupied sites in the channel was insufficient to account for the excess electron density between Sr4 and Ge4, so the sites were split further and given sub-half occupancy (Sr4a, Sr4b, Ge4a, and Ge4b). The free variable refinement was then used to determine the occupancy of each site; it was found that Sr4a and Ge4b were ~20% occupied and Sr4b and Ge4a were ~30% occupied.

Given the vast range of chemistry and substitutional behavior observed in natural vesuvianite, the Ca₁₉Al₁₃Si₁₈O₆₈O₃(OH)₇ and Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆ formulas were corroborated using EDX, verifying the presence of only Ca, Al, Si, and O for I and Sr, Fe, Ge, and O for II. This was particularly useful in ruling out Na substitution as a mechanism for charge balance in I, since Na was present in the mineralizer solution. On a semi-quantitative metals basis, the relative elemental ratios in atomic percent for I (26.4% Al, 35.8% Si, and 37.7% Ca), as detected by EDX, compared favorably with those in the chemical formula of the single crystal structural model (26% Al, 36% Si, and 38% Ca). The relative elemental ratios of metals in II detected by EDX (29.9% Fe, 34.1% Ge, 36.0% Sr) differed only slightly from those based on the structural model (24% Fe, 38% Ge, 38% Sr). These synthetic formulas greatly simplified the exceedingly complex substitutional chemistry observed in the natural systems, as many of the natural specimens possess lanthanide ions, Fe³⁺, Fe²⁺, Ti⁴⁺, Na⁺, Cu²⁺, Zn²⁺, Mn²⁺, B³⁺, and F^- in significant quantities [8,9,29].

The controlled synthetic approach described here led to complete occupancy of Al³⁺ at the Y sites in I and complete occupancy of Ge⁴⁺ at the Y1 site and Fe³⁺ at the Y2 and Y3 sites of II, with concomitant partial occupancy of the appropriate number of H⁺ ions from the OH sites in order to achieve charge balance. This behavior of the trivalent ions in the Y sites is interesting. The Y sites contributed 13 atoms to the formula unit in a fully occupied material, as observed here in Ca₁₉Al₁₃Si₁₈O₆₈O₃(OH)₇ and Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆. Most natural samples typically contain between 8 and 11 aluminum atoms per formula unit. This occurs since the half-occupied square pyramidal Y1 site can support a number of divalent and trivalent metal ions in natural samples and the Y1 site is often aluminum deficient or is substituted by divalent ions such as Fe²⁺ and Mg²⁺ [30]. Substitution of other common transition metals such as Fe³⁺ and Ti⁴⁺ at the Y2 and Y3 sites also contributes to lower aluminum contents in natural samples [1,12,31]. The full 13 aluminum atoms per formula unit were observed in I and 12 iron atoms from the Y2 and Y3 sites with one germanium atom from the Y1 site in II constituted simplified crystal–chemical compositions from the synthetic systems.

One implication of the high Al³⁺, Fe³⁺, and Ge⁴⁺ content in I and II was that the W sites must become more oxide rich to maintain charge balance. This full occupancy by the trivalent/tetravalent ions thus caused the corresponding decrease in OH⁻ stoichiometry in the final formula from typical values of approximately 10 in natural samples X₁₉Y₁₃Z₁₈O₆₈(OH)₁₀ to the synthetic analogs X₁₉Y₁₃Z₁₈O_78-x(OH)_x), where x = 7 and 6 for I and II, respectively. The ten W atoms per formula unit resided at two sites: O10 and O11. Both of these oxygen atoms were underbonded (

Table 5. Bond valence sum calculations for Ca₁₉Al₁₃Si₁₈O₇₁(OH)₇ (I) (non-hydrogen atoms only).

Atom	O1	O2	O3	O4	O5	O6	O7	O8	O9	O10	O11	Sum
Ca1	0.37 (x4→)	0.23 (x4→)										2.40
Ca2	0.25	0.29	0.32	0.28	0.38, 0.27			0.38				2.17
Ca3			0.27			0.25	0.32, 0.23, 0.19	0.18		0.20 (x4↓)	0.23	1.87
Ca4						0.40 (x4→)			0.18 (x4→)			2.32
Al1						0.31 (x4→)				0.37		1.61
Al2				0.41 (x2→)				0.50 (x2→)			0.50 (x2→)	2.82
Al3	0.46	0.47	0.42	0.31	0.37						0.45	2.48
Si1	0.95 (x4→)											3.80
Si2		0.94	0.96	0.87			1.02					3.79
Si3					0.97	1.06		1.00	0.90 (x2↓)			3.93
Sum	2.03	1.93	1.97	1.87	1.99	2.02	1.76	2.06	1.98	1.17	1.18

and

Table 6. Bond valence sum calculations for Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆ (II) (non-hydrogen atoms only).

Atom	O1	O2	O3	O4	O5	O6	O7	O8	O9	O10	O11	Sum
Sr1	0.38 (x4→)				0.26 (x4→)							2.56
Sr2	0.27	0.30	0.35	0.27	0.37, 0.31			0.41				2.28
Sr3			0.27			0.26	0.37, 0.24, 0.23	0.21		0.19 (x4↓)	0.26	2.03
Sr4a						0.37 (x4→)			0.22 (x4→)			2.36
Sr4b						0.37 (x4→)			0.21 (x4→)			2.32
Ge4a						0.28 (x4→)				0.43		1.55
Ge4b						0.26 (x4→)						1.04
Fe2				0.43 (x2→)				0.55 (x2→)			0.52 (x2→)	3.00
Fe3	0.51	0.55	0.50	0.34	0.43						0.52	2.85
Ge1	0.92 (x4→)											3.68
Ge2		0.91	0.95	0.87			1.05					3.78
Ge3					0.97	1.04		1.02	0.88 (x2↓)			3.91
Sum	2.08	1.76	2.07	2.18	2.34	2.58	1.89	2.19	2.19	1.19	1.30

) with respect to their bond valence sums and both were shown to support hydrogen atoms to mitigate that deficiency [32]. The absence of fluorine in the synthetic samples also necessitated that both O10 and O11 sites be identified as O/OH in both compounds. Indeed, residual electron density corresponding to probable hydrogen atoms was observed around both of these atoms in our diffraction data and assigned as such. The position of H10 corresponded to that observed by Lager and coworkers using neutron diffraction and was half-occupied based on geometrical considerations [32]. The O10 site thus contributed one each of O and OH to the formula unit and a hydrogen bond connected O10 atoms within the channel. This left the O11 site to account for the remaining two O and six OH of the W formula units in I and three O and five OH of the W formula units in II. Thus, the hydrogen atom assigned to this site was ¾ occupied in I and 5/8 occupied in II and again occupied a comparable position to that traditionally assigned in vesuvianite and confirmed by Lager et al. The hydrogen atom occupancies were of course not derived by refinement of the X-ray data but were dictated by charge balance requirements.

The synthetic sample Ca₁₉Al₁₃Si₁₈O₆₈O₃(OH)₇ also provided baseline values for inter-atomic distances in the vesuvianite structural units (

Table 7. Selected interatomic distances (Å) in Ca₁₉Al₁₃Si₁₈O₆₈O₃(OH)₇.

Bond	Length	Bond	Length
Ca1-O1 (x4)	2.3338(19)	Al1-O10	1.977(6)
Ca1-O2 (x4)	2.5168(19)	Al1-O6 (x4)	2.057(2)
Ca2-O8	2.3202(19)	Al2-O11 (x2)	1.877(19)
Ca2-O5	2.326(2)	Al2-O8 (x2)	1.8760(19)
Ca2-O3	2.384(2)	Al2-O4 (x2)	1.9539(19)
Ca2-O2	2.426(2)
Ca2-O4	2.445(2)	Al3-O2	1.898(2)
Ca2-O5	2.450(2)	Al3-O1	1.902(2)
Ca2-O1	2.484(2)	Al3-O11	1.914(2)
		Al3-O3	1.942(2)
Ca3-O7	2.385(2)	Al3-O5	1.984(2)
Ca3-O3	2.453(2)	Al3-O4	2.054(2)
Ca3-O6	2.478(3)
Ca3-O7	2.505(2)	Si1-O1 (x4)	1.6438(18)
Ca3-O11	2.512(2)
Ca3-O10	2.5550(8)	Si2-O7	1.617(2)
Ca3-O7	2.588(3)	Si2-O3	1.639(2)
Ca3-O8	2.612(2)	Si2-O2	1.647(2)
		Si2-O4	1.677(2)
Ca4-O6 (x4)	2.304(3)
Ca4-O9 (x4)	2.592(3)	Si3-O6	1.603(3)
		Si3-O8	1.623(2)
		Si3-O5	1.636(2)
		Si3-O9	1.6634(12)

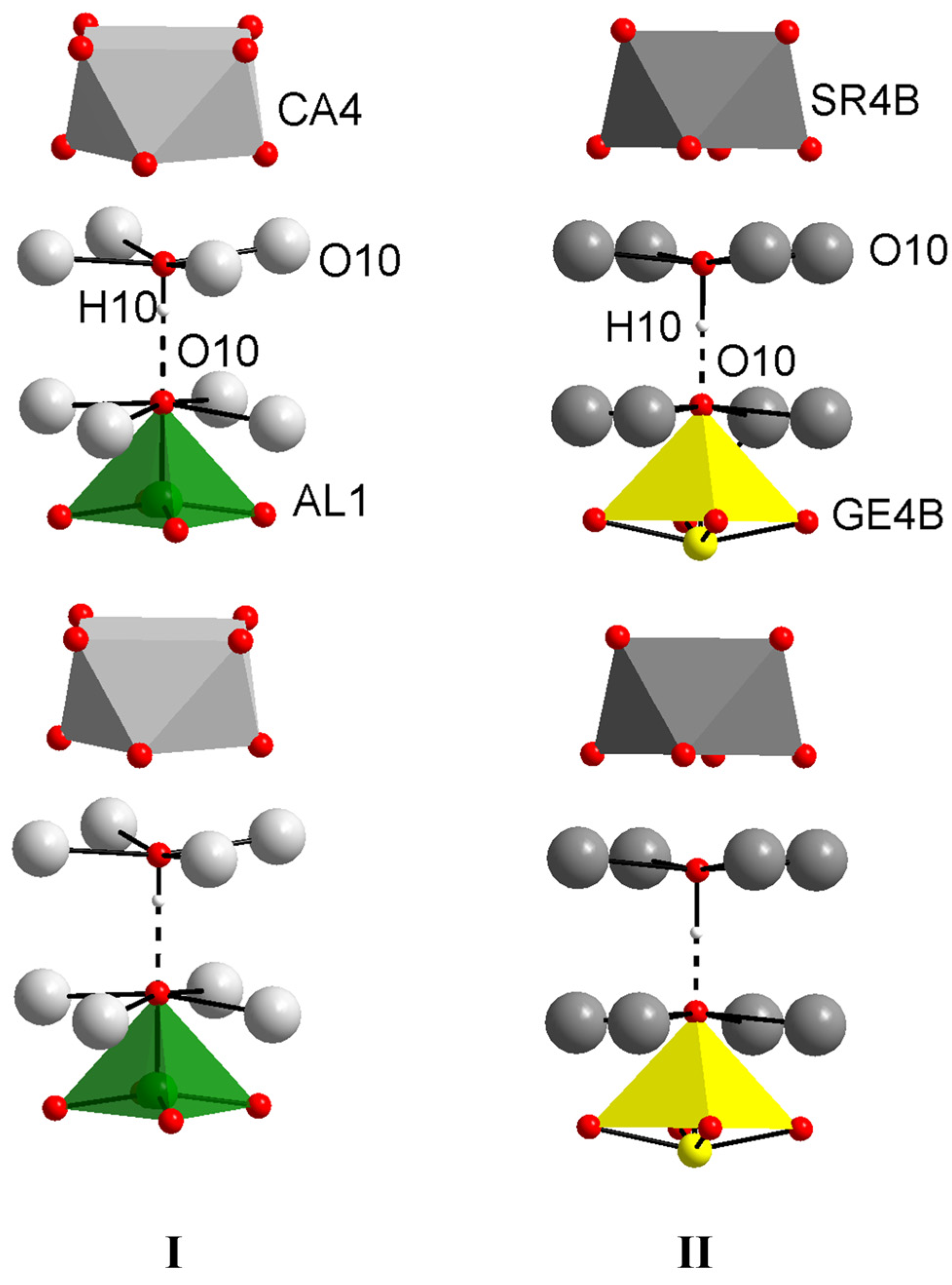

). Of particular interest was the Y1 site fully occupied by Al³⁺ in the present study. The Al1 site exhibited Al-O bond lengths of 1.977(6) and 2.057(2) Å. This was consistent with the smaller Al³⁺ in the synthetic vesuvianite compared with other vesuvianites, where the Y1 site was primarily assigned to other larger metal ions such as Fe²⁺ (Fe-O = 2.278 Å and 2.087 Å [30]; 2.267(5) Å and 2.080(1) Å [8]), Mn²⁺ (Mn-O = 2.04(4) Å and 2.051(4) Å) [9], and Fe³⁺ (Fe-O = 2.214(8) Å and 2.085(2) Å) [10]. One exception to this trend was that reported for Mg²⁺ (1.908(19) Å and 2.052(8) Å) [33]. Given the Shannon crystal radii of five-coordinate Mg²⁺ (0.66 Å) compared with the other common occupants of the Y1 site (for example, Fe³⁺ at 0.58 Å), it would appear the reported Mg-O10 distance was somewhat of an outlier and Al³⁺ (0.48 Å) obeyed the trend established by all of the other common Y1 site occupants [34]. The Y1-O differences were especially pronounced in the Y1-O10 interactions, since these were not constrained by the silicate framework and displayed more of a dependence on the composition of the Y1 site. The present synthetic sample I, with only Al³⁺ at the Y1 site, clearly exhibited a much shorter bond distance to O10, as would be expected from the absence of divalent ions at the site. Importantly, this Y1-O10 distance has also been shown to have correlations with the space group symmetry in vesuvianite, where non-P4/nnc materials exhibit Y-O10 bond lengths below 1.9 Å while still maintaining O10-O10 distances over 2.75 Å. In I, the Al1-O10 distance (1.977(6) Å) was clearly above this threshold, providing additional support for P4/nnc assignment. As a whole, the Y1 site was somewhat underbonded as Al³⁺, which suggests that Al³⁺ was actually rather small for this site. This explains why the natural samples often had a larger divalent transition metal, or Mg²⁺ as the primary Y1 site occupant [1], though the presence of Al³⁺ was known to occur at the site, of course [35]. The lack of any reasonable alternative divalent occupant in the closed system of these synthetic experiments, which might otherwise be present in most natural systems, was likely what caused Al³⁺ to occupy the site in full. The unit cell parameters for this synthetic vesuvianite were within the expected range for non-boron-bearing vesuvianite observed in the comprehensive study by Groat et al. [1].

The synthetic material Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆ II provided an unusual example of a vesuvianite structure type enabled by synthetic substitutions. The lattice parameters were increased from the presence of the larger ions, with Sr²⁺ replacing Ca²⁺, Fe³⁺ replacing Al³⁺, and Ge⁴⁺ replacing Si⁴⁺ and Al³⁺. We postulated that the substitution of the larger Fe³⁺ and Ge⁴⁺ ions into the Y2/Y3 and Z sites, respectively, assembled into a significantly larger iron germanate framework compared with the aluminum silicate framework, thus enabling the structure to support the larger Sr²⁺ (versus Ca²⁺) cations (

Table 8. Selected interatomic distances (Å) in Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆.

Bond	Length	Bond	Length
Sr1-O1 (x4)	2.471(4)	Sr4b-O6 (x4)	2.49(2)
Sr1-O5 (x4)	2.621(4)	Sr4b-O9 (x4)	2.69(2)
Sr2-O8	2.446(4)	Ge4b-O6 (x4)	2.245(6)
Sr2-O5	2.485(5)
Sr2-O3	2.509(5)	Fe2-O8 (x2)	1.982(5)
Sr2-O2	2.569(5)	Fe2-O11 (x2)	2.000(4)
Sr2-O4	2.607(4)	Fe2-O4 (x2)	2.070(4)
Sr2-O5	2.551(5)
Sr2-O1	2.601(4)	Fe3-O2	1.981(5)
Sr2-O6	3.048(5)	Fe3-O11	1.997(5)
		Fe3-O1	2.007(5)
Sr3-O7	2.490(5)	Fe3-O3	2.013(5)
Sr3-O3	2.598(5)	Fe3-O5	2.070(5)
Sr3-O6	2.617(5)	Fe3-O4	2.163(5)
Sr3-O7	2.652(5)
Sr3-O11	2.614(4)	Ge1-O1 (x4)	1.779(4)
Sr3-O10	2.7338(14)
Sr3-O7	2.660(5)	Ge2-O7	1.729(5)
Sr3-O8	2.701(5)	Ge2-O3	1.769(5)
Sr3-O6	3.190(5)	Ge2-O2	1.780(4)
		Ge2-O4	1.801(4)
Sr4a-O6 (x4)	2.49(3)
Sr4a-O9 (x4)	2.69(3)	Ge3-O6	1.735(5)
		Ge3-O8	1.740(4)
Ge4a-O10	2.046(16)	Ge3-O5	1.760(5)
Ge4a-O6 (x4)	2.221(6)	Ge3-O9	1.792(3)

). Indeed, the Fe-O bond lengths at the Y2 and Y3 sites (averaging 2.017 Å at Y2 and 2.038 Å at Y3) were longer than those in the iron-rich natural vesuvianite (averaging 1.913 Å at Y2 and 2.018 Å at Y3) [8] due to the full Fe³⁺ occupancy in II. The Ge-O bond lengths of the Z sites of II were typical for Ge⁴⁺ and, thus, also contributed to the expanded lattice compared with silicate vesuvianites. Similar to Al1 in I, the Y1 sites (here occupied by disordered Ge4a/Ge4b) were significantly underbonded, indicating that, with the increased lattice size from the transition from a silicate to a germanate, the Ge⁴⁺ ion may similarly be a small ion for this site despite having a greater radius than Al³⁺. It is possible that substitution of Ge⁴⁺ for a larger tetravalent or trivalent ion would make a more suitable alternative in controlled hydrothermal experiments and allow for less disorder within the channels. The EDS measurements suggested that the formula was stoichiometrically accurate, with ideal occupancy of the X, Y, and Z sites as expected, especially given the large differences in ionic size of the three ions. In this material, the two unique Y sites that were occupied by Fe³⁺ were six-coordinate, though relatively low in their site symmetries, enabling a considerable number of allowed electronic transitions, which explains the dark red color. Bond valence sums were likewise supportive of Fe³⁺ (Table 6). The presence of a different number of occupancies on each of the crystallographic sites would also suggest the possibility of ferrite (ferrimagnetic) type behavior. Magnetic studies will be the subject of a future publication.

4. Conclusions

Vesuvianite serves as an interesting case study for the broader concept of emulating mineral crystal growth in the laboratory. It has a complex structure and a tremendously convoluted substitution chemistry among the natural samples. The synthesis of “clean” unsubstituted samples in the laboratory can help lead to an understanding of the conditions of phase formation as well as synthesizing foundational compositions that can be useful in characterizing the baseline structural or physical properties. This study of vesuvianite-types Ca₁₉Al₁₃Si₁₈O₆₈O₃(OH)₇ and Sr₁₉Fe₁₂Ge₁₉O₇₂(OH)₆ demonstrates that minerals exhibiting complex crystal chemistry and substitutional behavior can not only be prepared without substitutional impurities but can also be synthesized as simplified end members under carefully controlled synthetic conditions. In the present case, all sites host singular occupants and the structure is well refined with a minimum number of unique cations. Historically, the study of vesuvianite free of Mg, Fe, and other impurities has been surprisingly challenging, despite the wealth and variety of natural vesuvianite specimens. Compared with previous attempts to prepare synthetic vesuvianite, it appears that the greatly increased basicity of the mineralizer solution employed in the present study is important to the preparation of these crystals. This is another area where synthetic controls can be exploited, since reaction conditions (e.g., pH, temperature, and pressure) that may be less common in natural systems can be accessed synthetically. These controls over the chemistry and reaction conditions can be further extended to targeted compositions of minerals with interesting structures for subsequent structural or properties analysis. The work serves as an interesting case study of the convergence of synthetic hydrothermal chemistry and mineralogy and their cooperative study. Vesuvianite builds a case for the cooperative study of synthetic hydrothermal chemistry with other interesting mineralogical systems.
