The Influence of BaTiO3 Content on the Energy Storage Properties of Bi0.5Na0.5TiO3-Bi(Mg2/3Nb1/3)O3 Lead-Free Ceramics

by
Zhuo Li
1,2,*,
Dandan Zhang
1,
Chenbo Wang
1,
Jiayong Zhang
1,
Zixuan Wang
1,
Zhuo Wang
1,2,
Xin Yan
1,2,
Tao Ai
1,2,
Dawei Wang
3,
Zhilun Lu
4,* and
Yanhui Niu
1,2
1
School of Materials Science and Engineering, Chang’an University, Xi’an 710061, China
2
Engineering Research Center of Transportation Materials of Ministry of Education, Chang’an University, Xi’an 710061, China
3
Functional Materials and Acousto-Optic Instruments Institute, School of Instrumentation Science and Engineering, Harbin Institute of Technology, Harbin 150080, China
4
School of Computing, Engineering and the Built Environment, Edinburgh Napier University, Edinburgh EH10 5DT, UK
*
Authors to whom correspondence should be addressed.
Crystals 2023, 13(5), 733; https://doi.org/10.3390/cryst13050733
Submission received: 28 March 2023 / Revised: 15 April 2023 / Accepted: 22 April 2023 / Published: 27 April 2023
(This article belongs to the Special Issue Advanced Dielectric Materials for Capacitor Application)
Browse Figures
Versions Notes

Abstract

:
Na0.5Bi0.5TiO3 (NBT)-based ceramics are promising lead-free candidates for energy-storage applications due to their outstanding dielectric and ferroelectric properties derived from large polarization. However, the high coercive field and large remnant polarization are unfavorable for practical applications, and thus NBT-based ceramics with relaxation behavior via doping/forming solid solutions with other elements/components have been widely studied. In this work, BaTiO3 (BT) was introduced to the 0.94Na0.5Bi0.5TiO3-0.06Bi(Mg2/3Nb1/3)O3 system by a conventional solid-state reaction to form a homogeneous solid solution of 0.94[(1−x)Na0.5Bi0.51TiO3-xBaTiO3]-0.06Bi(Mg2/3Nb1/3)O3 (BNT-100xBT-BMN). As the BT content increased, the proportion of the rhombohedral R3c phase increased while that of the tetragonal P4bm phase decreased, leading to the maximum Pmax (38.29 μC/cm2) and Eb (80 kV/cm) obtained in BNT-7BT-BMN (x = 0.07) composition. Specifically, the optimal energy storage properties of Wrec ~ 1.02 J/cm3 and η ~ 62.91% under 80 kV/cm were obtained in BNT-7BT-BMN ceramics, along with good temperature stability up to 200 °C, which are promising factors for future pulse power applications.

1. Introduction

Energy storage materials have attracted widespread attention because of the increasing demand for energy. Among the various electrical energy storage materials, dielectric ceramic capacitors play an important role in advanced electronic and electrical devices owing to their small volume, ultrahigh power densities, and fast charge–discharge ability [1,2,3,4,5,6,7], and thus they have been widely used in the fields of hybrid electric vehicles, laser weapons, mobile electronics, and pulse power technology [8,9,10]. Thereinto, lead-based ferroelectric ceramics have been intensively investigated due to their excellent energy storage performance at room temperature [11,12]. Unfortunately, lead-based ferroelectric ceramics containing lead elements are harmful to both humans and the environment, and many countries have banned their use [13,14]. Therefore, it is urgent that researchers seek some material that can replace lead-based ceramics. Sodium bismuth titanate (Bi0.5Na0.5TiO3, BNT) with a typical ABO3-type perovskite structure has been regarded as a good alternative to lead-based ceramics because of its prominent dielectric and ferroelectric performance [15], such as large polarization derived from the orbital hybridization between a 6s2 long pair of A-site Bi3+ and the 2p electron of O2− [16,17], which is beneficial to energy storage performance. However, the high coercive field (Ec) renders its application in electronic equipment impractical [18].
As an energy storage material, large saturated polarization, low remnant polarization (Pr) and high electric breakdown field strength (Eb) are required according to the related equations [10,19,20], by which the energy storage density (Wrec) and efficiency (η) of the dielectric capacitor can be obtained. Evidently, in order to enhance the energy storage properties, the key issue to be solved is to reduce Pr and Ec, which guides researchers to design BNT-based energy storage materials with the characteristic of slim polarization hysteresis loops. Correspondingly, a series of BNT-based solid solutions have been designed by forming relaxor ferroelectrics (RFE) [21,22,23,24,25,26,27,28,29,30]. Chandrasekhar et al. reported the energy storage performance of BNT-BaTiO3 (BNT-BT) binary system ceramics [21]. Based on this, Xu et al. designed (1−x)BNT-BT-xNaNbO3 relaxor ferroelectric ceramics, and the optimum energy storage properties were obtained in the ceramics with x = 0.10 [22]. Then, BNBT-0.06KNbO3 ceramics were prepared and the energy storage performance with Wrec of 0.89 J/cm3 at 100 kV/cm was observed [23]. In addition, Wang et al. [24] employed the conventional solid-state reaction method to fabricate BNT-BT-0.1Na0.73Bi0.09NbO3 lead-free ceramics, and the optimal Wrec reached up to 1.56 J/cm3 with an energy efficiency of η = 92.5% at 120 kV/cm. Moreover, (Y0.5Ta0.5)4+ complex ions were introduced into BNT-BT ceramics and an improved Wrec of 1.41 J/cm3 at 98 kV/cm was obtained [25]. Obviously, these studies selected BNT-BT as the matrix and included additional elements/compositions to increase the energy storage properties, but they paid little attention to the influence of BT content on the energy storage properties. Furthermore, the introduction of Bi(Mg2/3Nb1/3)O3 in BNT ceramics would induce the phase transition and optimize the energy storage density of the system [26].
Based on the above analysis, in this work, BaTiO3 was introduced to the 0.94Na0.5Bi0.5TiO3-0.06Bi(Mg2/3Nb1/3)O3 system and the composition of 0.94[(1−x)Na0.5Bi0.51TiO3-xBaTiO3]-0.06Bi(Mg2/3Nb1/3)O3 was designed. In addition, the influence of BaTiO3 content on phase structure, microstructure, dielectric, ferroelectric properties, and energy storage properties was investigated in detail.

2. Materials and Methods

0.94[(1−x)Na0.5Bi0.5TiO3-xBaTiO3]-0.06Bi(Mg2/3Nb1/3)O3 (abbreviated as BNT-100xBT- BMN, x = 0, 0.03, 0.05, 0.07) ceramics were fabricated via the conventional solid-state reaction [31]. The raw materials, including TiO2 (>98.0%, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), Bi2O3 (>99.9%, Sinopharm Chemical Reagent Co., Ltd.), Na2CO3 (>99.8%, Sinopharm Chemical Reagent Co., Ltd.), BaTiO3 (>99.5%, Sinopharm Chemical Reagent Co., Ltd.), MgO (>98.5%, Sinopharm Chemical Reagent Co., Ltd.), and Nb2O5 (>99.5%, Sinopharm Chemical Reagent Co., Ltd.) were weighed according to the stoichiometric ratio and then ball milled with ZrO2 balls in alcohol (>99.7%, Tianjin Fuyu Fine Chemical Co., Ltd., Tianjin, China) at the speed of 300 r/min for 8 h. After being dried and sieved (120 mesh), the mixtures were sintered at 800 °C for 2 h. The sintered powders were ball milled for 8 h again, dried, sieved (200 mesh), and then sintered at 850 °C for 2 h. The obtained powers were ball milled in alcohol for 6 h and dried. Afterward, the powers were uniaxially pressed into 13mm-diameter pellets under a pressure of ~300 MPa with 6 wt% polyvinyl alcohol (PVA) as the binder. Finally, the pellets were sintered at 1080–1140 °C for 2 h after being heated at 550 °C for 3 h to burn out the PVA. To inhibit the volatilization of sodium and bismuth, the pellets were covered by the corresponding powers during sintering.
The phase structure of the sintered ceramic samples was identified by X-ray diffraction (XRD; D8 Advance, Bruker AXS, Karlsruhe, Germany) operated at 40 kV with CuKɑ radiation (λ = 1.5406 Å) and the scanning speed was 0.02°/s. The Rietveld refinement of XRD patterns was performed by the General Structure Analysis System (GSAS) software. The microstructure and elemental composition mapping of the free surface of sintered samples were observed by scanning electron microscopy (SME; S-4800, Hitachi, Japan) operated at 10 kV in the secondary electron mode, equipped with energy-dispersive X-ray spectroscopy (EDS; FeatureMax, Oxfordshire, UK). The average grain size distributions were determined by using analytical software (Nano Measurer). Before electrical measurements, the obtained ceramic samples were polished to 0.5 mm in thickness and coated with silver paste on both sides and then fired at 850 °C for 10 min. The dielectric temperature-dependent and frequency-dependent spectra were measured in the air atmosphere by a precise LCR meter (E4294, Agilent, Santa Clara, USA) from 25 °C to 500 °C. The polarization hysteresis loops were detected using a ferroelectric analyzer (TF-3000, AixACCT, Aachen, Germany) at 1 Hz from 20 °C to 200 °C.

3. Results

Figure 1a shows XRD patterns measured at room temperature of BNT-100xBT-BMN (x = 0, 0.03, 0.05, and 0.07) ceramics with the maximum bulk density. As can be seen from the patterns, all the samples exhibit a perovskite structure, suggesting that BT has successfully diffused into the BNT-BMN ceramic lattices. Additionally, all the diffraction peaks shift towards lower angles with the increase in BT content, indicating that the lattice parameters increased due to the fact that A-site complex ions (the radius: Bi3+ = 1.36 Å, Na+ = 1.39 Å) are replaced by the larger Ba2+ (the radius: 1.61 Å) [32,33,34]. In addition, it is clear that the (111) diffraction peak around 39.5°–40.5° gradually splits into (003) and (021) peaks with the addition of BT, as displayed in the magnified views in Figure 1b. Meanwhile, the (200) peak at around 46°–47° for all the ceramics splits into (002) and (200) peaks, as shown in Figure 1c. All these typical features implied that BNT-100xBT-BMN (x = 0, 0.03, 0.05, and 0.07) ceramics were the two-phase coexistence of a tetragonal structure and a rhombohedral structure [16,35]. In order to further understand the crystal structure of BNT-100xBT-BMN ceramics, the tetragonal P4bm and rhombohedral R3c were selected to conduct the Rietveld refinement of XRD data by the GSAS software. As shown in Figure 1d,e, the reliability factor of weighted patterns (Rwp), the reliability factor of patterns (Rp), and the goodness-of-fit indicator (χ2) for x = 0.03 and x = 0.07 ceramics are 7.40% and 6.48%, 5.92% and 5.18%, and 1.682 and 1.553, respectively, suggesting the structural model is valid and the refinement result is reliable. The obtained lattice parameters a, b, and c for both P4bm and R3c are displayed in Table 1. This result is consistent with the phenomenon that the diffraction peak moves to a lower degree as the BT content increases in Figure 1.
The microstructure of the natural surface of the BNT-100xBT-BMN ceramic samples is shown in Figure 2. It can be found that all samples exhibit block-shaped grains and the grain size of BNT-100xBT-BMN ceramics gradually decreases with increasing BT content. As insets of Figure 2a–d display, the average grain size of BNT-100xBT-BMN ceramics is approximately 0.955 µm, 0.803 µm, 0.725µm, and 0.695 µm for x = 0, 0.03, 0.05, and 0.07, respectively. Because the system has a multicomponent and very complicated nature, the grain size refinement can be due to many reasons. A possible reason is that Ba2+ has a lower diffusion rate during the sintering process due to the higher ionic radius and atomic weight, which inhibits the growth of grains [36]. Commonly, small grain size and uniform grain distribution are beneficial to enhance the density of ceramics, thus improving the dielectric breakdown strength and energy storage density of ceramics [37,38,39]. Figure 2e displays the EDS mapping images of x = 0.07 ceramics. Clearly, all elements, including Bi, Na, Ti, Ba, Mg, Nb, and O, are distributed homogeneously. Moreover, the uniform distribution of the Ba element suggests that BaTiO3 has been successfully diffused into the BNT-BMN lattices, which is consistent with the results of the XRD pattern.
Figure 3 shows the temperature-dependent dielectric properties of BNT-100xBT-BMN ceramics at different frequencies (1 KHz–100 kHz). For all the ceramic samples, there are two dielectric anomalies, which were derived from the thermal evolution and mutual transformation of two kinds of polar nanoregions with different symmetries [40]. The first dielectric anomaly peak is Ts, which is generally considered to be caused by the thermal evolution of the P4bm and R3c PNRs. The second dielectric anomaly peak appears at temperature Tm, and Tm is the temperature at which the permittivity reaches a maximum value. With the increase in BT content, Ts and Tm move towards low temperatures from 338 °C for x = 0 to 277 °C for x = 0.03 and 271 °C for x = 0.05 to 269 °C for x = 0.07 ceramics. Moreover, as frequency increases, the first dielectric anomaly peak Ts moves towards a high temperature, which is one of the distinctive features characterizing relaxor ferroelectrics. In addition, the dielectric constant of BNT-100xBT-BMN ceramics generally increased with the increase in BT, which is likely due to the fact that the Bi3+ and Na+ at the A-site in ABO3 are replaced by Ba2+ with a larger radius, resulting in a larger local deformation of the unit cell [41]. The dielectric constants of x = 0, 0.03, 0.05, and 0.07 at room temperature under 1 kHz are 875, 1209, 1458, and 1554, respectively.
The polarization-electric field (P-E) hysteresis loops of BNT-100xBT-BMN ceramics measured under 40 kV/cm at room temperature are given in Figure 4a. Apparently, with the increase in BT content, the Pmax increases prominently while the Pr increases inconspicuously, which could facilitate the improvement of energy storage density in BNT-100xBT-BMN ceramics (in Figure 4b) [16,42]. As is known, the improvement of Wrec requires not only high Pmax and low Pr but also high E, which is also one of the key parameters in determining the performance of energy storage ceramics [35]. Hence, the P-E loops of the x = 0.07 ceramics under different electric fields are displayed in Figure 5. It can be found that with increasing electric fields, the P-E loops become slender, and Pmax associated with ΔP increases significantly while Pr increases slightly. Ultimately, under an electric field of 80 kV/cm, Pmax and ΔP reach their maximums (Figure 5b) at 38.29 μC/cm2 and 33.26 μC/cm2, respectively. Correspondingly, the good energy storage performance at a low electric field of 80 kV/cm was obtained in x = 0.07 ceramics (Wrec = 1.022 J/cm3, η = 62.90%), as shown in Figure 5c. It manifests that the x = 0.07 relaxor ceramics can be regarded as a promising candidate material for energy storage devices.
In view of their practical application in electronic systems, especially pulsed power systems, thermal stability is also an important indicator of energy storage performance. Figure 6a depicts the temperature-dependent bipolar P-E loops for x = 0.07 ceramics under the applied E of 50 kV/cm in the temperature range of 25–200 °C. It can be found that the P-E loops become more constricted and slimmer as the temperature increases up to 125 °C, suggesting that the weakly polar phase increases during the heating process at a temperature lower than the Td and thus suppresses the domain inversion under the external electric field [35,43,44,45]. However, above 125 °C, the constricted P-E loop gradually opened, and Pr increased (Figure 6b), which might be attributed to the movement of heat-activated carriers, leading to an increase in conduction and leakage loss, as can be seen in Figure 6d [44,45]. Interestingly, an identical variation in the temperature dependence of Wrec and η occurred (Figure 6c), that is both Wrec and η increase with increasing temperature up to 125 °C (Wrec = 0.55 J/cm3 and η = 91.05% at 125 °C) and then decrease as the temperature further increased. Apparently, a thermal stability test exhibited a variation of more than 15% in Wrec, which may be due to the inappropriately working E. It has been reported that there is an appropriate E under which the Wrec of the ceramics can almost remain unchanged with increasing/decreasing temperature, and the opportune E is found to be slightly higher than the forward switching field and lower than the saturated electric field, such as in Pb0.97La0.02(Zr0.58Sn0.335Ti0.085)O3 antiferroelectric ceramics [46]. Hence, the P-E loops of x = 0.07 ceramics at 125 °C under various electric fields (10 kV/cm~50 kV/cm) have been measured (shown in Figure 7a). Clearly, the P-E loops are all very slim, and as the electric field increases, the Pmax increases sharply while the Pr has little change (Figure 7b) leading to the maximum Wrec obtained under the electric field of 50 kV/cm, which indicates that the applied E (50 kV/cm) is too low to maintain the temperature stability of the Wrec.

4. Conclusions

In summary, new lead-free relaxor ferroelectric BNT-100xBT-BMN ceramics were successfully synthesized by conventional solid-state reactions. All compositions exhibited the two-phase coexistence of tetragonal structure and rhombohedral structure. As the BT content increased, the proportion of the rhombohedral R3c phase increased, while that of the tetragonal P4bm phase decreased, and the grain size of BNT-100xBT-BMN ceramics decreased from 0.955 µm to 0.695 µm, leading to the maximum Pmax and Eb in x = 0.07 composition. The optimal Wrec of 1.02 J/cm3 and η of 62.91% under 80 kV/cm at room temperature were obtained in x = 0.07 ceramics. Moreover, thermal stability in Wrec under 50 kV/cm exhibited a variation of more than 15%, manifesting that a higher or lower working E could result in a temperature-sensitive Wrec, and the working E should be optimized to meet the practical requirement of thermally stable energy storage capacitors.

Author Contributions

Conceptualization, Z.L. (Zhuo Li) and C.W.; methodology, Z.L. (Zhuo Li), D.Z. and C.W.; investigation, D.Z. and J.Z.; data curation, Z.W. (Zixuan Wang), J.Z. and Z.W. (Zhuo Wang); writing—original draft preparation, D.Z.; writing—review and editing, Z.L. (Zhuo Li), D.W. and Z.L (Zhilun Lu); visualization, D.Z. and C.W; project administration, X.Y., T.A. and Y.N. and All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundations of China (Grant Nos. 52278427 and 11604022), the Natural Science Foundation of Shaanxi province, China (No. 2021JM-172), the Fundamental Research Funds for the Central Universities, CHD (Nos. 300102311404 and 300102310301), the Key Research and Development Projects of Shaanxi Province (No. 2022GY-424), and Undergraduate Training Programs for Innovation and Entrepreneurship of Chang’an University (Nos. S202210710249 and X202210710580).

Data Availability Statement

The data that support the finding of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Qiao, X.; Wu, D.; Zhang, F.; Niu, M.; Chen, B.; Zhao, X.; Liang, P.; Wei, L.; Chao, X.; Yang, Z. Enhanced energy density and thermal stability in relaxor ferroelectric Bi0.5Na0.5TiO3-Sr0.7Bi0.2TiO3 ceramics. J. Eur. Ceram. Soc. 2019, 39, 4778–4784. [Google Scholar] [CrossRef]
  2. Sun, N.; Li, Y.; Liu, X.; Hao, X. High energy-storage density under low electric field in lead-free relaxor ferroelectric film based on synergistic effect of multiple polar structures. J. Power Sources 2020, 448, 227457. [Google Scholar] [CrossRef]
  3. Zhang, L.; Wang, Z.; Li, Y.; Chen, P.; Cai, J.; Yan, Y.; Zhou, Y.; Wang, D.; Liu, G. Enhanced energy storage performance in Sn doped Sr0.6(Na0.5Bi0.5)0.4TiO3 lead-free relaxor ferroelectric ceramics. J. Eur. Ceram. Soc. 2019, 39, 3057–3063. [Google Scholar] [CrossRef]
  4. Qi, H.; Zuo, R. Linear-like lead-free relaxor antiferroelectric (Bi0.5Na0.5)TiO3–NaNbO3 with giant energy-storage density/efficiency and super stability against temperature and frequency. J. Mater. Chem. A 2019, 7, 3971–3978. [Google Scholar] [CrossRef]
  5. Han, D.; Zhang, B.; Zhao, D.; Zhao, J.; Liu, Y.; Zheng, S.; Fan, L.; Wang, C.; Wang, D.; Meng, F. Superior energy storage properties of (1−x)Ba0.85Ca0.15Zr0.1Ti0.9O3−xBi(Mg2/3Ta1/3)O3 lead-free ceramics. J. Alloy. Compd. 2023, 946, 169300. [Google Scholar] [CrossRef]
  6. Lu, Z.; Sun, D.; Wang, G.; Zhao, J.; Zhang, B.; Wang, D. Energy storage properties in Nd doped AgNbTaO3 lead-free antiferroelectrics with Nb-site vacancies. J. Adv. Dielectr. 2022, 12, 2242006. [Google Scholar] [CrossRef]
  7. Zhang, B.; Chen, X.; Pan, Z.; Liu, P.; Mao, M.; Song, K.; Mao, Z.; Sun, R.; Wang, D.; Zhang, S. Superior high-temperature energy density in molecular semiconductor/polymer all-organic composites. Adv. Funct. Mater. 2022, 33, 2210050. [Google Scholar] [CrossRef]
  8. Hu, D.; Pan, Z.; He, Z.; Yang, F.; Zhang, X.; Li, P.; Liu, J. Significantly improved recoverable energy density and ultrafast discharge rate of Na0.5Bi0.5TiO3-based ceramics. Ceram. Int. 2020, 46, 15364–15371. [Google Scholar] [CrossRef]
  9. Li, Q.; Wang, J.; Ma, Y.; Ma, L.; Dong, G.; Fan, H. Enhanced energy-storage performance and dielectric characterization of 0.94Bi0.5Na0.5TiO3–0.06BaTiO3 modified by CaZrO3. J. Alloy. Compd. 2016, 663, 701–707. [Google Scholar] [CrossRef]
  10. Jiang, Z.; Yang, Z.; Yuan, Y.; Tang, B.; Zhang, S. High energy storage properties and dielectric temperature stability of (1−x)(0.8Bi0.5Na0.5TiO3-0.2Ba0.3Sr0.7TiO3)−xNaNbO3 lead-free ceramics. J. Alloy. Compd. 2021, 851, 156821. [Google Scholar] [CrossRef]
  11. Yang, Y.; Wang, H.; Bi, L.; Zheng, Q.; Fan, G.; Jie, W.; Lin, D. High energy storage density and discharging efficiency in La3+/Nb5+-co-substituted (Bi0.5Na0.5)0.94Ba0.06TiO3 ceramics. J. Eur. Ceram. Soc. 2019, 39, 3051–3056. [Google Scholar] [CrossRef]
  12. Li, Q.; Yao, Z.; Ning, L.; Gao, S.; Hu, B.; Dong, G.; Fan, H. Enhanced energy-storage properties of (1−x)(0.7Bi0.5Na0.5TiO3-0.3Bi0.2Sr0.7TiO3)-xNaNbO3 lead-free ceramics. Ceram. Int. 2018, 44, 2782–2788. [Google Scholar] [CrossRef]
  13. Chen, P.; Li, P.; Zhai, J.; Shen, B.; Li, F.; Wu, S. Enhanced dielectric and energy-storage properties in BiFeO3-modified Bi0.5(Na0.8K0.2)0.5TiO3 thin films. Ceram. Int. 2017, 43, 13371–13376. [Google Scholar] [CrossRef]
  14. Bai, W.; Wang, L.; Zhao, X.; Zheng, P.; Wen, F.; Li, L.; Zhai, J.; Ji, Z. Tailoring frequency-insensitive large field-induced strain and energy storage properties in (Ba0.85Ca0.15)(Zr0.1Ti0.9)O3-modified (Bi0.5Na0.5)TiO3 lead-free ceramics. Dalton Trans. 2019, 48, 10160–10173. [Google Scholar] [CrossRef]
  15. Dong, G.; Fan, H.; Liu, H.; Jia, Y. Enhanced temperature stable dielectric property and energy-storage performance of (1−x)(0.66Bi0.5Na0.5TiO3–0.34Sr0.7Bi0.2TiO3)– xK0.5Nd0.5TiO3 lead-free relaxor electroceramics. Ceram. Int. 2020, 46, 23194–23199. [Google Scholar] [CrossRef]
  16. Fan, X.; Li, P.; Du, J.; Chen, C.; Fu, P.; Hao, J.; Yue, Z.; Li, W. High-energy storage performance of (1−x)[0.935(Bi0.5Na0.5)TiO3–0.065BaTiO3]–xBa(Zr0.3Ti0.7)O3 ceramics with wide temperature range. J. Mater. Sci. Mater. Electron. 2020, 31, 9974–9981. [Google Scholar] [CrossRef]
  17. Zhou, X.; Qi, H.; Yan, Z.; Xue, G.; Luo, H.; Zhang, D. Large energy density with excellent stability in fine-grained (Bi0.5Na0.5)TiO3-based lead-free ceramics. J. Eur. Ceram. Soc. 2019, 39, 4053–4059. [Google Scholar] [CrossRef]
  18. Zhao, Y.; Xu, J.; Zhou, C.; Yuan, C.; Li, Q.; Chen, G.; Wang, H.; Yang, L. High energy storage properties and dielectric behavior of (Bi0.5Na0.5)0.94Ba0.06Ti1−x(Al0.5Nb0.5)xO3 lead-free ferroelectric ceramics. Ceram. Int. 2016, 42, 2221–2226. [Google Scholar] [CrossRef]
  19. Yan, F.; Huang, K.; Jiang, T.; Zhou, X.; Shi, Y.; Ge, G.; Shen, B.; Zhai, J. Significantly enhanced energy storage density and efficiency of BNT-based perovskite ceramics via A-site defect engineering. Energy Storage Mater. 2020, 30, 392–400. [Google Scholar] [CrossRef]
  20. Huang, Y.; Li, F.; Hao, H.; Xia, F.; Liu, H.; Zhang, S. (Bi0.51Na0.47)TiO3 based lead free ceramics with high energy density and efficiency. J. Materiomics 2019, 5, 385–393. [Google Scholar] [CrossRef]
  21. Chandrasekhar, M.; Kumar, P. Synthesis and characterizations of BNT–BT and BNT–BT–KNN ceramics for actuator and energy storage applications. Ceram. Int. 2015, 41, 5574–5580. [Google Scholar] [CrossRef]
  22. Xu, Q.; Li, T.; Hao, H.; Zhang, S.; Wang, Z.; Cao, M.; Yao, Z.; Liu, H. Enhanced energy storage properties of NaNbO3 modified Bi0.5Na0.5TiO3 based ceramics. J. Eur. Ceram. Soc. 2015, 35, 545–553. [Google Scholar] [CrossRef]
  23. Wang, B.; Luo, L.; Jiang, X.; Li, W.; Chen, H. Energy-storage properties of (1−x)Bi0.47Na0.47Ba0.06TiO3–xKNbO3 lead-free ceramics. J. Alloy. Compd. 2014, 585, 14–18. [Google Scholar] [CrossRef]
  24. Wang, J.; Fan, H.; Hu, B.; Jiang, H. Enhanced energy-storage performance and temperature-stable dielectric properties of (1−x)(0.94Na0.5Bi0.5TiO3–0.06BaTiO3)–xNa0.73Bi0.09NbO3 ceramics. J. Mater. Sci. Mater. Electron. 2018, 30, 2479–2488. [Google Scholar] [CrossRef]
  25. Yan, B.; Fan, H.; Wang, C.; Zhang, M.; Yadav, A.; Zheng, X.; Wang, H.; Du, Z. Giant electro-strain and enhanced energy storage performance of (Y0.5Ta0.5)4+ co-doped 0.94(Bi0.5Na0.5)TiO3-0.06BaTiO3 lead-free ceramics. Ceram. Int. 2020, 46, 281–288. [Google Scholar] [CrossRef]
  26. Li, Z.; Wang, Z.; Yang, Q.; Zhang, D.; Fang, M.; Li, Z.; Gao, B.; Zhang, J.; Lei, N.; Zheng, L.; et al. Phase transition and energy storage properties of Bi0.5Na0.5TiO3–Bi(Mg2/3Nb1/3)O3 lead-free ceramics. Ceram. Int. 2023, 49, 9615–9621. [Google Scholar] [CrossRef]
  27. Li, Z.; Yang, Q.; Wang, C.; Zhang, J.; Wang, Z.; Gao, B.; Li, Z.; Wang, Z.; Yan, X.; Ai, T.; et al. A Brief Review of Sodium Bismuth Titanate-Based Lead-Free Materials for Energy Storage: Solid Solution Modification, Metal/Metallic Oxide Doping, Defect Engineering and Process Optimizing. Crystals 2023, 13, 295. [Google Scholar] [CrossRef]
  28. Li, H.; Zhou, S.; Zhao, J.; Yan, T.; Du, Y.; Zhou, H.; Pu, Y.; Wang, D. Dielectric temperature stability and energy storage performance of NBT-based lead-free ceramics for Y9P capacitors. J. Adv. Dielectr. 2022, 12, 2242007. [Google Scholar] [CrossRef]
  29. Tihtih, M.; Ibrahim, J.; Basyooni, M.; Kurovics, E.; Belaid, W.; Hussainova, I.; Kocserha, I. Role of A-site (Sr), B-site (Y), and A, B sites (Sr, Y) substitution in lead-free BaTiO3 ceramic compounds: Structural, optical, microstructure, mechanical, and thermal conductivity properties. Ceram. Int. 2023, 49, 1947–1959. [Google Scholar] [CrossRef]
  30. Tihtih, M.; Ibrahim, J.; Basyooni, M.; En-nadir, R.; Hussainova, I.; Kocserha, I. Functionality and Activity of Sol-Gel-Prepared Co and Fe co-Doped Lead-Free BTO for Thermo-Optical Applications. ACS Omega 2023, 8, 5003–5016. [Google Scholar] [CrossRef]
  31. Long, C.; Zhou, W.; Liu, L.; Song, H.; Wu, H.; Zheng, K.; Ren, W.; Ding, X. Achieving excellent energy storage performances and eminent charging-discharging capability in donor (1−x)BT-x(BZN-Nb) relaxor ferroelectric ceramics. Chem. Eng. J. 2023, 459, 141490. [Google Scholar] [CrossRef]
  32. Tang, W.; Xu, Q.; Liu, H.; Yao, Z.; Hao, H.; Cao, M. High energy density dielectrics in lead-free Bi0.5Na0.5TiO3–NaNbO3–Ba(Zr0.2Ti0.8)O3 ternary system with wide operating temperature. J. Mater. Sci. Mater. Electron. 2016, 27, 6526–6534. [Google Scholar] [CrossRef]
  33. Zhang, L.; Pu, Y.; Chen, M. Ultra-high energy storage performance under low electric fields in Na0.5Bi0.5TiO3-based relaxor ferroelectrics for pulse capacitor applications. Ceram. Int. 2020, 46, 98–105. [Google Scholar] [CrossRef]
  34. Wu, Y.; Fan, Y.; Liu, N.; Peng, P.; Zhou, M.; Yan, S.; Cao, F.; Dong, X.; Wang, G. Enhanced energy storage properties in sodium bismuth titanate-based ceramics for dielectric capacitor applications. J. Mater. Chem. C 2019, 7, 6222–6230. [Google Scholar] [CrossRef]
  35. Wang, H.; Yuan, H.; Li, X.; Zeng, F.; Wu, K.; Zheng, Q.; Fan, G.; Lin, D. Enhanced energy density and discharged efficiency of lead-free relaxor (1−x)[(Bi0.5Na0.5)0.94Ba0.06]0.98La0.02TiO3-xKNb0.6Ta0.4O3 ceramic capacitors. Chem. Eng. J. 2020, 394, 124879. [Google Scholar] [CrossRef]
  36. Zhang, L.; Pu, Y.; Chen, M. Influence of BaZrO3 additive on the energy-storage properties of 0.775Na0.5Bi0.5TiO3-0.225BaSnO3 relaxor ferroelectrics. J. Alloy. Compd. 2019, 775, 342–347. [Google Scholar] [CrossRef]
  37. Qiao, X.; Zhang, F.; Wu, D.; Chen, B.; Zhao, X.; Peng, Z.; Ren, X.; Liang, P.; Chao, X.; Yang, Z. Superior comprehensive energy storage properties in Bi0.5Na0.5TiO3-based relaxor ferroelectric ceramics. Chem. Eng. J. 2020, 388, 124158. [Google Scholar] [CrossRef]
  38. Shi, P.; Zhu, L.; Gao, W.; Yu, Z.; Lou, X.; Wang, X.; Yang, Z.; Yang, S. Large energy storage properties of lead-free (1−x)(0.72Bi0.5Na0.5TiO3-0.28SrTiO3)-xBiAlO3 ceramics at broad temperature range. J. Alloy. Compd. 2019, 784, 788–793. [Google Scholar] [CrossRef]
  39. Zhang, J.; Lin, Y.; Wang, L.; Yang, Y.; Yang, H.; Yuan, Q. Significantly enhanced energy storage density in sodium bismuth titanate-based ferroelectrics under low electric fields. J. Eur. Ceram. Soc. 2020, 40, 5458–5465. [Google Scholar] [CrossRef]
  40. Xu, Q.; Liu, H.; Xie, J.; Zhang, L.; Luo, W.; Huang, X.; Cao, M.; Hao, H.; Yao, Z.; Lanagan, M. High-Temperature Dielectrics in BNT-BT-Based Solid Solution. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2016, 63, 1656–1662. [Google Scholar] [CrossRef]
  41. Yao, Y.; Li, Y.; Sun, N.; Du, J.; Li, X.; Zhang, L.; Zhang, Q.; Hao, X. Enhanced dielectric and energy-storage properties in ZnO-doped 0.9(0.94Na0.5Bi0.5TiO3−0.06BaTiO3)−0.1NaNbO3 ceramics. Ceram. Int. 2018, 44, 5961–5966. [Google Scholar] [CrossRef]
  42. Zhao, X.; Bai, W.; Ding, Y.; Wang, L.; Wu, S.; Zheng, P.; Li, P.; Zhai, J. Tailoring high energy density with superior stability under low electric field in novel (Bi0.5Na0.5)TiO3-based relaxor ferroelectric ceramics. J. Eur. Ceram. Soc. 2020, 40, 4475–4486. [Google Scholar] [CrossRef]
  43. Yang, L.; Kong, X.; Li, F.; Hao, H.; Cheng, Z.; Liu, H.; Li, J.; Zhang, S. Perovskite lead-free dielectrics for energy storage applications. Prog. Mater Sci. 2019, 102, 72–108. [Google Scholar]
  44. Zhu, Z.; Luo, L.; Wang, F.; Du, P.; Zhou, X.; Zhang, Q.; Li, W.; Wang, Y. Improved Depolarization Temperature via the Ordered Alignment of Defect Dipoles in (Na0.5Bi0.5)TiO3-BaTiO3 Ceramics. J. Eur. Ceram. Soc. 2020, 40, 689–698. [Google Scholar] [CrossRef]
  45. Zhang, X.; Hu, D.; Pan, Z.; Lv, X.; He, Z.; Yang, F.; Li, P.; Liu, J.; Zhai, J. Enhancement of Recoverable Energy Density and Efficiency of Lead-free Relaxor-ferroelectric BNT-based Ceramics. Chem. Eng. J. 2021, 406, 126818. [Google Scholar] [CrossRef]
  46. Liu, Z.; Dong, X.; Liu, Y.; Cao, F.; Wang, G. Electric field tunable thermal stability of energy storage properties of PLZST antiferroelectric ceramics. J. Am. Ceram. Soc. 2017, 100, 2382–2386. [Google Scholar] [CrossRef]
Crystals 13 00733 g001a 550Crystals 13 00733 g001b 550

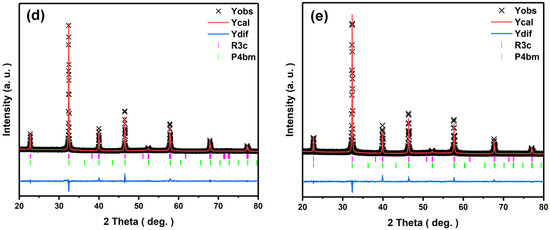

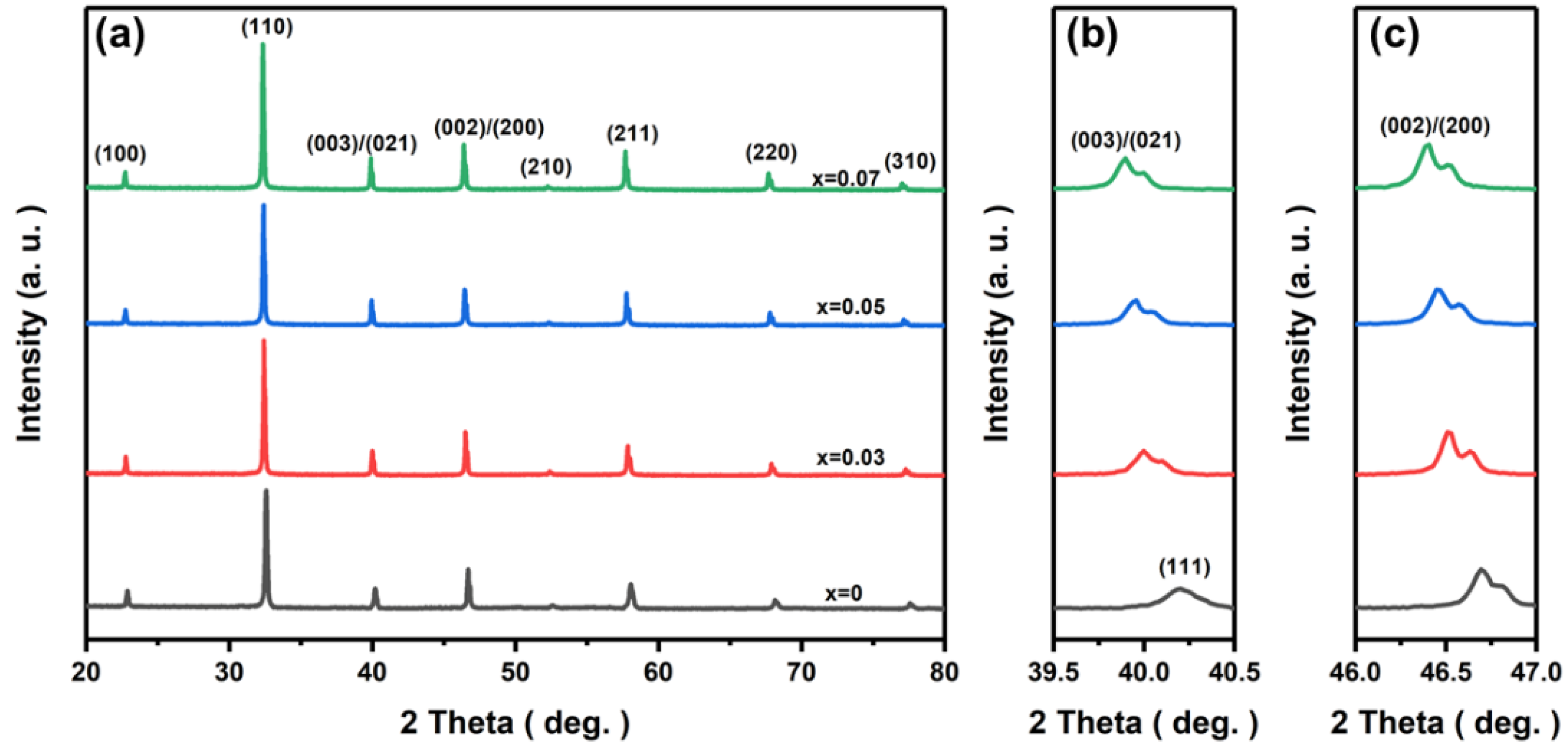

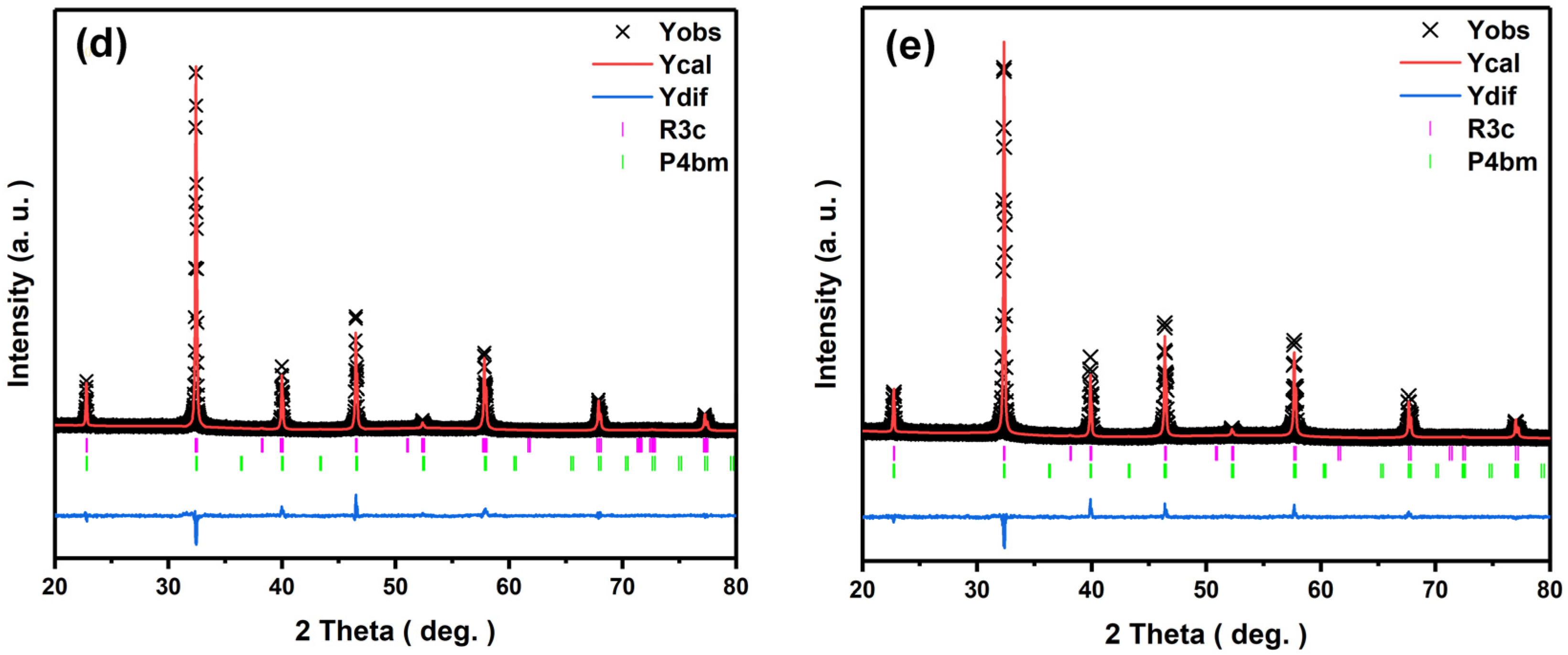

Figure 1. (a) XRD patterns of BNT-100xBT-BMN ceramic samples at room temperature; the enlarged region at 2θ range (b) from 39.5° to 40.5° and (c) from 46° to 47°; the Rietveld refinement results of (d) x = 0.03 and (e) x = 0.07 ceramics.
Figure 1. (a) XRD patterns of BNT-100xBT-BMN ceramic samples at room temperature; the enlarged region at 2θ range (b) from 39.5° to 40.5° and (c) from 46° to 47°; the Rietveld refinement results of (d) x = 0.03 and (e) x = 0.07 ceramics.
Crystals 13 00733 g001aCrystals 13 00733 g001b
Crystals 13 00733 g002 550

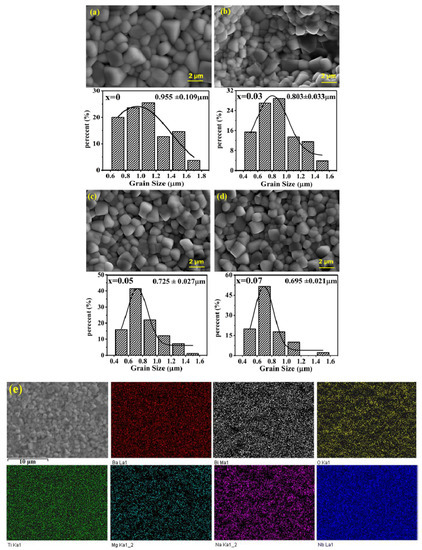

Figure 2. SEM micrographs of the free surface and grain size distribution for BNT-100xBT-BMN ceramics, (a) x = 0, (b) x = 0.03, (c) x = 0.05, (d) x = 0.07; (e) EDS mapping of the x = 0.07 ceramics.
Figure 2. SEM micrographs of the free surface and grain size distribution for BNT-100xBT-BMN ceramics, (a) x = 0, (b) x = 0.03, (c) x = 0.05, (d) x = 0.07; (e) EDS mapping of the x = 0.07 ceramics.
Crystals 13 00733 g002
Crystals 13 00733 g003 550

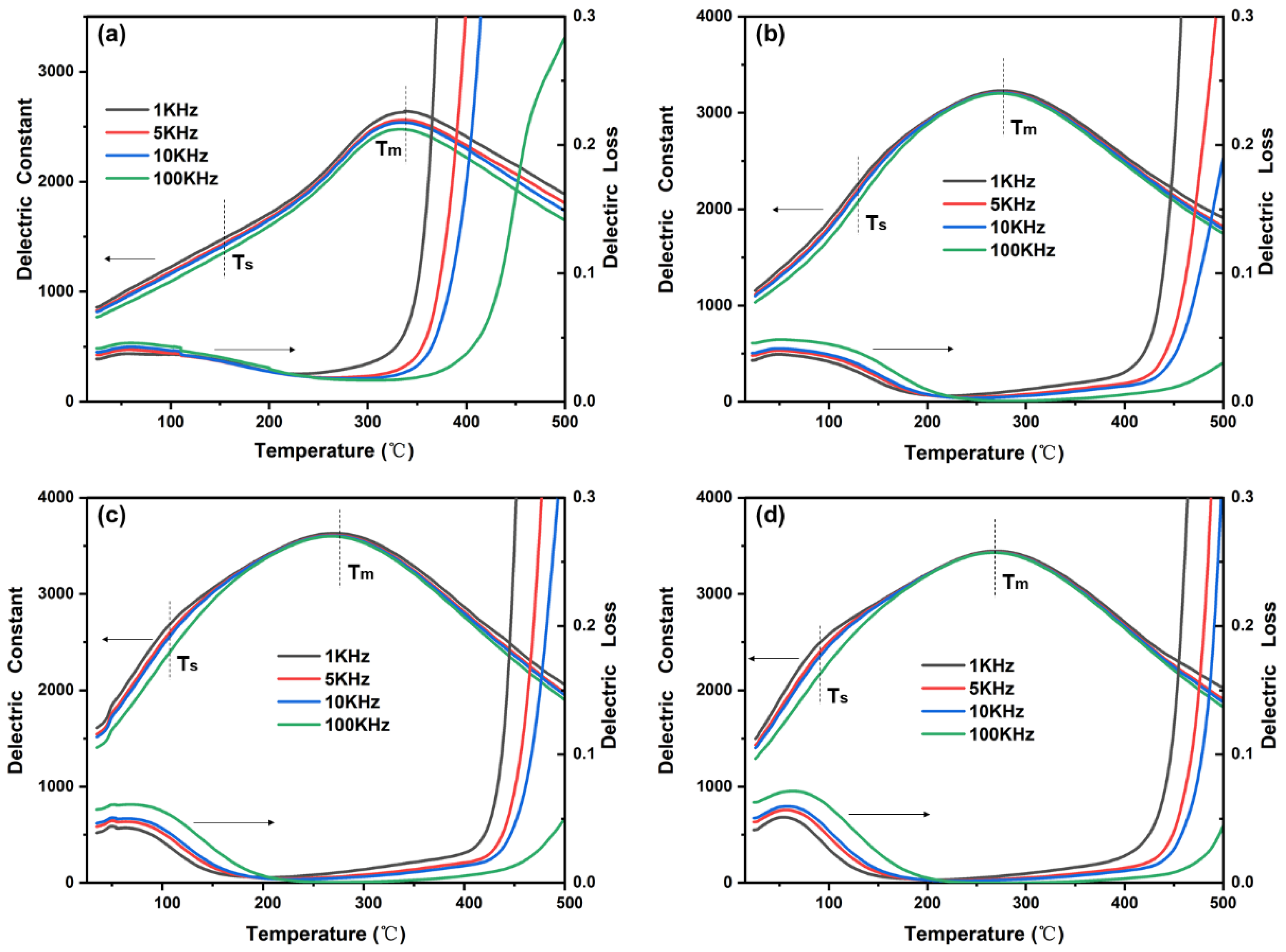

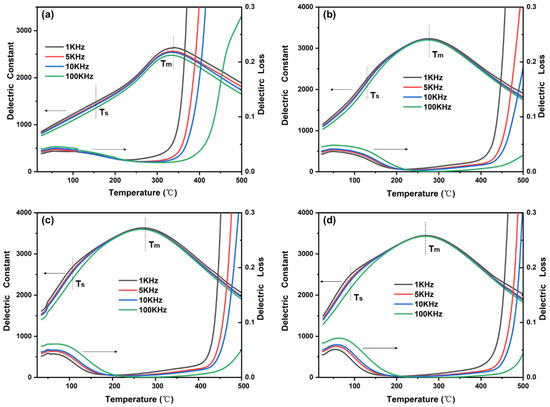

Figure 3. The dielectric constant and dielectric loss as a function of temperature under different frequencies for BNT-100xBT-BMN ceramics, (a) x = 0, (b) x = 0.03, (c) x = 0.05, (d) x = 0.07.
Figure 3. The dielectric constant and dielectric loss as a function of temperature under different frequencies for BNT-100xBT-BMN ceramics, (a) x = 0, (b) x = 0.03, (c) x = 0.05, (d) x = 0.07.
Crystals 13 00733 g003
Crystals 13 00733 g004 550

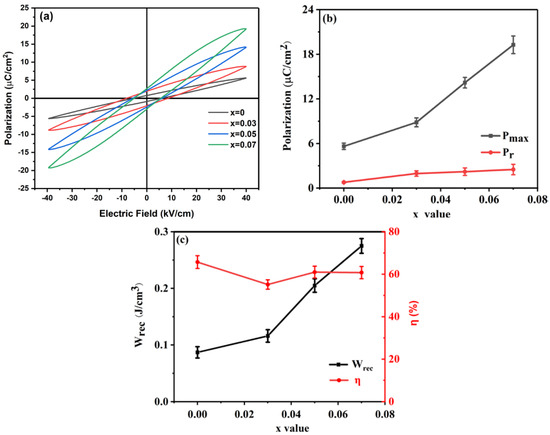

Figure 4. (a) P-E loops of BNT-100xBT-BMN ceramics at room temperature; (b) Pmax and Pr of the BNT-100xBT-BMN ceramics; (c) Wrec and η of the BNT-100xBT-BMN ceramics.
Figure 4. (a) P-E loops of BNT-100xBT-BMN ceramics at room temperature; (b) Pmax and Pr of the BNT-100xBT-BMN ceramics; (c) Wrec and η of the BNT-100xBT-BMN ceramics.
Crystals 13 00733 g004
Crystals 13 00733 g005a 550Crystals 13 00733 g005b 550

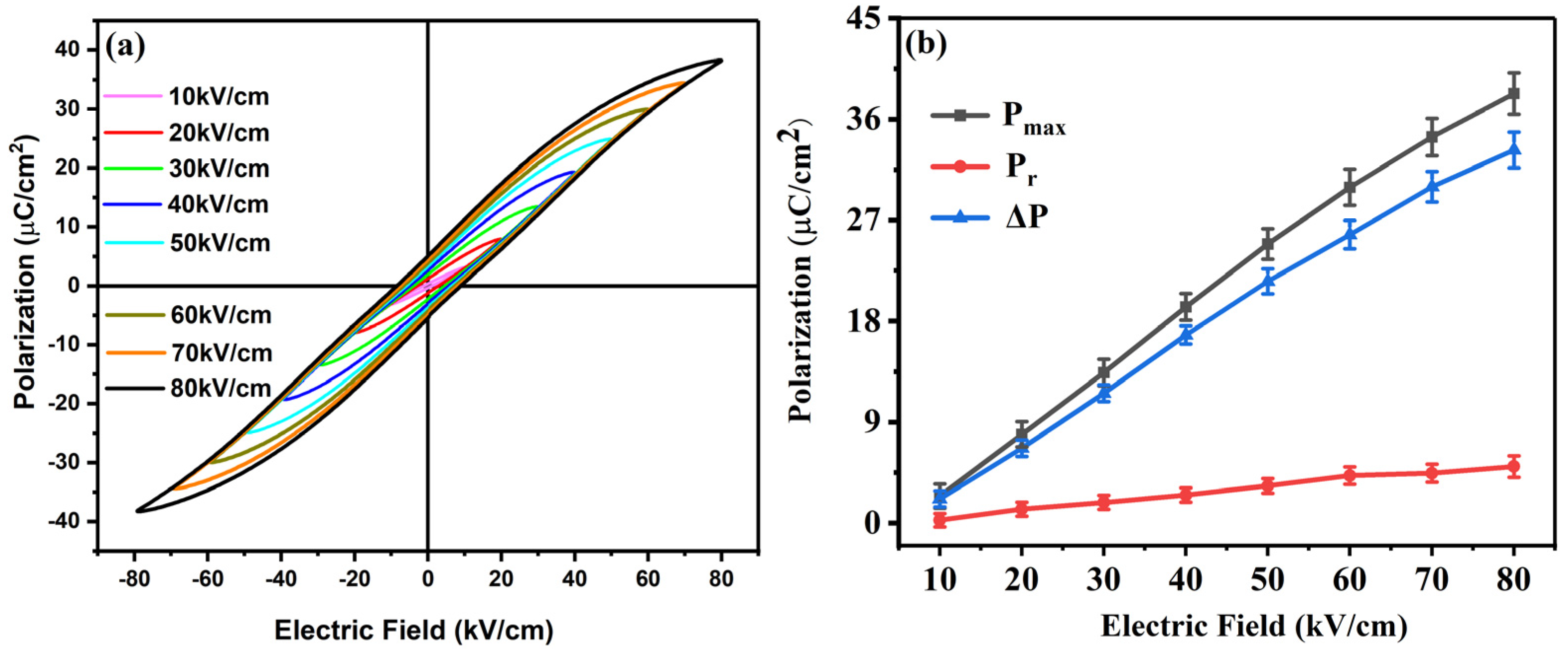

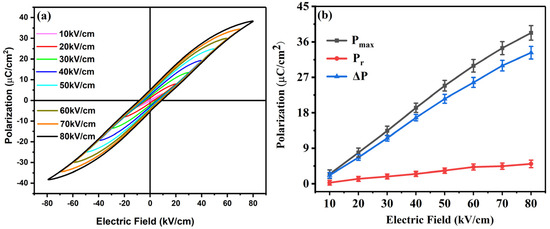

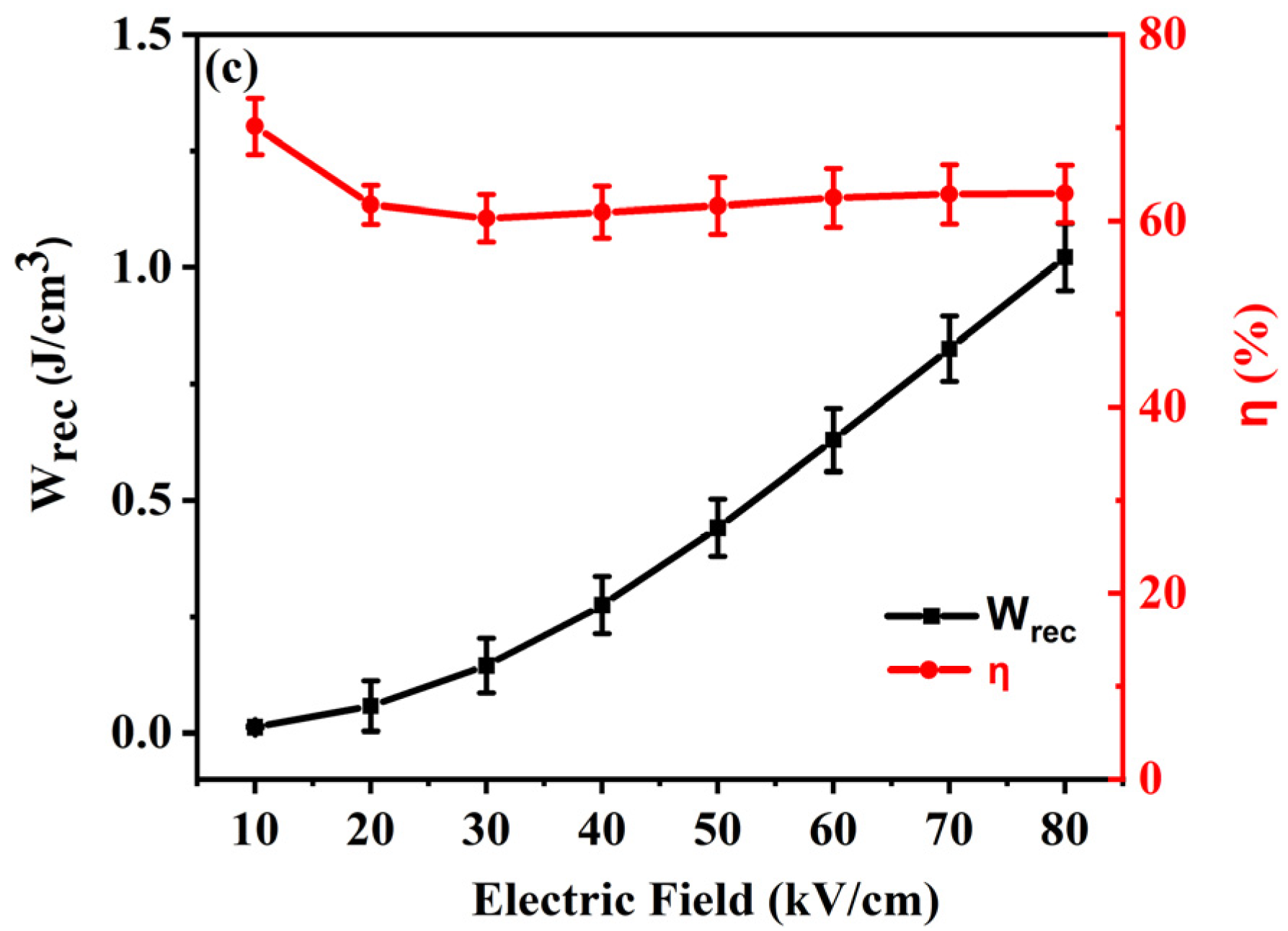

Figure 5. (a) P-E loops of x = 0.07 ceramics measured under different electric fields; (b) Pmax and Pr under different electric fields; (c) the variation of Wrec and η under the electric fields.
Figure 5. (a) P-E loops of x = 0.07 ceramics measured under different electric fields; (b) Pmax and Pr under different electric fields; (c) the variation of Wrec and η under the electric fields.
Crystals 13 00733 g005aCrystals 13 00733 g005b
Crystals 13 00733 g006a 550Crystals 13 00733 g006b 550

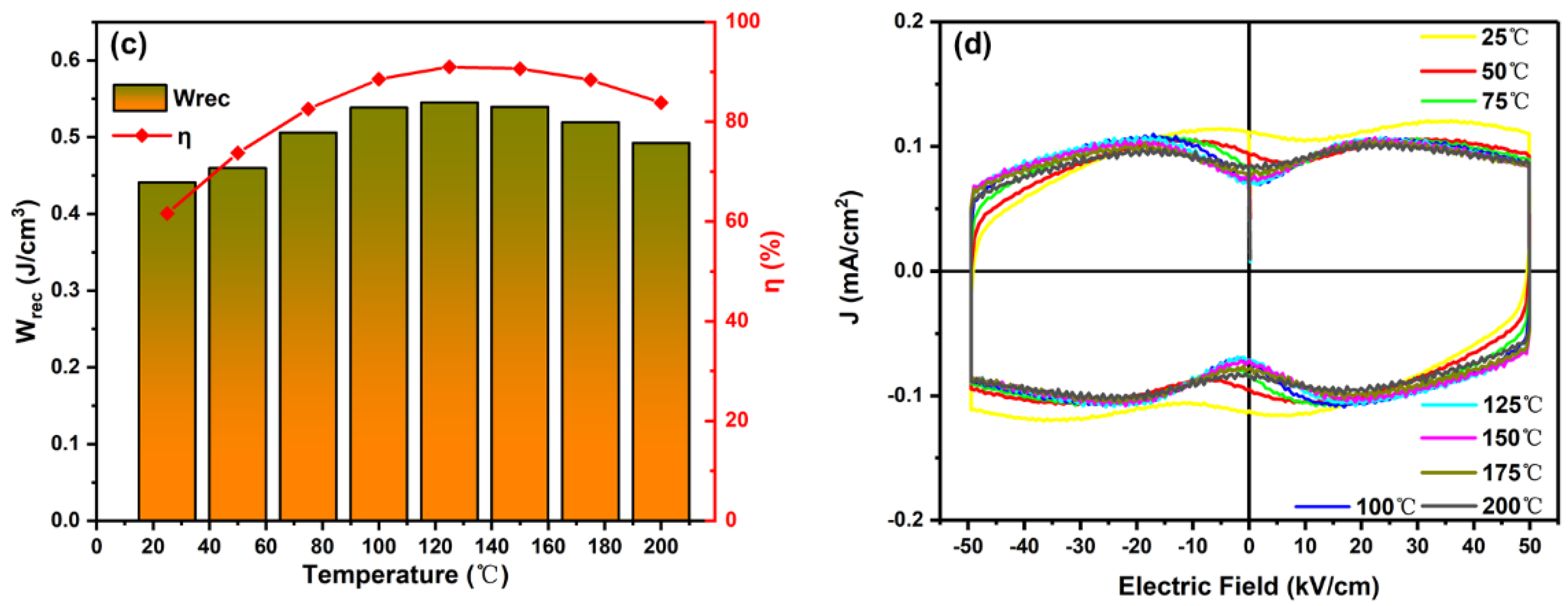

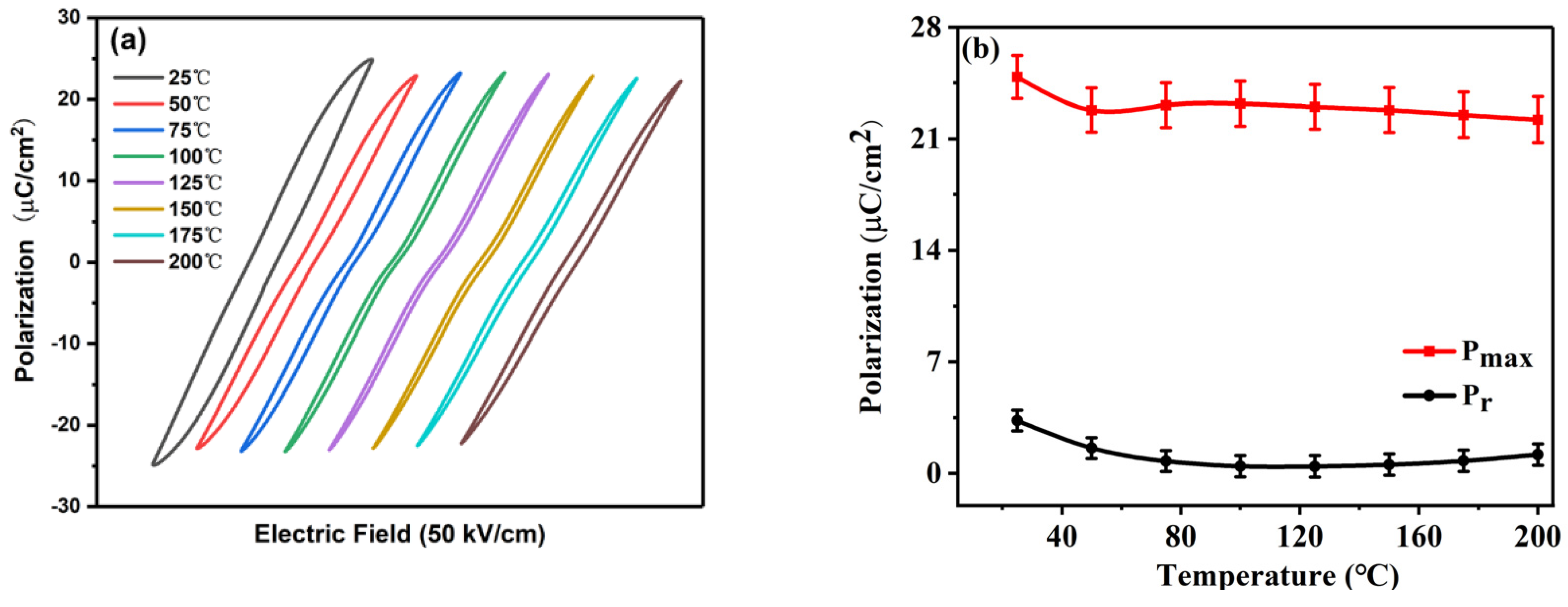

Figure 6. (a) P-E loops of x = 0.07 ceramics measured under different temperatures; (b) Pmax and Pr at different temperatures; (c) Wrec and η of x = 0.07 ceramics under 50 kV/cm at temperature ranges of 25–200 °C; (d) J-E loops of x = 0.07 ceramics measured under different temperatures.
Figure 6. (a) P-E loops of x = 0.07 ceramics measured under different temperatures; (b) Pmax and Pr at different temperatures; (c) Wrec and η of x = 0.07 ceramics under 50 kV/cm at temperature ranges of 25–200 °C; (d) J-E loops of x = 0.07 ceramics measured under different temperatures.
Crystals 13 00733 g006aCrystals 13 00733 g006b
Crystals 13 00733 g007 550

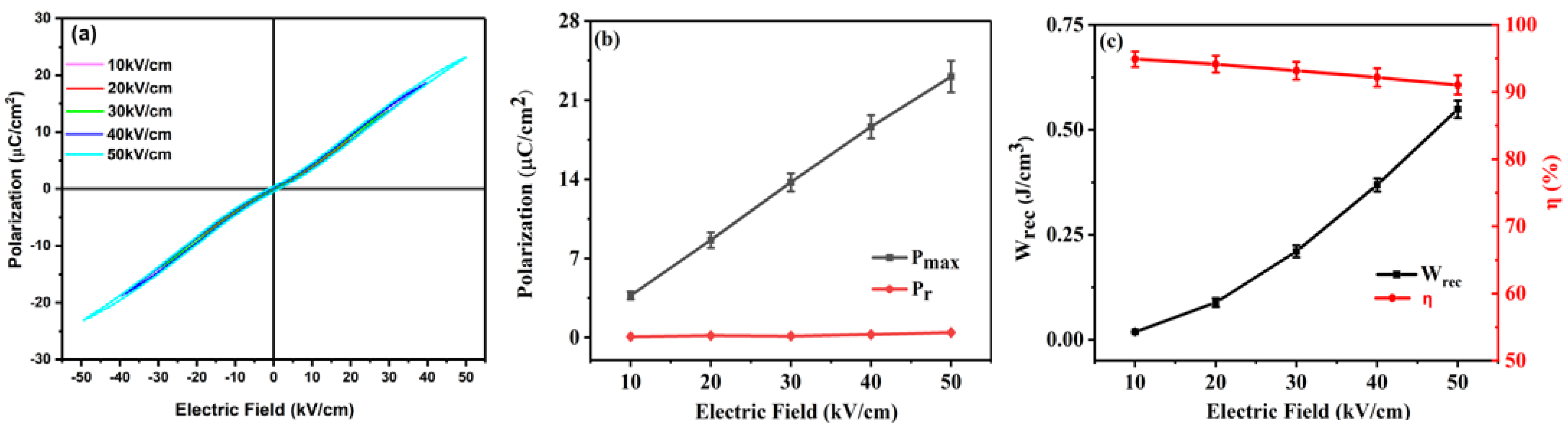

Figure 7. (a) P-E loops of x = 0.07 ceramics measured under different electric fields at 125 °C; (b) Pmax and Pr under different electric fields; (c) Wrec and η of x = 0.07 ceramics under different electric fields at 125 °C.
Figure 7. (a) P-E loops of x = 0.07 ceramics measured under different electric fields at 125 °C; (b) Pmax and Pr under different electric fields; (c) Wrec and η of x = 0.07 ceramics under different electric fields at 125 °C.
Crystals 13 00733 g007
Table
Table 1. Results of Rietveld refinement of XRD data for BNT-100xBT-BMN ceramics using R3c and P4bm space group.
Table 1. Results of Rietveld refinement of XRD data for BNT-100xBT-BMN ceramics using R3c and P4bm space group.
CompositionsThe Relative Content (%)a = b (Å)c (Å)Rwp(%)Rp(%)χ2
x = 0.03R3c: 42.23%5.51613.5517.40%5.92%1.682
P4bm: 57.77%5.5193.903
x = 0.05R3c: 46.51%5.52613.5376.49%5.51%1.401
P4bm: 53.49%5.5263.910
x = 0.07R3c: 50.07%5.53313.5546.48%5.18%1.553
P4bm: 49.93%5.5543.915
