[email protected]2 Core/Shell Nanowire Arrays with Different Thickness of TiO2 Shell for Dye-Sensitized Solar Cells

1
New Energy Technology Engineering Laboratory of Jiangsu Province & School of Science, Nanjing University of Posts and Telecommunications (NJUPT), Nanjing 210023, China
2
College of Electronic and Optical Engineering, Nanjing University of Post and Telecommunications, Nanjing 210023, China
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(4), 325; https://doi.org/10.3390/cryst10040325
Received: 9 March 2020 / Revised: 14 April 2020 / Accepted: 15 April 2020 / Published: 21 April 2020
(This article belongs to the Special Issue Zinc Oxide Nanomaterials and Based Devices)

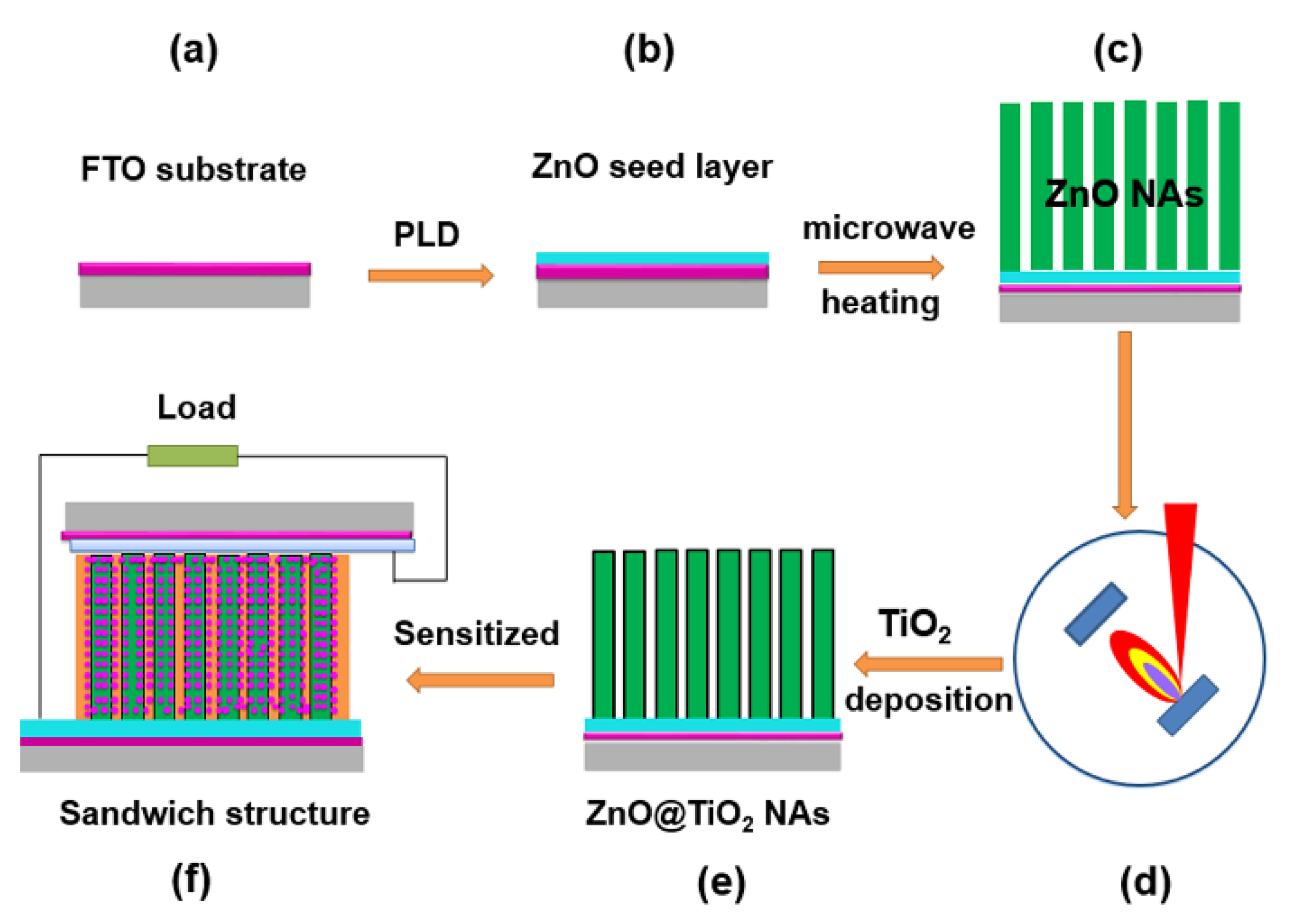

The [email protected]2 core/shell nanowire arrays with different thicknesses of the TiO2 shell were synthesized, through depositing TiO2 on the ZnO nanowire arrays using the pulsed laser deposition process. Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) images show that these core/shell nanowires were homogeneously coated with TiO2 nanoparticles with high crystallinity, appearing to be a rather rough surface compared to pure ZnO nanowires. The efficiency of [email protected]2 core/shell structure-based dye-sensitized solar cells (DSSCs) was improved compared with pure ZnO nanowires. This is mainly attributed to the enlarged internal surface area of the core/shell structures, which increases dye adsorption on the anode to improve the light harvest. In addition, the energy barrier which formed at the interface between ZnO and TiO2 promoted the charge separation and suppressed the carrier recombination. Furthermore, the efficiency of DSSCs was further improved by increasing the thickness of the TiO2 shell. This work shows an efficient method to achieve high power conversion efficiency in core/shell nanowire-based DSSCs. View Full-Text
Keywords: [email protected]2 nanowire arrays; dye-sensitized solar cells; pulsed laser deposition method; different thickness shell [email protected]2 nanowire arrays; dye-sensitized solar cells; pulsed laser deposition method; different thickness shell
Show Figures

Figure 1

MDPI and ACS Style

Liu, L.; Wang, H.; Wang, D.; Li, Y.; He, X.; Zhang, H.; Shen, J. [email protected]2 Core/Shell Nanowire Arrays with Different Thickness of TiO2 Shell for Dye-Sensitized Solar Cells. Crystals 2020, 10, 325.
