Large Delta T Thermal Cycling Induced Stress Accelerates Equilibrium and Transformation in Super DSS

,
,
,
,
,
,
and
1
Department of Mechanical and Mechatronic Engineering, National Taiwan Ocean University, Keelung 20224, Taiwan
2
Department of Materials Science and Engineering, National Taiwan University, Taipei 10617, Taiwan
3
Department of Marine Engineering, National Taiwan Ocean University, Keelung 20224, Taiwan
4
Taiwan Instrument Research Institute, National Applied Research Laboratories, Hsinchu 30076, Taiwan
This article belongs to the Special Issue Investigation of Duplex Stainless Steel

Abstract

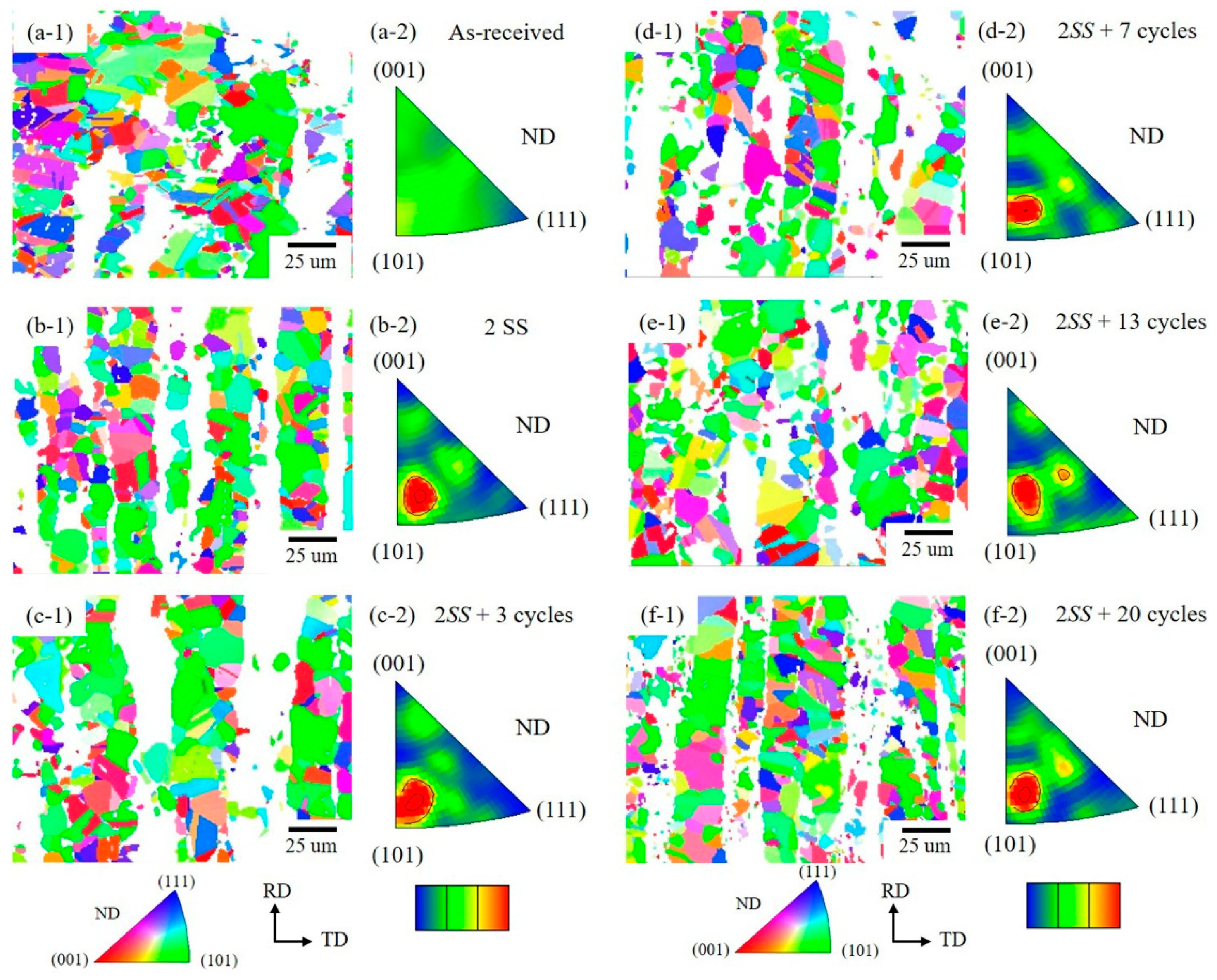

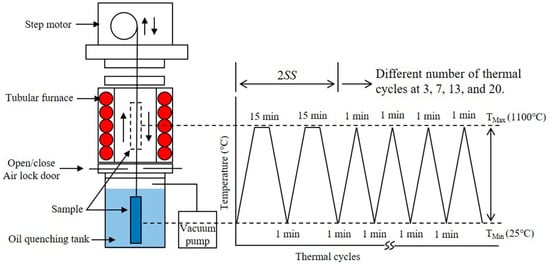

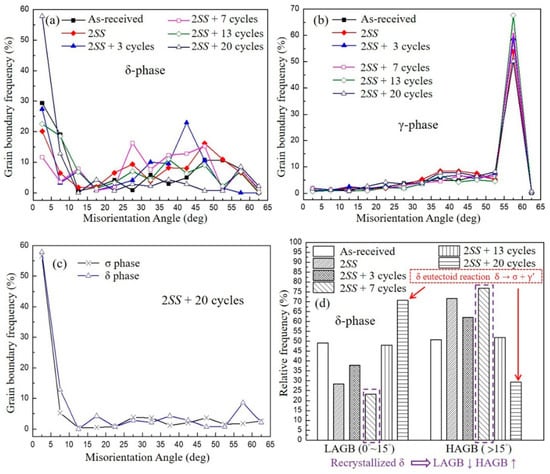

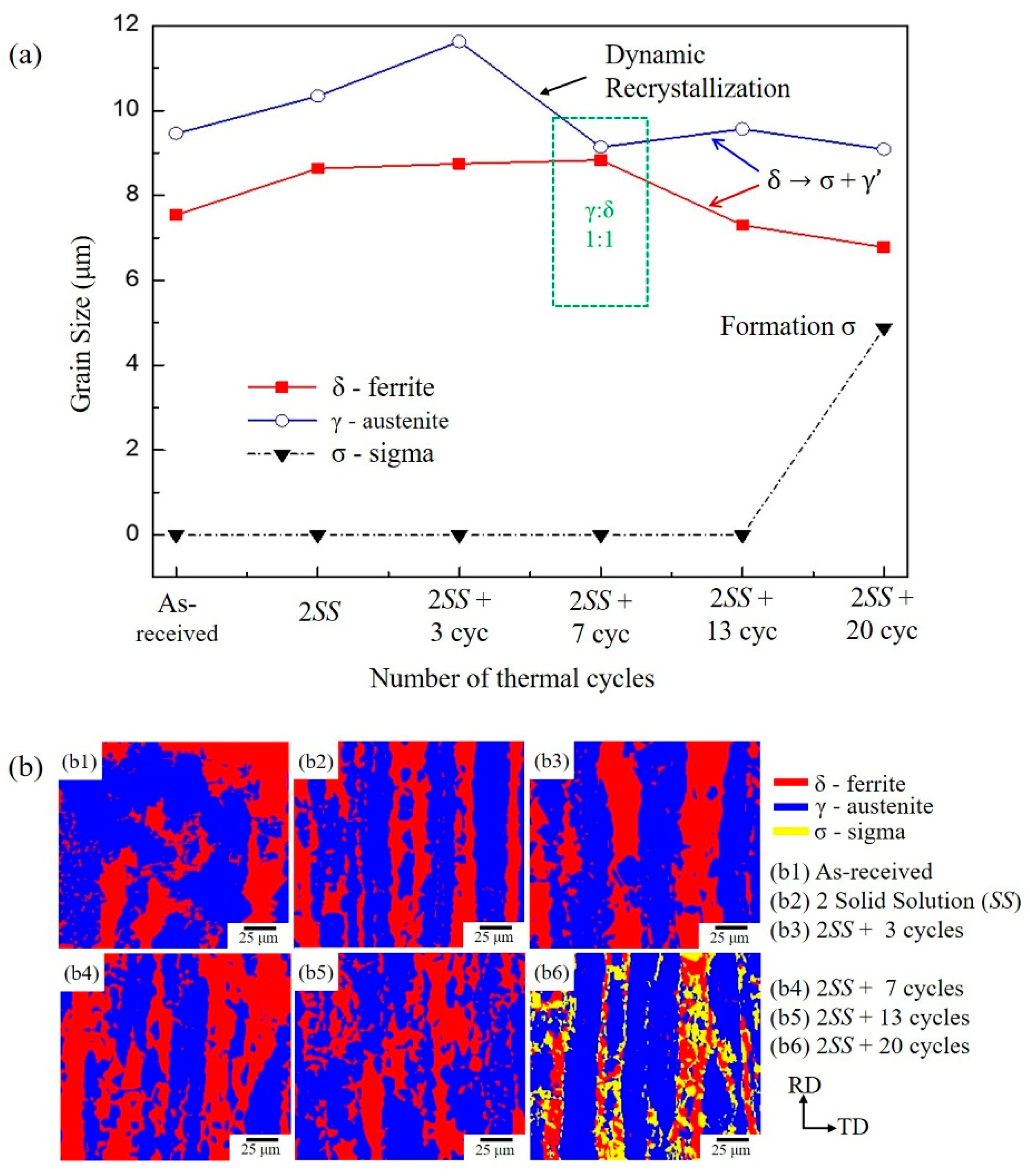

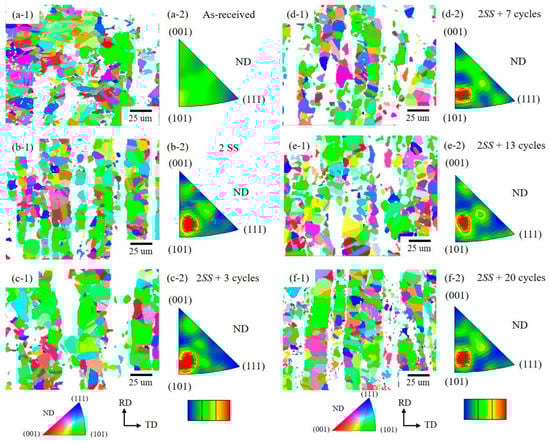

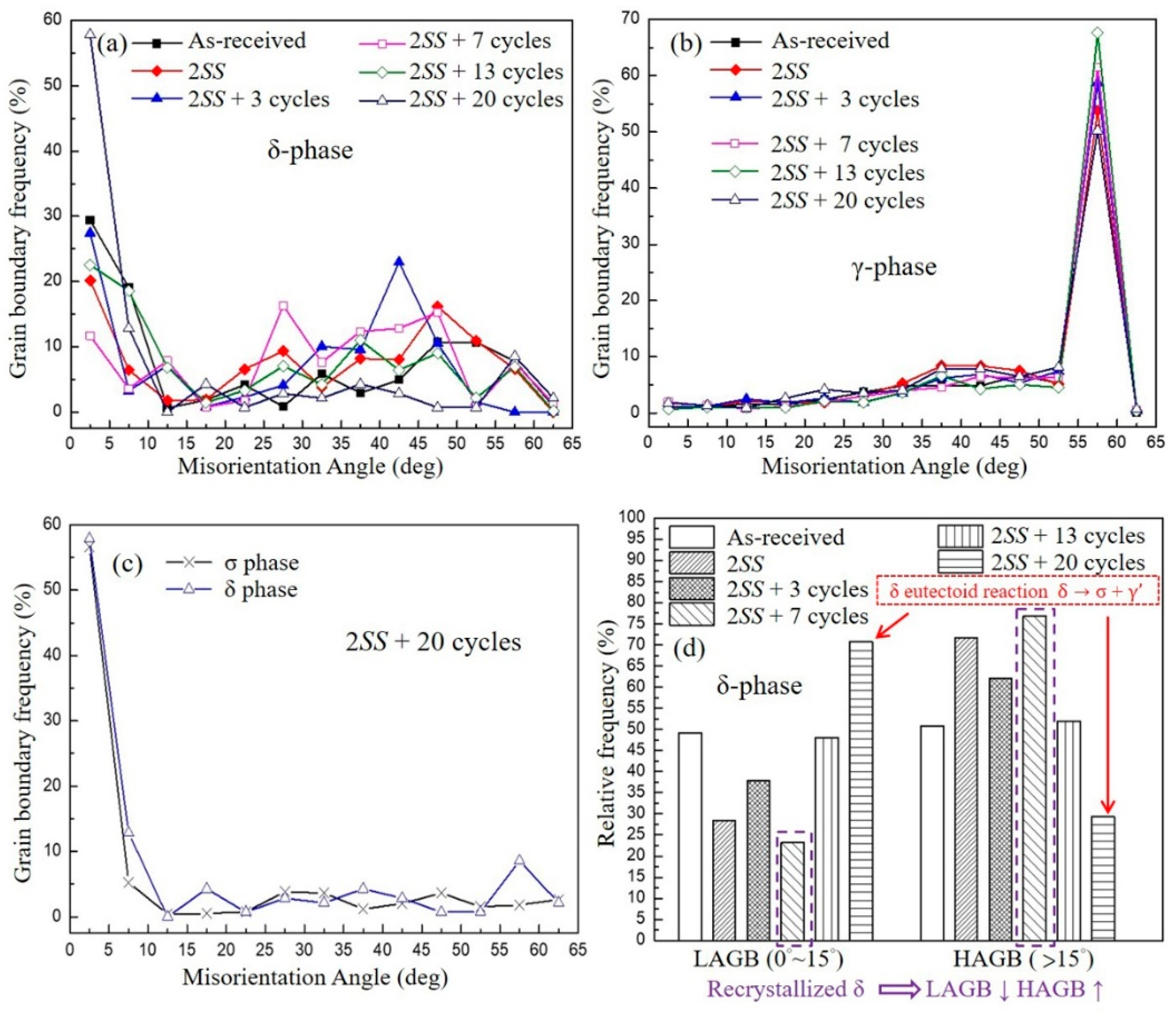

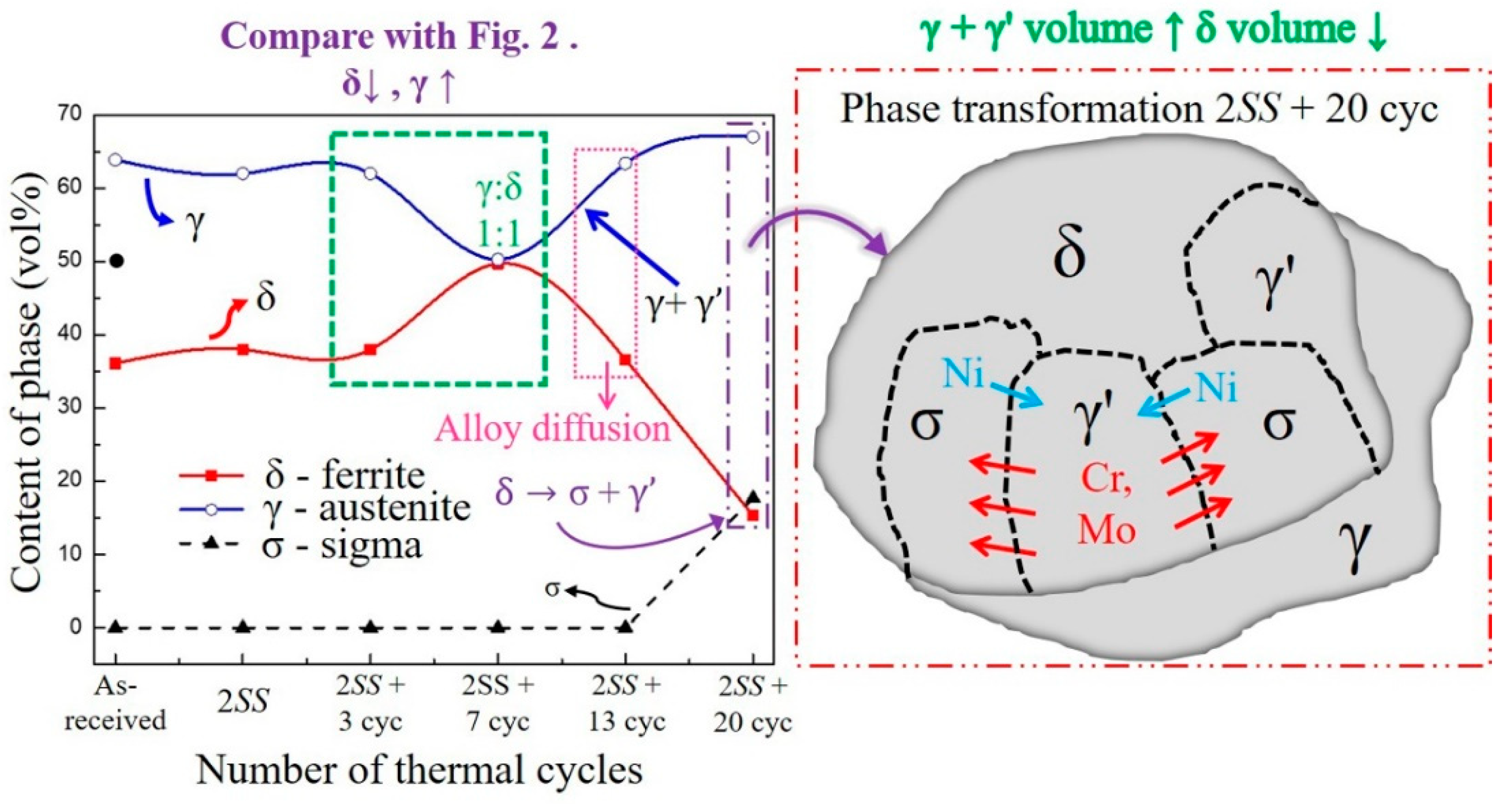

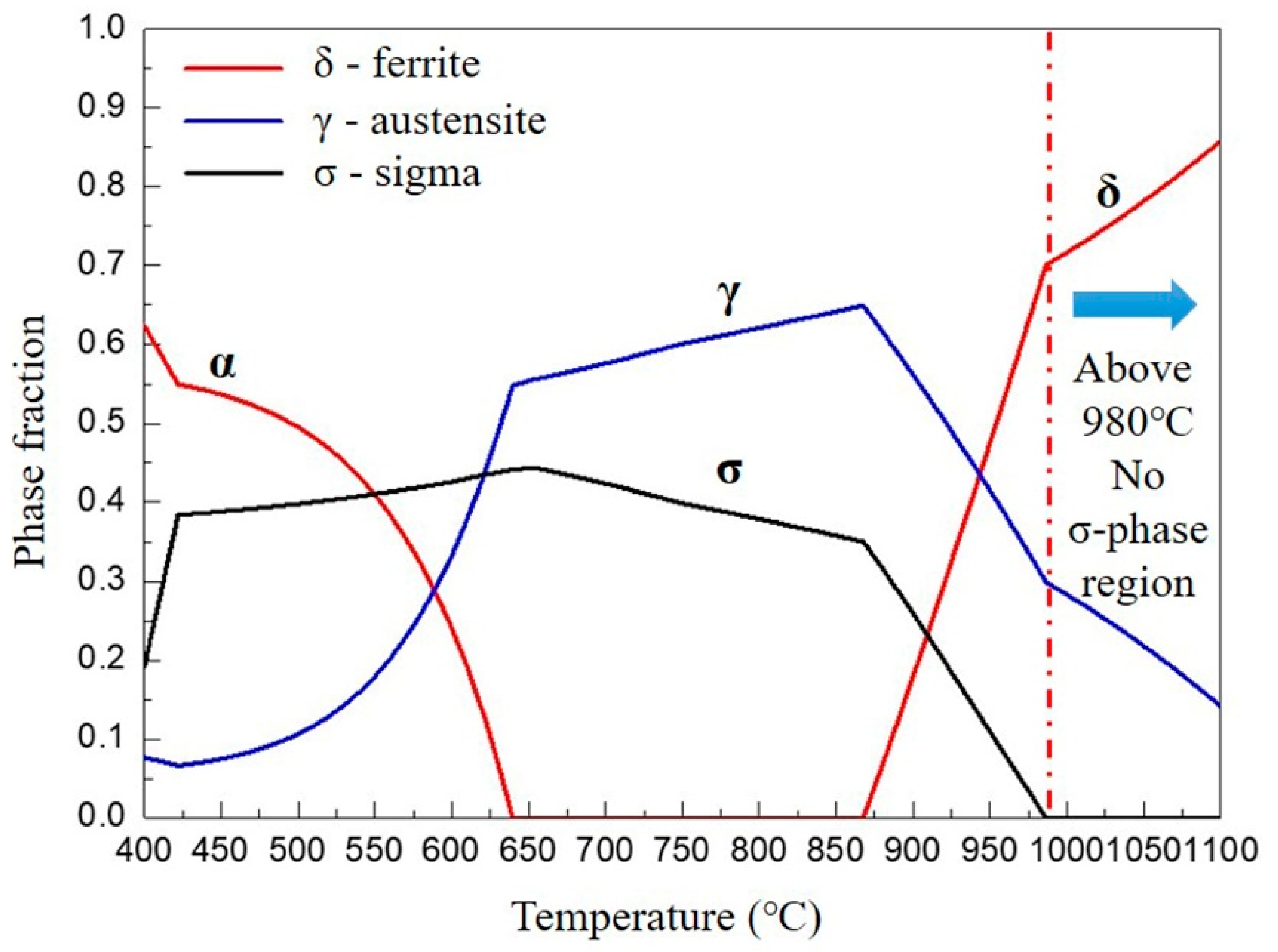

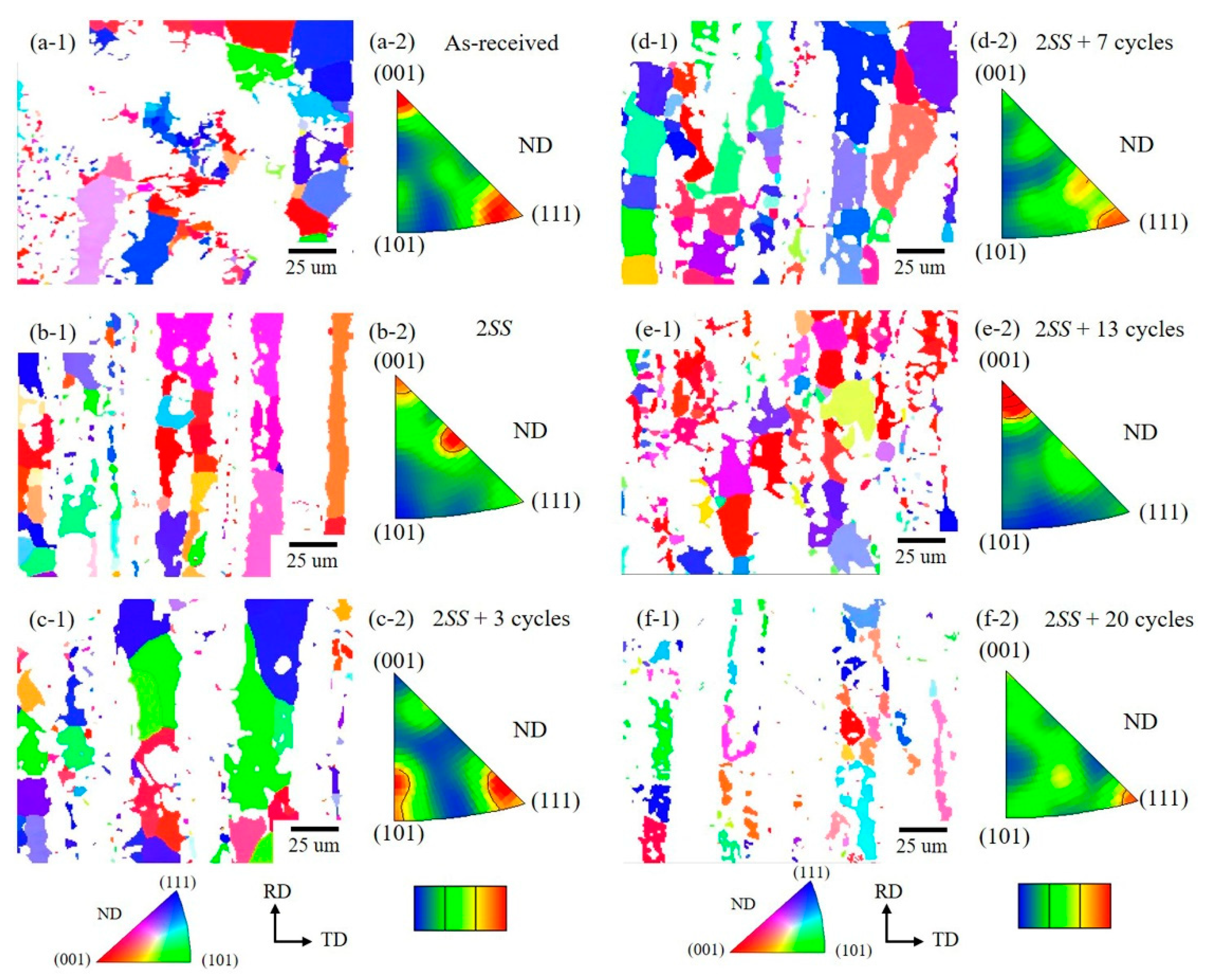

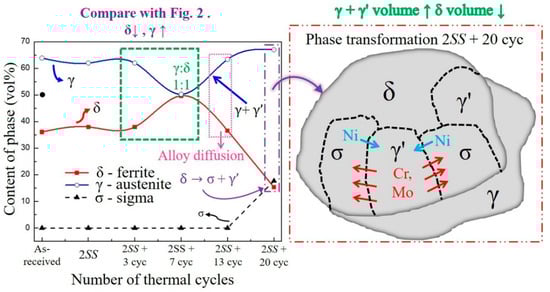

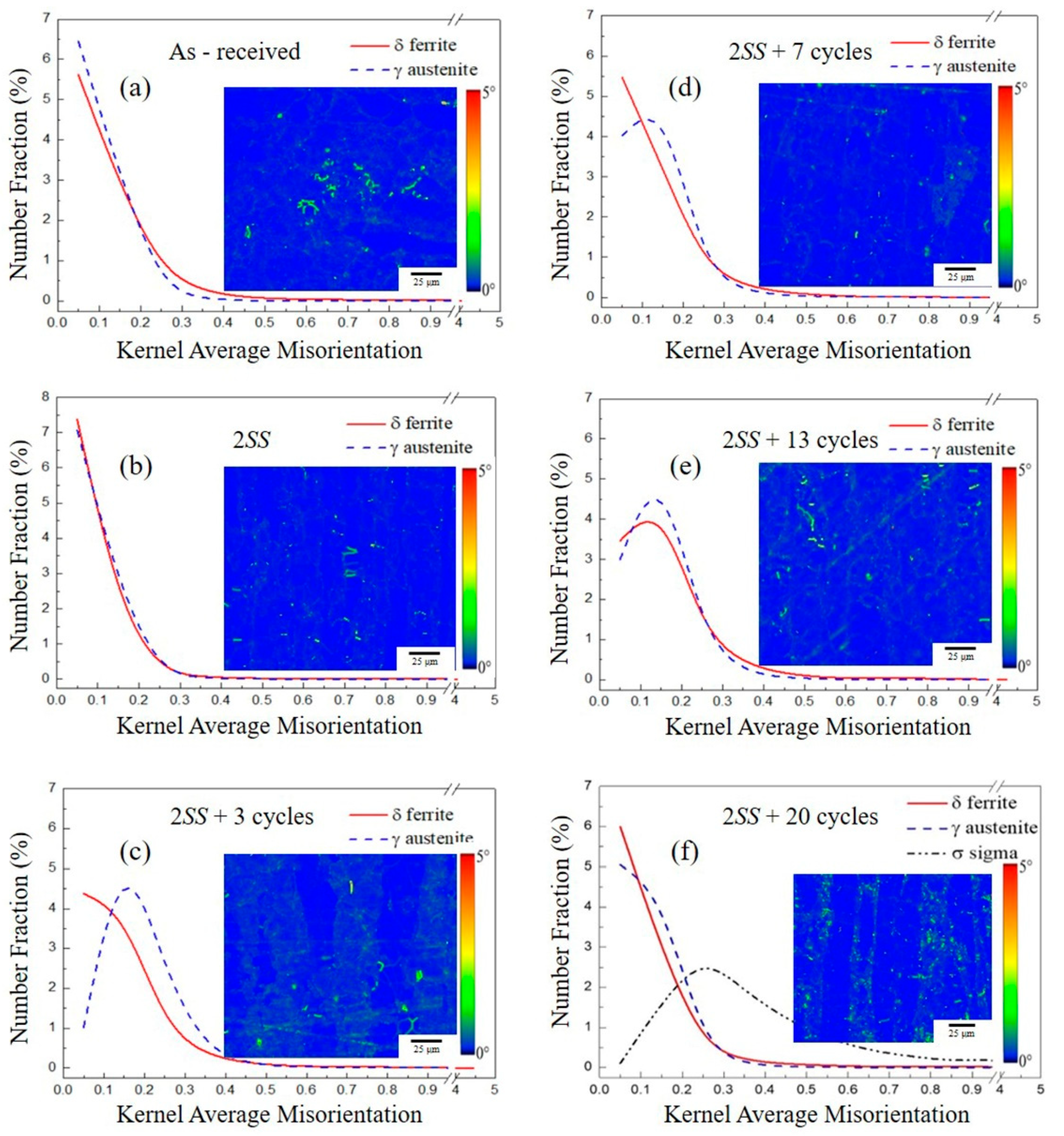

Based on the predicted phase diagram of super duplex stainless steel (DSS) calculated by Thermo-Calc, the maximum peak temperature 1100 °C was selected to ensure no σ phase existence. This target temperature fell into the two-phase solid solution (SS) region. A series of different thermal cycling tests were carried out with the notations of 2SS, 2SS + 3 cycles, 2SS + 7 cycles, 2SS + 13 cycles, and 2SS + 20 cycles. It was found that the trend of two-phase volume ratio variation by thermal cycling followed the predicted thermodynamic equilibrium trend. After 2SS + 7 cycles, the ratio of two-phase δ/γ tended toward the ideal 1:1. According to the electron backscatter diffraction (EBSD) analysis, the δ phase crystal orientation changed from the most frequent directions of <001> and <111> of the as-received sample to the most frequent orientation of <113> after two SS treatments. While the γ phase grain always remained at <101> orientation. The grain boundary misorientation angles of the γ grains were relatively stable, ranging from 53° to 63°, but those of the δ grains were widely distributed actively presuming the lattice rotation. The Kernel Average Misorientation (KAM) value of the local strain in face center cubic (fcc) γ grains was varied and greater than that of the body center cubic (bcc) δ phase, indicating that the former, with a large grain boundary misorientation had larger local deformation than the latter, which possesses wide random misorientation angle distribution.
