Next Article in Journal
Tuning Selectivity of Maleic Anhydride Hydrogenation Reaction over Ni/Sc-Doped ZrO2 Catalysts
Next Article in Special Issue
Catalytic Oxidation of NO over LaCo1−xBxO3 (B = Mn, Ni) Perovskites for Nitric Acid Production
Previous Article in Journal
H-ZSM-5 Materials Embedded in an Amorphous Silica Matrix: Highly Selective Catalysts for Propylene in Methanol-to-Olefin Process
Previous Article in Special Issue
Perovskite-type LaFeO3: Photoelectrochemical Properties and Photocatalytic Degradation of Organic Pollutants Under Visible Light Irradiation
Open AccessArticle

BaTi0.8B0.2O3 (B = Mn, Fe, Co, Cu) LNT Catalysts: Effect of Partial Ti Substitution on NOx Storage Capacity

Departamento de Química Inorgánica, Facultad de Ciencias, Universidad de Alicante, Ap. 99, E-03080 Alicante, Spain
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(4), 365; https://doi.org/10.3390/catal9040365
Received: 6 March 2019 / Revised: 5 April 2019 / Accepted: 16 April 2019 / Published: 18 April 2019
(This article belongs to the Special Issue Catalysis by Metals on Perovskite-Type Oxides)

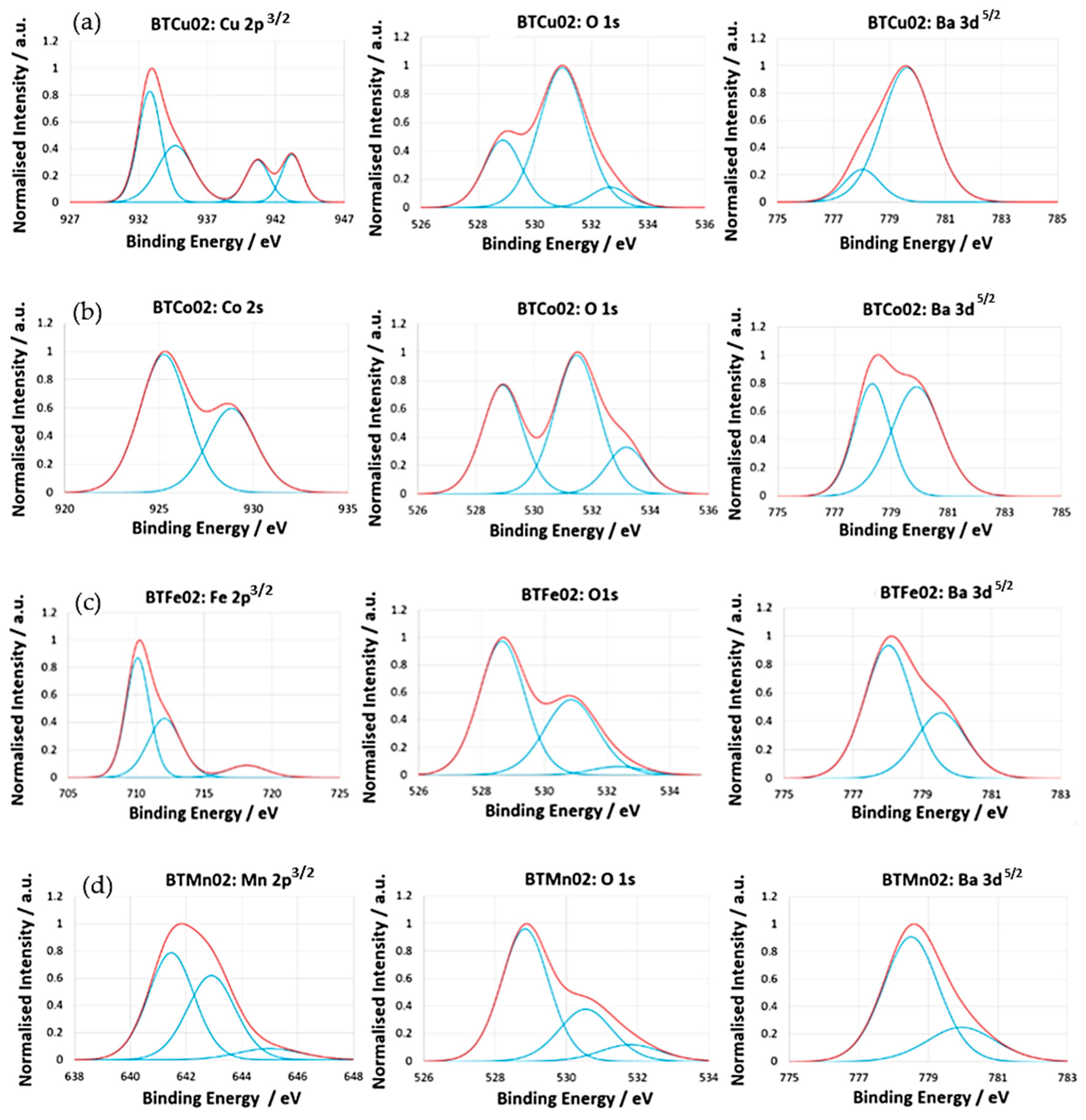

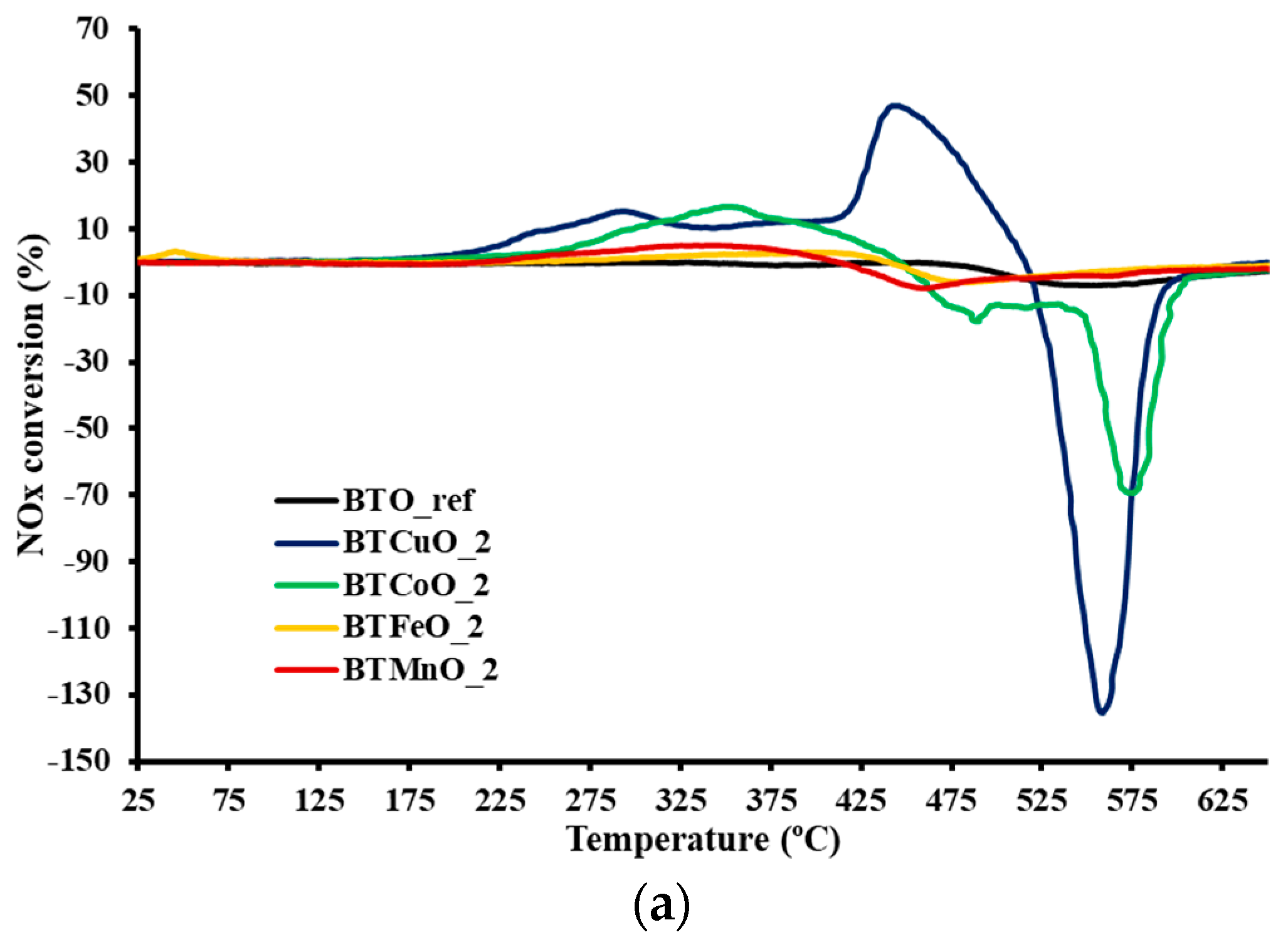

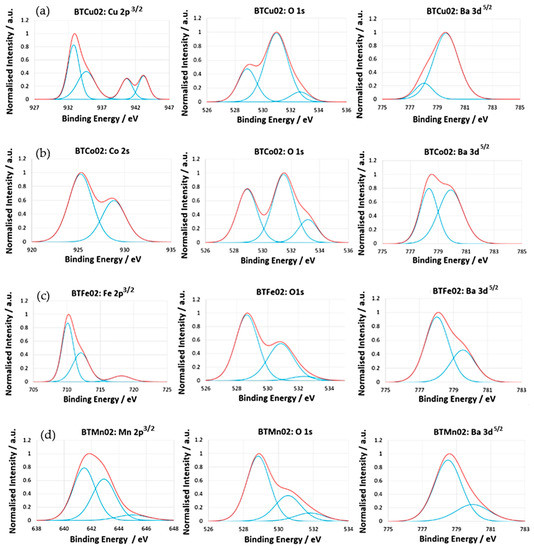

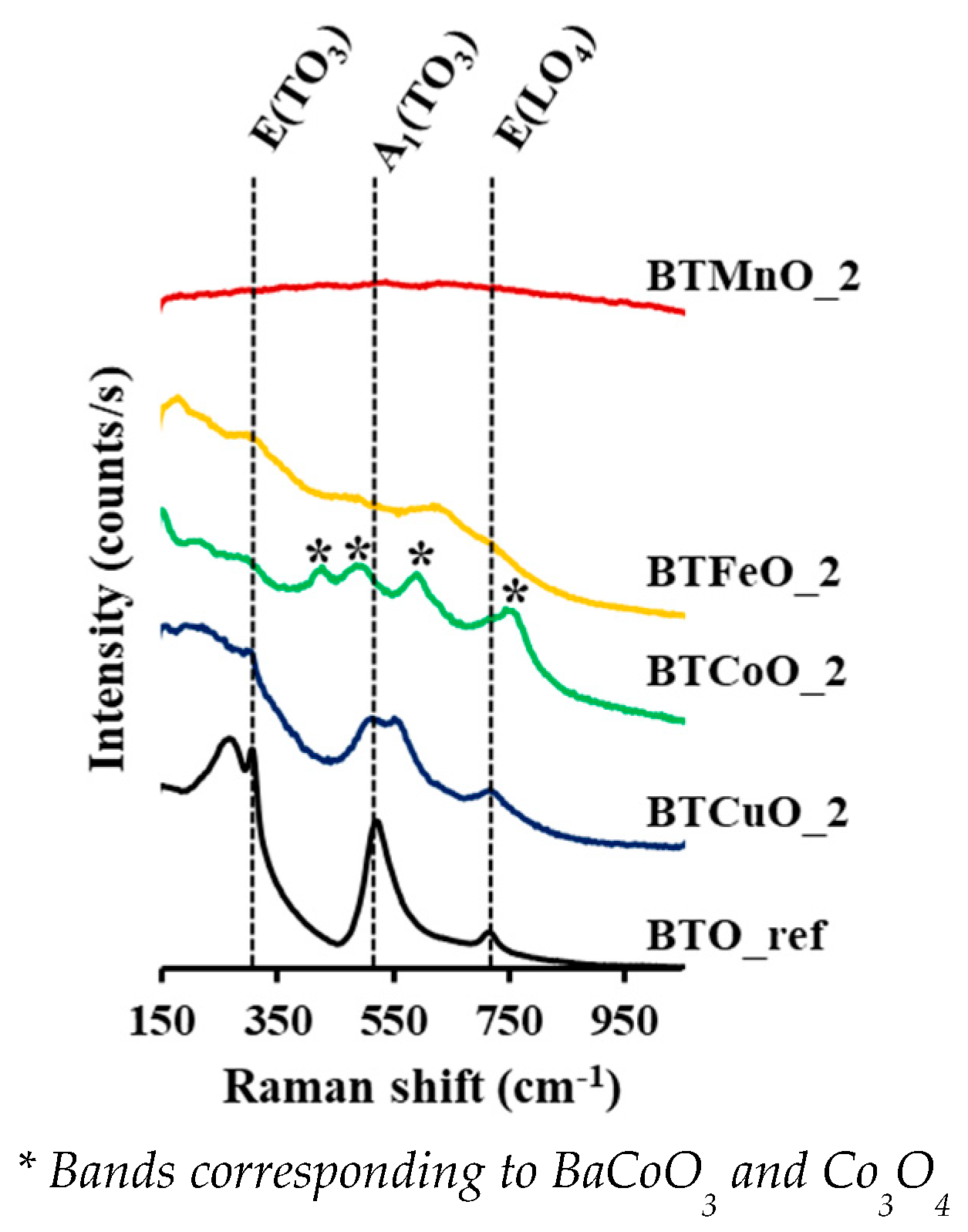

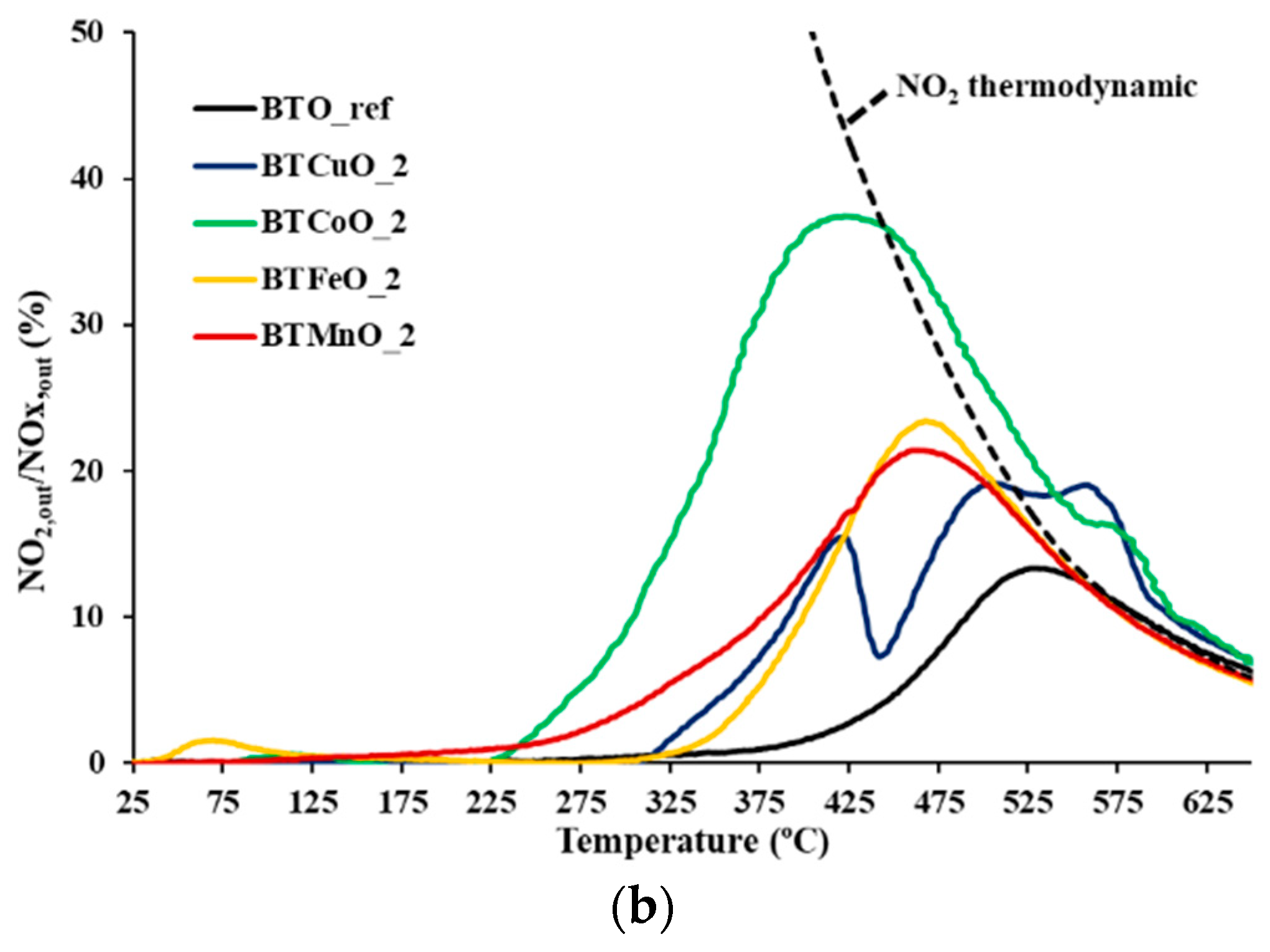

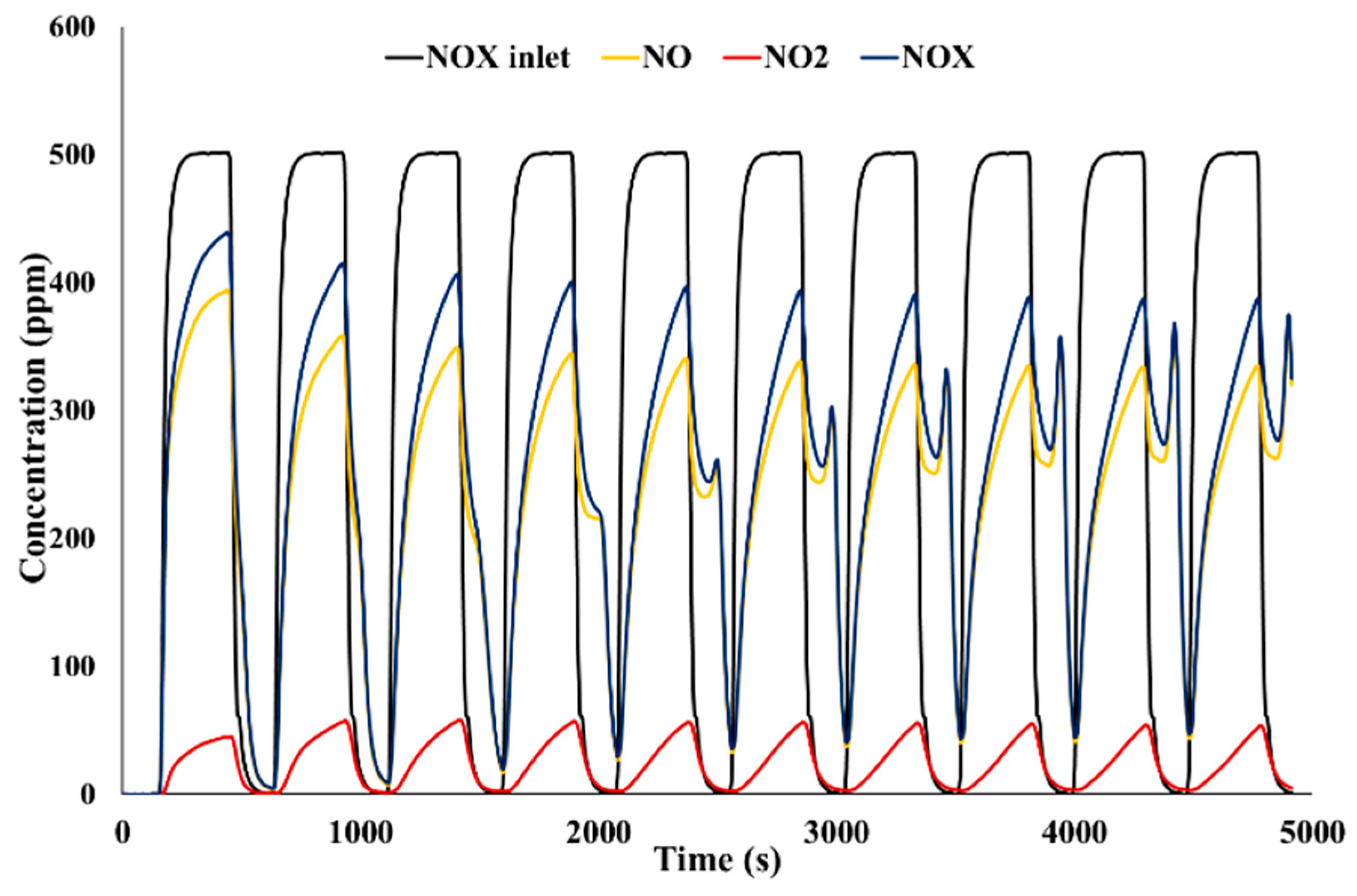

The effect of partial Ti substitution by Mn, Fe, Co, or Cu on the NOx storage capacity (NSC) of a BaTi0.8B0.2O3 lean NOx trap (LNT) catalyst has been analyzed. The BaTi0.8B0.2O3 catalysts were prepared using the Pechini’s sol–gel method for aqueous media. The characterization of the catalysts (BET, ICP-OES, XRD and XPS) reveals that: i) the partial substitution of Ti by Mn, Co, or Fe changes the perovskite structure from tetragonal to cubic, whilst Cu distorts the raw tetragonal structure and promotes the segregation of Ba2TiO4 (which is an active phase for NOx storage) as a minority phase and ii) the amount of oxygen vacancies increases after partial Ti substitution, with the BaTi0.8Cu0.2O3 catalyst featuring the largest amount. The BaTi0.8Cu0.2O3 catalyst shows the highest NSC at 400 °C, based on NOx storage cyclic tests, which is within the range of highly active noble metal-based catalysts. View Full-Text
Keywords: perovskite; NO to NO2 oxidation; NOx storage capacity; LNT catalysts perovskite; NO to NO2 oxidation; NOx storage capacity; LNT catalysts
Show Figures

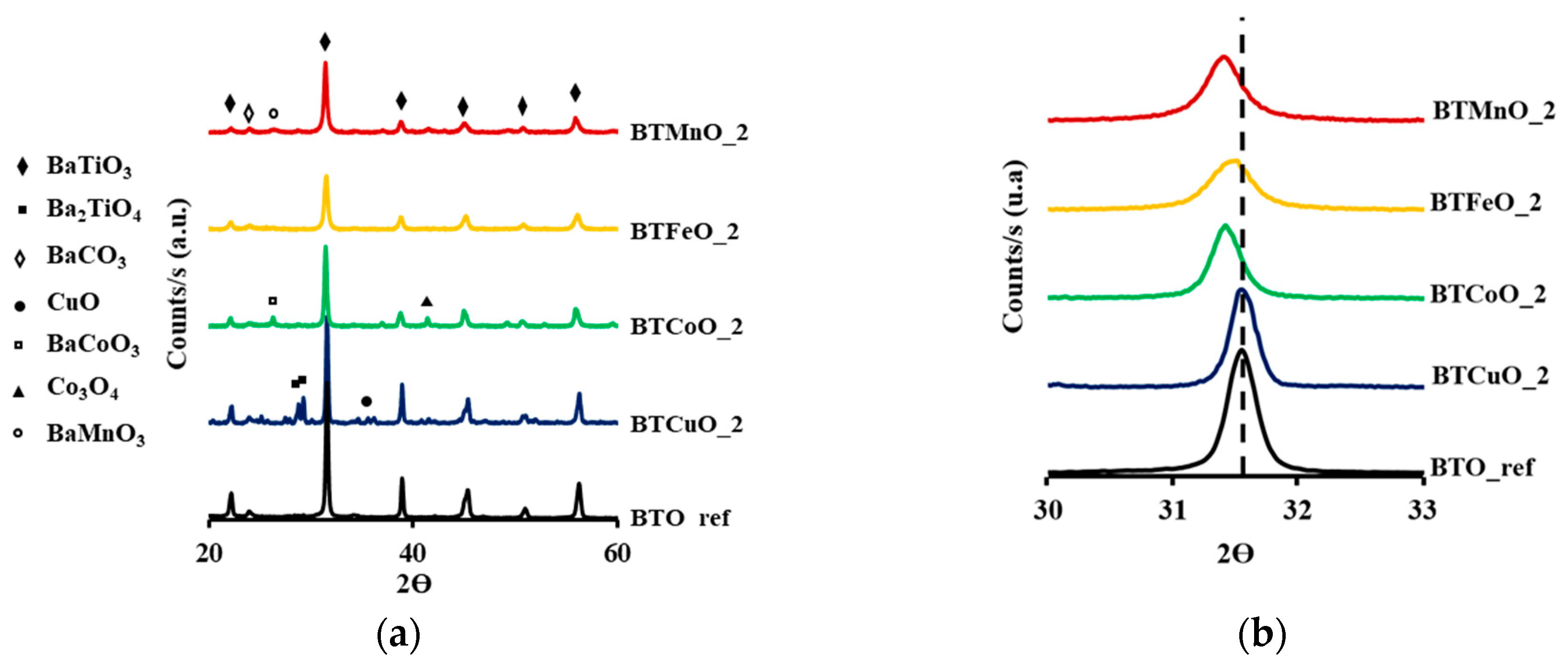

Figure 1

MDPI and ACS Style

Aldridge, C.; Torregrosa-Rivero, V.; Albaladejo-Fuentes, V.; Sánchez-Adsuar, M.-S.; Illán-Gómez, M.-J. BaTi0.8B0.2O3 (B = Mn, Fe, Co, Cu) LNT Catalysts: Effect of Partial Ti Substitution on NOx Storage Capacity. Catalysts 2019, 9, 365. https://doi.org/10.3390/catal9040365

AMA Style

Aldridge C, Torregrosa-Rivero V, Albaladejo-Fuentes V, Sánchez-Adsuar M-S, Illán-Gómez M-J. BaTi0.8B0.2O3 (B = Mn, Fe, Co, Cu) LNT Catalysts: Effect of Partial Ti Substitution on NOx Storage Capacity. Catalysts. 2019; 9(4):365. https://doi.org/10.3390/catal9040365

Chicago/Turabian Style

Aldridge, Craig; Torregrosa-Rivero, Verónica; Albaladejo-Fuentes, Vicente; Sánchez-Adsuar, María-Salvadora; Illán-Gómez, María-José. 2019. "BaTi0.8B0.2O3 (B = Mn, Fe, Co, Cu) LNT Catalysts: Effect of Partial Ti Substitution on NOx Storage Capacity" Catalysts 9, no. 4: 365. https://doi.org/10.3390/catal9040365

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
