MEMS-Casting Fabricated Chip-Style 3D Metal Solenoidal Transformers towards Integrated Power Supply

,
,
,
,
,
,
and
1
State Key Laboratory of Transducer Technology, Shanghai Institute of Microsystem and Information Technology, Chinese Academy of Sciences, Shanghai 200050, China
2
School of Information Science and Technology, ShanghaiTech University, Shanghai 201210, China
3
School of Microelectronics, University of Chinese Academy of Sciences, Beijing 100049, China
4
East China Institute of Photo-Electron IC, Bengbu 233030, China
This article belongs to the Section A: Physics

Abstract

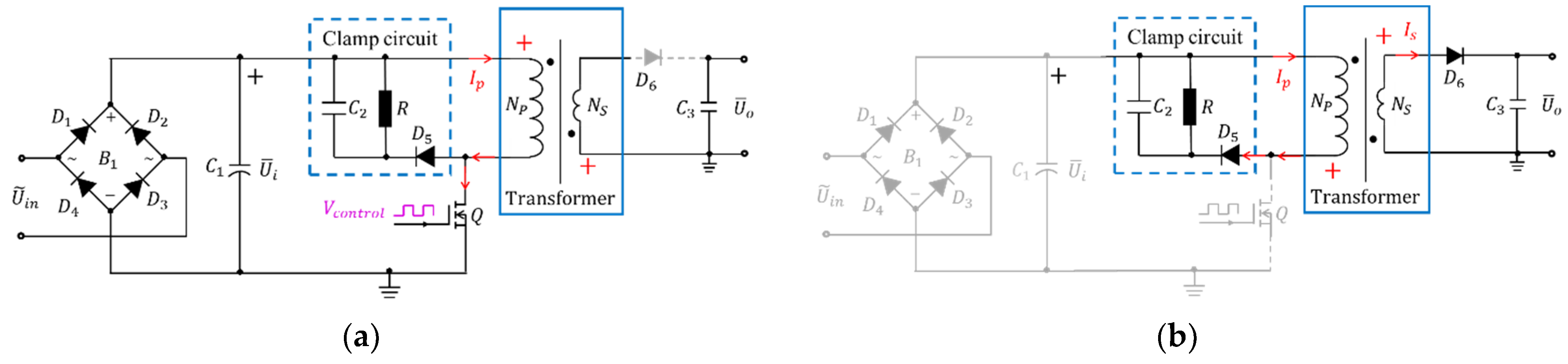

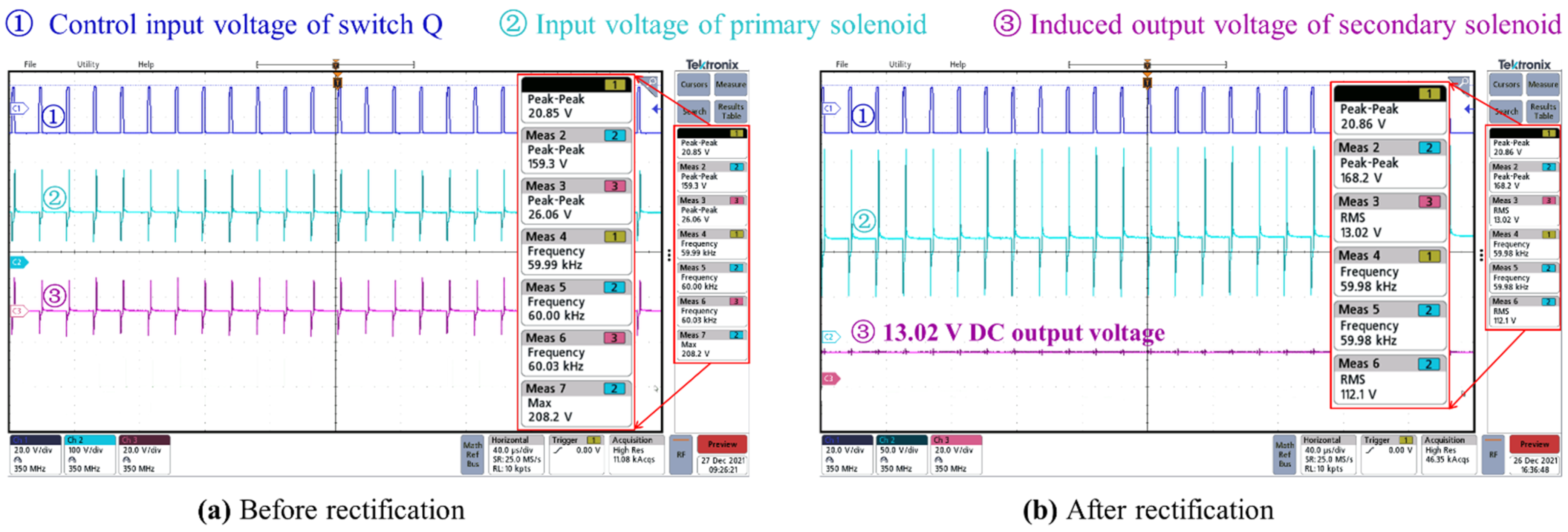

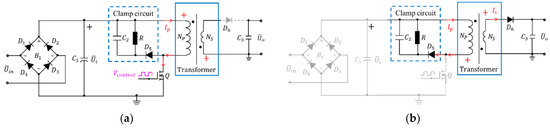

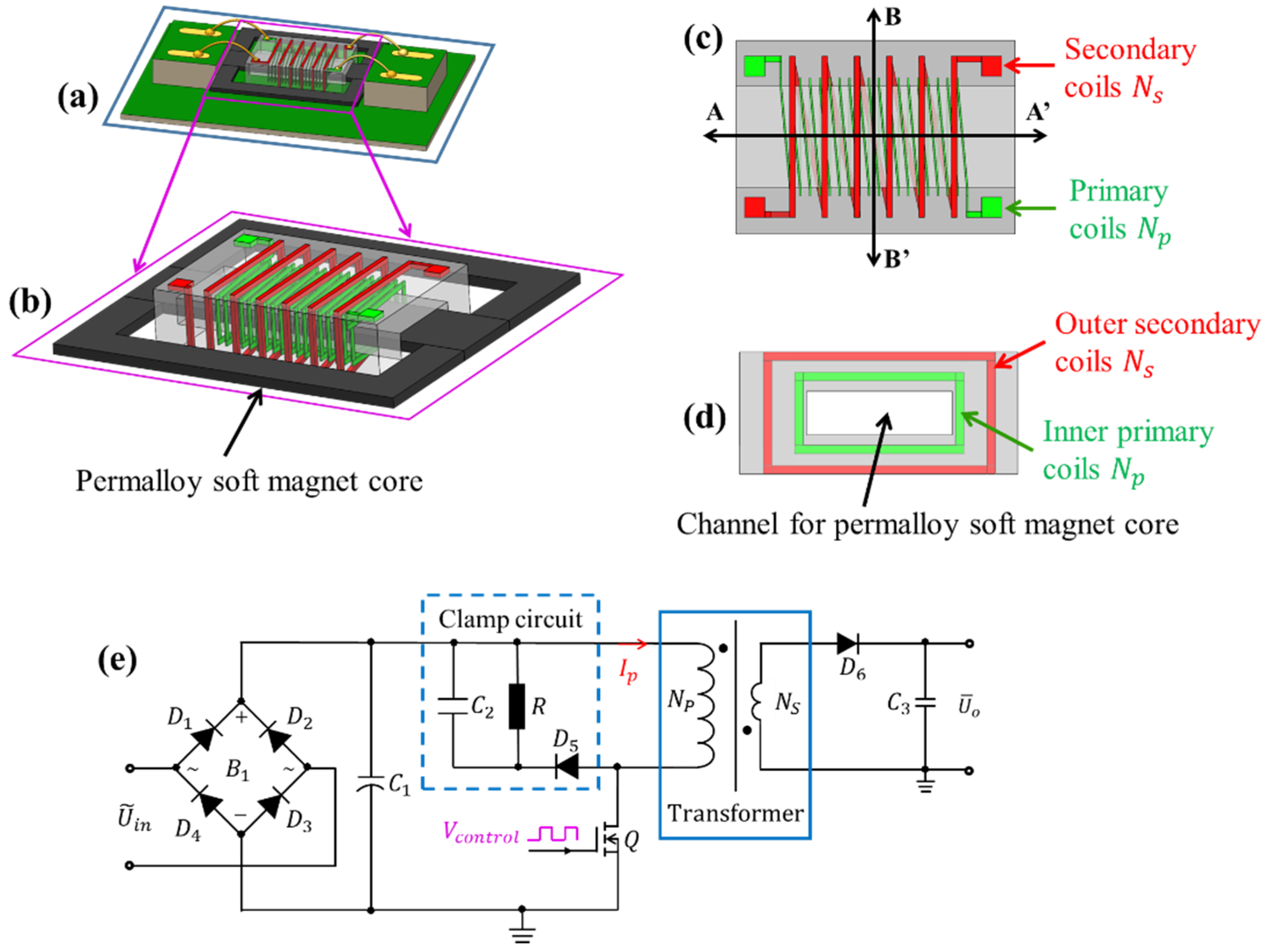

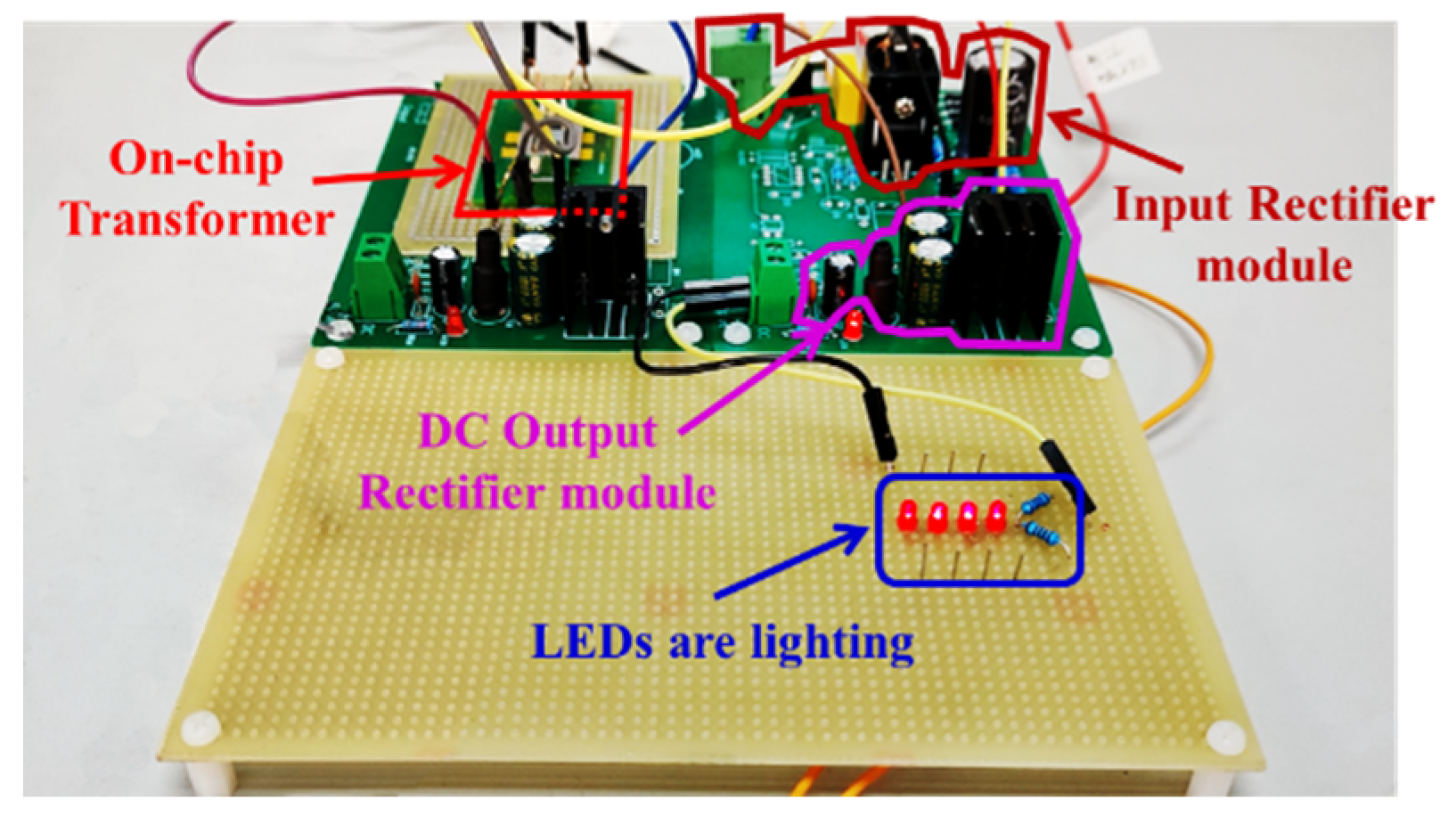

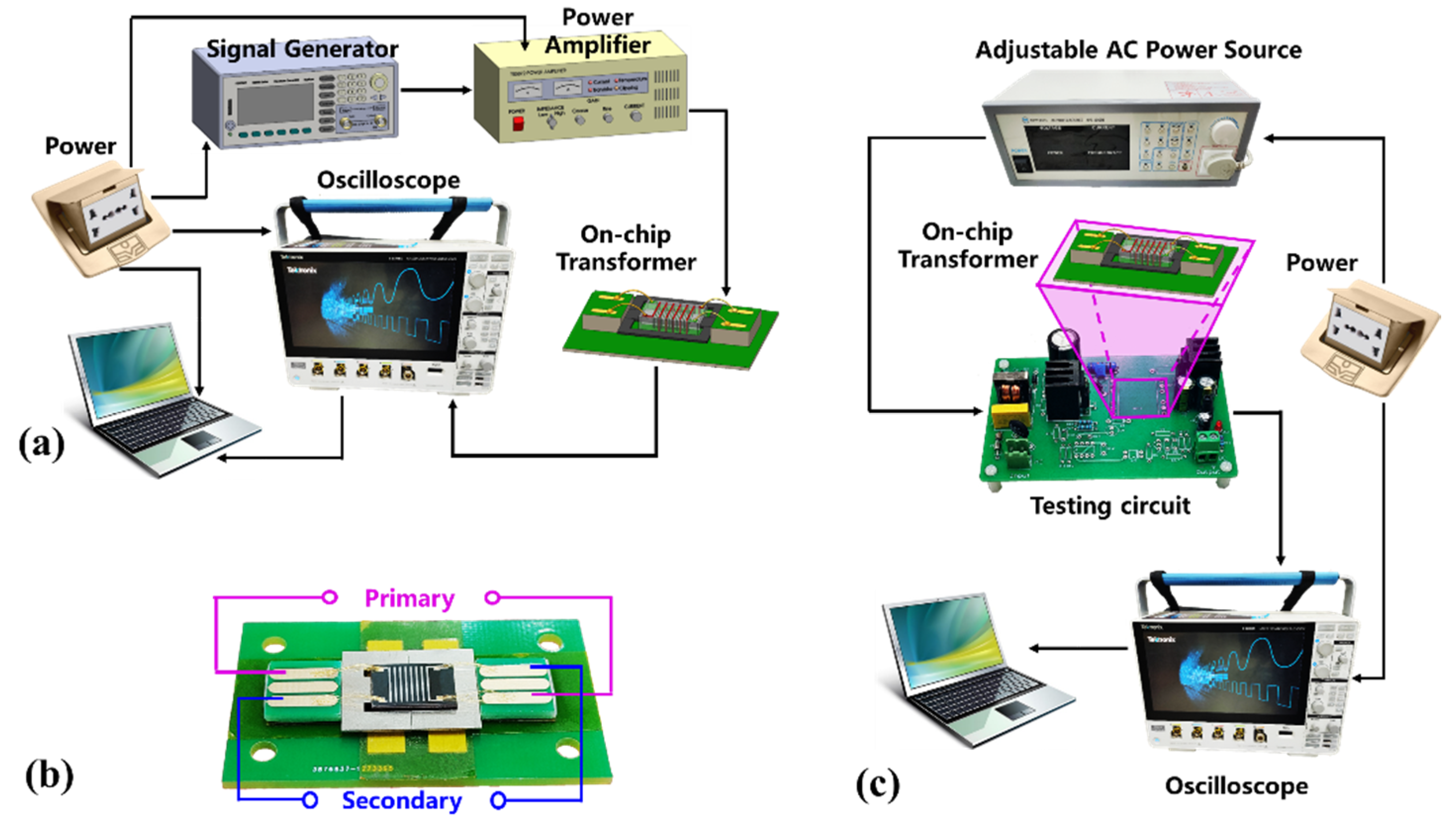

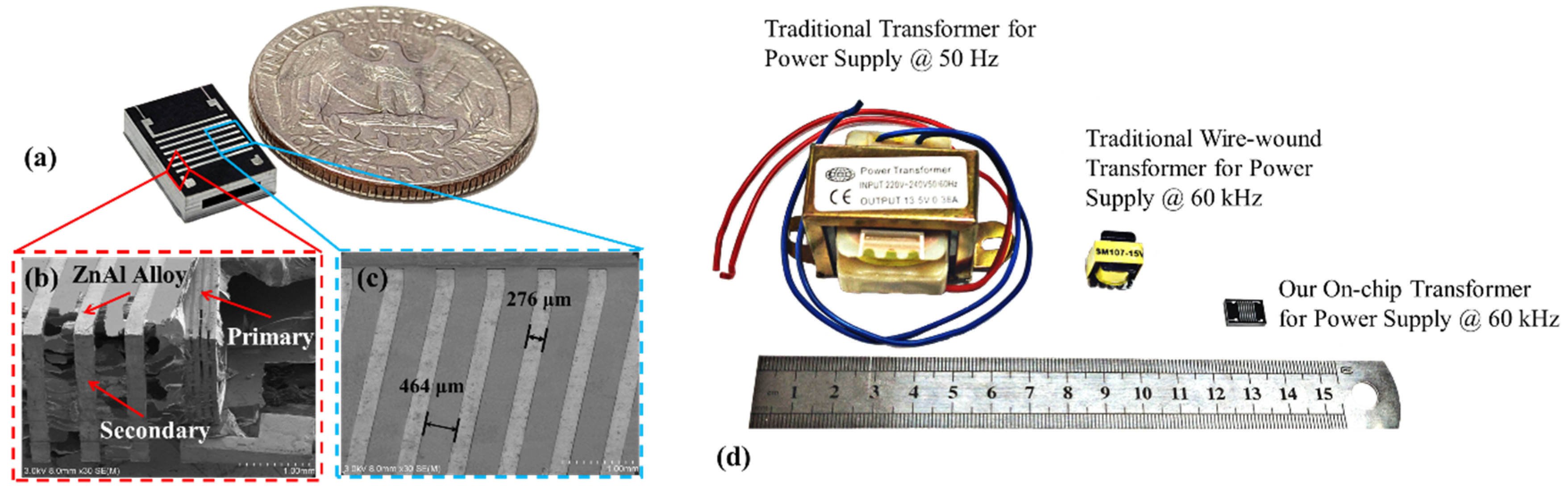

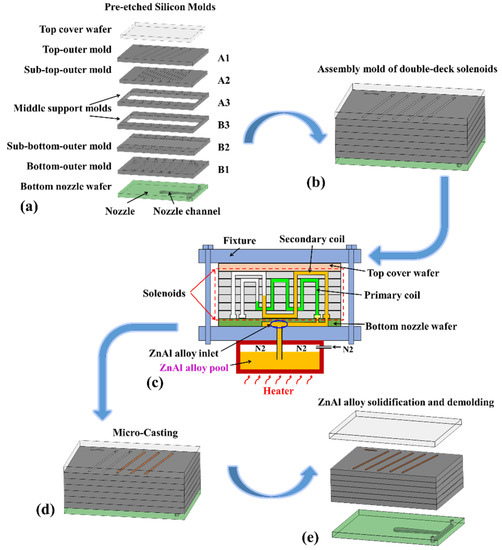

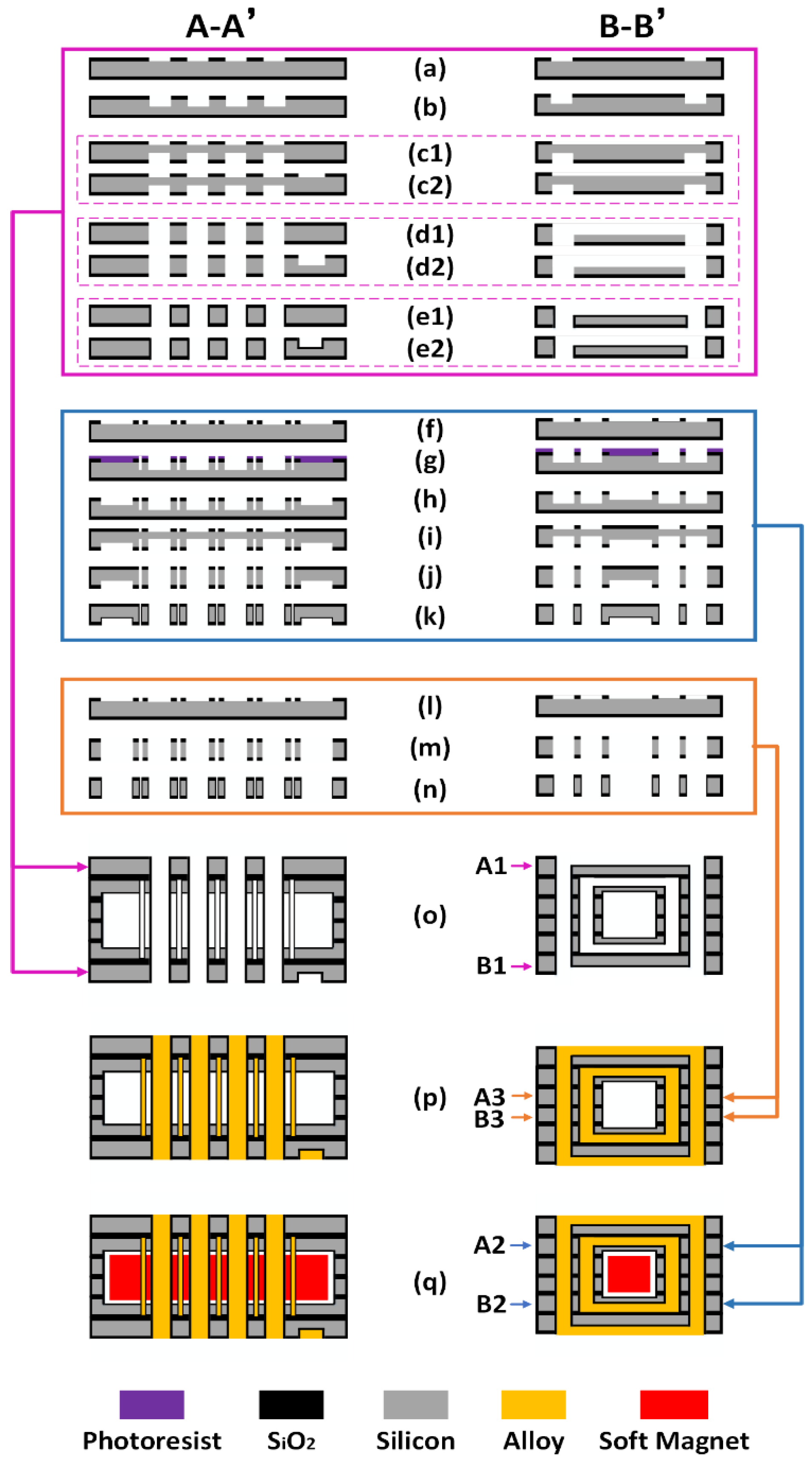

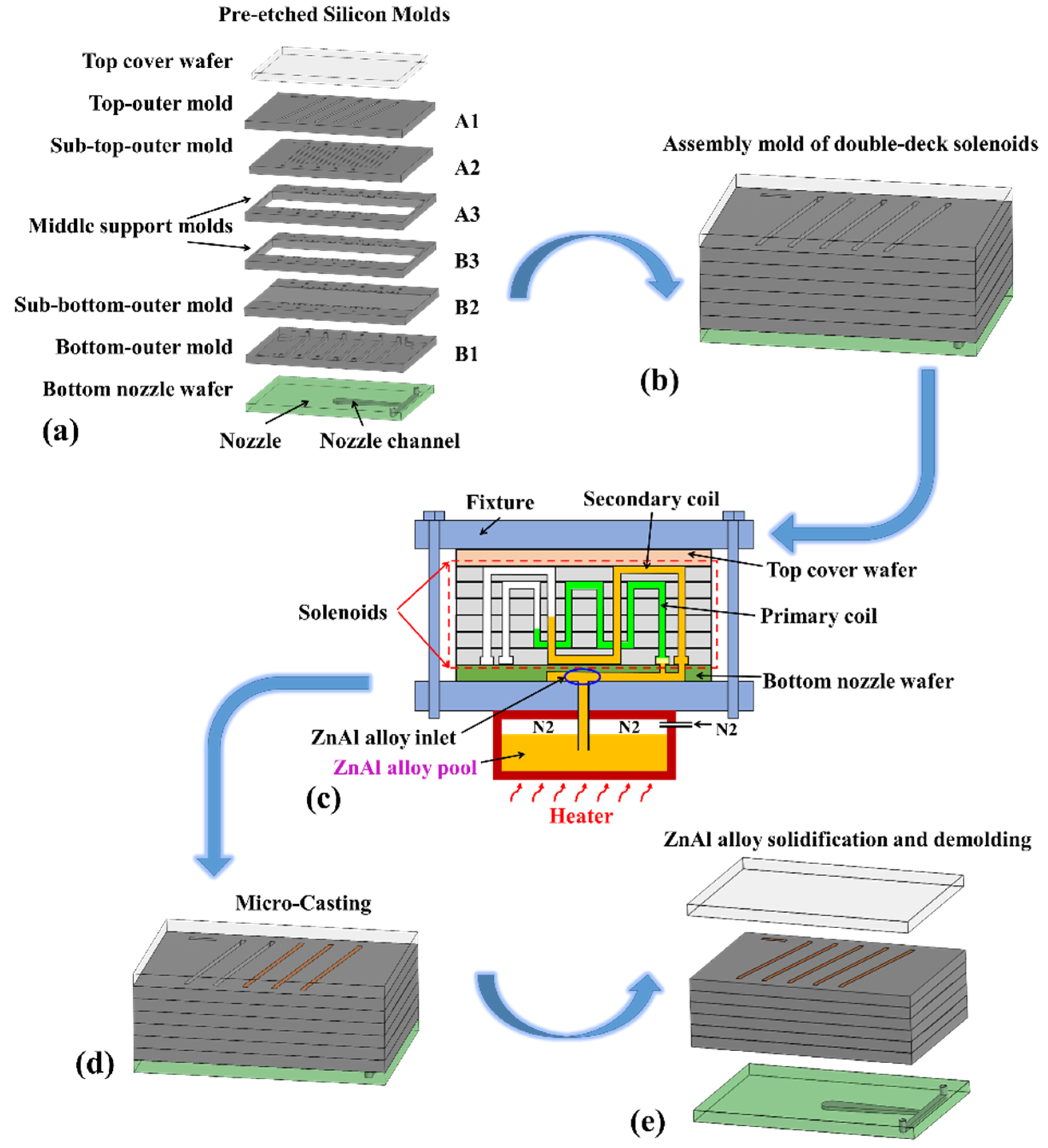

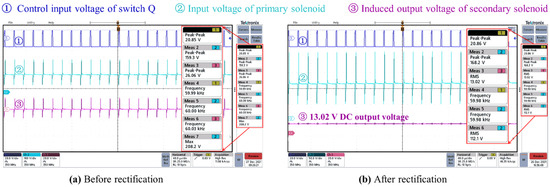

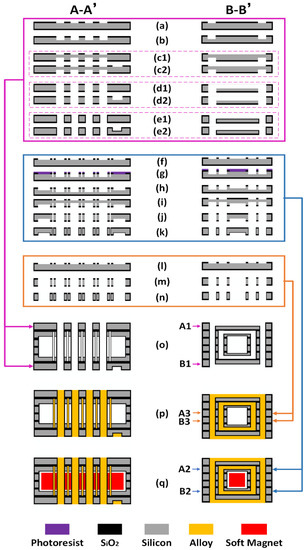

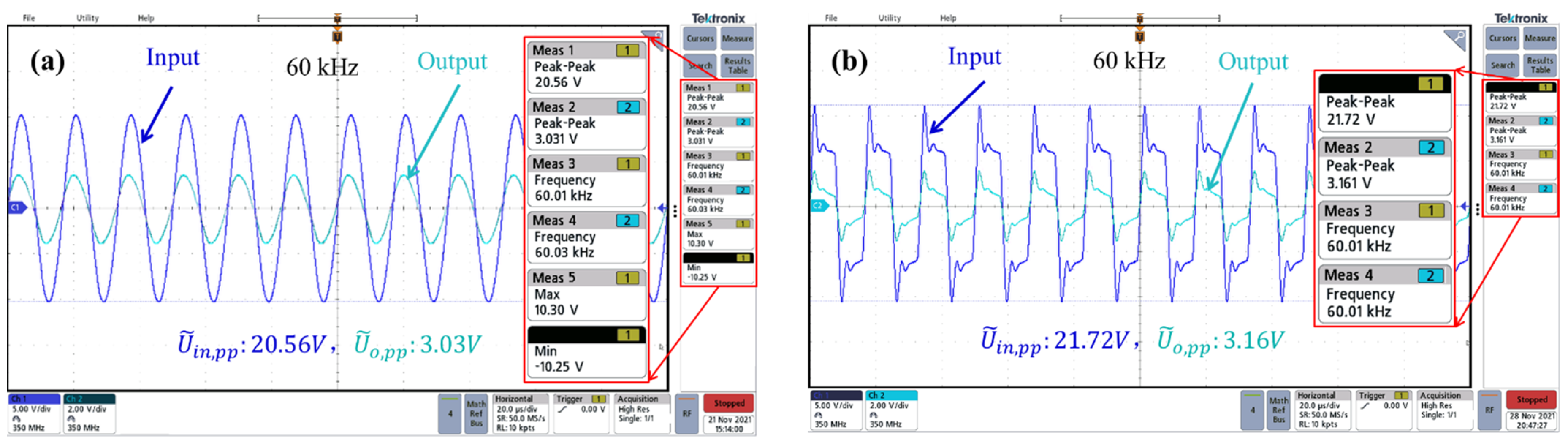

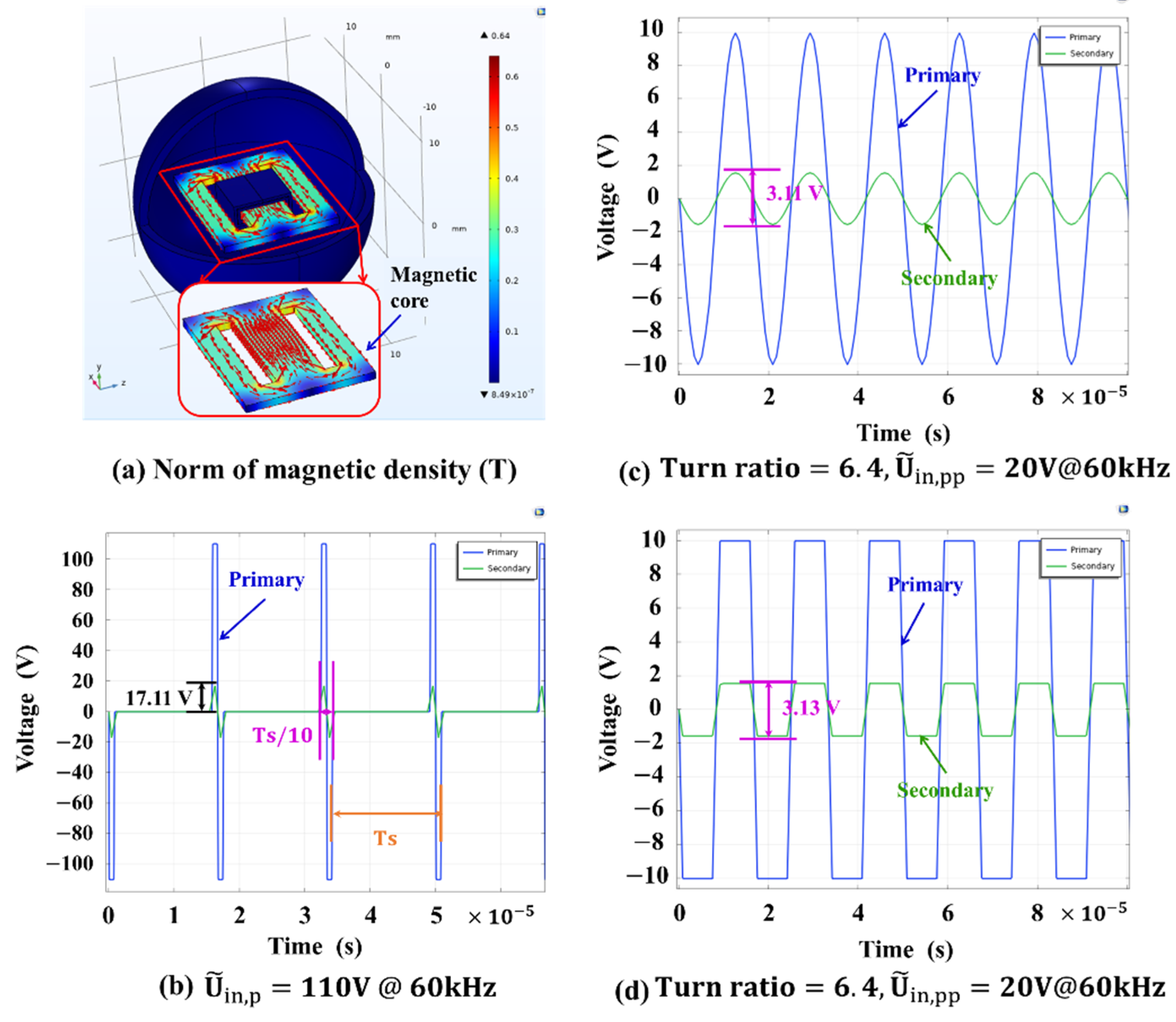

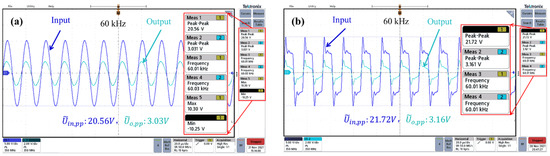

A silicon-chip-based 3D metal solenoidal transformer is proposed and developed to achieve AC-DC conversion for integrated power supply applications. With wafer-level micro electromechanical systems (MEMS) fabrication technique to form the metal casting mold and the following micro-casting technique to rapidly (within 6 min) fill molten ZnAl alloy into the pre-micromachined silicon mold, 45-turns primary solenoid and 7-turns secondary solenoid are fabricated in silicon wafers, where the two intertwining solenoids are located at inner deck and outer deck, respectively. Permalloy soft magnetic core is inserted into a pre-etched channel in the silicon chip, which is surrounded by the solenoids. The size of the chip-style transformer is as small as 8.5 mm × 6.6 mm × 2.5 mm. The internal resistance of the primary solenoid is 1.82 Ω and that of the secondary solenoid is 0.16 Ω. The working frequency of the transformer is 60 kHz. Combined with the testing circuit of the switch mode power supply, the DC voltage of 13.02 V is obtained when the input is 110 V at 50 Hz/60 Hz. Furthermore, the on-chip 3D solenoidal transformer is used for lighting four LEDs, which shows great potential for AC-DC power supply. The wafer-level fabricated chip-style solenoidal AC-DC transformer for integrated power supply is advantageous in uniform fabrication, small size and volume applications.
