Growth of a Large, Single-Crystalline WS2 Monolayer for High-Performance Photodetectors by Chemical Vapor Deposition
1
Hubei Engineering Technology Research Center of Energy Photoelectric Device and System, Hubei University of Technology, Wuhan 430068, China
2
Hubei Collaborative Innovation Center for High-Efficient Utilization of Solar Energy, Wuhan 430068, China
3
School of Science, Hubei University of Technology, Wuhan 430068, China
Academic Editor: Ha Duong Ngo
Micromachines 2021, 12(2), 137; https://doi.org/10.3390/mi12020137
Received: 17 December 2020
/
Revised: 19 January 2021
/
Accepted: 25 January 2021
/
Published: 27 January 2021
2D WS2 is a promising candidate for the next generation nanoelectronics, spintronics, valleytronics, and optoelectronics. However, the uncontrollably large-area growth of WS2 nanosheets and their unsatisfactory performance of the photodetectors based on WS2 hindered its applications. Here, we proposed a CVD method using tungstic acid as the precursors to grow WS2 flakes. After being characterized by AFM, Raman, PL, and TEM, we found the as-grown WS2 flakes were high-quality structures. Then the photodetectors based on the as-grown WS2 were fabricated, which exhibited high responsivity (7.3 A W−1), a fast response rate (a response time of 5 ms and a recovery time of 7 ms), prefect external quantum efficiency (EQE) (1814%), and remarkable detectivity (D*) (3.4 × 1012 Jones). Our works provided a new CVD method to grow some high-quality WS2 nanosheets.
View Full-Text
Keywords:
WS2 flakes; tungstic acid; chemical vapor deposition; photodetectors
▼
Show Figures

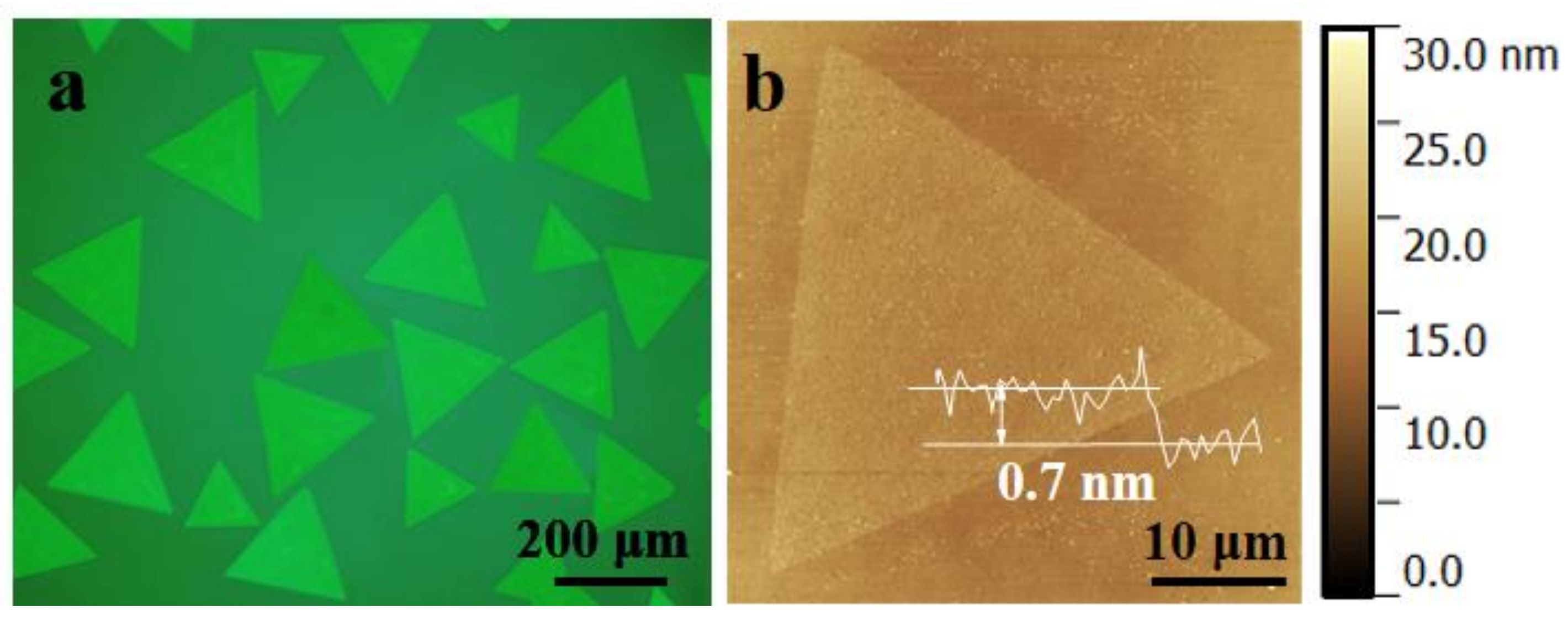

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Chen, Y. Growth of a Large, Single-Crystalline WS2 Monolayer for High-Performance Photodetectors by Chemical Vapor Deposition. Micromachines 2021, 12, 137. https://doi.org/10.3390/mi12020137
AMA Style
Chen Y. Growth of a Large, Single-Crystalline WS2 Monolayer for High-Performance Photodetectors by Chemical Vapor Deposition. Micromachines. 2021; 12(2):137. https://doi.org/10.3390/mi12020137
Chicago/Turabian StyleChen, Ying. 2021. "Growth of a Large, Single-Crystalline WS2 Monolayer for High-Performance Photodetectors by Chemical Vapor Deposition" Micromachines 12, no. 2: 137. https://doi.org/10.3390/mi12020137
