# Nonlinear Optics in Dielectric Guided-Mode Resonant Structures and Resonant Metasurfaces

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Design Considerations for Resonant Dielectric Grating Structures

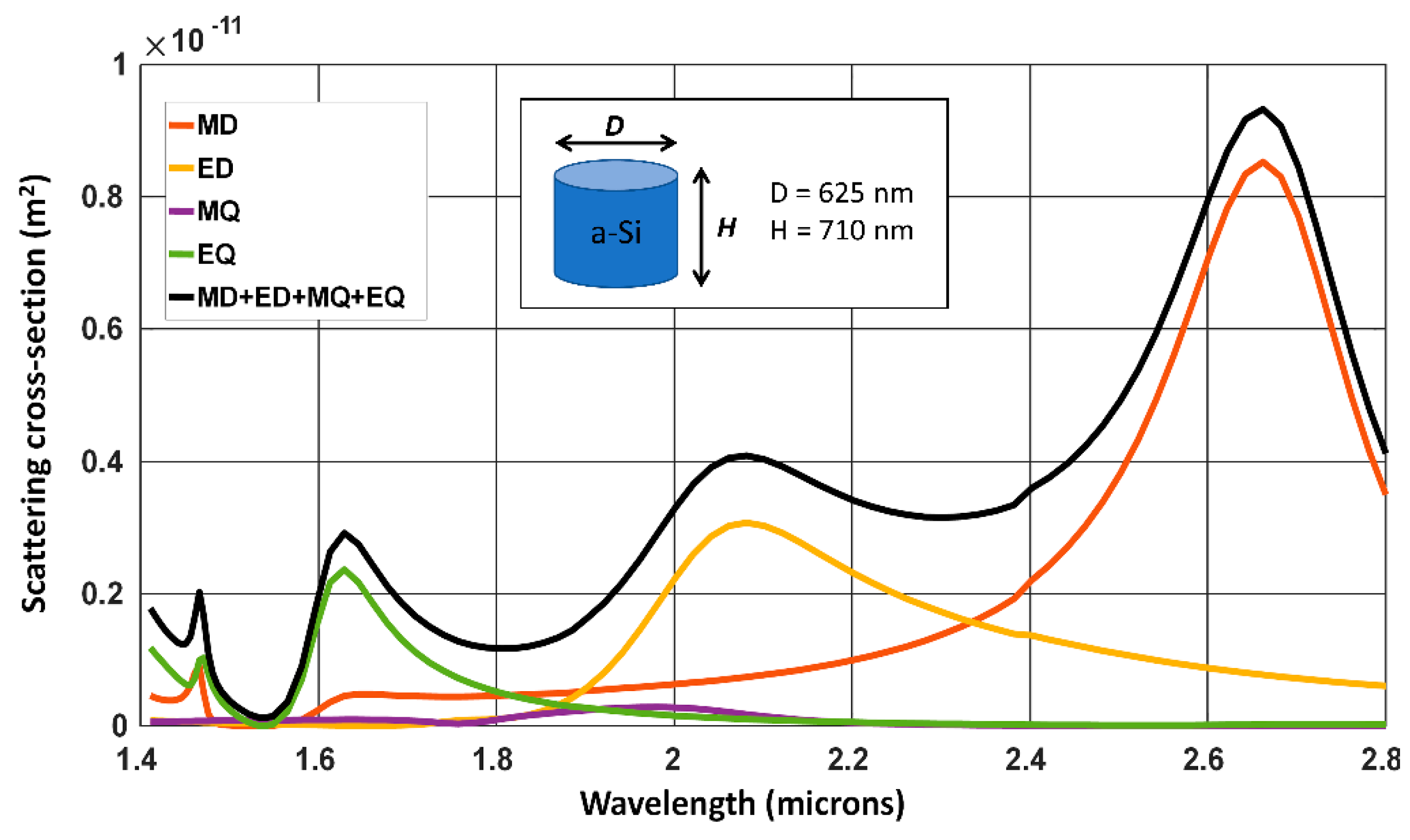

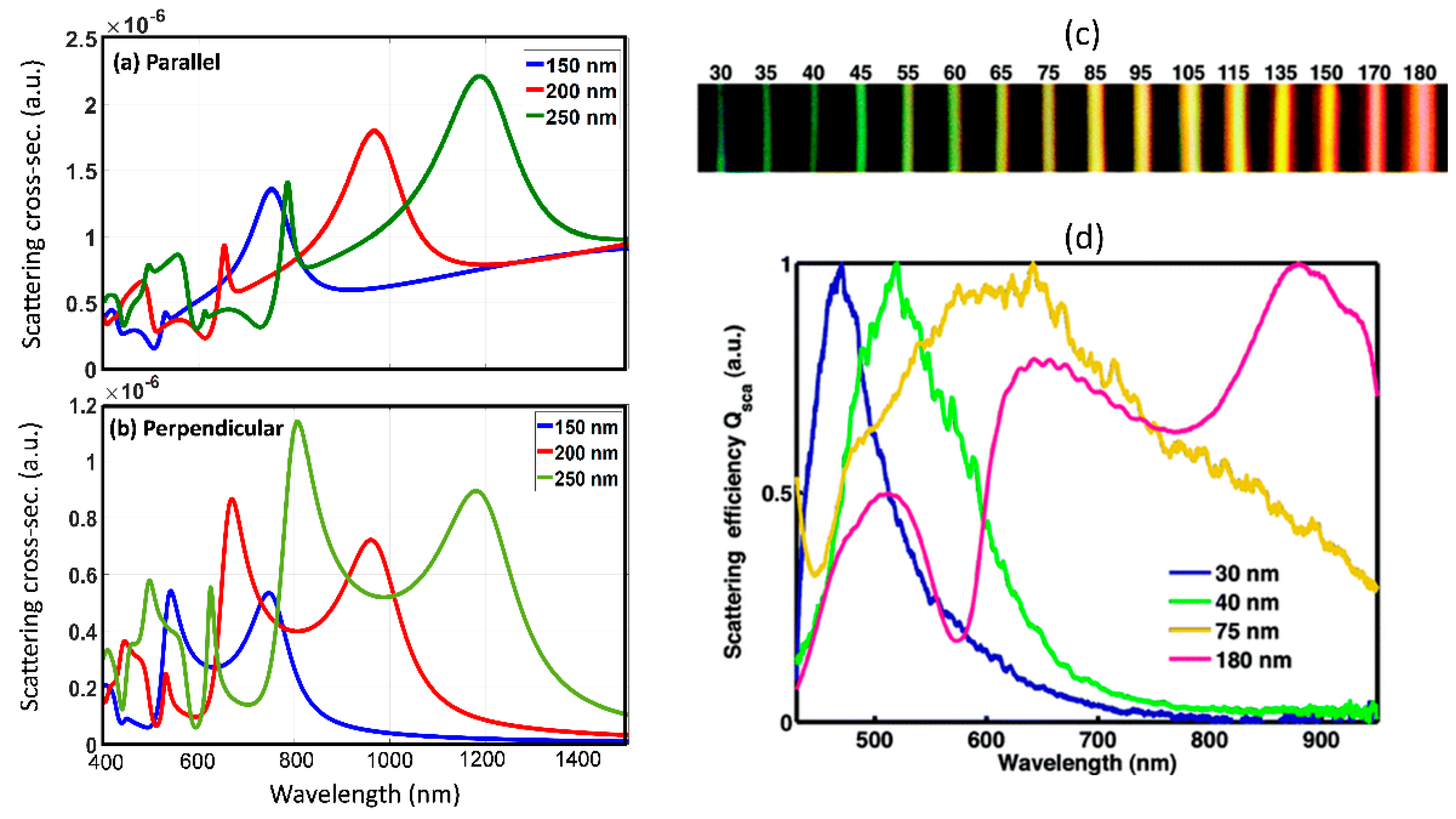

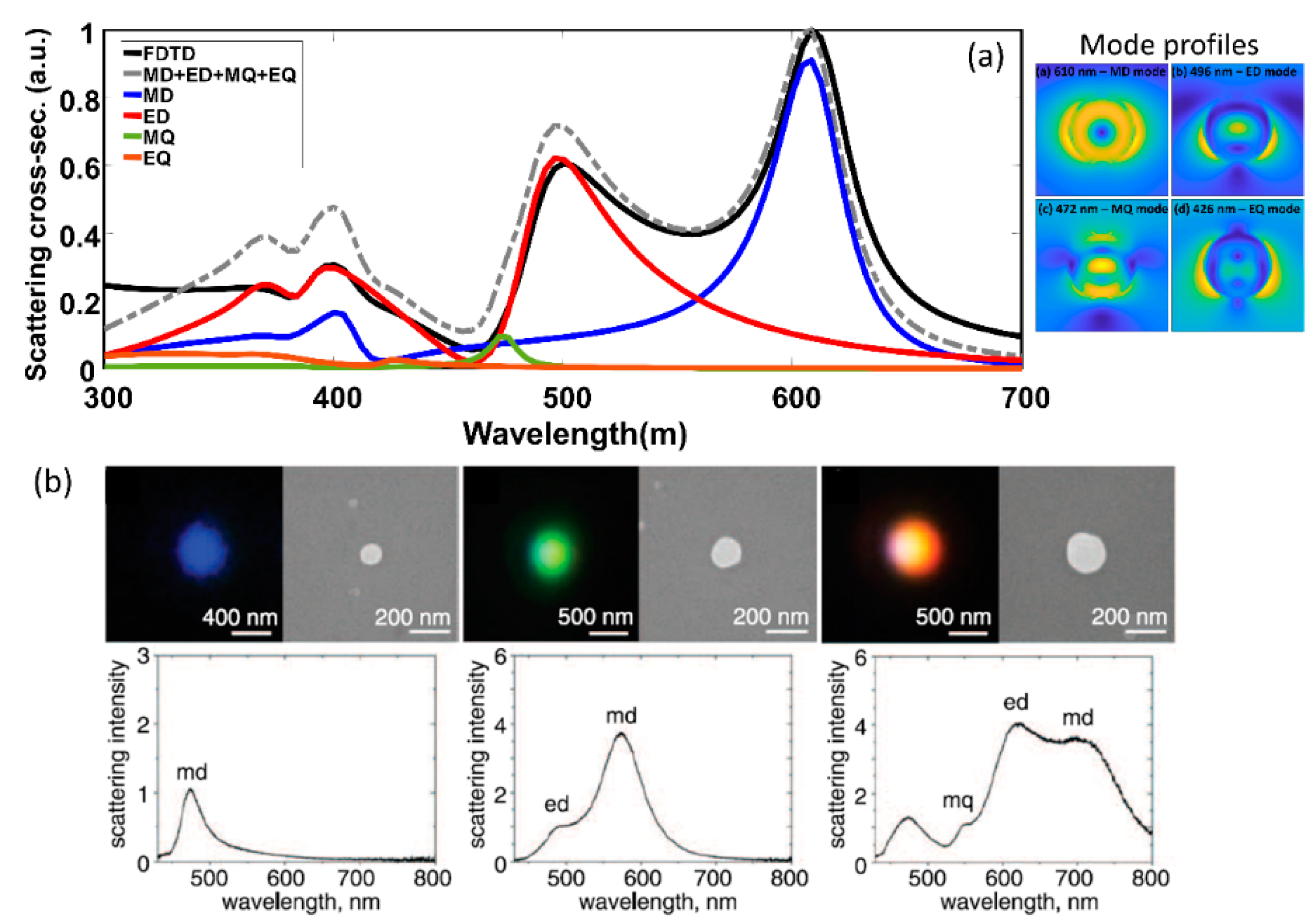

#### 2.1. Isolated Particle Versus Array

_{i}, b

_{i}are the electric and magnetic mode coefficients respectively, which are expanded in terms of Bessel, Hankel, Ricatti-Bessel and Ricatti-Hankel functions, x = ka refers to the modified dimension parameter, and $m=\frac{\sqrt{{\epsilon}_{1}{\mu}_{1}}}{\sqrt{{\epsilon}_{host}{\mu}_{host}}}$ refers to the contrast parameter [7]. Simplified forms of the scattering expansion for specific structures can be found in ref. [32]. Typical field profile obtained close to the electric/magnetic dipolar and quadrapolar resonances for isolated spherical particle are also shown in Figure 2a.

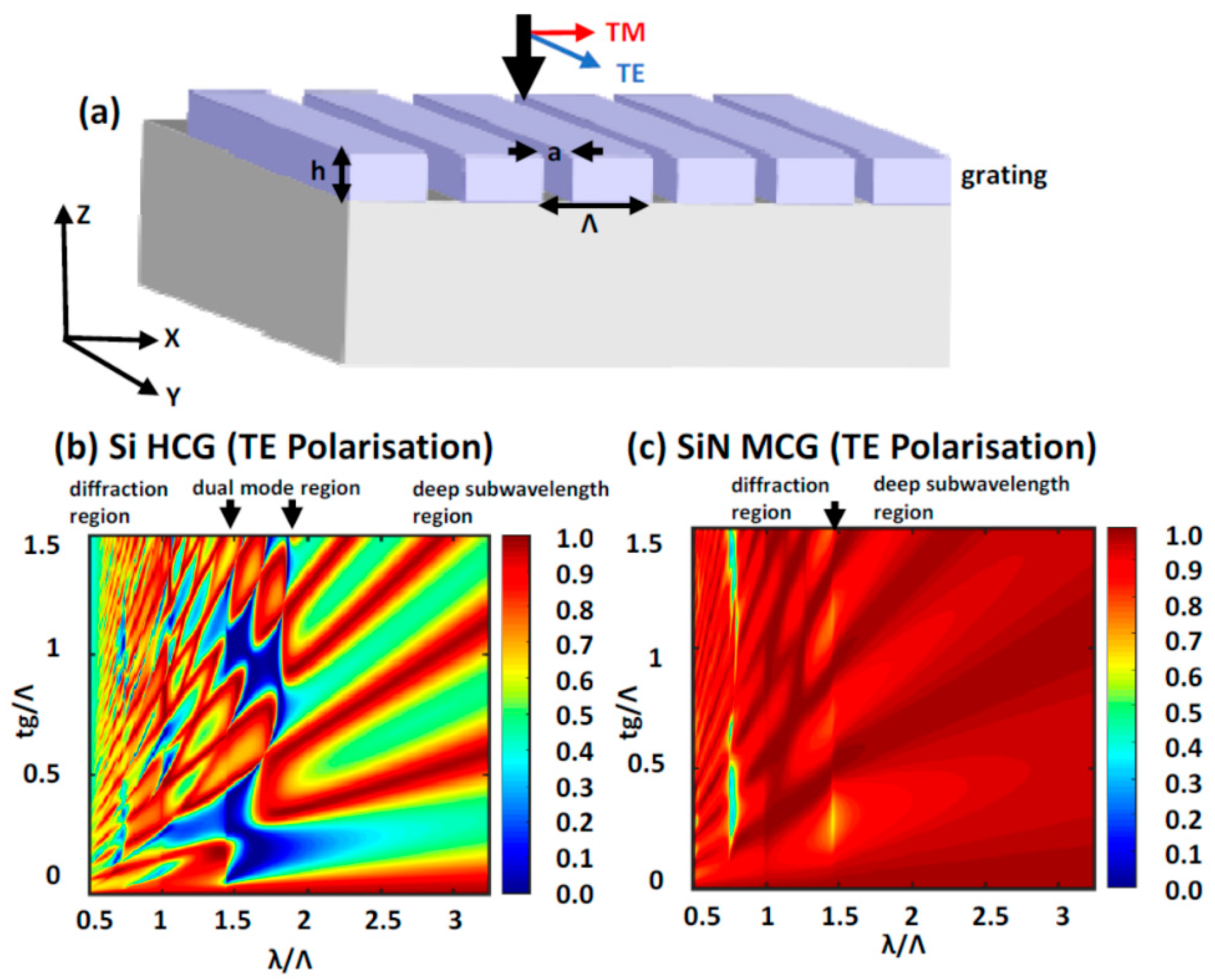

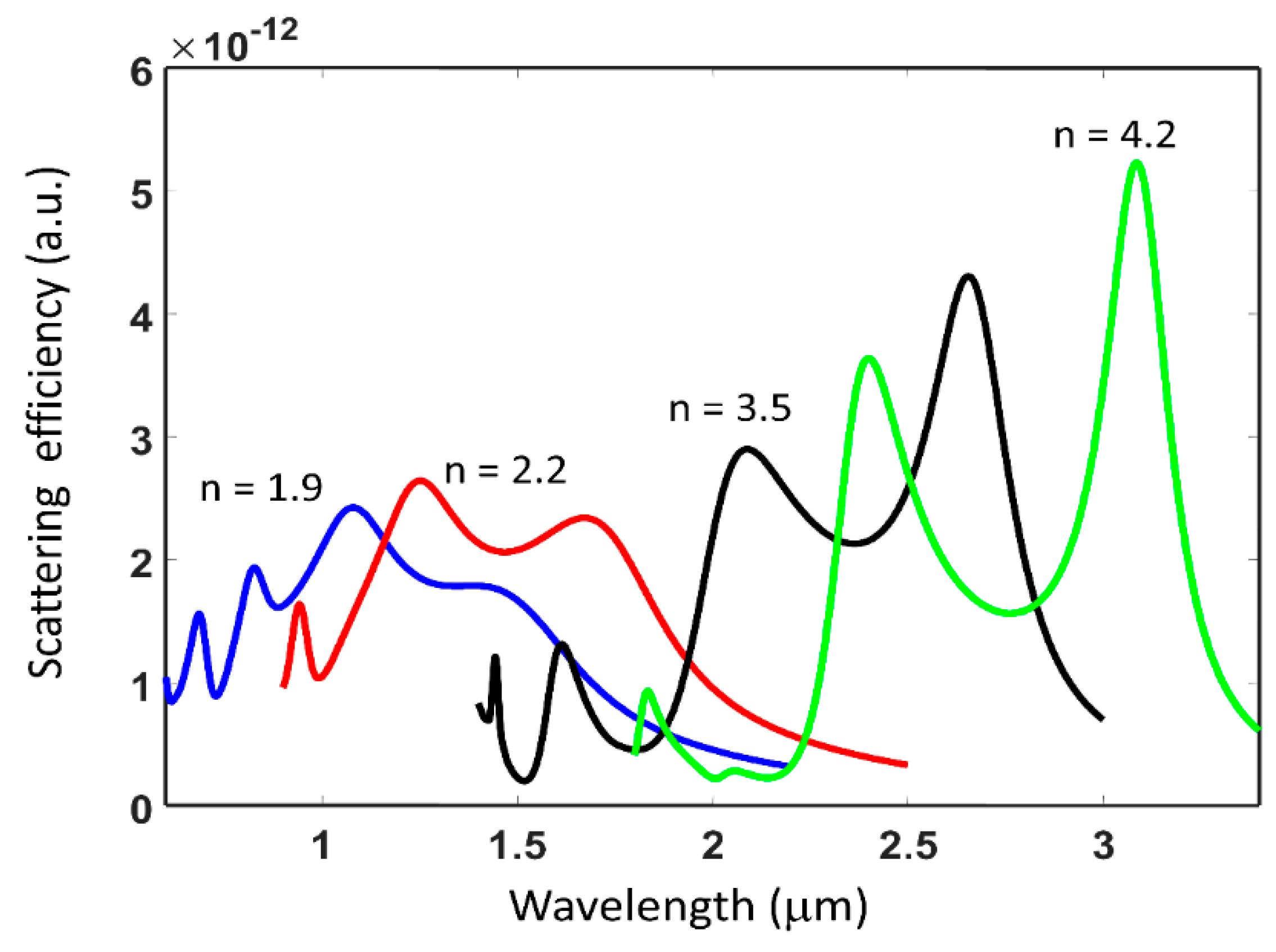

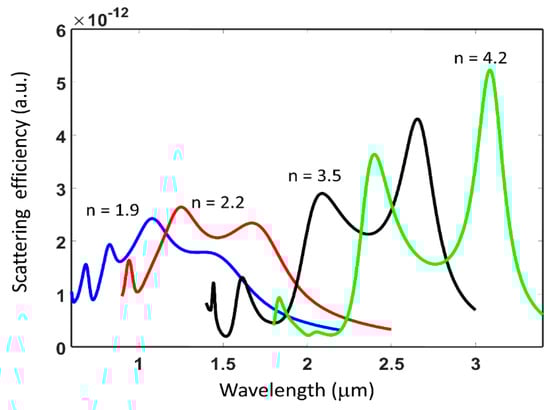

#### 2.2. Effect of Refractive Index Contrast on Resonant Interaction

## 3. Physical Mechanisms behind Resonances in Arrayed Structures

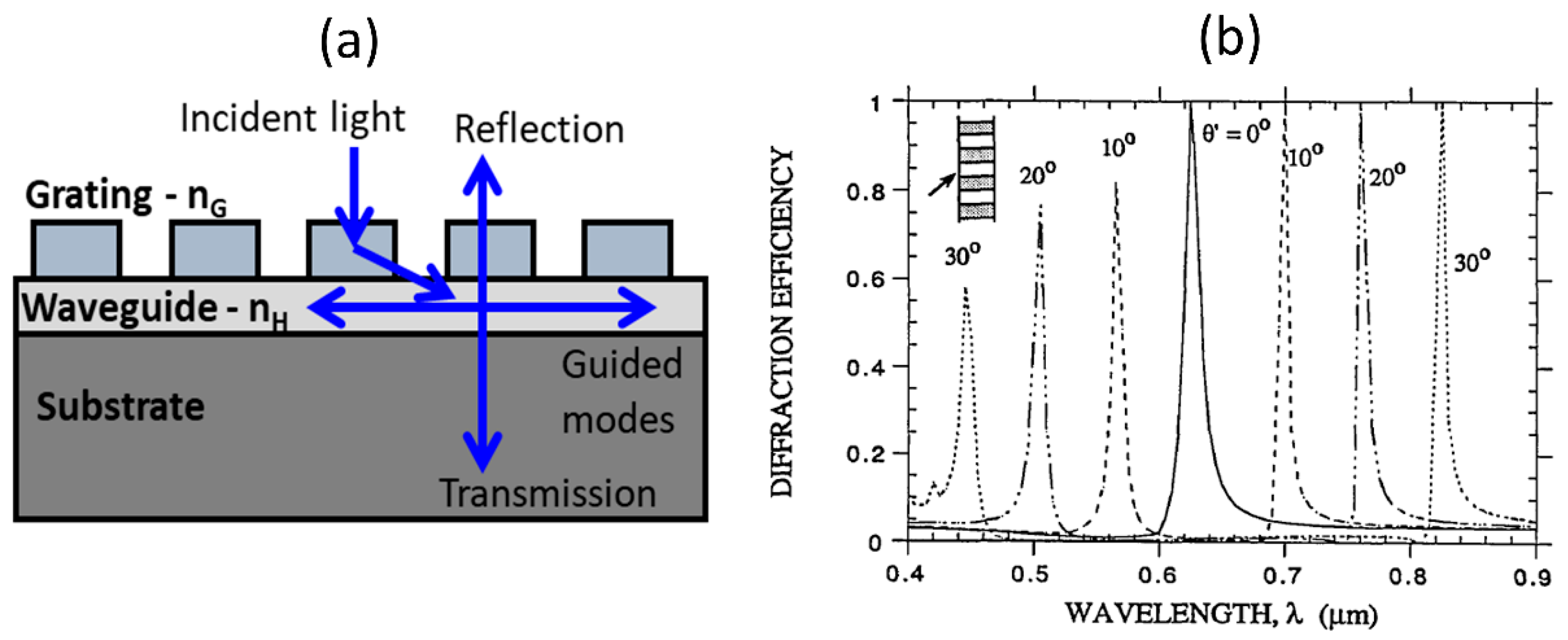

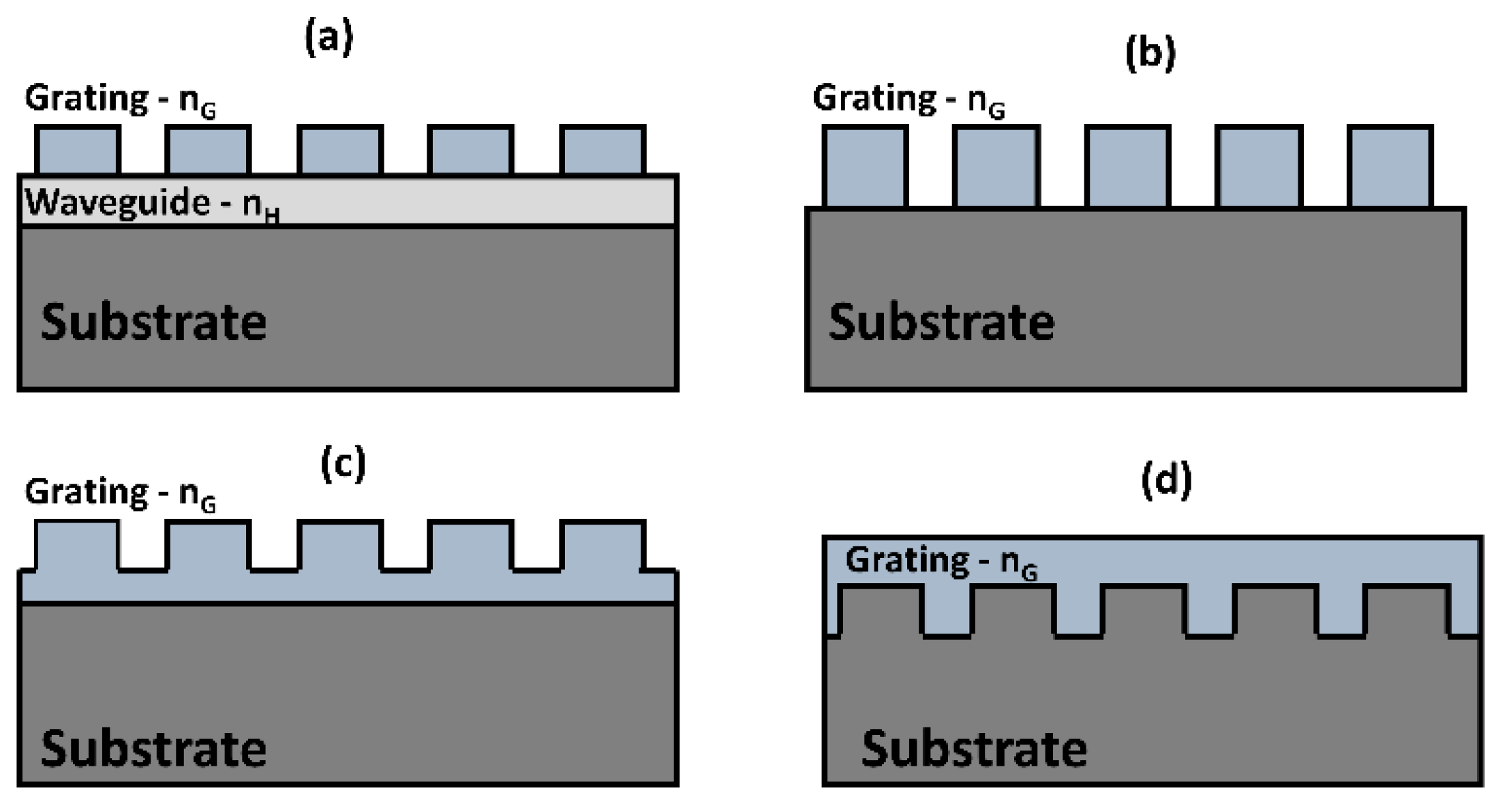

#### 3.1. Guided-Mode Resonances

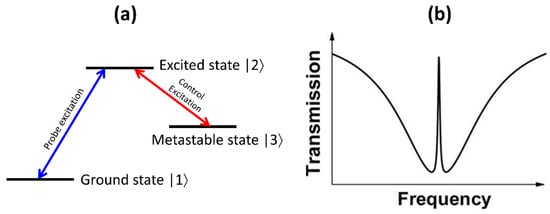

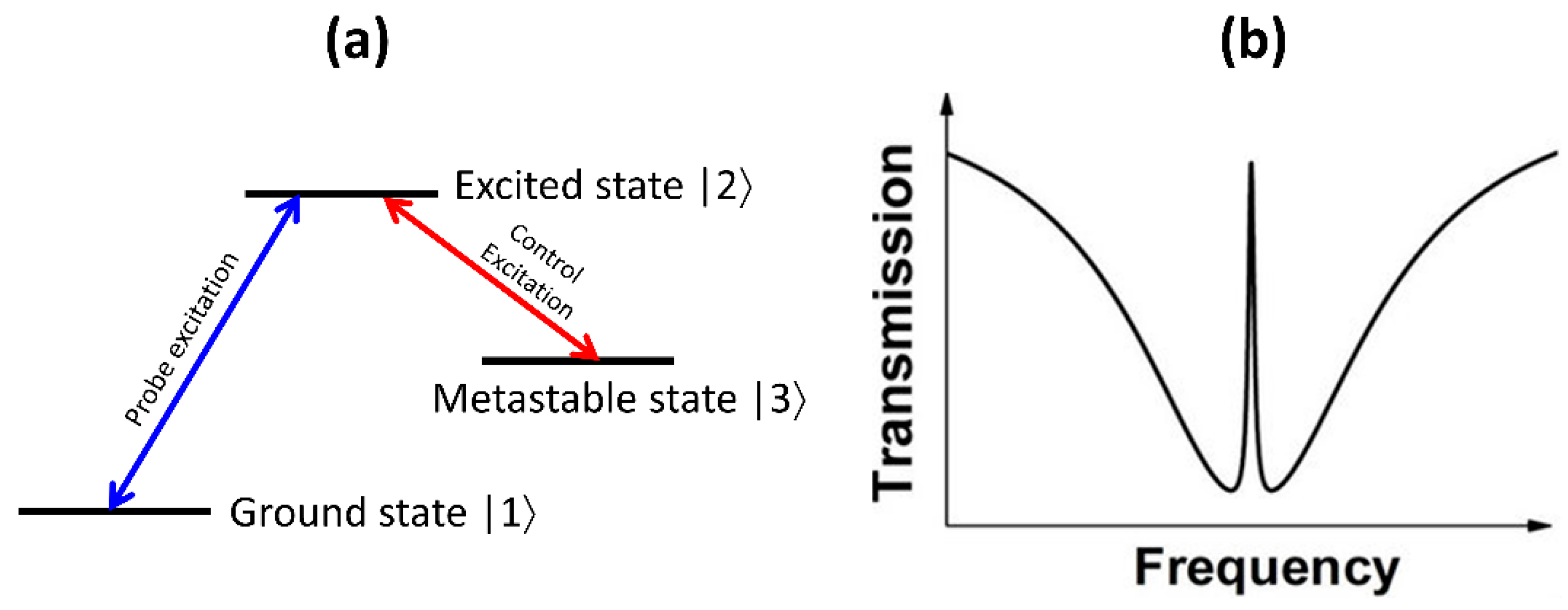

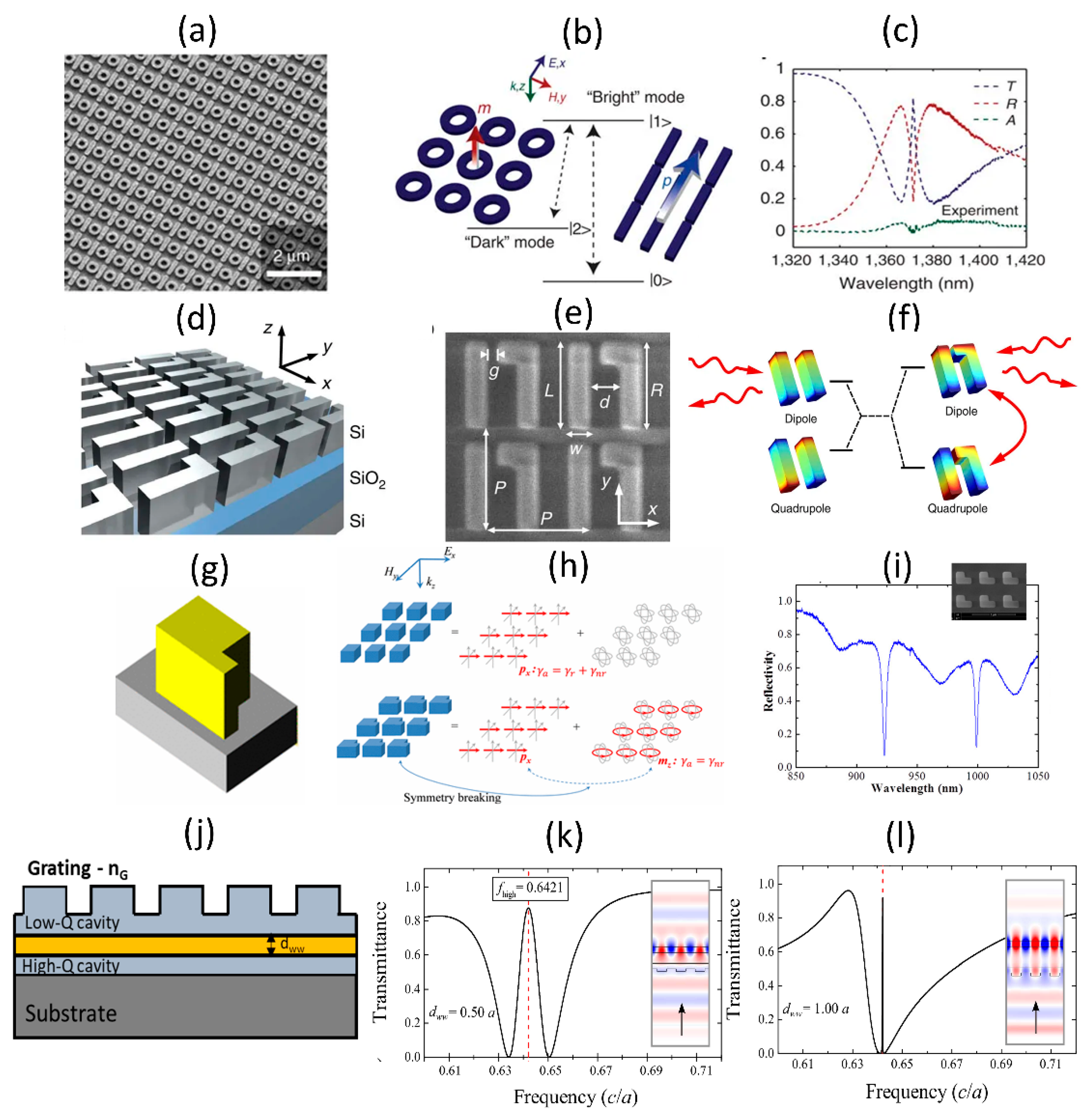

#### 3.2. Electromagnetically-Induced Transparency Analogue Resonances

_{x}to the magnetic dipole mode, denoted as m

_{z}. This coupling results in characteristic dips in the measured reflection spectra, as shown in Figure 12i. Such structures have been utilized for nonlinear optical process enhancement, as discussed in Section 4. In the context of guided mode resonances, there is interest in coupling a low- and high- quality factor resonant waveguide structure. Some examples of such structures are shown in Figure 12j–l. Some of the early simulation studies of these structures consisted of a top grating-waveguide layer coupled to another bottom waveguide layer, as shown in the inset of Figure 12j. In this case, the direct coupling of the incident light to the bottom waveguide and indirect coupling through interaction with the top-layer guided-mode resonant structure can occur. This results in a sharp transmission peak, which is different from the transmission spectra of an equivalent refractive index homogenous medium. Some of the early work [73] was not even called an EIT analogue at that time. The EIT analogue ideas have been extended recently to one-dimensional and two-dimensional structures [74,75]. The spectral width of the EIT resonance and hence its overall quality factor can be engineered by choosing the separation between the top-layer grating-waveguide structure and the bottom waveguide layer. An example of such an engineered resonance shape is shown in Figure 12k,l. Such resonance shapes can potentially be used as narrow band-pass filters when compared to the more complex multi-layer dichroic filters.

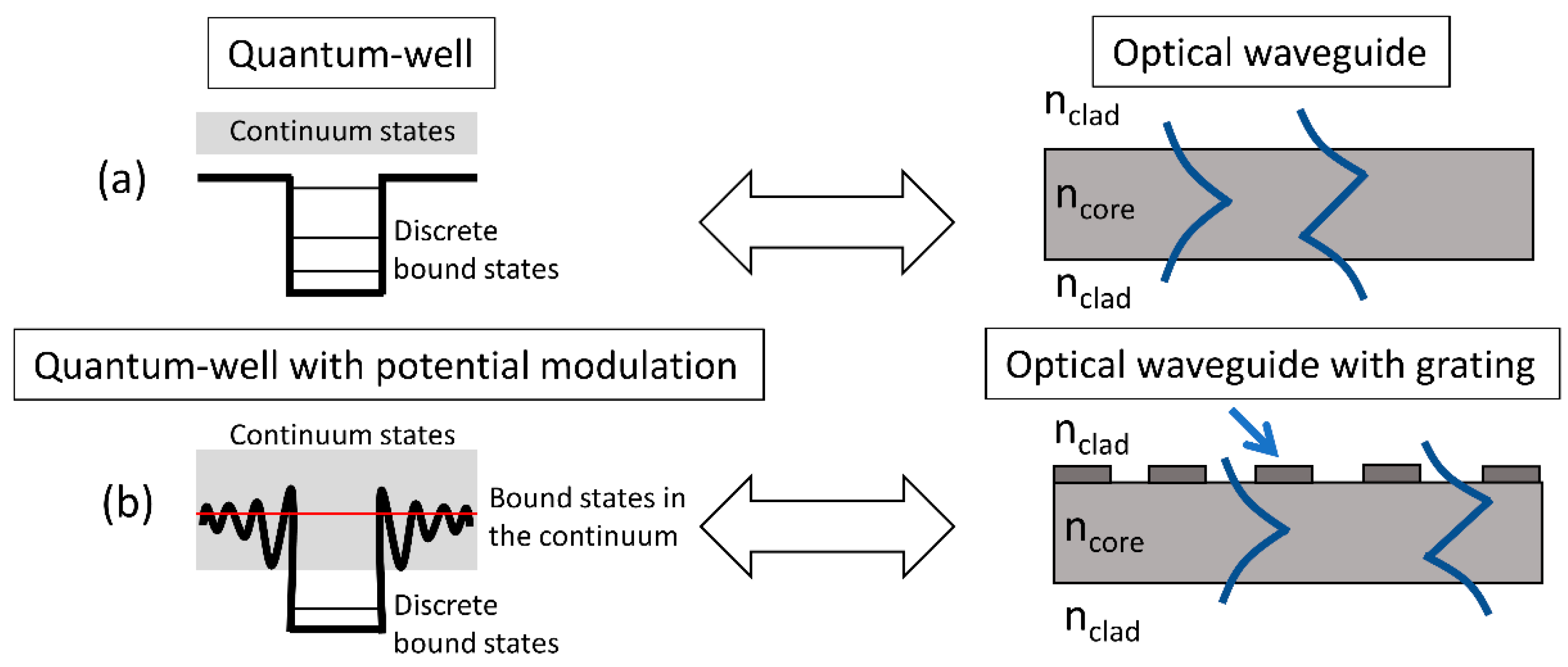

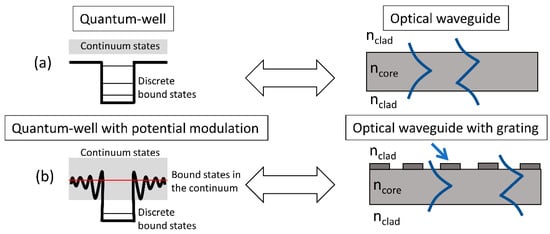

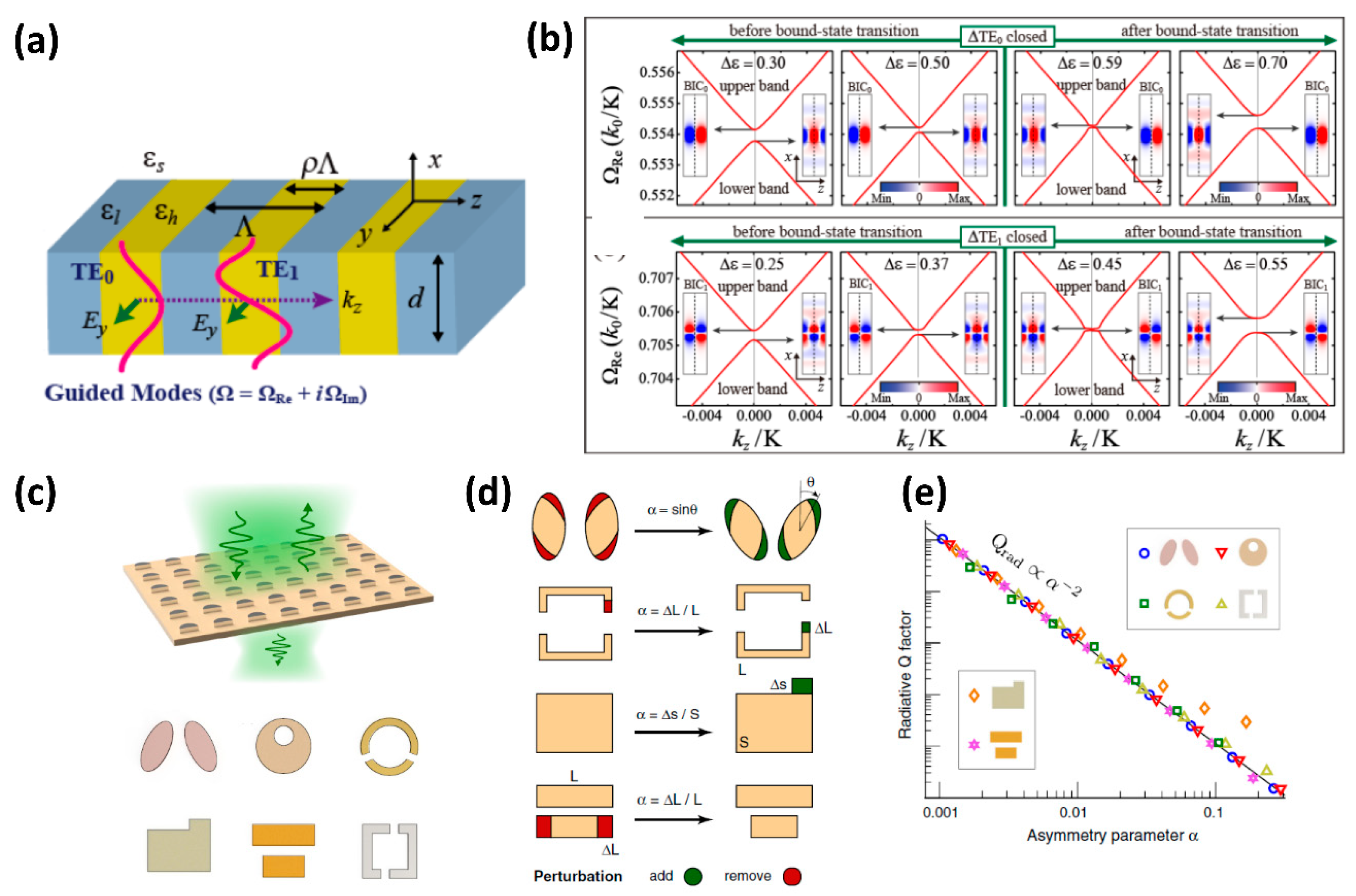

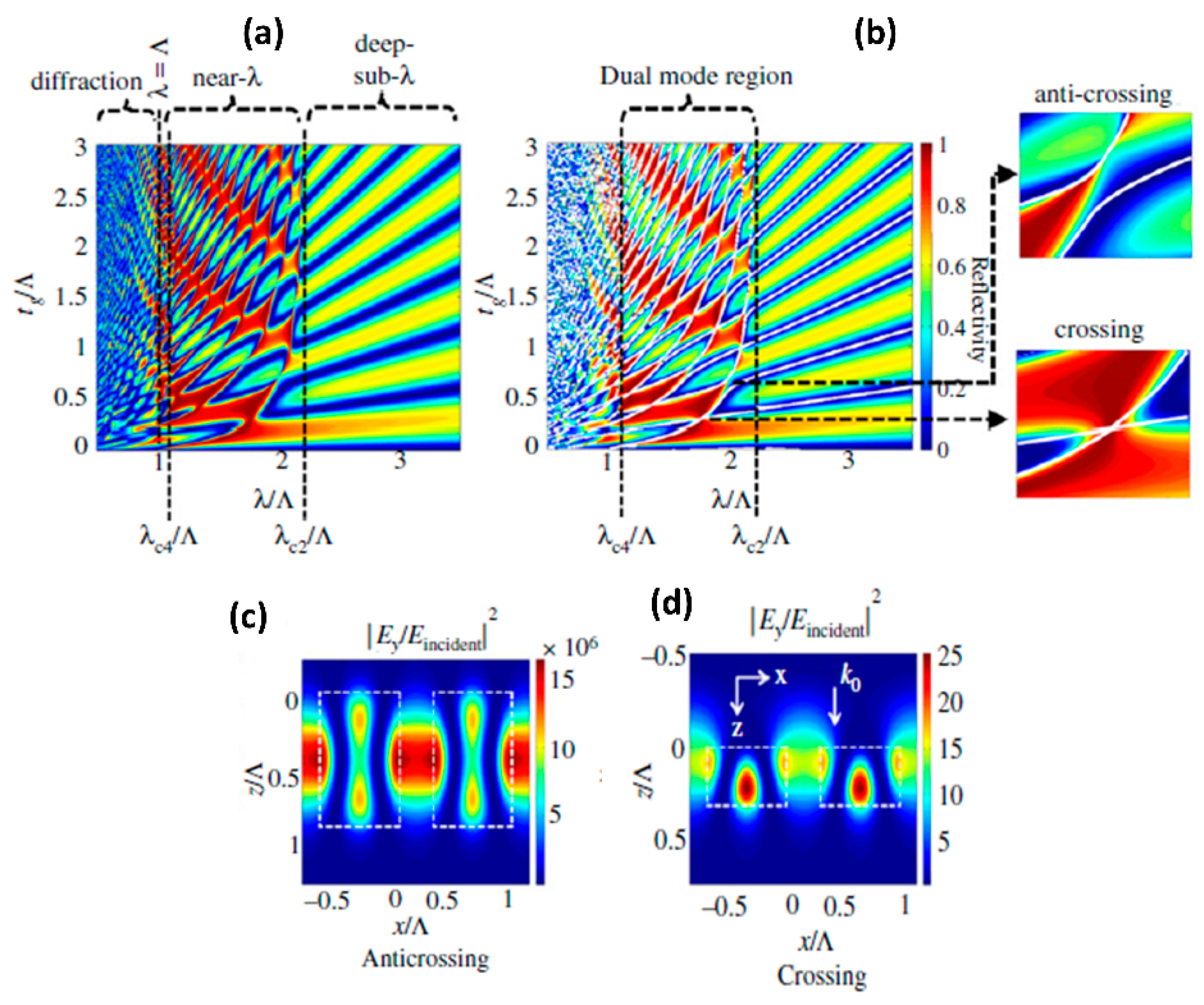

#### 3.3. Bound-States in Continuum Resonances

_{H}−ε

_{L}. The structure supports multiple resonant modes (TE

_{0}and TE

_{1}modes) as shown in the figure. The bandstructure for the TE0 and TE1 resonances in the vicinity of k

_{z}= 0 point shows two different types of resonances, one which is the leaky GMR and the other is the non-leaky BIC resonance [82], as shown in Figure 14b. The mode profile of the GMR and BIC resonances show odd and even order symmetry respectively and this inherently determines the ability to excite or couple into these modes through normal incidence plane wave excitation. The odd-symmetry profile can be excited with a normal incident wave, while the even-symmetry profile is forbidden from excitation. Furthermore, the GMR and BIC resonances are found to flip with change in Δε [80]. The same band dynamics are observed for both TE

_{0}and TE

_{1}resonant modes. The symmetry protected BIC resonances strictly remain protected only at normal incidence. With off-axis illumination, the symmetry can be broken resulting in quasi-BIC resonances with finite quality factor. BIC resonances can also be observed for non-zero k

_{z}, which are called accidental BIC resonances [76]. Quasi-BIC resonances can also be excited at normal incidence by the introduction of asymmetry in the periodic structures [83]. Figure 14c shows schematic of such asymmetric structures. The resonant metasurfaces can be modelled by the amount of asymmetry introduced into the structure, denoted by α parameter [83]. Figure 14d shows that the asymmetry parameter can represent angular tilt, addition/ removal of material in split-ring, rectangular and bar-dimer structures in normalized units [83]. The asymmetric resonant metasurfaces discussed in Figure 12g–i which exhibit EIT-like coupling between the electric and magnetic dipolar modes can also be considered as an asymmetric structure in which quasi-BIC modes are observed. The quality factor of the BIC resonance is found to be directly related to the asymmetric parameter, with the quality factor scaling as α

^{−2}[83]. In addition to resonant metasurfaces, BIC resonances are also predicted for isolated sub-wavelength particles in the form of narrow spectral features in the scattering spectra. These are termed as super-cavity modes [46]. Such high-quality factor BIC resonances in periodic grating structures, asymmetry metasurfaces and even isolated objects are finding innovative applications in BIC metasurface lasers [84,85], sensing [86], and nonlinear optics [87]. Few of the nonlinear optics applications are discussed below in Section 4.

## 4. Nonlinear Optical Studies of Resonant Dielectric Grating Structures

#### 4.1. Second- and Third-Harmonic Generation

^{n}where, Q is the quality factor of the resonance under consideration and V is the cavity volume and n is the order of the nonlinearity [91]. With reduced cavity volumes in sub-wavelength metasurfaces and the ability to achieve moderately high-quality factors (few 100 s to 1000 s), the resonant nonlinear optical process can be enhanced by 10

^{3}to 10

^{5}times. This field enhancement can counteract the effect of reduced interaction length in sub-wavelength thick metasurface, which is potentially promising for realizing high efficiency nonlinear photonic devices. Second order nonlinear optical processes are observed in materials which lack inversion symmetry and in material interfaces, while third-order nonlinear optical processes are observed in all optical media [1]. This leads to the careful selection of the nonlinear media to build resonant metasurface platforms for study various nonlinear optical processes. In general, the second- and third- harmonic generation processes satisfy the frequency relationships, ${\omega}_{out}=\omega +\omega \text{}$ and ${\omega}_{out}=\omega +\omega +\omega $ respectively. The need for momentum or wave-vector matching is relaxed in sub-wavelength metasurface platforms in most implementations due to the reduced length resulting in negligible phase mismatch. Here, we broadly divide the second and third-harmonic generation studies in periodic dielectric structures into guided-mode resonance type and resonant metasurface type platforms. Few examples under each of these categories are listed in Figure 15 and Figure 16, respectively.

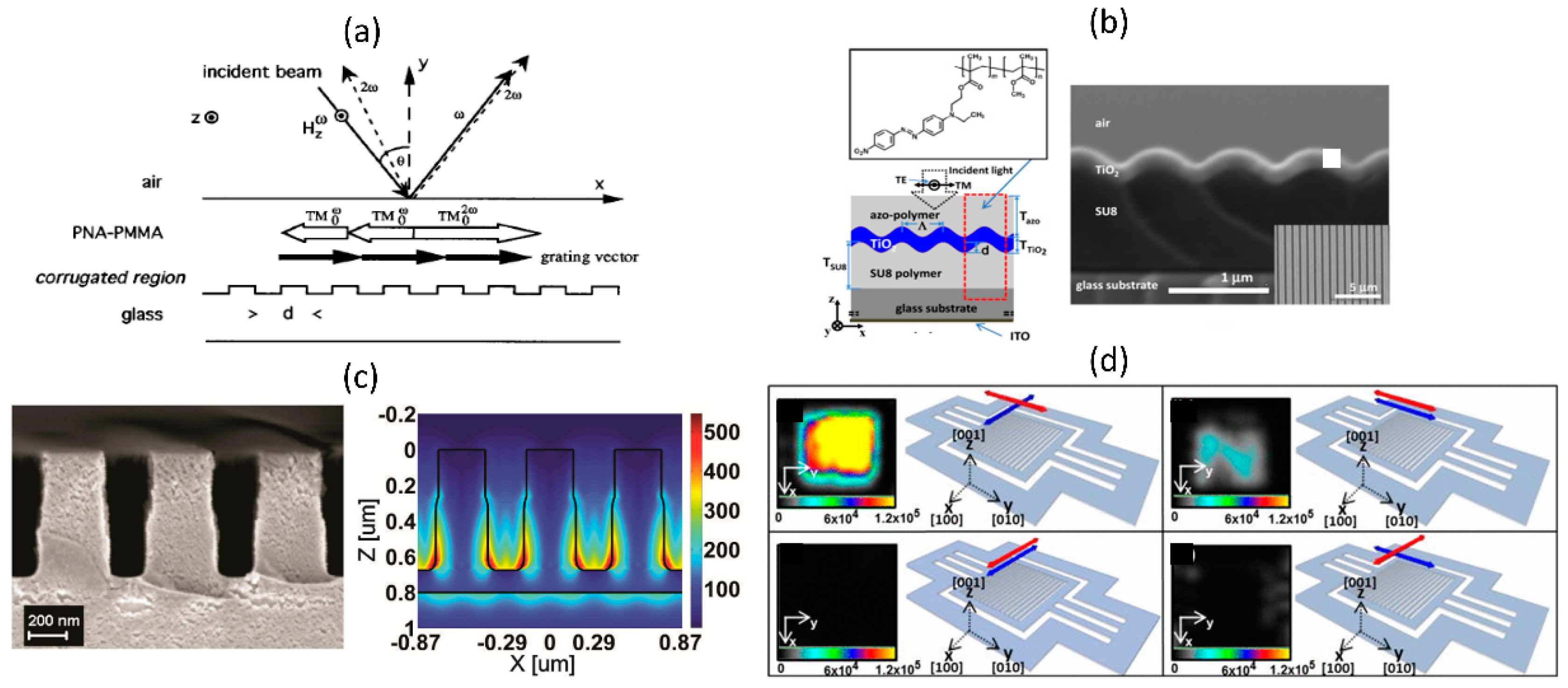

**Figure 15.**Various guided-mode resonance structures studied for nonlinear optical enhancement studies. (

**a**) Schematic of glass-grating with PMMA layer used for phase-matched second-harmonic generation studies. (

**b**) Schematic and scanning electron microscopy image of the Azo-polymer coated titanium oxide gratings used for second-harmonic generation enhancement. (

**c**) Silicon nitride grating structures and simulated field profiles used for UV-third-harmonic generation. (

**d**) AlGaAs high-contrast grating structures and second harmonic generation microscopy studies for different incident/ detection polarizations. (Figure a is reproduced with permission from ref. [92], b is reproduced with permission from ref. [93], c is reproduced with permission from ref. [95] and d is reproduced with permission from ref. [96]).

^{5}has been reported in this work with an overall conversion efficiency of 10

^{−4}. Silicon nanodisks in ordered two-dimensional arrangement have been used to leverage magnetic dipolar resonances from the unit cell elements to enhance third-harmonic generation [34]. Figure 16b shows one such arrangement of nanodisks with the corresponding linear and nonlinear spectral measurement results. Maximum enhancement of close to two orders of magnitude with conversion efficiencies of ~10

^{−7}has been reported in this work. Similar third-harmonic enhancement studies have been extended to dimer and more complex oligomeric unit cells to study the collect interaction of the individual elements in the unit cells [98,99]. There has also been interest in understanding the effect of disorder in the particle arrangement [100,101]. Figure 16c shows the arrangement of the nanodisks with controlled disorder introduced during fabrication. In this work, it has been found that the third-harmonic signal and its spatial localization are robust against disorder added to the nanodisk arrangement, making it topologically protected. Gallium Arsenide metasurfaces have been used for second-harmonic generation enhancement [102]. Asymmetric metasurfaces with high quality factor utilized for one such work with the corresponding linear and nonlinear optical spectra are shown in Figure 16d. It is found that the common [1 0 0] oriented Gallium Arsenide results in negligible second-harmonic emission along the optical axis due to the dominant longitudinally polarized nonlinear polarization, thus resulting in poor collection efficiency. One way to alter the far-field emission profile is to change the Gallium Arsenide orientation [103]. Figure 16e shows one such work on nanodisk arrays of [1 1 1] Gallium Arsenide metasurfaces. It is found from the far-field angular distribution that [1 1 1] metasurface does result in strong second-harmonic emission parallel to the optical axis when compared to [1 0 0] metasurface.

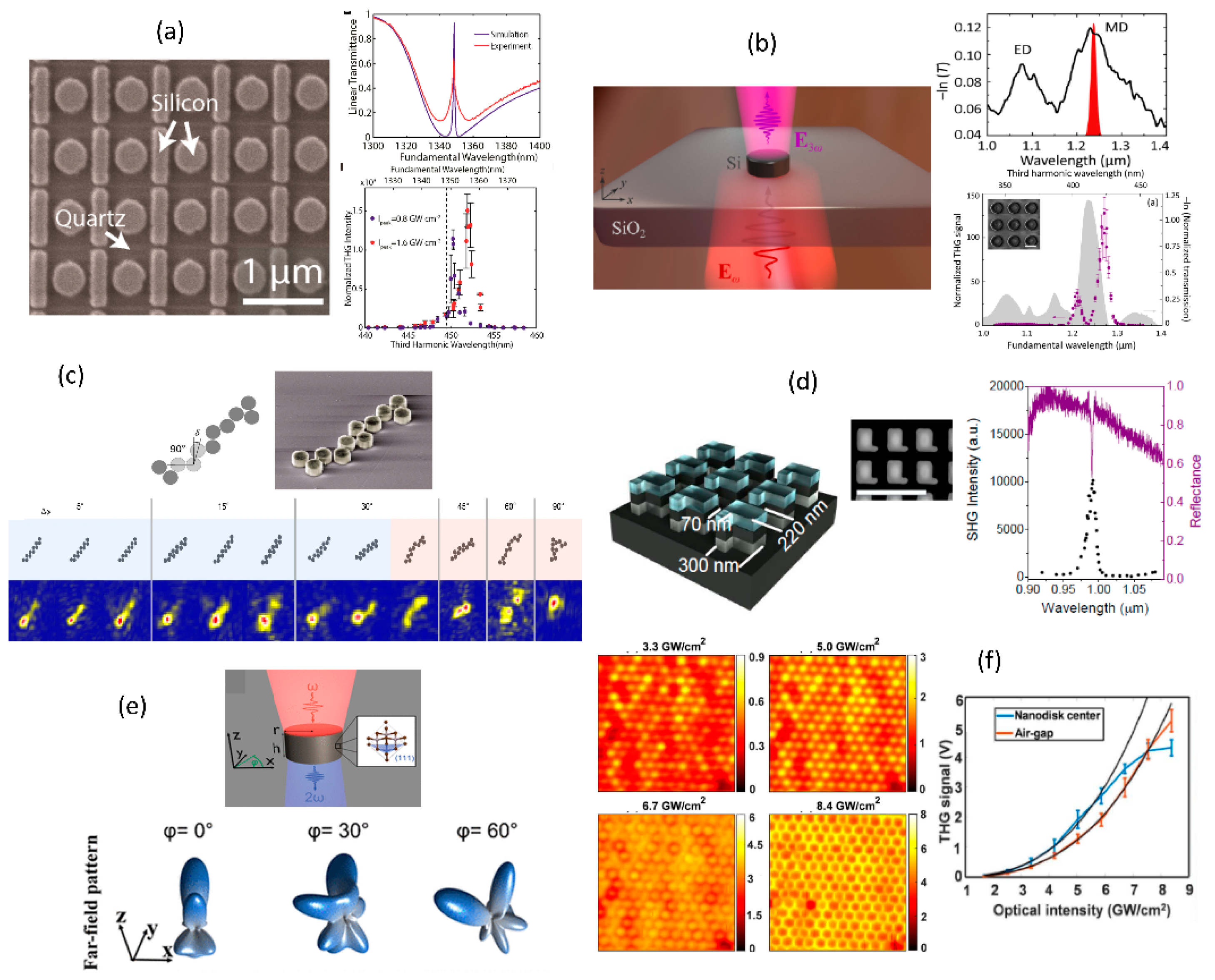

**Figure 16.**Various implementations of resonant metasurface for second- and third-harmonic generation studies. (

**a**) Fano-resonant silicon bar-nanodisk structures for third-harmonic generation enhancement. (

**b**) Silicon nanodisk array for third harmonic generation enhancement relying on magnetic dipolar modes. (

**c**) Disorder robust third-harmonic generation from silicon nanodisks which are shown to be topologically protected from disorder in arrangement of the structures. (

**d**) Gallium Arsenide asymmetry resonant metasurface for second-harmonic generation enhancement. (

**e**) Dependence of the resonant second-harmonic far-field signal on [1 1 1] oriented Gallium Arsenide metasurface. (

**f**) Spatial mapping of intensity dependent saturation of third-harmonic signal from silicon nanodisk array. (Figure a is reproduced with permission from ref. [97], b is reproduced with permission from ref. [34], c is reproduced with permission from ref. [100], d is reproduced with permission from ref. [102], e is reproduced with permission from ref. [103] and f is reproduced with permission from ref. [104]).

#### 4.2. Wave Mixing Processes

_{4}= ω

_{1}+ ω

_{2}− ω

_{3}[1]. Two pump frequencies (ω

_{1}and ω

_{2}) being unique or identical are termed as non-degenerate and degenerate FWM processes respectively. The second-order SFG process satisfies the frequency relation: ω

_{3}= ω

_{1}+ ω

_{2}, while degenerate third-order SFG process satisfies frequency relation of the form: ω

_{3}= 2ω

_{1}+ ω

_{2}or ω

_{3}= ω

_{1}+ 2ω

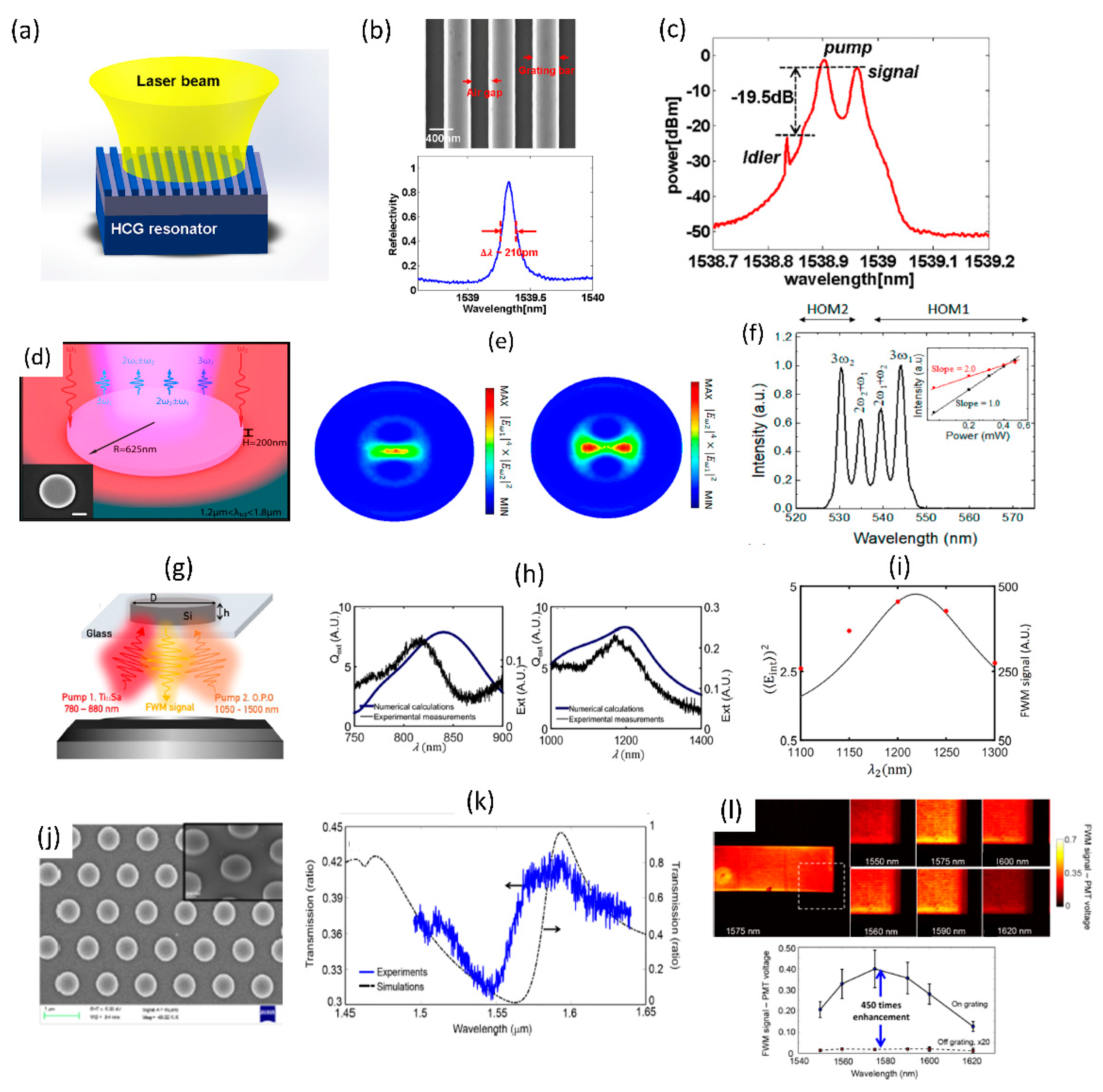

_{2}[1]. Figure 17a–c shows FWM enhancement observed for closely spaced pump-signal wavelengths in the telecom range for silicon-on-insulator based fully etched high-contrast gratings [105]. The sub-wavelength dimension high-contrast grating structures are found to support resonances with intensity enhancement of more than 8000 times and experimentally measured quality factor of ~7300. The signal and pump photons in close vicinity to this resonance results in FWM with the generation of idler with conversion efficiency of −19.5 dB as shown in Figure 17c. The use of high aspect ratio germanium (Ge) nanodisks to observe anapolar resonances [106] and the enhancement of third-order sum-frequency generation processes is shown in Figure 17d–f [107]. The higher order anapolar mode profiles are chosen with good spatial overlap to ensure enhancement of the SFG process by about two-orders of magnitude, as shown in the SFG spectrum in Figure 17f. Silicon (Si) nanodisks that support magnetic and electric-dipole resonances have also been utilized for doubly-resonant enhancement of FWM process as shown in Figure 17g–i [108]. The individual resonance spectra and the corresponding resonance for the FWM are also shown, with approximately two-orders of magnitude enhancement. Doubly-resonant structures are promising to increase the FWM efficiency using both pump and signal resonances. However, the best enhancement can be obtained only when good overlap is ensured between the interacting resonant mode profiles. Detailed spatially-resolved imaging of four-wave mixing process in singly resonant partially etched zero-contrast grating structures is shown in Figure 17j–l [109]. The structures are designed to support resonance at the signal wavelength in the 1550 to 1600 nm wavelength range. Four-wave mixing images acquired across an area of 300 × 300 microns show clear dependence of the FWM image contrast on the incident signal wavelength. A maximum FWM enhancement of 450 times has been experimentally obtained [109].

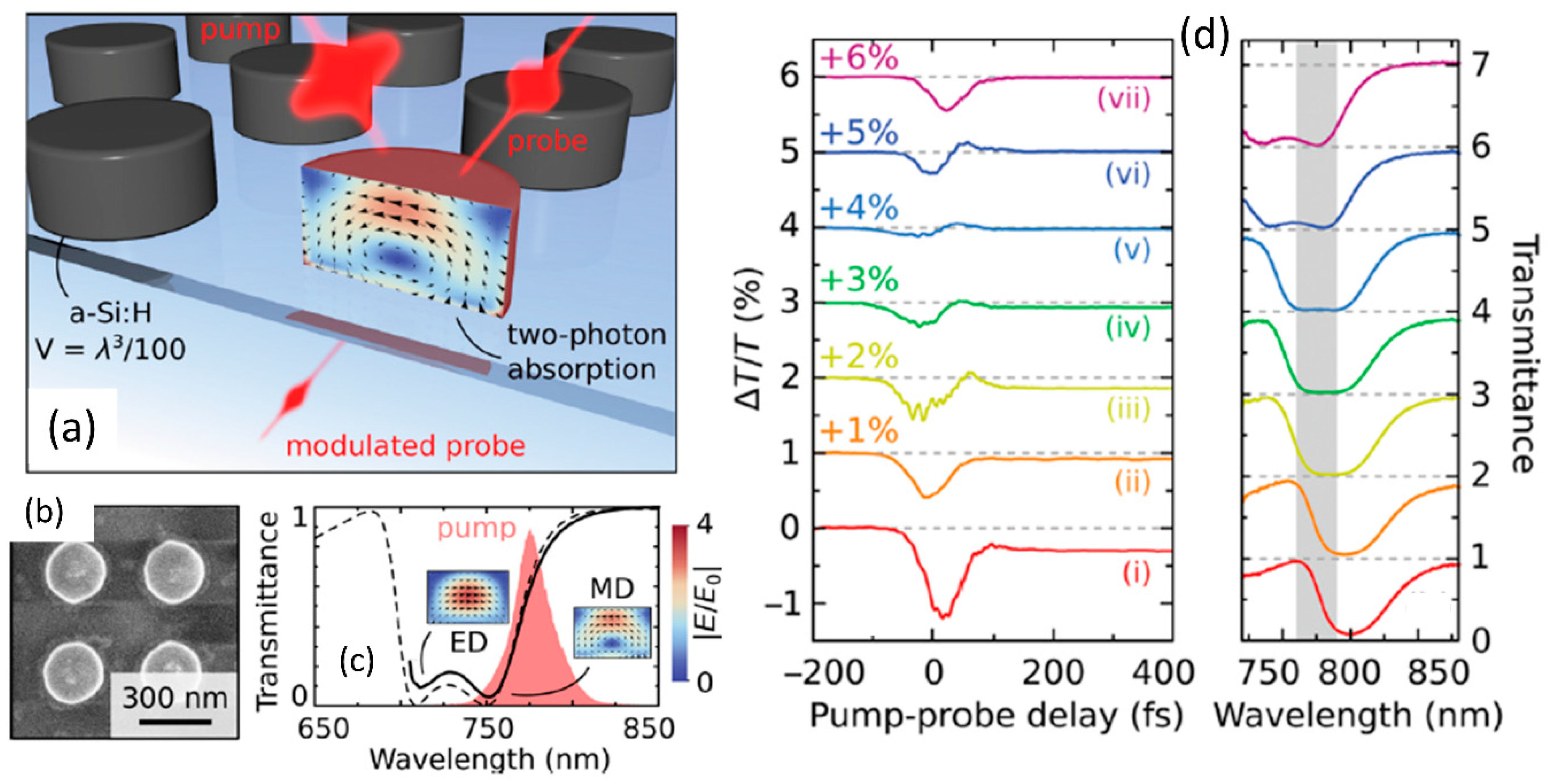

#### 4.3. Optical Switching

#### 4.4. Photon Acceleration

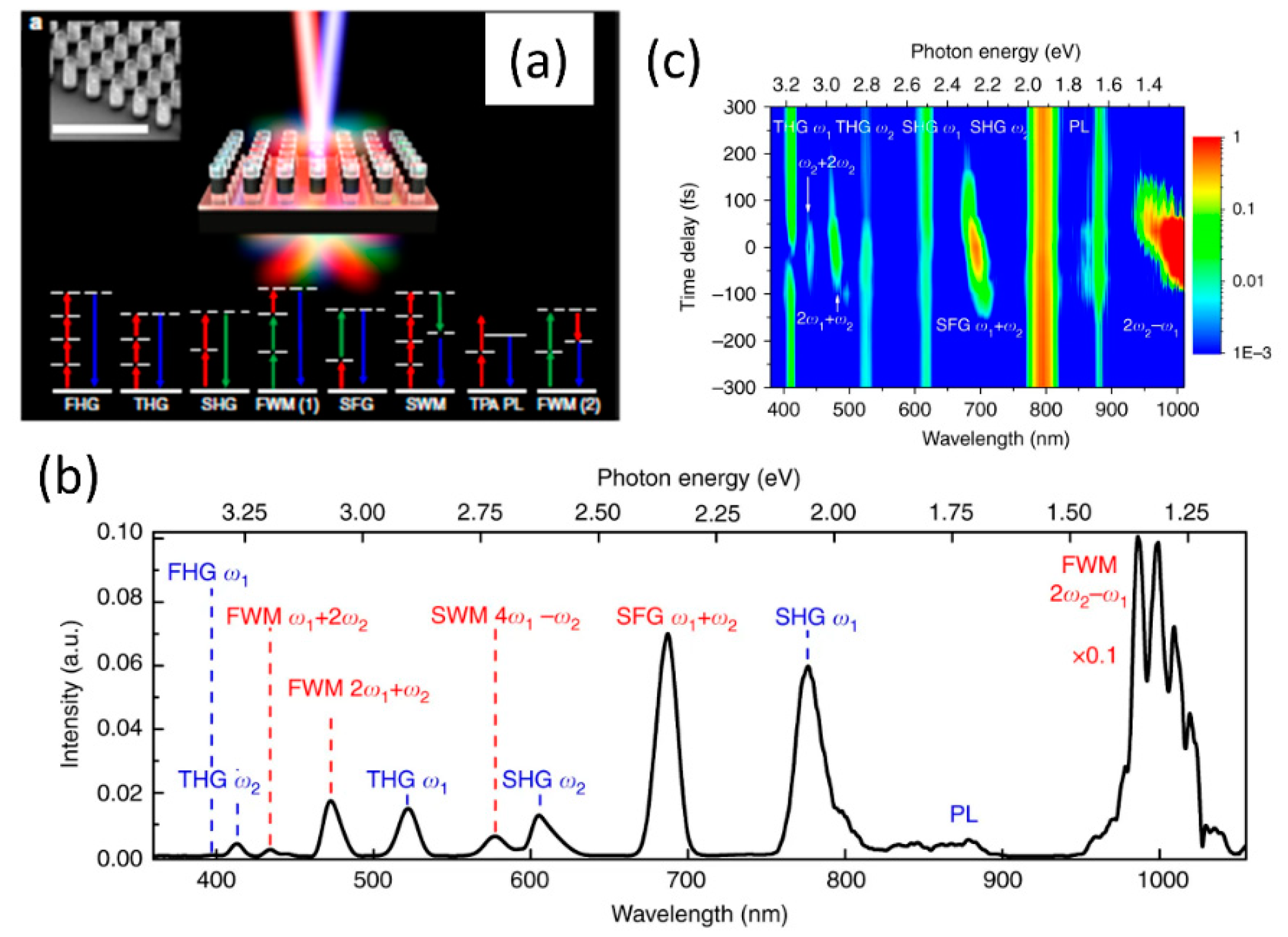

#### 4.5. Higher Order Wave-Mixing Processes

#### 4.6. Nonlinear Optics with Hybrid Metasurface

^{5}pm/V, one of the highest nonlinear optical susceptibility reported for any solid-state material systems. The plasmonic structures have recently been replaced by dielectric metasurfaces, as shown in Figure 21d–f [117]. The structure consists of a one-dimensional germanium guided-mode resonant structure integrated on top of the multi-quantum layer stack. The designed optical resonances of the germanium guided-mode resonance structures and the associated resonant nonlinear optical susceptibility are shown in Figure 21e. 100s of nano-watt level second harmonic generation signal has been experimentally measured from these all-dielectric hybrid metasurfaces. Such structures with the fundamental wavelength in the mid infrared wavelength range are best suited for frequency up-conversion with high conversion efficiencies from wavelength regions where there is scarcity of high efficiency detectors to wavelength regions in the near-infrared and visible region where mature, high efficiency detectors are readily available.

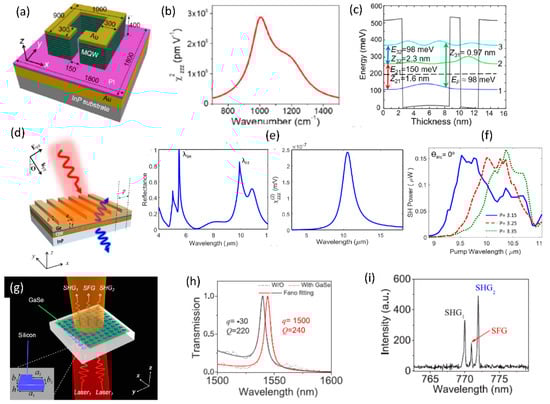

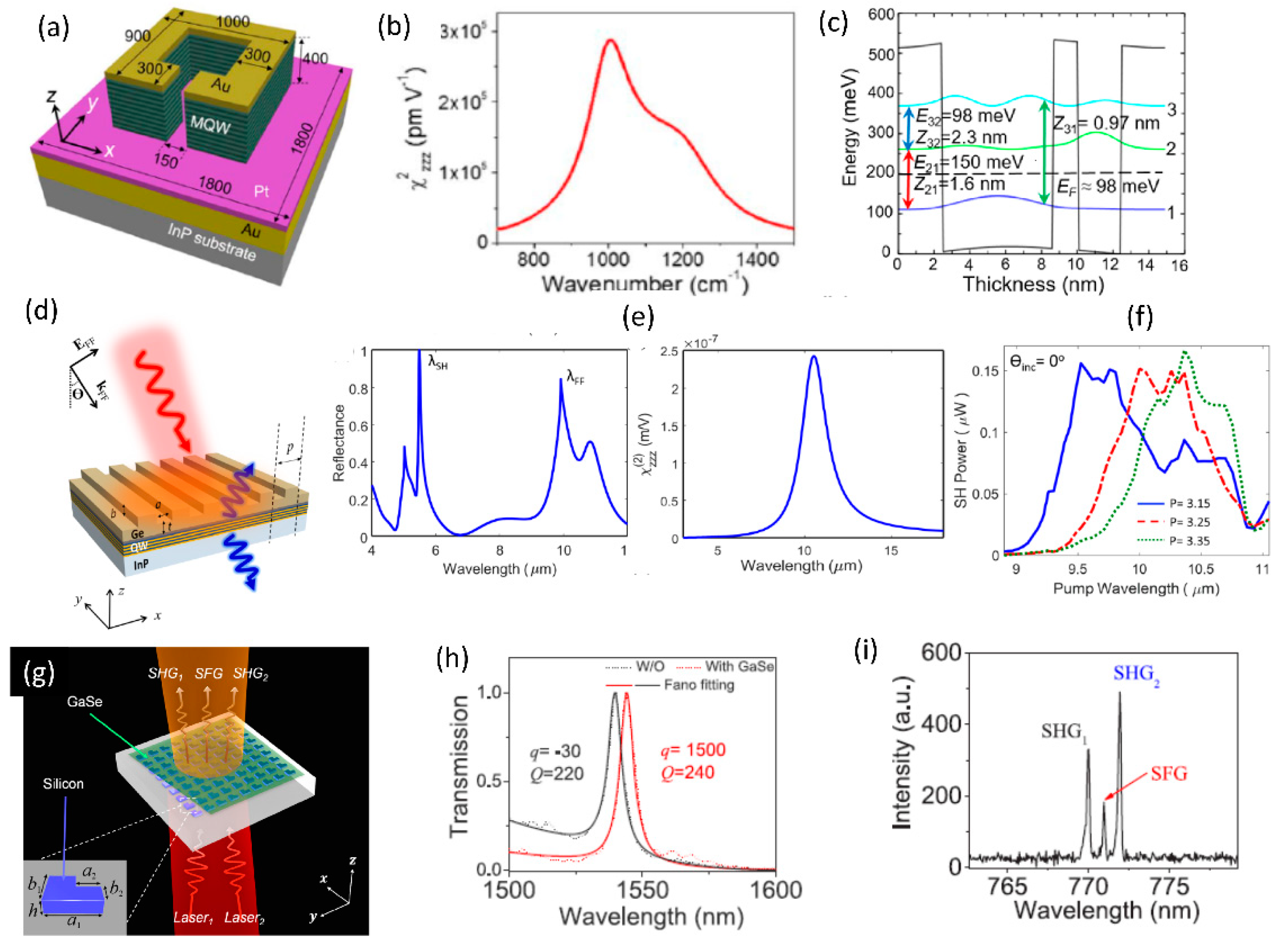

**Figure 21.**Various implementations of hybrid resonant metasurfaces for nonlinear optical applications. (

**a**–

**c**) Hybrid plasmonic-dielectric metasurfaces in which resonant nonlinearities in multi-quantum well structures are coupled with plasmonic resonances to study second harmonic generation. (

**d**–

**f**) All dielectric implementation of the hybrid resonant metasurface consisting of Germanium guided-mode resonance structures on top of the multi-quantum well structures. (

**g**–

**i**) Hybrid structures consisting of multi-layer Gallium Selenide on top of the asymmetric metasurface used for resonant enhancement of second-harmonic and sum-frequency generation. (Figures a–c are reproduced with permission from ref. [116], d–f are reproduced with permission from ref. [117], g–i are reproduced with permission from ref. [119]).

## 5. Concluding Remarks

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Boyd, R.W. Nonlinear Optics, 3rd ed.; Elsevier: New York, NY, USA, 2003. [Google Scholar]
- Agrawal, G. Applications of Nonlinear Fiber Optics, 5th ed.; Elsevier: New York, NY, USA, 2001. [Google Scholar]
- Shen, Y.R. The Principles of Nonlinear Optics, 1st ed.; Wiley-Interscience: New York, NY, USA, 1984. [Google Scholar]
- Kivshar, Y. All-dielectric meta-optics and non-linear nanophotonics. Natl. Sci. Rev.
**2018**, 5, 144–158. [Google Scholar] [CrossRef] [Green Version] - Novotny, L.; Hecht, B. Principles of Nano-Optics, 2nd ed.; Cambridge University Press: New York, NY, USA, 2002. [Google Scholar]
- Yu, H.; Peng, Y.; Yang, Y.; Li, Z.Y. Plasmon-enhanced light–matter interactions and applications. npj Comput. Mater.
**2019**, 5, 1–4. [Google Scholar] [CrossRef] - Tzarouchis, D.; Sihvola, A. Light scattering by a dielectric sphere: Perspectives on the Mie resonances. Appl. Sci.
**2018**, 8, 184. [Google Scholar] [CrossRef] [Green Version] - Kauranen, M.; Zayats, A.V. Nonlinear plasmonics. Nat. Photonics
**2012**, 6, 737. [Google Scholar] [CrossRef] - Panoiu, N.C.; Sha, W.E.; Lei, D.Y.; Li, G.C. Nonlinear optics in plasmonic nanostructures. J. Opt.
**2018**, 20, 083001. [Google Scholar] [CrossRef] [Green Version] - Krasnok, A.; Tymchenko, M.; Alù, A. Nonlinear metasurfaces: A paradigm shift in nonlinear optics. Mater. Today
**2018**, 21, 8–21. [Google Scholar] [CrossRef] - Liu, B.; Song, K.; Xiao, J. Two-dimensional optical metasurfaces: From plasmons to dielectrics. Adv. Condens. Matter. Phys.
**2019**, 9, 1–15. [Google Scholar] [CrossRef] [Green Version] - Overvig, A.C.; Shrestha, S.; Malek, S.C.; Lu, M.; Stein, A.; Zheng, C.; Yu, N. Dielectric metasurfaces for complete and independent control of the optical amplitude and phase. Light Sci. Appl.
**2019**, 8, 1–2. [Google Scholar] [CrossRef] - Kamali, S.M.; Arbabi, E.; Arbabi, A.; Faraon, A. A review of dielectric optical metasurfaces for wavefront control. Nanophotonics
**2018**, 7, 1041–1068. [Google Scholar] [CrossRef] - Sain, B.; Meier, C.; Zentgraf, T. Nonlinear optics in all-dielectric nanoantennas and metasurfaces: A review. Adv. Photonics
**2019**, 1, 024002. [Google Scholar] [CrossRef] [Green Version] - Lim, A.E.; Song, J.; Fang, Q.; Li, C.; Tu, X.; Duan, N.; Chen, K.K.; Tern, R.P.; Liow, T.Y. Review of silicon photonics foundry efforts. IEEE J. Sel. Top. Quantum Electron.
**2013**, 20, 405–416. [Google Scholar] [CrossRef] - Fathpour, S. Heterogeneous nonlinear integrated photonics. IEEE J. Quantum Electron.
**2018**, 54, 1–6. [Google Scholar] [CrossRef] - Quaranta, G.; Basset, G.; Martin, O.J.; Gallinet, B. Recent advances in resonant waveguide grating. Laser Photonics Rev.
**2018**, 2, 1800017. [Google Scholar] [CrossRef] - Liu, Y.C.; Li, B.B.; Xiao, Y.F. Electromagnetically induced transparency in optical microcavities. Nanophotonics
**2017**, 6, 789–811. [Google Scholar] [CrossRef] - Hsu, C.W.; Zhen, B.; Stone, A.D.; Joannopoulos, J.D.; Soljačić, M. Bound states in the continuum. Nat. Rev. Mater.
**2016**, 1, 1–3. [Google Scholar] [CrossRef] [Green Version] - Koshelev, K.; Kruk, S.; Melik-Gaykazyan, E.; Choi, J.H.; Bogdanov, A.; Park, H.G.; Kivshar, Y. Subwavelength dielectric resonators for nonlinear nanophotonics. Science
**2020**, 367, 288–292. [Google Scholar] [CrossRef] [Green Version] - Maier, S.A. Plasmonics: Fundamentals and Applications, 1st ed.; Springer Science & Business Media: Berlin, Germany, 2007. [Google Scholar]
- Lakowicz, J.R.; Chowdhury, M.H.; Ray, K.; Zhang, J.; Fu, Y.; Badugu, R.; Sabanayagam, C.R.; Nowaczyk, K.; Szmacinski, H.; Aslan, K.; et al. Plasmon-controlled fluorescence: A new detection technology. Plasmonics in Biology and Medicine III. Proc. SPIE
**2006**, 6099, 609909. [Google Scholar] - Bauch, M.; Toma, K.; Toma, M.; Zhang, Q.; Dostalek, J. Plasmon-enhanced fluorescence biosensors: A review. Plasmonics
**2014**, 9, 781–799. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Nie, S.; Emory, S.R. Probing single molecules and single nanoparticles by surface-enhanced Raman scattering. Science
**1997**, 275, 1102–1106. [Google Scholar] [CrossRef] - Kneipp, K.; Wang, Y.; Kneipp, H.; Perelman, L.T.; Itzkan, I.; Dasari, R.R.; Feld, M.S. Single molecule detection using surface-enhanced Raman scattering (SERS). Phys. Rev. Lett.
**1997**, 78, 1667. [Google Scholar] [CrossRef] [Green Version] - Vo-Dinh, T.; Yan, F.; Stokes, D.L. Plasmonics-Based Nanostructures for Surface-Enhanced Raman Scattering Bioanalysis. Protein Nanotechnology, 1st ed.; Humana Press: Totowa, NJ, USA, 2005. [Google Scholar]
- Hulst, H.C.; van de Hulst, H.C. Light Scattering by Small Particles, 1st ed.; Dover Publication: Mineola, NY, USA, 1981. [Google Scholar]
- Caldarola, M.; Albella, P.; Cortés, E.; Rahmani, M.; Roschuk, T.; Grinblat, G.; Oulton, R.F.; Bragas, A.V.; Maier, S.A. Non-plasmonic nanoantennas for surface enhanced spectroscopies with ultra-low heat conversion. Nat. Commun.
**2015**, 6, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Shao, M.; Ma, D.D.; Lee, S.T. Silicon nanowires–synthesis, properties, and applications. Eur. J. Inorg. Chem.
**2010**, 27, 4264–4278. [Google Scholar] [CrossRef] - Juhasz, R.; Elfström, N.; Linnros, J. Controlled fabrication of silicon nanowires by electron beam lithography and electrochemical size reduction. Nano Lett.
**2005**, 5, 275–280. [Google Scholar] [CrossRef] [PubMed] - Cao, L.; Fan, P.; Barnard, E.S.; Brown, A.M.; Brongersma, M.L. Tuning the color of silicon nanostructures. Nano Lett.
**2010**, 10, 2649–2654. [Google Scholar] [CrossRef] - Butakov, N.A.; Schuller, J.A. Designing multipolar resonances in dielectric metamaterials. Sci. Rep.
**2016**, 6, 38487. [Google Scholar] [CrossRef] [Green Version] - Kuznetsov, A.I.; Miroshnichenko, A.E.; Fu, Y.H.; Zhang, J.; Luk’Yanchuk, B. Magnetic light. Sci. Rep.
**2012**, 2, 492. [Google Scholar] [CrossRef] [Green Version] - Shcherbakov, M.R.; Neshev, D.N.; Hopkins, B.; Shorokhov, A.S.; Staude, I.; Melik-Gaykazyan, E.V.; Decker, M.; Ezhov, A.A.; Miroshnichenko, A.E.; Brener, I.; et al. Enhanced third-harmonic generation in silicon nanoparticles driven by magnetic response. Nano Lett.
**2014**, 14, 6488–6492. [Google Scholar] [CrossRef] - Noginova, N.; Barnakov, Y.; Li, H.; Noginov, M.A. Effect of metallic surface on electric dipole and magnetic dipole emission transitions in Eu 3+ doped polymeric film. Opt. Express
**2009**, 17, 10767–10772. [Google Scholar] [CrossRef] - She, A.; Zhang, S.; Shian, S.; Clarke, D.R.; Capasso, F. Large area metalenses: Design, characterization, and mass manufacturing. Opt. Express
**2018**, 26, 1573–1585. [Google Scholar] [CrossRef] [Green Version] - Miroshnichenko, A.E.; Kivshar, Y.S. Fano resonances in all-dielectric oligomers. Nano Lett.
**2012**, 12, 6459–6463. [Google Scholar] [CrossRef] - Wang, S.S.; Magnusson, R.J. Theory and applications of guided-mode resonance filters. Appl. Opt.
**1993**, 32, 2606–2613. [Google Scholar] [CrossRef] [PubMed] - Li, Q.; Gao, J.; Li, Z.; Yang, H.; Liu, H.; Wang, X.; Li, Y. Absorption enhancement in nanostructured silicon fabricated by self-assembled nanosphere lithography. Opt. Mater.
**2017**, 70, 165–170. [Google Scholar] [CrossRef] - Qiao, P.; Zhu, L.; Chew, W.C.; Chang-Hasnain, C.J. Theory and design of two-dimensional high-contrast-grating phased arrays. Opt. Express
**2015**, 23, 24508–24524. [Google Scholar] [CrossRef] [PubMed] - Sarabandi, K.; Behdad, N. A frequency selective surface with miniaturized elements. IEEE Trans. Antennas Propag.
**2007**, 55, 1239–1245. [Google Scholar] [CrossRef] - Madou, M.J. Fundamentals of Microfabrication and Nanotechnology, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2018. [Google Scholar]
- Liu, V.; Fan, S. S4: A free electromagnetic solver for layered periodic structures. Comput. Phys. Commun.
**2012**, 183, 2233–2244. [Google Scholar] [CrossRef] - Korzeniowska, B.; Nooney, R.; Wencel, D.; McDonagh, C. Silica nanoparticles for cell imaging and intracellular sensing. Nanotechnology
**2013**, 24, 442002. [Google Scholar] [CrossRef] [PubMed] - Chen, E.H.; Gaathon, O.; Trusheim, M.E.; Englund, D. Wide-field multispectral super-resolution imaging using spin-dependent fluorescence in nanodiamonds. Nano Lett.
**2013**, 13, 2073–2077. [Google Scholar] [CrossRef] [PubMed] - Rybin, M.V.; Koshelev, K.L.; Sadrieva, Z.F.; Samusev, K.B.; Bogdanov, A.A.; Limonov, M.F.; Kivshar, Y.S. High-Q supercavity modes in subwavelength dielectric resonators. Phys. Rev. Lett.
**2017**, 119, 243901. [Google Scholar] [CrossRef] [Green Version] - Kuznetsov, A.I.; Miroshnichenko, A.E.; Brongersma, M.L.; Kivshar, Y.S.; Luk’yanchuk, B. Optically resonant dielectric nanostructures. Science
**2016**, 354, aag2472. [Google Scholar] [CrossRef] [Green Version] - Menon, S.H.; Krishna, A.L.; Raghunathan, V. Silicon Nitride based Medium Contrast Gratings for Doubly Resonant Fluorescence Enhancement. IEEE Photonics J.
**2019**, 11, 1–11. [Google Scholar] [CrossRef] - Menon, S.; Lal Krishna, A.S.; Gupta, M.S.; Ameen, E.; Pesala, B.; Raghunathan, V. Silicon-nitride-based medium-contrast gratings for resonant fluorescence enhancement in the visible wavelength range. High Contrast Metastructures VIII. Proc. SPIE
**2019**, 10928, 1092818. [Google Scholar] - Chang-Hasnain, C.J.; Yang, W. High-contrast gratings for integrated optoelectronics. Adv. Opt. Photonics
**2012**, 4, 379–440. [Google Scholar] [CrossRef] [Green Version] - Chang, S.; Guo, X.; Ni, X. Optical metasurfaces: Progress and applications. Annu. Rev. Mater. Res.
**2018**, 48, 279–302. [Google Scholar] [CrossRef] [Green Version] - Magnusson, R.; Ko, Y.H. Guided-mode resonance nanophotonics: Fundamentals and applications. Nanoengineering: Fabrication, Properties, Optics, and Devices XIII. Proc. SPIE
**2016**, 9927, 992702. [Google Scholar] - Voronov, M.M. Resonant Wood’s anomaly diffraction condition in dielectric and plasmonic grating structures. arXiv
**2016**, arXiv:1612.08674. [Google Scholar] - Yamada, K.; Lee, K.J.; Ko, Y.H.; Inoue, J.; Kintaka, K.; Ura, S.; Magnusson, R.J. Flat-top narrowband filters enabled by guided-mode resonance in two-level waveguides. Opt. Lett.
**2017**, 42, 4127–4130. [Google Scholar] [CrossRef] - Sun, T.; Kan, S.; Marriott, G.; Chang-Hasnain, C.J. High-contrast grating resonators for label-free detection of disease biomarkers. Sci. Rep.
**2016**, 6, 27482. [Google Scholar] [CrossRef] [Green Version] - Karagodsky, V.; Chang-Hasnain, C.J. Physics of near-wavelength high contrast gratings. Opt. Express
**2012**, 20, 10888–10895. [Google Scholar] [CrossRef] [Green Version] - Karagodsky, V.; Tran, T.; Wu, M.C.; Chang-Hasnain, C.J. Double-resonant enhancement of surface enhanced Raman scattering using high contrast grating resonators. Proc. CLEO
**2011**, 2011, CFN1. [Google Scholar] [CrossRef] - Sun, T.; Chang-Hasnain, C.J. Surface-normal coupled four-wave mixing in a high contrast gratings resonator. Proc. CLEO
**2015**, 2015, STu2I.2. [Google Scholar] [CrossRef] - Tran, T.; Karagodsky, V.; Rao, Y.; Chen, R.; Chase, C.; Chuang, L.C.; Chang-Hasnain, C.J. Second harmonic generation from AlGaAs high contrast gratings. Proc. CLEO
**2010**, 2010, JTuD80. [Google Scholar] [CrossRef] - Magnusson, R. Wideband reflectors with zero-contrast gratings. Opt. Lett.
**2014**, 39, 4337–4340. [Google Scholar] [CrossRef] [PubMed] - Ko, Y.; Magnusson, R.J. Wideband dielectric metamaterial reflectors: Mie scattering or leaky Bloch mode resonance? Optica
**2019**, 5, 289–294. [Google Scholar] [CrossRef] - Molesky, S.; Lin, Z.; Piggott, A.Y.; Jin, W.; Vucković, J.; Rodriguez, A.W. Inverse design in nanophotonics. Nat. Photonics
**2018**, 12, 659–670. [Google Scholar] [CrossRef] [Green Version] - Jiang, J.; Fan, J.A. Global optimization of dielectric metasurfaces using a physics-driven neural network. Nano Lett.
**2019**, 19, 5366–5372. [Google Scholar] [CrossRef] [Green Version] - Kodali, A.K.; Schulmerich, M.; Ip, J.; Yen, G.; Cunningham, B.T.; Bhargava, R. Narrowband midinfrared reflectance filters using guided mode resonance. Anal. Chem.
**2010**, 82, 5697–5706. [Google Scholar] [CrossRef] [Green Version] - Ko, Y.H.; Niraula, M.; Lee, K.J.; Magnusson, R. Properties of wideband resonant reflectors under fully conical light incidence. Opt. Express
**2016**, 24, 4542–4551. [Google Scholar] [CrossRef] [Green Version] - Ng, R.C.; Garcia, J.C.; Greer, J.R.; Fountaine, K.T. Polarization-independent, narrowband, near-IR spectral filters via guided mode resonances in ultrathin a-Si nanopillar arrays. ACS Photonics
**2019**, 6, 265–271. [Google Scholar] [CrossRef] - Yang, Y.; Kravchenko, I.I.; Briggs, D.P.; Valentine, J. High quality factor fano-resonant all-dielectric metamaterials. arXiv
**2014**, arXiv:1405.3901v1. [Google Scholar] - Yang, Y.; Kravchenko, I.I.; Briggs, D.P.; Valentine, J. All-dielectric metasurface analogue of electromagnetically induced transparency. Nat. Commun.
**2014**, 5, 1–7. [Google Scholar] [CrossRef] [Green Version] - Wu, C.; Arju, N.; Fan, F.; Brener, I.; Shvets, C. Spectrally Selective Chiral Silicon Metasurfaces Based on Infrared Fano Resonances. Proc. CLEO
**2014**, 2014, FF2C.1. [Google Scholar] [CrossRef] - Wu, C.; Arju, N.; Kelp, G.; Fan, J.A.; Dominguez, J.; Gonzales, E.; Tutuc, E.; Brener, I.; Shvets, G. Spectrally selective chiral silicon metasurfaces based on infrared Fano resonances. Nat. Commun.
**2014**, 5, 1–9. [Google Scholar] [CrossRef] [PubMed] - Wu, C.; Khanikaev, A.B.; Adato, R.; Arju, N.; Yanik, A.A.; Altug, H.; Shvets, G. Fano-resonant asymmetric metamaterials for ultrasensitive spectroscopy and identification of molecular monolayers. Nat. Mater.
**2012**, 11, 69–75. [Google Scholar] [CrossRef] [PubMed] - Campione, S.; Liu, S.; Basilio, L.I.; Warne, L.K.; Langston, W.L.; Luk, T.S.; Wendt, J.R.; Reno, J.L.; Keeler, G.A.; Brener, I.; et al. Broken symmetry dielectric resonators for high quality factor Fano metasurfaces. ACS Photonics
**2016**, 3, 2362–2367. [Google Scholar] [CrossRef] - Tibuleac, S.; Magnusson, R. Narrow-linewidth bandpass filters with diffractive thin-film layers. Opt. Lett.
**2001**, 26, 584–586. [Google Scholar] [CrossRef] - Lee, S.G.; Jung, S.Y.; Kim, H.S.; Lee, S.; Park, J.M. Electromagnetically induced transparency based on guided-mode resonances. Opt. Lett.
**2015**, 40, 4241–4244. [Google Scholar] [CrossRef] - Sui, C.; Han, B.; Lang, T.; Li, X.; Jing, X.; Hong, Z. Electromagnetically induced transparency in an all-dielectric metamaterial-waveguide with large group index. IEEE Photonics J.
**2017**, 9, 1–8. [Google Scholar] [CrossRef] - Koshelev, K.; Favraud, G.; Bogdanov, A.; Kivshar, Y.; Fratalocchi, A. Nonradiating photonics with resonant dielectric nanostructures. Nanophotonics
**2019**, 8, 725–745. [Google Scholar] [CrossRef] - Magnusson, R.; Lee, S.G.; Lee, K.J.; Hemmati, H.; Carney, D.J.; Bootpakdeetam, P.; Ko, Y.H. Principles of leaky-mode photonic lattices: Band flips and Bloch mode dynamics. Integrated Optics: Devices, Materials, and Technologies XXIII. Proc. SPIE
**2019**, 10921, 109211E. [Google Scholar] - Koshelev, K.; Bogdanov, A.; Kivshar, Y. Meta-optics and bound states in the continuum. Sci. Bull.
**2019**, 64, 836–842. [Google Scholar] [CrossRef] [Green Version] - Koshelev, K.; Bogdanov, A.; Kivshar, Y. Engineering with Bound States in the Continuum. Opt. Photonics News
**2020**, 31, 38–45. [Google Scholar] [CrossRef] - Lee, S.G.; Magnusson, R. Band dynamics of leaky-mode photonic lattices. Opt. Express
**2019**, 27, 18180–18189. [Google Scholar] [CrossRef] [PubMed] - Lee, S.G.; Magnusson, R. Band flips and bound-state transitions in leaky-mode photonic lattices. Phys. Rev. B
**2019**, 99, 045304. [Google Scholar] [CrossRef] [Green Version] - Ding, Y.; Magnusson, R. Band gaps and leaky-wave effects in resonant photonic-crystal waveguides. Opt. Express
**2007**, 15, 680–694. [Google Scholar] [CrossRef] - Koshelev, K.; Lepeshov, S.; Liu, M.; Bogdanov, A.; Kivshar, Y. Asymmetric metasurfaces with high-Q resonances governed by bound states in the continuum. Phys. Rev. Lett.
**2018**, 121, 193903. [Google Scholar] [CrossRef] [Green Version] - Kodigala, A.; Lepetit, T.; Gu, Q.; Bahari, B.; Fainman, Y.; Kanté, B. Lasing action from photonic bound states in continuum. Nature
**2017**, 541, 196. [Google Scholar] [CrossRef] - Ha, S.T.; Fu, Y.H.; Emani, N.K.; Pan, Z.; Bakker, R.M.; Paniagua-Domínguez, R.; Kuznetsov, A.I. Directional lasing in resonant semiconductor nanoantenna arrays. Nat. Nanotechnol.
**2018**, 13, 1042–1047. [Google Scholar] [CrossRef] - Yesilkoy, F.; Arvelo, E.R.; Jahani, Y.; Liu, M.; Tittl, A.; Cevher, V.; Kivshar, Y.; Altug, H. Ultrasensitive hyperspectral imaging and biodetection enabled by dielectric metasurfaces. Nat. Photonics
**2019**, 13, 390–396. [Google Scholar] [CrossRef] [Green Version] - Bulgakov, E.N.; Maksimov, D.N. Nonlinear response from optical bound states in the continuum. Sci. Rep.
**2019**, 9, 1–8. [Google Scholar] [CrossRef] - Li, G.; Wu, L.; Li, K.F.; Chen, S.; Schlickriede, C.; Xu, Z.; Huang, S.; Li, W.; Liu, Y.; Pun, E.Y.; et al. Nonlinear metasurface for simultaneous control of spin and orbital angular momentum in second harmonic generation. Nano Lett.
**2017**, 17, 7974–7979. [Google Scholar] [CrossRef] - Liu, B.; Sain, B.; Reineke, B.; Zhao, R.; Meier, C.; Huang, L.; Jiang, Y.; Zentgraf, T. Nonlinear Wavefront Control by Geometric-Phase Dielectric Metasurfaces: Influence of Mode Field and Rotational Symmetry. Adv. Opt. Mater.
**2020**, 2020, 1–11. [Google Scholar] [CrossRef] - Wang, L.; Kruk, S.; Koshelev, K.; Kravchenko, I.; Luther-Davies, B.; Kivshar, Y. Nonlinear wavefront control with all-dielectric metasurfaces. Nano Lett.
**2018**, 18, 3978–3984. [Google Scholar] [CrossRef] - Vahala, K. Optical Microcavities. Advanced Applied Physics, 1st ed.; World Scientific Pub Co Inc.: Hackensack, NJ, USA, 2004; Volume 5. [Google Scholar]
- Blau, G.; Popov, E.; Kajzar, F.; Raimond, A.; Roux, J.F.; Coutaz, J.L. Grating-assisted phase-matched second-harmonic generation from a polymer waveguide. Opt. Lett.
**1995**, 20, 1101–1103. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lin, J.H.; Tseng, C.Y.; Lee, C.T.; Young, J.F.; Kan, H.C.; Hsu, C.C. Strong guided mode resonant local field enhanced visible harmonic generation in an azo-polymer resonant waveguide grating. Opt. Express
**2014**, 22, 2790–2797. [Google Scholar] [CrossRef] [PubMed] - Ning, T.; Pietarinen, H.; Hyvärinen, O.; Kumar, R.; Kaplas, T.; Kauranen, M.; Genty, G. Efficient second-harmonic generation in silicon nitride resonant waveguide gratings. Opt. Lett.
**2012**, 37, 4269–4271. [Google Scholar] [CrossRef] - Ning, T.; Hyvärinen, O.; Pietarinen, H.; Kaplas, T.; Kauranen, M.; Genty, G. Third-harmonic UV generation in silicon nitride nanostructures. Opt. Express
**2013**, 21, 2012–2017. [Google Scholar] [CrossRef] [PubMed] - Tran, T.; Karagodsky, V.; Rao, Y.; Chen, R.; Chase, C.; Chuang, L.C.; Chang-Hasnain, C. Surface-normal second harmonic emission from AlGaAs high-contrast gratings. Appl. Phys. Lett.
**2013**, 102, 021102. [Google Scholar] [CrossRef] [Green Version] - Yang, Y.; Wang, W.; Boulesbaa, A.; Kravchenko, I.I.; Briggs, D.P.; Puretzky, A.; Geohegan, D.; Valentine, J. Nonlinear Fano-resonant dielectric metasurfaces. Nano Lett.
**2015**, 15, 7388–7393. [Google Scholar] [CrossRef] - Shcherbakov, M.R.; Shorokhov, A.S.; Neshev, D.N.; Hopkins, B.; Staude, I.; Melik-Gaykazyan, E.V.; Ezhov, A.A.; Miroshnichenko, A.E.; Brener, I.; Fedyanin, A.A.; et al. Nonlinear interference and tailorable third-harmonic generation from dielectric oligomers. ACS Photonics
**2015**, 2, 578–582. [Google Scholar] [CrossRef] - Shorokhov, A.S.; Melik-Gaykazyan, E.V.; Smirnova, D.A.; Hopkins, B.; Chong, K.E.; Choi, D.Y.; Shcherbakov, M.R.; Miroshnichenko, A.E.; Neshev, D.N.; Fedyanin, A.A.; et al. Multifold enhancement of third-harmonic generation in dielectric nanoparticles driven by magnetic Fano resonances. Nano Lett.
**2016**, 16, 4857–4861. [Google Scholar] [CrossRef] - Kruk, S.; Poddubny, A.; Smirnova, D.; Wang, L.; Slobozhanyuk, A.; Shorokhov, A.; Kravchenko, I.; Luther-Davies, B.; Kivshar, Y. Nonlinear light generation in topological nanostructures. Nat. Nanotechnol.
**2019**, 14, 126–130. [Google Scholar] [CrossRef] [PubMed] - Kruk, S.; Poddubny, A.; Smirnova, D.; Kravchenko, I.; Luther-Davies, B.; Kivshar, Y. Disorder-Robust Nonlinear Light Generation in Topological Nanostructures. Proc. CLEO
**2019**, 2019, FW4B-4. [Google Scholar] [CrossRef] - Vabishchevich, P.P.; Liu, S.; Sinclair, M.B.; Keeler, G.A.; Peake, G.M.; Brener, I. Enhanced second-harmonic generation using broken symmetry III–V semiconductor fano metasurfaces. ACS Photonics
**2018**, 5, 1685–1690. [Google Scholar] [CrossRef] - Sautter, J.D.; Xu, L.; Miroshnichenko, A.E.; Lysevych, M.; Volkovskaya, I.; Smirnova, D.A.; Camacho-Morales, R.; Zangeneh Kamali, K.; Karouta, F.; Vora, K.; et al. Tailoring second-harmonic emission from (111)-GaAs nanoantennas. Nano Lett.
**2019**, 19, 3905–3911. [Google Scholar] [CrossRef] - Deka, J.; Jha, K.K.; Menon, S.; Krishna, A.L.; Biswas, R.; Raghunathan, V. Microscopic study of resonant third-harmonic generation from amorphous silicon nanodisk arrays. Opt. Lett.
**2018**, 43, 5242–5245. [Google Scholar] [CrossRef] [PubMed] - Sun, T.; Yang, W.; Chang-Hasnain, C. Surface-normal coupled four-wave mixing in a high contrast gratings resonator. Opt. Express
**2015**, 23, 29565–29572. [Google Scholar] [CrossRef] - Miroshnichenko, A.E.; Evlyukhin, A.B.; Yu, Y.F.; Bakker, R.M.; Chipouline, A.; Kuznetsov, A.I.; Luk’yanchuk, B.; Chichkov, B.N.; Kivshar, Y.S. Nonradiating anapole modes in dielectric nanoparticles. Nat. Commun.
**2015**, 6, 1–8. [Google Scholar] [CrossRef] - Grinblat, G.; Li, Y.; Nielsen, M.P.; Oulton, R.F.; Maier, S.A. Degenerate four-wave mixing in a multiresonant germanium nanodisk. ACS Photonics
**2017**, 4, 2144–2149. [Google Scholar] [CrossRef] - Colom, R.; Xu, L.; Marini, L.; Bedu, F.; Ozerov, I.; Begou, T.; Lumeau, J.; Miroshnishenko, A.E.; Neshev, D.; Kuhlmey, B.T.; et al. Enhanced four-wave mixing in doubly resonant silicon nanoresonators. ACS Photonics
**2019**, 6, 1295–12301. [Google Scholar] [CrossRef] - Biswas, R.; Deka, J.; Jha, K.K.; Praveen, A.V.; Lal Krishna, A.S.; Menon, S.; Raghunathan, V. Resonant four-wave mixing microscopy on silicon-on-insulator based zero-contrast gratings. OSA Contin.
**2019**, 2, 2864–2874. [Google Scholar] [CrossRef] - Shcherbakov, M.R.; Vabishchevich, P.P.; Shorokhov, A.S.; Chong, K.E.; Choi, D.Y.; Staude, I.; Miroshnichenko, A.E.; Neshev, D.N.; Fedyanin, A.A.; Kivshar, Y.S. Ultrafast all-optical switching with magnetic resonances in nonlinear dielectric nanostructures. Nano Lett.
**2015**, 15, 6985–6990. [Google Scholar] [CrossRef] [PubMed] - Murphy, C.D.; Trines, R.M.; Vieira, J.; Reitsma, A.J.; Bingham, R.; Collier, J.L.; Divall, E.J.; Foster, P.S.; Hooker, C.J.; Langley, A.J.; et al. Evidence of photon acceleration by laser wake fields. Phys. Plasmas
**2006**, 13, 033108. [Google Scholar] [CrossRef] - Shcherbakov, M.R.; Werner, K.; Fan, Z.; Talisa, N.; Chowdhury, E.; Shvets, G. Photon acceleration and tunable broadband harmonics generation in nonlinear time-dependent metasurfaces. Nat. Commun.
**2019**, 10, 1345. [Google Scholar] [CrossRef] - Liu, S.; Vabishchevich, P.P.; Vaskin, A.; Reno, J.L.; Keeler, G.A.; Sinclair, M.B.; Staude, I.; Brener, I. An all-dielectric metasurface as a broadband optical frequency mixer. Nat. Commun.
**2018**, 9, 2507. [Google Scholar] [CrossRef] [Green Version] - Meyn, J.P.; Huber, G. Intracavity frequency doubling of a continuous-wave, diode-laser-pumped neodymium lanthanum scandium borate laser. Opt. Lett.
**1994**, 19, 1436–1438. [Google Scholar] [CrossRef] - Gomez-Diaz, J.S.; Tymchenko, M.; Lee, J.; Belkin, M.A.; Alù, A. Nonlinear processes in multi-quantum-well plasmonic metasurfaces: Electromagnetic response, saturation effects, limits, and potentials. Phys. Rev. B
**2015**, 92, 125429. [Google Scholar] [CrossRef] [Green Version] - Nookala, N.; Lee, J.; Tymchenko, M.; Gomez-Diaz, J.S.; Demmerle, F.; Boehm, G.; Lai, K.; Shvets, G.; Amann, M.C.; Alu, A.; et al. Ultrathin gradient nonlinear metasurface with a giant nonlinear response. Optica
**2016**, 3, 283–288. [Google Scholar] [CrossRef] - Sarma, R.; de Ceglia, D.; Nookala, N.; Vincenti, M.A.; Campione, S.; Wolf, O.; Scalora, M.; Sinclair, M.B.; Belkin, M.A.; Brener, I. Broadband and Efficient Second-Harmonic Generation from a Hybrid Dielectric Metasurface/Semiconductor Quantum-Well Structure. ACS Photonics
**2019**, 6, 1458–1465. [Google Scholar] [CrossRef] - Autere, A.; Jussila, H.; Dai, Y.; Wang, Y.; Lipsanen, H.; Sun, Z. Nonlinear optics with 2D layered materials. Adv. Mater.
**2018**, 30, 1705963. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Yuan, Q.; Fang, L.; Fang, H.; Li, J.; Wang, T.; Jie, W.; Zhao, J.; Gan, X. Second harmonic and sum-frequency generations from a silicon metasurface integrated with a two-dimensional material. ACS Photonics
**2019**, 6, 2252–2259. [Google Scholar] [CrossRef] [Green Version] - Maguid, E.; Chriki, R.; Yannai, M.; Tradonsky, C.; Kleiner, V.; Hasman, E.; Friesem, A.A.; Davidson, D. Intra-cavity metasurfaces for topologically spin-controlled laser modes. Proc. CLEO
**2018**, 2018, SF1J.6. [Google Scholar] [CrossRef] - Capasso, F. The future and promise of flat optics: A personal perspective. Nanophotonics
**2018**, 7, 953–957. [Google Scholar] [CrossRef] [Green Version] - Emmer, H.; Chen, C.T.; Saive, R.; Friedrich, D.; Horie, Y.; Arbabi, A.; Faraon, A.; Atwater, H.A. Fabrication of single crystal gallium phosphide thin films on glass. Sci. Rep.
**2017**, 7, 1–6. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Bloembergen, N. Nonlinear optics of polymers: Fundamentals and applications. J. Nonlinear Opt. Phys. Mater.
**1996**, 5, 1–8. [Google Scholar] [CrossRef] - Sun, M.; Xu, X.; Sun, X.W.; Valuckas, V.; Zheng, Y.; Paniagua-Domínguez, R.; Kuznetsov, A.I. Efficient visible light modulation based on electrically tunable all dielectric metasurfaces embedded in thin-layer nematic liquid crystals. Sci. Rep.
**2019**, 9, 1–9. [Google Scholar] [CrossRef] - Kim, Y.; Wu, P.C.; Sokhoyan, R.; Mauser, K.; Glaudell, R.; Kafaie Shirmanesh, G.; Atwater, H.A. Phase modulation with electrically tunable vanadium dioxide phase-change metasurfaces. Nano Lett.
**2019**, 19, 3961–3968. [Google Scholar] [CrossRef] [Green Version] - Seyler, K.L.; Schaibley, J.R.; Gong, P.; Rivera, P.; Jones, A.M.; Wu, S.; Yan, J.; Mandrus, D.G.; Yao, W.; Xu, X. Electrical control of second-harmonic generation in a WSe 2 monolayer transistor. Nat. Nanotechnol.
**2015**, 10, 407–411. [Google Scholar] [CrossRef]

**Figure 1.**The simulated scattering cross section (in arbitrary units–a.u.) for silicon nanowires of varying diameter with incident light polarization oriented: (

**a**) parallel and (

**b**) perpendicular to the nanowire. (

**c**) Experimentally obtained dark field images of nanowires showing light scattering for various width. (

**d**) Experimentally obtained scattering spectra of nanowires of varying width. (Figures c and d are reproduced with permission from ref. [31]).

**Figure 2.**(

**a**) Simulated scattering cross section (in arbitrary units–a.u.) for silicon nanospheres of fixed diameter of 150 nm (shown in black) and the result of decomposing the scattering spectra into magnetic dipole—MD (blue), electric dipole—ED (red), magnetic quadrapole—MQ (green) and electric quadrapole—EQ (brown). The sum of the MD, ED, MQ and EQ spectra is also shown (grey dashed). The field profiles for the MD, ED, MQ and EQ modes are also shown. (

**b**) Experimentally obtained dark field scattering images and spectra for varying diameters of silicon sub-wavelength nanoparticles. (Figure b reproduced with permission from ref. [33]).

**Figure 3.**Scattering spectra from an isolated sub-wavelength cylinder separated into: magnetic dipole —MD (red), electric dipole—ED (orange), magnetic quadrapole—MQ (purple) and electric quadrapole—EQ (green). The sum of the MD, ED, MQ and EQ scattering spectra is shown in black.

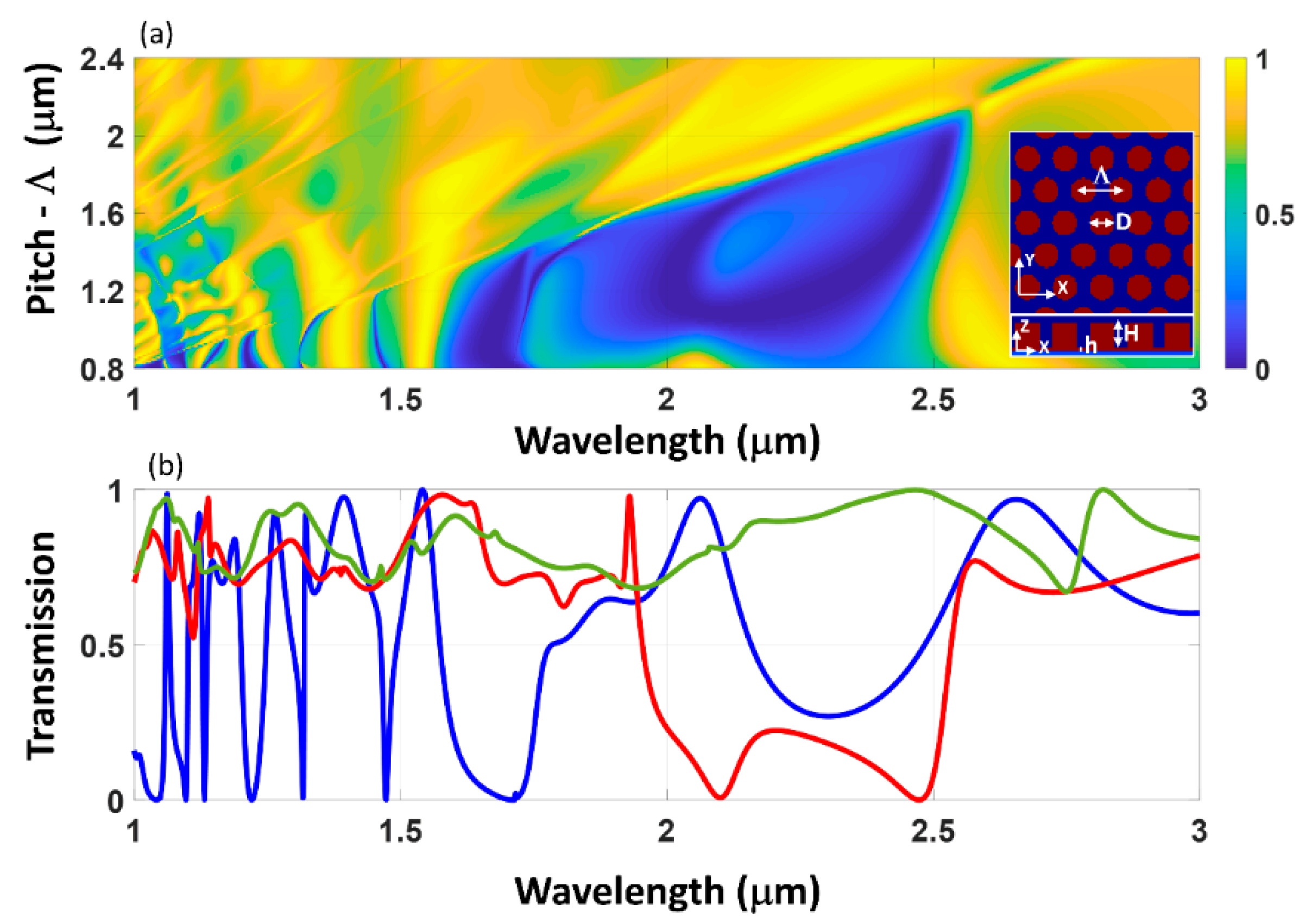

**Figure 4.**(

**a**) Transmission spectra contour map for varying array pitch (Λ). The top view and side view profile of the hexagonal arrangement of sub-wavelength cylinders shown in the inset. The height and diameter of the structure are: H = 710 nm, h = 0 nm, and D = 625 nm. (

**b**) Selected transmission spectra for pitch, Λ = 0.8 μm (blue curve), 1.2 μm (red curve) and 1.6 μm (green curve) are shown.

**Figure 5.**Scattering efficiency spectrum from isolated sub-wavelength dielectric sub-wavelength disk with dimensions same as in Figure 3 as a function of varying refractive index. Refractive index of 1.9 (blue curve), 2.2 (red curve), 3.5 (black curve) and n = 4.2 (green curve) are shown. The refractive index is assumed to be constant across the spectral range shown for each curve.

**Figure 6.**(

**a**) Schematic of fully-etched dielectric one-dimensional grating structure. The simulated transmission spectra for (

**b**) silicon high contrast grating and (

**c**) silicon nitride medium contrast grating as a function of varying height for fixed incident TE polarization. The dimensions and wavelength are normalized by the pitch of the grating structure. (Figure is reproduced with permission from ref. [49]).

**Figure 7.**Cross-section view of various guided-mode resonance based grating structures with waveguide and grating layer refractive indices n

_{H}and n

_{G}respectively. (

**a**) The grating and waveguide are made of different materials with the waveguide of higher index below the fully-etched grating structure. (

**b**) Fully etched grating structures which can act as the effective waveguide. (

**c**) Partially etched grating structures with the waveguide layer made of same material as the etched gratings. (

**d**) Substrate grating structures is coated with a high-index waveguiding layer on top.

**Figure 8.**(

**a**) A cross-section schematic of the guided-mode resonance structure showing the resonant coupling of incident light into the waveguide region through interaction with the grating structure. (

**b**) Simulated filter response for the guided-mode resonance structure for parameters: pitch = 330 nm, height = 330 nm, dielectric constant difference (normalized), ∆ε/ε

_{avg}= 0.05 and center wavelength of 547 nm and dependence of the filter response on the angle of incidence. (Figure b is reproduced with permission from ref. [38]).

**Figure 9.**(

**a**) Reflection spectra contour for free-standing silicon high contrast gratings with dimensions: n

_{grating}= 3.48, duty cycle = 70% and thickness varied. The various regions of operation of the grating are also shown. (

**b**) The reflection spectra overlapped with the solutions to the eigen-mode equations of the resonant modes (white curves). The overlap regions of the white curves result in anti-crossing and crossing type resonance. (

**c**) Field intensity profile at anti-crossing resonance. (

**d**) Field intensity profile at crossing resonance. (Figures are reproduced with permission from ref. [50]).

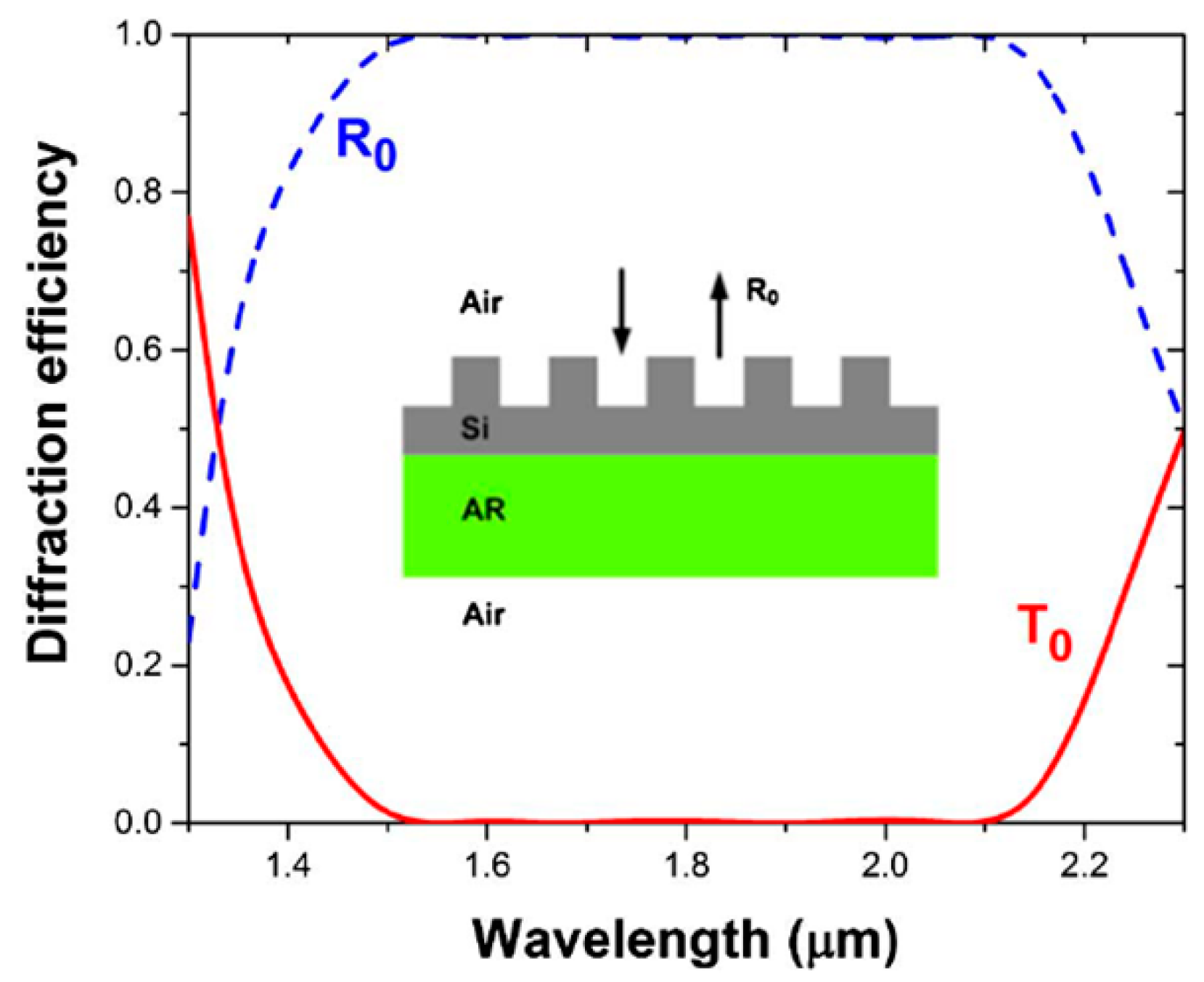

**Figure 10.**The simulated zeroth order reflection (R

_{0}) and transmission (T

_{0}) spectra for silicon zero-contrast gratings. The inset shows the cross-section of the zero-contrast gratings with the dimensions optimized using particle swarm combined with inverse-design algorithm. The optimized dimensions of the structure obtained are: etched grating height of 490 nm, unetched slab thickness of 255 nm, pitch of 827 nm, and fill factor of 0.643. (Figure reproduced with permission from ref. [60]).

**Figure 11.**(

**a**) The representative energy diagram for electromagnetically-induced transparency (EIT). (

**b**) Schematic of the expected transmission spectrum for the EIT effect.

**Figure 12.**Different implementations of EIT-like resonance. (

**a**) SEM image of bars-ring array. (

**b**) Schematic of the coupling between the bar excited by the incident light and coupling to the ring structure creating magnetic dipolar type mode. (

**c**) Experimentally measured transmission spectrum for the bar-split ring array showing EIT-like resonance. (

**d**) Schematic of the achiral bar-dimer structures. (

**e**) SEM image of asymmetric dimer achiral structures. (

**f**) Coupling between the dipole and quadrapolar modes in the asymmetric dimer structures. (

**g**) Perspective view of the asymmetric nanocube unit-cell. (

**h**) Schematic showing the coupling of electric and magnetic dipole modes in asymmetric nanocubes. (

**i**) Measured reflection spectrum for the asymmetric nanocube array. (

**j**) Cross-sectional view of the structure showing upper layer grating-waveguide structure coupled to lower waveguide structure. (

**k**,

**l**) Simulated EIT-like resonance spectra and associated field profiles from GMR structures. (Figures a–c are reproduced with permission from ref. [68], d–f are reproduced with permission from ref. [70], g–i are reproduced with permission from ref. [72], k,l are reproduced with permission from ref. [74]).

**Figure 13.**(

**a**) Schematic of a quantum well with sharp potential edges and the corresponding photonic analogue showing an optical waveguide with confined modes, (

**b**) Schematic of quantum well with modulated edges and the corresponding photonic analogue showing grating-modulated waveguide. (Figure adapted from ref. [76]).

**Figure 14.**(

**a**) Schematic of the periodic dielectric constant modulated grating structure with typical TE0 and TE1 modes supported by such structure. (

**b**) Photonic band-structure calculation corresponding to the TE0 and TE1 modes showing the GMR and BIC states at either band-edge and their corresponding mode profiles. The GMR and BIC states are found to flip by changing the dielectric constant difference between the grating materials. (

**c**) Examples of asymmetric resonant metasurfaces which support quasi-BIC resonances. (

**d**) Modeling the asymmetricity using an asymmetry parameter, α. (

**e**) Variation of quality factor of the quasi-BIC resonance with change in asymmetry parameter. (Figures a–b are reproduced with permission from ref. [81], c–e are reproduced with permission from ref. [83]).

**Figure 17.**Various implementations of resonant FWM processes. (

**a**) Schematic of high-contrast grating resonance, (

**b**) Electron microscopy images and measured reflectivity spectrum of the resonance. (

**c**) Measured FWM spectrum for the high-contrast grating structure. (

**d**) Schematic of the high-aspect ratio Ge nanodisks for SFG studies. (

**e**) Mode profiles of the nonlinear polarization for the two different SFG processes. (

**f**) Measured SFG and THG spectra for the high-aspect ratio Ge nanodisks. (

**g**) Schematic of Si nanodisk structures used for doubly-resonant FWM studies. (

**h**) Comparison between measured and simulated scattering spectra for the two resonant modes under consideration. (

**i**) Comparison of the measured FWM signal and simulated pump intensity enhancement as a function of wavelength. (

**j**) Electron microscopy image of the partially etched zero-contrast grating structures used for FWM studies. (

**k**) Simulated and measured transmission spectra for the zero-contrast grating structures. (

**l**) FWM microscopy images for varying signal wavelength. The enhancement spectrum is also shown. (Figure a–c are reproduced with permission from ref. [105], d–f are reproduced with permission from ref. [107], g–i are reproduced with permission from ref. [108] and j–l are reproduced with permission from ref. [109]).

**Figure 18.**(

**a**) Schematic of the nanodisk array used for ultrafast-optical switching studies. (

**b**) Electron microscopy image and (

**c**) transmission spectra for the nanodisk array with the corresponding dipolar modes marked. (

**d**) Experimental results of pump-probe studied showing fast recovery or switching of probe in the presence of a resonant pump. Various pump laser wavelengths relative to the resonance are shown in the right plot. (Figures are reproduced with permission from ref. [110]).

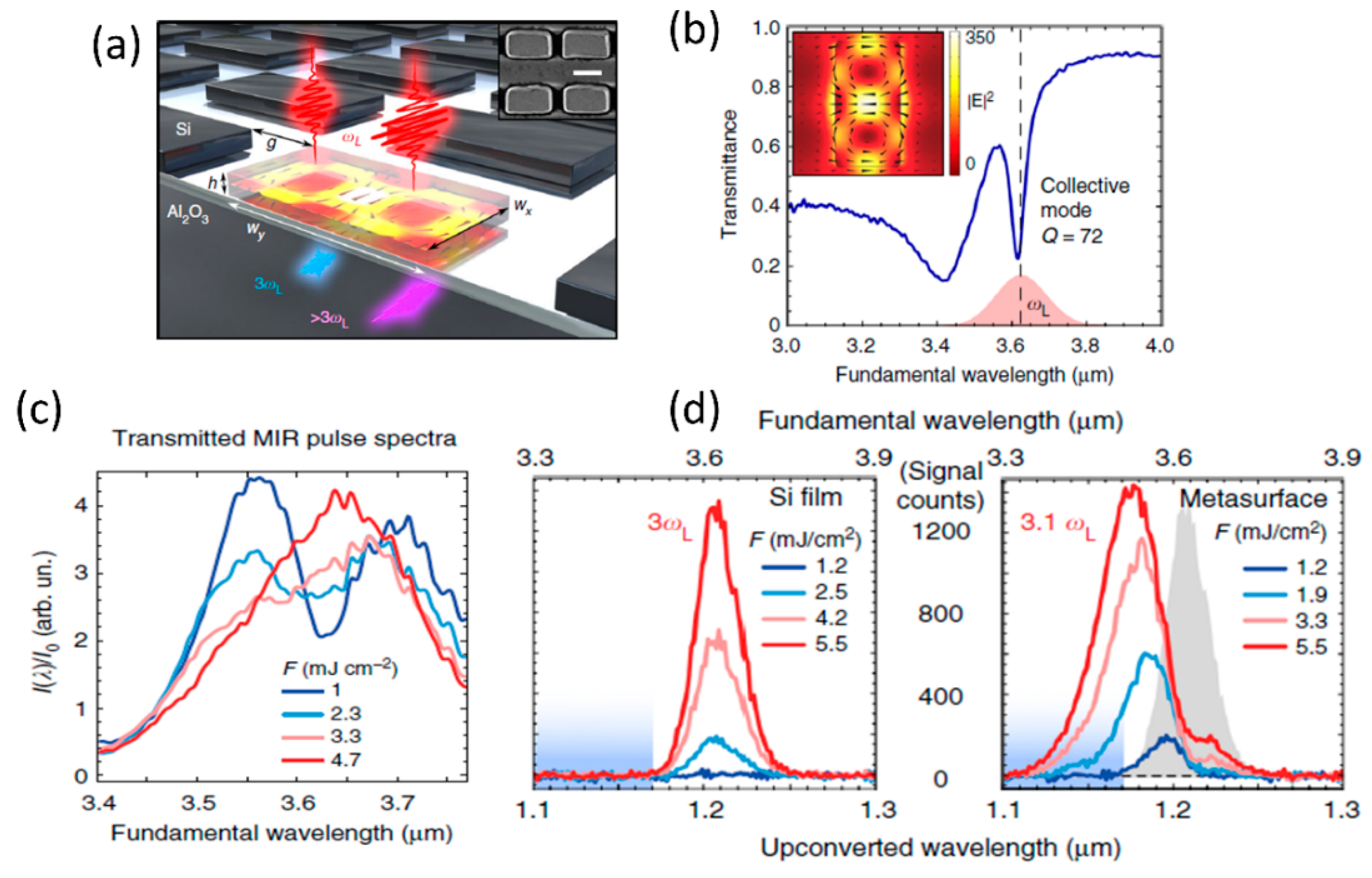

**Figure 19.**(

**a**) Schematic of the silicon rectangular metasurface used for photon acceleration studies. (

**b**) Measured transmission spectrum and field profile at resonance (inset). (

**c**) The fundamental laser spectra transmitted through the metasurface for varying laser fluence. (

**d**) Comparison of the third-harmonic signal generated for varying fundamental laser fluence for the un-patterned silicon film and silicon metasurface. (Figures are reproduced with permission from ref. [112]).

**Figure 20.**(

**a**) Schematic of the Gallium Arsenide nanodisk array used for nonlinear wave mixing studies. (

**b**) Experimentally measured spectra of various nonlinear wave mixing processes. The name of the various processes and their frequency relationship are labelled. (

**c**) The dependence of the nonlinear wave-mixing spectra on the time-delay between the interacting excitation pulses. (Figures are reproduced with permission from ref. [113]).
