Micromachines 2019, 10(2), 96; https://doi.org/10.3390/mi10020096

Design and Experimental Research of a Rotary Micro-Actuator Based on a Shearing Piezoelectric Stack

State Key Laboratory for Strength and Vibration of Mechanical Structures, National Demonstration Center for Experimental Mechanics Education, Shaanxi Engineering Laboratory for Vibration Control of Aerospace Structures, School of Aerospace Engineering, Xi’an Jiaotong University, Xi’an 710049, China
*
Author to whom correspondence should be addressed.
Received: 25 December 2018 / Revised: 20 January 2019 / Accepted: 23 January 2019 / Published: 29 January 2019
Full-Text   |   PDF [2914 KB, uploaded 29 January 2019]   |

Abstract

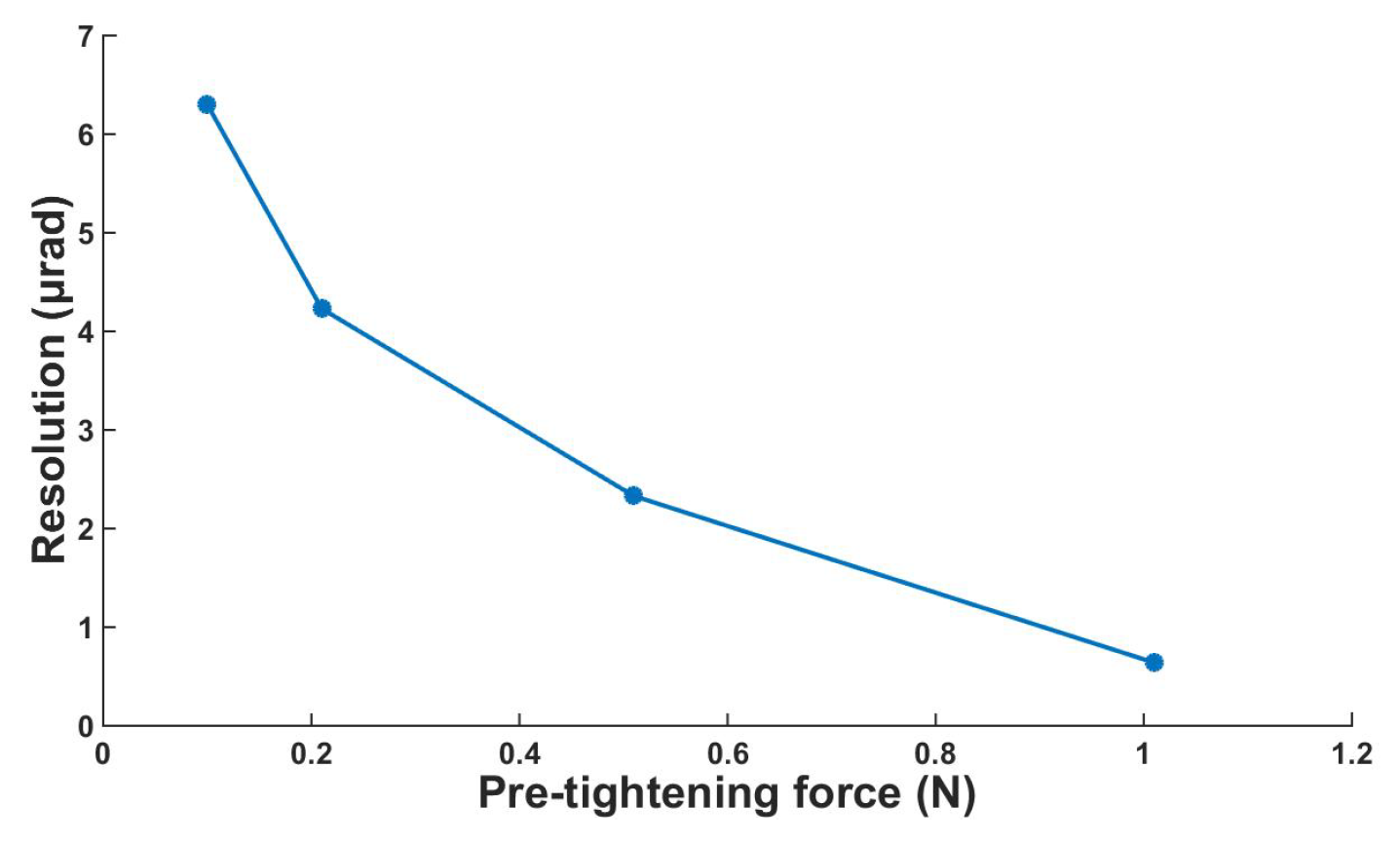

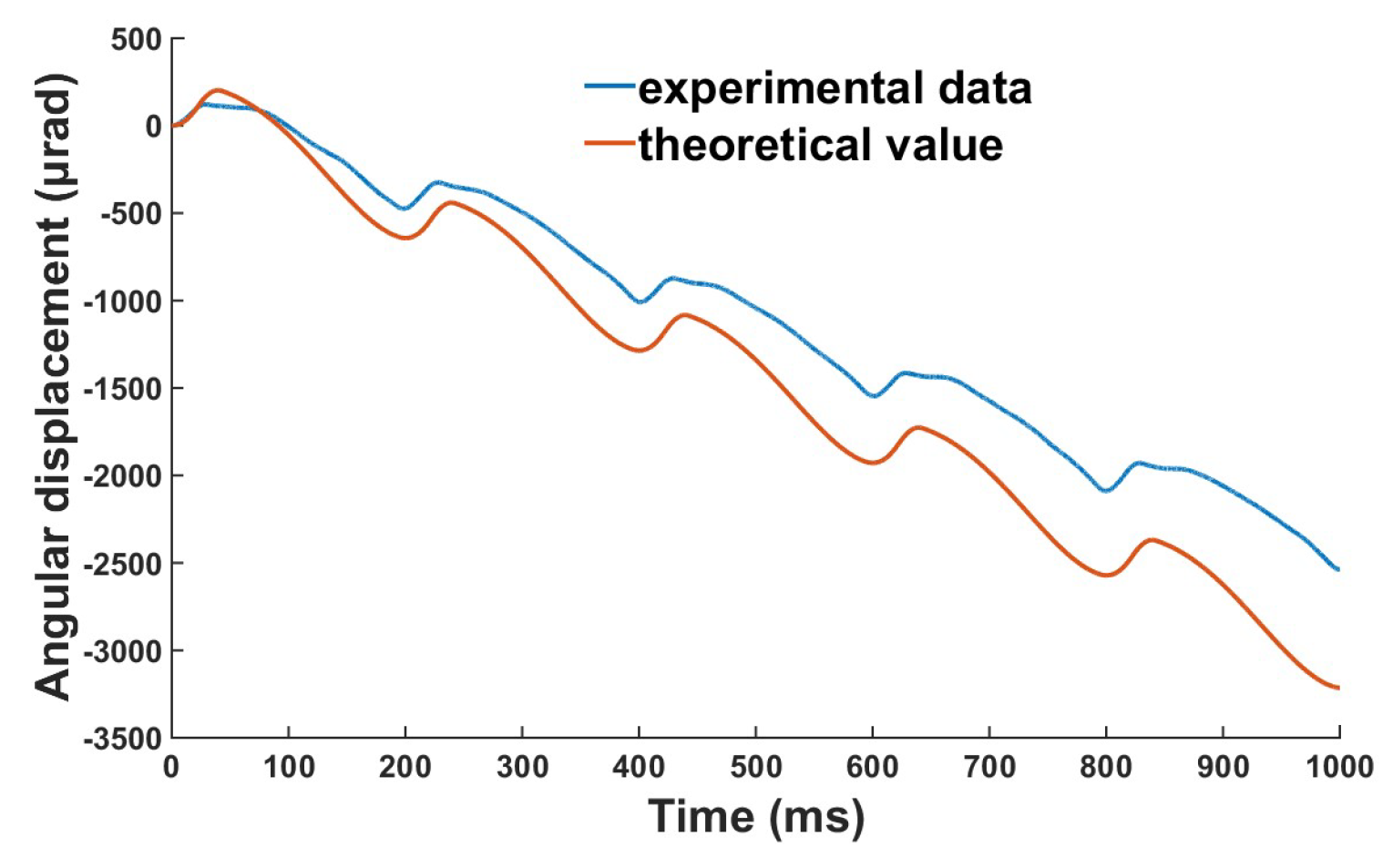

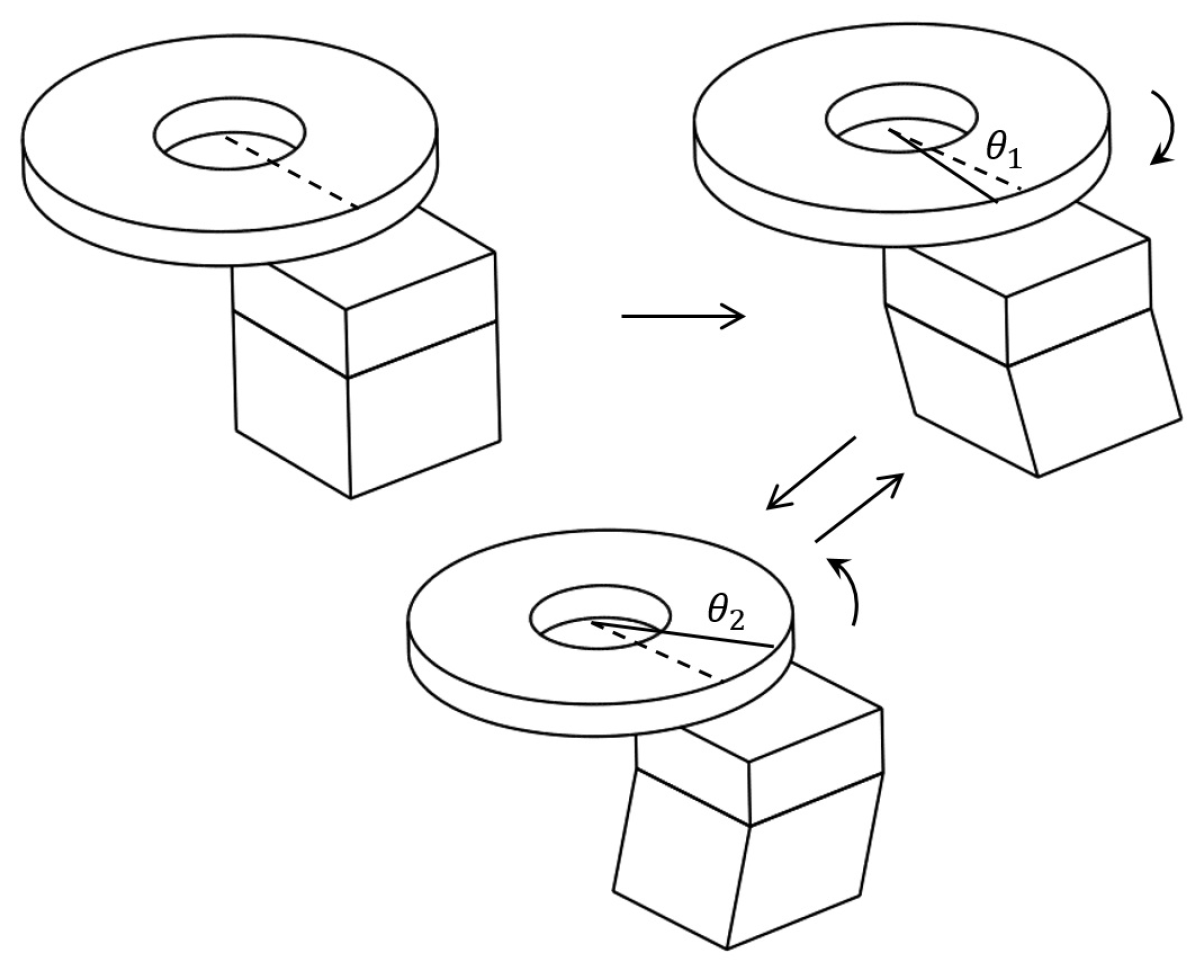

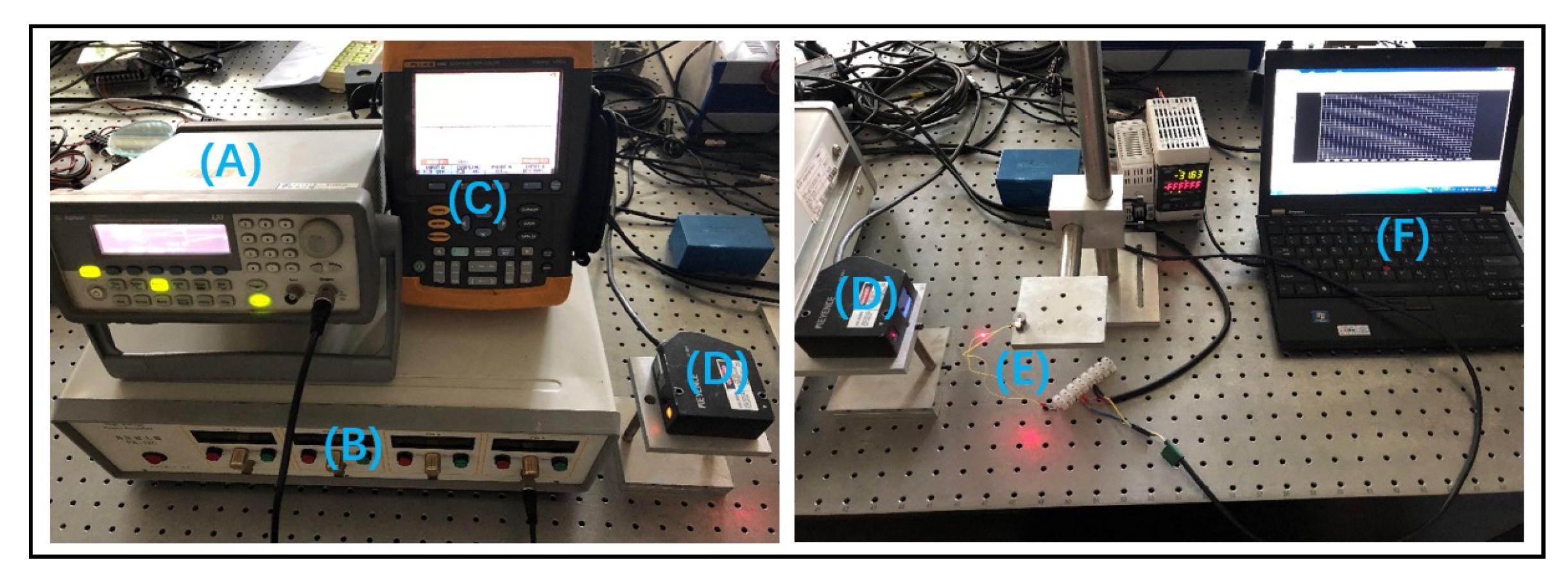

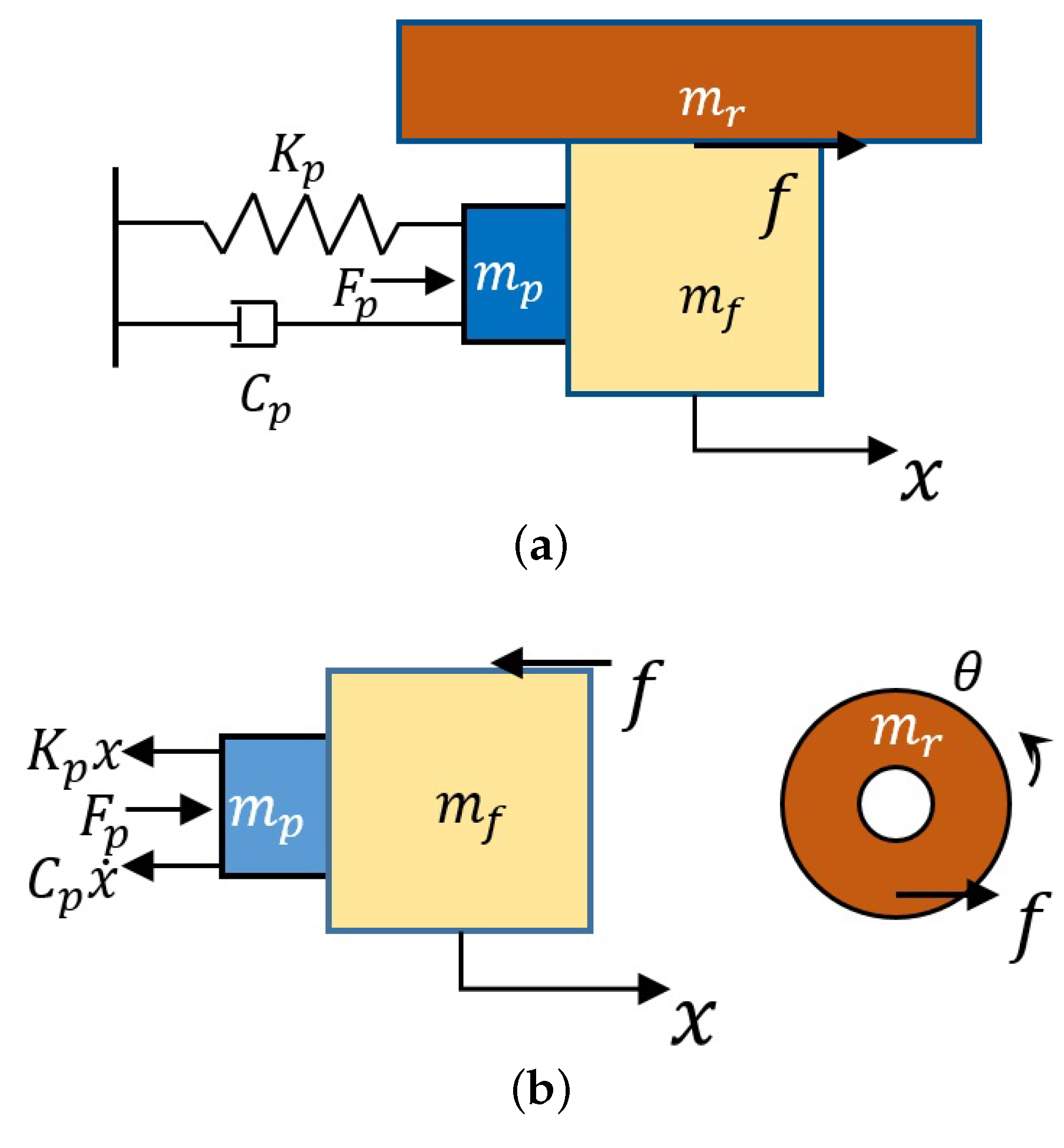

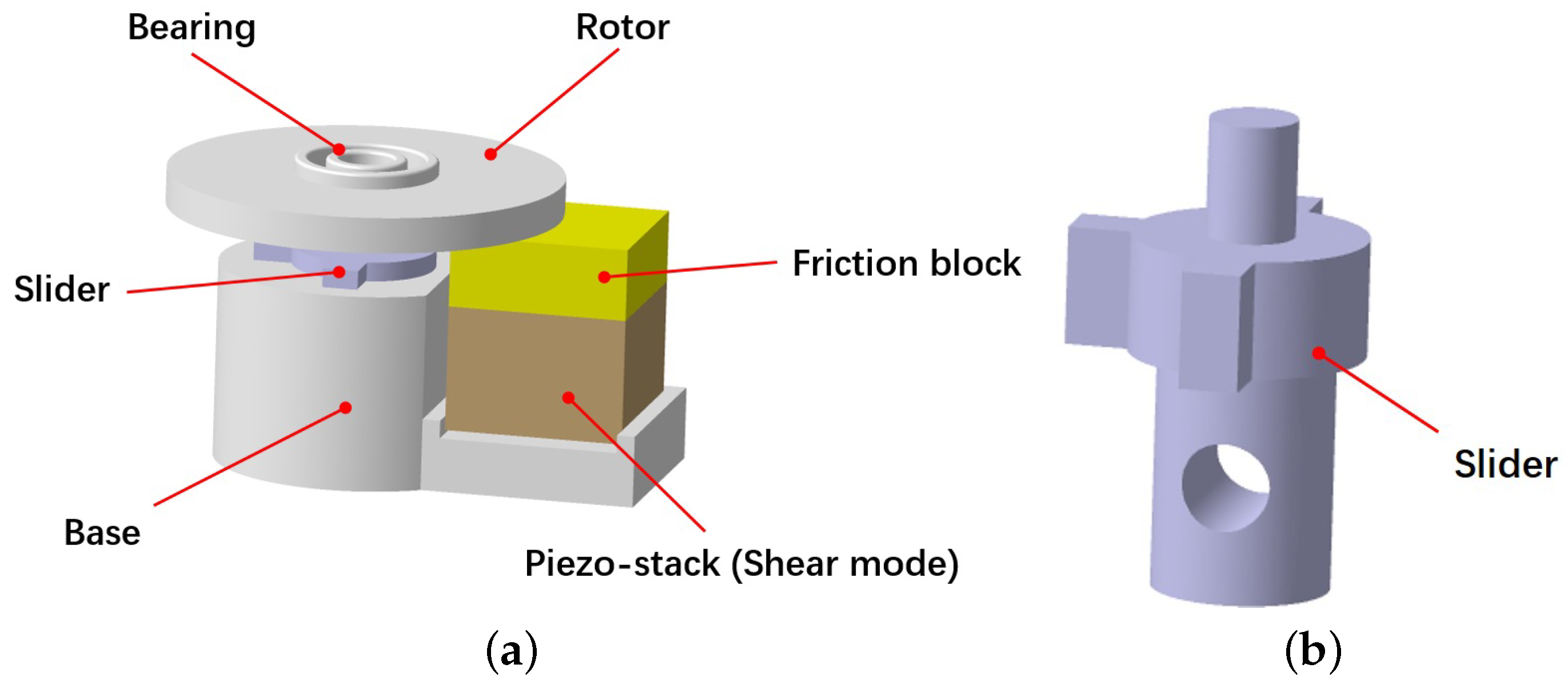

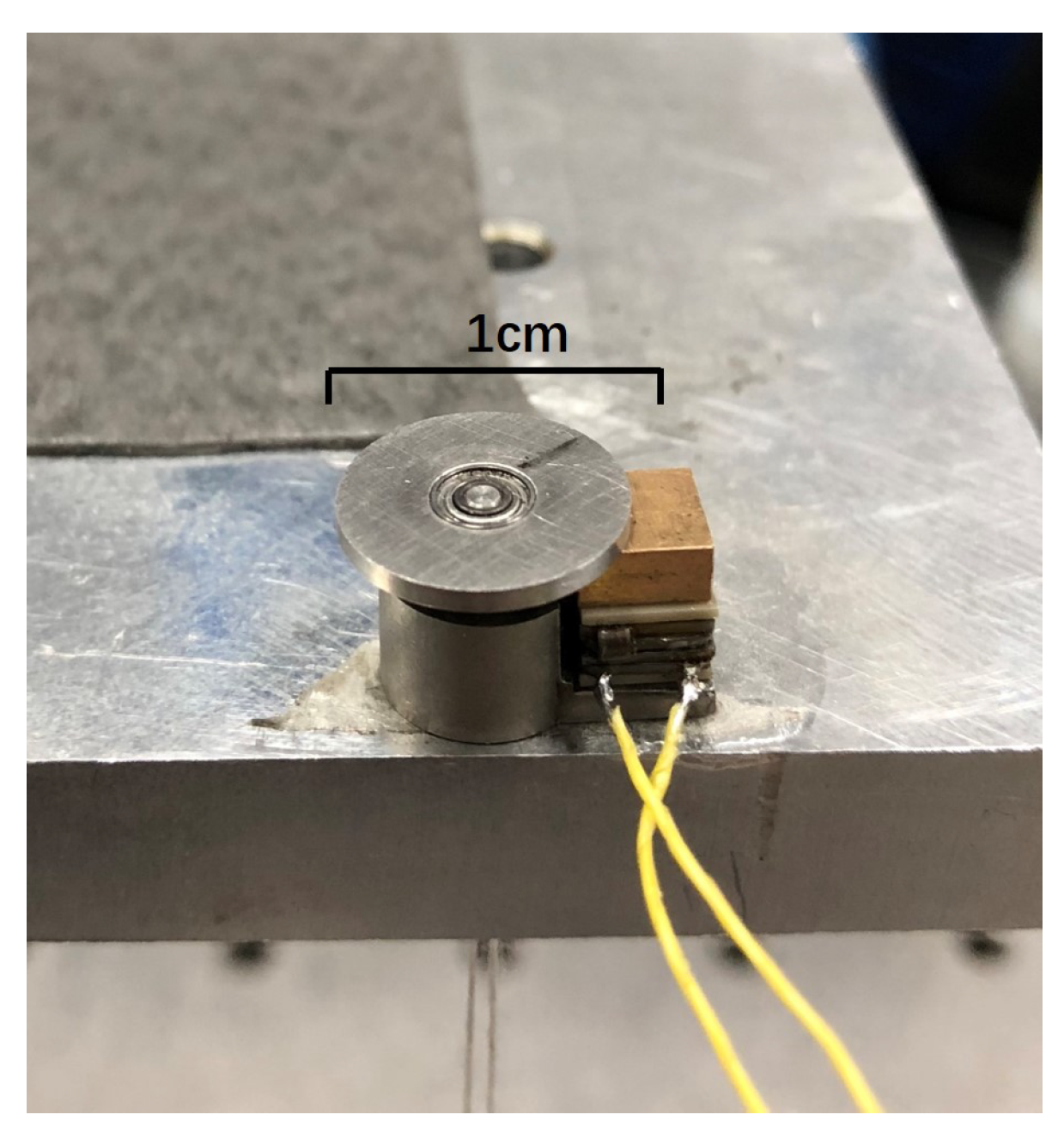

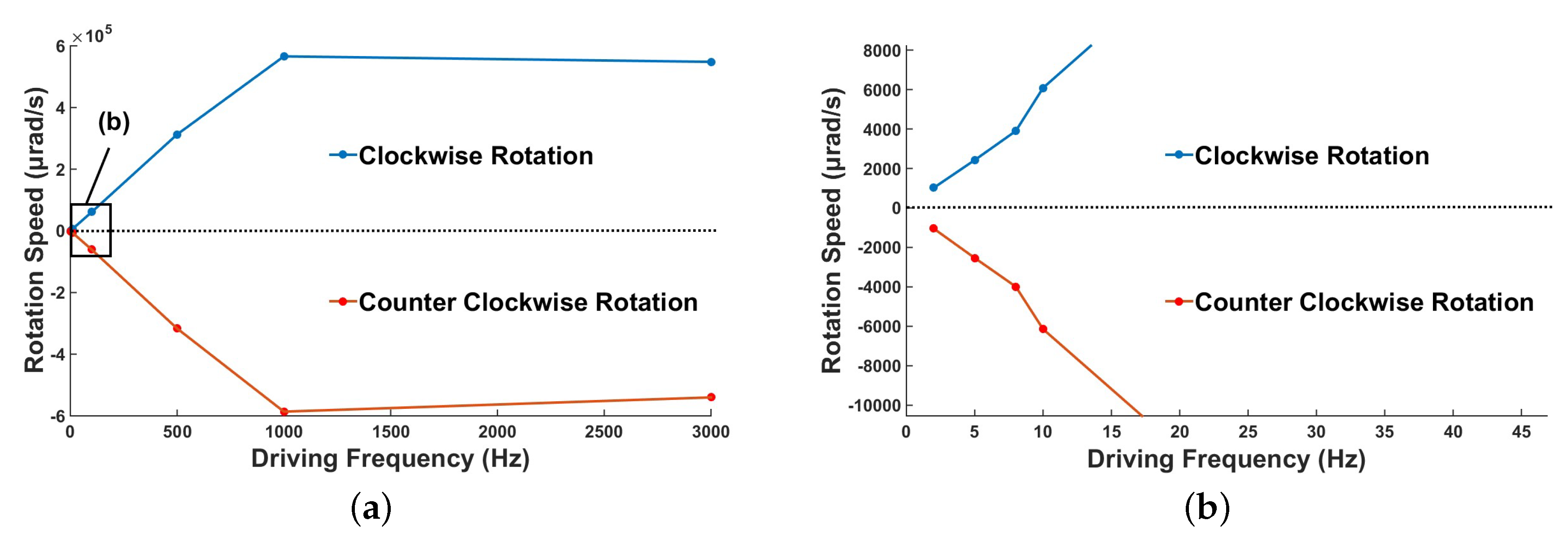

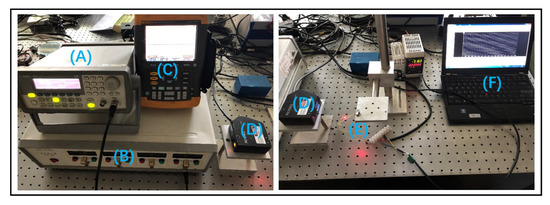

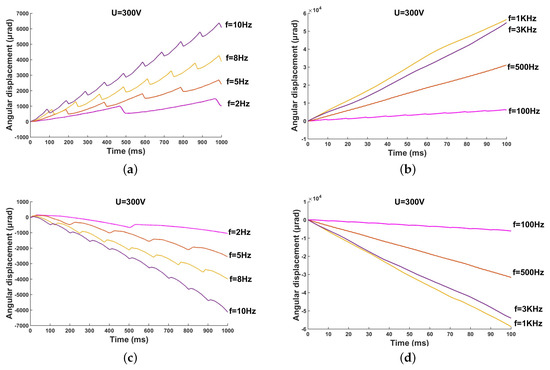

The working principle of a rotating micro-actuator based on a piezoelectric stack was theoretically analyzed and experimentally verified. The actuator is compact in structure, and the key component is the shearing piezoelectric stack. The piezoelectric stack is used to drive the micro-rotor via an electromechanical transition, which produces high-speed rotation of the micro-rotor. We first established the dynamic model of the micro-actuator and numerically analyzed the motion of this model. The step displacement output was observed by simulation, and the step increment is quite large. For experimental verification, we fabricated the piezoelectric micro-actuator with a size of 12 mm × 10 mm × 8 mm and mass of 4.12 g and conducted a series of experiments. The results show qualitative agreement with the theoretical results; the maximum output speed of the micro-actuator is 5.86 × 10 5 μ rad/s, and the motion resolution is 0.64 μ rad, which is greater than that of most traditional piezoelectric actuators. The proposed micro-actuator offers superior performance in driving of selected small objects, such as in micro-/nano-processing and cell operation. View Full-Text
Keywords: micro-actuator; shearing piezoelectric stack; inertia micro-actuator; shearing piezoelectric stack; inertia
