Ochratoxin A in Roasted Coffee from French Supermarkets and Transfer in Coffee Beverages: Comparison of Analysis Methods

by
Mariana Tozlovanu
and
Annie Pfohl-Leszkowicz
*
Laboratory Chemical Engineering, Department Bioprocess & Microbial System, UMR CNRS/INPT/UPS 5503, ENSA Toulouse, France
*
Author to whom correspondence should be addressed.
Toxins 2010, 2(8), 1928-1942; https://doi.org/10.3390/toxins2081928
Submission received: 28 June 2010 / Revised: 15 July 2010 / Accepted: 27 July 2010 / Published: 28 July 2010
Browse Figures
Versions Notes

Abstract

:
The OTA content of 30 roasted coffees purchased in French supermarkets was evaluated by two validated different methods: one using immunoaffinity column (IAC) clean-up after alkaline extraction; the second using toluene extraction under acidic conditions. OTA recoveries (0.5 to 5 µg/kg) ranged from 16–49% with the alkaline extraction method and 55–60% with the acidic method. OTA recoveries from prepared beverages were similar with all methods (75–80%). All samples containing OTA ranged from trace (<LOQ) to 11.9 µg/kg. About 20 to 140% of OTA passed through the beverages. Recoveries of over 100% of OTA in beverages were due to three types of interferences: (i) formation of open-ring OTA (OP-OA) during alkaline extraction, (ii) isomerization of OTA during roasting, and (iii) presence of the nonchlorinated analogue OTB. The first two types of interference generate OTA derivatives that are not recognized by OTA antibodies, while OTB cross-reacts with OTA-antibodies. These analytical problems will seriously impact the amount of OTA detected, especially at the levels close to the limits from the EU legislation. Underestimation of OTA could be highly dangerous for health.

1. Introduction

Ochratoxin A (OTA) is a secondary metabolite produced either by Penicillia in cereal or Aspergillii in wine and coffee [1,2]. OTA is a nephrotoxic and carcinogenic compound found in several food products such as cereals, nuts, beer, and wine [3,4]. Similar to other crops, coffee fruits and beans can be contaminated by toxigenic fungi, which, besides altering the quality of coffee [5,6,7] may present a serious risk of OTA contamination, compromising the safety of the product. OTA has also been detected in green and roasted coffee beans [3,8,9,10,11,12,13]. As OTA is not significantly reduced by roasting, the final coffee brew could also be an important OTA source in the human diet [14,15,16,17,18]. The slight reduction of OTA between green coffee and roasted coffeecould be due to three events: physical removal of OTA with chaff [19], isomerization at the C3 position into a less toxic diastereomer [15] and thermal degradation of OTA with possible involvement of moisture [15,19,20,21]. The presence of OTA in coffee is undesirable due to its toxicity and that it may serve as a barrier to trade affecting the economies of coffee producing countries. Thus, OTA levels usually need to be tested and guaranteed to be below certain levels. Many countries have established maximum limits for OTA that can be present in food. The legislation in Europe is 5 µg/kg of roasted coffee [23].
Therefore, it is essential to use reliable and sensitive analytical methods for the detection of OTA in individual foodstuff. There are numerous methods for the determination of OTA in foodstuffs, such as thin layer chromatography, enzyme-linked immunosorbent assay (ELISA), high performance liquid chromatography (HPLC) and liquid chromatography-mass spectroscopy (LC-MS) [24]. The analysis of OTA in coffee is complex due to interfering colored substances. Two methods have been validated in Europe for analyzing OTA in coffee: one is based on acidic extraction and a partition method for cleanup [25] and the second one uses immunoaffinity column (IAC) [26]. The aim of this study was to analyze several samples of ground coffee sold in the French supermarket and to evaluate the OTA intake via beverage. For this purpose, 30 coffee samples were purchased in French supermarkets and OTA was analyzed using both the official methods [25,26]. By comparing the data obtain with both methods and establishing calibration curves, it appeared that for low amounts of OTA (<2 µg/kg), almost all OTA was lost when performing the alkaline method [25]. For this reason, for some samples we tested the method described in 1996 by Pittet et al. [27] in which the IAC is performed at pH 7.

2. Experimental

2.1. Chemicals

All reagents (potassium chloride, sodium hydrogen carbonate, sulfuric acid, phosphoric acid, hydrochloric acid, acetic acid, sodium dihydrogen phosphate) were of normapur grade. All solvents (methanol, chloroform, acetonitrile, propan2-ol, n-hexane) were of HPLC grade from ICS (France). Deionized water was used for the preparation of all aqueous solutions and for HPLC. OTA and OTB standards, free from benzene and carboxypeptidase were from Sigma Chemicals (France). The immunoaffinity columns (IAC) (Ochraprep®) were from Rhone Diagnostic technologies (France). OP-OTA was prepared as described by Xiao et al. 1996 [28]. In brief, 1 mg of OTA was dissolved in 300 µL of DMSO. Then 300 µL of NaOH (1N) were added. The mixture was incubated at room temperature for 24 h. This time is long enough to convert all OTA into OP-OTA. OP-OTA was analyzed by HPLC with fluorimetry detection. The structure has been identified by LC-MS/MS.

2.2. Extraction of OTA from roasted coffee

Thirty ground roasted coffee samples were purchased in French supermarkets. OTA was extracted by three methods: two using IAC cleanup [26,27] and the third using toluene extraction under acidic conditions [25]. The different methods are detailed below.

2.2.1. Extraction of OTA in acidic conditions according to the EU validated method “15141-1” [25]

Twenty grams of ground coffee were mixed with 30 mL HCl 2 M; 50 mL MgCl2 0.4 M and 100 mL Toluene. The mixture was continuously shaken for 60 min. After separation, 50 mL of toluene phase containing OTA was purified on SEP pack. The column was washed twice with 10 mL n-hexane, twice with 10 mL acetone/toluene (5/95, v/v), and once with 5 mL toluene. OTA was recovered by addition of 15 mL toluene/acetic acid (90/10, v/v) two times. 30 mL of 5% natrium bicarbonate solution was added twice. The mixture was shaken for 10 min. After separation, OTA was present in the aqueous phase. The solution was acidified by the addition of concentrated HCl until pH 2 was reached. Finally, 60 mL of CHCl3 was added and the mixture was shaken for 10 min. After separation, the chloroformic phase was recovered. This step was performed twice. Chloroform containing OTA was evaporated to dryness. OTA was dissolved in methanol (500 µL).

2.2.2. Extraction of OTA in alkaline conditions according to the EU validated method “14132” [26]

Ten grams of ground coffee were mixed with 100 mL of solution containing methanol/natrium bicarbonate 3%, 50/50 (v/v) and shaken for 30 min. The solution was filtered through Whatman paper No. 4. Twenty milliliters of this extract were diluted with 20 mL of natrium bicarbonate 3% and purified on a phenyl silane column. The column was washed with 10 mL methanol/natrium bicarbonate 3%, (20/80, v/v) and 5 mL of natrium bicarbonate 1%. OTA was recovered by addition of 10 mL methanol/water (7/93, v/v). 30 mL of phosphate buffer solution (PBS) (containing 8 g NaCl, 1.2 g di-natrium hydrogeno phosphate (Na2HPO4), 0.2 g kalium dihydrogenophosphate (KH2PO4), 0.2 g KCl, and 900 mL water) were added to 10 mL of extract. This mixture was purified on an Ochrastar Immuno Affinity Column (IAC). The column was washed twice with 10 mL PBS. OTA was recovered by elution of 1.5 mL of methanol, evaporated to dryness and dissolved again in 500 µL methanol.

2.2.3. Extraction of OTA according to Pittet et al. 1996 [27]

Twenty five grams of ground coffee were mixed with 200 mL methanol/natrium bicarbonate 3%, 50/50 (v/v) and shaken for 10 min. The solution was filtered through Whatman paper No. 4. Four milliliters of this extract were mixed with 100 mL PBS. This mixture was purified on an IAC. The column was washed two times with 10 mL ultra pure water. OTA was recovered by elution in 4 mL of methanol, evaporated to dryness and dissolved again in 500 µL methanol.

2.3. Preparation of coffee beverage and extraction of OTA

OTA was also analyzed in coffee beverages that were made using two different kinds of machines (filtration technique and piston) (Figure 1). Using the electric machine (filtration technique), 25 g of coffee were put on the filter and slowly extracted with 300 mL hot water. In the second method, 30 g of coffee were placed in the container, and then brewed for 5 min in the presence of 300 mL of boiling water. The resulting beverage was used as the extract for OTA analysis. Purification was done on an IAC using the conditions described in Section 2.2.2 (Entwisle’s method [26]). In brief, 75 mL of each OTA extract (corresponding to 7.5 g of coffee with electric machine and 9 g with piston machine) were diluted with 25 mL phosphate buffer solution containing 24 g of NaCl, 3.6 g di-natrium hydrogeno phosphate (Na2HPO4), 0.6 kalium dihydrogenophosphate (KH2PO4), 0.6 g KCl, 900 mL water adjusted to pH 7.4 and loaded on the IAC. A second purification was made according the Pittet’s method [29]. In this case, 20 mL of extract were diluted with 80 mL PBS and loaded on IAC. In each case the IAC was washed with 20 mL PBS, followed by OTA elution using conditions analogous to OTA extraction from ground coffee extract.
OTA has also been extracted with cold water. Thirty grams of coffee were placed in the presence of cold water for 24 h. In each case, the beverage (20 mL) was used as extract and diluted with 80 mL of PBS then passed through the IAC.
Toxins 02 01928 g001 1024

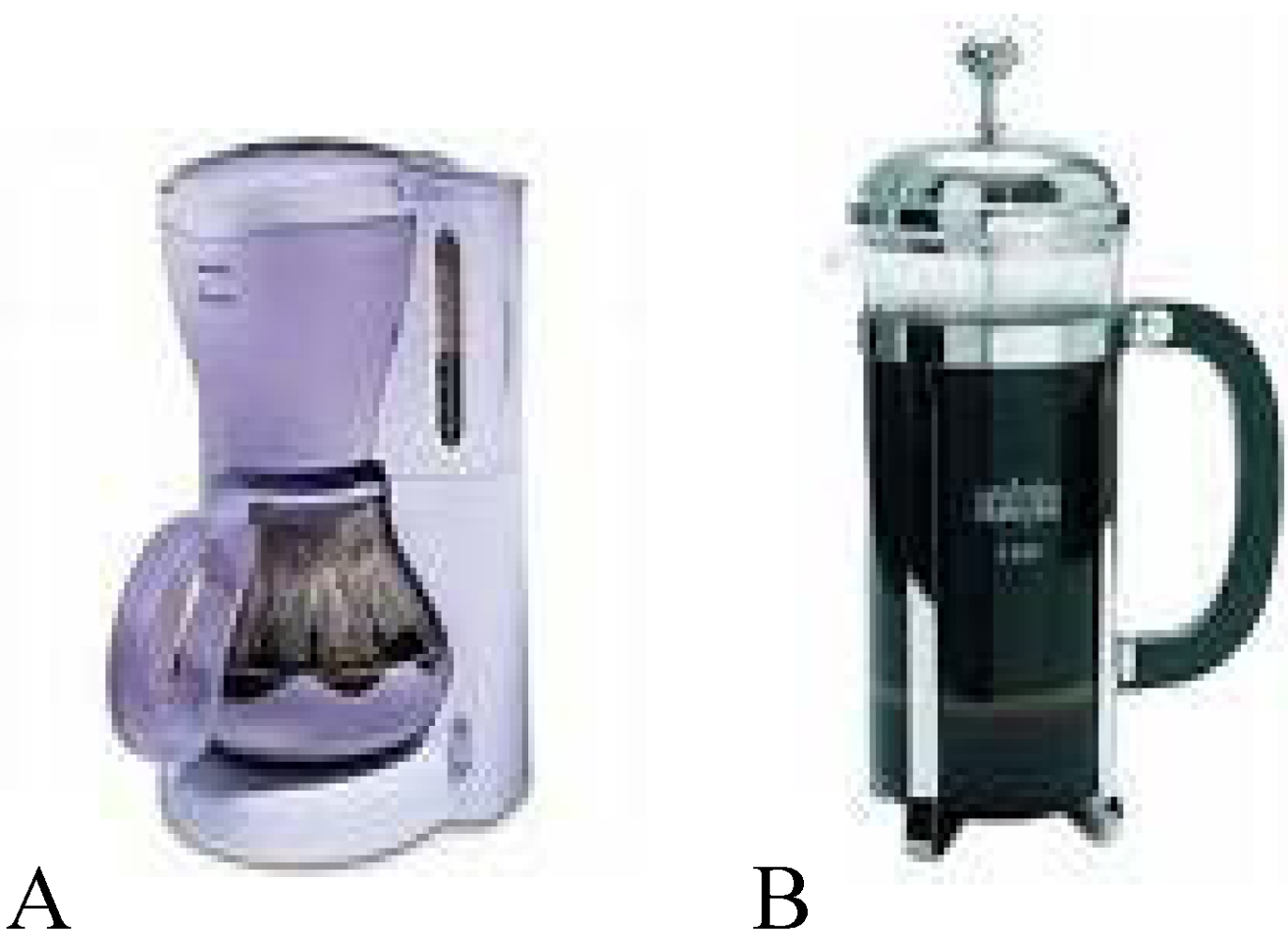

Figure 1. Coffee makers: (A) electric coffee maker (filtration system), and (B) piston machine.
Figure 1. Coffee makers: (A) electric coffee maker (filtration system), and (B) piston machine.
Toxins 02 01928 g001

2.4. Detection of OTA and quantification

OTA was analyzed by HPLC using C18 column PRONTOSIL 120 (250 × 4.0 mm2) with inner porosity of 3 µm, with an ultrasep C18 10 µm precolumn, 1 cm long from ICS, under isocratic condition (mobile phase: orthophosphoric acid at 0.33 M/ACN/propan-2-ol (600:400:55), flow rate 0.8 mL/min). HPLC analysis used a Gilson 811B dynamic chromatography pump coupled to a Spectra Physics 2000 fluorescence spectrophotometer and an ICS autosampler. Detection was performed with a programmable Merck HITACHI FL Detector L-7485 (excitation 340 nm, emission 465 nm). The chromatograms were analyzed by Normasoft software provided by ICS (France).
OTA standard solutions were prepared by dissolving 10 mg of OTA in 1 mL of methanol. A series of working standards from 0.2 to 100 ng OTA was prepared by dilution (equivalent to 0.02 to 15 ng/g of OTA in coffee). They were used to calibrate the LC detector response. The concentration of the OTA stock solutions was determined by measuring the UV absorbance at 333 nm with a molar extinction coefficient ε of 5500 mol−1cm−1. The quantity of OTA contained in the extract was evaluated by integration of the peak area corresponding to OTA. Depending of the method of extraction, 500 µL of methanol correspond to 10 g, 2 g or 0.5 g of coffee, respectively, after acidic extraction [25], alkaline extraction [26], and Pittet’s method [27].
The coefficient of linearity (R2) was 0.997. The limit of detection (LOD) was 0.025 µg/kg and the limit of quantification (LOQ) was 0.04 µg/kg at nine times background.
OTA recoveries: Three coffee samples spiked with 5 µg/kg (corresponding to EU legislation), were extracted by the three methods and were analyzed on the same day, by the same operator and with the same HPLC system. The average recoveries were 45 ± 4% for Entwisle method [26]; 71 ± 1% for Pittet method [27] and 57 ± 0.5% for acidic method [25]. When beverages were used as extract, the average recovery was 80 ± 0.5%. Repeatability test for OTA analysis: The three coffee samples spiked with 5 µg/kg (corresponding to EU legislation) were extracted by the three methods and were analyzed on five successive days by the same operator and with the same HPLC system. The average OTA concentration was 2.5 ± 0.20 µg/kg for the Entwisle method [26]; 3.6 ± 0.3 µg for Pittet method [27] and 3 ± 0.3 µg for acidic method [25]. When beverages were used as extract, the OTA concentration was 4 ± 0.1 µg.

2.5. Confirmation of OTA derivatives

The confirmation of the presence of OTA (or OTA derivatives) in coffee samples was achieved by the following technique: an aliquot, taken from the purified extract of a sample where OTA was detected by the HPLC analysis, was dried. The pellet was dissolved in 975 µL of a buffer solution of 0.04 M Tris-HCl, 1 M NaCl, pH 7.5. Then, 25 µL of carboxypeptidase (100 U/mL H2O) was added and the mixture was incubated at room temperature overnight. The sample was analyzed under the same HPLC chromatographic conditions as used above. The OTA peak disappeared whereas the peak of α-OT appeared. The OTB peak disappeared whereas the peak of β-OT appeared.

3. Results and Discussion

3.1. Occurrence of OTA in ground roasted coffee

All coffee samples were analyzed for OTA content using both official methods [25,26,29]. Some coffee samples were also analyzed by the method published by Pittet et al. [27]. Before conducting the determination of OTA occurrence in the samples, the recoveries using these methods was evaluated.

3.1.1. Comparison of the recovery of OTA using the three methods

Ground coffee (10 different samples) was spiked with increasing amounts of OTA (final concentration in coffee equivalent to 0.5, 1, 2.5, 5, 10 µg/kg). Table 1 shows the % recoveries (all the analyses were done in duplicate).
Table
Table 1. Comparison of the recoveries in ground coffee.
Table 1. Comparison of the recoveries in ground coffee.
Contamination level analysis method0.51.02.02.55.010.0 µg/kg
% recovery
EN No. 14132 [26]16.6–18.724.5–27.0 33.0–34.041.0–49.063.0–70.0
Pittet method [27] 60–6462–65 70–7280–82
EN No.15141-1 [25]50–5553–55 57–5557–57
The recovery limits commonly accepted for a level of contamination of OTA around 10 µg/kg are 70–125% [30]. For this concentration of OTA, the % recovery with both IAC methods were between these two limits; however, the % recovery for lower concentrations of OTA from roasted coffee was lower than 70% with Entwisle’s method [26]. The recovery by Entwisle’s method increased with the amount of OTA in roasted coffee beans and could be considered as acceptable only for amounts >5 µg/kg. The recovery by the Pittet’s method [29] is relatively constant (an average of 70% for all amounts of OTA). The recovery after toluene extraction in acidic condition (EN 15141-1 [24]) was constant, but is not greater than 60%. In this later case, the loss is mainly due to the difficulty to evaporate toluene to dryness, forcing the addition of chloroform extraction. Horwitz [30] recommends that recoveries less than 60–70% may be subject to investigations leading to improvement.
The major difference between the two IAC methods was the relative proportion of PBS added to the extract and the duration of shaking incubation. The conditions in Pittet’s method [29] bring the pH much closer to neutrality than the Entwisle’s condition where the pH remains above 8. pH conditions that are too high lead to the formation of open-ring OTA (OP-OA), which is not recognized by the OTA antibodies. This phenomenon has already been observed during breakfast cereal analysis for OTA [31,32,33,34]. The large dilution of the extract in the Pittet’s method [29] before IAC columns lowers the pH in a range allowing reconversion of almost all OP-OTA into OTA before IAC, which is not the case in the Entwisle’s method where almost all OTA remains in OP-OA form.

3.1.2. OTA amount in ground roasted coffee

Thirty samples were analyzed by both official methods [24]. Ten samples were analyzed by the method of Pittet [29] (Table 2).
In all samples, trace amounts of OTA (<LOD) could be detected. The amount of OTA, whatever the method of extraction, ranged from trace (<LOD) to 11.9 µg/kg. For 27% of the samples, the OTA amount ranged between LOD and 0.5 µg/kg, 33% samples contained OTA between 0.5 and 1 µg/kg, while 37% samples contained OTA between 1 and 3 µg/kg. Only one sample (3%) contained OTA above the EU limit of 5 µg/kg [23] and reaches a very high level of 11.9 µg/kg with the EN 14132 method [26]; 15 µg/kg with the EN 15141-1 [25] method and 10 µg/kg with the Pittet’s method [27]. This highest contamination was found in a sample without trademark.
For six samples out of 10 analyzed, the amount found by Pittet’s method [27] was significantly higher than with Entwisle’s method [26]. As mentioned in the previous paragraph, the main explanation is the reconversion of OP-OA into OTA after large dilution of extract in the Pittet’s method. A second explanation is the lowest amount of interfering compounds with OTA antibodies. Indeed, the amount of coffee extract passed through the column, by the method of Pittet et al. [27] corresponds to 0.5 g of coffee and by that of Entwisle et al. [25] corresponds to 2 g. Therefore, the amount of compound possibly interfering with the OTA antibody is four-fold greater using this later method. All these experiments were run in parallel with the same batches of coffee, the compounds extracted are expected to be identical and in a similar ratio.
In 9 samples (#9, 19, 20, 21, 22, 24, 27, 28, and 29), OTB (dechlorinated OTA) was detected, but not quantified. OTB could lead to underestimation of OTA (see paragraph 3.3).
Table
Table 2. Occurrence of OTA in ground coffee (µg/kg) as determined by three different extraction and clean-up methods (CEN14132, CEN 15141-1, Pittet method). Data are expressed as µg/kg without taking recovery into account. NA: not analyzed; LOD (limit of detection): 0.025 µg/kg; LOQ (limit of quantification): 0.04 µg/kg.
Table 2. Occurrence of OTA in ground coffee (µg/kg) as determined by three different extraction and clean-up methods (CEN14132, CEN 15141-1, Pittet method). Data are expressed as µg/kg without taking recovery into account. NA: not analyzed; LOD (limit of detection): 0.025 µg/kg; LOQ (limit of quantification): 0.04 µg/kg.
SampleCEN14132 (acidic condition)CEN 15141-1 Entwilse, 2001Pittet method
11.611.34
20.81.62
30.680.66NA
41.10.50.65
50.40.5NA
61.30.5NA
71.31NA
811NA
91.051.351.3
10LOQLOQNA
11LOQLOQNA
120.930.5NA
130.50.35NA
14LODLODLOD
150.80.5NA
160.90.831.03
170.410.35ND
181.691.251.41
190.60.5NA
200.750.5NA
210.50.5NA
220.870.751.1
230.750.92NA
2411.8915.0810.14
25LOQLOQND
26LOQLOQND
270.760.751.2
281.371.251.6
290.70.5NA
300.540.35NA
Our results are in good agreement with the findings of others. For example, reported amounts of OTA in coffee have been from 0.5 to 23.0 ng/g [35], 9.9 to 46 ng/g [14], 0.2 to 5.5 ng/g [8], 0.1 to 17.4 ng/g [9], 0.1 to 4.6 ng/g [10], and 0 to 48 ng/g [11]. An average contamination of 2.4 ng/g was found in 50 coffee bean samples [36]. Of the 40 samples analyzed, only five were contaminated with OTA in concentrations that varied from 0.64 to 4.14 ng/g, with an average in the positive samples of 2.45 ng/g [37]. Pardo et al. (2004) [38] analyzed 14 green coffee samples of Asian origin and reported OTA concentrations ranging from 1.6 to 31.5 ng/g with an overall mean of 6.0 ± 7.9 ng/g. In the study of Gopinandhan et al. (2007) [39], a total of 129 green coffee samples, randomly collected from curers, traders and local auction platforms, were tested for OTA. The results indicated that 81% of samples had OTA levels below 5 ng/g. Only three samples had OTA levels above 5 ng/g and the highest level of OTA was 11.7 ng/g in a robusta cherry sample. Analysis of 80 green coffee samples from India indicated that, although a high incidence (74%) of OTA contamination (0.2–13.5 ng/g) was recorded, the overall mean OTA level (2.17–2.45 ng/g) was low. The highest recorded OTA concentration was 13.5 ng/g in a robusta cherry sample and only five samples had OTA levels above 5 ng/g. The mean OTA level was higher in cherry (range: 1.63 ± 0.97 to 4.8 ± 3.90) than parchment (0.56 ± 0.35–1.10 ± 0.28), indicating a correlation between processing method and OTA contamination [40].
Post-harvest practices, particularly drying, affect OTA contamination [41]. The highest risk of exposure to contamination was characterized by fruit contact with the soil, constituted by the fraction coffee swept from ground, and by inadequate post-harvest handling of the product during drying in ground coffee yards [42].

3.2. OTA in the beverage

3.2.1. Recovery of OTA

To analyze the amount of OTA passing through the beverage, only clean-up on IAC without extraction was performed. Coffee beverage is prepared by passing hot water over ground coffee beans and is equal to the crude extract. The recovery of OTA was evaluated on coffee spiked with increasing amounts of OTA before infusion, or by addition of OTA to the crude extract. In this analysis the % recovery of OTA was fairly constant (Table 3), because OTA is not treated with base (leading to generation of OP-OA) prior to extraction from the beverage.
Table
Table 3. Percent of recovery from coffee beverage used as extract.
Table 3. Percent of recovery from coffee beverage used as extract.
Contamination level analysis method0.51.02.02.55.010.0
% recovery
Entwisle 1413268–7275–73 72–7080–7368–70
Pittet 72–70 75–7680–80

3.2.2. Amount of OTA in the beverage

The most contaminated roasted coffees were used to prepare coffee beverage. Nineteen samples were used to prepare beverages using two different techniques: the filtration technique (infusion) or piston technique (decoction). The percentage of OTA passing through the beverage was calculated using the value obtained by the EN 14132 method [25] as 100% value in ground coffee (bold value in the Table 4) or using the value of Pittet’s method [27] as 100% value in ground coffee (italic value in the Table 4).
The amounts of OTA passing through the beverage are slightly higher (ranging from 5–20%) when the coffee is made by the electric machine (infusion) compared to piston machine (decoction).
The percentage of OTA found in the beverages varied from 13–141% of the initial amount of OTA found in ground coffee (Table 4).
Several authors described also that OTA present in roasted coffee essentially passes completely into the brew (or found even more OTA), whereas some others did not find any passage [8,14,15,16,36,43]. Mocha brewing, espresso and Scandinavian boiled coffee allow passage of more OTA than the other mode of coffee preparation such infusion.
Percentage of OTA passage over 100% confirms the presence of masked OTA, probably isomerization of OTA by roasting [21,43] and interference of some compounds extracted from the ground coffee and the antibodies. OTB is one of the interfering substances (see paragraph 3.3). Indeed, OTB was found in all coffee beverages made with ground coffee samples in which more than 0.8 µg/kg OTA were detected. OTA analysis from beverage do not include alkalinization step before IAC and thus no OP-OA is formed.
Table
Table 4. Amount of OTA passing through the beverage.
Table 4. Amount of OTA passing through the beverage.
codeMode of preparationng/L coffeeng/kg coffee% passing *
1electric220.2213/16
piston320.2515/19
2electric47.20.4860
piston37.930.3847.5
4electric72.270.7265/110
piston58.750.4642/71
6electric31.180.3124
piston32.60.2519
7electric26.370.2620
8electric20.680.2121
9electric148.551.48141/117
piston141.931.11110/88
12electricLODLOD-
14electric480.48>100
piston43.60.34>100
15electric22.420.2227.5
16electric79.630.886/78
piston85.930.6769/65
17electricLODLOD<LOQ
18electric122.781.2373/87
piston168.651.3278/94
19electric11.870.1220
22electric77.660.7887/74
piston79.880.6269/59
24electric796.037.9667/78
piston882.316.8958/68
27piston270.2735.5/22
28electric161.281.6117/100
piston170.931.3498/84
29electric310.3144
* Bold values give % of OTA calculated taking into account the OTA measured in ground coffee using EN 14132 method [25];. Italic values correspond to the % of OTA in coffee found using Pittet’s method [29]; in both ground coffee and beverage.

3.3. Interference of OTB and other compounds with OTA antibodies and modification of the structure of OTA during extraction explaining underestimation of OTA content in ground coffee

As in the case of breakfast cereal [32,33], some compounds interfered with OTA during IAC cleanup. In the most contaminated coffee, the highest amount of OTA was obtained using the method EN 1514-1 [24], which does not use purification on IAC and moreover is based on extraction after acidification.
Formation of OP-OA by alkalinization leads to the underestimation of OTA. This loss is partially counteracted in the Pittet’s method because the large dilution of the extract lowers the pH, allowing reconversion of OP-OA into OTA (Figure 2).
Interference is also due to the presence of OTB, which was detected in the most OTA contaminated coffee.
For this reason, we tested the cross reactivity of OTA, OTB and OP-OTA with the antibodies from the IAC used. When 50 ng of each toxin is spiked on a coffee extract before IAC, the recoveries of OTA and OTB were respectively of 57% and 81%, whereas OP-OTA is not recognized (amount detected is below the LOQ). The respective recoveries when each derivative is spiked independently were 80% for OTA, 91% for OTB and 0% for OP-OTA. This indicates that: (1) OTB is recognized by the antibodies of the OTA IAC; (2) the affinity of OTB is higher than that of OTA on these columns; (3) OP-OTA is not recognized by OTA-IAC.
Toxins 02 01928 g002 1024

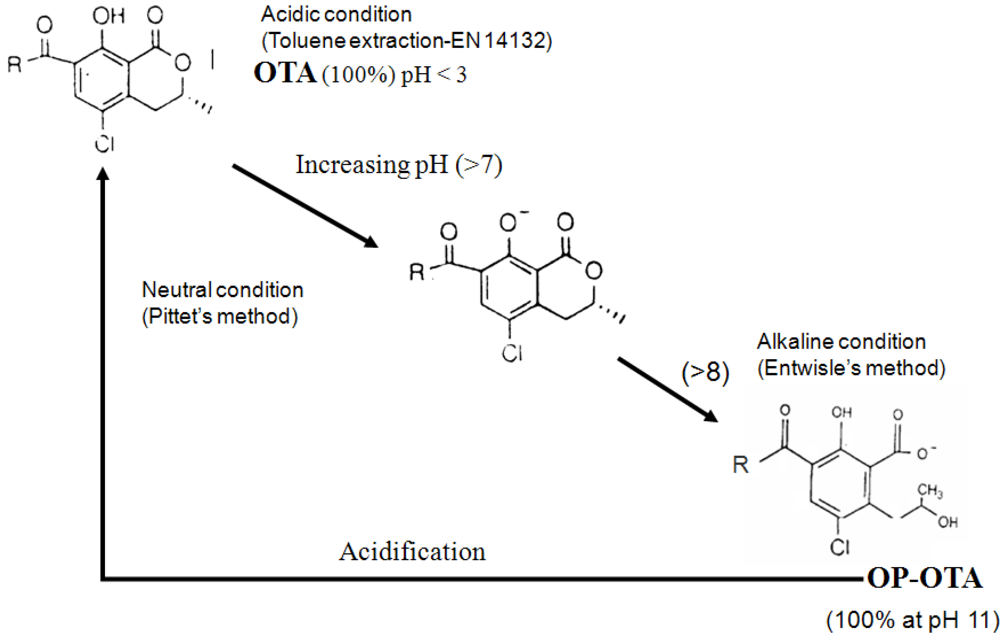

Figure 2. Ring opening formation of OTA (OP-OA) under alkaline condition.
Figure 2. Ring opening formation of OTA (OP-OA) under alkaline condition.
Toxins 02 01928 g002
This explains the data obtained with the most contaminated coffee sample, for which much higher OTA amounts are found in acidic conditions without IAC (15 µg/kg) than by the two other methods (9.5 µg/kg). Thus, the loss of OTA by the two methods—including IAC cleanup—is due to the transformation of OTA into OP-OTA and the presence of OTB, which has a higher affinity and contribute to saturation of column.

4. Conclusions

Our data show that OTA in coffee is generally underestimated due to OTB and other substances also present in coffee that interfere with the OTA antibodies. In addition, extractions in alkaline medium lead to conversion of OTA into open-ring OTA (OP-OA), which is not recognized by OTA antibodies. In general, the amount of OTA found in ground coffee was below the limit of residue enforced by EU [23]. Nevertheless, OTA intake via coffee beverage is not negligible in view of its potential carcinogenic properties (for a review see Pfohl-Leszkowicz and Manderville, 2007 [4]). In several countries (France, Italy, Sweden, Spain, and Portugal, for example), the coffee beverage is made with 7 g of ground coffee for 100 mL of water, whereas in others (USA, for example), only 4 g of coffee/100 mL of water are used. The highest amount of OTA found in ground coffee was 11.9 µg/kg. Assuming a total transfer of OTA from ground coffee to beverage, a bowl of 300 mL of coffee made with 7 g will contain 250 ng of OTA; a cup of expresso (85 mL) will contain 70 ng. Thus, the intake of a high coffee consumer who drinks 640 mL of coffee (1 bowl of 300 mL at breakfast; 1 cup of 85 mL at 10 o’clock; 1 cup after lunch; 1 cup in the afternoon; 1 cup after dinner) will reach 530 ng. For a human weighing 60 kg, this intake via coffee corresponds to half of the tolerable daily intake of OTA established by JECFA (joint expert committee of Food and Additives) [43]. This intake of 530 ng is six times higher than the virtual safety dose (VSD) (1.5 ng/kg bw/day) established on the kidney tumors [44]! If we make the same calculation using the average OTA content (1.5 µg/kg) found in the coffee, the amount of OTA in a bowl is 31 ng; and in a cup of expresso 8.8 ng. Thus a heavy consumer will have a daily intake of 66.2 ng/day equivalent to 1.1 ng/kg bw/day, which is close to the VSD. It should be kept in mind that excessive coffee consumption (more than three cups a day) was implicated in upper tract transitional cell carcinoma and bladder cancer [45,46]. The risk is higher for heavy coffee drinkers carrying the genotype GSTP1 105–104 val. [47] and can be explained by the fact that glutathione conjugation is involved in the biotransformation of OTA into genotoxic and carcinogenic products [48,49,50] leading to DNA adducts [51,52]. As the percentage of OTA passing through the beverage depends on the origin and the roasting process of coffee, the intake evaluation should be done on the amount of OTA found in the beverage. A simple method to evaluate the amount of OTA in coffee could be to extract OTA with hot water. This extract could then be directly used on the IAC column.

Acknowledgements

The authors thank the French “Institut National de la Consommation”, Paris for supporting this work, notably R. Victoria and R. Reuss and Manderville, University Guelph, Canada for help in improving and editing English.

References

  1. Abarca, M.L.; Accensi, F.; Bargulat, M.R.; Cabanes, F.J. Current importance of ochratoxin A-producing Aspergillus spp. J. Food Prot. 2001, 64, 903–906. [Google Scholar]
  2. Reddy, K.R.N.; Abbas, H.K.; Abel, C.A.; Shier, W.T.; Salleh, B. Mycotoxin contamination of beverages: occurrence of Patulin in aplle juice and ochratoxin A in Coffee, Beer and Wine and their control methods. Toxins 2010, 2, 229–261. [Google Scholar]
  3. Jørgensen, K. Survey of pork, poultry, coffee, beer and pulses for ochratoxin A. Food Addit. Contam. 1998, 15, 550–554. [Google Scholar]
  4. Pfohl-Leszkowicz, A.; Manderville, R. Review on Ochratoxin A: an overview on toxicity and carcinogenicity in animals and humans. Mol. Nutr. Food Res. 2007, 51, 61–99. [Google Scholar]
  5. Krug, H.P. Cafés Duros III. Relação entre a porcentagem de microrganismos e qualidade do café. Revista do Instituto do Café 1940, 27, 1827–1831. [Google Scholar]
  6. Krug, H.P. Cafés Duros IV. Relação entre zonas, qualidade de café e porcentagem de microrganismos. Revista do Instituto do Café 1941, 16, 288–295. [Google Scholar]
  7. Carvalho, V.D.; Chalfoun, S.M. Aspectos qualitativos do café. Informe Agropecuário 1985, 11, 79–92. [Google Scholar]
  8. Micco, C.; Grossi, M.; Miraglia, M.; Brera, C. A study of the contamination by ochratoxin A in green coffee and roasted coffee beans. Food Addit. Contam. 1989, 6, 333–339. [Google Scholar]
  9. Nakajima, M.; Tsubouchi, H.; Miyabe, M.; Ueno, Y. Survey of aflatoxin B1 and ochratoxin A in commercial green coffee beans by high-performance liquid chromatography linked with immunoaffinity chromatography. Food Agric. Immunol. 1997, 9, 77–83. [Google Scholar]
  10. Trucksess, M.; Giler, J.; Young, K.; White, K.D.; Page, S.W. Determination and survey of ochratoxin A in wheat, barley and coffee 1997. J. AOAC Int. 1999, 82, 85–89. [Google Scholar]
  11. Romani, S.; Sacchetti, G.; Chaves, C.C.; Pinnavaia, G.G.; Dalla, M. Screening on the occurrence of ochratoxin A in green coffee beans of different origins and types. J. Agric. Food Chem. 2000, 48, 3616–3619. [Google Scholar]
  12. Taniwaki, M.H.; Pitt, J.I.; Teixeira, A.A.; Iamanaka, B.T. The source of ochratoxin A in Brazilian coffee and its formation in relation to processing methods. Int. J. Food Microbiol. 2003, 82, 173–179. [Google Scholar]
  13. Martins, M.L.; Martins, H.M.; Gimeno, A. Incidence of microflora and of ochratoxin A in green coffee beans (Coffea arabica). Food Addit. Contam. 2003, 20, 1127–1131. [Google Scholar]
  14. Tsubouchi, H.; Yamamoto, K.; Hisada, K.; Sakabe, Y.; Udagawa, S. Effect of roasting on ochratoxin A level in green coffee beans inoculated with Aspergillus ochraceus. Mycopathologia 1987, 97, 111–115. [Google Scholar]
  15. Studer-Rohr, I.; Dietrich, D.R.; Schlatter, J.; Schlatter, C. The occurrence of ochratoxin A in coffee. Food Chem. Toxicol. 1995, 33, 341–355. [Google Scholar]
  16. Stegen, G.V.D.; Jorissen, U.; Pittet, A.; Saccon, M.; Steines, W.; Vincenzi, M.; Winkler, M.; Zapp, J.; Schlatter, C. Screening of European coffee final products for occurrence of ochratoxin A. Food Addit. Contam. 1997, 14, 211–216. [Google Scholar]
  17. Bresch, H.; Urbanek, M.; Hell, K. Ochratoxin A in coffee, tea and beer. Archiv fur Lebensmittelhygiene 2000, 51, 89–94. [Google Scholar]
  18. Perez de Obamos, A.; Gonzalez-Penas, E.; Lopez de Cerain, A. Influence of roasting and brew preparation on the ochratoxin A content in coffee infusion. Food Addit. Contam. 2005, 22, 463–471. [Google Scholar]
  19. Blanc, M.; Pittet, A.; Munoz-Box, R.; Viani, R. Behavior of Ochratoxin A during Green Coffee Roasting and Soluble Coffee Manufacture. J. Agric. Food Chem. 1998, 46, 673–675. [Google Scholar]
  20. Boudra, H.; Bars, P.L.; Bars, J.L. Thermostability of Ochratoxin A in Wheat under Two Moisture Conditions. Appl. Environ. Microbiol. 1995, 61, 1156–1158. [Google Scholar]
  21. Stegen, G.H.D.; Essens, P.J.M.; Lijn, J. Effect of Roasting Conditions on Reduction of Ochratoxin A in Coffee. J. Agric. Food Chem. 2001, 49, 4713–4715. [Google Scholar]
  22. International Coffee Organization, Coffee Statistics 1999; London, UK, 2000; Nr16, ISSN 1364-9086.
  23. European Union. Règlement (CE) No 1881/2006 de la Commission du 19 décembre 2006 portant fixation de teneurs maximales pour certains contaminants dans les denrées alimentaires. Journal Officiel de l’Union Européenne 2006, L364, 5–24.
  24. Turner, N.W.; Subrahmanyam, S.; Piletsky, S.A. Analytical methods for determination of mycotoxins: A review. Anal. Chim. Acta 2009, 632, 168–180. [Google Scholar]
  25. Organisation Internationale de Normalisation, Produits alimentaires–Dosage de l'ochratoxine A dans les céréales et produits dérivés–Partie 1: méthode par chromatographie liquide haute performance comprenant une étape d'extraction par chromatographie sur gel de silice. ISO: Genève, Suisse, 12 1998; NF-EN-ISO 15141-1.
  26. Entwisle, A.C.; Williams, A.C.; Mann, P.J.; Russell, J.; Slack, P.T.; Gilbert, J. Combined phenyl silane and immunoaffinity column clean-up with liquid chromatography for determination of ochratoxin A in roasted coffee: collaborative study. J. AOAC Int. 2001, 84, 444–450. [Google Scholar]
  27. Pittet, A.; Tornare, D.; Huggett, A.; Viani, R. Liquid Chromatographic Determination of Ochratoxin A in Pure and Adulterated Soluble Coffee Using an Immunoaffinity Column Cleanup Procedure. J. Agric. Food Chem. 1996, 44, 3564–3569. [Google Scholar]
  28. Xiao, H.; Madhyastha, S.; Marquardt, R.R.; Li, S.; Vodela, J.K.; Frohlich, A.; Kemppainen, A. Toxicity of ochratoxin A, its opened lactone form and several of its analogs : structure activity relationships. Toxicol. Appl. Pharmacol. 1996, 137, 182–192. [Google Scholar]
  29. Organisation Internationale de Normalisation, Produits alimentaires - Dosage de l'ochratoxine A dans l'orge et dans le café torréfié - Méthode par purification sur colonne d'immunoaffinité suivie d'une analyse par CLHP. ISO: Genève, Suisse, 10 2003; NF-EN-ISO 14132.
  30. Horwitz, W.; Albert, R. The Horwitz Ratio (HorRat): A Useful Index of Method Performance with Respect to Precision. J. AOAC Int. 2006, 89, 1095–1109. [Google Scholar]
  31. Pfohl-Leszkowicz, A.; Molinié, A. ; Castegnaro, M. Presence of ochratoxin a, citrinin and fumonisin b1 in breakfast cereals collected in french market. Comparison of OTA analysis using or not immunoaffinity clean-up before HPLC. Revista Mexicana de Micologia 2004, 19, 7–15. [Google Scholar]
  32. Pfohl-Leszkowicz, A.; Molinié, A.; Castegnaro, M. Underestimation of fumonisin B1 and ochratoxin A, from complex matrices by use of immunoaffinity columns. In Mycotoxins and Phycotoxins, Proceeding of the XIth International IUPAC Symposium on Mycotoxins and Phycotoxins, Bethesda, MD, USA, 17–21 May 2004; Njapau, H., Trujillio, S., Van Egmond, H.P., Park, D.L., Eds.; Wageningen Academic: Bethesda, MD, USA, 2006; pp. 83–89. [Google Scholar]
  33. Molinié, A.; Faucet, V.; Castegnaro, M.; Pfohl-Leszkowicz, A. Analysis of some breakfast cereals collected on the French market for their content in ochratoxin A, citrinin and fumonisin B1. Development of a new method for simultaneous extraction of ochratoxin A and citrinin. Food Chem. 2005, 92, 391–400. [Google Scholar] [CrossRef]
  34. Castegnaro, M.; Tozlovanu, M.; Wild, C.; Molinié, A.; Sylla, A.; Pfohl-Leszkowicz, A. Advantages and drawbacks of immunoaffinity columns in analysis of mycotoxins in food. Mol. Nutr. Food Res. 2006, 50, 480–481. [Google Scholar]
  35. Cantafora, A.; Grossi, M.; Miraglia, M.; Benelli, L. Determination of ochratoxin A in coffee beans using reversed-phase high performance liquid chromatography. La Rivista della Societa Italiana di Scienza dell’Alimentazione 1983, 12, 103–108. [Google Scholar]
  36. Leoni, L.A.B.; Soares, L.M.V.; Oliveira, P.L.C. Ochratoxin A in Brazilian roasted and instant coffees. Food Addit. Contam. 2000, 17, 867–870. [Google Scholar]
  37. Batista, L.R.; Chalfoun, S.M.; Prado, G.; Schwan, R.F.; Wheals, A.E. Toxigenic fungi associated with processed coffee beans (coffea arabica L). Int. J. Food Microbiol. 2003, 85, 293–300. [Google Scholar]
  38. Pardo, E.; Marim, S.; Ramos, A.J.; Sanchis, V. Occurrence of ochratoxigenic fungi and ochratoxin A in green coffee from different origins. Food Sci. Technol. Int. 2004, 10, 45–50. [Google Scholar]
  39. Gopinandhan, T.N.; Velmourougane, K.; Panneerselvam, P.; Keshamma, E.; Raghuramulu, Y. Occurrence of ochratoxin A in green and commercial coffee samples. J. Food Sci. Technol. 2007, 44, 247–249. [Google Scholar]
  40. Gopinandhan, T.N.; Kannan, G.S.; Panneerselvam, P.; Velmourougane, K.; Raghuramulu, Y.; Jayarama, J. Survey on ochratoxin A in Indian green coffee destined for export. Food Addit. Contam. B 2008, 1, 51–57. [Google Scholar]
  41. De Moraes, M.H.P.; Luchese, R.H. Ochratoxin A on green coffee: influence of harvest and drying processing procedures. J. Agric. Food Chem. 2003, 51, 5824–5828. [Google Scholar]
  42. Batista, L.R.; Chalfoun, S.M.; Silva, C.F.; Cirillo, M.; Varga, E.A.; Schwan, R.F. Ochratoxin A in coffee beans (Coffea arabica L.) processed by dry and wet methods. Food Control 2009, 20, 784–790. [Google Scholar] [CrossRef]
  43. Joint Expert Committee Food Additives (JECFA), Safety Evaluation of Certain Food Additives and Contaminants. In WHO Food Additives Series No. 59; WHO: Geneva, Switzerland, 2008; pp. 357–417.
  44. Kuiper-Goodman, T.; Scott, P.M. Risk assessment of the mycotoxin ochratoxin A. Biomed. Environ. Sci. 1989, 2, 179–248. [Google Scholar]
  45. Hartge, P.; Hoover, R.; West, D.W.; Lyon, J.L. Coffee drinking and risk of bladder cancer. J. Natl. Cancer Inst. 1983, 70, 1021–1026. [Google Scholar]
  46. Kurashi, N.; Inoue, M.; Iwasaki, S.; Sasazuki, S.; Tsugane, S. Coffee, green tea and caffeine consumption and subsequent risk of bladder cancer in relation to smoking status: a prospective study in Japan. Cancer Sci. 2009, 100, 284–291. [Google Scholar]
  47. Covolo, L.; Placide, D.; Gelatti, U.; Carta, A.; Di Carlo, A.S.; Lodetti, P.; Picciche, A.; Orizi, G.; Campagna, M.; Arici, C.; Dorru, S. Bladder cancer, GSTs, NAT1, NAT2, sult 1A1, XRRC1, XRRC3, XPD genetic polymorphisms and coffee consumption: a case control study. Eur. J. Epidemiol. 2008, 23, 355–362. [Google Scholar]
  48. Pfohl-Leszkowicz, A.; Bartsch, H.; Azémar, B.; Mohr, U.; Estève, J.; Castegnaro, M. MESNA protects rats against nephrotoxicity but not carcinogenicity induced by ochratoxin A, implicating two separate pathways. Facta Universitatis, Series Medicine & Biology 2002, 9, 57–63. [Google Scholar]
  49. Faucet-Marquis, V.; Pont, F.; Størmer, F.; Rizk, T.; Castegnaro, M.; Pfohl-Leszkowicz, A. Evidence of a new dechlorinated OTA derivative formed in opossum kidney cell cultures after pre-treatment by modulators of glutathione pathways. Correlation with DNA adducts formation. Mol. Nutr. Food Res. 2006, 50, 531–542. [Google Scholar]
  50. Lebrun, S.; Golka, K.; Schulze, H.; Follman, W. Glutathione S-transferase polymorphisms and ochratoxin A toxicity in primary human urothelial cells. Toxicology 2006, 224, 81–90. [Google Scholar]
  51. Faucet, V.; Pfohl-Leszkowicz, A.; Dai, J.; Castegnaro, M.; Manderville, R. Evidence for Covalent DNA Adduction by Ochratoxin A Following Chronic Exposure to Rat and Subacute Exposure to Pig. Chem. Res. Toxicol. 2004, 17, 1289–1296. [Google Scholar]
  52. Mantle, P.; Faucet-Marquis, V.; Manderville, R.; Sciqualli, B.; Pfohl-Leszkowicz, A. Structures of covalent adducts between DNA and ochratoxin A: a new factor in debate about genotoxicity and human risk assessment. Chem. Res. Toxicol. 2010, 23, 89–98. [Google Scholar]

Share and Cite

MDPI and ACS Style

Tozlovanu, M.; Pfohl-Leszkowicz, A. Ochratoxin A in Roasted Coffee from French Supermarkets and Transfer in Coffee Beverages: Comparison of Analysis Methods. Toxins 2010, 2, 1928-1942. https://doi.org/10.3390/toxins2081928

AMA Style

Tozlovanu M, Pfohl-Leszkowicz A. Ochratoxin A in Roasted Coffee from French Supermarkets and Transfer in Coffee Beverages: Comparison of Analysis Methods. Toxins. 2010; 2(8):1928-1942. https://doi.org/10.3390/toxins2081928

Chicago/Turabian Style

Tozlovanu, Mariana, and Annie Pfohl-Leszkowicz. 2010. "Ochratoxin A in Roasted Coffee from French Supermarkets and Transfer in Coffee Beverages: Comparison of Analysis Methods" Toxins 2, no. 8: 1928-1942. https://doi.org/10.3390/toxins2081928

APA Style

Tozlovanu, M., & Pfohl-Leszkowicz, A. (2010). Ochratoxin A in Roasted Coffee from French Supermarkets and Transfer in Coffee Beverages: Comparison of Analysis Methods. Toxins, 2(8), 1928-1942. https://doi.org/10.3390/toxins2081928

Article Metrics

Back to TopTop
