Evaluating the Use of Lidar to Discern Snag Characteristics Important for Wildlife

by
Jessica M. Stitt
1,*,
Andrew T. Hudak
2,
Carlos A. Silva
3,
Lee A. Vierling
4 and
Kerri T. Vierling
1
1
Department of Fish and Wildlife Sciences, University of Idaho, 875 Perimeter Drive MS 1136, Moscow, ID 83844-1136, USA
2
Rocky Mountain Research Station, Forest Service, US Department of Agriculture, Moscow, ID 83843, USA
3
School of Forest Resources and Conservation, University of Florida, Gainesville, FL 32611, USA
4
Department of Natural Resources and Society, University of Idaho, 875 Perimeter Drive MS 1139, Moscow, ID 83844-1139, USA
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(3), 720; https://doi.org/10.3390/rs14030720
Submission received: 19 October 2021 / Revised: 15 January 2022 / Accepted: 22 January 2022 / Published: 3 February 2022
(This article belongs to the Special Issue Remote Sensing for Applied Wildlife Ecology)
Browse Figures
Versions Notes

Abstract

:
Standing dead trees (known as snags) are historically difficult to map and model using airborne laser scanning (ALS), or lidar. Specific snag characteristics are important for wildlife; for instance, a larger snag with a broken top can serve as a nesting platform for raptors. The objective of this study was to evaluate whether characteristics such as top intactness could be inferred from discrete-return ALS data. We collected structural information for 198 snags in closed-canopy conifer forest plots in Idaho. We selected 13 lidar metrics within 5 m diameter point clouds to serve as predictor variables in random forest (RF) models to classify snags into four groups by size (small (<40 cm diameter) or large (≥40 cm diameter)) and intactness (intact or broken top) across multiple iterations. We conducted these models first with all snags combined, and then ran the same models with only small or large snags. Overall accuracies were highest in RF models with large snags only (77%), but kappa statistics for all models were low (0.29–0.49). ALS data alone were not sufficient to identify top intactness for large snags; future studies combining ALS data with other remotely sensed data to improve classification of snag characteristics important for wildlife is encouraged.

Graphical Abstract

1. Introduction

As keystone structures [1], standing dead trees (hereafter, snags) serve essential roles for wildlife species, due in part to how structurally distinct snags are compared to live trees. Snag and live tree characteristics differ across multiple dimensions, including the degree of open space occupied, the unique physical structures provided, and the composition and decay status of wood. These combined characteristics contribute to a wide range of forest microhabitats relevant to wildlife, with many microhabitats associated primarily with snags [2,3].
In terms of open space, snag presence and breakdown can be central to the generation of gaps within the canopy used by volant organisms as travel corridors [4,5]. Stitt et al. [6] evaluated forest canopy gaps around individual trees to establish that snags were associated with significantly larger gap fractions in the immediate vicinity than live conifer trees, especially at midcanopy heights (5 to 20 m above ground). Snags also had higher variability in gap distributions across all canopy heights [6]. This greater variability in openness around snags contributes to greater forest structural complexity and may be correlated with greater foliar height diversity and species richness [7].
In terms of physical structures, snags add unique microhabitat characteristics to forested landscapes that are not common in live trees. Snags may retain exposed branches on which to perch, which is important for aerial avian flycatchers and birds of prey [8,9,10,11]. Snags may have a broken top that can serve as a nesting platform for management-sensitive species such as northern goshawks (Accipiter gentilis) [12] and great gray owls (Strix nebulosa) [13]. Snag diameter at breast height (DBH) has been found to be a strong predictor of use by wildlife species [2,14,15]. Branches on snags can be colonized by moss and lichens, creating further subsystems within the canopy [16,17]. This greater variability in structural elements associated with snags likely also contributes to greater forest structural complexity in the forms of increased microhabitat diversity and niche availability, leading to greater species richness [7].
In terms of wood composition, dead wood is more suitable than live wood for cavity excavation and nesting opportunities for many species, due to greater decay (resulting from the cessation of tree defenses) [18]. Decaying wood is utilized by insects for foraging and laying eggs, and the insects in turn are foraged by woodpeckers (among other insectivores). As wood decays, it softens, enabling woodpeckers to excavate cavities [18,19,20], and as tree limbs decay, they fall, which may also create sites for natural cavity formation [8,18,21]. Tree microhabitats derived from dead wood, along with other microhabitats created as a tree breaks down (e.g., bark pockets and fissures) [2,17], provide important wildlife habitat that make snags a valuable feature for species mapping and management efforts [2,14,22].
Remote detection of snags is difficult because there is often less information to work with relative to live trees, and because the snag decay process is highly variable. Previous attempts using airborne laser scanning (ALS), or lidar, to identify snags focused on tree crowns as the basis for individual tree segmentation [23,24,25], intensity metrics [26,27,28,29], and topographic features [30]. However, approaches focused upon tree crowns can be challenging with snags because dead trees lack the foliar surface area of live tree canopies, and therefore reflect far fewer laser pulses to evaluate and locate snags [28]. Focusing on the absence of lidar data (in the form of a canopy gap fraction) can provide additional valuable information for characterizing snags from ALS data [6]. Determining what further information can be gleaned from the sparse lidar data associated with snags is an area worth investigating.
Few ALS-based studies have focused solely on snags or attempted to differentiate among them, with previous works having focused on snag DBH and volume estimates [29,31,32]. Some studies have explored spectral signatures in the form of return intensity metrics [28,29,33], but comparisons across sites can be problematic unless the uncalibrated intensity values are normalized. To our knowledge, no other studies have attempted to determine whether ALS data can provide enough information to discern among specific snag characteristics important for wildlife, such as broken versus intact tops.
The focus of this study was to determine whether structural characteristics of snags can be differentiated using ALS data. If differences in structural signatures can be detected via remote sensing, they could be applied to improve mapping efforts and suitability assessments for many wildlife species that depend upon microhabitats related to standing dead trees. In combining field plot survey data with airborne lidar scans, the current study aimed to determine whether the microhabitats of top intactness (intact vs. broken top) and snag size (small: less than 40 cm in diameter vs. large: greater than or equal to 40 cm in diameter) can be described using ALS data. We compared these field-derived structural characteristics against a suite of airborne-lidar-derived metrics.
Our primary hypothesis was that snags of different structural classes (based on diameter and intactness) would produce significantly different airborne lidar structural metrics. We hypothesized that intact snags may have stronger positive correlations with variables such as point density, percent of first returns, and evenness metrics; intact snags have often experienced more recent mortality, and thus are associated with greater residual branching and crown structures that could present more surface area off which to reflect. We also hypothesized that broken top snags may have stronger positive correlations with variables such as percent of third returns, gap fraction, and roughness metrics; broken top snags are associated with less recent mortality events, and thus with more decay and breakdown of structural features that could more resemble open space. We hypothesized that our ability to detect distinct signatures among snag intactness would be influenced by snag diameter and predicted that snags with larger diameters would have stronger correlations with metrics overall, due to a larger surface area and a lesser proportion of surrounding “noise” within the set footprint (2.5 m radius circle around snag center), relative to smaller snags.

2. Materials and Methods

2.1. Study Area

The study was conducted in closed-canopy forest stands within the Idaho Panhandle National Forest (IPNF), Idaho, USA. The study area consisted of two sites within IPNF: one site in the Coeur d’Alene River Ranger District (herein CdA), and one site in the Saint Joe Ranger District (herein StJ; Figure 1). Both sites were composed of mature mixed-conifer forest stands managed for multiple uses, including timber production, recreation, and wildlife habitat [34]. Across both sites, the most abundant species of snags found were grand fir (Abies grandis) and western larch (Larix occidentalis), followed by Douglas fir (Pseudotsuga menziesii) at CdA and western redcedar (Thuja plicata) at StJ.

2.2. Field Data Collection

All snags evaluated for this study were located within 25 m fixed-radius snag survey plots. Survey plot locations were selected through a stratified random sampling design based on canopy cover and height metrics from lidar [35] and constrained using criteria to enable subsequent point count surveys of forest birds, based on existing protocols (e.g., [36,37]) including a 300 m minimum distance from other plot centers and a road buffer (minimum of 60 m and maximum of 250 m away from roads). Plot centers were recorded using a global navigation satellite system (GNSS) receiver (Trimble GeoXH; Sunnyvale, CA, USA) and differentially corrected in postprocessing [36].
Snags identified within a 25 m radius survey plot were measured, provided they satisfied the criteria, including: (1) a minimum height equal to breast height (used to measure diameter at breast height, DBH; 1.37m above ground), (2) a minimum DBH of 0.15 m, (3) less than a 45° lean in any direction, and (4) possessed no visible live parts of the tree (primarily the presence of green needles; red/brown needles were accepted and noted). The minimum DBH was selected based on criteria for woodpecker use (see [14]). Snag locations were recorded using the same GNSS receiver as used for plot center, which was positioned on the north side of the bole.

2.3. Airborne Lidar Data Acquisition and Processing

Discrete-return ALS data were acquired across both sites as part of an ongoing effort by the U.S. Forest Service Rocky Mountain Research Station (USFS RMRS; Moscow, ID, USA) to develop advanced protocols for forest mapping and monitoring. The lidar extent of CdA spanned 78,706 ha to the east of Coeur d’Alene, ID, USA (centered at 47°44′40.0″N, 116°36′38.8″W). The lidar extent of StJ spanned 7598 ha to the east of Avery, ID, USA (centered at 47°08′28.5″N, 116°05′38.9″W). Details on the lidar acquisition parameters can be found in Table 1. The georeferenced lidar data were processed at the plot level using the R environment (R Core Team 2020, version 4.0.3). Point clouds were preprocessed using the lidR package [38] at a 50 m radius around plot centers (0.8 ha plots) to generate buffered, height-normalized point clouds. All ground, near-ground, and understory returns below 1.37 m were excluded to retain only canopy returns. Outliers below 50 m height above ground were not removed, as they may represent snag hits.
Snag center coordinates were calculated by subtracting half the measured DBH from the northing value collected in the field, to correct for the GNSS receiver being positioned on the north side of the bole. Snag center coordinates were used as locations to clip the height-normalized ALS point clouds from within each survey plot. Individual snag point clouds were clipped to a 2.5 m circular radius buffer around each snag center, in order to encompass the full tree footprint, offset any error in GPS location, and preserve enough returns to compute all metrics.

2.4. Predictor Variable Selection

Lidar-derived metrics were calculated for each 2.5 m radius snag point cloud, with a minimum height set to 1.37 m above ground. A subset of the full suite of standard height and return-based metrics (as provided in the lidR package; see [38]) was chosen alongside additional structural and topographic metrics for this study, in order to best evaluate differences among the four classes of snag structural characteristics. We focused on lidar metrics previously shown to be effective indicators of forest biomass across different forest types (e.g., [39,40]) and those which would have specific utility for individual snags, as compared to individual live tree or plot-level analyses (Table 2).

2.5. Random Forest Model Development

To analyze whether airborne lidar metrics could be used to discriminate between snag classes, we conducted random forest (RF) classification using the R environment and with the packages randomForest [41] and caret [42]. For our response variables, we focused on two aspects from field inventory data for each snag: diameter and intactness. We divided the candidate snags into two categories for each of these variables, in order to have distinct groups to compare lidar metrics against. Snag diameter was divided into small (DBH less than 40 cm) and large (DBH greater than or equal to 40 cm) groups, based on literature suggesting these are ecologically relevant distinctions [43], as well as important for ALS detectability [14]. Snag intactness was divided into intact (where the snag bole still had a visible top) and broken (where at least part of the bole had broken off) groups. We therefore had four snag classes for our response variable (Figure 2): “small intact” (SI), “small broken” (SB), “large intact” (LI), and “large broken” (LB). In total, there were 198 snags evaluated across all snag classes (Table 3).
The thirteen lidar-derived metrics (Table 2) were used as predictor variables for classification into one of the four snag classes (SI, SB, LI, or LB). The number of RF trees to grow was set to 1000, and the number of predictor variables performing data partitioning at each node (mtry) was set to 13. Pearson’s correlation (r) was used to determine whether any predictor variables were highly correlated (r > 0.9; see Appendix A Table A2). As there was a high correlation found between p1stRN and p2ndRN (r = 0.97), a multicollinearity test was performed, and no predictors were found to be collinear. As this study was conducted to investigate how return number metrics interact with snags, we kept both P1stRn and P2ndRN as predictor variables in our RF models. We would recommend that analysis using multivariate models other than RF (e.g., regression) should exclude P1stRN as a variable, as such models may be less resistant to multicollinearity.
For validation purposes, RF models were run within a bootstrap with 20 iterations. For each iteration, we drew 60% of the snags (ntrain = 118) from the total available snag population (ntotal = 198) to train the RF model. The remaining snags not drawn per iteration (ntest = 80) were used for independent validation of the RF model. For each bootstrap iteration, confusion matrices of observed versus predicted classifications were used to calculate overall accuracy and the kappa statistic (a coefficient ranging from 0 to 1, where 0 is equated with random chance and 1 is perfect concordance) [44], as well as producer’s accuracy (inverse of omission error) and user’s accuracy (inverse of commission error) for each class.
In addition to the confusion matrix, an evaluation of predictor variable importance was reported for the top RF model (RFALL) in terms of mean decrease in the Gini Index (a measure of the decrease in node impurity) [41,45]. To evaluate the importance of each predictor relative to one another among the four snag classes (and across models), the class-specific variable importance scores were standardized using the Model Improvement Ration (MIR) [46], whereby all raw variable importance scores were divided by the maximum.

2.6. Modeling Subset by Diameter

We conducted additional RF modeling on subsets of the snags by diameter, modeling only small snags (ntotal = 82) and only large snags (ntotal = 116) against the same suite of predictor variables and using the same RF parameters and validation methods. The only change was that classification was reduced from the four snag classes to only two based on snag intactness (intact versus broken top) for each model. The confusion matrix and predictor variable importance tables for the top RF models (small snags = RFSM; large snags = RFLG) let us further evaluate which of the 13 variables were most important for each size class.

3. Results

3.1. Model Performance across All Four Snag Classes

Across the 20 iterations of RF models classifying all snags into four classes by diameter and intactness, the top model (RFALL) had an overall accuracy of 50%, with a kappa statistic of 0.29 (Table 4a). Performance accuracies were highly variable by snag class, with large broken top snags having the highest producer’s accuracy, small intact snags having the highest user’s accuracy, and large intact snags having the lowest accuracy for both (Table 4a). The most important overall predictor variables for RFALL (based on mean decrease in Gini) were percent of third returns (P3rdRN), coefficient of variation in Leaf Area Density (LADcv), elevation (ELEV), and Vegetation Area Index (VAI; Table 5a). Three of these top variables were the most important predictors for the individual snag classes (Table 5a). The most important variable for both small intact and small broken snags was ELEV; for large intact snags it was VAI, and for large broken snags it was P3rdRN. LADcv was distinct from the other top variables in not being the most important for any given snag class (Table 5a).

3.2. Model Performance Subset by Diameter

When snags were subset by diameter, RF model performance improved for each subset as compared to the top model for all snags (Table 4). For small snags only, across the 20 iterations of RF models classifying snags into two groups by intactness, the overall accuracy of the top model (RFSM) increased by 26% over RFALL. The confusion matrix for RFSM (Table 4b) showed much higher performance accuracies across both classes. Out of the top three overall predictor variables from RFALL, only LADcv remained in the top three overall for RFSM (Table 5b).
For large snags only, across the 20 iterations of RF models classifying snags into two groups by intactness, the overall accuracy of the top model (RFLG) increased by 27% over RFALL. The confusion matrix for RFLG showed improved performance accuracies across each class except for (large) broken snags; producer’s accuracy had the lowest value of the snag subsets (50% for broken tops), but also the highest value (93% for intact tops; Table 4c). Out of the top three overall predictor variables from RFALL, once again LADcv remained in the top three overall for RFLG, as well as P3rdRN (Table 5c).

4. Discussion

Advancing our understanding of where broken-top snags occur within a closed-canopy forest has the potential to benefit habitat management for multiple wildlife species. Our goal was to explore whether ALS data could be used to differentiate tree top intactness of snags with known structural characteristics of value to wildlife. To our knowledge, this was the first study to use ALS data to focus on structural differences among snags, particularly in closed-canopy conifer forests.
The accuracy of our overall RF model for classifying snags by diameter and intactness was relatively low, suggesting there may not have been clear enough distinctions among the four snag classes to accurately distinguish all of them at the individual tree level with airborne lidar alone. Inclusion of additional information provided by other sensors, such as very-high-resolution satellite or airborne (including unmanned aircraft systems or UAS) imagery, could improve discrimination capability. Adjusting the modeling strategy also has potential for improvement. When our models were subset by diameter to examine intactness among only small snags and only large snags separately, the overall model accuracies and kappa statistics both improved to above 75% and 0.45, respectively. These findings suggested there is potential for improved applications given further refinement, especially when focused more narrowly on one or two snag classes.
One factor that is important to consider with ALS applications relative to snag detection and characterization of snag characteristics is the ALS point density. Higher point densities are generally associated with high levels of accuracy. For instance, Krzystek et al. [33] were able to characterize snags via lidar metrics and 3D shape from an ALS dataset with excellent accuracy (>90%), but with a much greater point density (55 points/m2) than available for our study. The snags studied by Krzystek et al. were primarily pest-infected, and thus had accumulated in larger groups [33], which represented a much different context than our study of using ALS to classify individual snags across a closed-canopy forest. Other studies also had relatively high accuracies associated with ALS applications of snags with relatively high point densities [24,29].
In order to place our point densities within a broader standardized framework, we used the Topographic Data Quality Levels (QLs) as defined by the United States Geological Survey (USGS) 3D Elevation Program [47] to evaluate the quality of our ALS datasets. We focused on three QLs (based on points per meter squared): QL1 (≥8), QL2 (2–7.9), and QL3 (0.5–1.9). The overall point density across both sitewide lidar acquisitions in our study was 4.2 points/m2 (placing it within the QL2 category), but point densities of individual snags varied a great deal, and spanned all three QLs. Even within the same survey plot, point densities could be highly variable. For example, one plot with 12 snags had point densities that ranged from 1.7 to 20.4 points/m2, spanning all three QLs (Figure 3). We found the lower limit of point densities required to properly calculate the lidar metrics of interest around individual snags was 1 point/m2.
There were no strong drivers affecting point densities universally, though elevation did show weak negative associations (higher elevations had lower point densities across sites). Two additional factors that likely contributed to variable QLs around individual snags were scan angle and surrounding live crown proximity. Scan angle showed no strong relationship with point density but may still have played important albeit disparate roles in reflecting snag returns: returns close to nadir may have better reflected the tops of snags surrounded by dense taller canopies and differentiated them from a true gap, while shallower view pulse angles were more likely to reflect a greater number of returns from snag boles, especially at the edge of gaps. Surrounding live crown proximity likely affected QLs as well; live tree canopy returns within the 5 m diameter point cloud around a given snag would be counted toward snag point density, falsely raising QL. This is an expected challenge when looking for lone snags in a dense closed-canopy forest; many of the snags we surveyed were found at the edge of a gap, with some partially or almost completely underneath surrounding live canopy, especially broken-top snags. All of these factors combined suggested that the relatively low point densities in our ALS data likely contributed to a limited ability to classify tree intactness when small snags were included in the data sets.
Our finding that larger DBH snags were identified with higher classification accuracies was consistent with previous snag-detection work. Prior work in mapping snag presence or absence has shown DBH to be a strong predictor of snag-detection probability [14,28], where the likelihood of detecting snags increased with diameter. Our results were consistent with these findings, even though we were investigating the ability of ALS to classify snag characteristics, as opposed to detecting snags.
It is important to note that the ecological context of remote-sensing studies focused on snag detection can vary widely. Much of the previous work in mapping snags has been carried out where one type of massive tree die-off event has occurred, such as a wildfire or beetle kill/outbreak [24,26,27,29,33]. While such results certainly provide opportunities to evaluate the power of remote sensing to address snag-related questions of distribution and biomass, the structural characteristics of the snags themselves have not typically been the focus of wildlife-related investigations, although the role of these snags for wildlife use has been well documented [48,49].
Of particular interest to us, though, are individual snags that are embedded within dense live conifer forests that provide a valuable resource for many wildlife species. Our focus on the structural characteristics of broken versus intact tops of snags has important relevance for many wildlife species of management interest. For instance, the federally listed northern spotted owl (Strix occidentalis caurina) [50] uses snags as platforms for nesting, as do multiple other species of management interest, such as the Northern goshawk and great gray owl [12,13,35,51]. These species also require forests with high canopy closure for foraging and protection from predators [11,12,13,50]. Further, the importance of broken tops for wildlife is not limited to direct nesting or roosting use; broken tops also serve as an indicator of additional use by wildlife, particularly in the form of woodpecker cavity excavation [52]. Nests excavated by woodpeckers (primarily in snags) can support entire networks of cavity-reliant bird and mammal species within conifer-dominated forests [53,54,55], lending added importance to the value of identifying broken-top snags amongst closed-canopy forests for wildlife management efforts.
This individual tree approach was meant as a case study to better inform workflows at broader extents. We sought to improve parameterization for individual structural elements, in order to improve upon search patterns applied across entire landscapes. Viewing these results as one step within a broader stepwise approach for forest characterization via ALS-derived lidar metrics lends greater weight to our findings. A prerequisite first step could be to refine RF modeling at the plot or stand level to differentiate live trees from snags (e.g., [29]) prior to RF modeling at the individual tree level, to evaluate within-group differences among live tree and snag characteristics separately. While our study was novel in attempting to differentiate structural differences among snags, there is a great deal of value in looking at how this methodology compares to and can be combined with pre-existing methods in snag modeling (e.g., via intensity and height-based metrics [14,26,28,29,33]).
Going forward, we would suggest that those wishing to apply some aspect of these methods do the following to yield better results: focus on metrics for one class at a time (e.g., large broken-top snags only), and raise the height cutoff to 5 or 10 m above ground. Additionally, if calibrated ALS intensity data (or very-high-resolution imagery) are available, it would certainly be worth incorporating, either into RF models or for other methods of snag characterization. Further, higher-density point clouds (QL1) would undoubtedly improve model performance, and likely better distinguish among groups. Thankfully, the structural features of snags on which we focused (based on benefit to wildlife) were positively correlated with characterization via ALS, which suggested there is value in focusing more closely on just those snag classes that hold the greatest benefits for wildlife: larger-diameter snags, as well as broken-top snags [2,15,51]. By limiting the focus of snag detection or modeling efforts to the binary of presence/absence for large broken snags only, the focus can shift to lidar (or spectral) metrics most strongly correlated with this class (e.g., LADcv, ENTmid, and P3rdRN).

5. Conclusions

While we used ALS alone in this study, the next step would be to focus on multisensor or data-fusion approaches (such as incorporating multi- or hyperspectral lidar data, satellite imagery, and/or photogrammetry), which could lead to far more robust predictions resulting from a greater diversity of spatial, spectral, and temporal resolutions that add complementary dimensions of information [28,29,56]. Employing modeling methods other than RF (such as imputation [57], gradient boosting [58], or artificial neural networks [59]) may also lead to improved results and uncover useful predictors of forest structures not previously applied. As open-access data sets continue to be more widely accessible, the concepts discussed become more readily applicable; applying novel methods to broader swaths of data becomes more feasible, incorporating multiple sources of data becomes easier, and comparisons of competing methodologies can be tested more rigorously. We encourage continued investigation of ways in which new and upcoming tools can be used to better characterize forest structures remotely, across a variety of landscapes, especially with respect to snags and other wildlife habitat features.

Author Contributions

Conceptualization, all authors: L.A.V., K.T.V., A.T.H., C.A.S. and J.M.S.; methodology, all authors; software, J.M.S. and C.A.S.; validation, all authors; formal analysis, J.M.S.; investigation—lidar data and fieldwork, J.M.S. and A.T.H.; investigation—statistical analyses, J.M.S. with input from all authors; resources, A.T.H., L.A.V. and K.T.V.; data curation, J.M.S. and A.T.H.; writing—original draft preparation, J.M.S. and K.T.V.; writing—review and editing, all authors; visualization, J.M.S. and K.T.V.; supervision, K.T.V.; funding acquisition, L.A.V., A.T.H., K.T.V. and J.M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by the NSF Idaho EPSCoR Program and the NASA Idaho Space Grant Consortium, and by a NASA Carbon Monitoring Systems (CMS) Program Award (NNH15AZ06I).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The R code and data sets for processing data are available via the Dryad Digital Repository: https://doi.org/10.5061/dryad.pnvx0k6nr (accessed 15 January 2022). They are also publicly available via the following GitHub page: https://github.com/jessmstitt/snag-wlf (accessed 15 January 2022).

Acknowledgments

We thank the USFS RMRS for providing ALS data of the Idaho Panhandle National Forests, as well as assistance in the field from Ben Bright, Patrick Fekety, and John Byrne. The authors would like to thank the anonymous reviewers who provided insightful comments that improved this manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table
Table A1. Airborne-lidar-derived metrics used as predictor variables in random forest (RF) models. Explanations of each of the lidar-derived predictor variables selected for analysis within the RF models are provided. All of these predictors were included in model selection to predict one of four snag classes, modeled across two field-derived characteristics: diameter (small (<40 cm DBH) vs. large (≥40 cm DBH)) and intactness of the bole (intact vs. broken). Airborne lidar metrics were derived from point clouds of 2.5 m circular radius (~20 m2) clipped around known snag locations determined from the field. Each variable is listed with its abbreviation, description of the calculation, and the ecological significance for this model.
Table A1. Airborne-lidar-derived metrics used as predictor variables in random forest (RF) models. Explanations of each of the lidar-derived predictor variables selected for analysis within the RF models are provided. All of these predictors were included in model selection to predict one of four snag classes, modeled across two field-derived characteristics: diameter (small (<40 cm DBH) vs. large (≥40 cm DBH)) and intactness of the bole (intact vs. broken). Airborne lidar metrics were derived from point clouds of 2.5 m circular radius (~20 m2) clipped around known snag locations determined from the field. Each variable is listed with its abbreviation, description of the calculation, and the ecological significance for this model.
VariableEquationEcological significance
PTDENAll returns (>1.37 m)]/
total area (19.63 m2)		Relative number of all returns (greater than 1.37 m above ground level, a.g.l.) can reflect the total amount of surface area present to interact with in the canopy, in the form of the snag bole and branches
P1stRN(First returns/all returns) * 100Higher percentages of first returns (returns that reflect directly back to sensor) suggest a greater proportion of “external” hits, where lidar has not penetrated the canopy; this may indicate more intact crown features remain
P2ndRN(Second returns/all returns) * 100Higher percentages of second returns (returns that bounce once before returning to sensor) suggests a more “porous” snag crown that allows for more pulses to penetrate the canopy
P3rdRN(Third returns/all returns) * 100Higher percentages of third returns (returns that bounce twice before returning to sensor) suggests a greater amount of openness mixed with structures within the canopy that allows for pulses to bounce more than once within and still return to the sensor; indicates greater physical complexity
GFPmidGap Fraction (GF) =
Nz/(Ntotal − Nz + dz);
N = number of returns,
total = across all heights (z),
dz = height bin width (1 m);
Gap Fraction Profile (GFP) =
mean GF across heights;
mid = only 5–20m a.g.l.		Gap fraction is calculated as a ratio of the number of points within a given layer versus those that passed through the layer; the relative proportion of canopy gaps within the midcanopy (5–20 m a.g.l.) helps to quantify the total amount of open space present in the lidar footprint at heights where snag crowns will vary, while reducing input from the “gaps” above treetops [40]
LADcvLeaf Area Density (LAD) =
−ln(GF)/(k * dz);
k = extinction coefficient (0.5),
dz = height bin width (2 m);
LADcv = LADµ/LADsd		This serves as an indicator of vertical stratification and subdominant structure presence by measuring the homogeneity of vertical strata across all height bins; lower values indicate a more even distribution of vegetation across strata [40]
RUMPLESurface area of returns
(as a convex hull)/
projected area of returns on ground		Higher scores on this index indicate a rougher canopy surface (in terms of heights varying more from one pixel to the next), suggesting greater structural complexity [60]
ENTmidShannon entropy index (H’) =
−∑pz * log(pz);
pz = proportion of heights (z),
mid = only 5–20m a.g.l.		The evenness of midcanopy heights (5–20 m a.g.l.) may indicate how closed the canopy is; more evenness may suggest an intact dominant canopy, while less evenness may suggest disturbances, such as gaps, subdominant structures such as snags or saplings, or other deviations [61]
VAIVegetation Area Index (VAI) =
∑LAD		By summing LAD values, this index reports total vegetation coverage in the vertical column; since footprint area is held constant here, this index can be used as a relative measure, where higher scores suggest more canopy, possibly in the form of snag branches and dead needles, or else as encroaching live vegetation (surrounding mature tree crown or sapling) [60]
VCIVertical Complexity Index (VCI) =
(−∑(pz * ln(pz)))/ln(HB);
pz = proportion of heights (z),
HB = total number of height bins (dz = 1)		Similar to ENTmid (but including all heights), this index measures evenness in terms of proportion of returns by height in the canopy and allows a set maximum height, which can standardize variable snag tops; high scores suggest more even distributions of returns and a higher maximum canopy height, which may mean an intact top [62]
ELEV–Relative elevation will play a role in forest species composition; as our site was in the Northern Rockies, this can affect tree growth and/or decomposition patterns, as well as affect exposure to higher or lower temperature extremes
SLOPE–Relative flatness or steepness under a snag may subject it to different disturbance risk levels and types (e.g., steeper slope may have higher winds, leading to more bole break potential)
TRASP–Relative sun angle interacting with a snag may subject it to different temperature and moisture levels at a microhabitat scale, leading to differing rates of decomposition
Table
Table A2. Pearson’s correlations among predictor variables. A correlation table showing all pairwise Pearson’s (r) correlation scores across the 13 predictor variables used for modeling snag classifications. A list of the predictor variable descriptions can be found in Table 2. Scores with an absolute value of r ≥ 0.9 were considered “strongly correlated” and are highlighted in grey. Positive scores suggest a relationship where a pair changes value in the same direction, while negative scores indicate a relationship where a pair changes value in opposite directions.
Table A2. Pearson’s correlations among predictor variables. A correlation table showing all pairwise Pearson’s (r) correlation scores across the 13 predictor variables used for modeling snag classifications. A list of the predictor variable descriptions can be found in Table 2. Scores with an absolute value of r ≥ 0.9 were considered “strongly correlated” and are highlighted in grey. Positive scores suggest a relationship where a pair changes value in the same direction, while negative scores indicate a relationship where a pair changes value in opposite directions.
PTDENP1stRNP2ndRNP3rdRNGFPmidLADcvRUMPLEENTmidVAIVCIELEVTRASPSLOPE
PTDEN −0.340.340.24−0.140.04−0.010.250.400.45−0.330.02−0.03
P1stRN−0.34 −0.97−0.830.02−0.16−0.10−0.45−0.30−0.660.130.170.07
P2ndRN0.34−0.97 0.68−0.050.150.110.390.320.62−0.21−0.13−0.09
P3rdRN0.24−0.830.68 0.050.150.050.480.170.560.07−0.220.02
GFPmid−0.140.02−0.050.05 −0.320.330.35−0.47−0.010.11−0.12−0.02
LADcv0.04−0.160.150.15−0.32 −0.420.070.200.210.070.000.06
RUMPLE−0.01−0.100.110.050.33−0.42 0.15−0.300.28−0.03−0.05−0.04
ENTmid0.25−0.450.390.480.350.070.15 −0.020.540.04−0.260.00
VAI0.40−0.300.320.17−0.470.20−0.30−0.02 0.30−0.120.04−0.14
VCI0.45−0.660.620.56−0.010.210.280.540.30 −0.13−0.18−0.07
ELEV−0.330.13−0.210.070.110.07−0.030.04−0.12−0.13 −0.130.18
TRASP0.020.17−0.13−0.22−0.120.00−0.05−0.260.04−0.18−0.13 −0.44
SLOPE−0.030.07−0.090.02−0.020.06−0.040.00−0.14−0.070.18−0.44

References

  1. Tews, J.; Brose, U.; Grimm, V.; Tielbörger, K.; Wichmann, M.C.; Schwager, M.; Jeltsch, F. Animal Species Diversity Driven by Habitat Heterogeneity/Diversity: The Importance of Keystone Structures: Animal Species Diversity Driven by Habitat Heterogeneity. J. Biogeogr. 2004, 31, 79–92. [Google Scholar] [CrossRef] [Green Version]
  2. Michel, A.K.; Winter, S. Tree Microhabitat Structures as Indicators of Biodiversity in Douglas-Fir Forests of Different Stand Ages and Management Histories in the Pacific Northwest, U.S.A. For. Ecol. Manag. 2009, 257, 1453–1464. [Google Scholar] [CrossRef]
  3. Larrieu, L.; Paillet, Y.; Winter, S.; Bütler, R.; Kraus, D.; Krumm, F.; Lachat, T.; Michel, A.K.; Regnery, B.; Vandekerkhove, K. Tree Related Microhabitats in Temperate and Mediterranean European Forests: A Hierarchical Typology for Inventory Standardization. Ecol. Indic. 2018, 84, 194–207. [Google Scholar] [CrossRef]
  4. Jung, K.; Kaiser, S.; Böhm, S.; Nieschulze, J.; Kalko, E.K.V. Moving in Three Dimensions: Effects of Structural Complexity on Occurrence and Activity of Insectivorous Bats in Managed Forest Stands. J. Appl. Ecol. 2012, 49, 523–531. [Google Scholar] [CrossRef]
  5. Davies, A.B.; Asner, G.P. Advances in Animal Ecology from 3D-LiDAR Ecosystem Mapping. Trends Ecol. Evol. 2014, 29, 681–691. [Google Scholar] [CrossRef]
  6. Stitt, J.M.; Hudak, A.T.; Silva, C.A.; Vierling, L.A.; Vierling, K.T. Characterizing Individual Tree-level Snags Using Airborne Lidar-derived Forest Canopy Gaps within Closed-canopy Conifer Forests. Methods Ecol. Evol. 2021, 13, 473–484. [Google Scholar] [CrossRef]
  7. MacArthur, R.H.; MacArthur, J.W. On Bird Species Diversity. Ecology 1961, 42, 594–598. [Google Scholar] [CrossRef]
  8. Miller, E.; Miller, D.R. Snag Use by Birds; General Technical Report INT-GTR-86; Intermountain Forest and Range Experiment Station, Forest Service, US Department of Agriculture: Ogden, UT, USA, 1980; pp. 337–356. [Google Scholar]
  9. Sadoti, G.; Pollock, M.G.; Vierling, K.T.; Albright, T.P. Variogram Models Reveal Habitat Gradients Predicting Patterns of Territory Occupancy and Nest Survival among Vesper Sparrows. Wildl. Biol. 2014, 20, 97–107. [Google Scholar] [CrossRef]
  10. Fielder, P.C.; Starkey, R.G. Bald Eagle Perch-Sites in Eastern Washington. Northwest Sci. 1986, 30, 186–190. [Google Scholar]
  11. North, M.P.; Franklin, J.F.; Carey, A.B.; Forsman, E.D.; Hamer, T. Forest Stand Structure of the Northern Spotted Owl’s Foraging Habitat. For. Sci. 1999, 45, 520–527. [Google Scholar] [CrossRef]
  12. Squires, J.R.; Reynolds, R.T. Northern Goshawk (Accipiter gentilis). In The Birds of North America, No. 298; Poole, A., Gill, F., Eds.; The Academy of Natural Sciences Philadelphia, PA: Washington, DC, USA, 1997; pp. 1–31. [Google Scholar]
  13. Wu, J.X.; Siegel, R.B.; Loffland, H.L.; Tingley, M.W.; Stock, S.L.; Roberts, K.N.; Keane, J.J.; Medley, J.R.; Bridgman, R.; Stermer, C. Diversity of Great Gray Owl Nest Sites and Nesting Habitats in California. J. Wildl. Manag. 2015, 79, 937–947. [Google Scholar] [CrossRef]
  14. Martinuzzi, S.; Vierling, L.A.; Gould, W.A.; Falkowski, M.J.; Evans, J.S.; Hudak, A.T.; Vierling, K.T. Mapping Snags and Understory Shrubs for a LiDAR-Based Assessment of Wildlife Habitat Suitability. Remote Sens. Environ. 2009, 113, 2533–2546. [Google Scholar] [CrossRef] [Green Version]
  15. Basile, M.; Asbeck, T.; Pacioni, C.; Mikusiński, G.; Storch, I. Woodpecker Cavity Establishment in Managed Forests: Relative Rather than Absolute Tree Size Matters. Wildl. Biol. 2020, 34, 1453–1466. [Google Scholar] [CrossRef] [Green Version]
  16. Staniaszek-Kik, M.; Chmura, D.; Żarnowiec, J. What Factors Influence Colonization of Lichens, Liverworts, Mosses and Vascular Plants on Snags? Biologia 2019, 74, 375–384. [Google Scholar] [CrossRef]
  17. Asbeck, T.; Basile, M.; Stitt, J.; Bauhus, J.; Storch, I.; Vierling, K.T. Tree-Related Microhabitats Are Similar in Mountain Forests of Europe and North America and Their Occurrence May Be Explained by Tree Functional Groups. Trees 2020, 34, 1453–1466. [Google Scholar] [CrossRef]
  18. Rayner, A.D.M.; Boddy, L. Fungal Decomposition of Wood. Its Biology and Ecology; John Wiley & Sons Ltd.: Chicheste, UK, 1988. [Google Scholar]
  19. Lorenz, T.J.; Vierling, K.T.; Johnson, T.R.; Fischer, P.C. The Role of Wood Hardness in Limiting Nest Site Selection in Avian Cavity Excavators. Ecol. Appl. 2015, 25, 1016–1033. [Google Scholar] [CrossRef]
  20. Jusino, M.A.; Lindner, D.L.; Banik, M.T.; Walters, J.R. Heart Rot Hotel: Fungal Communities in Red-Cockaded Woodpecker Excavations. Fungal Ecol. 2015, 14, 33–43. [Google Scholar] [CrossRef]
  21. Conner, R.N.; Miller, O.K.; Adkisson, C.S. Woodpecker Dependence on Trees Infected by Fungal Heart Rots. Wilson Bull. 1976, 88, 575–581. [Google Scholar]
  22. Martinuzzi, S.; Vierling, L.A.; Gould, W.A.; Vierling, K.T. Improving the Characterization and Mapping of Wildlife Habitats with Lidar Data: Measurement Priorities for the Inland Northwest, USA. Gap Anal. Bull. 2009, 16, 1–8. [Google Scholar]
  23. Reitberger, J.; Krzystek, P.; Stilla, U. 3D Segmentation and Classification of Single Trees with Full Waveform LIDAR Data. Proc. SilviLaser 2008, 8, 216–226. [Google Scholar]
  24. Yao, W.; Krzystek, P.; Heurich, M. Identifying Standing Dead Trees in Forest Areas Based on 3D Single Tree Detection from Full Waveform Lidar Data. ISPRS Ann. Protogrammetry Remote Sens. Spat. Inf. Sci. 2012, 359–364. [Google Scholar] [CrossRef]
  25. Vauhkonen, J.; Ene, L.; Gupta, S.; Heinzel, J.; Holmgren, J.; Pitkänen, J.; Solberg, S.; Wang, Y.; Weinacker, H.; Hauglin, K.M.; et al. Comparative Testing of Single-Tree Detection Algorithms under Different Types of Forest. For. Int. J. For. Res. 2011, 85, 27–40. [Google Scholar] [CrossRef] [Green Version]
  26. Kim, Y.; Yang, Z.; Cohen, W.B.; Pflugmacher, D.; Lauver, C.L.; Vankat, J.L. Distinguishing between Live and Dead Standing Tree Biomass on the North Rim of Grand Canyon National Park, USA Using Small-Footprint Lidar Data. Remote Sens. Environ. 2009, 113, 2499–2510. [Google Scholar] [CrossRef]
  27. Bright, B.C.; Hudak, A.T.; McGaughey, R.; Andersen, H.-E.; Negrón, J. Predicting Live and Dead Tree Basal Area of Bark Beetle Affected Forests from Discrete-Return Lidar. Can. J. Remote Sens. 2013, 39, S99–S111. [Google Scholar] [CrossRef]
  28. Wing, B.M.; Ritchie, M.W.; Boston, K.; Cohen, W.B.; Olsen, M.J. Individual Snag Detection Using Neighborhood Attribute Filtered Airborne Lidar Data. Remote Sens. Environ. 2015, 163, 165–179. [Google Scholar] [CrossRef]
  29. Casas, Á.; García, M.; Siegel, R.B.; Koltunov, A.; Ramírez, C.; Ustin, S. Burned Forest Characterization at Single-Tree Level with Airborne Laser Scanning for Assessing Wildlife Habitat. Remote Sens. Environ. 2016, 175, 231–241. [Google Scholar] [CrossRef] [Green Version]
  30. Zellweger, F.; Braunisch, V.; Baltensweiler, A.; Bollmann, K. Remotely Sensed Forest Structural Complexity Predicts Multi Species Occurrence at the Landscape Scale. For. Ecol. Manag. 2013, 307, 303–312. [Google Scholar] [CrossRef]
  31. Stitt, J.M.; Svancara, L.K.; Vierling, L.A.; Vierling, K.T. Smartphone LIDAR Can Measure Tree Cavity Dimensions for Wildlife Studies. Wildl. Soc. Bull. 2019, 43, 159–166. [Google Scholar] [CrossRef] [Green Version]
  32. Pesonen, A.; Maltamo, M.; Eerikäinen, K.; Packalèn, P. Airborne Laser Scanning-Based Prediction of Coarse Woody Debris Volumes in a Conservation Area. For. Ecol. Manag. 2008, 255, 3288–3296. [Google Scholar] [CrossRef]
  33. Krzystek, P.; Serebryanyk, A.; Schnörr, C.; Červenka, J.; Heurich, M. Large-Scale Mapping of Tree Species and Dead Trees in Šumava National Park and Bavarian Forest National Park Using Lidar and Multispectral Imagery. Remote Sens. 2020, 12, 661. [Google Scholar] [CrossRef] [Green Version]
  34. Bater, C.W.; Coops, N.C.; Gergel, S.E.; Lemay, V.; Collins, D. Estimation of Standing Dead Tree Class Distributions in Northwest Coastal Forests Using Lidar Remote Sensing. Can. J. For. Res. 2009, 39, 1080–1091. [Google Scholar] [CrossRef]
  35. Idaho Department of Fish and Game (IDFG). Species of Greatest Conservation Need. Available online: https://idfg.idaho.gov/species/taxa/list/sgcn (accessed on 20 September 2021).
  36. Fekety, P.A.; Falkowski, M.J.; Hudak, A.T.; Jain, T.B.; Evans, J.S. Transferability of Lidar-Derived Basal Area and Stem Density Models within a Northern Idaho Ecoregion. Can. J. Remote Sens. 2018, 44, 131–143. [Google Scholar] [CrossRef]
  37. Dudley, J.G.; Saab, V. A Field Protocol to Monitor Cavity-Nesting Birds; Res. Pap. RMRS-RP-44; Rocky Mountain Research Station, Forest Service, US Department of Agriculture: Fort Collins, CO, USA, 2003. [Google Scholar]
  38. Roussel, J.-R.; Auty, D.; Coops, N.C.; Tompalski, P.; Goodbody, T.R.H.; Meador, A.S.; Bourdon, J.-F.; de Boissieu, F.; Achim, A. LidR: An R Package for Analysis of Airborne Laser Scanning (ALS) Data. Remote Sens. Environ. 2020, 251, 112061. [Google Scholar] [CrossRef]
  39. Vogeler, J.C.; Hudak, A.T.; Vierling, L.A.; Vierling, K.T. Lidar-Derived Canopy Architecture Predicts Brown Creeper Occupancy of Two Western Coniferous Forests. Condor 2013, 115, 614–622. [Google Scholar] [CrossRef]
  40. Bouvier, M.; Durrieu, S.; Fournier, R.A.; Renaud, J.-P. Generalizing Predictive Models of Forest Inventory Attributes Using an Area-Based Approach with Airborne LiDAR Data. Remote Sens. Environ. 2015, 156, 322–334. [Google Scholar] [CrossRef]
  41. Liaw, A.; Wiener, M. Classification and Regression by RandomForest. R News 2002, 2, 18–22. [Google Scholar]
  42. Kuhn, M.; Wing, J.; Weston, S.; Williams, A.; Keefer, C.; Engelhardt, A.; Cooper, T.; Mayer, Z.; Kenkel, B. Others Caret: Classification and Regression Training. R Package Version 6.0-86. Available online: https://cran.r-project.org/web/packages/caret/caret.pdf (accessed on 20 September 2021).
  43. Davis, J.W. Snags Are for Wildlife; Gen. Tech. Rep. RM-99; Rocky Mountain Forest and Range Experiment Station, Forest Service, US Department of Agriculture: Flagstaff, AZ, USA, 1983; pp. 4–9. [Google Scholar]
  44. Cohen, J. A Coefficient of Agreement for Nominal Scales. Educ. Psychol. Meas. 1960, 20, 37–46. [Google Scholar] [CrossRef]
  45. Breiman, L. Random Forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef] [Green Version]
  46. Evans, J.S.; Cushman, S.A. Gradient Modeling of Conifer Species Using Random Forests. Landsc. Ecol. 2009, 24, 673–683. [Google Scholar] [CrossRef]
  47. USGS 3D Elevation Program Topographic Data Quality Levels (QLs). Available online: https://www.usgs.gov/3d-elevation-program/topographic-data-quality-levels-qls (accessed on 20 September 2021).
  48. Vogeler, J.C.; Hudak, A.T.; Vierling, L.A.; Evans, J.; Green, P.; Vierling, K.T. Terrain and Vegetation Structural Influences on Local Avian Species Richness in Two Mixed-Conifer Forests. Remote Sens. Environ. 2014, 147, 13–22. [Google Scholar] [CrossRef]
  49. Saab, V.A.; Russell, R.E.; Dudley, J.G. Nest-Site Selection by Cavity-Nesting Birds in Relation to Postfire Salvage Logging. For. Ecol. Manag. 2009, 257, 151–159. [Google Scholar] [CrossRef]
  50. U.S. Fish & Wildlife Service (US FWS) FWS-Listed U.S. Species by Taxonomic Group—All Animals. Available online: https://ecos.fws.gov/ecp/report/species-listings-by-tax-group?statusCategory=Listed&groupName=All%20Animals (accessed on 20 September 2021).
  51. Bull, E.L.; Parks, C.G.; Torgersen, T.R. Trees and Logs Important to Wildlife in the Interior Columbia River Basin; Gen. Tech. Rep. PNW-GTR-391; Pacific Northwest Research Station, Forest Service, US Department of Agriculture: Portland, OR, USA, 1997. [Google Scholar]
  52. McClelland, B.R.; McClelland, P.T. Pileated Woodpecker Nest and Roost Trees in Montana: Links with Old-Growth and Forest “Health”. Wildl. Soc. Bull. 1999, 27, 846–857. [Google Scholar]
  53. Martin, K.; Aitken, K.E.H.; Wiebe, K.L. Nest Sites and Nest Webs for Cavity-Nesting Communities in Interior British Columbia, Canada: Nest Characteristics and Niche Partitioning. Ornithol. Appl. 2004, 106, 5–19. [Google Scholar] [CrossRef]
  54. Aitken, K.E.H.; Martin, K. The Importance of Excavators in Hole-Nesting Communities: Availability and Use of Natural Tree Holes in Old Mixed Forests of Western Canada. J. Ornithol. 2007, 148, 425–434. [Google Scholar] [CrossRef]
  55. Blanc, L.A.; Walters, J.R. Cavity excavation and enlargement as mechanisms for indirect interactions in an avian community. Ecology 2008, 89, 506–514. [Google Scholar] [CrossRef] [Green Version]
  56. Boucher, P.B.; Hancock, S.; Orwig, D.A.; Duncanson, L.; Armston, J.; Tang, H.; Krause, K.; Cook, B.; Paynter, I.; Li, Z.; et al. Detecting Change in Forest Structure with Simulated GEDI Lidar Waveforms: A Case Study of the Hemlock Woolly Adelgid (HWA; Adelges tsugae) Infestation. Remote Sens. 2020, 12, 1304. [Google Scholar] [CrossRef] [Green Version]
  57. Hudak, A.T.; Crookston, N.L.; Evans, J.S.; Hall, D.E.; Falkowski, M.J. Nearest Neighbor Imputation of Species-Level, Plot-Scale Forest Structure Attributes from LiDAR Data. Remote Sens. Environ. 2008, 112, 2232–2245. [Google Scholar] [CrossRef] [Green Version]
  58. Zhang, J.; Lu, C.; Xu, H.; Wang, G. Estimating Aboveground Biomass of Pinus Densata-Dominated Forests Using Landsat Time Series and Permanent Sample Plot Data. J. For. Res. 2019, 30, 1689–1706. [Google Scholar] [CrossRef]
  59. Neuville, R.; Bates, J.S.; Jonard, F. Estimating Forest Structure from UAV-Mounted LiDAR Point Cloud Using Machine Learning. Remote Sens. 2021, 13, 352. [Google Scholar] [CrossRef]
  60. LaRue, E.A.; Wagner, F.W.; Fei, S.; Atkins, J.W.; Fahey, R.T.; Gough, C.M.; Hardiman, B.S. Compatibility of Aerial and Terrestrial LiDAR for Quantifying Forest Structural Diversity. Remote Sens. 2020, 12, 1407. [Google Scholar] [CrossRef]
  61. Pretzsch, H. Forest Dynamics, Growth and Yield; Springer: Berlin/Heidelberg, Germany, 2009; pp. 1–39. [Google Scholar]
  62. van Ewijk, K.Y.; Treitz, P.M.; Scott, N.A. Characterizing Forest Succession in Central Ontario Using Lidar-Derived Indices. Photogramm. Eng. Remote Sens. 2011, 77, 261–269. [Google Scholar] [CrossRef]
Remotesensing 14 00720 g001 550

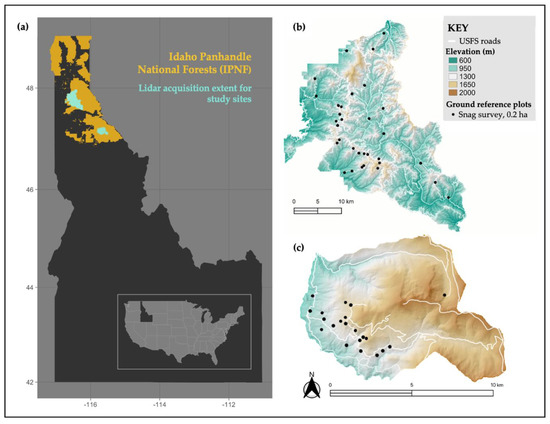

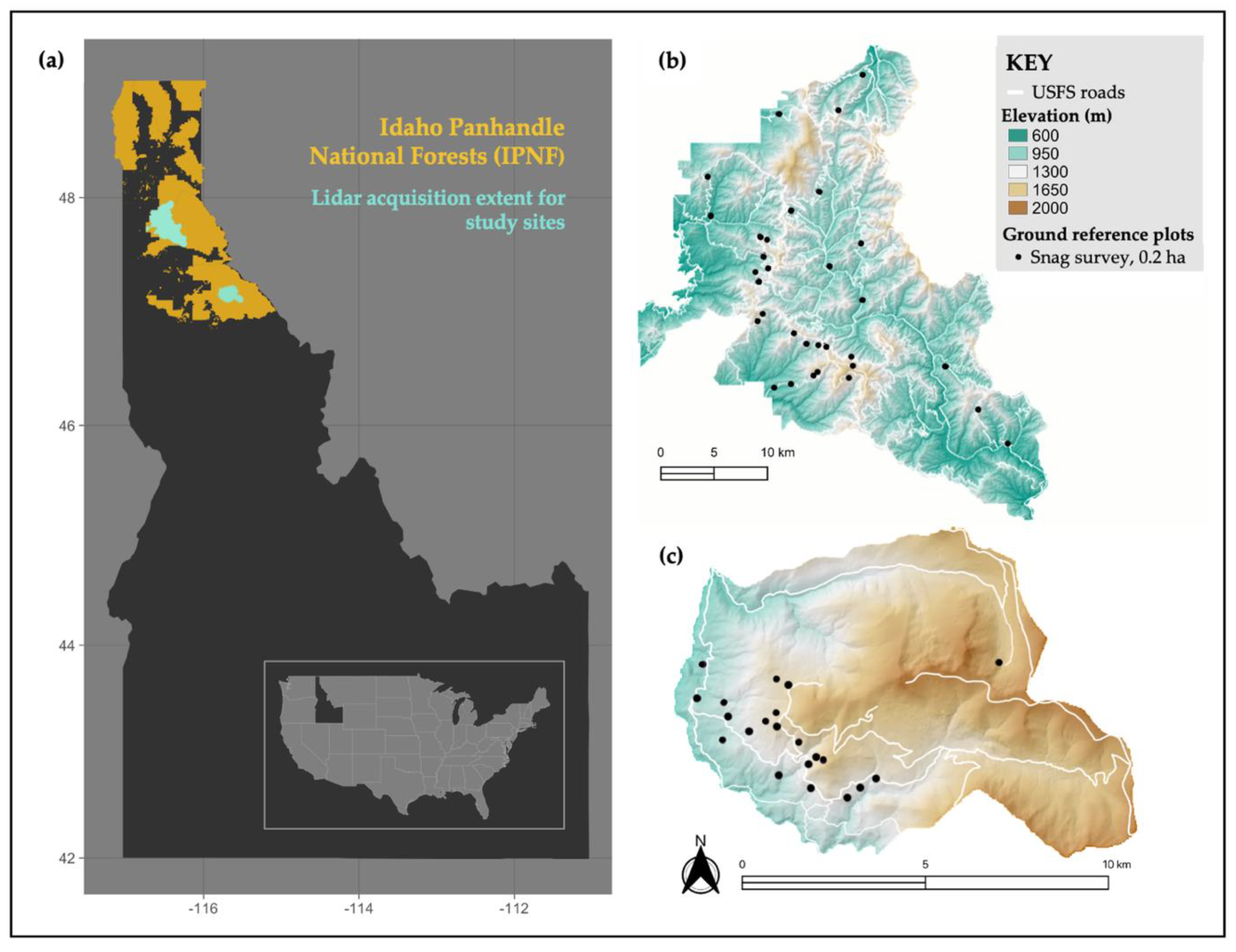

Figure 1. Map of the study area. (a) Study area within Idaho Panhandle National Forests (IPNF) in northern Idaho, United States of America. There were two lidar acquisitions in the IPNF where all ground reference survey data were collected: within the (b) Coeur d’Alene River (CdA) and (c) Saint Joe (StJ) Ranger Districts. Please note the different scales for each site. Across the two sites there were a total of 53 25 m fixed-radius ground reference plots (0.2 ha; black circles) where all 198 snags included in this study were surveyed. This figure was adapted from [6].
Figure 1. Map of the study area. (a) Study area within Idaho Panhandle National Forests (IPNF) in northern Idaho, United States of America. There were two lidar acquisitions in the IPNF where all ground reference survey data were collected: within the (b) Coeur d’Alene River (CdA) and (c) Saint Joe (StJ) Ranger Districts. Please note the different scales for each site. Across the two sites there were a total of 53 25 m fixed-radius ground reference plots (0.2 ha; black circles) where all 198 snags included in this study were surveyed. This figure was adapted from [6].
Remotesensing 14 00720 g001
Remotesensing 14 00720 g002 550

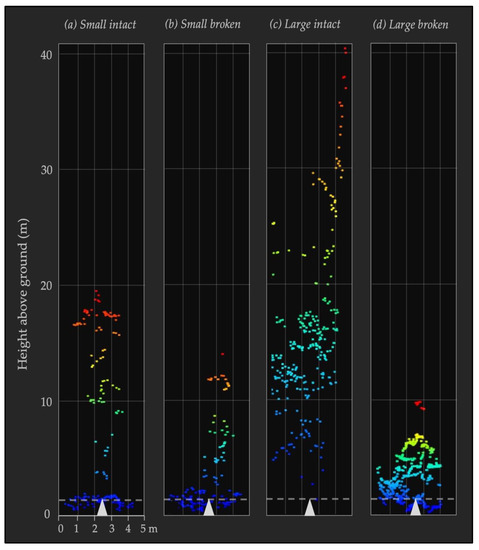

Figure 2. Sample lidar point clouds by snag class. Representative ALS point clouds for each snag class are viewed from ground level as 2.5 m radius circular clips around snag center coordinates (marked by white triangles). Lidar returns are colored by height above ground. The dashed horizontal line represents the height at which snag diameter was measured (1.37 m above ground). The four snag classes shown illustrate the differences across diameter (small (<40 cm DBH) vs. large (≥40 cm DBH)) and intactness (intact vs. broken top): (a) a representative “small intact” (SI) snag; (b) a representative “small broken” (SB) snag; (c) a representative “large intact” (LI) snag; (d) a representative “large broken” (LB) snag.
Figure 2. Sample lidar point clouds by snag class. Representative ALS point clouds for each snag class are viewed from ground level as 2.5 m radius circular clips around snag center coordinates (marked by white triangles). Lidar returns are colored by height above ground. The dashed horizontal line represents the height at which snag diameter was measured (1.37 m above ground). The four snag classes shown illustrate the differences across diameter (small (<40 cm DBH) vs. large (≥40 cm DBH)) and intactness (intact vs. broken top): (a) a representative “small intact” (SI) snag; (b) a representative “small broken” (SB) snag; (c) a representative “large intact” (LI) snag; (d) a representative “large broken” (LB) snag.
Remotesensing 14 00720 g002
Remotesensing 14 00720 g003 550
Figure 3. Example of a 50 m diameter IPNF survey plot illustrating variability in point densities. Snags and live trees are overlaid on the ALS point cloud of a representative survey plot (with points below 1.37 m omitted), where orange circles with black lines represent snag locations and heights, and white circles with white lines represent live tree locations and heights. Multiple views of the same point cloud are shown to illustrate different aspects of interest: (a) plot viewed from an angle to best show stand structure and individual tree canopies and spacing; (b) plot viewed from directly above (at nadir) to best show parallel scan angles, variations in point density, snag and gap distributions, and the absence of returns around multiple snags; (c–e) plot viewed from ground level to best show tree heights and ALS returns across three versions, where (c) includes all returns (colored by height) to highlight a relatively uniform point distribution across vertical heights, as well as show that nearly all live trees were in the upper strata of heights relative to snags; (d) includes first returns only to highlight the notably greater first return densities in the upper canopy; and (e) includes third returns only to highlight that the majority of third returns fell within the midcanopy range, below live tree crowns.
Figure 3. Example of a 50 m diameter IPNF survey plot illustrating variability in point densities. Snags and live trees are overlaid on the ALS point cloud of a representative survey plot (with points below 1.37 m omitted), where orange circles with black lines represent snag locations and heights, and white circles with white lines represent live tree locations and heights. Multiple views of the same point cloud are shown to illustrate different aspects of interest: (a) plot viewed from an angle to best show stand structure and individual tree canopies and spacing; (b) plot viewed from directly above (at nadir) to best show parallel scan angles, variations in point density, snag and gap distributions, and the absence of returns around multiple snags; (c–e) plot viewed from ground level to best show tree heights and ALS returns across three versions, where (c) includes all returns (colored by height) to highlight a relatively uniform point distribution across vertical heights, as well as show that nearly all live trees were in the upper strata of heights relative to snags; (d) includes first returns only to highlight the notably greater first return densities in the upper canopy; and (e) includes third returns only to highlight that the majority of third returns fell within the midcanopy range, below live tree crowns.
Remotesensing 14 00720 g003
Table
Table 1. Lidar acquisition parameters. The discrete-return airborne lidar (also airborne laser scanning, ALS) data from the two study sites (based on IPNF Ranger Districts: Coeur d’Alene River, CdA; Saint Joe, StJ) were part of a larger acquisition carried out by USFS RMRS in 2016 (see [36] for more details).
Table 1. Lidar acquisition parameters. The discrete-return airborne lidar (also airborne laser scanning, ALS) data from the two study sites (based on IPNF Ranger Districts: Coeur d’Alene River, CdA; Saint Joe, StJ) were part of a larger acquisition carried out by USFS RMRS in 2016 (see [36] for more details).
ParameterSpecification
Date collected12 October 2016
VendorAtlantic Group, LLC
SensorLeica ALS70-HP
Flight altitude1965 m above ground level
Flight speed110 kts
Pulse frequency278 kHz
Scan frequency41 Hz
Scan angle± 30°
Swath width1098 m
Swath overlap50%
Laser wavelength1064 nm
Laser beam divergence0.22 mrad
Vertical accuracy5.9 cm
Footprint diameter43 cm
Nominal pulse density4.2 pulses/m2
Table
Table 2. Airborne lidar-derived metrics used as predictor variables in RF models to classify snag characteristics of snags measured in Idaho coniferous forests. For additional information on equations and ecological significance of each predictor variable, please see Appendix A Table A1.
Table 2. Airborne lidar-derived metrics used as predictor variables in RF models to classify snag characteristics of snags measured in Idaho coniferous forests. For additional information on equations and ecological significance of each predictor variable, please see Appendix A Table A1.
VariableDescription
PTDENPoint density; number of total returns per meter
P1stRNPercent of first returns (out of total returns)
P2ndRNPercent of second returns (out of total returns)
P3rdRNPercent of third returns (out of total returns)
GFPmidGap Fraction Profile (GFP), calculated only for midcanopy heights (every 1m between 5 m and 20 m above ground)
LADcvLeaf Area Density (LAD) coefficient of variance; derived from measures every 2 m across all canopy heights
RUMPLERumple index; roughness of a surface based on ratio between surface area and projected area on the ground
ENTmidEntropy, calculated only for midcanopy heights (between 5 m and 20 m above ground); normalized Shannon diversity and evenness index
VAIVegetation Area Index (VAI); sum of LAD values, derived from measures every 2 m across all canopy heights
VCIVertical Complexity Index (VCI); fixed normalization of entropy across heights, derived from measures every 2 m across all canopy heights
ELEVElevation (in meters), averaged across the 25 m radius reference plot
SLOPESlope (in degrees), averaged across the 25 m radius reference plot
TRASPTransformed aspect (in degrees), averaged across the 25 m radius reference plot
Table
Table 3. Summary statistics by snag class across all snags (n = 198) measured in conifer forests in Idaho, USA. A breakdown of airborne lidar point density (total returns/area) per snag point cloud is included, with mean (µ) and standard deviation (sd) for each snag class. Snags split by study site are not shown, but overall there were more snags at CdA (n = 141) than StJ (n = 63), driven primarily by a greater number of broken top snags in both size classes.
Table 3. Summary statistics by snag class across all snags (n = 198) measured in conifer forests in Idaho, USA. A breakdown of airborne lidar point density (total returns/area) per snag point cloud is included, with mean (µ) and standard deviation (sd) for each snag class. Snags split by study site are not shown, but overall there were more snags at CdA (n = 141) than StJ (n = 63), driven primarily by a greater number of broken top snags in both size classes.
DiameterIntactnessNumber of SnagsPoint Density (µ ± sd)
Small (<40 cm)Intact3513.2 ± 7
Broken4811.2 ± 5
Large (≥40 cm)Intact4412.4 ± 5
Broken7712.4 ± 7
Table
Table 4. Confusion matrices from the top random forest models for classifying snags within conifer forests in Idaho, USA. RF classification used ALS lidar metrics to split snags into groups across known characteristics. There were three RF models used across the full dataset: (a) all snags (split into four classes: “small intact” (SI), “small broken” (SB), “large intact” (LI), and “large broken” (LB); ntrain = 118, ntest = 80); (b) small-diameter snags only (using intactness as a binary class; ntrain = 49, ntest = 33); and (c) large-diameter snags only (using intactness as a binary class; ntrain = 69, ntest = 47). In each table, the matrix on the left shows the number of correct and incorrect classifications per snag class; correct classifications are those where the predicted matched the observed snag class, highlighted in grey on the diagonal. On the right, the accuracy metrics per class are shown in grey: producer’s accuracy (correct/observed sum) and user’s accuracy (correct/predicted sum). Overall accuracy and the kappa statistic are listed in the bottom-left corner of each table, below which are the top three predictor variables for the model (ranked by mean decrease in Gini).
Table 4. Confusion matrices from the top random forest models for classifying snags within conifer forests in Idaho, USA. RF classification used ALS lidar metrics to split snags into groups across known characteristics. There were three RF models used across the full dataset: (a) all snags (split into four classes: “small intact” (SI), “small broken” (SB), “large intact” (LI), and “large broken” (LB); ntrain = 118, ntest = 80); (b) small-diameter snags only (using intactness as a binary class; ntrain = 49, ntest = 33); and (c) large-diameter snags only (using intactness as a binary class; ntrain = 69, ntest = 47). In each table, the matrix on the left shows the number of correct and incorrect classifications per snag class; correct classifications are those where the predicted matched the observed snag class, highlighted in grey on the diagonal. On the right, the accuracy metrics per class are shown in grey: producer’s accuracy (correct/observed sum) and user’s accuracy (correct/predicted sum). Overall accuracy and the kappa statistic are listed in the bottom-left corner of each table, below which are the top three predictor variables for the model (ranked by mean decrease in Gini).
(a) All Snags
Observed
ClassSISBLILBSumProducer’s Accuracy (%)User’s Accuracy (%)
PredictedSI6110835.375.0
SB78322050.040.0
LI11351017.730.0
LB3610234276.754.8
Sum1716173080
Overall accuracy = 50%; kappa = 0.29
Top predictor variables: P3rdRN, LADcv, ELEV
(b) Small Snags Only
Observed
ClassIntactBrokenSumProducer’s Accuracy (%)User’s Accuracy (%)
PredictedIntact1732077.385.0
Broken581372.761.5
Sum221133
Overall accuracy = 76%; kappa = 0.49
Top predictor variables: LADcv, PTDEN, ENTmid
(c) Large Snags Only
Observed
ClassIntactBrokenSumProducer’s Accuracy (%)User’s Accuracy (%)
PredictedIntact2793693.175.0
Broken291150.081.8
Sum291847
Overall accuracy = 77%; kappa = 0.47
Top predictor variables: LADcv, ENTmid, P3rdRN
Table
Table 5. Predictor variable importance from the top random forest models for classifying snags within conifer forests in Idaho, USA. There were three RF models used across the full dataset: (a) all snags (with four classes: “small intact” (SI), “small broken” (SB), “large intact” (LI), and “large broken” (LB)); (b) small-diameter snags only (using intactness as a binary class); and (c) large-diameter snags only (using intactness as a binary class). For the class-specific columns, all scores for each class were adjusted via MIR, where each value was divided by the largest absolute value as a means of standardization across models [46]. The mean decrease in Gini (MDGini) refers to the total decrease in node impurities from splitting on that variable averaged over all RF trees [41]. All rows are sorted by MDGini (indicated by the small down arrow), as this was used to rank predictor variables in terms of overall variable importance.
Table 5. Predictor variable importance from the top random forest models for classifying snags within conifer forests in Idaho, USA. There were three RF models used across the full dataset: (a) all snags (with four classes: “small intact” (SI), “small broken” (SB), “large intact” (LI), and “large broken” (LB)); (b) small-diameter snags only (using intactness as a binary class); and (c) large-diameter snags only (using intactness as a binary class). For the class-specific columns, all scores for each class were adjusted via MIR, where each value was divided by the largest absolute value as a means of standardization across models [46]. The mean decrease in Gini (MDGini) refers to the total decrease in node impurities from splitting on that variable averaged over all RF trees [41]. All rows are sorted by MDGini (indicated by the small down arrow), as this was used to rank predictor variables in terms of overall variable importance.
(a) All Snags
VariableSISBLILBMDGini ↓
P3rdRN−0.530.25−0.131.009.513
LADcv0.06−0.41−0.210.368.105
ELEV0.460.430.07−0.117.636
VAI0.01−0.210.51−0.077.445
VCI−0.25−0.04−0.080.477.365
ENTmid−0.24−0.340.180.147.113
RUMPLE0.000.070.01−0.276.804
GFPmid0.03−0.24−0.09−0.106.022
SLOPE0.280.300.000.095.964
PTDEN−0.44−0.35−0.260.105.827
P1stRN−0.28−0.100.050.174.900
P2ndRN−0.17−0.26−0.240.354.536
TRASP−0.22−0.420.17−0.064.028
(b) Small Snags Only
VariableIntactBrokenMDGini ↓
LADcv0.940.393.60
PTDEN0.980.643.12
ENTmid−0.99−0.342.41
GFPmid−0.52−1.002.29
ELEV0.72−0.111.90
SLOPE−0.14−0.511.81
P1stRN0.04−0.151.78
P3rdRN−0.42−0.041.57
VAI0.37−0.381.56
TRASP−0.51−0.061.19
VCI−0.57−0.471.04
RUMPLE−0.97−0.440.94
P2ndRN−0.93−0.470.82
(c) Large Snags Only
VariableIntactBrokenMDGini ↓
LADcv−0.610.025.34
ENTmid−0.310.013.43
P3rdRN−0.640.272.90
PTDEN−0.45−0.012.37
ELEV−0.32−0.232.25
RUMPLE−0.470.222.19
VCI−0.69−0.102.15
GFPmid−1.00−0.482.15
VAI−0.72−0.382.01
TRASP−0.35−0.151.97
SLOPE−0.270.371.89
P2ndRN−0.550.181.47
P1stRN−0.660.291.16
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Stitt, J.M.; Hudak, A.T.; Silva, C.A.; Vierling, L.A.; Vierling, K.T. Evaluating the Use of Lidar to Discern Snag Characteristics Important for Wildlife. Remote Sens. 2022, 14, 720. https://doi.org/10.3390/rs14030720

AMA Style

Stitt JM, Hudak AT, Silva CA, Vierling LA, Vierling KT. Evaluating the Use of Lidar to Discern Snag Characteristics Important for Wildlife. Remote Sensing. 2022; 14(3):720. https://doi.org/10.3390/rs14030720

Chicago/Turabian Style

Stitt, Jessica M., Andrew T. Hudak, Carlos A. Silva, Lee A. Vierling, and Kerri T. Vierling. 2022. "Evaluating the Use of Lidar to Discern Snag Characteristics Important for Wildlife" Remote Sensing 14, no. 3: 720. https://doi.org/10.3390/rs14030720

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
