Article

Estimating Fractional Snow Cover in Open Terrain from Sentinel-2 Using the Normalized Difference Snow Index

1
CESBIO, Université de Toulouse, CNES/CNRS/INRA/IRD/UPS, 31400 Toulouse, France
2
Centre d’Etudes de la Neige, Université Grenoble Alpes, Université de Toulouse, Météo-France, CNRS, CNRM, 38400 Saint Martin d’Hères, France
3
Magellium, 31400 Toulouse, France
4
Pyrenean Institute of Ecology, CSIC, 50820 Zaragoza, Spain
5
Tenevia, 38240 Meylan, France
6
alpS Research, Institute of Geography, University of Innsbruck, A-6020 Innsbruck, Austria
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(18), 2904; https://doi.org/10.3390/rs12182904
Received: 8 July 2020 / Revised: 27 August 2020 / Accepted: 4 September 2020 / Published: 8 September 2020
(This article belongs to the Special Issue Recent Advances in Cryospheric Sciences)

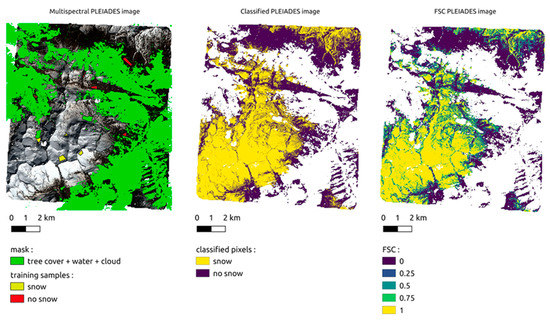

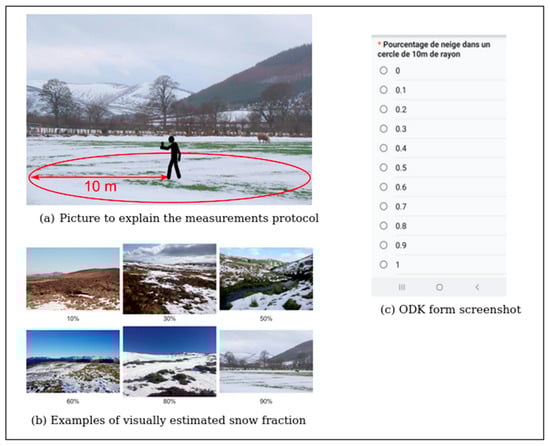

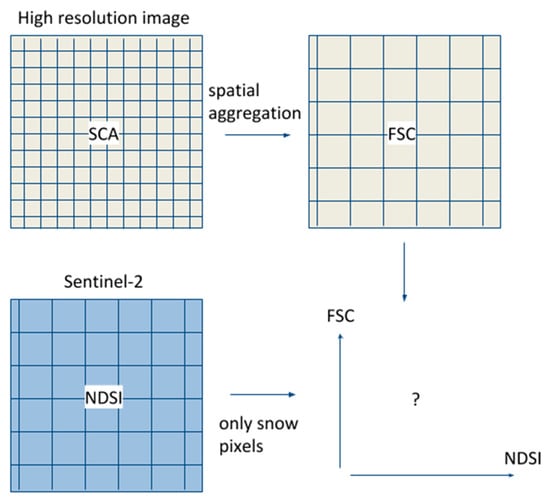

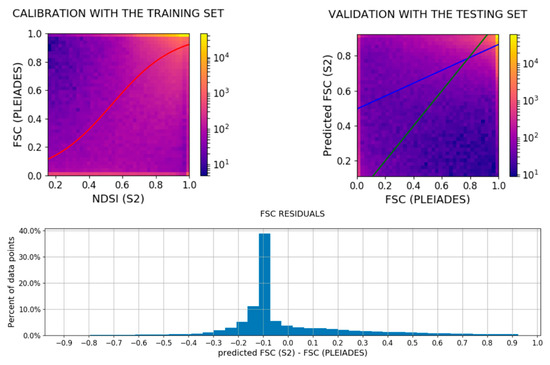

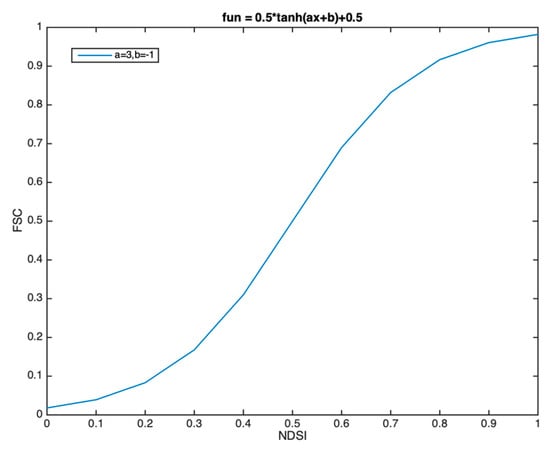

Sentinel-2 provides the opportunity to map the snow cover at unprecedented spatial and temporal resolutions on a global scale. Here we calibrate and evaluate a simple empirical function to estimate the fractional snow cover (FSC) in open terrains using the normalized difference snow index (NDSI) from 20 m resolution Sentinel-2 images. The NDSI is computed from flat surface reflectance after masking cloud and snow-free areas. The NDSI–FSC function is calibrated using Pléiades very high-resolution images and evaluated using independent datasets including SPOT 6/7 satellite images, time lapse camera photographs, terrestrial lidar scans and crowd-sourced in situ measurements. The calibration results show that the FSC can be represented with a sigmoid-shaped function 0.5 × tanh(a × NDSI + b) + 0.5, where a = 2.65 and b = −1.42, yielding a root mean square error (RMSE) of 25%. Similar RMSE are obtained with different evaluation datasets with a high topographic variability. With this function, we estimate that the confidence interval on the FSC retrievals is 38% at the 95% confidence level. View Full-Text
Keywords: snow; snow cover area; fractional snow cover; Sentinel-2 snow; snow cover area; fractional snow cover; Sentinel-2
